NanoHIV: A Bioinformatics Pipeline for Producing Accurate, Near Full-Length HIV Proviral Genomes Sequenced Using the Oxford Nanopore Technology

by
Imogen A. Wright
1,*,
Kayla E. Delaney
1,
Mary Grace K. Katusiime
2,
Johannes C. Botha
1,
Susan Engelbrecht
1,
Mary F. Kearney
2 and
Gert U. van Zyl
1
1
Division of Medical Virology, Stellenbosch University and NHLS Tygerberg, Cape Town 7505, South Africa
2
HIV Dynamic and Replication Program, Center for Cancer Research, National Cancer Institute at Frederick, 1050 Boyles Street, Building 535, Room 109, Frederick, MD 21702-1201, USA
*
Author to whom correspondence should be addressed.
Cells 2021, 10(10), 2577; https://doi.org/10.3390/cells10102577
Submission received: 2 September 2021 / Revised: 22 September 2021 / Accepted: 24 September 2021 / Published: 28 September 2021
(This article belongs to the Special Issue HIV and Host Interactions)
Browse Figures
Versions Notes

Abstract

:
HIV-1 proviral single-genome sequencing by limiting-dilution polymerase chain reaction (PCR) amplification is important for differentiating the sequence-intact from defective proviruses that persist during antiretroviral therapy (ART). Intact proviruses may rebound if ART is interrupted and are the barrier to an HIV cure. Oxford Nanopore Technologies (ONT) sequencing offers a promising, cost-effective approach to the sequencing of long amplicons such as near full-length HIV-1 proviruses, but the high diversity of HIV-1 and the ONT sequencing error render analysis of the generated data difficult. NanoHIV is a new tool that uses an iterative consensus generation approach to construct accurate, near full-length HIV-1 proviral single-genome sequences from ONT data. To validate the approach, single-genome sequences generated using NanoHIV consensus building were compared to Illumina® consensus building of the same nine single-genome near full-length amplicons and an average agreement of 99.4% was found between the two sequencing approaches.

1. Introduction

As of 2019, 38 million people are living with HIV [1]. Although the introduction of early and effective antiretroviral therapy (ART) has led to significant declines in transmissions, morbidity, and mortality, HIV remains incurable in the large majority of individuals. Moreover, adherence challenges and the development of drug resistance threaten the long-term success of ART [2,3]. Therefore, investigating potential future HIV cures and developing and assessing the most durable therapies continue to be a priority for HIV research. Genomic characterization of HIV is an essential component of this research and relies on PCR followed by Sanger or next generation sequencing (NGS) [4,5]. Longitudinal characterization of single HIV genomes at limiting dilution enables one to investigate viral adaptation under immune and drug pressure and to monitor HIV persistence in long-lived and proliferating cell populations.
HIV infection in most susceptible cells leads to active replication with viral release and cell death. However, a small subset of infected cells persist and carry intact proviruses that are hidden from the immune response and unaffected by ART [6,7], known as the latent reservoir. The latent reservoir is the major barrier to an HIV cure in well-treated individuals. To provide an in-depth analysis of the latent reservoir, novel near full-length (NFL) proviral amplification and single-genome sequencing assays have been developed. These assays overcome the limitations of sub-genomic sequencing which do not account for large internal deletions or deleterious mutations outside of the target region [8,9,10,11,12]. NFL proviral sequencing involves limiting dilution of PCR using primers targeting the outermost gag leader and long-terminal repeat (LTR) regions of the viral genome resulting in ~9 kb fragments that are about 92% of the proviral genome. NGS via Illumina® sequencing is the most established method and is followed by the assembly of sequence reads to a genetically intact reference to assess the presence of frameshifts, inversions, premature stop codons or large internal deletions that could render these proviruses defective [10,11,12,13].
A high through-put, efficient and standardized bioinformatic pipeline that assembles full-length proviral genomes is vital to increasing our understanding of the genomic composition and dynamics of infected cells that persist during ART. For instance, little is known about the correlation between immune escape variants amongst integrated, sequence-intact proviruses and circulating plasma viruses [14]. Generating long-read viral envelope sequences would also enable the assessment of viral diversity, cellular tropism and escape from neutralizing antibodies, especially in underrepresented populations with a high disease burden [15,16]. In addition, long sequence reads that include the variable loops of the envelope gene would provide sensitive detection of viral evolution and compartmentalization in central nervous system (CNS) and other tissues [17,18,19].
New evidence suggests that ART resistance may be conferred by HIV mutations outside the drug target gene. For example, mutations located in the polypurine tract (PPT) [20] and in the gp120 and gp41 interface [21] can confer resistance to dolutegravir, an HIV-1 integrase strand transfer inhibitor (INSTIs). Investigating these mechanisms in ART-treated cohorts requires long-read sequencing that should be both cost-effective and scalable.
The ability to generate long-read lengths has largely been facilitated by third-generation sequencing technologies such as those developed by Pacific Biosciences (PacBio) and Oxford Nanopore Technologies (ONT). These sequencing approaches have overcome various shortcomings observed in Sanger and Illumina® sequencing. Whereas Sanger sequencing offers a fast-sequencing method for low numbers of targets, second-generation sequencing, or NGS, including Illumina®, offers massively parallel, accurate and cost-effective sequencing. However, the most significant shortcoming of both Sanger and Illumina® sequencing is the short-read lengths of up to 1000 bp [22]. Despite these methods being relatively accurate, the generation of short reads make resolving repetitive regions in genomes difficult [23,24,25]. Third-generation sequencing offers unique approaches and chemistries enabling long-read (>10 kb) sequencing of nucleic acid molecules in real-time and at high resolution. Moreover, these technologies could preserve base modifications when sequencing native DNA thereby avoiding the bias introduced by primers utilized in Sanger sequencing. Long read sequencing also improves de novo assemblies of complex genomes including repetitive regions, improves mapping certainty and enables the detection of structural variants [22,23,24,25,26].
Major technical differences separate PacBio’s single-molecule, real-time (SMRT) sequencing technology and ONT’s nanopore sequencing. SMRT sequencing derives the nucleotide sequence by detecting fluorescence events that correspond to the incorporation of four fluorescently-labelled nucleotides by a DNA polymerase that is affixed within a zero-mode waveguide (ZWM) on a SMRT Cell [27,28]. SMRT is often the preferred third-generation sequencing method due to the reported lower error rate [24,25]. The SMRTbell library preparation, which involves the ligation of hairpin adaptors to the ends of double-stranded DNA fragments, allows the circular DNA library template to be re-sequenced multiple times to increase read accuracy through circular consensus sequencing (CCS). However, the read length and number of passes of the SMRTbell library are limited by the processivity of the DNA polymerase enzyme that is utilized in the sequencing reaction and, therefore, shorter library inserts are preferentially sequenced [24]. In addition, CCS reads retain errors and exhibit a bias for insertions and deletions in homopolymer regions [25].
In contrast, ONT sequencing measures the changes in ionic current that occur across an electrically resistant polymer membrane as single-stranded nucleic acids pass through biological nanopores that are present on a flow cell. The nucleic acid sequence is inferred as resistance is dependent on which nucleotide bases occupy and surround the pore which is measured by an arrayed sensor chip and passed to an Application-Specific Integrated Circuit (ASIC) [25,29]. ONT sequencing provides the longest read lengths of all sequencing technologies, with library inserts of 10,000 to 30,000 bp commonly reported and the most recent record read length being 43 Gb [30]. Despite the long-read length capabilities; insertions, deletions and substitutions are frequently observed in ONT sequencing data which is influenced by the biological nanopore present on the flow cell. Resolving low-complexity stretches and homopolymer sequences is difficult as the current that is measured is a function of the particular k-mer that resides in the nanopore at the time and, because translocation of homopolymers does not change the sequence of the nucleotides within the pore, it results in a constant signal that makes determining homopolymer length difficult. To overcome this difficulty, ONT has developed novel R10 pores which differ from prior R9 pores in having a longer barrel and dual reader head which improves read accuracy over homopolymer regions substantially [31].
Data generated by conventional ONT displays a higher per-base error rate when compared to sequencing data generated by non-single-molecule sequencing such as Illumina® [32] or IonTorrent [33,34]. The simplest, most cost-effective but also most error-prone mode on which to run an ONT sequencing reaction is the “1D” mode, where each strand of DNA is passed through the pore only once [25]. Raw signal generated by R9 and R10 pores is converted to a string of bases by the Guppy basecaller (v 2.2.2.1). However, both pore types display a raw per-base error rate of about 5% in 1D mode [31,35,36].
For well-conserved genomes (or genome regions) high read coverage alone could overcome most sequencing errors. Sequencing reads are first aligned to the reference genome using an ONT-specific reference mapping tool such as minimap2 [25]. A consensus sequence can then be produced by calling the majority base at each position with a tool such as samtools pileup [36]. This approach corrects random insertions and substitutions, but cannot entirely remove more systematic errors in ONT data, such as homopolymer errors [24,25,37].
HIV-1, however, has regions such as the variable loops in the envelope gene (Env) that are very poorly conserved across subtypes and even within subtypes and within donors [38,39]. In these regions, it is difficult or impossible to produce a high-quality alignment of an ONT read to a reference sequence using tools such as minimap2, because true variation, including insertions and deletions, is indistinguishable from sequencing errors, especially for homopolymer regions [40]. This problem can potentially be addressed by a de novo assembly approach using tools such as Canu [41]. De novo assembly does not require a reference genome and its accuracy is not affected by the intra-variant heterogeneity of HIV-1. However, this approach is computationally expensive and not guaranteed to succeed. De novo assembly is not an exact method, and early assumptions in de Bruijn graph formation caused by sequencing errors can result in the formation of false contigs [42].
These problems, while most significant in ONT data, are also present when sequencing HIV-1 data using other platforms. The tool SHIVER, designed to be used with data from the Illumina® [43], solves this problem using a hybrid de novo assembly approach, where de novo contigs are aligned to create a draft consensus, to which the original sequencing reads are then aligned to refine the consensus, check its accuracy and remove false contigs. This approach requires several manual steps and is not ideal for high-throughput use.
Here, we present the new NanoHIV tool, a novel method for generating HIV-1 consensus sequences from ONT data. NanoHIV uses a bootstrap approach to refine a consensus sequence, including the refinement of variable regions, by first constructing a consensus sequence built from only highly conserved regions and then refining it by including variable regions from long reads as insertions.

2. Data Generation

2.1. Inclusion Criteria & Data Collection

Nine children from the Children with HIV Early Antiretroviral Therapy (CHER) cohort who initiated ART between ages 1.7 and 11.1 months were selected for investigation (Table 1). The participants were selected on the basis of having a total HIV-1 DNA count above 40 copies/106 PBMC [44,45]. At the time of testing, the participants had been on ART for 6–9 years. Furthermore, these participants were selected based on the probability of obtaining intact proviral genomes. Previously, Katusiime et al. identified seven intact NFL proviral genomes from three of the nine children using Illumina® MiSeq™ sequencing [12]. These seven intact genomes were sequenced in the current study with ONT. In addition, two HIV genomes known to be defective were included in the analysis. The therapeutic histories and the respective number of proviral genomes in the participants selected for ONT sequencing are shown below.

2.2. Near Full-Length Amplicon Generation

The methods described in Katusiime et al. [12] were used to generate amplicons for Illumina® MiSeq™ and ONT sequencing. In brief, genomic DNA was extracted from peripheral blood mononuclear cells (PBMCs), diluted to a proviral endpoint and single HIV genomes were amplified with a nested near full-length (NFL) PCR using Ranger mix (Bioline, London, UK). The initial amplifications were performed using previously described primers with minor modifications to allow for HIV-1 subtype C amplification as shown in Table 2; the pre-nested primer set included Li_OuterF and Li_OuterR; the nested primer set used Li_InnerF and Li_InnerR [46] to generate amplicons of 8.8 kb. However, the protocol was later adapted as a hemi-nested PCR approach, where the first round PCR remained unchanged while the second round PCR was performed using a newly designed primer, NFL_alt_in_F [12] and Li_OuterR to amplify an important region of HIV that included the packaging signal (Table 2), as this region was recently shown to be essential for replication competence [47]. Amplicons resulting from the adapted NFL approach measuring approximately 9 kb were used for single-genome sequencing.

2.3. MiSeq™ Library Preparation

MiSeq™ library preparation and sequencing were performed at the Institute for Microbial Biotechnology and Metagenomics (IMBM) at the University of Western Cape. The Illumina® Nextera DNA library prep kit (Illumina, San Diego, CA, USA) was used as previously described [12]. In brief, DNA was enzymatically fragmented and adapters added to the template. The DNA was then purified and amplified by PCR that indexed the samples by adding different primer pairs to individual samples. The 300 cycle V2 MiSeq™ Reagent kit (Illumina, San Diego, CA, USA) was used to sequence the library.

2.4. Bioinformatic Analysis of MiSeq Data

After sequencing, all reads with the same identifying index were assembled to form a consensus sequence. The sequences were then subjected to checks for viral intactness using the HIVIntact intactness pipeline [48]. Sequences were first checked for correct size (8.8 kb). Next, sequences that appeared to be mixed templates were detected and eliminated from further analysis. The remaining sequences were then translated to allow further analysis of the nine viral open reading frames (ORFs). A sequence was determined to be intact if, within these ORFs, there were no stop codons, frameshift mutations, hypermutations or deletions that could preclude viral infectivity.

2.5. Oxford Nanopore Technologies GridION Sequencing

Seven intact and two defective HIV-1 proviruses identified through the analysis of the Illumina® MiSeq™ sequencing data [12] were selected for ONT sequencing. Using the high-fidelity Ranger Mix enzyme, the pre-nested PCR products corresponding to the identified intact or defective products were used to generate additional NFL amplicons for ONT sequencing [12].

2.6. ONT Library Preparation

The newly generated NFL amplicons were purified with AMPure XP paramagnetic beads (Beckman Coulter, Brea, CA, USA) (AMPure XP beads) using an optimized amplicon to bead ratio of 1:0.8 to ensure purification of products > 1.5 kb. Two wash steps were performed using freshly-prepared 80% ethanol and the bound DNA was eluted in 5 mM Tris-HCl. The purity and concentration of the purified NFL amplicons were measured using the NanoDrop™ 1000 Spectrophotometer (Thermo Scientific, Waltham, MA, USA).
The Amplicons by Ligation protocol (Oxford Nanopore Technologies, Oxford, UK, 2019) (ACDE_9064 _v109_revN_14Aug2019) provided by ONT was followed with minor modifications to prepare the DNA library for sequencing. Freshly-prepared 80% ethanol was used for the purification wash steps and the drying time of the bead pellet prior to elution was lengthened as needed until a change in appearance from shiny to matte was observed. Following the ligation of ONT’s sequencing adaptors, ONT’s Long Fragment Buffer was used for the final wash. The bead pellet was incubated at 37 °C for 10 min to increase DNA recovery of the longer NFL HIV fragments. The concentration and purity of the prepared DNA library was measured with the Qubit™ 2.0 Fluorometer and the NanoDrop™ 1000 Spectrophotometer, respectively.

2.7. ONT Sequencing Conditions

FLO-MIN106D flow cells with R9.4.1 pores were primed using the reagents from the Flow Cell Priming Kit (EXP-FLP002) and following the instructions in ONT’s Amplicons by Ligation protocol. The final steps in the DNA library preparation were completed immediately before the prepared library was loaded into the SpotON port of the flow cell as described in the protocol. A new flow cell was used for each sequencing reaction, and a total of nine flow cells were used.
The following sequencing parameters were selected for all sequencing runs; DNA sequencing with SQK-LSK109, fast-basecalling, FAST5 and FASTQ files were selected as sequence data outputs and MinKNOW Release 19.10.2 or 19.12.2 software was used. The duration of the run was left as standard and the run was stopped when the sequencing throughput declined and sufficient nanopores were no longer available for successful sequencing.

3. Pipeline Description

The NanoHIV tool takes a folder of ONT FAST5 pore signal data from a single-molecule ONT HIV-1 experiment, and the resulting called FASTQ reads, as input. The FAST5 data are used to call variants and correct homopolymers, while the FASTQ reads are used for reference mapping.
The pipeline involves three mapping steps using minimap2 (v 2.17) [49] with different settings for each step (Figure 1). The samtools sorting and indexing functions are then used to sort the resulting SAM format files [50,51]. After each mapping step, the nanopolish consensus generation tool (v 0.11.3) is used to correct homopolymer errors and generate a file in the variant calling format (VCF) [52,53]. Finally, the nanopolish tool vcf2fasta is used to generate a final consensus sequence. In the first round of consensus generation, minimap2 is used with default settings. This step results in a consensus sequence where conserved regions represent the target DNA and non-conserved regions represent the consensus sequence. In this case, a subtype C consensus (GenBank ID AY772699.1) was chosen as a starting point, as this subtype is most likely to be detected in South Africa. The next round of consensus generation involves mapping the ONT reads to the consensus sequence generated in round 1, except with a gap opening and gap extension penalty 1/10th of the default setting. This round results in the long ONT reads spanning the HIV-1 variable loops (V1, V2, and V3) and other highly variable regions of the genome being aligned with a deletion of the entire region in the consensus sequence and an insertion of the entire region in the read. The final round of consensus generation involves taking the consensus sequence from round two and remapping the original ONT reads a third time. This final round corrects any additional false insertions or deletions created by round two.

4. Results

To validate our NanoHIV pipeline, we compared the HIV-1 consensus sequences generated from the 7 intact and 2 defective proviral genomes collected from four children in the CHER cohort using ONT and NanoHIV against consensus sequences generated from the same samples using an Illumina® sequencer and the SHIVER pipeline. The mean similarity of mapped Illumina reads to the relevant Illumina consensus sequence was 98.9%, while the mean similarity of mapped ONT reads to the relevant consensus sequence was 92.1%. These figures are likely to be higher than the true similarity, paricularly for ONT reads, as they do not include very dissimilar reads rejected by the mapping algorithm.
In general, good agreement was found between the Illumina® and ONT data. ONT sequences were slightly more similar to each other than Illumina® sequences, both within and across donors. Pairs of Illumina® sequences from the same donor were on average 99.0% similar, while pairs of ONT sequences from the same donor were on average 99.6% similar. Pairs of Illumina® sequences from different donors were on average 90.8% similar, while pairs of ONT sequences from different donors were on average 91.6% similar. These findings suggest a bias in one or both pipelines. However, it cannot be easily determined whether ONT sequences are more similar due to too few high-quality variant bases being used to edit the original reference sequence, or whether artificial variants are introduced into Illumina® sequences due to the de novo assembly step of the SHIVER pipeline. The genetic distance between ONT/Illumina® pairs of sequences ranged from 98.6–99.7%, with a mean of 99.4% (Table 3).
We generated a phylogenetic tree from the sequence pairs and found good clustering in general. Several of the samples contained HIV genomes that were very close in genetic distance and, in these cases, the ONT sequences were likely to cluster closer together than the Illumina® sequences (Figure 2). In particular, the P5D4 sample had coverage issues with the ONT method leaving too much of the original reference sequence in the final consensus. This failing, in turn, caused P5D4 to cluster closer to the P1C8 sample consensus than to its matching Illumina® consensus.

5. Pipeline and Data Availability

The full pipeline has been implemented in Python 3, and can be run on any local machine or cluster that has minimap2 (v 2.17) [49], samtools (v 1.10) [50] and nanopolish (v 0.11.3) [52,53] in the path. The scripts are available for download via a GitHub repository at https://github.com/ramics/NanoHIV. The authors welcome contributions to the project.
The raw ONT sequencing reads have been uploaded to the NCBI Sequence Read Archive (https://www.ncbi.nlm.nih.gov/sra) and can be found at BioProject ID PRJNA765218.

6. Discussion

We have developed a new bioinformatics pipeline ‘NanoHIV’ which aims to overcome ONT sequencing error for highly variable genomes. Good agreement was found between ONT HIV-1 consensus sequences generated using NanoHIV and equivalent Illumina® MiSeq™ sequences generated using SHIVER.
There are several advantages to ONT sequencing. It has the longest read length of all platforms. Three platform sizes offer flexibility of throughput, scalability and portability. Native DNA or RNA can be sequenced directly, providing epigenetic information. There are many library preparation methods including a convenient rapid 10-min library preparation method. The initial investment for ONT sequencing devices is less than PacBio’s SMRT sequencers. Furthermore, the sequencing cost per sample can be reduced by utilising a ‘read-until’ approach, where the sequencing run is terminated once sufficient coverage has been achieved. Sequencing costs can further be reduced by washing and reusing flow cells with sufficient active nanopores (≥800 as recommended by ONT) and multiplexing samples on a single flow cell. Oxford nanopore sequencing is the only real-time sequencing platform that allows for analysis without terminating the sequencing run, allowing for rapid diagnosis which could be useful in clinical and resource-limited settings [25,55,56]. Nevertheless, the high read error reduces the utility of ONT for variable genomes and requires novel solutions. Here, we present the development of a novel bioinformatics pipeline, NanoHIV, developed for and validated against highly variable HIV-1 single-genome sequences.
The fact that ONT sequences were still likely to cluster more closely together than Illumina® sequences in a phylogenetic analysis may indicate that too much of the original HIV-1 reference sequence is being included in each ONT consensus sequence, causing those sequences to appear more similar than they are in reality. It is also possible that a mirrored issue in the SHIVER pipeline caused the Illumina® sequences to cluster too closely together.
NanoHIV was also assessed in an environment where the likely HIV-1 subtype, subtype C, was known, and an appropriate reference sequence could be chosen. Further work should be undertaken to ensure that NanoHIV is accurate when the HIV-1 subtype of the reference differs significantly from the subtype of the sequenced data.
Other approaches have recently been used to reduce ONT post-analytic error. For example, pre-sequencing circularization of amplicons followed by generation and sequencing of linear concatemers, an approach reminiscent SMRTbell library circularization, has shown 99.9% post-analytical sequencing accuracy of highly variable HIV quasispecies [57]. Moreover, new algorithms that take into account translocation time through pores may improve homopolymer length determination [58].
Additional improvements on NanoHIV could be considered in the future. A hybrid assembly step to scaffold insertions in the ONT consensus sequence, similar to the SHIVER approach, could remove any remaining reference bases in the consensus, which may expand the NanoHIV pipeline.
The NanoHIV pipeline has only been used on ONT data for HIV-1 to date, but is not limited to HIV-1 single-genome sequencing, and could be expanded to create single-molecule consensus sequences for other variable viruses, such as hepatitis C or influenza A viruses.

Author Contributions

G.U.v.Z. and M.F.K. proposed the project. K.E.D. and M.G.K.K. performed the HIV single genome amplification and sequencing. I.A.W. developed the bioinformatics pipeline. J.C.B. and S.E. provided experimental advice. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the U.S. National Institutes of Health and South African Medical Research Council through its U.S.-SA Program for Collaborative Biomedical Research, National Cancer Institute Grant no. U01CA200441. This study was supported in part with intramural NCI and OAR funds to MFK. The APC was funded by the NCI.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Health Research Ethics Committee of Stellenbosch University (N18/02/020; approved since 22 January 2020).

Informed Consent Statement

Informed consent was obtained from the legal guardians of all subjects involved in the study.

Data Availability Statement

The scripts are available for download via a GitHub repository at https://github.com/ramics/NanoHIV. The authors welcome contributions to the project.

Conflicts of Interest

The authors declare no conflict of interest. The content and findings reported/illustrated herein are the sole deduction, view and responsibility of the researchers and do not reflect the official position and sentiments of the NIH and SAMRC.

References

  1. UNAIDS. Global HIV & AIDS Statistics—2020 Fact Sheet; UNAIDS: Geneve, Switzerland, 2020. [Google Scholar]
  2. The INSIGHT START Study Group; INSIGHT START Study Group; Lundgren, J.D.; Babiker, A.G.; Gordin, F.; Emery, S.; Grund, B.; Sharma, S.; Avihingsanon, A.; Cooper, D.A.; et al. Initiation of Antiretroviral Therapy in Early Asymptomatic HIV Infection. N. Engl. J. Med. 2015, 373, 795–807. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Eisinger, R.W.; Dieffenbach, C.W.; Fauci, A.S. HIV Viral Load and Transmissibility of HIV Infection: Undetectable Equals Untransmittable. JAMA 2019, 321, 451–452. [Google Scholar] [CrossRef] [PubMed]
  4. Arias, A.; López, P.; Sánchez, R.; Yamamura, Y.; Rivera-Amill, V. Sanger and Next Generation Sequencing Approaches to Evaluate HIV-1 Virus in Blood Compartments. Int. J. Environ. Res. Public Health 2018, 15, 1697. [Google Scholar] [CrossRef] [Green Version]
  5. Ávila-Ríos, S.; Parkin, N.; Swanstrom, R.; Paredes, R.; Shafer, R.; Ji, H.; Kantor, R. Next-Generation Sequencing for HIV Drug Resistance Testing: Laboratory, Clinical, and Implementation Considerations. Viruses 2020, 12, 617. [Google Scholar] [CrossRef] [PubMed]
  6. Chun, T.-W.; Stuyver, L.; Mizell, S.B.; Ehler, L.A.; Mican, J.A.M.; Baseler, M.; Lloyd, A.L.; Nowak, M.A.; Fauci, A.S. Presence of an inducible HIV-1 latent reservoir during highly active antiretroviral therapy. Proc. Natl. Acad. Sci. USA 1997, 94, 13193–13197. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Chun, T.-W.; Engel, D.; Berrey, M.; Shea, T.; Corey, L.; Fauci, A.S. Early establishment of a pool of latently infected, resting CD4+ T cells during primary HIV-1 infection. Proc. Natl. Acad. Sci. USA 1998, 95, 8869–8873. [Google Scholar] [CrossRef] [Green Version]
  8. Ho, Y.-C.; Shan, L.; Hosmane, N.N.; Wang, J.; Laskey, S.B.; Rosenbloom, D.I.S.; Lai, J.; Blankson, J.N.; Siliciano, J.D.; Siliciano, R.F. Replication-competent noninduced proviruses in the latent reservoir increase barrier to HIV-1 cure. Cell 2013, 155, 540–551. [Google Scholar] [CrossRef] [Green Version]
  9. Bruner, K.M.; Murray, A.J.; Pollack, R.A.; Soliman, M.G.; Laskey, S.B.; Capoferri, A.A.; Lai, J.; Strain, M.C.; Lada, S.M.; Hoh, R.; et al. Defective proviruses rapidly accumulate during acute HIV-1 infection. Nat. Med. 2016, 22, 1043–1049. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Hiener, B.; Horsburgh, B.A.; Eden, J.S.; Barton, K.; Schlub, T.E.; Lee, E.; von Stockenstrom, S.; Odevall, L.; Milush, J.M.; Liegler, T.; et al. Identification of Genetically Intact HIV-1 Proviruses in Specific CD4+T Cells from Effectively Treated Participants. Cell Rep. 2017, 21, 813–822. [Google Scholar] [CrossRef] [Green Version]
  11. Pinzone, M.R.; VanBelzen, D.J.; Weissman, S.; Bertuccio, M.P.; Cannon, L.; Venanzi-Rullo, E.; Migueles, S.; Jones, R.B.; Mota, T.; Joseph, S.B.; et al. Longitudinal HIV sequencing reveals reservoir expression leading to decay which is obscured by clonal expansion. Nat. Commun. 2019, 10, 728. [Google Scholar] [CrossRef]
  12. Katusiime, M.G.; Halvas, E.K.; Wright, I.; Joseph, K.; Bale, M.J.; Kirby-McCullough, B.; Engelbrecht, S.; Shao, W.; Hu, W.-S.; Cotton, M.F.; et al. Intact HIV Proviruses Persist in Children Seven to Nine Years after Initiation of Antiretroviral Therapy in the First Year of Life. J. Virol. 2020, 94, 1519–1538. [Google Scholar] [CrossRef]
  13. Halvas, E.K.; Joseph, K.W.; Brandt, L.D.; Guo, S.; Sobolewski, M.D.; Jacobs, J.L.; Tumiotto, C.; Bui, J.K.; Cyktor, J.C.; Keele, B.F.; et al. HIV-1 viremia not suppressible by antiretroviral therapy can originate from large T cell clones producing infectious virus. J. Clin. Investig. 2020, 130, 5847–5857. [Google Scholar] [CrossRef] [PubMed]
  14. Warren, J.A.; Zhou, S.; Xu, Y.; Moeser, M.J.; MacMillan, D.R.; Council, O.; Kirchherr, J.; Sung, J.M.; Roan, N.R.; Adimora, A.A.; et al. The HIV-1 latent reservoir is largely sensitive to circulating T cells. eLife 2020, 9, e57246. [Google Scholar] [CrossRef] [PubMed]
  15. Carter, C.C.; Wagner, G.A.; Hightower, G.K.; Caballero, G.; Phung, P.; Richman, D.D.; Pond, S.L.K.; Smith, D.M. HIV-1 neutralizing antibody response and viral genetic diversity characterized with next generation sequencing. Virology 2015, 474, 34–40. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Behrens, N.; Love, M.; Bandlamuri, M.; Bernhardt, D.; Wertheimer, A.; Klotz, S.; Ahmad, N. Characterization of HIV-1 Envelope V3 Region Sequences from Virologically Controlled HIV-Infected Older Patients on Long Term Antiretroviral Therapy. AIDS Res. Hum. Retroviruses 2021, 37, 233–245. [Google Scholar] [CrossRef]
  17. Tovanabutra, S.; Sirijatuphat, R.; Pham, P.T.; Bonar, L.; Harbolick, E.A.; Bose, M.; Song, H.; Chang, D.; Oropeza, C.; O’Sullivan, A.M.; et al. Deep Sequencing Reveals Central Nervous System Compartmentalization in Multiple Transmitted/Founder Virus Acute HIV-1 Infection. Cells 2019, 8, 902. [Google Scholar] [CrossRef] [Green Version]
  18. Brese, R.L.; Gonzalez-Perez, M.P.; Koch, M.; O’Connell, O.; Luzuriaga, K.; Somasundaran, M.; Clapham, P.R.; Dollar, J.J.; Nolan, D.J.; Rose, R.; et al. Ultradeep single-molecule real-time sequencing of HIV envelope reveals complete compartmentalization of highly macrophage-tropic R5 proviral variants in brain and CXCR4-using variants in immune and peripheral tissues. J. Neurovirol. 2018, 24, 439–453. [Google Scholar] [CrossRef]
  19. Kariuki, S.M.; Selhorst, P.; Anthony, C.; Matten, D.; Abrahams, M.-R.; Martin, D.P.; Ariën, K.K.; Rebe, K.; Williamson, C.; Dorfman, J.R. Compartmentalization and Clonal Amplification of HIV-1 in the Male Genital Tract Characterized Using Next-Generation Sequencing. J. Virol. 2020, 94, e00229-20. [Google Scholar] [CrossRef]
  20. Malet, I.; Subra, F.F.; Charpentier, C.; Collin, G.; Descamps, D.; Calvez, V.; Marcelin, A.-G.A.-G.; Delelis, O. Mutations Located outside the Integrase Gene Can Confer Resistance to HIV-1 Integrase Strand Transfer Inhibitors. mBio 2017, 8, e00922-17. [Google Scholar] [CrossRef] [Green Version]
  21. Hikichi, Y.; Van Duyne, R.; Pham, P.; Groebner, J.L.; Wiegand, A.; Mellors, J.W.; Kearney, M.F.; Freed, E.O. Mechanistic analysis of the broad antiretroviral resistance conferred by hiv-1 envelope glycoprotein mutations. mBio 2021, 12, e03134-20. [Google Scholar] [CrossRef]
  22. Weirather, J.L.; de Cesare, M.; Wang, Y.; Piazza, P.; Sebastiano, V.; Wang, X.-J.; Buck, D.; Au, K.F. Comprehensive comparison of Pacific Biosciences and Oxford Nanopore Technologies and their applications to transcriptome analysis. F1000Research 2017, 6, 100. [Google Scholar] [CrossRef] [PubMed]
  23. Rhoads, A.; Au, K.F. PacBio Sequencing and Its Applications. Genom. Proteom. Bioinform. 2015, 13, 278–289. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Amarasinghe, S.L.; Su, S.; Dong, X.; Zappia, L.; Ritchie, M.E.; Gouil, Q. Opportunities and challenges in long-read sequencing data analysis. Genome Biol. 2020, 21, 30. [Google Scholar] [CrossRef] [Green Version]
  25. Lu, H.; Giordano, F.; Ning, Z. Oxford Nanopore MinION Sequencing and Genome Assembly. Genom. Proteom. Bioinform. 2016, 14, 265–279. [Google Scholar] [CrossRef] [Green Version]
  26. Wenger, A.M.; Peluso, P.; Rowell, W.J.; Chang, P.C.; Hall, R.J.; Concepcion, G.T.; Ebler, J.; Fungtammasan, A.; Kolesnikov, A.; Olson, N.D.; et al. Highly-accurate long-read sequencing improves variant detection and assembly of a human genome. bioRxiv 2019. [Google Scholar] [CrossRef] [Green Version]
  27. Quainoo, S.; Coolen, J.P.; van Hijum, S.A.; Huynen, M.A.; Melchers, W.J.; van Schaik, W.; Wertheim, H.F. Whole-Genome Sequencing of Bacterial Pathogens : The Future of Nosocomial. Clin. Microbiol. Rev. 2017, 30, 1015–1064. [Google Scholar] [CrossRef] [Green Version]
  28. Eid, J.; Fehr, A.; Gray, J.; Luong, K.; Lyle, J.; Otto, G.; Peluso, P.; Rank, D.; Baybayan, P.; Bettman, B.; et al. Real-time DNA sequencing from single polymerase molecules. Science 2009, 323, 133–138. [Google Scholar] [CrossRef]
  29. Jain, M.; Olsen, H.E.; Paten, B.; Akeson, M. The Oxford Nanopore MinION: Delivery of nanopore sequencing to the genomics community. Genome Biol. 2016, 17, 239. [Google Scholar] [CrossRef] [Green Version]
  30. Meyer, A.; Schloissnig, S.; Franchini, P.; Du, K.; Woltering, J.; Irisarri, I.; Wong, W.Y.; Nowoshilow, S.; Kneitz, S.; Kawaguchi, A.; et al. Giant lungfish genome elucidates the conquest of land by vertebrates. Nature 2021, 590, 284–289. [Google Scholar] [CrossRef]
  31. Brown, C. Nanopore Community Meeting 2019 Technology Update. In Proceedings of the Nanopore Community Meeting 2019 Technology Update; Oxford Nanopore Technologies, Resource Centre, 2019. Available online: https://nanoporetech.com/resource-centre/nanopore-community-meeting-2019-technology-update (accessed on 15 July 2020).
  32. Pfeiffer, F.; Gröber, C.; Blank, M.; Händler, K.; Beyer, M.; Schultze, J.L.; Mayer, G. Systematic evaluation of error rates and causes in short samples in next-generation sequencing. Sci. Rep. 2018, 8, 10950. [Google Scholar] [CrossRef] [Green Version]
  33. Fujita, S.; Masago, K.; Okuda, C.; Hata, A.; Kaji, R.; Katakami, N.; Hirata, Y. Single nucleotide variant sequencing errors in whole exome sequencing using the ion proton system. Biomed. Rep. 2017, 7, 17–20. [Google Scholar] [CrossRef] [Green Version]
  34. Singh, A.; Bhatia, P. Comparative sequencing data analysis of Ion Torrent and MinION sequencing platforms using a clinical diagnostic haematology panel. Int. J. Lab. Hematol. 2020, 42, 833–841. [Google Scholar] [CrossRef] [PubMed]
  35. Oude Munnink, B.B.; Nieuwenhuijse, D.F.; Sikkema, R.S.; Koopmans, M. Validating whole genome nanopore sequencing, using USUTU virus as an example. J. Vis. Exp. 2020, 2020, 60906. [Google Scholar] [CrossRef] [Green Version]
  36. Krishnakumar, R.; Sinha, A.; Bird, S.W.; Jayamohan, H.; Edwards, H.S.; Schoeniger, J.S.; Patel, K.D.; Branda, S.S.; Bartsch, M.S. Systematic and stochastic influences on the performance of the MinION nanopore sequencer across a range of nucleotide bias. Sci. Rep. 2018, 8, 3159. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Kono, N.; Arakawa, K. Nanopore sequencing: Review of potential applications in functional genomics. Dev. Growth Differ. 2019, 61, 316–326. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Lynch, R.M.; Shen, T.; Gnanakaran, S.; Derdeyn, C.A. Appreciating HIV type 1 diversity: Subtype differences in env. AIDS Res. Hum. Retroviruses 2009, 25, 237–248. [Google Scholar] [CrossRef] [PubMed]
  39. Patel, M.B.; Hoffman, N.G.; Swanstrom, R. Subtype-Specific Conformational Differences within the V3 Region of Subtype B and Subtype C Human Immunodeficiency Virus Type 1 Env Proteins. J. Virol. 2008, 82, 903–916. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Rang, F.J.; Kloosterman, W.P.; de Ridder, J. From squiggle to basepair: Computational approaches for improving nanopore sequencing read accuracy. Genome Biol. 2018, 19, 90. [Google Scholar] [CrossRef] [Green Version]
  41. Koren, S.; Walenz, B.P.; Berlin, K.; Miller, J.R.; Bergman, N.H.; Phillippy, A.M. Canu: Scalable and accurate long-read assembly via adaptive κ-mer weighting and repeat separation. Genome Res. 2017, 27, 722–736. [Google Scholar] [CrossRef] [Green Version]
  42. Li, Z.; Chen, Y.; Mu, D.; Yuan, J.; Shi, Y.; Zhang, H.; Gan, J.; Li, N.; Hu, X.; Liu, B.; et al. Comparison of the two major classes of assembly algorithms: Overlap-layout-consensus and de-bruijn-graph. Brief. Funct. Genom. 2012, 11, 25–37. [Google Scholar] [CrossRef] [Green Version]
  43. Wymant, C.; Blanquart, F.; Golubchik, T.; Gall, A.; Bakker, M.; Bezemer, D.; Croucher, N.J.; Hall, M.; Hillebregt, M.; Ong, S.H.; et al. Easy and accurate reconstruction of whole HIV genomes from short-read sequence data with shiver. Virus Evol. 2018, 4, 7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Hong, F.; Aga, E.; Cillo, A.R.; Yates, A.L.; Besson, G.; Fyne, E.; Koontz, D.L.; Jennings, C.; Zheng, L.; Mellors, J.W. Novel Assays for Measurement of Total Cell-Associated HIV-1 DNA and RNA. J. Clin. Microbiol. 2016, 54, 902–911. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. van Zyl, G.U.; Bedison, M.A.; Rensburg, A.J. Van Early Antiretroviral Therapy in South African Children Reduces HIV-1—Infected Cells and Cell-Associated HIV-1 RNA in Blood Mononuclear Cells. J. Infect. Dis. 2015, 212, 39–43. [Google Scholar] [CrossRef] [Green Version]
  46. Salminen, M.O.; Koch, C.; Sanders-Buell, E.; Ehrenberg, P.K.; Michael, N.L.; Carr, J.K.; Burke, D.S.; McCutchan, F.E. Recovery of Virtually Full-Length HIV-1 Provirus of Diverse Subtypes from Primary Virus Cultures Using the Polymerase Chain Reaction. Virology 1995, 213, 80–86. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Das, A.T.; Pasternak, A.O.; Berkhout, B. On the generation of the MSD class of defective HIV proviruses. Retrovirology 2019, 16, 19. [Google Scholar] [CrossRef]
  48. Wright, I.A.; Bale, M.J.; Shao, W.; Hu, W.-S.; Coffin, J.M.; Van Zyl, G.U.; Kearney, M.F. HIVIntact: A python-based tool for HIV-1 genome intactness inference. Retrovirology 2021, 18, 16. [Google Scholar] [CrossRef]
  49. Li, H. Minimap2: Pairwise alignment for nucleotide sequences. Bioinformatics 2018, 34, 3094–3100. [Google Scholar] [CrossRef]
  50. Li, H.; Handsaker, B.; Wysoker, A.; Fennell, T.; Ruan, J.; Homer, N.; Marth, G.; Abecasis, G.; Durbin, R. The Sequence Alignment/Map format and SAMtools. Bioinformatics 2009, 25, 2078–2079. [Google Scholar] [CrossRef] [Green Version]
  51. Danecek, P.; Bonfield, J.K.; Liddle, J.; Marshall, J.; Ohan, V.; Pollard, M.O.; Whitwham, A.; Keane, T.; McCarthy, S.A.; Davies, R.M.; et al. Twelve years of SAMtools and BCFtools. Gigascience 2021, 10, giab008. [Google Scholar] [CrossRef]
  52. Loman, N.J.; Quick, J.; Simpson, J.T. A complete bacterial genome assembled de novo using only nanopore sequencing data. Nat. Methods 2015, 12, 733–735. [Google Scholar] [CrossRef]
  53. Danecek, P.; Auton, A.; Abecasis, G.; Albers, C.A.; Banks, E.; DePristo, M.A.; Handsaker, R.E.; Lunter, G.; Marth, G.T.; Sherry, S.T.; et al. The variant call format and VCFtools. Bioinformatics 2011, 27, 2156–2158. [Google Scholar] [CrossRef] [PubMed]
  54. Felsenstein, J. PHYLIP. 2009. Available online: https://evolution.genetics.washington.edu/phylip.html (accessed on 2 September 2021).
  55. Piñar, G.; Poyntner, C.; Lopandic, K.; Tafer, H.; Sterflinger, K. Rapid diagnosis of biological colonization in cultural artefacts using the MinION nanopore sequencing technology. Int. Biodeterior. Biodegrad. 2020, 148, 104908. [Google Scholar] [CrossRef]
  56. Tyler, A.D.; Mataseje, L.; Urfano, C.J.; Schmidt, L.; Antonation, K.S.; Mulvey, M.R.; Corbett, C.R. Evaluation of Oxford Nanopore’s MinION Sequencing Device for Microbial Whole Genome Sequencing Applications. Sci. Rep. 2018, 8, 10931. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Routh, A.L.; Torbett, B.E. MrHAMER yields highly accurate single molecule viral sequences enabling analysis of intra-host evolution. bioRxiv 2021. [Google Scholar] [CrossRef]
  58. Sarkozy, P.; Jobbágy; Antal, P. Calling homopolymer stretches from raw nanopore reads by analyzing k-mer dwell times. In EMBEC & NBC 2017; Springer: Singapore, 2017; Volume 65, pp. 241–244. [Google Scholar]
Cells 10 02577 g001 550

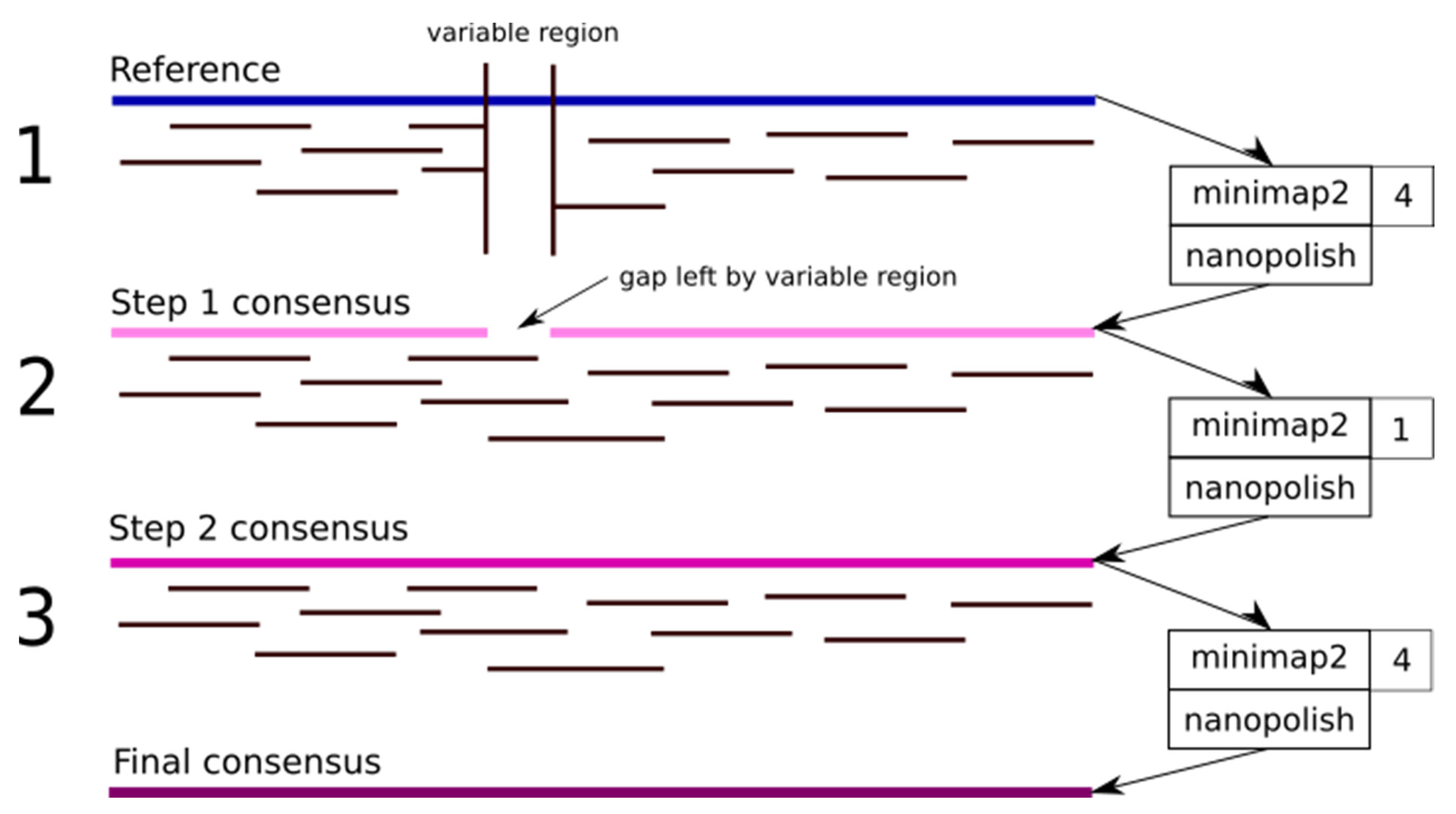

Figure 1. The HIV reference sequence contains many variable regions, particularly in the envelope gene (ENV), where conventional reference mapping may not be able to capture the high diversity. NanoHIV consists of three mapping steps: (1) An initial step with a standard gap penalty of 4, which results in a gap on the generated consensus where the variable region may be; (2) A remapping to the consensus with a lower gap penalty of 1, which bridges these variable regions; (3) A final mapping with the conventional gap penalty of 4 to remove any artefacts introduced by step 2.
Figure 1. The HIV reference sequence contains many variable regions, particularly in the envelope gene (ENV), where conventional reference mapping may not be able to capture the high diversity. NanoHIV consists of three mapping steps: (1) An initial step with a standard gap penalty of 4, which results in a gap on the generated consensus where the variable region may be; (2) A remapping to the consensus with a lower gap penalty of 1, which bridges these variable regions; (3) A final mapping with the conventional gap penalty of 4 to remove any artefacts introduced by step 2.
Cells 10 02577 g001
Cells 10 02577 g002 550

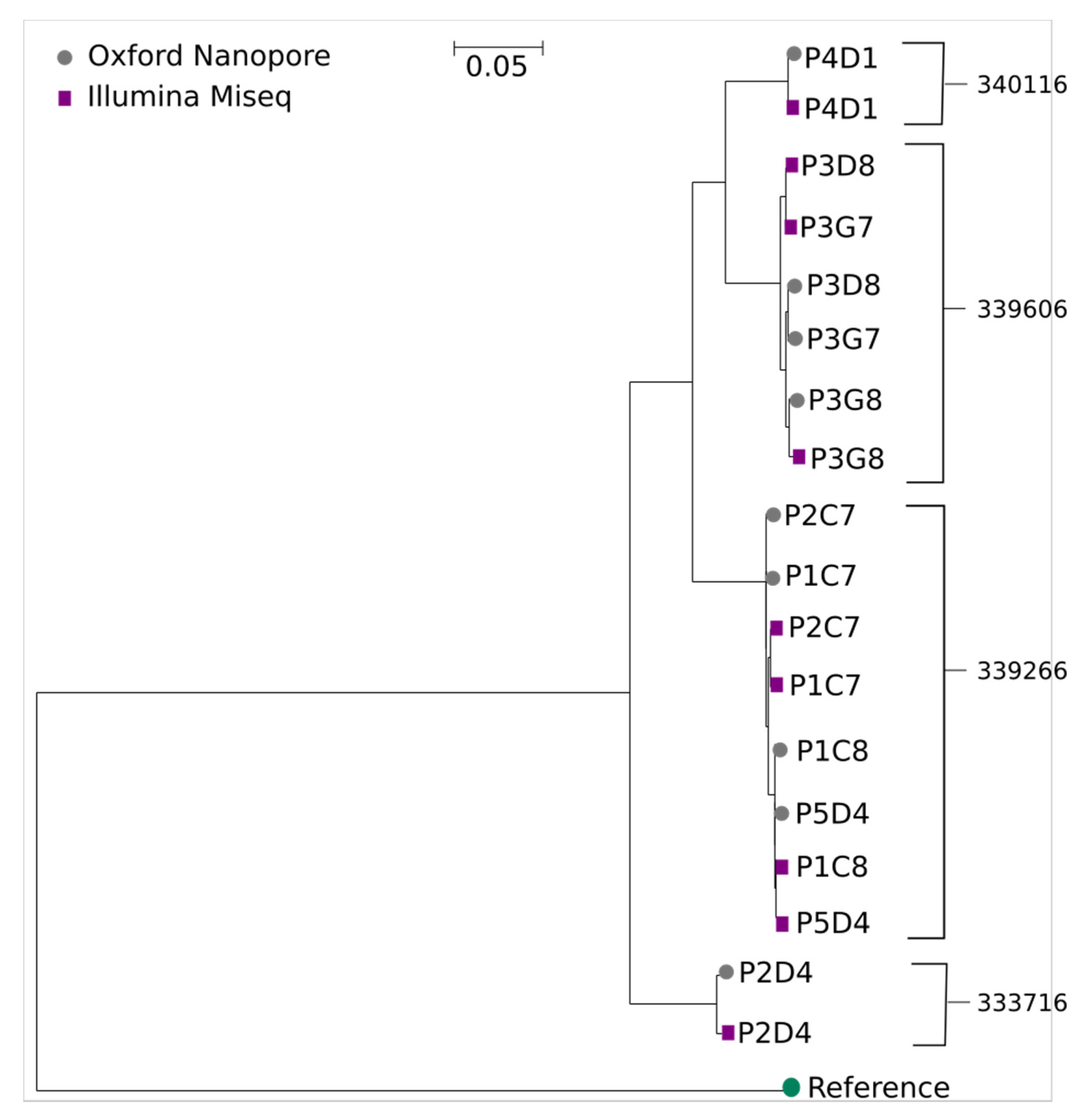

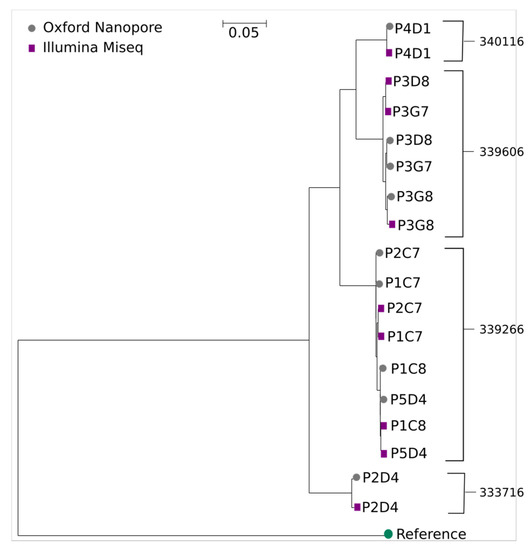

Figure 2. A neighbour-joining phylogenetic tree (generated using Dnapars from the PHYLIP package [54]) indicating the genetic distance between Illumina® and ONT consensus sequences generated using SHIVER (Illumina®) and NanoHIV (ONT). There is generally good clustering between consensus sequences from the same sample but several very similar sequences from the same donor clustered more closely by pipeline than by sample, indicating potential artefacts in both pipelines. The tree is rooted on the subtype C reference (GenBank ID AY772699.1) used as the initial reference for the first round of NanoHIV.
Figure 2. A neighbour-joining phylogenetic tree (generated using Dnapars from the PHYLIP package [54]) indicating the genetic distance between Illumina® and ONT consensus sequences generated using SHIVER (Illumina®) and NanoHIV (ONT). There is generally good clustering between consensus sequences from the same sample but several very similar sequences from the same donor clustered more closely by pipeline than by sample, indicating potential artefacts in both pipelines. The tree is rooted on the subtype C reference (GenBank ID AY772699.1) used as the initial reference for the first round of NanoHIV.
Cells 10 02577 g002
Table
Table 1. Study participant details, treatment histories and identified proviral genome status.
Table 1. Study participant details, treatment histories and identified proviral genome status.
PIDAge ART Initiated (Months)ART RegimenTime on ART (Years)No. of Proviral Genomes Sequenced with ONT
Identified as IntactIdentified as Defective
3337162.3AZT/3TC/LPV/r8.5501
3396068.5AZT/3TC/LPV/r7.9321
3392669.23AZT/3TC/LPV/r8.240
3401169.32AZT/3TC/LPV/r8.8310
Therapy included Zidovudine (AZT), lamivudine (3TC) and lopinavir with low dose ritonavir (LPV/r).
Table
Table 2. Near full-length single-genome amplification primers.
Table 2. Near full-length single-genome amplification primers.
Pre-Nested Primers
Primer NamePrimer DirectionNucleotide Position in HXB2 (bp)5′-3′ Sequence
Li_OuterF +,*Forward623–649AAATCTCTAGCAGTGGCGCCCGAACAG
Li_OuterRReverse9662–9686TGAGGGATCTCTAGTTACCAGAGTC
Nested Primers
Primer NamePrimer DirectionNucleotide Position in HXB2 (bp)5′-3′ Sequence
Li_InnerF *Forward769–793GCGGAGGCTAGAAGGAGAGAGATGG
Li_InnerR +Reverse9604–9632GCACTCAAGGCAAGCTTTATTGAGGCTTA
NFL-alt_in_F #Forward642–664CCG AAC AGG GAC BHG AAA GCG AA
+ Salminen et al., 1995, * Li et al., 2010, # Katusiime et al., 2020.
Table
Table 3. Total aligned similarity between intact and defective HIV proviral genomes sequenced with Illumina® MiSeq™ and ONT.
Table 3. Total aligned similarity between intact and defective HIV proviral genomes sequenced with Illumina® MiSeq™ and ONT.
Patient IdentifierSample IdentifierProviral Genome StatusTotal Aligned Similarity Percentage (%)
340116P4D1Intact99.3
339606P3D8Intact98.6
P3G7Intact99.4
P3G8Defective99.6
333716P2D4Defective99.1
339266P2C7Intact99.6
P1C7Intact99.6
P1C8Intact99.7
P5D4Intact99.6
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wright, I.A.; Delaney, K.E.; Katusiime, M.G.K.; Botha, J.C.; Engelbrecht, S.; Kearney, M.F.; van Zyl, G.U. NanoHIV: A Bioinformatics Pipeline for Producing Accurate, Near Full-Length HIV Proviral Genomes Sequenced Using the Oxford Nanopore Technology. Cells 2021, 10, 2577. https://doi.org/10.3390/cells10102577

AMA Style

Wright IA, Delaney KE, Katusiime MGK, Botha JC, Engelbrecht S, Kearney MF, van Zyl GU. NanoHIV: A Bioinformatics Pipeline for Producing Accurate, Near Full-Length HIV Proviral Genomes Sequenced Using the Oxford Nanopore Technology. Cells. 2021; 10(10):2577. https://doi.org/10.3390/cells10102577

Chicago/Turabian Style

Wright, Imogen A., Kayla E. Delaney, Mary Grace K. Katusiime, Johannes C. Botha, Susan Engelbrecht, Mary F. Kearney, and Gert U. van Zyl. 2021. "NanoHIV: A Bioinformatics Pipeline for Producing Accurate, Near Full-Length HIV Proviral Genomes Sequenced Using the Oxford Nanopore Technology" Cells 10, no. 10: 2577. https://doi.org/10.3390/cells10102577

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
