Article

New Insights into Fertilisation with Animal Manure for Annual Double-Cropping Systems in Nitrate-Vulnerable Zones of Northeastern Spain

by
Dolores Quilez
1,*,
Monica Guillén
1,
Marta Vallés
2,
Arturo Daudén
3 and
Beatriz Moreno-García
4
1
Departamento de Sistemas Agrícolas Forestales y Medio Ambiente, Centro de Investigación y Tecnología Agroalimentaria de Aragón (CITA), Avda, Montañana 930, 50059 Zaragoza, Spain
2
Centro de Trasferencia Agroalimentaria, Gobierno de Aragón, Barrio Movera, 580, 50194 Zaragoza, Spain
3
Oficina de Proyectos, Centro de Investigación y Tecnología Agroalimentaria de Aragón (CITA), Avda, Montañana 930, 50059 Zaragoza, Spain
4
Department of Biological & Agricultural Engineering, University of Arkansas, Fayetteville, AR 72701, USA
*
Author to whom correspondence should be addressed.
Agronomy 2025, 15(1), 142; https://doi.org/10.3390/agronomy15010142
Submission received: 5 November 2024 / Revised: 3 January 2025 / Accepted: 4 January 2025 / Published: 9 January 2025
(This article belongs to the Special Issue A Circular Economy: Chemical, Microbiological and Environmental Implications of Mineral and Organic Fertilizers Use in Soils)
Browse Figure
Versions Notes

Abstract

:
Maize double-cropping production systems in Mediterranean areas have a great nitrogen extraction capacity and high nitrogen (N) requirements. This study aims to assess whether in these farming systems, animal manure can be applied, using adequate management practices, at levels exceeding the maximum annual amount of livestock manure established in the European Nitrate Directive for vulnerable zones (170 kg N ha−1) without increasing the risk of water nitrate contamination. We compare the risk of nitrate leaching under two fertilisation strategies, one with synthetic fertilisers and the second with a maximised application of pig slurry, exceeding the limits of the EU Nitrate Directive, in two soil types. Crop yields, N extraction and nitrate concentrations below the crop root zone were not affected by the fertilisation strategies at each site. The results show that pig slurry can be applied above the limit of 170 kg N ha−1 under the conditions of the study, up to 360 kg N ha−1, without increasing the risk for nitrate leaching.

1. Introduction

Spain, with 38 million pigs, accounts for 25% of the total European pig population [1], and in northeastern Spain, the regions of Aragon (9.6 million head) and Catalunya (8 million head) constitute 52% of the Spanish pig population [2]. The slurry produced is applied as an organic fertiliser to crops, but inadequate rates, application methods and management can have negative environmental consequences, such as nitrate leaching [3] or emissions of reactive N into the atmosphere [4,5]. Thus, nitrogen use efficiency needs to be increased to reduce N losses to the environment, as recommended by the expert panel of the European Union [6].
In the last fifteen years, farmers in the Ebro River basin in northeastern Spain have made important efforts to modernise irrigated areas, transforming flood irrigation systems into pressurised irrigation systems with greater control of the irrigation water applied. This change has increased crop yields, but it has also driven a change in crop patterns [3], with an increase in the area dedicated to annual double-cropping systems, mainly winter cereal–maize, green pea–maize and winter cereal–sunflower. These double-cropping systems, although more intensive, are of environmental interest because the soil remains covered throughout the year and can reduce nitrate losses by leaching [7,8,9,10]. In a double-cropping rotation, a crop can use the residual mineral N from the previous crop, increasing the nitrogen use efficiency (NUE) of the system and thus reducing the risk of nitrate leaching [11,12]. Similarly, soil cover reduces soil losses due to erosion and the associated losses of nutrients such as phosphorus [13].
Compared with maize monocropping systems, maize double-cropping production systems have a much greater N extraction capacity [7,14,15,16]. In these farming systems with high extraction rates, animal manure, particularly pig slurry, can be applied to the two crops at adequate rates and under appropriate management practices. Under these premises, the N amounts applied using animal manure will exceed the maximum amount of livestock manure specified in the European Nitrate Directive [17] (EU, 1991) for use in vulnerable zones (170 kg N ha−1 and year), but we hypothesise that this will not increase the risk of water nitrate contamination.
This consideration is based on two aspects: On the one hand, pig slurry replaces mineral fertilisers and reduces the introduction of synthetic N to the system, especially in areas with high livestock density. A reduction in the input of synthetic N in these systems would decrease nutrient surpluses and environmental pollution [18] and increase the efficiency of N use. It is also important to consider that the N fertiliser industry is energy intensive, with high levels of associated greenhouse gas (GHG) emissions. On the other hand, in double-cropping systems, the application of pig slurry to the summer crop is delayed until June–July (depending on the rotation), in contrast to monoculture systems, where slurry is usually applied in April. Nitrate leaching can be significant from April to mid-June before the development of maize roots [19] and is associated with a high probability of rain during that period in northeastern Spain [20]. The delay in slurry application and crop sowing decreases the risk of N washing (from the slurry and from the mineral fertilisers), which is associated with faster crop development in maize and a reduced probability of rainfall.
The design and implementation of the best strategies that optimise the combined use of manure and mineral fertilisers are essential at the local and regional levels to achieve the objective of increasing nitrogen use efficiency and minimising reactive N losses.
A few works have analysed the agronomic efficiency of manure in comparison with that of mineral fertilisation in double-cropping systems using manure rates that exceed the 170 kg N ha−1 per year limit established by the EU Nitrate Directive [7,14,21,22,23,24,25], but the information available that compares the nitrate leaching potential between mineral and organic fertilisation in these systems is scarce. Only two of above-mentioned studies [7,24] have analysed the risk for nitrate leaching; the results showed that organic fertilisation does not have a greater nitrate leaching potential than mineral fertilisation does. The meta-analysis by Hina [26] revealed that nitrate leaching losses do not differ between organic fertilisers and synthetic fertilisers, and the meta-analysis by Ren et al. [27] shows that the substitution of mineral N fertiliser with manure in China’s main crops, wheat, maize and rice, reduces reactive N losses, including nitrate leaching. However, the limited research on the impact of the substitution of mineral N with organic fertilisers on nitrate leaching in highly productive double-cropping systems indicates that more in-depth studies are necessary to provide data to ensure the sustainability and coexistence of crop and livestock farming systems in the future.
Thus, the objective of this work is to compare traditional fertilisation methods using mineral fertilisers with a fertilisation plan that maximises pig slurry application to cover crop N needs at appropriate times in double-cropping systems in high-yield Mediterranean areas. The comparison will be carried out in two contrasting soils, in which the potential risk for nitrate leaching differs. The comparison will focus on crop yield, N uptake and the risk of nitrate leaching.

2. Materials and Methods

2.1. Site and Experimental Design

Two typical systems were selected, winter cereal–maize and green pea–maize. The experiments were set up in two commercial fields with contrasting soil characteristics, which differ in their risk of nitrate leaching. The soils are representative of those found in the double-cropping systems of the irrigated areas of northeastern Spain The first field (Barluenga) represents the deep alluvial soil typical of river valleys. This soil is clay textured, deep (>1.2 m), without stones, has a high water retention capacity and is not prone to nitrate leaching. The second field (Torremira) represents “saso” soil (mesa) found on alluvial terraces and characterised by a shallow depth (≈0.50 m) with a petrocalcic horizon below, sandy clay texture, high stoniness and low water retention capacity and is thus very prone to nitrate leaching. These fields differ in terms of their irrigation methods: Torremira is sprinkler irrigated (staggered 15 m × 15 m frame), whereas Barluenga is flood irrigated.
The soil characteristics in the two fields at the beginning of the experiment are presented in Table 1. The potassium (K) concentrations (top layer) are high in both soils, whereas the phosphorus (P) concentrations are low, especially in the heavily textured Barluenga soil.
In Torremira, a rotation of green pea–maize (in the last year, green pea was substituted with barley due to commercial factors) was evaluated for three years. Green pea is only cropped in this type of soil to ensure that soil conditions do not constrain the entry of the combine for harvesting. Although green pea does not need N fertilisation, pig slurry was applied to cover its P and K requirements. In Barluenga, a double-cropping wheat–maize system was evaluated for 2.5 consecutive years.
Two fertiliser treatments were compared in each of the trials, namely, a treatment with all the nitrogen provided by mineral fertilisers (M) and a manure treatment where fertilisation with pig slurry (P) was maximised. In both cases, fertilisation rates were adjusted to crop N requirements.
In winter cereals, fertiliser was applied to cover all crop N needs during side dressing, as it is believed that presowing fertilisation has low efficiency [28] and that postponing N application until tillering is a good technique for reducing nitrate leaching. In the maize crop, pig slurry was applied before sowing and complemented with mineral N in the plots corresponding to the P treatment by following the recommendation of Iguacel et al. [29], who reported that in the study area, it was not possible to obtain maximum yields of the second maize crop using only pig slurry at presowing and that the crop required the application of approximately 35% of the N rate as side dressing.
Crop residues were removed after harvest, and the following crop was sown by direct seeding (no tillage). Weeds and pests were controlled according to local practices, and no problems were observed during the study.
The design was a complete randomised block with 4 replicates. The size of each experimental plot was 15 m × 30 m at Barluenga and 15 m × 45 m at Torremira. Pig slurry was applied by hanging hose machinery by the Tauste Manure Management Center (https://www.taustecge.es/ accessed on 30 December 2024), which is located near the two experimental fields.
The climate of the area is a semiarid Mediterranean continental climate with a mean annual air temperature of 14.3 °C, mean annual precipitation of 325.0 mm and mean annual reference evapotranspiration of 1276 mm (period 2006–2023). The meteorological conditions during the experimental period are presented in Figure S1.

2.2. Agricultural Practices

2.2.1. Barluenga Site

Durum wheat (Triticum durum L. cv. “Calero”) was sown in the Barluenga field on 16 November 2016, 19 November 2017 and 16 November 2018, with 300 kg seeds ha−1 (approximately 5 million seeds ha−1). The nitrogen rate was set to 120 kg N ha−1 for a first top dressing at the end of the tillering stage and was complemented with a second dressing (30 kg N ha−1) at the booting stage to improve grain quality.
For the first side dressing, pig slurry was applied to the plots corresponding to the P treatment, and green N (N-Mg-S: 30-0.6-2.6) was applied to the plots corresponding to the M treatment. During late side dressing, mineral fertiliser (green N) was applied to all the plots. Pig slurry was applied to the P plots on 2 March 2017, 3 February 2018 and 1 March 2019, and green N was applied to the M plots on 8 March 2017, 3 February 2018 and 1 March 2019 for the tillering application and on 11 April 2017, 17 March 2018 and 6 April 2019 to all plots for the booting application.
Maize (Zea maize L. cv. “Kenovis”) was sown on 16 June 2017 and 3 July 2018 at a density of 110,000 seeds ha−1. In the plots corresponding to the P treatment, pig slurry was applied before sowing at a theoretical rate of 170 kg N ha−1 and complemented with mineral N at the 4-leaf stage (120 kg N ha−1). In the plots corresponding to the M treatment, mineral N was applied at the 4-leaf stage at a rate of 270 kg N ha−1.
In the highly productive maize areas of northeastern Spain, the recommended plant density is over 80,000 plants ha−1. Growers typically use a higher seeding rate to compensate for potential emergence failures, particularly in heavy textured soils prone to soil crusting.

2.2.2. Torremira Site

Green pea (Pisum sativum L. cv. “Mastin”) was sown on 1 February 2017 and 12 December 2017 using 220 kg seeds ha−1 (approximately 1.5 million seeds ha−1). Pig slurry was applied at a target rate of 120 kg N ha−1 in plots corresponding to the P treatment at presowing in 2017 (26 January 2017) and as a side dressing in 2018 (2 February 2018). The target N rate was chosen by considering the average pig slurry N/P2O5 ratio in the study area (1/1.6 [30]) to provide 70 kg P2O5 ha−1. In the plots corresponding to the M treatment, compound 9-26-15 fertiliser at a rate of 400 kg ha−1 was applied in 2017, and 400 kg of superphosphate (18%) was applied in 2018. The barley crop (Hordeum vulgare L. cv. “Pewter”) was sown on 12 December 2018 using 300 kg seeds ha−1 (4 million seeds ha−1). At the end of tillering, pig slurry was applied at a target rate of 150 kg N ha−1 to the plots corresponding to the P treatment, and green N (150 kg N ha−1) was applied to those corresponding to the M treatment.
Maize (Zea maize L. cv. “P0725”, “P0222Y + P0222” and “P1570Y + P1570” for years 2017, 2018 and 2019 respectively) was sown on 18 June 2017, 30 June 2018 and 24 June 2019 at a density of 95,000 seeds ha−1. In the plots corresponding to the P treatment, pig slurry was applied before sowing at a theoretical rate of 170 kg N ha−1 and was complemented with mineral N at the 4-leaf stage (100–150 kg N ha−1) and at tasselling (60 kg N ha−1, with sprinkler irrigation). In the plots corresponding to the M treatment, mineral N was applied at the 4-leaf stage (240–270 kg N ha−1) and at tasselling (60 kg N ha−1, with sprinkler irrigation). The application of nitrogen at tasselling is typical in the area for sprinkler-irrigated fields.
Phosphorous and potassium were applied to the M plots before sowing as needed. The agricultural practices in all the plots (irrigation, ploughing and pest and weed management) were conducted by farmers following the usual practices in their fields.
The ammonium content of the slurry in the distribution tanks was determined indirectly in the field prior to each application by conductimetry [31] to establish the PS rate to be applied. The total N amounts (kg N ha−1) applied to each crop in each year in the two treatments (P and M) in the two experimental plots are shown in Table 2.
The N amounts applied in the plots of P treatments were generally greater than the targeted rates and thus greater than those applied in the M treatments. The differences were generally acceptable, except for wheat in Barluenga in 2019 and maize in Torremira in 2018, where the N rates in the P treatment were 54% higher than the target values, and maize in Barluenga in 2017, where the N rate for the P treatment was 40% higher than the target rate (Table 2). On these four occasions, the total N concentration in PS that were estimated in the field via conductimetry were much lower than those measured in the laboratory, resulting in higher-than-expected nitrogen rates (Figure S2). For green pea in Torremira, the amount of phosphorous applied with pig slurry (127 and 87 kg P2O5 ha−1 in years 2017 and 2018, respectively) also exceeded the target rate. The nutrient concentration of the pig slurry applied to each crop at the two sites is presented in Table S1.

2.3. Sampling and Analytical Procedures

2.3.1. Soil Sampling

The soils were sampled at the beginning of the experiment and after the maize harvest each year to evaluate the soil mineral N content (Nmin). The soils were sampled using a manual auger at depth intervals of 0.30 m to a depth of 1.20 m in the Barluenga field and at intervals of 0–0.30 m and 0.30–0.50 m in the Torremira field. At least three soil cores were taken from each depth (9 soil cores at 0–0.3 m depth) and combined for further analyses. For the initial sampling, fields were sampled in blocks, and the average Nmin value was assigned to the entire experimental filed. A soil subsample was dried (105 °C) to determine the soil gravimetric water content. The nitrate and ammonium concentrations were determined in 1:3 soil extracts (10 g of fresh soil/30 mL of 2 N KCl) by colourimetry using a segmented flow analyser (AutoAnalyser 3, Bran+Luebbe, Germany). The soil mineral N contents were calculated as the sum of NO3-N and NH4-N considering the soil depth and stoniness.

2.3.2. Nitrate Concentrations of Soil Solutions

Ceramic suction cups (Irrometer SSAT, 22 mm Ø, Riverside, CA, USA) were installed in all plots of each experimental field (8 per plot) to sample the soil solution below the crop root zone. Tubes with ceramic cups at their ends were inserted vertically into the soil, and mud slurry was added to ensure good contact with the soil and to avoid preferential flows along the tube walls (Figure S3). The ceramic cups were installed at depths of 1.20 m in the Barluenga field and at 0.45 m in the Torremira field immediately after the first N application in each crop cycle. The suction cups were removed at harvest for each crop. The soil solution was extracted from the suction cups via a syringe 24 h after creating a vacuum inside (≈−0.7 bars) using a manual pump. The nitrate concentrations in the solution samples were determined in the laboratory by colourimetry using a segmented flow analyser (AutoAnalyzer 3, Bran+Luebbe, Düsseldorf, Germany).

2.3.3. Crop Sampling

At maturity, the crops were harvested by hand to determine the grain yield, total biomass and nitrogen absorption in the grains and in the remaining aboveground matter.
Wheat, barley and green pea were harvested from 4 subareas of 0.25 m2 that were randomly selected in each experimental plot. In Barluenga, wheat was harvested on 15 June 2017, 30 June 2018 and 20 June 2019, and in Torremira, green pea was harvested by hand on 26 May 2017 and 25 June 2018, and barley was harvested on 24 June 2019.
In the case of maize, 3 m strips were selected randomly in two different lines, and in those strips, all cobs were collected, and the rest of the plants were weighed. The humidity of two randomly selected plants was determined by oven drying at 65 °C. Cobs were shelled to obtain the grain yield and humidity. Maize was harvested on 30 October 2017 and 15 November 2018 in Barluenga and on 23 November 2017, 29 November 2018 and 2 December 2019 in Torremira.
The grain humidity was measured (Grain moisture PM-600, Kett, Tokyo, Japan), and the yield was reported on the basis of a moisture content of 120 g kg−1 for wheat and barley and 140 g kg−1 for green pea and maize. The nitrogen concentrations in wheat grains and straw, pea grains, maize grains and the remaining aboveground biomass were analysed by dry combustion (TruSpec CN, LECO, St. Joseph, MI, USA) in samples that were previously oven dried at 65°. The nitrogen use efficiency (NUE) was calculated as the ratio of the N content in the aboveground biomass of the crop to the amount of N applied. The NUE was calculated for each crop and year and for the entire rotation at each site.

2.4. Data and Statistical Analysis

The effects of treatments on yield, N uptake and soil mineral N were evaluated by analysis of variance, and the differences among treatment means were determined with Tukey’s test. Repeated measures analysis of variance was performed to compare the soil solution nitrate concentrations for each crop season and for the whole data period. On some dates, it was not possible to obtain samples from all the suction cups in each field. For the statistical analysis, only those dates with for 3 or more points for each treatment were considered. The repeated measures analysis of variance required complete data, so missing data were interpolated from the preceding and subsequent sampling dates, and in the case that some of these data were also missing, the average value for the treatment was used.
Repeated measures analysis was used to determine whether there were significant differences in the soil solution nitrate concentration in treatments across the measurements taken from the same ceramic cups over time. This analysis considers variability across dates and among treatments.
The soil solution nitrate concentration data were not normally distributed and were log-transformed prior to analysis to ensure data normality. The average nitrate concentration during each period was calculated using the value of the arithmetic mean. Mean estimators for log-normal distributions, such as the Aitchison–Brown estimator or the Finney–Sichel estimator [32,33], were not considered, as nitrate concentrations were used to detect the possible effects of treatments on nitrate leaching but were not intended to quantify nitrate leaching. In all analyses, a significance level of 0.05 was considered. Statistical analyses were performed using the Statgraphics Centurion version 18.1.10 package (Statgraphics Technologies, Inc., The Plains, VA, USA).

3. Results

3.1. Yield and N Absorption

The maize yields did not differ significantly between the P and M treatments or between the two sites and presented some variability between years due to the specific weather conditions in each year. Thus, the average maize yields at the two sites were greater in 2017 (10,812 kg ha−1) than in 2019 (9273 kg ha−1) (Table S2). In the case of winter crops, no significant differences were observed in wheat (Barluenga) or green pea (Torremira) yields between treatments. Significant differences were observed across the three years for the wheat crop in Barluenga, with the maximum yield occurring in 2019 (Table S3), although no significant differences were observed in the green pea yield in Torremira between 2017 and 2018 (Table S4).
The grain yields and N uptake did not differ between the P and M treatments at either of the two sites for any of the crops within each year (Table 3 and Table 4).
The nitrogen use efficiency for the entire period did not differ significantly between the two sites (0.81 kg N kg−1 N applied and 0.90 kg N kg−1 N applied at Barluenga and Torremira, respectively). No differences in NUE for the entire experimental period were observed between the P and M treatments at either Barluenga or Torremira (Table S5). However, differences in the NUE between the two treatments were observed for some crops at Barluenga. Thus, the NUE was greater under the M treatment than under the P treatment for maize in 2017 and for barley in 2019 (Table S5).

3.2. Soil Mineral N

The soil mineral nitrogen content (Nmin) at the beginning of the experimental period was high in the Barluenga plot (150.1 kg N ha−1) and lower in the Torremira plot (62.6 kg N ha−1). The average mineral N in the soil at the end of the experimental period never exceeded the initial values at each site (Table 5). The analysis of variance did not detect any differences in soil Nmin content between the M and P treatments in each field at any of the sampling times.

3.3. Soil Solution Nitrate Concentration

The average daily nitrate concentrations of the soil solutions ranged between 0 and 65 mg L−1 in the Barluenga field, whereas in the Torremira field, the nitrate concentrations peaked at values higher than 1000 mg L−1 on some occasions (Figure 1). Peaks in nitrate concentrations were found in both the P and M treatments. The highest daily nitrate concentration was observed for maize in 2017 at Torremira, where the peak exceeded 2000 mg L−1 in the M treatment. The soil nitrate concentrations showed a seasonal pattern in the two treatments; the highest values were observed at the beginning of the crop season after fertiliser application for the four crops, wheat, green pea, barley and maize; then, the values decreased as the crop started to grow and absorb N, and the lowest values were generally observed at harvest (Figure 1).
The repeated measures analysis of variance did not detect significant differences between the P and M treatments for each crop and season at either of the two sites. Furthermore, no significant differences were found between the two treatments for the entire experimental period (Table 6). The average nitrate concentration for the crop season was significantly greater at Torremira (285.3 mg L−1) than at Barluenga (10.5 mg L−1).

4. Discussion

4.1. Crop Yield and Nitrogen Use Efficiency

The N amounts that were applied using pig slurry to plots in the P treatment exceeded the target rates by more than 15% in seven of the fifteen applications. In some cases, incorrect estimations of the N contents of the PS occurred, and in other cases, the actual PS rates applied to the field were imprecise. These two factors are key disadvantages for fertilisation with PS and, in general, apply to organic fertilisers in contrast to synthetic fertilisers. The nitrogen content of synthetic fertilisers is well known, and the application machinery is easier to adjust. Although the machinery for PS applications is usually calibrated, applying the appropriate PS rates is difficult, as noted by Daudén and Quílez [34].
Conductimetry was used in the field to estimate the pig slurry N content before application [31], but in some cases, the in situ estimated values of the pig slurry total N concentrations were more than 40% lower than those measured in the laboratory; thus, the N rates applied on those occasions were much higher than the target values (Figure S2). This was the case at Torremira for green pea in 2017 (2.8 vs. 4.36 kg m−3), at Barluenga for maize in 2017 (3.0 vs. 4.45 kg m−3), at Torremira for maize in 2018 (2.6 vs. 3.79 kg m−3) and at Barluenga for wheat in 2019 (2.7 vs. 4.20 kg m−3). The discrepancy in N rates between the two treatments generates an additional source of variability in the comparison of the two treatments.
The yields for the two treatments at the two sites were within the variability range observed in the area for optimally fertilised crops. Yagüe et al. [21] reported yields ranging between 4861 kg ha−1 and 7417 kg ha−1 for barley and between 7629 kg ha−1 and 14,248 kg ha−1 for maize in a five-year barley-maize rotation. Additionally, Yagüe and Quilez [20] reported wheat yields ranging from 5000 kg ha−1 to 5100 kg ha−1 in a one-year irrigated wheat experiment that involved fertilisation with pig slurry, and Mateo-Marín et al. [35] reported yields ranging between 5491 kg ha−1 and 8357 kg ha−1 in a three-year irrigated wheat field experiment that also involved fertilisation with pig slurry. Moreover, the statistical information from the Ministry of Agriculture [36] shows average yields in the area ranging from 4836 to 5903 kg ha−1 for irrigated wheat, 6241 to 6290 kg ha−1 for green peas and 4558 to 5507 kg ha−1 for irrigated barley. No significant differences in crop yield were detected between the P and M treatments for any site or year, indicating that there were no differences in the response to N fertilisation.
The nitrogen use efficiency ranged between 0.52 and 1.28 kg N kg−1 N applied (excluding green pea) and was generally in the average range of the possible reference values (between 0.5 and 0.9) defined by the EU Nitrogen Panel [6]. Considering the whole period, the NUE did not differ between the two sites. The soil at Barluenga has a clay texture, is deep and is supposed to have better nitrogen recovery than the Torremira soil, which is shallow. Mateo-Marín et al. [37], in a maize–maize–wheat rotation, reported higher NUE values in deep soil (1.25 m) versus shallow soil (0.5 m) in the same area. However, the rotation in Torremira includes a leguminous crop, and it is well known that leguminous crops increase the NUE of systems; this increase is associated with a reduction in the N fertiliser requirement and a low C:N ratio of their residues, which can hasten the mineralisation of soil organic nitrogen [38].
For the complete crop rotation, the NUE did not differ significantly between the P and M treatments at either site (Table S5). The differences in NUE between the P and M treatments for specific crops were generally related to differences in the rates of N applied. Thus, at Barluenga for maize in 2017 and for wheat in 2019, the NUE was higher in the M than in the P treatment, as the N amounts applied in the P treatment were 35% and 74% greater, respectively, than those applied in the M treatment. Owing to its definition, the NUE clearly decreases as the amount of applied N increases [6].

4.2. Risk for Nitrate Leaching

Measuring N leaching from agricultural fields is complex, as it requires measuring or estimating the volume of water flowing below the crop root zone and its nitrate concentration [39,40]. In this work, we assumed that the amount of drainage volume was equal for the two treatments (P and M) for each crop at each site, as they had the same management and received the same amount of water by irrigation and precipitation, and no differences in crop evapotranspiration were suspected, as no differences in yield were observed. Under this premise, the nitrate concentration in the solution that drains below the crop root zone is considered a good parameter to compare the risk of nitrate leaching between the two treatments. Different methods are available to measure nitrate concentrations in drainage water [40,41]. In this work, we used ceramic suction cups that were installed just below the crop root zone. Ceramic suction cups are not expensive, are easy to sample and their installation is not troublesome; however, ensuring good contact between the ceramic cup and the soil at the bottom of the hole and the absence of preferential flows along the tube walls is essential [42]. Some studies have shown large variations in nitrate concentrations in soil water extracted from suction cups [43,44]. In general, these studies indicate that suction cups are not adequate in heterogeneous soils or in those that show preferential flow patterns. However, suction cups work well in fairly homogeneous soils [42,44,45,46] and have been used extensively to estimate nitrate concentrations and nitrate leaching in different systems [12,39,44,47,48].
The soil solution was extracted using a suction of 0.7 bars, so only water from the larger pores was sampled. Thus, the nitrate concentration in the extracted sample did not accurately represent the actual nitrate concentration of the soil solution, as the water in the smaller pores was not sampled. However, water percolation mainly occurs at high soil water contents. When the soil water content decreases, the soil hydraulic conductivity decreases, and water moves more slowly [49]; thus, water draining at high soil tension (in the smaller pores) has a low contribution to total percolation. Therefore, the nitrate concentration of the solution extracted from suction cups is considered a good indicator for comparing the risk for nitrate leaching between the two treatments in each field.
The average nitrate concentration of the soil solution for the crop seasons was significantly greater at Torremira than at Barluenga (Table 6). This difference was expected and was related to the soil characteristics. The soil at Barluenga is highly textured, with a high clay content, and is deep, whereas the soil at Torremira is shallow and exhibits high stoniness. Soils with high clay content are known to retain water and nutrients more effectively than other soils [27]. Additionally, a meta-analysis of nitrate leaching vulnerability [26] revealed that nitrate leaching losses are expected to be greater from coarse-textured soils than from fine-textured soils. Soil depth also exerts a strong influence on nitrate leaching [50]. In soils with a high risk of nitrate leaching, it is crucial to manage irrigation and fertilisation to prevent excessive soil moisture and high nitrate concentrations. Frequent, low-dose irrigation along with split fertilisation can significantly mitigate nitrate leaching in these soils.
The average nitrate concentration during the five crop seasons at Barluenga (between 1.3 and 31.7 mg L−1) was within the range observed in drainage water in other experiments that were carried out using drainage lysimeters in the same area. Daudén et al. [51], in an experiment with 0.75 m deep lysimeters (clay loam soil) and maize fertilised with pig slurry, reported nitrate concentrations in drainage water between 5 and 49 mg L−1 depending on the treatment, and Salmerón et al. [8], for 1.20 m deep lysimeters cropped using maize with different cover crops and adjusted mineral N fertilisation, reported average nitrate concentrations in the drainage water during the maize crop season between 7 and 44 mg L−1, depending on the cover crop. In lysimeters cropped with maize and wheat at two different depths (1.20 m and 0.50 m) and with the same texture (clay–loam), Mateo-Marín et al. [37] measured nitrate concentrations between 30 and 44 mg L−1 in 1.20 m deep soil and slightly higher concentrations, between 54 and 71 mg L−1, in shallow soil (0.50 m deep) in a treatment fertilised with urea. The soil nitrate concentrations in the Torremira field were much higher than those measured in these shallow lysimeters, but the soil texture in the Torremira field is coarser and has a greater proportion of stones that affect the dynamics of water and N in the soil.
Studies in other Mediterranean areas in deep soils using suction cups have reported higher nitrate concentrations in soil solutions than those reported in this study for different reasons. For example, Trindade et al. [47], for sandy loam soil in a double-cropping forage system in northern Portugal, measured nitrate concentrations in the soil solution extracted from suction cups (1 m depth) that were as high as 700 mg L−1, much higher than those measured in the Barluenga field; however, they applied higher rates of nitrogen fertiliser, with an average of 418 kg N ha−1 to maize and 194 kg N ha−1 to the winter crop. Perego et al. [52], for deep soils with different textures in the Po Valley, obtained 4-year average nitrate concentrations (at depths ranging from 1.3 to 1.5 m) that ranged from 57 to 243 mg L−1 and were related to the soil texture and the amount of N applied (from 309 to 642 kg N ha−1 year−1). The nitrate concentrations were higher, in both cases, than those reported in this work at Barluenga.
No significant differences in nitrate concentration were detected between the two treatments for the entire experimental period at the two experimental sites, Barluenga and Torremira. Similarly, no significant differences in the average nitrate concentration of the soil solution were detected between the two treatments for each crop season at either of the two sites (Table 6).
In Barluenga, average nitrate concentrations for the wheat and maize seasons ranged between 1 and 32 mg L−1 and did not exceed the 50 mg L−1 threshold of the EU Nitrate Directive. The average nitrate concentrations for the entire study period, namely, 10.4 and 10.7 mg L−1 for the P and M treatments, respectively, are considered low. These results indicate that in wheat–maize crop systems in deep soils in the area, mineral nitrogen fertilisation can be substituted completely with pig slurry for wheat crop and, to some extent (50–70%), for maize crop, reaching pig slurry rates equivalent to 360 kg N ha−1 per year, well above the amount of 170 kg N ha−1 limit established in the Nitrate Directive, without compromising water quality. The limitation of incomplete substitution of mineral N with slurry in maize can be overcome via fertigation [53]. Fertigation with a liquid fraction of slurry will allow for slurry applications in advanced stages of maize development, substituting mineral N as side dressing applications.
There are only a few works that compare the risk for nitrate leaching of mineral versus organic fertiliser treatments in winter cereal (ryegrass)–maize double-cropping systems. In wheat-maize systems, Du et al. [25] compared the effects on nitrate leaching of digested biogas slurry (DS) injected into the irrigation system at three rates (low, medium and high) versus a conventional mineral fertilisation in a silt–loam soil. They used watermark sensors and suction cups (at 1.9 m depth) to estimate the drainage volumes and nitrate concentrations, respectively, and found nitrate concentrations ranging between 10 and 60 mg L−1, which are comparable to those measured in this work at Barluenga. The soil nitrate concentration under the medium DS rate (315 kg N ha−1) was significantly lower than that under the conventional fertiliser treatment (420 kg N ha−1), and nitrate leaching under the medium DS rate was reduced by 20–32% in relation to that under mineral fertilisation.
In forage ryegrass-maize systems, Demurtas et al. [24] evaluated nitrate losses in sandy-textured soil in northern Italy by measuring nitrate concentrations in soil solution via disk lysimeters. They reported that the nitrate concentrations at 0.90 m depth in a treatment that combined fertilisation with cattle slurry and mineral N were never higher than those using a mineral treatment with similar N application during the maize crop season, whereas during the winter crop period, the nitrate concentration was not associated with N fertilisation but with the natural water surplus during that period. Similar results were reported by Trindade et al. [7] in an experiment with different mineral and cattle slurry fertilisation treatments in northern Portugal in sandy loam soil. They suggested that it is possible in highly productive maize–ryegrass systems to fertilise using exclusively slurry at annual rates of up to 250 kg available N ha−1 (480 kg total N ha−1) with minimal leaching losses. Compared with treatments that combined slurry and mineral fertilisation, slurry applications resulted in high yields and N absorption rates and a greater nitrogen use efficiency combined with a lower nitrate leaching potential. Additionally, Perego et al. [52], for a loam-textured soil in the Po Valley, reported the possibility of using up to 294 kg ha−1 year−1 of organic nitrogen without exceeding the 50 mg L−1 nitrate concentration threshold.
In Torremira, the average nitrate concentrations for the green pea, barley and maize seasons ranged between 60 and 858 mg L−1, which were much higher than those at Barluenga and in all cases exceeded the 50 mg L−1 threshold. The average nitrate concentrations for the whole experimental period, 274.8 and 295.8 mg L−1 for the P and M treatments, respectively, are considered high and are related to the scarce soil water retention capacity derived from the texture, shallow depth and stoniness [50]. Drainage is a driving factor for nitrate leaching in soils with these characteristics, and irrigation and fertilisation should be managed carefully to avoid excess water and drainage in these type of soils. However, even with the high risk of nitrate leaching that is associated with these soil characteristics, the nitrate concentrations in the soil solution were not higher than those reported by Perego et al. [52] and Trindade et al. [47].
Compared with the mineral fertilisation treatment, the application of nitrogen in the form of pig slurry to green pea in the P treatment did not result in a significant increase in the nitrate concentration in the soil solution. This would indicate the capacity of this crop to adapt its N fixation to the soil inorganic N content. This is corroborated by the study of Salmerón et al. [54], who analysed the behaviour of irrigated alfalfa under two rates of pig slurry application and a P-K fertilised control application in an experiment using lysimeters. The results of that study revealed that applications of pig slurry did not affect forage yields, total N extractions or nitrate loads in the drainage, but the plant δ15N values were greater with pig slurry fertilisation than with the control treatment, revealing the flexibility of alfalfa in adjusting symbiotic N fixation depending on mineral N availability.
The results from the Torremira field show elevated nitrate concentrations in the drainage water. Although no significant differences were found between treatments, further studies in these permeable and shallow soils are recommended to ensure that the proposed fertilisation strategy is environmentally safe.

5. Conclusions

The results of this work clearly show that it is possible to increase the substitution of mineral fertiliser with pig slurry over the amount of 170 kg N ha−1 established by the EU Nitrate Directive in highly N extractive maize double-cropping systems, up to 360 kg N ha−1 per year in this work, without increasing the risk for water nitrate contamination. The weak point is the difficulty of applying the required N rates with slurry. To address this, incorporating technical improvements in distribution machinery or adopting alternative application methods such as fertigation is essential.
This approach can reduce the use of mineral fertilisers, especially in areas with high livestock density; promote the integrated use of mineral and organic fertilisers; and ultimately reduce nutrient surpluses and environmental pollution. The information is relevant for the development of policies related to slurry management for fertilisation, which should be based on a thorough understanding of its agronomic behaviour and environmental impact at local and regional scales.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/agronomy15010142/s1, Figure S1: Average daily temperature and daily precipitation during the experimental period (SIAR network Z21_Tauste station); Figure S2: Pig slurry total N concentration estimated in the field by conductimetry and determined in the laboratory. Figure S3: Ceramic suction cups. Installation in the field and extraction of the soil solution. Table S1: Nutrient concentration in pig slurry (Total N, P2O5 and K2O, kg m−3) applied to the pig slurry treatment for different crops and years at the two sites. Table S2: Average maize yields in each of the three years at the two sites and for the two treatments (P: pig slurry, M: synthetic fertiliser). N indicates the number of data points used to calculate the mean. In the same column, average yields followed by the same letter are not significantly different (Tukey’s test). Table S3: Average wheat yields in Barluenga in each of the years and for the two treatments (P: pig slurry, M: synthetic fertiliser). N indicates the number of data points used to calculate the mean. In the same column, average yields followed by the same letter are not significantly different (Tukey’s test). Table S4: Average green pea yields in Torremira in each of the years and for the two treatments (P: pig slurry, M: synthetic fertiliser). N indicates the number of data points used to calculate the mean. In the same column, average yields followed by the same letter are not significantly different (Tukey’s test). Table S5: Average values of the nitrogen use efficiency in the two treatments for each combination of crop × year.

Author Contributions

Conceptualization, D.Q., M.V. and A.D.; methodology, D.Q. and M.V.; formal analysis, D.Q. and B.M.-G.; investigation, M.G. and B.M.-G.; data curation, B.M.-G. and M.G.; writing—original draft preparation, D.Q.; writing—review and editing, D.Q., M.G., M.V., A.D. and B.M.-G.; supervision, D.Q.; project administration, D.Q. and B.M.-G.; funding acquisition, D.Q., M.V. and A.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Government of Aragón and the European Agricultural Funds for Rural Development—FEADER, grant GCP 2016-0033.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors on request.

Acknowledgments

The authors thank the Comunidad de Regantes n° XI de los riegos de Bardenas, Tauste Centro Gestor de Estiercoles S.L. and Cooperativa Agraria San Miguel de Tauste for their support and cooperation.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Eurostat. Data Browser. Number of Pigs. Available online: https://ec.europa.eu/eurostat/databrowser/product/page/TAG00018 (accessed on 3 May 2024).
  2. Ministerio de Agricultura, Pesca y Alimentación. Encuestas Ganaderas, Análisis del Número de Animales Por Tipos. Resultados de Ganadería Año 2024. Available online: https://www.mapa.gob.es/es/estadistica/temas/estadisticas-agrarias/ganaderia/encuestas-ganaderas/default.aspx (accessed on 3 May 2024).
  3. Jiménez-Aguirre, M.T.; Isidoro, D. Hydrosaline balance in and nitrogen loads from an irrigation district before and after modernization. Agric. Water Manag. 2018, 208, 163–175. [Google Scholar] [CrossRef]
  4. Amon, B.V.; Kryvoruchko, T.; Amon, S.; Zechmeister-Boltenstern, S. Methane, nitrous oxide and ammonia emissions during storage and after application of dairy cattle slurry. Agric. Ecosyst. Environ. 2006, 112, 153–162. [Google Scholar] [CrossRef]
  5. Bosch-Serra, A.D.; Yagüe, M.R.; Teira-Esmatges, M.R. Ammonia emissions from different fertilizing strategies in Mediterranean rainfed winter cereals. Atmos. Environ. 2014, 84, 204–212. [Google Scholar] [CrossRef]
  6. Oenema, O.; Brentrup, F.; Lammel, J.; Bascou, P.; Billen, G.; Dobermann, A.; Erisman, J.W.; Garnett, T.; Hammel, M.; Haniotis, T.; et al. Nitrogen Use Efficiency (NUE)—An Indicator for the Utilization of Nitrogen in Agriculture and Food Systems; Wageningen University: Wageningen, NL, USA, 2015. [Google Scholar]
  7. Trindade, H.; Coutinho, J.; Jarvis, S.; Moreira, N. Effects of different rates and timing of application of nitrogen as slurry and mineral fertilizer on yield of herbage and nitrate-leaching potential of a maize/Italian ryegrass cropping system in north-west Portugal. Grass Forage Sci. 2009, 64, 2–11. [Google Scholar] [CrossRef]
  8. Salmerón, M.; Cavero, J.; Quílez, D.; Isla, R. Winter cover crops affect monoculture maize yield and N leaching under irrigated Mediterranean conditions. Agron. J. 2010, 102, 1700–1709. [Google Scholar] [CrossRef]
  9. Gabriel, J.L.; Muñoz-Carpena, R.; Quemada, M. The role of cover crops in irrigated systems: Water balance, nitrate leaching and soil mineral nitrogen accumulation. Agric. Ecosyst. Environ. 2012, 155, 50–61. [Google Scholar] [CrossRef]
  10. Nouri, A.; Lukas, S.; Singh, S.; Singh, S.; Machado, S. When do cover crops reduce nitrate leaching? A global meta-analysis. Glob. Change Biol. 2022, 28, 4489–4749. [Google Scholar] [CrossRef] [PubMed]
  11. Maresma, A.; Martínez-Casasnovas, J.A.; Santiveri, F.; Lloveras, J. Nitrogen management in double-annual cropping system (barley-maize) under irrigated Mediterranean environments. Eur. J. Agron. 2019, 103, 98–107. [Google Scholar] [CrossRef]
  12. Vogeler, I.; Jensen, J.L.; Thomsen, I.K.; Labouriau, R.; Hansen, E.M. Fertiliser N rates interact with sowing time and catch crops in cereals and affect yield and nitrate leaching. Eur. J. Agron. 2021, 124, 126244. [Google Scholar] [CrossRef]
  13. Boardman, J.; Poesen, J. Soil Erosion in Europe; John Wiley & Sons: Hoboken, NJ, USA, 2006. [Google Scholar]
  14. Ovejero, J.; Maresma, A.; Marks, E.A.N.; Ortiz, C.; Boixadera, J.; Serra, X.; Ponsá, S.; Lloveras, J.; Casas, C. Nitrogen fertilization with pig slurry in a barley-sorghum double-annual forage cropping system. Nutr. Cycl. Agroecosyst. 2022, 124, 373–388. [Google Scholar] [CrossRef]
  15. Fernández-Ortega, J.; Álvaro-Fuentes, J.; Talukder, R.; Lampurlanés, J.; Cantero-Martínez, C. The use of double-cropping in combination with no-tillage and optimized nitrogen fertilization improve crop yield and water use efficiency under irrigated conditions. Field Crops Res. 2023, 301, 109017. [Google Scholar] [CrossRef]
  16. Perego, A.; Giussani, A.; Fumagalli, M.; Sanna, M.; Chiodini, M.; Carozzi, M.; Alfieri, L.; Brenna, S.; Acutis, M. Crop rotation, fertilizer types and application timing affecting nitrogen leaching in nitrate vulnerable zones in Po Valley. Ital. J. Agrometeorol. 2013, 18, 39–50. [Google Scholar]
  17. European Commission. Council Directive 91/676/EEC, of 12 December 1991, concerning the protection of waters against pollution caused by nitrates from agricultural sources. Off. J. Eur. Community 1991, 375, 1–8. Available online: https://eur-lex.europa.eu/eli/dir/1991/676/oj (accessed on 12 June 2024).
  18. Schröder, J. Revisiting the agronomic benefits of manure: A correct assessment and exploitation of its fertilizer value spares the environment. Bioresour. Technol. 2005, 96, 253–261. [Google Scholar] [CrossRef]
  19. Di, H.J.; Cameron, K.C. Nitrate leaching in temperate agroecosystems: Sources, factors and mitigating strategies. Nutr. Cycl. Agroecosyst. 2002, 46, 237–256. [Google Scholar] [CrossRef]
  20. Yagüe, M.R.; Quílez, D. Response of maize yield, nitrate leaching and soil nitrogen to pig slurry combined with mineral nitrogen. J. Environ. Qual. 2010, 39, 686–696. [Google Scholar] [CrossRef] [PubMed]
  21. Yagüe, M.R.; Iguácel, F.; Orús, F. Fertilización con purín: Resultados agronómicos en doble cultivo anual de cebada-maíz y efecto residual en cebada (2006–2012). Inf. Técnicas Gob. Aragón 2013, 244, 1–16. Available online: https://digital.csic.es/bitstream/10261/86478/1/Yag%c3%bceMR_InfTec_2013.pdf (accessed on 12 June 2024).
  22. Perramon, B.; Bosch-Serra, A.D.; Domingo, F.; Boixadera, J. Organic and mineral fertilization management improvements to a double-annual cropping system under humid Mediterranean conditions. Eur. J. Agron. 2016, 76, 28–40. [Google Scholar] [CrossRef]
  23. Perramon, B.; Bosch-Serra, A.D.; Domingo, F.; Boixadera, J. The efficiency of nitrogen in cattle manure applied to a double-annual forage cropping system. Grass Forage Sci. 2016, 72, 676–690. [Google Scholar] [CrossRef]
  24. Demurtas, C.E.; Seddaiu, G.; Ledda, L.; Cappai, C.; Doro, L.; Carletti, A.; Roggero, P.P. Replacing organic with mineral N fertilization does not reduce nitrate leaching in double crop forage systems under Mediterranean conditions. Agric. Ecosyst. Environ. 2016, 219, 83–92. [Google Scholar] [CrossRef]
  25. Du, H.; Gao, W.; Li, J.; Shen, S.; Wang, F.; Fu, L.; Zhang, K. Effects of digested biogas slurry application mixed with irrigation water on nitrate leaching during wheat-maize rotation in the North China Plain. Agric. Water Manag. 2019, 213, 882–893. [Google Scholar] [CrossRef]
  26. Hina, N.S. Global meta-analysis of nitrate leaching vulnerability in synthetic and organic fertilizers over the past four decades. Water 2024, 16, 457. [Google Scholar] [CrossRef]
  27. Ren, F.; Sun, N.; Misselbrook, T.; Wu, L.; Xu, M.; Zhang, F.; Xu, W. Responses of crop productivity and reactive nitrogen losses to the application of animal manure to China’s main crops: A meta-analysis. Sc. Total Environ. 2022, 850, 158064. [Google Scholar] [CrossRef] [PubMed]
  28. López-Bellido, L.; López-Bellido, R.J.; Redondo, R. Nitrogen efficiency in wheat under rainfed Mediterranean conditions as affected by split nitrogen application. Field Crops Res. 2005, 94, 86–97. [Google Scholar] [CrossRef]
  29. Iguacel, F.; Yagüe, M.R.; Orús, F.; Quílez, D. Fertilización con purín en doble cultivo anual, en mínimo laboreo, y riego por aspersión. Inf. Técnicas Gob. Aragón 2010, 223, 1–12. Available online: https://digital.csic.es/bitstream/10261/31120/1/YagueRM_InfTecn_2010b.pdf (accessed on 3 May 2024).
  30. Yagüe, M.R.; Bosch-Serra, A.D.; Boixadera, J. Measurement and estimation of the fertiliser value of pig slurry by physicochemical models: Usefulness and constraints. Biosyst. Eng. 2012, 111, 206–216. [Google Scholar] [CrossRef]
  31. Yagüe, M.R.; Quílez, D. On-farm Measurement of Electrical Conductivity for the Estimation of Ammonium Nitrogen Concentration in Pig Slurry. J. Environ. Qual. 2012, 41, 893–900. [Google Scholar] [CrossRef]
  32. Addiscott, T.M. Measuring and modelling nitrogen leaching: Parallel problems. Plant Soil 1996, 181, 1–6. [Google Scholar] [CrossRef]
  33. Parkin, T.B.; Meisinger, J.J.; Chester, S.T.; Starr, J.L.; Robinson, J.A. Evaluation of statistical estimation methods for lognormally distributed variables. Soil Sci. Soc. Am. J. 1988, 52, 323–329. [Google Scholar] [CrossRef]
  34. Daudén, A.; Quílez, D. Pig Slurry versus mineral fertilization on corn yield and nitrate leaching in a Mediterranean irrigated environment. Eur. J. Agron. 2004, 21, 7–20. [Google Scholar] [CrossRef]
  35. Mateo-Marín, N.; Isla, R.; Guillen, M.; Quílez, D. Agronomic and Environmental Implications of Substituting Pig Slurry for Synthetic Nitrogen in Mediterranean Wheat Systems. Agronomy 2020, 10, 1498. [Google Scholar] [CrossRef]
  36. Ministerio de Agricultura, Pesca y Alimentación Encuesta Sobre Superficies y Rendimientos Cultivos (ESYRCE). Available online: https://www.mapa.gob.es/es/estadistica/temas/estadistica-digital/powerbi-esyrce.aspx (accessed on 22 February 2024).
  37. Mateo-Marín, N.; Quílez, D.; Guillén, M.; Isla, R. Utility of stabilized nitrogen fertilizers to reduce nitrate leaching under optimal management practices. J. Plant Nutr. Soil Sci. 2020, 183, 567–578. [Google Scholar] [CrossRef]
  38. Govindasamy, P.; Muthusamy, S.K.; Bagavathiannan, M.; Mowrer, J.; Jagannadham, P.T.K.; Maity, A.; Halli, H.M.; Sujayananad, G.K.; Vadivel, R.; Das, T.K.; et al. Nitrogen use efficiency—A key to enhance crop productivity under a changing climate. Front. Plant Sci. 2023, 14, 1121073. [Google Scholar] [CrossRef] [PubMed]
  39. Vogeler, I.; Nielsen, S.; Labouriau, R.; Cichota, R.; Olesen, J.E.; Thomsen, I.K. Nitrate leaching from suction cup data: Influence of method of drainage calculation and concentration interpolation. J. Environ. Qual. 2020, 49, 440–449. [Google Scholar] [CrossRef] [PubMed]
  40. Ramos, C.; Küecke, M. A review of methods for nitrate leaching measurement. Acta Hortic. 2001, 563, 259–266. [Google Scholar] [CrossRef]
  41. Wey, H.; Hunkeler, D.; Bischoff, W.A.; Bünemannet, E.K. Field-scale monitoring of nitrate leaching in agriculture: Assessment of three methods. Environ. Monit. Assess. 2022, 194, 4. [Google Scholar] [CrossRef]
  42. Wang, Q.; Cameron, K.; Buchan, G.; Zhao, L.; Zhang, E.H.; Smith, N.; Carrick, S. Comparison of lysimeters and porous ceramic cups for measuring nitrate leaching in different soil types. N. Z. J. Agr. Res. 2012, 55, 333–345. [Google Scholar] [CrossRef]
  43. Alberts, A.E.; Burwell, R.E.; Schuman, G.E. Soil nitrate-nitrogen determined by coring and solution extracting techniques. Soil Sci. Soc. Am. J. 1977, 41, 90–92. [Google Scholar] [CrossRef]
  44. Jabro, J.; Stevens, W.; Iversen, W.; Allen, B.; Sainju, U. Suction cup samplers for estimating nitrate-nitrogen in soil water in irrigated sugar beet production. J. Environ. Prot. 2016, 7, 1342–1354. [Google Scholar] [CrossRef]
  45. Weihermüller, L.; Siemens, J.; Deurer, M.; Knoblauch, S.; Rupp, H.; Göttlein, A.; Pütz, T. In situ soil water extraction: A review. J. Environ. Qual. 2007, 36, 1735–1748. [Google Scholar] [CrossRef]
  46. Wolf, K.A.; Pullens, J.W.M.; Børgesen, C.D. Optimized number of suction cups required to predict annual nitrate leaching under varying conditions in Denmark. J. Environ. Manag. 2023, 328, 116964. [Google Scholar] [CrossRef] [PubMed]
  47. Trindade, H.; Coutinho, J.; Van Beusichem, M.L.; Scholefield, D.; Moreira, N. Nitrate leaching from sandy loam soils under a double-cropping forage system estimated from suction-probe measurements. Plant Soil 1997, 195, 247–256. [Google Scholar] [CrossRef]
  48. Kühling, I.; Beiküfner, M.; Vergara, M.; Trautz, D. Effects of Adapted N-Fertilisation Strategies on Nitrate Leaching and Yield Performance of Arable Crops in North-Western Germany. Agronomy 2021, 11, 64. [Google Scholar] [CrossRef]
  49. Hillel, D. Introduction to Soil Physics; Academic Press Inc.: Orlando, FL, USA, 1982; pp. 107–132. [Google Scholar]
  50. Knox, E.; Moody, D.W. Influence of Hydrology, Soil Properties, and Agricultural Land Use on Nitrogen in Groundwater. In Managing Nitrogen for Groundwater Quality and Farm Profitability; Follett, R.F., Keeney, D.R., Cruse, R.M., Eds.; SSSA: Madison, WI, USA, 1991; pp. 19–57. [Google Scholar]
  51. Daudén, A.; Quilez, D.; Vera, M.V. Pig slurry application and irrigation effects on nitrate leaching in Mediterranean soil lysimeters. J. Environ. Qual. 2004, 33, 2290–2295. [Google Scholar] [CrossRef] [PubMed]
  52. Perego, A.; Basile, A.; Bonfante, A.; De Mascellis, R.; Terribile, F.; Brenna, S.; Acutis, M. Nitrate leaching under maize cropping systems in Po Valley (Italy). Agric. Ecosyst. Environ. 2012, 147, 57–65. [Google Scholar] [CrossRef]
  53. Herrero, E.; Quílez, D.; Daudén, A.; Salvador, R.; Guillen, M.; Avió, D.; Crespo, A.; Gea, R. Fertigation with pig slurry in demonstration fields in Aragon (Spain). In Ammonia Emission Reduction in Mediterranean Agriculture with Innovative Slurry Fertigation Techniques; Quílez, D., Herrero, E., Provolo, G., Eds.; Centro de Investigación y Tecnología Agroalimentaria de Aragón: Zaragoza, SP, USA, 2022; pp. 59–74. Available online: https://www.lifearimeda.eu/wp-content/uploads/2022/05/ARIMEDA_PF_EN.pdf (accessed on 3 May 2024).
  54. Salmerón, M.; Cavero, J.; Delgado, I.; Isla, R. Yield and environmental effects of summer pig slurry applications to irrigated alfalfa under Mediterranean conditions. Agron. J. 2010, 102, 559–567. [Google Scholar] [CrossRef]
Agronomy 15 00142 g001

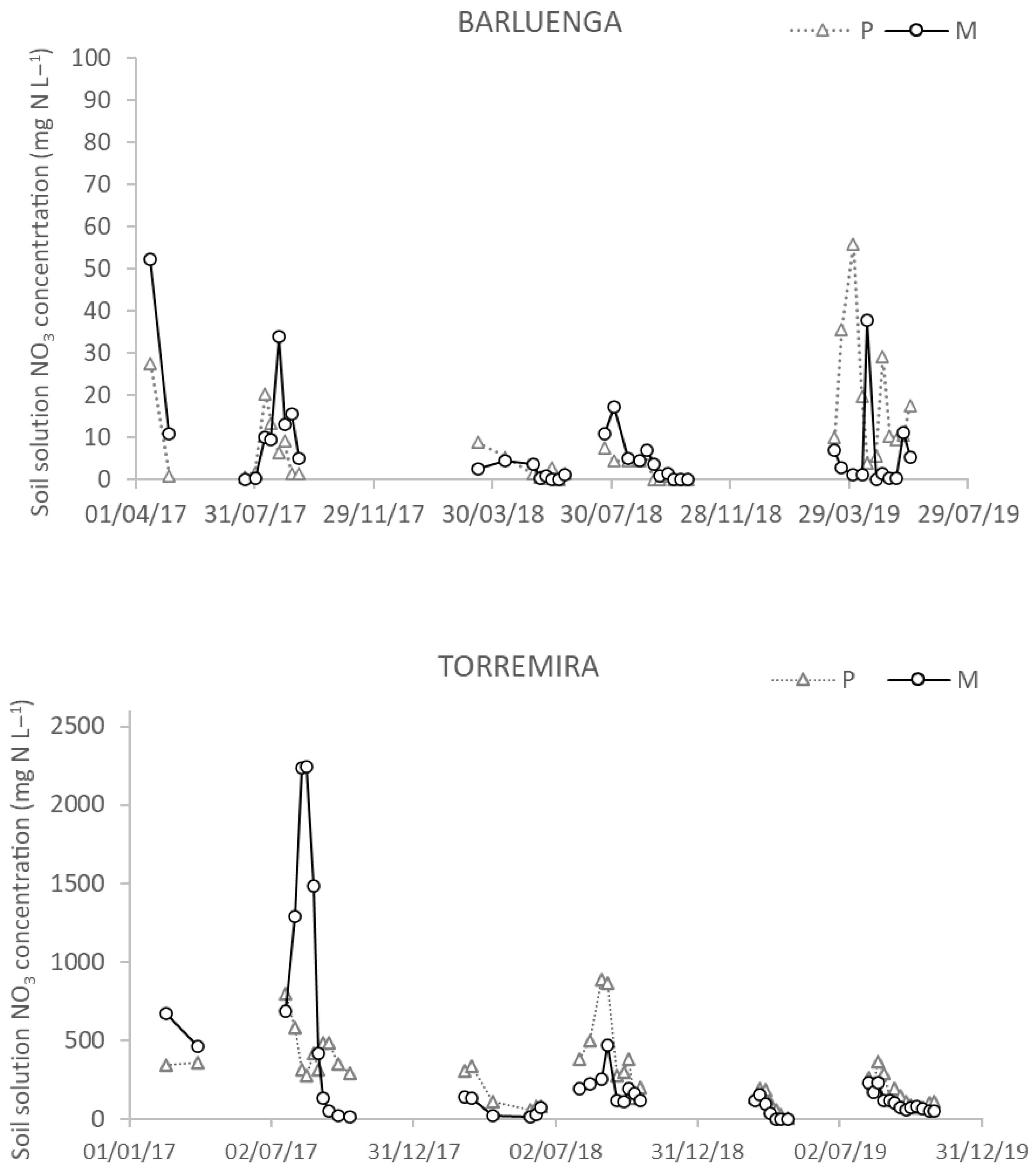

Figure 1. Average nitrate concentration in the soil solution at the different sampling times in the two treatments (P: pig slurry, M: synthetic fertiliser) in the Barluenga (1.2 m depth) and Torremira (0.45 m depth) fields.
Figure 1. Average nitrate concentration in the soil solution at the different sampling times in the two treatments (P: pig slurry, M: synthetic fertiliser) in the Barluenga (1.2 m depth) and Torremira (0.45 m depth) fields.
Agronomy 15 00142 g001
Table 1. Soil characteristics, depth, electrical conductivity in the 1:5 soil extract (EC1:5), organic matter (OM), extractable P (Olsen P), extractable K ammonium acetate (K), texture, stoniness (Ston.) and soil mineral N (Nmin) at the beginning of the period in the two experimental fields.
Table 1. Soil characteristics, depth, electrical conductivity in the 1:5 soil extract (EC1:5), organic matter (OM), extractable P (Olsen P), extractable K ammonium acetate (K), texture, stoniness (Ston.) and soil mineral N (Nmin) at the beginning of the period in the two experimental fields.
Site and Soil CharacteristicsBarluengaTorremira
Depth (m)0–0.30.3–0.60.6–0.90.9–1.20–0.30.3–0.5
EC1:5 (dS m−1)0.210.300.530.3110.170.18
OM (g kg−1)24.217.213.211.222.717.5
Olsen P (mg kg−1)16.37.47.910.318.47.9
K (mg kg−1)651.9444.1634.2613.7418.1173.7
Sand (g kg−1)175175140163537623
Silt (g kg−1)20020422122076173
Clay (g kg−1)625621639617386204
Ston. (g kg−1)5182406548576
Nmin (kg ha−1) *61.263.228.714.43818.3
* Depth, Barluenga: 0–1.2 m, Torremira: 0–0.5 m.
Table 2. Total N amounts (kg N/ha) applied to each crop in each year in the two treatments (P: pig slurry, M: mineral fertiliser) in the two experimental plots (Barluenga and Torremira). PS indicates N supplied with pig slurry.
Table 2. Total N amounts (kg N/ha) applied to each crop in each year in the two treatments (P: pig slurry, M: mineral fertiliser) in the two experimental plots (Barluenga and Torremira). PS indicates N supplied with pig slurry.
Before SowingTop Dressing 1Top Dressing 2Total
Year-Treatment-CropN Rate
kg N ha−1		DateN Rate
kg N ha−1		DateN Rate
kg N ha−1		DateN Rate
kg N ha−1
Barluenga
2017-P-Wheat3616 November 201696 (PS)2 March 20173011 April 2017162
2017-M-Wheat3616 November 20161208 March 20173011 April 2017186
2017-P-Maize245 (PS)16 June 201712030 June 2017- 365
2017-M-Maize--27030 June 2017- 270
2018-P-Wheat--139 (PS)3 February 20183017 March 2018169
2018-M-Wheat--1203 February 20183017 March 2018150
2018-P-Maize165 (PS)3 July 201812022 July 2018- 285
2018-M-Maize--27022 July 2018- 270
2019-P-Wheat--231 (PS)1 March 2019306 April 2019261
2019-M-Wheat--1201 March 2019306 April 2019150
Torremira
2017-P-Pea261 (PS)26 January 2017 261
2017-M-Pea3626 January 2017 36
2017-P-Maize191 (PS)2 June 201712030 June 20176014 July 2017371
2017-M-Maize4818 June 201724030 June 20176014 July 2017348
2018-P-Pea 20 December 2017108 (PS)2 February 2018 108
2018-M-Pea 20 December 2017 0
2018-P-Maize262 (PS)28 June 201810018 July 2018605 August 2018422
2018-M-Maize 18 June 201724018 July 2018605 August 2018300
2019-P-Barley 205 (PS)6 March 2019 205
2019-M-Barley 1506 March 2019 150
2019-P-Maize179 (PS)24 June 201915015 July 2019 606 August 2019389
2019-M-Maize 24 June 201927015 July 2019606 August 2019330
Table 3. Barluenga: grain yields and crop N extraction of wheat and maize in the two treatments (P: pig slurry, M: mineral fertiliser).
Table 3. Barluenga: grain yields and crop N extraction of wheat and maize in the two treatments (P: pig slurry, M: mineral fertiliser).
WheatMaize
TreatmentYearGrain Yield
kg ha−1, 12%		N Uptake
kg N ha−1		Grain Yield
kg ha−1, 14%		N Uptake
kg N ha−1
P201750781959739219
M201747711959652217
p 1 nsnsnsns
P201860511728364148
M201853731488781156
p nsnsnsns
P20197210188--
M20197275192--
p nsns
1 Probability level of the treatment effect after ANOVA. ns: not significant, p > 0.05.
Table 4. Torremira: grain yields and crop N extraction of green pea, barley and maize in the two treatments (P: pig slurry, M: mineral fertiliser).
Table 4. Torremira: grain yields and crop N extraction of green pea, barley and maize in the two treatments (P: pig slurry, M: mineral fertiliser).
Green Pea (Barley in 2019)Maize
TreatmentYearGrain Yield
kg ha−1, 12%		N Uptake
kg N ha−1		Grain Yield
kg ha−1, 14%		N Uptake
kg N ha−1
P20176434-17,663245
M20176621-18,033245
p 1 ns nsns
P2018553527112,059209
M2018632927512,292173
p nsnsnsns
P2019871818713,337207
M2019840215312,230176
p nsnsnsns
1 Probability level of the treatment effect after ANOVA. ns: not significant, p > 0.05.
Table 5. Soil mineral nitrogen (NO3 + NH4, kg N ha−1) in the soil profile of Barluenga (0–1.20 m) and Torremira (0–0.5 m) fields at the beginning of the experiment (January 2017) and after the maize harvest (December of each year) for the two treatments (P: pig slurry; M: mineral fertiliser). In the Barluenga field, information for the end of the experimental period (July 2019) is also presented.
Table 5. Soil mineral nitrogen (NO3 + NH4, kg N ha−1) in the soil profile of Barluenga (0–1.20 m) and Torremira (0–0.5 m) fields at the beginning of the experiment (January 2017) and after the maize harvest (December of each year) for the two treatments (P: pig slurry; M: mineral fertiliser). In the Barluenga field, information for the end of the experimental period (July 2019) is also presented.
SiteTreatmentJanuary 2017December 2017December 2018July 2019December 2019
BarluengaP150.171.5111.964.9-
M150.174.7133.658.0-
p 1-nsnsns
TorremiraP62.665.651.9-35.0
M62.668.241.6-22.6
p-nsns ns
1 Probability level of the treatment effect after ANOVA. ns: not significant, p > 0.05.
Table 6. Average nitrate concentration (mg L−1) of the soil solution in the two treatments (P: pig slurry, M: synthetic fertiliser) for the different crops and years and for the total period in the two experimental plots. N indicates the number of data points (dates) in each period, and p is the probability level of the treatment effect after repeated measures ANOVA.
Table 6. Average nitrate concentration (mg L−1) of the soil solution in the two treatments (P: pig slurry, M: synthetic fertiliser) for the different crops and years and for the total period in the two experimental plots. N indicates the number of data points (dates) in each period, and p is the probability level of the treatment effect after repeated measures ANOVA.
SiteTreatment201720182019Total Period
BarluengaCrop:WheatMaizeWheatMaizeWheat
P14.35.13.31.324.3-10.4
M31.719.61.65.07.6-10.7
N (dates)274810-31
p 1nsnsnsnsns ns
TorremiraCrop:Green peaMaizeGreen peaMaizeBarleyMaize
P353.3432.8164.6437.1105.6170.8274.8
M566.3858.371.9207.060.4113.0295.8
N (dates)2106971347
pnsnsnsnsnsnsns
1 Probability level of the treatment effect after ANOVA. ns: not significant, p > 0.05.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Quilez, D.; Guillén, M.; Vallés, M.; Daudén, A.; Moreno-García, B. New Insights into Fertilisation with Animal Manure for Annual Double-Cropping Systems in Nitrate-Vulnerable Zones of Northeastern Spain. Agronomy 2025, 15, 142. https://doi.org/10.3390/agronomy15010142

AMA Style

Quilez D, Guillén M, Vallés M, Daudén A, Moreno-García B. New Insights into Fertilisation with Animal Manure for Annual Double-Cropping Systems in Nitrate-Vulnerable Zones of Northeastern Spain. Agronomy. 2025; 15(1):142. https://doi.org/10.3390/agronomy15010142

Chicago/Turabian Style

Quilez, Dolores, Monica Guillén, Marta Vallés, Arturo Daudén, and Beatriz Moreno-García. 2025. "New Insights into Fertilisation with Animal Manure for Annual Double-Cropping Systems in Nitrate-Vulnerable Zones of Northeastern Spain" Agronomy 15, no. 1: 142. https://doi.org/10.3390/agronomy15010142

APA Style

Quilez, D., Guillén, M., Vallés, M., Daudén, A., & Moreno-García, B. (2025). New Insights into Fertilisation with Animal Manure for Annual Double-Cropping Systems in Nitrate-Vulnerable Zones of Northeastern Spain. Agronomy, 15(1), 142. https://doi.org/10.3390/agronomy15010142

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
