An Analysis of Miscible Displacement and Numerical Modelling of Glyphosate Transport in Three Different Agricultural Soils

School of Agriculture and Environmental Science, University of Southern Queensland, Toowoomba, QLD 4350, Australia
School of Engineering and Technology, The University of New South Wales, Northcott Drive, Canberra, ACT 2600, Australia
Author to whom correspondence should be addressed.
Agronomy 2023, 13(10), 2539;
Submission received: 5 September 2023 / Revised: 25 September 2023 / Accepted: 29 September 2023 / Published: 30 September 2023


Since the introduction of genetically modified (GM) glyphosate-resistant crops, especially in Australia, the United States, and Canada, the use of glyphosate has exploded, raising concerns about its environmental effects both in terrestrial and aquatic environments. There are several factors that can affect the transport of glyphosate in soil, including the pH of the soil, the iron and aluminium oxides in the soil, and the structure of the soil, as well as the application time and microbial biodegradation in the soil. Furthermore, some field studies have shown that glyphosate, along with its degradation products, can be found deep in the aquatic environment and can contaminate groundwater by leaching, which implies that studying glyphosate leaching through agricultural soils is very crucial. The research in this study involves column-leaching experiments on glyphosate-dosed soils using application and flow rates representative of field conditions with bromide as a non-reactive tracer. To determine whether the observed behaviour of glyphosate is consistent with commonly recognized transport processes, the results obtained were incorporated into a one-dimensional transport model (HYDRUS 1D). Initially, physical transport parameters were determined by fitting experimental bromide breakthrough curves (BTCs) with analytical solutions to advection–dispersion equations (ADEs) for pulse boundary conditions at the upper end and zero-gradient conditions at the lower end. Then, these parameters and those from the sorption experiments were used in HYDRUS 1D to describe glyphosate transport behaviour. After three different glyphosate applications, the columns with soils C and A showed the highest glyphosate leaching rates, which is closely related to their macropore structures since bromide also leached at higher rates. A similar lower glyphosate leaching rate was found for soil B as for bromide BTC, indicating that competition between phosphorus and glyphosate for sorption sites did not result in higher rates of leaching.

1. Introduction

Glyphosate (N-(phosphonomethyl) glycine) is an odourless, white, solid post-emergence herbicide used for controlling weeds in agriculture, forestry, and aquaculture. Monsanto first introduced it in 1971 as an unwanted weedkiller for agricultural purposes, and Table 1 summarizes its physical and chemical properties [1,2]. Several commercial products contain this active ingredient, including Roundup, widely used in genetically modified crops. In soil materials, glyphosate shows extreme solubility, mostly because of the presence of aluminium oxides and iron oxides in the compound, along with a low pH value [3,4,5,6,7,8,9,10,11,12]. The amount of glyphosate in soil has been shown to vary according to pH, iron and aluminium oxides, and soil structures as well as the timing and activity of glyphosate application [3,8,12,13,14,15,16]. A number of studies have also suggested that glyphosate could potentially be transported from terrestrial to aquatic environments as a sorbable compound in solution or in suspension, depending on the form in which it is formed [17,18,19]. By leaching through soil (subsurface runoff), dissolved forms enter drainage and groundwater, whereas particle-bound forms are moved into open water bodies through overland flow (surface runoff) [14,20,21,22].
In non-structured soils, such as sandy soils with high hydraulic conductivity that receive large amounts of precipitation, glyphosate can be transported more readily. There is a possibility that these soils can permit greater glyphosate leaching despite having a lower sorption capacity. In a previous study [23] it was found that sandy soils were at a high risk of glyphosate leaching due to their limited sorption capacity. There was no leaching of glyphosate (or its degradation product AMPA) when a further two years of field studies were conducted due to a lack of macropores, meaning the sandy soil had no structure, and water moved through it as if it were a piston flow [18].
The leaching of glyphosate in sandy soils without macropores was also reported by other studies [14,15,16]. Structured soils [17] with macropores can enhance pesticide transport rates, and glyphosate (and AMPA) has been reported to leach from subsurface sites [10,11,12]. Glyphosate leaching has been reported to be severe in gravelly soils with coarse textures [24,25].
This study investigates whether glyphosate can be released through macropore flows from GM canola agricultural soil with increased sorption capacities. This was accomplished by column leaching glyphosate-dosed soils using application and flow rates that reflect field conditions. To assess whether the experimental results are consistent with commonly accepted transport mechanisms, they were incorporated into an analysis of one-dimensional transport processes.

2. Materials and Methods

2.1. Reagents

In this study, glyphosate (PESTANAL, HPLC grade) and FMOC-Cl were obtained from Fluka (Dresden, Germany), and acetonitrile and diethylether from Sigma-Aldrich Australia (Melbourne, Australia). In addition to the diethylether, the other chemicals included KBr, KCl, HCl, KOH, NaOH, disodium tetraborate decahydrate (Na2B4O7·10H2O), and potassium phosphate monobasic (KH2PO4), all of which were analytical grade.

2.2. Solutions

Experimental solutions were prepared by mixing glyphosate (PESTANAL, 99.729%) with distilled water as well as a background electrolyte (0.1M KCl). Before the experiments were conducted, FMOC-Cl solutions of 1 g L−1 were prepared by dissolving the reagent in acetonitrile. The buffer solution (pH = 9) was prepared by dissolving 15.255 g of Na2B4O7·10H2O in 1000 mL of distilled water. To correct samples’ sensitivity to divalent ions in amino-acid coupling, samples were pre-treated with a 0.1 M EDTA solution [26]. KBr (0.01 M) solutions prepared in HPLC-grade water were used as non-adsorbed tracers in soil column experiments.

2.3. Soil Materials

In order to conduct the glyphosate leaching trial for a comparative analysis, soil samples were collected from three different locations of the investigated area. In a continuous cropping rotation, the land was used to grow winter cereals, canola, and legumes through the use of no-till and traffic-control practices to minimize soil erosion [27].
In order to fill the columns, three different soils were collected: soil A was collected from a field that had not been cultivated with genetically modified canola in the past five years, soil B was collected from a field that was just about to end canola harvesting, and soil C was collected from a field that had completed canola cultivation. Physico-chemical properties of the soil were determined using the standard methods presented in Table 2.

2.4. Experimental Studies on Column Leaching

2.4.1. The Experimental Setup

Three glass columns (5 cm inner diameter, 20 cm height) were filled with air-dried and sieved topsoil (up to 15 cm in depth and 1.5 g/cm3) from three different agricultural sites (A, B, and C) and fitted with glass sinter plates on their bottoms. A Teflon tube (3 mm inner diameter) was connected to each outlet, and a leachate collector was placed below the glass sinter disc. Each column was equipped with a disc with 30 holes that was attached to a peristaltic pump with speed control, which was connected to a reservoir filled with water, as shown in Figure 1.
To achieve steady-state hydrodynamic conditions that result in constant outflow, the columns were preconditioned for three days prior to application of the glyphosate solution. An application of glyphosate directly to the soil’s surface was performed using a conventional spray head and a pulse application using syringes (50 mL). Analyses were conducted on effluent samples collected from the bottom of the column as they passed through the Teflon tube for glyphosate, bromide, pH, and electrical conductivity. At a temperature of 20 (±5) °C, the glyphosate concentrations in the leachate were measured using the UV–visible direct spectrophotometric method.

2.4.2. The Application of Glyphosate

As a small molecule with three polar functional groups (carboxyl, amino, and phosphonate), glyphosate is strongly sorbed by soil minerals after application [7,9,23,28,29,30,31] and has a half-life of 3–174 days in soil minerals and 5–91 days in water [32]. Even though the carboxylic group can also contribute to glyphosate sorption in soil, it usually occurs through the phosphonic acid group (organic compounds that contain C-PO(OH)2 or C-PO(OR)2) [3,7,28,33,34]. Considering soil glyphosate contact time variations and soil phosphate accumulation, three different glyphosate applications were applied. Glyphosate applications were preceded by artificial rain (0.01 M CaCl2), as recommended by the Environmental Protection Agency (EPA) [35]. The soil was irrigated with artificial rain (0.01 M CaCl2) after application 1 of glyphosate, while applications 2 and 3 were applied evenly over a soil column’s surface and left for three days before irrigation. During application 3, additional phosphorous (KH2PO4 (0.008 M)) was applied to the column in addition to the pre-saturation solution [27].
Using 50 mL syringes, potassium bromide (0.01 M) and glyphosate solutions were pulsed into each column (application 1). Following one hour of artificial rain, the glyphosate pulse application was followed by irrigation with rainwater for four hours, followed by the bromide pulse application using 0.01M KBr and KOH as a background electrolyte. A glyphosate application rate of 4.5 kg/ha was chosen based on realistic values according to the equation given in the EPA guidelines [24], with each column containing 10 L of Roundup, the highest of the recommended rates for farmland (2 to 10 L ha−1) [35]. Three hours later, irrigation was continued, with its rate (4 ± 0.2 mm/h) chosen according to the highest rainfall occurring during the whole year of GM canola cultivation from sowing to harvesting. Column leachates were collected and analysed for bromide, glyphosate, pH, and electrical conductivity at different time intervals.

2.4.3. Column Experiments Parameters

HYDRUS 1D, a numerical model capable of simulating the movement of water and solutes in soil under both equilibrium and non-equilibrium flow and transport conditions, was used to model the miscible displacement experiments with glyphosate and bromide as a non-reactive tracer. Using finite-element methods, it solves the Richards equation for variable saturated fluid flows and advection–dispersion equations for heat and solute transports. Under steady-state conditions, where the columns were packed homogeneously and irrigated at a constant rate to maintain a homogeneous water content distribution, a numerical one-dimensional transport model was used to simulate the transport of solutes. A transport model was used to determine whether glyphosate’s observed transport behaviour matched commonly recognized processes. In addition, an inverse model was used to estimate the reaction and transport parameters based on the model solution fitted to the observed data. This method involves iteratively changing the model parameters until the best-fit model solution is achieved using a least-squares optimization routine.

2.5. Bromide Transport

Fitting the experimental bromide BTCs with the analytical solution to the ADEs for pulse boundary conditions at the upper end and zero-gradient conditions at the lower end determined the physical transport parameters. CXTFIT [36] was used in the inverse mode with the ADE for an inert tracer and rewritten as follows:
t = D 2 z 2 v z
where is the liquid phase concentration [M L−3], t the time [T], D the dispersion coefficient [L² T−1], z the depth [L], and v the pore-water velocity [L T−1]. The parameters v and D were estimated and the dispersivity (λ) and volumetric water content ( θ ) calculated, respectively, as D / v and   j w v , where j w is the irrigation rate.

2.6. Glyphosate Transport

This study analysed the transport of glyphosate using a convective–dispersive model with degradation and kinetic sorption based on Equations (2) to (4). A simple equilibrium model was used to predict glyphosate breakthrough based on parameters from the tracer experiment and Kf and n values from the batch experiment. This model has also been used in its inverse mode to fit glyphosate-equivalent BTCs with Kf and n. The one-site sorption model is described by the following system of equations:
θ t + ρ s k t = θ D 2 z 2 θ v z μ
ρ s k t = α k ρ s e k s k μ C
s e k = K f n
where s e k is the sorbed concentration that would be reached at equilibrium with the liquid phase concentration [MM−1], s k the sorbed concentration of the kinetic sorption sites [MM−1], ρ the soil’s bulk density [M L−3], θ the water content [L3L−3], α k a first-order sorption rate constant [T−1], μ a first-order dissipation rate [T−1], K f the Freundlich sorption coefficients [M1−(1/n)LnM−1], and n the Freundlich exponent [-]. These four unknown parameters,   α k , μ , K f , and n, were estimated by fitting the curve to the experimental data.
Simulations of solute transport were conducted with flux concentrations at the top and zero concentration gradients at the bottom. Assuming the same physical transport processes as those for bromide, the physical transport parameters for BTC (provided in Table 2) were taken from the solution of bromide BTC.

3. Results

3.1. Bromide Breakthrough Curves

As shown in Figure 2, the BTCs of the three different soil columns were determined by using a non-reactive tracer (bromide). The column with soil C had a faster bromide transport due to its higher pore-water velocity and lower water content in comparison with the other columns. The physical properties of these soil columns are provided in Table 2. The bulk densities (ρ) and irrigation rates (jw) were determined experimentally, the pore-water velocities (v) and dispersion coefficients (D) fitted to the bromide BTCs (Figure 2). The BTCs of all three soil columns were well described by the physical equilibrium ADEs, with r2 values of 0.99.

3.2. Glyphosate Breakthrough Curves

A, B, and C soil columns showed glyphosate breakthrough after 100 h, 312 h, and 103 h, respectively, following application 1. In soil column C, glyphosate breakthrough peaked at 0.7627 g/mL, consistent with soil C’s lower sorption capacity than soils A and B (Figure 3). A, B, and C soils had their first arrivals of glyphosate after 205, 328, and 168 h, respectively, in leachate samples from glyphosate application 2. The role of phosphorus in the pre-saturation solution in the leaching of glyphosate was difficult to assess from the present data for glyphosate application 3. The leaching rates of glyphosate were highest in columns with soils C and A, which was likely related to their macropore structures since bromide also leached more rapidly. Additionally, the leaching rates of glyphosate from soil B were similar to the leaching rates of its bromide BTC. It was found that the competition between phosphorus and glyphosate for sorption sites did not result in a higher leaching rate, despite the 3-day contact time between soil and solution. The results here contradict the results of previous batch sorption experiments, which showed a significant decrease in glyphosate sorption when KH2PO4 was present [3].
A number of studies found that glyphosate sorption by goethite decreases with increasing pH [37,38] similar to how other phosphonates and phosphate sorption decreases with increasing pH. Additionally, in uniform non-structured soils, such as sandy soils with high hydraulic conductivity and high precipitation rates, glyphosate leaching is prevented by lower sorption capacities. Based on a summary of the three soils, soil B had the lowest effluent glyphosate concentration, which was attributed to (1) lower breakthrough bromide concentrations, (2) lower pH values (Figure 4), and (3) higher electrical conductivity (Figure 4). Therefore, soil B had a lower glyphosate effluent concentration due to its lower pore-water velocity compared to soils A and C.

3.3. Mass Recovery

In addition to strong interactions with soils, glyphosate can be adsorbed on soils via relatively weak bonds, such as hydrogen bonds with soil humic material, so it is important to determine whether glyphosate can be desorbed from soils. According to Table 3, the soil glyphosate desorption results following a 0.1 M KH2PO4 treatment indicated a maximum desorption of 96.663% from soil C with the lowest sorption capacity, in agreement with Figure 5. A comparison of the recovery rates of glyphosate from all three applications is shown in Figure 5, with application 1 recovering the highest amount. Based on peak recovery rates of glyphosate in soils A, B, and C, only 16.52%, 10.82%, and 22.40% for application 1; 3.98%, 1.58%, and 6.58% for application 2; and 9.58%, 5.93%, and 14.27% for application 3 were recovered. Due to glyphosate’s low vapour pressure of 9.3 × 10−3 MPa (at 25 °C), its loss cannot be attributed to volatilization from the surface. Studies conducted under laboratory and outdoor conditions indicate that the loss of >40% after 118 days can be attributed to glyphosate mineralization into 14CO2 [19].
According to a previous study, glyphosate mineralization (14CO2) occurred within 42 days [19]. Using a two-chamber lysimeter test system, another study described mineralization in soil as glyphosate’s primary elimination pathway and reported that over 50% of the radioactivity applied had been measured as 14CO2 after 50 days [39]. Several other laboratory studies reported half-lives of less than 100 days for glyphosate [8,14,40,41].
The average half-life of glyphosate for first-order kinetics has been calculated by using the dissipation rates obtained from the HYDRUS 1D simulation by using an inverse modelling technique to fit the model solution to the observed data:
t 1 / 2 = 0.693 µ

3.4. Estimated Parameters

The numerical simulation was conducted using only glyphosate application as a pulse input, since the effluent concentrations of glyphosate were higher in application 1 than in the other two applications. Based on the results obtained using HYDRUS-1D, both equilibrium and non-equilibrium one-site sorption models accurately described glyphosate transport in a loam soil. To describe the data using the equilibrium model, the parameters derived from the batch sorption experiments were K f = 49.49 mg1−(1/n)Lnkg−1 and 1/n = 0.6289 for soil A, K f = 76.71 mg1−(1/n)Lnkg−1 and 1/n = 0.7350 for soil B, and K f = 39.53 mg1−(1/n)Lnkg−1 and 1/n = 0.7400 for soil C. The fitting of this equilibrium model (Figure 6) to the experimental data, taking K f and 1/n as free adjustable parameters, compared well with the results obtained using the parameters in Table 4.
Furthermore, the glyphosate BTCs were well described by a fully kinetic, one-site, convective–dispersive model with degradation and Freundlich kinetic sorption; fitting parameters (Figure 7) are provided in Table 5. According to Table 4 and Table 5, both models fit the glyphosate transport experimental data well. Both equilibrium and one-site sorption models showed lower Freundlich coefficients than batch experiments. The sorptions estimated from the column experiments often being lower than those estimated from the batch experiments can be explained as the rate of lateral diffusion of the sorbate to sorbent being limited by the advective transport [40], which was not considered in the batch experiments. Also, batch experiments were susceptible to limitations that could limit their transferability to field conditions, such as particle breakup during shaking, which led to larger sorption capacities and low soil-to-solution ratios. [41]. In addition, because the sorption of glyphosate decreases with increasing pH and decreasing ionic strength, as the pH value was increased in the column-leaching experiments, the sorption of glyphosate could have decreased [4,6,9].

4. Discussion

In application 1, breakthroughs of the glyphosate occurred after 100, 312, and 103 h, respectively. It was observed that soil column C showed the greatest glyphosate breakthrough at a peak of 0.7627 g/mL, which was in agreement with the fact that soil C has a lower capacity for sorption than soils A and B. Application 2 had comparatively lower glyphosate concentrations than application 1, with first arrivals in soils A, B, and C occurring at 205 h, 328 h, and 168 h, respectively. Based on the results obtained from glyphosate application 3, it was difficult to determine whether phosphorus in the pre-saturation solution contributed to glyphosate leaching.
Based on the results of the three soils, soil B has a lower effluent glyphosate concentration, which could be due to (1) lower bromide breakthrough concentrations, (2) lower pH values, or (3) greater electrical conductivity. These factors indicate that soil B had a lower pore-water velocity than soils A and C, which subsequently resulted in lower glyphosate effluent concentrations. The recovery rates of the applied glyphosate for all three applications revealed that, considering the peak recovery rates of glyphosate, only 16.52%, 10.82%, and 22.4% were recovered from soils A, B, and C using application 1, while only 3.98%, 1.58%, and 6.58% were recovered from soils A, B, and C, respectively, using application 2. According to previous studies, glyphosate mineralization to 14CO2 accounts for most of the loss.

5. Conclusions

Using glyphosate-dosed soils, column-leaching experiments were conducted with non-reactive tracer bromide combined with application and flow rates that mimicked field conditions. This study incorporated an experimental setup, with different glyphosate application scenarios, considering soil–glyphosate contact time variations and supposing a phosphate accumulation.
Miscible displacement experiments using glyphosate and non-reactive tracer bromide were modelled with HYDRUS-1D, a one-dimensional transport model. For the pulse boundary condition at the upper end and zero-gradient condition at the lower end, the analytical solution to the advection–dispersion equations (ADEs) was fitted to the experimental bromide breakthrough curves (BTCs). These parameters were then used in HYDRUS 1D to describe glyphosate’s transport behaviour. This study describes the glyphosate transport using a convective–dispersive, fully kinetic, one-site model with degradation and Freundlich kinetic sorptions as well as a chemical equilibrium model.

6. Insights for Future Research

  • Due to the fact that the leaching experiments carried out in this study considered soil depths up to only 20 cm, it would be more appropriate to conduct additional leaching experiments on this agricultural land for soil depths exceeding 1 m.
  • A complete health risk assessment is needed on this agricultural land as a result of the fate of glyphosate and AMPA.
  • Considering that this study only models 1D glyphosate transport, further modelling using 2D/3D cases is recommended.

Author Contributions

Conceptualization, K.N.; Data curation, K.N.; Funding Acquisition, K.N.; Investigation, K.N.; Supervision, R.K.N.; Writing-original draft, K.N.; Writing-review & editing, R.K.N. All authors have read and agreed to the published version of the manuscript.


The research conducted in this study was funded by the University of New South Wales, Australia.

Data Availability Statement

Not applicable.


This research was funded by the University of New South Wales (UNSW), Australia, and was conducted in the UNSW lab. The authors would like to thank the research team for their guidance and support.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Baylis, A.D. Why glyphosate is a global herbicide: Strengths, weaknesses and prospects. Pest Manag. Sci. 2000, 56, 299–308. [Google Scholar] [CrossRef]
  2. Zhao, B.; Zhang, J.; Gong, J.; Zhang, H.; Zhang, C. Glyphosate mobility in soils by phosphate application: Laboratory column experiments. Geoderma 2009, 149, 290–297. [Google Scholar] [CrossRef]
  3. Sprankle, P.; Meggitt, W.F.; Penner, D. Adsorption, mobility, and microbial degradation of glyphosate in the soil. Weed Sci. 1975, 23, 229–234. [Google Scholar] [CrossRef]
  4. McConnell, J.S.; Hossner, L.R. pH-Dependent adsorption isotherms of glyphosate. J. Agric. Food Chem. 1985, 33, 1075–1078. [Google Scholar] [CrossRef]
  5. Glass, R.L. Adsorption of glyphosate by soils and clay minerals. J. Agric. Food Chem. 1987, 35, 497–500. [Google Scholar] [CrossRef]
  6. Nicholls, P.H.; Evans, A.A. Sorption of lonisable organic compounds by field soils. Part 2: Cations, bases and zwitterions. Pestic. Sci. 1991, 33, 331–345. [Google Scholar] [CrossRef]
  7. Piccolo, A.; Celano, G.; Arienzo, M.; Mirabella, A. Adsorption and desorption of glyphosate in some European soils. J. Environ. Sci. Health Part B 1994, B29, 1105–1115. [Google Scholar] [CrossRef]
  8. Cheah, U.B.; Kirkwood, R.C.; Lum, K.Y. Adsorption, desorption and mobility of four commonly used pesticides in malaysian agricultural soils. Pestic. Sci. 1997, 50, 53–63. [Google Scholar] [CrossRef]
  9. Jonge, H.d.; Jonge, L.W.d. Influence of pH and solution composition on the sorption of glyphosate and prochloraz to a sandy loam soil. Chemosphere 1999, 39, 753–763. [Google Scholar] [CrossRef]
  10. Broster, J.C.; Jalaludin, A.; Widderick, M.J.; Chambers, A.J.; Walsh, M.J. Herbicide Resistance in Summer Annual Weeds of Australia’s Northern Grains Region. Agronomy 2023, 13, 1862. [Google Scholar] [CrossRef]
  11. Venâncio, C.; Barbosa, C.; Lopes, I. Glyphosate and Roundup® Ready Effects in Hydra viridissima: New Data in an Old Issue. Sustainability 2023, 15, 12428. [Google Scholar] [CrossRef]
  12. Malmo, A.; Broster, J.C.; Walsh, M.J. Looking beyond Glyphosate for Site-Specific Fallow Weed Control in Australian Grain Production. Agronomy 2023, 13, 1878. [Google Scholar] [CrossRef]
  13. Jonge, H.d.; Jonge, L.W.d.; Jacobsen, O.H.; Yamaguchi, T.; Moldrup, P. Glyphosate sorption in soils of different pH and phosphorous content. Soil Sci. 2001, 166, 230–238. [Google Scholar] [CrossRef]
  14. Borggaard, O.K.; Gimsing, A.L. Fate of glyphosate in soil and the possibility of leaching to ground and surface waters: A review. Pest Manag. Sci. 2008, 64, 441–456. [Google Scholar] [CrossRef]
  15. Kisvarga, S.; Hamar-Farkas, D.; Horotán, K.; Inotai, K.; Mörtl, M.; Neményi, A.; Székács, A.; Orlóci, L. Morphological, Histological, and Glyphosate Residue Analysis of Helianthus annuus L. Plants Treated with Glyphosate. Agriculture 2023, 13, 1014. [Google Scholar] [CrossRef]
  16. Kanissery, R.; Gairhe, B.; Kadyampakeni, D.; Batuman, O.; Alferez, F. Glyphosate: Its environmental persistence and impact on crop health and nutrition. Plants 2019, 8, 499. [Google Scholar] [CrossRef] [PubMed]
  17. Veiga, F.; Zapata, J.M.; Marcos, M.L.F.; Alvarez, E. Dynamics of glyphosate and aminomethylphosphonic acid in a forest soil in Galicia, north-west Spain. Sci. Total Environ. 2001, 271, 135–144. [Google Scholar] [CrossRef] [PubMed]
  18. Kjaer, J.; Olsen, P.; Ullum, M.; Grant, R. Leaching of glyphosate and amino-methylphosphonic acid from danish agricultural field sites. J. Environ. Qual. 2005, 34, 608–620. [Google Scholar] [CrossRef]
  19. Landry, D.; Dousset, S.; Fournier, J.-C.; Andreux, F. Leaching of glyphosate and AMPA under two soil management practices in Burgundy vineyards. Environ. Pollut. 2005, 138, 191–200. [Google Scholar] [CrossRef]
  20. Mertens, M.; Höss, S.; Neumann, G.; Afzal, J.; Reichenbecher, W. Glyphosate, a chelating agent—Relevant for ecological risk assessment? Environ. Sci. Pollut. Res. 2018, 25, 5298–5317. [Google Scholar] [CrossRef]
  21. Ortiz, A.M.G.; Okada, E.; Bedmar, F.; Costa, J.L. Sorption and desorption of glyphosate in Mollisols and Ultisols soils of Argentina. Environ. Toxicol. Chem. 2017, 36, 2587–2592. [Google Scholar] [CrossRef] [PubMed]
  22. Padilla, J.T.; Selim, H.M. Glyphosate Transport in Two Louisiana Agricultural Soils: Miscible Displacement Studies and Numerical Modeling. Soil Syst. 2018, 2, 53. [Google Scholar] [CrossRef]
  23. Gimsing, A.L.; Borggaard, O.K.; Bang, M. Influence of soil composition on adsorption of glyphosate and phosphate by contrasting Danish surface soils. Eur. J. Soil Sci. 2004, 55, 183–191. [Google Scholar] [CrossRef]
  24. Strange-Hansen, R.; Holm, P.E.; Jacobsen, O.S.; Jacobsen, C.S. Sorption, mineralization and mobility of N-(phosphonomethyl)glycine (glyphosate) in five different types of gravel. Pest Manag. Sci. 2004, 60, 570–578. [Google Scholar] [CrossRef] [PubMed]
  25. Torstensson, L.; Börjesson, E.; Stenström, J. Efficacy and fate of glyphosate on Swedish railway embankments. Pest Manag. Sci. 2005, 61, 881–886. [Google Scholar] [CrossRef] [PubMed]
  26. Miyano, H.; Toyo’oka, T.; Imai, K.; Nakajima, T. Influences of metal ions on the reaction of amino and imino acids with fluorogenic reagents. Anal. Biochem. 1985, 150, 125–130. [Google Scholar] [CrossRef] [PubMed]
  27. Nahar, K. A Low Cost Method for Glyphosate Analysis, and Site Investigation and Modelling of Glyphosate Fate and Transport from Genetically Modified Canola Farmland in Parkes, NSW, Australia; UNSW Sydney: Sydney, Australia, 2015. [Google Scholar]
  28. Gimsing, A.L.; Borggaard, O.K. Effect of KCl and CaCl2 as background electrolytes on the competitive adsorption of glyphosate and phosphate on geothite. Clays Clay Miner. 2001, 49, 270–275. [Google Scholar] [CrossRef]
  29. Autio, S.; Siimes, K.; Laitinen, P.; Rämö, S.; Oinonen, S.; Eronen, L. Adsorption of sugar beet herbicides to Finnish soils. Chemosphere 2004, 55, 215–226. [Google Scholar] [CrossRef]
  30. Gimsing, A.L.; Borggaard, O.K. Competitive adsorption and desorption of glyphosate and phosphate on clay silicates and oxides. Clay Miner. 2002, 37, 509–515. [Google Scholar] [CrossRef]
  31. Gimsing, A.L.; Szilas, C.; Borggaard, O.K. Sorption of glyphosate and phosphate by variable-charge tropical soils from Tanzania. Geoderma 2007, 138, 127–132. [Google Scholar] [CrossRef]
  32. Attaallah, M.A. The Kinetic Study of Glyphosate Leachate in Palestinian Soil at Different Concentrations. Master’s Thesis, An-Najah National University, Nablus, Palestine, 2011. [Google Scholar]
  33. Gerritse, R.G.; Beltran, J.; Hernandeg, F. Adsorption of atrazine, simazine, and glyphosate in soils of the Gnangara Mound, Western Australia. Aust. J. Soil Res. 1996, 34, 599–607. [Google Scholar] [CrossRef]
  34. Wang, Y.J.; Zhou, D.M.; Sun, R.J. Effects of phosphate on the adsorption of glyphosate on three different types of Chinese soils. J. Environ. Sci. 2005, 17, 711–715. [Google Scholar]
  35. Fate, Transport and Transformation Test Guidelines; United States Environmental Protection Agency: Washington, DC, USA, 2008.
  36. Toride, N.; Leij, F.J.; van Genuchten, M.T. The CXTFIT Code for Estimating Transport Parameters from Laboratory or Field Tracer Experiments; U.S. Department of Agriculture: Riverside, CA, USA, 1995.
  37. Grundmann, S.; Dörfler, U.; Ruth, B.; Loos, C.; Wagner, T.; Karl, H.; Munch, J.C.; Schroll, R. Mineralization and transfer processes of 14C-labeled pesticides in outdoor lysimeters. Water Air Soil Pollut. 2008, 8, 177–185. [Google Scholar] [CrossRef]
  38. Gimsing, A.L.; Borggaard, O.K.; Jacobsen, O.S.; Aamand, J.; Sørensen, J. Chemical and microbiological soil characteristics controlling glyphosate mineralisation in Danish surface soils. Appl. Soil Ecol. 2004, 27, 233–242. [Google Scholar] [CrossRef]
  39. Nomura, N.S.; Hilton, H.W. The adsorption and degradation of glyphosate in five Hawaiian sugarcane soils. Weed Res. 2006, 17, 113–121. [Google Scholar] [CrossRef]
  40. Casey, F.X.M.; Hakk, H.; Šimůnek, J.; Larsen, G.L. Fate and transport of testosterone in agricultural soils. Environ. Sci. Technol. 2004, 38, 790–798. [Google Scholar] [CrossRef] [PubMed]
  41. Buergisser, C.S.; Cernik, M.; Borkovec, M.; Sticher, H. Determination of nonlinear adsorption isotherms from column experiments: An alternative to batch studies. Environ. Sci. Technol. 1993, 27, 943–948. [Google Scholar] [CrossRef]

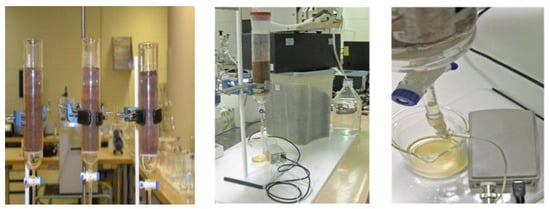

Figure 1. Column leaching experimental set-up.
Figure 1. Column leaching experimental set-up.
Agronomy 13 02539 g001

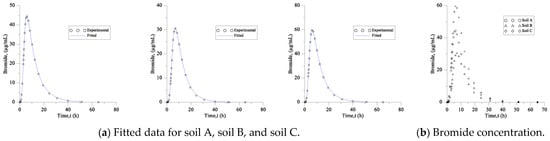

Figure 2. (a) Bromide breakthrough curves fitted with experimental data. (b) Bromide concentrations.
Figure 2. (a) Bromide breakthrough curves fitted with experimental data. (b) Bromide concentrations.
Agronomy 13 02539 g002

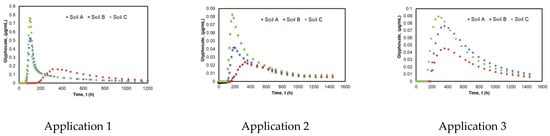

Figure 3. Glyphosate breakthrough curves under different application scenarios.
Figure 3. Glyphosate breakthrough curves under different application scenarios.
Agronomy 13 02539 g003

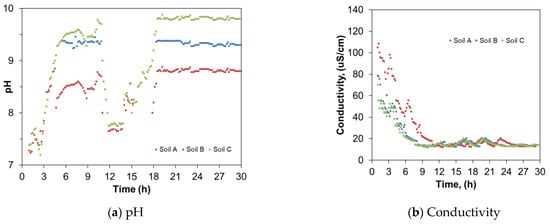

Figure 4. pH and conductivity levels in effluent samples.
Figure 4. pH and conductivity levels in effluent samples.
Agronomy 13 02539 g004

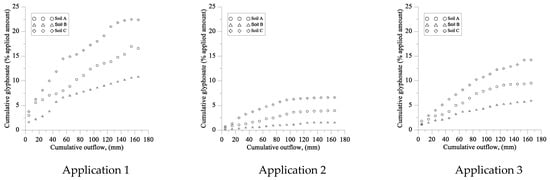

Figure 5. Percentage recovery of glyphosate from the three soil columns.
Figure 5. Percentage recovery of glyphosate from the three soil columns.
Agronomy 13 02539 g005

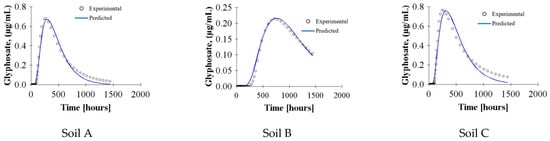

Figure 6. Glyphosate BTCs fitted with equilibrium model.
Figure 6. Glyphosate BTCs fitted with equilibrium model.
Agronomy 13 02539 g006

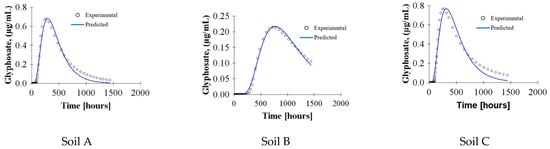

Figure 7. Glyphosate BTCs fitted with one-site sorption model.
Figure 7. Glyphosate BTCs fitted with one-site sorption model.
Agronomy 13 02539 g007
Table 1. Physical and chemical properties of glyphosate.
Table 1. Physical and chemical properties of glyphosate.
Active IngredientLog KowKocHenry’s Constant (atm-m3/mol)Molecular
Weight (g/mol)
FormVapour Pressure
mPa (25 °C) or
mmHg (45 °C)
Glyphosate acid<−3.2300–20,1004.08 × 10−19169.07Odourless, white solids1.31 × 10−2 or
1.84 × 10−7
Glyphosate isopro-pylamine salt−3.87 or −5.4300–20,1006.27 × 10−27228.19Odourless, white solids2.1 × 10−3 or
1.58 × 10−8
Glyphosate ammonium salt−3.7 or −5.32300–20,1001.5 × 10−13186.11Odourless, white solids9 × 10−3 or
6.75 × 10−8
Table 2. Soil properties.
Table 2. Soil properties.
Soil ColumnBulk Density,
g cm−3
Irrigation Rate,
cm h−1
Pore-Water Velocity (v), cm h−1Dispersion Coefficient (D), cm2d−1Soil Water Content (θ), cm3cm−3pHOCCECFe (%)Al (%)Sand (%)Silt (%)Clay (%)
Soil A1.50.42.62419.730.1524.50.946.815.639.0147.23913.8
Soil B1.50.42.48814.640.1604.81.17.417.5914.243.22927.8
Soil C1.50.42.73424.490.14650.94.757.6511.041.24315.8
Table 3. Glyphosate desorption from different soils.
Table 3. Glyphosate desorption from different soils.
Glyphosate Added, mg/LSoils
Soil A (%)Soil B (%)Soil C (%)
Table 4. The estimation of parameters for the glyphosate BTCs based on equilibrium models.
Table 4. The estimation of parameters for the glyphosate BTCs based on equilibrium models.
Soil ColumnHalf-Life, t1/2 (Days)RMSE aR2 K f (mg1−(1/n)Lnkg−1)1/n(-) α k (h−1) μ (h−1)
Soil A57.0000.0140.96837.2101.0000.1800.397
Soil B42.0000.0090.99174.7131.0000.8000.449
Soil C46.0000.0130.97934.6331.0000.1000.516
a = root mean square error.
Table 5. The estimation of parameters for the glyphosate BTCs based on one-site sorption model.
Table 5. The estimation of parameters for the glyphosate BTCs based on one-site sorption model.
Soil ColumnHalf-Life, t1/2 (Days)RMSE a K f (mg1−(1/n)Lnkg−1)1/n(-) α k (h−1) μ (h−1) R2
Soil A42.0000.01634.5471.0090.6940.2940.958
Soil B37.0000.00674.4601.0011.6200.4060.996
Soil C33.0000.01530.7241.0050.3830.3650.972
a = root mean square error.
