Article

Assessment of the Carbon and Nitrogen Mineralisation of Digestates Elaborated from Distinct Feedstock Profiles

1
Department of Green Chemistry and Technology, Faculty of Bioscience Engineering, Ghent University, Coupure Links 653, 9000 Gent, Belgium
2
European Biogas Association, Rue d’Arlon 65, 1050 Brussels, Belgium
3
Department of Environment, Faculty of Bioscience Engineering, Ghent University, Coupure Links 653, 9000 Gent, Belgium
*
Author to whom correspondence should be addressed.
Agronomy 2022, 12(2), 456; https://doi.org/10.3390/agronomy12020456
Received: 13 December 2021 / Revised: 24 January 2022 / Accepted: 9 February 2022 / Published: 11 February 2022

Abstract

:
The carbon (C) and nitrogen (N) mineralisation rates of five digestates were studied and compared with pig slurry, compost, and a solid fraction of digestate in aerobic incubation experiments. The objective was to identify the most relevant drivers of C and N mineralisation based on the physicochemical properties of the products. Net organic nitrogen mineralisation of digestates (Nmin,net) was on average 30%, although the range was relatively wide, with digestate from pig manure (39%) reaching double the value of digestate from sewage sludge (21%). The total carbon to total nitrogen (TC:TN) (r = −0.83, p < 0.05) and ammonium nitrogen to total nitrogen (NH4+-N:TN) (r = 0.83, p < 0.05) ratios of the products were strongly correlated with Nmin,net, adequately mirroring the expected fertilising potential of the products. The digestates had C sequestration values between 50 and 81% of applied total organic carbon (TOC), showcasing their potential to contribute to C build-up in agricultural soils. The carbon use efficiency of the amended soils was negatively correlated with dissolved organic carbon (DOC) (r = −0.75, p < 0.05) suggesting that catabolic activities were promoted proportionately to the DOC present in these products. Ratios of DOC:TOC (r = −0.88, p < 0.01) and TC:TN (r = 0.92, p < 0.01) were reliable predictors of the fraction of C that would remain one year after its incorporation and thus could be used as simple quality parameters to denote the C sequestration potential of digestates prior to their use in the field.

1. Introduction

The European Union (EU) has resolutely set its sights on transitioning away from the linear paradigm of “take, make, dispose” towards a circular economy model that fosters the reducing, reusing, and recycling of resources, as exemplified by the adoption of the Fertilising Products Regulation (FPR) ((EU) 2019/1009), which sets the stage for a unified European market of organic waste-derived fertilisers. At the heart of the European Green Deal lies the ambitious long-term goal to reach net-zero greenhouse gas (GHG) emissions by 2050, while the recent adoption of the cross-sectoral “Fit for 55” package by the European Commission (EC) aims to crank up the EU’s commitment to reduce emissions by 55% by 2030 (compared to 1990 levels). As a milestone towards this overarching goal, the Regulation on Land Use, Forestry and Agriculture proposes to increase carbon (C) removal by natural sinks to 310 MT CO2 equivalent by 2030 and achieve climate neutrality in this combined sector by 2035. On a broad scale, this vision will involve the upscaling and incentivisation of C farming initiatives, understood as a series of practices intended to increase C removal and storage in the land sector. This roadmap should translate into concrete actions such as the enhancement and conservation of soil organic carbon (SOC) in arable land.
The policy framework portrayed above arguably makes anaerobic digestion (AD) an interesting prospect as it can simultaneously provide renewable energy from a variety of organic waste streams, produce fertilisers in the form of nutrient-rich digestate and reduce GHG emissions [1]. By the end of 2019, the number of active biogas plants was just shy of 19,000 and total biogas production had reached 16 billion m³ [2]. At the same time, biomethane is rapidly gaining traction for its potential to decarbonise both the transportation sector and the public gas grid [3,4]. It follows that with an increasing capacity to process organic waste streams owing to the European AD sector’s steady growth, the opportunity arises to develop adequate management strategies for digestate [5]. Concomitantly, a new category of fertilisers, branded the “RENURE” products (recovered nitrogen from manure), which falls between unprocessed livestock manure and conventional chemical fertilisers [6], is under way in the EU. With this new hybrid class of fertilisers, among which digestate is featured, the current maximum nitrogen (N) application limit of 170 kg N ha−1 y−1 etched in the Nitrates Directive (ND) (91/676/EEC) would be lifted for certain animal manure-derived products in Nitrate Vulnerable Zones (NVZ).
It has been shown that certain nutrient recovery techniques [7] can improve the mineral N availability of the upgraded digestate and, consequently, its compliance with the RENURE criteria [6,8]. On the other hand, the use of raw digestate is still widespread as energy production takes precedence over nutrient recovery for AD plants [9]. In the same vein, the EC recently confirmed that at present, post-processed digestates, which include separation into a liquid and solid fraction, were not included in the FPR, de facto leaving the field open to unseparated (raw) biogas slurry as the sole ambassador for digestate products in the near future. In light of these developments, and with the RENURE derogation just around the corner, a better understanding of the fate of nutrients, N in particular, from digestate is all the more relevant. In this regard, several N-driven field studies have examined the potential of digestate as a chemical fertiliser substitute and its beneficial effects on crop growth [10,11,12]. Adverse effects include N losses from leaching due to a rapid nitrification of the initial ammonium nitrogen (NH4+-N) content [13,14]. Other reported drawbacks from the application of digestate to soil include volatilisation of ammonia (NH3), due to the high NH4+-N content and elevated pH [15]. While some of the underlying mechanisms have not been completely elucidated, nitrous oxide (N2O) emissions are also associated with the application of digestate [16], which have been reported to be affected by the moisture content of the soil [17], and the organic C [18] or NH4+-N contents [19] of digestate.
Moreover, the variability of N concentrations between different digestate qualities and the ensuing mineralisation pattern of the remaining organic N (Norg) can further compound the unpredictability of N kinetics [20]. Additional parameters influencing mineralisation, such as composition of the organic materials, soil temperature and water content, drying and rewetting events and soil physicochemical properties, must also be taken into consideration [21]. As a result, laboratory scale microcosm incubations constitute an important step to narrow down some of the key parameters behind N release dynamics in soil (i.e., the amount of available inorganic N), which in turn can help delineate more efficient management systems for digestate. In this respect, a few studies have examined the fate of C and N from a limited number of digestates in incubated soil experiments [22,23,24].
As alluded to earlier, the importance of the C removal imprint on current and future EU policies relating to agricultural systems makes it all the more pertinent to examine digestate not only from a fertilising point of view (N dynamics) but also as a possible contributor to SOC build-up (C dynamics). To further build upon this topic, the present study selected digestates elaborated from five of the most representative feedstock streams in the European AD sector (pig manure, poultry manure, energy crops, sewage sludge, food waste) to better compare their C and N mineralisation kinetics in aerobic incubation experiments.
Conversely, as the centrepiece of SOC decomposition and stabilisation dynamics, the understanding of soil microbiological processes has made great strides over the last decade, to the point where the inclusion of microbial mechanics in global C models can improve the accuracy of their predictions [25]. One such parameter, the microbial carbon use efficiency (CUE), quantifies the fraction of C that is taken up by microbial consortia and is effectively retained in the microbial biomass in lieu of being respired, whereby a higher CUE may be an indicator of increased C storage. While it is still unclear how these elements interact, it is widely recognised that temperature, water availability (abiotic factors), the microbial communities and the addition of exogenous C to soil (in this case from digestate) affect CUE [26,27]. As a novel factor that might bear significance in the frame of the bustling C farming strategies [28], and for which digestate-driven studies are still scarce to our knowledge [29], we also examined the CUE of the different digestate-amended treatments. To better earmark the fertilising and/or soil improving properties of the digestates, the incubated soil treatments included three benchmark products: a conventional organic fertiliser (pig slurry), a soil improver (compost) and the solid fraction of digestate (as a hybrid between the two former categories). The objective of the study was to identify the most relevant parameters driving C (sequestration/respiration) and N mineralisation based on the physicochemical properties of the digestates.

2. Materials and Methods

2.1. Physicochemical Characterization of Products

Samples of raw digestate were collected from five full-scale AD facilities across Europe. Four of the five digestates were of co-digested feedstocks, the fifth was of the mono-digestion of poultry manure. Table 1 provides an overview of the biogas plants and the feedstock composition of the products. Each digestate (D) was named after its predominant feedstock, as follows: biowaste (D_BW); sewage sludge (D_SS); corn silage (D_CS); pig manure (D_PM); chicken manure (D_CM). For comparison purposes, three benchmark products were included: (i) commercial compost (COM) as representative of a typical soil improver with expected organic amendment characteristics (COM_1 for the N incubations, COM_2 for the C incubations); (ii) undigested pig slurry (U_PS) as representative of a conventional fertiliser often used in farming systems; (iii) the solid fraction of digestate from chicken manure (SF_CM) as a hybrid between the two former categories, with an expected C and N mineralisation behaviour between that of the above-mentioned soil improver and the fertilisers.
All products were collected in polyethylene sampling bottles and stored at 4 °C until further use. Total solids were determined on fresh samples placed in an oven at 105 °C until constant mass was reached (48 h). Organic matter (OM) was determined on the oven-dried samples by loss on ignition in a muffle furnace after 4 h at 550 °C. The pH was determined using an Orion Star A211 (Thermo Fisher Scientific, Waltham, MA, USA) pH meter in a 1:5 ratio (w/v) of fresh sample to 1 M potassium chloride (KCl). The suspension was stirred and allowed to settle for 15′ before the reading was taken. Electrical conductivity (EC) was measured on an Orion Star A212 conductivity meter in a 1:5 ratio (w/v) of fresh sample to deionised water. The soil suspension was placed in an orbital shaker for 60′ and filtered (Whatman No. 43, Maidstone, UK) prior to the reading.
Total nitrogen (TN), total carbon (TC) and total organic carbon (TOC) were determined on a PRIMACS100 Analyzer series (Skalar Analytical B.V., Breda, Netherlands). Ammonium-N and nitrates (NO3-N) were analysed on 1 M KCl filtrates on a Skalar SA 1050 flow injection analyser. The KCl extractions were prepared in a 1:5 ratio (w/v) of fresh sample to 1 M KCl. They were placed in an orbital shaker for 30′ and subsequently filtered (Whatman No. 43). Total phosphorus (P) was determined on 0.3 g of fresh product by nitric acid digestion (HNO3 65%) using a Vista-MPX inductively coupled plasma emission spectrometer (Varian Inc., Palo Alto, CA, USA).
Biochemical oxygen demand over 5 days (BOD5) was determined according to the Macherey-Nagel (Macherey-Nagel GmbH & Co. KG, Düren, Germany) protocol reference 985 825 [30]. Dissolved organic carbon (DOC) was determined according to Macherey-Nagel protocol reference 985 093 [31]. BOD5 and DOC were performed by a certified laboratory (Innolab, Oostkamp, Belgium).

2.2. Soil Characteristics

The methods (pH, EC, DM, OM, NH4+-N and NO3-N, TC, TN, TOC) were identical to those described in Section 2.1 (Table 2). The soil for the incubation experiments was taken from the top layer (0–30 cm) of an unfertilised private patch in Wortegem-Petegem, East Flanders, Belgium (50°50′21.6323″ N, 3°33′22.8526″ E). It is classified as a luvisol [32] with a loamy sand texture (75% sand; 14% clay; 11% silt). The soil was air dried and sieved through a 2-mm screen before use. Total P, potassium (K), calcium (Ca), magnesium (Mg) and sulphur (S) were determined via the Aqua Regia method, in a 1:3 ratio of HCl:HNO3, on 1 g of soil using a Vista-MPX inductively coupled plasma emission spectrometer.

2.3. N Incubations

The C and N mineralisation rates of soil amended with five digestates (D_BW; D_SS; D_CS; D_PM; D_CM) and three reference products (COM; U_PS; SF_CM) were studied in consecutive soil microcosm incubation experiments. For assessing the N mineralisation dynamics, 162 polyvinyl chloride (PVC) tubes (9 treatments × 6 sampling times × 3 replicates), including the unfertilised control soil, were monitored over a four-month period (127 days) according to the protocol established by the Flemish Institute for Technological Research [33]. First, the air-dried soil was preincubated at 35% water-filled pore space (WFPS) for 7 days at 20.9 °C in order to stimulate and stabilise the initial microbial activity. Except for COM_1 and SF_CM (high DM content), all products were placed on a magnetic stirrer to ensure better sample homogeneity during transfer to the soil microcosms. Each tube received 260 g of preincubated soil (233 g dry soil), previously mixed to the products. The mixture was packed to a bulk density of 1.4 Mg m−3, corresponding to a soil volume of 166 cm³ inside the tube. The targeted application rate of the products in the tubes was 170 kg N ha−1 based on the Nitrates Directive (91/676/EEC). Assuming a field bulk density of 1.4 Mg m−3 and a 30 cm depth, the known surface and height of the mixed material inside the tube (4.6 cm diameter, 10 cm height) allowed us to convert kg ha−1 to g kg−1 of product applied. In the end however, the chosen application rate of 170 kg N ha−1 was not met because the initial TN characterisation values of the products, upon which the calculations were based, turned out to be inaccurate due to equipment failure. Once the samples had been reanalysed and the correct TN values had been established (the experiment was already ongoing), the treatments proved to have different application rates (Table 3).
The amount of water contained in each product was accounted for, and the total moisture level of the soil treatments brought to 50% WFPS. Each tube was covered with perforated parafilm for adequate gas exchange and was left in the dark at a constant temperature of 20.9 °C in a completely randomised design. The mass of each tube was registered, and the tubes regularly weighed to maintain a constant moisture level (50% WFPS) throughout the experiment. Destructive sampling was carried out every 20 days over a total of 127 days (due to COVID restrictions the last sampling date was on day 127 instead of 120). At each interval, 27 tubes (3 replicates of 9 treatments) were removed to determine NH4+-N and NO3-N content. The sum of NH4+-N and NO3-N was considered as the amount of mineral nitrogen (Nmin).

2.4. C Incubations

For soil incubations aimed at assessing the C mineralisation dynamics, the soil and treatments were identical to those of the N incubations, except for COM_2 being substituted for COM_1. The incubation experiment was based on the protocol from the Public Waste Agency of Flanders [34]. There was a total of 30 tubes, counting triplicates of 8 products and one control (unfertilised soil). For this experiment, the TOC loading rate of each treatment was maximised to trigger measurable microbial respiratory activity while attention was also given to the amount of N supplied by each treatment so that it would not constitute a limiting factor for microbial growth. As the DM range of the different products was quite heterogenous, a 25% WFPS soil level was opted for over a 7-day preincubation period at 20 °C. This made it possible to increase the amount of product being applied, by factoring in its water content, to reach 50% WFPS for the incubation phase.
Except for COM_1 and SF_CM (high DM content), all products were placed on a magnetic stirrer to ensure better sample homogeneity during addition to the soil microcosms. For digestates, the amount of product added per tube ranged between 23 and 24 g fresh matter (FM) (applied amounts are presented in Table 3). Each tube (7 cm height × 6.8 cm diameter) received 275 g of preincubated soil (256 g dry soil), which had previously been thoroughly mixed with the products, and was then packed to a bulk density of 1.4 Mg m−3. Once the WFPS level had been adjusted to 50%, the tubes were placed inside glass jars (1 L) with airtight lids. In each jar, the PVC tubes (182 cm³) were topped with a wire mesh, on top of which a vial (120 cm³) containing 20 mL of sodium hydroxide (NaOH) 0.5 M was placed. Upon placing each NaOH trap, the glass jars were immediately sealed shut and the time registered so as to ensure equal incubation times across all treatments. The jars were incubated at a constant temperature of 20 °C, in the dark, in a completely randomised design. The initial mass of each jar was registered and regularly weighed to maintain 50% WFPS over the course of the experiment. The treatments were incubated over 149 days during which time the NaOH 0.5 M vials were removed and back titrated on a 702 SM Titrino automatic potentiometric titrator (Metrohm, Herisau, Switzerland) with 0.5 M HCl to measure the amount of evolved CO2, after having precipitated the carbonates with 2 mL of 0.5 M barium chloride (BaCl2) [35]. In total, there were 16 sampling times (on days 1, 2, 3, 4, 6, 8, 11, 15, 18, 24, 35, 53, 74, 102, 134, 149). Upon removing the NaOH traps, the glass jars were left open for 4 h for full oxygen replenishment, after which fresh NaOH 0.5 M vials were placed back inside.

2.5. Soil Microbial Biomass

At the end of the C incubation experiment (day 149), the microbial biomass carbon (MBC) was determined on all treatments (control soil and fertilised soil treatments) via the chloroform fumigation-extraction method [36]. A homogenised quantity of 30 g of each replicate (3 × 9 treatments) was weighed for both fumigated and unfumigated samples. The fumigated samples were then placed inside a vacuum desiccator, in a chloroform-saturated environment (CHCl3) from which the air was evacuated. After a 24-h fumigation period in the dark, the samples were removed and extracted with 0.5 M potassium sulphate (K2SO4) in a 1:2 ratio (w/v) before being placed on an orbital shaker for 60′. The non-fumigated samples underwent the same K2SO4 extraction process. All samples were then filtered (Whatman No. 6) and stored at −18 °C until analysis of TC contents on a FormacsHT-I TOC/TN analyser (Skalar Analytical B.V., Breda, Netherlands).

2.6. Calculations

For each sampling time (t), results for N release (Nrel) were expressed as the difference between Nmin (taken as the sum of NH4+-N and NO3-N) measured in the treatment (fertilised soils) and Nmin contained in the control (unfertilised soil) over the amount of TN added with each product, as follows:
N rel   % TN = Nmin treatment   t   Nmin control   t TN applied × 100
Having subtracted the Nmin of the control, net N mineralisation (Nmin,net) was calculated as the difference between Nmin content of the treatment on day 0 and Nmin of all subsequent measurements, expressed as percentage of Norg. A positive Nmin,net value suggests net mineralisation, a negative N value suggests net N immobilisation [37] as follows:
N min , net   % N org = Nmin   t = x   Nmin   t = 0 N org × 100
The mineralised C (Cmin) was expressed as the difference between the amount of CO2-C evolved from the soil treatment and that of the control (unfertilised soil) over the amount of added TOC from each product:
C min   % = CO 2 C treatment   t   CO 2 C control   t TOC applied × 100
A second-order kinetic model was fitted to the Cmin results of each of the tested products, based on 16 sampling times taken over 149 days. This model assumed that the rate of mineralisation is proportional to the product of the C concentration of the substrate and the microorganisms derived from the substrate [38]:
C t = C A C A 1 + k 2 a 1 a C A t
where C(t) is the cumulative amount of C mineralised at time t; CA the amount of mineralised C; k2 the second-order mineralisation rate; a the amount of mineralised C substrate that becomes part of the microbial biomass itself and further influences the mineralisation process. Variables k2 and a are expressed as a single variable k2a(1 − a). The model was then used to extrapolate the experimental results and predict the amount of effective OC (EOC), defined as the amount of C remaining after 365 days.
The data from the experiment were corrected to reflect an average annual field temperature of 9.7 °C in Belgium, using a temperature dependence model for C mineralisation [39]:
k T = k o p t   e x p ĸ 1 T T o p t 2
where k(T) is the C mineralisation rate at temperature T; kopt the mineralisation rate at optimum temperature; ĸ(2.55) a rate parameter reflecting the temperature sensitivity of the mineralisation rate k; and Topt the optimum temperature for C mineralisation. The ĸ parameter was based on a previous estimate established in the same laboratory [39]. More specifically, ĸ was empirically derived from measurements of cumulative crop residue C mineralisation at 5.5, 10, 16 and 25 °C in a Flemish loamy sand cropland soil, highly comparable to the soil used in the present study. Thus, the mineralisation rates at temperatures T and at 9.7 °C were calculated from this equation, from which a ratio k(T):k(9.7) was derived. The extrapolated incubation time (365 days) at temperature T was then multiplied by this ratio to obtain an equivalent number of days at 9.7 °C.
The cumulative CO2-C results, stemming from the initial TOC application rates (Table A1, Appendix A), expressed per 100 g soil, were normalised based on the amount of added TOC applied with each product:
CO 2 C   μ g   CO 2 C   mg 1   TOC = t = 0 t = x   CO 2 C TOC applied
The CUE, defined as the ratio of C gain to C uptake over a period of time, was assessed to gauge the efficiency with which microbial communities assimilated the C supplied by the treatments [40,41]:
CUE   = Δ MBC Δ MBC   +   Σ CO 2 C × k E C 1
MBC is the microbial biomass carbon determined on the last day of the C incubation and CO2-C the amount of evolved CO2-C by day 149; ΔMBC and ΣCO2-C taken together represent C uptake; kEC is a correction factor which considers that about 45% of the killed biomass C is evolved as CO2-C [42].

2.7. Statistical Analysis

All statistical analyses were performed on SPSS 27.0 software (IBM Corp, Armonk, NY, USA) for Windows. Differences in treatments were assessed using one-way ANOVA and Tukey’s honestly significant difference (HSD) post-hoc test. The normal distribution of data was checked using the Shapiro–Wilk test. Homogeneity of variance was checked using Levene’s test. Correlation coefficients between treatment effects and product characteristics were determined using Pearson’s correlation.

3. Results

3.1. Product Characteristics

All digestates and U_PS had pH values in the alkaline range, between 8.3 and 8.7 (Table 4). DM content of the five digestates ranged from 8 to 11%, while values for COM_1 and COM_2 were comparatively much higher (53 and 35%).
As was foreseeable, the highest DM content was observed with SF_CM (81%), while the lowest was from U_PS (2.9%). TC of digestates varied somewhat, ranging from 256 (D_PM) to 369 g TC kg−1 (D_CS). For U_PS, TC was in the lower range (277 g TC kg−1 DM) while its TC:TN ratio was the lowest of all at 1.99 (as an order of magnitude, the second lowest was D_PM at 2.60). There was some degree of variability for OM from digestates (600–749 g OM kg−1 DM), the lowest value being associated with SF_CM (398 g OM kg−1 DM). TOC:TC was relatively widespread across products (0.77–0.99), the highest value coming from COM_1, the lowest from U_PS (Table 4). The lowest and highest TN values for digestates were, respectively, 71 (D_SS) and 99 (D_PM) g TN kg−1. The TC:TN ratios of digestates ranged between 2.6 (D_PM) and 4.5 (D_CS), in agreement with previously reported values [43,44].
The Nmin was predominantly in NH4+-N form, as can be expected after AD [45], with NH4+-N:TN ratios ranging from 0.53 to 0.70, also in line with previously reported values [37]. The U_PS product had the highest amount of NH4+-N (101 g kg−1 DM) and TN (139 g kg−1 DM) and also the highest NH4+-N:TN ratio (0.72), suggesting it contained the largest amount of plant-available N for immediate supply. The SF_CM values were comparatively lower, with 13 g NH4+-N kg−1 DM and 35 g TN kg−1 DM, resulting in a much lower NH4+-N:TN (0.38), while TOC:TN (13.9) was noticeably higher than for digestates and closer to the composts. The highest TC:TN and TOC:TN belonged to the two composts (COM_1 and COM_2), which also had the lowest amounts of total Kjeldahl N, indicating a better suitability as a soil improver than fertiliser [23]. COM_2 had the lowest DOC at 4.9 g DOC kg−1, which agreed with the findings of Zmora-Nahum et al. [46], who reported 4 g DOC kg−1 as indicative of stable compost. The C:N ratio of COM_2 (27) also pointed to a mature compost, within the optimal range [47]. The DOC:TOC ratio of digestates ranged from 0.20 to 0.42, indicating that in some cases, relatively substantial amounts of C were still present in water-soluble form. However, this variability is expected from organic-based fertilisers, as evidenced by the similar ratios reported in other studies ranging from as little as 0.03 to as much as 0.64 [22,48]. In this respect, the SF_CM was much closer to COM_2, with these products displaying DOC:TOC ratios of 0.06 and 0.01, respectively. The BOD value (data not shown) of COM_2 was the lowest at 9.7 g O2 kg−1, which would tend to indicate stable C compounds. The COM_1 contained small amounts of NO3-N (0.74 g NO3-N kg−1 DM), whereas NO3-N went undetected in the other products. The Norg:TN ratio ranged from 0.30 (D_CM) to 0.47 (D_CS and D_SS). The digestates exhibited TC:Norg ratios ranging from 7.2 (D_PM) to 9.5 (D_CS). As for U_PS, Norg:TN was 0.31 and TC:Norg was the lowest of all at 6.2. Norg:TN from SF_CM (0.61) was roughly midway between U_PS and raw digestates.

3.2. C Mineralisation

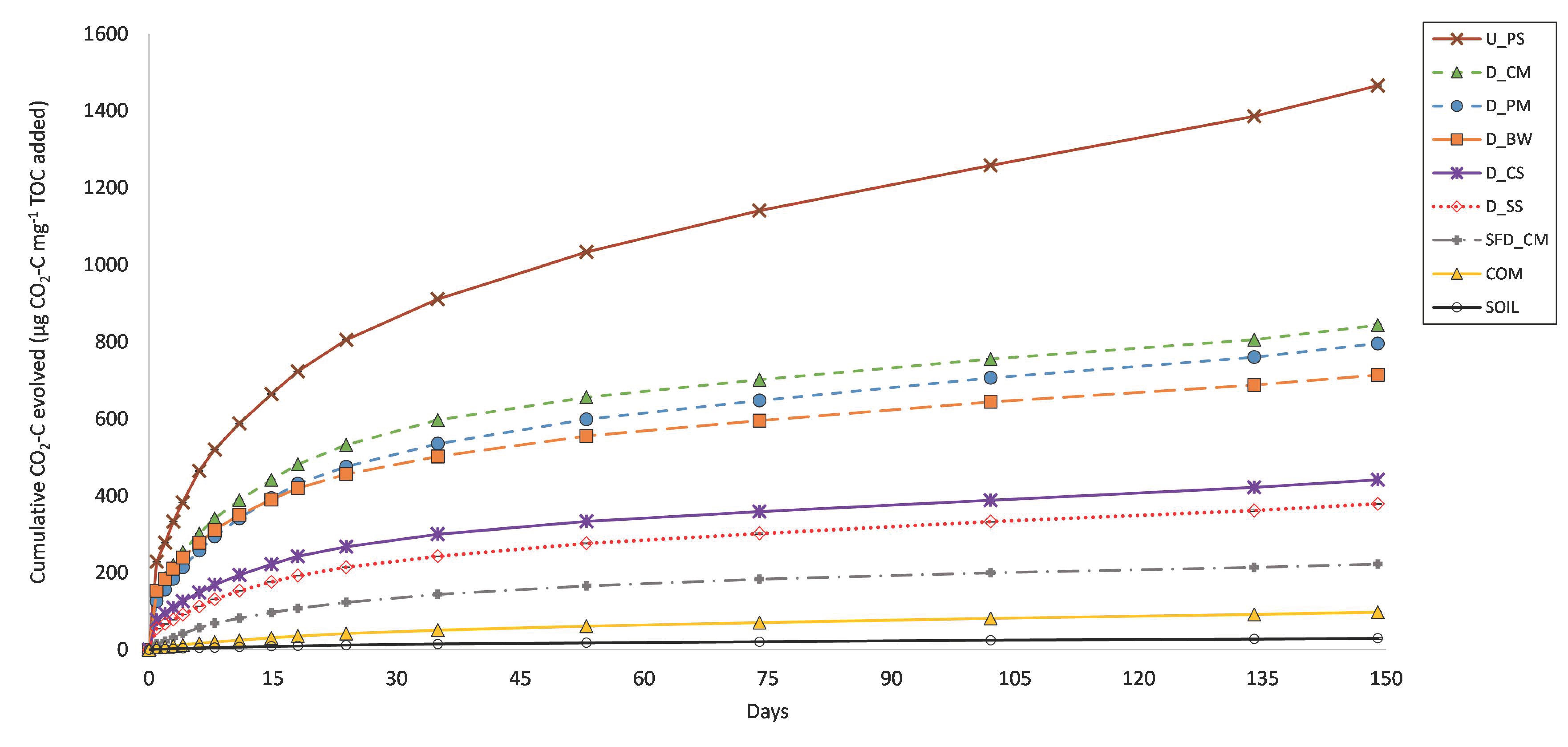

The addition of all products to the soil induced an increased microbial activity as highlighted by the curves of respired CO2-C (Figure 1).

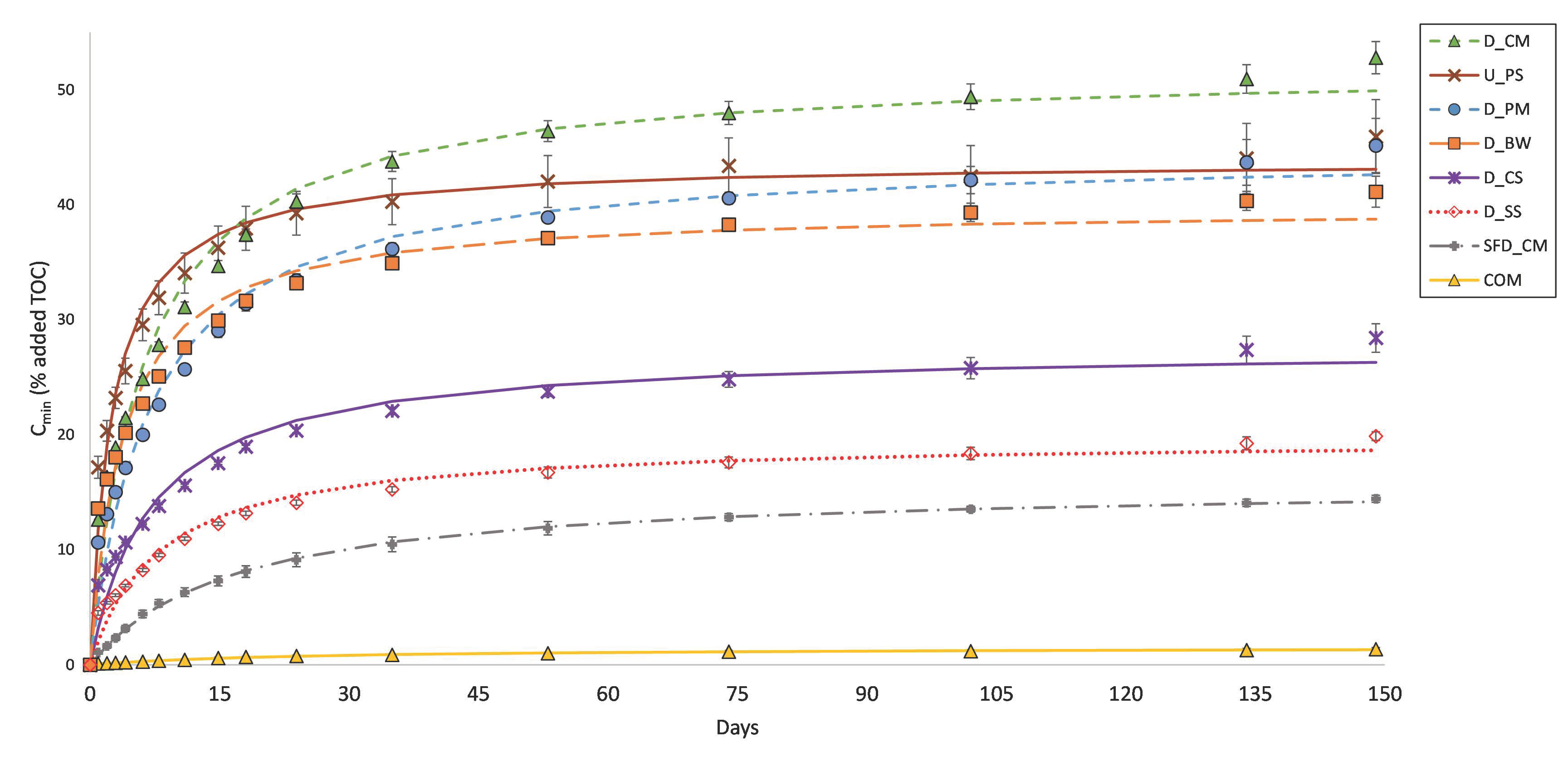

The Cmin pattern was significantly different for all treatments (p < 0.05) on day 149. In general, the microbial response was much higher from the added digestates and U_PS, than from SF_CM and COM_2 (Figure 2). The U_PS product triggered the highest respiratory response (1466 μg CO2-C mg−1 TOC), with almost double the value of the second highest treatment (Table A1, Appendix A), while the lowest response came from COM_2 (98 μg CO2-C mg−1 TOC). Cavalli et al. [49] had reported a similar trend in which microbial respiration from undigested slurry was markedly higher than for digestate, which was ascribed to the undigested slurry containing significantly higher amounts of volatile fatty acids. The Cmin (Equation (3)), expressed as a percentage of added TOC, followed almost the same order as evolved CO2-C, except for D_CM (53%) finding itself in front of U_PS (46%), tailed by D_BW (41%), D_CS (29%), D_SS (20%), SF_CM (14%) and COM_2 (1%) (symbols in Figure 2).
The experimental data was fed into several models (parallel first-and zero-order, first-order with 2 pools, second-order), and the best fit was obtained with the second-order model. Indeed, the amount of mineralised C (CA) determined by this model (Table 5) showed the highest coefficients of determination and followed a similar order as the experimental Cmin results (Table 6), with the slight difference that U_PS and D_PM switched places. The second-order model was used to extrapolate the amount of effective organic carbon (EOC) remaining after 365 days at the average annual field temperature in Belgium (9.7 °C) as a proxy for the stable, potentially sequestrable, fraction of C supplied by each product. The EOC expressed as a percentage of added TOC contained in each product was as follows (Table 5): COM_2 (99%); SF_CM (86%); D_SS (81%); D_CS (74%); D_BW (61%); D_PM (57.3%); U_PS (56.9%); D_CM (50%). Almost identical EOC coefficients were reported for compost (93–95%) and solid fractions (70–75%) under similar experimental conditions [50,51].
The EOC was significantly positively correlated to TC:TN (r = 0.92, p < 0.01) and negatively to the initial NH4+-N:TN ratio (r = −0.93, p < 0.01) (Table 7). The highest amounts of EOC were found in COM_2 and SF_CM, which also happened to have the lowest DOC values, respectively at 4.9 and 11.1 g DOC kg−1 DM. For digestates, the highest EOC was found in the D_SS treatment (81%), while this product also had the lowest amount of DOC (60.7 g DOC kg−1 DM).
As a general pattern, the higher the observed CUE, the higher the EOC (r = 0.82, p < 0.05) of the product and, conversely, the higher the DOC of the product, the lower the CUE (r = −0.75, p < 0.05) (Table 7). In effect, suggesting that the easily accessible DOC induced a higher respiration and a lower microbial biosynthesis, as evidenced for instance by U_PS, which had the lowest CUE (2%), the highest CO2-C respiratory activity and one of the lowest EOC values (Table 5). On the contrary, COM_2 and SF_CM had the highest CUE (both 41%) and also exhibited the lowest respired CO2-C and the highest EOC potentials. In agreement with Alburquerque et al. [22], a significantly positive correlation was observed between BOD and DOC content (r = 0.86, p = 0.01; not shown). In particular, it was noted that COM_2 and the SF_CM had the lowest BOD values (data not shown), respectively 9.7 and 51.0 mg O2 kg−1 DM, and the lowest Cmin rates. However for this study, BOD taken as an indicator of OM stability, seemingly did not yield significant relationships with Cmin activity (r = 0.57; not shown), but when BOD was expressed over TOC (BOD:TOC), the positive relationship with Cmin increased somewhat (r = 0.67; not shown), thus effects of BOD on C kinetics should not be ruled out.

3.3. N Mineralisation

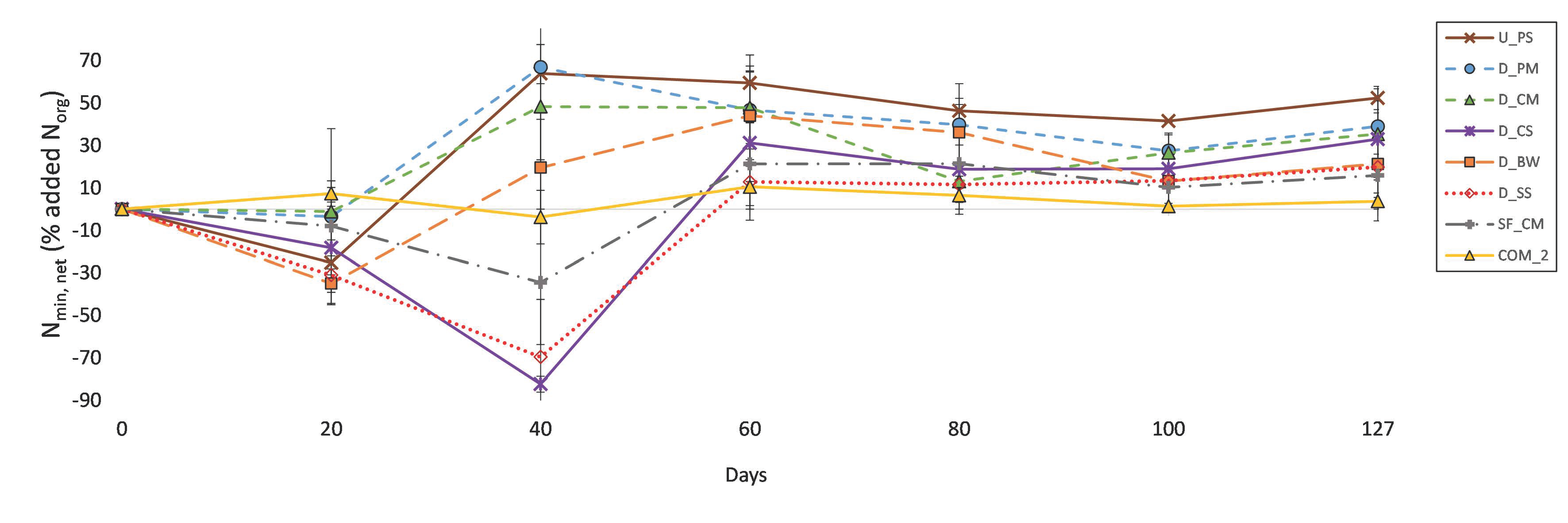

On day 0, NH4+-N content of the treatments was based on the added amounts of each product and their initial properties. From highest NH4+-N content to lowest, the order was as follows: U_PS > D_CM > D_PM > D_BW > D_CS > D_SS > SF_CM > COM_1 = SOIL. Thus, all products supplied readily available amounts of N in the form of NH4+-N on day 0. NH4+-N concentrations dropped rapidly to trace amounts by day 40 (Figure 3), up until the end of the experiment (day 127), which suggests the absence of anaerobic conditions [39]. Ammonium-N losses during incubations, with similar moisture conditions, have been reported to be minimal [52] especially considering the acidic pH of our soil (5.3). Furthermore the loamy sand soil used in this experiment had low clay content (Section 2.2) with likely negligible NH4+ fixation in the clay interlayer space [53].
From day 0 to 20, NH4+-N in the control soil dropped from 26.4 (± 0.1) to 3.84 (± 1.1) mg NH4+-N kg−1 soil and by day 40 onwards never exceeded 1 mg NH4+-N kg−1 soil. As for NO3-N, a steady increase in NO3-N could be observed from the initial 15.58 (± 2.1) NO3-N kg−1 soil, with a slight drop from day 40 to day 60 (64.8 ± 3.8), which can be ascribed to rewetting events on days 40 and 80, which might have triggered a slightly higher mineralisation and nitrification activity. From day 60 onwards, a steady increase was observed, finally reaching 83.87 (± 1.7) mg NO3-N kg−1 soil by the end of the experiment on day 127. The COM_ 1 closely followed the same pattern as the unfertilised soil (Figure 3) with only trace amounts of NH4+-N detected on day 0. All the digestate treatments and U_PS, which had higher amounts of initially available NH4+-N, reached values neighbouring the 0 mark by day 40. Concomitantly, a rapid increase in NO3-N could be observed (Figure 3), which suggests that the most probable fate of NH4+-N was nitrification [23,54,55]. On day 0, the amount of NO3-N was similar for all treatments and was supplied mostly by the soil (15.6 mg NO3-N kg−1 soil), as NO3-N was not detected in the digestates and only a small quantity was already present in COM_1 (Table 4).
On the final day of the incubations, Nrel (Equation (1)) calculated as a percentage of total added N from each treatment after having subtracted the Nmin contribution of the unfertilised soil control, was as follows (Table 6): 87% (U_PS); 81% (D_CM); 78% (D_PM); 72% (D_BW); 69% (D_CS); 63% (D_SS); 48% (SF_CM); 9% (COM_1). In other words, the raw digestates displayed fertilising values, in terms of plant-available mineral N, between 60 and 80% of the TN applied. Net N mineralisation (Nmin,net) was calculated by subtracting the Nmin content of the treatment on day 0 from the Nmin at all subsequent measurements and expressed as percentage of organic N (%Norg) (Equation (2)). All treatments yielded positive Nmin,net results on day 127: 52% (U_PS); 39% (D_PM); 35% (D_CM); 33% (D_CS); 21% (D_BW); 20% (D_SS); 16% (SF_CM); 4% (COM_1).
These results generally agree with previously reported N mineralisation ranges for digestates [23,49,56]. On the final day, Nrel (r = 0.99, p < 0.01) and Nmin,net (r = 0.83, p < 0.05) were significantly positively correlated with the initial NH4+-N:TN ratio of the products (Table 7), thus reconfirming the validity of this parameter to predict plant-available N from the products [20,57].
It is generally accepted that products within a 1 to 15 C:N ratio are more likely to trigger a rapid release of N, whereas C:N ratios > 35 usually favour net N immobilisation [58]. Given that the C:N ratios of digestates usually fall between 3 and 8.5 [59], they most often lead to a rapid net N mineralisation in the soil and concomitantly a sharp increase of plant-available N [60]. This study reaffirmed this observation, as it was found that the digestates with higher NH4+-N:TN and lower TC:TN ratios (than COM_1 and SF_CM), exhibited higher Nrel and Nmin,net results. As illustrated by the three highest performing treatments in terms of Nmin,net (D_PM, U_PS and D_CM), which were characterised by a lower TC:TN range (2.0 to 2.8), while the NH4+-N:TN ratio was on the higher end of the spectrum (0.6 to 0.7). This observation was supported by the significantly negative relationships found between, respectively, Nrel (r = −0.99, p < 0.01) and Nmin,net (r = −0.83, p < 0.05) with the initial TC:TN of the products, thus reasserting the importance of the C:N ratio of the input materials to predict N mineralisation outcome in soil, in agreement with other findings [61,62].

4. Discussion

4.1. C Mineralisation

A substrate’s C:N ratio is generally recognised as a crucial parameter linked to both C and N dynamics resulting from the addition of OM to soil [63,64]. Here, Cmin was strongly negatively correlated with TC:TN, and evolved CO2-C was positively correlated to CA, taken as the easily mineralised pool of C. This was in general agreement with Riffaldi et al. [65], who reported that lower C:N ratios led to higher C mineralisation activity. A highly significant positive relationship between initial NH4+-N content of the products and respired CO2-C on the last day of incubations, and a negative correlation between Norg:TN of products with both CO2-C and Cmin points towards NH4+-N having stimulated soil heterotrophic activity, as was already observed in previous studies [23,66]. It cannot be excluded that high NH4+-N contents were just indicative of inherent high biological lability of the added OM, and so via mutual covariation with indicators of C-lability, co-varied with Cmin. Indeed products with a high NH4+-N content also had high DOC:TOC ratio and low TC:Norg ratio, while Cmin was positively correlated to the DOC:TOC of the products (r = 0.89, p < 0.01).
The DOC content is usually closely related to microbial activity, owing to the dissolved fraction being generally more biologically available to microorganisms [67]. Compared with COM_2 and the control soil, the addition of digestates and U_PS resulted in a marked increase in microbial activity as indicated by the higher respiration (Figure 1) and Cmin rates (Figure 2). These observations were also supported by the positive correlations found between the CA parameter of the second-order kinetic model with the measured Cmin and respired CO2-C on day 149 of C incubations (r = 0.99, p < 0.01; r = 0.82, p < 0.05, respectively). As already pointed out (Section 3.2), a negative correlation between CUE and the amount of DOC initially present in the products (r = −0.75, p < 0.05) and their DOC:TOC ratio (r = −0.80, p < 0.05) was also noted. This would suggest that the higher amounts of DOC present induced higher microbial respiration, hence resulting in a lower microbial biosynthesis, and in turn, a lower CUE. This pattern was illustrated for instance by U_PS, which was behind the lowest CUE (2%) and the highest CO2-C efflux. While the initial DOC content of U_PS was not the highest, the DOC:TOC ratio proved a meaningful indicator of C dynamics overall as it showed significantly positive correlations with the CO2-C efflux and the Cmin rate (r = 0.68, p < 0.05 and r = 0.89, p < 0.01, respectively). In other words, as a general trend, the higher the DOC and DOC:TOC of the product, the higher the incumbent CO2-C efflux and Cmin rates of a given treatment, as exemplified for instance by COM_2 and SF_CM, both containing comparatively low amounts of DOC (5 and 11 g DOC kg−1, respectively) and exhibiting the lowest Cmin and CO2-C activity, while higher DOC concentrations in digestates and U_PS led to a much higher microbial activity. Thus, DOC and DOC:TOC appeared to be important drivers of C dynamics in this study, in light of which it might be argued that the digestates (and U_PS) could have contained more easily degradable organic compounds, as evidenced by DOC content, than the aerobically stabilised COM_2, which in turn led to higher CO2-C and Cmin activities. This observation is in agreement with findings from Kirchmann & Bernal [68], who compared anaerobically-treated and composted materials, and pointed to the former containing less stable C than the latter, thus leading to higher respiration rates.
The CUE (Equation (7)) was intended to measure the TOC that is metabolised and allocated to microbial growth, thus serving as an indicator of the efficiency with which microbial communities could assimilate the C supplied by the treatments. In this regard, CUE results in this study seemed to support the aforementioned observations. Interestingly, a negative correlation (r = −0.75, p < 0.05) was also observed between the amount of DOC and EOC. This tends to corroborate the accuracy of the second-order kinetic model as this would signify that the higher the amount of DOC contained in the products, considered as the easily degradable fraction of C, the lower the expected EOC value. In one of the few studies to our knowledge that looked into the CUE of soils treated with digestate, Cattin et al. [29] reported a generally positive effect of the solid fraction of digestate on CUE. Our findings agree with this observation, though admittedly additional studies are probably still required to draw any further comparisons or trends.

4.2. C Sequestration Potential and Possible Implications for C Farming Strategies

The strong fit with the second-order kinetic model allowed us to predict the fate of C after 365 days, considered as the effective pool of organic C (EOC), with a high degree of confidence (Table 5). The results showed that, without reaching the levels of EOC contained in conventional soil improvers such as compost (99% for COM_2), the application of digestate could bring an added environmental benefit in terms of C build-up in agricultural soils. The extrapolation of the model showed that the digestates in this study could theoretically contribute between 205 (D_CM) and 553 (D_SS) kg EOC based on an application rate of 170 kg N ha−1 year−1 in NVZ. Incidentally, among these products, three of the digestates (D_BW; D_PM and D_CM) qualified under the TOC:TN ≤ 3 RENURE criterion [6], meaning their EOC contribution could be higher and would depend on the specific N demands of the considered crop. Continuing with the exercise, SF_CM held a potential 2185 kg EOC ha−1, thus markedly differentiating itself from the raw digestates and positioning itself closer to a soil improver, in this case COM_2, which provided an estimated 4245 kg EOC ha−1.
The metabolic mechanisms that give rise to C release into the environment, or on the contrary to C stabilisation, are still largely misunderstood, while evolving views on the matter have been put forward to better explain soil microbial dynamics. One such conceptual framework, the ‘microbial carbon pump’, argues that most of the stable C, in this case represented by EOC, is derived from the labile pool of C, which is converted via in vivo turnover (anabolism) into microbial necromass, considered a precursor for stable C (the so-called entombing effect) [69,70,71]. In our study, DOC:TOC ratios of digestates ranged from 0.21 to 0.49, which hints at relatively high amounts of labile C still being present in some cases, whereas the EOC of digestates ranged from 50 to 81% (in some cases relatively high). It should thus not be excluded that part of the DOC contained in digestate, as a readily available source of C to microbes, was assimilated and transformed into more recalcitrant forms, via microbial necromass, as this theory proposes. On the other hand, other studies point towards the physical protection of organic C aggregates [72,73] and heterogeneous binding mechanisms [74] as the main drivers behind C storage dynamics, parameters which were not assessed in this study.

4.3. N Mineralisation

An initial drop in Nmin,net activity was observed, which could indicate N immobilisation, between days 0 and 20 for some products (D_PM; D_CM; D_BW) and between days 0 and 40 for others (SF_CM; D_CS; D_SS), followed by subsequent remineralisation (Figure 4). This could be explained by the fact that a strong respiratory activity was registered at the beginning of the incubation experiment. Thus, as was noted by Alburquerque et al. [22], N might have been immobilised initially into microbial biomass when the applied labile C from the products was in relative abundance. For the digestates in particular, a seemingly steeper immobilisation seemed to have occurred in the case of D_CS and D_SS. It may be explained by these products having higher TC:TN and Norg:TN ratios, thus a lower amount of readily available NH4+-N. This observation is supported by the significant relationships observed between Nmin,net and, respectively, Norg:TN (r = −0.83, p < 0.05) and TC:TN (r = −0.83, p < 0.05).
A possible lower N availability might have induced N-acquiring microorganisms to use the available labile C as primary energy source to break down the N embedded in the recalcitrant OM, in accordance with the microbial N mining hypothesis [63,75]. In support of this observation, D_CS and D_SS had the highest amounts of EOC of the studied digestates. Similarly, U_PS was the only product that apparently gave off a positive Nmin,net activity from the start (i.e., no immobilisation) and also had the lowest TC:TN, Norg:TN and EOC, which would tend to lend further credibility to the aforementioned explanation. Finally, in the absence of a monitoring of pH, N2O and NH3 emissions during the incubation experiment, an initial volatilisation of NH4+-N between days 0 and 40 cannot be completely ruled out either (in spite of all the precautions that were taken (Section 3.3)).
Digestate is generally reported as having a superior N-fertilising value compared to the undigested feedstock, mostly due to a higher NH4+-N content, lower DM (better infiltration) and a lower C:N ratio [49,57,59,61]. Unexpectedly, U_PS, which was included to represent the fate of available N from undigested manure against that of digested feedstocks, outperformed the digestates in terms of N mineralisation (Figure 4). While this result may seem contradictory at first, a closer look at some of the agrochemical properties of U_PS (Table 4) confirmed the importance of the abovementioned parameters. Indeed, U_PS exhibited the highest NH4+-N content of all products (101 g NH4+-N kg−1 DM), the lowest DM content (29 g kg−1 FM) and the lowest TC:TN and TOC:TN ratios (1.9 and 1.5, respectively). The explanation behind these comparatively exceptional values is that U_PS was collected from the surface of an unmixed slurry pit, where the sedimentation of solids over time led to a thinned out upper layer and a thick bottom layer. This would explain the low DM and the high NH4+-N content, owing to the slurry containing a larger volume of ammonium-containing liquid fraction in the form of pig urine and less solids (C compounds). Thus, resulting overall in a lower TC:TN ratio. In this respect, U_PS was the exception that confirmed the rule, insofar that NH4+-N:TN (r = 0.83, p < 0.05) and TC:TN (r = −0.83, p < 0.05) were found to be sound predictors of N mineralisation patterns and tended to corroborate the importance of such parameters to describe Nmin availability. Nonetheless, it is usually more likely to find such characteristics in digested, rather than undigested, materials [59]. Makara et al. [76] found DM and BOD to be statistically correlated in undigested manures, where a higher DM content led to a higher BOD. In this respect also, the outstanding character of U_PS was reconfirmed as it was on the lower end of the spectrum for DM (28.6 g kg−1 FM) and BOD (1.5 g O2 L−1), when compared with values reported in the literature, which ranged anywhere from 1.0 [77] up to as much as 80 g O2 L−1 [78].
By and large, when setting the Nmin,net and Nrel performance of COM_2 (4 and 9%, respectively) against that of the digestates, there seemed to be little room for interpretation as regards digestate’s first vocation as a fertiliser, with net Nmin,net rates ranging between 20 and 39% by day 127, and 63% and 81% for Nrel. These results tend to agree with previously reported trends [23,56] and point towards digestate being a suitable quick-release fertiliser. It is however also worth paying attention to the remaining Norg pool contained in the digestates, as inferred by their Nmin,net values, which suggest that anywhere between 60 to 80% of Norg was still present in the treated soils after 127 days (excluding any N priming effects from the native soil). In this respect, a study of the longer-term N dynamics of digestates in a plant–soil system in regard to the subsequent mineralisation kinetics of the remaining Norg would be warranted. This could provide valuable insight into the synchrony or asynchrony between plant N uptake and N mineralisation kinetics, thereby also assessing any risk of N leaching. In addition, in this study, an initial N immobilisation phase might have occurred for all digestate treatments, in light of which appropriate timing of N fertilisation to avoid any counterproductive effects on crop growth might also be taken into consideration.

5. Conclusions

The C and N mineralisation rates of five digestates from distinct feedstock profiles (i.e., pig manure, poultry manure, energy crops, sewage sludge, food waste) were compared to those of a conventional soil improver (compost), a conventional organic fertiliser (pig slurry) and the solid fraction of digestate (as a hybrid between the 2 former categories) in laboratory microcosm incubations. After 127 days, net N mineralisation (%Norg) of digestates ranged from 21 to 39% (63–81% Nrel), highlighting the fertilising affinity of these organo-mineral products, but also the wide range of N mineralisation results from the different products, as digestate from pig manure (39%) reached almost double the value of digestate from sewage sludge (21%). The TC:TN and NH4+-N:TN ratios of the products proved to be good predictors of net N mineralisation and, as such, constituted sound indicators of their expected fertilising potential. The observed variability in N mineralisation makes it highly advisable at the very least to systemically proceed to a full physicochemical characterisation of digestate products before each use in the field.
The five tested digestates had EOC values ranging from 50 to 81% of applied TOC. Thus, without reaching the levels of >90% EOC found in composts, the application of digestate would have the potential to meaningfully contribute to C build-up in agricultural soils, in alignment with European C farming policies, and on top of its primary function as N fertiliser. Ratios of DOC:TOC and TC:TN proved good predictors of the fraction of added C that would remain undecomposed in the field one year after its incorporation and could likewise be used as a simple quality parameter denoting the C-sequestration potential of digestates or derived products prior to their use in the field.

Author Contributions

Conceptualization: G.R., E.M., S.S. and I.S.; Methodology: G.R.; Formal analysis: G.R.; Investigation: G.R.; Data curation: G.R.; Writing—original draft preparation: G.R.; Writing—review and editing: G.R., E.M., S.S. and I.S.; Supervision: E.M. and I.S.; Project administration: E.M.; Funding acquisition: E.M. and H.D.; Resources: E.M. and H.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the European Union’s Horizon 2020 Research and Innovation programme under project “SYSTEMIC”, grant agreement No 730400.

Data Availability Statement

Data shared upon reasonable request ([email protected]).

Acknowledgments

EBA Industrial Chair.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Appendix A

Table A1. Main results of evolved CO2-C from C incubation experiment after 149 days (n = 3, mean value ± standard deviation).
Table A1. Main results of evolved CO2-C from C incubation experiment after 149 days (n = 3, mean value ± standard deviation).
ParameterD_BWD_SSD_CSD_PMD_CMCOM *U_PSSF_CM
CO2-C (μg mg−1 TOC)714 ± 2379 ± 1442 ± 4796 ± 4843 ± 298 ± 11466 ± 2223 ± 2
CO2-C = the amount of evolved CO2-C (μg mg−1 TOC) from the fertilised soil treatments on the last day of the C incubation experiment (day 149); TOC = total organic carbon. * Soil and products were identical for both experiments except for COM_1 (used of N incubations), and COM_2 (used for the C incubations).
