Article

Enhancing the Quality of Two Species of Baby Leaves Sprayed with Moringa Leaf Extract as Biostimulant

1
Department of Agriculture, Food and Environment (Di3A), Università degli Studi di Catania, Via Valdisavoia 5, 95123 Catania, Italy
2
Department of Agricultural and Environmental Sciences, Università degli Studi di Milano, Via Celoria 2, 20133 Milan, Italy
*
Author to whom correspondence should be addressed.
Academic Editor: Małgorzata Szczepanek
Agronomy 2021, 11(7), 1399; https://doi.org/10.3390/agronomy11071399
Received: 9 June 2021 / Revised: 1 July 2021 / Accepted: 8 July 2021 / Published: 12 July 2021

Abstract

Natural biostimulants obtained by plants are intensively used nowadays to improve crop yield and quality. The current study aimed to evaluate the effects of leaf extract of moringa (Moringa oleifera Lam.) (MLE) in modifying baby leaf characteristics of two genotypes of Brassica. The trial was started in October 2020 in a greenhouse; a cultivar of kale ‘Cavolo Laciniato Nero di Toscana’ (CL) and a Sicilian landrace of sprouting broccoli ‘Broccoli Nero’ (BN) were used. The plants, after 15, 30 and 40 days from sowing, were treated with MLE, while the control plants (C) with distilled water. Treatment with MLE modified morphological and nutritional value, but with different behavior in the two genotypes. In fact, in BN the treatment reduced the antioxidant activity (2.2-diphenyl-1-picrylhydrazyl (DPPH)) by 54%, while in CL the treatment increased this parameter by 40%. For the phenolic concentration and the sugar content the values recorded were significantly increased by MLE compared to control plants in CL, where in BN a significant reduction was registered. The CL plants treated with MLE showed a significant reduction (−70%) in nitrate content compared to the control plants; a negative effect was, instead, observed in BN, where the plants treated with moringa showed an increase of 60%. Results of this study showed how the foliar application of MLE was effective in improving various nutraceutical parameters, in particular in kale, because it appears to be a species-specific response.
Keywords: brassicaceae; biostimulants; antioxidant activity; total sugars; nitrate content brassicaceae; biostimulants; antioxidant activity; total sugars; nitrate content

1. Introduction

Vegetables are fundamental to human health and nutrition. They represent an important source of essential nutrients such as dietary fiber, vitamins, minerals (macro and microelements), and even phytonutrients such as anthocyanins, carotenoids, and phenolic compounds [1]. Vegetables are considered low calory food and are important to balance or substitute food rich in fats. In recent years, among leafy vegetables, Brassicaceae family species have been the subject of particular attention, due to the health beneficial effects of their products [2,3]. In fact, in recent years, the interest and consumption of Brassica vegetables increased thanks to their nutritive value. Among the Brassica genera the most studied genotypes are broccoli, cabbage, kale, and some new leaf species like rocket, mizuna, and watercress [4].
The hectic lifestyle reduced the time dedicated to prepare food, so the use of minimally processed leafy vegetables (BLV) sold as ready-to-eat (RTE) salads has increased. To meet the expectations of consumers (convenience, freshness, flavour, quality), in the fresh-cut market, new varieties of raw materials need to be evaluated as potential product innovation [5]. There are many leafy vegetables on the market that are commercialized as baby leaves; among the most popular, there are different varieties of lettuces, lamb’s lettuce, purslane, turnip tops or turnip greens, spinach, and Swiss chard. A large number of leafy vegetables from the Brassicaceae family are also used as baby leaf vegetables, like arugula, garden cress, mizuna, red mustard, tatsoi, watercress, and wild rocket [6]. The production and the market of baby leaves have grown considerably in recent years. They provide consumers attractive products and, at the same time, with a high content of bioactive compounds [7].
The baby leaves with sprouts, microgreens are often considered superfoods and are principally consumed as raw products or minimally processed for commercialization as ready-to-eat vegetables. Because only minimal treatments, cleaning, cutting, packaging, and refrigerated storage are carried out on these products, there is no loss or degradation of the bioactive compounds [8]. Since baby leaves represent a natural source of bioactive compounds, they could become an important source for the development of the fresh-cut market [5]. Ali et al. [9] found different bioactive compounds in Brassicaceae (organosulfuric phytochemicals that have anticarcinogenic activity, and other phytochemicals, with high antioxidant power); the most important compounds are represented by glucosinolates that have several beneficial effects on human health [10]. Green leafy vegetables are excellent source of antioxidants, which act as radical scavengers. The consumption of these baby leaf species can represent, thanks to the high vitamin C concentration, an important source of antioxidants in the diet [4].
The bioactive compounds in the juvenile phase are higher than in mature leaves. Lester et al. [11], in fact, reported that baby spinach had higher levels of bioactive compounds (vitamins C, B9, and K1, and carotenoids) compared to mature leaves. Similarly, the highest total phenolic and antioxidant capacity were found in young lettuce than more mature leaves [12].
In recent years, the use of biostimulant products represents a valid technological innovation with great potential for the sustainable development of plant production. These substances are taking great interest in sustainable agriculture because their applications activate different physiological processes that improve the efficiency of the use of nutrients, stimulate the development of plants and allow the reduction of fertilizer consumption [13,14]. A biostimulant is any substance and/or microorganism, able to improve the nutritional efficiency in plants, the abiotic stress tolerance, and/or quality of the crop [15]. An increase in photosynthetic pigments, net-photosynthesis, and quantum efficiency of photosystem II has been correlated to an increase in sugar biosynthesis in different species treated with biostimulants [14,16,17,18].
There is an interest in the identification of botanical raw materials rich in bioactive compounds for biostimulant production. The Moringa oleifera (Lam.) has been suggested as a potential source of bioactive compounds for biostimulant preparation. Leaf extracts of M. oleifera applied as seed soaking and/or foliar spray, which under normal or stressful conditions can positively modify growth and production by altering metabolic processes [19,20,21,22]. The M. oleifera is a most common species cultivated throughout the tropical regions of the world [23,24]; antioxidant properties are found in moringa leaf extract (MLE) [25]. For its rich source of plant growth hormones, antioxidant capacity, and mineral nutrients in its leaves, this species has received enormous attention from the scientific community among the naturally biostimulants [26,27]. As they have a high content of fibers, proteins, carbohydrates, vitamins, essential amino acids, and minerals, their leaves assure high nutritional and medicinal values [28]. Fuglie [29] showed that the MLE improved the growth of young plants, increased the resistance to diseases and pests, enhanced leaf duration, number of roots, production of fruits, and generally enhanced yield by 20% and 35%. An increase in pigment photosynthetic (chlorophyll a and b) was observed in tomato plants treated with MLE foliar application [26].
Although the leaf extract of moringa has been used in different contexts, such as the increase in yield [30], adaptability to biotic and abiotic stresses [31], extension the duration in post-harvest, such as in the cut flowers [15], so far the use of this biostimulant in baby leaves has not been investigated, despite the possible improvement that could also be obtained for the content of bioactive substances.
Therefore, the objective of this work was to investigate the beneficial effects of the application of MLE foliar spray on growth characteristics, chlorophyll a fluorescence, and content of bioactive compounds in two baby leaves of Brassica species. The young harvesting stage of these leafy vegetables should get benefit from MLE biostimulants application.

2. Materials and Methods

2.1. Plants Materials

Seeds of the standard commercial cultivars of kale ‘Cavolo Laciniato Nero di Toscana’ (CL) (S.A.I.S. S.p.A. seed company, Cesena, Italy) and of the Sicilian landrace of sprouting broccoli (Brassica oleracea L. var. italica Plenck) ‘Broccolo Nero’ (BN) (Di3A active gene bank collection, BR 354, UNICT 4939) were used in the trial. Seeds were grown in cellular trays placed in cold greenhouse under natural light (4.7 to 9.8 MJm2d1) and temperature (16.4 ± 5.8 °C) conditions, from October to November 2020 at Catania (South Italy, 3731010” N 1504018” E; 105 m above sea level (m a.s.l.). The organic substrate Brill®semina bio (Geotec, Italy) was used to fill the cellular trays and plantlets were irrigated based on the ordinary techniques. The plants were treated once by BTK ® 32 WG (Xeda, Italy) based on Bacillus thuringiensis sub. kurstaki for controlling Pieris brassicae.
The plants were sprayed three times with moringa leaf extract (MLE), at 15, 30 and 1 day before harvest (43 days after planting). The control plants were sprayed with distilled water.

2.2. Preparation and Analysis of Moringa Leaf Extract

The M. oleifera leaf extract (MLE) was done by Pervez et al. [32] with slight modifications. The leaves were shade-dried and then finely grounded with a grinder. The MLE extraction was done by 50 g of powdered soaking in 200 mL of distilled water. The mixture was macerated for 48 h at 25 °C and later filtered through filter paper. The extract obtained was indicated as 25% extract which was further diluted to the ratio 1:30 (v/v). The concentration of MLE was of 200 mg L1 [33]. Tween 20 (0.05%) was added to spray solutions as a wetting agent. Moringa leaf extract was analyzed, and its chemical constituents were reported in the Table 1.

2.3. Chlorophyll A Fluorescence

The chlorophyll a fluorescence was determined by a modulated chlorophyll fluorimeter OS1-FL (Opti-Sciences Corporation, Tyngsboro, MA, USA). Each leaf was dark-adapted using cuvette clips (Opti-Sciences Corporation, Tyngsboro, MA, USA) for 15 min. The maximal quantum yield of PSII photochemistry was expressed as the Fv/Fm ratio, F0 indicated the minimum fluorescence, Fm the maximal fluorescence of the dark-adapted state, and Fv the variable fluorescence.

2.4. Measurement of Growth Parameters

From each replication, nine randomly selected seedlings were chosen and were determined the height, the leaf number, and the fresh and dry biomass. The fresh plants were dried at 70 °C until they reached a constant weight.

2.5. Chlorophyll and Carotenoid Pigments

The photosynthetic pigments (chlorophyll a and b, and carotenoid) were determined spectrophotometrically from leaf samples. Samples were extracted through methanol (99%, Sigma-Aldrich, Milan, Italy) and incubated in dark room (4 °C for 24 h). The absorbance of samples was read at 665.2 nm, 652.4 nm, and 470 nm. The calculation of chlorophylls was undertaken following the formula reported by Lichtenthaler et al. [34].

2.6. 2.2-Diphenyl-1-Picrylhydrazyl (DPPH) Radical-Scavenging Activity and Total Phenolic Contents

The antioxidant capacity was measured using 2.2-diphenyl-1-picrylhydrazyl (DPPH). We extracted 100 mg of freeze-dried sample by 1.5 mL of methanol solution (80%), sonicated it for 30 min and centrifuged it for 10 min at 5 °C at 5000× g. At 0.01 mL of supernatant was added to 1.4 mL of DPPH solution (150 μM) and incubated in the dark for 30. The absorbance was read at 517 nm. The DPPH scavenging activity value was expressed as Trolox equivalent (mg TE g−1) using a standard calibration curve.
The total phenolic content (TPC) was extracted by 0.2 g of freeze-dried using 10 mL of acetone/water (50:50) and incubated for 15 h at 20 °C. At 100 μL of supernatant was added to 0.5 mL of Folin-Ciocalteu reagent, 6 mL of distilled water and 1.5 mL of Na2CO3 (20%). The samples were incubated for 2 h at 20 °C. The samples were read at 765 nm. The TPC was expressed as gallic acid equivalent (mg g−1).

2.7. Total Sugars

Total sugars were determined according to Yemm and Willis [35]. For sample preparation, 1 g of fresh sample was extracted in 3 mL of distilled water and centrifuged (3000× g, 15 min room temperature (RT)). Then, 1 mL of extract was added to 5 mL of anthrone solution (0.2 g in 100 mL of H2SO4), cooled in ice for 5 min and then mixed thoroughly. Samples were incubated at 95 °C for 5 min and then cooled on ice. The samples were read at 620 nm and the concentrations were expressed referring to glucose calibration curve [36].

2.8. Ascorbic Acid Analysis and Nitrate Concentration

The ascorbic acid (Asc) content was determined by the method of Janghel et al. [37]. About 1 g of fresh leaves was mixed in 10 mL of 5% oxalic acid and then centrifuged at 4000 rpm min−1 for 5 min. The supernatant was collected and 1 mL, was homogenized with 2 mL of 0.1% methyl viologen and 2 mL NaOH 2 mol L−1. Samples were read at 600 nm against the radical blank. Nitrate concentration was spectrophotometrically determined from leaf samples [38]. About 1 g of fresh sample was homogenized in 3 mL of distilled water and then centrifuged for 15 min at 3000× g. The supernatant (20 µL) was collected and used for the colorimetric determination. The supernatant was mixed to 80 µL of 5% (w/v) salicylic acid dissolved in H2SO4 plus 3 mL of 1.5 N NaOH. Samples were cooled at RT and absorbance at 410 nm was measured. Nitrate concentration was calculated referring to a KNO3 standard calibration curve [39].

2.9. Determination of Mineral Elements

Three biological replicates were used for the determination of the following mineral elements, Na, Mg, K, Ca, Mn, Fe, Ni, Cu, Zn, and P. About 300 mg dry weight (DW) was mineralized at 120 °C in 5 mL 14.4 M HNO3, clarified with 1.5 mL 33% H2O2 and finally dried at 80 °C. The mineralized material was solubilized in 5 mL 1 M HNO3 and filtered on a 0.45 μM nylon membrane. Mineral content was measured by an inductively-coupled plasma mass spectrometry technique (ICP-MS; Varian 820-MS, Palo Alto, CA, USA ICP Mass Spectrometer).

2.10. Statistical Analysis

Experiments were performed using a completely randomized design. Each treatment was replicated three times. The significance of differences between the main factors (Genotype G, and treatment T) were determined by two-way analysis of variance (ANOVA). The LSD test was applied and the significant differences established as p < 0.05 to determine the differences between treatments. The statistical analyses were executed using CoStat release 6.311 (CoHort Software, Monterey, CA, USA). The interactions, when significant, are presented separately. The data presented in Figures are the means ± standard error (SE) (Graphpad 7.0).

3. Results

Light-use efficiency, crop performance, and health conditions were evaluated by non-destructive chlorophyll a fluorescence. Statistical analysis showed that the F0 and the Fm did not significantly differ between the species, the treatments, and their interactions (Table 2).
The Fv/Fm did not show any differences between the genotypes (p > 0.05) and between the treatment (T, p > 0.05) (Table 2). The effect of interaction was significant (G × T, p < 0.05) (Table 3).
The maximum quantum efficiency of PSII (Fv/Fm ratio) showed a significant increment in response to MLE treatment in CL in comparison (0.81 ± 0.0) to control plants (0.80 ± 0.0). No significant differences were observed in BN species (0.82 ± 0.0 for both treatments) (Table 2, Figure 1).
Fresh biomass varied with species (p < 0.01) but not with their treatment (p > 0.05) (Table 3). Effect of interaction was found (G × T p < 0.05) (Table 3). The fresh biomass showed a higher value in CL control (1.67 ± 0.09) in comparison to BN control (1.31 ± 0.06) (Figure 2a).
Dry biomass was significantly lowest in CL-C compared to CL-MLE and BN; no significant differences were found for the treatment factor (T, p > 0.05) (Table 3). The interaction was statistically significant (G × T, p < 0.05) (Table 3). Significant differences for the dry biomass were observed in CL with a reduction by 20% in CL-C compared to the other plants (Figure 2b).
Foliar application of MLE enhanced the height in BN as compared to untreated plants (Table 3 and Figure 2c). No significant differences for CL plants.
The leaf number varied with the genotypes; significantly more leaves were registered on CL than BN genotype (p < 0.05); no significant differences were found for the treatment (T, p > 0.05) and their interaction (p > 0.05) (Table 3).
The application of MLE foliar spray significantly affected the photosynthetic pigment concentration. The genotypes showed a different behavior. The content of Chl a and carotenoids presented a different pattern in relation to the treatment (T, p < 0.01 and p < 0.001 respectively) (Table 4).
Significant was the interactive effect with the treatment for Chl a, b and carotenoid (G × T, p < 0.05, p < 0.05 and p < 0.01 respectively for chl a, b and carotenoids) (Table 4).
In particular, no differences were observed in BN for all pigments, while the treatment with MLE enhanced the chlorophyll a, b, and carotenoids (by ~22%, 26% and 26% respectively) in CL compared to control plants (Figure 3a–c).
The antioxidant capacity (DPPH) was influenced by genotypes (G, p < 0.001). The treatment did not exert any effect on this parameter (T, p > 0.05), while significant was the interactive effect with the treatment (G × T, p < 0.001) (Table 5).
Treatment with MLE had different behavior in the two genotypes. In fact, in BN the treatment reduced the antioxidant activity by 54%, while in CL the treatment increased this parameter by 40% (Figure 4a).
The phenolic concentration showed similar behavior of the DPPH. The TPC showed significant differences in relation to the genotypes (G, p < 0.001) (Table 5). The treatment did not exert any effect on this parameter (T, p > 0.05), while the interactive effect with the treatment (G × T, p < 0.001) was significant (Table 5). The genotypes showed a different behavior. In particular, the values recorded were significantly increased in CL-MLE (by 6%) compared to control plants whereas in BN, the treatment with MLE affected the TPC with a reduction by 8% (Figure 4b).
A similar trend was recorded for total sugars. Also for this parameter, significant differences were registered for the genotypes (G, p < 0.001) (Table 5). Interaction effects were also recorded (G × T, p < 0.001). Treatment with MLE had a negative effect on BN, with a decrease by 39%, while CL showed a 40% increase in plants treated with the extract (Figure 4c).
The genotype did not exert any clear effect on this parameter (G, p > 0.05), and the interactive effect with the treatment (G × T, p > 0.05) was not significant. The highest concentration of ascorbic acid (Table 6) was found in MLE treatment in the mean of the genotypes (3.96 mg g−1 FW).
Nitrate concentration showed differences between the genotypes (G, p < 0.001) and between the treatment (T, p < 0.001) (Table 6). A greater quantity was registered in CL plants (>500 mg kg−1 FW). Between the treatment, control plants showed a greater quantity (>500 mg kg−1 FW). Nitrate concentration was also significantly affected by G and T (G × T, p < 0.001) (Table 6).
The CL plants treated with MLE showed a significant reduction (−70%) compared to the control plants. A negative effect was instead observed in BN, where the plants treated with moringa showed an increase in the nitrate content of 60% (Figure 5).
The mineral composition was different in the two species; significant lower values were, in fact, found in the BN species. The MLE extracts reduced the concentrations of Na, Mg, K and Ca (Table 7).

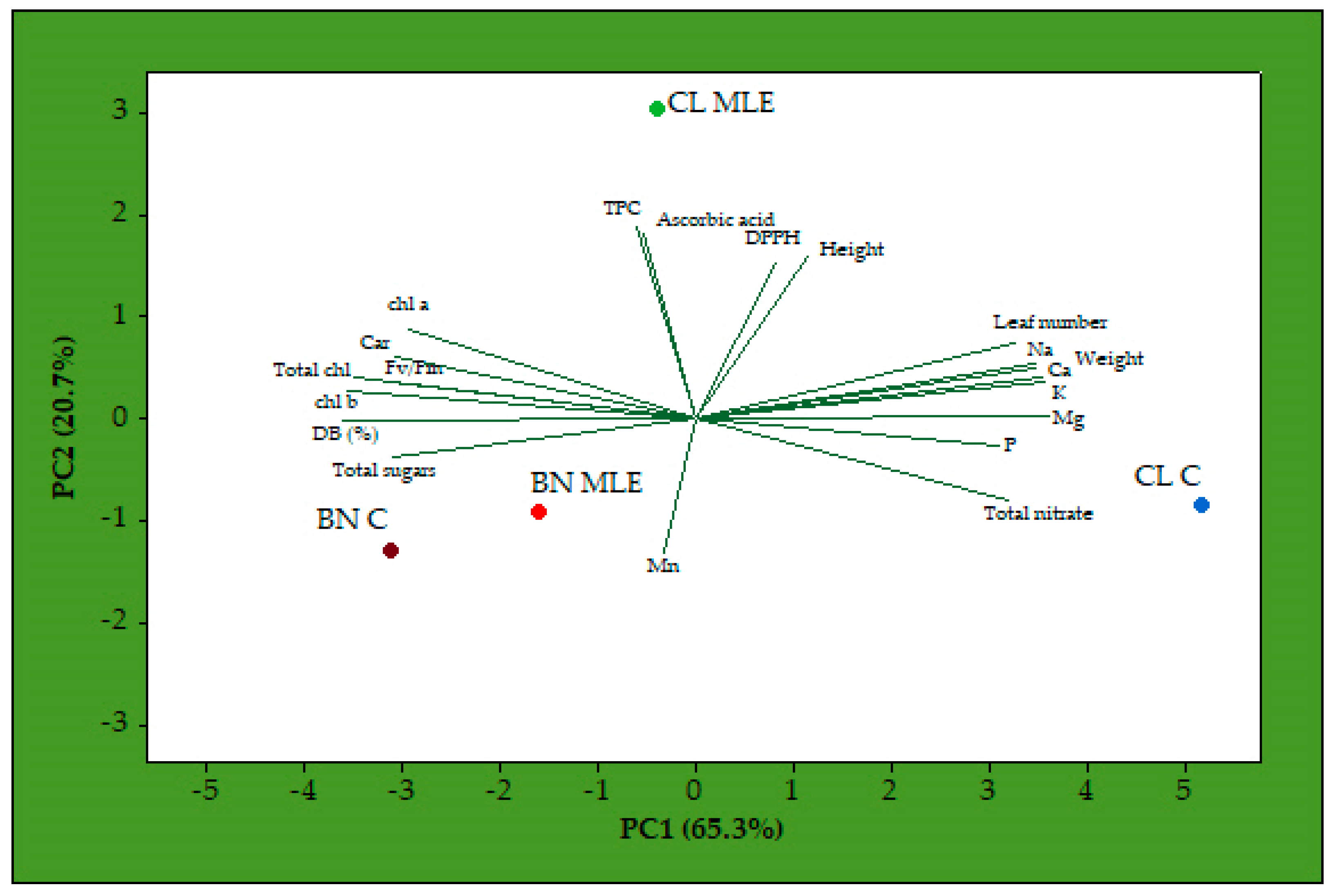

The first three principal components (PC1, PC2 and PC3), accounting for 65.3%, 20.7% and 14.1% of the 100% of the total variance, were associated with eigenvalues higher than one. In the PCA, PC1 vs. PC2 a negative correlation was observed in total sugars, Mn, dry biomass, carotenoids, chl a, b and total, Fv/Fm, TPC and ascorbic acid, while a positive correlation was detected in DPPH, height, leaf number, Na, Ca, K, Mg, P, and total nitrate (Figure 6). Principal component analysis (PCA) exhibited clear separation between the groups. The lower right quadrant (the positive side of PC1) included Cl control representing plants with high total nitrate and mineral elements (Figure 6). A second group clustered in the lower left quadrant included plants of BN control and MLE treated characterized by good concentration of chlorophyll, carotenoids and total sugars. Finally, the treated CL plants had the highest nutritional quality (TPC, ascorbic acid and DPPH) (Figure 6).

4. Discussion

The “baby leaves” represent a new typology of leafy vegetables used in their juvenile state alone or as a mix of different species. These include Amaranthaceae, Asteraceae, and Brassicaceae, and plants of other botanical families [8].
It has been shown that leafy vegetables can take advantage of biostimulant applications, which are able to reduce the nitrate concentration [40], increase the yield, and the concentration of many antioxidant compounds with potential benefits for human health [41].
Among the various biostimulants, moringa leaf extract has received particular attention in recent years thanks to its positive effects on plant productivity [27,42]. The moringa aqueous extract is very simple to prepare, inexpensive, and safe for the environment and adopted by farmers as a biostimulant to increase growth and productivity in various crops. This extract is considered an excellent alternative to organic fertilizers [43] thanks to the high content of proteins, essential amino acids and minerals [42].
Culver et al. [44] found that MLE significantly increased growth and yield of tomato, cultivated both in the greenhouse and open field. It enhanced dry matter yield, root dry matter biomass and plant height. The growth acceleration could be due to a high content of crude protein (43.5%) and growth-promoting hormones, e.g., cytokinins and auxins, in moringa leaf and twig extracts [45,46]. MLE foliar application improved BN height compared to untreated plants with an increase by 10%.
This was confirmed by Merward [47] in a study conducted on pea, where the treatment with MLE, at different concentrations, enhanced growth characteristics (plant fresh and dry biomass, leaf area and number, plant height, etc.). Similarly, Culver et al. [44] showed that MLE significantly enhanced the growth and yield of tomato cultivated both in greenhouse and open field. The treatment increased the yield and root dry matter, biomass, and plant height.
Chlorophyll a fluorescence, in particular, Fv/Fm ratio strictly related to the photochemical efficiency of PSII, is indicated as a useful tool to signal any stress in plants [48]. Our data reveal no stress state in the studied plants treated with MLE treatments of the experiment. The results of our experiment showed that MLE did not damage the photosynthetic apparatus efficiency; on the contrary, in the case of CL the Fv/Fm showed a significant increase in the treated plants while no significant difference was observed instead in BN.
This was also confirmed by the analysis of photosynthetic pigments. Our results showed that the highest concentrations of photosynthetic pigments in CL were registered by MLE spray treatment, with an increase in chlorophyll a, b and carotenoids. Increasing carotenoids and chlorophyll concentration may be related to the high level of chemicals involved in chlorophyll structure in moringa (leaves, seeds, and pods) such as the carotenoids (lutein, α-carotene, ß-carotene, and xanthin) and chlorophyll [49]. Similar results were found in maize [50], common bean [20], fennel [51], broccoli [33]. Furthermore, MLE contains a high level of Mg, which is a key element for the biosynthesis of chlorophyll [52]. Similar results were found in a study on Ocimum basilicum leaves treated with MLE, which leads an increase in the amounts of chlorophyll a and chlorophyll b thanks several macro elements such as magnesium contained in the leaves [53].
Biostimulants can activate the primary and secondary metabolism of the plant. The antioxidant potential of vegetables, flowers, and fruits can be enhanced by biostimulants, as reported by several studies [14]. The physiological properties of this group of phytochemicals are very wide, and includes anti-inflammatory, anti-allergic, anti-oxidant, anti-microbial, cardioprotective, and vasodilatory effects. The antioxidant activity of these substances is linked to their capacity to eliminate free radicals and donate hydrogen atoms or electrons. Their structure, including their conjugation with other phenols, degree of glycosylation or acylation, molecular size, and solubility, and their absorption and metabolism determine their health benefits [54].
In our study, it was observed that the treatment with moringa had a positive effect by an increase of 40% of the antioxidant activity in CL compared to the control. The relevance of antioxidant activity, as a parameter of functional quality of food, is linked to the beneficial effects of antioxidant molecules (hydrophilic and lipophilic) on human health; these molecules, able to delay or/inhibit oxidative damage, can avoid a wide range of stress or age-related diseases [55,56,57].
The polyphenol content also showed different trends in the two genotypes. In fact, in CL, moringa extract increased the total polyphenol content, and this can be attributed to the high phenol content in MLE [58], which could influence the endogenous content of total phenols in our baby leaf. The scientific articles on the impact of botanical extracts on the polyphenol content and the antioxidant activity of cultivated plants are few. Ertani et al. [17] have observed, in plants of Zea mays, a reduction of the level of phenols to values comparable to those measured in the control (by 19.6%) by the application of biostimulants derived from alfalfa plants.
Sugars are essential metabolites for plant metabolism, and they also play a fundamental role as molecular signal. In fact, leafy vegetables, represent an energy resource during preservation and have a fundamental value in the human diet, etc.
In our work, it was observed that the moringa treatment had a negative effect in BN, while the sugar level was significantly increased in the treated CL plants, showing an increase of 37%.
Vitamin C is usually one of the main vitamins presented in leafy vegetables, but it is also one of the most unstable. It is a fundamental compound for humans for its antioxidant properties [59]. Our results showed that the treatment with MLE enhanced the content of this compound. Our results are in accordance with those found by Vallejo et al. [60] in a broccoli experiment, where levels ranged from 43.1 mg per 100 g FW, in ‘Lord’ (commercial cultivar) to 146.3 mg per 100 g FW in ‘SG-4515′ (experimental cultivar). The content of vitamin C between the different brassicas varies significantly between and within each species and interspecific genotype [61]. Vitamin C is a relevant important water-soluble food antioxidant, which significantly reduces the free radical negative effects; the latter can cause oxidative damage to macromolecules, such as lipids, DNA and proteins, which in turn are involved in chronic diseases, such as cardiovascular disease, cancer, neurodegenerative diseases, cataractogenesis, and stroke [2].
Another essential aspect, especially in leafy vegetables, concerns nitrate accumulation. Nitrates above a certain threshold are considered potentially dangerous for human health, both in adults and in newborns. Biostimulants can reduce the nitrate levels in several species of leafy vegetables [62,63,64]. The biostimulants can enhance the assimilation pathway acting through the primary metabolism and the increase of sugar biosynthesis. There is a clear relationship between C source and N assimilation. The application of borage extracts as biostimulants showed the effect of applications on nitrate accumulation [41].
It was interesting to observe how the CL treated with moringa showed a significant reduction (−70%) compared to the control plants. Negative effect was instead observed in BN, where the samples treated with moringa showed an increase in the nitrate content of 60% but these always remain below the maximum permitted threshold of European Commission Regulation.
The results of our work showed that the response to treatment with biostimulant is species-specific. This agrees with those obtained by Kocira et al. [65] where, in a study on different bean cultivars treated with Ecklonia maxima extract, the result was dependent on cultivar and frequency of application and concentration of the biostimulant.

5. Conclusions

Results confirm that it is not possible to generalize the effect of plant-based natural biostimulants on plants as they consist of different substances with heterogeneous composition. In fact, a biostimulant can have a variable effect from species to species and in some cases from cultivar to cultivar [14]. The results of this study showed how the foliar application of moringa extract was effective in improving various nutraceutical parameters, in particular in kale; the extract seems to have optimized the responses at the level of the whole plant, thus improving the quality and nutraceutical properties of this product. Further in-depth investigation on the composition of the plant-based biostimulant and the molecules of interest present in the aqueous extract also to define the optimal dose will be necessary. These studies will be replicated among different genotypes because there appears to be a species-specific response.

Author Contributions

Conceptualization, S.T. and D.R.; methodology, S.T.; software, S.T.; validation, A.F. and D.R.; formal analysis, S.T. and A.F.; investigation, S.T. and D.R.; resources, F.B.; data curation, S.T.; writing—original draft preparation, S.T. and D.R.; writing—review and editing, S.T., A.F., F.B., and D.R.; supervision, A.F., F.B. and D.R.; funding acquisition, F.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the project BRESOV (Breeding for Resilient, Efficient and Sustainable Organic Vegetable production) funded by EU H2020 Programme SFS-07-2017. Grant Agreement n. 774244.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Main data are contained within the article; further data presented in this study are available on request from the corresponding author.

Acknowledgments

We would like to thank Francesco Bufalino for having donated the moringa plant materials for free.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kader, A.A. Effects on Nutritional Quality. In Modified and Controlled Atmospheres for the Storage, Transportation, and Packaging of Horticultural Commodities; Yahia, E.M., Ed.; CRC Press: Boca Raton, FL, USA, 2009; pp. 111–118. [Google Scholar]
  2. Di Bella, M.C.; Niklas, A.; Toscano, S.; Picchi, V.; Romano, D.; Lo Scalzo, R.; Branca, F. Morphometric characteristics, polyphenols and ascorbic acid variation in Brassica oleracea L. Novel Foods: Sprouts, Microgreens and Baby Leaves. Agronomy 2020, 10, 782. [Google Scholar] [CrossRef]
  3. Toscano, S.; Trivellini, A.; Cocetta, G.; Bulgari, R.; Francini, A.; Romano, D.; Ferrante, A. Effect of pre-harvest abiotic stresses on the accumulation of bioactive compounds in horticultural produce. Front. Plant Sci. 2019, 10, 1212. [Google Scholar] [CrossRef][Green Version]
  4. Martínez-Sánchez, A.; Gil-Izquierdo, A.; Gil, M.I.; Ferreres, F. A comparative study of flavonoid compounds, vitamin C, and antioxidant properties of baby leaf Brassicaceae species. J. Agric. Food Chem. 2008, 56, 2330–2340. [Google Scholar] [CrossRef] [PubMed]
  5. Martínez-Sánchez, A.; Luna, M.C.; Selma, M.V.; Tudela, J.A.; Abad, J.; Gil, M.I. Baby-leaf and multi-leaf of green and red lettuces are suitable raw materials for the fresh-cut industry. Postharvest Biol. Technol. 2012, 63, 1–10. [Google Scholar] [CrossRef]
  6. Ryder, E.J. The new salad crop revolution. In Proceedings of the Fifth National Symposium Trends in New Crops and New Uses, Atlanta, GA, USA, 10–13 November 2001; pp. 408–412. [Google Scholar]
  7. Subhasree, B.; Baskar, R.; Keerthana, R.L.; Susan, R.L.; Rajasekaran, P. Evaluation of antioxidant potential in selected green leafy vegetables. Food Chem. 2009, 115, 1213–1220. [Google Scholar] [CrossRef]
  8. Di Gioia, F.; Renna, M.; Santamaria, P. Sprouts, microgreens and “baby leaf” vegetables. In Minimally Processed Refrigerated Fruits and Vegetables; Yildiz, F., Wiley, R.C., Eds.; Springer: Boston, MA, USA, 2017; pp. 403–432. [Google Scholar]
  9. Ali, A.M. Effect of food processing methods on the bioactive compound of cauliflower. Egypt. J. Agric. Res. 2015, 93, 117–131. [Google Scholar]
  10. Wu, X.; Huang, H.; Childs, H.; Wu, Y.; Yu, L.; Pehrsson, P.R. Glucosinolates in Brassica Vegetables: Characterization and Factors That Influence Distribution, Content, and Intake. Annu. Rev. Food Sci. Technol. 2021, 12, 485–511. [Google Scholar] [CrossRef]
  11. Lester, G.E.; Makus, D.J.; Hodges, D.M. Relationship between fresh-packaged spinach leaves exposed to continuous light or dark and bioactive contents: Effects of cultivar, leaf size, and storage duration. J. Agric. Food Chem. 2010, 58, 2980–2987. [Google Scholar] [CrossRef] [PubMed]
  12. Oh, M.M.; Carey, E.E.; Rajashekar, C.B. Regulated water deficits improve phytochemical concentration in lettuce. J. Am. Soc. Hortic. Sci. 2010, 135, 223–229. [Google Scholar] [CrossRef][Green Version]
  13. Kunicki, E.; Grabowska, A.; Sekara, A.; Wojciechowska, R. The effect of cultivar type, time of cultivation, and biostimulant treatment on the yield of spinach (Spinacia oleracea L.). Folia Hortic. 2010, 22, 9–13. [Google Scholar] [CrossRef][Green Version]
  14. Bulgari, R.; Cocetta, G.; Trivellini, A.; Vernieri, P.; Ferrante, A. Biostimulants and crop responses: A review. Biol. Agric. Hortic. 2015, 31, 1–17. [Google Scholar] [CrossRef]
  15. Zulfiqar, F.; Casadesús, A.; Brockman, H.; Munné-Bosch, S. An overview of plant-based natural biostimulants for sustainable horticulture with a particular focus on moringa leaf extracts. Plant Sci. 2020, 295, 110194. [Google Scholar] [CrossRef] [PubMed]
  16. Amanda, A.; Valagussa, M.; Piaggesi, A.; Ferrante, A. Effect of biostimulants on quality of baby leaf lettuce grown under plastic tunnel. Acta Hortic. 2009, 807, 407–412. [Google Scholar] [CrossRef]
  17. Ertani, A.; Nardi, S. Review: Long-term research activity on the biostimulant properties of natural origin compounds. Acta Hortic. 2013, 1009, 81–187. [Google Scholar] [CrossRef]
  18. Ferrini, F.; Nicese, F.P. Response of English oak (Quercus robur L.) trees to biostimulants application in the urban environment. J. Arboric. 2002, 28, 70–75. [Google Scholar]
  19. Howladar, S.M. A novel Moringa oleifera leaf extract can mitigate the stress effects of salinity and cadmium in bean (Phaseolus vulgaris L.) plants. Ecotoxicol. Environ. Saf. 2014, 100, 69–75. [Google Scholar] [CrossRef]
  20. Rady, M.M.; Bhavya Varma, C.; Howladar, S.M. Common bean (Phaseolus vulgaris L.) seedlings overcome NaCl stress as a result of presoaking in Moringa oleifera leaf extract. Sci. Hortic. 2013, 162, 63–70. [Google Scholar] [CrossRef]
  21. Rady, M.M.; Mohamed, G.F.; Abdalla, A.M.; Ahmed Yasmin, H.M. Integrated application of salicylic acid and Moringa oleifera leaf extract alleviates the salt-induced adverse effects in common bean plants. Int. J. Agric. Technol. 2015, 11, 1595–1614. Available online: https://www.thaiscience.info/journals/Article/IJAT/10976758.pdf (accessed on 21 May 2021).
  22. Semida, W.M.; Rady, M.M. Pre-soaking in 24-epibrassinolide or salicylic acid improves seed germination, seedling growth, and anti-oxidant capacity in Phaseolus vulgaris L. grown under NaCl stress. J. Hortic. Sci. Biotechnol. 2014, 89, 338–344. [Google Scholar] [CrossRef]
  23. Manzoor, M.; Anwar, F.; Iqbal, T.; Bhanger, M.I. Physico-chemical characterization of Moringa concanensis seeds and seed oil. J. Am. Oil Chem. Soc. 2007, 84, 413–419. [Google Scholar] [CrossRef]
  24. Vlahov, G.; Chepkwony, P.K.; Ndalut, P.K. 13C NMR Characterization of triacylglycerols of Moringa oleifera Seed Oil:  An “Oleic-Vaccenic Acid” Oil. J. Agric. Food Chem. 2002, 50, 970–975. [Google Scholar] [CrossRef] [PubMed]
  25. Siddhuraju, P.; Becker, K. Antioxidant properties of various solvent extracts of total phenolic constituents from three different agroclimatic origins of drum- stick tree (Moringa oleifera Lam.) leaves. J. Agric. Food Chem. 2003, 51, 2144–2155. [Google Scholar] [CrossRef] [PubMed]
  26. Foidl, N.; Makkar, H.P.S.; Becker, K. The potential of Moringa oleifera for agricultural and industrial uses. In The Miracle Tree: The Multipurpose Attributes of Moringa; Fuglie, J., Ed.; CTA Publications: Wageningen, The Netherlands, 2001; pp. 45–76. [Google Scholar]
  27. Yasmeen, A.; Basra, S.M.A.; Farooq, M.; ur Rehman, H.; Hussain, N. Exogenous application of moringa leaf extract modulates the antioxidant enzyme system to improve wheat performance under saline conditions. Plant Growth Regul. 2013, 69, 225–233. [Google Scholar] [CrossRef]
  28. El Sohaimy, S.A.; Hamad, G.M.; Mohamed, S.E.; Amar, M.H.; Al-Hindi, R.R. Biochemical and functional properties of Moringa oleifera leaves and their potential as a functional food. Glob. Adv. Res. J. Agric. Sci. 2015, 4, 188–199. [Google Scholar]
  29. Fuglie, L.J. The Miracle Tree: Moringa oleifera: Natural Nutrition for the Tropics; CWS: Dakar, Senegal, 2000; p. 172. [Google Scholar]
  30. Iqbal, J.; Irshad, J.; Bashir, S.; Khan, S.; Yousaf, M.; Shah, A.N. Comparative study of water extracts of Moringa leaves and roots to improve the growth and yield of sunflower. S. Afr. J. Bot. 2020, 129, 221–224. [Google Scholar] [CrossRef]
  31. Abd El-Mageed, T.A.; Semida, W.M.; Rady, M.M. Moringa leaf extract as biostimulant improves water use efficiency, physio-biochemical attributes of squash plants under deficit irrigation. Agric. Water Manag. 2017, 193, 46–54. [Google Scholar] [CrossRef]
  32. Pervez, K.; Ullah, F.; Mehmood, S.; Khattak, A. Effect of Moringa oleifera Lam. leaf aqueous extract on growth attributes and cell wall bound phenolics accumulation in maize (Zea mays L.) under drought stress. Kuwait J. Sci. 2017, 44, 110–118. Available online: https://journalskuwait.org/kjs/index.php/KJS/article/view/2015/218 (accessed on 26 May 2021).
  33. Sakr, M.T.; Ibrahim, H.M.; ElAwady, A.E.; AboELMakarm, A.A. Growth, yield and biochemical constituents as well as post-harvest quality of water-stressed broccoli (Brassica oleracea L. var. italica) as affected by certain biomodulators. Sci. Hortic. 2021, 275, 109605. [Google Scholar] [CrossRef]
  34. Lichtenthaler, H.K. Chlorophylls and carotenoids: Pigments of photosynthetic biomembranes. Method Enzymol. 1987, 148, 350–382. [Google Scholar] [CrossRef]
  35. Yemm, E.W.; Willis, A.J. The estimation of carbohydrates in plant extracts by anthrone. Biochem. J. 1954, 57, 508–514. [Google Scholar] [CrossRef][Green Version]
  36. Cocetta, G.; Rossoni, M.; Gardana, C.; Mignani, I.; Ferrante, A.; Spinardi, A. Methyl jasmonate affects phenolic metabolism and gene expression in blueberry (Vaccinium corymbosum). Physiol. Plant. 2015, 153, 269–283. [Google Scholar] [CrossRef] [PubMed]
  37. Janghel, E.K.; Gupta, V.K.; Rai, M.K.; Rai, J.K. Micro determination of ascorbic acid using methyl viologen. Talanta 2007, 72, 1013–1016. [Google Scholar] [CrossRef] [PubMed]
  38. Cataldo, D.A.; Haroon, M.; Sehrader, L.E.; Youngs, V.L. Rapid colorimetric determination of nitrate in plant tissue by titration of salicylic acid. Commun. Soil Sci. Plant Anal. 1975, 6, 71–80. [Google Scholar] [CrossRef]
  39. Bulgari, R.; Trivellini, A.; Ferrante, A. Effects of two doses of organic extract-based biostimulant on greenhouse lettuce grown under increasing NaCl concentrations. Front. Plant Sci. 2019, 9, 1870. [Google Scholar] [CrossRef] [PubMed]
  40. Fiorentino, N.; Ventorino, V.; Woo, S.L.; Pepe, O.; De Rosa, A.; Gioia, L.; Romano, I.; Lombardi, N.; Napolitano, M.; Colla, G.; et al. Trichoderma-based biostimulants modulate rhizosphere microbial populations and improve N uptake efficiency, yield, and nutritional quality of leafy vegetables. Front. Plant Sci. 2018, 9, 743. [Google Scholar] [CrossRef][Green Version]
  41. Bulgari, R.; Cocetta, G.; Trivellini, A.; Ferrante, A. Borage extracts affect wild rocket quality and influence nitrate and carbon metabolism. Physiol. Mol. Biol. Plants 2020, 1–12. [Google Scholar] [CrossRef]
  42. Yasmeen, A.; Nouman, W.; Basra, S.M.A.; Wahid, A.; Hussain, N.; Afzal, I. Morphological and physiological response of tomato (Solanum lycopersicum L.) to natural and synthetic cytokinin sources: A comparative study. Acta Physiol. Plant. 2014, 36, 3147–3155. [Google Scholar] [CrossRef]
  43. Saini, R.K.; Sivanesan, I.; Keum, Y.S. Phytochemicals of Moringa oleifera: A review of their nutritional, therapeutic and industrial significance. 3 Biotech 2016, 6, 1–14. [Google Scholar] [CrossRef][Green Version]
  44. Culver, M.; Tagwira, F.A.; Chiteka, Z. Effect of moringa extract on growth and yield of tomato. Greener J. Agric. Sci. 2012, 2, 207–211. Available online: https://miracletrees.org/moringa-doc/moringa-increase-plant-growth.pdf (accessed on 26 May 2021).
  45. Makkar, H.P.S.; Becker, K. Nutrients and antiquality factors in different morphological parts of the Moringa oleifera tree. J. Agric. Sci. 1997, 128, 311–322. [Google Scholar] [CrossRef]
  46. Moyo, B.; Masika, P.J.; Hugo, A.; Muchenje, V. Nutritional characterization of Moringa (Moringa oleifera Lam.) leaves. Afr. J. Biotechnol. 2011, 10, 12925–12933. [Google Scholar] [CrossRef][Green Version]
  47. Merwad, A.R.M. Using Moringa oleifera extract as biostimulant enhancing the growth, yield and nutrients accumulation of pea plants. J. Plant Nutr. 2018, 41, 425–431. [Google Scholar] [CrossRef]
  48. Maxwell, K.; Johnson, G.N. Chlorophyll fluorescence—A practical guide. J. Exp. Bot. 2000, 51, 659–668. [Google Scholar] [CrossRef] [PubMed]
  49. Yameogo, C.W.; Bengaly, M.D.; Savadogo, A.; Nikiema, P.A.; Traore, S.A. Determination of chemical composition and nutritional values of Moringa oleifera leaves. Pak. J. Nutr. 2011, 10, 264–268. [Google Scholar] [CrossRef][Green Version]
  50. Afzal, I.; Hussain, B.; Basra, S.M.A.; Rehman, H. Priming with moringa leaf extract reduces imbibitional chilling injury in spring maize. Seed Sci. Technol. 2012, 40, 271–276. [Google Scholar] [CrossRef]
  51. Abdel-Rahman, S.S.A.; Abdel-Kader, A.A.S. Response of Fennel (Foeniculum vulgare Mill) plants to foliar application of moringa leaf extract and benzyladenine (BA). S. Afr. J. Bot. 2020, 129, 113–122. [Google Scholar] [CrossRef]
  52. Taiz, L.; Zeiger, E. Stress physiology. In Plant Physiology, 3rd ed.; Sinauer Associates: Sunderland, MA, USA, 2002; pp. 591–623. [Google Scholar]
  53. Alkuwayti, M.A.; El-Sherif, F.; Yap, Y.K.; Khattab, S. Foliar application of Moringa oleifera leaves extract altered stress-responsive gene expression and enhanced bioactive compounds composition in Ocimum basilicum. S. Afr. J. Bot. 2020, 129, 291–298. [Google Scholar] [CrossRef]
  54. Godlewska, K.; Biesiada, A.; Michalak, I.; Pacyga, P. The effect of plant-derived biostimulants on white head cabbage seedlings grown under controlled conditions. Sustainability 2019, 11, 5317. [Google Scholar] [CrossRef][Green Version]
  55. Kyriacou, M.C.; Rouphael, Y.; Di Gioia, F.; Kyratzis, A.; Serio, F.; Renna, M.; De Pascale, S.; Santamaria, P. Micro-scale vegetable production and the rise of microgreens. Trends Food Sci. Technol. 2016, 57, 103–115. [Google Scholar] [CrossRef]
  56. Kyriacou, M.C.; El-Nakhel, C.; Graziani, G.; Pannico, A.; Soteriou, G.A.; Giordano, M.; Ritieni, A.; De Pascale, S.; Rouphael, Y. Functional quality in novel food sources: Genotypic variation in the nutritive and phytochemical composition of thirteen microgreens species. Food Chem. 2019, 277, 107–118. [Google Scholar] [CrossRef]
  57. Kyriacou, M.C.; Rouphael, Y. Towards a new definition of quality for fresh fruits and vegetables. Sci. Hortic. 2018, 234, 463–469. [Google Scholar] [CrossRef]
  58. Aslam, M.; Sultana, B.; Anwar, F.; Munir, H. Foliar spray of selected plant growth regulators affected the biochemical and antioxidant attributes of spinach in a field experiment. Turk. J. Agric. For. 2016, 40, 136–145. [Google Scholar] [CrossRef]
  59. Bendich, A.; Machlin, L.J.; Scandurra, O.; Burton, G.W.; Wayner, D.D.M. The antioxidant role of vitamin C. Free Radic. Biol. Med. 1986, 2, 419–444. [Google Scholar] [CrossRef]
  60. Vallejo, F.; Tomas-Barberan, F.A.; Garcia-Viguera, C. Potential bioactive compounds in health promotion from broccoli cultivars grown in Spain. J. Sci. Food Agric. 2002, 82, 1293–1297. [Google Scholar] [CrossRef]
  61. Podsędek, A.; Sosnowska, D.; Redzynia, M.; Anders, B. Antioxidant capacity and content of Brassica oleracea dietary antioxidants. Int. J. Food Sci. Technol. 2006, 41, 49–58. [Google Scholar] [CrossRef]
  62. Dudaš, S.; Šola, I.; Sladonja, B.; Erhatić, R.; Ban, D.; Poljuha, D. The effect of biostimulant and fertilizer on “low input” lettuce production. Acta Bot. Croat. 2016, 75, 253–259. [Google Scholar] [CrossRef][Green Version]
  63. Liu, X.Q.; Lee, K.S. Effect of mixed amino acids on crop growth. In Agricultural Science; Aflakpui, G., Ed.; InTech Europe Publisher: Rijeka, Croatia, 2012; pp. 119–158. [Google Scholar]
  64. Vernieri, P.; Borghesi, E.; Ferrante, A.; Magnani, G. Application of biostimulants in floating system for improving rocket quality. J. Food Agric. Environ. 2005, 3, 86. [Google Scholar]
  65. Kocira, A.; Świeca, M.; Kocira, S.; Złotek, U.; Jakubczyk, A. Enhancement of yield, nutritional and nutraceutical properties of two common bean cultivars following the application of seaweed extract (Ecklonia maxima). Saudi J. Biol. Sci. 2018, 25, 563–571. [Google Scholar] [CrossRef][Green Version]

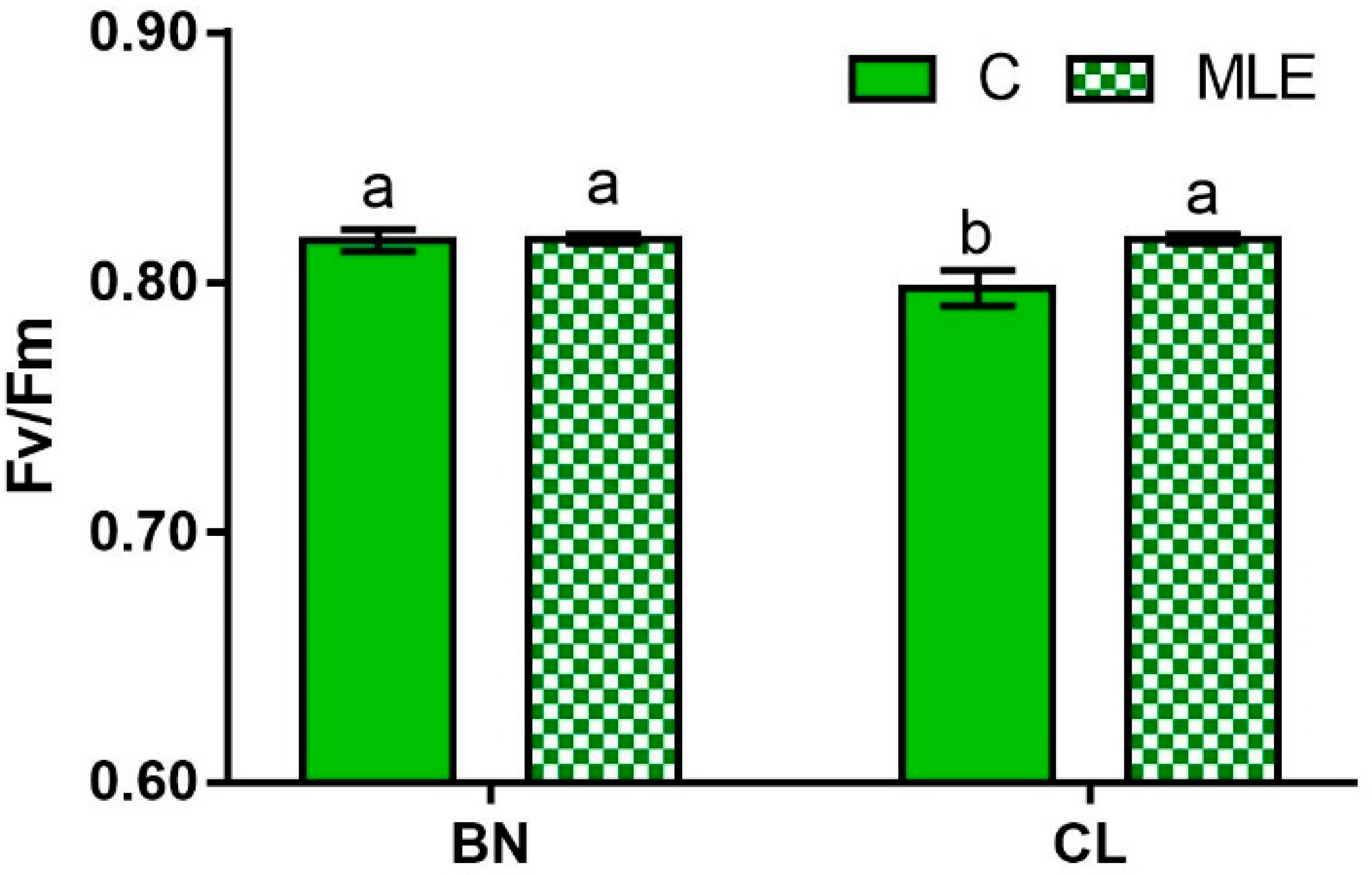

Figure 1. Effect of interaction of maximum quantum efficiency of photosystem II (Fv/Fm) from leaves of BN and CL treated with distilled water (C) and moringa leaf extract (MLE). Values are the means ± standard error (SE, n = 9). Different letters: statistically significantly different means for p < 0.05 (LSD test).
Figure 1. Effect of interaction of maximum quantum efficiency of photosystem II (Fv/Fm) from leaves of BN and CL treated with distilled water (C) and moringa leaf extract (MLE). Values are the means ± standard error (SE, n = 9). Different letters: statistically significantly different means for p < 0.05 (LSD test).
Agronomy 11 01399 g001

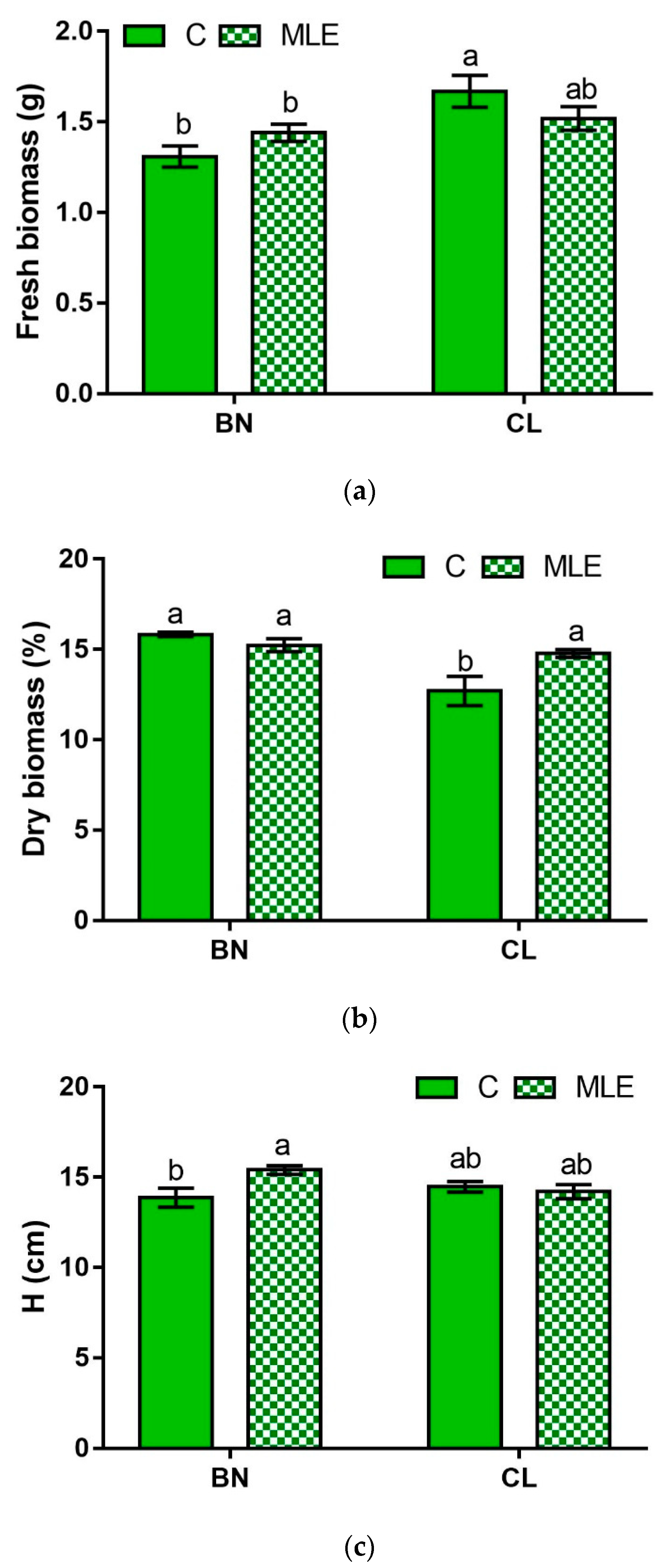

Figure 2. Effect of interactions of fresh (g) (a) and dry biomass (%) (b), height (cm) (c) from leaves of BN and CL treated with distilled water (C) and MLE. Values are the means ± SE (n = 9). Different letters: statistically significantly different means for p < 0.05 (LSD test).
Figure 2. Effect of interactions of fresh (g) (a) and dry biomass (%) (b), height (cm) (c) from leaves of BN and CL treated with distilled water (C) and MLE. Values are the means ± SE (n = 9). Different letters: statistically significantly different means for p < 0.05 (LSD test).
Agronomy 11 01399 g002

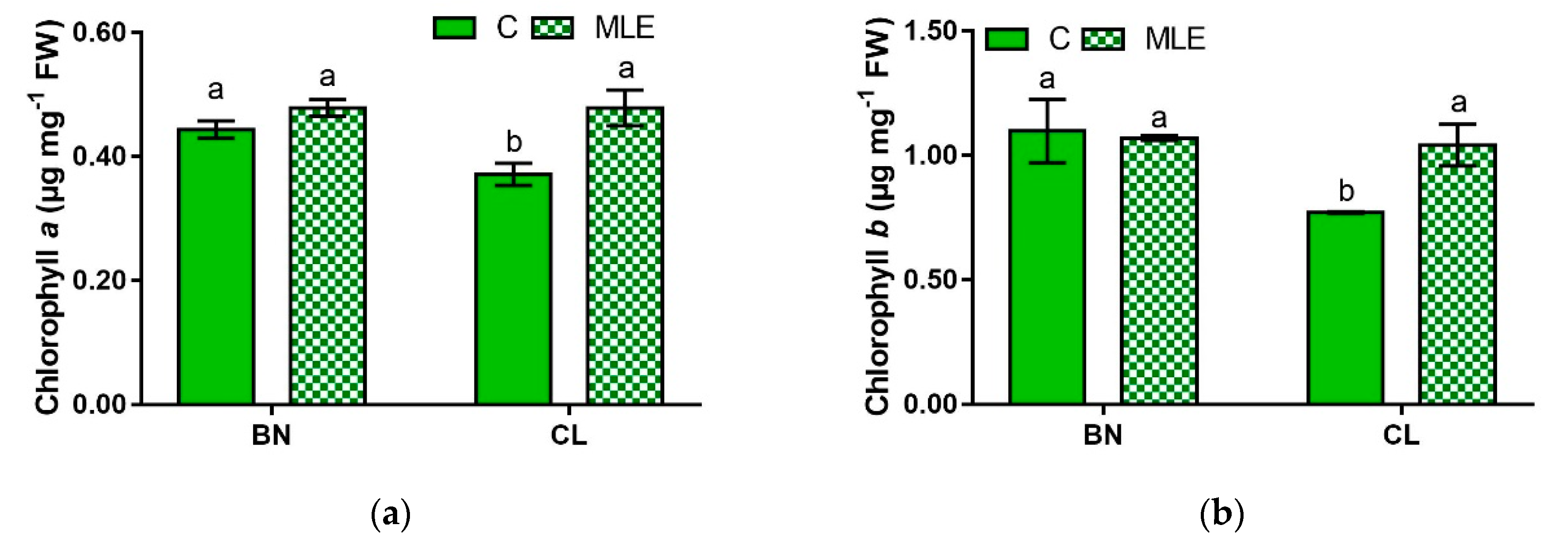

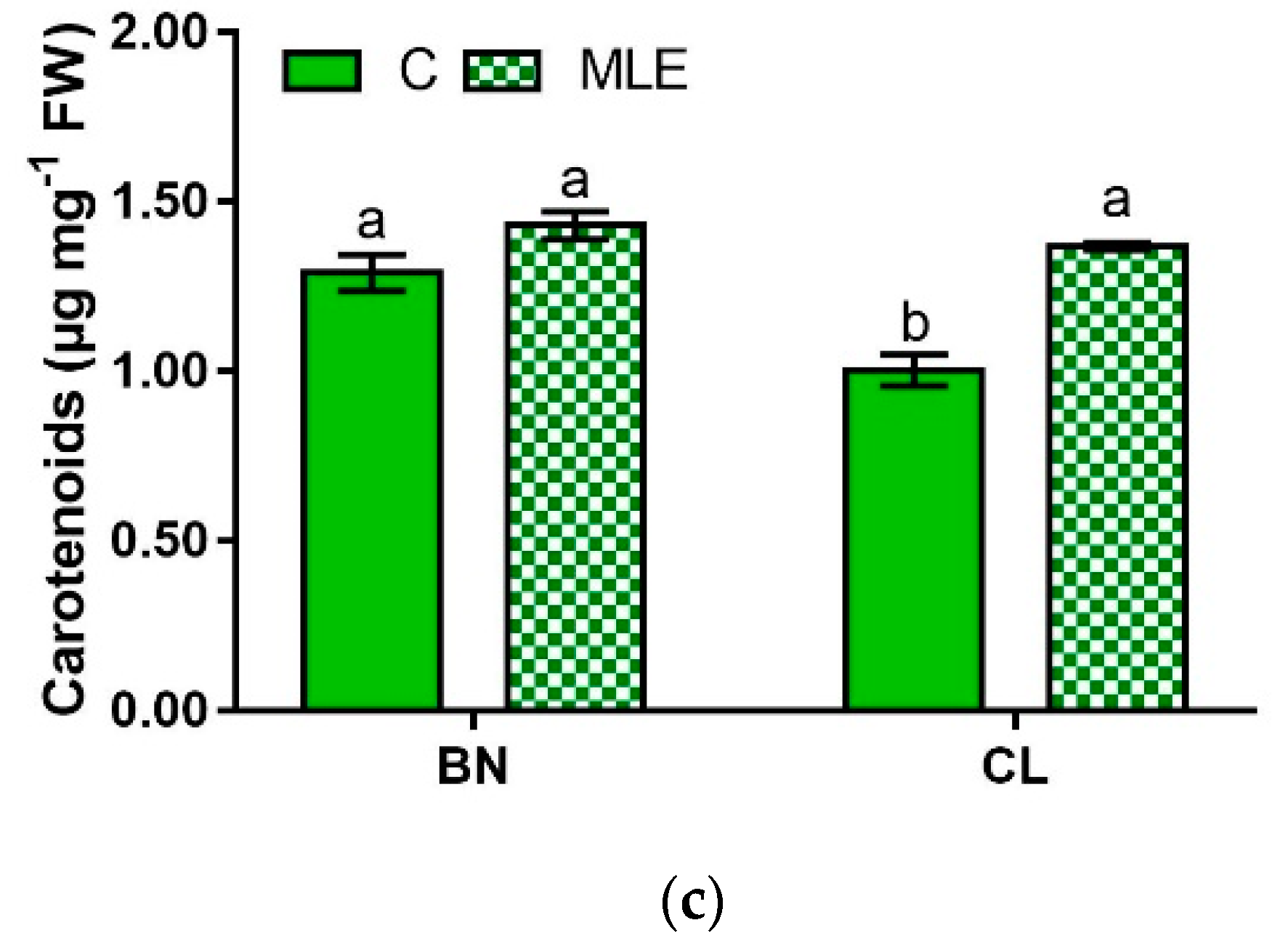

Figure 3. Effect of interaction (G × T) of chlorophyll a (a), chlorophyll b (b) and total carotenoid content (c), from leaves of BN and CL treated with distilled water (C) and MLE. Values are the means ± S.E (n = 3). Different letters indicate the differences among treatments.
Figure 3. Effect of interaction (G × T) of chlorophyll a (a), chlorophyll b (b) and total carotenoid content (c), from leaves of BN and CL treated with distilled water (C) and MLE. Values are the means ± S.E (n = 3). Different letters indicate the differences among treatments.
Agronomy 11 01399 g003aAgronomy 11 01399 g003b
Figure 4. Effect of interaction of antioxidant activity, DPPH (a), total phenol content, TPC (b), and total sugar content (c), from leaves of BN and CL treated with distilled water (C) and MLE. Values are the means ± SE (n = 3). Different letters indicate the differences among treatments.
Figure 4. Effect of interaction of antioxidant activity, DPPH (a), total phenol content, TPC (b), and total sugar content (c), from leaves of BN and CL treated with distilled water (C) and MLE. Values are the means ± SE (n = 3). Different letters indicate the differences among treatments.
Agronomy 11 01399 g004
Figure 5. Effect of interactions of total nitrate content from leaves of BN and CL treated with distilled water (C) and moringa leaf extract (MLE). Values are the means ± SE (n = 3). Different letters indicate the differences among treatments.
Figure 5. Effect of interactions of total nitrate content from leaves of BN and CL treated with distilled water (C) and moringa leaf extract (MLE). Values are the means ± SE (n = 3). Different letters indicate the differences among treatments.
Agronomy 11 01399 g005
Figure 6. Principal component loading plot and scores of principal component analysis (PCA) of morphometric and nutraceutical traits of BN and CL response to MLE treatment.
Figure 6. Principal component loading plot and scores of principal component analysis (PCA) of morphometric and nutraceutical traits of BN and CL response to MLE treatment.
Agronomy 11 01399 g006
Table 1. Chemical composition of principal component of Moringa oleifera leaves.
Table 1. Chemical composition of principal component of Moringa oleifera leaves.
ComponentValue
Phosphorus (P)4.9 g kg−1 DW
Potassium (K)16.0 g kg−1 DW
Calcium (Ca)16.2 g kg−1 DW
Iron (Fe)0.2 g kg−1 DW
Magnesium (Mg)3.0 g kg−1 DW
DPPH 1130 mg TE g−1 DW
Total polyphenols22.6 mg GAE g−1 DW
Chlorophyll a1.2 µg mg−1 FW
Chlorophyll b1.4 µg mg−1 FW
Carotenoids0.10 µg mg−1 FW
Nitrate concentration515.5 mg kg−1 FW
1 Diphenyl-1-Picrylhydrazyl Radical-Scavenging Activity (DPPH)
Table 2. Effect of moringa leaf extract (MLE) application on minimum fluorescence (F0), maximal fluorescence (Fm) and maximal quantum yield of PSII photochemistry (Fv/Fm) on plant of Broccoli Nero (BN) and Cavolo Laciniato Nero di Toscana (CL). MLE extract was sprayed 15, 30 and 43 days after sowing.
Table 2. Effect of moringa leaf extract (MLE) application on minimum fluorescence (F0), maximal fluorescence (Fm) and maximal quantum yield of PSII photochemistry (Fv/Fm) on plant of Broccoli Nero (BN) and Cavolo Laciniato Nero di Toscana (CL). MLE extract was sprayed 15, 30 and 43 days after sowing.
Genotype (G)Treatment (T)F0FmFv/Fm
BNC433.5 ± 6.42379.8 ± 53.20.82 ± 0.0 a
MLE426.0 ± 20.52201.6 ± 28.90.82 ± 0.0 a
CLC449.5 ± 15.62232.8 ± 24.00.80 ± 0.0 b
MLE449.0 ± 14.12364.5 ± 51.90.81 ± 0.0 a
BN 429.8 ± 9.22290.7 ± 37.80.82 ± 0.0
CL 449.3 ± 9.92298.5 ± 33.90.80 ± 0.0
C441.5 ± 8.12306.1 ± 36.60.80 ± 0.0
MLE437.5 ± 11.42283.1 ± 34.90.81 ± 0.1
Significance
Gnsnsns
Tnsnsns
G × Tnsns*
Values in the same column followed by the same letter are not significantly different at p < 0.05 (LSD test). The interactions, when significant, are presented separately in figures. ns = not significant; asterisk(s) = significant at 0.05 (*), 0.01 (**) or 0.001 (***) level of significance.
Table 3. Effect of MLE application on fresh (g plant−1) and dry biomass (%), height (cm), and leaf number (n plant−1) on plant of BN and CL. Extract was sprayed 15, 30, and 43 days after sowing.
Table 3. Effect of MLE application on fresh (g plant−1) and dry biomass (%), height (cm), and leaf number (n plant−1) on plant of BN and CL. Extract was sprayed 15, 30, and 43 days after sowing.
GenotypeTreatmentFresh
Biomass
(g plant−1)
Dry
Biomass
(%)
Height
(cm)
Leaf
Number
(n)
BNC1.31 ± 0.06 b15.83 ± 0.13 a13.87 ± 0.53 b3.27 ± 0.12
MLE1.44 ± 0.05 b15.23 ± 0.36 a15.40 ± 0.24 a3.47 ± 0.13
CLC1.67 ± 0.09 a12.70 ± 0.80 b14.47 ± 0.29 ab3.73 ± 0.15
MLE1.52 ± 0.07 ab14.77 ± 0.22 a14.20 ± 0.39 ab3.60 ± 0.13
BN 1.37 ± 0.04 b15.53 ± 0.22 a14.63 ± 0.323.37 ± 0.09 b
CL 1.59 ± 0.06 a13.73 ± 0.60 b14.33 ± 0.103.67 ± 0.10 a
C1.49 ± 0.0614.27 ± 0.8014.20 ± 0.813.50 ± 0.10
MLE1.48 ± 0.0415.00 ± 0.2114.80 ± 0.253.53 ± 0.09
Significance
G****ns*
Tnsnsnsns
G × T***ns
Values in the same column followed by the same letter are not significantly different at p < 0.05 (LSD test). The interactions, when significant, are presented separately in figures. ns = not significant; asterisk(s) = significant at 0.05 (*), 0.01 (**) or 0.001 (***) level of significance.
Table 4. Effect of MLE application on chlorophyll a and b (µg mg−1 FW), and carotenoids (µg mg−1 FW) on plant of BN and CB. Extract was sprayed 15, 30 and 43 days after sowing.
Table 4. Effect of MLE application on chlorophyll a and b (µg mg−1 FW), and carotenoids (µg mg−1 FW) on plant of BN and CB. Extract was sprayed 15, 30 and 43 days after sowing.
GenotypesTreatmentChl a
(µg mg−1 FW)
Chl b
(µg mg−1 FW)
Carotenoids
(µg mg−1 FW)
BNC0.44 ± 0.01 a1.10 ± 0.13 a1.29 ± 0.05 a
MLE0.48 ± 0.01 a1.07 ± 0.00 a1.43 ± 0.04 a
CLC0.37 ± 0.02 b0.77 ± 0.00 b1.00 ± 0.05 b
MLE0.48 ± 0.02 a1.04 ± 0.08 a1.37 ± 0.01 a
BN 0.46 ± 0.010.91 ± 0.07 b1.36 ± 0.04 a
CL 0.42 ± 0.031.08 ± 0.06 a1.19 ± 0.08 b
C0.41 ± 0.02 b0.93 ± 0.091.15 ± 0.07 b
ME0.48 ± 0.01 a1.06 ± 0.041.40 ± 0.02 a
Significance
Gns***
T**ns***
G × T****
Values in the same column followed by the same letter are not significantly different at p < 0.05 (LSD test). The interactions, when significant, are presented separately in figures. ns = not significant; asterisk(s) = significant at 0.05 (*), 0.01 (**) or 0.001 (***) level of significance.
Table 5. Effect of MLE application on antioxidant activity, DPPH (mg TE g−1 DW), total polyphenols, TPC (mg GAE g−1 DW), and total sugars (mg g−1 FW) on plant of BN and CL. Extract was sprayed 15, 30, and 43 days after sowing.
Table 5. Effect of MLE application on antioxidant activity, DPPH (mg TE g−1 DW), total polyphenols, TPC (mg GAE g−1 DW), and total sugars (mg g−1 FW) on plant of BN and CL. Extract was sprayed 15, 30, and 43 days after sowing.
GenotypeTreatmentDPPH
(mg TE g−1 DW)
TPC
(mg GAE g−1 DW)
Total Sugars
(mg g−1 FW)
BNC59.8 ± 3.9 b10.8 ± 0.2 b2.10 ± 0.06 a
MLE27.7 ± 1.3 c10.0 ± 0.4 c1.29 ± 0.03 b
CLC63.8 ± 6.9 b11.4 ± 0.0 b0.8 ± 0.04 c
MLE89.0 ± 3.4 a12.0 ± 0.2 a1.3 ± 0.14 b
BN 43.7 ± 17.9 b10.4 ± 0.2 b1.08 ± 0.13 b
CL 76.4 ± 31.2 a11.7 ± 0.2 a1.70 ± 0.19 a
C61.8 ± 3.711.1 ± 0.21.48 ± 0.29
LME58.4 ± 13.811.0 ± 0.51.31 ± 0.06
Significance
G*********
Tnsnsns
G × T*******
Values in the same column followed by the same letter are not significantly different at p < 0.05 (LSD test). The interactions, when significant, are presented separately in figures. ns = not significant; asterisk(s) = significant at 0.05 (*), 0.01 (**) or 0.001 (***) level of significance.
Table 6. Effect of MLE application on ascorbic acid, Asc (mg g−1 FW) and Total nitrate (mg kg−1 FW) on plant of BN and CL. Extract was sprayed 15, 30 and 43 days after sowing.
Table 6. Effect of MLE application on ascorbic acid, Asc (mg g−1 FW) and Total nitrate (mg kg−1 FW) on plant of BN and CL. Extract was sprayed 15, 30 and 43 days after sowing.
GenotypeTreatmentAsc
(mg 100 g−1 FW)
Nitrate
(mg kg−1 FW)
BNC129.0 ± 16.2213.1 ± 1.3 c
MLE149.2 ± 2.0475.0 ± 38.3 b
CLC132.8 ± 1.6803.0 ± 0.1 a
MLE167.6 ± 0.4240.1 ± 45.0 c
BN 139.1 ± 8.6344.1 ± 61.0 b
CL 150.2 ± 7.8521.6 ± 127.5 a
C130.9 ± 7.4 b508.1 ± 131.9 a
LME158.4 ± 4.2 a357.6 ± 58.8 b
Significance
Gns***
T****
G × Tns***
Values in the same column followed by the same letter are not significantly different at p < 0.05 (LSD test). The interactions, when significant, are presented separately in figures. ns = not significant; asterisk(s) = significant at 0.05 (*), 0.01 (**) or 0.001 (***) level of significance.
Table 7. Effect of MLE on sodium (Na), magnesium (Mg), potassium (K), calcium (Ca), manganese (Mn), iron (Fe), nickel (Ni), copper (Cu), zinc (Zn) and phosphorus (P) concentrations of CL and BN baby leaf.
Table 7. Effect of MLE on sodium (Na), magnesium (Mg), potassium (K), calcium (Ca), manganese (Mn), iron (Fe), nickel (Ni), copper (Cu), zinc (Zn) and phosphorus (P) concentrations of CL and BN baby leaf.
Na
(g kg−1 DW)
Mg
(g kg−1 DW)
K
(g kg−1 DW)
Ca
(g kg−1 DW)
Mn
(g kg−1 DW)
Fe
(mg kg−1 DW)
Ni
(mg kg−1 DW)
Cu
(mg kg−1 DW)
Zn
(mg kg−1 DW)
P
(g kg−1 DW)
BNC1.0 ± 0.0 c2.5 ± 0.0 c8.4 ± 0.1 d14.8 ± 0.2 d51.2 ± 0.7 bc137.3 ± 8.72.2 ± 0.68.0 ± 0.824.1 ± 1.47.8 ± 0.1 b
MLE1.1 ± 0.0 d2.6 ± 0.1 c9.1 ± 0.1 c16.1 ± 0.4 c58.0 ± 0.7 a139.8 ± 10.81.6 ± 0.17.7 ± 1.127.9 ± 2.08.1 ± 0.2 ab
CLC1.8 ± 0.0 a3.4 ± 0.0 a11.2 ± 0.2 a20.2 ± 0.2 a52.3 ± 0.9 b150.1 ± 8.11.7 ± 0.49.0 ± 1.529.0 ± 0.58.3 ± 0.1 a
MLE1.4 ± 0.0 b2.8 ± 0.0 b9.9 ± 0.1 b17.5 ± 0.4 b48.2 ± 1.0 c148.2 ± 10.01.1 ± 0.38.7 ± 0.523.0 ± 1.08.0 ± 0.1 ab
Genotypes (G)BN1.1 ± 0.0 b2.5 ± 0.0 b8.8 ± 0.2 b15.4 ± 0.4 b54.6 ± 1.7 a138.5 ± 6.21.9 ± 0.37.9 ± 0.626.0 ± 1.47.9 ± 0.1
CL1.6 ± 0.1 a3.1 ± 0.1 a10.5 ± 0.3 a18.9 ± 0.6 a50.2 ± 1.1 b149.2 ± 5.81.4 ± 0.28.9 ± 0.726.0 ± 1.48.1 ± 0.1
Treatment (T)C1.4 ± 0.2 a3.0 ± 0.2 a9.8 ± 0.6 a17.5 ± 1.2 a51.7 ± 0.6143.7 ± 6.01.9 ± 0.38.5 ± 0.826.5 ± 1.38.0 ± 0.1
MLE1.3 ± 0.1 b2.7 ± 0.1 b9.5 ± 0.2 b16.8 ± 0.4 b53.1 ± 0.4144.0 ± 6.91.4 ± 0.28.2 ± 0.625.5 ± 1.58.0 ± 0.1
Significance
G**************nsnsnsnsns
T********nsnsnsnsnsns
G × T**************nsnsnsns*
All data are expressed as mean ± standard error (n = 3). Means (±SE) in columns not sharing the same letters are significantly different according to LSD test (p < 0.05). ns = not significant; asterisk(s) = significant at 0.05 (*), 0.01 (**) or 0.001 (***) level of significance.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Back to TopTop
