Temporal Change of Soil Carbon on a Long-Term Experimental Site with Variable Crop Rotations and Tillage Systems

Abstract

The impacts of tillage practices and crop rotations are fundamental factors influencing changes in the soil carbon, and thus the sustainability of agricultural systems. The objective of this study was to compare soil carbon status and temporal changes in topsoil from different 4 year rotations and tillage treatments (i.e., no-till and conventional tillage). Rotation systems were primarily corn and soy-based and included cereal and alfalfa phases along with red clover cover crops. In 2018, soil samples were collected from a silty-loam topsoil (0–15 cm) from the 36 year long-term experiment site in southern Ontario, Canada. Total carbon (TC) contents of each sample were determined in the laboratory using combustion methods and comparisons were made between treatments using current and archived samples (i.e., 20 year and 9 year change, respectively) for selected crop rotations. Overall, TC concentrations were significantly higher for no-till compared with conventional tillage practices, regardless of the crop rotations employed. With regard to crop rotation, the highest TC concentrations were recorded in corn–corn–oats–barley (CCOB) rotations with red clover cover crop in both cereal phases. TC contents were, in descending order, found in corn–corn–alfalfa–alfalfa (CCAA), corn–corn–soybean–winter wheat (CCSW) with 1 year of seeded red clover, and corn–corn–corn–corn (CCCC). The lowest TC concentrations were observed in the corn–corn–soybean–soybean (CCSS) and corn–corn–oats–barley (CCOB) rotations without use of cover crops, and corn–corn–soybean–winter wheat (CCSW). We found that (i) crop rotation varieties that include two consecutive years of soybean had consistently lower TC concentrations compared with the remaining rotations; (ii) TC for all the investigated plots (no-till and/or tilled) increased over the 9 year and 20 year period; (iii) the no-tilled CCOB rotation with 2 years of cover crop showed the highest increase of TC content over the 20 year change period time; and (iv) interestingly, the no-till continuous corn (CCCC) rotation had higher TC than the soybean–soybean–corn–corn (SSCC) and corn–corn–soybean–winter wheat (CCSW). We concluded that conservation tillage (i.e., no-till) and incorporation of a cover crop into crop rotations had a positive effect in the accumulation of TC topsoil concentrations and could be suitable management practices to promote soil fertility and sustainability in our agricultural soils.

1. Introduction

Soil holds the largest pool of terrestrial carbon (C), exceeding the combined C found in the atmosphere and in vegetation [1,2,3]. Agricultural soils occupy 35% of the global land surface area [4,5] and encompass 12% of the global soil carbon stocks [6]. Changes in cropland soil carbon stocks are regulated by complex interactions between the local soil environmental conditions and climate, as well as by agricultural management practices [7]. It is widely recognized that current and past agricultural management practices have influenced soil carbon levels and dynamics, which in turn affect soil quality and health, crop yield potentials, and atmospheric CO₂ concentrations [8,9,10]. Numerous researchers have demonstrated that management practices such as manure application, conservation tillage, cover cropping, and residue retention can increase soil carbon stocks on agricultural lands [11]. The importance of the cropland management practices and their contributions to greenhouse gas (GHG) reductions has been reinforced by the 2015 Paris Agreement of the United Nations Framework Convention on Climate Change (UNFCCC). Therefore, the adoption of soil carbon augmentation practices coupled with monitoring is important for understanding atmospheric CO₂ mitigation strategies (i.e., soil carbon sequestration) and soil conservation. In this context, soil and cropping management practices offer a powerful tool for potential climate change mitigation through soil organic carbon sequestration [12,13]. These practices include diversified crop rotations, cover cropping, residue retention, and reduced or no-tillage [12,13]. For example, agricultural management systems that incorporate winter wheat (Triticum aestivum), barley (Hordeum vulgare L.), oats (Avena sativa L.), alfalfa (Medicago sativa L.), and/or red clover (Trifolium pretense L.) cover crops in the rotation lead to an increase of topsoil carbon concentrations with time compared with monoculture corn (Zea mays), monoculture soybean (Glycine max), or soybean–corn [9,14,15,16]. Managing the soil carbon resource appropriately in agricultural management systems can provide a wide range of environmental benefits such as water quality improvement and erosion control. However, soil carbon responds slowly to changes in agricultural management and most changes require many years to be detected [17]. Therefore, studies on the effects of agricultural management practices (i.e., cropping and tillage systems) on soil carbon levels are typically assessed from long-term field experiments (e.g., [14,18]). These long-term field experiments offer long-term studies of soil carbon changes under the most widely cultivated crops and cropping systems [19].

In 2015, about 7% of the total land area in Canada was under agriculture with two-thirds used for crops and improved pasture. The province of Ontario, with 3.7 million hectares of total cropland, accounts for 10% of Canada’s agricultural land [20,21]. Over three million hectares are located in southwestern Ontario [19] and, in this region, soybean, corn, and winter wheat are the main crops by planted area. In Canada, data obtained from different long-term studies have provided valuable contributions to understanding of the linkages between soil carbon stocks in topsoil (i.e., 0–15 cm layer) and management practices [22,23,24,25,26,27,28,29,30]. In addition, these studies contribute to our understanding of how different agricultural management practices (i.e., cover crops and tillage) can interact in driving changes in soil carbon [19]. Finally, as soil carbon is often used as a proxy for soil health, these long-term studies offer highly relevant datasets that can be used to infer the effects of management practices on sustainable agriculture goals.

There is a need to provide continuous updated estimates and uncertainties of soil carbon concentrations in agricultural soils and changes over time within these long-term field experiments. However, to our knowledge, few studies have been carried out in southern Ontario for the length of time greater than 35 years (i.e., [19]). To this end, the crop rotation experiment established at the Elora Research Station in 1982 presents a unique opportunity to investigate the link between long-term agricultural activities (tillage systems and/or crop rotation) on soil carbon changes over time. This site has a fully replicated and blocked study that compares corn, soybean, and wheat-containing rotations, nested with tillage and cover crop treatments. The objective of this research was to examine the effects of long-term agricultural management practices (tillage and cropping system) on the temporal soil carbon changes after 36 years. Here, we identify the specific tillage and cropping practices and/or their interactions that promote soil carbon accumulation over the long-term. We hypothesize that soil carbon levels will be higher: (i) in diversified crop rotations (including cereals or alfalfa) contrasted with monoculture or biphase corn and soy; (ii) under no-till contrasted with moldboard plow; and (iii) with red clover cover crops undersown to winter wheat, oat, and barley contrasted with no cover crops. By revealing which cropping and tillage practices and/or their interactions best maintain or improve carbon soil accumulation, farmers will have the opportunity to plan their management accordingly.

2. Materials and Methods

2.1. Study Site Description

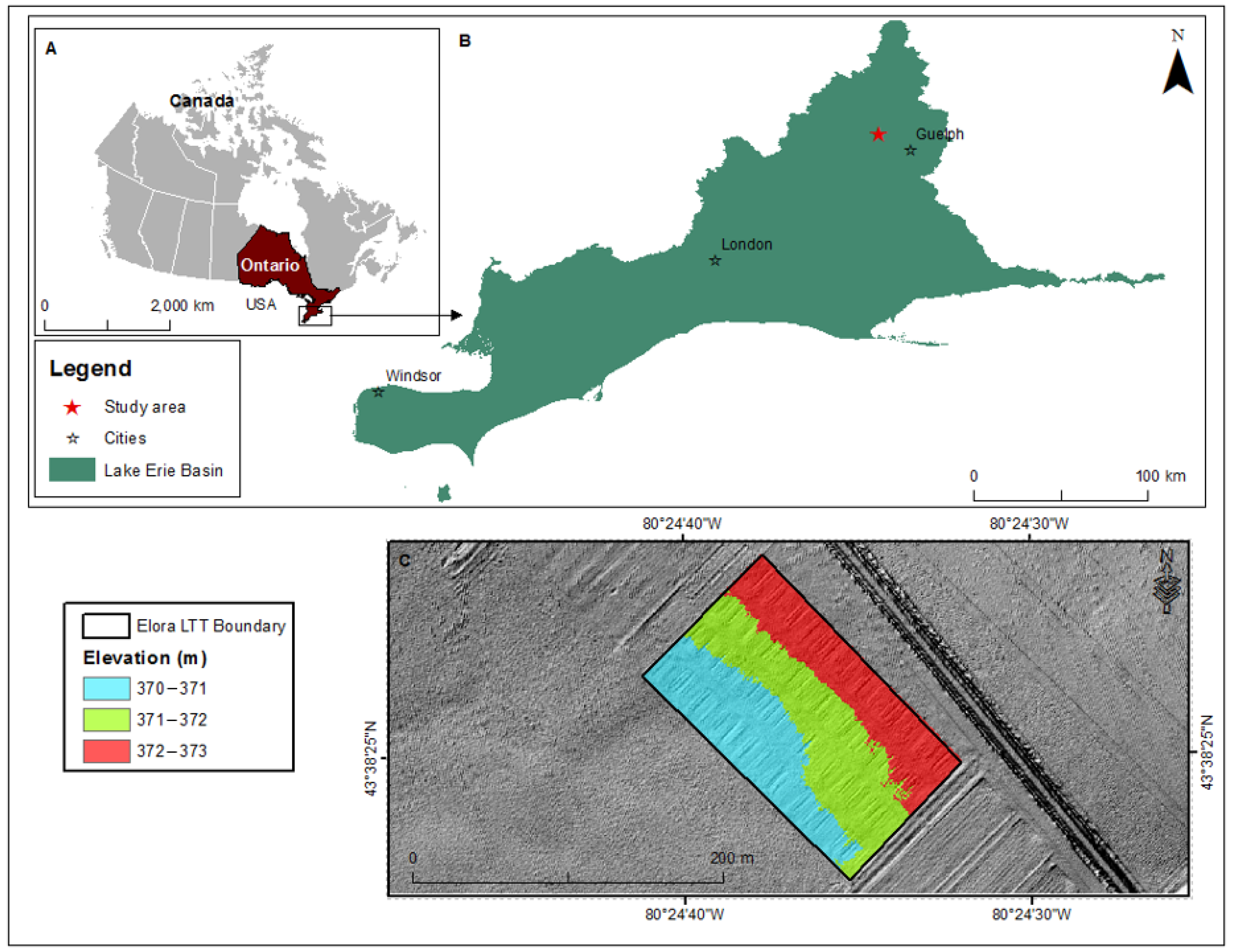

The study site is located at the University of Guelph’s Elora Research Station in Southern Ontario, Canada (43°38’25.74” N; 80°24’36.64” W; Figure 1). The soils at the field site are classified according to the Canadian System of Soil Classification [31] as Grey Brown Luvisols (Albic Luvisol, FAO system) and a member of the Woolwich silt loam series [32]. The soil is characterized by 15% clay, 36% sand, and 49% silt, and a pH of 7.3 in 2015 [14]. The field has a gentle slope ranging from 0 to 2.6 degrees and elevation ranges between 370 and 373 m above sea level. The climate is characterized by long, moderate winters (November–April) and warm, humid summers (i.e., humid continental climate). The mean annual temperature is 6.3 °C and total annual precipitation is 937 mm. About one-third of the annual precipitation falls during the peak vegetative growth period, between early May and August. December, January, and February are the coldest months with a mean temperature of −6.6 °C, while June, July, and August are the warmest months with a mean temperature of 18.5 °C (Environment Canada [33]; the 30 year average data from Fergus Shand Dam weather station, which is located 12 km NE of the study site). A more detailed description of the experimental study site is provided in previous studies [14,27,34,35,36]).

2.2. Experimental Setup and Design

Historically, the experimental site was planted to continuous corn from 1967 to 1980. The crop rotation/tillage experimental site was initiated in 1980; the two first years (1980–1982) of the trial were used as set up years [34] and not included in this analysis. The 36 year experiment at the site consists of 14 cropping treatments and two types of tillage: no-till and conventional tillage [27]. The experimental site was set out in a randomized block split-plot design with four blocks (B1 to B4; Figure 2). Each block encompasses 28 plots (i.e., 14 crops × 2 tillage treatments; Figure 2). Each plot covers an area of 119 m² (7 m × 17 m) for a total field area of 1.3 ha. The crops were grown in a 4 year rotation that were randomly assigned to the different plots (Figure 2).

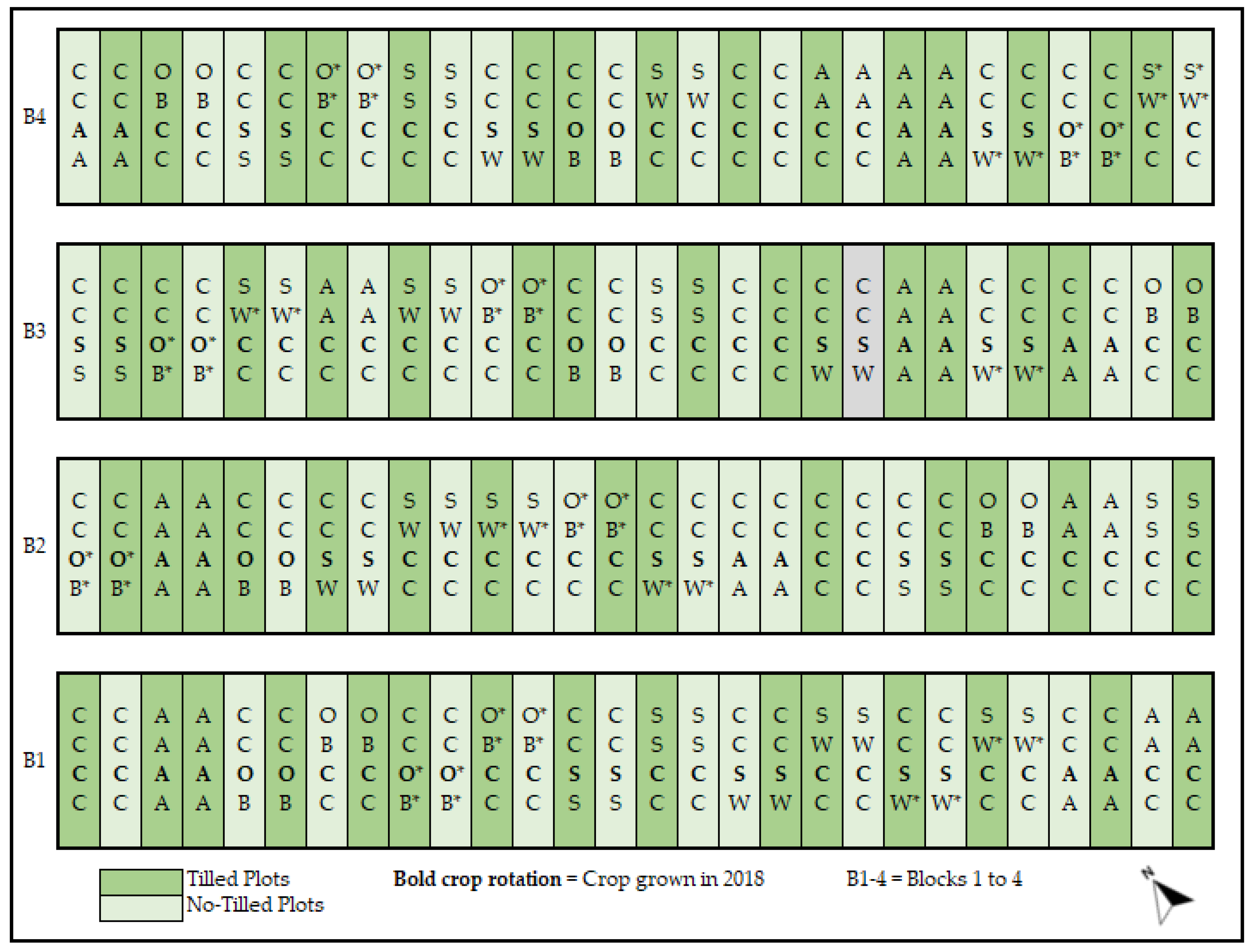

Rotation systems were primarily corn and soybean-based and were also contrasted to cereal (i.e., winter wheat, oats, barley) and alfalfa phases (Figure 2). In the cover crop treatments, red clover was undersown to winter wheat, oats, and barley. Continuous alfalfa is also present in this study. The fourteen rotations and their respective codes used, hereafter, are shown in

Table 1. Description of codes used to represent crop rotation type for the study and descriptive statistics of total carbon (TC) data collected in 2018.

Rotation Type	Rotation Code	n	Total Carbon (%)				Significant Difference †
			Min	Max	Mean	SD
Continuous corn	CCCC	8	2.11	3.38	2.66	0.43	ad
Continuous alfalfa	AAAA	8	2.42	3.25	2.81	0.25	d
Corn–corn–oats–barley	CCOB	8	2.09	2.91	2.63	0.27	ad
Oats–barley–corn–corn	CCOB	8	2.06	2.67	2.44	0.25	ab
Corn–corn–oats (RC)–barley (RC)	CCOB **	8	1.84	3.25	2.70	0.52	cd
Oats (RC)–barley (RC)–corn–corn	OBCC **	8	1.91	3.09	2.58	0.40	bcd
Corn–corn–soybeans–soybeans	CCSS	8	1.74	2.73	2.19	0.36	a
Soybeans–soybeans–corn–corn	SSCC	8	1.78	2.93	2.40	0.45	ac
Corn–corn–soybeans–winter wheat	CCSW	8	2.45	2.98	2.67	0.20	ac
Soybeans–winter wheat–corn–corn	SWCC	8	2.34	3.10	2.73	0.26	ad
Corn–corn–soybeans–winter–wheat (RC)	CCSW *	8	1.83	2.97	2.51	0.41	ad
Soybeans–winter wheat (RC)–corn–corn	SWCC *	8	2.15	2.86	2.58	0.27	ad
Corn–corn–alfalfa–alfalfa	CCAA	8	2.52	3.40	2.88	0.27	bcd
Alfalfa–alfalfa–corn–corn	AACC	8	2.31	3.48	2.89	0.34	bcd

*: Red clover was seeded as a cover crop (i.e., 1 year out of 4 year rotation) in winter wheat. **: Red clover was seeded as a cover crop (i.e., 2 year out of 4 year rotation) in both winter wheat and barley. ^†: Different lower–case letters designate statistically significant difference (p < 0.05) between the treatments, according to pairwise Tukey test.

. Conventional tillage consisted of moldboard plowing to 15–20 cm depth in fall followed by secondary tillage with a field cultivator to 10 cm depth and packer in the following spring [27]. From 1982 to 2001, conservation tillage consisted of a 15–20 cm fall chisel plowing. Commencing in 2002, the conservation tillage system was converted to no-till [34]. The no-till treatment involved spraying with glyphosate herbicide prior to planting with a direct seed drill. The remaining corn residue (i.e., stover) was retained in the plots, chopped, and returned to soil during tillage, whereas cereal (i.e., winter wheat, oats, barley) straw residue was not retained. Alfalfa crops were harvested and baled. Fertilizer applications are detailed in Congreves et al. [14]. To summarize, corn received 157 kg/ha at planting (0-20-20), with a sidedress injection of 420 L/ha of urea ammonium nitrate. Thus, 160 to 170 kg N/ha, 23–32 kg P/ha, and 50–90 kg K/ha fertilizer were applied annually for corn; no fertilizer was applied to soybean; whereas 300 and 200 kg/ha of 34-0-0 was broadcast for winter wheat and barley, respectively.

2.3. Soil Sampling and Total Carbon (TC) Measurements

During Fall 2018, soil samples were collected from each plot after crop harvest. We established a 1 m equilateral triangle configuration at the center of each plot and collected three samples from the topsoil (0–15 cm) using a soil auger. Soil samples were air-dried, crop roots and residues removed, ground to pass through a 200 µm sieve, and analyzed for total carbon (referred to henceforward as TC) via combustion in a Leco CR-12 Carbon analyzer (Leco Corporation, St. Joseph, MI, USA) [37]. In total, 336 samples (112 plots × 3 soil samples) were analyzed for total carbon. The three sample measurements of TC for each plot were averaged to provide a mean TC concentration used in subsequent data analyses. It is important to mention that soil inorganic carbon (IC; i.e., carbonates) was not removed in laboratory for the 336 samples. However, previous analysis conducted in the University of Guelph samples from the same 112 plots have found an average of 0.8% IC of the TC % over the investigated plots.

2.4. Comparisons Over Time: 1998 to 2018, and 2009 to 2018

For this study, we also compared our TC measurements collected in 2018 (Table 1) to those obtained previously in 1998 (i.e., 21 year period change) and in 2009 (i.e., 10 year period change). The 1998 and 2009 datasets belong to a large database on the Elora long-term field experiment. These, two legacy datasets cover only selected plots and/or treatments and are treated separately in comparison with 2018 data. For the 1998 to 2018 dataset (unpublished), the CCCC, CCOB**, SSCC, SWCC, and SWCC* rotations were compared for tilled and no-tilled. For the 2009 to 2018 dataset (unpublished), the CCAA, CCSW*, CCCC, CCSW, and CCSS rotations were compared for tilled only. Furthermore, the 2009 carbon dataset TC data were not directly available; for the purpose of comparison, the 2009 soil organic carbon content was converted to TC content using the inorganic estimate fraction determined above.

2.5. Statistical Analyses

In a first stage of analysis, the effects of the tillage and the 14 crop rotation practices and their interaction on TC (the response variable) over time were tested using an analysis of variance (ANOVA). This analysis showed that crop rotations with the same crop sequence, but in different phases were not statistically different, and were thus combined by rotation treatments. For the second analysis, for instance, tilled CCOB and OBCC do not differ significantly in terms of TC content. Therefore, to provide more meaningful comparisons of management/tillage effects on TC concentrations, those cropping systems that are the same (i.e., CCOB vs OBCC) were combined in one rotation type (i.e., CCOB) for further analyses. In addition, continuous alfalfa (AAAA) was not included in further analysis as it was never no-tilled and does not offer a reasonable comparison (i.e., for statistical balanced comparison of till vs. no-till).

In the second stage, two-way ANOVA were performed on the reduced dataset of seven rotation treatments to compare tillage factors (tilled vs. no-tilled), the combined crop rotations, and their interaction on TC response. This was followed by Tukey honest significant difference (HSD) tests to compare means when a significant ANOVA main effect or interaction was encountered for a given variable and to evaluate if the investigated treatments significantly differed. Statistical significance of the selected predictor variables and the whole model was evaluated and declared significant at a level of α = 0.05 (i.e., p-value ≤ 0.05). Assumptions regarding the lack of multicollinearity (variance inflation factors), normality of the data (Shapiro–Wilk test), and equal error variance (homoscedasticity, Levene’s test) of the linear models were satisfied. Statistical analyses were performed in R (Version 3.6.0 for Windows; R Development Core Team [38]) using the car, multcompview and lsmeans packages.

3. Results

Table 1 illustrates the TC content from each of the 14 crop rotation plots (i.e., both no-tilled and tilled) including continuous alfalfa (AAAA) plots. Overall, the highest TC contents were in plots with alfalfa (i.e., AACC, CCAA, and AAAA), whereas rotations with two successive years of soybean had the lowest TC concentrations. As mentioned above, when the same rotation system was used (i.e., CCAA vs. AACC, only with a different order of the planted crops), the different phases were not significantly different at p ≤ 0.05, regardless of the tillage system.

3.1. Effects of Tillage Practice and Cropping System on Soil Total Carbon Percent After 36 Years

Table 2. Summary statistics for the measured 2018 total carbon percentage within the seven selected treatments for the till and no-till treatments. Mean topsoil TC concentrations are ranked from the highest (top = CCOB**) to the lowest (bottom = CCSS).

Rotation †	Till				No-Till
	Min	Max	Mean	SE	Min	Max	Mean	SE
CCOB **	2.39	2.90	2.69	0.08	2.62	3.39	3.01	0.12
CCAA	2.36	2.87	2.64	0.08	2.50	3.37	2.94	0.13
CCSW *	2.07	2.77	2.45	0.12	2.56	2.94	2.76	0.06
CCCC	2.11	2.73	2.43	0.14	2.37	2.96	2.75	0.13
CCSW	1.87	2.69	2.42	0.11	2.08	3.05	2.70	0.14
CCOB	1.99	2.73	2.38	0.12	2.28	2.80	2.60	0.09
CCSS	1.82	2.52	2.17	0.11	1.86	2.78	2.39	0.15

^†: Rotation with the same crops in different phases in Table 1 that are not significantly different were combined (i.e., CCAA and AACC combined in CCAA). *: Red clover was seeded as a cover crop (i.e., 1 year out of 4 year rotation) in winter wheat. **: Red clover was seeded as a cover crop (i.e., 2 year out of 4 year rotation) in both winter wheat and barley. SE = Standard error of the mean.

shows that the TC concentrations of the seven selected rotation systems ranged between 1.82% and 3.39%, which is typical for agricultural soils in southern Ontario. ANOVA results found that both tillage practice and cropping rotation system and selected interactions significantly influenced the TC concentrations (p < 0.001; Figure 3). TC concentrations in the tilled and no-tilled plot were significantly different (p < 0.001), with a mean of 2.51% and 2.73%, respectively. Regardless of tillage system, the highest TC concentrations were recorded in the CCOB** rotation planted with a red clover cover crop in both cereal phases, followed by CCAA, CCSW* with red clover in the cereal phase, and CCCC rotations with mean concentrations of 3.01%, 2.94%, 2.76%, and 2.75%, respectively (Table 2). The lowest TC concentrations were recorded in the tilled plots, with CCSS followed by CCSW and CCOB rotations with mean concentrations of 1.82%, 1.87%, and 1.99%, respectively (Table 2). Under the same crop rotation type (i.e., CCCC), the mean TC concentrations were consistently higher in no-till plot compared with tilled plot (Table 2). Regardless of tillage system, the crop rotations that included two years of soybean had the lowest TC concentrations.

A significant influence of the two-way interactions between rotation and tillage treatments was only found in selected combinations. The no-till/CCOB** rotation with a red clover was the most significantly different (i.e., five out of nine) compared with other interactions. For instance, interactions between no-till/CCOB** were significantly different from the respective interactions till/CCSS (p < 0.001), till/CCOB (p < 0.05), no-till/CCSS (p < 0.05), till/CCSW (p < 0.05), and till/CCSW* (p < 0.05). The other four significant interactions are between till/CCSS and no-till/CCAA (p < 0.01); till/CCSS and no-till/CCSW* (p < 0.05); no-till/CCSS and no-till/CCAA (p < 0.05); and till/CCOB and no-till/CAAA (p < 0.05).

3.2. Comparisons Over Time: 1998 to 2018, and 2009 to 2018

Total soil carbon comparisons between 1998 and 2018 are treated separately from the 2009 to 2018 comparison because of different historical sample sets. Figure 4 shows the five selected crop rotations for both tilled and no-tilled plots for which TC data are available for 1998 and the estimated 20 year period change (1998–2018). Overall, TC for all the plots (tilled or no-tilled) increased over the 20 year period. The no-tilled CCOB** rotation with 2 years in cover crop shows the highest increase of TC content over the change period; thus, both cover crop and no-till had a positive effect in the accumulation of TC. The no-till and till continuous corn had the second highest TC content, while the SSCC rotation displayed the lowest increase for both tilled and no-tilled plots. Figure 4 also show a consistent noticeable tillage effect among the investigated plots when 2018 topsoil TC concentrations are compared to those measured in 1998. Given that the conversion to no-till did not occur until 2002, it is not surprising that the no-tilled plots had higher amounts of change.

Table 3. Shows TC content changes over time between 2009 and 2018.

Rotation	Total Carbon		∆ TC
	2018	2009	2018−2009
	%	%	Change %	Relative Change %
CCAA	2.64	2.10	0.54	21
CCSW *	2.45	1.99	0.46	19
CCCC	2.43	1.99	0.44	18
CCSW	2.42	2.13	0.28	12
CCSS	2.17	1.89	0.28	13

*: Red clover was seeded as a cover crop (i.e., 1 year out of 4 year rotation) in winter wheat. ∆: TC difference between 2018 and 2009.

shows TC content changes over time between 2009 and 2018. Overall, the same increasing TC trend was also recorded in a dataset collected in 2009 over corn/till interaction plots. The highest changes were from about 21% for CCAA followed by CCSW* with red clover (19%) and CCCC (18%), whereas the lowest changes were for CCSS and CCSW with 10% and 12%. respectively.

4. Discussion

In the agricultural region of southern Ontario, knowledge of the status and temporal changes of TC is crucial for monitoring soil in the context of soil health, carbon sequestration, and climate change mitigation. This study reports that all TC concentrations in topsoil responded to tillage and crop rotation treatments. In all instances, no-till plots had higher values of TC compared with moldboard tillage. This is consistent with many previous long-term studies that reported higher topsoil carbon for no-tillage compared with conventional tillage practices in eastern Canada [14,15,18,27,39,40] and in Iowa, United States of America [41]. However, in this study, we found that some crop rotations and tillage interactions impact the TC change, which is in contrast with some previous studies (e.g., [15]). We were not able to identify the exact mechanism for this high impact and more research will be needed to be further explore that interaction.

The incorporation of cover crops in the cereal phase increases TC accumulation. The highest TC increases were recorded in plots where red clover cover crops were planted after winter wheat (i.e., CCSW*; 1 year out of a 4 year rotation) and after oats and barley (CCOB**; i.e., 2 year out of a 4 year rotation). This finding suggests that, in terms of TC accumulation, the incorporation of cereals (i.e., winter wheat, barley, oats) and a cover crop post-cereal harvest has greater impacts on TC storage than increasing the diversity of crop rotation. For instance, the incorporation of red clover into no-till CCOB** rotation plots increased the TC concentration by approximatively 11% (i.e., CCOB** vs. CCOB; Table 2). This finding is consistent with previous work [14,15,30,32,42], which found that cropping systems that have cover crops (e.g., alfalfa or red clover) in rotations with cereals had the highest soil organic carbon compared with other diversified cropping systems without cover crops. The increase of soil carbon in rotations with red cover suggests this addition is beneficial for preserving and growing soil organic matter throughout the input of high quality residue (i.e., C/N ratios) to the soil. Other studies have found that, in addition to increasing soil carbon, red clover may also play a crucial role in soil health. These benefits can include the increase of soil aggregation, which will reduce the susceptibility of the soil to erosion [43], enhancing soil microbial biomass and activity through addition of labile residues and nitrogen [44], and the increase of soil nitrogen supply as red clover is known to generate greater soil microbial biomass carbon and mineralizable nitrogen [45].

In contrast, our results indicated that the frequency of soybean in crop rotations decreased soil carbon compared with the remaining rotations. The lowest TC contents were in corn–corn–soybean–soybean–corn–corn (CCSS), followed by corn–corn–soybean–winter wheat (CCSW), regardless of the tillage system. This was expected given that soybean returns little biomass to the soil [46]. This may suggest that rotations producing low residue crops such as soybean may not be beneficial for preserving and/or increasing soil carbon. Continuous corn (CCCC), however, had a higher TC content than CCSS and CCSW. This finding is in contrast with a previous study by Angers [47] and Congreves et al. [14], which found continuous corn crop rotation decreased soil carbon. In this system, it appears that the high biomass return of continuous corn is more influential on TC than the effects of low biomass return from soybean and cereals that have had straw removed. It is important to mention that, although this study demonstrated that CCCC increases TC (keeping in mind that corn stover was retained), we do not recommend such cropping system, as there are disease, pest, and erosion risks associated with mono-cropping [46].

Similar to several other studies [18,48,49,50,51,52,53], the results here were reported as TC content (i.e., g C/kg soil) from samples taken from 0–15 cm depth rather than as carbon stocks. Soil bulk density (BD) is required to translate TC concentrations into carbon stocks [54], which was not available for the 1998 and 2009 sampling times. This study aligns with Lee et al. 2009 [55], who found that soil carbon concentration data were a better measure than soil carbon stock estimates. Furthermore, we anticipate that the trends in the change of TC content through time would have been similar when considering only the carbon stocks in the equivalent depth.

In addition to the effect of tillage and crop rotation, other factors such as topography and organic carbon inputs (i.e., manure, compost) are known to influence TC accumulation in the agricultural soils in southern Ontario. A box plot analysis (Figure not shown here) of TC over the four studied blocks (i.e., B1–B4 in Figure 2) shows that there was no significant difference in TC datasets between the four blocks, suggesting that there is no significant effect of topography (i.e., by surface run-off/leaching) at the experimental site on TC concentrations.

The combination of TC field measurements with long-term tillage and crop rotation information has improved our understanding of how tillage and crop rotations influence TC status in the topsoil and can constitute a significant first step in predicting and mapping soil across the landscape. The policy implications of this study are to develop incentives for appropriate and cost-effective agricultural management activities that enhance soil carbon content, and ultimately crop productivity. These results can provide managers and researchers with a more complete understanding of tillage and rotation impacts on TC storage and allow for a benchmark for further investigations for monitoring the impact of management practices on TC at the surface. Furthermore, the data will support an interactive assessment tool that accounts for the impact of agricultural land management practices on soil carbon and functions. Finally, we believe that the results from this study can contribute to improve modelling efforts to describe soil carbon dynamics (i.e., [16]) in cropping systems and to estimate regional and national soil carbon balances for agricultural soils in Canada and other similar climate zones in which wheat, barley, corn, or soybean can grow in crop rotation.

5. Conclusions

In this study, the effects of 36 year long-term tillage and crop rotation practices and their interaction on the total carbon concentration in the surface layer were tested. We found that the combination of no-till and some specific cropping systems practices increased TC concentrations in the topsoil. The highest TC concentrations were recorded in corn–corn–oats–barley (CCOB) rotations with a red clover cover crop in both cereal phases combined with no-till, whereas the lowest TC concentrations were observed in the corn–corn–soybean–soybean (CCSS) and corn–corn–oats–barley (CCOB) rotations without integrated cover crops, suggesting that the incorporation of cover crop is very important for TC storage in the topsoil. On the basis of our findings, we concluded that conservation tillage (i.e., less tillage, no-till, or reduced till) can increase the soil carbon concentration as do rotations that include more than 1 year cover crops (preferably 2 year out of a 4 year rotation) or perennial crops and, therefore, could be suitable management practices to promote soil quality, health, and sustainability, and to mitigate global warming by enhancing carbon storage.
