Nitrogen Rate Increase Not Required for No-Till Wheat in Cool and Humid Conditions

Abstract

An increased nitrogen (N) supply was proposed to avoid grain yield (GY) reductions and successfully implement conservation agriculture (CA). We investigated interactions effects of tillage system and N supply on winter wheat (Triticum aestivum L.) at two sites in the Swiss midlands with no (0 kg N ha⁻¹) and high (150–160 kg N ha⁻¹) N supply using ¹⁵N-labelled ammonium nitrate in selected treatments. Wheat’s GY, yield components, N related traits and soil mineral N content (N_min) under conventional tillage (CT), minimum tillage (MT), and no-tillage (NT) were studied following two preceding crops: oilseed rape (Brassica napus L.) and maize (Zea mays L.). Wheat after oilseed rape had significantly higher GY and biomass than after maize while a yield decrease under NT compared with CT and MT was observed regardless of N supply level. Differences in soil N_min among tillage systems were seldom found and were inconsistent. No differences in ¹⁵N fertilizer recovery were found between NT and CT while residual N_min after harvest was lower under NT than CT or MT. In conclusion, we did not found consistent reductions in soil N availability and N uptake under NT that would justify an increased N supply for wheat under CA.

1. Introduction

Conventional farming practice, based on intensive tillage and removal of residues from the soil surface, can result in serious soil degradation [1]. Conservation agriculture (CA) has been promoted as an agricultural system that increases agricultural sustainability and has the potential to mitigate greenhouse gas emissions [2,3] and climate change [4]. CA is based on minimizing soil disturbance and using adequate levels of crop residues for soil and water conservation [5]. Reduced tillage systems have been designed to minimize soil disturbance and offer long-term benefits from an improved soil structure [6], restored soil organic carbon stocks, improved soil properties, and reduced soil erosion [7].

Despite the reported benefits of CA, its adoption has been more widespread in semi-arid climates [8] and certain temperate regions [8,9,10] while its adoption in other areas of the world continues to be obstructed by different constraints. Reduced crop yields has been suggested as a major constraint for a larger adoption of CA [11,12,13,14,15,16,17]. One of the factors proposed to explain lower yields under CA is lower available nitrogen (N) during the early growth stages of wheat [18,19,20]. The surface residue under CA may result in significant immobilization of surface-applied N [18]. Therefore, different authors suggested to increase N rate under CA in temperate regions [21]. However, it was reported that the efficiency of applied N is different in various climatic zones: data from over 800 experiments report that on average only 51% of the fertilizer-N applied to cereal crops was recovered by the plant tops and average N fertilizer recoveries can be even lower when applied at high (>150 kg N ha⁻¹) rates [22]. The high variability in N efficiency indicates that our knowledge of optimal fertilizer management of cereals in most agro-climatic zones is still incomplete [23,24,25]. Indeed, it is critical to apply the right type of fertilizer at the right rate, time and place respecting practices that avoid N losses that cause environmental pollution [26]. This makes N management under CA also challenging. For example, with low or no fertilization, N and sulfur deficiencies were more severe under no-tillage (NT) than under conventional tillage (CT) in a heavy clay soil [27]. Nitrogen mineralization may be retarded in spring on such soils [19] and initial plant N supply may be insufficient. If less soil N is available to plants, an increased N fertilization would be recommended for CA. Therefore, understanding the processes that affect N uptake and utilization is of major importance with respect to the quality of crop products, the costs of production [28] and the likelihood that CA is adopted by farmers [17].

Preceding crops can alter the total supply of N and the timing of N availability of the succeeding crop [29,30]. The N retained in the stalks/stems and roots of the preceding crop will be available for the succeeding crop if its mineralization is well synchronized with the N demand of the succeeding crop [31,32]. On the other hand, high levels of crop residues, which are expected in humid environments, can reduce the grain yield of wheat as a result of diseases [33] or immobilize N that would otherwise be available for the crop. Residues are a central principle of CA because they reduce soil erosion and protect the soil surface [34,35]. Therefore, nutrient management measures to support an optimized quantity and quality of residues in cool and humid climates are to be elucidated.

The main goal of this study was to determine if interactions between tillage system and N supply would justify increasing N supply under CA. We studied the effects on wheat grain yield, yield components, and N related traits of CT, minimum tillage (MT), and NT in two sites (silt-loam and loam textured soil) following two preceding crops: oilseed rape (Brassica napus L.) and maize (Zea mays L.).

2. Materials and Methods

2.1. Experimental Conditions

The experiment was conducted at two sites in the Swiss midlands from 1995 to 1999 at Zollikofen near Berne (47°00′ N, 7°28′ E; 555 m above sea level) and from 1996 to 2000 at Schafisheim near Zurich (47°23′ N, 8°09′ E; 429 m above sea level). At Zollikofen and Schafisheim the soils (0–30 cm) were silty loam (SiL) and loamy (L) according to their texture and were classified as Gleyic Cambisol and Orthic Luvisol respectively (FAO, 1988). Soil pH (H₂O) ranged from moderately to slightly acidic (pH = 5.6 in Zollikofen and 6.3 in Schafisheim). Both soils were rich in organic matter content (27 g kg⁻¹ in Zollikofen and 33 g kg⁻¹ in Schafisheim). Other physicochemical properties of the studied soils are compiled in

Table 1. Soil characteristics at Zollikofen and Schafisheim.

Site	Soil Depth (cm)	Zollikofen	Schafisheim
Soil classification 1	0–90	Gleyic Cambisol	Orthic Luvisol
Soil texture		Silt-loam	loam
Particle size distribution 1 (sand-silt-clay), %	0–30	35/51/14	50/35/15
pH (H2O) 2	0–30	5.6	6.3
Organic matter (g kg−1) 3	0–30	27	33
Ntot (g kg−1) 4	0–30	1.3	1.8
C/N	0–30	12.0	10.6
P (g kg−1) 5	0–30	0.31	1.17
K (g kg−1) 6	0–30	2.15	6.84
Soil bulk density (Mg m−3) 7	0–10	1.26	1.21
	10–20	1.41	1.29
	20–30	1.37	1.29
	30–60	1.55	1.43
	60–90	1.52	1.48

¹ [36]; ² [37]; ³ [38]; ⁴ [39]; ⁵ [40]; ⁶ [41]; ⁷ [42].

.

The winter wheat (Triticum aestivum L.) variety Runal (Breeder: Swiss Federal Research Station for Agroecology and Agriculture, FAL, Zurich, Switzerland), which is a high-quality variety with an intermediate yield potential was grown. As of 2020, Runal was still cultivated and included in the official list of recommended varieties [43]. Following the guidelines for fertilization of the Swiss federal research stations, 22 kg P ha⁻¹ and 8 kg Mg ha⁻¹ were broadcasted at the sowing of winter wheat. At each site winter wheat was grown succeeding maize (Zea mays L.) or oilseed rape (Brassica napus L.). These preceding crops are common crops cultivated in rotations with winter wheat in Switzerland. The following three tillage systems were studied: CT with mouldboard plough (CT, 25 cm depth), minimum tillage with chisel (MT, 15 cm depth), and no-tillage (NT). Two rates of N fertilization were compared: 0 kg N ha⁻¹ (N0) and recommended N fertilization (N1). For the recommended N rate, N was broadcasted as ammonium nitrate (NH₄NO₃) at three stages (according to BBCH scale [44]): beginning of tillering (BBCH 25), first-node stage (BBCH 31) and appearance of the flag leaf (BBCH 37). Recommended N rate applied at beginning of tillering was estimated as 120 kg N ha⁻¹ - soil N_min (0 to 90 cm) while at the first-node stage and at the appearance of the flag leaf, the amount of N fertilizer was calculated according to a N status test (Lonza, Basel, Switzerland) and applied up to a total supply of 30 and 50 kg N ha⁻¹, respectively. The N status test was based on the nitrate concentration in the basal stem sap as proposed by Justes et al. [45]. The total amount of N fertilizer for the recommended rate ranged from 150 to 160 kg N ha⁻¹ (N1).

Wheat was sown at Zollikofen on 14 October 1995, 4 November 1996, 28 October 1997, and 5 December 1998 and at Schafisheim on 4 November 1996, 24 October 1997, 9 November 1998, and 19 October 1999. In the CT and MT treatments, wheat was sown with a ‘Rototiller’ rotary harrow—drill combination. In the NT treatment, wheat was sown with a disc-opener, John Deere ‘NT 750 A’ planter (Deere and Co., Moline IL, USA) directly into the dead mulch. In all the tillage systems, seeding rate was 400 grains m⁻². The distance between plant rows was 14.3 cm at Zollikofen and 12.5 cm at Schafisheim in the CT and MT systems; the distance between the rows was 16.6 cm in the NT systems at both sites.

Crop protection measures included control of weeds, fungal diseases, and pests. Before the growth stage of stem elongation (BBCH 29), the herbicides isoproturon (1363 g ai ha⁻¹) + fluoroglycophen (30 g ai ha⁻¹) + triasulfuron (7.5 g ai ha⁻¹) (Lumeton^®, Novartis) and 260 g ai ha⁻¹ of fluroxypyr (Starane 180^®, Novartis) were sprayed. At first-node (BBCH 31) 125 g ai ha⁻¹ of the growth regulator trimexapac (Moddus^®, Novartis) was applied. At the stage of flag leaf (BBCH 37), fenpropimorph (375 g ai ha⁻¹) + difenoconazol (125 g ai ha⁻¹) (Avenir^®, Novartis) was sprayed against fungal diseases. At anthesis, 250 g ai ha⁻¹ of the fungicide tebuconazol (Horizont^®, Bayer) and 144 g ai ha⁻¹ of the insecticide diflubenzuron (Dimilin^®, Maag) were applied. Crop residues were left on the soil surface following a main principle of CA.

Long-term climatic data from meteorological stations at Berne-Liebefeld (near Zollikofen) and Buchs-Suhr (near Schafisheim) were obtained from the Swiss Meteorological Institute (SMI, Zurich). In the 20 years prior to the experiments, mean annual temperature and precipitation at Zollikofen were 8.7 °C and 1075 mm, respectively. The corresponding values at Schafisheim were 9.2 °C and 1047 mm, respectively. Growing conditions in the two sites were representative of average conditions for winter wheat cropping in Switzerland.

The experimental design was a split-plot with completely randomized blocks and two treatments (tillage systems and N supply). Tillage systems (CT, MT, and NT) and nitrogen supply (N0 and N1) were assigned to the main and the subplots, respectively. The tillage main-plots were 12 × 35 m² and separated from each other by a one meter border. The N subplots were 6 × 35 m². Each combination of main-plot and subplot was replicated three times while each different combination of year, site, and preceding crop was considered a single environment in the statistical analysis.

2.2. ¹⁵N labelled Fertilizer Assessment

This assessment was conducted for two years at each site. In the CT and NT treatments, two zones per plot were defined to apply and trace the fate of ¹⁵N-labelled fertilizer for the recommended N rate treatment.

Each zone was defined at the center of the plots to avoid the dispersion of ¹⁵N [46,47] and covered an area of 3.25 m². Within each zone, double labelled ammonium nitrate (¹⁵NH₄¹⁵NO₃) was dissolved in water and applied at the end of tillering in five places of 0.25 m² each [46]. The fertilizer solution was made up with 1.325 atom% excess for an 80 kg ¹⁵N ha⁻¹ treatment and was applied homogeneously. At the first-node stage (BBCH 31) and at the appearance of the flag leaf (BBCH 37), the required amount of N fertilizer in each plot was calculated using the above described N status test and applied as non-labeled NH₄NO₃ to complete the N rate of the treatment.

2.3. Plant Sampling and Analysis

Shoot samples were taken at tillering (BBCH 25), shooting (BBCH 31), and anthesis (BBCH 65) from four areas (0.25 m²) per plot. At maturity (BBCH 92), an area of 15 m² per plot was harvested by combine harvester (Wintersteiger, Ried, Austria). Straw was collected and its fresh weight determined on the field; a random sample was taken to determine the dry weight and the N content. Plant material was dried at 65 °C for 48 h and then weighed. The grains were ground with a mill (‘A10′, Janke & Kunkel Labortechnik, Staufen, Germany) prior to analysis. The milled grains were analyzed for N with a LECO CHN-1000 autoanalyzer (LECO Corporation, St. Joseph, MI, USA). This instrument involves dry combustion according to the Dumas principle to extract N from the samples.

Shoot samples from the subplots for ¹⁵N-labelled fertilizer assessments were taken from two places per ¹⁵N application zone at the end of tillering (BBCH 29) after ¹⁵N application, at shooting (BBCH 31), at anthesis (BBCH 65), and at physiological maturity (BBCH 92). At each sampling, plants were cut at soil surface level. Shoots were divided into grains and vegetative parts (chaff and straw). Dried shoot material (65 °C for 48 h) was weighed. Vegetative parts were ground with two mills, through a 3-mm sieve (Wolf Mühle, Wien, Austria) and then through a 1-mm sieve (‘Cyclotec Tecator 1093′ mill, Tecator AB, Höganäs, Sweden), the grains with an ‘A10′ mill (Janke & Kunkel Labortechnik, Staufen, Germany). Then, the plant and grain material was ground with a ‘MM2′ ball mill (Retsch, Arlesheim, Switzerland). N and ¹⁵N concentrations were determined with a bench-top isotope ratio mass spectrometer (Europa Scientific Integra, Cambridge, UK) in the stable isotope facility of the University of California at Davis, USA.

%Ndff calculations (percentage of plant N derived from N fertilizer) were made as follows [48]:

%Ndff = (%N excess in sample/%N excess in fertilizer) × 100

(1)

The resulting percentage was multiplied by the total N quantity in the plant sample to obtain a value of plant derived from N fertilizer in kg ha⁻¹ (N_R).

2.4. Soil Sampling and Analysis

At the end of winter, four soil cores (0.0 to 90 cm) per plot were taken using a ‘Pürckhauer’ auger (Eijkelkamp, Giesbeek, The Netherlands) and separated according to depth (0 to 15 cm, 15 to 30 cm, 30 to 60 cm, and 60 to 90 cm). Samples were taken right after shoot sampling from the centre of the shoot sampling areas. Additional, soil samples were taken in the autumn, at the end of the vegetation period, following the same protocol described above. Soil samples were frozen at −18 °C until analysis. For each sample, 100 g of soil were extracted using 100 mL of a 0.005 M CaCl₂ solution. After shaking the solutions for 90 min, the samples were filtered through N-free filters. Concentrations of NO₃⁻-N and NH₄⁺-N in the extract were determined using a colorimetric method with an ‘Evolution II’ autoanalyser (Alliance Instruments, Nanterre, France).

2.5. Statistical Analysis

Data were analyzed by means of the analysis of variance (ANOVA) according to the GLM procedure of the SAS software [49]. Briefly, the GLM procedure uses the method of least squares to fit general linear models and allows specifying interaction and nested effects. We also used this procedure to compute least square means and least square mean differences. Factors in ANOVA were tillage system and N fertilization level. Environments were considered combinations of year, site, and preceding crop. Single ANOVAs were conducted for each environment. As meaningful interactions between tillage systems and the level of N fertilization did not occur, we only present results from the recommended N fertilization level. On the other hand, data are shown separately for single environments because strong effects of environment existed which included the effects of the preceding crops oilseed rape and maize.

3. Results

3.1. Soil Mineral N Content (N_min)

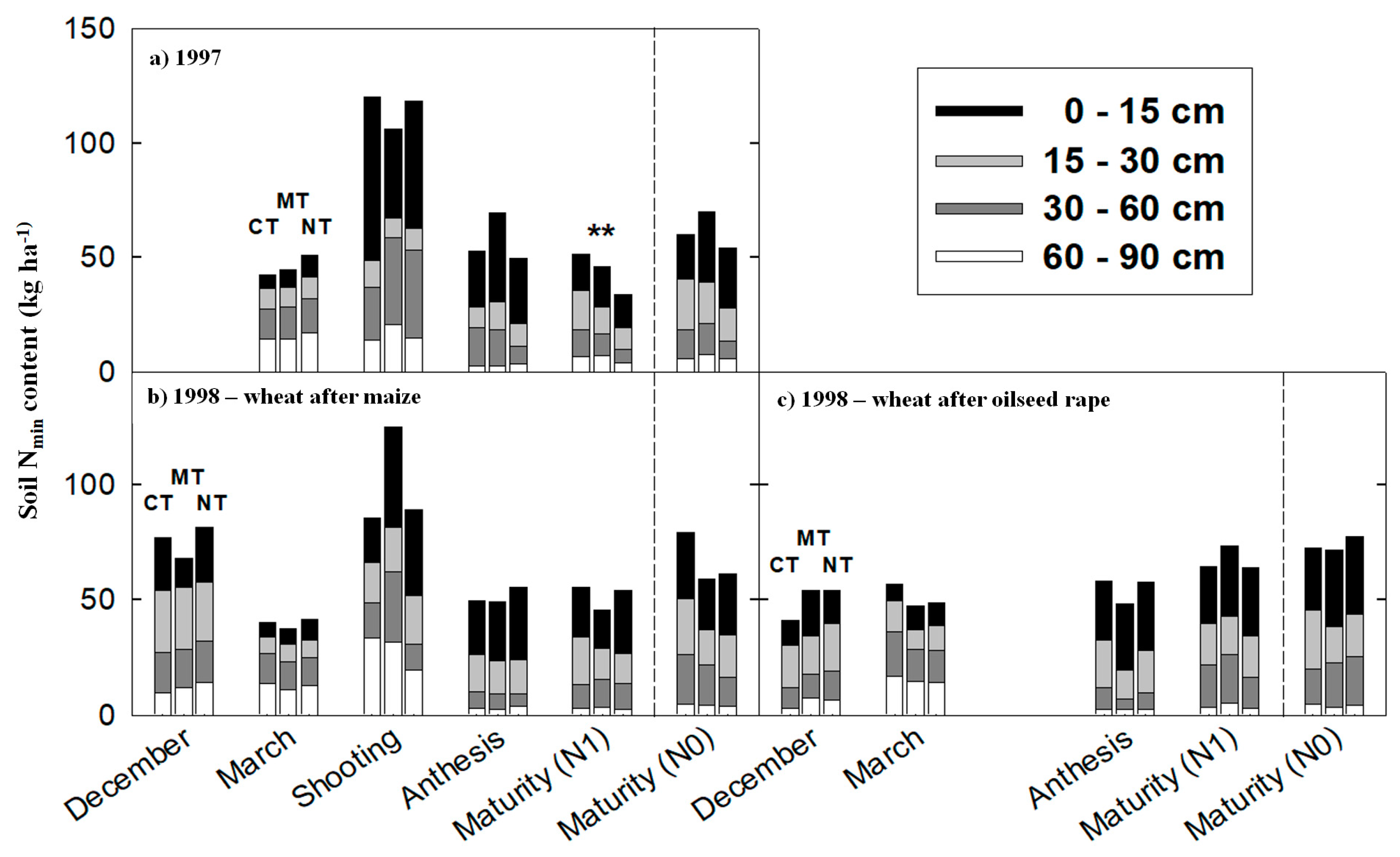

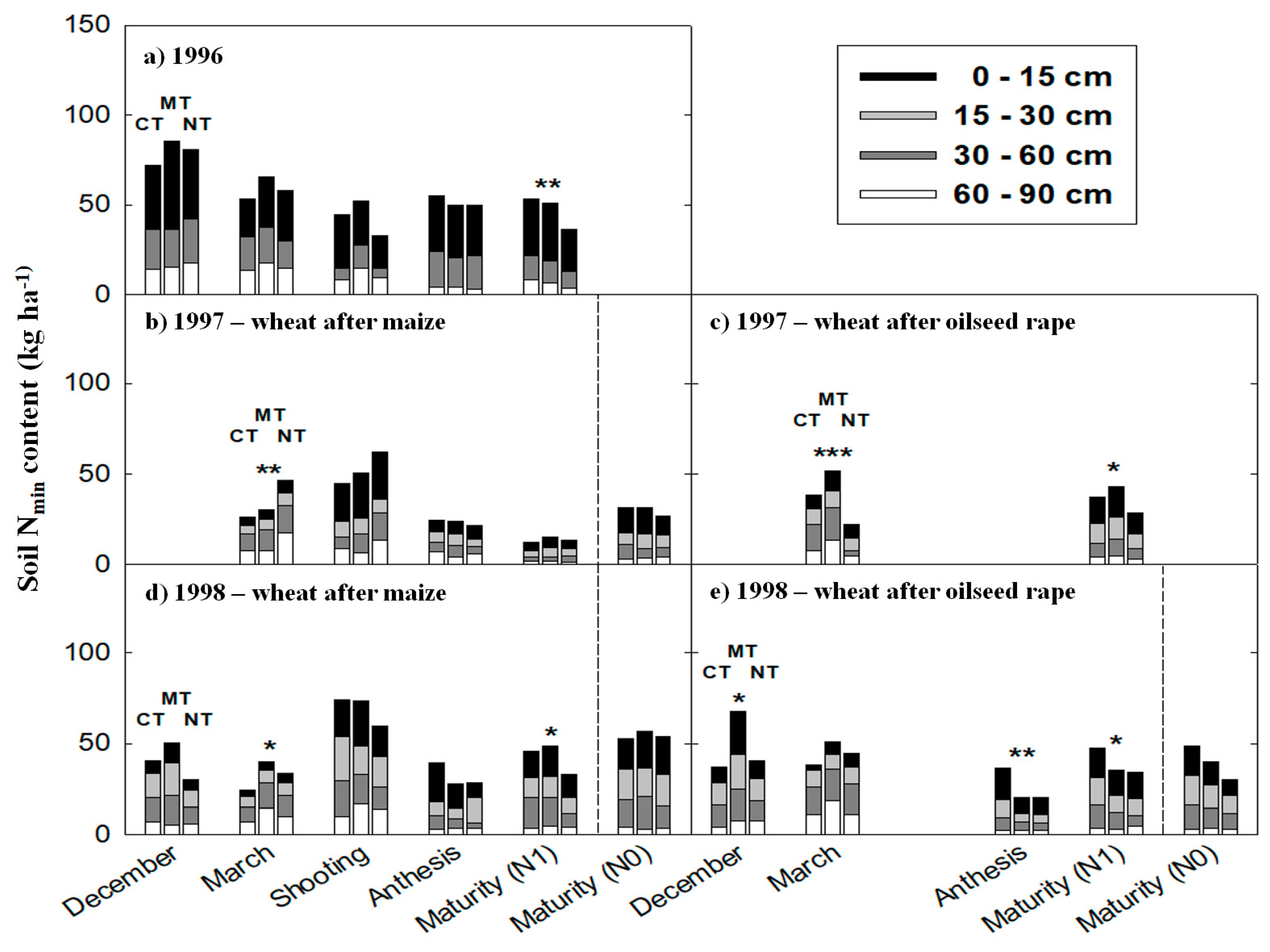

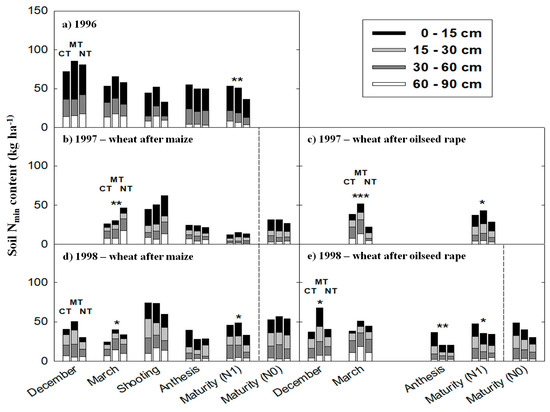

Total soil N_min (Figure 1 and Figure 2) varied among environments (i.e., combination of year, site, and preceding crop) with a mean value of 54 kg N ha⁻¹ and a coefficient of variation of 30%. Total soil N_min contents at Schafisheim were generally higher than at Zollikofen. At Schafisheim, tillage systems had no significant effect on N_min, with the exception of the assessment at the maturity of wheat (Figure 2). In contrast, at Zollikofen soil N_min contents were significantly (p < 0.05) affected by preceding crop and tillage system.

Total soil N_min (0 to 90 cm) tended to be higher after oilseed rape than after maize in the heavier soil (Figure 1c,e) and this was especially the case in the topsoil (0 to 30 cm). Averaged across all treatments, the soil N_min content of the MT system was higher than that of NT and slightly but significantly higher than that of CT system (data not shown). Around 60% of the total soil N_min content was found in the topsoil, regardless of the tillage system and site (Figure 1 and Figure 2). Before winter (i.e., December in Figure 1 and Figure 2), the average soil N_min content was 10 kg N ha⁻¹ higher under MT than under CT and 8 kg N ha⁻¹ higher than under NT. After winter (i.e., March in Figure 1 and Figure 2), soil N_min contents were still the highest under MT, but differences among tillage systems were usually below 10 kg N ha⁻¹. Changes in soil N_min content between autumn and winter occurred mainly in the topsoil while the soil N_min content in the subsoil (30 to 90 cm) was less variable. Net increases in soil N_min contents from the beginning of the vegetation period until shooting were, on average, slightly higher under CT and MT than under NT, brought about mainly by a higher soil N_min content in the topsoil (Figure 1b,d and Figure 2a,b). At shooting, the average N_min content was nearly twice as high as after winter; and although average differences among tillage systems were small, the highest values were still recorded under MT (Figure 1a,d, and Figure 2b). From shooting to anthesis, soil N_min contents decreased by around 30 kg N ha⁻¹, and significant differences disappeared among tillage systems (Figure 1 and Figure 2). The subsoil (30 to 90 cm) contained only marginal levels of mineral N with values below 20 kg N ha⁻¹. Between anthesis and maturity, few changes in the content of soil N_min were observed (Figure 1 and Figure 2). Therefore, N mineralization on the one hand and the sum of N uptake and N losses on the other were probably counterbalanced. Average soil N_min at maturity (an indicator of residual N) was significantly lower (by about 8 kg N ha⁻¹) under NT than under CT and MT, with a significantly higher percentage of N_min in the topsoil than in the subsoil (Figure 1b,d,e, and Figure 2a,b).

3.2. Establishment and N Uptake of Wheat

The emergence of wheat plants was lower and less regular under NT than under CT and MT. There was a significant reduction (20%) in wheat plant density under NT compared to CT at Zollikofen in 1996 and at both sites in 1998, while the number of wheat plants per area was intermediate under MT (data not shown). Despite this initial difference, wheat under NT compensated for the reduced plant stand with a higher number of fertile tillers.

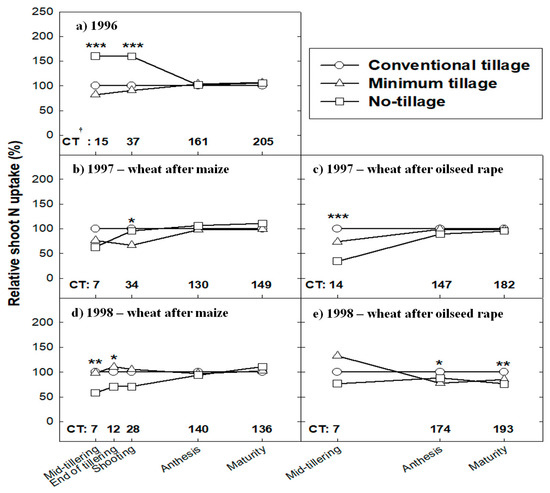

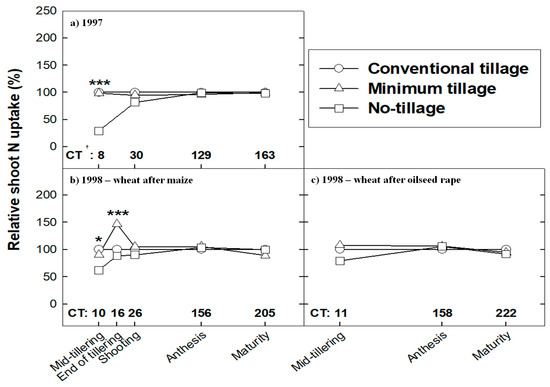

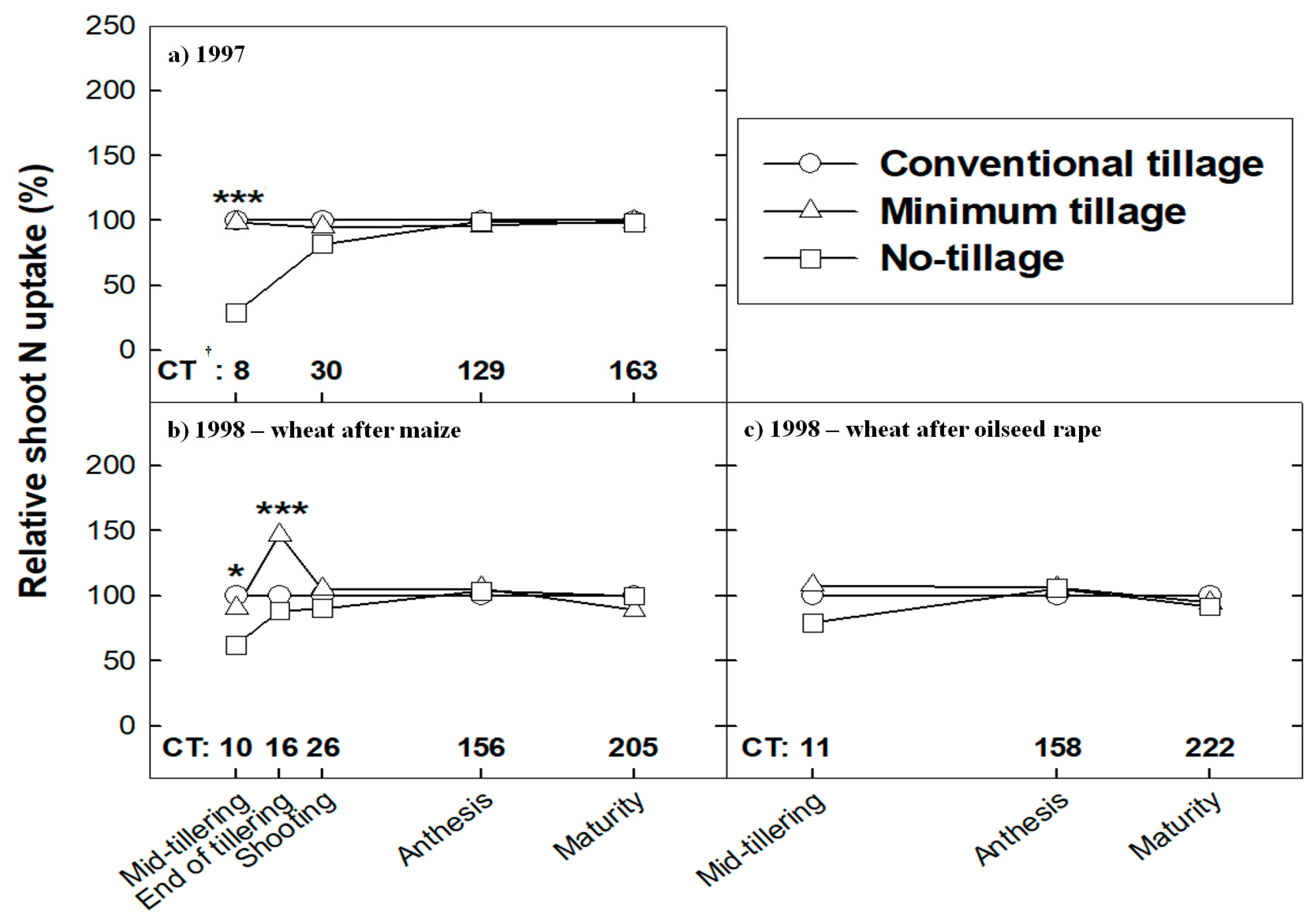

Shoot N uptake at the early vegetative stages was the highest under CT or MT, while values under NT were 25% lower (Figure 3 and Figure 4). Wheat after oilseed rape had 25% higher shoot N uptake than wheat after maize and N uptake was relatively higher at Schafisheim than at Zollikofen (

Table 2. Effects of conventional tillage (CT), minimum tillage (MT), and no-tillage (NT) on grain yield of winter wheat, selected yield components, shoot N uptake and grain N content at physiological maturity in seven environments at Zollikofen.

Environment		Tillage	Shoot Biomass	Spike Density	Grains Spike−1	TKW †	Shoot N Uptake	Grain N Content	Grain Yield
Year	Preceding Crop		Mg ha−1	m−2		g	kg ha−1	kg ha−1	Mg ha−1
1996	oats	CT	14.65	533	27.4	50.3	205	163	7.33
		MT	15.02	559	27.7	49.4	217	172	7.62
		NT	15.57	625	24.2	49.2	217	169	7.40
1997	maize	CT	11.48	523	20.5	43.8	149	108	4.70
		MT	10.82	433	25.0	42.5	148	111	4.57
		NT	11.73	476	24.6	42.6	165	116	4.88
	oilseed rape	CT	13.17	631	18.3	44.1	182	114	4.94
		MT	12.21	560	20.1	43.2	179	114	4.80
		NT	12.44	535	21.3	42.7	174	109	4.74
1998	maize	CT	10.16	431	26.2	42.7	136	109	4.35
		MT	10.79	456	24.5	42.7	140	121	4.77
		NT	10.49	399	28.6	42.2	151	127	4.80
	oilseed rape	CT	13.19	542	25.5	43.1	193 a ††	153 a	5.68 a
		MT	11.36	449	27.3	42.3	165 ab	136 b	5.00 b
		NT	11.34	482	22.9	41.7	147 b	118 c	4.87 b
1999	maize	CT	10.77 b	396	28.2	38.5 b	141	112	4.42
		MT	13.42 a	465	24.0	42.1 a	166	111	4.78
		NT	11.15 b	437	25.7	39.6 b	133	107	4.46
	oilseed rape	CT	14.62 a	512	24.2	42.4	208 a	148 a	5.15 b
		MT	15.81 a	576	24.1	42.0	216 a	158 a	5.66 a
		NT	12.98 b	488	25.0	41.8	170 b	125 b	5.04 b

^† TKW: Thousand kernel weight; ^†† Letters indicate significant differences among tillage systems in single environments (p < 0.05).

and

Table 3. Effects of conventional tillage (CT), minimum tillage (MT), and no-tillage (NT) on grain yield of winter wheat, selected yield components, shoot N uptake, and grain N content at physiological maturity in seven environments at Schafisheim. Environments are combinations of year and preceding crop.

Environment		Tillage	Shoot Biomass	Spike Density	Grains Spike−1	TKW †	Shoot N Uptake	Grain N Content	GrainYield
Year	Preceding Crop		Mg ha−1	m−2		g	kg ha−1	kg ha−1	Mg ha−1
1997	wheat	CT	11.95	557	17.8	43.0 a ††	163	110	4.19
		MT	11.87	573	16.8	41.9 a	162	105	4.03
		NT	11.17	510	18.1	39.9 b	160	97	3.70
1998	maize	CT	12.48	494 ab	25.4 ab	43.8	205	160	5.41
		MT	11.48	569 a	20.8 b	42.4	183	147	5.20
		NT	12.74	423 b	30.9 a	42.1	205	152	5.27
	oilseed rape	CT	12.97	442	29.1	43.2	222	154	5.52
		MT	13.11	565	22.1	43.0	210	157	5.43
		NT	13.04	482	24.8	43.9	204	148	5.33
1999	maize	CT	13.03	425	31.2 ab	40.5 a	156	121	5.21
		MT	11.00	395	34.5 a	38.6 b	143	110	4.81
		NT	12.22	495	25.3 b	37.7 b	142	107	4.70
	oilseed rape	CT	14.29	447	31.6	37.3	209	143	5.25
		MT	14.28	401	37.0	37.8	203	145	5.47
		NT	14.70	454	31.1	37.9	213	142	5.23
2000	maize	CT	12.11	477	24.4	45.6	180	136b	5.27
		MT	11.55	481	23.0	45.6	178	138ab	5.05
		NT	12.11	470	23.9	44.6	186	144a	5.03
	oilseed rape	CT	15.03	511	27.0	45.7	236	171	6.29
		MT	14.68	490	26.5	45.6	220	161	5.92
		NT	15.06	510	26.6	45.9	226	164	6.24

^† TKW: Thousand kernel weight; ^†† Letters indicate significant differences among tillage systems in single environments (p < 0.05).

). Differences among environments were pronounced until the end of tillering, with generally lower rates of shoot N uptake at Zollikofen. At stem elongation, wheat under NT had the highest shoot N concentrations, followed by MT. Significant differences in the shoot N concentration were found among environments at this stage, mainly caused by higher N concentrations at Schafisheim than at Zollikofen (Figure 3 and Figure 4).

From stem elongation onwards, differences among tillage systems largely disappeared while differences between environments dominated. The shoot N concentration increased slightly until stem elongation and then decreased steadily until physiological maturity (Figure 3 and Figure 4). Shoot N uptake at the beginning of stem elongation was, on average, lower under NT than under CT. Shoot N uptake under MT was also slightly lower than under CT in most environments. However, these differences disappeared by anthesis (Figure 3 and Figure 4) and after grain filling, shoot N uptake was similar in all tested environments and under the three tested tillage treatments.

At maturity, differences in shoot N uptake due to preceding crop were often associated to differences in shoot biomass (Table 2 and Table 3). Wheat after oilseed rape produced a significantly higher shoot biomass than wheat after maize at nearly all the investigated growth stages (data not shown). This was reflected in shoot N uptake which was higher after oilseed rape than after maize, with the exception of plots under NT. At maturity, the shoot biomass was only slightly, but not significantly lower under NT than under CT and MT (Table 2 and Table 3). These effects were, however, different across environments. The shoot dry matter of wheat was 15% higher after oilseed rape than after maize and it was slightly lower at Zollikofen than at Schafisheim but not significantly different (Table 2 and Table 3).

3.3. ¹⁵N-Labelled Fertilizer Recovery

Labelled-¹⁵N fertilizer allows to trace the fate of N supplied as fertilizer and differentiate it from other N sources (

Table 4. Effects of conventional (CT) and no-tillage (NT) on the percentage of nitrogen in plants derived from labelled-¹⁵N from the basal N application (Ndff) and labelled fertilizer-N recovery (NR) in plants (kg ha⁻¹) at four growth stages of wheat and four environments.

Environment		Tillage	End of Tillering		Begin of Stem Elongation		Anthesis		Physiological Maturity
Site	Year		Ndff	NR	Ndff	NR	Ndff	NR	Ndff	NR
			%	kg ha−1	%	kg ha−1	%	kg ha−1	%	kg ha−1
Zollikofen	1997	CT	NA	NA	54.6 a †	18.4	35.6	50.3	25.9	46.7
		NT	NA	NA	47.5 b	15.1	31.5	57.5	22.9	41.5
	1998	CT	0.16	0.01	67.1	17.2 a	29.4	39.1	27.6	49.2
		NT	0.15	0.01	64.7	12.1 b	23.7	29.8	27.3	47.5
Schafisheim	1997	CT	NA	NA	46.9 b	13.2	32.2	52.5	22.9	34.4
		NT	NA	NA	56.9 a	9.4	31.8	39.5	22.4	35.0
	1998	CT	0.31	0.04	46.8 b	12.8	28.1	46.4	20.2	39.9
		NT	0.31	0.03	52.7 a	11.2	25.2	39.6	19.1	38.6

^† Letters indicate significant differences among tillage systems in single environments (p < 0.05). NA: not available.

). About 50% and 40% of the basal N application were recovered at physiological maturity in the shoot and grains, respectively. Recovery of ¹⁵N was significantly higher at Zollikofen (silty-loam soil) compared to Schafisheim (loamy soil) and in 1998 than in 1997. Differences between sites were higher than those between years for the same site (Table 4).

3.4. Grain Yield and Yield Components

In most environments, there were no significant differences in grain yield among tillage systems, with the exception of Zollikofen in 1998 and 1999 when oilseed rape was the preceding crop. On average, wheat’s grain yield was 8% higher after oilseed rape than after maize (Table 2 and Table 3).

There were only isolated effects of tillage system on yield components and often depended on the environment. Table 2 and Table 3 show selected yield components at Zollikofen and Schafisheim, respectively. When oilseed rape was the preceding crop, there were on average 10% more spikes m⁻² than after maize. In the few cases that there were significant differences due to tillage on yield components (i.e., after maize in Zollikofen in 1998 and 1999, Table 3), compensations between yield components prevented these differences to be reflected on the grain yield. For example, spike density was significantly higher under MT than under NT while grains spike⁻¹, were also significantly different, showing a reversed ranking (i.e., NT > MT). Although it was often not significant, thousand-kernel weight was consistently lower under NT than under CT and MT (Table 2 and Table 3) and this contributed to lower grain yields under NT compared to CT at Schafisheim (Table 3). Similarly, grain N content tended to be higher under CT and MT than under NT, however the differences were small and insignificant.

The lack of significant and consistent effects of tillage system and N supply on grain yield and grain yield components suggest that a dependence of tillage system on the rate of N fertilization can be excluded in the environments.

4. Discussion

Using soil, shoot and ¹⁵N-labelled fertilizer measurements, we did not find evidence of significant interactions between tillage system and N supply that would justify an increase of the N supply for NT cropping of wheat.

In general, the soil N_min content at the beginning of the vegetation period varied in similar ranges of about 25 to 65 kg N ha⁻¹ for the different tillage systems (Figure 1 and Figure 2). The soil N_min contents were usually higher after oilseed rape than after maize, as was also found by other authors [50,51]. Similarly, less soil nitrate was released after different cereals than after oilseed rape and higher soil N_min contents were found during spring when wheat followed oilseed rape than when it followed cereals [52,53]. This was presumably the consequence of: (i) a higher mineralization potential of soil N after the harvest of oilseed rape, (ii) the uptake of N by volunteers of oilseed rape competing with the succeeding crop, and (iii) a higher N release from decomposition of oilseed rape residues. Higher N release from residues of oilseed rape may be explained by a lower C/N ratio than cereals [54]. We did not observe the expected soil N_min peak with CT [55] presumably due to N leaching. In spring, MT soils had on average the highest soil N_min contents. Similarly, in experiments conducted by Hansen and Djurhuus [56], higher N mineralization in autumn resulted in a higher soil N_min content in spring. The decrease in N_min in the topsoil (0 to 30 cm) and the constant content in the subsoil (30 to 90 cm) that we observed during winter (Figure 1d,e and Figure 2b,c) suggests a significant amount of N lost by leaching or denitrification. N_min in soil under MT seemed to have been the most susceptible to N leaching losses since it tended to have the highest mineral N contents in the subsoil before winter. The net decrease of soil N_min during winter was higher for wheat after maize than after oilseed rape because average soil N_min contents were higher before winter for wheat grown after maize. The soil N_min content did not generally change between anthesis and maturity, suggesting that N mineralization and N uptake were counterbalanced at a level of 30 kg N ha⁻¹ in all tillage systems during this period. Thus, a more intense N mineralization during later growth stages under NT as sometimes observed elsewhere [57,58] was not observed in our study. In any case, soil N_min values obtained at different stages throughout the growing season of wheat do not suggest consistent N limitations in NT compared to the other tillage systems.

Wheat plant density in autumn increased with tillage intensity, as was also observed by other authors [59]. This may be attributed to suboptimal soil physical conditions for germination and emergence that were found under NT systems. To overcome this limitation and to increase germination and emergence ratios, Sunderman [60], recommended the use of wheat varieties with higher grain weights with NT systems. This justifies partly the choice of the cultivar ‘Runal’ in our experiments, since it had a thousand-kernel weight above average as compared to other wheat cultivars registered in the Swiss variety catalog. Accordingly, several other authors have recommended the cultivation of genotypes with early vigor traits under CA systems [61,62,63,64]. Similar to Rao and Dao [65] and Cornish and Lymbery [66], we observed a lower shoot N uptake at NT than at CT during the early stages (Figure 3 and Figure 4), but from stem elongation to physiological maturity and with the exception of wheat after oilseed rape at Zollikofen in 1998, significant tillage effects on shoot N uptake were no longer found. Despite the lower total shoot N uptake at tillering, from stem elongation to physiological maturity under NT, wheat showed an increased rate of shoot N uptake compared to other tillage systems. This suggests that an increased N mineralisation potential in the topsoil (0–30 cm) under NT, may have prevented limitations on N uptake due to a lower root length density in the same soil layers [67]. In addition, since the formation of tillers is positively correlated with N supply [68] and a higher number of fertile tillers were observed under NT, N availability seemed not to have been a limiting factor under NT. In the present experiment, differences in net N uptake between consecutive sampling dates among tillage systems were very small throughout the growing season. Thus, it seems unlikely that a severe decrease in N availability under NT occurred. This is supported by the observation that the N concentration in aboveground vegetative parts during the vegetation period was not lower under NT than under the other tillage systems. This result was consistent with what we found using a chlorophyll meter (SPAD) readings which were measured on the flag leafs of wheat (data not shown). Therefore, shoot N uptake also supports the finding that the N fertilisation strategy, which was developed for CT systems, was not detrimental to the N availability and, ultimately, to the productivity of wheat under NT.

The recommendation to apply greater amounts of N fertilizer to winter wheat under NT, as proposed by Francis and Knight [69] and Rasmussen and Douglas [70] is not supported by the results of ¹⁵N-labelled fertilizer. Recovery of ¹⁵N-labeled fertilizer at physiological maturity was on average 30 kg N ha⁻¹ in the grains, which is about 40% of the applied N fertilizer. Thus, nearly a quarter of the total N in grains was derived from the first fertilizer application. Labelled-¹⁵N fertilizer recovery was almost always higher under CT than under NT. However, these differences were not significant, with the exception of the measurement taken at stem elongation at Zollikofen in 1998. This differs from the findings by Carefoot et al. [71] who observed a greater %Ndff in grains at NT than in the CT. The temporal pattern of ¹⁵N-fertilizer recovery from the basal N application (Table 4) was almost parallel to that of shoot N accumulation (Figure 3 and Figure 4). The slightly lower uptake of ¹⁵N-labeled fertilizer may be explained by the lower shoot development and consequently reduced N uptake under NT. Losses of ¹⁵N-labelled fertilizer (approximately 5 kg N ha⁻¹) are in the same range of previous reports using similar N rates [72]. More fertilizer N may have been immobilized initially under NT; but this could have been only temporarily as almost the same amount of the initial fertilizer application was recovered in both tillage systems. In contrast, an increased N rate of fertilization under NT would have probably increased N losses above the already high 60% of the applied N.

The preceding crop had a remarkable effect on grain yield despite identical sowing dates. In a continental climate, modifications in grain yield by NT were probably due to differences in water retention by preceding crops [73,74]. In the climatic conditions of this study, higher soil N_min contents were more likely when wheat followed oilseed rape than maize. In addition, oilseed rape, with deep and dense root systems [75], leaves a good soil structure, an ideal condition for the following crop as shown in experiments in Germany [76]. Thus, the amount and C/N ratio of the residues of the preceding crop [77] are critical factors to consider while designing the N fertilization management of a CA system.

Tillage systems did not affected consistently grain yield and its components, with the exception of thousand-kernel weight. Differences among tillage systems were not highly pronounced in most environments. Similar findings with regard to tillage effects on grain yield were reported for wheat in temperate climates [58,78,79]. However, in some cases, significantly lower grain yields, under reduced or NT, were found in Scotland [80], where winter barley was grown on a clay soil, and in Germany for several cereals [81]. To attain the same grain yield as with CT, N fertilization was increased with reduced tillage in the latter two cases. In contrast, only a small overall decrease in grain yield was found in NT compared with CT and MT without N fertilization [27,82]. This may explain the missing interaction effect between N supply and tillage intensity in our environments. Reduced grain weight is a known symptom of Fusarium infection [83]. NT wheat showed the highest incidence of infection, followed by MT, whereas infection of CT wheat was negligible (data not shown). Fusarium infections are a severe problem in reduced tillage systems [84] because the survival of the pathogen is facilitated by the presence of cereals’ residues [85]. Thus, crop rotations with cereals followed by cereals are problematic. We also did not find an effect of tillage system on grain N content, similar to the findings of Ditsch and Grove [86] and contrary to those of Carter et al. [87]. The lack of effect occurred at both studied N supply levels. Therefore, the results on wheat quality also do not suggest the need to increase N supply because of NT. In contrast, our results suggest that a diagnose of N availability after winter and the use of suitable crop rotations allows for utilizing N fertilizers more efficiently under CA in a cool and humid climate.

5. Conclusions

With crop residues left on the field and suitable rotations, GY, yield components, N uptake, N fertilizer recovery and soil N_min availability of wheat under NT were comparable to those under MT or CT in a cool and humid climate. We did not find evidence of interactions between tillage system and N supply that would justify an increase of the N supply for CA.

Oilseed rape as a preceding crop improved the productivity of the subsequent wheat compared to growing maize as a pre-crop of wheat. As wheat without N fertilization under NT showed similar decreases in grain and biomass yields compared to CT or MT, it can be assumed that N was not a limiting factor for the productivity of wheat under NT. This is supported by the similar soil N_min contents in all the tillage systems throughout the growing season and the similar recovery of ¹⁵N-fertilizer. With regard to product quality, the N content of the grains was not negatively affected by reduced tillage. In addition, the generally strong influence of the environments, composed by sites, years and preceding crops, on the expression of differences between tillage systems may explain why results between different published experiments often differ drastically.
