Phosphorus Application Improves the Cotton Yield by Enhancing Reproductive Organ Biomass and Nutrient Accumulation in Two Cotton Cultivars with Different Phosphorus Sensitivity

by
Babar Iqbal
1,
Fanxuan Kong
1,
Inam Ullah
2,
Saif Ali
1,
Huijie Li
1,
Jiawei Wang
1,
Wajid Ali Khattak
1 and
Zhiguo Zhou
1,*
1
Key Laboratory of Crop Physiology and Ecology, Ministry of Agriculture, Nanjing Agricultural University, Nanjing 210095, China
2
Department of Agronomy, The University of Agriculture Peshawar-Pakistan; Peshawar 25000, Pakistan
*
Author to whom correspondence should be addressed.
Agronomy 2020, 10(2), 153; https://doi.org/10.3390/agronomy10020153
Submission received: 30 November 2019 / Revised: 11 January 2020 / Accepted: 14 January 2020 / Published: 21 January 2020
(This article belongs to the Special Issue Herbaceous Field Crops Cultivation)
Browse Figures
Versions Notes

Abstract

:
Phosphorus (P) plays a pivotal role in cotton by enhancing the reproductive growth and yield formation. Cotton cultivars vary greatly in response to P availability, especially under P-deficient conditions. So, we hypothesized that the increasing P level promotes the reproductive growth in cotton cultivars varying with P sensitivity. For this, two cotton cultivars, Lu-54 (sensitive to low P) and Yuzaomian-9110 (tolerant to low P), in response to three different P levels (P0: 0 (control), P1: 100, and P2: 200 kg P2O5 ha−1) were studied at 39, 52, 69, 83, and 99 days after transplanting during 2017 and 2018. The results revealed that the seed cotton yield was improved in P1 and P2 treatments by 23.9%–34.5% and 30.8%–52.3% in Lu-54, and 16.6%–25.6% and 20.6%–38.5% in Yuzaomian-9110 during 2017 and 2018, respectively. The accumulation of reproductive organ biomass was 21.0%–52.1% and 28.5%–56.8% higher in Lu-54 and 24.2%–56.8% and 34.8%–69.1% higher in Yuzaomian-9110 in P1 and P2 over the control, respectively. During the fast accumulation period, the average accumulation of N, P, K, and biomass across the years in P2 were recorded as 0.75, 0.6, 0.5, and 120.5 kg ha−1 d−1 in Lu-54, while they were 0.65, 0.5, 0.8, and 98.5 kg ha−1 d−1 in Yuzaomian-9110. Overall, a longer period, in terms of reproductive biomass accumulation, was recorded for Yuzaomian-9110 compared with Lu-54 in 2017 and vice versa across the 2018 growing season. The results suggested that increasing P rate improved yield, reproductive organ biomass, as well as nutrient accumulation in both cotton cultivars. However, low P-sensitive cultivar (Lu-54) was more responsive to P application compared with low P-tolerant cultivar.

1. Introduction

Cotton (Gossypium hirsutum L.) is globally considered as one of the most important commercial crops. Being a cash crop, it is grown worldwide for the purpose of oil, lint, and feed for animals [1]. About 30 million hectares of fertile land is engaged in cotton cultivation in almost 70 different countries of the world [2]. China is the world’s largest cotton producer and consumer [3,4], with an average lint yield of 14.38 g m−2 during 2013 followed by the US, India, and Pakistan [5]. Due to its indeterminate growth habit, cotton exhibits morphological adaptation, such as modifying the canopy arrangement with phosphorus (P) application [6]. The morphological adaptations in terms of light capture, sink to source relationship, and photoassimilates distribution, are the main reasons of enhancing seed cotton yield [7,8]. For the last two decades, cotton yield per unit area remained stagnant in spite of the introduction of new high yielding cultivars [7,8]. Utilization of mineral fertilizers is sought as an effective strategy to improve soil nutrient and boost cotton yield.
The use of increased fertilization has influenced the crop production over the last several years because of its effect on soil nutritional status and fertility characteristics [9]. Phosphate fertilizer is central to crop productivity with a higher P requirement that is not in competition with soil P, especially at sub-optimal level compared with other nutrients [10]. Phosphorus is very important in crop production after nitrogen (N); however, its resources are limited worldwide [11]. The P application improves root architecture by increasing length, width, and diameter of root. Hence, P uptake by the plants is predominantly controlled by the availability and acquisition of P [12,13,14]. Therefore, the P deficiency inhibits cotton growth and development by declining the biomass accumulation, leading to lower seed cotton yield [15].
Crop growth requires nutrients’ availability and constant supply throughout the growing season. Cotton yield responds positively to the availability of the nutrients, especially P [16]. The availability of P in the soil affects the nutrient accumulation and dry matter accumulation in the cotton plant parts [17]. The existence of varietal differences also fluctuated the accumulation of nutrient and biomass with greater tendency towards the vegetative organ [18]. Improving the cotton cultivars with better nutrient management to obtain higher economic yield is of great importance to minimize the environmental impact of inorganic fertilizers.
The cotton cultivars respond differently to the P availability and results in the increase of seed cotton yield [19,20]. Different plant cultivars show genetic diversity in the utilization and absorption of P ratios. Cotton cultivars showing sensitivity to low P may increase plant performance by the application of more P as compared to cultivars with low P tolerance [21]. The stunted growth and low yield resulted by P deficits in cotton [16] have been reported, but data regarding cotton cultivars with different P sensitivity under different P rates are still lacking. Screening and using P-efficient cotton cultivars with better uptake of P can provide a base to increase P utilization in plants [22,23]. The current study is aimed at evaluating the response of P application, P, N, and K relationship due to P fluctuation, and to estimate P’s role in accumulating different nutrients in the reproductive organ (RO) of the plant. The evaluation was carried out at different days after transplanting (DAT) with 39, 52, 69, 83, and 99 at Squaring “SQ”, first bloom “FB”, peak bloom “PB”, boll setting “BS”, and boll opening “BO” in two different cotton cultivars having different response to inorganic P (i.e., sensitive versus tolerant to low P) and different P rates. The objectives of the present study were to assess the effects of different P regimes on different P-efficient cotton cultivars in their yield, nutrient, biomass accumulation, and allocation in the RO of cotton.

2. Materials and Methods

2.1. Experimental Site and Field Conditions

A 2-year field experiment was conducted at Pailou Research Station (118°50′ E, 32°02′ N), Nanjing Agricultural University, Jiangsu, P.R. China. The soil of the experimental field was mixed, acidic clay, thermic, and typic Alfisols (Udalfs; FAO Luvisol). The pre-planting soil samples were collected from 0–20 and 20–40 cm depth. Soil properties (Table 1) of the collected samples were determined by following Yang et al. [24]. Weather data of mean monthly air temperature and rainfall during 2017 and 2018 are given in Figure 1.

2.2. Experimental Design, Treatments, and Crop Management

The experiment was designed in a split-plot arrangement with two cotton cultivars (Lu-54: low-P-sensitive and Yuzaomian-9110: low-P-tolerant) [25] in main plots and three P rates (P0: 0, P1: 100, and P2: 200 kg P2O5 ha−1) in subplots with three replications. Cotton seeds were sown in the middle of April which attained a three true leaf stage at 30 to 35 days. These seedlings were transplanted to the field on May 24, 2017 and 2018. Fertilizer, such as N and K, were applied at a rate of 225 kg ha−1 of each to every experimental plot. All of the K was applied at pre-planting while N was applied in four different splits as basal dose (20%), start of flowering (25%), bloom stage (40%), and end of flowering (15%), according to the stages described by Baker et al. [26]. Other field and plant management practices were adopted according to the local cotton production practices.

2.3. Soil and Plant Sampling

Before seedlings transplanting, soil samples (0–20 and 20–40 cm) were collected at three different locations from the field to make a composite sample from each plot. These sample were sealed and kept in an ice box immediately after collection. In the laboratory, the sample was divided into two equal parts. One portion was kept at –20 °C in a freezer and the other portion was kept outside in order to dry. The dried sample was meshed to make fine powder which was used for further analysis.
The plant samples were collected at five different times, i.e., squaring “SQ” (39 days after transplanting), first bloom “FB” (52 DAT), peak bloom “PB” (69 DAT), boll setting “BS” (83 DAT), and boll opening “BO” (99 DAT). Three plants from each plot were randomly collected and RO (bolls) were separated. The collected material was oven dried at 70 °C and dry matter was calculated on the base of per unit land area.

2.4. Nutrients and Biomass Accumulation

Total N, P, and K were determined by the H2SO4-H2O2 extraction method. The samples were weighed, put in a glass tube, and heated at 350 °C. H2SO4 was added followed by H2O2 in addition with pure water. Lastly, the solution was filtered, and filtrate was stored for further analysis.
Reproductive organ biomass was determined through destructive sampling by randomly selecting three cotton plants from each replication of treatments. Reproductive organs were separated from the plants and divided into three different parts (seed, bur, and lint). These parts were oven-dried first at 105 °C for 30 min and then at 80 °C until constant dry weight and expressed as kg ha−1. The process of N, P, K, and biomass accumulation was described and calculated by the following logistics formulas [27].
Y   =   K 1 + a e b t
where “t” denotes to the DAT, Y (g) represents the accumulation of K at t, K (g) signifies the higher accumulation biomass value for K, while “a” and “b” are constants.
From Equation (1), the following formulas can be derived;
t 1   =   1 b   l n   ( 2 +   √ 3 )
t 2   =   1 b   l n   ( 2 −   √ 3 )
t m =   − l n a b
The starting point denotes (t1), ending point (t2), and (T = t2 − t1) represents the difference of starting and ending time.
V M =   − b k 4
V T   =   Δ Y Δ t   =   ( Y 2 − Y 1 ) ( t 2 − t 1 )
The fast accumulation period (FAP) can be explained as the period accumulating N, P, K, and biomass that starts and ends with an average speed of (VT), average maximum speed (VM) during FAP. Whereas Y1 and Y2 represent weight (N, P, K, and biomass) at t1 and t2, respectively, and can be calculated as above.
In each subplot, two rows were selected for seed cotton yield. Opened bolls were hand-picked from the two rows, seeds were removed to calculate seed yield, and expressed as kg ha−1.

2.5. Data Analysis

Data were processed by using Microsoft Excel 2013. Statistical analysis was carried out by Statistix 8.1 (Analytical Software, Tallahassee, FL, USA). Mean difference between the treatments were separated by the least significant difference (LSD) test at the probability level of 0.05. Origin 9.1, Sigma plot 12.0 (Systat Software Inc., San Jose, CA, USA), and R 3.6.1 were employed to draw figures.

3. Results

3.1. Seed Cotton Yield

Phosphorus application expressively affected the seed cotton yield with a different trend in 2017 and 2018 (Figure 2). Seed cotton yield in 2017 was significantly higher than in 2018. The control treatment showed the lowest seed cotton yield compared with the other P application (Figure 2). Comparison of treatments showed that P1 and P2 increased the seed cotton yield by 23.9%–34.5% and 30.8%–52.3% for Lu-54 and 16.6%–25.6% and 20.6%–38.5% for Yuzaomian-9110 during 2017 and 2018, respectively.

3.2. Nitrogen Accumulation in Reproductive Organ

Nitrogen accumulation in RO of cotton plant represents a sigmoid curve with DAT. The early growth stage showed a quick average speed of accumulation of N and then gradually decreased in the later stage (Figure 3). The P application had a drastic effect on the accumulation of N content arrangement in the RO of cotton throughout the growing period after transplanting. Compared with the control, the final amount of N accumulation in P treatments (100 and 200 kg P2O5 ha−1) increased by 24.0%–46.9% and 23.3%–47.1% in Lu-54 and 36.9%–67.9% and 21.8%–58.2% in Yuzaomian-9110 during 2017 and 2018, respectively. The RO N content was drastically increased with the increasing DAT and was highest at 83 DAT and continued to present the same accumulation at 99 DAT. During 2017, cotton plant accumulated comparatively more N in the RO than 2018. The difference of weather between the two years might be a big reason for change in N accumulation. Similarly, P2 showed higher N accumulated in the RO as compared with the control during 2017 and 2018, respectively (Figure 3).

3.3. Simulation of N Accumulation

Calculating overall data and fitting these into Formula (1) resulted in overall determination coefficients being high (R2 ≥ 0.9383**, p < 0.01, Table 2), concluding that logistic function was the most suitable for accumulation of N. The K in the P application treatments (P1 and P2) over control was increased by 14.0%–69.8% and 27.2%–66.8% for Lu-54 and 40.2%–39.0% and 20.3%–65.4% for Yuzaomian-9110 during 2017 and 2018, respectively. Calculations based on Formulas (2)–(6) indicated that the T was increased consistently by increasing P application in both cultivars during 2017 and 2018. The VT and VM calculated in the P application treatments were higher compared with the control treatment for both cultivars in both growing seasons. Based on the calculations from Formulas (2)–(6), it was indicated that initiation and termination day of 77 and 57, fast accumulation period of N accumulation in the RO was 26 and 22 and 104 and 79 DAT for Lu-54 and 65 and 55 d FAP for N accumulation was 35 and 27 and 101 and 82 DAT for Yuzaomian-9110, during 2017 and 2018, respectively. The fluctuating trend was observed across two years in different treatments with an average maximum speed (VM) recorded higher than the average speed (VT). The P0 began FAP last at 39 DAT and terminated at 119 DAT, stayed for 80 d with the maximum average speed of 0.8 kg ha−1 d−1, which was the same as the average speed of P1 with different starting and termination DAT in Lu-54 during 2017; however, the P2 began the fast accumulation period the earliest at 15 DAT and terminated at 84 DAT, and stayed for 69 d with the VM of 0.6 kg ha−1 d−1 during 2018, which was recorded lower than in 2017. The same trend was observed for Yuzaomian-9110 with a lower average speed than Lu-54 during 2017 and 2018.

3.4. Phosphorus Accumulation in Reproductive Organ

Accumulation of P in RO of cotton cultivars showed a sigmoid curve with DAT (Figure 4). The average speed of P accumulation in RO increased in the early growth stages and then slowed a little at the late period. The P supply had a significant effect on the P accumulation pattern throughout the growth period after transplanting of cotton. Compared with the control, the amount of accumulated P in P application treatment (P1 and P2) increased by 43.5%–91.0% and 30.4%–65.3% for Lu-54 and 50.3%–108.7% and 52.9%–100.6% for Yuzaomian-9110 during 2017 and 2018, respectively. The P content in the RO of cotton was drastically increased with the increase of DAT and recorded the highest at 99 DAT in 2017; however, in 2018, it was recorded the highest at 83 DAT and continued with same the trend at 99 DAT. The P accumulated in the RO were recorded higher in 2017 compared with 2018. The P2 resulted in higher P in RO of cotton as compared to P0 in both cropping seasons (Figure 4).

3.5. Simulation of P Accumulation

The determination coefficient derived from the data fitting into Formula (1) indicated that it was low (R2 ≥ 0.9495**, p < 0.05, Table 3) and high (R2 ≥ 0.9956**, p < 0.01, Table 3), and confirmed the best indication of logistic function to define P accumulation in RO of cotton. The K in the P application-supply treatments was increased by 70.3%–202.7% and 14.2%–56.9% for Lu-54 and 181.1%–145.7% and 185.7%–136.1% for Yuzaomian-9110 in comparison with the control during 2017 and 2018, respectively. The calculation regarding T from Formulas (2)–(6) grounded in Table 3 confirmed the increased T with increasing P levels in 2017 and 2018 for both cultivars. The VT and VM were recorded as higher in the P application treatments compared with the control for both the cultivars (Table 3). On an average basis across all the treatments, the accumulation of P which initiated and terminated the fast accumulation period of 56 d were at 48 DAT and 104 DAT for Lu-54, while at 61 d, they were at 58 DAT and 119 DAT for Yuzaomian-9110 during 2017, respectively. During 2018, P accumulation starting and finishing the 46 d were 40 DAT and 86 DAT for Lu-54, while at 54 d, they were at 48 DAT and 103 DAT for Yuzaomian-9110 during 2017 and 2018, respectively. The increasing P application increased the VM compared to VT across the two years. The increased P application linearly increased the VM and VT during 2017 and 2018, respectively (Table 3).

3.6. Potassium Accumulation in Reproductive Organ

Cotton plant potassium uptake increased with the advancement in growth stages following a normal exponential growth curve with DAT (Figure 5). A momentous effect of phosphorus application on K status of plant at different growth stages after transplanting of cotton seedlings was observed. Compared with the control treatment, P1 and P2 increased K in RO by 27.0%–46.0% and 23.3%–47.1% in Lu-54 and 21.0%–40.9% and 21.8%–58.2% in Yuzaomian-9110 during 2017 and 2018, respectively. Along with the plant age, P application increased the accumulation of K until 83 DAT and then remained constant until 99 DAT.

3.7. Simulation of K

The experimental data were used in a Formula (1) to determine the simulation of K accumulation with cotton growth stages. The accumulation of K as a normal sigmoid curve were the best fitted in the logistic function since all the determination coefficients were high (R2 ≥ 0.9408 **, p < 0.01, Table 4). The K in the P1 and P2 treatments were increased by 26.5%–63.5% and 27.2%–66.8% in Lu-54 and 20.7%–43.1% and 20.3%–65.4% during 2017 and 2018 respectively, over the control. Data obtained from Formulas (2)–(6), exhibited that the starting and ending day of K uptake for cultivars and P application showed that T was higher with the application of P in 2017 while it was inconsistent across 2018 in Lu-54 and Yuzaomian-9110, respectively (Table 4). The VT and VM were relatively higher in P application over the control for both cultivars. Data obtained from Formulas (2)–(6) revealed that initiation and termination day of 58 d FAP for accumulation of K was 17 and 75 DAT averaged across the treatments for Lu-54, while 60 d was 15 DAT and 75 DAT averaged for Yuzaomian-9110 in 2017, respectively. In 2018, 66 d FAP of K was 19 and 85 DAT for Lu-54 while 48 d was 29 DAT and 77 DAT for 48 d was 29 DAT and 77 DAT for Yuzaomian-9110, respectively. The VM was recorded as higher than VT with different inclination between the treatments during two cropping seasons. The longer period (80–73 d) was observed in Lu-54, while Yuzaomian-9110 showed a relatively shorter period (60–69 d) at P2 treatment compared with the P0 and P1 during 2017 and 2018, respectively.

3.8. Biomass Accumulation in Reproductive Organ

Cotton plant biomass accumulation followed a sigmoid curve with DAT (Figure 6). The average speed of biomass accumulation was the fastest at DAT and then recorded a similar accumulation with 83 DAT and 99 DAT in 2017, while in 2018, a higher biomass accumulation was recorded with the passage of the growth period. The significant effect by P application was observed on the accumulation of RO biomass throughout the growth period. The P1 and P2 improved RO biomass over the control, by 21.0%–52.1% and 28.5%–56.8% for Lu-54 and 24.2%–56.8% and 38.5%–69.1% for Yuzaomian-9110 during 2017 and 2018, respectively.

3.9. Simulation of Biomass Accumulation

The experimental data fitting into Formula (1) showed a normal logistic organism growth pattern and revealed that all the coefficients were high (R2 ≥ 0.9481**, p < 0.01, Table 5). The value of K in the P1 and P2 treatments over the control were improved by 11.3%–44.0% and 32.4%–53.3% for Lu-54 and 20.3%–60.9% and 38.5%–67.5% for Yuzaomian-9110 during 2017 and 2018, respectively. Total biomass accumulation calculated by putting the data into Formulas (2)–(6) grounded in Table 5 indicated that the T was unreliable across the years in both of the cultivars. The VT and VM were recorded as relatively higher in the P treatments compared with the control in both of the cultivars. Averaged across the treatments, the initiation and termination of the fast accumulation point of 34 d was 55 DAT and 88 DAT for Lu-54 and for 38 d was 55 DAT and 93 DAT for Yuzaomian-9110 in 2017, respectively. In 2018, RO biomass initiated and terminated the 28 d fast accumulation period at 65 DAT and 93 DAT for Lu-54, and the 27 d fast accumulation period of biomass at 63 DAT and 90 DAT for Yuzaomian-9110, respectively. Maximum and average speeds were apart from each other with higher maximum speed, followed by average speed averaged across the treatments in two cropping seasons. The P application increased the maximum and average speed by increasing the P level. The Lu-54 performance is better than Yuzaomian-9110 during 2017 and 2018, respectively (Table 5).

3.10. Allocation of N, P, K, and Biomass in Cotton

The total N, P, K, and biomass accumulation increased with the increase in P application in both cotton cultivars (Table 6). The accumulation of percentage of N in RO increased with the P treatments while cotton cultivars showed non-significant differences during 2017 and 2018. There were no understandable differences in the P and K accumulation of the RO recorded, neither with the application of P nor in cotton cultivars. Similarly, P treatment had no significant effect on the accumulation of biomass in the RO in 2017. However, in 2018, the cultivars showed a significant effect with a higher biomass accumulation in Lu-54 compared with Yuzaomian-9110 in P treatments over the control.

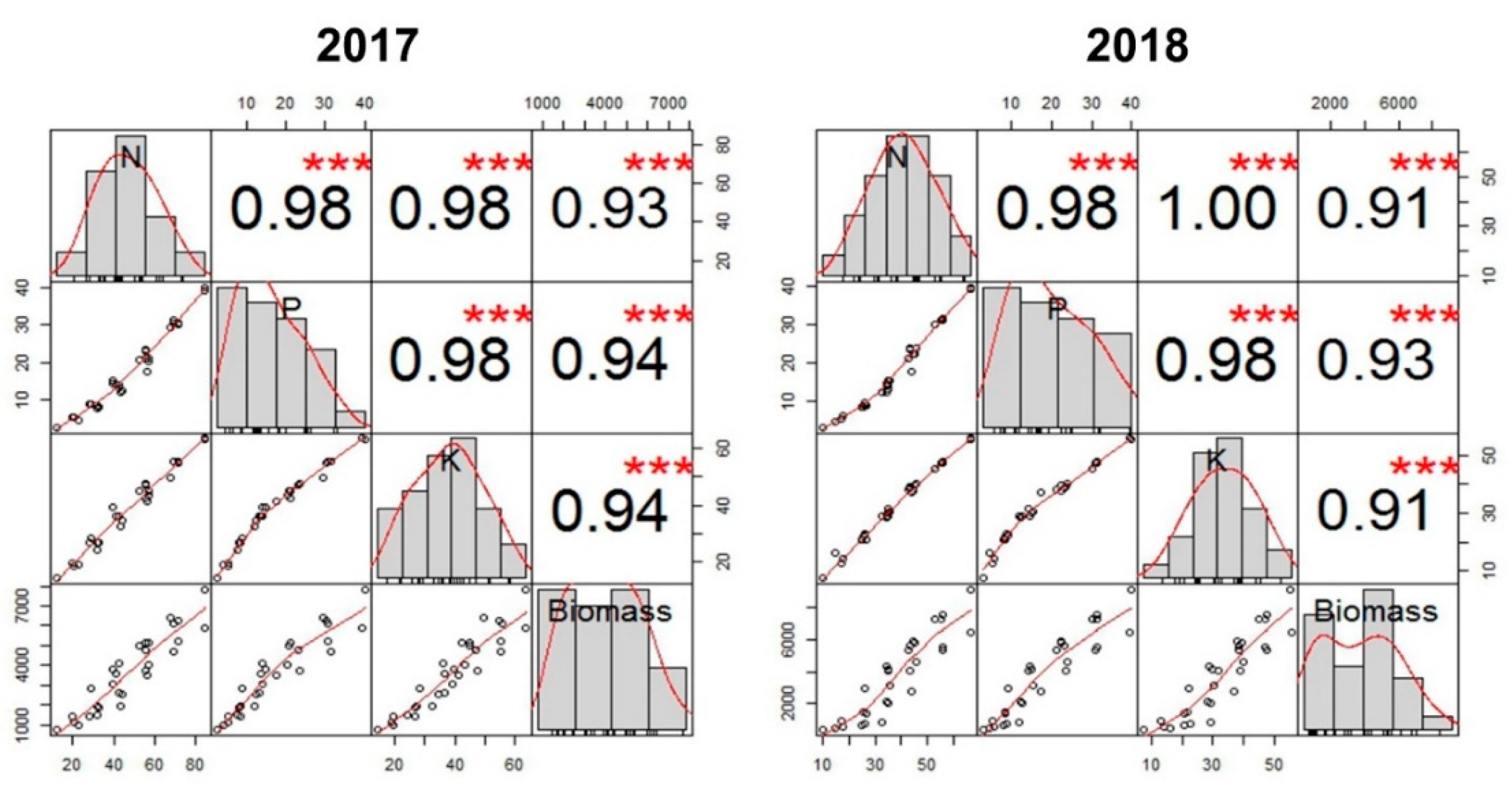

3.11. Inter-Trait Relationship

The RO biomass, N, and K content showed a positively linear relationship with the P content accumulated in the organ. However, the slope of the fitted line varied for biomass (R2 = 0.9064–0.9021), N content (R2 = 0.9430–0.9474), and K content (R2 = 0.9081–0.9261) in 2017 and 2018 respectively, as presented in Figure 7a–c. Similarly, the N, P, K, and biomass accumulation in the RO showed a positive correlation between each other (Figure 8), but the strength of this correlation varied between 2017 and 2018 cropping seasons.

4. Discussion

The present study was based on the effect of different P application rates on biomass and nutrients accumulation in RO of two cotton cultivars differing in P sensitivity. In the present study, P application had a significant effect on nutrients (N, P, and K) and biomass accumulation in the RO. Both cotton cultivars significantly varied for the aforementioned parameters during 2017 and 2018. This change in nutrients’ accumulation might be due to a good balance between N, P, and K contents in the soil, resulting in a higher uptake of the nutrients by the roots. Similarly, higher P application treatments might increase the available P contents in the soil, leading to a well-established transport of water and nutrients towards the areal parts of the plant. These results are in line with the findings of Widowati et al. [28], who found that the proper and balanced inorganic nutrients promoted the fertility of the soil which enhanced the crop productivity. The availability of proper nutrients to the cotton plants might help in leaf growth and development followed by its proper functions with the application of P1 and P2 over the control. Li et al. [23] also reported similar results that a good nutrients balance improved the crop growth. In the present study, cotton cultivars showed a different behavior regarding nutrient uptake that might be due to their sensitivity and tolerance to P deficiency. The patterns of N, P, and K were similar with a slight change between two growing seasons. The increase in the nutrients at early 39 DAT, which reached to a peak at 83 DAT, was consistent. The possible reason for the trend might be that the plant demand for NPK was higher at later stages. These results are in a good agreement with the findings of Yang et al. [29] and Hu et al. [30]. The difference of NPK in the RO of different treatments was due to different levels of P supply from the soil to plants. Furthermore, higher P content in plant RO helped to improve the N and K, and a similar phenomenon was recorded in the present study (Figure 7b,c). The improved N, P, and K contents are also linked to the RO biomass; hence, it enhanced the boll biomass in the present study (Figure 7a). However, two cotton growing seasons (2017 and 2018) showed a slight variation that might be due to the difference of weather conditions during both years (Figure 1). Alterations in the nutrient application and weather conditions changed the nutrient accumulation, speed, initiation, and termination time during the fast accumulation period (FAP) and significantly affected the yield of cotton [31].
In cotton, RO biomass is considered as one of the most important factors directly influencing the yield. In the present study, the cultivar differences in P utilization showed a significant change in the RO biomass accumulation, which might create the yield difference (Figure 2). The RO biomass attained a peak at 83 DAT with a clear difference in P application treatments (Figure 6). After 83 DAT, the RO biomass did not change because at this stage, bolls reached near to a maturation stage. This biomass increase with the increase in P application might be attributed to the higher P supply that favored the nutrients (N and K) and photosynthates translocation toward the reproductive part rather than vegetative organs. These finding are in accord with the conclusion of Cao et al. [32] and Stewart et al. [33], that P application restricts the photoassimilates’ translocation from vegetative organs and is increasingly directed towards the RO. Singh et al. [34] concluded that the accumulation of dry matter was higher due to better photosynthesis, which resulted in a better supply of photosynthates and assimilates to the fruit. In the present study, higher biomass accumulation was recorded in the RO of the cotton in Lu-54 during 2018 compared to Yuzaomian-9110 (Figure 6). These findings were similar to previous results presented by Wang et al. [35], that dry matter accumulation was different in different cotton cultivars with different partitioning to vegetative and reproductive parts. The main reason behind this phenomenon was that the P application might increase the N, P, and K contents in leaf and other parts which influence the nutrients’ availability to the plants, establishing a better source–sink relationship. A well-established source–sink balance guarantees the better RO development, resulting in an increase in final yield [36].
The accumulation of nutrients in cotton plant parts and its distribution to the sink play a vital role in the production of seed cotton yield. In the present study, nutrients (N, P, and K) and biomass in cotton RO significantly increased with the P application and advancement of growth stages at higher speed compared to the control (Table 2, Table 3, Table 4, and Table 5). These results might be due to the proper P nutrient application which increased the N, P, K, and biomass accumulation average maximum speed (VM) and average speed (VT) during the FAP. A similar result was stated by Tung et al. [31] and Yang et al. [37], that the fluctuation in the nutrient application and rate along with management practices in cotton affected the accumulation of different nutrients and its speed to the RO.
The N and K are the highly absorbable nutrients in soil compared with the P [38]. However, P availability influenced the accumulation of N and K in the plants by increasing the pool of ATP [39]. The current study revealed a higher accumulation of N and K in the RO of cotton in the P2 treatment in Lu-54 during 2017 compared to the cultivar Yuzaomian-9110 (Figure 3 and Figure 5). Similarly, the average speed (VT) at FAP was observed to be higher at P2 treatment in Lu-54 during 2017 compared to other treatments (Table 2 and Table 4). These results might be due to the availability and accumulation of N and K from the soil in the presence of a higher application of P compared to the control, which enhanced the performance of cultivar to respond better to P fertilizer. Similarly, the results presented by Yang et al. [37] revealed that increases in yield occurred with higher inorganic fertilizer, which could be interlinked with the extended growing season by promoting the growth period of cotton by getting more P compared to the control. The current results are also in line with the finding of Gebaly et al. [40], who reported that cotton accumulated a high rate of K from the soil. Plenty of studies have reported that cotton cultivars showed different variations in partitioning of dry matter between vegetative and reproductive parts [27,41,42,43]. Cultivars with a greater dry matter partitioning ability to their reproductive parts are usually considered as efficient in increasing seed cotton yield.
The P accumulation in cotton resulted higher in Lu-54 at P2 treatment at 99 DAT during 2017 compared to the control (Figure 4), which improved the biomass of RO and resulted in a higher yield. This might be due to the better availability of P and mobility of photoassimilates to RO of cotton with the advancement of growth stages. Similarly, increased P uptake improved the plants’ growth and resulted in increased yield in other crops, such as maize [44]. In the current study, P application promoted the average speed (VT) and average maximum speed (VM) of P accumulated in Lu-54 during 2017 compared to Yuzaomian-9110 in the RO of cotton (Table 3), which might be due to the better availability of P nutrients and unexpected weather condition to prolong the growing period of cotton. Similarly, uptake of P and its distribution to the cotton boll resulted in a higher increase in boll biomass (Table 5), with higher VT and VM [45]. However, Gill et al. [46] reported that P deficiency promoted dry matter accumulation in cotton, which might be due to different soil and climatic conditions as well as difference of cultivar P sensitivity. Nitrogen and K concentration in the RO remained higher compared with the control because these nutrients are easily taken up by the plants. Similar results were reported by Blom-Zandstra et al. [47] and Hsiao et al. [48], showing that the concentration of N and K remained the same due to their ionic solution forms that played a pivotal role in osmotic adjustment. Further, P-deficient conditions resulted in a stagnate growth and increased the P level in petiole sap. On other hand, P application improved nutrients’ concentration and biomass in the plants, leading to an increase in reproductive growth, such as improving flowerings [49] and to extend the growing season of cotton [36,37]. The P deficiency strongly constrains the translocation of nutrients; however, it mainly affects the biomass because cotton growth responded highly to ambient weather, better supply of nutrients, and availability of water in the soil [50,51]. This leads to a better equilibrium among vegetative and reproductive growth by supplying a higher P to establish a good and balanced source–sink relationship.
Nutrients are still limiting factors in agro-ecosystem, although human activities increased N, P, K [52,53,54], and micronutrients [55,56]. In the present study, the boll biomass, by the combined effect of all the three major nutrients, increased with the combination of N, P, and K, especially under P1 and P2 application in Lu-54 compared to Yuzaomian-9110 during the 2018 growing season (Figure 6). Initiation and termination days for biomass accumulation changed with the application of P, while VM and VT were increased with the application of P2 compared to the control in both the cultivars (Table 5). The percent allocation of N and K varied significantly with the application of P; however, the cultivar was not significantly affected in 2017 (Table 6). Contrary to this, for the P and biomass allocation in 2017, while N, P, and K allocation in 2018 did not vary significantly in both cultivars and P application, the biomass, however, was significantly affected by cultivars and showed no effect with the P application (Table 6). These results might be due to the synergistic effect of nutrients which increased the biomass and alternately affected the yield of cotton. Opposite to the P deficiency, the higher rate of P application negatively affected the biomass of RO in cotton [23]. This reduction is due to a disturbance in the source–sink relationship under P imbalance [57]. Marshner and Rengel [58] reported synergistic effects of major nutrients on cotton boll biomass. On the other hand, Zahreddine et al. [59] reported that the exceeded nutrients’ concentration from optimal, reduced the biomass production. Extension in the growing period occurred due to a loss of fruiting structures, which resulted in leaf expansion, photosynthetic capacity, and increased carbon assimilation [60,61,62]. The photoassimilates were accumulated with the continued growth period, with a better supply, rate, and quantity of nutrient accumulation with differed growth periods [63]. Crops benefited from the fast N uptake during initial to peak flowering stage. Cotton yield and growth were strongly affected by uptake of nutrients and its speed at FAP [64]. Many reports, including Jenkins et al. [65], assumed that the change from vegetative to reproductive growth was earlier in new cultivars. Various studies also reported a different response of cultivars in biomass production and dry matter partitioning between vegetative and reproductive growth [63,66,67]. Due to indeterminate growth of cotton, the nutrients’ deposition varies with the time and with the advancement of growth stages. A higher and faster accumulation of nutrients in the RO of cotton with higher biomass accumulation occurs. Nutrient accumulation and biomass production in RO of cotton data would be useful for growers to take management decisions for maximizing the seed cotton yield.

5. Conclusions

The present study evaluated the response of two cotton cultivars with different P sensitivity to P application. The results concluded that: higher accumulation of nutrients was reported in Lu-54 compared to Yuzaomian-9110. Higher total N, P, and K accumulation was found with the incorporation of high P level at 83 DAT, and then remained constant at 99 DAT in both used cultivars during 2017 and 2018, respectively. Higher nutrient accumulation was recorded in total N and K forms while P remained lower in all parts of the reproductive organ of cotton cultivars. Total biomass accumulation was recorded higher at 83 DAT and remained stable until 99 DAT in response to P application. Cotton cultivar Lu-54 produced higher reproductive organ biomass as compared with the Yuzaomian-9110. The increment in seed cotton yield was associated with higher N, P, K, and RO biomass. Conclusively, 200 kg P2O5 ha−1 (P2) application could be a sufficient level with a boll opening stage at 99 DAT for the better yield performance in Lu-54 compared to Yuzaomian-9110.

Author Contributions

Data curation and writing—original draft, B.I.; investigation, F.K., H.L., J.W., and W.A.K.; writing—review and editing, I.U. and S.A.; conceptualization and supervision, Z.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key Research and Development Program of China (2017YFD0201900), China Agriculture Research System (CARS-15-14) and Jiangsu Collaborative Innovation Center for Modern Crop Production (JCIC-MCP). The APC was funded by Z.Z.

Conflicts of Interest

There are no conflicts of interest to declare.

References

  1. Constable, G.A.; Bange, M.P. The yield potential of cotton (Gossypium hirsutum L.). Field Crops Res. 2015, 182, 98–106. [Google Scholar] [CrossRef]
  2. Saleem, M.; Maqsood, M.; Javaid, A.; Hassan, M.; Khaliq, T. Optimum irrigation and integrated nutrition improves the crop growth and net assimilation rate of cotton (Gossipium hirsutum L.). Pak. J. Bot. 2010, 42, 3659–3669. [Google Scholar]
  3. Mao, S.C. Cotton Farming in China Shanghai; Shanghai Scientific and Technical Press: Shanghai, China, 2013; pp. 66–91. (In Chinese) [Google Scholar]
  4. Dai, J.; Dong, H. Intensive cotton farming technologies in China: Achievements, challenges and countermeasures. Field Crops Res. 2014, 155, 99–110. [Google Scholar] [CrossRef] [Green Version]
  5. USDA. United States Department of Agriculture 2013 Cotton: World Markets and Trade. Available online: https://www.fas.usda.gov/data/cotton-world-markets-and-trade (accessed on 14 October 2016).
  6. Sarkar, B.; Patra, A.K.; Purakayastha, T.J. Transgenic Bt-Cotton Affects Enzyme Activity and Nutrient Availability in a Sub-Tropical Inceptisol. J. Agron. Crop Sci. 2008, 194, 289–296. [Google Scholar] [CrossRef]
  7. Yang, G.; Jiao, L.X.; Chun, N.Y.; Long, Z.X. Effects of Plant Density on Yield and canopy micro environment in hybrid cotton. J. Integr. Agric. 2014, 13, 2154–2163. [Google Scholar] [CrossRef]
  8. Wang, Y.; Li, X.L. Progress in adaptive mechanisms of different genotypic plants to low phosphorus stress. Eco-Agr. Res. 2000, 8, 34–36. [Google Scholar]
  9. Geisseler, D.; Scow, K.M. Long-term effects of mineral fertilizers on soil microorganisms—A review. Soil Biol. Biochem. 2014, 75, 54–63. [Google Scholar] [CrossRef]
  10. Parfitt, R.L.; Baisden, W.T.; Elliott, A.H. Phosphorus inputs and outputs for New Zealand in 2001 at national and regional scales. J. R. Soc. N. Z. 2008, 38, 37–50. [Google Scholar] [CrossRef]
  11. Gilbert, N. The disappearing nutrient. Nature 2009, 461, 716–718. [Google Scholar] [CrossRef] [PubMed]
  12. Lynch, J.P. Root phenes for enhanced soil exploration and phosphorus acquisition: Tools for future crops. Plant Physiol. 2011, 156, 1041–1049. [Google Scholar] [CrossRef] [Green Version]
  13. Mai, W.; Xue, X.; Gu, F.; Rong, Y.; Tian, C. Can optimization of phosphorus input lead to high productivity and high phosphorus use efficiency of cotton through maximization of root/mycorrhizal efficiency in phosphorus acquisition? Field Crops Res. 2018, 216, 100–108. [Google Scholar] [CrossRef]
  14. Vance, C.P.; Uhde-Stone, C.; Allan, D.L. Phosphorus acquisition and use: critical adaptations by plants for securing a nonrenewable resource. New Phytol. 2003, 157, 423–447. [Google Scholar] [CrossRef] [Green Version]
  15. Singh, V.; Pallaghy, C.K.; Singh, D. Phosphorus nutrition and tolerance of cotton to water stress: I. Seed cotton yield and leaf morphology. Field Crops Res. 2006, 96, 191–198. [Google Scholar] [CrossRef]
  16. Girma, K.; Teal, R.K.; Freeman, K.W.; Boman, R.K.; Raun, W.R. Cotton lint yield and quality as affected by applications of N, P, and K fertilizers. J. Cotton Sci. 2007, 11, 12–19. [Google Scholar]
  17. Roy, R.N. Integrated plant nutrition systems—Conceptual overview. In Proceedings of symposium on “Integrated plant nutrition management”; National Fertilizer Development Center: Islamabad, Pakistan, 2000; pp. 45–48. [Google Scholar]
  18. Unruh, B.L.; Silvertooth, J.C. Comparison between upland and a Pima cotton cultivars II. Nutrient uptake and partitioning. Agron. J. 1996, 88, 589–595. [Google Scholar] [CrossRef]
  19. Sawan, Z.M. Mineral fertilizers and plant growth retardants: Its effects on cottonseed yield; its quality and contents. Cogent Biol. 2018, 4, 1459010. [Google Scholar] [CrossRef]
  20. Gebaly, S.G.; El-Gabiery, A.E. Response of cotton Giza 86 to foliar application of phosphorus and mepiquat chloride under fertile soil condition. J. Agric. Res. 2012, 90, 191–205. [Google Scholar]
  21. Wang, J.; Chen, Y.; Wang, P.; Li, Y.S.; Wang, G.; Liu, P.; Khan, A. Leaf gas exchange, phosphorus uptake, growth and yield responses of cotton cultivars to different phosphorus rates. Photosynthetica 2018, 56, 1414–1421. [Google Scholar] [CrossRef]
  22. Luo, H.H.; Zhang, Y.L.; Zhang, W.F. Effects of water stress and rewatering on photosynthesis, root activity, and yield of cotton with drip irrigation under mulch. Photosynthetica 2016, 54, 65–73. [Google Scholar] [CrossRef]
  23. Li, H.G.; Huang, G.; Meng, Q.; Ma, L.; Yuan, L.X.; Wang, F.; Zhang, W.; Cui, Z.L.; Shen, J.B.; Chen, X.P.; et al. Integrated soil and plant phosphorus management for crop and environment in China. A review. Plant Soil 2011, 349, 157–167. [Google Scholar] [CrossRef]
  24. Yang, H.; Meng, Y.; Chen, B.; Zhang, X.; Wang, Y.; Zhao, W. How integrated management strategies promote protein quality of cotton embryos: High levels of soil available N, N assimilation and protein accumulation rate. Front. Plant Sci. 2016, 7, 1118. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Li, H.J.; Wang, J.; Saif, A.; Babar, I.; He, Z.; Shanshan, W.; Binglin, C.; Zhiguo, Z. Agronomic traits at the seedling stage, yield and fiber quality in two cotton (Gossypium hirsutum L.) cultivars in response to phosphorus deficiency. Soil Sci. Plant Nutr. 2019. [Google Scholar] [CrossRef]
  26. Baker, D.A.; Young, D.L.; Huggins, D.R.; Pan, W.L. Economically optimal nitrogen fertilization for yield and protein in hard red spring wheat. Agron. J. 2004, 96, 116–123. [Google Scholar] [CrossRef]
  27. Yang, G.; Tang, H.; Nie, Y.; Zhang, X. Responses of cotton growth, yield, and biomass to nitrogen split application ratio. Eur. J. Agron. 2011, 35, 164–170. [Google Scholar] [CrossRef]
  28. Widowati, I.; Utomo, W.; Guritno, B.; Soehono, L. The effect of biochar on the growth and N fertilizer requirement of maize (Zea mays L) in greenhouse experiment. J. Agric. Sci. 2012, 4, 255–262. [Google Scholar]
  29. Yang, M.H.; Jiang, Y.J.; Nie, W.L.; Zheng, D.M. Effect of phosphorus application on accumulating dynamic change of nitrogen, phosphorus and potassium nutrient of the hybrid cotton. Xinjiang Agric. Sci. 2010, 47, 1172–1177. (In Chinese) [Google Scholar]
  30. Hu, W.; Nan, J.; Jiashuo, Y.; Yali, M.; Youhua, W.; Binglin, C.; Wenqing, Z.; Derrick, M.O.; Zhiguo, Z. Potassium (K) supply affects K accumulation and photosynthetic physiology in two cotton (Gossypium hirsutum L.) cultivars with different K sensitivities. Field Crops Res. 2016, 196, 51–63. [Google Scholar] [CrossRef]
  31. Tung, S.A.; Huang, Y.; Hafeez, A.; Ali, S.; Khan, A.; Souliyanonh, B.; Song, X.; Liu, A.; Guozheng, Y. Mepiquat chloride effects on cotton yield and biomass accumulation under late sowing and high density. Field Crops Res. 2018, 215, 59–65. [Google Scholar] [CrossRef]
  32. Cao, Y.; He, J.; Yan, Y.; Feng, Z.; Wang, Q.; Zhang, Y. Effect of water deficit on cotton characteristics. China Cotton 2003, 30, 29–30, (In Chinese with English Abstract). [Google Scholar]
  33. Stewart, W.M.; Reiter, J.S.; Krieg, D.R. Cotton response to multiple application of phosphorus fertilizer. Better Crops Plant Food. 2005, 89, 18–20. [Google Scholar]
  34. Singh, S.K.; Reddy, V.R.; Fleisher, D.H.; Timlin, D.J. Growth, nutrient dynamics, and efficiency responses to carbon dioxide and phosphorus nutrition in soybean. J. Plant Interact. 2014, 9, 838–849. [Google Scholar] [CrossRef] [Green Version]
  35. Wang, S.; Han, X.; Yan, J.; Xiao, L.I.; Qiao, Y. Impact of phosphorus deficiency stress on root morphology, nitrogen concentration and phosphorus accumulation of soybean (Glycine max L.). China J. Soil Sci. 2010, 41, 644–650. [Google Scholar]
  36. Saleem, M.F.; Shakeel, A.; Bilal, M.F.; Shahid, M.Q.; Anjum, S.A. Effect of different phosphorus levels on earliness and yield of cotton cultivars. Soil Environ. 2010, 29, 128–135. [Google Scholar]
  37. Yang, G.; Tang, H.; Tong, J.; Nie, Y.; Zhang, X. Effect of fertilization frequency on cotton yield and biomass accumulation. Field Crops Res. 2012, 125, 161–166. [Google Scholar] [CrossRef]
  38. Zhu, J.; Li, M.; Whelan, M. Phosphorus activators contribute to legacy phosphorus availability in agricultural soils: A review. Sci. Total Environ. 2018, 612, 512–537. [Google Scholar] [CrossRef] [Green Version]
  39. Gautam, P.; Gustafson, D.M.; Wicks, Z. Phosphorus concentration, uptake and dry matter yield of corn hybrids. World J. Agric. Sci. 2011, 7, 418–424. [Google Scholar]
  40. Gebaly, S.G. Physiological effects of potassium forms and methods of application on cotton variety Giza 80. Egypt. J. Agric. Res. 2012, 90, 1633–1646. [Google Scholar]
  41. Meredith, W.R., Jr.; Wells, R. Potential for increasing cotton yields through enhanced partitioning to reproductive structures. Crop Sci. 1989, 29, 636–639. [Google Scholar] [CrossRef]
  42. Unruh, B.L.; Silvertooth, J.C. Comparison between upland and a Pima cotton cultivar. I. Growth and yield. Agron. J. 1996, 88, 583–589. [Google Scholar] [CrossRef]
  43. Mao, L.; Zhang, L.; Zhao, X.; Liu, S.; van der Werf, W.; Zhang, S.; Li, Z. Crop growth, light utilization and yield of relay intercropped cotton as affected by plant density and a plant growth regulator. Field Crops Res. 2014, 155, 67–76. [Google Scholar] [CrossRef]
  44. Ma, Q.H.; Zhang, F.S.; Rengel, Z.; Shen, J.B. Localized application of NH4+-N plus P at the seedling and later growth stages enhances nutrient uptake and maize yield by inducing lateral root proliferation. Plant Soil 2013, 372, 65–80. [Google Scholar] [CrossRef]
  45. Wang, X.X.; Liu, S.; Zhang, S.; Li, H.; Maimaitiaili, B.; Feng, G.; Rengel, Z. Localized ammonium and phosphorus fertilization can improve cotton lint yield by decreasing rhizosphere soil pH and salinity. Field Crops Res. 2018, 217, 75–81. [Google Scholar] [CrossRef]
  46. Gill, M.A.; Sabir, M.; Ashraf, S.; Rahmatullah, A.T. Effect of P-stress on growth, phosphorus uptake and utilization efficiency of different cotton cultivars. Pak. J. Agric. Sci. 2005, 42, 42–47. [Google Scholar]
  47. Blom-Zandstra, M.; Lampe, J.E.M. The effect of chloride and sulpate salts on nitrate content in lettuce plants (Lactuca satica L.). J. Plant Nutr. 1983, 6, 611–628. [Google Scholar] [CrossRef]
  48. Hsiao, T.C.; Lauchli, L. Role of potassium in plant water relations. In Advances in Plant Nutrition; Tinker, P.B., Lauchli, A., Eds.; Praeger: New York, NY, USA, 1986; Volume 2, pp. 281–382. [Google Scholar]
  49. Biles, S.P.; Cothren, J.T. Flowering and yield response of cotton to application of mepiquat chloride and PGR-IV. Crop Sci. 2001, 41, 1834–1837. [Google Scholar] [CrossRef]
  50. Xu, X.; Taylor, H.M. Increase in drought resistance of cotton seedlings treated with mepiquat chloride. Agron. J. 1992, 84, 569–574. [Google Scholar] [CrossRef]
  51. Song, C.J.; Ma, K.M.; Qu, L.Y.; Liu, Y.; Xu, X.L.; Fu, B.J.; Zhong, J.F. Interactive effects of water, nitrogen and phosphorus on the growth, biomass partitioning and water-use efficiency of Bauhinia faberi seedlings. J. Arid Environ. 2010, 74, 1003–1012. [Google Scholar] [CrossRef]
  52. Sardans, J.; Rodà, F.; Peñuelas, J. Effects of water and a nutrient pulse supply on Rosmarinus officinalis growth, nutrient content and flowering in the field. Environ. Exp. Bot. 2005, 53, 1–11. [Google Scholar] [CrossRef]
  53. Sardans, J.; Peñuelas, J.; Rodà, F. Changes in nutrient status, retranslocation and use efficiency in young post-fire regeneration Pinus halepensis in response to sudden N and P input, irrigation and removal of competing vegetation. Trees 2005, 19, 233–250. [Google Scholar] [CrossRef]
  54. Makhdum, M.I.; Pervez, H.; Ashraf, M. Dry matter accumulation and partitioning in cotton (Gossypium hirsutum L.) as influenced by potassium fertilization. Biol. Fertil. Soils 2007, 43, 295–301. [Google Scholar] [CrossRef]
  55. Kidron, G.J.; Zilberman, A. Low cotton yield is associated with micronutrient deficiency in West Africa. Agron. J. 2019, 111, 1977–1984. [Google Scholar] [CrossRef]
  56. Lambrecht, I.; Vanlauwe, B.; Maertens, M. Integrated soil fertility management: From concept to practice in eastern DR Congo. Int. J. Agric. Sustain. 2016, 14, 100–118. [Google Scholar] [CrossRef] [Green Version]
  57. Rosolem, C.A.; Oosterhuis, D.M.; Souza, F.S.D. Cotton response to mepiquat chloride and temperature. Sci. Agric. 2013, 70, 82–87. [Google Scholar] [CrossRef] [Green Version]
  58. Marshner, P.; Rengel, Z. Plant-Soil Relationships. In Mineral Nutrition, Yield and Source-Sink Relationships, 3rd ed.; Academic Press: Orlando, FL, USA, 2012. [Google Scholar]
  59. Zahreddine, H.G.; Struve, D.K.; Talhouk, S.N. Growth and nutrient partitioning of containerized Cercis siliquastrum L. under two fertilizer regimes. Sci. Hortic. 2007, 112, 80–88. [Google Scholar] [CrossRef]
  60. Dong, H.Z.; Tang, W.; Li, W.J.; Li, Z.H.; Niu, Y.H.; Zhang, D.M. Yield, leaf senescence, and Cry1Ac expression in response to removal of early fruiting branches in transgenic Bt cotton. Agric. Sci. China 2008, 7, 692–702. [Google Scholar] [CrossRef]
  61. Lu, B.Q.; Downes, S.; Wilson, L.; Gregg, P.; Knight, K.; Kauter, G.; McCorkell, B. Yield, development and quality response of dual-toxin Bt-cotton to manual simulation of damage by Helicoverpa spp. in Australia. Crop Prot. 2012, 41, 24–29. [Google Scholar] [CrossRef]
  62. Wells, R. Leaf pigment and canopy photosynthetic response to early flower removal in cotton. Crop Sci. 2001, 41, 1522–1529. [Google Scholar] [CrossRef]
  63. Gao, Y.; Lynch, J.P. Reduced crown root number improves water acquisition under water deficit stress in maize (Zea mays L.). J. Exp. Bot. 2016, 67, 4545–4557. [Google Scholar] [CrossRef] [Green Version]
  64. Bange, M.P.; Milroy, S.P.; Thongbai, P. Growth and yield of cotton in response to waterlogging. Field Crops Res. 2004, 88, 129–142. [Google Scholar] [CrossRef]
  65. Jenkins, J.N.; McCarty, J.C., Jr.; Parrott, W.L. Effectiveness of fruiting sites in cotton: Yield. Crop Sci. 1990, 32, 365–369. [Google Scholar] [CrossRef]
  66. Ma, Q.; Rengel, Z.; Rose, T. The effectiveness of deep placement of fertilisers is determined by crop species and edaphic conditions in Mediterranean-type environments: A review. Soil Res. 2009, 47, 19–32. [Google Scholar] [CrossRef]
  67. Chen, B.L.; Sheng, J.D.; Jiang, P.A.; Liu, Y.G. Effect of applying different forms and rates of phosphoric fertilizer on phosphorus efficiency and cotton yield. Cotton Sci. 2010, 22, 49–56. [Google Scholar]
Agronomy 10 00153 g001 550

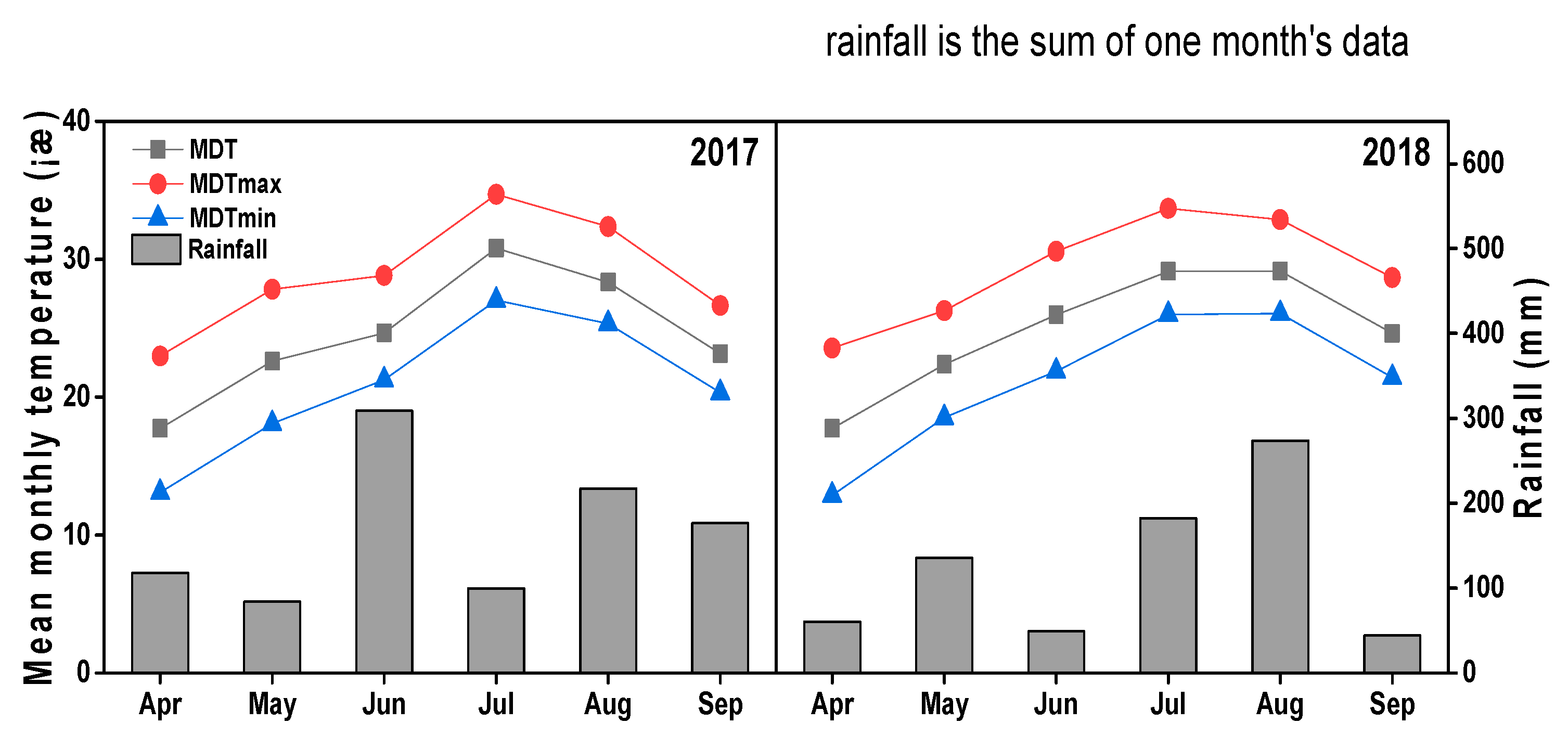

Figure 1. Mean monthly air temperature and rainfall during 2017 and 2018.
Figure 1. Mean monthly air temperature and rainfall during 2017 and 2018.
Agronomy 10 00153 g001
Agronomy 10 00153 g002 550

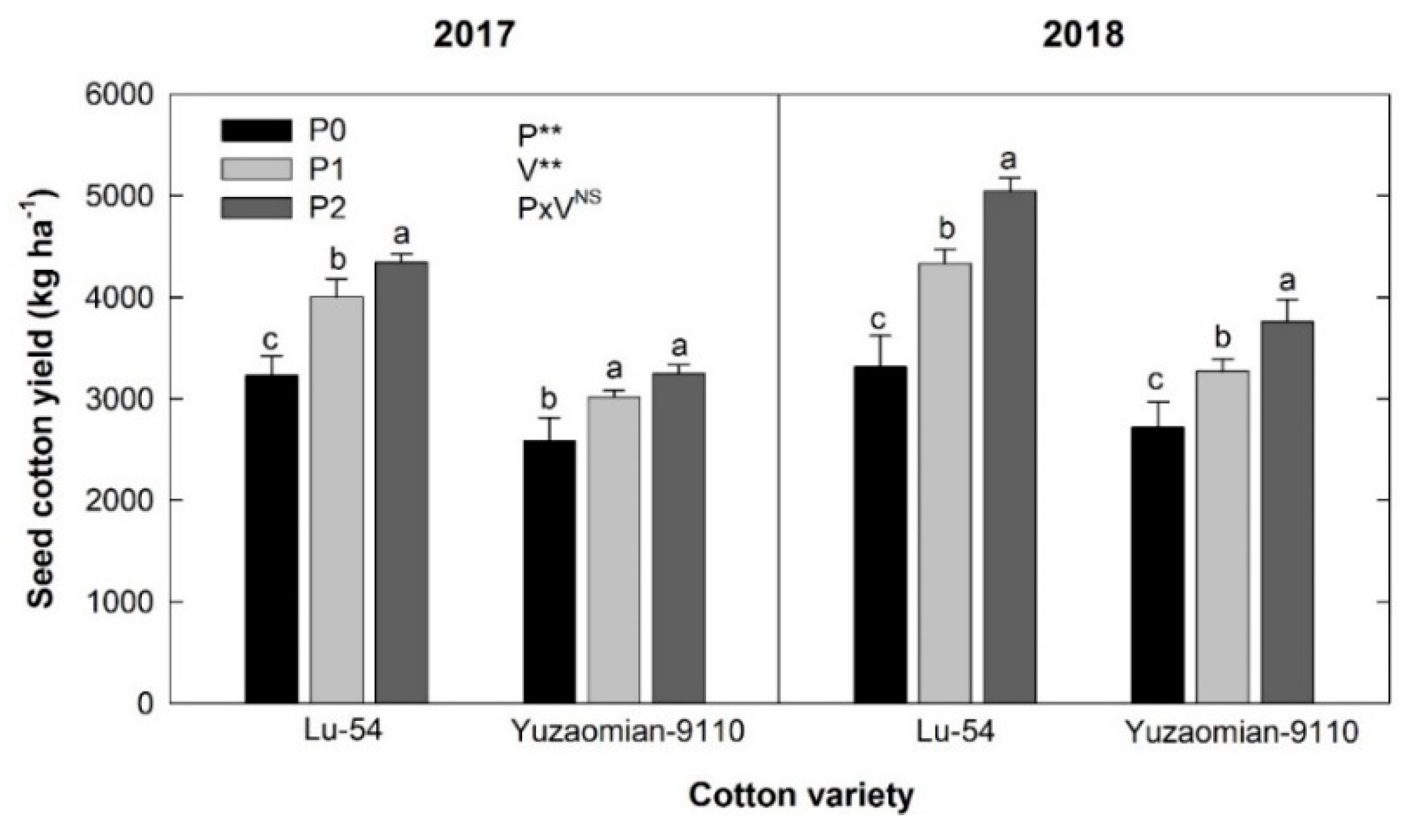

Figure 2. Seed cotton yield (kg ha−1) as affected by phosphorus (P) levels during 2017 and 2018 in Lu-54 (low P sensitive) and Yuzaomian-9110 (low P tolerant). P0, P1, and P2 indicate P levels of 0, 100, and 200 kg P2O5 ha−1, respectively. Whereas P, V, and P×V represent phosphorus, cultivar, and their interaction, respectively. While ** and NS show highly significant and non-significant, respectively. Vertical bars on the columns indicate standard errors of the mean (n = 3). The bars showing different letters are statistically significant at p ≤ 0.05.
Figure 2. Seed cotton yield (kg ha−1) as affected by phosphorus (P) levels during 2017 and 2018 in Lu-54 (low P sensitive) and Yuzaomian-9110 (low P tolerant). P0, P1, and P2 indicate P levels of 0, 100, and 200 kg P2O5 ha−1, respectively. Whereas P, V, and P×V represent phosphorus, cultivar, and their interaction, respectively. While ** and NS show highly significant and non-significant, respectively. Vertical bars on the columns indicate standard errors of the mean (n = 3). The bars showing different letters are statistically significant at p ≤ 0.05.
Agronomy 10 00153 g002
Agronomy 10 00153 g003 550

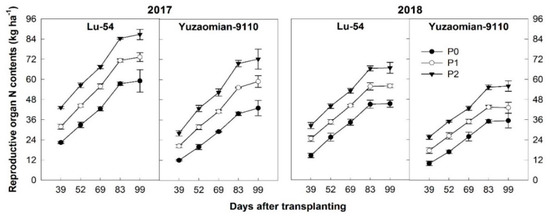

Figure 3. The accumulation of total N contents (kg ha−1) in reproductive organ of cotton plant for Lu-54 and Yuzaomian-9110 in 2017 and 2018. The treatments P0, P1, and P2 represent the P levels, i.e., 0, 100, and 200 kg P2O5 ha−1. The data are the means of three replications ± standard error.
Figure 3. The accumulation of total N contents (kg ha−1) in reproductive organ of cotton plant for Lu-54 and Yuzaomian-9110 in 2017 and 2018. The treatments P0, P1, and P2 represent the P levels, i.e., 0, 100, and 200 kg P2O5 ha−1. The data are the means of three replications ± standard error.
Agronomy 10 00153 g003
Agronomy 10 00153 g004 550

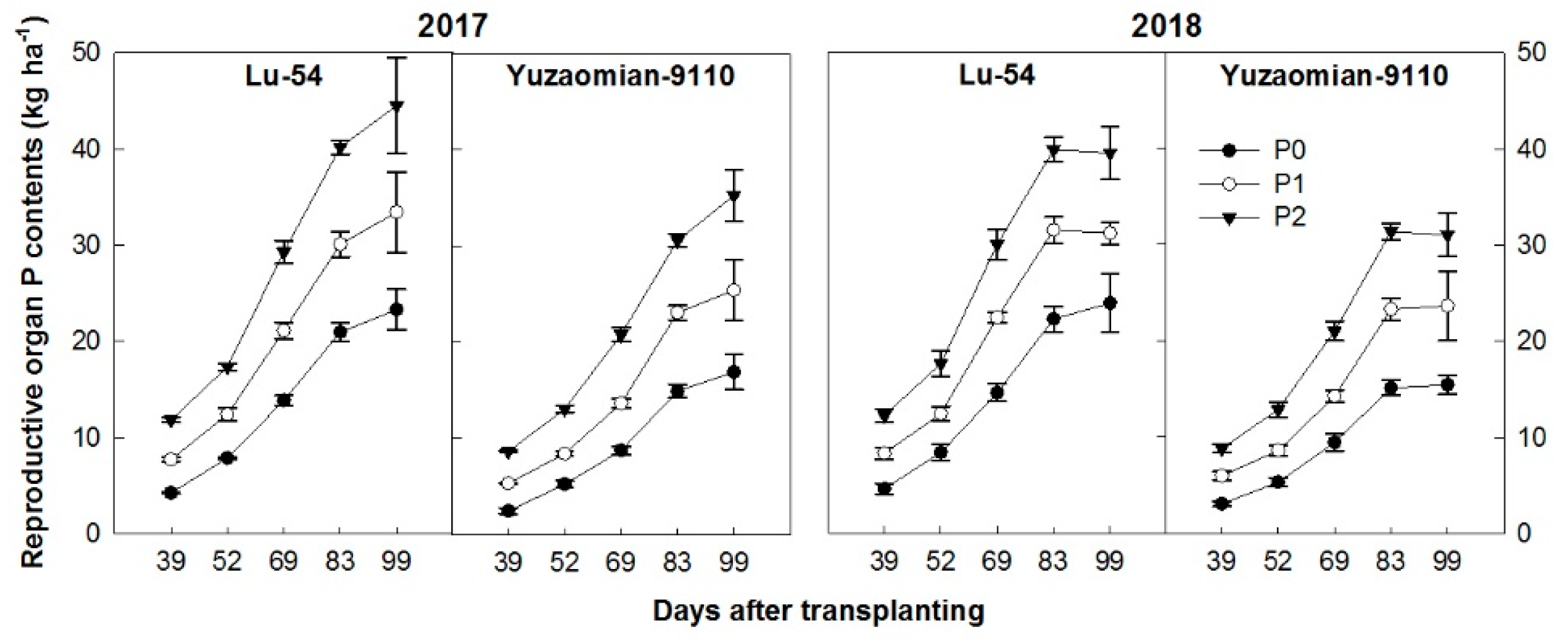

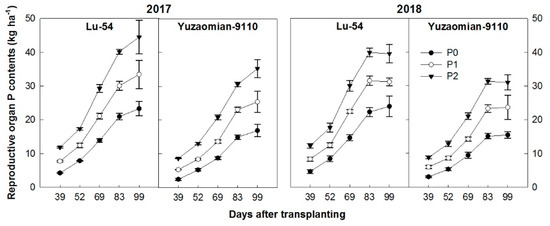

Figure 4. The accumulation of total P contents (kg ha−1) in reproductive organ of cotton plant for Lu-54 and Yuzaomian-9110 in 2017 and 2018. The treatments P0, P1, and P2 represent the P levels, i.e., 0, 100 and 200 P2O5 kg ha−1. The data are the means of three replications ± standard error.
Figure 4. The accumulation of total P contents (kg ha−1) in reproductive organ of cotton plant for Lu-54 and Yuzaomian-9110 in 2017 and 2018. The treatments P0, P1, and P2 represent the P levels, i.e., 0, 100 and 200 P2O5 kg ha−1. The data are the means of three replications ± standard error.
Agronomy 10 00153 g004
Agronomy 10 00153 g005 550

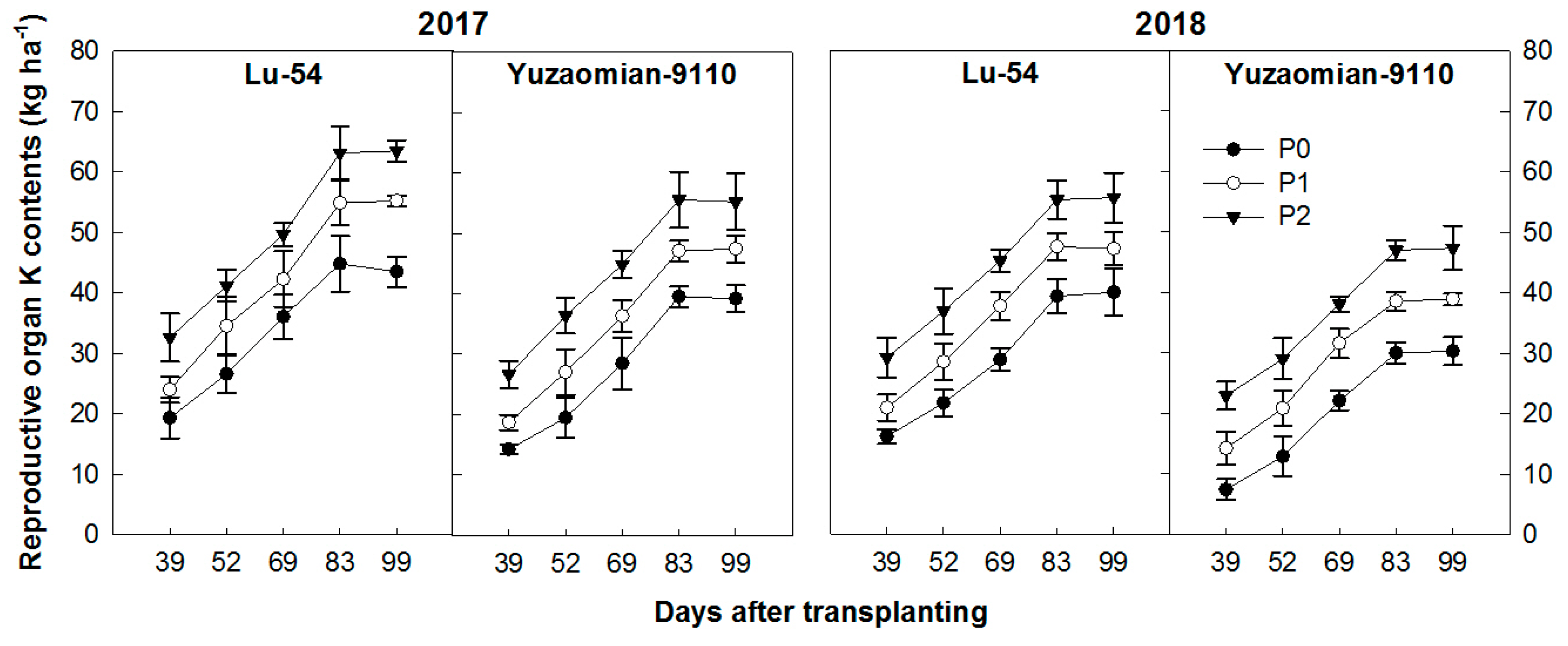

Figure 5. The accumulation of total K contents (kg ha−1) in reproductive organ of cotton plant for Lu-54 and Yuzaomian-9110 in 2017 and 2018. The treatments P0, P1, and P2 represent the P levels, i.e., 0, 100, and 200 kg P2O5 ha−1. The data are the means of three replications ± standard error.
Figure 5. The accumulation of total K contents (kg ha−1) in reproductive organ of cotton plant for Lu-54 and Yuzaomian-9110 in 2017 and 2018. The treatments P0, P1, and P2 represent the P levels, i.e., 0, 100, and 200 kg P2O5 ha−1. The data are the means of three replications ± standard error.
Agronomy 10 00153 g005
Agronomy 10 00153 g006 550

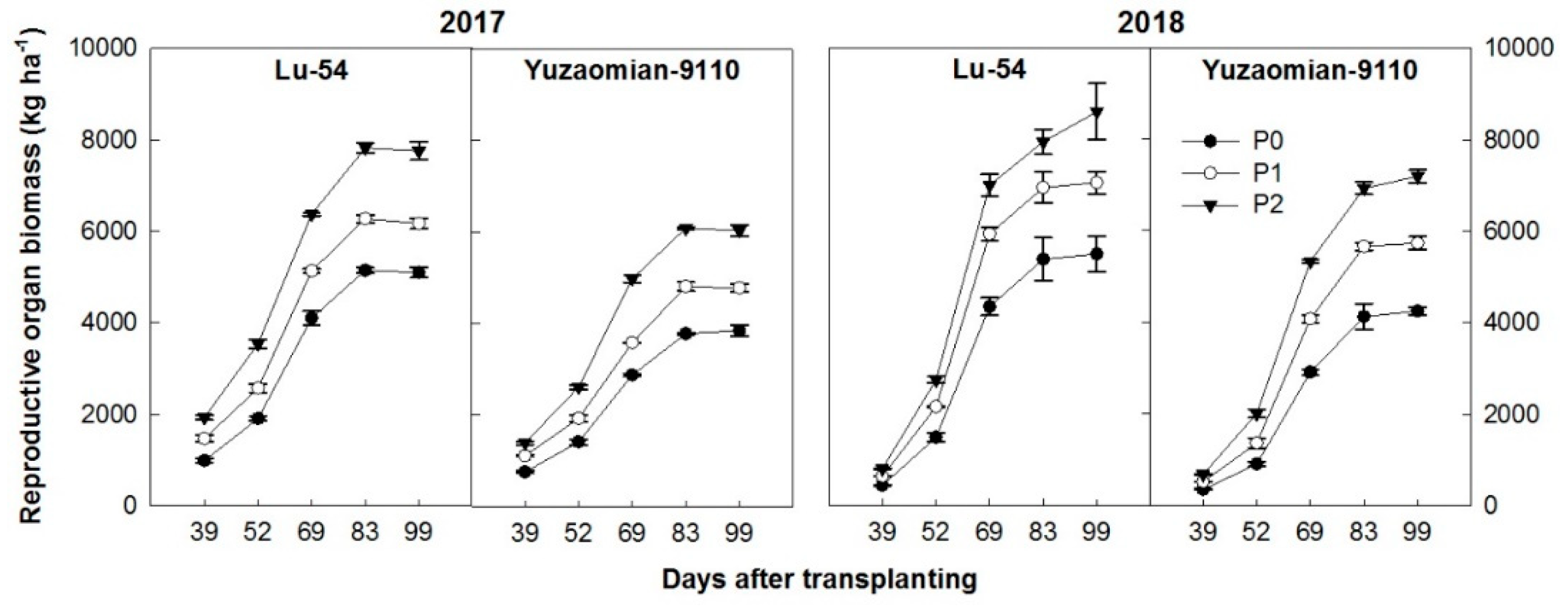

Figure 6. The accumulation of biomass in reproductive organ of cotton plant for Lu-54 and Yuzaomian-9110 in 2017 and 2018. The treatments P0, P1, and P2 represent the P levels, i.e., 0, 100, and 200 kg P2O5 ha−1. The data are the means of three replications ± standard error.
Figure 6. The accumulation of biomass in reproductive organ of cotton plant for Lu-54 and Yuzaomian-9110 in 2017 and 2018. The treatments P0, P1, and P2 represent the P levels, i.e., 0, 100, and 200 kg P2O5 ha−1. The data are the means of three replications ± standard error.
Agronomy 10 00153 g006
Agronomy 10 00153 g007 550

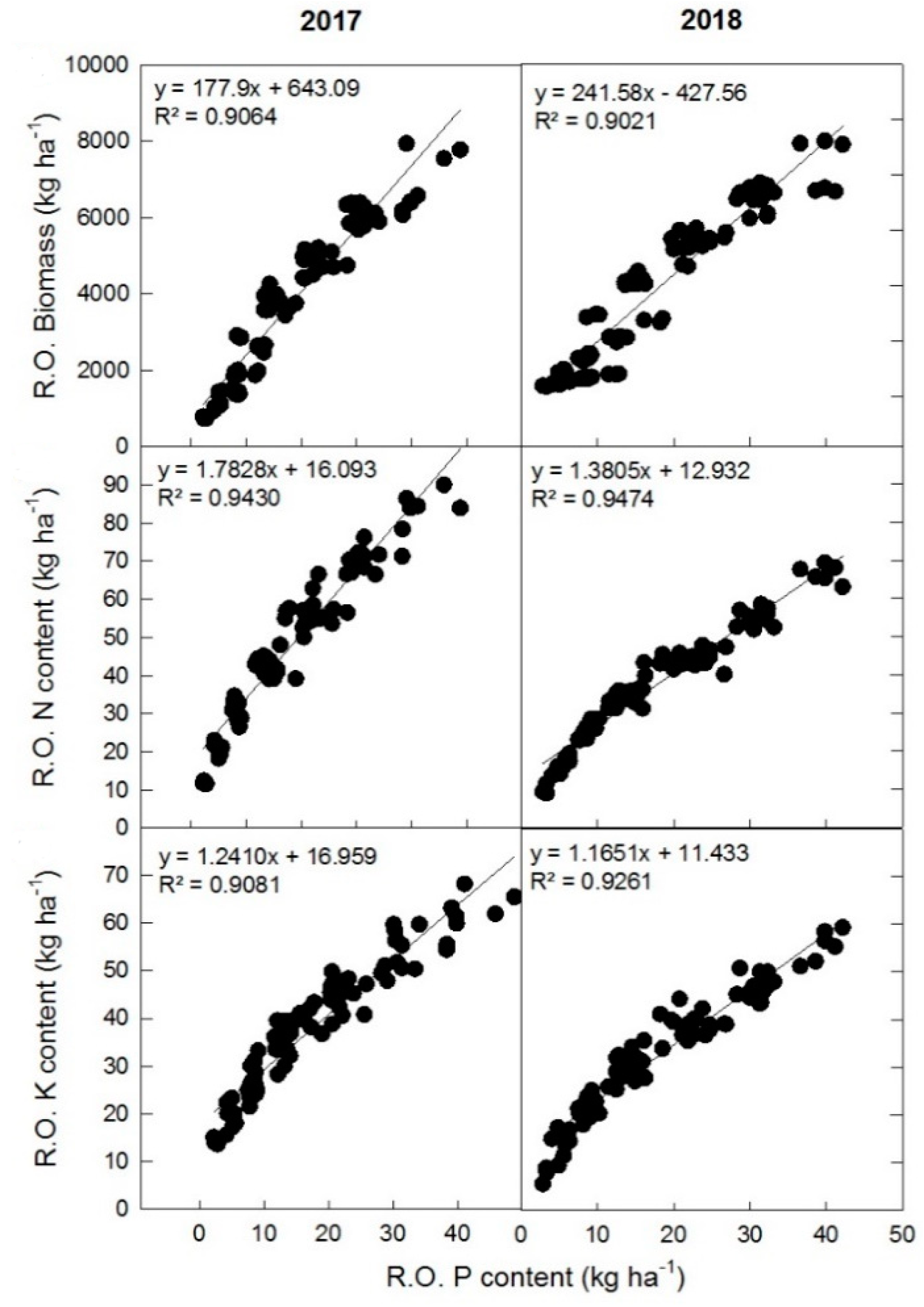

Figure 7. Relationship between accumulation of N, P, K, and biomass during 2017 and 2018 cropping seasons.
Figure 7. Relationship between accumulation of N, P, K, and biomass during 2017 and 2018 cropping seasons.
Agronomy 10 00153 g007
Agronomy 10 00153 g008 550
Figure 8. Correlation between N, P, K, and reproductive organ biomass during 2017 and 2018 cropping seasons. The bars and line, shown with observation, are regarded as correlation coefficients as 1 (R = 1). Other line graphs and correlation coefficients represent the comparative values to R = 1. Where *** showed very highly significant (p ≤ 0.001).
Figure 8. Correlation between N, P, K, and reproductive organ biomass during 2017 and 2018 cropping seasons. The bars and line, shown with observation, are regarded as correlation coefficients as 1 (R = 1). Other line graphs and correlation coefficients represent the comparative values to R = 1. Where *** showed very highly significant (p ≤ 0.001).
Agronomy 10 00153 g008
Table
Table 1. Soil fertility status of the experimental site during 2017 and 2018. Data of soil samples collected from topsoil (0–20 cm) and subsoil (20–40 cm) depths before planting.
Table 1. Soil fertility status of the experimental site during 2017 and 2018. Data of soil samples collected from topsoil (0–20 cm) and subsoil (20–40 cm) depths before planting.
pH
(H2O)		Bulk Density
(g cm3)		TN
(g kg−1)		EC
(µS cm−1)		SOM
(g kg−1)		AN
(NH4+)(mg kg−1)		AN
(NO3−1)(mg kg−1)		AP
(mg kg−1)		AK
(mg kg−1)		TP
(g kg−1)		TK
(g kg−1)
Year 2017topsoil
(0–20 cm)		6.841.351.0317018.061.2111.3216.91139.40.615.81
subsoil
(20–40 cm)		7.451.290.9518517.759.3211.2116.72135.60.484.87
Year 2018topsoil
(0–20 cm)		6.941.441.1118319.164.9213.9117.85144.30.695.87
subsoil
(20–40 cm)		7.541.321.0619018.461.0112.117.02140.60.524.21
TN: Total nitrogen; EC: Electrical conductivity; SOM: Soil organic matter; AN: Available nitrogen; AP: Available phosphorus; AK: Available potassium; TP: Total phosphorus; TK: Total potassium.
Table
Table 2. Dynamic models and the maximum accumulation rate of N (VM), average speed of N accumulation (VT), start time of the N rapid-accumulation period (t1), termination time of the N rapid-accumulation period (t2), duration of the N rapid-accumulation period (T), and occurrence time of maximum accumulation rate of N (tm) in reproductive organ of cotton plants for Lu-54 and Yuzaomian-9110 in 2017 and 2018.
Table 2. Dynamic models and the maximum accumulation rate of N (VM), average speed of N accumulation (VT), start time of the N rapid-accumulation period (t1), termination time of the N rapid-accumulation period (t2), duration of the N rapid-accumulation period (T), and occurrence time of maximum accumulation rate of N (tm) in reproductive organ of cotton plants for Lu-54 and Yuzaomian-9110 in 2017 and 2018.
YearVarietyP Levels (kg ha−1) Regression EquationR2Fast Accumulation PeriodT (d)VT (kg ha−1 d−1)Fastest Accumulation Point
t1 (d)t2 (d)Vm (kg ha−1 d−1)tm (d)
2017Lu-54P0W = 76.9/(1 + 13.41e−0.0327t)0.9856 **39.1119.580.40.80.8779.3
P1W = 87.72/(1 + 9.56e−0.0435t)0.9685 **21.682.260.60.80.9551.9
P2W = 130.65/(1 + 6.28e−0.0290t)0.9766 **17.9108.790.80.90.9563.3
Mean 26.2103.577.30.80.9264.8
Yuzaomian-9110P0W = 65.54/(1 + 23.43e−0.0425t)0.9946 **43.3105.362.00.60.7074.3
P1W = 91.91/(1 + 14.97e−0.0374t)0.9806 **37.2107.770.50.80.8672.5
P2W = 91.11/(1 + 10.86e−0.0414t)0.9555 **25.889.463.60.80.9457.6
Mean 35.4100.865.40.70.8368.1
2018 Lu-54P0W = 48.89/(1 + 25.35e−0.0614t)0.9787 **31.274.242.90.50.7552.7
P1W = 62.17/(1 + 8.54e−0.0446t)0.9720 **18.677.659.10.50.6948.1
P2W = 81.53/(1 + 6.55e−0.0381t)0.9387 **14.883.969.10.60.7849.3
Mean 21.578.657.00.60.7450.0
Yuzaomian-9110P0W = 42.35/(1 + 37.06e−0.0616t)0.9901 **37.280.042.70.50.6558.6
P1W = 50.94/(1 + 14.06e−0.0513t)0.9681 **25.977.251.40.50.6551.5
P2W = 70.04/(1 + 6.83e−0.0366t)0.9383 **16.588.471.90.50.6452.5
Mean 26.581.955.30.50.6554.2
The treatments P0, P1, and P2 represent the P levels, i.e., 0, 100, and 200 kg P2O5 ha−1. ** represents highly significant.
Table
Table 3. Dynamic models and the maximum accumulation rate of P (VM), average speed of P accumulation (VT), start time of the P rapid-accumulation period (t1), termination time of the P rapid-accumulation period (t2), duration of the P rapid-accumulation period (T), and occurrence time of maximum accumulation rate of P (tm) in reproductive organ of cotton plants for Lu-54 and Yuzaomian-9110 in 2017 and 2018.
Table 3. Dynamic models and the maximum accumulation rate of P (VM), average speed of P accumulation (VT), start time of the P rapid-accumulation period (t1), termination time of the P rapid-accumulation period (t2), duration of the P rapid-accumulation period (T), and occurrence time of maximum accumulation rate of P (tm) in reproductive organ of cotton plants for Lu-54 and Yuzaomian-9110 in 2017 and 2018.
Year Variety P Levels (kg ha−1) Regression EquationR2 Fast Accumulation PeriodT (d)VT (kg ha−1 d−1)Fastest Accumulation Point
t1 (d)t2 (d)Vm (kg ha−1 d−1)tm (d)
2017Lu-54P0W = 27.92/(1+56.75e−0.0596t)0.9955 **45.789.844.20.30.4267.7
P1W = 47.57/(1+33.64e−0.0481t)0.9956 **45.8100.754.90.50.5773.3
P2W = 84.52/(1+28.50e−0.0391t)0.9937 **52.2119.867.60.70.8286.0
Mean 47.9103.555.60.50.6075.7
Yuzaomian-9110P0W = 24.70/(1+68.20e−0.0538t)0.9636 **54.0102.948.90.30.3378.4
P1W = 69.44/(1+18.79e−0.0383t)0.9798 **42.2110.968.70.40.6776.5
P2W = 60.69/(1+28.89e−0.0401t)0.9933 **51.0116.765.70.50.6183.9
Mean 58.2119.361.10.40.5488.8
2018 Lu-54P0W = 30.99/(1+53.32e−0.0569t)0.9846 **46.792.946.20.40.4469.8
P1W = 35.41/(1+40.24e−0.0616t)0.9687 **38.681.342.70.40.5560.0
P2W = 48.60/(1+27.26e−0.0555t)0.9737 **35.883.247.40.50.6859.5
Mean 40.485.845.50.40.5563.1
Yuzaomian-9110 P0W = 18.44/(1+59.68e−0.0627t)0.9716 **44.286.242.00.20.2965.2
P1W = 52.69/(1+28.02e−0.0388t)0.9495 **51.9119.767.80.40.5185.8
P2W = 43.54/(1+28.22e−0.0494t)0.9606 **41.094.353.40.50.5467.7
Mean 48.1102.554.40.40.4575.3
The treatments P0, P1, and P2 represent the P levels, i.e., 0, 100, and 200 kg P2O5 ha−1. ** represents highly significant.
Table
Table 4. Dynamic models and the maximum accumulation rate of K (VM), average speed of K accumulation (VT), start time of the K rapid-accumulation period (t1), termination time of the K rapid-accumulation period (t2), duration of the K rapid-accumulation period (T), and occurrence time of maximum accumulation rate of K (tm) in reproductive organ of cotton plants for Lu-54 and Yuzaomian-9110 in 2017 and 2018.
Table 4. Dynamic models and the maximum accumulation rate of K (VM), average speed of K accumulation (VT), start time of the K rapid-accumulation period (t1), termination time of the K rapid-accumulation period (t2), duration of the K rapid-accumulation period (T), and occurrence time of maximum accumulation rate of K (tm) in reproductive organ of cotton plants for Lu-54 and Yuzaomian-9110 in 2017 and 2018.
YearVarietyP Levels (kg ha−1)Regression EquationR2Fast Accumulation PeriodT (d)VT (kg ha−1 d−1)Fastest Accumulation Point
t1 (d)t2 (d)Vm (kg ha−1 d−1)tm (d)
2017Lu-54P0W = 46.13/(1 + 13.92e−0.0577t)0.9665 **22.868.445.60.420.6745.6
P1W = 58.34/(1 + 12.09e−0.0546t)0.9865 **21.569.848.20.520.8045.6
P2W = 75.43/(1 + 4.75e−0.0329t)0.9568 **7.387.279.90.520.6247.3
Mean 17.275.157.90.490.6946.2
Yuzaomian-9110P0W = 43.21/(1 + 21.62e−0.0602t)0.9758 **29.172.943.70.450.6551.0
P1W = 52.13/(1 + 16.21e−0.0561t)0.9761 **26.273.146.90.510.7349.6
P2W = 61.81/(1 + 7.21e−0.0437t)0.9698 **15.075.260.20.490.6845.1
Mean 23.473.750.30.480.6948.6
2018 Lu-54P0W = 53.17/(1 + 9.58e−0.0364t)0.9615 **25.998.372.30.440.4862.1
P1W = 52.57/(1 + 11.49e−0.0510t)0.9555 **22.073.751.60.480.6747.9
P2W = 66.28/(1 + 5.25e−0.0359t)0.9408 **9.582.973.30.480.5946.2
Mean 19.284.965.80.460.5852.0
Yuzaomian-9110P0W = 33.54/(1 + 55.41e−0.0692t)0.9764 **39.077.038.00.410.5858.0
P1W = 40.41/(1 + 34.96e−0.0724t)0.9702 **30.967.336.40.440.7349.1
P2W = 59.06/(1 + 7.37e−0.0385t)0.9442 **17.786.168.50.470.5751.9
Mean 29.276.847.60.440.6353.0
The treatments P0, P1, and P2 represent the P levels, i.e., 0, 100, and 200 kg P2O5 ha−1. ** represents highly significant.
Table
Table 5. Dynamic models and the maximum accumulation rate of biomass (VM), average speed of biomass accumulation (VT), start time of the biomass rapid-accumulation period (t1), termination time of the biomass rapid-accumulation period (t2), duration of the biomass rapid-accumulation period (T), and occurrence time of maximum accumulation rate of biomass (tm) in reproductive organ of cotton plants for Lu-54 and Yuzaomian-9110 in 2017 and 2018.
Table 5. Dynamic models and the maximum accumulation rate of biomass (VM), average speed of biomass accumulation (VT), start time of the biomass rapid-accumulation period (t1), termination time of the biomass rapid-accumulation period (t2), duration of the biomass rapid-accumulation period (T), and occurrence time of maximum accumulation rate of biomass (tm) in reproductive organ of cotton plants for Lu-54 and Yuzaomian-9110 in 2017 and 2018.
YearVarietyP Levels (kg ha−1)Regression EquationR2Fast Accumulation PeriodT (d)VT (kg ha−1 d−1)Fastest Accumulation Point
t1 (d)t2 (d)Vm (kg ha−1 d−1)tm (d)
2017Lu-54P0W = 6029/(1 + 267e−0.072t)0.9616 **59.496.036.677.3108.4177.7
P1W = 6710/(1 + 393e−0.085t)0.9481 **54.785.630.986.6142.9570.1
P2W = 8681/(1 + 187e−0.075t)0.9796 **52.387.435.2105.9162.6069.8
Mean 55.489.734.289.9137.9972.6
Yuzaomian-9110P0W = 4427/(1 + 234e−0.073t)0.9879 **57.093.236.256.280.4675.1
P1W = 5328/(1 + 127e−0.067t)0.9925 **52.792.039.363.489.2672.3
P2W = 7125/(1 + 176e-0.071t)0.9803 **55.493.237.888.0124.0074.3
Mean 55.092.837.869.297.9173.9
2018Lu-54P0W = 6173/(1 + 2159e−0.098t)0.9540 **64.991.826.989.6151.1678.4
P1W = 8174/(1 + 1183e−0.088t)0.9756 **65.495.329.9115.3179.9080.4
P2W = 9462/(1 + 1323e−0.092t)0.9729 **63.692.128.5134.5218.3977.9
Mean 64.793.128.4113.1183.1578.9
Yuzaomian-9110 P0W = 4529/(1 + 1785e−0.095t)0.9692 **64.792.327.665.2108.0778.5
P1W = 6271/(1 + 1545e−0.10t)0.9892 **63.491.127.789.7149.0277.3
P2W = 7588/(1 + 1993e−0.10t)0.9935 **61.987.825.9109.1192.5674.9
Mean 63.390.427.188.0149.8876.9
The treatments P0, P1, and P2 represent the P levels, i.e., 0, 100, and 200 kg P2O5 ha−1. ** represents highly significant.
Table
Table 6. Total N, P, K, and biomass percentage allocation in reproductive organ for Lu-54 and Yuzaomian-9110 in 2017 and 2018.
Table 6. Total N, P, K, and biomass percentage allocation in reproductive organ for Lu-54 and Yuzaomian-9110 in 2017 and 2018.
P Levels (kg ha−1)20172018
RNR1 (%)RPR (%)RKR (%)RBR (%)RNR (%)RPR (%)RKR (%)RBR (%)
Lu-54
P050.6b251.244.659.049.954.847.566.2abc
P151.2ab51.646.156.550.453.746.969.9a
P252.9a53.246.458.451.454.247.267.6ab
Mean51.652.045.758.050.654.247.267.9
Yuzaomian-9110
P049.3b52.946.458.451.454.046.161.6d
P151.6ab53.846.656.750.154.646.963.6cd
P253.4a54.846.356.052.153.747.564.0bcd
Mean51.453.846.457.151.254.146.863.1
Significance of factors
VarietyNS3NSNSNSNSNSNS**
P levels**NS**NSNSNSNSNS
Variety × P levelNSNSNSNSNSNSNSNS
1 RNR: the percentage of total N in reproductive organ; RPR: the percentage of total P in reproductive organ; RKR: the percentage of total K in reproductive organ; RBR: the percentage of biomass in reproductive organ. 2 For each cultivar, values followed by a different letter within the same column are significantly different at p < 0.05 probability level. Each value represents the mean of three replications. 3 NS means non-significant. ** Indicates significant difference at p < 0.01 probability level. The treatments P0, P1, and P2 represent the P levels i.e., 0, 100, and 200 P2O5 kg ha−1.

Share and Cite

MDPI and ACS Style

Iqbal, B.; Kong, F.; Ullah, I.; Ali, S.; Li, H.; Wang, J.; Khattak, W.A.; Zhou, Z. Phosphorus Application Improves the Cotton Yield by Enhancing Reproductive Organ Biomass and Nutrient Accumulation in Two Cotton Cultivars with Different Phosphorus Sensitivity. Agronomy 2020, 10, 153. https://doi.org/10.3390/agronomy10020153

AMA Style

Iqbal B, Kong F, Ullah I, Ali S, Li H, Wang J, Khattak WA, Zhou Z. Phosphorus Application Improves the Cotton Yield by Enhancing Reproductive Organ Biomass and Nutrient Accumulation in Two Cotton Cultivars with Different Phosphorus Sensitivity. Agronomy. 2020; 10(2):153. https://doi.org/10.3390/agronomy10020153

Chicago/Turabian Style

Iqbal, Babar, Fanxuan Kong, Inam Ullah, Saif Ali, Huijie Li, Jiawei Wang, Wajid Ali Khattak, and Zhiguo Zhou. 2020. "Phosphorus Application Improves the Cotton Yield by Enhancing Reproductive Organ Biomass and Nutrient Accumulation in Two Cotton Cultivars with Different Phosphorus Sensitivity" Agronomy 10, no. 2: 153. https://doi.org/10.3390/agronomy10020153

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
