Communication

Interactions of JAZ Repressors with Anthocyanin Biosynthesis-Related Transcription Factors of Fragaria × ananassa

by
Adrián Garrido-Bigotes
1,
Marcela Torrejón
2,
Roberto Solano
3 and
Carlos R. Figueroa
4,*
1
Laboratory of Plant Epigenetics, Faculty of Forest Sciences, Universidad de Concepción, Concepción 4070386, Chile
2
Laboratory of Signaling and Development, Department of Biochemistry and Molecular Biology, Faculty of Biological Sciences, Universidad de Concepción, Concepción 4070386, Chile
3
Plant Molecular Genetics Department, National Centre for Biotechnology, Spanish National Research Council (CNB-CSIC), 28049 Madrid, Spain
4
Institute of Biological Sciences, Campus Talca, Universidad de Talca, Talca 34655488, Chile
*
Author to whom correspondence should be addressed.
Agronomy 2020, 10(10), 1586; https://doi.org/10.3390/agronomy10101586
Submission received: 9 September 2020 / Revised: 9 October 2020 / Accepted: 13 October 2020 / Published: 16 October 2020
(This article belongs to the Special Issue Functional Genomics Research of Crops)
Browse Figures
Versions Notes

Abstract

:
Strawberry fruits are rich in flavonoids like proanthocyanidins and anthocyanins. Their biosynthesis and accumulation are controlled by the MYB-bHLH-WD40 (MBW) transcriptional complex, which is mainly formed by basic helix-loop-helix (bHLH) and MYB transcription factors (TFs). In Arabidopsis thaliana both bHLH and MYB TFs are repressed by JASMONATE ZIM-DOMAIN (JAZ) proteins, the key repressors of the jasmonate-signaling pathway. The aim of this research was the characterization of the FaJAZ1/8.1/9/10 proteins and molecular targets of signaling components and anthocyanin biosynthesis-related TFs of Fragaria × ananassa by protein–protein interactions. For this, domain compositions were studied by multiple alignments and phylogenetic analyses, while interactions were analyzed by yeast two-hybrid (Y2H) assays. We detected high conservation of FaJAZ proteins and jasmonate-signaling components, as well as FabHLHs and FaMYB10 TFs. Moreover, we report the F. × ananassa YABBY1 (FaYAB1) TF, which is related to anthocyanin biosynthesis in Arabidopsis, showed high conservation of functional domains. We demonstrated that FaJAZ repressors interacted with F. × ananassa NOVEL INTERACTOR OF JAZ (FaNINJA), FaMYC2, and JASMONATE ASSOCIATED MYC2-LIKE (FaJAM) proteins. Besides, transcription factors of MBW-complex like FabHLH3, FabHLH33, and FaMYB10, together with FaYAB1, were molecular targets of FaJAZ repressors, exhibiting specificity or redundancy of interaction depending on particular FaJAZ protein. Overall, these results suggest that interactions of jasmonate-signaling components are fully conserved, and anthocyanin biosynthesis might be regulated by JAZ repressors in F. × ananassa.

1. Introduction

Fleshy fruits of cultivated strawberry (Fragaria × ananassa Duch.) are highly valued by its taste, flavor, red color, and their multiple nutritional properties [1]. The nutritional value is given by flavonoid compounds like anthocyanins, which are in large amounts in red fruits [2] and have different benefits for human health [1]. In turn, other flavonoids like proanthocyanidins (PAs) are in a higher quantity at the immature stage of strawberry fruits [2], participating in the protection against pathogens of flowers and early fruit tissues [3] and also with antioxidant benefits for humans [4].
The physiology, metabolic pathways, and molecular networks for PAs and anthocyanins biosynthesis are well-understood in the model plant Arabidopsis thaliana (L.) Heynh [5] and is being understood in Rosaceae Juss. family’s species like F. × ananassa [6,7,8,9] and Malus × domestica Bork. [10] among others. Strawberry is a model for the study of the physiology, metabolism, and genetics of non-climacteric fruits [11,12]. Firstly, the phytohormone abscisic acid (ABA) is the major regulator of strawberry ripening promoting the anthocyanin accumulation [13]. Exogenous applications of other phytohormones like jasmonates (JAs) also increase the fruit-associated PAs and anthocyanin contents both in laboratory and field conditions [14,15,16,17]. Secondly, ripe strawberry fruits are rich in anthocyanins, which are synthesized from leucoanthocyanidins by the sequential activity of anthocyanidin synthase (ANS) and uridine diphosphate (UDP) glucose:flavonoid 3-O-glucosyl transferase (UFGT) enzymes [6,18]. Thirdly, these enzymes are under transcriptional control of the MBW-complex constituted by R2R3-MYB, basic helix-loop-helix (bHLH), and WD40 repeats transcription factors (TFs) [9,18]. In strawberry, two MBW complexes regulate differentially the expression of the genes encoding for the catalytic enzymes of PAs and anthocyanins biosynthesis [6,9,18]. On the one hand, the PA-related MBW complex is composed of TRANSPARENT TESTA GLABRA 1 (TTG1), MYB9/MYB11, and bHLH3, which have transcriptional control on LAR and ANR genes in F. × ananassa [6]. On the other hand, TTG1, MYB10, and EGL3 (bHLH33) control the transcription of ANS and UFGT genes [6,8], being MYB10 the main factor controlling the anthocyanin biosynthesis [7,19]. In turn, these MBW complexes in F. × ananassa are regulated by negative TFs like MYB1 and MYB5 [6]. Besides, additional TFs like YABBY1/FILAMENTOUS FLOWER (YAB1/FIL) regulate the expression of PRODUCTION OF ANTHOCYANIN PIGMENT 1 (PAP1/MYB75) involved in the anthocyanin biosynthesis in Arabidopsis [20]. Recent studies suggest that bHLH3 and bHLH33 could be forming the MBW either with complex with MYB10 and MYB9/MYB11, regulating anthocyanin and PA biosynthesis, respectively, being MYBs the TFs that give specificity to each metabolite biosynthesis regulation [9,15]. Moreover, PA and anthocyanin biosynthesis is regulated by endogenous signals, environmental stresses, and phytohormones [2]. The key functional role of JAs in the PA and anthocyanin accumulation has been demonstrated in A. thaliana [20,21,22] and has begun to be understood in Rosaceae-related species such as M. × domestica [10] and F. × ananassa [14,15].
Jasmonoyl-isoleucine (JA-Ile) is the bioactive JA in land higher plants [23] and mediates biotic and abiotic stress tolerance and fundamental development processes like secondary metabolism [24]. Previous studies have shown that JAs induce the accumulation of anthocyanins in leaf and fruit tissues of Arabidopsis [20,21,22] and strawberry [14,15], respectively. In this sense, the molecular JAs signaling pathway is involved in the JA-Ile sensing mechanism and the activation of JA responses [24,25]. The perception of JA-Ile is mediated by CORONATINE INSENSITIVE 1 (COI1) protein and JASMONATE ZIM-DOMAIN (JAZ) repressors, which interact when JA-Ile levels increase [23,26], and this mechanism is conserved in Fragaria vesca L. and F. × ananassa [27,28]. Then, JAZ proteins are degraded by the 26S proteasome, and MYC TFs are released to activate the expression of JA-responsive genes in Arabidopsis [29,30,31,32]. When JA-Ile levels are low, JAZ repressors interact with NOVEL INTERACTOR OF JAZ (NINJA) adaptor protein and MYC TFs to repress JA responses [31,33]. Additionally, JAZ repressors target JASMONATE ASSOCIATED MYC2-LIKE (JAM) transcription repressors, which compete with MYC transcription activators for negative regulation of the JA-transcriptional responses [34].
In detail, JAZ repressors are a subgroup of proteins within to TIFY family [29,35,36], which are present in whole land plants [37]. The number of JAZ proteins is different depending on the species [37]; for instance, the lower plant Marchantia polymorpha L. contains a single JAZ protein, while A. thaliana and F. vesca contain 13 and 12 members, respectively [37,38,39]. This is due to the fact that JAZ repressors have functional redundancy in higher plants, but specific JAZ-TF complexes allow to regulate only certain development events or abiotic and biotic constraints [40]. At the structural level, JAZ proteins are characterized by the presence of two well-conserved domains: TIFY involved in the interaction with NINJA adaptor protein and the formation of homo- and heteromeric JAZ-JAZ interactions [33,41] and the Jas domain allowing the interaction with a high number of MYC and JAM TFs through JAZ-interaction domain (JID) domain [31,41]. Moreover, protein–protein interactions of JAZ to regulate some processes such as the secondary metabolism are also mediated by the Jas domain, which interacts with the bHLH domain of TT8 and EGL3, the CT domain of PAP1/MYB75 in Arabidopsis [22,42]. In some cases, TIFY is the main domain involved in the interaction with the C domain of NINJA protein [33,41] or with YABBY1 (YAB1) [20], although the TF domain involved in this interaction has not yet been reported. Finally, in M. × domestica the repressor role of JAZs-bHLH3 regulating the PA and anthocyanin biosynthesis have been demonstrated [10].
According to previously mentioned, this research aimed to characterize the interaction of strawberry JAZ proteins (FaJAZ1, FaJAZ8.1, FaJAZ9, and FaJAZ10) with canonical JA-signaling components (FaNINJA, FaMYC2s, and FaJAMs), as well as MBW complex-related components (bHLHs and MYBs). Specially, we characterize for the first time a YABBY gene in strawberry (FaYAB1) at the sequence level and the protein–protein interactions with FaJAZs. We found functional conservation of FaJAZ proteins with JA signaling- and anthocyanin biosynthesis-related TFs and proteins.

2. Materials and Methods

2.1. Identification of Ortholog Sequences

Full-length proteins of A. thaliana were obtained from TAIR database (v10, https://www.arabidopsis.org/, last accessed date: 16 June 2020) and were used as queries to search the ortholog sequences not previously characterized for F. vesca, M. × domestica, Vitis vinifera L., and Solanum lycopersicum L. in RefSeq Protein database (https://www.ncbi.nlm.nih.gov/refseq/, last accessed date: 16 June 2020) by BLASTP search using default parameters. Output sequences with higher identity, query cover, and lower e-value were selected as orthologs in each species. The Genebank Accession numbers are listed in Table S1.

2.2. Isolation and Cloning of Encoding Sequences

Total RNA was extracted from 4 g of strawberry fruits using the cetyltrimethylammonium bromide (CTAB) method and further RNA purification by RNeasy Plus Mini Kit (Qiagen, Hilden, Germany) according to previously reported [14,39]. The cDNA synthesis was performed using the RevertAid H Minus First Strand cDNA Synthesis Kit (ThermoScientific, Waltham, MA, USA) from 1 µg of total RNA, according to the manufacturer’s instructions. Full-length coding sequences (CDS) of JA-signaling (NINJA, MYC2, MYC2-like, JAM1, JAM2, JAZ9) and YAB1 of F. vesca, and anthocyanin-related transcription factors (bHLH3, bHLH33, MYB10, MYB1, MYB5) of F. × ananassa were used for primer design containing attB1 and attB2 sites at 5’ and 3’ ends (Table S2), respectively, required for cloning by Gateway technology (Invitrogen, Carlsbad, CA, USA). Isolation of coding sequence was performed from cDNA by reverse transcription-PCR (RT-PCR) using Phusion Hot Start II high-fidelity DNA Polymerase (ThermoScientific, Waltham, MA, USA). The PCR conditions were as follows: 98 °C for 30 s; 35 cycles of 98 °C for 10s, 58 °C for 30 s and 72 °C for 30 s per kb; and 72 °C for 10 min. All PCR products were analyzed by 1% (w/v) agarose gel and purified using Zymoclean Gel DNA Recovery Kit’ (Zymo Research, Irvine, CA, USA).
JA-signaling anthocyanin-related transcription factors full-length coding sequences containing attB1 and attB2 sites were recombined into pDONR207-Gateway donor vector by BP Clonase II (Invitrogen, Carlsbad, CA, USA) at 25 °C for 12 h. Constructs were verified by sequencing. Protein sequences were submitted to GenBank, and accession numbers are available in Table S1. Transcription factors (MYC2, MYC2-like, JAM1, JAM2, bHLH3, bHLH33, MYB10, YAB1) and MBW-complex repressors (MYB1, MYB5) were recombined into pGADT7-AD (activation domain)-Gateway expression vector as prey, and JAZ repressors (JAZ1, JAZ8.1, JAZ9, and JAZ10) were recombined into pGBKT7-DBD (DNA binding domain)-Gateway expression as bait, by LR Clonase II (Invitrogen, Carlsbad, CA, USA) at 25 °C for 12 h. These constructs were used for protein interactions by yeast-two hybrid assays.

2.3. Sequence Analysis

Predicted protein sequences of F. × ananassa JA-signaling (FaNINJA, FaMYC2, FaMYC2-like, FaJAM1, FaJAM2, FaJAZ1, FaJAZ8.1, FaJAZ9, and FaJAZ10), anthocyanin-related transcription factors (FabHLH3, FabHLH33, FaMYB10, FaMYB1, and FaMYB5), and FaYAB1 along with their orthologs in F. vesca, M. × domestica, S. lycopersicum, V. vinifera, and A. thaliana were used for protein sequence analysis (Tables S3 and S4). Multiple alignments were performed using the Clustal Omega tool (European Bioinformatics Institute, University College Dublin, Dublin, Ireland) [43] and visualized by Jalview software (University of Dundee, Scotland, UK) [44] to identify functional domains in proteins. Unrooted phylogenetic trees were constructed by Molecular Evolutionary Genetics Analysis X (MEGA X) software (Pennsylvania State University, University Park, PA, USA) [45] using the Neighbor-Joining method (Jones–Taylor–Thornton substitution model) and bootstrap analysis of 1000 replicates, and visualized using Evolview v2 software (Beijing Genomics Institute, Beijing, China) [46]. The Genebank Accessions for protein sequences are shown in Table S1.

2.4. Yeast Two-Hybrid Assays

Yeast two-hybrid assays were carried out using GAL4 Gateway System (Clontech, Palo Alto, CA, USA). The pGADT7-(AD) and pGBKT7-(DBD) constructs containing TFs and JAZ repressors, respectively, were cotransformed into AH109 yeasts to evaluate molecular interactions. ADE2, HIS3, and lacZ were used as reporter genes. Yeast transformants were selected on the SD/-Leu/-Trp medium. The interactions were tested on the SD/-Leu/-Trp (-2), SD/-Leu/-Trp/-His (-3), and SD/-Leu/-Trp/-Ade/-His (-4). Plates were incubated at 30 °C for 3 days. Empty Gateway vectors pGADT7-(AD) and pGBKT7-(DBD) were used as negative controls. To evaluate the activation of the lacZ reporter gene, cotransformed yeasts from the SD/-Leu/-Trp medium were transferred on a nylon filter. A Whatman filter paper was moistened with buffer Z (60 mM Na2HPO4, 40 mM NaH2PO4, 10 mM KCl, 1 mM MgSO4, pH 7.0), β-mercaptoethanol, and X-gal (20 mg/mL). Plates were incubated at 30 °C under dark conditions for 24 h.

3. Results and Discussion

Fleshy fruits of strawberry are rich in anthocyanins, which gives high nutritional value and antioxidant capacity to human health [1,4]. Although many aspects of the metabolism and biochemical pathways of the anthocyanin biosynthesis are well known during the development of strawberry fruits, the knowledge about the role of some molecular pathways regulating its biosynthesis is still scarce. Some phytohormones are responsible for their biosynthesis and accumulation, such as ABA [13]. However, recently, the existence of possible regulatory mechanisms of the JA-signaling pathway through the interaction of JAZ repressors with TFs related to anthocyanin biosynthesis and accumulation in M. × domestica [10] and A. thaliana [19,21] have been demonstrated. In strawberry, anthocyanin accumulation is promoted by exogenous MeJA and a putative role of its JA-signaling pathway [14,15] have been proposed. In this work, we report that the JA-signaling pathway, through ortholog sequences for JAZ1, JAZ8.1, JAZ9, and JAZ10 repressors in F. × ananassa (Figure S1a), targets anthocyanin biosynthesis-related TFs suggesting that JAZs might be another regulator for anthocyanin accumulation in strawberry fruit.

3.1. The JA-Signaling Pathway is Structurally and Functionally Conserved in Fragaria × ananassa

The activation of JA-signal transduction triggers the regulation of developmental processes and responses to multiple stresses [23,39,40]. Essentially, the JA-signaling pathway regulates other molecular pathways by protein–protein interactions mediated by JAZ repressors and MYC TFs, and it is well described in Arabidopsis [29,30,31,32] and starting to be known in strawberry [15,27,28,39]. On the one hand, F. vesca and F. × ananassa contain a conserved perception mechanism at the structural and functional levels [27,28]. However, on the other hand, components for downstream JA-signaling pathway like MYC or JAM TFs have only been characterized at the transcriptional level in F. × ananassa [39].
Noteworthy, most JAZ proteins are transcriptional repressors and are characterized by the presence of TIFY and Jas domains [29,35,36,41]. Although, some JAZ sequences like JAZ7 and JAZ8 contain a variant degron sequence avoiding the recognition by COI1 coreceptor and the continuous repression of MYC TFs for a fine-tuning of JA responses in Arabidopsis [47]. In F. vesca 12 JAZ proteins have been identified [27,37,39], and JAZ1, JAZ8.1, and JAZ10 orthologs were also recently characterized in F. × ananassa, showing high conservation in their structural and functional domains [28]. In this work, we isolated and characterized JAZ9 of F. × ananassa, which showed highly conserved TIFY and Jas domains (Figure S2a,b), similarly to F. vesca and A. thaliana orthologs [39], indicating that JAZ proteins maintain functional domains and possibly repression functions by protein–protein interactions with TFs in F. × ananassa.
Regarding other JA-signaling components, we detected high conservation for interaction domains of NINJA, MYC2, MYC2-like, JAM1, and JAM2 proteins in F. × ananassa (Figures S3–S5), similar to that reported for F. vesca [39], A. thaliana [33], and Gossypium hirsutum [48] among others. On one side, the NINJA adaptor is a corepressor of the JA-signaling pathway [33]. We isolated the F. × ananassa NINJA protein, which is the A. thaliana orthologous sequence (Figure S1b) and exhibited high conservation of amino acid residues in EAR and C domains (Figure S3a,b) for corepressor interaction of JA-signaling pathway with TOPLESS (TPL) and JAZ proteins, respectively [33]. According to this, F. × ananassa NINJA interacted with FaJAZ1, FaJAZ9, and FaJAZ10 (Figure 1), similar to that reported in Arabidopsis [33]. In contrast, FaJAZ8.1 did not display interaction with FaNINJA (Figure 1) according to previous reports in Arabidopsis orthologs through Y2H assays [33]. On the other side, MYC TFs displayed the highest conservation level for the bHLH domain (Figure S4c), which is involved in the binding to G-box regions of the DNA [31,49], and it is according with their roles as master regulators in the promotion of JA responses and anthocyanin accumulation in Arabidopsis leaves [31]. In F. vesca, MYC2 and MYC2-like were reported by Garrido-Bigotes et al. [39] and correspond to FvbHLH80 and FvbHLH96 [50], respectively. In the case of the JID domain, which is involved in the interaction with Jas domain of JAZ repressors [31] a lower amino acid residue conservation was detected because this domain is lacking in V. vinifera MYC2-like ortholog sequence (Figure S4a). An evident interaction was detected between all FaJAZs and FaMYC2/FaMYC2-like (Figure 1), similar to that reported for MYC2 ortholog in Arabidopsis [31]. Finally, JAM1/bHLH017, JAM2/bHLH013, and JAM3/bHLH003 are negative regulators of JA-associated responses in Arabidopsis and have been reported as inhibitors for anthocyanin accumulation [34,51]. In strawberry, these proteins contained JID and bHLH domains, like MYC TFs [31], but lack the conserved transactivation domain (TAD) (Figures S5 and S6) compared to MYC TFs [31]. Protein–protein interactions were observed between FaJAM1, FaJAM2, and all FaJAZ proteins (Figure 1), similar to previously reported in A. thaliana. It is important to highlight that the cotransformation with the controls constituted by pGADT7-(AD)-TFs and pGBKT7-(DBD) empty vector did not exhibit the activation of ADE2 or HIS3 reporter genes (Figure S7). Globally, the structural conservation of key domains in FaNINJA, FaMYC2, FaMYC2-like, FaJAM1, and FaJAM2 (Figures S3–S5) as well as in FaJAZ1, FaJAZ8.1, FaJAZ9, and FaJAZ10 (Figure S2), together with the interaction observed by Y2H assays indicate that the repressor capacity of JAZ proteins would be conserved in F. × ananassa.

3.2. bHLH and MYB Transcription Factors Interact with of JAZ Repressors in Fragaria × ananassa

The biosynthesis of anthocyanins is controlled by the MBW transcriptional complex in higher plants, including A. thaliana, M. × domestica, and F. × ananassa [5,6,7,8,9,10,42] between others. This complex is constituted by R2R3-MYB, bHLH, and WD40 TFs [5], and in F. × ananassa have been characterized two major complexes formed by different TFs and regulating differentially the PAs and anthocyanin biosynthesis [6] being MYB10 component, the key TF for anthocyanin accumulation in strawberry [7]. Besides, recent findings suggest that some TFs associated with PA biosynthesis like bHLH3 may be involved in the anthocyanin biosynthesis [8,15]. Besides, the two MYB1 and MYB5 TFs act as repressors for the positive action of the MBW complex in the anthocyanin accumulation [6]. Noteworthy, F. × ananassa bHLH3, bHLH33, and MYB10 TFs have their orthologs TT8, EGL3, and PAP1/MYB75, respectively [5], which are molecular targets of JAZ proteins in A. thaliana [22].
In the present research, we isolated bHLH3, bHLH33, and MYB10 in F. × ananassa which showed high conservation of bHLH and CT domains (Figure S8a–c), and identity close to 100% (Table S4) according to previously characterized TFs in cultivated strawberry [6]. An important difference between our results compared to Schaart et al. [6], was the isolation of a larger sequence of FabHLH33 (Figure S9), although the key bHLH domain is completely conserved (Figure S8b). Early studies suggest that bHLH3/MYB10 and bHLH33/MYB10 regulate the transcriptional activation of LAR/ANR and ANS/UFGT genes in F. × ananassa [6,8]. However, previous studies suggest that FaMYB10 in association with FabHLH3 could regulate the activation of ANS/UFGT transcription for anthocyanin biosynthesis [15]. In the present research, FabHLH3 showed interaction with FaJAZ8.1, FaJAZ9, and FaJAZ10 (Figure 2), and this TF is regulated by the same JAZ repressors and JAZ1 orthologs in Arabidopsis [22]. Otherwise, the interaction of JAZ2, JAZ3, and JAZ8 proteins with bHLH3 ortholog in M. × domestica was also reported [10]. Surprisingly, FabHLH33 only showed interaction with FaJAZ1 (Figure 2), while A. thaliana ortholog shows a clear interaction with JAZ8.1, JAZ9, and JAZ10 [22]. Possibly, the additional N-ter sequence presented in the FabHLH33 sequence isolated in this research (Figure S8) could interfere in the interaction with FaJAZ8.1, FaJAZ9, and FaJAZ10. In the case of FaMYB10, the interaction with FaJAZ1, FaJAZ8.1, and FaJAZ9 were observed (Figure 2), similar to that reported for its ortholog proteins in A. thaliana [22]. Finally, FaMYB1 and FaMYB5 (Figures S10 and S11) are R2R3 MYB TFs involved in the decrease of anthocyanin accumulation in strawberry fruits [52,53]. These negative TFs did not exhibit interaction with any JAZ protein in F. × ananassa (Figure 2), in contrast to that observed for some A. thaliana R2R3 related TFs like MYB21 and MYB24 that interact with JAZ1, JAZ8, and JAZ11 [54]. However, it is noteworthy, that Arabidopsis orthologs MYB6 (Figure S10e) and MYB5 (Figure S11d) are phylogenetically distant from MYB21, MYB24, and MYB10 transcription factors [55]. Moreover, the absence of interaction of FaMYB1 and FaMYB5 with JAZ repressors (Figure 2) may be because these proteins lack the CT interaction domain (Figures S10 and S11), which is also observed for MYB10, MYB21, and MYB24 [54]. Overall, JAZ proteins show specific and redundant roles [40] for interaction with MBW complex regulation, although other protein–protein interactions mediated by the other FaJAZ repressors described previously [39] should be evaluated.

3.3. The Transcription Factor YAB1 Interacts with JAZ Repressors in Fragaria × ananassa

Some TF-associated gene families have specific roles in development processes or stresses, but the major TFs show additional functions. For instance, the YABBY gene family is constituted by six TFs regulating the development of leaves and flowers [56,57]. However, some studies reported that the YAB1/FIL gene is related to anthocyanin biosynthesis through the control of the upregulation of the PAP1/MYB75 gene, while JAs through JAZ proteins are regulators of YAB1 in Arabidopsis [20]. Thus, YAB1 is an additional regulator of anthocyanin accumulation profile in Arabidopsis [20], and its presence and conservation in strawberry should be of great value for understanding more in-depth the regulation of anthocyanin biosynthesis.
As the YABBY gene family in strawberry is still unknown, we characterized and isolated YAB1 (Figure 3), which is the ortholog of YAB1/FIL in A. thaliana (Figure S1c) [20], YAB3 in V. vinifera [58], YAB1a and YAB1b in S. lycopersicum [59]. This protein family contains C2C2-zinc finger and YABBY domains [57], which displayed high conservation in F. × ananassa (Figure 3a,b), as well as orthologs of other fruits species like M. × domestica, V. vinifera, and S. lycopersicum. In detail, the conservation of amino acid residues is near to 100% with their ortholog sequences (Table S4), in both C2C2 (Figure 3a) and YABBY (Figure 3b) domains, similar to reported for its orthologs in other fruits like V. vinifera [58] and S. lycopersicum [59]. Moreover, FaYAB1 was clustered near to F. vesca YAB1s and M. × domestica YAB1a-like (Figure 3c), according to expected for plants of Rosaceae family [60]. These results indicate the structural conservation of YAB1 proteins in F. × ananassa.
The interaction YABs-JAZs was reported in Arabidopsis between JAZ1, JAZ3, JAZ4, JAZ9 repressors, and YAB1, however, only JAZ3 shows a strong interaction [20]. We detected a weak interaction of FaJAZ1-FaYAB1 (Figure 4) similar to previously reported [20], but a stronger interaction was observed with FaJAZ9 (Figure 4). It is important to highlight that the AtJAZ3 ortholog is not present in F. × ananassa, however, FaJAZ9 is the closest ortholog [39], therefore might be supplying the repressor activity of AtJAZ3 in F. × ananassa. Globally, these interactions suggest that F. × ananassa YAB1 ortholog could be regulated by JAZ9 protein.

4. Conclusions

In summary, interactions of JAZ proteins with components of the JA-signaling pathway and TFs related to anthocyanin biosynthesis were presented. F. × ananassa JAZ repressors are conserved at the structural level, including JAZ1, JAZ8.1, JAZ9, and JAZ10. Additionally, these proteins interact with TFs like MYC2, MYC2-like, JAM1, and JAM2, together with the NINJA adaptor protein in the same manner to that observed for A. thaliana orthologs, indicating that the function of the JA-signaling pathway would be conserved in F. × ananassa. JAZ proteins target TFs involved in the anthocyanin biosynthesis and showed functional redundancy, indicating anthocyanin biosynthesis could be fine-tuning by the JA-signaling pathway. Otherwise, MYB1 and MYB5 do not interact with JAZ1, JAZ8.1, JAZ9, or JAZ10, showing that JAZ repressors would not regulate these negative regulators of the anthocyanin accumulation. Finally, YAB1 protein was characterized for the first time in strawberry, which is a molecular target of FaJAZ9, suggesting that the anthocyanin biosynthesis could also be regulated by interactions between JAZs and YAB1 in F. × ananassa. Furthermore, these results provide additional information about JAZ-molecular targets related to anthocyanin biosynthesis in strawberry fruits. However, further studies will be necessary to know the putative in vivo regulation of the anthocyanin accumulation by JAZ repressors during the ripening of strawberry fruit.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4395/10/10/1586/s1; Table S1. GenBank accessions of protein sequences used in this research. bHLH, basic helix-loop-helix; EGL3; ENHANCER OF GLABRA 3; JAZ, JASMONATE ZIM-DOMAIN; NINJA, NOVEL INTERACTOR OF JAZ; JAM, JASMONATE ASSOCIATED MYC2-LIKE; PAP1, PRODUCTION OF ANTHOCYANIN PIGMENT 1; TT8, TRANSPARENT TESTA 8; Fa, Fragaria × ananassa; Fv, Fragaria vesca; At, Arabidopsis thaliana; Md, Malus × domestica; Vv, Vitis vinifera; Sl, Solanum lycopersicum. Table S2. Primer sequences used for isolation and cloning of full-length coding sequences of Fragaria × ananassa used in this research. Orange and blue colors indicate attB1 and attB2 sites, respectively, and black letters indicate specific regions for hybridization with coding sequence. attB1/attB2, sites for BP recombination into the pDONR207-Gateway vector. CDS, coding sequence; bHLH, basic helix-loop-helix; Fa, F. × ananassa; JAM, JASMONATE ASSOCIATED MYC2-LIKE; JAZ, JASMONATE ZIM-DOMAIN; NINJA, NOVEL INTERACTOR OF JAZ. Table S3. Identity (%) between JASMONATE ZIM-DOMAIN (JAZs), NOVEL INTERACTOR OF JAZ (NINJA), MYC2s, and JASMONATE ASSOCIATED MYC2-LIKE (JAMs) protein sequences of Fragaria × ananassa with their orthologs in Fragaria vesca, Arabidopsis thaliana, Malus × domestica, Vitis vinifera, and Solanum lycopersicum. Fa, F. × ananassa; Fv, F. vesca; At, A. thaliana; Md, M. × domestica; Vv, V. vinifera; Sl, S. lycopersicum. Table S4. Identity (%) between basic helix-loop-helix 3 (bHLH3), bHLH33, MYB10, MYB1, MYB5, and YABBY1 (YAB1) protein sequences of Fragaria × ananassa with their orthologs in Fragaria vesca, Arabidopsis thaliana, Malus × domestica, Vitis vinifera, and Solanum lycopersicum. EGL3; ENHANCER OF GLABRA 3; Fa, F. × ananassa; Fv, F. vesca; At, A. thaliana; Md, M. × domestica; Vv, V. vinifera; Sl, S. lycopersicum. Figure S1. Phylogenetic analyses for JASMONATE ZIM-DOMAIN (JAZ), NOVEL INTERACTOR OF JAZ (NINJA), and YABBY (YAB) proteins of Fragaria × ananassa with their orthologous proteins of Arabidopsis thaliana. (a) Unrooted phylogenetic tree for FaJAZs, (b) FaNINJA, and (c) FaYAB1. Full-length protein sequences were used for the construction of the unrooted phylogenetic tree. FaJAZ, FaNINJA, and FaYAB1 proteins are indicated by a black star. ‘I’, ‘II’, and ‘III’ indicate the group number. Nodes with bootstrap values > 70% are labelled. AtJAZ1, A. thaliana JAZ1; AtJAZ2, A. thaliana JAZ2; AtJAZ3, A. thaliana JAZ3; AtJAZ4, A. thaliana JAZ4; AtJAZ5, A. thaliana JAZ5; AtJAZ6, A. thaliana JAZ6; AtJAZ7, A. thaliana JAZ7; AtJAZ8, A. thaliana JAZ8; AtJAZ9, A. thaliana JAZ9; AtJAZ10, A. thaliana JAZ10; AtJAZ11, A. thaliana JAZ11; AtJAZ12, A. thaliana JAZ12; AtJAZ13, A. thaliana JAZ13; FaJAZ1, F. × ananassa JAZ1; FaJAZ8.1, F. × ananassa JAZ8.1; FaJAZ9, F. × ananassa JAZ9; FaJAZ10 F. × ananassa JAZ10; AtAFP1; A. thaliana ABI-Five binding Protein 1; AtAFP2; A. thaliana ABI-Five binding Protein 2; AtAFP3; A. thaliana ABI-Five binding Protein 3; AtAFP4; A. thaliana ABI-Five binding Protein 4; AtNINJA, A. thaliana NINJA; FaNINJA, F. × ananassa NINJA; AtCRC, A. thaliana CRC; AtINO, A. thaliana INO; AtYAB1, A. thaliana YAB1; AtYAB2, A. thaliana YAB2; AtYAB3, A. thaliana YAB3; AtYAB5, A. thaliana YAB5; FaYAB1, F. × ananassa YAB1. Figure S2. Characterization of Fragaria × ananassa JASMONATE ZIM-DOMAIN 1 (FaJAZ1), FaJAZ8.1, FaJAZ9, and FaJAZ10 proteins and the comparison with their orthologs. (a) Multiple alignment of TIFY domain, (b) Jas domain, and (c) phylogenetic analysis for FaJAZ proteins and their orthologs in Fragaria vesca, Arabidopsis thaliana, Malus × domestica, Vitis vinifera, and Solanum lycopersicum. Orange and yellow colors in the multiple alignment indicate higher and lower conservation of amino acidic residues, respectively. The unrooted phylogenetic tree was performed using full-length JAZ protein sequences. FaJAZ proteins are indicated by a black star. ‘I’, ‘II’, and ‘III’ indicate the group number. Nodes with bootstrap values > 70% are labelled. NLS, Nuclear Location Signal. FaJAZ1, F. × ananassa JAZ1; FaJAZ8.1, F. × ananassa JAZ8.1; FaJAZ9, F. × ananassa JAZ9; FaJAZ10 F. × ananassa JAZ10; FvJAZ1, F. vesca JAZ1; FvJAZ8.1, F. vesca JAZ8.1; FvJAZ9, F. vesca JAZ9; FvJAZ10, F. vesca JAZ10; AtJAZ1, A. thaliana JAZ1; AtJAZ8, A. thaliana JAZ8; AtAZ9, A. thaliana JAZ9; AtAZ10, A. thaliana JAZ10; MdJAZ1, M. × domestica JAZ1; MdJAZ3, M. × domestica JAZ3; MdJAZ4, M. × domestica JAZ4; MdJAZ13, M. × domestica JAZ13; MdJAZ14, M. × domestica JAZ14; MdJAZ17, M. × domestica JAZ17; VvJAZ2, V. vinifera JAZ2; VvJAZ3, V. vinifera JAZ3; VvJAZ9, V. vinifera JAZ9; VvJAZ11, V. vinifera JAZ11; SlJAZ1, S. lycopersicum JAZ1; SlJAZ5, S. lycopersicum JAZ5; SlJAZ10, S. lycopersicum JAZ10; SlJAZ11, S. lycopersicum JAZ11. The list of GenBank accessions is available in Table S1. Figure S3. Characterization of Fragaria × ananassa NOVEL INTERACTOR OF JAZ (FaNINJA) protein and the comparison with their orthologs. (a) Multiple alignment of ethylene-responsive element binding factor-associated amphiphilic repression (EAR) domain, (b) C domain, and (c) phylogenetic analysis for FaNINJA protein and their orthologs in Fragaria vesca, Arabidopsis thaliana, Malus × domestica, Vitis vinifera, and Solanum lycopersicum. Orange and yellow colors in the multiple alignment indicate higher and lower conservation of amino acid residues, respectively. The unrooted phylogenetic tree was performed using full-length NINJA protein sequences. FaNINJA protein is indicated by a black star. ‘I’ and ‘II’ indicate the grouping number. Nodes with bootstrap values > 70% are labelled. FaNINJA, F. × ananassa NINJA; FvNINJA, F. vesca NINJA; AtNINJA, A. thaliana NINJA; MdNINJA, M. × domestica NINJA; VvNINJA, V. vinifera NINJA; SlNINJA, S. lycopersicum NINJA. The list of GenBank accessions is available in Table S1. Figure S4. Characterization of Fragaria × ananassa MYC2 (FaMYC2) and FaMYC2-like proteins and the comparison with their orthologs. (a) Multiple alignment of JAZ-interaction domain (JID domain), (b) transactivation domain (TAD domain), (c) basic helix-loop-helix (bHLH) domain, and (d) phylogenetic analysis for FaMYC2 and FaMYC2-like proteins and their orthologs in Fragaria vesca, Arabidopsis thaliana, Malus × domestica, Vitis vinifera, and Solanum lycopersicum. Orange and yellow colors in the multiple alignment indicate higher and lower conservation of amino acidic residues, respectively. The unrooted phylogenetic tree was performed using full-length MYC2, MYC2-like, MYC3, MYC4, and MYC5 protein sequences. FaMYC2 and FaMYC2-like proteins are indicated by a black star. ‘I’ and ‘II’ indicate the group number. Nodes with bootstrap values > 70% are labelled. JAZ, JASMONATE ZIM-DOMAIN. FaMYC2, F. × ananassa MYC2; FaMYC2-like, F. × ananassa MYC2-like; FvMYC2, F. vesca MYC2; FvMYC2-like, F. vesca MYC2-like; AtMYC2, A. thaliana MYC2; AtMYC3, A. thaliana MYC3; AtMYC4, A. thaliana MYC4; AtMYC5, A. thaliana MYC5; MdMYC2a, M. × domestica MYC2a; MdMYC2b, M. × domestica MYC2b; MdMYC2-like1, M. × domestica MYC2-like1; MdMYC2-like2, M. × domestica MYC2-like2; MdMYC2-like3, M. × domestica MYC2-like3; VvMYC2, V. vinifera MYC2; VvMYC2-like, V. vinifera MYC2-like; SlMYC2, S. lycopersicum MYC2. The list of GenBank accessions is available in Table S1. Figure S5. Characterization of Fragaria × ananassa JASMONATE-ASSOCIATED MYC2-LIKE1 (FaJAM1) and FaJAM2 transcription repressors and the comparison with their orthologs. (a) Multiple alignment of JAZ-interaction domain (JID domain), (b) basic helix-loop-helix (bHLH domain), and (c) phylogenetic analysis for FaJAM1 and FaJAM2 proteins and their orthologs in Fragaria vesca, Arabidopsis thaliana, Malus × domestica, Vitis vinifera, and Solanum lycopersicum. Orange and yellow colors in the multiple alignment indicate higher and lower conservation of amino acid residues, respectively. Black squares in (a) indicate residues involved in the interaction with JAZ proteins according to Goossens et al. 2015 (New Phytologist 206, 1229). The unrooted phylogenetic tree was performed using full-length JAM protein sequences. FaJAM1 and FaJAM2 proteins are indicated by a black star. ‘I’ and ‘II’ indicate the group number. Nodes with bootstrap values > 70% are labelled. JAZ, JASMONATE ZIM-DOMAIN. FaJAM1/bHLH013, F. × ananassa JAM1/bHLH013; FaJAM2/bHLH003, F. × ananassa JAM2/bHLH003; FvJAM1/bHLH013, F. vesca JAM1/bHLH013; FvJAM2/bHLH003; F. vesca JAM2/bHLH003; AtJAM1/bHLH017, A. thaliana JAM1/bHLH017; AtJAM2/bHLH013; A. thaliana JAM2/bHLH013; AtJAM3/bHLH003; A. thaliana JAM2/bHLH003; MdbHLH003-like1, M. × domestica bHLH003-like1; MdbHLH003-like2, M. × domestica bHLH003-like2; MdbHLH013, M. × domestica bHLH013; MdbHLH013-like, M. × domestica bHLH013-like; VvbHLH003, V. vinifera bHLH003; SlbHLH003, S. lycopersicum bHLH003; SlbHLH003-like, S. lycopersicum bHLH003-like; SlbHLH013-like, S. lycopersicum bHLH013-like. The list of GenBank accessions is available in Table S1. Figure S6. Protein region of Fragaria × ananassa JASMONATE-ASSOCIATED MYC2-LIKE1 (FaJAM1) and FaJAM2 corresponding to transactivation domain (TAD domain) contained in MYC activators. FaJAM1/bHLH013, F. × ananassa JAM1/bHLH013; FaJAM2/bHLH003, F. × ananassa JAM2/bHLH003; FvJAM1/bHLH013, F. vesca JAM1/bHLH013; FvJAM2/bHLH003; F. vesca JAM2/bHLH003; AtJAM1/bHLH017, A. thaliana JAM1/bHLH017; AtJAM2/bHLH013; A. thaliana JAM2/bHLH013; AtJAM3/bHLH003; A. thaliana JAM2/bHLH003; MdbHLH003-like1, M. × domestica bHLH003-like1; MdbHLH003-like2, M. × domestica bHLH003-like2; MdbHLH013, M. × domestica bHLH013; MdbHLH013-like, M. × domestica bHLH013-like; VvbHLH003, V. vinifera bHLH003; SlbHLH003, S. lycopersicum bHLH003; SlbHLH003-like, S. lycopersicum bHLH003-like; SlbHLH013-like S. lycopersicum bHLH013-like. List of GenBank accessions is available in Table S1. Figure S7. Interaction controls of yeast-two hybrid (Y2H) assays. (a) Interaction control of Fragaria × ananassa JASMONATE ZIM-DOMAIN 1 (FaJAZ1), FaJAZ8.1, FaJAZ9, and FaJAZ10 cloned into pGBKT7-(DBD)-Gateway vector and pGADT7-(AD) empty Gateway vector. (b) F. × ananassa NOVEL INTERACTOR OF JAZ (FaNINJA), FaMYC2, FaMYC2-like, JASMONATE ASSOCIATED MYC2-LIKE 1 (FaJAM1), and FaJAM2 cloned into pGADT7-(AD)-Gateway vector and pGBKT7-(DBD) empty Gateway vector. (c) F. × ananassa basic helix-loop-helix 3 (FabHLH3), FabHLH33, FaMYB10, FaMYB1, FaMYB5, and F. × ananassa YABBY1 (FaYAB1) cloned into pGADT7-(AD)-Gateway vector and pGBKT7-(DBD) empty Gateway vector. FaJAZ1, F. × ananassa JAZ1; FaJAZ8.1, F. × ananassa JAZ8.1; FaJAZ9, F. × ananassa JAZ9; FaJAZ10, F. × ananassa JAZ10; FaNINJA, F. × ananassa NINJA; FaMYC2, F. × ananassa MYC2; FaMYC2-like, F. × ananassa MYC2-like; FaJAM1, F. × ananassa JAM1; FaJAM2, F. × ananassa JAM2; FabHLH3, F. × ananassa bHLH3; FabHLH33, F. × ananassa bHLH33; FaMYB10 F. × ananassa MYB10; FaMYB1 F. × ananassa MYB1; FaMYB5, F. × ananassa MYB5; FaTTG1, F. × ananassa TTG1; FaYAB1, F. × ananassa YABBY1. Figure S8. Characterization of Fragaria × ananassa basic helix-loop-helix 3 (FabHLH3), FabHLH33, and FaMYB10 proteins and the comparison with their orthologs. (a,b) Multiple alignment of bHLH domain, (c) CT domain, and (d–f) phylogenetic analysis for FabHLH3, FabHLH33, and FaMYB10 proteins, respectively, and their orthologs in Fragaria vesca, Arabidopsis thaliana, Malus × domestica, Vitis vinifera, and Solanum lycopersicum. Orange and yellow colors in the multiple alignment indicate higher and lower conservation of amino acidic residues, respectively. The unrooted phylogenetic tree was performed using full-length bHLH3, bHLH33, and MYB10 orthologs sequences. FabHLH3, FabHLH33, and FaMYB10 proteins are indicated by a black star. ‘I’ and ‘II’ indicate the group number. Nodes with bootstrap values > 70% are labelled. EGL3, ENHANCER OF GLABRA 3; PAP1, PRODUCTION OF ANTHOCYANIN PIGMENT 1; TT8, TRANSPARENT TESTA 8. FabHLH3, F. × ananassa bHLH3; FvbHLH3, F. vesca bHLH3; AtTT8, A. thaliana TT8; MdbHLH3, M. × domestica bHLH3; VvbHLH3, V. vinifera bHLH3; SlbHLH3, S. lycopersicum bHLH3; FabHLH33, F. × ananassa bHLH33; FvbHLH33, F. vesca bHLH33; AtEGL3, A. thaliana EGL3; MdbHLH33, M. × domestica, bHLH33; VvbHLH33, V. vinifera bHLH33; SlbHLH33, S. lycopersicum bHLH33; FaMYB10, F. × ananassa MYB10; FvMYB10, F. vesca MYB10; AtPAP1/MYB75, A. thaliana PAP1/MYB75; MdMYB10, M. × domestica MYB10; VvMYB10, V. vinifera MYB10; SlMYB10, S. lycopersicum MYB10. The list of GenBank accessions is available in Table S2. Figure S9. Pairwise alignment between two Fragaria × ananassa basic helix-loop-helix 33 (FabHLH33) transcription factors. The asterisk indicates FabHLH33 previously reported by Schaart et al. (2013). The list of GenBank accessions is available in Table S2. Figure S10. Characterization of Fragaria × ananassa MYB1 (FaMYB1) protein and the comparison with their orthologs. (a,b) Multiple alignment of R2 and R3 domains, (c,d) C1 and ethylene-responsive element binding factor-associated amphiphilic repression (EAR) motifs, and (e) phylogenetic analysis for FaMYB1 protein and their orthologs in Fragaria vesca, Arabidopsis thaliana, Malus × domestica, Vitis vinifera, and Solanum lycopersicum. Orange and yellow colors in the multiple alignment indicate higher and lower conservation of amino acidic residues, respectively. The unrooted phylogenetic tree was performed using full-length MYB1 ortholog sequences. FaMYB1 protein is indicated by a black star. ‘I’, ‘II’, and ‘III’ indicate the group number. Nodes with bootstrap values > 70% are labelled. FaMYB1, F. × ananassa MYB1; FvMYB3-like, F. vesca MYB3-like; AtMYB6, A. thaliana MYB6; MdMYB6, M. × domestica MYB6; VvMYB4a, V. vinifera MYB4a; SlMYB1-like, S. lycopersicum MYB1-like. The list of GenBank accessions is available in Table S2. Figure S11. Characterization of Fragaria × ananassa MYB5 (FaMYB5) protein and the comparison with their orthologs. (a,b) Multiple alignment of R2R3 domains and C1 motif, (c) C3 motif, and (d) phylogenetic analysis for FaMYB5 protein and their orthologs in Fragaria vesca, Arabidopsis thaliana, Malus × domestica, Vitis vinifera, and Solanum lycopersicum. Orange and yellow colors in the multiple alignment indicate higher and lower conservation of amino acidic residues, respectively. The unrooted phylogenetic tree was performed using full-length MYB5 ortholog sequences. FaMYB5 protein is indicated by a black star. ‘I’ and ‘II’ indicate the group number. Nodes with bootstrap values > 70% are labelled. FaMYB5, F. × ananassa MYB5; FvMYB5, F. vesca MYB5; AtMYB5, A. thaliana MYB5; MdMYB5, M. × domestica MYB5; MdMYB5-like, M. × domestica MYB5-like; VvMYBC1S, V. vinifera MYBC1S; VvMYB5b, V. vinifera MYB5b; SlMYB5-like, S. lycopersicum MYB5-like. The list of GenBank accessions is available in Table S2.

Author Contributions

Conceptualization: C.R.F. Methodology: A.G.-B., M.T., R.S., and C.R.F. Validation: A.G.-B., M.T., R.S., and C.R.F. Formal analysis: A.G.-B., M.T., R.S., and C.R.F. Investigation: A.G.-B., M.T., R.S., and C.R.F. Resources: A.G.-B., M.T., R.S., and C.R.F. Data curation: A.G.-B. Writing—original draft preparation: A.G.-B. and C.R.F. Writing—review and editing: A.G.-B., M.T., R.S., and C.R.F. Visualization: A.G.-B. and C.R.F. Supervision: C.R.F. Project administration: C.R.F. Funding acquisition: C.R.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Research and Development Agency (ANID, Chile) grant FONDECYT/Regular 1181310 to C.R.F. Work in R.S.’s laboratory was funded by the Spanish Ministry of Science, Innovation and Universities grant BIO2019-107012RB (MICINN/FEDER).

Acknowledgments

A.G.-B. and M.T. acknowledge ANID, grants FONDECYT/Postdoctorado 3190894, and FONDECYT/Regular 1180926, respectively.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Giampieri, F.; Alvarez-Suarez, J.M.; Mazzoni, L.; Forbes-Hernandez, T.Y.; Gasparrini, M.; Gonzàlez-Paramàs, A.M.; Santos-Buelga, C.; Quiles, J.L.; Bompadre, S.; Mezzetti, B.; et al. An anthocyanin-rich strawberry extract protects against oxidative stress damage and improves mitochondrial functionality in human dermal fibroblasts exposed to an oxidizing agent. Food Funct. 2014, 5, 1939–1948. [Google Scholar] [CrossRef] [PubMed]
  2. Carbone, F.; Preuss, A.; De Vos, R.C.H.; D’Amico, E.; Perrotta, G.; Bovy, A.G.; Martens, S.; Rosati, C. Developmental, genetic and environmental factors affect the expression of flavonoid genes, enzymes and metabolites in strawberry fruits. Plant Cell Environ. 2009, 32, 1117–1131. [Google Scholar] [CrossRef] [PubMed]
  3. Hébert, C.; Charles, M.T.; Gauthier, L.; Willemot, C.; Khanizadeh, S.; Cousineau, J. Strawberry proanthocyanidins: Biochemical markers for botrytis cinerea resistance and shelf-life predictability. Acta Hortic. 2002, 659–662. [Google Scholar] [CrossRef]
  4. Cerezo, A.B.; Cuevas, E.; Winterhalter, P.; Garcia-Parrilla, M.C.; Troncoso, A.M. Isolation, identification, and antioxidant activity of anthocyanin compounds in Camarosa strawberry. Food Chem. 2010, 123, 574–582. [Google Scholar] [CrossRef]
  5. Xu, W.; Dubos, C.; Lepiniec, L. Transcriptional control of flavonoid biosynthesis by MYB–bHLH–WDR complexes. Trends Plant Sci. 2015, 20, 176–185. [Google Scholar] [CrossRef]
  6. Schaart, J.G.; Dubos, C.; Romero De La Fuente, I.; van Houwelingen, A.M.M.L.; de Vos, R.C.H.; Jonker, H.H.; Xu, W.; Routaboul, J.-M.; Lepiniec, L.; Bovy, A.G. Identification and characterization of MYB-bHLH-WD40 regulatory complexes controlling proanthocyanidin biosynthesis in strawberry (Fragaria × ananassa) fruits. New Phytol. 2013, 197, 454–467. [Google Scholar] [CrossRef]
  7. Medina-Puche, L.; Cumplido-Laso, G.; Amil-Ruiz, F.; Hoffmann, T.; Ring, L.; Rodríguez-Franco, A.; Caballero, J.L.; Schwab, W.; Muñoz-Blanco, J.; Blanco-Portales, R. MYB10 plays a major role in the regulation of flavonoid/phenylpropanoid metabolism during ripening of Fragaria × ananassa fruits. J. Exp. Bot. 2014, 65, 401–417. [Google Scholar] [CrossRef] [Green Version]
  8. Lin-Wang, K.; Bolitho, K.; Grafton, K.; Kortstee, A.; Karunairetnam, S.; McGhie, T.K.; Espley, R.V.; Hellens, R.P.; Allan, A.C. An R2R3 MYB transcription factor associated with regulation of the anthocyanin biosynthetic pathway in Rosaceae. BMC Plant Biol. 2010, 10, 50. [Google Scholar] [CrossRef] [Green Version]
  9. Lin-Wang, K.; McGhie, T.K.; Wang, M.; Liu, Y.; Warren, B.; Storey, R.; Espley, R.V.; Allan, A.C. Engineering the anthocyanin regulatory complex of strawberry (Fragaria vesca). Front Plant Sci. 2014, 5. [Google Scholar] [CrossRef] [Green Version]
  10. An, X.-H.; Tian, Y.; Chen, K.-Q.; Liu, X.-J.; Liu, D.-D.; Xie, X.-B.; Cheng, C.-G.; Cong, P.-H.; Hao, Y.-J. MdMYB9 and MdMYB11 are Involved in the Regulation of the JA-Induced Biosynthesis of Anthocyanin and Proanthocyanidin in Apples. Plant Cell Physiol. 2015, 56, 650–662. [Google Scholar] [CrossRef] [Green Version]
  11. Cherian, S.; Figueroa, C.R.; Nair, H. “Movers and shakers” in the regulation of fruit ripening: A cross-dissection of climacteric versus non-climacteric fruit. J. Exp. Bot. 2014, 65, 4705–4722. [Google Scholar] [CrossRef] [Green Version]
  12. Fuentes, L.; Figueroa, C.R.; Valdenegro, M. Recent Advances in Hormonal Regulation and Cross-Talk during Non-Climacteric Fruit Development and Ripening. Horticulturae 2019, 5, 45. [Google Scholar] [CrossRef] [Green Version]
  13. Jia, H.-F.; Chai, Y.-M.; Li, C.-L.; Lu, D.; Luo, J.-J.; Qin, L.; Shen, Y.-Y. Abscisic acid plays an important role in the regulation of strawberry fruit ripening. Plant Physiol. 2011, 157, 188–199. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Garrido-Bigotes, A.; Figueroa, P.M.; Figueroa, C.R. Jasmonate Metabolism and Its Relationship with Abscisic Acid During Strawberry Fruit Development and Ripening. J. Plant Growth Regul. 2018, 37, 101–113. [Google Scholar] [CrossRef]
  15. Delgado, L.D.; Zúñiga, P.E.; Figueroa, N.E.; Pastene, E.; Escobar-Sepúlveda, H.F.; Figueroa, P.M.; Garrido-Bigotes, A.; Figueroa, C.R. Application of a JA-Ile Biosynthesis Inhibitor to Methyl Jasmonate-Treated Strawberry Fruit Induces Upregulation of Specific MBW Complex-Related Genes and Accumulation of Proanthocyanidins. Molecules 2018, 23, 1433. [Google Scholar] [CrossRef] [Green Version]
  16. Valenzuela-Riffo, F.; Zúñiga, P.E.; Morales-Quintana, L.; Lolas, M.; Cáceres, M.; Figueroa, C.R. Priming of Defense Systems and Upregulation of MYC2 and JAZ1 Genes after Botrytis cinerea Inoculation in Methyl Jasmonate-Treated Strawberry Fruits. Plants 2020, 9, 447. [Google Scholar] [CrossRef] [Green Version]
  17. Zuñiga, P.E.; Castañeda, Y.; Arrey-Salas, O.; Fuentes, L.; Aburto, F.; Figueroa, C.R. Methyl Jasmonate Applications From Flowering to Ripe Fruit Stages of Strawberry (Fragaria × ananassa ‘Camarosa’) Reinforce the Fruit Antioxidant Response at Post-harvest. Front. Plant Sci. 2020, 11. [Google Scholar] [CrossRef]
  18. Jaakola, L. New insights into the regulation of anthocyanin biosynthesis in fruits. Trends Plant Sci. 2013, 18, 477–483. [Google Scholar] [CrossRef] [Green Version]
  19. Lin, Y.; Jiang, L.; Chen, Q.; Li, Y.; Zhang, Y.; Luo, Y.; Zhang, Y.; Sun, B.; Wang, X.; Tang, H. Comparative Transcriptome Profiling Analysis of Red- and White-Fleshed Strawberry (Fragaria × ananassa) Provides New Insight into the Regulation of the Anthocyanin Pathway. Plant Cell Physiol. 2018, 59, 1844–1859. [Google Scholar] [CrossRef]
  20. Boter, M.; Golz, J.F.; Giménez-Ibañez, S.; Fernandez-Barbero, G.; Franco-Zorrilla, J.M.; Solano, R. FILAMENTOUS FLOWER Is a Direct Target of JAZ3 and Modulates Responses to Jasmonate. Plant Cell 2015, 27, 3160–3174. [Google Scholar] [CrossRef] [Green Version]
  21. Shan, X.; Zhang, Y.; Peng, W.; Wang, Z.; Xie, D. Molecular mechanism for jasmonate-induction of anthocyanin accumulation in Arabidopsis. J. Exp. Bot. 2009, 60, 3849–3860. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Qi, T.; Song, S.; Ren, Q.; Wu, D.; Huang, H.; Chen, Y.; Fan, M.; Peng, W.; Ren, C.; Xie, D. The Jasmonate-ZIM-domain proteins interact with the WD-Repeat/bHLH/MYB complexes to regulate Jasmonate-mediated anthocyanin accumulation and trichome initiation in Arabidopsis thaliana. Plant Cell 2011, 23, 1795–1814. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Fonseca, S.; Chini, A.; Hamberg, M.; Adie, B.; Porzel, A.; Kramell, R.; Miersch, O.; Wasternack, C.; Solano, R. (+)-7-iso-Jasmonoyl-L-isoleucine is the endogenous bioactive jasmonate. Nat. Chem. Biol. 2009, 5, 344–350. [Google Scholar] [CrossRef] [PubMed]
  24. Howe, G.A.; Major, I.T.; Koo, A.J. Modularity in Jasmonate Signaling for Multistress Resilience. Ann. Rev. Plant Biol. 2018, 69, 387–415. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Ueda, M.; Kaji, T.; Kozaki, W. Recent Advances in Plant Chemical Biology of Jasmonates. Int. J. Mol. Sci. 2020, 21, 1124. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Sheard, L.B.; Tan, X.; Mao, H.; Withers, J.; Ben-Nissan, G.; Hinds, T.R.; Kobayashi, Y.; Hsu, F.-F.; Sharon, M.; Browse, J.; et al. Jasmonate perception by inositol-phosphate-potentiated COI1-JAZ co-receptor. Nature 2010, 468, 400–405. [Google Scholar] [CrossRef]
  27. Valenzuela-Riffo, F.; Garrido-Bigotes, A.; Figueroa, P.M.; Morales-Quintana, L.; Figueroa, C.R. Structural analysis of the woodland strawberry COI1-JAZ1 co-receptor for the plant hormone jasmonoyl-isoleucine. J. Mol. Graph. Model. 2018, 85, 250–261. [Google Scholar] [CrossRef]
  28. Garrido-Bigotes, A.; Valenzuela-Riffo, F.; Torrejón, M.; Solano, R.; Morales-Quintana, L.; Figueroa, C.R. A new functional JAZ degron sequence in strawberry JAZ1 revealed by structural and interaction studies on the COI1–JA-Ile/COR–JAZs complexes. Sci. Rep. 2020, 10. [Google Scholar] [CrossRef]
  29. Chini, A.; Fonseca, S.; Fernández, G.; Adie, B.; Chico, J.M.; Lorenzo, O.; García-Casado, G.; López-Vidriero, I.; Lozano, F.M.; Ponce, M.R.; et al. The JAZ family of repressors is the missing link in jasmonate signalling. Nature 2007, 448, 666–671. [Google Scholar] [CrossRef]
  30. Thines, B.; Katsir, L.; Melotto, M.; Niu, Y.; Mandaokar, A.; Liu, G.; Nomura, K.; He, S.Y.; Howe, G.A.; Browse, J. JAZ repressor proteins are targets of the SCF(COI1) complex during jasmonate signalling. Nature 2007, 448, 661–665. [Google Scholar] [CrossRef]
  31. Fernández-Calvo, P.; Chini, A.; Fernández-Barbero, G.; Chico, J.-M.; Gimenez-Ibanez, S.; Geerinck, J.; Eeckhout, D.; Schweizer, F.; Godoy, M.; Franco-Zorrilla, J.M.; et al. The Arabidopsis bHLH transcription factors MYC3 and MYC4 are targets of JAZ repressors and act additively with MYC2 in the activation of jasmonate responses. Plant Cell 2011, 23, 701–715. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Figueroa, P.; Browse, J. Male sterility in Arabidopsis induced by overexpression of a MYC5-SRDX chimeric repressor. Plant J. 2015, 81, 849–860. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Pauwels, L.; Barbero, G.F.; Geerinck, J.; Tilleman, S.; Grunewald, W.; Pérez, A.C.; Chico, J.M.; Bossche, R.V.; Sewell, J.; Gil, E.; et al. NINJA connects the co-repressor TOPLESS to jasmonate signalling. Nature 2010, 464, 788–791. [Google Scholar] [CrossRef] [Green Version]
  34. Fonseca, S.; Fernández-Calvo, P.; Fernández, G.M.; Díez-Díaz, M.; Gimenez-Ibanez, S.; López-Vidriero, I.; Godoy, M.; Fernández-Barbero, G.; Van Leene, J.; De Jaeger, G.; et al. bHLH003, bHLH013 and bHLH017 Are New Targets of JAZ Repressors Negatively Regulating JA Responses. PLoS ONE 2014, 9, e86182. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Vanholme, B.; Grunewald, W.; Bateman, A.; Kohchi, T.; Gheysen, G. The tify family previously known as ZIM. Trends Plant Sci. 2007, 12, 239–244. [Google Scholar] [CrossRef]
  36. Bai, Y.; Meng, Y.; Huang, D.; Qi, Y.; Chen, M. Origin and evolutionary analysis of the plant-specific TIFY transcription factor family. Genomics 2011, 98, 128–136. [Google Scholar] [CrossRef] [Green Version]
  37. Garrido-Bigotes, A.; Valenzuela-Riffo, F.; Figueroa, C.R. Evolutionary Analysis of JAZ Proteins in Plants: An Approach in Search of the Ancestral Sequence. Int. J. Mol. Sci. 2019, 20, 5060. [Google Scholar] [CrossRef] [Green Version]
  38. Monte, I.; Franco-Zorrilla, J.M.; García-Casado, G.; Zamarreño, A.M.; García-Mina, J.M.; Nishihama, R.; Kohchi, T.; Solano, R. A Single JAZ Repressor Controls the Jasmonate Pathway in Marchantia polymorpha. Mol. Plant 2019, 12, 185–198. [Google Scholar] [CrossRef] [Green Version]
  39. Garrido-Bigotes, A.; Figueroa, N.E.; Figueroa, P.M.; Figueroa, C.R. Jasmonate signalling pathway in strawberry: Genome-wide identification, molecular characterization and expression of JAZs and MYCs during fruit development and ripening. PLoS ONE 2018, 13. [Google Scholar] [CrossRef] [Green Version]
  40. Chini, A.; Gimenez-Ibanez, S.; Goossens, A.; Solano, R. Redundancy and specificity in jasmonate signalling. Curr. Opin. Plant Biol. 2016, 33, 147–156. [Google Scholar] [CrossRef]
  41. Pauwels, L.; Goossens, A. The JAZ Proteins: A Crucial Interface in the Jasmonate Signaling Cascade. Plant Cell 2011, 23, 3089–3100. [Google Scholar] [CrossRef] [Green Version]
  42. Goossens, J.; Mertens, J.; Goossens, A. Role and functioning of bHLH transcription factors in jasmonate signalling. J. Exp. Bot. 2017, 68, 1333–1347. [Google Scholar] [CrossRef] [PubMed]
  43. Sievers, F.; Higgins, D.G. Clustal Omega, Accurate Alignment of Very Large Numbers of Sequences. In Multiple Sequence Alignment Methods; Russell, D.J., Ed.; Methods in Molecular Biology; Humana Press: Totowa, NJ, USA, 2014; pp. 105–116. [Google Scholar]
  44. Waterhouse, A.M.; Procter, J.B.; Martin, D.M.A.; Clamp, M.; Barton, G.J. Jalview Version 2--a multiple sequence alignment editor and analysis workbench. Bioinformatics 2009, 25, 1189–1191. [Google Scholar] [CrossRef] [Green Version]
  45. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular Evolutionary Genetics Analysis across Computing Platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef]
  46. He, Z.; Zhang, H.; Gao, S.; Lercher, M.J.; Chen, W.-H.; Hu, S. Evolview v2: An online visualization and management tool for customized and annotated phylogenetic trees. Nucleic Acids Res. 2016, 44, 236–241. [Google Scholar] [CrossRef] [PubMed]
  47. Shyu, C.; Figueroa, P.; DePew, C.L.; Cooke, T.F.; Sheard, L.B.; Moreno, J.E.; Katsir, L.; Zheng, N.; Browse, J.; Howe, G.A. JAZ8 Lacks a Canonical Degron and Has an EAR Motif That Mediates Transcriptional Repression of Jasmonate Responses in Arabidopsis[C][W]. Plant Cell 2012, 24, 536–550. [Google Scholar] [CrossRef] [Green Version]
  48. Wang, L.; Wu, S.-M.; Zhu, Y.; Fan, Q.; Zhang, Z.-N.; Hu, G.; Peng, Q.-Z.; Wu, J.-H. Functional characterization of a novel jasmonate ZIM-domain interactor (NINJA) from upland cotton (Gossypium hirsutum). Plant Physiol. Biochem. 2017, 112, 152–160. [Google Scholar] [CrossRef] [PubMed]
  49. Figueroa, P.; Browse, J. The Arabidopsis JAZ2 promoter contains a G-Box and thymidine-rich module that are necessary and sufficient for jasmonate-dependent activation by MYC transcription factors and repression by JAZ proteins. Plant Cell Physiol. 2012, 53, 330–343. [Google Scholar] [CrossRef] [Green Version]
  50. Zhao, F.; Li, G.; Hu, P.; Zhao, X.; Li, L.; Wei, W.; Feng, J.; Zhou, H. Identification of basic/helix-loop-helix transcription factors reveals candidate genes involved in anthocyanin biosynthesis from the strawberry white-flesh mutant. Sci. Rep. 2018, 8, 2721. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Sasaki-Sekimoto, Y.; Jikumaru, Y.; Obayashi, T.; Saito, H.; Masuda, S.; Kamiya, Y.; Ohta, H.; Shirasu, K. Basic Helix-Loop-Helix Transcription Factors JASMONATE-ASSOCIATED MYC2-LIKE1 (JAM1), JAM2, and JAM3 Are Negative Regulators of Jasmonate Responses in Arabidopsis1[W][OPEN]. Plant Physiol. 2013, 163, 291–304. [Google Scholar] [CrossRef] [Green Version]
  52. Aharoni, A.; Vos, C.H.R.D.; Wein, M.; Sun, Z.; Greco, R.; Kroon, A.; Mol, J.N.M.; O’Connell, A.P. The strawberry FaMYB1 transcription factor suppresses anthocyanin and flavonol accumulation in transgenic tobacco. Plant J. 2001, 28, 319–332. [Google Scholar] [CrossRef] [PubMed]
  53. Kadomura-Ishikawa, Y.; Miyawaki, K.; Takahashi, A.; Noji, S. RNAi-mediated silencing and overexpression of the FaMYB1 gene and its effect on anthocyanin accumulation in strawberry fruit. Biol. Plant 2015, 59, 677–685. [Google Scholar] [CrossRef]
  54. Song, S.; Qi, T.; Huang, H.; Ren, Q.; Wu, D.; Chang, C.; Peng, W.; Liu, Y.; Peng, J.; Xie, D. The Jasmonate-ZIM domain proteins interact with the R2R3-MYB transcription factors MYB21 and MYB24 to affect Jasmonate-regulated stamen development in Arabidopsis. Plant Cell 2011, 23, 1000–1013. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Dubos, C.; Stracke, R.; Grotewold, E.; Weisshaar, B.; Martin, C.; Lepiniec, L. MYB transcription factors in Arabidopsis. Trends Plant Sci. 2010, 15, 573–581. [Google Scholar] [CrossRef]
  56. Siegfried, K.R.; Eshed, Y.; Baum, S.F.; Otsuga, D.; Drews, G.N.; Bowman, J.L. Members of the YABBY gene family specify abaxial cell fate in Arabidopsis. Development 1999, 126, 4117–4128. [Google Scholar]
  57. Bowman, J.L. The YABBY gene family and abaxial cell fate. Curr. Opin. Plant Biol. 2000, 3, 17–22. [Google Scholar] [CrossRef]
  58. Zhang, S.; Wang, L.; Sun, X.; Li, Y.; Yao, J.; van Nocker, S.; Wang, X. Genome-Wide Analysis of the YABBY Gene Family in Grapevine and Functional Characterization of VvYABBY4. Front. Plant Sci. 2019, 10. [Google Scholar] [CrossRef]
  59. Huang, Z.; Van Houten, J.; Gonzalez, G.; Xiao, H.; van der Knaap, E. Genome-wide identification, phylogeny and expression analysis of SUN, OFP and YABBY gene family in tomato. Mol. Genet. Genomics 2013, 288, 111–129. [Google Scholar] [CrossRef]
  60. Xiang, Y.; Huang, C.-H.; Hu, Y.; Wen, J.; Li, S.; Yi, T.; Chen, H.; Xiang, J.; Ma, H. Evolution of Rosaceae Fruit Types Based on Nuclear Phylogeny in the Context of Geological Times and Genome Duplication. Mol. Biol. Evol. 2017, 34, 262–281. [Google Scholar] [CrossRef] [Green Version]
Agronomy 10 01586 g001 550

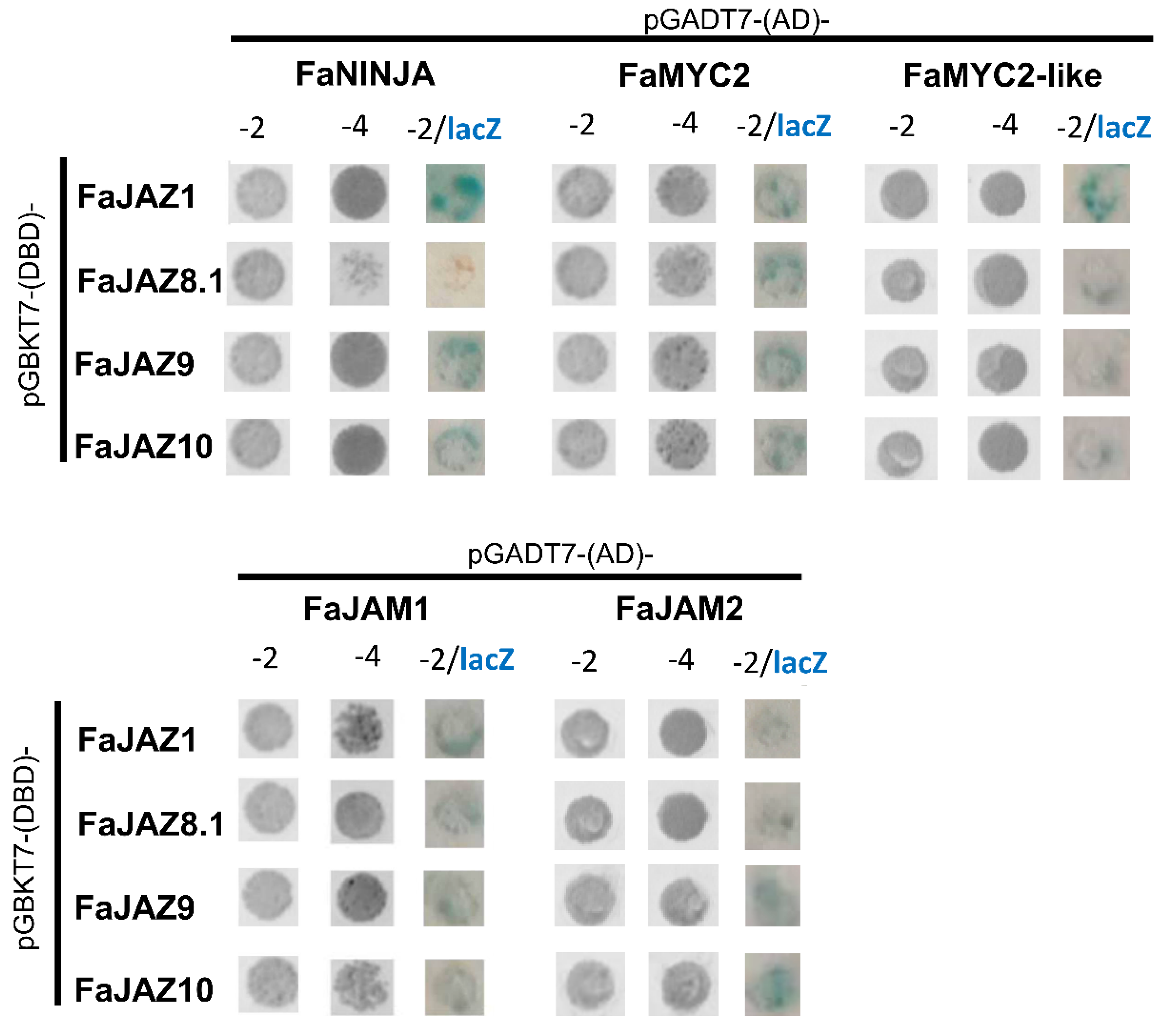

Figure 1. Protein–protein interactions of Fragaria × ananassa JASMONATE ZIM-DOMAIN (FaJAZs) repressors with components of the jasmonate (JA)-signaling pathway. FaJAZ1, FaJAZ8.1, FaJAZ9, and FaJAZ10 were cloned into pGBKT7-(DBD)-Gateway vector. F. × ananassa NOVEL INTERACTOR OF JAZ (FaNINJA), FaMYC2, FaMYC2-like, F. × ananassa JASMONATE ASSOCIATED MYC2-LIKE 1 (FaJAM1), and FaJAM2 were cloned into pGADT7-(AD)-Gateway vector. -2, SD-Leu-Trp; -4, SD-Leu-Trp-His-Ade; AD, activation domain; DBD, DNA binding domain; lacZ, β-galactosidase. FaJAZ1, F. × ananassa JAZ1; FaJAZ8.1, F. × ananassa JAZ8.1; FaJAZ9, F. × ananassa JAZ9; FaJAZ10, F. × ananassa JAZ10; FaNINJA, F. × ananassa NINJA; FaMYC2, F. × ananassa FaMYC2; FaMYC2-like, F. × ananassa FaMYC2-like; FaJAM1, F. × ananassa JAM1; FaJAM2, F. × ananassa JAM2.
Figure 1. Protein–protein interactions of Fragaria × ananassa JASMONATE ZIM-DOMAIN (FaJAZs) repressors with components of the jasmonate (JA)-signaling pathway. FaJAZ1, FaJAZ8.1, FaJAZ9, and FaJAZ10 were cloned into pGBKT7-(DBD)-Gateway vector. F. × ananassa NOVEL INTERACTOR OF JAZ (FaNINJA), FaMYC2, FaMYC2-like, F. × ananassa JASMONATE ASSOCIATED MYC2-LIKE 1 (FaJAM1), and FaJAM2 were cloned into pGADT7-(AD)-Gateway vector. -2, SD-Leu-Trp; -4, SD-Leu-Trp-His-Ade; AD, activation domain; DBD, DNA binding domain; lacZ, β-galactosidase. FaJAZ1, F. × ananassa JAZ1; FaJAZ8.1, F. × ananassa JAZ8.1; FaJAZ9, F. × ananassa JAZ9; FaJAZ10, F. × ananassa JAZ10; FaNINJA, F. × ananassa NINJA; FaMYC2, F. × ananassa FaMYC2; FaMYC2-like, F. × ananassa FaMYC2-like; FaJAM1, F. × ananassa JAM1; FaJAM2, F. × ananassa JAM2.
Agronomy 10 01586 g001
Agronomy 10 01586 g002 550
Figure 2. Protein–protein interactions of Fragaria × ananassa JASMONATE-ZIM DOMAIN (FaJAZs) repressors with anthocyanin-related transcription factors. FaJAZ1, FaJAZ8.1, FaJAZ9, and FaJAZ10 were cloned into pGBKT7-(DBD)-Gateway vector. F. × ananassa basic helix-loop-helix 3 (FabHLH3), FabHLH33, FaMYB10, FaMYB1, and FaMYB5 were cloned into the pGADT7-(AD)-Gateway vector. -2, SD-Leu-Trp; -4, SD-Leu-Trp-His-Ade; AD, activation domain; DBD, DNA binding domain; lacZ, β-galactosidase gene. FaJAZ1, F. × ananassa JAZ1; FaJAZ8.1, F. × ananassa JAZ8.1; FaJAZ9, F. × ananassa JAZ9; FaJAZ10, F. × ananassa JAZ10; FabHLH3, F. × ananassa bHLH3; FabHLH33, F. × ananassa bHLH33; FaMYB10, F. × ananassa MYB10; FaMYB1, F. × ananassa MYB1; FaMYB5, F. × ananassa MYB5.
Figure 2. Protein–protein interactions of Fragaria × ananassa JASMONATE-ZIM DOMAIN (FaJAZs) repressors with anthocyanin-related transcription factors. FaJAZ1, FaJAZ8.1, FaJAZ9, and FaJAZ10 were cloned into pGBKT7-(DBD)-Gateway vector. F. × ananassa basic helix-loop-helix 3 (FabHLH3), FabHLH33, FaMYB10, FaMYB1, and FaMYB5 were cloned into the pGADT7-(AD)-Gateway vector. -2, SD-Leu-Trp; -4, SD-Leu-Trp-His-Ade; AD, activation domain; DBD, DNA binding domain; lacZ, β-galactosidase gene. FaJAZ1, F. × ananassa JAZ1; FaJAZ8.1, F. × ananassa JAZ8.1; FaJAZ9, F. × ananassa JAZ9; FaJAZ10, F. × ananassa JAZ10; FabHLH3, F. × ananassa bHLH3; FabHLH33, F. × ananassa bHLH33; FaMYB10, F. × ananassa MYB10; FaMYB1, F. × ananassa MYB1; FaMYB5, F. × ananassa MYB5.
Agronomy 10 01586 g002
Agronomy 10 01586 g003 550

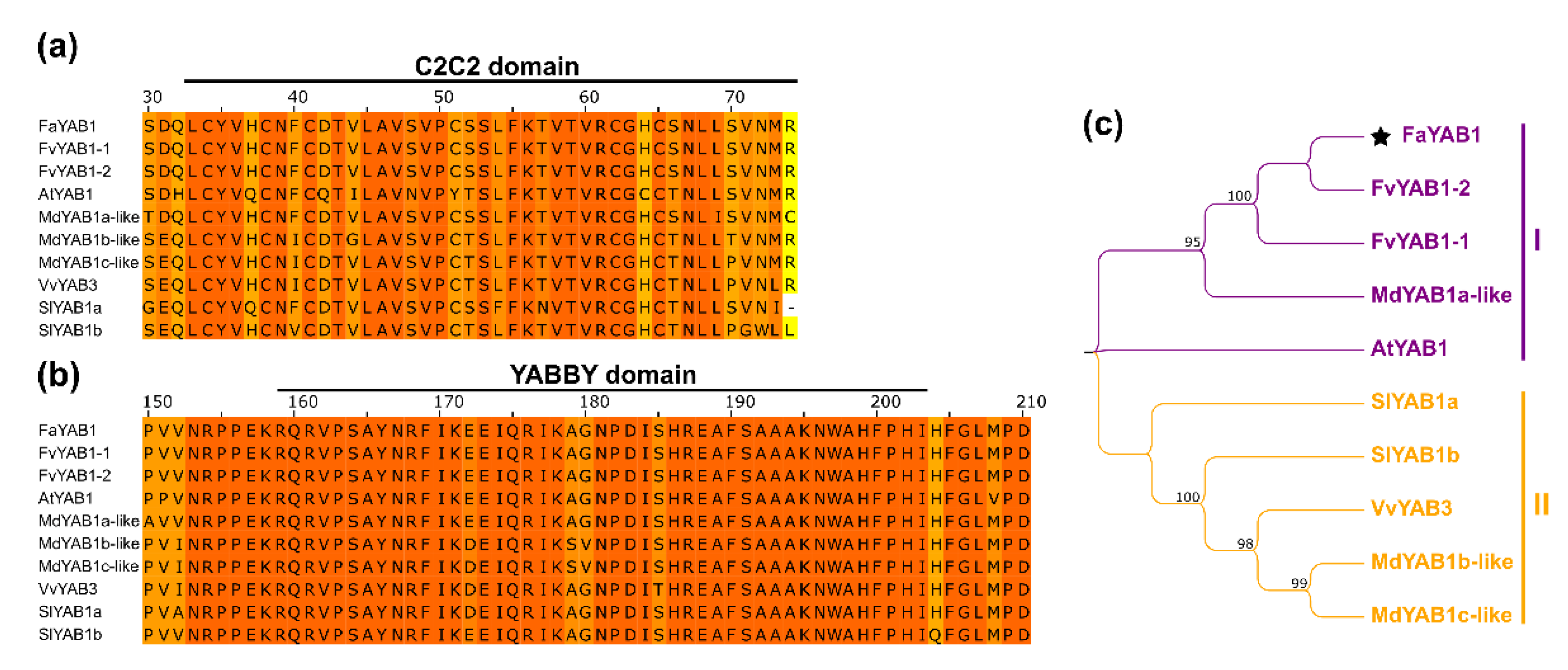

Figure 3. Characterization of Fragaria × ananassa YABBY1 (FaYAB1) protein and the comparison with their orthologs. (a) Multiple alignment of C2C2 domain, (b) YABBY domain, and (c) phylogenetic analysis for FaYAB1 protein and their orthologs in Fragaria vesca, Arabidopsis thaliana, Malus × domestica, Vitis vinifera, and Solanum lycopersicum. Orange and yellow colors in the multiple alignment indicate higher and lower conservation of amino acid residues, respectively. The unrooted phylogenetic tree was performed using full-length YAB protein sequences. FaYAB1 protein is indicated by a black star. ‘I’ and ‘II’ indicate the group number. Nodes with bootstrap values > 70% are labelled. C2C2, C2C2 zinc-finger domain. FaYAB1, F. × ananassa YAB1; FvYAB1-1, F. vesca YAB1-1; FvYAB1-2, F. vesca YAB1-2; AtYAB1, A. thaliana YAB1; MdYAB1a-like, M. × domestica YAB1a-like; MdYAB1b-like, M. × domestica YAB1v-like; MdYAB1c-like, M. × domestica YAB1c-like; VvYAB3, V. vinifera YAB3; SlYAB1a, S. lycopersicum YAB1a; SlYAB1b, S. lycopersicum YAB1b. The list of GenBank accessions is available in Table S1.
Figure 3. Characterization of Fragaria × ananassa YABBY1 (FaYAB1) protein and the comparison with their orthologs. (a) Multiple alignment of C2C2 domain, (b) YABBY domain, and (c) phylogenetic analysis for FaYAB1 protein and their orthologs in Fragaria vesca, Arabidopsis thaliana, Malus × domestica, Vitis vinifera, and Solanum lycopersicum. Orange and yellow colors in the multiple alignment indicate higher and lower conservation of amino acid residues, respectively. The unrooted phylogenetic tree was performed using full-length YAB protein sequences. FaYAB1 protein is indicated by a black star. ‘I’ and ‘II’ indicate the group number. Nodes with bootstrap values > 70% are labelled. C2C2, C2C2 zinc-finger domain. FaYAB1, F. × ananassa YAB1; FvYAB1-1, F. vesca YAB1-1; FvYAB1-2, F. vesca YAB1-2; AtYAB1, A. thaliana YAB1; MdYAB1a-like, M. × domestica YAB1a-like; MdYAB1b-like, M. × domestica YAB1v-like; MdYAB1c-like, M. × domestica YAB1c-like; VvYAB3, V. vinifera YAB3; SlYAB1a, S. lycopersicum YAB1a; SlYAB1b, S. lycopersicum YAB1b. The list of GenBank accessions is available in Table S1.
Agronomy 10 01586 g003
Agronomy 10 01586 g004 550

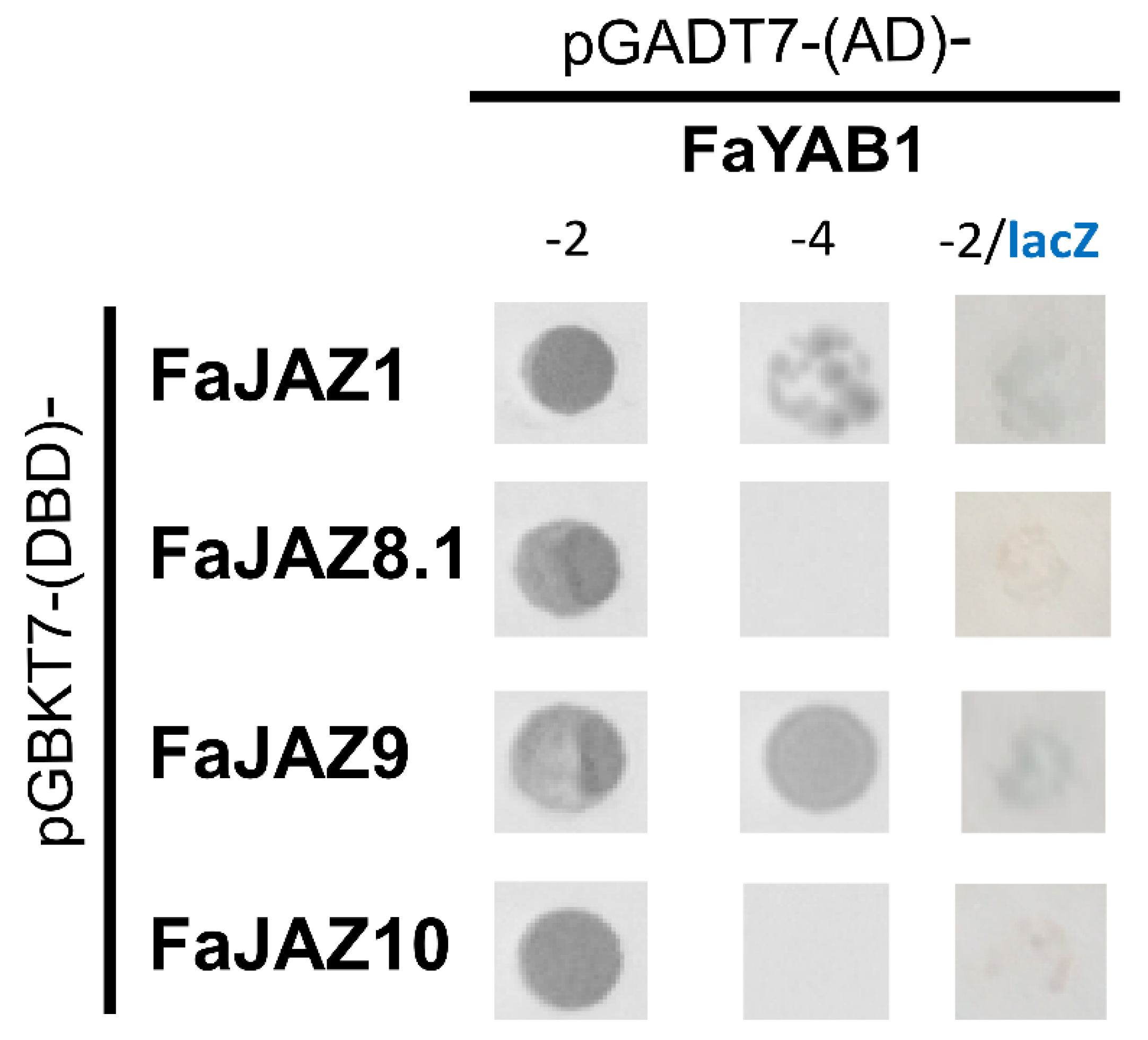

Figure 4. Protein–protein interactions of Fragaria × ananassa JASMONATE ZIM-DOMAIN (FaJAZs) repressors with the F. × ananassa YABBY1 (FaYAB1) transcription factor. FaJAZ1, FaJAZ8.1, FaJAZ9, and FaJAZ10 were cloned into pGBKT7-(DBD)-Gateway vector. FaYAB1 was cloned into the pGADT7-(AD)-Gateway vector. -2, SD-Leu-Trp; -4, SD-Leu-Trp-His-Ade; AD, activation domain; DBD, DNA binding domain; lacZ, β-galactosidase gene. FaJAZ1, F. × ananassa JAZ1; FaJAZ8.1, F. × ananassa JAZ8.1; FaJAZ9, F. × ananassa JAZ9; FaJAZ10, F. × ananassa JAZ10; FaYAB1, F. × ananassa YAB1.
Figure 4. Protein–protein interactions of Fragaria × ananassa JASMONATE ZIM-DOMAIN (FaJAZs) repressors with the F. × ananassa YABBY1 (FaYAB1) transcription factor. FaJAZ1, FaJAZ8.1, FaJAZ9, and FaJAZ10 were cloned into pGBKT7-(DBD)-Gateway vector. FaYAB1 was cloned into the pGADT7-(AD)-Gateway vector. -2, SD-Leu-Trp; -4, SD-Leu-Trp-His-Ade; AD, activation domain; DBD, DNA binding domain; lacZ, β-galactosidase gene. FaJAZ1, F. × ananassa JAZ1; FaJAZ8.1, F. × ananassa JAZ8.1; FaJAZ9, F. × ananassa JAZ9; FaJAZ10, F. × ananassa JAZ10; FaYAB1, F. × ananassa YAB1.
Agronomy 10 01586 g004
