Open AccessArticle
Polymers 2016, 8(3), 86;

Synthesis, Structures and Luminescence Properties of Metal-Organic Frameworks Based on Lithium-Lanthanide and Terephthalate

Departamentos de Química Física y Analítica y Química Orgánica e Inorgánica, Universidad de Oviedo-CINN, 33006 Oviedo, Spain
Servicios Científico-Técnicos, Universidad de Oviedo-CINN, 33006 Oviedo, Spain
Author to whom correspondence should be addressed.
Academic Editor: Félix Zamora
Received: 13 February 2016 / Revised: 8 March 2016 / Accepted: 10 March 2016 / Published: 16 March 2016
(This article belongs to the Special Issue Coordination Polymers: New Materials for Multiple Applications)
Full-Text   |   PDF [4890 KB, uploaded 16 March 2016]   |

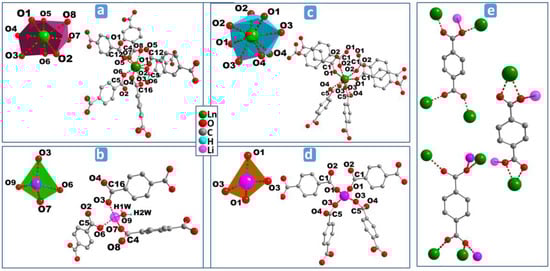

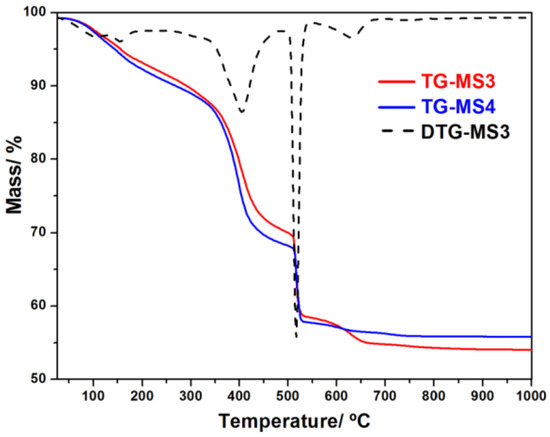

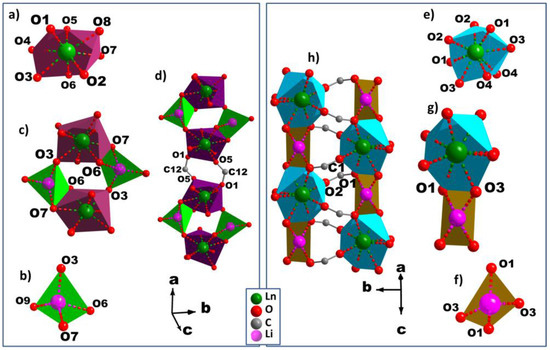

Metal-organic frameworks assembled from Ln(III), Li(I) and rigid dicarboxylate ligand, formulated as [LiLn(BDC)2(H2O)·2(H2O)] (MS1-6,7a) and [LiTb(BDC)2] (MS7b) (Ln = Tb, Dy, Ho, Er, Yb, Y0.96Eu0.04, Y0.93Tb0.07, and H2BDC = terephthalic acid), were obtained under hydrothermal conditions. The isostructural MS1-6 crystallize in monoclinic P21/c space group. While, in the case of Tb3+ a mixture of at least two phases was obtained, the former one (MS7a) and a new monoclinic C2/c phase (MS7b). All compounds have been studied by single-crystal and powder X-ray diffraction, thermal analyses (TGA), vibrational spectroscopy (FTIR), and scanning electron microscopy (SEM-EDX). The structures of MS1-6 and MS7a are built up of inorganic-organic hybrid chains. These chains constructed from unusual four-membered rings, are formed by edge- and vertex-shared {LnO8} and {LiO4} polyhedra through oxygen atoms O3 (vertex) and O6-O7 (edge). Each chain is cross-linked to six neighboring chains through six terephthalate bridges. While, the structure of MS7b is constructed from double inorganic chains, and each chain is, in turn, related symmetrically to the adjacent one through the c glide plane. These chains are formed by infinitely alternating {LiO4} and {TbO8} polyhedra through (O2-O3) edges to create Tb–O–Li connectivity along the c-axis. Both MS1-6,7a and MS7b structures possess a 3D framework with 1D trigonal channels running along the a and c axes, containing water molecules and anhydrous, respectively. Topological studies revealed that MS1-6 and MS7a have a new 2-nodal 3,10-c net, while MS7b generates a 3D net with unusual β-Sn topology. The photoluminescence properties Eu- and Tb-doped compounds (MS5-6) are also investigated, exhibiting strong red and green light emissions, respectively, which are attributed to the efficient energy transfer process from the BDC ligand to Eu3+ and Tb3+. View Full-Text
Keywords: lanthanide-organic frameworks; dicarboxylate; hydrothermal; crystal structure; topology; photoluminescence lanthanide-organic frameworks; dicarboxylate; hydrothermal; crystal structure; topology; photoluminescence

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material


Share & Cite This Article

MDPI and ACS Style

Abdelbaky, M.S.M.; Amghouz, Z.; García-Granda, S.; García, J.R. Synthesis, Structures and Luminescence Properties of Metal-Organic Frameworks Based on Lithium-Lanthanide and Terephthalate. Polymers 2016, 8, 86.
