Next Article in Journal
Growth Characteristics of Electro-Water Mixed Branches in Acid-Base Solution Based on Frequency Dielectric Spectroscopy Analysis
Next Article in Special Issue
Selective Control Mechanisms, Quantitative Evaluation, and Sustainable Strategies for Cultural Heritage Surface Cleaning
Previous Article in Journal
Bioplastics Toxicity upon Ingestion: A Critical Review of Biotransformation and Gastrointestinal Effects
Previous Article in Special Issue
Advances in the Chemical Properties and Functional Applications of Urushiol: From Traditional Lacquerware to Modern Materials


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Polymers
Volume 18
Issue 9
10.3390/polym18091090
polymers-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Review

Photodegradation Mechanisms and Anti-Aging Strategies of Wood Coatings: A Comprehensive Review

by
Meng Xia
1,
Hanyun Gao
1,
Xinhao Feng
1,2 and
Xinyou Liu
1,2,*
1
College of Furnishing and Industrial Design, Nanjing Forestry University, Nanjing 210037, China
2
Co-Innovation Center of Efficient Processing and Utilization of Forest Resources, Nanjing Forestry University, Nanjing 210037, China
*
Author to whom correspondence should be addressed.
Polymers 2026, 18(9), 1090; https://doi.org/10.3390/polym18091090
Submission received: 13 April 2026 / Revised: 25 April 2026 / Accepted: 27 April 2026 / Published: 29 April 2026
(This article belongs to the Special Issue Computational and Experimental Approaches in Polymeric Materials, 2nd Edition)
Browse Figures
Versions Notes

Abstract

Wood coatings play a critical role in protecting wood substrates from environmental degradation, particularly ultraviolet (UV)-induced photodegradation. This review comprehensively examines the mechanisms of wood coating photodegradation, the factors influencing their durability, and current anti-aging strategies. Photodegradation arises from polymer chain scission, chemical structure reorganization, and photo-oxidation of lignin and cellulose, leading to coating chalking, cracking, gloss loss, and color changes, ultimately compromising wood mechanical properties and service life. Key anti-aging strategies include UV absorbers, which convert harmful UV radiation into heat; hindered amine light stabilizers (HALSs) that capture free radicals and quench excited-state molecules; barrier and shielding materials that form dense physical or nanostructured networks to block UV penetration and enhance mechanical and water resistance; and antioxidants that neutralize free radicals or decompose peroxides at the molecular level. Each approach can be employed individually or synergistically to enhance coating durability. Challenges remain in achieving long-term outdoor stability, balancing transparency and UV shielding, optimizing nanoparticle dispersion, and maintaining the activity of natural antioxidants. Future research should focus on multifunctional composite coatings integrating bio-based materials and nanotechnology, smart responsive systems, adaptive protection mechanisms, and standardized long-term evaluation protocols. These advancements will facilitate the development of high-performance, sustainable wood coatings and promote the value-added utilization of wood resources.

1. Introduction

Wood is widely utilized in construction, furniture, and handicraft applications due to its excellent strength-to-weight ratio, unique aesthetic texture, and favorable processability [1]. Wood coatings serve as a primary means for surface functionalization, not only enhancing the natural beauty of wood but also providing indispensable protection against environmental degradation, thereby extending the service life of wood products [2]. However, when coated wood is exposed to outdoor conditions, sunlight—particularly its ultraviolet (UV) component—triggers complex photochemical aging reactions, which significantly limit the durability of wood products [3,4].
Photodegradation of wood coatings typically manifests as cracking, chalking, loss of gloss, and color changes. At the molecular level, these phenomena arise from polymer chain scission and chemical structure rearrangement within the coating matrix [5]. Ultraviolet radiation can penetrate the coating and interact with the wood substrate, inducing lignin photodegradation and cellulose structural damage [3,6]. The conjugated double bonds and phenolic hydroxyl groups within lignin are highly photoactive; upon UV absorption, they readily initiate radical chain reactions, leading to polymer chain breakage and chromophore formation [3,7]. This not only causes yellowing and darkening of the wood but also compromises its mechanical properties and structural integrity [6], severely affecting the preservation and utility of outdoor wooden furniture, architectural facades, and cultural heritage objects.
Photodegradation poses dual challenges for the use and preservation of wood. In outdoor applications, coating failure accelerates substrate weathering, increasing maintenance costs and shortening service life [4]. For museum-held wooden artifacts, UV-induced irreversible discoloration and surface deterioration directly damage their artistic value and historical information [8]. Conventional protection strategies primarily rely on inorganic nanosized metal oxides or organic UV absorbers [9,10]; however, the former often suffer from poor dispersion and weak interfacial adhesion, while the latter may face limited durability and potential environmental risks [10].
In recent years, extensive research has focused on enhancing the photostability of wood coatings. Mechanistic studies have systematically elucidated the photodegradation pathways of wood components, identifying lignin and extractives as major contributors to discoloration [3,6], and have revealed how external factors such as light intensity, temperature, and humidity modulate aging processes [4]. In terms of protective technologies, research has shifted from single-function coatings toward multifunctional synergistic systems, encompassing surface coating modification, chemical treatment, and bio-based anti-photoaging films [9].
Notably, bio-based additives and organic–inorganic hybrid strategies have emerged as research hotspots. For example, composites of cellulose nanocrystals and CeO2 nanoparticles can significantly enhance UV shielding performance [11]; chitosan–ZnO nanocomposite coatings effectively improve wood photostability [12]; and lignin and its derivatives, owing to their aromatic ring structures and UV absorption properties, provide both UV shielding and functionalization of coatings [13]. Beyond compositional advantages, the practical appearance and protective quality of bio-based coatings are equally important for wood finishing. Figure 1 shows a set of wooden chess pieces coated with FDCA-based alkyd resins (ARs), a bio-derived coating system. The image demonstrates excellent leveling, high gloss retention, and clear preservation of wood grain, while providing effective moisture and dust resistance. Such visual examples highlight that sustainable coatings can simultaneously achieve aesthetic appeal and robust protection, bridging the gap between material development and practical application [14]. Moreover, superhydrophobic modifications and synergistic use of photostabilizers offer novel approaches to further improve coating durability [15,16].
The photodegradation of wood coatings involves complex interfacial chemistry and environmental response mechanisms. Enhancing their anti-aging performance requires a multi-dimensional approach, including material design, structural optimization, and functional synergy. While previous studies and reviews have addressed photodegradation mechanisms or specific stabilization methods, they often focus on isolated aspects and lack a systematic integration of mechanisms with anti-photoaging strategies. This review establishes a multi-scale framework linking coating mechanisms, stabilization approaches, and application performance. It systematically compares four major strategies—UV absorbers, HALS, barrier/shielding materials, and antioxidants—and highlights emerging trends such as bio-based additives and multifunctional nanocomposites, providing clear guidance for the development of durable, high-performance wood coatings. This review systematically summarizes the characteristics and mechanisms of wood coating photodegradation, highlights recent advances in anti-photoaging modifications, and analyzes the advantages and limitations of current technologies, aiming to provide theoretical guidance and practical insights for the development of high-performance wood coatings and the value-added utilization of wood resources (Figure 2). A brief methodology describing the purpose, scope, and analytical framework of this review is provided in Section 2.

2. Methodology of the Review

This review is conducted as a narrative and integrative literature review, aiming to systematically synthesize current knowledge on the photodegradation mechanisms and anti-photoaging strategies of wood coatings.
Purpose:
The primary purpose of this review is to bridge the gap between fundamental photodegradation mechanisms and practical stabilization strategies, providing a structured understanding of how different approaches contribute to coating durability.
Scope:
The scope of this review focuses on wood coating systems, including solvent-based, waterborne, and UV-curable coatings, with particular emphasis on UV-induced degradation processes and anti-photoaging modifications. The literature considered mainly includes peer-reviewed journal articles related to polymer degradation, wood science, and coating technologies.
Function:
This review serves both a descriptive and analytical function, summarizing existing research while comparatively evaluating different stabilization strategies in terms of mechanism, effectiveness, and applicability.
Type of analysis and intent:
An integrative and comparative analysis is adopted. The review classifies and discusses four major strategies—UV absorbers, HALS, barrier/shielding materials, and antioxidants—and further examines their synergistic effects and limitations. The intent is to provide theoretical guidance and practical insights for the design of high-performance and sustainable wood coatings.

3. Classification and Aging Mechanisms of Wood Coatings

Wood coatings serve as critical protective materials for wood, preventing direct exposure of the wood surface to environmental factors such as air, moisture, light, and microbial attack. This protective function effectively slows down dimensional changes due to water absorption, shrinkage-induced cracking, discoloration, and biological degradation. By forming a continuous layer on the wood surface, coatings not only provide a physical barrier that limits the penetration of water and oxygen but also absorb or reflect ultraviolet (UV) radiation, thereby reducing the direct photochemical damage to the wood substrate. Additionally, the properties of the resin matrix, pigments, and additives collectively determine key performance metrics such as adhesion, flexibility, and weather resistance, which in turn affect the overall durability of the coating system.

3.1. Classification and Protective Mechanisms of Wood Coatings

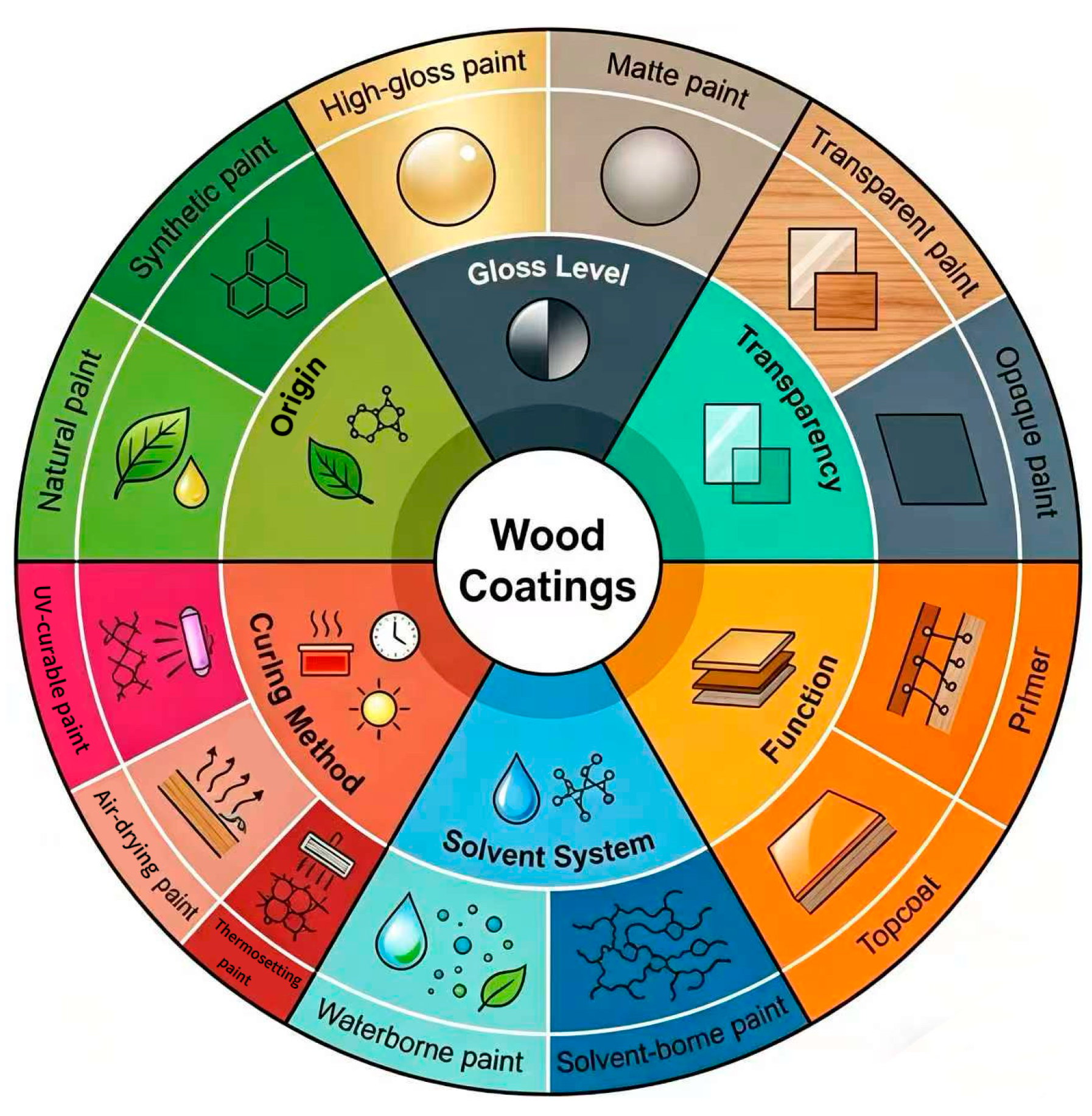

Wood coatings can be categorized based on multiple criteria, including gloss, transparency, function, solvent type, curing method, and source. These classifications reflect differences in film formation, interfacial interactions, and environmental response mechanisms, which directly influence the protective pathways and anti-aging performance of the coatings (Figure 3).
  • Gloss: Coatings can be high-gloss or matte. High-gloss coatings exhibit a dense, continuous film with strong surface reflection and vivid color, whereas matte coatings provide a softer finish with some light diffusion.
  • Transparency: Coatings are either transparent, preserving the natural texture and pattern of the wood for decorative purposes, or opaque, providing strong coverage for discolored or uneven substrates.
  • Function: Primers primarily enhance adhesion between the substrate and the topcoat while offering sealing protection. Topcoats serve both decorative and protective roles, imparting aesthetics and durability.
  • Solvent Type: Solvent-based coatings use organic solvents, forming dense films with good wetting properties but higher volatile organic compound (VOC) emissions. Water-based coatings use water as the primary dispersing medium, offering improved environmental performance, aligning with current green coating trends.
  • Curing Method: Thermosetting coatings require heat to achieve crosslinking, forming a stable three-dimensional network, while air-drying coatings cure at ambient temperature via solvent evaporation or oxidative polymerization, facilitating easier application.
  • Source: Natural coatings, such as traditional lacquer, are derived from plant exudates, featuring unique decorative properties but requiring strict drying conditions and longer curing times. Synthetic coatings are manufactured from polymers, offering tunable properties and widespread application in modern wood finishing.
The protective effects of wood coatings can be analyzed at macro, micro, and molecular scales:
  • Macro-scale: The coating forms a continuous, dense film on the wood surface, preventing water, air, and contaminant ingress while reflecting part of the UV radiation, thereby delaying photodegradation [17,18].
  • Micro-scale: The crosslinked network and micropores of the coating restrict the diffusion of water and oxygen, while interfacial adhesion between the coating and cellulose limits moisture transport along fibers, reducing wood swelling and shrinkage [19].
  • Molecular-scale: Interactions between resin molecules and wood chemical components create a highly crosslinked, dense network. UV absorbers and radical scavengers neutralize free radicals generated by photochemical reactions, while hydrogen bonding or van der Waals interactions between resin molecules and cellulose hydroxyl groups enhance interfacial stability, preventing hydrolysis and lignin degradation [20].

3.2. Factors Affecting Photodegradation of Wood Coatings

The photodegradation performance of wood coatings is influenced by material properties, environmental conditions, wood treatment processes, and additives, representing a synergistic effect of multiple factors [21].
Material and additive effects: The resin type and film-forming temperature directly affect light resistance and mechanical adaptability. Low-temperature latex forms softer films that accommodate micro-deformations, enhancing aging resistance [22]. Pure acrylic resins offer good anti-yellowing performance but lower hardness, requiring increased crosslink density for improvement [23]. The synergistic addition of UV absorbers and hindered amine light stabilizers (HALS) is crucial for delaying aging; for example, introducing nanosized TiO2 and UV531 in industrial coatings significantly improves yellowing resistance [24]. Nanomaterials such as TiO2 and lignin nanospheres enhance UV shielding, with 1% lignin nanospheres reducing UVA transmittance to below 10%. Chemical treatments, such as furfuryl alcohol modification, can reduce free radical generation at the substrate level, improving wood durability.
Environmental factors: UV irradiation duration and wavelength determine aging rate, with short-wavelength UV (e.g., UVA-340) causing higher energy exposure and faster gloss loss [25]. Extended exposure further reduces surface gloss and increases cracking. Temperature and humidity cycles induce swelling and shrinkage, generating internal stresses that lead to cracking, while elevated temperature accelerates free radical reactions. Acid rain and particulate pollutants alter wood surface chemistry and increase chromophore formation, accelerating photodegradation.
Wood treatment and synergistic optimization: Surface coating improves UV resistance but may develop cracks over time; chemical modifications, such as isopropyl glycidyl ether treatment, extend service life. Waxing with solvent-based coatings offers more uniform coverage and better adhesion than traditional hot waxing. Current trends focus on multi-factorial optimization, using nanomaterials, light stabilizers, and chemical modifications in combination to increase photostability by over 50%. Advanced approaches, such as core–shell UV-shielding materials and UV-LED curing with real-time colorimetric analysis, enable precise evaluation and improvement of wood coating photostability.

3.3. Photodegradation Mechanisms of Wood Coatings

The photodegradation of wood coatings is dominated by oxidative reactions in the resin [26]. When exposed to UV light (290–400 nm), active functional groups in the resin absorb photon energy, generating free radicals and initiating chain oxidative reactions, including backbone scission, crosslinking, and functional group degradation. Free radicals rapidly react with oxygen to form peroxyl radicals (ROO•), which attack neighboring chains, accelerating molecular weight changes, leading to surface embrittlement, chalking, and reduced barrier properties against moisture and oxygen, weakening wood protection [27]. Furthermore, photodegradation induces measurable chemical modifications in both coating and wood substrate, as evidenced by FTIR spectroscopy. For example, studies have reported increased carbonyl (C=O) absorption at 1720 cm−1 and decreased aromatic C=C peaks around 1510 cm−1 in lignin after accelerated UV aging, reflecting oxidation and structural breakdown of phenolic groups [3,7]. Similarly, acrylic and polyurethane coatings show increased hydroxyl stretching (~3400 cm−1) and carbonyl formation, confirming chain scission and photo-oxidation [28,29]. Incorporating these spectral analyses complements the SEM observations, providing molecular-level evidence of coating and substrate degradation. For example, acrylic and polyurethane coatings undergo free radical generation, peroxyl radical conversion, chain scission, and crosslinking, collectively driving coating aging (Figure 4).
Beyond these general mechanisms, the photodegradation behavior of wood coatings is strongly dependent on the chemical structure of the film-forming resin. Different resin systems exhibit distinct degradation pathways and corresponding evaluation criteria. For clarity, the main degradation mechanisms, sensitive functional groups, and commonly used performance indicators for representative coating systems are summarized in Table 1.
Pigments and fillers exhibit distinct behaviors under photodegradation [29]. Organic pigments may decompose under light, causing fading or yellowing, while inorganic pigments (e.g., TiO2, ZnO) absorb or scatter UV light, protecting the resin from partial UV damage [30]. However, highly photocatalytic inorganic particles may accelerate oxidative degradation of surrounding polymers. UV-induced resin degradation combined with temperature-humidity cycles produces microcracks, increasing pathways for water and oxygen, while differential thermal expansion and moisture movement between the coating and substrate further cause blistering, peeling, or adhesion loss [31].
For the wood substrate, UV radiation directly initiates lignin photodegradation, producing chromophoric compounds such as p-benzoquinone, causing yellowing or darkening. Water molecules, as mediators of photochemical reactions, generate additional free radicals under UV exposure, further accelerating photodegradation. This multi-factor UV–water–oxygen interaction constitutes the primary mechanism underlying wood coating aging. The SEM images in Figure 5 further confirm this mechanism: the surface is smooth before weathering, while obvious deterioration appears after one year of weathering [32].

4. Wood Coatings Anti-Photodegradation Strategies

4.1. UV Absorber Modification

4.1.1. Mechanism of UV Absorbers

UV absorbers are among the earliest anti-aging additives applied in wood coatings. Their primary mechanism involves absorbing ultraviolet (UV) radiation and converting the energy into harmless heat, thereby reducing the amount of UV radiation reaching the wood substrate. This protective function relies on photophysical processes at the molecular level, such as the formation and breaking of intermolecular hydrogen bonds, intramolecular charge transfer (ICT), and energy transfer between excited molecules [33]. Studies indicate that incorporating UV absorbers into wood coatings significantly mitigates direct UV-induced damage to chemical bonds within the coating and delays aging caused by photo-oxidative reactions [34]. The effectiveness of UV absorbers strongly depends on their molecular structure; for instance, benzotriazole-based compounds efficiently convert light energy via the excited-state intramolecular proton transfer (ESIPT) mechanism, while benzophenone derivatives achieve similar protection through keto-enol tautomerization.

4.1.2. Types and Characteristics

Common UV absorbers include benzotriazole, benzophenone, and other derivative compounds. Benzotriazole UV absorbers are widely used in wood coatings due to their strong UV absorption and excellent photostability. Their molecular structures contain multiple conjugated double bonds and aromatic rings, enabling effective absorption of UV radiation in the 280–400 nm range and converting it into harmless heat [35]. Experimental evidence shows that benzotriazole UV absorbers maintain high stability even under elevated temperatures, resisting decomposition or migration, making them particularly suitable for outdoor wood coatings [36].
Benzophenone-based UV absorbers are notable for their strong hydrogen bonding capability and high absorption coefficients. Their molecular structures contain carbonyl and hydroxyl groups that can form stable six-membered ring structures via intramolecular hydrogen bonds, enhancing photostability [37]. However, prolonged UV exposure may induce photodegradation of benzophenone derivatives, reducing their absorption efficiency. Therefore, in practical applications, they are often used in combination with other stabilizers to improve long-term durability.
Beyond these conventional UV absorbers, recent research has developed novel types such as metal–organic framework (MOF)-based nanoscopic absorbers and bio-based melanin nanoparticles. These advanced materials not only provide efficient UV shielding but also enable multifunctional integration through structural engineering, offering new strategies for improving the photostability of wood coatings [38].

4.1.3. Application in Different Types of Wood Coatings

The performance and application of UV absorbers vary significantly across solvent-based, water-based, and UV-curable wood coatings. Their concentration and method of incorporation directly affect coating performance and weathering resistance. In solvent-based coatings, UV absorbers are typically added at low concentrations (0.1–1.0%) and dissolved directly in organic solvents, followed by high-speed stirring or ultrasonic dispersion to ensure uniform distribution. Benzotriazole absorbers are widely employed in such systems due to their excellent solubility and photostability; however, their migration tendency must be controlled through formulation optimization.
In water-based coatings, the incorporation of UV absorbers presents greater challenges due to the aqueous dispersion system. Hydrophilic UV absorbers or emulsification techniques are necessary to improve dispersibility. Moreover, higher loading levels (typically 1.0–3.0%) are required to compensate for potential concentration losses due to water evaporation.
In UV-curable coatings, the role of UV absorbers is even more critical. They not only protect the substrate from UV damage but also help to delay yellowing of the coating. Commonly, a combination of benzophenone and benzotriazole absorbers is used to achieve synergistic photostability. Careful attention must be paid to interactions between UV initiators and absorbers to avoid adverse effects on curing efficiency [39].

4.2. UV Stabilizer Modification

4.2.1. Mechanism of UV Stabilizers

UV stabilizers are critical additives for enhancing the photostability of wood coatings. Their primary functions are to inhibit photo-oxidative reactions, scavenge free radicals, and quench excited-state molecules, thereby significantly improving the weathering resistance of the coating. Under UV irradiation, polymer chains within wood coatings can become excited, generating large amounts of reactive free radicals. These radicals attack the polymer chains, leading to cracking, chalking, and gloss loss, which seriously compromise the protective and decorative functions of the wood.
UV stabilizers operate through two main mechanisms: (1) Hindered amine light stabilizers (HALS) capture free radicals and convert them into stable nitroxyl radicals, interrupting the radical chain reaction; (2) Triazine-based stabilizers quench excited-state molecules, converting the excitation energy into harmless heat and thereby preventing further photo-oxidation [40].
The action mechanism of HALS is commonly described by the “Denisov cycle,” in which free radicals are continuously captured and active sites regenerated to achieve long-term photostabilization. Specifically, HALS molecules generate active nitroxyl radicals under UV exposure in the presence of oxygen. These radicals react with wood or polymer radicals to form intermediate species (e.g., aminoxy groups) and subsequently interact with peroxy radicals, reactivating HALS and generating harmless alcohols or ketones, thereby effectively delaying the photodegradation of both the coating and the wood substrate [41].

4.2.2. Types and Characteristics

UV stabilizers can be broadly categorized into two classes: HALS and UV absorbers (UVA). HALS are further classified into three structural types: low-molecular-weight, polymer-grafted, and multifunctional HALS. Low-molecular-weight HALS dissolve easily but exhibit high migration; polymer-grafted HALS attach the hindered amine structure to the polymer backbone, reducing migration and enhancing durability; multifunctional HALS contain multiple hindered amine groups, allowing simultaneous scavenging of multiple radicals, resulting in higher efficiency. HALS can also be combined with UVAs to form synergistic photostabilization systems [40].
Common UVAs include benzotriazole, benzothiazole, and triazine derivatives. Benzotriazole UVAs have excellent UV absorption and high thermal stability, making them suitable for acrylic, polyurethane, and water-based coatings. Benzothiazole UVAs exhibit good optical transparency and are ideal for clear coatings and varnishes. Triazine UVAs are highly heat- and UV-resistant, particularly suited for outdoor high-durability coatings. By optimizing the combination of HALS and UVA, coatings can achieve synergistic protection, effectively blocking UV radiation and capturing free radicals, thereby prolonging the service life of wood products [41].

4.2.3. Effect of UV Stabilizers

Studies have demonstrated that incorporating HALS into wood coatings significantly delays yellowing and gloss loss induced by UV exposure. Pretreating coatings with HALS in waterborne or solvent-based systems, combined with UVAs, can effectively inhibit photodegradation of lignin on wood surfaces. This protection is particularly pronounced for light-colored woods such as pine and ash. Experiments show that when HALS-3 is added at 1–2% to a waterborne primer and coated with 2% UVA topcoat, a 500 h UVA-340 irradiation test resulted in a marked reduction in Δb* values, with color retention significantly improved compared to coatings without HALS (Figure 6). Even applying a single HALS primer layer provides noticeable protection to both coating and substrate, demonstrating the method’s practical feasibility and effectiveness.

4.3. Barrier and Shielding Material Modification

Barrier and shielding materials play a pivotal role in enhancing the photostability of wood coatings. Their primary mechanism is to form a dense physical or composite network within the coating, effectively blocking UV radiation from reaching the wood substrate and thereby slowing the photo-oxidative degradation of lignin and cellulose. Nanoparticles and natural polymer-based nanomaterials are widely used due to their high specific surface area and excellent optical and mechanical properties, making them highly effective for UV shielding [42].
In the realm of green nanomaterials, cellulose nanofibrils (CNFs), cellulose nanocrystals (CNCs), and lignin nanoparticles (LNPs) can form continuous dense films in waterborne coatings. These films improve the mechanical strength and water resistance of the wood surface while significantly enhancing UV-blocking performance. Accelerated heat–humidity aging tests have demonstrated that these natural nanomaterials further suppress photo-oxidative degradation and delay coating yellowing and surface chalking [43].
Inorganic nanoparticles such as ZnO, TiO2, and CeO2 absorb or scatter UV light, effectively blocking UVA and UVB penetration, thus extending the service life of both the coating and the wood substrate [44,45]. Surface modification or composite strategies allow these nanoparticles to be evenly dispersed within the coating, minimizing aggregation while improving adhesion and hydrophobicity. This achieves a balance between high transparency and high UV-blocking performance [46]. As illustrated in Figure 7, MCNFI/UEA nanofiber composite coatings form a three-dimensional crosslinked network, synergistically combining nanoparticles and resin to enhance UV shielding, mechanical stability, and durability on the wood surface.
Moreover, magnetic nanoparticles and composite nanocoatings have been developed to block UV light and heat transfer. For example, Fe3O4@urushiol–iron polymer composite nanoparticles form an efficient barrier layer on the coating surface, improving both UV stability and long-term durability [47]. In summary, barrier and shielding materials slow the photodegradation of wood coatings through physical blocking, UV absorption, scattering, and interfacial synergy. Future research should focus on optimizing nanoparticle dispersion, particle size distribution, and composite strategies to achieve the combined benefits of high transparency and strong UV shielding, providing a theoretical basis and technical guidance for the development of high-performance wood coatings [46].

4.4. Antioxidant Modification

Antioxidants play a crucial role in wood coatings by capturing free radicals, decomposing peroxides, and interrupting photo-oxidative chain reactions, thereby effectively slowing the photochemical degradation of both the polymer matrix and the wood substrate [10,48]. During photo-oxidation, UV radiation excites resin molecules to form free radicals, which rapidly attack polymer chains and lignin, leading to resin degradation, wood yellowing, and coating chalking. Antioxidants can supply hydrogen atoms or form stable complexes with free radicals, significantly suppressing these chain reactions and extending the service life of both the coating and the wood [49].
Antioxidants are generally classified into primary antioxidants and secondary antioxidants. Primary antioxidants, such as hindered phenols, directly donate hydrogen atoms to terminate free radical chain reactions, whereas secondary antioxidants, such as phosphite esters, decompose peroxides to form stable products, thereby delaying coating oxidation [10,49]. Experiments indicate that primary antioxidants generally outperform secondary antioxidants in improving photostability, and when combined with UV absorbers or HALS, significant synergistic effects can be achieved [50].
In recent years, natural bio-based antioxidants such as lignin, tannins, and polyphenols have attracted considerable attention. These natural antioxidants, due to their aromatic hydroxyl structures, can effectively scavenge free radicals while providing inherent UV-absorbing properties, enabling multifunctional photoprotection [51,52,53]. For instance, Moccia et al. (2020) compared condensed tannins (QT) with hydrolyzable tannins (CT) in terms of coating formation and antioxidant performance [52]. Results showed that coatings formed from condensed tannins exhibited stronger antioxidant capacity, forming more stable, leach-resistant, and functional coatings (Figure 8). These findings provide a direct basis for selecting and designing natural antioxidants in wood coatings. Additionally, composite antioxidant systems, such as lignin-nanofiber or chitosan-polydopamine composites, have been shown to form highly protective surface films, further enhancing photostability [54].
In summary, antioxidants protect resin and lignin structures at the molecular level, significantly improving the photostability of coatings and wood. Rational selection of antioxidant type, dosage, and combination strategy—particularly the synergistic use of natural and synthetic antioxidants—is key to achieving high-performance, photostable wood coatings.
It should be noted that antioxidants used in wood coatings can serve different functions depending on the stage of application. During lacquer synthesis or storage, antioxidants (typically hindered phenols or amine-based stabilizers) are primarily employed to inhibit premature oxidation and prevent gelation, thereby ensuring formulation stability. In contrast, antioxidants incorporated into the applied coating are intended to suppress photo-oxidative degradation during service life by scavenging free radicals or decomposing peroxides.
These two applications require different selection criteria, as not all antioxidants suitable for storage stability are appropriate for long-term photostabilization. In particular, certain antioxidants are prone to discoloration under UV exposure. Hindered phenolic antioxidants may form quinone-type oxidation products, leading to yellowing of the coating. Similarly, aromatic amine antioxidants can undergo photo-oxidation to generate colored species, contributing to darkening or staining. In contrast, phosphite antioxidants generally exhibit lower discoloration tendency but are less effective as primary radical scavengers. Therefore, careful selection and combination of antioxidants are necessary to balance processing stability and long-term optical performance.

4.5. Comparison of Photostabilization Strategies

The main strategies for enhancing the photostability of wood coatings include UV absorber modification, UV stabilizer modification, barrier and shielding material modification, and antioxidant modification. Each strategy differs significantly in mechanism, material applicability, durability, and overall performance. Rational combination of these strategies can achieve synergistic effects. Table 2 provides a comparative analysis of mechanisms, advantages, disadvantages, and typical applications.
To further illustrate the effectiveness of different strategies, Table 3 summarizes quantitative improvements in key properties such as color stability, UV shielding, and durability reported in the literature.

4.6. State-of-the-Art Developments in Wood Coating Photostabilization

Recent advances in wood coating photostabilization have shifted from single-function additives toward multifunctional and integrated systems, emphasizing synergy between UV shielding, radical scavenging, and structural reinforcement.
One prominent trend is the development of organic–inorganic hybrid nanocomposites, such as cellulose nanocrystals (CNCs) combined with metal oxides (e.g., CeO2, ZnO), which significantly enhance UV shielding while maintaining coating transparency and mechanical performance [11,38]. Surface-modified nanoparticles and core–shell structures further improve dispersion and interfacial compatibility, addressing traditional limitations of nanoparticle aggregation.
Another emerging direction involves bio-based photostabilizers, including lignin nanoparticles, tannins, and polydopamine-derived systems. These materials provide inherent UV absorption and antioxidant properties due to their aromatic and phenolic structures, enabling sustainable and multifunctional coating design [51,52,53]. However, challenges remain in terms of long-term stability and compatibility within polymer matrices.
In addition, synergistic stabilization systems, combining UV absorbers, HALS, and antioxidants, have demonstrated significantly improved durability compared to single-additive systems. Recent studies report that such hybrid strategies can enhance photostability by more than 50% under accelerated aging conditions [55,56].
Beyond mechanistic descriptions, recent studies increasingly emphasize the direct correlation between photodegradation mechanisms and macroscopic performance. For instance, polymer chain scission and photo-oxidation lead to a reduction in molecular weight and crosslink density, resulting in decreased mechanical properties, such as lower tensile strength and increased brittleness. At the same time, the formation of chromophoric groups (e.g., carbonyl and quinone structures) during lignin degradation contributes to optical deterioration, including color change (ΔE, Δb*) and gloss loss.
From a durability perspective, microcrack formation and interfacial degradation induced by UV–moisture coupling significantly accelerate the ingress of water and oxygen, thereby reducing long-term weathering resistance. Conversely, the incorporation of UV absorbers, HALS, and nanomaterials has been shown to mitigate these effects, leading to measurable improvements in color stability, gloss retention, mechanical integrity, and service life.
These findings highlight that effective photostabilization strategies should be evaluated not only at the molecular level but also in terms of their impact on macroscopic performance, establishing a critical link between mechanism and practical application.
Furthermore, advanced functional coatings, including superhydrophobic surfaces, UV-responsive materials, and smart coatings with adaptive protection mechanisms, are gaining increasing attention. These systems aim to simultaneously improve moisture resistance, UV shielding, and environmental adaptability, representing a promising direction for next-generation wood coatings.
Overall, the state of the art highlights a clear transition toward multi-scale, multifunctional, and sustainable photostabilization strategies, while challenges related to durability, compatibility, and large-scale application remain to be addressed.

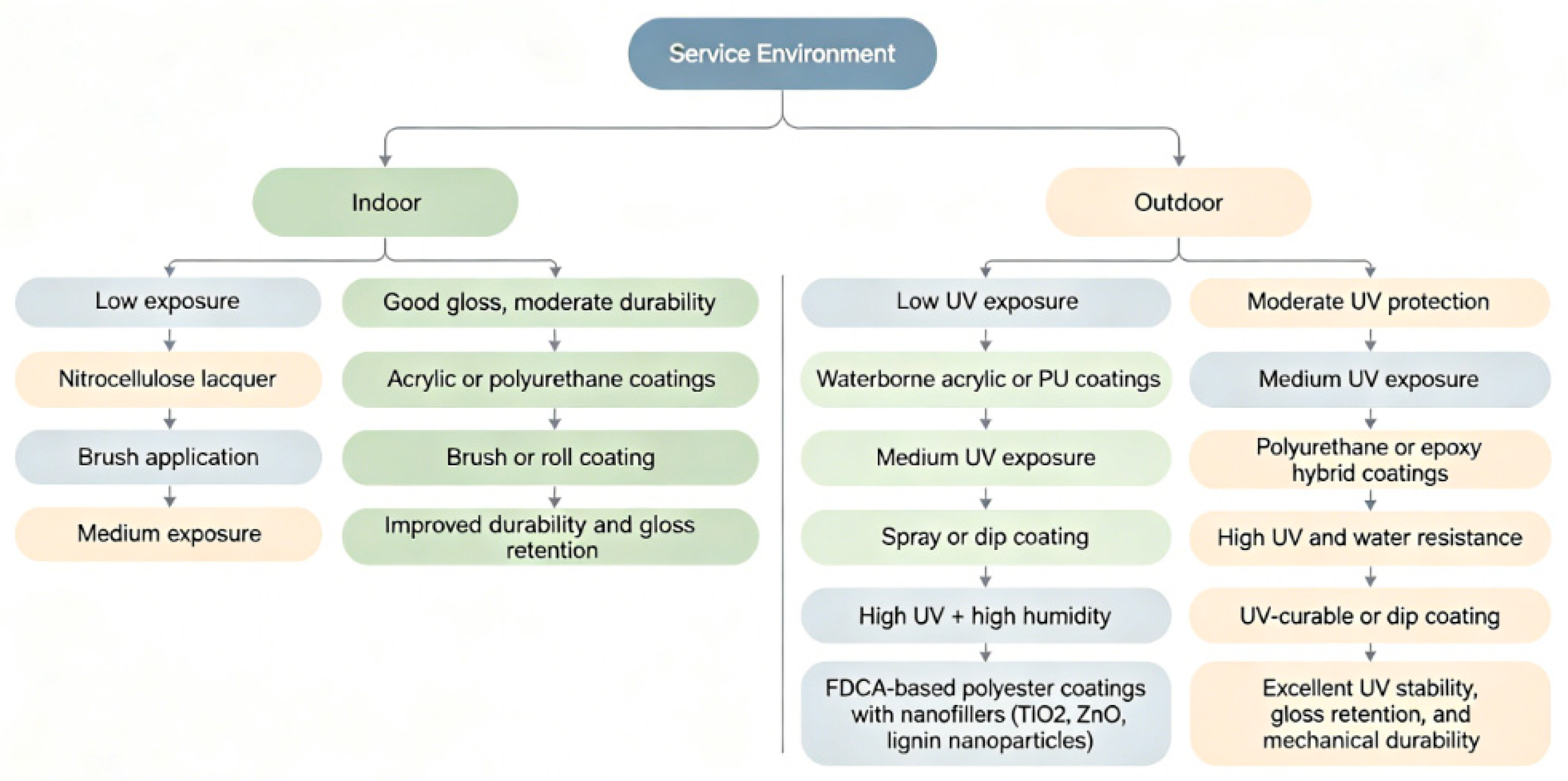

To facilitate practical application, a decision flowchart has been developed to guide the selection of appropriate wood protective coatings and corresponding application methods based on specific service conditions. Factors considered include indoor versus outdoor use, UV exposure intensity, moisture level, and required performance metrics such as gloss retention and color stability. This schematic (Figure 9) provides a concise visual reference for selecting suitable materials and processing techniques.
Recent advances in wood coatings emphasize sustainable and multifunctional polymer systems. Bio-based monomers, such as 2,5-furandicarboxylic acid (FDCA), have been incorporated into polyester coatings to improve UV resistance, mechanical performance, and thermal stability compared with conventional petrochemical-based polyesters. Hybrid formulations combining acrylic, polyurethane, and epoxy resins with nanofillers, including TiO2, ZnO, or lignin nanoparticles, provide synergistic improvements in photostability, water resistance, and gloss retention [11,23,46]. Waterborne and UV-curable coatings continue to gain attention due to lower VOC emissions, faster curing, and tunable optical properties [39,40]. Collectively, these modern coating strategies illustrate a trend toward environmentally friendly, high-performance, and multifunctional wood protection systems.

5. Challenges and Future Directions of Photostabilization in Wood Coatings

5.1. Challenges

Despite significant progress in enhancing the photostability of wood coatings, several challenges remain in practical applications. First, the long-term UV resistance of coatings is limited by the synergistic effects of ultraviolet radiation and environmental factors. UV exposure, temperature–humidity cycling, and atmospheric pollutants collectively accelerate the photo-oxidative degradation of both the coating and wood substrate, reducing the effectiveness of protective systems during prolonged outdoor exposure [14]. Second, the dispersion, stability, and compatibility of nanofillers and functional additives within coating formulations are still limited, which may lead to uneven protection, localized degradation, or compromised mechanical properties. Additionally, although natural antioxidants and bio-based materials offer environmental benefits and multifunctionality, their complex structures and photo-labile active components often hinder long-term stability within the coating [51,52]. Overall, achieving a balanced combination of high transparency, strong UV-blocking capability, and long-term durability remains a core challenge for photostable wood coatings.

5.2. Future Directions

To address these challenges, future research on photostable wood coatings should focus on several key directions. First, the development of efficient composite protective systems that synergistically combine UV absorbers, hindered amine light stabilizers (HALS), and natural antioxidants can provide multi-level protection through simultaneous free radical scavenging and UV shielding, while optimizing the coating microstructure to enhance both mechanical and optical performance [55,56]. Second, the exploration of smart nanomaterials and green bio-based additives, such as cellulose nanofibers, lignin nanoparticles, and chitosan–ZnO composites, can improve light stability, water resistance, and environmental adaptability through multi-scale structural design [57,58]. Third, integrating photocatalytic inhibition, thermal-response regulation, and multifunctional composite strategies may enable coatings to exhibit adaptive protection under varying environmental conditions [59,60]. Fourth, strengthening standardized evaluation protocols and conducting long-term outdoor experiments are essential for systematically quantifying photodegradation and providing data-driven support for high-performance coating optimization [61,62]. In summary, the future development trend of wood coatings lies in simultaneously achieving material sustainability, multifunctionality, and intelligent mechanisms, paving the way for coatings that combine superior photostability, environmental friendliness, and high performance.

6. Conclusions

This review systematically summarized the photodegradation characteristics, influencing factors, and anti-aging strategies of wood coatings. Photodegradation in wood coatings involves polymer matrix chain scission, chemical structure reorganization, and photo-oxidation of the wood substrate, leading to coating chalking, cracking, loss of gloss, and color changes, which severely compromise the mechanical performance and service life of wood. Current strategies to mitigate photodegradation include the use of UV absorbers to convert ultraviolet radiation into harmless heat, HALS-type UV stabilizers to capture free radicals and quench excited-state molecules, barrier materials that form physical nano-scale shields while enhancing mechanical properties and water resistance, and antioxidants that remove free radicals or decompose peroxides at the molecular level. These approaches can be applied individually or in combination to achieve synergistic protection.
However, long-term outdoor exposure remains challenging, as the synergistic effects of UV radiation, temperature–humidity cycling, and environmental pollutants still limit coating performance. The activity of natural antioxidants tends to decrease over time, the dispersion and compatibility of nanoparticles require further optimization, and achieving a balance between high transparency and strong UV-blocking ability remains difficult.
Future research should focus on designing multifunctional composite coatings that integrate natural bio-based materials and nanotechnology to enhance photostability, mechanical performance, and water resistance. The development of smart responsive materials, adaptive protection mechanisms, and standardized long-term evaluation protocols will provide scientific guidance and technical support for high-performance wood coatings, while also promoting the high-value utilization and sustainable development of wood resources.

Author Contributions

M.X. and H.G. contributed to the literature search, data collection, and initial drafting of the manuscript. X.F. contributed to the conceptual framework, analysis of photodegradation mechanisms, and organization of figures and tables. X.L. provided supervision, critical revision of the manuscript, and guidance on scientific interpretation. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Rowell, R.M. Handbook of Wood Chemistry and Wood Composites, 2nd ed.; CRC Press: Boca Raton, FL, USA, 2012. [Google Scholar] [CrossRef]
  2. Bulian, F.; Graystone, J. Wood Coatings: Theory and Practice; Elsevier: Amsterdam, The Netherlands, 2009. [Google Scholar]
  3. Hon, D.N.S.; Shiraishi, N. (Eds.) Weathering and Photochemistry of Wood. In Wood and Cellulosic Chemistry, 2nd ed.; Marcel Dekker: New York, NY, USA, 2001; pp. 513–546. [Google Scholar]
  4. Feist, W.C. Outdoor wood weathering and protection. For. Prod. J. 1990, 40, 43–50. [Google Scholar]
  5. Allen, N.S.; Edge, M.; Ortega, A.; Sandoval, G.; Liauw, C.M.; Verran, J.; Stratton, J. Degradation and stabilisation of polymers and coatings: Nano versus pigmentary titania particles. Polym. Degrad. Stab. 2004, 85, 927–946. [Google Scholar] [CrossRef]
  6. Pandey, K.K. A note on the influence of extractives on the photo-discoloration and photo-degradation of wood. Polym. Degrad. Stab. 2005, 87, 375–379. [Google Scholar] [CrossRef]
  7. Teacă, C.A.; Roşu, D.; Bodîrlău, R.; Roşu, L. Structural changes in wood under artificial UV light irradiation determined by FTIR spectroscopy and color measurements. Carbohydr. Polym. 2013, 8, 1478–1507. [Google Scholar] [CrossRef]
  8. Bratasz, Ł. Allowable microclimatic variations for painted wood. Stud. Conserv. 2013, 58, 65–79. [Google Scholar] [CrossRef]
  9. Cristea, M.V.; Riedl, B.; Blanchet, P. Enhancing the performance of exterior waterborne coatings for wood by inorganic nanosized UV absorbers. Prog. Org. Coat. 2010, 69, 432–441. [Google Scholar] [CrossRef]
  10. Fufa, S.M.; Jelle, B.P.; Hovde, P.J.; Rørvik, P.M. Coated Wooden Claddings and the Influence of Nanoparticles on the Weathering Performance. Prog. Org. Coat. 2012, 75, 72–78. [Google Scholar] [CrossRef]
  11. Yu, H.; Qin, Z.; Liang, B.; Liu, N.; Zhou, Z.; Chen, L. Facile extraction of thermally stable cellulose nanocrystals with a high yield of 93% through hydrochloric acid hydrolysis under hydrothermal conditions. J. Mater. Chem. A 2013, 1, 3938–3944. [Google Scholar] [CrossRef]
  12. Li, X.; Fu, Q.; Wang, J. Preparation and characterization of chitosan/ZnO nanocomposite for wood protection. Int. J. Biol. Macromol. 2015, 72, 1181–1187. [Google Scholar] [CrossRef]
  13. Thakur, V.K.; Thakur, M.K. Recent advances in green hydrogels from lignin: A review. Int. J. Biol. Macromol. 2015, 72, 834–847. [Google Scholar] [CrossRef]
  14. Klushin, V.; Zubkov, I.; Petrenko, D.; Petrenko, A.; Yurieva, T.; Belichenko, T.; Yatsenko, A.; Kataria, Y.; Ulyankina, A. Biorenewable FDCA-Based Alkyd Resins for More Sustainable Wood Coatings. Polymers 2025, 17, 3022. [Google Scholar] [CrossRef]
  15. Gao, L.; McCarthy, T.J. “Artificial Lotus Leaf” Prepared Using a 1945 Patent and a Commercial Textile. Langmuir 2006, 22, 5998–6000. [Google Scholar] [CrossRef]
  16. George, B.; Suttie, E.; Merlin, A.; Deglise, X. Photodegradation and photostabilisation of wood—The state of the art. Polym. Degrad. Stab. 2005, 88, 268–274. [Google Scholar] [CrossRef]
  17. Jirouš-Rajković, V.; Miklečić, J. Enhancing Weathering Resistance of Wood—A Review. Polymers 2021, 13, 1980. [Google Scholar] [CrossRef]
  18. Laleicke, P.F.; Hubbe, M.A. Outdoor Wood Finishing: A Review on Making Wood Resistant to Moisture, Ultraviolet Light, and Degradation. BioResources 2025, 20, 3. [Google Scholar] [CrossRef]
  19. Van Meel, P.A.; Erich, S.J.F.; Huinink, H.P.; Kopinga, K.; De Jong, J.; Adan, O.C.G. Moisture Transport in Coated Wood. Prog. Org. Coat. 2011, 72, 686–694. [Google Scholar] [CrossRef]
  20. Hubbe, M.A.; Laleicke, F. Chemical and Mechanistic Aspects of Wood Finishing: A Review Encompassing Paints and Clear Coats. BioResources 2025, 20, 2. [Google Scholar] [CrossRef]
  21. Evans, P.D.; Haase, J.G.; Seman, A.; Kiguchi, M. The Search for Durable Exterior Clear Coatings for Wood. Coatings 2015, 5, 830–864. [Google Scholar] [CrossRef]
  22. Nikafshar, S.; Nejad, M. Evaluating Efficacy of UV Stabilizers in Reducing Lignin Photodegradation. Holzforschung 2022, 76, 235–244. [Google Scholar] [CrossRef]
  23. Yousif, E.; Haddad, R. Photodegradation and Photostabilization of Polymers. SpringerPlus 2013, 2, 398. [Google Scholar] [CrossRef]
  24. Ramakrishnan, A. Recent Advances of Nanotechnology in Wood Protection. Wood Mater. Sci. Eng. 2023, 19, 279–290. [Google Scholar] [CrossRef]
  25. Nair, S.; Nagarajappa, G.B.; Pandey, K.K. UV Stabilization of Wood by Nano Metal Oxides. J. Photochem. Photobiol. B 2018, 183, 1–10. [Google Scholar] [CrossRef] [PubMed]
  26. Stark, N.M.; Matuana, L.M. Ultraviolet Weathering of Wood and Wood–Polymer Composites. Prog. Polym. Sci. 2013, 38, 1654–1685. [Google Scholar] [CrossRef]
  27. Xia, J.; Lin, J.; Xu, Y.; Chen, Q. On the UV-Induced Polymeric Behavior of Chinese Lacquer. ACS Appl. Mater. Interfaces 2011, 3, 482–489. [Google Scholar]
  28. Bénard, F.; Mailhot, B.; Mallégol, J.; Gardette, J.L. Photoageing of an Electron Beam Cured Polyurethane Acrylate Resin. Polym. Degrad. Stab. 2008, 93, 1122–1130. [Google Scholar] [CrossRef]
  29. Pandey, K.K. Study of Photodegradation of Wood Surfaces. Holzforschung 2005, 59, 404–411. [Google Scholar] [CrossRef]
  30. Zhang, J. Photooxidation Mechanism of Acrylic Coatings. Prog. Org. Coat. 2018, 124, 1–12. [Google Scholar] [CrossRef]
  31. Tolvaj, L.; Mitsui, K. Light-Induced Chemical Changes in Wood. J. Photochem. Photobiol. B 2010, 98, 11–16. [Google Scholar]
  32. Butylina, S.; Hyvärinen, M.; Kärki, T. A Study of Surface Changes of Wood-Polypropylene Composites as the Result of Exterior Weathering. Polym. Degrad. Stab. 2012, 97, 337–345. [Google Scholar] [CrossRef]
  33. Mizokawa, S.; Ohkatsu, Y. Influence of Ultraviolet Absorbers on Decomposition of Hydroperoxide by Hindered Amine Light Stabilizers. J. Japan Pet. Inst. 2007, 50, 1–7. [Google Scholar] [CrossRef]
  34. Ghaffar, S.; Abbas, A.; Naeem-ul-Hassan, M.; Assad, N.; Sher, M.; Ullah, S.; Alhazmi, H.A.; Najmi, A.; Zoghebi, K.; Al Bratty, M.; et al. Improved Photocatalytic and Antioxidant Activity of Olive Fruit Extract-Mediated ZnO Nanoparticles. Antioxidants 2023, 12, 1201. [Google Scholar] [CrossRef] [PubMed]
  35. Xu, R.; Gan, J.; Wang, J.; Zhao, W.; Tong, K.; Wu, Y. Photoluminescent Transparent Wood with Excellent UV-Shielding Function. ACS Omega 2024, 9, 8092–8102. [Google Scholar] [CrossRef]
  36. Clausen, C.A.; Green, F., III; Nami Kartal, S. Weatherability and Leach Resistance of Wood Impregnated with Nano-Zinc Oxide. Nanoscale Res. Lett. 2010, 5, 1464. [Google Scholar] [CrossRef]
  37. Cho, J.D.; Hong, J.W. UV-Initiated Free Radical and Cationic Photopolymerizations of Acrylate/Epoxide and Acrylate/Vinyl Ether Hybrid Systems with and without Photosensitizer. J. Appl. Polym. Sci. 2004, 93, 1473–1483. [Google Scholar]
  38. Harandi, D.; Walsh-Korb, Z.; Moradienayat, M. CNCs and CeO2 as Organic–Inorganic Additives to Enhance HPC Bio-Polymer Wood Coatings against Photochemical Degradation. J. Coat. Technol. Res. 2025, 22, 691–701. [Google Scholar] [CrossRef]
  39. Feng, Y.; Zhang, J.; He, J.; Zhang, J. Transparent Cellulose/Polyhedral Oligomeric Silsesquioxane Nanocomposites with Enhanced UV-Shielding Properties. Carbohydr. Polym. 2016, 147, 171–177. [Google Scholar] [CrossRef] [PubMed]
  40. Hayoz, P.; Rogez, D.; Braig, A. A New Innovative Stabilization Method for the Protection of Natural Wood. Prog. Org. Coat. 2003, 48, 297–309. [Google Scholar] [CrossRef]
  41. Schaller, C.; Rogez, D.; Braig, A. Hindered Amine Light Stabilizers in Pigmented Coatings. J. Coat. Technol. Res. 2009, 6, 81–88. [Google Scholar]
  42. Andrady, A.L.; Heikkilä, A.M.; Pandey, K.K.; Bruckman, L.S.; White, C.C.; Zhu, M.; Zhu, L. Effects of UV Radiation on Natural and Synthetic Materials. Photochem. Photobiol. Sci. 2023, 22, 1177–1202. [Google Scholar] [CrossRef]
  43. Camargos, C.H.M.; Poggi, G.; Chelazzi, D.; Baglioni, P.; Rezende, C.A. Protective Coatings Based on Cellulose Nanofibrils, Cellulose Nanocrystals, and Lignin Nanoparticles for the Conservation of Cellulosic Artifacts. ACS Appl. Nano Mater. 2022, 5, 13245–13259. [Google Scholar] [CrossRef]
  44. Liu, H.; Hu, D.; Chen, X.; Ma, W. Surface Engineering of Nanoparticles for Highly Efficient UV-Shielding Composites. J. Mater. Sci. Technol. 2021, 72, 214–234. [Google Scholar] [CrossRef]
  45. Bansal, R.; Nair, S.; Pandey, K.K. UV Resistant Wood Coating Based on Zinc Oxide and Cerium Oxide Dispersed Linseed Oil Nano-Emulsion. Mater. Today Commun. 2022, 30, 103177. [Google Scholar] [CrossRef]
  46. Wu, H.; Han, X.; Zhao, W.; Zhang, Q.; Zhao, A.; Xia, J. Mechanical and Electrochemical Properties of UV-Curable Nanocellulose/Urushiol Epoxy Acrylate Anti-Corrosive Composite Coatings. Ind. Crops Prod. 2022, 181, 114805. [Google Scholar] [CrossRef]
  47. Bai, W.; Zhang, X.; Chen, X.; Li, P.; Huang, J.; Chen, J.; Zheng, S.; Li, X.; Lin, Y.; Jian, R. Magnetic Bio-Based Fe3O4@Urushiol-Fe Polymeric Nanoparticles for Efficient Photothermal Sterilization. J. Environ. Chem. Eng. 2024, 12, 113523. [Google Scholar] [CrossRef]
  48. Augustyniak, A.; Bartosz, G.; Čipak, A.; Duburs, G.; Horáková, L.; Łuczaj, W.; Majekova, M.; Odysseos, A.D.; Rackova, L.; Skrzydlewska, E.; et al. Natural and Synthetic Antioxidants: An Updated Overview. Free Radic. Res. 2010, 44, 1216–1262. [Google Scholar] [CrossRef]
  49. Ren, D.; Zhang, X.X.; Wang, H.K.; Li, W.J.; Yu, Y. Improving Thermo-Oxidative Degradation Resistance of Bamboo Fiber Reinforced Polypropylene Composite with Antioxidants. Part I: Screening of Antioxidants. J. Appl. Polym. Sci. 2016, 133, 44198. [Google Scholar] [CrossRef]
  50. Grelier, S.; Castellan, A.; Podgorski, L. Use of Low Molecular Weight Modified Polystyrene to Prevent Photodegradation of Clear Softwoods for Outdoor Use. Prog. Org. Coat. 2007, 92, 1520–1527. [Google Scholar] [CrossRef]
  51. Rumpf, J.; Bergrath, J.; Williams, M.B.; Zeppetzauer, F.; Kamm, B.; Schulze, M. Enhanced Antioxidant Capacity of Miscanthus-Derived Lignins via Organosolv Process Variation and Autohydrolysis. Biomacromolecules 2026, 27, 1999–2011. [Google Scholar] [CrossRef]
  52. Moccia, F.; Piscitelli, A.; Giovando, S.; Giardina, P.; Panzella, L.; d’Ischia, M.; Napolitano, A. Hydrolyzable vs. Condensed Wood Tannins for Bio-Based Antioxidant Coatings: Superior Properties of Quebracho Tannins. Antioxidants 2020, 9, 804. [Google Scholar] [CrossRef]
  53. Dong, X.; Gao, L.; Xiao, T.; Zhang, J.; Ping, Q. Green and Sustainable Fabrication of UV-Resistance and Antioxidant Cotton via Self-Crosslinking Bamboo Ethanol Lignin. Ind. Crops Prod. 2025, 202, 115–126. [Google Scholar] [CrossRef]
  54. Zhang, C.; Ou, Y.; Lei, W.-X.; Wan, L.-S.; Ji, J.; Xu, Z.-K. CuSO4/H2O2-Induced Rapid Deposition of Polydopamine Coatings with High Uniformity and Enhanced Stability. Angew. Chem. Int. Ed. 2015, 54, 12345–12352. [Google Scholar]
  55. Jiang, T.; Zhang, J. Comparison of UV Resistance of HDPE Added with Hindered Amine Light Stabilizers with Different Molecular Structures. Polym. Adv. Technol. 2021, 32, 1288–1300. [Google Scholar] [CrossRef]
  56. Zhao, X.; Wang, L.; Guo, L.; Ma, Y.; Wang, Z.; Niu, Q. The Effect of a Hindered Amine Light Stabilizer on the Aging Behavior of Moisture-Curable Polyurethane as a Cultural Relics Consolidant. Polimery 2020, 65, 297–309. [Google Scholar] [CrossRef]
  57. Klampfl, C.; Himmelsbach, M. Advances in the Determination of Hindered Amine Light Stabilizers—A Review. Anal. Chim. Acta 2016, 933, 10–22. [Google Scholar] [CrossRef]
  58. Forsthuber, B.; Grüll, G. The Effects of HALS in the Prevention of Photo-Degradation of Acrylic Clear Topcoats and Wooden Surfaces. Polym. Degrad. Stab. 2010, 95, 746–755. [Google Scholar] [CrossRef]
  59. Mashalavi, B.; Masoum, S. Eco-Friendly Fabrication of Durable Superhydrophobic Coatings on Wood Using Modified ZnO–TiO2 Nanocomposite and Bio-Based Components. J. Adhes. Sci. Technol. 2026, 1–21. [Google Scholar] [CrossRef]
  60. Lu, K.-T.; Lee, J.-J. Effects of Adding Antioxidants on the Lightfastness Improvement of Refined Oriental Lacquer. Polymers 2021, 13, 1110. [Google Scholar] [CrossRef]
  61. Shin, Y.R.; Lee, S.; Lee, J.H.; Moon, J.; Hwang, G.I.; Lee, H.; Kim, H.; Lee, S.; Jeong, Y.G. Sustainable UV-Curable Coatings Based on Urushiol and Lignin: From Radical Crosslinking to Functional Performance. Prog. Org. Coat. 2026, 212, 109883. [Google Scholar] [CrossRef]
  62. Narita, C.; Okahisa, Y.; Yamada, K. Plasticizing Effect of Lignin on Urushi in Bio-Composite Films. Polymer 2019, 161, 49–54. [Google Scholar] [CrossRef]
Polymers 18 01090 g001
Figure 1. Wooden chess pieces coated with FDCA-based alkyd resins (ARs) [13].
Figure 1. Wooden chess pieces coated with FDCA-based alkyd resins (ARs) [13].
Polymers 18 01090 g001
Polymers 18 01090 g002

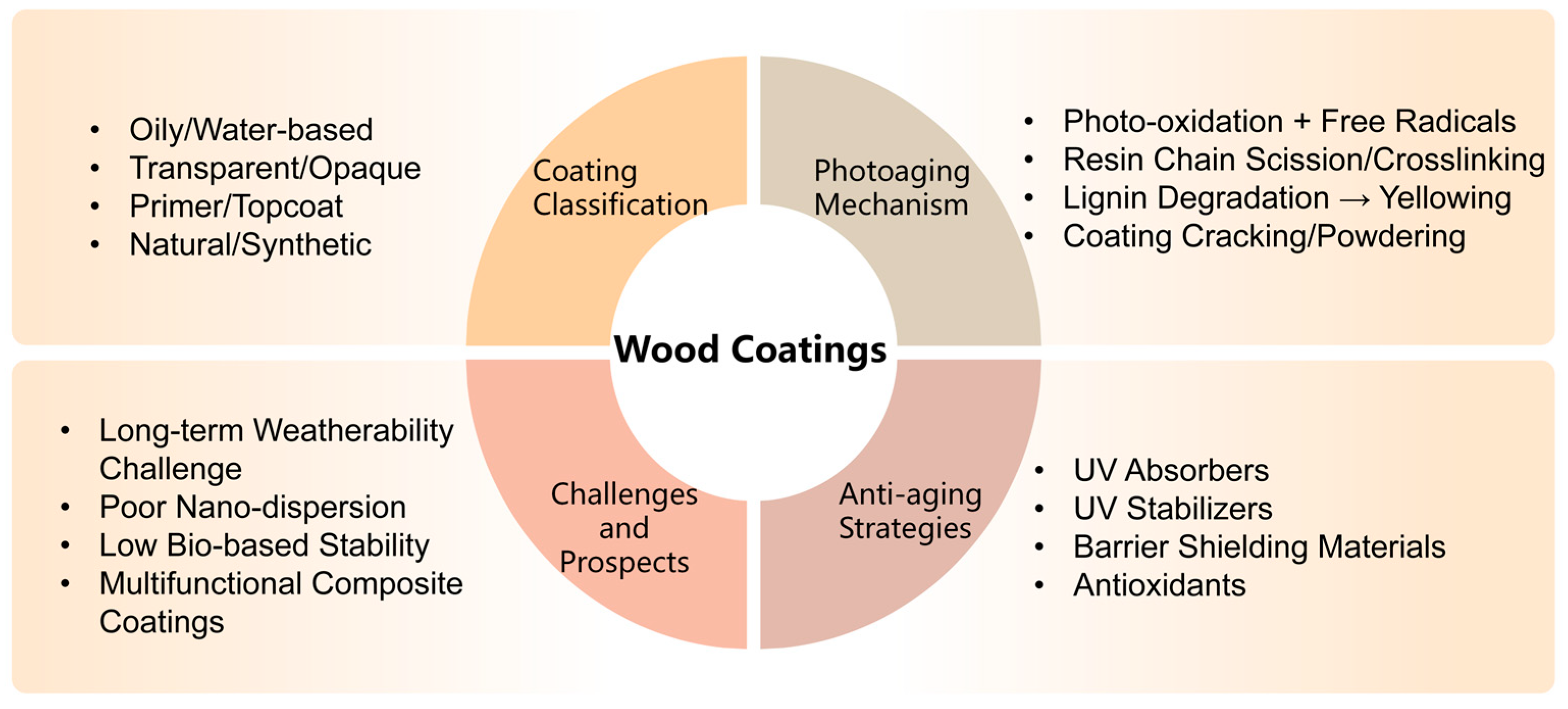

Figure 2. Overview framework of wood coating photodegradation and anti-aging strategies.
Figure 2. Overview framework of wood coating photodegradation and anti-aging strategies.
Polymers 18 01090 g002
Polymers 18 01090 g003
Figure 3. Classification of wood coatings.
Figure 3. Classification of wood coatings.
Polymers 18 01090 g003
Polymers 18 01090 g004

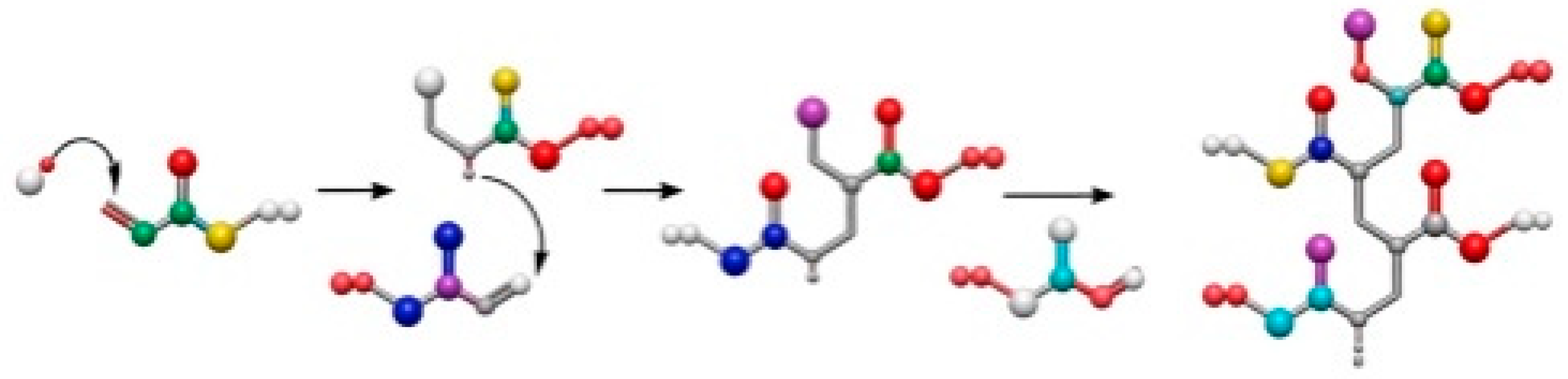

Figure 4. Reaction of radical polymerization of acrylate groups [28].
Figure 4. Reaction of radical polymerization of acrylate groups [28].
Polymers 18 01090 g004
Polymers 18 01090 g005

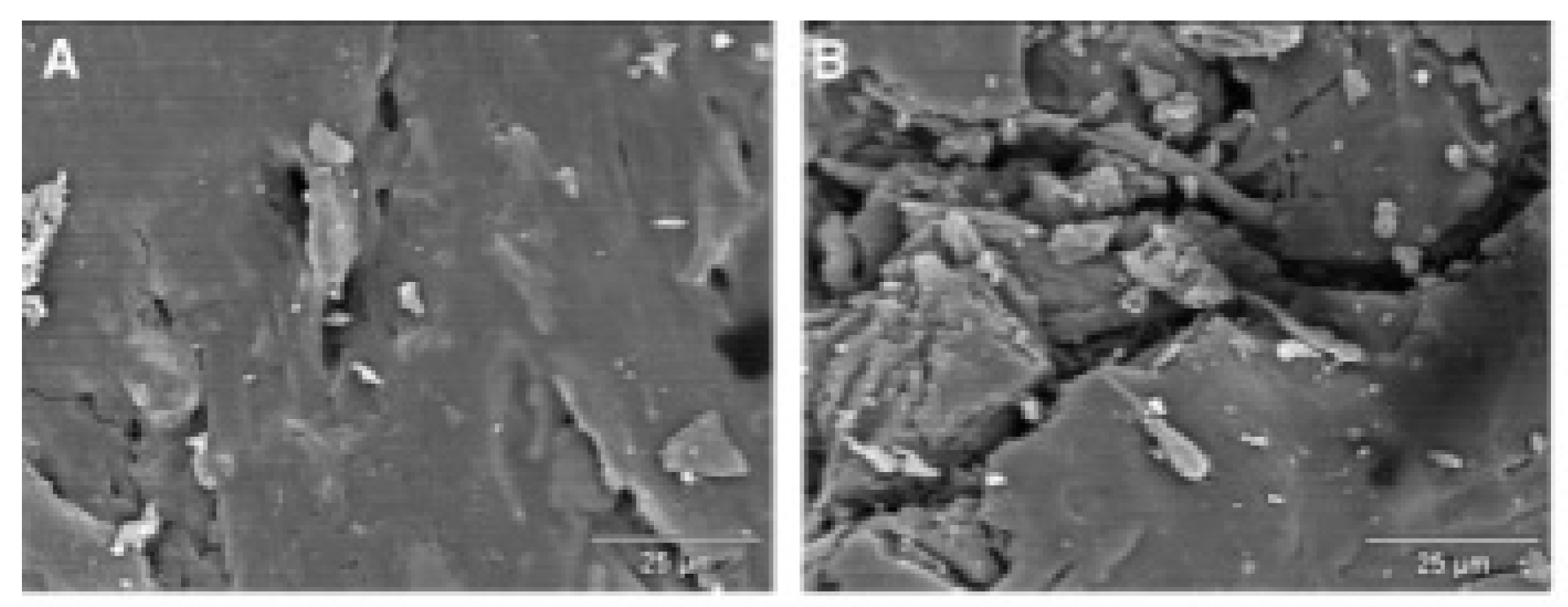

Figure 5. SEM image of the surface layer of wood-PP composites: (A) control non-weathered, (B) control after 1 year of weathering [32]. Scale bar: 25 μm.
Figure 5. SEM image of the surface layer of wood-PP composites: (A) control non-weathered, (B) control after 1 year of weathering [32]. Scale bar: 25 μm.
Polymers 18 01090 g005
Polymers 18 01090 g006

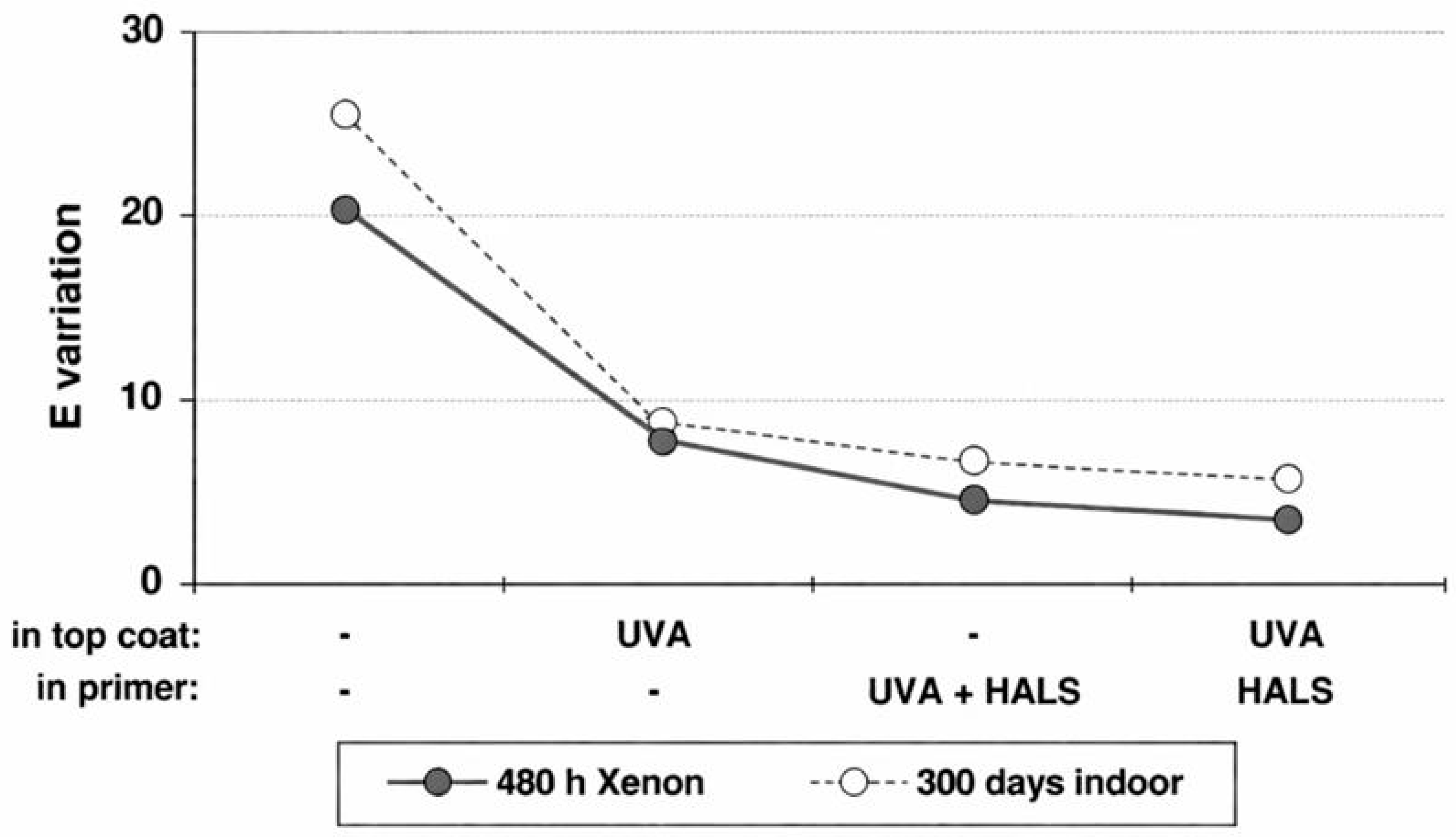

Figure 6. Effect of UVA-2 and HALS-1 on color change of pine [40].
Figure 6. Effect of UVA-2 and HALS-1 on color change of pine [40].
Polymers 18 01090 g006
Polymers 18 01090 g007

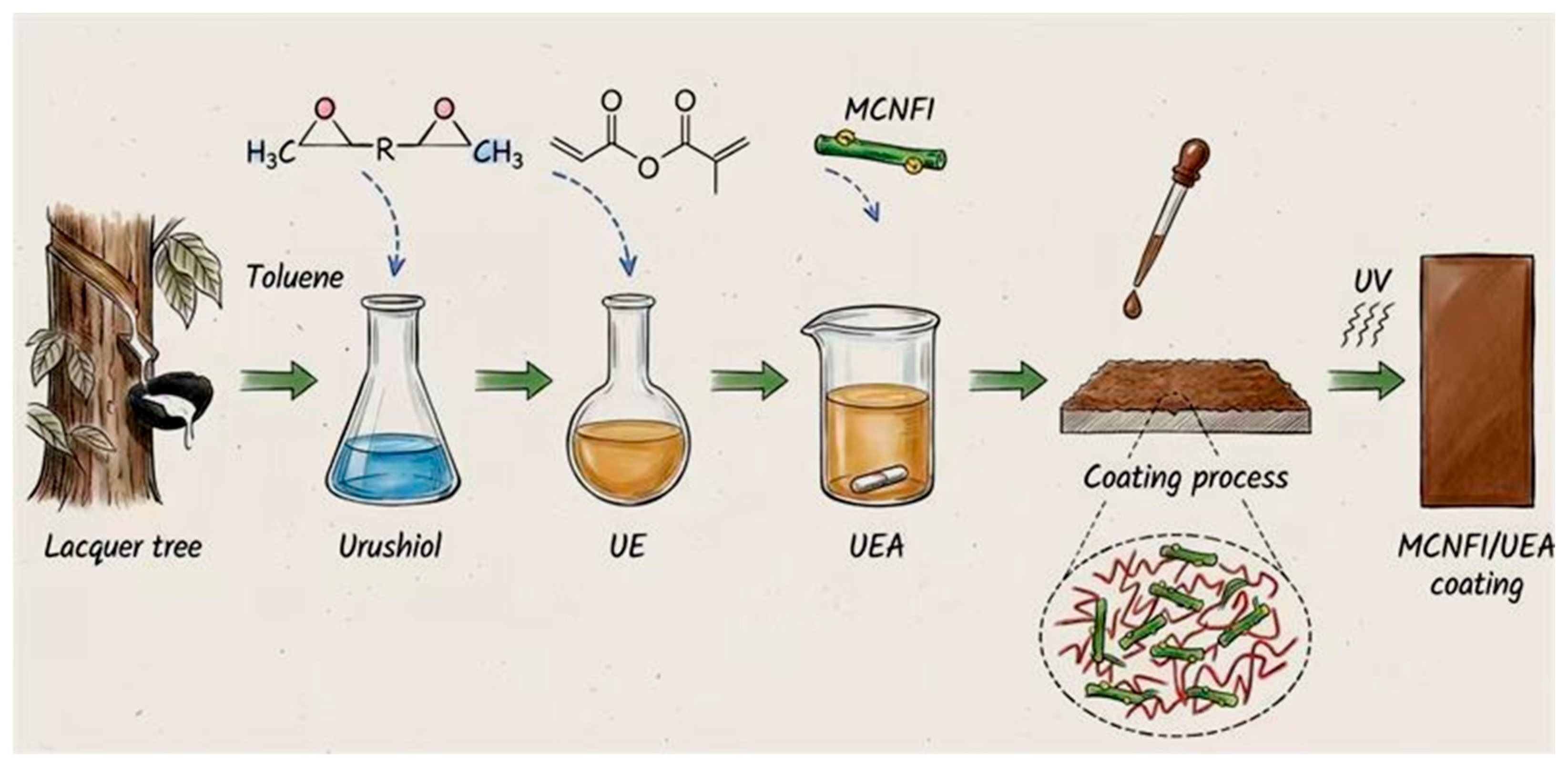

Figure 7. Schematic of MCNFI/UEA nanofiber composite coating structure for UV shielding and mechanical reinforcement of wood surfaces, adapted from [46].
Figure 7. Schematic of MCNFI/UEA nanofiber composite coating structure for UV shielding and mechanical reinforcement of wood surfaces, adapted from [46].
Polymers 18 01090 g007
Polymers 18 01090 g008

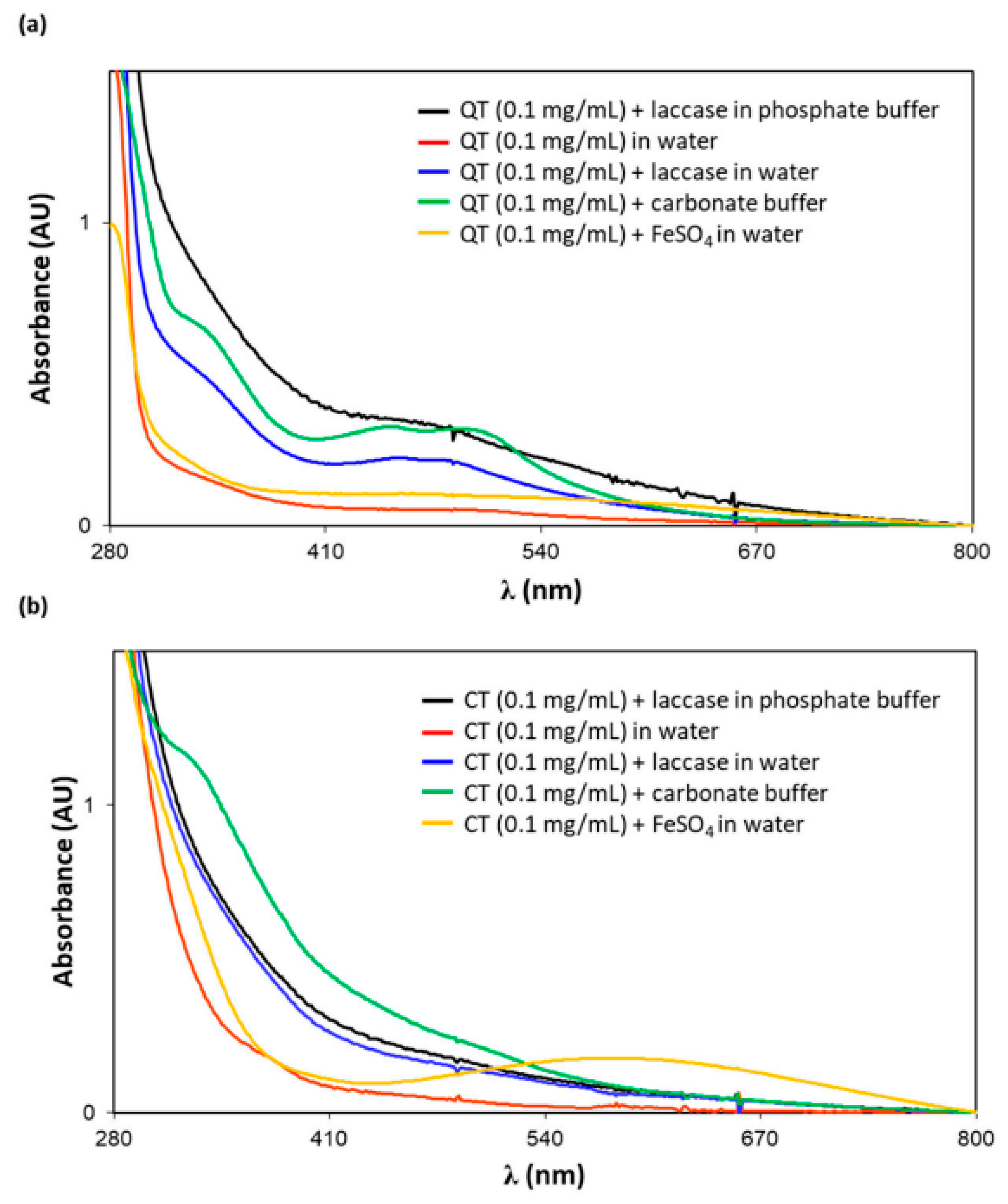

Figure 8. UV–vis spectra of dip coating solutions after 2 h immersion. (a) Condensed tannin (QT); (b) Hydrolyzable tannin (CT) [52].
Figure 8. UV–vis spectra of dip coating solutions after 2 h immersion. (a) Condensed tannin (QT); (b) Hydrolyzable tannin (CT) [52].
Polymers 18 01090 g008
Polymers 18 01090 g009
Figure 9. Decision flowchart for selecting wood protective coatings based on service conditions.
Figure 9. Decision flowchart for selecting wood protective coatings based on service conditions.
Polymers 18 01090 g009
Table 1. Degradation mechanisms and evaluation criteria for representative film-forming resins in wood coatings.
Table 1. Degradation mechanisms and evaluation criteria for representative film-forming resins in wood coatings.
Resin TypeMain Degradation MechanismSensitive GroupsKey Evaluation Criteria
AlkydPhoto-oxidation, chain scissionC=C, esterCarbonyl index, Δb, gloss
PolyurethaneUrethane cleavage, oxidation-NH-COO-ΔE, tensile strength
EpoxyEther bond scissionC-O-CCrosslink density, FTIR
NitrocelluloseNitrate photolysis-ONO2Mass loss, gloss
Table 2. Comparison of different photostabilization strategies for wood coatings, including their mechanisms, advantages, disadvantages, applicable coating systems, and representative references.
Table 2. Comparison of different photostabilization strategies for wood coatings, including their mechanisms, advantages, disadvantages, applicable coating systems, and representative references.
StrategyMechanismAdvantagesDisadvantagesApplicable SystemsRepresentative References
UV AbsorbersAbsorb UV light and convert it into heat, reducing UV energy penetrationHigh UV absorption efficiency; suitable for transparent coatings; compatible with other additivesMay degrade under prolonged UV exposure; partial migrationSolvent-based, waterborne, UV-curable coatings[40,47]
UV Stabilizers (HALS)Capture free radicals and quench excited-state molecules, interrupting photo-oxidative chain reactionsLong-term effectiveness; synergistic with UV absorbers; suitable for high-durability coatingsHigh concentrations may affect transparency; limited compatibility with acidic systemsAcrylic, polyurethane, waterborne coatings[40,41]
Barrier & Shielding MaterialsForm dense coatings with nanoparticles or nanofibers that scatter or absorb UVImprove mechanical strength and water resistance; enhance protection of natural woodNanoparticle aggregation may reduce transparency; higher production costWaterborne coatings, composite coatings, outdoor wood[43,46]
AntioxidantsCapture free radicals or decompose peroxides, interrupting photo-oxidative chain reactionsImprove stability of resin and lignin; synergistic with UV absorbers and HALSSensitive to combined thermal and UV stress; natural antioxidants may have dispersion issuesSolvent-based, waterborne, bio-based coatings[10,52]
Table 3. Quantitative performance improvements of wood coatings with different photostabilization strategies reported in the literature.
Table 3. Quantitative performance improvements of wood coatings with different photostabilization strategies reported in the literature.
StrategyAdditive/SystemKey PropertyBefore ModificationAfter ModificationImprovementReference
UV AbsorberBenzotriazole (UVA)ΔE (color change) after UV exposure~12–15~5–7↓ ~50–60%[40]
HALS + UVAHALS-3 + UVA-2Δb* (yellowing) after 500 h UVA-340High yellowingSignificantly reduced↓ ~40–60%[40]
NanoparticlesZnO/TiO2UV transmittance (UVA)~60–70%<20%↓ ~70%[44,45]
Lignin nanoparticlesLNPs (~1%)UVA transmittance~50%<10%↓ ~80%[23]
Cellulose/CeO2 compositeCNC + CeO2UV shielding efficiencyModerateHigh↑ significant[11,38]
AntioxidantsCondensed tanninsRadical scavenging/stabilityModerateEnhanced stability↑ [52]
Hybrid systemsHALS + nanoparticlesService life/durabilityBaseline>50% increase↑ >50%[20,55]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Xia, M.; Gao, H.; Feng, X.; Liu, X. Photodegradation Mechanisms and Anti-Aging Strategies of Wood Coatings: A Comprehensive Review. Polymers 2026, 18, 1090. https://doi.org/10.3390/polym18091090

AMA Style

Xia M, Gao H, Feng X, Liu X. Photodegradation Mechanisms and Anti-Aging Strategies of Wood Coatings: A Comprehensive Review. Polymers. 2026; 18(9):1090. https://doi.org/10.3390/polym18091090

Chicago/Turabian Style

Xia, Meng, Hanyun Gao, Xinhao Feng, and Xinyou Liu. 2026. "Photodegradation Mechanisms and Anti-Aging Strategies of Wood Coatings: A Comprehensive Review" Polymers 18, no. 9: 1090. https://doi.org/10.3390/polym18091090

APA Style

Xia, M., Gao, H., Feng, X., & Liu, X. (2026). Photodegradation Mechanisms and Anti-Aging Strategies of Wood Coatings: A Comprehensive Review. Polymers, 18(9), 1090. https://doi.org/10.3390/polym18091090

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
