Article

Study on the Extraction Method of Microplastic System in Textile Wastewater

by
Jiachen Li
,
Yuanyuan Liu
,
Yingxi Gao
,
Xin Li
and
Yan Gong
*
School of Materials Design and Engineering, Beijing Institute of Fashion Technology, Beijing 100029, China
*
Author to whom correspondence should be addressed.
Polymers 2023, 15(6), 1394; https://doi.org/10.3390/polym15061394
Submission received: 8 February 2023 / Revised: 8 March 2023 / Accepted: 8 March 2023 / Published: 10 March 2023
(This article belongs to the Section Polymer Analysis and Characterization)
Browse Figures
Versions Notes

Abstract

:
Microplastic pollution has become a global environmental problem. Textile microplastics are an important component of microplastic pollution, but little is known about their contamination in the industrial environment. The lack of standardized methods for detecting and quantifying textile microplastics is a major obstacle to determining the risks they pose to the natural environment. This study systematically examines the pretreatment options for the extraction of microplastics from printing and dyeing wastewater. The effectiveness of potassium hydroxide, nitric acid–hydrogen peroxide mixed solution, hydrogen peroxide, and Fenton’s reagent for the removal of organic matter from textile wastewater is compared. Three textile microplastics, polyethylene terephthalate, polyamide, and polyurethane, are studied. The effects of the digestion treatment on the physicochemical properties of textile microplastics are characterized. The separation efficiency of sodium chloride, zinc chloride, sodium bromide, sodium iodide, and sodium chloride-sodium iodide mixed solution on the textile microplastics is tested. The results showed that Fenton’s reagent achieved a 78% removal rate of organic matter from printing and dyeing wastewater. Meanwhile, it has less of an effect on the physicochemical properties of textile microplastics after digestion and is the best reagent for digestion. The zinc chloride solution achieved a 90% recovery for separating textile microplastics with good reproducibility. It does not affect the subsequent characterization analysis after separation and is the best solution for density separation.

1. Introduction

Currently, researchers have found varying degrees of microplastic pollution in various environments around the world, including the ocean, soil, and atmosphere [1,2,3,4,5]. However, until recently, only 6.3% of studies investigated microplastic pollution in the industrial environment [6]. Textile microplastics are an important component of microplastics, which are predominantly fibrous in form and originate mainly from textiles’ production, processing, use, and disposal processes [7,8,9,10,11]. According to a report published by the International Union for Conservation of Nature (IUCN) in 2017 [12], the total amount of microplastics released into the environment globally is about 1.8–5.0 million tons, of which textile microplastics account for 34.8%. Zhang and Deng et al. [13,14] found high concentrations of textile microplastics in environmental samples near textile enterprises, suggesting that the textile industry is an important potential source of microplastic contamination. Measuring and quantifying textile microplastics on spatial and temporal scales is necessary to characterize their contamination and develop prevention and control measures. However, to date, there are no uniform standard techniques or program guidelines for detecting textile microplastics. Research on textile microplastic detection is still in its infancy, and there is a lack of basic technical references and data sources.
In general, printing and dyeing wastewater is the main medium for the occurrence of textile microplastics [15]. Textile wastewater mainly consists of wastewater generated during textile pretreatment, printing and dyeing, and finishing processes [16]. Depending on the type of fabric to be processed and the dyeing and finishing process, the volume and quality of printing and dyeing wastewater vary. The complexity of printing and dyeing wastewater leads to difficulties in the detection of textile microplastics. Printing and dyeing wastewater usually contains dyes, pastes, auxiliaries, oil agents, acids and bases, fiber impurities, sand substances, inorganic salts, and other substances [17,18]. Currently, the pretreatment process for microplastic detection is generally divided into two parts: removal of organic impurities and separation of microplastics [19,20]. Digestion is often used for the removal of organic matter from samples. Common digestion methods include acid digestion (nitric acid (HNO3), perchloric acid (HClO4)), alkali digestion (potassium hydroxide (KOH), sodium hydroxide (NaOH)), oxidative digestion (hydrogen peroxide (H2O2), Fenton’s reagent), and enzymatic digestion [21,22,23,24]. Among them, enzymatic digestion is generally used for less complex environmental samples [25]. In contrast, the organic mixture in printing and dyeing wastewater is more complex and diverse. The removal of organic matter may require multiple types of enzymes to achieve, leading to higher experimental costs and complex steps. The chemical digestion method has a broader specificity and may have better prospects for application to dyeing and printing wastewater. The density separation method is a physical method for separating microplastics from environmental samples [26]. The method is performed by thoroughly mixing a high-density salt solution with the sample and separating it with the help of the density difference between the microplastics and the solution. The density separation method is simple to experiment with and easy to operate. At present, the solutions that have been used for the separation of microplastics are sodium chloride (NaCl, 1.2 g·cm−3), zinc bromide (ZnBr2, 1.71 g·cm−3), zinc chloride (ZnCl2, 1.7 g·cm−3), and sodium iodide (NaI, 1.8 g·cm−3) [27,28,29,30]. Although the application of the density separation method in the detection of microplastics is relatively mature, its effectiveness for the separation of textile microplastics has yet to be verified. It is worth mentioning that most of the studies have chosen to use the digestion and density separation methods to pretreat the samples, but few studies have investigated the effectiveness of the application of these methods. There are differences in the chemical structures and physical properties of different types of microplastics, and improper handling of the pretreatment process can also impact the study’s final results [31,32]. For example, some microplastics are degraded or fragmented under certain digestion conditions, and some denser microplastics cannot be effectively separated in low-density solutions [25,33,34].
This study aims to systematically explore and validate the extraction of microplastics from textile wastewater. The effect of different digestion methods on the removal of organic matter from textile wastewater is tested. Additionally, three textile microplastics, polyester (polyethylene terephthalate, PET), nylon (polyamide, PA), and spandex (polyurethane, PU), are studied to investigate the effects of different digestion protocols and density separation solutions on the detection of textile microplastics. The suitability of the pretreatment methods is verified by analyzing the data on the recovery, morphological, and structural changes of the microplastics before and after the treatment. The results of the study can provide a reference for the detection of microplastics in textile wastewater.

2. Materials and Methods

The study on the extraction methods of microplastics from textile wastewater contains two parts. (1) The effect of different digestion methods on the removal of organic matter from printing and dyeing wastewater and on the physicochemical properties of textile microplastics; (2) the separation efficiency of different density separation solutions on textile microplastics.

2.1. Materials and Reagents

2.1.1. Microplastic Samples

China is the world’s leading textile producer and processor, and its chemical fiber processing accounts for 70% of the total global production [35]. Among them, polyester (PET), nylon (PA), and spandex (PU) account for 90%, 7%, and 1.5% of the total processed chemical fibers, respectively [36]. Therefore, the study is carried out with three types of microplastics, PET, PA, and PU, as indicative samples. The microplastic samples were purchased from Shanghai Guanbu Mechanical and Electrical Technology Co. The microplastics were all irregularly particulate in shape, colorless, and transparent, with particle sizes ranging from 50 to 120 μm. The study was conducted using Fourier transform infrared spectroscopy (FTIR) to verify the types of polymers and the characteristic infrared absorption peaks.

2.1.2. Textile Wastewater Samples

The textile wastewater used for the test came from a large textile company (Hutai Textile Co., Ltd., Guangzhou, China) in Guangdong Province, China (Figure 1). The company has a full textile production line for knitting, dyeing, printing, and finishing. The total annual production and processing of textiles in the enterprise are 87,000 tons, and the daily treatment capacity of the wastewater treatment plant on the enterprise’s campus is 20,000 tons [37]. The study was carried out with on-site sampling and encapsulation at the inlet of the wastewater treatment plant, followed by experiments and tests in the laboratory. The sampling time was from 20 July 2021 to 30 July 2021.
The textile wastewater water sample is a dark brown turbid liquid. The chemical oxygen demand (COD) of the wastewater is 700–900 mg·L−1 and the pH was 6–10 [37].

2.2. Digestion Treatment

2.2.1. Removal of Organic Matter in Printing and Dyeing Wastewater

Chemical oxygen demand (COD) is an important indicator to characterize the organic pollution of water bodies, which can reflect the degree of organic pollution in water bodies. COD is the amount of oxidant consumed when a strong oxidant is used to treat water samples under certain conditions [38]. Although the reducing substances in water are various organic substances, nitrites, sulfides, ferrous salts, etc., the main part of them is organic substances [14]. Therefore, the study was conducted to calculate the digestion efficiency from the COD data before and after the digestion of printing and dyeing wastewater. The initial selection of digestion reagents was based mainly on literature data documenting the effects of digestion efficiency and microplastics [39,40,41]. The digestion reagents tested in the study included potassium hydroxide (KOH, 10% w/v), nitric acid–hydrogen peroxide mixed solution (HNO3, 68% w/v; H2O2, 30% w/v), hydrogen peroxide (H2O2, 30% w/v), and Fenton’s reagent (hydrogen peroxide + ferrous sulfate: H2O2, 30% w/v + FeSO4, 0.05 mol·L−1) [21,22,23,24]. The above reagent drugs were purchased from Beijing Tongguang Fine Chemical Company.
Potassium hydroxide, nitric acid–hydrogen peroxide mixed solution, and hydrogen peroxide digestion: Take 500 mL of printing and dyeing wastewater, add 50 mL of digestion reagent, and digest under the conditions of set experimental parameters (a. 25 °C, 24 h; b. 50 °C, 24 h; c. 25 °C, 72 h).
Fenton’s reagent digestion: Take 500 mL of printing and dyeing wastewater, add 25 mL of hydrogen peroxide (H2O2, 30% w/v) and 25 mL of ferrous sulfate solution (FeSO4, 0.05 mol·L−1), adjust the pH to 3 with concentrated sulfuric acid (H2SO4, 95% v/v), and digest under the conditions of set experimental parameters (a. 25 °C, 24 h; b. 50 °C, 24 h; c. 25 °C, 72 h) with ice bath control temperature.
Both the original water samples and the digested water samples were tested for COD index, and the detection method was based on the HJ/T 399–2007 rapid digestion spectrophotometric method [42], with a sample size of 3 for each group of data.

2.2.2. Digestion of Textile Microplastics

To further understand the effect of the digestion method on the physicochemical properties of textile microplastics, 0.5 g of textile microplastics was added to 500 mL of ultrapure water, and then the textile microplastics were digested by using potassium hydroxide, nitric acid–hydrogen peroxide mixed solution, hydrogen peroxide, and Fenton’s reagent, according to the digestion method in Section 2.2.1, respectively. After the digestion was finished, the microplastics and the digestion solution were passed through a polytetrafluoroethylene filter membrane (pore size 0.45 μm, Haiyan New Oriental Plastic Technology Co., Ltd., Jiaxing, China) together and rinsed with ultrapure water. After that, the membrane was transferred to a glass dish and dried at 90 °C. The masses of the filter membranes and Petri dishes before and after the addition of microplastic particles were weighed separately, and the recovery of microplastics (Re) was calculated according to Equation (1), and the number of samples for each group of data was three.
Re = M 2 − M 1 M 0 × 100 %
where Re is the recovery of microplastics (%), M2 is the total mass of microplastic, filter membrane, and Petri dish after digestion and drying (g), M1 is the mass of filter membrane and Petri dish before digestion (g), and M0 is the mass of added microplastic (g).
The microplastics were characterized using Fourier transform mid-infrared spectrometer (FT-MIR, wave number range 400–4000 cm−1, resolution 8 cm−1, scan number 32, Thermo Fisher Scientific, Waltham, USA), XSP-8CA optical microscope (Shanghai Optical Instrument Factory, Shanghai, China), and 8700LDIR (wave number range 975–1800 cm−1, resolution 8 cm−1, scan number 64, Agilent Technologies Inc., California, USA) before and after digestion to determine the effect of the digestion method on the infrared characteristic absorption, morphology, and particle size of the microplastics.

2.3. Density Separation Processing

Density separation is a simple, economical, and efficient method for separating microplastics [28]. The density of textile wastewater was tested to be 1.11 g·cm−3. To facilitate the control of variables, the study tested the separation efficiency of different density separation media on textile microplastics using ultrapure water as a substrate. A total of five density separation media were tested in the study: sodium chloride solution (NaCl, 1.17 g·cm−3), zinc chloride solution (ZnCl2, 1.68 g·cm−3), zinc bromide solution (ZnBr2, 1.71 g·cm−3), sodium iodide solution (NaI, 1.78 g·cm−3), and sodium chloride-sodium iodide mixture (1:1 v/v, 1.56 g·cm−3) [22,27,28,29]. All the above reagents were analytically pure and purchased from Beijing Tongguang Fine Chemical Company. To ensure the accuracy of the density separation solution, the salt solutions used for the tests were subjected to density checks.
Density separation experiment: Add 0.5 g of textile microplastics to 500 mL of density separation solution, mix well, and transfer the solution to a separatory funnel for 24 h. When the resting period is over, pass the upper layer of the solution in the partition funnel through a polytetrafluoroethylene filter membrane (pore size 0.45 μm, Haiyan New Oriental Plastic Technology Co., Ltd., Jiaxing, China) and rinse with ultrapure water. The filter membrane was transferred to a glass dish and dried at 90 °C. The masses of the filter membranes and Petri dishes before and after the addition of microplastic particles were weighed separately, and the recovery of microplastics (Re) was calculated according to Equation (1), with a sample size of three for each group of data.

2.4. Quality Control

In order to avoid contamination of samples during the experimental process, the following contamination control measures were taken during the experimental operation: laboratory personnel wore clean cotton lab coats and cotton masks; all operating surfaces, equipment, and glass equipment needed to be cleaned with ethanol and deionized water before use.

2.5. Data Processing

The experimental data were processed, and graphs were drawn using Excel 2020, SPSS 19.0, Origin 2021, and other software.

3. Results and Discussion

3.1. Removal of Organic Matter from Printing and Dyeing Wastewater

The removal rates of organic matter from textile wastewater by different digestion methods are shown in Figure 2. Under the experimental conditions of “25 °C, 24 h”, the highest organic removal rate of 82.4% was achieved for the nitric acid–hydrogen peroxide mixture. This is mainly due to its higher acidity and oxidizing properties [25,40]. In contrast, the reagent with the lowest organic removal rate was potassium hydroxide, with only 70.2% organic removal. Potassium hydroxide and Fenton’s reagent had a relatively similar effect on the removal of organic matter from printing and dyeing wastewater, and the experimental data were relatively close (76–78%). A study by Akyildiz et al. [19] also showed that Fenton’s reagent, hydrochloric acid, and hydrogen peroxide were more effective than potassium hydroxide for removing organic matter from textile wastewater, which is in agreement with the results of the present study. With the increase in digestion temperature and digestion time, the organic removal rates of different digestion reagents were improved. Among them, the enhancement of the time factor was slightly higher, and the organic removal rate of each reagent increased by 4.0% on average, while the enhancement rate of the temperature factor also reached 2.7%. As suggested by Pfeiffer and Munno et al. [41,43], increasing the digestion temperature is an effective way to facilitate the removal of organic matter from the sample. However, exposure of some polymers to the digestion solution under prolonged or high-temperature conditions may lead to their dissolution. Therefore, the study recommends that the temperature of digestion should not exceed 60 °C and the duration of digestion should not exceed 72 h when performing digestion operations on textile printing and dyeing wastewater.
The nitric acid–hydrogen peroxide mixed solution, hydrogen peroxide, and Fenton’s reagent selected for the study were able to remove most of the organic matter (>75%) from the printing and dyeing wastewater, which is in agreement with the results of previous studies [19,44]. Additionally, a study by Freya et al. [45,46,47] showed that oxidizing digestion agents are more effective in removing organic matter from textile wastewater. Therefore, the study concluded that both Fenton’s reagent and hydrogen peroxide are suitable digestion methods for removing organic matter from textile wastewater. However, additional attention needs to be paid to the exothermic reaction when using Fenton’s reagent, and the temperature needs to be monitored and controlled.

3.2. Effect of Digestion Method on the Physicochemical Properties of Microplastics

3.2.1. Recovery of Textile Microplastics

The recovery of PET, PA, and PU microplastics by different digestion methods is shown in Figure 3.
In the potassium hydroxide solution, the recovery of PA was 85.6%, while the recovery of PET and PU was only 75.2% and 79.4%. It was concluded that the main reason for the low recovery of PET and PU microplastics was the hydrolysis of ester bonds in the molecular structure of PET and PU, while potassium hydroxide had less of an effect on the amide bonds in the molecular structure of PA, so its recovery was at a high level [48]. In the nitric acid–hydrogen peroxide mixed solution, PA and PU will be dissolved, and there is almost no recovery. Since PET has some acid resistance, partial recovery of PET exists. Compared to acid and alkali digestion, oxidative digestion has less effect on the stability of textile microplastics [40,49]. In the hydrogen peroxide solution, there was essentially no mass loss of PET, PA, and PU, and the recoveries were all at a high level, with an average recovery of 92.3%. Similarly, in Fenton’s reagent solution, the average recovery of the three textile microplastics reached 88.7%, which is within the acceptable range. Treilles et al. [50] tested the effect of different digestion agents on textile fiber microplastics. They found that potassium hydroxide digestion agents have a greater degradation effect on polyester-like fibers, while oxidative digestion is better at maintaining fiber integrity. Therefore, hydrogen peroxide solution and Fenton’s reagent are more suitable digestion methods, considering digestion recovery. If acid and alkali digestion solutions are to be used, the experimentalists need to pay extra attention to the loss of samples.
Increasing the digestion temperature and extending the digestion time are common means to improve digestion efficiency [51,52]. However, for microplastics, changes in temperature and time can also have a large impact on their stability. As shown in Figure 4, the recovery of all three textile microplastics showed a further decrease after increasing the digestion temperature or extending the digestion time, which is in line with the findings in the literature [43]. Pfeiffer et al. [41] found that increasing the digestion temperature from 20 to 60 °C significantly improved the digestion of acid, base, and oxidation digestion reagents. In the potassium hydroxide solution, the recoveries of PET and PU decreased by 10.8% and 6.9%, respectively, with the increase in the digestion temperature. It was hypothesized that the temperature increase led to a further increase in the hydrolysis of ester bonds in the molecular structure of both microplastics, resulting in mass loss, as also mentioned by Radford et al. [45] in his study. PET was also more affected in the nitric acid–hydrogen peroxide mixture, with a 7.4% decrease in the recovery of microplastics. Only in the hydrogen peroxide and Fenton’s reagent solutions did the increase in temperature have a smaller effect on the stability of the textile microplastics, with a smaller decrease of about 3%. It is believed that this may be due to the exothermic reaction of the oxidizing digestant during the digestion process, which would result in a lesser effect of the artificially increased reaction temperature on the digestion effect [43]. The increase in digestion temperature does improve digestion efficiency. However, increasing the temperature also amplifies the digestion solution’s effect on the microplastics’ stability. The results show that the increase in digestion time has a more severe effect on textile microplastics’ stability than the digestion temperature. At present, there are fewer studies on digestion time’s effect on microplastics’ stability. In potassium hydroxide, nitric acid–hydrogen peroxide, and Fenton’s reagent solutions, increasing the digestion time resulted in 14%, 11%, and 7% decreases in the recovery of microplastics, respectively. The microplastic stability was less affected in the hydrogen peroxide solution, and the recovery rate decreased by only 4%. According to the experimental results in 3.1, the effect of digestion time on the removal of organic matter from wastewater is slightly higher than that of digestion temperature, but the effect on textile microplastics is more serious. Therefore, in the testing of textile microplastic detection, the study does not recommend enhancing digestion efficiency by extending digestion time and choosing the appropriate digestion solution, and the digestion temperature is a more reasonable digestion idea.

3.2.2. Spectral Changes of Textile Microplastics

The study was carried out to analyze and characterize the textile microplastics after the digestion treatment using Fourier variation infrared spectroscopy to confirm whether the digestion process affected the textile microplastics’ chemical properties. The results showed that the different digestion methods did not affect the chemical properties of the textile microplastics, the infrared characteristic absorption wavelengths of all three textile microplastics did not change significantly before and after digestion (Figure 5), and the experimental results are consistent with the findings in the literature [19,50,53].
Similar to sodium hydroxide, a potassium hydroxide solution would hydrolyze the ester bonds in the molecular structure of PET and PU during the digestion process, causing the signal intensity of IR characteristic absorption to be weakened [40]. For example, the peak intensities of the symmetric stretching vibration peaks of-C-O-C near 1250 cm−1 and 1100 cm−1 and the stretching vibration peak of-C=O near 1715 cm−1 were weakened. However, the wavelengths of the infrared characteristic absorption of PET and PU did not change significantly, which means that some of the lost particles have been degraded or dissolved in the digestion solution, and the properties of the remaining microplastic particles are not affected [41]. However, Herrera et al. [54] did not observe any adverse effects on PET particles when using potassium hydroxide for digestion. It is believed that this may be due to the use of large particle-size microplastics in the above study, which have a low surface area-to-mass ratio, making them less susceptible to the effects of the digestion reagent. This, coupled with the very small number of particles used in the above study, can seriously reduce the reliability of their results [50]. In the nitric acid–hydrogen peroxide mixed solution, PA and PU will be dissolved, and the molecular structure will be destroyed, while the signal intensity of infrared characteristic absorption of PET is slightly weakened, but it does not affect its detection and identification. In the hydrogen peroxide solution and Fenton’s reagent solution, the infrared characteristic absorption wavelengths of the three textile microplastics did not change significantly before and after the dissolution. From the experimental results, the spectra of the digested-treated microplastic particles showed only small changes, compared to the spectra of the non-digested-treated particles. Therefore, except for the case where the microplastics were dissolved, the acid, alkali, and oxidative digestions did not affect the qualitative analysis of the textile microplastics.

3.2.3. Morphological Changes of Textile Microplastics

Although digestion’s effect on the textile microplastics’ chemical properties was small, the effect on their particle size and morphology was more pronounced. To further investigate the effect of digestion on the morphology of textile microplastics, the study used LDIR8700 and optical microscopy to characterize and analyze the microplastics before and after digestion (Figure 6, Figure 7 and Figure 8).
For the PET particles, the particle size of the microplastics increased after the digestion of both the potassium hydroxide solution and the nitric acid–hydrogen peroxide mixture, which, combined with the decrease in the number of small-sized microplastics in the microscopic images, was presumed to be due to the cross-linking or agglomeration of the PET particles as a result of the digestion [55,56]. The PET pellets’ morphology was unchanged after the peroxide solution and Fenton’s reagent digestion treatment and remained irregularly shredded, with the overall particle size unaffected. For PA pellets, dissolution occurred during the digestion of the nitric acid–hydrogen peroxide solution, and there was almost no recovery. After the digestion of potassium hydroxide, hydrogen peroxide, and Fenton’s reagent, the particle size data (Table 1) showed that the PA particles all increased in size, but the morphology was almost unchanged. It is worth mentioning that Treilles et al. [50] found in their study that hydrogen peroxide affects the fiber properties (toughness and elongation at break) of PA. At the same time, potassium hydroxide and Fenton’s reagent did not affect its fiber properties. For the PU particles, Figure 8A shows the PU particles without digestion, and some of the particles have angular edges. After the digestion treatment with potassium hydroxide solution, the angles of some particles disappeared, and the shape was close to spherical, with some particles agglomerated and cross-linked, as shown in Figure 8B. At the same time, from the change in particle size, the particle size of PU particles decreased, presumably because the potassium hydroxide solution led to the hydrolysis of part of the structure of PU particles [40]. Similar to PET particles, the morphology of PU particles changed little after the hydrogen peroxide solution and Fenton reagent digestion treatment, and the overall particle size was not affected. In summary, the acid and alkali digestion methods have a certain influence on the morphology and particle size of textile microplastics, which will make the final microplastic data deviated, while the oxidation digestion method has less influence on the morphology and particle size of textile microplastics, which can ensure the accuracy and reliability of the test data.

3.3. Density Separation of Textile Microplastics

The spiked recoveries of different density separation solutions for textile microplastics are shown in Figure 9. Quinn and Coppock et al. [27,29] similarly tested the effectiveness of different density solutions for separating different types of microplastics. Currently, there are abundant methods for the separation and extraction of microplastics, there are differences in the testing methods and experimental samples among studies, and the data results are less comparable between studies. For textile microplastics, the experimental results of this study are as follows.
Among the tested density solutions, the separation recovery of NaCl for all three textile microplastics was at a low level. Since the density of PET microplastics was greater than that of NaCl solution, its separation recovery in NaCl solution was only 74.2%, which is in accordance with the literature [24,26]. However, NaCl solution also has the characteristics of low cost, easy accessibility, and environmental friendliness [57], which can be preferred when performing the separation of low-density polymers.
The NaI solution showed the highest recovery of 91.2% (PET), 93.7% (PA), and 91.7% (PU) for the separation of textile microplastics among all tested solutions. However, NaI is relatively expensive, and its solution is hazardous to the environment [58]. In addition, during the testing process, it was also found that NaI is highly oxidizing, and its use can lead to oxidation of the filter membranes to yellow and black colors, which has a greater impact on the subsequent visual identification and qualitative analysis (Figure 10). Nuelle et al. [28] also showed that, although NaI solution can extract all types of microplastics, it is very expensive, and the oxidizing conditions can limit its application. Therefore, the study attempted to mix NaI and NaCl to separate and recover textile microplastics. The results showed that the recovery of the mixed solution was between the two solutions, which indicated that the efficiency could be improved by increasing the solution density. Additionally, the oxidation of the NaI solution on the filter membrane was moderated by the addition of NaCl, and the experimental cost was reduced (Figure 10). At present, there are still more uncertainties in the mixed solutions used for the separation of microplastics, for example, the ratio of solutions, dosage, cost, etc. More systematic research and exploration are expected to follow.
ZnCl2 and ZnBr2 solutions have been applied in recent years for the separation of microplastics [27,29]. Among them, the separation recoveries of ZnCl2 solution for textile microplastics were 89.1% (PET), 87.2% (PA), and 91.3% (PU), which were slightly higher than those of ZnBr2 solution. However, the error bars of the experimental data of the ZnBr2 solution had a larger range, i.e., the separation reproducibility was poor. Additionally, the ZnBr2 solution would leave brown material on the filter membrane after flotation, which would affect the subsequent visual identification and qualitative analysis (Figure 10). In contrast, the separation effect of the ZnCl2 solution is more stable and does not interfere with the subsequent assay after flotation. Therefore, the study recommended the use of ZnCl2 solution in textile wastewater. However, when ZnCl2 is used, the environmental impact of the solution must be carefully considered, and certain precautions need to be taken to reduce its impact [59]. In addition, the study tested simulated wastewater, and the above method needs to be further adapted to consider the environmental samples’ specificity; for example, microplastics may be encapsulated in the environmental samples by other materials, which can further reduce the efficiency.

4. Conclusions

This study is the first to systematically compare different methods for the digestion and density separation of textile microplastics from textile wastewater, and it emphasizes the importance of considering sample characteristics when selecting a method for extracting microplastics. In the digestion experiments, potassium hydroxide and hydrogen peroxide had low removal rates of organic matter from dyeing wastewater. At the same time, nitric acid destroyed the dissolved part of textile microplastics, and only Fenton’s reagent could ensure the digestion efficiency without affecting the physicochemical properties of textile microplastics. In the density separation experiments, NaCl could not effectively separate high-density microplastics. NaI and ZnBr2 had residues on the filter membrane after separation, while ZnCl2 could meet the separation and recovery of high-density microplastics. Meanwhile, the separated filter membrane did not affect the subsequent analytical characterization. Therefore, the study suggests using Fenton’s reagent and ZnCl2 for experiments in the study of microplastic detection in textile wastewater. Considering the method efficiency in the detection and analysis of microplastics and using the calibration of relevant studies to ensure the precision of the study will help us to better understand microplastic contamination in textile wastewater.

Author Contributions

Conceptualization, Y.G. (Yan Gong); data curation, J.L.; formal analysis, J.L.; funding acquisition, Y.G. (Yan Gong) and X.L.; investigation, J.L.; methodology, Y.G. (Yan Gong); resources, J.L. and Y.G. (Yingxi Gao); software, J.L. and Y.L.; supervision, Y.G. (Yan Gong); writing—original draft, J.L.; writing—review and editing, Y.G.(Yan Gong). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Graduate Student Research Innovation Project in Beijing Institute of Fashion Technology (grant no. 120301990131).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

None of the authors have any financial or scientific conflict of interest with regard to the research described in this manuscript.

References

  1. Suaria, G.; Achtypi, A.; Perold, V.; Lee, J.R.; Pierucci, A.; Bornman, T.G.; Aliani, S.; Ryan, P.G. Microfibers in Oceanic Surface Waters: A Global Characterization. Sci. Adv. 2020, 6, eaay8493. [Google Scholar] [CrossRef]
  2. Amelia, T.S.M.; Khalik, W.M.A.W.M.; Ong, M.C.; Shao, Y.T.; Pan, H.J.; Bhubalan, K. Marine Microplastics as Vectors of Major Ocean Pollutants and Its Hazards to the Marine Ecosystem and Humans. Prog. Earth Planet. Sci. 2021, 8, 1–26. [Google Scholar] [CrossRef]
  3. Barrows, A.P.W.; Cathey, S.E.; Petersen, C.W. Marine Environment Microfiber Contamination: Global Patterns and the Diversity of Microparticle Origins. Environ. Pollut. 2018, 237, 275–284. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Dris, R.; Gasperi, J.; Saad, M.; Mirande, C.; Tassin, B. Synthetic Fibers in Atmospheric Fallout: A Source of Microplastics in the Environment? Mar. Pollut. Bull. 2016, 104, 290–293. [Google Scholar] [CrossRef] [PubMed]
  5. Yan, L.; Peng, W. Research of New Pollutant Microplastics in Soil. In IOP Conference Series: Earth and Environmental Science; IOP Publishing: Bristol, UK, 2021; Volume 781. [Google Scholar] [CrossRef]
  6. Jin, M.; Liu, J.; Yu, J.; Zhou, Q.; Wu, W.; Fu, L.; Yin, C.; Fernandez, C.; Karimi-Maleh, H. Current Development and Future Challenges in Microplastic Detection Techniques: A Bibliometrics-Based Analysis and Review. Sci. Prog. 2022, 105, 003685042211321. [Google Scholar] [CrossRef]
  7. Zhou, H.; Zhou, L.; Ma, K. Microfiber from Textile Dyeing and Printing Wastewater of a Typical Industrial Park in China: Occurrence, Removal and Release. Sci. Total Environ. 2020, 739, 140329. [Google Scholar] [CrossRef]
  8. Choi, S.; Kwon, M.; Park, M.J.; Kim, J. Analysis of Microplastics Released from Plain Woven Classified by Yarn Types during Washing and Drying. Polymers 2021, 13, 2988. [Google Scholar] [CrossRef]
  9. Acharya, S.; Rumi, S.S.; Hu, Y.; Abidi, N. Microfibers from Synthetic Textiles as a Major Source of Microplastics in the Environment: A Review. Text. Res. J. 2021, 91, 2136–2156. [Google Scholar] [CrossRef]
  10. Zhang, Y.Q.; Lykaki, M.; Markiewicz, M.; Alrajoula, M.T.; Kraas, C.; Stolte, S. Environmental Contamination by Microplastics Originating from Textiles: Emission, Transport, Fate and Toxicity. J. Hazard. Mater. 2022, 430, 128453. [Google Scholar] [CrossRef]
  11. Salvador Cesa, F.; Turra, A.; Baruque-Ramos, J. Synthetic Fibers as Microplastics in the Marine Environment: A Review from Textile Perspective with a Focus on Domestic Washings. Sci. Total Environ. 2017, 598, 1116–1129. [Google Scholar] [CrossRef]
  12. Hale, R.C.; Seeley, M.E.; la Guardia, M.J.; Mai, L.; Zeng, E.Y. A Global Perspective on Microplastics. J. Geophys. Res. Oceans 2020, 125, e2018JC014719. [Google Scholar] [CrossRef]
  13. Zhang, C.; Zhou, H.; Cui, Y.; Wang, C.; Li, Y.; Zhang, D. Microplastics in Offshore Sediment in the Yellow Sea and East China Sea, China. Environ. Pollut. 2019, 244, 827–833. [Google Scholar] [CrossRef]
  14. Deng, H.; Wei, R.; Luo, W.; Hu, L.; Li, B.; Di, Y.; Shi, H. Microplastic Pollution in Water and Sediment in a Textile Industrial Area. Environ. Pollut. 2020, 258, 113658. [Google Scholar] [CrossRef]
  15. Xu, C.; Gu, C.; Ni, Y.; Shen, C.; Wang, H.; Wu, J.; Li, F. Occurrence and Release of Fibrous Microplastic from Dyeing and Printing Wastewater. Fangzhi Xuebao/J. Text. Res. 2021, 42, 26–34. [Google Scholar] [CrossRef]
  16. Liu, X.; Yuan, W.; Di, M.; Li, Z.; Wang, J. Transfer and Fate of Microplastics during the Conventional Activated Sludge Process in One Wastewater Treatment Plant of China. Chem. Eng. J. 2019, 362, 176–182. [Google Scholar] [CrossRef]
  17. Azanaw, A.; Birlie, B.; Teshome, B.; Jemberie, M. Textile Effluent Treatment Methods and Eco-Friendly Resolution of Textile Wastewater. Case Stud. Chem. Environ. Eng. 2022, 6, 100230. [Google Scholar] [CrossRef]
  18. Bhattacharjee, S. Removal of Biological Organic Matter and Suspended Solid from Textile Wastewater Using Anaerobic-Aerobic Process: A Review of an Industrial Implementation. J. Sci. Res. 2017, 9, 267–275. [Google Scholar] [CrossRef] [Green Version]
  19. Akyildiz, S.H.; Sezgin, H.; Yalcin, B.; Yalcin-Enis, I. Optimization of the Textile Wastewater Pretreatment Process in Terms of Organics Removal and Microplastic Detection. J. Clean Prod. 2023, 384, 135637. [Google Scholar] [CrossRef]
  20. Biyik, Y.; Baycan, N. Comparison of Microplastic Detection Methods in Wastewater Treatment Plants. Environ. Sci. Proc. 2021, 9, 29. [Google Scholar] [CrossRef]
  21. Ding, N.; An, D.; Yin, X.; Sun, Y. Detection and Evaluation of Microbeads and Other Microplastics in Wastewater Treatment Plant Samples. Environ. Sci. Pollut. Res. 2020, 27, 15878–15887. [Google Scholar] [CrossRef]
  22. Karami, A.; Golieskardi, A.; Choo, C.K.; Romano, N.; Ho, Y.B.; Salamatinia, B. A High-Performance Protocol for Extraction of Microplastics in Fish. Sci. Total Environ. 2017, 578, 485–494. [Google Scholar] [CrossRef] [PubMed]
  23. Dehaut, A.; Cassone, A.-L.; Frère, L.; Hermabessiere, L.; Himber, C.; Rinnert, E.; Rivière, G.; Lambert, C.; Soudant, P.; Huvet, A.; et al. Microplastics in Seafood: Benchmark Protocol for Their Extraction and Characterization. Environ. Pollut. 2016, 215, 223–233. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Tirkey, A.; Upadhyay, L.S.B. Microplastics: An Overview on Separation, Identification and Characterization of Microplastics. Mar. Pollut. Bulletin. 2021, 170, 112604. [Google Scholar] [CrossRef] [PubMed]
  25. Prata, J.C.; da Costa, J.P.; Duarte, A.C.; Rocha-Santos, T. Methods for Sampling and Detection of Microplastics in Water and Sediment: A Critical Review. TrAC—Trends Anal. Chem. 2019, 110, 150–159. [Google Scholar] [CrossRef]
  26. Stock, F.; Kochleus, C.; Bänsch-Baltruschat, B.; Brennholt, N.; Reifferscheid, G. Sampling Techniques and Preparation Methods for Microplastic Analyses in the Aquatic Environment—A Review. TrAC—Trends Anal. Chem. 2019, 113, 84–92. [Google Scholar] [CrossRef]
  27. Quinn, B.; Murphy, F.; Ewins, C. Validation of Density Separation for the Rapid Recovery of Microplastics from Sediment. Anal. Methods 2017, 9, 1491–1498. [Google Scholar] [CrossRef] [Green Version]
  28. Nuelle, M.T.; Dekiff, J.H.; Remy, D.; Fries, E. A New Analytical Approach for Monitoring Microplastics in Marine Sediments. Environ. Pollut. 2014, 184, 161–169. [Google Scholar] [CrossRef]
  29. Coppock, R.L.; Cole, M.; Lindeque, P.K.; Queirós, A.M.; Galloway, T.S. A Small-Scale, Portable Method for Extracting Microplastics from Marine Sediments. Environ. Pollut. 2017, 230, 829–837. [Google Scholar] [CrossRef] [Green Version]
  30. Ainali, N.M.; Kalaronis, D.; Kontogiannis, A.; Evgenidou, E.; Kyzas, G.Z.; Yang, X.; Bikiaris, D.N.; Lambropoulou, D.A. Microplastics in the Environment: Sampling, Pretreatment, Analysis and Occurrence Based on Current and Newly-Exploited Chromatographic Approaches. Sci. Total Environ. 2021, 794, 148725. [Google Scholar] [CrossRef]
  31. Bakaraki Turan, N.; Sari Erkan, H.; Onkal Engin, G. Microplastics in Wastewater Treatment Plants: Occurrence, Fate and Identification. Process Saf. Environ. Prot. 2021, 146, 77–84. [Google Scholar] [CrossRef]
  32. He, D.; Luo, Y.; Lu, S.; Liu, M.; Song, Y.; Lei, L. Microplastics in Soils: Analytical Methods, Pollution Characteristics and Ecological Risks. TrAC—Trends Anal. Chem. 2018, 109, 163–172. [Google Scholar] [CrossRef]
  33. Corami, F.; Rosso, B.; Morabito, E.; Rensi, V.; Gambaro, A.; Barbante, C. Small Microplastics (<100 Μm), Plasticizers and Additives in Seawater and Sediments: Oleo-Extraction, Purification, Quantification, and Polymer Characterization Using Micro-FTIR. Sci. Total Environ. 2021, 797, 148937. [Google Scholar] [CrossRef]
  34. Bretas Alvim, C.; Mendoza-Roca, J.A.; Bes-Piá, A. Wastewater Treatment Plant as Microplastics Release Source—Quantification and Identification Techniques. J. Environ. Manag. 2020, 255, 109739. [Google Scholar] [CrossRef]
  35. Wang, Q.; Yang, X. Analysis on Development Process and General Situation of Modern Chinese Textile Technology. Asian Soc. Sci. 2021, 17, 44–48. [Google Scholar] [CrossRef]
  36. Chen, M.; Chakraborty, S.; Xiong, J.; Scaringella, L.; Descubes, I. Business Model Renewal and Environment Changes: Insights of Chinese Textile Industry. Strateg. Change 2021, 30, 573–580. [Google Scholar] [CrossRef]
  37. Hutai (Panyu) Textile & Dyeing Co. Available online: https://www.pacific-textiles.com/sc/ (accessed on 1 April 2017).
  38. Bidu, J.M.; Njau, K.N.; Rwiza, M.; van der Bruggen, B. Textile Wastewater Treatment in Anaerobic Reactor: Influence of Domestic Wastewater as Co-Substrate in Color and COD Removal. S. Afr. J. Chem. Eng. 2023, 43, 112–121. [Google Scholar] [CrossRef]
  39. Constant, M.; Billon, G.; Breton, N.; Alary, C. Extraction of Microplastics from Sediment Matrices: Experimental Comparative Analysis. J. Hazard Mater. 2021, 420, 126571. [Google Scholar] [CrossRef]
  40. Hurley, R.R.; Lusher, A.L.; Olsen, M.; Nizzetto, L. Validation of a Method for Extracting Microplastics from Complex, Organic-Rich, Environmental Matrices. Environ. Sci. Technol. 2018, 52, 7409–7417. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Pfeiffer, F.; Fischer, E.K. Various Digestion Protocols Within Microplastic Sample Processing—Evaluating the Resistance of Different Synthetic Polymers and the Efficiency of Biogenic Organic Matter Destruction. Front Environ. Sci. 2020, 8, 572424. [Google Scholar] [CrossRef]
  42. HJ/T 399-2007. Determination of Chemical Oxygen Demand, Water Quality, Rapid Extinction Spectrophotometric Method; Hebei Environmental Monitoring Center Station: Shi Jiazhuang, China, 2007. [Google Scholar]
  43. Munno, K.; Helm, P.A.; Jackson, D.A.; Rochman, C.; Sims, A. Impacts of Temperature and Selected Chemical Digestion Methods on Microplastic Particles. Environ. Toxicol. Chem. 2018, 37, 91–98. [Google Scholar] [CrossRef]
  44. Crawford, C.B.; Quinn, B. Microplastic Pollutants; Elsevier: Amsterdam, The Netherlands, 2016. [Google Scholar] [CrossRef]
  45. Radford, F.; Zapata-Restrepo, L.M.; Horton, A.A.; Hudson, M.D.; Shaw, P.J.; Williams, I.D. Developing a Systematic Method for Extraction of Microplastics in Soils. Anal. Methods 2021, 13, 1695–1705. [Google Scholar] [CrossRef] [PubMed]
  46. Tagg, A.S.; Harrison, J.P.; Ju-Nam, Y.; Sapp, M.; Bradley, E.L.; Sinclair, C.J.; Ojeda, J.J. Fenton’s Reagent for the Rapid and Efficient Isolation of Microplastics from Wastewater. Chem. Commun. 2017, 53, 372–375. [Google Scholar] [CrossRef] [Green Version]
  47. Al-Azzawi, M.S.M.; Kefer, S.; Weißer, J.; Reichel, J.; Schwaller, C.; Glas, K.; Knoop, O.; Drewes, J.E. Validation of Sample Preparation Methods for Microplastic Analysis in Wastewater Matrices-Reproducibility and Standardization. Water 2020, 12, 2445. [Google Scholar] [CrossRef]
  48. Cai, H.; Du, F.; Li, L.; Li, B.; Li, J.; Shi, H. A Practical Approach Based on FT-IR Spectroscopy for Identification of Semi-Synthetic and Natural Celluloses in Microplastic Investigation. Sci. Total Environ. 2019, 669, 692–701. [Google Scholar] [CrossRef]
  49. Qiu, Q.; Tan, Z.; Wang, J.; Peng, J.; Li, M.; Zhan, Z. Extraction, Enumeration and Identification Methods for Monitoring Microplastics in the Environment. Estuar. Coast. Shelf Sci. 2016, 176, 102–109. [Google Scholar] [CrossRef]
  50. Treilles, R.; Cayla, A.; Gaspéri, J.; Strich, B.; Ausset, P.; Tassin, B. Impacts of Organic Matter Digestion Protocols on Synthetic, Artificial and Natural Raw Fibers. Sci. Total Environ. 2020, 748, 141230. [Google Scholar] [CrossRef]
  51. Möller, J.N.; Löder, M.G.J.; Laforsch, C. Finding Microplastics in Soils: A Review of Analytical Methods. Environ. Sci. Technol. 2020, 54, 2078–2090. [Google Scholar] [CrossRef]
  52. Wang, Z.; Meng, Q.; Li, W.; Yu, L.; Qin, Y.; Hao, W. Effect of Different Digestion Methods on Microplastic Quality and Surface Characteristics. Chin. J. Environ. Eng. 2020, 14, 1385–1393. [Google Scholar] [CrossRef]
  53. Cabernard, L.; Roscher, L.; Lorenz, C.; Gerdts, G.; Primpke, S. Comparison of Raman and Fourier Transform Infrared Spectroscopy for the Quantification of Microplastics in the Aquatic Environment. Environ. Sci. Technol. 2018, 52, 13279–13288. [Google Scholar] [CrossRef]
  54. Herrera, A.; Garrido-Amador, P.; Martínez, I.; Samper, M.D.; López-Martínez, J.; Gómez, M.; Packard, T.T. Novel Methodology to Isolate Microplastics from Vegetal-Rich Samples. Mar. Pollut. Bull. 2018, 129, 61–69. [Google Scholar] [CrossRef]
  55. Zhong Yingying, Z.H.W.T.B.Q.C.G.C.X. Comparison of Ablation Methods for the Detection of Microplastics in Mussels. J. Food Saf. Qual. Insp. 2022, 721, 7357–7366. [Google Scholar]
  56. Pfohl, P.; Roth, C.; Meyer, L.; Heinemeyer, U.; Gruendling, T.; Lang, C.; Nestle, N.; Hofmann, T.; Wohlleben, W.; Jessl, S. Microplastic Extraction Protocols Can Impact the Polymer Structure. Microplastics Nanoplastics 2021, 1, 8–19. [Google Scholar] [CrossRef]
  57. Galgani, F.; Hanke, G.; Werner, S.; de Vrees, L. Marine Litter within the European Marine Strategy Framework Directive. ICES J. Mar. Sci. 2013, 10, 1055–1064. [Google Scholar] [CrossRef] [Green Version]
  58. Nava, V.; Leoni, B. Comparison of Different Procedures for Separating Microplastics from Sediments. Water 2021, 13, 2854. [Google Scholar] [CrossRef]
  59. Zobkov, M.B.; Esiukova, E.E. Evaluation of the Munich Plastic Sediment Separator Efficiency in Extraction of Microplastics from Natural Marine Bottom Sediments. Limnol. Oceanogr. Methods 2017, 15, 967–978. [Google Scholar] [CrossRef]
Polymers 15 01394 g001 550

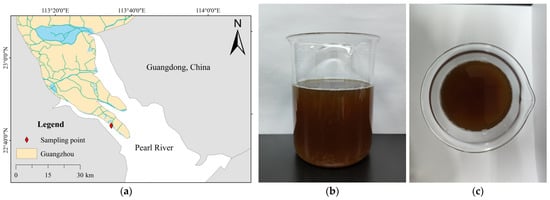

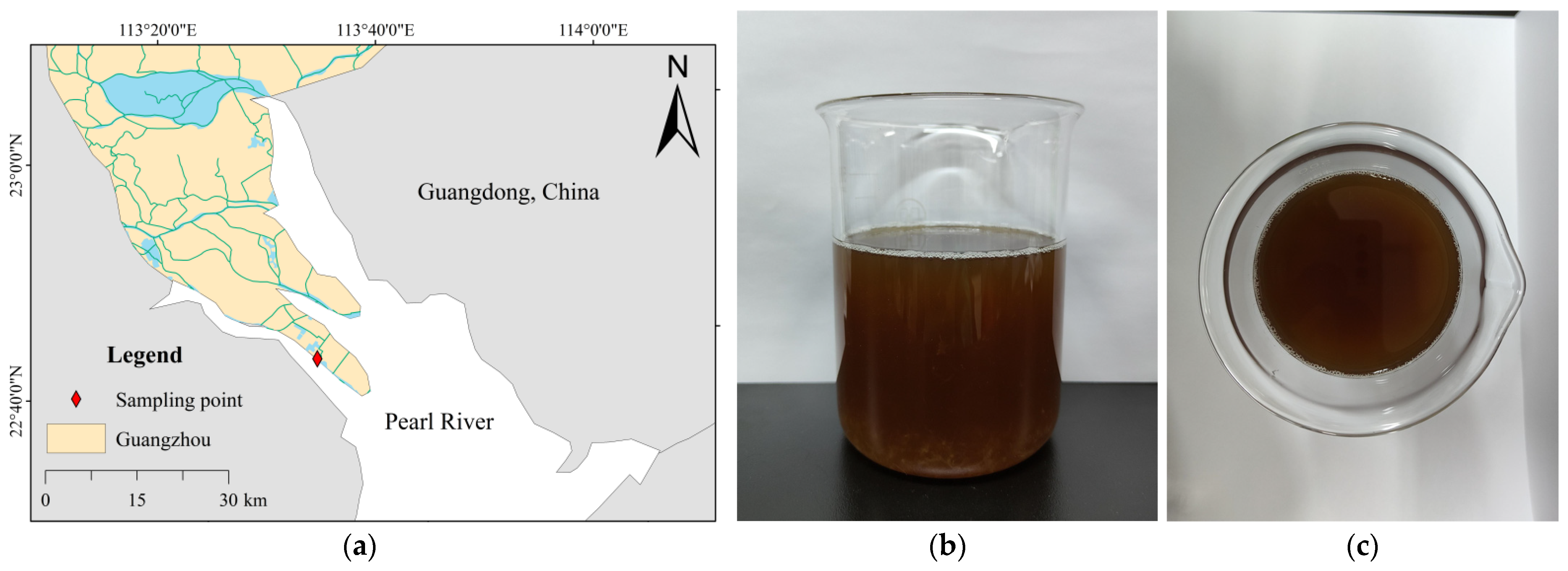

Figure 1. (a) Printing and dyeing water sample sampling location; (b,c) Printing and dyeing wastewater water samples.
Figure 1. (a) Printing and dyeing water sample sampling location; (b,c) Printing and dyeing wastewater water samples.
Polymers 15 01394 g001
Polymers 15 01394 g002 550

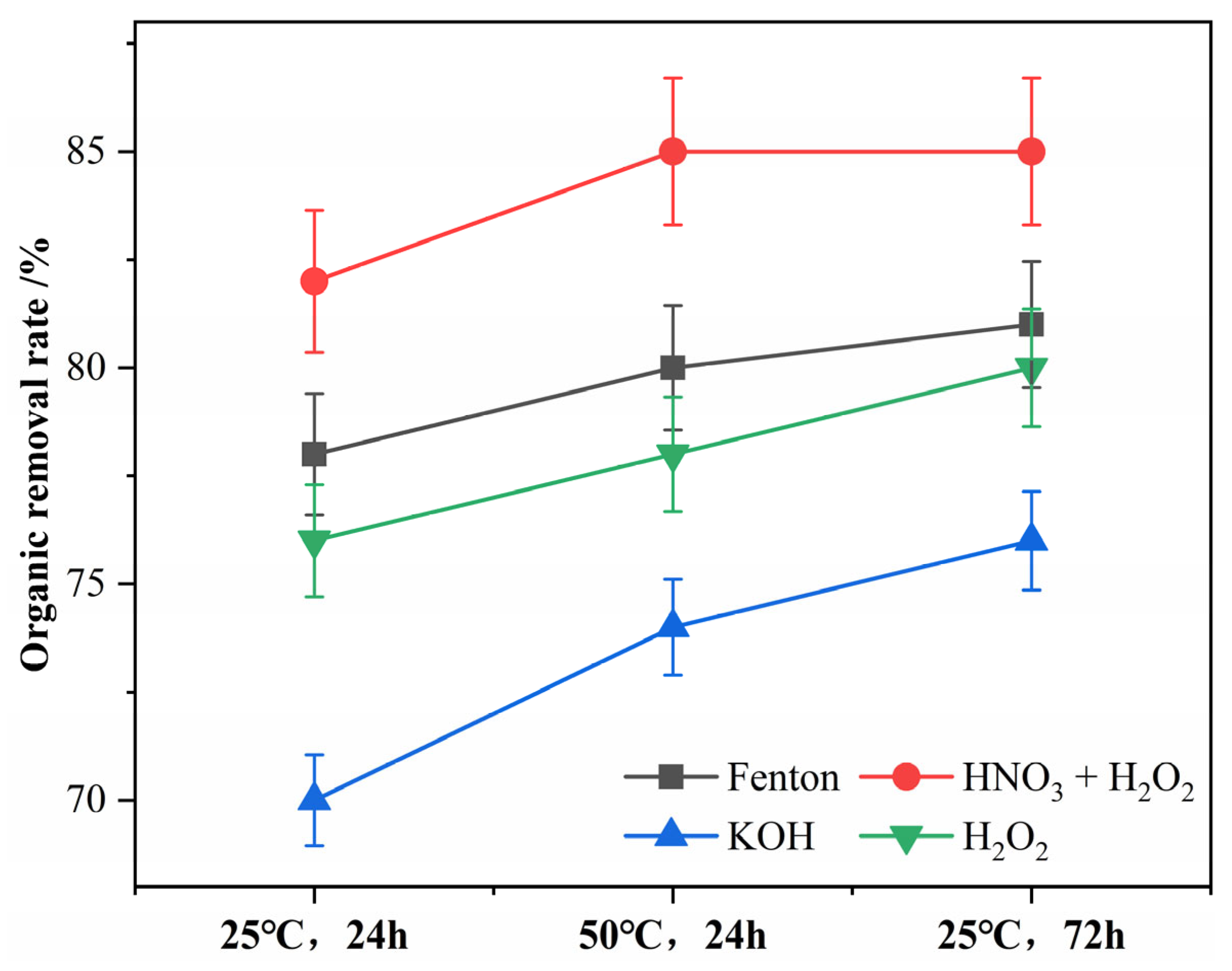

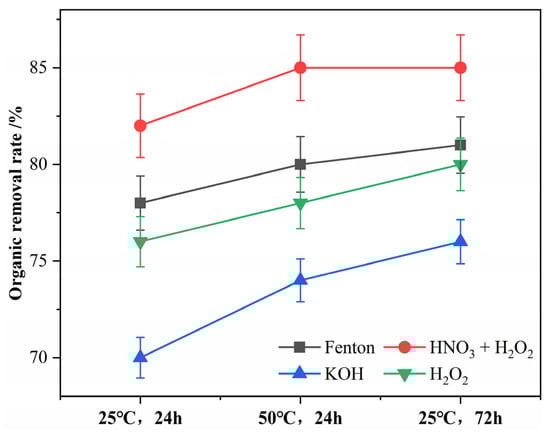

Figure 2. Removal rate of organic matter from printing and dyeing wastewater by digestion methods.
Figure 2. Removal rate of organic matter from printing and dyeing wastewater by digestion methods.
Polymers 15 01394 g002
Polymers 15 01394 g003 550

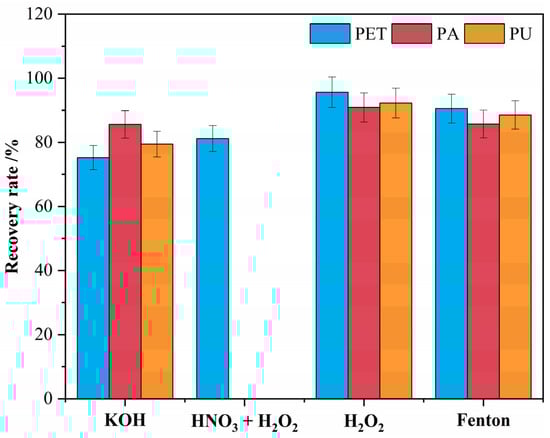

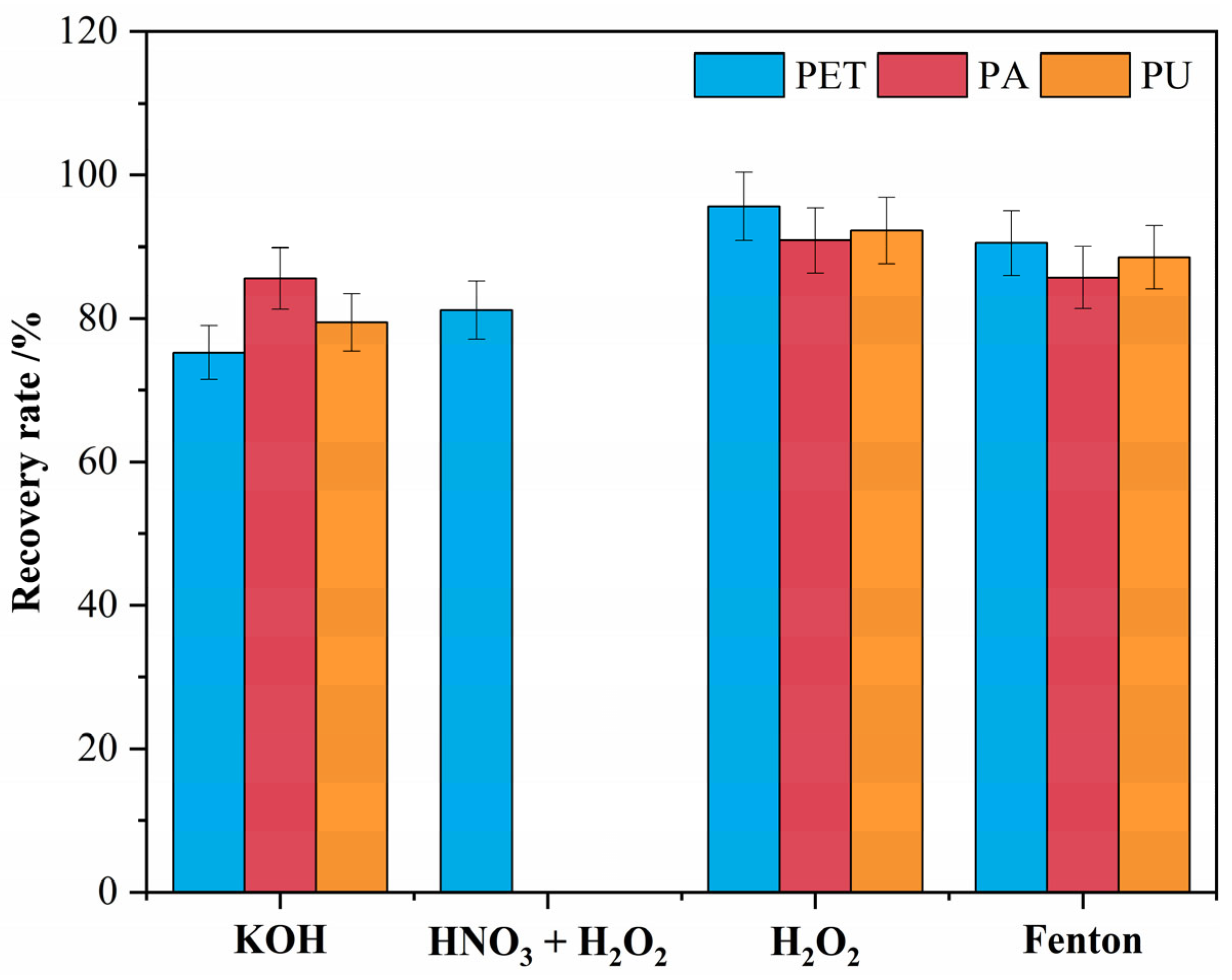

Figure 3. Recovery of textile microplastics after digestion treatments.
Figure 3. Recovery of textile microplastics after digestion treatments.
Polymers 15 01394 g003
Polymers 15 01394 g004 550

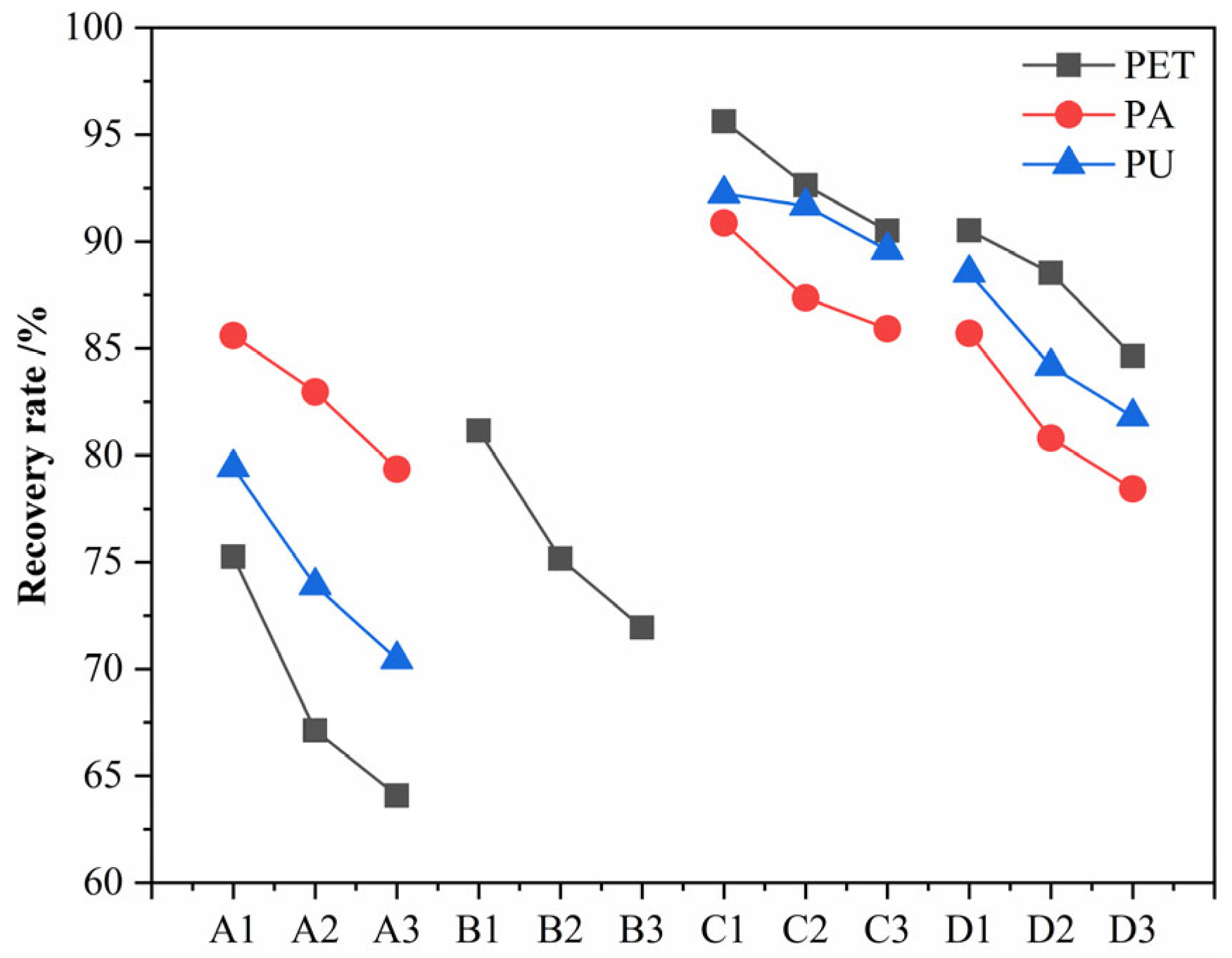

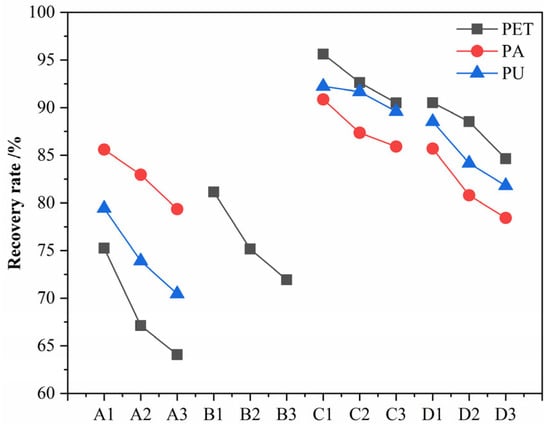

Figure 4. Recovery of textile microplastics at different digestion temperatures and times (A~D denote: four digestion methods of KOH, HON3 + H2O2, H2O2, and Fenton, respectively; 1~3 denote: three digestion parameters of 24 h digestion at 25 °C, 24 h digestion at 50 °C, and 72 h digestion at 25 °C, respectively).
Figure 4. Recovery of textile microplastics at different digestion temperatures and times (A~D denote: four digestion methods of KOH, HON3 + H2O2, H2O2, and Fenton, respectively; 1~3 denote: three digestion parameters of 24 h digestion at 25 °C, 24 h digestion at 50 °C, and 72 h digestion at 25 °C, respectively).
Polymers 15 01394 g004
Polymers 15 01394 g005 550

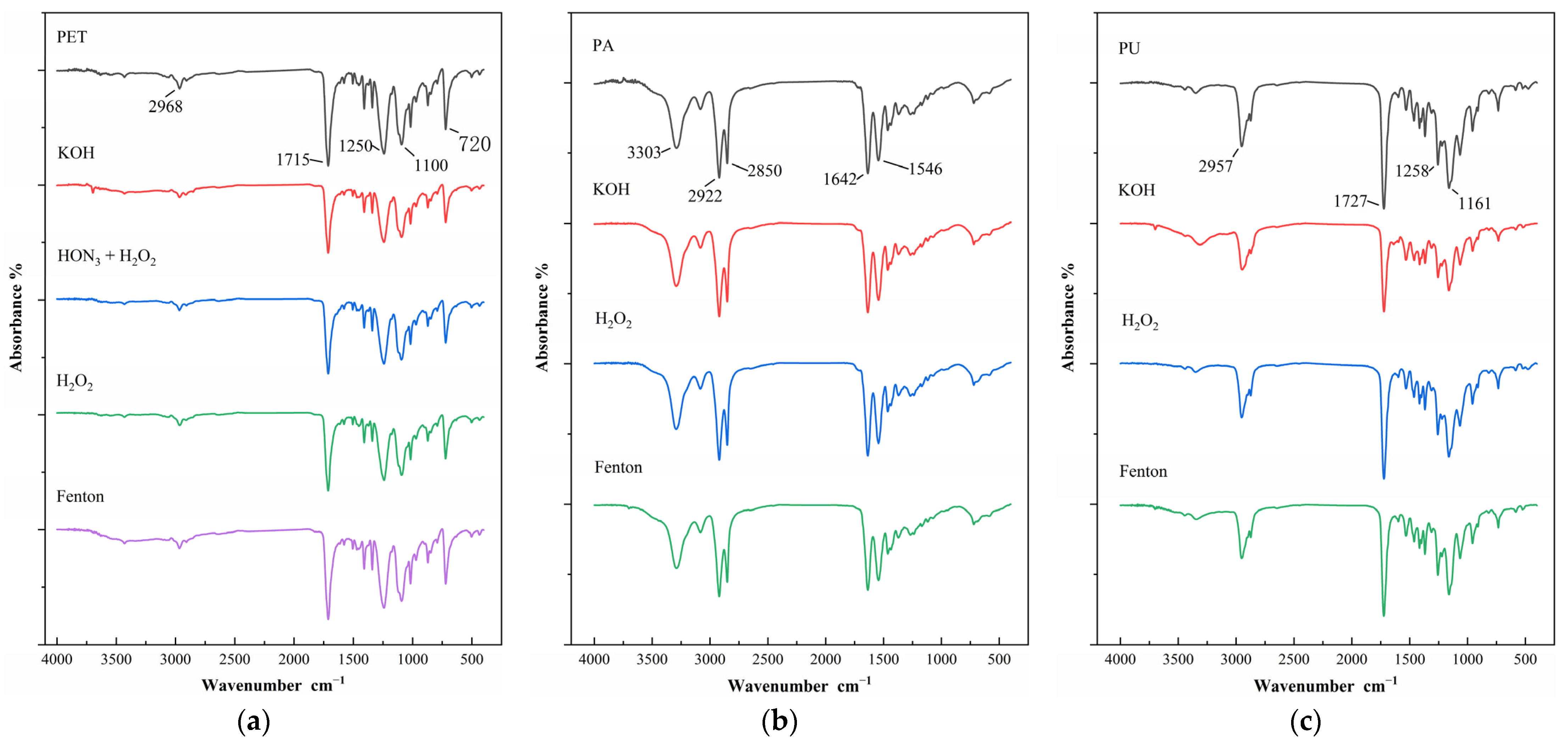

Figure 5. (a) Infrared spectra of polyethylene terephthalate (PET) microplastics before and after digestion; (b) Infrared spectra of polyamide (PA) microplastics before and after digestion; (c) Infrared spectra of polyurethane (PU) microplastics before and after digestion.
Figure 5. (a) Infrared spectra of polyethylene terephthalate (PET) microplastics before and after digestion; (b) Infrared spectra of polyamide (PA) microplastics before and after digestion; (c) Infrared spectra of polyurethane (PU) microplastics before and after digestion.
Polymers 15 01394 g005
Polymers 15 01394 g006 550
Figure 6. Morphological images of polyethylene terephthalate (PET) before and after digestion (A–E denote: not ablated, KOH, HON3 + H2O2, H2O2, Fenton, respectively).
Figure 6. Morphological images of polyethylene terephthalate (PET) before and after digestion (A–E denote: not ablated, KOH, HON3 + H2O2, H2O2, Fenton, respectively).
Polymers 15 01394 g006
Polymers 15 01394 g007 550
Figure 7. Morphological images of polyamide (PA) microplastics before and after digestion (A–D denote: not ablated, KOH, H2O2, Fenton, respectively).
Figure 7. Morphological images of polyamide (PA) microplastics before and after digestion (A–D denote: not ablated, KOH, H2O2, Fenton, respectively).
Polymers 15 01394 g007
Polymers 15 01394 g008a 550Polymers 15 01394 g008b 550
Figure 8. Morphological images of polyurethane (PU) microplastics before and after digestion (A–D denote: not ablated, KOH, H2O2, Fenton, respectively).
Figure 8. Morphological images of polyurethane (PU) microplastics before and after digestion (A–D denote: not ablated, KOH, H2O2, Fenton, respectively).
Polymers 15 01394 g008aPolymers 15 01394 g008b
Polymers 15 01394 g009 550

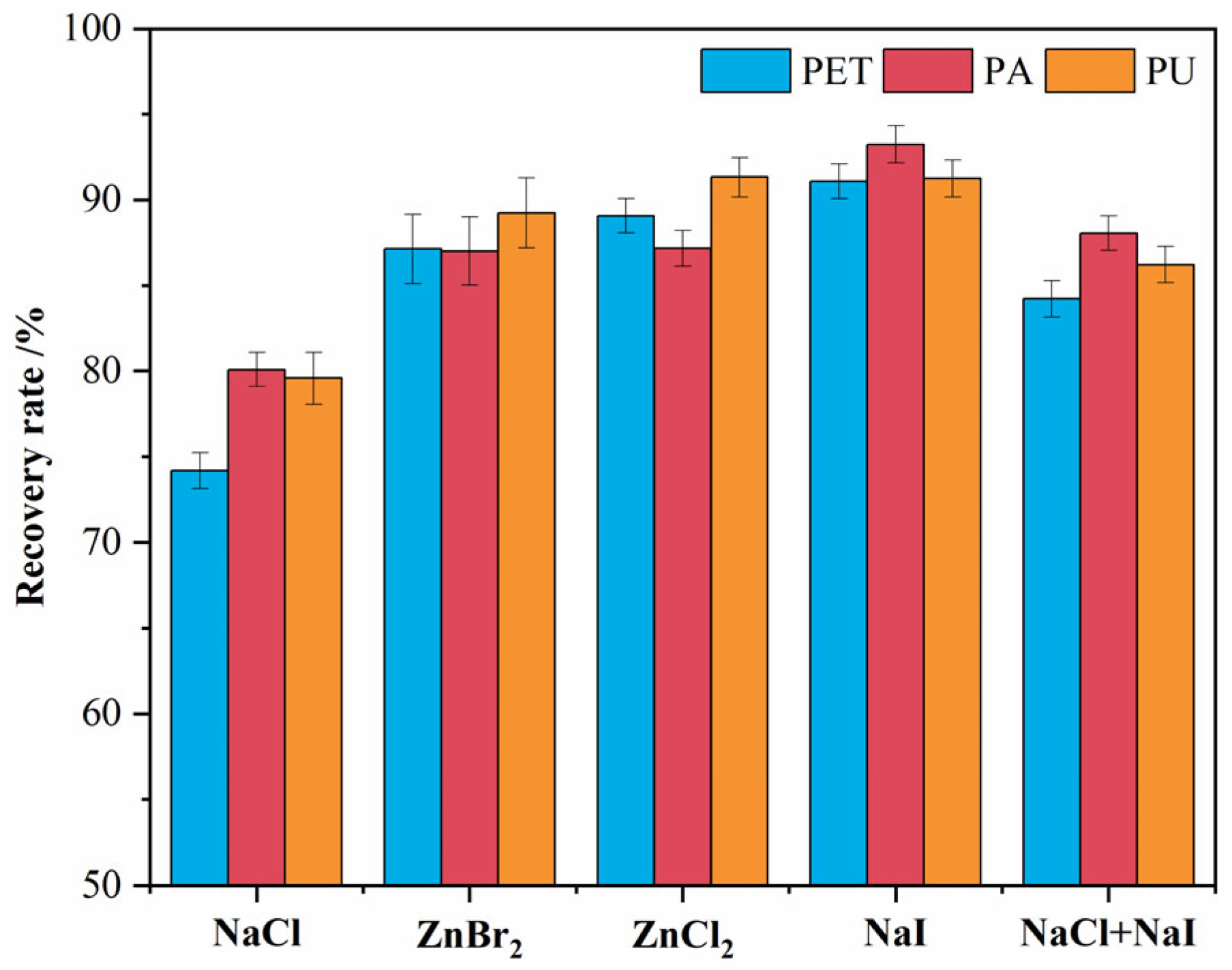

Figure 9. Separation and recovery of textile microplastics by density separation solutions.
Figure 9. Separation and recovery of textile microplastics by density separation solutions.
Polymers 15 01394 g009
Polymers 15 01394 g010 550

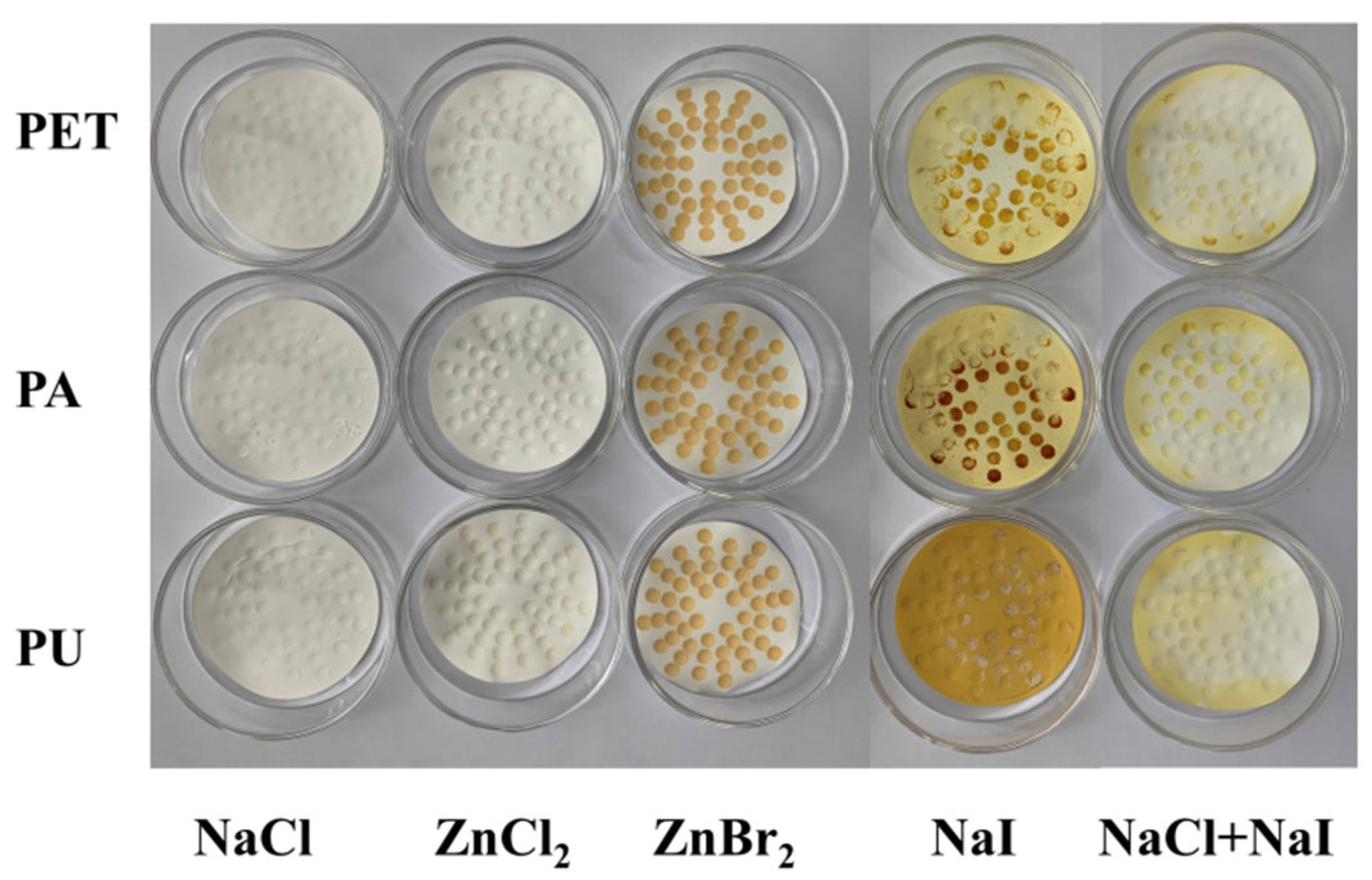

Figure 10. Filter membranes after the use of density separation solutions.
Figure 10. Filter membranes after the use of density separation solutions.
Polymers 15 01394 g010
Table
Table 1. Particle size changes of microplastic particles before and after the digestion treatment.
Table 1. Particle size changes of microplastic particles before and after the digestion treatment.
Digestion ProcessingParticle Size/μm
Polyethylene Terephthalate (PET)Polyamide (PA)Polyurethane (PU)
Original sample82.21 ± 27.0483.75 ± 24.7386.74 ± 27.80
Potassium hydroxide134.88 ± 34.31108.36 ± 31.7267.92 ± 16.24
Nitric acid + hydrogen peroxide97.64 ± 28.32//
Hydrogen peroxide81.00 ± 25.19101.30 ± 26.7079.71 ± 28.49
Fenton’s reagent85.89 ± 29.88105.27 ± 37.7084.45 ± 22.17
“/” indicates that the sample was destroyed by dissolution during the digestion.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Li, J.; Liu, Y.; Gao, Y.; Li, X.; Gong, Y. Study on the Extraction Method of Microplastic System in Textile Wastewater. Polymers 2023, 15, 1394. https://doi.org/10.3390/polym15061394

AMA Style

Li J, Liu Y, Gao Y, Li X, Gong Y. Study on the Extraction Method of Microplastic System in Textile Wastewater. Polymers. 2023; 15(6):1394. https://doi.org/10.3390/polym15061394

Chicago/Turabian Style

Li, Jiachen, Yuanyuan Liu, Yingxi Gao, Xin Li, and Yan Gong. 2023. "Study on the Extraction Method of Microplastic System in Textile Wastewater" Polymers 15, no. 6: 1394. https://doi.org/10.3390/polym15061394

APA Style

Li, J., Liu, Y., Gao, Y., Li, X., & Gong, Y. (2023). Study on the Extraction Method of Microplastic System in Textile Wastewater. Polymers, 15(6), 1394. https://doi.org/10.3390/polym15061394

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
