Next Article in Journal
A Review on Soils Treated with Biopolymers Based on Unsaturated Soil Theory
Next Article in Special Issue
Pyrolysis Kinetics Analysis and Prediction for Carbon Fiber-Reinforced Epoxy Composites
Previous Article in Journal
Fabrication of High Impact-Resistant Polyimide Nanocomposites with Outstanding Thermomechanical Properties


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Oriented Three-Dimensional Skeletons Assembled by Si3N4 Nanowires/AlN Particles as Fillers for Improving Thermal Conductivity of Epoxy Composites

1
School of Materials Science and Engineering, University of Science and Technology Beijing, Beijing 100083, China
2
School of Energy and Environmental Engineering, University of Science and Technology Beijing, Beijing 100083, China
3
School of Civil and Resource Engineering, University of Science and Technology Beijing, Beijing 100083, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Polymers 2023, 15(22), 4429; https://doi.org/10.3390/polym15224429
Submission received: 21 September 2023 / Revised: 7 November 2023 / Accepted: 12 November 2023 / Published: 16 November 2023
(This article belongs to the Special Issue Thermal Properties Analysis of Polymers)

Abstract

:
With the miniaturization of current electronic products, ceramic/polymer composites with excellent thermal conductivity have become of increasing interest. Traditionally, higher filler fractions are required to obtain a high thermal conductivity, but this leads to a decrease in the mechanical properties of the composites and increases the cost. In this study, silicon nitride nanowires (Si3N4NWs) with high aspect ratios were successfully prepared by a modified carbothermal reduction method, which was further combined with AlN particles to prepare the epoxy-based composites. The results showed that the Si3N4NWs were beneficial for constructing a continuous thermal conductive pathway as a connecting bridge. On this basis, an aligned three-dimensional skeleton was constructed by the ice template method, which further favored improving the thermal conductivity of the composites. When the mass fraction of Si3N4NWs added was 1.5 wt% and the mass fraction of AlN was 65 wt%, the composites prepared by ice templates reached a thermal conductivity of 1.64 W·m−1·K−1, which was ~ 720% of the thermal conductivity of the pure EP (0.2 W·m−1·K−1). The enhancement effect of Si3N4NWs and directional filler skeletons on the composite thermal conductivity were further demonstrated through the actual heat transfer process and finite element simulations. Furthermore, the thermal stability and mechanical properties of the composites were also improved by the introduction of Si3N4NWs, suggesting that prepared composites exhibit broad prospects in the field of thermal management.

Graphical Abstract

1. Introduction

The miniaturization and high degree of integration of electronic devices leads to a sharp increase in heat generation during operation. If timely and effective heat dissipation is not achieved, the operational efficiency and service life of the equipment are seriously affected [1,2,3]. The high-performance thermal interface materials (TIMs) that are used between a heat source and a heat sink have received widespread attention due to their importance in improving the thermal efficiency of electronic equipment. Traditional polymers have the advantage of being light weight, involving easy processing, and having superior electrical insulation; yet, the low intrinsic thermal conductivity of polymers strongly hinders their actual applications [4]. In order to solve this problem, the most commonly used method is to take the polymer as the matrix and then add fillers with high thermal conductivity to prepare composite materials [5,6]. Up to now, numerous filler types have been reported, including metal (e.g., silver, copper), carbon materials (e.g., carbon nanotubes, carbon fibers) and ceramics (e.g., nitrides, oxides) [7,8,9,10]. Although both metal and carbon materials have high thermal conductivity, the excellent electrical conductivity severely limits their use in applications requiring high insulation. In contrast, ceramic materials have high thermal conductivity and low electrical conductivity, thus attracting more attention and research interest.
Among ceramics materials, aluminum nitride (AlN) is one of the ideal fillers for the preparation of TIMs due to its high theoretical thermal conductivity of 320 W∙m−1∙K−1, low dielectric constant and low thermal expansion coefficient [11,12]. However, traditional TIMs generally achieve high thermal conductivity due to the addition of a large number of fillers, which not only leads to a higher production cost but also to a decrease in mechanical properties. Therefore, investigating how to carry out the rational design of filler networks to obtain a high thermal conductivity under a relatively low filler fraction has become an important research direction.
In order to achieve this aim, two main strategies have been reported. The first one is to promote the directional arrangement of fillers to build an orderly thermal conductive network using several special methods, such as hot pressing [13,14,15], casting molding [16], ice-template [17,18,19,20], vacuum filtration [21,22,23], electrospinning [24,25,26], etc. Among them, the ice-template method is extremely suitable for the preparation of the TIMs, which benefits from its low processing shrinkage, controllable porosity and superior mechanical strength. For example, Zhang et al. [27] prepared 3D-BNNS/GR/EP by the ice template method, and the composites exhibited superior through-plane thermal conductivities of 2.23 W·m−1·K−1 at a filler content of 11.2 vol%, demonstrating a 1073% thermal conductivity enhancement at room temperature (RT) compared with pure epoxy resin. Furthermore, adding a small amount of low-dimensional fillers as the second phase is also a common method to achieve high thermal conductivity since nanowires, whiskers and nanosheets with high aspect ratios are highly favorable for constructing fast pathways for phonon transport. To date, BN nanosheets (BNNS) are the most widely used low-dimensional ceramic fillers due to their extremely high aspect ratio and high intrinsic thermal conductivity (~300 W·m−1·K−1) [28]. Han et al. [29] prepared EP/ANF/BNNS by the unidirectional freezing method, revealing excellent thermal conductivity of 2.41 W·m−1·K−1 at 14.9 vol% BNNS. However, the strong van der Waals forces between BNNS are not conducive to their uniform dispersion in the organic matrix, which can easily lead to the generation of porosity and an increase in brittleness [30,31]. In addition, these BNNS prepared by physical or chemical stripping methods typically have some drawbacks, such as low yield and small lateral dimensions [32,33,34], requiring a large amount of fillers to achieve high thermal conductivity. However, the inclusion of a large number of fillers will inevitably weaken the mechanical properties of the composite, and the application range is extremely limited. Apart from BNNS, plate-like Al2O3 [35] and SiC nanowires [36] have also been reported to be added into the dominant fillers as the second phase. Nevertheless, the low intrinsic thermal conductivities of Al2O3 and SiC (<100 W·m−1·K−1) still limit their practical application. Therefore, it is necessary to search for novel low-dimensional fillers that can be used for thermal conductive pathway construction.
Si3N4 nanowires (Si3N4NWs) have the advantages of high thermal conductivity and a high aspect ratio, which are beneficial for the construction of thermal conductive pathways. For example, Wan et al. [37] prepared the super-flexible PVA/Si3N4NWs composite films, achieving a high in-plane thermal conductivity of 15.4 W·m−1·K−1 at a filling fraction of 50 wt%. In addition, the superior insulating and mechanical properties of Si3N4NWs meet the practical usage requirements of TIMs. From this point of view, Si3N4NWs are very suitable to be added to composites as a second phase and bridge to enhance the thermal conductivity of the composite. If this filler is used in combination with AlN, which has a significantly higher thermal conductivity, the thermal conductivity of the composite is improved because the degree of interfacial phonon scattering tends to be enhanced during the connection formation process.
Inspired by the considerations mentioned above, in this study, we reported a novel approach for designing a thermal conductive network using AlN particles as the main filler and Si3N4NWs as the secondary filler. On this basis, we employed the ice template method to rationally create a well-aligned three-dimensional filler skeleton, which was further filled with epoxy resin to obtain polymer-based composites using the vacuum impregnation technique. Due to the enhancement effect of 1D Si3N4NWs and directionally aligned filler skeletons, the prepared composites exhibited enhanced thermal conductivity. In addition, the introduction of Si3N4NWs was also favorable in improving the thermal stability and mechanical performance of composites, providing broad application prospects in the field of heat dissipation.

2. Materials and Methods

2.1. Materials

Silicon powder (Si) and silicon dioxide (SiO2) were used as raw materials, and were purchased from Aladdin Reagent Company (Shanghai, China) and Shanghai Sinopharm Holding Company (Shanghai, China), respectively. Carbon paper was used as the growth substrate of Si3N4NWs and was provided by the Tianjin Carbon Factory. To address gradation considerations, two types of AlN particles with different sizes (H01, ~1 μm, and F80, ~80 μm) were used. H01-AlN was purchased from Tokuyama Co., Japan, and F80-AlN was sourced from Xiamen Ju-Ci Co., Xiamen, China. Tertiary butyl alcohol (TBA) was obtained from Shanghai McLean Biochemical Technology Co. Ltd., Shanghai, China. Lastly, epoxy resin 816 (EP, monomer bisphenol F type) and curing agent 312 (MHHPA) were obtained from Hansen Chemical Co. (Zhuzhou, China) and Guangzhou Hoyun Chemical Co. (Guangzhou, China), respectively.

2.2. Process of Preparing Si3N4NWs

Si3N4NWs were prepared by a modified carbothermal reduction reaction using a mixture of SiO2 and Si powder as the Si source, while carbon paper was implemented as the carbon source and the growth substrate for Si3N4NWs. Firstly, Si and SiO2 were homogeneously ball-milled (200 rpm, 2 h) in a mass ratio of 2:1, and the resulting mixture solution was dried at 80 °C. Carbon paper was folded into a wave shape to serve as a reaction site. The mixed powder was evenly spread on the surface of the carbon paper and then transferred to a tube furnace for a high-temperature reaction. The temperature was increased to 1500 °C at a rate of 5 °C/min and then held for 2 h under flowing N2. Then, the furnace was cooled naturally to room temperature. After the reaction, contiguous Si3N4NWs were grown on the carbon paper substrate and could be easily collected. The obtained Si3N4NWs were kept in the air at 750 °C for 3 h to remove any residual carbon that might have been present on the surface of Si3N4NWs.

2.3. Preparation of Si3N4NWs/AlN Directional Skeletons

The prepared Si3N4NWs and commercially available AlN were used as thermally conductive fillers, PVB as a binder and EP as the polymer matrix for the thermally conductive composites. The preparation of Si3N4NWs/AlN/EP directional composites consisted of a four-step process, as illustrated in Figure 1. First, Si3N4NWs and anhydrous ethanol were configured into a suspension (0.2 g/mL) and then ball-milled at 200 rmp for 1 h. The obtained homogeneous mixed slurry was poured into a Petri dish and then completely dried at 80 °C in an oven. Secondly, Si3N4NWs and AlN were added proportionally into the TBA solution of PVB, and then the mixing solution was stirred well in a vacuum mixer. During this process, the mass ratio of H01-AlN and F80-AlN was fixed at 1:2, the PVB was added at 0.3 wt% of the total filler amount and the amount of TBA used was related to the filler volume fraction of the EP-base composites in the subsequent steps. Then, the stirred slurry was poured into a polytetrafluoroethylene (PTFE) mold, which was surrounded by PTFE and Cu at the bottom. The molds were placed in a cryogenic reaction tank at −80 °C for 10 min in the direction of the temperature gradient and then freeze-dried at 60 °C for 24 h. After demolding, the AlN/SiN composite skeleton was obtained.

2.4. Preparation of the Si3N4NWs/AlN/EP Composites

Si3N4NWs/AlN/EP composites were prepared by vacuum-assisted impregnation of epoxy. The epoxy resin and curing agent were homogeneously mixed in a 3:1 mass ratio and vacuum stirred for 30 min. Then, the Si3N4NWs/AlN skeletons were completely immersed into the mixture under vacuum for 2 h. After that, the samples were poured into silicone molds and cured at 80 °C for 2 h.
In order to investigate the effect of directional networks on the properties of TIMs, we also prepared randomly mixed composites. The epoxy resin and curing agent were mixed homogeneously under vacuum for 30 min. Then, a certain amount of Si3N4NWs and AlN were added into the polymer and mixed in a vacuum stirrer for 30 min. The mixture was then poured into a silicone mold and cured at 80 °C for 2 h.
Specifically, the Si3N4NWs/AlN/EP composites prepared by freeze casting and the randomly mixing method were named D-xSiN/yAlN/EP and R-xSiN/yAlN/EP, where D and R were abbreviations for directional and random, while x and y represented the mass fraction of Si3N4NWs and AlN, respectively.

2.5. Characterizations

The phase composition of Si3N4NWs was performed by X-ray diffraction (XRD, X’Pert PRO MPD, Bruker, Germany) in the range of 10–80° (2θ) using a Cu target. The morphology was characterized by scanning electron microscopy (SEM, Zeiss Gemini 30, Zeiss, Oberkochen, Germany). The thermal conductivity of the composites was determined by a Xi’an Xiaxi electronic hot-wire tester (TC3000E, Xi’an Xiaxi Electronic Technology Co., Ltd., Xi’an, China) with a sample size of 30 mm × 30 mm × 3 mm, and the average value was taken by repeating the test 5 times. Moreover, the universal mechanical testing machine (CMT6103, Sansi Eternal Technology (Zhejiang) Co., Ltd., Taizhou, China) was used to analyze the compressive strength of the composites, and the specific sample dimensions were consistent with that of the thermal conductivity test. Thermal synchronization analysis (TA SDT650) was also used to analyze the thermal stability of composites. Finally, the surface temperature changes were observed using an infrared imager (E6-WIFI, Shenzhen Yujie Hongye Technology Co., Ltd., Shenzhen, China), and the heat dissipation ability of the thermal conductive block in practical use was analyzed.

3. Results and Discussion

3.1. Characterization of Si3N4NWs

Figure 2a shows the macroscopic morphology of Si3N4NWs generated by the reaction at 1500 °C. It can clearly be seen that the Si3N4NWs grown on the carbon paper have a cotton-like morphology, which has the advantage of high yield. Figure 2b,c show the SEM images under different magnifications of Si3N4NWs. It was evident that the Si3N4NWs prepared by this approach have a high aspect ratio. Moreover, it can be observed from Figure 2c that no small droplet-like particles appeared at the end of the generated nanowires. Considering that no catalyst was added throughout the entire reaction process, it can be inferred that the Si3N4NWs were formed through the vapor–solid growth mechanism. The XRD pattern of Si3N4NW is shown in Figure 2d. The nanowires contained two crystalline phases, i.e., the α-phase (PDF NO. 76-1416) and the β-phase (PDF NO. 83-0700), with α-Si3N4 being the main crystalline phase. No other impurity peaks were detected, suggesting high purity of the synthesized Si3N4NW. In addition, all the diffraction peaks were sharp, indicating their high crystallinity. Additionally, these high-purity and high-aspect-ratio Si3N4NWs are very favorable for their subsequent application as thermally conductive fillers.

3.2. Characterization of Si3N4NWs/AlN/EP Thermal Conductivity Skeleton

The filler arrangement and the corresponding skeleton morphology in the directionally and randomly distributed composites are represented in Figure 3. As shown in Figure 3a, a unidirectional ice-template technique was used to freeze the suspensions of Si3N4NWs and AlN. The mold used in the freezing process was composed of PTFE material at the periphery and Cu flakes at the bottom. Due to the large difference in thermal conductivity between Cu and PTFE, there was a significant temperature difference between the samples in the horizontal and vertical directions. As a result, the TBA was preferentially crystallized in the longitudinal direction (i.e., the direction of the temperature gradient), leading to a directional arrangement of Si3N4NWs and AlN fillers in response to the ice crystal growth forces.
The directional structures of the D-55AlN and D-1SiN/55AlN skeletons are shown in Figure 3b,c. It has been observed that the aluminum nitride particles in both samples were arranged in parallel along the longitudinal direction, indicating that the ice template method was very beneficial for constructing directional thermal conductivity pathways. As for the sample of D-1SiN/55AlN, the Si3N4NWs were obviously interspersed among AlN fillers, which was beneficial for the rapid directional conduction of phonons and the reduction of thermal resistance. Figure 3e,f show the morphology of the randomly distributed thermally conductive skeletons. As illustrated in Figure 3d, Si3N4NWs, AlN and EP were prepared by simple blending. Therefore, compared with the directional skeletons, the AlN particles and Si3N4NWs were randomly aligned, i.e., the thermal conductive pathways were anisotropic. Evidently, the oriented filler skeletons were more favorable for obtaining higher thermal conductivity in the vertical direction [38].
Figure 4 shows the cross-sectional SEM images of the thermally conductive skeleton of 1SiN/yAlN, where the loading of AlN filler was progressively increased from 35 wt% to 70 wt% and denoted as D-1SiN/35AlN, D-1SiN/45AlN, D-1SiN/55AlN and D-1SiN/65AlN, respectively. As shown, the morphology of the skeletons mainly depended on the filling fraction of AlN. Overall, at different filling fractions, the AlN particles were directional along the freezing direction, and this special distribution allowed the formation of a directional thermal network between the AlN fillers, which was beneficial in reducing the interfacial thermal resistance. However, as the filling fraction increased, the density of the skeletons gradually increased, the directional effect gradually deteriorated and the horizontal spacing of the vertical thermal pathways gradually decreased. When the filling fraction of AlN was as high as 65 wt%, the directional effect of the thermally conductive skeletons was no longer obvious, and the cross-sectional morphology was similar to an ant’s nest. This phenomenon was mainly due to the decrease of TBA content and the reduction of the driving force of TBA crystallization at high filling fraction, which made it difficult to promote the directional arrangement of a large number of AlN particles at the same time. In addition, it could be noticed that the high-aspect-ratio Si3N4NWs bridged between AlN particles, which was conducive to shortening the thermal conductivity paths and obtaining higher composite thermal conductivity.

3.3. Thermal Conductivity of the Si3N4NWs/AlN/EP Composites

Figure 5a shows the variation of thermal conductivity with filling fraction for both D-1SiN/yAlN/EP and R-1SiN/yAlN/EP composites. With the same amount of Si3N4NWs (1 wt%), the thermal conductivities of the composites showed a continuous increase with the increase of AlN filling fraction, and the R-1SiN/65AlN/EP sample has the highest thermal conductivity of 1.35 W∙m−1∙K−1. This observation was mainly due to the increase of the internal thermal conduction paths constructed by the AlN particles. In addition to this, the thermal conductivity of the directional composites prepared by the freezing method was also significantly higher than that of the random blends for the same filling fraction. The increase in thermal conductivity was mainly due to the formation of a large number of directional thermal conductive networks and more heat flow channels during the ice templating process, which facilitated phonon transport [39]. In addition, during the TBA freezing crystallization process, a large number of AlN particles accumulated along the longitudinal direction and were in close contact with each other, which further reduced the interfacial thermal resistance between interacting AlN particles.
To further demonstrate the thermal conductivity enhancement of the composites by Si3N4NWs, the thermal conductivity of the composites with the same percentage of AlN filling (65 wt%) but different Si3N4NWs addition was analyzed. Figure 5b shows the effect of different preparation processes and Si3N4NWs additions on the composite thermal conductivity. The oriented samples exhibited higher thermal conductivity than the random sample. In addition, the thermal conductivity was significantly improved with the addition of Si3N4NWs, and the highest thermal conductivity of 1.64 W∙m−1∙K−1 was achieved for the sample of D-1.5SiN/65AlN/EP. The experimental results mentioned above indicated that the addition of Si3N4NWs and the directional pathways provided by the ice templates were beneficial in providing more thermal pathways to enhance the thermal conductivity of the composites [40]. In order to illustrate the enhancement effect of Si3N4NWs and directional thermal conduction pathways on the thermal conductivity, the thermal conductivity enhancement (TCE) of the composites was further calculated with the increase of Si3N4NWs addition under different preparation processes.
The TCE calculation formula is shown in Equation (1):
T C E = k k m k m
where k was the thermal conductivity of the composite and km was the thermal conductivity of EP. The corresponding calculation results are shown in Figure 5c. The TCE increased with the increase of Si3N4NW content, which indicated that the incorporation of nanowires could significantly improve the thermal conductivity of the composites. The thermal conductivity of D-1.5SiN/65AlN/EP was 1.64 W·m−1·K−1, which was ~720% of the thermal conductivity of the pure EP (0.2 W·m−1·K−1). In addition, the thermal conductivity of composite materials prepared by the ice template method was significantly higher than that of randomly mixed samples. For example, the thermal conductivity of D-65AlN/EP was 160% of R-65AlN/EP, which further indicated that the directional thermal conductivity pathway has a significant enhancement effect on the thermal conductivity of composite materials.
Figure 5d provides a further visual comparison of the thermal conductivities of EP, R-65AlN/EP, R-1SiN/65AlN/EP and D-1SiN/65AlN/EP. It was evident that the trend of the thermal conductivity was as follows: EP < R-65AlN/EP < D-65AlN/EP < D-1SiN/65AlN/EP. This trend further suggests that both the construction of directional channels using the ice template method and the addition of Si3N4NWs could significantly enhance the thermal conductivity of the composites. This enhancement effect is further illustrated in Figure 5e. The directional filler skeletons and the high-aspect-ratio nanowires provided more thermally conductive channels, which was in agreement with previous reports [41,42,43,44].
The Agari model can effectively predict the thermal conductivity of composites at high filling fractions, and it can also be used to determine the construction of internal thermal pathways within the composites. Therefore, the Agari model was utilized to predict the ease of formation of thermally conductive chains within the SiN/AlN/EP composites prepared by different processes.
The Agari model is shown in Equation (2) [45]:
log k = Φ f C 2 log k f + ( 1 Φ f ) log C 1 k m
where k, kf and km represented the thermal conductivity of the composites, AlN and EP; while the kf and km took the values of 320 W∙m−1∙K−1 and 0.2 W∙m−1∙K−1, respectively, in this study. Φf was the volume fraction of AlN fillers, C1 was the parameter of filler influence on the secondary structure of the polymer matrix and C2 denoted the degree of difficulty in the formation of the thermal network (i.e., the larger the value of C2, the more complete the thermally conductive network that was formed).
Linear simulation lines were plotted in terms of logarithmic values of filler additions and thermal conductivity of the composites (D-AlN/EP and R-AlN/EP), and the resulting simulation of the Agari model is shown in Figure 5f. Then, the data were substituted into Equation (2), and the values of C1 and C2 could be calculated based on the results of the Agari model simulation, where C2 was calculated as 0.55 for R-AlN/EP and 0.71 for D-AlN/EP. By comparing the C2 values obtained from the fitting of R-AlN/EP and D-AlN/EP composites, it can be found that the C2 of D-AlN/EP was larger, indicating that a more complete internal thermal conductivity network was formed [24]. This result further demonstrated that the directional thermally conductive channels constructed by ice templates favored the phonon transfer and further enhanced the thermal conductivity of the composites [46,47].
In order to prove that the SiN/AlN/EP composites can be well applied for thermal management, the actual heat dissipation process of the composites was further explored. Four samples of pure EP, R-55AlN/EP, R-1SiN/55AlN/EP and D-1SiN/55AlN/EP were heated at a constant temperature of 70 °C. When the same temperature was reached, all samples were placed at room temperature at the same time for the natural heat dissipation process. The corresponding temperature changes and the thermal images on the surface of composites were recorded by an infrared camera, as shown in Figure 6a,b, respectively. The cooling rates of different samples were significantly different, and the overall order was as follows: EP < R-55AlN/EP < R-1SiN/55AlN/EP < D-1SiN/55AlN/EP. In addition, the actual trend of temperature changes during the cooling process was consistent with the infrared temperature images. As indicated, the D-1SiN/55AlN/EP composite with both directional thermally conductive skeleton and Si3N4NWs addition exhibited the best heat dissipation performance, which further illustrated the enhancement of directional thermal conductive pathways and one-dimensional nanowires on the composite thermal conductivity [40].
In order to further characterize the contribution of fillers with different morphologies to the thermal conductivity of the composites, we performed transient finite element analysis using the COMSOL Multiphysics v4.4 software to compare and evaluate the heat transfer properties of different composites. As shown in Figure 7, four models were constructed for simulation: pure EP, EP with random distribution of AlN, EP with random distribution of AlN and Si3N4NWs and EP with oriented distribution of AlN and Si3N4NWs. Firstly, we created a cube with a radius of 3 cm× 3 cm× 3 cm as the polymer matrix, with an initial temperature set at 293 K. Additionally, the bottom surface of the cube was set as the heat source with a temperature of 343 K. In order to study the heat transfer inside the composites at different time intervals, external natural convection on the solid surface was established for a total duration of 3 min with a time step of 1 min. The simulation results are shown in Figure 7. When no thermally conductive filler was added to the organic matrix, the inherent low thermal conductivity of the matrix led to very slow heat transfer. After adding AlN as a filler into the matrix, the overall thermal conductivity of the composite improved. However, AlN as a filler alone could not effectively form a heat transfer path within the matrix and resulted in significant phonon scattering. When high-aspect ratio Si3N4NWs were used as fillers and combined with AlN, the thermal conductivity of the composite material increased significantly. On this basis, when the AlN and Si3N4NWs were further oriented in the vertical direction, the heat transfer rate was further accelerated. This further indicated that the addition of nanowires and the construction of an oriented thermally conductive filler skeleton significantly improved the thermal conductivity, which aligned with the results of thermal conductivity characterization (Figure 5) and thermal infrared imaging (Figure 6).
Thermal stability and mechanical strength are crucial for thermal management materials. Figure 8a shows the TG curves of the pure EP, R-65AlN/EP and R-1SiN/65AlN/EP, respectively. As observed, both the addition of AlN particles and Si3N4NWs had an influence on the thermal stability of the composites. For pure EP, the weight loss process mainly occurred in the temperature interval of 200–400 °C, which was due to the decomposition of EP during the heating process. For pure EP, the T10% (the temperature at which 20% of weight was lost) was 360 °C. With the addition of AlN particles and Si3N4NWs, the T10% increased to 380 °C and 395 °C, respectively. The decomposition temperature of the composites was significantly increased, indicating better thermal stability. This performance was due to the fact that the addition of fillers to the composites affects the crystallinity of the organics, hindering the movement of the organic molecular chains and increasing the thermal decomposition temperature of organics. The DTG curves in Figure 8b indicate that the temperature corresponding to the fastest weight loss of composites increased by the addition of thermally conductive fillers. Particularly, when only 1 wt% of Si3N4NWs was added, the thermal stability of the composites showed a considerable improvement. The stress–strain curves, which yield stress and compressive strength, of pure EP, R-65AlN/EP and R-1SiN/65AlN/EP are shown in Figure 8c,d. It was indicated that the compressive strength corresponded to the following order: R-1SiN/65AlN/EP > R-65AlN/EP > pure EP. This was mainly due to the high brittleness of the epoxy resin, thus presenting the lowest compressive strength. However, the addition of fillers, especially high-aspect-ratio Si3N4NWs, could significantly enhance the hardness of the composites, leading to an increase in the compressive strength. The results above strongly indicate that the addition of AlN fillers and Si3N4NWs could significantly enhance the thermal stability and mechanical strength of the composites, making them better in line the application requirements of the thermal management materials.

4. Conclusions

In this study, an oriented AlN/Si3N4NWs thermal conductive network was successfully constructed by the ice-template method, and the composites were further obtained after vacuum impregnation of epoxy resin. The Si3N4NWs could effectively bridge between AlN particles, promoting the formation of fast phonon transport channels to improve the thermal conductivity of composites. On this basis, constructing the directional thermal transfer pathways by the ice-template method could increase the composite thermal conductivity from 0.88 W∙m−1·K−1 for R-1SiN/65AlN/EP to 1.35 W∙m−1·K−1 for D-1SiN/65AlN/EP. The enhancement effect of Si3N4NWs and directional thermally conductive pathways on the composite thermal conductivity was also demonstrated by practical heat dissipation applications and finite element simulations. Furthermore, the Si3N4NWs could not only enhance the heat transfer ability but also improve the thermal stability and mechanical properties of the composites, which further confirmed that Si3N4NWs had a broad application prospect as fillers for thermal management materials.

Author Contributions

This manuscript was written through contributions from all authors, specifically as follows: methodology, formal analysis, investigation, data curation, writing—original draft, writing—review and editing, B.W. and S.W.; visualization, M.N. and M.L.; project administration, C.Y. and Z.Z.; writing—original draft, W.X. and M.Y.; conceptualization, supervision, W.C.; funding acquisition, Q.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (No. U20A20241, No 52372077), the Young Elite Scientists Sponsorship Program by CAST (No. 2022QNRC001) and the Interdisciplinary Research Project for Young Teachers of USTB (Fundamental Research Funds for the Central Universities) (No. FRF-IDRY-22-022).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zeng, X.L.; Sun, J.J.; Yao, Y.M.; Sun, R.; Xu, J.-B.; Wong, C.-P. A Combination of Boron Nitride Nanotubes and Cellulose Nanofibers for the Preparation of a Nanocomposite with High Thermal Conductivity. ACS Nano 2017, 11, 5167–5178. [Google Scholar] [CrossRef]
  2. Liu, Z.T.; Zhao, S.Q.; Tian, Y.; Zhou, J. Improvement in mechanical properties in AlN–h-BN composites with high thermal conductivity. J. Adv. Ceram. 2019, 8, 72–78. [Google Scholar] [CrossRef]
  3. Wang, X.; Yu, Z.H.; Bian, H.Y.; Wu, W.B.; Xiao, H.N.; Dai, H.Q. Thermally Conductive and Electrical Insulation BNNS/CNF Aerogel Nano-Paper. Polymers 2019, 11, 660. [Google Scholar] [CrossRef] [PubMed]
  4. Shen, Z.M.; Feng, J.C. Achieving vertically aligned SiC microwires networks in a uniform cold environment for polymer composites with high through-plane thermal conductivity enhancement. Compos. Sci. Technol. 2019, 170, 135–140. [Google Scholar] [CrossRef]
  5. Jin, F.-L.; Li, X.; Park, S.-J. Synthesis and application of epoxy resins: A review. J. Ind. Eng. Chem. 2015, 29, 1–11. [Google Scholar] [CrossRef]
  6. Chen, H.Y.; Ginzburg, V.V.; Yang, J.; Yang, Y.F.; Liu, W.; Huang, Y.; Du, L.B.; Chen, B. Thermal conductivity of polymer-based composites: Fundamentals and applications. Prog. Polym. Sci. 2016, 59, 41–85. [Google Scholar] [CrossRef]
  7. Essam, B.M.; Mohammed, A.T. Evaluation of the microstructure, thermal and mechanical properties of Cu/SiC nanocomposites fabricated by mechanical alloying. Int. J. Min. Met. Mater. 2021, 28, 475–486. [Google Scholar]
  8. Xu, X.F.; Chen, J.; Zhou, J.; Li, B.W. Thermal Conductivity of Polymers and Their Nanocomposites. Adv. Mater. 2018, 30, e1705544. [Google Scholar] [CrossRef]
  9. Zhang, P.; Wu, Y.H.; Sun, H.R.; Zhao, J.Q.; Cheng, Z.M.; Kang, X.H. MnO2/carbon nanocomposite based on silkworm excrement for high-performance supercapacitors. Int. J. Min. Met. Mater. 2021, 28, 1735–1744. [Google Scholar] [CrossRef]
  10. Zhang, D.W.; Liu, F.S.; Wang, S.; Yan, M.X.; Hu, X.; Xu, M.Y. D-GQDs Modified Epoxy Resin Enhances the Thermal Conductivity of AlN/Epoxy Resin Thermally Conductive Composites. Polymers 2021, 13, 4074. [Google Scholar] [CrossRef]
  11. Slack, G.A.; Tanzilli, R.A.; Pohl, R.O.; Vandersande, J.W. The intrinsic thermal conductivity of AIN. J. Phys. Chem. Solids 1987, 48, 641–647. [Google Scholar] [CrossRef]
  12. Wei, Z.L.; Xie, W.Q.; Ge, B.Z.; Zhang, Z.J.; Yang, W.L.; Xia, H.Y.; Wang, B.; Jin, H.Y.; Gao, N.K. Enhanced thermal conductivity of epoxy composites by constructing aluminum nitride honeycomb reinforcements. Compos. Sci. Technol. 2020, 199, 108304. [Google Scholar] [CrossRef]
  13. Celebi, M.; Canakci, A.; Güler, O.; Özkaya, S.; Karabacak, A.H.; Arpacı, K.A. Investigation of Microstructure, Hardness and Wear Properties of Hybrid Nanocomposites with Al2024 Matrix and Low Contents of B4C and h-BN Nanoparticles Produced by Mechanical Milling Assisted Hot Pressing. JOM 2022, 74, 4449–4461. [Google Scholar] [CrossRef]
  14. Xu, J.K.; Liu, Z.T.; Zhang, J.; Li, F.; Qin, X.W.; He, S.; Xie, Z.P. In situ fabrication of continuously graded Si3N4 ceramics via DC field-assisted hot pressing. Scr. Mater. 2022, 213, 114600. [Google Scholar] [CrossRef]
  15. Hao, X.; Wan, S.Q.; Kang, W.W.; Zhao, J.L.; Han, S.M.; Peng, D.Y.; Yang, P.; Wang, Q. Carbothermal synthesis of high-aspect-ratio AlN whiskers using graphite felt as carbon source. Ceram. Int. 2022, 48, 9842–9847. [Google Scholar] [CrossRef]
  16. Volodchenko, A.A.; Vorontsov, V.M.; Cherepanova, I. Effective Non-Autoclave Silicate Blocks of Casting Molding Process Based on Unconventional Aluminosilicate Raw Materials. Mater. Sci. Forum 2019, 974, 55–60. [Google Scholar] [CrossRef]
  17. Wu, N.; Che, S.; Shen, P.D.; Chen, N.; Chen, F.J.; Ma, G.; Liu, H.C.; Yang, W.; Wang, X.B.; Li, F.Y. A binder-free ice template method for vertically aligned 3D boron nitride polymer composites towards thermal management. J. Colloid Interface Sci. 2023, 647, 43–51. [Google Scholar] [CrossRef]
  18. Pan, D.; Dong, J.W.; Yang, G.; Su, F.M.; Chang, B.B.; Liu, C.T.; Zhu, Y.-C.; Guo, Z.H. Ice template method assists in obtaining carbonized cellulose/boron nitride aerogel with 3D spatial network structure to enhance the thermal conductivity and flame retardancy of epoxy-based composites. Adv. Compos. Hybrid Mater. 2021, 5, 58–70. [Google Scholar] [CrossRef]
  19. Liu, G.; Zhang, D.; Meggs, C.; Button, T.W. Porous Al2O3-ZrO2 composites fabricated by an ice template method. Scr. Mater. 2010, 62, 466–468. [Google Scholar] [CrossRef]
  20. Hu, J.B.; Wei, Z.L.; Ge, B.Z.; Zhao, L.; Peng, K.; Shi, Z.Q. AlN micro-honeycomb reinforced stearic acid-based phase-change composites with high thermal conductivity for solar-thermal-electric conversion. J. Mater. Chem. A 2023, 11, 10727–10737. [Google Scholar] [CrossRef]
  21. Niu, M.Y.; Zhao, Z.; Wang, B.K.; Yu, C.; Li, M.Y.; Hu, J.J.; Yue, M.; Lu, Q.P.; Wang, Q. Silver nanoparticle-decorated AlN whiskers hybrids for enhancing the thermal conductivity of nanofibrillated cellulose composite films. Chem. Commun. 2023, 59, 12577–12580. [Google Scholar] [CrossRef] [PubMed]
  22. Zeng, X.L.; Ye, L.; Yu, S.H.; Li, H.; Sun, R.; Xu, J.B.; Wong, C.-P. Artificial nacre-like papers based on noncovalent functionalized boron nitride nanosheets with excellent mechanical and thermally conductive properties. Nanoscale 2015, 7, 6774–6781. [Google Scholar] [CrossRef] [PubMed]
  23. Hu, Z.R.; Wang, S.; Chen, G.K.; Zhang, Q.; Wu, K.; Shi, J.; Liang, L.Y.; Lu, M.G. An aqueous-only, green route to exfoliate boron nitride for preparation of high thermal conductive boron nitride nanosheet/cellulose nanofiber flexible film. Compos. Sci. Technol. 2018, 168, 287–295. [Google Scholar] [CrossRef]
  24. Wang, H.; Zhang, Y.; Niu, H.T.; Wu, L.Y.; He, X.H.; Xu, T.; Wang, N.Y.; Yao, Y.G. An electrospinning-electrospraying technique for connecting electrospun fibers to enhance the thermal conductivity of boron nitride/polymer composite films. Compos. Part B-Eng. 2022, 230, 109505. [Google Scholar] [CrossRef]
  25. Chen, J.; Huang, X.Y.; Sun, B.; Jiang, P.K. Highly Thermally Conductive Yet Electrically Insulating Polymer/Boron Nitride Nanosheets Nanocomposite Films for Improved Thermal Management Capability. ACS Nano 2019, 13, 337–345. [Google Scholar] [CrossRef]
  26. Wang, J.M.; Li, Q.X.; Liu, D.; Chen, C.; Chen, Z.Q.; Hao, J.; Li, Y.W.; Zhang, J.; Naebe, M.; Lei, W.W. High temperature thermally conductive nanocomposite textile by “green” electrospinning. Nanoscale 2018, 10, 16868–16872. [Google Scholar] [CrossRef]
  27. Zhang, S.Y.; Li, M.H.; Miao, Z.C.; Zhao, Y.L.; Song, Y.N.; Yu, J.H.; Wu, Z.X.; Li, J.T.; Wang, W.; Li, Y.; et al. Ice-templated graphene in-situ loaded boron nitride aerogels for polymer nanocomposites with high thermal management capability. Compos. Part A Appl. Sci. Manuf. 2022, 159, 107005. [Google Scholar] [CrossRef]
  28. Zhao, B.T.; Chen, K.X.; Sun, S.Y.; Zhang, J.; Cui, W.; Xie, Z.P.; Liu, G.H. Crystalline boron nitride nanosheets by sonication-assisted hydrothermal exfoliation. J. Adv. Ceram. 2019, 8, 72–78. [Google Scholar]
  29. Han, G.J.; Xue, P.W.; Cai, Z.H.; Feng, Y.Z.; Liu, C.T.; Shen, C.Y. One-step exfoliation and deprotonation of ANF/BNNS suspension for constructing 3D vertically aligned skeleton in epoxy-based thermal management composites. Sci. China Technol. Sci. 2022, 65, 2675–2686. [Google Scholar] [CrossRef]
  30. Shen, H.; Guo, J.; Wang, H.; Zhao, N.; Xu, J. Bioinspired Modification of h-BN for High Thermal Conductive Composite Films with Aligned Structure. ACS Appl. Mater. Interfaces 2015, 7, 5701–5708. [Google Scholar] [CrossRef]
  31. Bouville, F.; Deville, S. Dispersion of Boron Nitride Powders in Aqueous Suspensions with Cellulose. J. Am. Ceram. Soc. 2014, 97, 394–398. [Google Scholar] [CrossRef]
  32. Ciesielski, A.; Samori, P. Graphene via sonication assisted liquid-phase exfoliation. Chem. Soc. Rev. 2014, 43, 381–398. [Google Scholar] [CrossRef] [PubMed]
  33. Du, M.; Wu, Y.Z.; Hao, X.P. A facile chemical exfoliation method to obtain large size boron nitride nanosheets. Crystengcomm 2013, 15, 1782–1786. [Google Scholar] [CrossRef]
  34. Chen, S.H.; Xu, R.Z.; Liu, J.M.; Zou, X.L.; Qiu, L.; Kang, F.Y.; Liu, B.L.; Cheng, H.-M. Simultaneous Production and Functionalization of Boron Nitride Nanosheets by Sugar-Assisted Mechanochemical Exfoliation. Adv. Mater. 2019, 31, 1804810. [Google Scholar] [CrossRef] [PubMed]
  35. Ravindran, A.R.; Ladani, R.B.; Zavabeti, A.; Daeneke, T.; Wu, S.Y.; Kinloch, A.J.; Wang, C.H.; Kalantar-Zadeh, K.; Mouritz, A.P. Liquid metal synthesis of two-dimensional aluminium oxide platelets to reinforce epoxy composites. Compos. Sci. Technol. 2019, 181, 107708. [Google Scholar] [CrossRef]
  36. Zhao, Z.; Peng, D.Y.; Zhi, Y.H.; Hao, X.; Wan, S.Q.; Yue, M.; Kuang, J.L.; Xuan, W.W.; Zhu, L.F.; Cao, W.B.; et al. Synergistic effects of oriented AlN skeletons and 1D SiC nanowires for enhancing the thermal conductivity of epoxy composites. J. Alloys Compd. 2023, 963, 171244. [Google Scholar] [CrossRef]
  37. Wan, S.Q.; Hao, X.; Zhu, L.F.; Yu, C.; Li, M.Y.; Zhao, Z.; Kuang, J.L.; Yue, M.; Lu, Q.P.; Cao, W.B.; et al. Enhanced In-Plane Thermal Conductivity and Mechanical Strength of Flexible Films by Aligning and Interconnecting Si3N4 Nanowires. ACS Appl. Mater. Interfaces 2023, 15, 32885–32894. [Google Scholar] [CrossRef]
  38. Yao, Y.M.; Zhu, X.D.; Zeng, X.L.; Sun, R.; Xu, J.B.; Wong, C.-P. Vertically Aligned and Interconnected SiC Nanowire Networks Leading to Significantly Enhanced Thermal Conductivity of Polymer Composites. ACS Appl. Mater. Interfaces 2018, 10, 9669–9678. [Google Scholar] [CrossRef]
  39. Wu, W.J.; Liu, H.W.; Wang, Z.Y.; Lv, P.; Hu, E.T.; Zheng, J.J.; Yu, K.H.; Wei, W. Formation of thermal conductive network in boron nitride/polyvinyl alcohol by ice-templated self-assembly. Ceram. Int. 2021, 47, 33926–33929. [Google Scholar] [CrossRef]
  40. Hao, X.; Wan, S.Q.; Zhao, Z.; Zhu, L.F.; Peng, D.Y.; Yue, M.; Kuang, J.L.; Cao, W.B.; Liu, G.H.; Wang, Q. Enhanced Thermal Conductivity of Epoxy Composites by Introducing 1D AlN Whiskers and Constructing Directionally Aligned 3D AlN Filler Skeletons. ACS Appl. Mater. Interfaces 2023, 15, 2124–2133. [Google Scholar] [CrossRef]
  41. Latif, I.; Al-Abodi, E.E.; Badri, D.H.; Khafagi, J.A. Preparation, Characterization and Electrical Study of (Carboxymethylated Polyvinyl Alcohol/ZnO) Nanocomposites. J. Polym. Sci. 2012, 2, 135–140. [Google Scholar] [CrossRef]
  42. Wu, K.; Fang, J.C.; Ma, J.R.; Huang, R.; Chai, S.G.; Chen, F.; Fu, Q. Achieving a Collapsible, Strong, and Highly Thermally Conductive Film Based on Oriented Functionalized Boron Nitride Nanosheets and Cellulose Nanofiber. ACS Appl. Mater. Interfaces 2017, 9, 30035–30045. [Google Scholar] [CrossRef]
  43. Zhuang, Y.F.; Zheng, K.; Cao, X.Y.; Fan, Q.R.; Ye, G.; Lu, J.X.; Zhang, J.N.; Ma, Y.M. Flexible Graphene Nanocomposites with Simultaneous Highly Anisotropic Thermal and Electrical Conductivities Prepared by Engineered Graphene with Flat Morphology. ACS Nano 2020, 14, 11733–11742. [Google Scholar] [CrossRef] [PubMed]
  44. Ouyang, Y.; Bai, L.Y.; Tian, H.F.; Li, X.F.; Yuan, F.L. Recent progress of thermal conductive ploymer composites: Al2O3 fillers, properties and applications. Compos. Part A Appl. Sci. Manuf. 2022, 152, 106685. [Google Scholar] [CrossRef]
  45. Agari, Y.; Uno, T. Estimation on thermal conductivities of filled polymers. J. Appl. Polym. Sci. 2010, 32, 5705–5712. [Google Scholar] [CrossRef]
  46. Pan, D.; Yang, G.; Abo-Dief, H.M.; Dong, J.W.; Su, F.M.; Liu, C.T.; Li, Y.F.; Xu, B.B.; Murugadoss, V.; Naik, N.; et al. Vertically Aligned Silicon Carbide Nanowires/Boron Nitride Cellulose Aerogel Networks Enhanced Thermal Conductivity and Electromagnetic Absorbing of Epoxy Composites. Nano-Micro Lett. 2022, 14, 215–233. [Google Scholar] [CrossRef]
  47. Yang, X.T.; Liang, C.B.; Ma, T.B.; Guo, Y.Q.; Kong, J.; Gu, J.W.; Chen, M.J.; Zhu, J.H. A review on thermally conductive polymeric composites: Classification, measurement, model and equations, mechanism and fabrication methods. Adv. Compos. Hybrid Mater. 2018, 1, 207–230. [Google Scholar] [CrossRef]

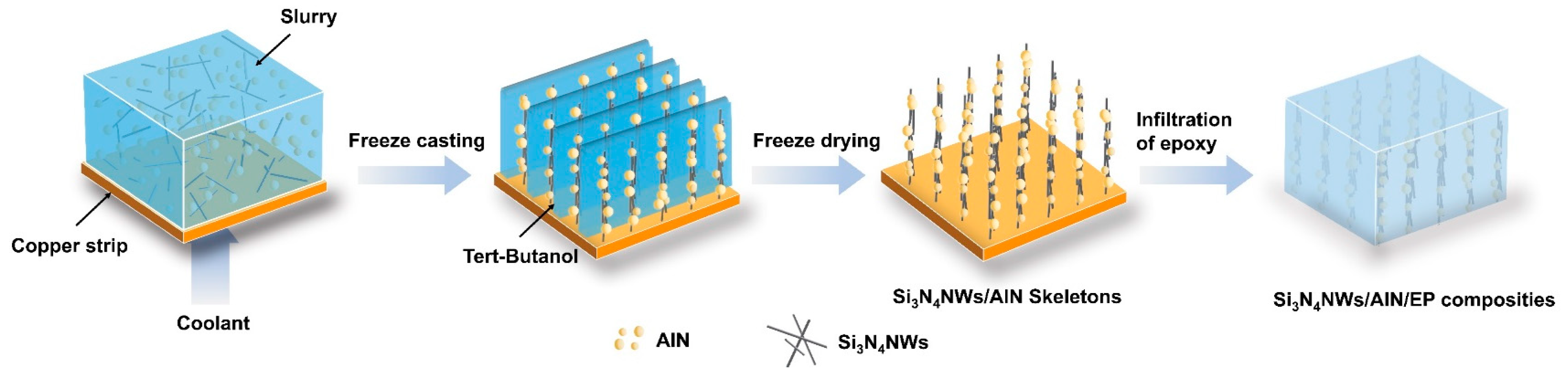

Figure 1. Preparation process of aligned Si3N4NWs/AlN/EP composites using ice-template method.
Figure 1. Preparation process of aligned Si3N4NWs/AlN/EP composites using ice-template method.
Polymers 15 04429 g001
Figure 2. Characterization of the as-synthesized Si3N4NWs: (a) digital picture; (b,c) SEM images; (d) XRD pattern.
Figure 2. Characterization of the as-synthesized Si3N4NWs: (a) digital picture; (b,c) SEM images; (d) XRD pattern.
Polymers 15 04429 g002

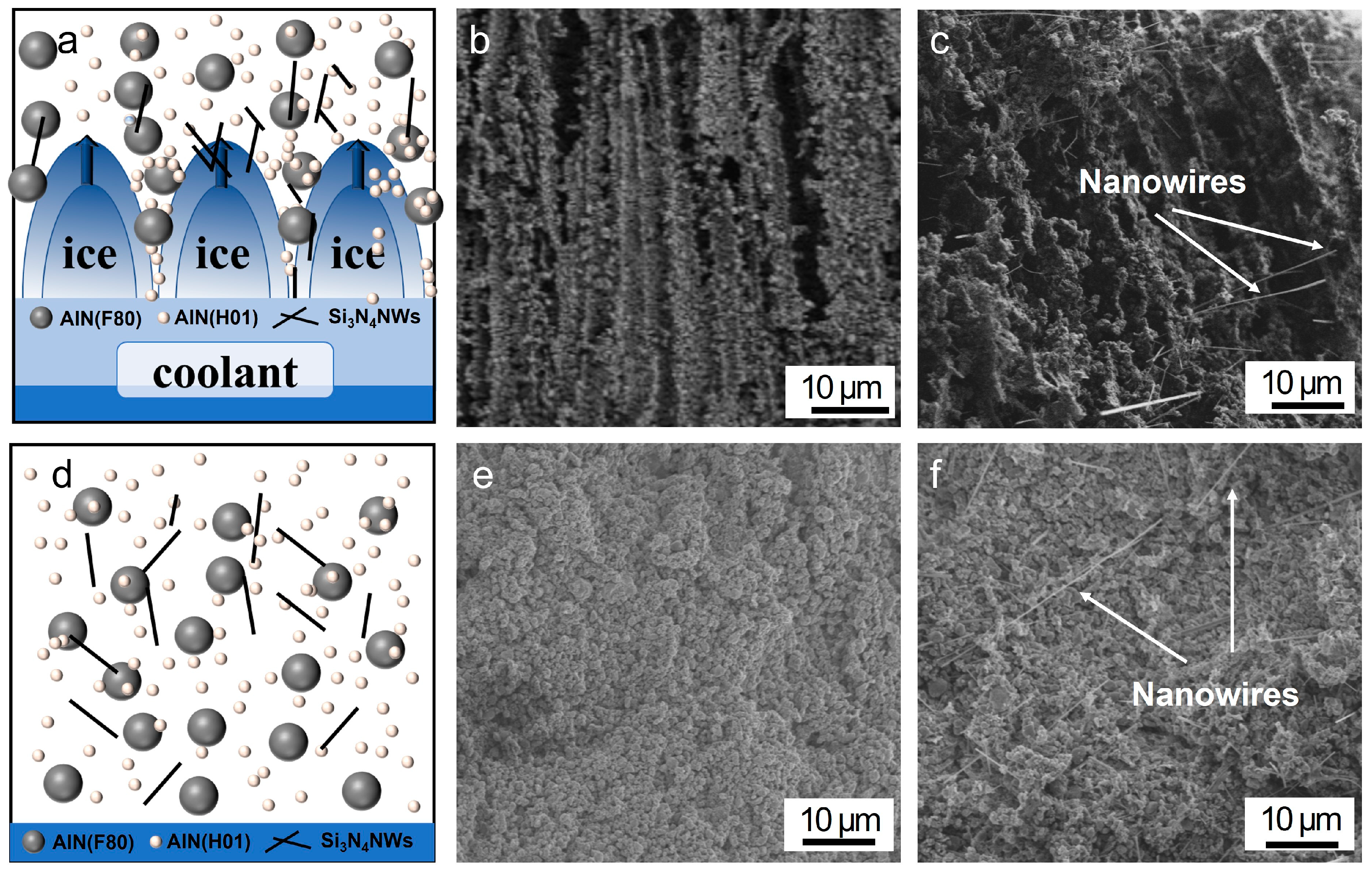

Figure 3. Schematic illustration of the mechanism of the (a) ice-template and (d) random distribution process. Cross-sectional SEM images of the Si3N4NWs/AlN skeletons: (b) D-55AlN; (c) D-1SiN/55AlN; (e) R-55AlN; (f) R-1SiN/55AlN.
Figure 3. Schematic illustration of the mechanism of the (a) ice-template and (d) random distribution process. Cross-sectional SEM images of the Si3N4NWs/AlN skeletons: (b) D-55AlN; (c) D-1SiN/55AlN; (e) R-55AlN; (f) R-1SiN/55AlN.
Polymers 15 04429 g003

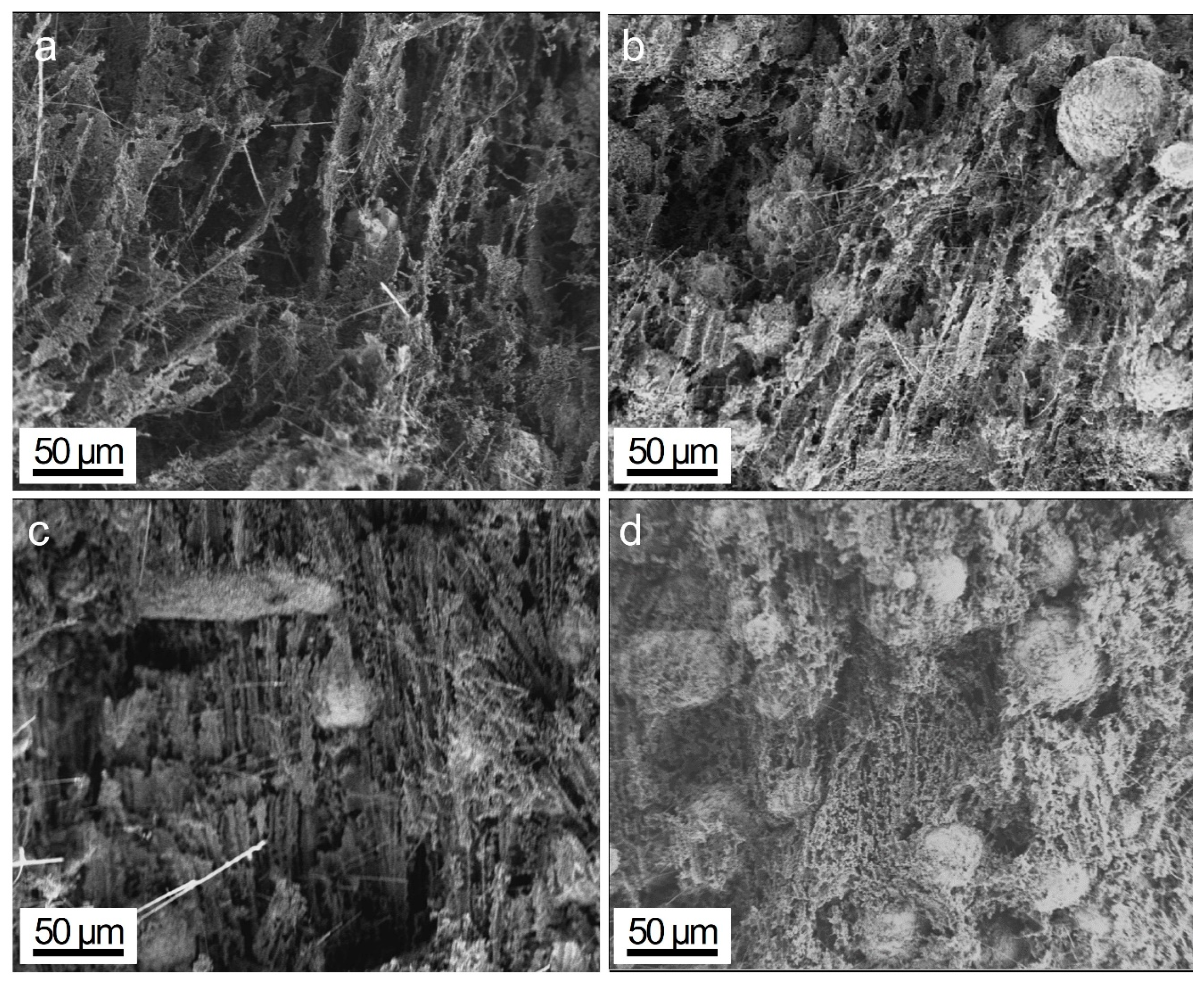

Figure 4. Cross-sectional SEM images of Si3N4NWs/AlN skeletons containing 1 wt% Si3N4NWs but with various AlN content: (a) D-1SiN-35AlN, (b) D-1SiN-45AlN, (c) D-1SiN-55AlN, (d) D-1SiN-65AlN.
Figure 4. Cross-sectional SEM images of Si3N4NWs/AlN skeletons containing 1 wt% Si3N4NWs but with various AlN content: (a) D-1SiN-35AlN, (b) D-1SiN-45AlN, (c) D-1SiN-55AlN, (d) D-1SiN-65AlN.
Polymers 15 04429 g004
Figure 5. (a) Thermal conductivity of 1SiN/yAlN/EP composites; (b) thermal conductivity and (c) TCE of xSiN/65AlN/EP composites; (d) comparison of thermal conductivity between EP and typical xSiN/yAlN/EP composites; (e) illustration of the thermally conductive network formed inside the SiN/AlN/EP composites; (f) Agari model simulations.
Figure 5. (a) Thermal conductivity of 1SiN/yAlN/EP composites; (b) thermal conductivity and (c) TCE of xSiN/65AlN/EP composites; (d) comparison of thermal conductivity between EP and typical xSiN/yAlN/EP composites; (e) illustration of the thermally conductive network formed inside the SiN/AlN/EP composites; (f) Agari model simulations.
Polymers 15 04429 g005
Figure 6. (a) Curve of surface temperature change during cooling of heated EP, R-55AlN/EP, R-1SiN/55AlN/EP and D-1SiN/55AlN/EP; (b) infrared thermography of EP, R-55AlN/EP, R-1SiN/55AlN/EP and D-1SiN/55AlN/EP.
Figure 6. (a) Curve of surface temperature change during cooling of heated EP, R-55AlN/EP, R-1SiN/55AlN/EP and D-1SiN/55AlN/EP; (b) infrared thermography of EP, R-55AlN/EP, R-1SiN/55AlN/EP and D-1SiN/55AlN/EP.
Polymers 15 04429 g006

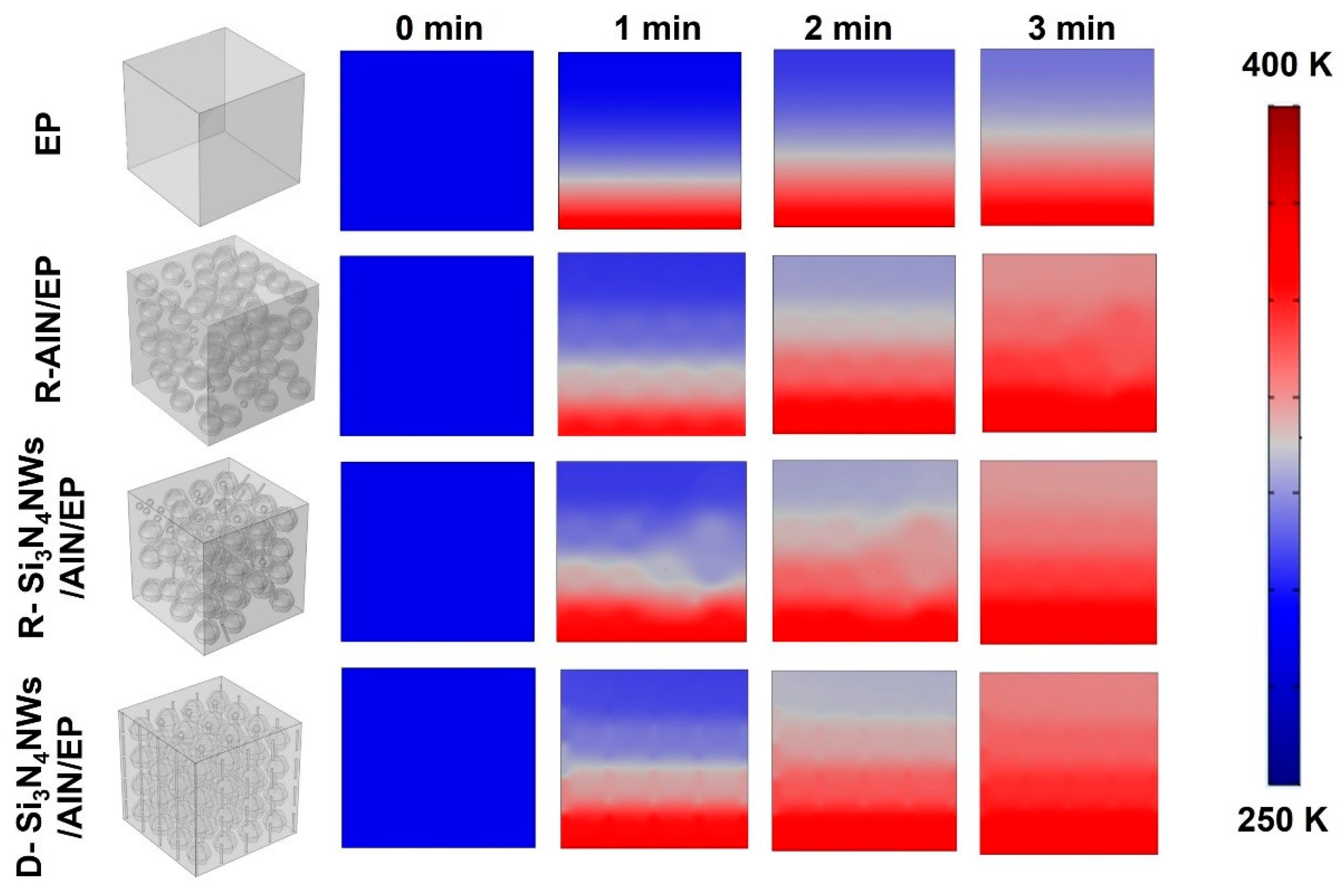

Figure 7. Transient temperature simulation of xSiN/yAlN/EP composites.
Figure 7. Transient temperature simulation of xSiN/yAlN/EP composites.
Polymers 15 04429 g007

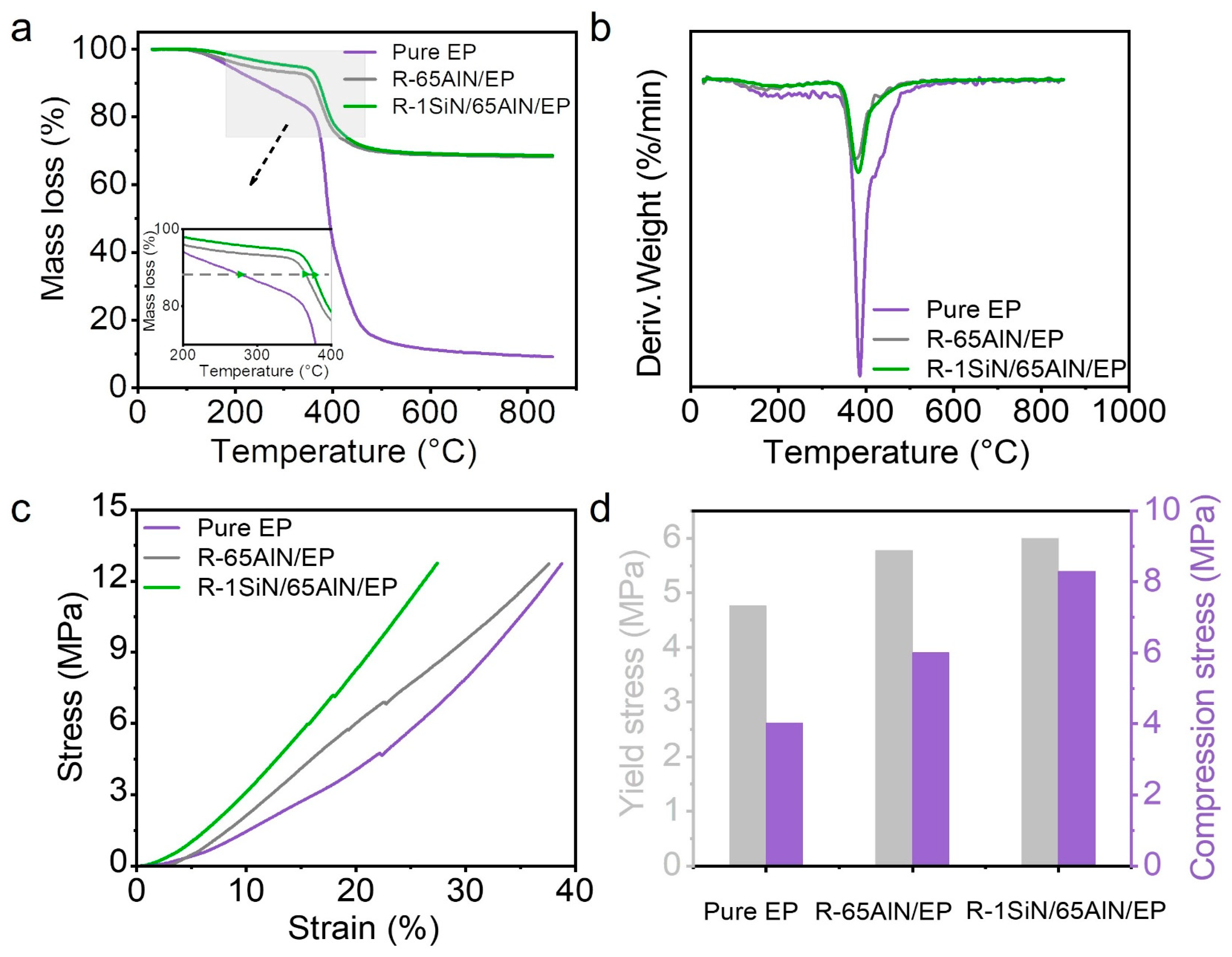

Figure 8. Thermal stability and mechanical performance of EP, R-65AlN/EP and R-1SiN/65AlN/EP: (a) TG, (b) DTG, (c) stress–strain curve and (d) yield stress and compressive stress at 20% compressive strain.
Figure 8. Thermal stability and mechanical performance of EP, R-65AlN/EP and R-1SiN/65AlN/EP: (a) TG, (b) DTG, (c) stress–strain curve and (d) yield stress and compressive stress at 20% compressive strain.
Polymers 15 04429 g008
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, B.; Wan, S.; Niu, M.; Li, M.; Yu, C.; Zhao, Z.; Xuan, W.; Yue, M.; Cao, W.; Wang, Q. Oriented Three-Dimensional Skeletons Assembled by Si3N4 Nanowires/AlN Particles as Fillers for Improving Thermal Conductivity of Epoxy Composites. Polymers 2023, 15, 4429. https://doi.org/10.3390/polym15224429

AMA Style

Wang B, Wan S, Niu M, Li M, Yu C, Zhao Z, Xuan W, Yue M, Cao W, Wang Q. Oriented Three-Dimensional Skeletons Assembled by Si3N4 Nanowires/AlN Particles as Fillers for Improving Thermal Conductivity of Epoxy Composites. Polymers. 2023; 15(22):4429. https://doi.org/10.3390/polym15224429

Chicago/Turabian Style

Wang, Baokai, Shiqin Wan, Mengyang Niu, Mengyi Li, Chang Yu, Zheng Zhao, Weiwei Xuan, Ming Yue, Wenbin Cao, and Qi Wang. 2023. "Oriented Three-Dimensional Skeletons Assembled by Si3N4 Nanowires/AlN Particles as Fillers for Improving Thermal Conductivity of Epoxy Composites" Polymers 15, no. 22: 4429. https://doi.org/10.3390/polym15224429

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
