Article

Profitability of Chemically Cross-Linked Collagen Scaffold Production Using Bovine Pericardium: Revaluing Waste from the Meat Industry for Biomedical Applications

by
José Arturo de la Cruz Bosques
1,
José de Jesús Ibarra Sánchez
1,
Birzabith Mendoza-Novelo
1,*,
Juan Gabriel Segovia-Hernandez
2 and
Carlos Eduardo Molina-Guerrero
1,*
1
Departamento de Ingenierías Química, Electrónica y Biomédica, Universidad de Guanajuato, Lomas del Bosque 103, Col. Lomas del Campestre, León 37150, Guanajuato, Mexico
2
Departamento de Ingeniería Química, Universidad de Guanajuato, Noria Alta s/n, Col. Noria Alta, Guanajuato 36000, Guanajuato, Mexico
*
Authors to whom correspondence should be addressed.
Polymers 2023, 15(13), 2797; https://doi.org/10.3390/polym15132797
Submission received: 15 May 2023 / Revised: 17 June 2023 / Accepted: 20 June 2023 / Published: 23 June 2023

Abstract

:
The meat industry generates a large amount of waste that can be used to create useful products such as bio-implants, which are usually expensive. In this report, we present an economic analysis of a continuous process for large-scale chemically cross-linked collagen scaffold (CCLCS) production in a Mexican context. For this purpose, three production capacities were simulated using SuperPro Designer® v 12.0: 5, 15, and 25 × 103 bovine pericardium units (BPU) per month as process feedstock. Data indicated that these capacities produced 2.5, 7.5, and 12.5 kg of biomesh per batch (per day), respectively. In addition, Net Unit Production Costs (NUPC) of 784.57, 458.94, and 388.26 $USD.kg−1 were obtained, correspondingly, with selling prices of 0.16 ± 0.078 USD.cm−2, 0.086 ± 0.043 USD.cm−2, and 0.069 ± 0.035 USD.cm−2, in the same order. We found that these selling prices were significantly lower than those in the current market in Mexico. Finally, distribution of costs associated with the process followed the order: raw materials > facility-dependent > labor > royalties > quality analysis/quality control (QA/QC) > utilities. The present study showed the feasibility of producing low-cost and highly profitable CCLCS with a relatively small investment. As a result, the circular bioeconomy may be stimulated.

Graphical Abstract

1. Introduction

The meat industry generates a large amount of waste, which can be used to create useful products such as bio-implants that are usually expensive. Some of these materials are used in wound healing, dental repairment, bone repairment, skin, vessels, cartilage, nervous system, cardiac, liver, and injectables, among others [1,2,3,4]. Unfortunately, the cost of the production of soft tissue scaffolds is usually high as it involves the expenses of research and development, product safety, clinical trials, storage, and marketing, among others [5]. Currently, different companies, including Skin & Healhcare, Kowa Co., Terumo Corp., Tei Bioscience Inc., and Groupe Perouse Plastie, among others, produce biomeshes using bovine collagen. These materials are used as soft tissue replacement in the treatment of chronic ulcers or thickness wounds, among others, with costs that vary from USD/cm−2 4 to 15 [5]. Unfortunately, developing countries usually pay higher prices because of additional fees related to transportation and import tariffs. For this reason, the most vulnerable people do not have access to these types of treatments. In order to reduce the total production cost (TPC), a potential solution is large-scale manufacturing. However, several considerations must be taken into account.
An alternative to producing these biomaterials, i.e., biomeshes, is using bovine pericardium (BP), which is rich in type I collagen. In Mexico, BP represents waste from slaughterhouses. BP tissue displays high flexibility, mechanical resistance, and the appropriate thickness that makes it a unique material for the production of devices that can be inserted into the human body due to its ability to contract and expand [5,6]. Several authors have reported the use of BP biomeshes in heart valvules and decellularized scaffolds for the regulation of blood sugar level in patients with Type I diabetes [7,8].
According to the National Institute of Statistics and Geography (INEGI), cattle slaughtered in Mexico totaled 156,936 in February 2022 [9]. Previously, in 2014, a total of 2,052,303 cattle slaughtered was reported. This same year, the five states with the highest cattle slaughter (bovine.yr−1) were Jalisco (332,149), Michoacan (211,327), Guanajuato (174,711), Mexico (119,877), and Veracruz (118,069). In addition, the smallest numbers (bovine.yr−1) corresponded to Tlaxcala (8402), Quintana Roo (9924), Baja California Norte (10,495), Nuevo León (11,427), and Baja California Sur (12,910) [9]. Thus, slaughterhouses represent a potential source of type I collagen. In Mexico, some new policies promote the transition to a circular economy, which will allow the use of slaughterhouse waste for different purposes including the production of biomaterials [10].
In this context, process simulation can be helpful in evaluating the profitability of the techniques used to transform type I collagen into biomeshes. Process simulation is used in equipment design and to calculate energy costs as well as the profitability of processes at different scales. Recently, process simulation has been used to evaluate several processes in order to determine the optimal operational conditions that allow profitability and reduce the need for government subsidies [11,12,13,14,15].
The aim of the present investigation was to develop a large-scale process for biomesh production in a Mexican context. For this purpose, we selected three scenarios where 5000, 15,000 and 25,000 BPU.mth−1 were used as raw materials. The proposed process includes decellularization, hydrolysis, crosslinker synthesis, and crosslinking, with a focus on volume of production (USD.kg−1). In order to compare the results with data provided in commercial products, volume of production was converted to USD.cm−2. Furthermore, a sensitive analysis to determine the minimal biomesh selling price was carried out and results were compared with actual selling prices. Finally, we proposed alternatives to improve the economic performance of biomesh production using type I collagen from bovine pericardium from an engineering perspective.

2. Materials and Methods

2.1. Bovine Pericardium Composition

The pericardium is composed of simple squamous epithelium and connective tissue. It is rich in type I collagen as well as glycoproteins and glycosaminoglycans (GAG) in addition to constituent cells. Collagen is arranged at different levels ranging from fibrils to laminae, fibers, and fiber bundles [16]. The composition of the pericardium used in this research was obtained from [17]. Briefly, the composition on a dry basis is (g.kg−1): protein (40), collagen (770), elastin (40); the rest are sugars such as galactosamine (4.8), glucosamine (7), and glucuronic acid (1.6). Finally, the weight for each unit of bovine pericardium was assumed to be 15 g.

2.2. Process Description

The process was simulated in steady state using the SuperPro Designer v.12.0® (SPD) process simulation software considering 330 days of operation. The process was divided into four stages: (i) conditioning (or tissue decellularization), (ii) crosslinker synthesis (formation of PEG-1000 oligourethanes and hexamethylene disocyanate), (iii) crosslinking (crosslinking reaction between the decellularized tissue and the crosslinker), and (iv) post-treatment (washing, drying, and packaging). The bench scale experiments were performed using five agitation tanks, four continuous stirred reactors (CSTR), two centrifuges, and one freeze dryer (See Appendix B, Figure A4, Table A1). The volumes of the 316 stainless steel tanks were calculated using mass balance. Additionally, the Guthrie method, adapted in SPD, was used to determine tank cost. Tank parameters are reported in Appendix B and Figure 1 shows the block flow diagram of the process used in the present investigation.

2.2.1. Decellularization Stage

Bovine pericardium units (BPU) were decellularized following the procedure reported in [18]. The process flow diagram for biomesh production is presented in Figure A4 (Appendix B). In the first stage (decellularization), bovine pericardium (animal tissue) was soaked with a phosphate buffered saline solution (PBS) and Triton-X-100 (a non-ionic surfactant useful in protein dissolution) (NCBI, 2021). In order achieve repulsive forces and, in turn, tissue swelling, BPU were treated with an alkaline solution [18]. Later, samples were placed in sterile PBS at a ratio of 7 mL solution per g of tissue (PBS, 30 mM, pH 7.4, 0.9% NaCl) containing Triton-X (1% v/v) and allowed to stay at room temperature for 48 h. The surfactant was replaced after 24 h with a fresh solution. The mixture was allowed to stay another 24 h and, after this period, the samples were washed with PBS (P3) and subsequently dried using a centrifuge (current S-102 towards P1). Then, the solution was transferred to a stirring tank (stream S-101 towards P19), where DNases and RNases (Nucleases) were added to remove residual nucleic acids (DNA and RNA) from damaged cells. At this stage, the tissue was placed in a Tris HCl 10 mM solution at pH 7.6 (2.5 mM MgCl2, 0.5 mM CaCl2) containing 0.2 mg.ml−1 DNase and 0.02 mg.ml−1 RNase. Then, samples were transferred to an agitation tank (current S-104 towards P20) and washed with a PBS/NaCl solution. To get rid of chemical residues and cell debris, tissues were washed for 24 h at room temperature under continuous stirring. Samples were further dried using a centrifuge (stream S-105 towards P4) (Figure A4).

2.2.2. Crosslinker Synthesis

The crosslinker used in the present experiments was synthesized through an oligomerization reaction between PEG-1000 and hexamethylene diisocyanate (HDI) [18,19] inside the R-101 reactor (Figure A4). Briefly, the molten PEG was reacted with the diisocyanate (HDI) at an NCO:OH molar ratio of 4.0:1.0 for 2 h at 100 °C. This ratio was chosen to obtain end isocyanate groups in products and to ensure the subsequent addition reaction with collagen. Although the main oligomer structure corresponds to a blocked trimer structure, i.e., isocyanate–PEG–isocyanate (I–PEG–I) chains, as shown in Appendix A (Figure A1 and Figure A2), chain extension reactions are promoted [20]. Thus, corresponding equations of the reactions carried out in R-101 and R-102 equipment are shown in Table 1.
After oligomerization, the temperature was reduced to 60 °C. The energy used for this purpose was calculated using a heat exchanger (current S-110 to P6) to a second reactor (current S-111 to R-102). To avoid further oligourethane polymerization, a saturated sodium bisulfite (40% NaHSO3) solution was added, and temperature was maintained at 40 °C for 2 h (Figure A4. Oligourethane blocking) (Table 1) [18].
The oligomerization reaction produced trimers, pentamers, and heptamers (see Table 1). However, trimers were more abundant than the rest of the polymers. For this reason, they were selected for biomesh production [19]. After oligomer blockage, the mixture was diluted with water to achieve a concentration of 40% (solid weight) (current S-113 towards S-115). Later, silica particles were added to the oligourethane using a tetraethyl orthosilicate-ethanol solution (current S-103 towards P7) (Silica SiO2 [TEOS]), and the mixture was stirred for 18 h at 25 °C (room temperature, RT) to achieve complete dispersion of colloidal silica in the prepolymer solution. Finally, the crosslinker was transferred to a stirring tank (current S-120 towards P13) and peroxide (H2O2, 30% weight at RT) was added to lower the pH. Oligomerization and blocking steps are shown in Figure A4, while the addition of silica is represented in [21].

2.2.3. Crosslinking

After decellularization and crosslinker synthesis, a crosslinking reaction was performed. For this purpose, the S-107 and S-108 streams were mixed in the R-103 reactor. Additionally, magnesium oxide (1% v/v) was added until pH 8.2 to “unblock” the oligourethane and allow the crosslinking reaction to proceed. In this way, the tissue and the crosslinking agent reacted, producing a collagen network. The oligourethane (20% weight with respect to the tissue) was stirred for 3 h at RT. Magnesium oxide and the crosslinking reaction were prolonged for 10 h under stirring conditions at RT. The crossover methodology was followed as indicated in [18,19]. Corresponding reactions are shown in Table 1 and Figure A1 and Figure A2.

2.2.4. Washing

The cross-linked tissue (R-103 reactor) was transferred to the agitation tank (P16) through the S-106 stream. Later, the reaction mixture was treated with 0.03M EDTA at 4 °C to remove any residual agent.

2.2.5. Freezing and Drying

Once washed with EDTA (0.03 M at 4 °C), the crosslinked tissue was moved to a freeze dryer (stream S-117 from P16 to P17) where it was frozen-dried at −70 °C to preserve its properties. After this process, the dry product was ready for packaging (current S-119) (See Figure A3).

2.3. Scenarios

In this work, UPB of 5000, 15,000, and 25,000 BPU.mth−1 were selected considering the amount of BPU produced in slaughterhouses in Mexico [9].

2.4. Financial Investment and Assumptions

2.4.1. Net Present Value Method (NPV)

The biomesh Net Unit Production Cost (NUPC) per kilogram was calculated using the dynamic flow of capital analysis (DFCA) which uses the Net Present Value (NPV) = 0 (e.g., i is equal to the internal rate of return (IRR)). This methodology is used by SPD and explained in [16]. Briefly, the NPV is a function of the selected capacity and feed intervals for a fixed financing and production condition. The year of 2021 was selected for the analysis.
NPV = C a s h   f l o w   ( ( 1 + i ) n 1 ) i ( 1 + i ) n + w o r k i n g   c a p i t a l ( 1 + i ) n i n v e s t m e n t
C a s h   f l o w = C a s h   i n f l o w C a s h   o u t f l o w
C a s h   o u t f l o w = D i r e c t   p r o d u c t i o n   c o s t + t a x e s + l o a n   a n n u i t y ;
D i r e c t   c o s t s   ( D C ) = f 1 ( e q u i p m e n t   c o s t ) ;
I n d i r e c t   c o s t s   ( I C ) = f 2 ( e q u i p m e n t   c o s t ) ;
F i x e d   C a p i t a l   I n v e s t m e n t   ( F C I ) = D C + I C ;
s t a r   u p = f 3 ( F C I ) ;
w o r k i n g   c a p i t a l   ( W C ) = f 4 ( F C I + s t a r t   u p ) ;
t o t a l   c a p i t a l   i n v e s t m e n t   ( T C I ) = F C I + W C + s t a r t   u p ;
i n v e s t m e n t = F C I l o a n .
Using the NPV, a sensitivity analysis was performed to find the minimal selling price in the three different scenarios.

2.4.2. Economic Considerations

Financial investment and assumptions were considered according to SuperPro Designer—User’s Guide. The process considered an operating time of 330 days/year. In addition, it was assumed that 30% of the capital was borrowed for 10 years at an interest rate of 6% and an inflation factor of 4%. Patent royalties of 4% and useful life and project construction of 15 and 1 years, respectively, were selected. In addition, a linear depreciation of the equipment was considered. Federal taxes were set up at a 40% gain. Additionally, a cost of USD 0.1 kWh for the electricity used in heating, cooling, agitation, and centrifugation was established, according to the Central Region Office of the Federal Electricity Commission (CFE) of Mexico [22]. With respect to human resources, an hourly wage of USD 6.25 in 8-h schedules with no rotating shifts was selected. In addition, 1 month included 30 days and 2% TPC was considered as the cost of biomesh sterilization. The cost of the reagents used in biomesh production are shown in Appendix C (Table A3).

3. Results

An economic analysis for the production of cross-linked collagen from bovine pericardium was carried out. For this purpose, production capacities of 5, 15, and 25 × 103 BPU.mth−1 were selected. Figure 2 presents the profitability analysis for a production capacity of 5 × 103 BPU.mth−1. Similar analyses were performed for production capacities of 15 and 25 × 103 BPU.mth−1. These data are presented in Appendix C. Figure 2A depicts the increase in process capacity (annual throughput) against NUPC. As expected, the cost of production showed the typical exponential decay of scaling up. According to the results, an NUPC of USD 12,836.58 per kg biomesh was obtained at a process capacity of 30 kg. yr−1. In addition, a process capacity of 750 kg.yr−1 (2.5 kg.day−1) resulted in an NUPC value of USD 784.57 per kg biomesh. Figure 2B displays the Facility Dependent Product Cost (USD.kg−1) against process capacity (annual throughput). Similarly, an exponential decay behavior was observed with values of USD 7327.36 and USD 318.58 for capacities of 30 and 750 kg.yr−1, respectively. These results confirm that an increase in capacity decreased the NUPC and facility-dependent cost. Data on revenues and NP against annual throughput are presented in Figure 2C. Herein, a positive NP resulted when the process capacity exceeded 360 kg per year. However, the NP should be confirmed with a positive IRR value. Indeed, positive IRR values of 1.55% and 0.58% before and after taxes, respectively, were determined when process capacity was 510 kg.yr−1 (Figure 2D). The IRR value is a metric used in financial analysis to estimate the profitability of potential investments. The IRR value is a discount rate that makes the net present value (NPV) of all the cash flows equal to zero in a discounted cash flow analysis. Our data also indicated that the maximum process capacity (750 kg.yr−1 or 2.5 kg.day−1) provided IRR values of 16.66% and 13.09% before and after taxes, correspondingly. In addition, an ROI of 20.41% was obtained for a process of 750 kg.yr−1. This value confirms that the process proposed in the present investigation is profitable.
Table 2 presents data on total capital investment (TCI), operating cost (OC), revenues, NUPC, ROI, IRR, payback time, and NPV for the production of biomesh in three different scenarios. As expected, the investment costs followed the order 5 < 15 < 25 × 103 BPU.mth−1. According to these results, production of 2.5, 7.5, and 12.5 kg of biomesh per day can be potentially achieved. Thus, when production capacity increased from 5 × 103 BPU.mth−1 to 15 × 103 BPU.mth−1, TCI augmented 28.21%. However, the TCI of a production capacity of 25 × 103 BPU.mth−1 was only 16.05% higher than that of 15 × 103 BPU.mth−1. It was also found that NUPC decreased as production capacity increased, with NUPC values of 784.57, 458.94, and 388.26 USD.kg−1 for biomesh production capacities of 5, 15, and 25 × 103 BPU.mth−1, respectively.
In the present work, an ROI value of ≈20% was selected. The ROI is a performance measure used to evaluate the efficiency or profitability of a given investment and, in general, an acceptable value is over 5%. Our data indicated a payback time of about 5 years, a period that can be shortened whenever a higher price is considered. In addition, a higher selling price can reduce the payback time, affecting the ROI and the profitability of the process. The results in Table 2 indicate that, in the three scenarios analyzed in our work, IRR values of about 13% were obtained. This means that, in all the cases, profitability is possible. Finally, in all the cases, positive NPVs were obtained. In addition, it was observed that, as NPV increased, process capacity improved. NPV corresponds to the present value of the cash flow at the required ROI compared to the initial investment. Thus, the initial TCI will be depreciated by ≈40% after ≈5 years in the three scenarios.

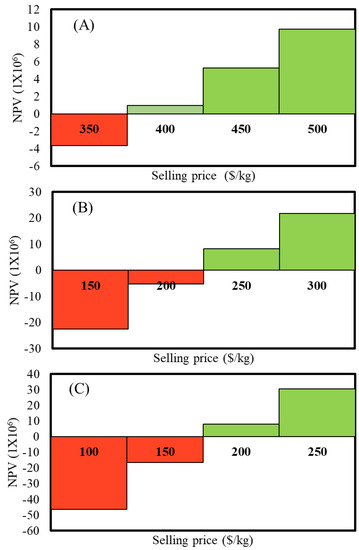

In order to obtain the minimum selling price per kg of biomesh, a sensitivity analysis was performed. Figure 3 presents the NPV and biomesh selling price in different scenarios. Figure 3A shows the results for a production capacity of 5 × 103 BPU.mth−1 with selling prices varying between USD 350 and 500/kg. Positive unit product revenues of USD 1043.75, 579.86 and 463.89.kg−1 corresponded to selling prices of USD 400, 450, and 500.kg−1, respectively. On the other hand, a selling price of USD 350.kg−1 resulted in a negative NPV. Thus, profitability is possible with prices above USD 400.kg−1. Process capacities of 15 and 25 × 103 BPU.yr−1 yield minimum selling prices of USD 250 and 200.kg−1, correspondingly. Below these values, the processes will be considered unprofitable.

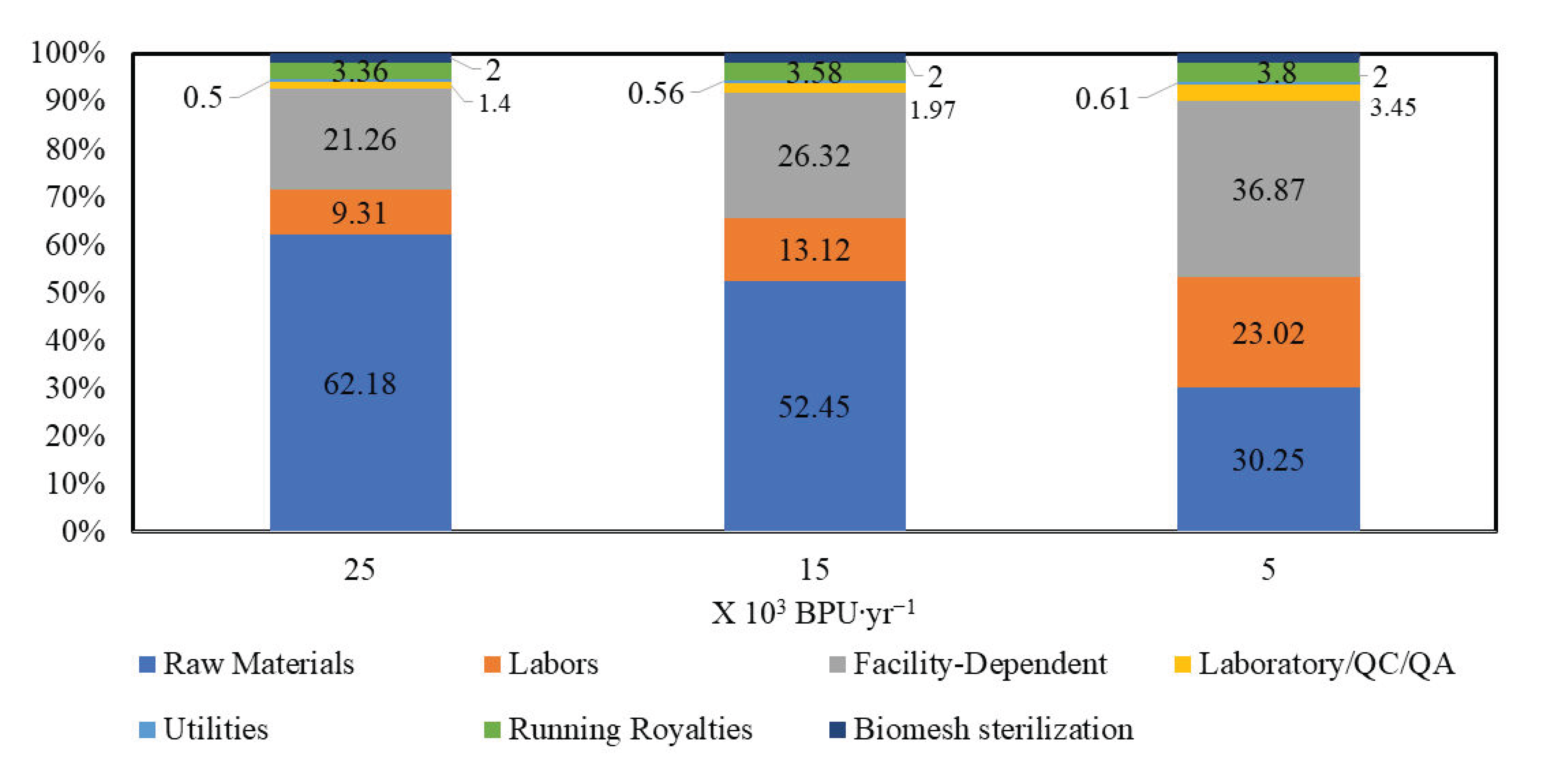

In Figure 4, costs distributions are presented (Please, see Table A2 for fixed capital estimate summary). Data showed that the cost of raw materials increased as production size increased. In addition, the fraction corresponding to the cost of labor decreased as process capacity augmented. In this particular case, the size of the plant and the intended production do not require additional workers. We proved that facility-related costs are higher at relatively small production capacities. This is associated with the fact that the use of facilities is similar in the three proposed scenarios; however, for the use of facilities for the smallest process, it implies the same effort as for the other two scales assayed. The costs related to quality assurance (QA) and quality control (QC) are relatively elevated at small scales, as observed in the scenario with the lowest production capacity. The QA/QC costs were calculated as a 1.4, 1.97 and 3.45 percentage of the total labor cost (TLC) of the 5, 15, and 25 × 103 BPU.mth−1 capacities, respectively. In addition, utilities expenses represent a small percentage of the operating costs. This item is mainly associated with the costs for heating, cooling, and centrifugation, which do not represent a high energy consumption during the biomesh manufacturing process.

Comparison with Actual Commercial Products

Currently, different companies also offer collagen-based products of bovine or porcine origin for the treatment of burn injuries. Those of bovine origin cost between USD 4 and 8 per cm2, while porcine-based products sell at prices between USD 3 and 14 per cm2 [5]. These biomeshes display an area of 1 cm2 and a thickness of 0.5 mm ± 0.25 mm [5,23]. In addition, 1 cm2 units present density, weight, and volume of 3 g.cm−3, 0.15 ± 0.075 g, and 0.05 ± 0.025 cm3. These data were used to compare the prices of 1 g of product in the market with those obtained in this research. Our results indicated that a production capacity of 5 × 103 BPU.mth−1 yield a unit product revenue of USD 1043.75.kg−1 (USD 0.16 ± 0.078.cm−2). In addition, production capacities of 15 and 25 × 103 BPU.mth−1 represent revenues of USD 0.086 ± 0.043.cm−2 and USD 0.069 ± 0.035.cm−2, respectively. The minimum selling price reported by Kowa Co was USD 4.cm−2 [5]. Herein, we demonstrated that the continuous production of collagen from BP proposed by our research group drastically reduced the TPC and selling price of collagen-based biomesh. In consequence, low-income consumers will eventually have more access to these types of products.

4. Discussion

The results obtained in our experiments indicated that the production of biomeshes using the proposed process is economically feasible. Moreover, the commercialization of decellularized tissues for additional purposes is also recommended. From the point of view of process engineering, the process is feasible and highly profitable. For this reason, it can be an attractive investment opportunity for those interested in the development of new biomaterials. Difficulties during the collection of bovine pericardium samples may be a downside of the process as they may cause delays in biomesh production. Recently, the Mexican Senate announced an initiative to promote the establishment of circular economy practices. This announcement may encourage slaughterhouses in this country to generate additional economic benefits from bovine pericardium, which is currently considered a waste. A strong involvement of the social and academic sectors will be required for the development of biomaterials from municipal waste.

5. Conclusions

A new methodology to manufacture biomesh from BP through a decellularization and crosslinking process using oligourethanes was proposed herein. The process is economically profitable at commercial scales. Data indicated that the three scales analyzed in the present study would require a relatively small amount of investment. This number varies between USD 1 and 1.7 M with a very acceptable rate of return (ROI) of around 20% and investment return times of no more than 5 years. One of the most important conclusions is that it is possible to generate biomaterial production processes with low costs and high economic returns. Low costs are more accessible to low-income families that might be needing biomeshes. We obtained a selling price of USD 0.16 ± 0.078.cm−2, USD 0.086 ± 0.043.cm−2, and USD 0.069 ± 0.035.cm−2 for production capacities of 5, 15 y 25 × 103 BPU.mth−1, respectively. These values are below current published prices that range between USD 4 and 15.cm−2. The results of the present research will help slaughterhouses in Mexico to implement circular economy practices, reduce waste generation, and generate additional revenue.

Author Contributions

Conceptualization, J.A.d.l.C.B., B.M.-N. and C.E.M.-G.; methodology, J.A.d.l.C.B., B.M.-N. and C.E.M.-G.; validation, J.G.S.-H. and J.d.J.I.S.; formal analysis, J.d.J.I.S.; investigation, J.A.d.l.C.B., B.M.-N. and C.E.M.-G.; resources, B.M.-N. and C.E.M.-G.; data curation, J.G.S.-H.; writing—original draft preparation, J.A.d.l.C.B.; writing—review and editing, C.E.M.-G., B.M.-N., J.d.J.I.S. and J.G.S.-H.; supervision, C.E.M.-G. and B.M.-N.; project administration, C.E.M.-G.; funding acquisition, B.M.-N. and C.E.M.-G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Dirección de Apoyo a la Investigación y al Posgrado de la Universidad de Guanajuato, grant number 054/2021 and 177/2023 and CONAHCYT (A1-S-40629).

Data Availability Statement

Simulations can be obtained on request from the corresponding author C.E.MG.

Acknowledgments

We acknowledge financial support from Universidad de Guanajuato DIQEB-Science and Engineering Division and Dirección de Apoyo a la Investigación y al Posgrado (Convocatoria Institucional de Investigación Científica 2021) project (054/2021 and 177/2023). We also acknowledge financial support from CONAHCYT (A1-S-40629).

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

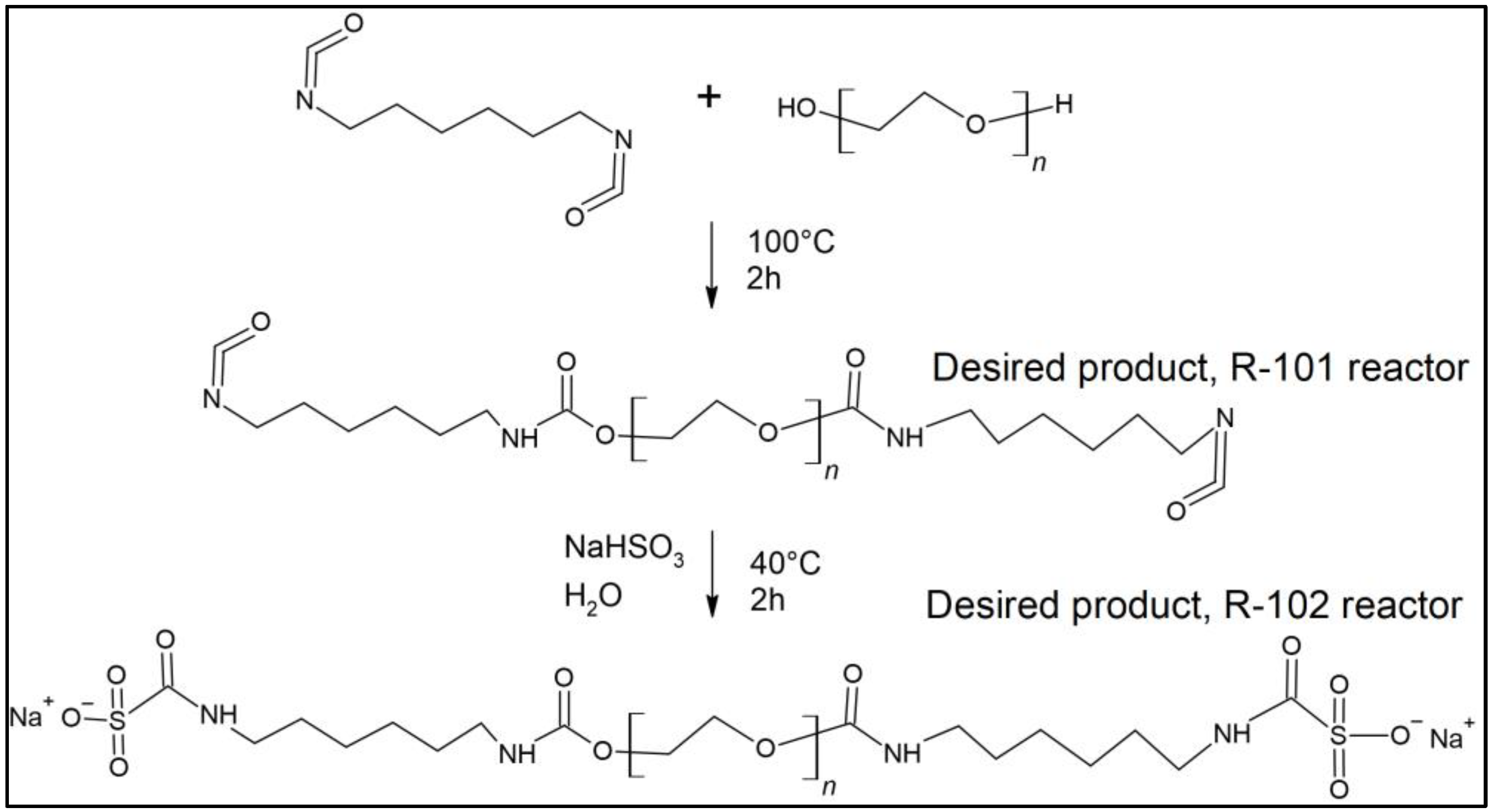

Figure A1. Polymerization reaction of CCLCS process production.
Figure A1. Polymerization reaction of CCLCS process production.
Polymers 15 02797 g0a1

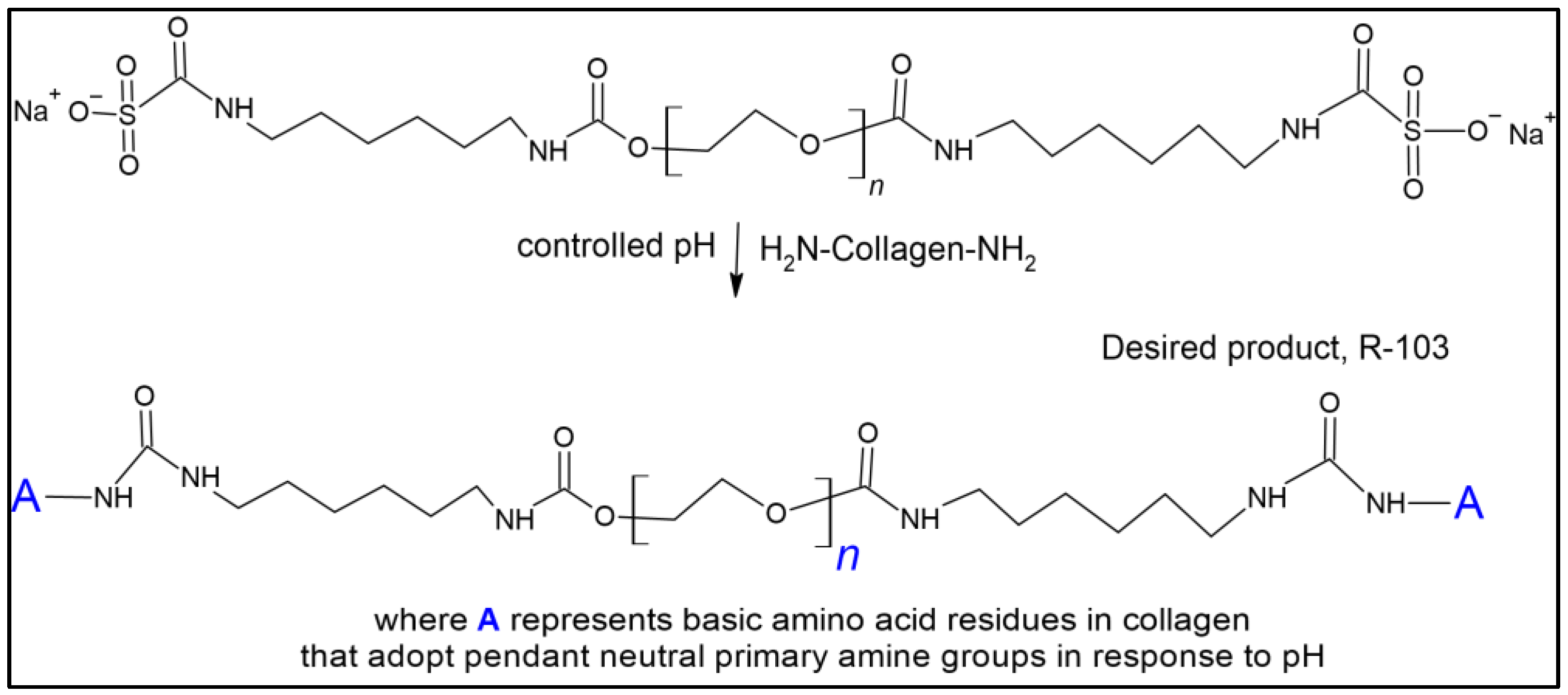

Figure A2. Crosslinking reaction.
Figure A2. Crosslinking reaction.
Polymers 15 02797 g0a2

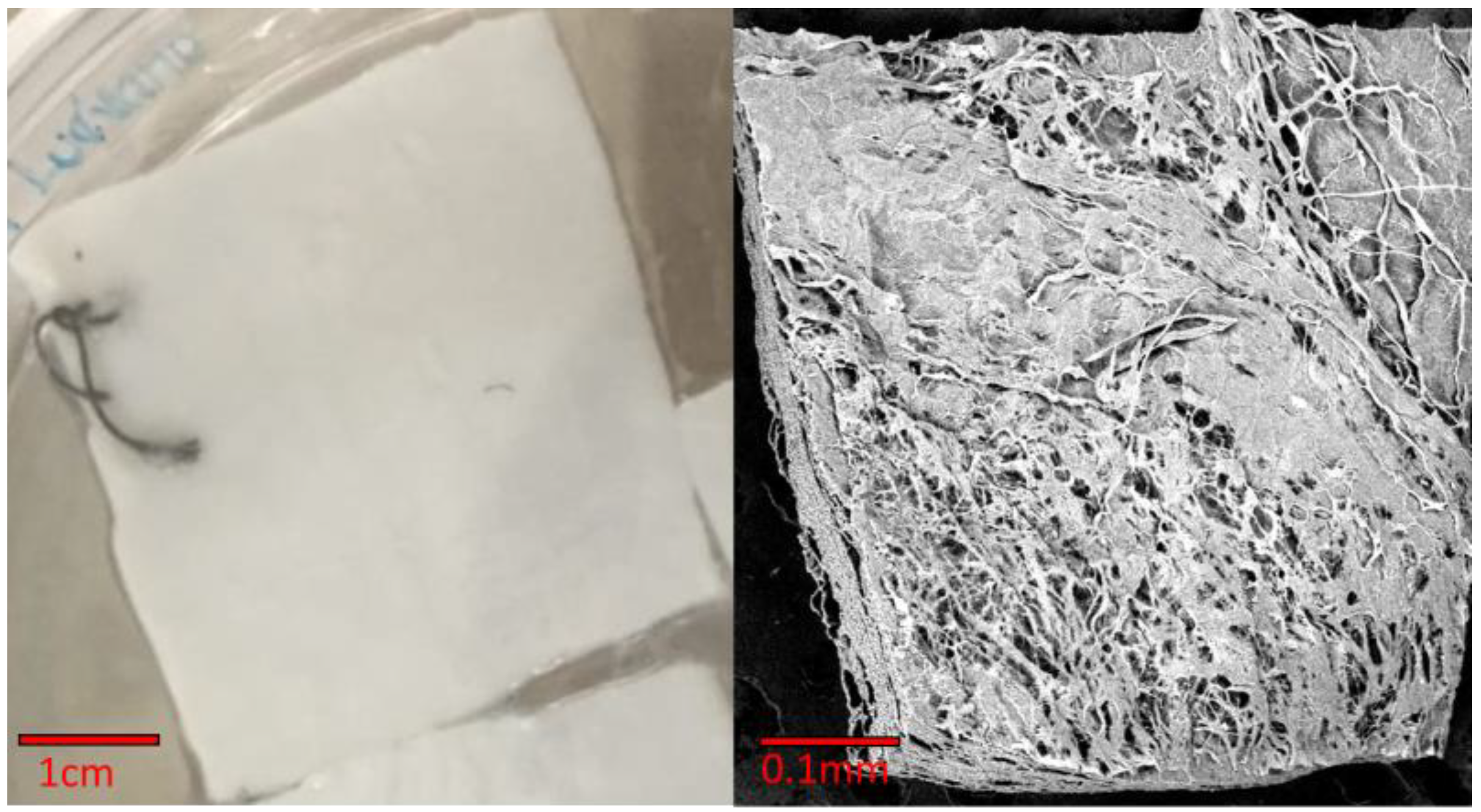

Figure A3. Representative appearance and SEM micrograph for hydrated decellularized mesh products.
Figure A3. Representative appearance and SEM micrograph for hydrated decellularized mesh products.
Polymers 15 02797 g0a3

Appendix B

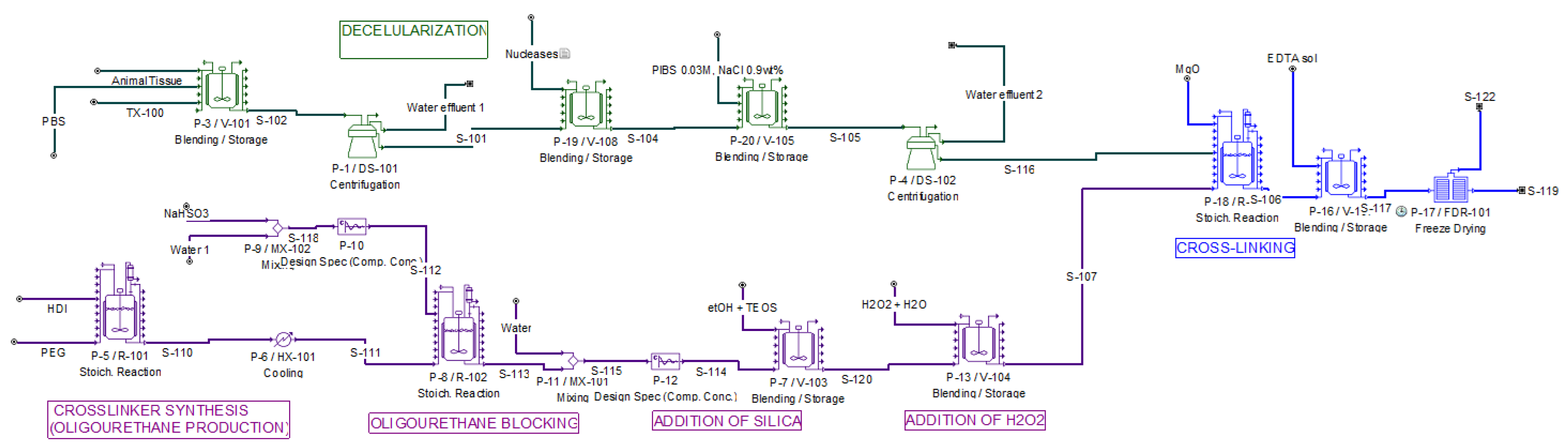

Figure A4. Process flow diagram for biomesh production.
Figure A4. Process flow diagram for biomesh production.
Polymers 15 02797 g0a4
The process was simulated in steady state using the SuperPro Designer v.12.0® (SPD) process simulation software considering 330 days of operation. The process was divided into four stages: (i) conditioning (or tissue decellularization), (ii) crosslinker synthesis (formation of PEG-1000 oligourethanes and hexamethylene disocyanate), (iii) crosslinking (crosslinking reaction between the decellularized tissue and the crosslinker) and (iv) post-treatment (washing, drying and packaging). The bench scale experiments were performed using 5 agitation tanks, 4 continued stirred reactors (CSTR), 2 centrifuges, and 1 freeze dryer. The volumes of the 316 stainless steel tanks were calculated using mass balance.
Table A1. Equipment specifications of tanks, reactor tanks and ancillary equipment used for process simulation.
Table A1. Equipment specifications of tanks, reactor tanks and ancillary equipment used for process simulation.
EquipmentEquipment Specifications
Specifications5000 BPU.mth−115,000 BPU.mth−125,000 BPU.mth−1
P-3/V-101
(Stirring Tank)
Volume68.04L204.13L340.21L
Height/Diameter ratio3n/a3n/a3n/a
Height0.92m1.327m5.164m
Diameter0.307m0.442m1.721m
Design pressure1.52bar1.52bar1.52bar
Purchase cost38.023$54.677$65.837$
MaterialSS316 SS316 SS316
Energy consumption26.45kWh. yr−179.37kWh. yr−1132.28kWh. yr−1
Operating temperature25.3°C25.3°C25,3°C
Operating pressure1.013bar1.013bar1.013bar
Operating volume61.24L183.72L306.19L
P-1/DS-101 (Centrifuge)Separation capacity
(Factor Sigma Σ)
108.49m2325.46m2542.43m2
Rated performance1.28L/h3.83L/h6.39L/h
Purchase cost4.000$4.000$4.000$
MaterialSS316 SS316 SS316
Minimum solid particle diameter1 × 10−6m1 × 10−6m1 × 10−6m
Sedimentation efficiency30% 30% 30%
Operating temperature25°C25°C25°C
Energy consumption10.271.50kWh. yr−115939.79kWh. yr−119553.38kWh. yr−1
P-19/V-108
(Stirring Tank)
Volume2.52L7.56L12.59L
Height/Diameter ratio3n/a3n/a3n/a
Height0.307m0.442m0.525m
Diameter0.102m0.147m0.175m
Design pressure1.52bar1.52bar1.52bar
Purchase cost17.892$21.670$24.189$
MaterialSS316 SS316 SS316
Energy consumption0kWh. yr−10kWh. yr−10kWh. yr−1
Operating temperature25°C25°C25°C
Operating pressure1.013bar1.013bar1.013bar
Operating volume2.27L6.8L11.33L
P-20/V-105
(Stirring Tank)
Volume42.88L128.63L214.38L
Height/Diameter ratio3n/a3n/a3n/a
Height0.789m1.138m1.349m
Diameter0.263m0.379m0.45m
Design pressure1.52bar1.52bar1.52bar
Purchase cost33.145$46.644$55.639$
MaterialSS316 SS316 SS316
Energy consumption0kWh. yr−10kWh. yr−10kWh. yr−1
Operating temperature25°C25°C25°C
Operating pressure1.013bar1.013bar1.013bar
Operating volume38.59L115.76L192.94L
P-4/DS-102 (Centrifuge)Separation capacity
(Factor Sigma Σ)
136.58m−2409.75m−2682.91m−2
Rated performance1.61L/h4.82L/h8.04L/h
Purchase cost4.000$4.000$4.000$
MaterialSS316 SS316 SS316
Minimum solid particle diameter1 × 10−6m1 × 10−6m1 × 10−6m
Sedimentation efficiency30% 30% 30%
Operating temperature25°C25°C25°C
Energy consumption11262.69kWh. yr−117477.95kWh. yr−121440.26kWh. yr−1
P-5/R-101
(Stirred Reactor)
Volume0.13L0.38L0.63L
Height/Diameter ratio2.5 2.5 2.5
Height0.102m0.147m0.171m
Diameter0.041m0.059m0.068m
Design pressure1.52bar1.52bar1.52bar
Purchase cost71$73$98$
MaterialGlass Glass Glass
Energy consumption0.04kWh. yr−10.12kWh. yr−10.2kWh. yr−1
Operating temperature100°C100°C100°C
Operating pressure1.013bar1.013bar1.013bar
Operating volume0.11L0.34L0.56L
P-8/R-102
(Stirred Reactor)
Volume0.25L0.61L1.01L
Height/Diameter ratio2.5 2.5 2.5
Height0.126m0.169m0.201m
Diameter0.05m0.068m0.08m
Design pressure1.52bar1.52bar1.52bar
Purchase cost137$112$157$
MaterialGlass Glass Glass
Energy consumption0.07kWh. yr−10.2kWh. yr−10.33kWh. yr−1
Operating temperature40°C40°C40°C
Operating pressure1.013bar1.013bar1.013bar
Operating volume0.18L0.55L0.91L
P-7/V-103
(Stirred Tank)
Volume3.96L11.89L19.81L
Height/Diameter ratio3n/a3n/a3n/a
Height0.357m0.515m0.61m
Diameter0.119m0.172m0.203m
Design pressure1.52bar1.52bar1.52bar
Purchase cost2.171$2.192$3.074$
MaterialGlass Glass Glass
Energy consumption0kWh. yr−10kWh. yr−10kWh. yr−1
Operating temperature25°C25°C25°C
Operating pressure1.013bar1.013bar1.013bar
Operating volume3.57L10.7L17.83L
P-13/V-104
(Stirred Tank)
Volume0.22L0.66L1.1L
Height/Diameter ratio3n/a3n/a3n/a
Height0.136m0.196m0.233m
Diameter0.045m0.065m0.078m
Design pressure1.52bar1.52bar1.52bar
Purchase cost120$121$171$
MaterialGlass Glass Glass
Energy consumption0kWh. yr−10kWh. yr−10kWh. yr−1
Operating temperature25°C25°C25°C
Operating pressure1.013bar1.013bar1.013bar
Operating volume0.2L0.59L0.99L
P-18/R-103
(Stirred Reactor)
Volume4.92L14.76L24.61L
Height/Diameter ratio2.5 2.5 2.5
Height0.34m0.49m0.581m
Diameter0.136m0.196m0.232m
Design pressure1.52bar1.52bar1.52bar
Purchase cost20.000$25.140$28.526$
MaterialSS316 SS316 SS316
Energy consumption1.59kWh. yr−14.78kWh. yr−17.97kWh. yr−1
Operating temperature25°C25°C25°C
Operating pressure1.013bar1.013bar1.013bar
Operating volume4.43L13.29L22.15L
P-16/V-107
(Stirred Tank)
Volume0.76L2.27L3.79L
Height/Diameter ratio3n/a3n/a3n/a
Height0.206m0.296m0.351m
Diameter0.069m0.099m0.117m
Design pressure1.52bar1.52bar1.52bar
Purchase cost15.608$17.636$19.072$
MaterialSS316 SS316 SS316
Energy consumption0kWh. yr−10kWh. yr−10kWh. yr−1
Operating temperature25°C25°C25°C
Operating pressure1.013bar1.013bar1.013bar
Operating volume0.68L2.05L3.41L
P-17/FDR-101
(Freeze dryer)
Sublimation capacity per cycle10.68kg32.04kg53.399kg
Tray area0.373m−21.119m−21.864m−2
Purchase cost20.000$20.000$20.000$
MaterialSS316 SS316 SS316
Final solid temperature12°C12°C12°C
Sublimation rate1mm/h1mm/h1mm/h
Energy consumption503.36kWh. yr−11510.09kWh yr−12516.81kWh yr−1

Appendix C

Table A2. Fixed capital estimate summary (2021 prices in $).
Table A2. Fixed capital estimate summary (2021 prices in $).
3A. Total Plant Direct Cost (TPDC) (Physical Cost)5000 BPU.mth−115,000 BPU.mth−125,000 BPU.mth−1
Total Plant Direct Cost (TPDC) (physical cost)
1. Equipment Purchase Cost197,000248,000284,000
2. Installation66,00084,00096,000
3. Process Piping69,00087,00099,000
4. Instrumentation79,00099,000114,000
5. Insulation6,0007,0009,000
6. Electrical20,00025,00028,000
7. Buildings89,000112,000128,000
8. Yard Improvement30,00037,00043,000
9. Auxiliary Facilities79,00099,000114,000
TPDC634,000799,000914,000
Total Plant Indirect Cost (TPIC)
10. Engineering158,000200,000228,000
11. Construction222,000280,000320,000
TPIC380,000479,000548,000
Total Plant Cost (TPC = TPDC + TPIC)
TPC1,014,0001,279,0001,462,000
Contractor’s Fee & Contingency (CFC)
12. Contractor’s Fee51,00064,00073,000
13. Contingency101,000128,000146,000
CFC = 12 + 13152,000192,000219,000
Direct Fixed Capital Cost (DFC = TPC + CFC)
DFC1,166,0001,470,0001,681,000
Table A3. Cost of reagents used in biomesh production.
Table A3. Cost of reagents used in biomesh production.
Bulk MaterialUnit Cost ($/kg)Source
Sodium bisulphite24.85Sigma-Aldrich ®
EDTA Disodium193.80Sigma-Aldrich ®
Ethyl alcohol0.75Sigma-Aldrich ®
HDI155.40Sigma-Aldrich ®
MgO895.00Sigma-Aldrich ®
Phosphate-buffer4.00Sigma-Aldrich ®
Polyethyleneglycol72.00Sigma-Aldrich ®
TEOS83.00 (L STP)Sigma-Aldrich ®
Triton-X-1001.50Sigma-Aldrich ®
Tris-HCl125Sigma-Aldrich ®
Unit cost ($/mg)
RNase0.34 Sigma-Aldrich ®
DNase1.34 Sigma-Aldrich ®
STP: Standard temperature and pressure. The prices were taken from Sigma-Aldrich web page obtaining data in Mexican pesos and translating to USD considering 20 mexican pesos per US dolar.

References

  1. Steffens, D.; Braghirolli, D.I.; Maurmann, N.; Pranke, P. Update on the main use of biomaterials and techniques associated with tissue engineering. Drug Discov. Today 2018, 23, 1474–1488. [Google Scholar] [CrossRef]
  2. Campion, G.; Hershberger, K.; Whelan, A.; Conroy, J.; Lally, C.; Murphy, B. A Biomechanical and Microstructural Analysis of Bovine and Porcine Pericardium for Use in Bioprosthetic Heart Valves. Struct. Hear. 2021, 5, 486–496. [Google Scholar] [CrossRef]
  3. Li, Y.; Liu, Y.; Li, R.; Bai, H.; Zhu, Z.; Zhu, L.; Zhu, C.; Che, Z.; Liu, H.; Wang, J.; et al. Materials & Design Collagen-based biomaterials for bone tissue engineering. Mater. Des. 2021, 210, 110049. [Google Scholar] [CrossRef]
  4. Xiang, D.; Liu, Y.; Zhou, E.; Wang, Y. Biomedicine & Pharmacotherapy Advances in the applications of polymer biomaterials for in vitro follicle culture. Biomed. Pharmacother. 2021, 140, 111422. [Google Scholar] [CrossRef] [PubMed]
  5. Chawla, R.; Seifalian, A.; Moiemen, N.S.; Butler, P.E.; Seifalian, A.M. The Use of Skin Substitutes in the Treatment of Burns; Elsevier Inc.: Amsterdam, The Netherlands, 2014. [Google Scholar]
  6. Wahyu, R.; Nugroho, N.; Harjumäki, R.; Zhang, X.; Lou, Y. Colloids and Surfaces B : Biointerfaces Quantifying the interactions between biomimetic biomaterials—Collagen I, collagen IV, laminin 521 and cellulose nano fibrils—By colloidal probe microscopy. Colloids Surf. B Biointerfaces 2019, 173, 571–580. [Google Scholar] [CrossRef]
  7. Connolly, J.M.; Alferiev, I.; Clark-Gruel, J.N.; Eidelman, N.; Sacks, M.; Palmatory, E.; Kronsteiner, A.; DeFelice, S.; Xu, J.; Ohri, R.; et al. Triglycidylamine crosslinking of porcine aortic valve cusps or bovine pericardium results in improved biocompatibility, biomechanics, and calcification resistance: Chemical and biological mechanisms. Am. J. Pathol. 2005, 166, 1–13. [Google Scholar] [CrossRef] [PubMed]
  8. Wang, X.; Wang, K.; Zhang, W.; Qiang, M.; Luo, Y. A bilaminated decellularized scaffold for islet transplantation: Structure, properties and functions in diabetic mice. Biomaterials 2017, 138, 80–90. [Google Scholar] [CrossRef] [PubMed]
  9. INEGI Estadística de Sacrificio de Ganado en Rastros Municipales por Entidad Federativa 2009–2014; Aguascalientes, Mexico. 2014. Available online: https://www.inegi.org.mx/app/biblioteca/ficha.html?upc=702825070625 (accessed on 18 June 2023).
  10. Senado de la Republica Nota legislativa: Ley General de Economía Circular. 2021. Available online: http://bibliodigitalibd.senado.gob.mx/bitstream/handle/123456789/5431/125.NL_Economia_circular.pdf?sequence=1&isAllowed=y (accessed on 18 June 2023).
  11. Arias González, J.; Baena-Moreno, F.M.; Gonzalez-Castaño, M.; Arellano-García, H.; Lichtfouse, E.; Zhang, Z. Unprofitability of small biogas plants without subsidies in the Brandenburg region. Environ. Chem. Lett. 2021, 19, 1823–1829. [Google Scholar] [CrossRef]
  12. Zagklis, D.P.; Papageorgiou, C.S.; Paraskeva, C.A. Technoeconomic analysis of the recovery of phenols from olive mill wastewater through membrane filtration and resin adsorption/desorption. Sustainability 2021, 13, 2376. [Google Scholar] [CrossRef]
  13. Grisales Díaz, V.H.; Olivar Tost, G. Techno-economic analysis of extraction-based separation systems for acetone, butanol, and ethanol recovery and purification. Bioresour. Bioprocess. 2017, 4, 12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Glivin, G.; Kalaiselvan, N.; Mariappan, V.; Premalatha, M.; Murugan, P.C.; Sekhar, J. Conversion of biowaste to biogas : A review of current status on techno-economic challenges, policies, technologies and mitigation to environmental impacts Internal Rate of Return. Fuel 2021, 302, 121153. [Google Scholar] [CrossRef]
  15. Jang, M.O.; Choi, G. Techno-economic analysis of butanol production from lignocellulosic biomass by concentrated acid pretreatment and hydrolysis plus continuous fermentation. Biochem. Eng. J. 2018, 134, 30–43. [Google Scholar] [CrossRef]
  16. Rémi, E.; Khelil, N.; Di Centa, I.; Roques, C.; Ba, M.; Medjahed-Hamidi, F.; Chaubet, F.; Letourneur, D.; Lansac, E.; Meddahi-Pellé, A. Pericardial Processing: Challenges, Outcomes and Future Prospects. In Biomaterials Science and Engineering; IntechOpen: London, UK, 2011. [Google Scholar]
  17. Courtman, D.; Lee, J.M. Development of a pericardial acellular matrix biomaterial : Biochemical and mechanical effects of cell extraction. J. Biomed. Mater. Res. 1994, 28, 655–666. [Google Scholar] [CrossRef]
  18. Mendoza-Novelo, B.; Alvarado-Castro, D.I.; Mata-Mata, J.L.; Cauich-Rodríguez, J.V.; Vega-González, A.; Jorge-Herrero, E.; Rojo, F.J. Stability and mechanical evaluation of bovine pericardium cross-linked with polyurethane prepolymer in aqueous medium. Mater. Sci. Eng. C 2013, 33, 2392–2398. [Google Scholar] [CrossRef] [Green Version]
  19. de Jesus Palacios-Rodriguez, A.; Flores-Moreno, M.; Castellano, L.E.; Murguia-Pérez, M.; Guillermo, C.; Vargas-Mancilla, J.; Vega-gonza, A.; Mendoza-Novelo, B. Effect of varying the crosslinking degree of a pericardial implant with oligourethane on the repair of a rat full-thickness abdominal wall defect. J. Biomater. Appl. 2019, 33, 903–914. [Google Scholar] [CrossRef]
  20. Mendoza-Novelo, B.; Mata-Mata, J.L.; Vega-González, A.; Cauich-Rodríguez, J.V.; Marcos-Fernández, Á. Synthesis and characterization of protected oligourethanes as crosslinkers of collagen-based scaffolds. J. Mater. Chem. B 2014, 2, 2874–2882. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Claudio-Rizo, J.A.; Rangel-Argote, M.; Muñoz-Gonzalez, P.U.; Castellano, L.E.; Delgado, J.; Gonzalez-garcı, G.; Mata-Mata, J.L.; Mendoza-Novelo, B. Improved properties of composite collagen hydrogels: Protected oligourethanes and silica particles as modulators. J. Mater. Chem. B 2016, 4, 6497–6509. [Google Scholar] [CrossRef] [PubMed]
  22. Comisión Federal de Electricidad. 2020. Available online: https://app.cfe.mx/Aplicaciones/CCFE/Tarifas/TarifasCREIndustria/Tarifas/DemandaIndustrialTran.aspx (accessed on 21 June 2023).
  23. Corporation, E.L. A Legacy of Tissue Innovation Edwards Bovine Pericardial Patch. 2017. Available online: https://edwardsprod.blob.core.windows.net/media/Default/devices/duravess/duravessbrochure_final.pdf (accessed on 21 June 2023).

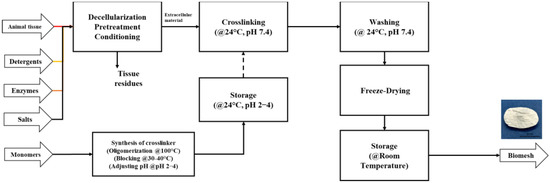

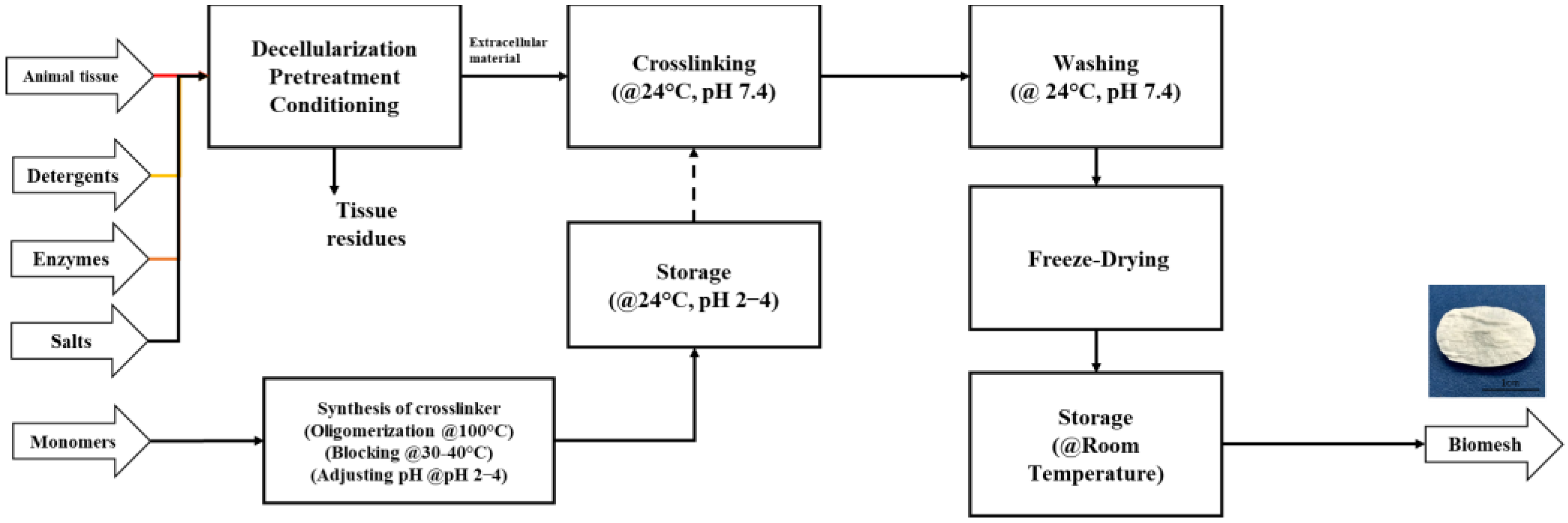

Figure 1. Process block diagram of BP biomesh production.
Figure 1. Process block diagram of BP biomesh production.
Polymers 15 02797 g001

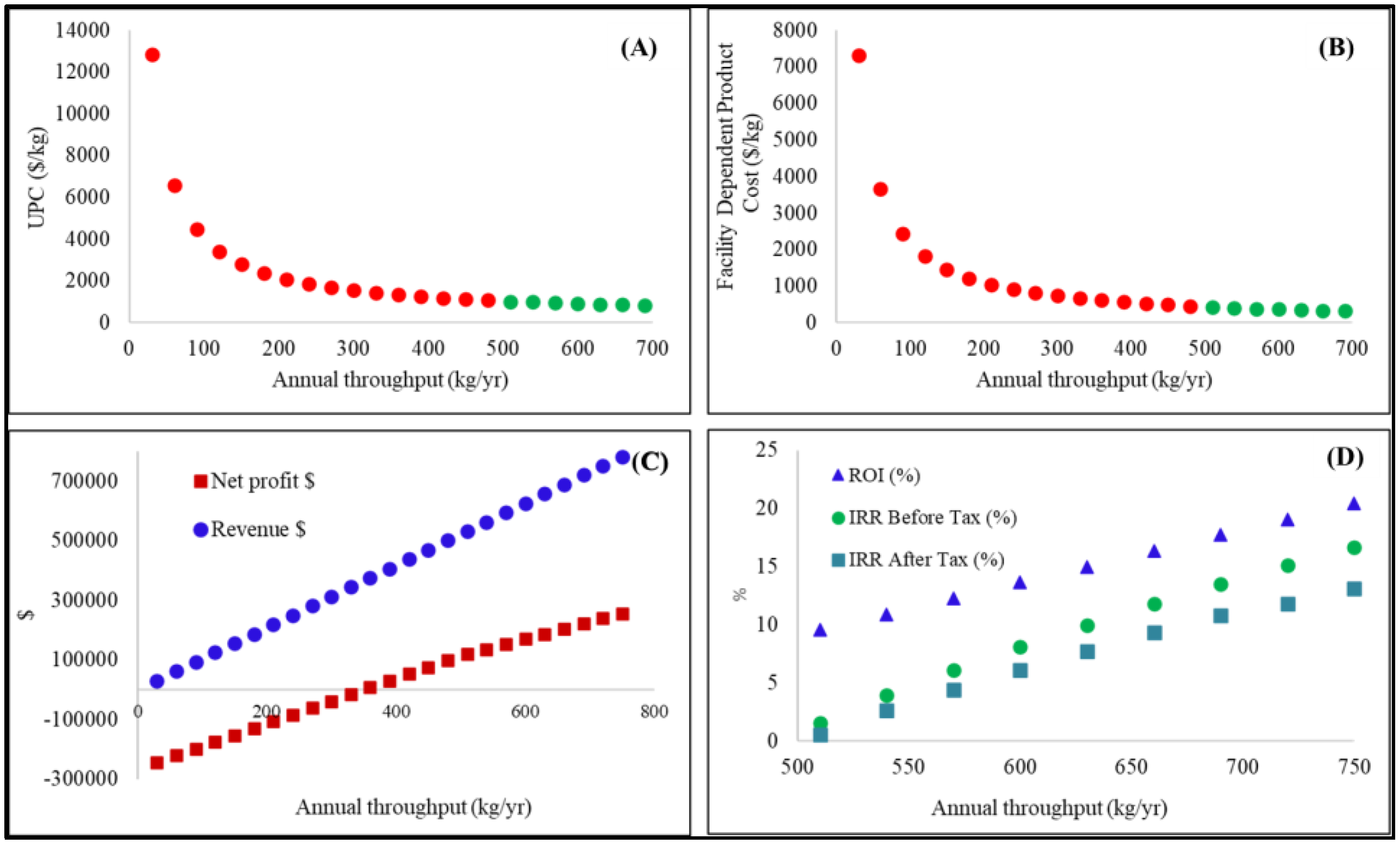

Figure 2. Profitability analysis for a process capacity of 5 × 103 BPU.mth−1 : (A) Unit Production Cost UPC (USD/kg) vs. Annual throughput (kg/yr−1); (B) Facility dependent product cost (USD/kg−1) vs. annual throughput (kg.yr−1); (C) Net profit and revenue ($) vs. annual throughput (kg.yr−1); (D) ROI (%), IRR before tax (%) and IRR after tax (%) vs. annual throughput (kg.day−1). In Figure 2 (A,B) the red point and green point represent the unprofitability and profitability scenarios, respectively.
Figure 2. Profitability analysis for a process capacity of 5 × 103 BPU.mth−1 : (A) Unit Production Cost UPC (USD/kg) vs. Annual throughput (kg/yr−1); (B) Facility dependent product cost (USD/kg−1) vs. annual throughput (kg.yr−1); (C) Net profit and revenue ($) vs. annual throughput (kg.yr−1); (D) ROI (%), IRR before tax (%) and IRR after tax (%) vs. annual throughput (kg.day−1). In Figure 2 (A,B) the red point and green point represent the unprofitability and profitability scenarios, respectively.
Polymers 15 02797 g002
Figure 3. Net Present Value vs. biomesh selling price: (A) 5 × 103 BPU/yr (2.5 kg of biomesh/batch); (B) 15 × 103 BPU/yr (7.5 kg of biomesh/batch); (C) 25 × 103 BPU/yr (12.5 kg of biomesh/batch).
Figure 3. Net Present Value vs. biomesh selling price: (A) 5 × 103 BPU/yr (2.5 kg of biomesh/batch); (B) 15 × 103 BPU/yr (7.5 kg of biomesh/batch); (C) 25 × 103 BPU/yr (12.5 kg of biomesh/batch).
Polymers 15 02797 g003
Figure 4. Distribution of costs in the biomesh production.
Figure 4. Distribution of costs in the biomesh production.
Polymers 15 02797 g004
Table 1. Reactions involved in the CCLCS process production.
Table 1. Reactions involved in the CCLCS process production.
EquationOligomer StructureYield (%)Equation #
Reactions involved in the synthesis of the crosslinker (oligomerization)
2   H D I + 1   P E G
         1   H D I P E G H D I
Trimer70(1)
3   H D I + 2   P E G
     1   H D I P E G H D I P E G H D I
Pentamer80(2)
4   H D I + 3   P E G
   1   H D I P E G H D I P E G H D I P E G H D I
Heptamer99(3)
Reactions used to block oligourethane
2   N a H S O 3 + 1   H D I
             1   N a + S O 3 H D I S O 3 N a +
90(4)
2   N a H S O 3 + 1   T r i m e r
            1 N a + S O 3 T r i m e r S O 3 N a +
90(5)
2   N a H S O 3 + 1   P e n t a m e r
            1   N a + S O 3 P e n t a m e r S O 3 N a +
90(6)
2 N a H S O 3 + 1   H e p t a m e r
   1   N a + S O 3 H e p t a m e r S O 3 N a +
90(7)
Crosslinking reactions.
45   N a + S O 3 H D I S O 3 N a + + 1   C o l l a g e n
                     1   C o l l a g e n ( H D I ) 45 + 90   N a H S O 3
90(8)
45   N a + S O 3 T r i m e r S O 3 N a + + 1   C o l l a g e n
                   1   C o l l a g e n ( T r i m e r ) 45 + 90   N a H S O 3
90(9)
45   N a + S O 3 P e n t a m e r S O 3 N a + + 1   C o l l a g e n
                 1   C o l l a g e n ( P e n t a m e r ) 45 + 90   N a H S O 3
90(10)
45   N a + S O 3 H e p t a m e r S O 3 N a + + 1   C o l l a g e n
          1   C o l l a g e n ( H e p t a m e r ) 45 + 90   N a H S O 3
90(11)
Table 2. Investment summary for the manufacture of biomesh from BPU considering different scenarios.
Table 2. Investment summary for the manufacture of biomesh from BPU considering different scenarios.
5000 BPU.mth−1 15,000 BPU.mth−125,000 BPU.mth−1Units
Total capital investment1,258,0001,613,0001,872,000 USD
Operating cost612,5601,074,3201,515,280 USD/yr
Revenues783,0001,305,0001,740,000 USD/yr
Cost basis annual rate750.002,2503,750 kg MP/yr
Net unit production cost784.57458.94388.26USD/kg MP
Unit production revenue1,043.75579.86463.89USD/kg MP
Unit production revenue0.16 ± 0.0780.086 ± 0.0430.069 ± 0.035USD/cm2 MP
Gross margin24.7920.8516.30 %
Return on investment20.3821.3119.90 %
Payback time4.914.695.03 years
IRR (After taxes)13.0614.3413.25 %
NPV (at 7.0% interest)523,000817,000787,000 $
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cruz Bosques, J.A.d.l.; Ibarra Sánchez, J.d.J.; Mendoza-Novelo, B.; Segovia-Hernandez, J.G.; Molina-Guerrero, C.E. Profitability of Chemically Cross-Linked Collagen Scaffold Production Using Bovine Pericardium: Revaluing Waste from the Meat Industry for Biomedical Applications. Polymers 2023, 15, 2797. https://doi.org/10.3390/polym15132797

AMA Style

Cruz Bosques JAdl, Ibarra Sánchez JdJ, Mendoza-Novelo B, Segovia-Hernandez JG, Molina-Guerrero CE. Profitability of Chemically Cross-Linked Collagen Scaffold Production Using Bovine Pericardium: Revaluing Waste from the Meat Industry for Biomedical Applications. Polymers. 2023; 15(13):2797. https://doi.org/10.3390/polym15132797

Chicago/Turabian Style

Cruz Bosques, José Arturo de la, José de Jesús Ibarra Sánchez, Birzabith Mendoza-Novelo, Juan Gabriel Segovia-Hernandez, and Carlos Eduardo Molina-Guerrero. 2023. "Profitability of Chemically Cross-Linked Collagen Scaffold Production Using Bovine Pericardium: Revaluing Waste from the Meat Industry for Biomedical Applications" Polymers 15, no. 13: 2797. https://doi.org/10.3390/polym15132797

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
