β-Ketoenamine Covalent Organic Frameworks—Effects of Functionalization on Pollutant Adsorption

by
Tiago F. Machado
1,
Filipa A. Santos
1,
Rui F. P. Pereira
2,
Verónica de Zea Bermudez
3,
Artur J. M. Valente
1,*,
M. Elisa Silva Serra
1 and
Dina Murtinho
1
1
CQC-IMS, Department of Chemistry, University of Coimbra, 3004-535 Coimbra, Portugal
2
Chemistry Department and Chemistry Center, University of Minho, 4710-057 Braga, Portugal
3
Chemistry Department and CQ-VR, University of Trás-os-Montes e Alto Douro, 5000-801 Vila Real, Portugal
*
Author to whom correspondence should be addressed.
Polymers 2022, 14(15), 3096; https://doi.org/10.3390/polym14153096
Submission received: 17 June 2022 / Revised: 15 July 2022 / Accepted: 27 July 2022 / Published: 29 July 2022
Browse Figures
Review Reports Versions Notes

Abstract

:
Water pollution due to global economic activity is one of the greatest environmental concerns, and many efforts are currently being made toward developing materials capable of selectively and efficiently removing pollutants and contaminants. A series of β-ketoenamine covalent organic frameworks (COFs) have been synthesized, by reacting 1,3,5-triformylphloroglucinol (TFP) with different C2-functionalized and nonfunctionalized diamines, in order to evaluate the influence of wall functionalization and pore size on the adsorption capacity toward dye and heavy metal pollutants. The obtained COFs were characterized by different techniques. The adsorption of methylene blue (MB), which was used as a model for the adsorption of pharmaceuticals and dyes, was initially evaluated. Adsorption studies showed that –NO2 and –SO3H functional groups were favorable for MB adsorption, with TpBd(SO3H)2-COF [100%], prepared between TFP and 4,4′-diamine- [1,1′-biphenyl]-2,2′-disulfonic acid, achieving the highest adsorption capacity (166 ± 13 mg g−1). The adsorption of anionic pollutants was less effective and decreased, in general, with the increase in –SO3H and –NO2 group content. The effect of ionic interactions on the COF performance was further assessed by carrying out adsorption experiments involving metal ions. Isotherms showed that nonfunctionalized and functionalized COFs were better described by the Langmuir and Freundlich sorption models, respectively, confirming the influence of functionalization on surface heterogeneity. Sorption kinetics experiments were better adjusted according to a second-order rate equation, confirming the existence of surface chemical interactions in the adsorption process. These results confirm the influence of selective COF functionalization on adsorption processes and the role of functional groups on the adsorption selectivity, thus clearly demonstrating the potential of this new class of materials in the efficient and selective capture and removal of pollutants in aqueous solutions.

Graphical Abstract

1. Introduction

Uncontrolled pollution due to human activity and agricultural and industrial production is one of the main environmental concerns currently faced by the scientific community, and a tremendous challenge for water and soil preservation [1]. Amongst the pollutants typically found in contaminated waters, some new emerging classes of organic compounds such as volatile organic compounds (VOCs) or nonsteroidal noninflammatory drugs (NSAIDs) have raised increasing concern over the decades. Other organic pollutants, such as food additives, biotoxins, dyes, pesticides, and organic derivatives of cosmetic, hygiene, or pharmaceutical products, are also consistently found in contaminated waters and soils, as well as inorganic substances such as heavy metals or nonmetals, halides, cyanides, nitrates, or even radionuclides [2,3,4,5]. The vast majority of these compounds have disastrous effects on human health, biodiversity, and ecosystems, even at low concentrations. It is therefore crucial to find efficient, simple solutions to safely remove them and properly treat them [1,2,6]. Currently, several different techniques and processes are employed for the removal and degradation of contaminants from residual waters, such as coagulation, flocculation, sedimentation, chlorination, advanced oxidation processes, photochemical and electrochemical degradation, reverse osmosis, adsorption, or filtration [2].
Adsorption and filtration, in particular, are cheap, nonintrusive, sustainable approaches and, thus, very attractive solutions for water remediation. In this context, a wide range of porous materials has since been tested as adsorbents, namely, zeolites [7], nanosponges [8], inorganic porous materials [9], activated carbon [10,11,12], graphene and carbon nanomaterials [13,14,15], Metal–Organic Frameworks (MOFs) [1,6,16], as well as a variety of organic polymer classes, such as Porous Organic Polymers (POPs) [17], Porous Aromatic Frameworks (PAFs) [18], Polymers of Intrinsic Microporosity (PIMs) [19], and biopolymer blends [20,21]. Recently, COFs (Covalent Organic Frameworks) have been gaining considerable attention for the adsorption and removal of pollutants from water due to their intrinsic properties of chemical stability, high, permanent porosity, and building versatility and customizability. Thus, there have been many recent attempts to implement COFs as pollutant adsorbents in both real and simulated residual water samples [22].
COFs are generally built from rigid, geometrically defined organic building blocks, resulting in robust, covalently bonded crystalline networks that extend in 2 or 3 dimensions [23], with a wide range of potential applications, including gas storage [24], heterogeneous catalysis [25,26], chemical sensing [27,28], optoelectronics [29], and pollutant adsorption [2,22,30]. One of the main advantages of COF materials is the ability to easily introduce pore wall modifications (either pre- or post-synthesis) without affecting the structural integrity of the resulting solid. This means COFs can be customized and fine-tuned for selective, specific pollutant adsorption and separation [31]. In this respect, β-ketoenamine-type COFs are particularly attractive for adsorption in aqueous solution. They are synthesized by reacting symmetric diamines with symmetric polyaldehydes bearing hydroxyl groups in the ortho position, such as 1,3,5-triformylphloroglucinol (TFP). The imine to ketoenamine tautomerization is an irreversible process, highly resistant to hydrolysis, making the resulting COFs suitable for pollutant removal from water [32].
Several COFs have been proposed for the adsorption of heavy metals [33,34,35,36,37,38] and organic pollutants [39,40,41,42,43,44,45,46,47] from aqueous solution. Zhu et al. first developed a triazine-based COF, TS-COF-1, exhibiting a high methylene blue (MB) dye adsorption capacity (1.691 mg g–1), demonstrating the potential of this class of materials for water treatment [48]. Dang et al. reported a series of sulfonic acid (–SO3H)-functionalized β-ketoenamine COFs impregnated with ionic liquid derivatives, showing even higher MB adsorption (up to 2.865.3 mg g–1) [49].
In this paper, a variety of TFP-based β-ketoenamine COFs, with varying pore sizes and degrees of pore wall functionalization, were synthesized and their performance in adsorbing dyes and heavy metal pollutants, in aqueous solution, was assessed. The COF materials were prepared via microwave and solvothermal methods and characterized by scanning electron microscopy (SEM), X-ray diffraction (XRD), thermogravimetric analysis (TGA), and nitrogen adsorption–desorption analysis. The COFs were tested for the adsorption of MB and methyl orange (MO) pollutants in aqueous solution. Additionally, the adsorption ability of nitro (–NO2) and –SO3H-functionalized COFs for adsorption of the heavy metal ions Cu(II), Ni(II), Pb(II), and Cd(II) was evaluated. The information obtained from the characterization and adsorption results was compared in order to evaluate the influence and importance of the materials’ properties on their performance.

2. Materials and Methods

2.1. Reagents

Reagents and solvents were obtained from the following suppliers: phloroglucinol (anhydrous, 98%) and mesitylene (>98%) (Alfa Aesar, Karlsruhe, Germany); hexamethylenetetramine (HMTA, 99.5%) and methylene blue (MB, >99%) (Riedel-de Haën, Seelze, Germany); 4-phenylenediamine (Pa, 99.5%) (Sigma Aldrich, Schnelldorf, Germany); 4,4′-ethylenedianiline (Bba, 99%) (Fluka, Neu-Ulm, Germany); methyl orange (MO, >99%) (Merck, Darmstadt, Germany); benzidine dihydrochloride (B.D.H., England, UK); 2,2′-dinitro-[1,1′-biphenyl]-4,4′-diamine ([Bd(NO2)]2, 99%), 4,4′-diamine-[1,1′-biphenyl]-2,2′-disulfonic acid ([Bd(SO3H)]2, >70%), and trifluoroacetic acid (TFA, 99%) (Fluorochem, Hadfield, UK); sodium sulfate (Na2SO4, anhydrous, 99%+) and sodium hydroxide (>99%) (José Manuel Gomes dos Santos, Lisboa, Portugal); deuterated chloroform (99.8%) and deuterated dimethyl sulfoxide (99.8%) (Eurisotop, Saint-Aubin, France); sodium bicarbonate (>99%) (LabKem, Barcelona, Spain); nitric acid (65%) (Panreac, Barcelona, Spain); hydrochloric acid (37%)—Fisher Chemicals (Merelbeke, Belgium); glacial acetic acid (AcOH, >99%) (Chem-Lab, Zedelgem, Belgium). Heavy metal solutions were prepared using copper (II) nitrate hemipentahydrate (p.a., Chem-Lab, Zedelgem, Belgium), lead (II) nitrate (≥99.0%, Sigma-Aldrich, Schnelldorf, Germany), cadmium (II) nitrate tetrahydrate (≥99.0%, Sigma-Aldrich, Schnelldorf, Germany), and nickel (II) nitrate hexahydrate (crystals, Sigma-Aldrich, Schnelldorf, Germany). All other solvents were purified or dried prior to use following standard procedures. Other commercially available compounds were used without further purification.

2.2. Synthesis of Monomers and COF Materials

1,3,5-triformylphloroglucinol (TFP). The synthesis of TFP was adapted from the procedure reported by Chong et al. [50]. Phloroglucinol (3.0 g, 23.8 mmol) and HMTA (7.5 g, 52.8 mmol) were dissolved in TFA (45 mL) in a two-neck round-bottom flask. The mixture was refluxed, under inert atmosphere and magnetic stirring, for 2.5 h. Subsequently, under the same conditions, HCl 3 M (75 mL) was added dropwise, for approximately 1 h. After cooling, the reaction mixture was filtered through a celite bed, and the product was extracted with dichloromethane (4 × 75 mL) and chloroform (2 × 75 mL). The combined organic phases were dried with anhydrous Na2SO4 and filtered. After solvent evaporation, the product was washed with hot ethanol, resulting in a thin orange powder (12% yield). 1H RMN (CDCl3, 400 MHz): 10,16 (s, 3H); 14,12 (s, 3H).
Benzidine (Bd). Benzidine dihydrochloride (1.3 g, 5.0 mmol) was dissolved in distilled water (200 mL), under gentle heating and magnetic stirring. Upon dissolution, sodium hydroxide 20% (m/v) (2 mL) was added, and the resulting precipitate was filtered and dried. The neutralized amine was obtained as a brown solid.
COF Syntheses via Microwave method. Microwave-assisted COF synthesis was conducted according to the previously reported procedure [51]. TFP (0.12 g, 0.6 mmol, 1 Equation) and the respective diamine (0.9 mmol, 1.5 Equation) were added to a mesitylene/dioxane/acetic acid 3 M (3:3:1 v/v/v) mixture (14 mL), in a microwave tube. The mixture was sonicated (1 min), for homogenization and degassing, and subjected to microwave irradiation (300 W) at 100 °C under magnetic stirring for 1 h. Upon cooling, the COF precipitate was thoroughly washed with alternating portions of acetone and distilled water, until the absence of coloration of the filtrate.
COF Syntheses via Solvothermal method. Functionalized COFs were also prepared via solvothermal synthesis [52]. TFP (0.12 g, 0.6 mmol) and the respective diamine (combined molar quantity 0.9 mmol, 1.5 Equation) was added to a mesitylene/dioxane/acetic acid 3 M (3:3:1 v/v/v) mixture (7 mL) in a round-bottom flask. The mixture was sonicated (1 min), for homogenization and degassing, and then refluxed under inert atmosphere and magnetic stirring for 48 h. Upon cooling, the obtained solid was thoroughly washed with alternating portions of acetone and water until the absence of coloration of the filtrate.
Functionalized COFs were synthesized at different molar ratios, by mixing the functionalized diamine with its nonfunctionalized counterpart (Bd). The molar ratios used for preparing the various functionalized COFs are shown in Table 1.
For both synthetic procedures, COF materials were purified via the Soxhlet extraction method, first under tetrahydrofuran and then under acetone reflux, for 24 h each. TpBd-COF was subjected to another Soxhlet extraction under methanol reflux for 24 h.

2.3. Characterization Techniques

Microwave-assisted COF syntheses were conducted using a CEM Discover SP instrument. Samples and mixtures were sonicated in a Bandelin Sonorex RK100H ultrasonic bath. Fourier-Transform Infrared (FTIR) spectroscopy was carried out on an Agilent Technologies Cary 630 FTIR spectrophotometer equipped with attenuated total reflectance (ATR). Spectra were collected between 650 and 4000 cm–1 at a resolution of 2 cm–1. Proton nuclear magnetic resonance (1H NMR) spectra were obtained using a Bruker AMX spectrophotometer, operating at 400 MHz, using tetramethylsilane (TMS) as an internal standard. Thermogravimetric analyses (TGA) were conducted on a Nietzsch Tarsus TG 209 thermal analyzer. Samples were placed on an Al2O3 crucible and heated from room temperature up to 600 °C at 10 °C min–1 under nitrogen atmosphere (50 cm3 min–1 flow). X-ray diffraction (XRD) data were collected at room temperature by a PANalytical X’Pert diffractometer, equipped with an X’Celerator detector and secondary monochromator in Bragg–Brentano geometry. The measurements were carried out using 40 kV and 30 mA, CuKα radiation (λα1 = 1.54060 Å and λα2 = 1.54443 Å), 0.017°/step, and 200 s/step, in a 4–40° 2θ angular range. The Brunauer–Emmett–Teller (BET) specific surface area was obtained through nitrogen adsorption (Micrometrics ASAP 2000). pH measurements were carried out using a PHM240 MeterLab (Radiometer Copenhagen) coupled with a pH conjugated electrode (WTW, Sentix 22). UV–Vis spectrophotometry was carried out on a Shimadzu UV-2600i spectrophotometer. Flame atomic absorption spectroscopy (FAAS) measurements were carried out on a Unicam Solaar 939 spectrometer. Samples subjected to characterization were previously lyophilized in a Labconco Freezone 4.5 instrument after nitrogen bath freezing. COF morphologies were analyzed by scanning electron microscopy (SEM) on a JEOL Model 5310, operating at 2 kV at low pressure. The samples were previously coated with a thin gold film.

2.4. Adsorption Experiments

Removal efficiency and sorption isotherm studies were performed following a procedure similar to those described elsewhere [53,54]. For sorption isotherm studies, small COF samples (ca., 10 mg) were added to 10 mL adsorbate solutions (25 ppm–300 ppm) in ultrapure water. The suspensions were incubated (120 rpm, 25 °C) for 72 h. Samples were then centrifuged at 4000 rpm for 1 h and the supernatant was collected for pollutant quantification. Tests were conducted in duplicate. For removal efficiency studies, 4.0 mg COF samples were added to 10 mL of dye (20 ppm) or heavy metal (5 ppm) adsorbate solutions.
For sorption kinetics measurements, 10.0 mg COF samples were added to 100 ppm adsorbate solutions (40 mL) in ultrapure water. The suspensions were incubated (120 rpm, 25 °C) and 500 μL samples were consecutively collected at different time periods (5 min to 96 h). The dye quantification was carried out by collecting the supernatant of samples after centrifugation at 4000 rpm for 1 h. MO sorption kinetics experiments were conducted using 20.0 mg adsorbent samples and 20 ppm adsorbate solutions (40 mL).
COF titration measurements were performed by adding 50.0 mg COF samples to 40 mL of ultrapure water, followed by titration with sodium hydroxide 7.65 mM solution standardized using KHP 5 mM solution.
COFs containing –SO3H groups were neutralized prior to sorption experiments. Solution pH was maintained at 6–7 for all experiments.
Dye quantification was carried out using UV–Vis spectrophotometry (UV-2600i, Shimadzu, Kyoto, Japan). For each calibration curve, up to 12 standard solutions were prepared from adsorbate stock solutions (100 ppm), in concentrations ranging from 0.1 to 25 ppm, in ultrapure water. LOD and LOQ were determined based on the measuring of blank solutions in triplicate. Statistical parameters are detailed in Table S1.
Metal ions concentrations were measured by Flame Atomic Absorption Spectroscopy (FAAS) using the procedure described elsewhere [53].
In this study, Langmuir and Freundlich sorption isotherm models were considered to model sorption isotherms. The Langmuir model is a thermodynamically derived equation and assumes an “ideal” adsorbent: homogeneous surface, well-defined, energetically equivalent sorption sites, and sorption defined by a monolayer. The Langmuir isotherm is given by Equation (1):
q e = q m K L C e 1 + K L C e
where q e is the adsorption capacity at equilibrium and q m is the maximum adsorption capacity (monolayer saturation). C e corresponds to the adsorbate concentration at equilibrium and K L is the Langmuir constant.
The Freundlich sorption model is empirically derived and can be described by Equation (2):
q e = K F C e 1 n F
where K F stands for the Freundlich constant and n F is the surface heterogeneity factor. When 1 n F is superior to 1, the adsorption mechanism is described as cooperative, resulting from multilayer adsorption; when it is inferior to 1, the process is mainly controlled by chemisorption [55].
Sorption kinetics studies were also performed to evaluate adsorbate-adsorbent interactions as a function of time. The pseudo-first-order equation, also known as the Lagergen equation, can be described by Equation (3):
q t = q e 1 − e − k 1 t .
where k 1 defines the first-order kinetic constant. The equation expresses the adsorption capacity q t for a given time t .
The pseudo-second-order equation, also known as the Ho and Mckay equation, is given by Equation (4):
q t = k 2 q e 2 t 1 + k 2 q e t
where k 2 describes the second-order kinetic constant [55].

3. Results and Discussion

3.1. Synthesis of Monomers and COF Materials

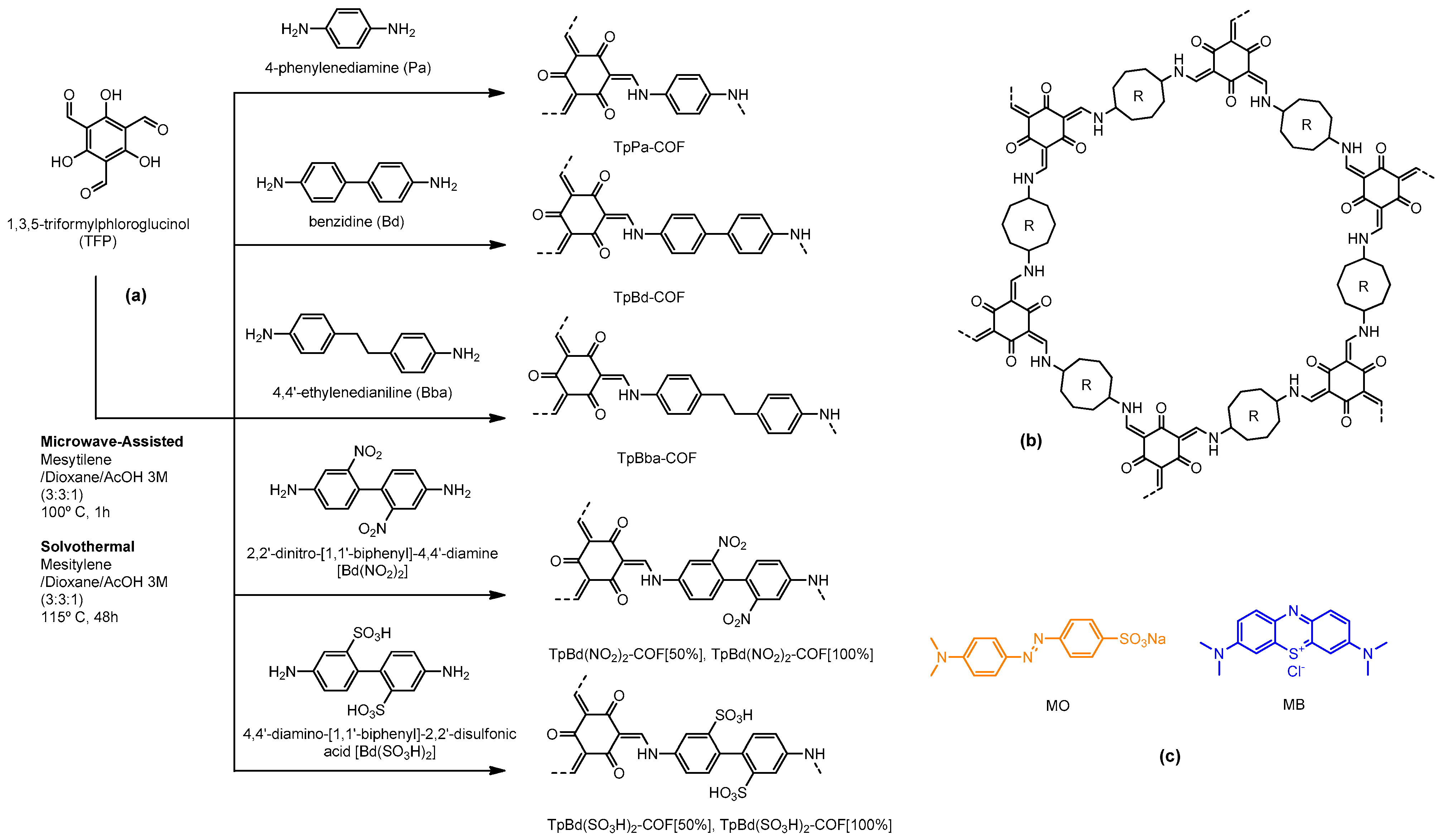

COFs were prepared via condensation between TFP and nonfunctionalized 4-phenylenediamine (Pa), benzidine (Bd) and 4,4′-ethylenedianiline (Bba), C2 symmetric diamines, as well as functionalized benzidine derivatives, 2,2′-dinitro- [1,1′-biphenyl]-4,4′-diamine [Bd(NO2)]2 and 4,4′-diamine- [1,1′-biphenyl]-2,2′-disulfonic acid [Bd(SO3H)]2. A scheme of the synthesis routes is shown in Figure 1 and the compounds are detailed in Table 1.
Table
Table 1. Synthesis parameters of prepared TFP-based β-ketoenamine COFs.
Table 1. Synthesis parameters of prepared TFP-based β-ketoenamine COFs.
NameDiamine (s)Molar Ratio (mol/mol)Yield 1
TpPa-COFPa 96%/--
TpBd-COFBd 80%/--
TpBba-COFBba 80%/--
TpBd(NO2)2-COF [50%]Bd/Bd(NO2)250/5065%/64%
TpBd(NO2)2-COF [100%]Bd(NO2)2 20%/53%
TpBd(SO3H)2-COF [50%]Bd/Bd(SO3H)250/5052%/87%
TpBd(SO3H)2-COF [100%]Bd(SO3H)2 9%/77%
1 (microwave/solvothermal).

3.2. Characterization and Adsorption Studies of Nonfunctionalized COFs

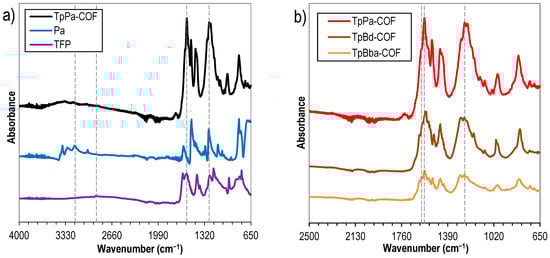

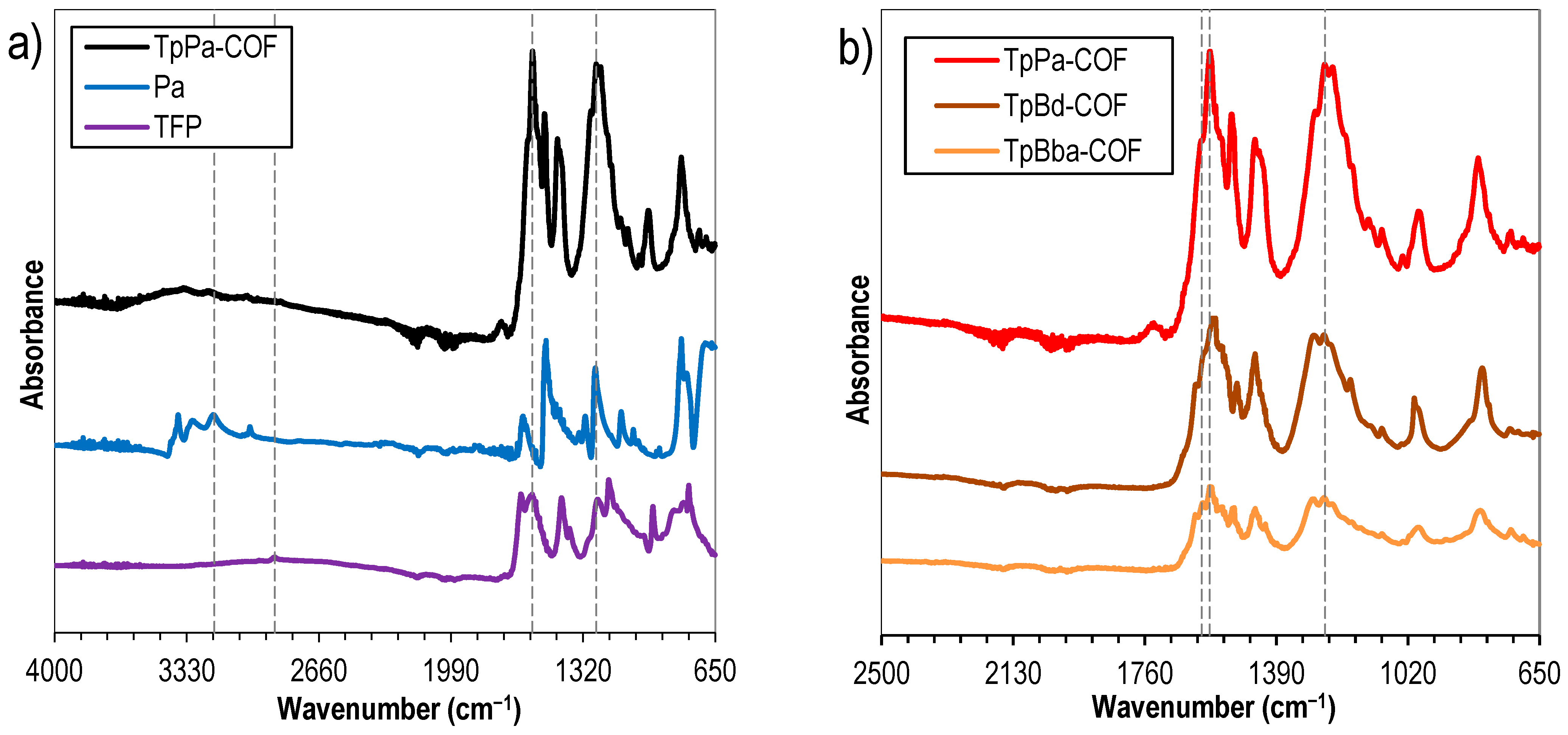

In order to elucidate on the formation of new linkage types, nonfunctionalized COFs were analyzed via FTIR. The spectrum of TpPa-COF (Figure 2a, black line) was compared to those of its corresponding building monomers: TFP (Figure 2a, purple line) and 4-phenylenediamine-Pa (Figure 2a, blue line). This analysis allowed us to infer that the bands due to the C–H aldehyde stretching (2883 cm–1) and N–H primary amine stretching (3375–3186 cm–1) vibration modes, characteristic of TFP and Pa, respectively, are not present in the TpPa-COF spectrum, confirming the occurrence of the condensation reaction. Moreover, the presence in the spectrum of TpPa-COF (Figure 2a, black line) of intense bands attributed to the C=C stretching (1578 cm–1), C=O stretching (1600 cm–1), and C–N stretching (1253 cm–1) modes, and the absence of vibration modes due to the O–H stretching band (ca. 3000 cm–1) and to the C=N stretching band (around 1650 cm–1), corroborate the occurrence of the β-ketoenamine form of the COF. It should be stressed that both C=C and C=O bands appear at lower wavenumbers than expected probably on account of the extensive electronic conjugation of the COF, and its crystalline nature [32]. Additionally, other COF bands emerge at 827 and 995 cm–1, due to the sp2 carbon C–H bending mode, and at 1520 cm–1, possibly due to the N–H bending mode [32]. Moreover, the FTIR spectra of the nonfunctionalized TpBd-COF (Figure 2b, brown line) and TpBba-COF (Figure 2b, orange line) samples proved to be very similar to TpPa-COF, with the aforementioned C=C, C=O, and C–N stretching bands, indicative of the β-ketoenamine tautomerization, appearing at the same wavenumber range.

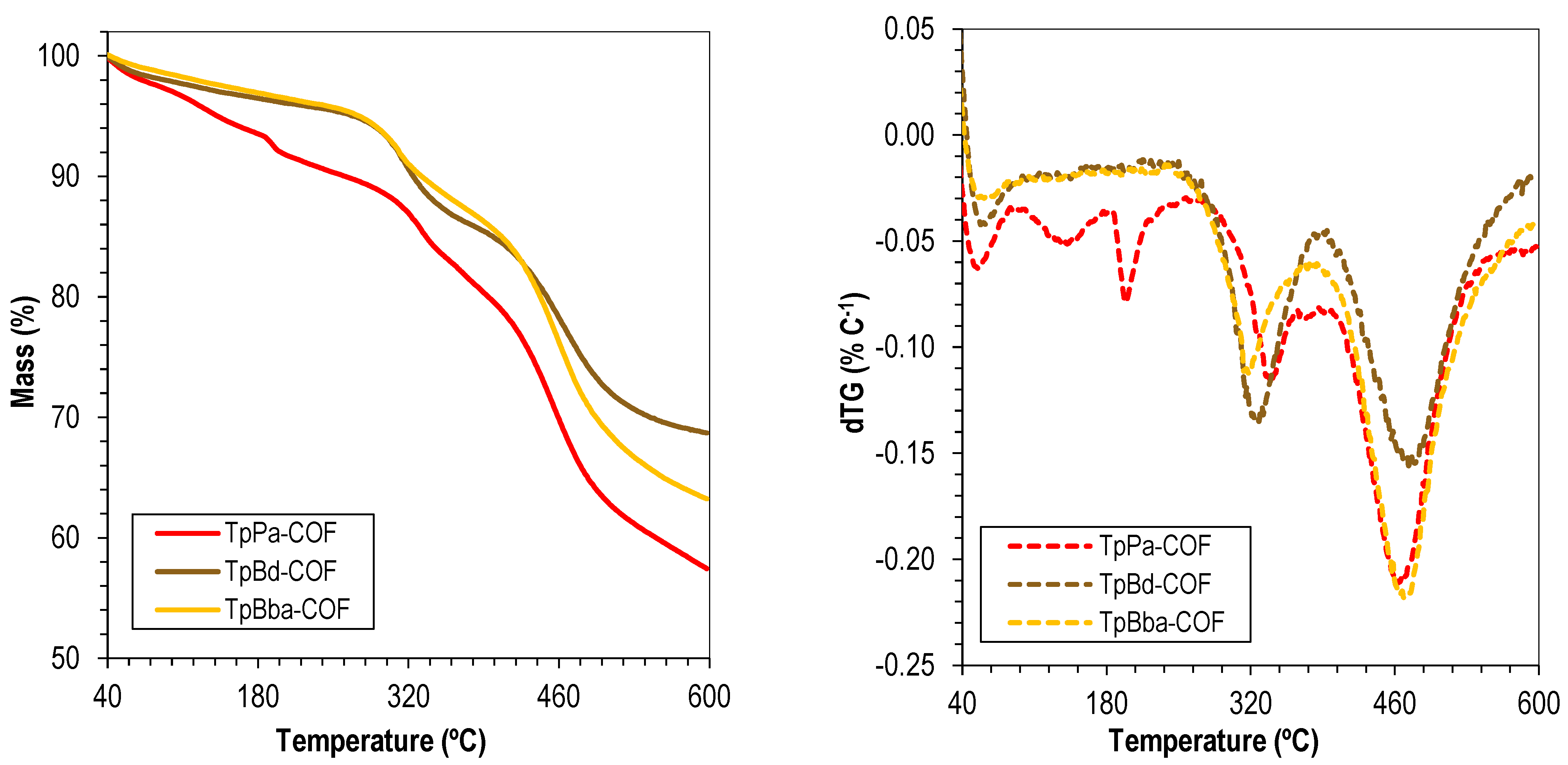

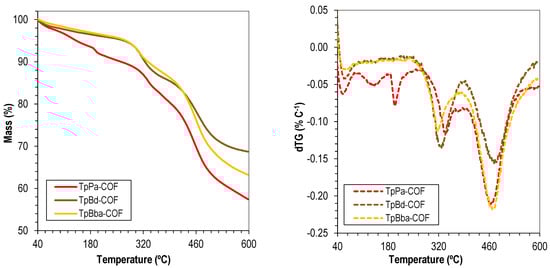

The thermal stability of the COFs was evaluated by TGA. The TGA curves and the corresponding first-derivative curves of the nonfunctionalized TpPa-COF, TpBd-COF, and TpBba-COF are shown in Figure 3. Comparison of the three curves allows the conclusion that the thermal degradation of all three materials occurs essentially in two steps, suggesting the breaking of the same type of chemical bonds and polymer interlayer interactions. The first degradation event occurs at 323 and 314 °C, for TpBd-COF and TpBba-COF, respectively. For TpPa-COF, however, the same degradation event happens at a significantly higher temperature (340 °C). Given that the linkage types are the same among all samples, the latter result strongly suggests a more robust interlayer packing and more favorable, higher-energy π orbital stacking interactions. In contrast, the lower stability observed for TpBba-COF may be correlated with the conformational freedom introduced in the reticulated structure by the presence of 4,4′-ethylenedianiline (Bba) as the starting monomer. Bba contains sp3-hybridized carbons in its backbone, unlike the other diamines used, thus making the structure less thermally resistant overall. The second degradation event occurs at 462, 470, and 469 °C for TpPa-COF, TpBd-COF, and TpBba-COF, respectively. The proximity of these values once again suggests the structural similarities among the COF samples. Interestingly, the lowest degradation temperature was observed for TpPa-COF, which may indicate that the compound was the most significantly affected by the structural alterations introduced by the first degradation phenomenon [32,52,56].

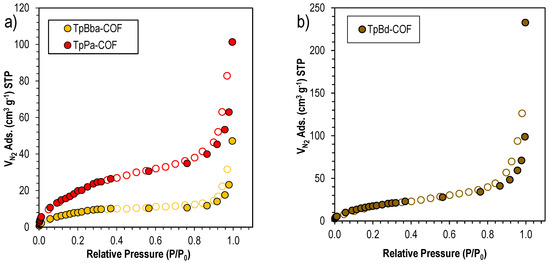

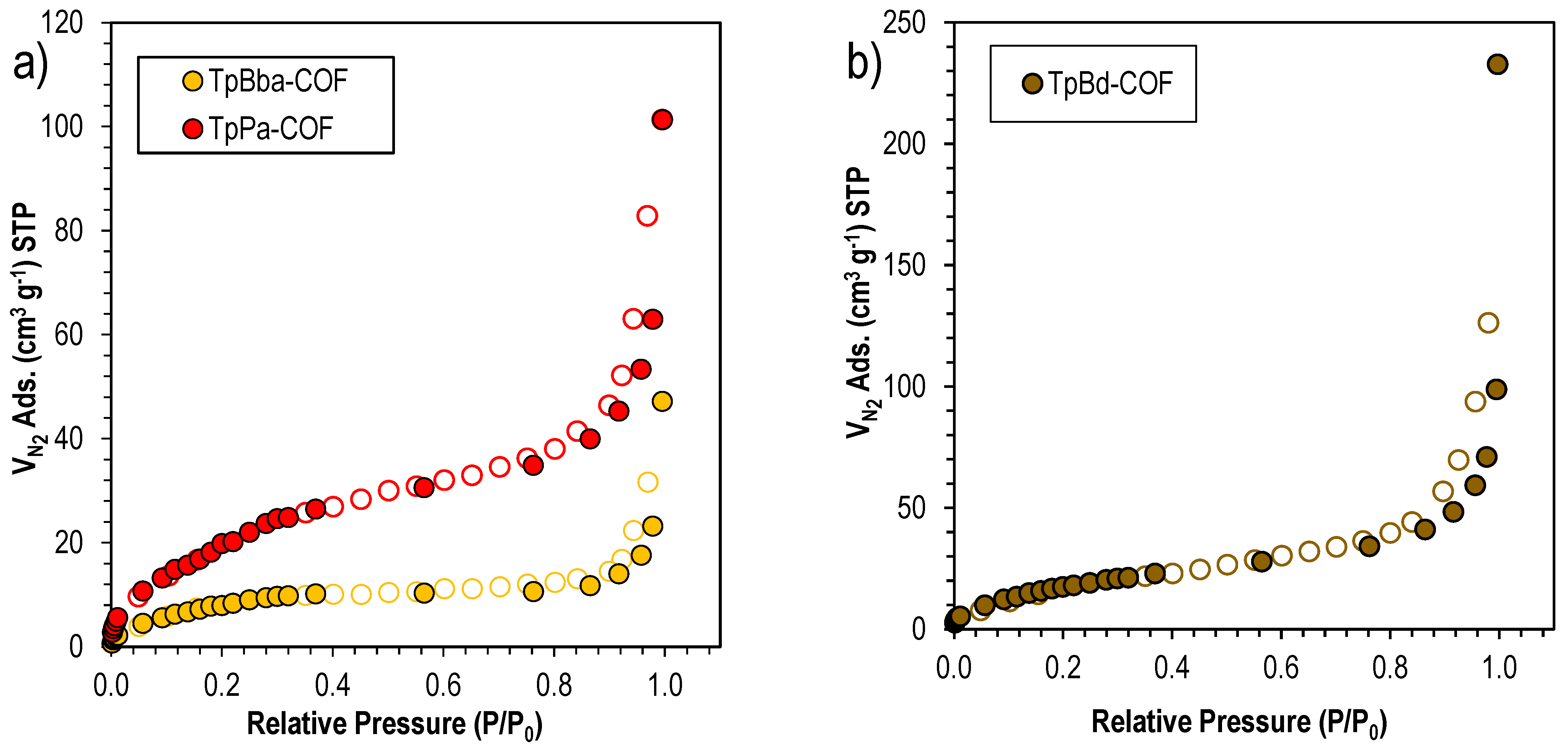

Specific surface areas for the nonfunctionalized COFs were obtained by nitrogen (N2) adsorption and BET analysis. Figure 4 shows a representative N2 adsorption/desorption isotherm onto nonfunctionalized COFs. It can be observed that the N2 adsorption follows a type II isotherm with a slight H1 hysteresis for all three polymers [57]. This evidence suggests that all three COFs are mesoporous materials. In fact, by applying the BET method, we can find that the average pore diameter ranges from 7.6 to 20.8 nm, for TpPa-COF and TpBd-COF, respectively (see Table 2). However, it should be noted that the effect of diamine size on COFs follows a different trend when the surface area is evaluated. In this case, the COF with the highest surface area—TpPa-COF—yields the lowest pore size.
BET surface area measurements suggest that the starting monomers of larger dimensions led to a less available surface area. TpPa-COF, prepared using the smallest diamine (Pa), exhibited the highest result (83 ± 2 m2 g–1), whereas TpBd-COF and TpBba-COF, built from larger diamines, exhibited smaller surface areas (69 ± 1 and 32.4 ± 0.8 m2 g–1, respectively). It is also interesting to note that there seems to be a correlation between the average pore size and the size of the starting diamine used, with a lengthier building block leading to bigger pore dimensions. However, for TpBba-COF, formed from the diamine with the largest dimensions, the lowest BET surface area and a relatively small average pore size (9.0 nm) were observed. Again, this may be due to the added conformational freedom introduced by the –CH2–CH2– linkages from Bba, resulting in a collapsed porous structure with a less accessible surface area.

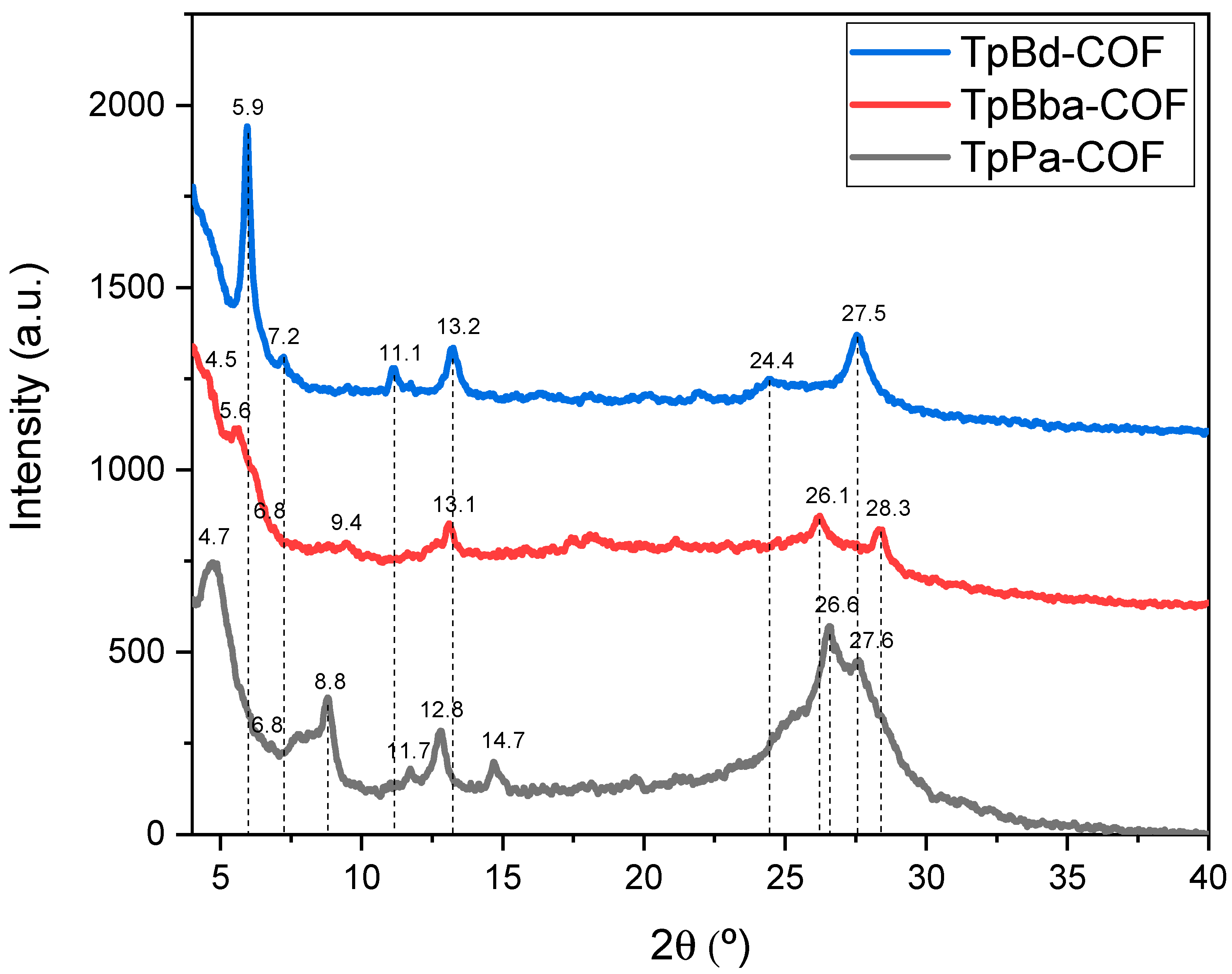

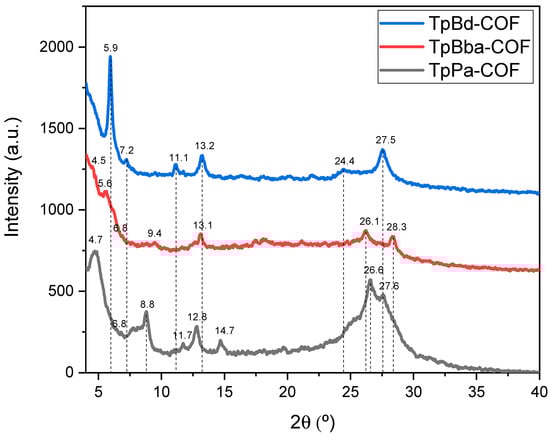

The XRD patterns obtained for TpPa-COF, TpBba-COF, and TpBd-COF are shown in Figure 5.
In the case of TpPa-COF, the most prominent peaks were observed at 4.8, 26.6, and 27.5° (Figure 5, black line). The 4.8 and 27.5° reflections were attributed to the reflections of the (100) and (001) planes, respectively [32]. Less intense peaks were detected at 8.8, 11.8, 12.8, and 14.7° (Figure 5, black line). For TpBd-COF, a very strong, sharp peak was found at 5.9°, with less intense peaks emerging at 11.2, 13.2, and 27.5° (Figure 5, blue line). Both these COFs appear to be more ordered than TpBba-COF. In fact, their XRD patterns show better-defined peaks than those seen in the XRD pattern of TpBba-COF (Figure 5, red line). The latter sample produced an ill-defined intense peak at 5.6° and minor peaks peaking at 13.2, 26.2, and 28.4°. This difference in crystallinity may be due, in part, to the sp3 carbon present in the Bba moiety, resulting in less rigid and, therefore, less planar 2D layers. The above XRD data obtained are in perfect agreement with the results discussed in the literature for TpPa-COF [32], TpBba-COF [56], and TpBd-COF [52].

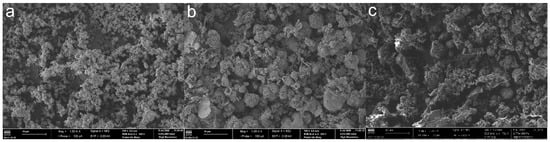

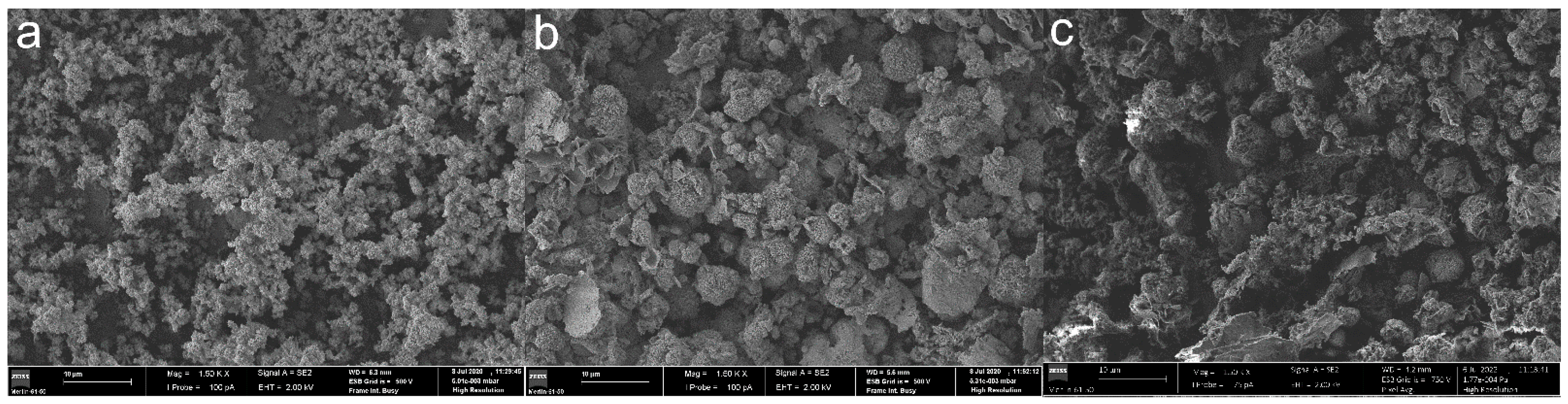

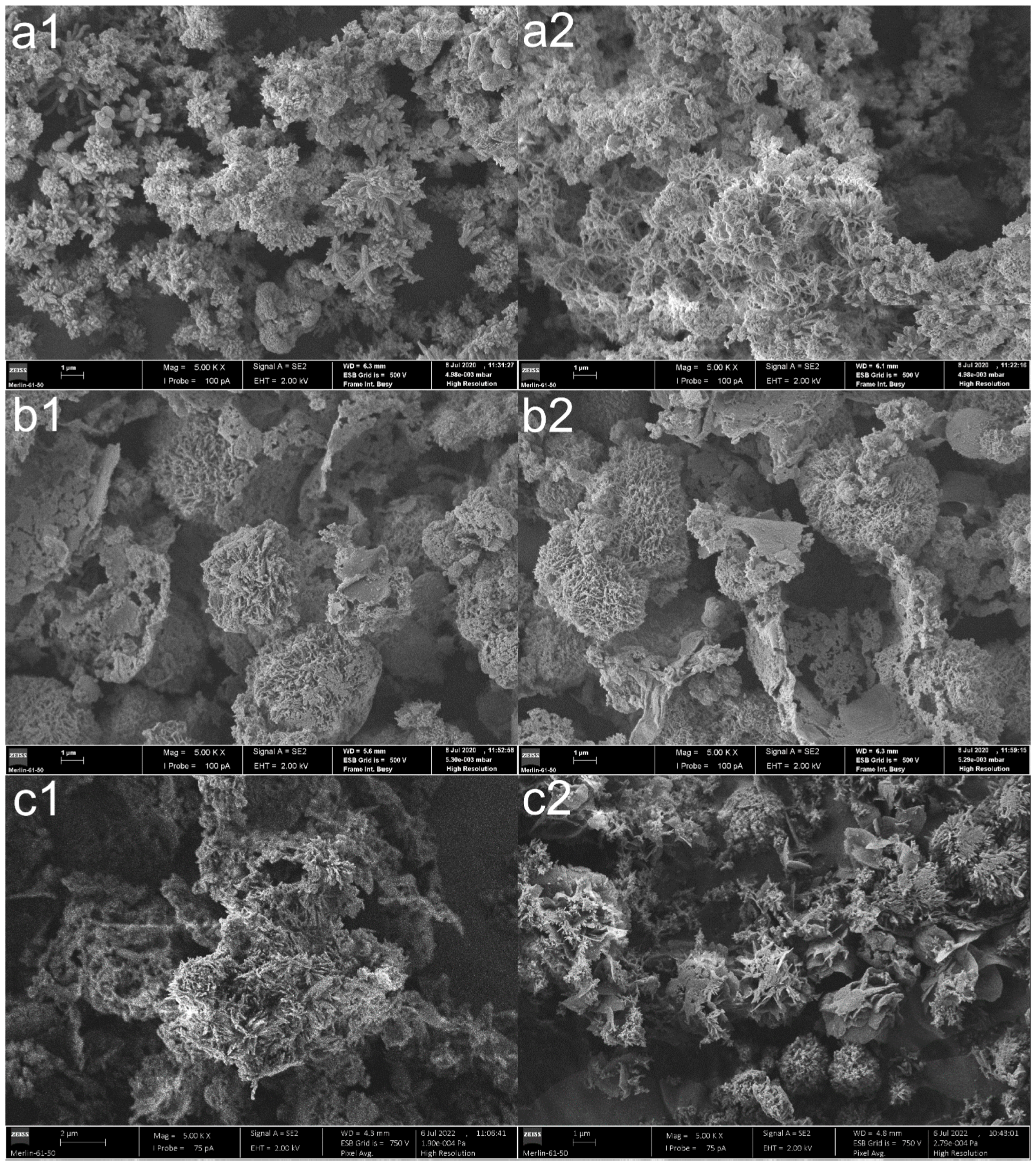

The surface morphologies of the nonfunctionalized COF materials were further evaluated by SEM. Figure 6 shows the SEM images obtained for TpPa-COF, TpBba-COF, and TpBd-COF.
The texture of TpPa-COF (Figure 6a) is characterized by small, homogeneous spherical aggregates (2–3 μm), sprouting from other structures of equivalent size, indicating that the growth process occurred by formation of independent polymer nuclei. The observed surface roughness is also in agreement with the high porosity, and the corresponding surface area of the material [32]. TpBba-COF (Figure 6b) shows varying morphology patterns, a result that suggests structural heterogeneity and mesoporosity. Different shapes are observed (from spherical and tubular to sheet-like aggregates) of varying sizes (up to 10 μm), with no apparent order. Morphology patterns for both COFs agree with the obtained BET surface areas: surface roughness and smaller average aggregate sizes lead to a higher available surface area. TpBd-COF (Figure 6c) exhibits irregular aggregates of varying shapes and dimensions, with a highly disordered and porous surface.

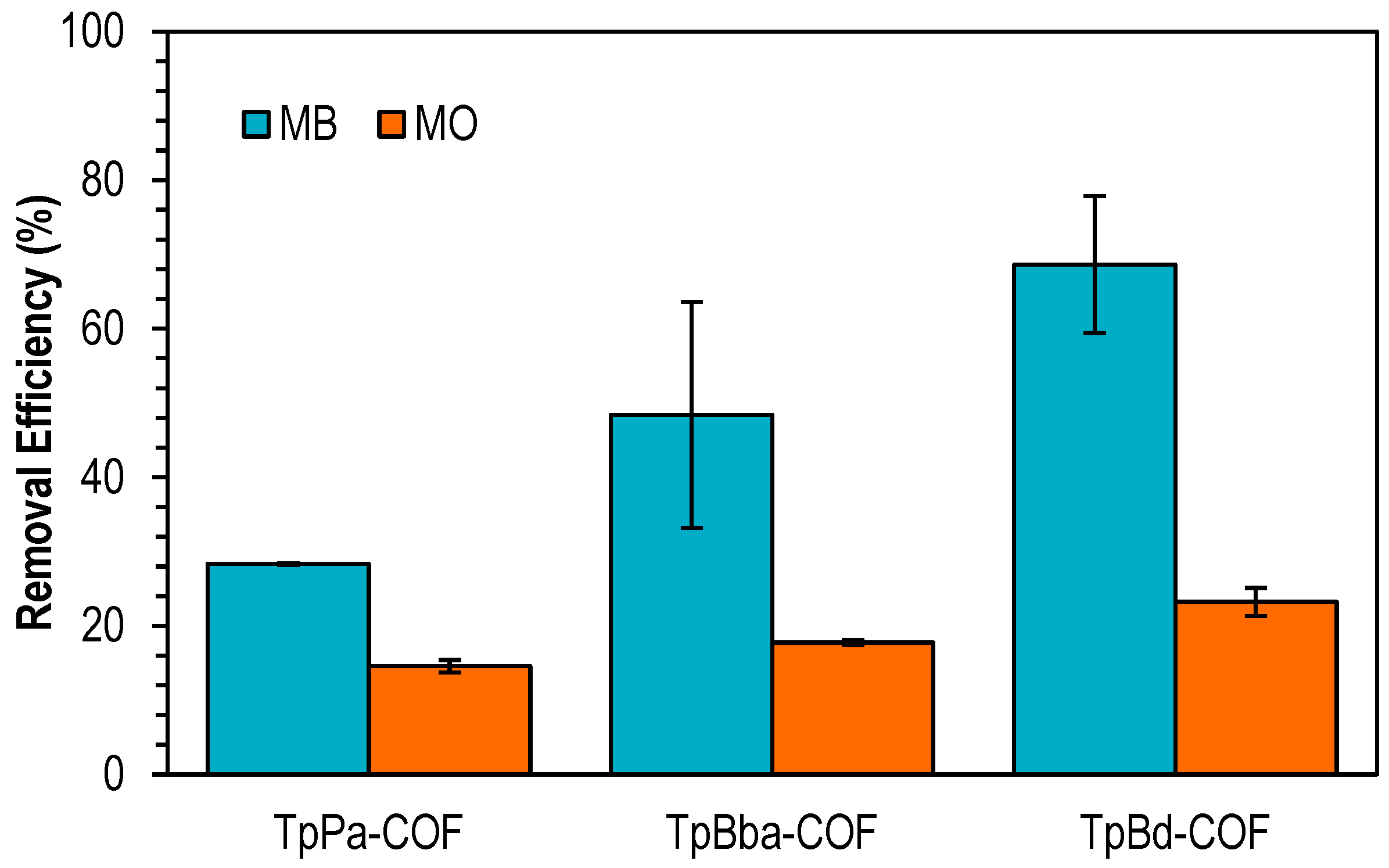

The performance of nonfunctionalized COFs for the adsorption of two dyes with different charges, methylene blue (MB, cationic) and methyl orange (MO, anionic), was assessed. Based on preliminary results (not shown) and for a selective evaluation of all adsorbents, a solid/liquid ratio equal to 0.4 mg mL−1 was chosen. Figure 7 shows the removal efficiencies for the adsorption of the two dyes on TpPa-COF, TpBba-COF, and TpBd-COF.
TpBd-COF showed the highest removal efficiency from among the nonfunctionalized COFs, with a removal of approximately 70% toward MB. It was observed that the removal efficiencies for MO are significantly lower than those obtained for MB. Moreover, a linear relationship between the average COF pore diameters and dye removal percentage is observed; i.e., the removal efficiency increases by increasing the pore diameters of materials. This can be explained by the easier access of the pollutant to the polymer backbone by materials with wider pore lengths.
The effect of MB adsorption on the COF structure was also evaluated. SEM analyses confirmed the modification of the surface morphology of nonfunctionalized COFs after adsorption (Figure 8).
Pre-adsorption TpPa-COF (Figure 8a1) exhibits a “flower-like” morphology, with spherical aggregates crystallizing independently and growing “petals” from their centers. These petal-like shapes act as an anchor to redirect polymer growth [32]. After adsorption (Figure 8a2), the surface is significantly eroded, becoming, in general, more diffuse and less compact. A similar effect can be observed for the SEM images of TpBd-COF (Figure 8c1,c2). Regarding TpBba-COF (Figure 8b1,b2), no significant morphological changes seemed to occur upon adsorption.
Moreover, the TGA curve recorded for the TpPa-COF sample post-adsorption also confirms the existence of trapped MB adsorbate (Figure S1), in particular, at 280 °C, where a slight mass loss is observed, due to MB degradation. The highest mass loss percentage also suggests that the adsorption process leads to a loss of thermal stability, which is in agreement with the loss of superficial integrity observed in SEM.

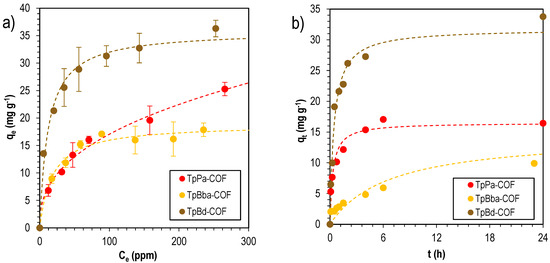

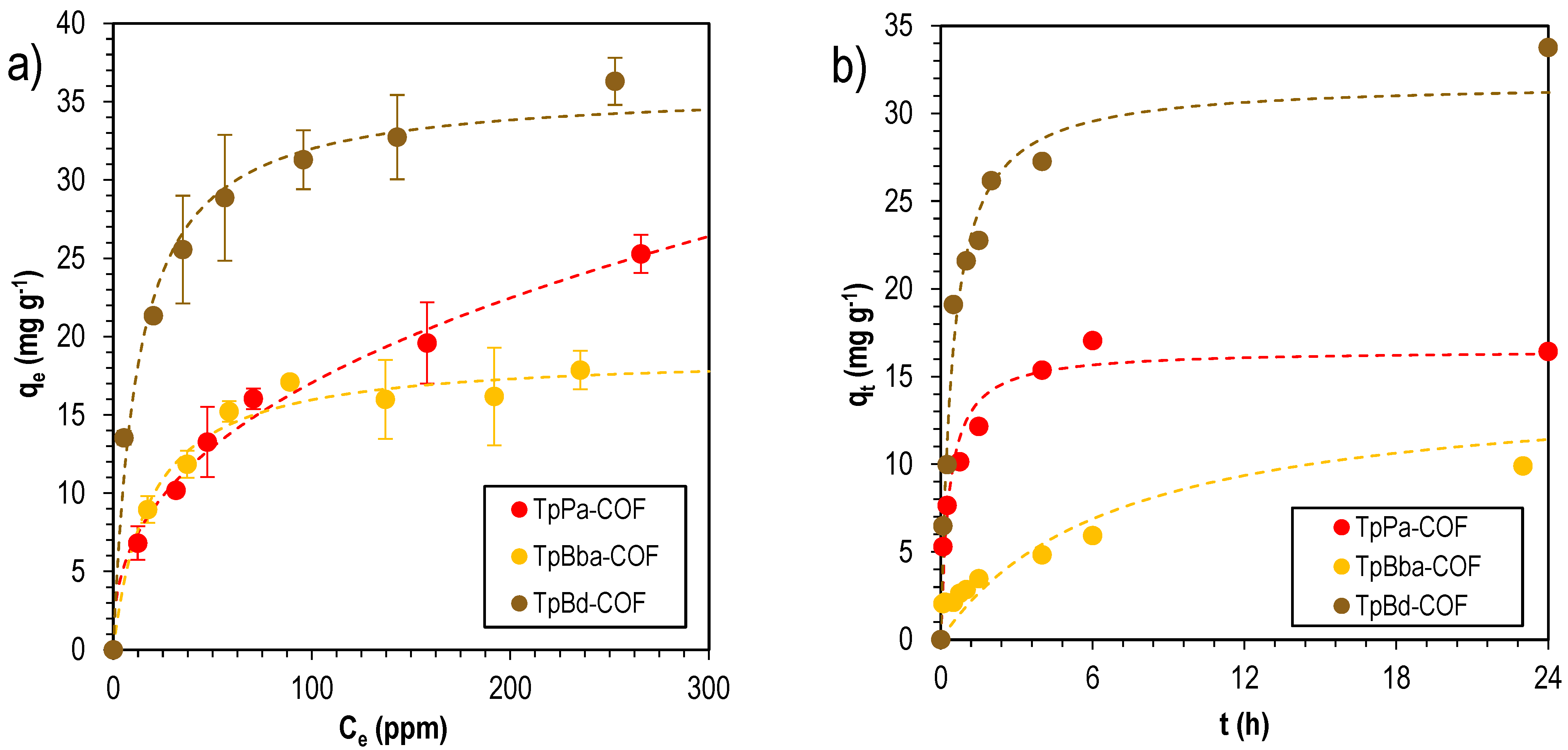

Nonfunctionalized COFs were further used as adsorbents for MB isotherm sorption studies. Two equations (Langmuir—Equation (1), and Freundlich—Equation (2)) were fitted to experimental values, and the fitting parameters are reported in Table 3.
In general, the isotherm curves fitted the Langmuir model better, which suggests a tendentially homogeneous surface and a predominantly monolayer-controlled adsorption. The highest MB uptake was observed for TpBd-COF, with a maximum adsorption capacity of (36 ± 1) mg g–1, according to the Langmuir model. Sorption kinetics fitting parameters can be found in Table 4.
The sorption experiments in general were better described by the pseudo-second-order equation. This suggests that the adsorption process is mainly due to chemisorption, which means that chemical reactions between the adsorbate and adsorbent are taking place at the interface. It also suggests monolayer adsorption. Sorption isotherms and kinetics are detailed in Figure 9.

3.3. Characterization and Adsorption Studies of Functionalized TpBd-Based COFs

TpBd-based functionalized COFs bearing –NO2 and –SO3H groups were prepared and characterized. Figure 10 shows the FTIR spectra for the functionalized COFs, TpBd(NO2)2-COF [100%] and TpBd(SO3H)2-COF [100%], compared to the spectra of their corresponding starting diamines. As discussed in Figure 2, the spectra of the COFs are characterized by the absence of diamine N–H stretching bands (3474–3360 cm–1) (dark blue line and dark green line in Figure 10, respectively). Comparing the nitrated COF and the corresponding starting diamine, the presence of the aromatic N–O symmetric and asymmetric stretching bands at 1337 cm–1and 1508 cm–1, respectively, indicate the presence of –NO2 groups in the COF structure [58]. Concerning the sulfonated COF (Figure 10, dark green line) and its diamine (light green line—Figure 10), both produce a set of bands ranging from 1247 to 1100 cm–1 due to the S=O stretching vibration mode. The absence of the wide O–H stretching band in the COF spectrum, present in the diamine spectrum due to intramolecular hydrogen bonding, suggests an ordered polymer structure where pore wall functional groups are not mutually accessible [49].

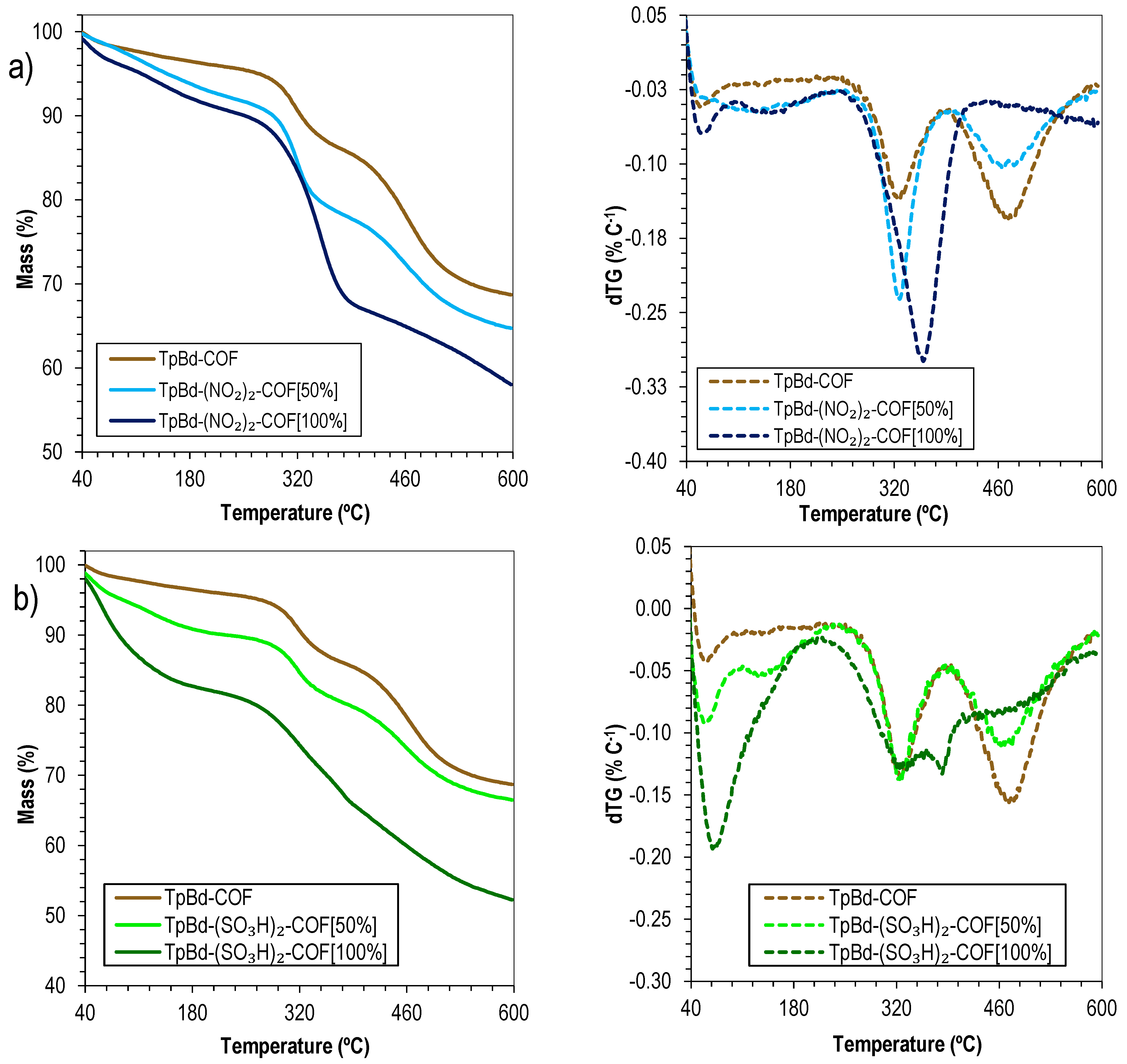

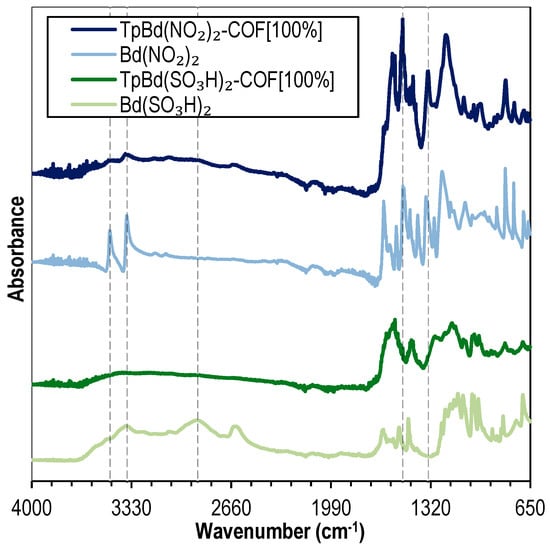

In order to evaluate the influence of the functionalization on the COFs’ thermal stabilities, the TGA curves of TpBd-COF and its nitrated and sulfonated derivatives were recorded and compared (Figure 11). Interestingly, the results seem to suggest that a larger functionalization ratio (mol/mol) leads to an increase in thermal stability. The pattern found for TpBd(NO2)2-COF [50%] (Figure 11a, light blue line) is very similar to that of the nonfunctionalized counterpart TpBd-COF (Figure 11a, brown line), with degradation steps occurring at 324 and 466 °C, respectively. For fully functionalized TpBd(NO2)2-COF [100%] (Figure 11a, dark blue line), the first event occurs at a much higher temperature (360 °C), resulting in a more extensive mass loss, and a second event is not observed up to 600 °C, the maximum temperature analyzed. A possible explanation is the polarization induced by the –NO2 groups on the polymeric resonance structure, thus increasing interlayer interaction energies and consequently thermal stability. Similar conclusions can be drawn from the comparison between TpBd-COF and sulfonated COF derivatives (Figure 11b).
A potentiometric acid–base titration was carried out to determine the pKa values of sulfonated COFs (Figure S2). For TpBd(SO3H)2-COF [100%], a mass percentage of the incorporated Bd(SO3H)2 monomer of 70.1% was determined (for 50.0 mg of COF sample), similar to the theoretical value (71.1%). Moreover, a pKa of 3.88 was estimated based on the Henderson–Hasselbalch equation. For the TpBd(SO3H)2-COF [50%] sample, the Bd(SO3H)2 mass percentage of the incorporated monomer was only estimated at 22.9%, half of the expected amount (45.6%). This suggests that, during the synthesis and crystallization processes, nonfunctionalized benzidine was selectively integrated in the structure, in detriment of its sulfonated derivative. This can be attributed to the overall lower reactivity of Bd(SO3H)2: the bulky, electron-withdrawing –SO3H groups make the diamine less nucleophilic and contribute to steric hindrance. A pKa of 4.48 was obtained for the COF.

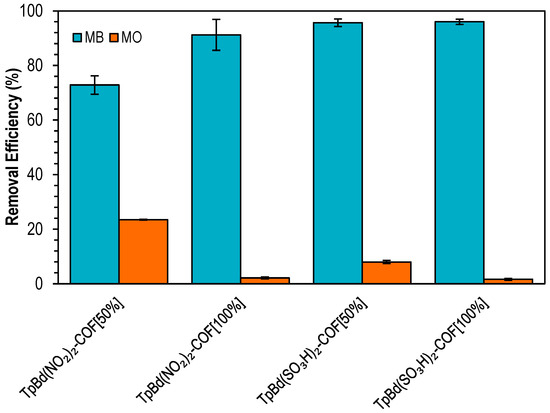

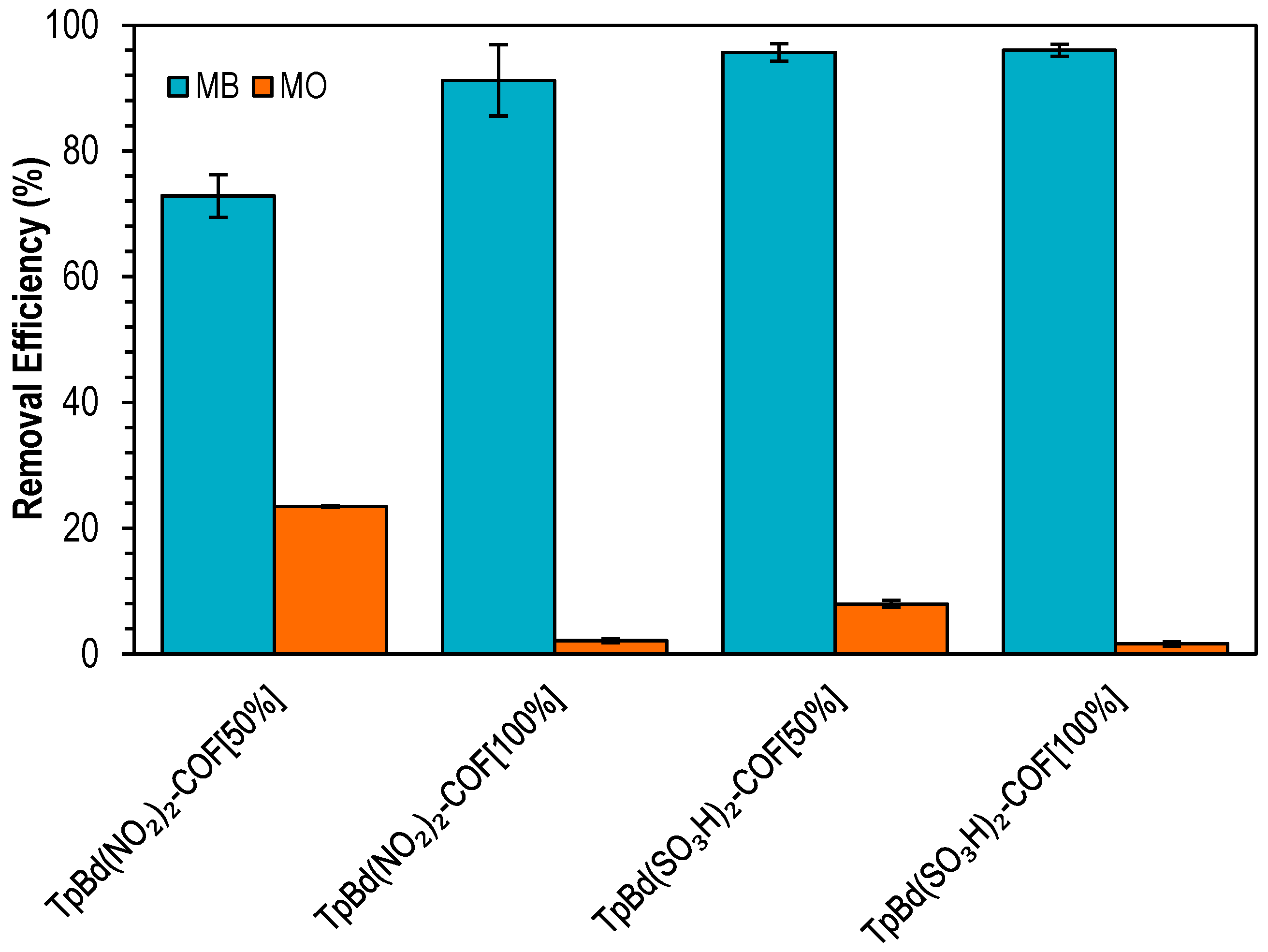

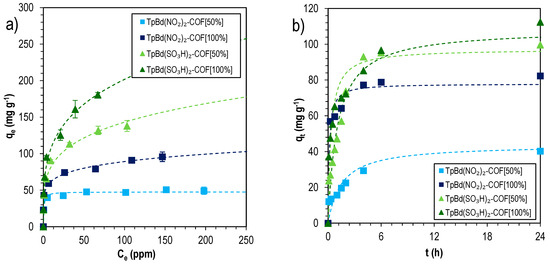

Functionalized COFs were used as adsorbents for the removal of MB and MO (Figure 12). Removal efficiencies ranging from 73% to 96% were obtained, with –SO3H-substituted COFs exhibiting the higher adsorption. The capture of MB, an anionic dye, increased with the degree of functionalization, whereas for MO, which is negatively charged at pH 6–7, a higher ratio of COF functionalization resulted in decreased removal efficiencies. These results point out that electrostatic interactions play a major role on the adsorption process [59].
To have a deeper understanding on the mechanism of MB sorption onto functionalized TpBd-COF materials, the sorption isotherms and kinetics were evaluated and data are shown in Figure 13.
The sorption isotherms were fitted by Langmuir and Freundlich equations, and data are shown in Table 5. It is interesting to note that functionalized TpBd-COFs were more accurately described by the Freundlich model. This confirms the surface heterogeneity induced by the pore wall functionalization and the consequences it has on adsorption. The high n F Freundlich parameters found additionally suggest chemisorption dynamics. The highest adsorption was determined for sulfonated TpBd(SO3H)2-COF [100%], with a Langmuir maximum adsorption capacity of 166 ± 13 mg g–1, much higher than those obtained for the corresponding nitro counterparts (48 to 84 mg g–1). In both cases, the sorption suggests the domination by chemisorption, in agreement with the pseudo-second-order best fitting to kinetics sorption data—Table 6.
Physical properties and respective MB maximum adsorption capacities for similar COFs and related polymers found in the literature are described in Table 7 and compared to the results observed in this work for TpBd(SO3H)2-COF [100%]. An overall comparison between the properties of the various adsorbents suggests that the presence of anionic groups within the porous structure is one of the key contributing factors for a high adsorption efficiency of MB, with the BET surface area of the polymer also representing an important, but less decisive parameter. For instance, TpBd(SO3H)2-COF [100%] exhibits a higher MB adsorption capacity than COFs with a much higher BET surface area but without anionic functionalization. In fact, the materials bearing cationic and uncharged groups exhibited the lowest adsorption results from all adsorbents [47,49,60,61]. A similar conclusion can be drawn for all other materials containing sulfonic or sulfonate groups within the porous structure [49,61]. Regarding nonfunctionalized polymers, a higher BET surface area seems to correlate, overall, with a higher removal efficiency. It is also worth noting the significant increase in efficiency reported by Dang and coworkers for TpBd(SO3–) [49]. The COF is analogous to the TpBd(SO3H)2-COF [100%] studied in this work—however, imidazolium salts were grafted onto the structure, and adsorption was tested at pH 9. Both modifications may explain the sharp contrast in the adsorption results reported.
In order to have further confirmation of the effect of electrostatic interactions on the adsorption process, the adsorption of different heavy metal ions (Cu(II), Pb(II), Ni(II), and Cd(II)) onto TpBd(NO2)2-COF [100%] and TpBd(SO3H)2-COF [100%], at pH 7, was further tested and data on removal efficiencies are shown in Figure 14. From the analysis of the figure, it can be concluded that the strongest acid polymer showed a much higher efficiency overall than the nitro-substituted counterpart. Cu(II) removal percentages were similar for both materials, while Ni(II) and Pb(II) adsorption was much more significant for TpBd(SO3H)2-COF [100%], suggesting a higher affinity of sulfonate-bearing surfaces toward the metals. The lower results observed for the –NO2 substituted COF may be attributed to the positive charge present in this group, partially repelling the metal ions. It is also relevant to note that, for both COFs, removal was the lowest for Ni(II) and Cd(II), possibly due to the higher ionic radii and, thus, lower charge densities.

4. Conclusions

In this study, a series of TFP-based β-ketoenamine-type COFs with varying degrees of –NO2 and –SO3H functionalization were synthesized, for pollutant adsorption in aqueous solution. FTIR analysis confirmed the linkage type of the final COFs and TGA showed that higher functionalization percentages lead to higher thermal stability. N2 sorption confirmed the mesoporosity of the solids, while SEM analysis revealed that there were significant modifications in the COF surfaces due to the MB adsorption process. The titration of –SO3H-functionalized COFs showed a clear selectivity process during COF crystallization. Adsorption studies confirmed a much higher affinity for COFs functionalized with electron-withdrawing groups toward cationic adsorbates, with a maximum adsorption capacity as high as 166 ± 13 mg g–1 for TpBd(SO3H)2-COF [100%] toward MB adsorption, according to the Langmuir isotherm model. Sorption kinetics further showed the positive influence of pore wall functionalization on the sorption dynamics. The sulfonated COFs also proved to be generally better adsorbents of metal species, compared to the nitrated counterparts, revealing the selectivity in electrostatic interactions. These results confirm the high potential of COF as highly practical, highly tunable materials for use in selective and efficient applications for adsorption processes.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym14153096/s1.

Author Contributions

Conceptualization, T.F.M., R.F.P.P., V.d.Z.B., A.J.M.V., M.E.S.S. and D.M.; Methodology, T.F.M., R.F.P.P., V.d.Z.B., A.J.M.V., M.E.S.S. and D.M.; Validation, R.F.P.P., V.d.Z.B., A.J.M.V., M.E.S.S. and D.M.; Investigation, T.F.M., F.A.S. and R.F.P.P.; Resources, R.F.P.P., V.d.Z.B., A.J.M.V., M.E.S.S. and D.M.; Writing—Original Draft Preparation, T.F.M., F.A.S., R.F.P.P., V.d.Z.B., A.J.M.V., M.E.S.S. and D.M.; Writing—Review and Editing, T.F.M., R.F.P.P., V.d.Z.B., A.J.M.V., M.E.S.S. and D.M.; Supervision, M.E.S.S. and D.M.; Project Administration, A.J.M.V. and V.d.Z.B.; Funding Acquisition, R.F.P.P., V.d.Z.B., A.J.M.V., M.E.S.S. and D.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Coimbra Chemistry Centre (CQC), which is supported by the Fundação para a Ciência e a Tecnologia (FCT), Portugal, through the grants ref. UID/QUI/00313/2020 and ref. UI/BD/150809/2020, co-funded by COMPETE2020-UE.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Acknowledgments

T.F.M. thanks the research grant awarded by the CQC through project ref. DPA UID/QUI/00313/2019. R.F.P.P. acknowledges FCT-UMinho for the contract in the scope of Decreto-Lei 57/2016—Lei 57/2017. We thank the UC-NMR facility for providing the NMR data (www.nmrccc.uc.pt (accessed on 7 July 2022)).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lv, S.-W.; Liu, J.-M.; Wang, Z.-H.; Ma, H.; Li, C.-Y.; Zhao, N.; Wang, S. Recent Advances on Porous Organic Frameworks for the Adsorptive Removal of Hazardous Materials. J. Environ. Sci. 2019, 80, 169–185. [Google Scholar] [CrossRef] [PubMed]
  2. Fernandes, S.P.S.; Romero, V.; Espiña, B.; Salonen, L.M. Tailoring Covalent Organic Frameworks To Capture Water Contaminants. Chem.—A Eur. J. 2019, 25, 6461–6473. [Google Scholar] [CrossRef] [PubMed]
  3. Lellis, B.; Fávaro-Polonio, C.Z.; Pamphile, J.A.; Polonio, J.C. Effects of Textile Dyes on Health and the Environment and Bioremediation Potential of Living Organisms. Biotechnol. Res. Innov. 2019, 3, 275–290. [Google Scholar] [CrossRef]
  4. Vareda, J.P.; Valente, A.J.M.; Durães, L. Assessment of Heavy Metal Pollution from Anthropogenic Activities and Remediation Strategies: A review. J. Environ. Manag. 2019, 246, 101–118. [Google Scholar] [CrossRef] [PubMed]
  5. Patel, M.; Kumar, R.; Kishor, K.; Mlsna, T.; Pittman, C.U., Jr.; Mohan, D. Pharmaceuticals of Emerging Concern in Aquatic Systems: Chemistry, Occurrence, Effects, and Removal Methods. Chem. Rev. 2019, 119, 3510–3673. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Samanta, P.; Desai, A.V.; Let, S.; Ghosh, S.K. Advanced Porous Materials for Sensing, Capture and Detoxification of Organic Pollutants toward Water Remediation. ACS Sustain. Chem. Eng. 2019, 7, 7456–7478. [Google Scholar] [CrossRef]
  7. Jiang, N.; Shang, R.; Heijman, S.G.J.; Rietveld, L.C. High-Silica Zeolites for Adsorption of Organic Micro-Pollutants in Water Treatment: A Review. Water Res. 2018, 144, 145–161. [Google Scholar] [CrossRef]
  8. Utzeri, G.; Matias, P.M.C.; Murtinho, D.; Valente, A.J.M. Cyclodextrin-Based Nanosponges: Overview and Opportunities. Front. Chem. 2022, 10, 859406. [Google Scholar] [CrossRef]
  9. Tsuru, T. Inorganic Porous Membranes for Liquid Phase Separation. Sep. Purif. Methods. 2001, 30, 191–220. [Google Scholar] [CrossRef]
  10. Dąbrowski, A.; Podkościelny, P.; Hubicki, Z.; Barczak, M. Adsorption of Phenolic Compounds by Activated Carbon—A critical review. Chemosphere 2005, 58, 1049–1070. [Google Scholar] [CrossRef]
  11. Dias, J.M.; Alvim-Ferraz, M.C.; Almeida, M.F.; Rivera-Utrilla, J.; Sánchez-Polo, M. Waste Materials for Activated Carbon Preparation and Its Use in Aqueous-Phase Treatment: A review. J. Environ. Manag. 2007, 85, 833–846. [Google Scholar] [CrossRef] [PubMed]
  12. Yin, C.Y.; Aroua, M.K.; Daud, W.M.A.W. Review of Modifications of Activated Carbon for Enhancing Contaminant Uptakes from Aqueous Solutions. Sep. Purif. Technol. 2007, 52, 403–415. [Google Scholar] [CrossRef]
  13. Xu, J.; Cao, Z.; Zhang, Y.; Yuan, Z.; Lou, Z.; Xu, X.; Wang, X. A Review of Functionalized Carbon Nanotubes and Graphene for Heavy Metal Adsorption from Water: Preparation, Application, and Mechanism. Chemosphere 2018, 195, 351–364. [Google Scholar] [CrossRef] [PubMed]
  14. Peng, W.; Li, H.; Liu, Y.; Song, S. A Review on Heavy Metal Ions Adsorption from Water by Graphene Oxide and Its Composites. J. Mol. Liq. 2017, 230, 496–504. [Google Scholar] [CrossRef]
  15. Ersan, G.; Apul, O.G.; Perreault, F.; Karanfil, T. Adsorption of Organic Contaminants by Graphene Nanosheets: A review. Water Res. 2017, 126, 385–398. [Google Scholar] [CrossRef]
  16. Khan, N.A.; Hasan, Z.; Jhung, S.H. Adsorptive Removal of Hazardous Materials Using Metal-Organic Frameworks (MOFs): A review. J. Hazard. Mater. 2013, 244–245, 444–456. [Google Scholar] [CrossRef]
  17. Zhang, W.; Aguila, B.; Ma, S. Retracted Article: Potential applications of functional porous organic polymer materials. J. Mater. Chem. A 2017, 5, 8795–8824. [Google Scholar] [CrossRef]
  18. Yuan, Y.; Zhu, G. Porous Aromatic Frameworks as a Platform for Multifunctional Applications. ACS Cent. Sci. 2019, 5, 409–418. [Google Scholar] [CrossRef] [Green Version]
  19. McKeown, N.B.; Budd, P.M. Polymers of Intrinsic Microporosity (PIMs): Organic Materials for Membrane Separations, Heterogeneous Catalysis and Hydrogen Storage. Chem. Soc. Rev. 2006, 35, 675–683. [Google Scholar] [CrossRef]
  20. Cova, T.F.G.G.; Murtinho, D.; Pais, A.A.C.C.; Valente, A.J.M. Cyclodextrin-Based Materials for Removing Micropollutants From Wastewater. Curr. Org. Chem. 2018, 22, 2150–2181. [Google Scholar] [CrossRef]
  21. Filho, C.M.C.; Bueno, P.V.A.; Matsushita, A.F.Y.; Rubira, A.F.; Muniz, E.C.; Durães, L.; Murtinho, D.M.B.; Valente, A.J.M. Synthesis, Characterization and Sorption Studies of Aromatic Compounds by Hydrogels of Chitosan Blended with β-Cyclodextrin- and PVA-Functionalized Pectin. RSC Adv. 2018, 8, 14609–14622. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Zhang, N.; Ishag, A.; Li, Y.; Wang, H.; Guo, H.; Mei, P.; Meng, Q.; Sun, Y. Recent Investigations and Progress in Environmental Remediation by Using Covalent Organic Framework-Based Adsorption Method: A review. J. Clean. Prod. 2020, 277, 123360. [Google Scholar] [CrossRef]
  23. Machado, T.; Serra, M.; Murtinho, D.; Valente, A.; Naushad, M. Covalent Organic Frameworks: Synthesis, Properties and Applications—An Overview. Polymers 2021, 13, 970. [Google Scholar] [CrossRef] [PubMed]
  24. Zhu, L.; Zhang, Y.-B. Crystallization of Covalent Organic Frameworks for Gas Storage Applications. Molecules 2017, 22, 1149. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Hu, H.; Yan, Q.; Ge, R.; Gao, Y. Covalent organic frameworks as heterogeneous catalysts. Chin. J. Catal. 2018, 39, 1167–1179. [Google Scholar] [CrossRef]
  26. Hasija, V.; Patial, S.; Raizada, P.; Khan, A.A.P.; Asiri, A.M.; Van Le, Q.; Nguyen, V.-H.; Singh, P. Covalent Organic Frameworks Promoted Single Metal Atom Catalysis: Strategies and Applications. Coord. Chem. Rev. 2021, 452, 214298. [Google Scholar] [CrossRef]
  27. Vishnoi, P.; Kaleeswaran, D.; Murugavel, R. 1,3,5-Triphenylbenzene: A Versatile Photoluminescent Chemo-Sensor Platform and Supramolecular Building Block. RSC Adv. 2018, 8, 17535–17550. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Xu, K.; Huang, N. Recent Advances of Covalent Organic Frameworks in Chemical Sensing. Chem. Res. Chin. Univ. 2022, 38, 339–349. [Google Scholar] [CrossRef]
  29. Alahakoon, S.B.; Thompson, C.M.; Occhialini, G.; Smaldone, R.A. Design Principles for Covalent Organic Frameworks in Energy Storage Applications. ChemSusChem 2017, 10, 2116–2129. [Google Scholar] [CrossRef] [PubMed]
  30. Najafi, M.; Abednatanzi, S.; Derakhshandeh, P.G.; Mollarasouli, F.; Bahrani, S.; Behbahani, E.S.; Van Der Voort, P.; Ghaedi, M. Metal-Organic and Covalent Organic Frameworks for the Remediation of Aqueous Dye Solutions: Adsorptive, Catalytic and Extractive Processes. Coord. Chem. Rev. 2021, 454, 214332. [Google Scholar] [CrossRef]
  31. Lohse, M.S.; Bein, T. Covalent Organic Frameworks: Structures, Synthesis, and Applications. Adv. Funct. Mater. 2018, 28, 1705553. [Google Scholar] [CrossRef] [Green Version]
  32. Kandambeth, S.; Mallick, A.; Lukose, B.; Mane, M.V.; Heine, T.; Banerjee, R. Construction of Crystalline 2D Covalent Organic Frameworks with Remarkable Chemical (Acid/Base) Stability via a Combined Reversible and Irreversible Route. J. Am. Chem. Soc. 2012, 134, 19524–19527. [Google Scholar] [CrossRef] [PubMed]
  33. Li, Z.D.; Zhang, H.Q.; Xiong, X.H.; Luo, F. U(VI) Adsorption onto Covalent Organic Frameworks-TpPa-1. J. Solid State Chem. 2019, 277, 484–492. [Google Scholar] [CrossRef]
  34. Liu, N.; Shi, L.; Han, X.; Qi, Q.-Y.; Wu, Z.-Q.; Zhao, X. A Heteropore Covalent Organic Framework for Adsorptive Removal of Cd(II) from Aqueous Solutions with High Efficiency. Chin. Chem. Lett. 2019, 31, 386–390. [Google Scholar] [CrossRef]
  35. Cui, F.-Z.; Liang, R.-R.; Qi, Q.-Y.; Jiang, G.-F.; Zhao, X. Efficient Removal of Cr(VI) from Aqueous Solutions by a Dual-Pore Covalent Organic Framework. Adv. Sustain. Syst. 2019, 3, 1800150. [Google Scholar] [CrossRef]
  36. Li, W.-T.; Zhuang, Y.-T.; Wang, J.-Y.; Yang, T.; Yu, Y.-L.; Chen, M.-L.; Wang, J.-H. A Three-Dimensional Porous Organic Framework for Highly Selective Capture of Mercury and Copper Ions. ACS Appl. Polym. Mater. 2019, 1, 2797–2806. [Google Scholar] [CrossRef]
  37. Sun, Q.; Aguila, B.; Perman, J.; Earl, L.D.; Abney, C.W.; Cheng, Y.; Wei, H.; Nguyen, N.; Wojtas, L.; Ma, S. Postsynthetically Modified Covalent Organic Frameworks for Efficient and Effective Mercury Removal. J. Am. Chem. Soc. 2017, 139, 2786–2793. [Google Scholar] [CrossRef]
  38. Jiang, Y.; Liu, C.; Huang, A. EDTA-Functionalized Covalent Organic Framework for the Removal of Heavy-Metal Ions. ACS Appl. Mater. Interfaces 2019, 11, 32186–32191. [Google Scholar] [CrossRef]
  39. Li, Z.-J.; Xue, H.-D.; Zhang, Y.-Q.; Hu, H.-S.; Zheng, X.-D. Construction of a Cationic Organic Network for Highly Efficient Removal of Anionic Contaminants from Water. New J. Chem. 2019, 43, 11604–11609. [Google Scholar] [CrossRef]
  40. Liao, Q.; Ke, C.; Huang, X.; Zhang, G.; Zhang, Q.; Zhang, Z.; Zhang, Y.; Liu, Y.; Ning, F.; Xi, K. Catalyst-Free and Efficient Fabrication of Highly Crystalline Fluorinated Covalent Organic Frameworks for Selective Guest Adsorption. J. Mater. Chem. A 2019, 7, 18959–18970. [Google Scholar] [CrossRef]
  41. Zhuang, S.; Liu, Y.; Wang, J. Covalent Organic Frameworks as Efficient Adsorbent for Sulfamerazine Removal from Aqueous Solution. J. Hazard. Mater. 2019, 383, 121126. [Google Scholar] [CrossRef] [PubMed]
  42. Li, S.; Yang, Y.; Shan, H.; Zhao, J.; Wang, Z.; Cai, D.; Qin, P.; Baeyens, J.; Tan, T. Ultrafast and Ultrahigh Adsorption of Furfural from Aqueous Solution via Covalent Organic Framework-300. Sep. Purif. Technol. 2019, 220, 283–292. [Google Scholar] [CrossRef]
  43. Guo, J.-X.; Qian, H.-L.; Zhao, X.; Yang, C.; Yan, X.-P. In Situ Room-Temperature Fabrication of a Covalent Organic Framework and Its Bonded Fiber for Solid-Phase Microextraction of Polychlorinated Biphenyls in Aquatic Products. J. Mater. Chem. A 2019, 7, 13249–13255. [Google Scholar] [CrossRef]
  44. Ji, W.; Xiao, L.; Ling, Y.; Ching, C.; Matsumoto, M.; Bisbey, R.P.; Helbling, D.E.; Dichtel, W.R. Removal of GenX and Perfluorinated Alkyl Substances from Water by Amine-Functionalized Covalent Organic Frameworks. J. Am. Chem. Soc. 2018, 140, 12677–12681. [Google Scholar] [CrossRef] [PubMed]
  45. Wang, X.; Ma, R.; Hao, L.; Wu, Q.; Wang, C.; Wang, Z. Mechanochemical Synthesis of Covalent Organic Framework for the Efficient Extraction of Benzoylurea Insecticides. J. Chromatogr. A 2018, 1551, 1–9. [Google Scholar] [CrossRef] [PubMed]
  46. Salonen, L.M.; Pinela, S.; Fernandes, S.; Louçano, J.; Carbó-Argibay, E.; Sárria, M.P.; Rodriguez-Abreu, C.; Peixoto, J.; Espiña, B. Adsorption of Marine Phycotoxin Okadaic Acid on a Covalent Organic Framework. J. Chromatogr. A 2017, 1525, 17–22. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Huo, J.; Luo, B.; Chen, Y. Crystalline Covalent Organic Frameworks from Triazine Nodes as Porous Adsorbents for Dye Pollutants. ACS Omega 2019, 4, 22504–22513. [Google Scholar] [CrossRef] [Green Version]
  48. Zhao, X.; Wang, Z.; Zhang, C.; Yuan, S.; Zhu, Y.; Wang, J. Fabrication and Photocatalytic Properties of Novel ZnO/ZnAl2O4 Nanocomposite with ZnAl2O4 Dispersed Inside ZnO Network. AIChE J. 2012, 59, 215–228. [Google Scholar] [CrossRef]
  49. Dang, M.; Deng, Q.-L.; Tian, Y.-Y.; Liu, C.; Shi, H.-P.; Fang, G.-Z.; Wang, S. Synthesis of Anionic Ionic Liquids@TpBd-(SO3)2 for the Selective Adsorption of Cationic Dyes with Superior Capacity. RSC Adv. 2020, 10, 5443–5453. [Google Scholar] [CrossRef] [Green Version]
  50. Chong, J.H.; Sauer, M.; Patrick, A.B.O.; MacLachlan, M.J. Highly Stable Keto-Enamine Salicylideneanilines. Org. Lett. 2003, 5, 3823–3826. [Google Scholar] [CrossRef]
  51. Wei, H.; Chai, S.; Hu, N.; Yang, Z.; Wei, L.; Wang, L. The Microwave-Assisted Solvothermal Synthesis of a Crystalline Two-Dimensional Covalent Organic Framework with High CO2 Capacity. Chem. Commun. 2015, 51, 12178–12181. [Google Scholar] [CrossRef] [PubMed]
  52. Chandra, S.; Kandambeth, S.; Biswal, B.P.; Lukose, B.; Kunjir, S.M.; Chaudhary, M.; Babarao, R.; Heine, T.; Banerjee, R. Chemically Stable Multilayered Covalent Organic Nanosheets from Covalent Organic Frameworks via Mechanical Delamination. J. Am. Chem. Soc. 2013, 135, 17853–17861. [Google Scholar] [CrossRef] [PubMed]
  53. Vareda, J.P.; Matos, P.D.; Valente, A.J.M.; Durães, L. A New Schiff Base Organically Modified Silica Aerogel-Like Material for Metal Ion Adsorption with Ni Selectivity. Adsorpt. Sci. Technol. 2022, 2022, 1–18. [Google Scholar] [CrossRef]
  54. Utzeri, G.; Murtinho, D.; Maria, T.M.; Pais, A.A.; Sannino, F.; Valente, A.J. Amine-β-Cyclodextrin-Based Nanosponges. The Role of Cyclodextrin Amphiphilicity in the Imidacloprid Uptake. Colloids Surf. A Physicochem. Eng. Asp. 2021, 635, 128044. [Google Scholar] [CrossRef]
  55. Vareda, J.P.; Valente, A.J.; Durães, L. Heavy Metals in Iberian Soils: Removal by Current Adsorbents/Amendments and Prospective for Aerogels. Adv. Colloid Interface Sci. 2016, 237, 28–42. [Google Scholar] [CrossRef]
  56. Bhanja, P.; Mishra, S.; Manna, K.; Mallick, A.; Das Saha, K.; Bhaumik, A. Covalent Organic Framework Material Bearing Phloroglucinol Building Units as a Potent Anticancer Agent. ACS Appl. Mater. Interfaces 2017, 9, 31411–31423. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Sing, K.S.W.; Williams, R.T. Physisorption Hysteresis Loops and the Characterization of Nanoporous Materials. Adsorpt. Sci. Technol. 2004, 22, 773–782. [Google Scholar] [CrossRef]
  58. Lohse, M.S.; Stassin, T.; Naudin, G.; Wuttke, S.; Ameloot, R.; De Vos, D.; Medina, D.D.; Bein, T. Sequential Pore Wall Modification in a Covalent Organic Framework for Application in Lactic Acid Adsorption. Chem. Mater. 2016, 28, 626–631. [Google Scholar] [CrossRef]
  59. Hao, J.; Zhang, Q.; Chen, P.; Zheng, X.; Wu, Y.; Ma, D.; Wei, D.; Liu, H.; Liu, G.; Lv, W. Removal of Pharmaceuticals and Personal Care Products (PPCPs) from Water and Wastewater Using Novel Sulfonic Acid (–SO3H) Functionalized Covalent Organic Frameworks. Environ. Sci. Nano 2019, 6, 3374–3387. [Google Scholar] [CrossRef]
  60. Rahmanian, O.; Falsafin, M.; Dinari, M. High Surface Area Benzimidazole Based Porous Covalent Organic Framework for Removal of Methylene Blue from Aqueous Solutions. Polym. Int. 2020, 69, 712–718. [Google Scholar] [CrossRef]
  61. Liu, T.; Jing, L.; Cui, L.; Liu, Q.; Zhang, X. Facile One-Pot Synthesis of a Porphyrin-Based Hydrophilic Porous Organic Polymer and Application as Recyclable Absorbent for Selective Separation of Methylene Blue. Chemosphere 2018, 212, 1038–1046. [Google Scholar] [CrossRef] [PubMed]
  62. Zhu, X.; An, S.; Liu, Y.; Hu, J.; Liu, H.; Tian, C.; Dai, S.; Yang, X.; Wang, H.; Abney, C.W. Efficient Removal of Organic Dye Pollutants Using Covalent Organic Frameworks. AIChE J. 2017, 63, 3470–3478. [Google Scholar] [CrossRef]
  63. Huang, L.; He, M.; Chen, B.; Cheng, Q.; Hu, B. Facile Green Synthesis of Magnetic Porous Organic Polymers for Rapid Removal and Separation of Methylene Blue. ACS Sustain. Chem. Eng. 2017, 5, 4050–4055. [Google Scholar] [CrossRef]
Polymers 14 03096 g001 550
Figure 1. Scheme of the TFP-based β-ketoenamine COF syntheses (a), schematic structure of resulting 2D COF layer (b), and structures of the dyes used in adsorption studies (c).
Figure 1. Scheme of the TFP-based β-ketoenamine COF syntheses (a), schematic structure of resulting 2D COF layer (b), and structures of the dyes used in adsorption studies (c).
Polymers 14 03096 g001
Polymers 14 03096 g002 550
Figure 2. FTIR spectra of (a) TpPa-COF (black) and corresponding monomers TFP (purple) and Pa (blue); (b) TpPa-COF (red), TpBd-COF (brown), and TpBba-COF (orange).
Figure 2. FTIR spectra of (a) TpPa-COF (black) and corresponding monomers TFP (purple) and Pa (blue); (b) TpPa-COF (red), TpBd-COF (brown), and TpBba-COF (orange).
Polymers 14 03096 g002
Polymers 14 03096 g003 550
Figure 3. Thermograms (solid) and dTG (dashed) of TpPa-COF (red), TpBd-COF (brown), and TpBba-COF (orange).
Figure 3. Thermograms (solid) and dTG (dashed) of TpPa-COF (red), TpBd-COF (brown), and TpBba-COF (orange).
Polymers 14 03096 g003
Polymers 14 03096 g004 550
Figure 4. N2 sorption isotherms for (a) TpPa-COF (red) and TpBba-COF (orange), and (b) TpBd-COF (brown).
Figure 4. N2 sorption isotherms for (a) TpPa-COF (red) and TpBba-COF (orange), and (b) TpBd-COF (brown).
Polymers 14 03096 g004
Polymers 14 03096 g005 550
Figure 5. XRD patterns for TpPa-COF (black), TpBd-COF (blue), and TpBba-COF (red).
Figure 5. XRD patterns for TpPa-COF (black), TpBd-COF (blue), and TpBba-COF (red).
Polymers 14 03096 g005
Polymers 14 03096 g006 550
Figure 6. SEM images of TpPa-COF (a), TpBba-COF (b), and TpBd-COF (c) (×1500).
Figure 6. SEM images of TpPa-COF (a), TpBba-COF (b), and TpBd-COF (c) (×1500).
Polymers 14 03096 g006
Polymers 14 03096 g007 550
Figure 7. Removal efficiencies for the adsorption of MB (blue) and MO (orange) onto TpPa-COF, TpBba-COF, and TpBd-COF. Initial concentration of dyes: 20 ppm; mass of adsorbent: 4 mg.
Figure 7. Removal efficiencies for the adsorption of MB (blue) and MO (orange) onto TpPa-COF, TpBba-COF, and TpBd-COF. Initial concentration of dyes: 20 ppm; mass of adsorbent: 4 mg.
Polymers 14 03096 g007
Polymers 14 03096 g008 550
Figure 8. SEM images of (a1,a2) TpPa-COF, (b1,b2) TpBba-COF, and (c1,c2) TpBd-COF before (1) and after (2) MB adsorption (×5000).
Figure 8. SEM images of (a1,a2) TpPa-COF, (b1,b2) TpBba-COF, and (c1,c2) TpBd-COF before (1) and after (2) MB adsorption (×5000).
Polymers 14 03096 g008
Polymers 14 03096 g009 550
Figure 9. MB sorption isotherms (a) fitted to the Freundlich sorption model, and kinetics (b), fitted to the pseudo-second-order model, for TpPa-COF (red), TpBba-COF (orange), and TpBd-COF (brown).
Figure 9. MB sorption isotherms (a) fitted to the Freundlich sorption model, and kinetics (b), fitted to the pseudo-second-order model, for TpPa-COF (red), TpBba-COF (orange), and TpBd-COF (brown).
Polymers 14 03096 g009
Polymers 14 03096 g010 550
Figure 10. FTIR spectra of Bd(NO2)2 (light blue), TpBd(NO2)2-COF [100%] (dark blue), Bd(SO3H)2 (light green), and TpBd(SO3H)2-COF [100%] (dark green).
Figure 10. FTIR spectra of Bd(NO2)2 (light blue), TpBd(NO2)2-COF [100%] (dark blue), Bd(SO3H)2 (light green), and TpBd(SO3H)2-COF [100%] (dark green).
Polymers 14 03096 g010
Polymers 14 03096 g011 550

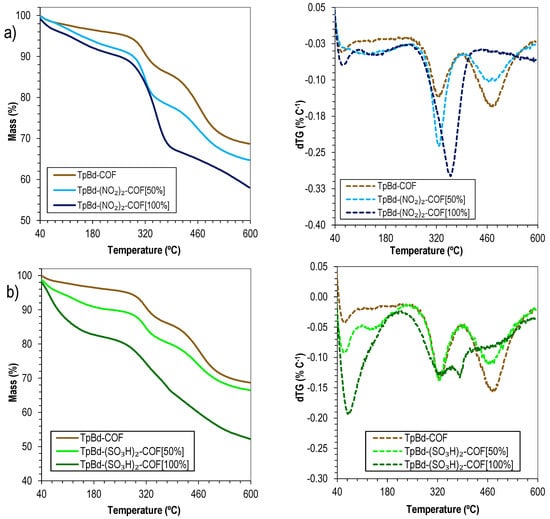

Figure 11. Thermograms (solid) and dTG (dashed) of (a) TpBd-COF (brown), TpBd(NO2)2-COF [50%] (light blue), and TpBd(NO2)2-COF [100%] (dark blue); (b) TpBd-COF (brown), TpBd(SO3H)2-COF [50%] (light green), and TpBd(SO3H)2-COF [100%] (dark green).
Figure 11. Thermograms (solid) and dTG (dashed) of (a) TpBd-COF (brown), TpBd(NO2)2-COF [50%] (light blue), and TpBd(NO2)2-COF [100%] (dark blue); (b) TpBd-COF (brown), TpBd(SO3H)2-COF [50%] (light green), and TpBd(SO3H)2-COF [100%] (dark green).
Polymers 14 03096 g011
Polymers 14 03096 g012 550
Figure 12. Removal efficiencies for the adsorption of MB (blue) and MO (orange) onto functionalized TpBd-COF materials. Initial concentration of dyes: 20 ppm; mass of adsorbent: 4 mg.
Figure 12. Removal efficiencies for the adsorption of MB (blue) and MO (orange) onto functionalized TpBd-COF materials. Initial concentration of dyes: 20 ppm; mass of adsorbent: 4 mg.
Polymers 14 03096 g012
Polymers 14 03096 g013 550
Figure 13. MB sorption isotherms (a), fitted to the Freundlich sorption model, and kinetics (b), fitted to the pseudo-second-order model, for functionalized COFs.
Figure 13. MB sorption isotherms (a), fitted to the Freundlich sorption model, and kinetics (b), fitted to the pseudo-second-order model, for functionalized COFs.
Polymers 14 03096 g013
Polymers 14 03096 g014 550
Figure 14. Removal efficiencies of Cu(II), Pb(II), Ni(II), and Cd(II) by functionalized TpBd COFs. Initial metal ion concentrations: 5 ppm at pH 4.
Figure 14. Removal efficiencies of Cu(II), Pb(II), Ni(II), and Cd(II) by functionalized TpBd COFs. Initial metal ion concentrations: 5 ppm at pH 4.
Polymers 14 03096 g014
Table
Table 2. N2 sorption isotherm parameters obtained for TpPa-COF, TpBd-COF, and TpBba-COF.
Table 2. N2 sorption isotherm parameters obtained for TpPa-COF, TpBd-COF, and TpBba-COF.
NameBET Surface Area (m2 g−1)Pore Volume (cm3 g−1)Avg. Pore Diameter (nm)
TpPa-COF83 ± 20.1587.6
TpBd-COF69 ± 10.35920.8
TpBba-COF32.4 ± 0.80.0729.0
Table
Table 3. Langmuir and Freundlich parameters for MB sorption isotherms on TpPa-COF, TpBba-COF, and TpBd-COF.
Table 3. Langmuir and Freundlich parameters for MB sorption isotherms on TpPa-COF, TpBba-COF, and TpBd-COF.
NameLangmuirFreundlich
qm (mg g–1)KL (mg–1)R2KF (mg g–1)nFR2
TpPa-COF29 ± 20.018 ± 0.0030.98172.7 ± 0.32.5 ± 0.20.9722
TpBd-COF36 ± 10.08 ± 0.010.986611 ± 14.5 ± 0.40.9854
TpBba-COF18.9 ± 0.80.06 ± 0.010.97946 ± 15 ± 10.9511
Table
Table 4. Pseudo-first-order and pseudo-second-order fitting parameters for sorption kinetics of MB for TpPa-COF, TpBba-COF, and TpBd-COF, at 25º C.
Table 4. Pseudo-first-order and pseudo-second-order fitting parameters for sorption kinetics of MB for TpPa-COF, TpBba-COF, and TpBd-COF, at 25º C.
NamePseudo-First OrderPseudo-Second Order
qe (mg g−1)k1 (min−1)R2qe (mg g−1)k2 (g mg−1 min−1)R2
TpPa-COF16 ± 10.03 ± 0.010.902316.5 ± 0.80.05 ± 0.010.9606
TpBd-COF28 ± 10.030 ± 0.0060.938932 ± 10.037 ± 0.0060.9777
TpBba-COF13 ± 10.0021 ± 0.00060.870215 ± 20.0025 ± 0.00080.9056
Table
Table 5. Langmuir and Freundlich parameters for MB sorption isotherms for functionalized TpBd-COFs.
Table 5. Langmuir and Freundlich parameters for MB sorption isotherms for functionalized TpBd-COFs.
NameLangmuirFreundlich
qm (mg g−1)KL (mg−1)R2KF (mg g−1)nFR2
TpBd(NO2)2-COF [50%]48 ± 11.6 ± 0.30.983530 ± 210 ± 20.9724
TpBd(NO2)2-COF [100%]84 ± 61.2 ± 0.70.884944 ± 16.5 ± 0.30.9966
TpBd(SO3H)2-COF [50%]135 ± 70.28 ± 0.070.964648 ± 34.2 ± 0.30.9879
TpBd(SO3H)2-COF [100%]166 ± 130.4 ± 0.10.93859 ± 33.8 ± 0.20.9924
Table
Table 6. Pseudo-first-order and pseudo-second-order fitting parameters for sorption kinetics of MB for different functionalized TpBd-COF materials, at 25 °C.
Table 6. Pseudo-first-order and pseudo-second-order fitting parameters for sorption kinetics of MB for different functionalized TpBd-COF materials, at 25 °C.
NamePseudo-First OrderPseudo-Second Order
qe (mg g−1)k1 (min−1)R2qe (mg g−1)k2 (g mg−1 min−1)R2
TpBd(NO2)2-COF [50%]42 ± 40.007 ± 0.0020.826144 ± 40.011 ± 0.0040.8760
TpBd(NO2)2-COF [100%]73 ± 40.09 ± 0.030.922478 ± 30.13 ± 0.050.9650
TpBd(SO3H)2-COF [50%]97 ± 50.012 ± 0.0020.9509109 ± 60.016 ± 0.0030.9573
TpBd(SO3H)2-COF [100%]88 ± 70.04 ± 0.010.807897 ± 70.05 ± 0.020.9033
Table
Table 7. Physical properties and MB adsorption parameters for other COFs and porous polymers found in the literature.
Table 7. Physical properties and MB adsorption parameters for other COFs and porous polymers found in the literature.
AdsorbentLinkage TypePore Wall FunctionalizationBET Surface Area (m2 g−1)Pore Size (nm)qmax (mg g−1)Ref.
TS-COF-1Imide–14843.11691[62]
TS-COF-2β-ketoenamine–7561.1377[62]
TPT-DMBD-COFImineCH3279.54.045.5[47]
CON-1 aC-C–262.5– b[39]
SCF-FCOF-1ImineF20563.5108.9[40]
bCOFImide–856–63.3[60]
MOP-2 cAzine–327–1153[63]
PPOP-SO3HEnamineSO3H––980.4[61]
TpPa-SO3β-ketoenamineSO3− d70.81.71806.9 e[49]
TpBd-(SO3)2β-ketoenamineSO3− d60.59.32653.3 e[49]
TpBd-(SO3H)2β-ketoenamineSO3H32.4 ± 0.89.0166 ± 13This Work
a: polycationic COF. b: residual adsorption, value not reported. c: Fe3O4 MNP—COF composite. d: ionic liquid grafted. e: evaluated at pH 9.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Machado, T.F.; Santos, F.A.; Pereira, R.F.P.; de Zea Bermudez, V.; Valente, A.J.M.; Serra, M.E.S.; Murtinho, D. β-Ketoenamine Covalent Organic Frameworks—Effects of Functionalization on Pollutant Adsorption. Polymers 2022, 14, 3096. https://doi.org/10.3390/polym14153096

AMA Style

Machado TF, Santos FA, Pereira RFP, de Zea Bermudez V, Valente AJM, Serra MES, Murtinho D. β-Ketoenamine Covalent Organic Frameworks—Effects of Functionalization on Pollutant Adsorption. Polymers. 2022; 14(15):3096. https://doi.org/10.3390/polym14153096

Chicago/Turabian Style

Machado, Tiago F., Filipa A. Santos, Rui F. P. Pereira, Verónica de Zea Bermudez, Artur J. M. Valente, M. Elisa Silva Serra, and Dina Murtinho. 2022. "β-Ketoenamine Covalent Organic Frameworks—Effects of Functionalization on Pollutant Adsorption" Polymers 14, no. 15: 3096. https://doi.org/10.3390/polym14153096

APA Style

Machado, T. F., Santos, F. A., Pereira, R. F. P., de Zea Bermudez, V., Valente, A. J. M., Serra, M. E. S., & Murtinho, D. (2022). β-Ketoenamine Covalent Organic Frameworks—Effects of Functionalization on Pollutant Adsorption. Polymers, 14(15), 3096. https://doi.org/10.3390/polym14153096

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
