Article

Cooperative Effect of ZIF-67-Derived Hollow NiCo-LDH and MoS2 on Enhancing the Flame Retardancy of Thermoplastic Polyurethane

by
Yi Qian
1,*,
Wenyuan Su
1,
Long Li
2,*,
Rongmin Zhao
3,
Haoyan Fu
1,
Jiayin Li
2,
Peidong Zhang
2,
Qingjie Guo
1,4 and
Jingjing Ma
4
1
College of Chemical Engineering, Qingdao University of Science and Technology, Qingdao 266042, China
2
College of Environment and Safety Engineering, Qingdao University of Science and Technology, Qingdao 266042, China
3
Qingdao University of Science and Technology Library, Qingdao University of Science and Technology, Qingdao 266042, China
4
State Key Laboratory of High-Efficiency Utilization of Coal and Green Chemical Engineering, Ningxia University, Yinchuan 750021, China
*
Authors to whom correspondence should be addressed.
Polymers 2022, 14(11), 2204; https://doi.org/10.3390/polym14112204
Submission received: 12 May 2022 / Revised: 25 May 2022 / Accepted: 27 May 2022 / Published: 29 May 2022
(This article belongs to the Special Issue Layered Materials-Polymer Based Fire Retardant Composites)
Browse Figures
Versions Notes

Abstract

:
In this work, a novel three-dimensional (3D) hollow nickel-cobalt layered double hydroxide (NiCo-LDH) was synthesized using zeolitic imidazole framework-67 (ZIF-67) as a template, and then utilized to functionalize molybdenum disulfide (NiCo-LDH/MoS2) via electrostatic force. Flame retardant thermoplastic polyurethane (TPU) composites were prepared by the melt blending method. Compared to pure TPU, NiCo-LDH/MoS2 filled TPU composite was endowed with a decrease of 30.9% and 55.7% of the peak heat release rate (PHRR) and the peak smoke production rate (PSPR), respectively. Furthermore, the addition of NiCo-LDH/MoS2 can significantly improve the thermal stability and char yield of the TPU composite. The catalytic carbonization effect and dilution effect of NiCo-LDH, and the barrier effect of MoS2 nanosheets enable TPU composites with excellent flame retardancy and toxic gas suppression ability.

Graphical Abstract

1. Introduction

As an important engineering thermoplastic, thermoplastic polyurethane (TPU) has been widely used in the fields of cable, automotive, building and medical devices because of its good tensile strength, superior mechanical properties, excellent chemical stability and adjustable flexibility [1,2,3,4]. Nevertheless, TPU itself is flammable and releases a large amount of black smoke and toxic gases during the combustion process, posing a great threat to human life and property safety [5]. Therefore, it is highly desirable to find efficient and halogen-free flame retardants to improve the flame retardant and smoke suppression properties of TPU. In recent years, nanoscale fillers such as molybdenum disulfide (MoS2) [6], layered double hydroxide (LDH) [7] and graphene (GO) [8] have been used as flame retardant additives for TPU and other polymers.
Layered double hydroxide (LDH) is a layered material similar to brucite, also known as hydrotalcite or anionic clay, mainly composed of a positively charged layer and interlayer anion [9]. The two-dimensional (2D) layered structure of LDH can not only hinder the heat and mass transfer between the combustion zone and the polymer matrix, but also dilute the flammable gases by releasing water vapor and carbon dioxide during the polymer decomposition process [10]. Nevertheless, LDH with higher surface energy tends to aggregate together, which is not conducive to improving the flame retardancy of the polymer [11]. Taking advantage of the difference in internal and external stability of metal-organic frameworks (MOFs) as in situ sacrificial templates to prepare three-dimensional (3D) hollow LDH materials is a dramatic research orientation [12,13]. The construction of hierarchical 3D architectures based on 2D LDH can effectively inhibit the aggregation of LDH nanosheets, thereby improving the compatibility of LDH and polymer matrix [14]. Zeolitic imidazole framework-67 (ZIF-67) has been shown to be ideal sacrificial template for the construction of hollow LDH [15]. Zhang [16] et al. prepared 3D HGM@LDH@DOPO hybrid material using ZIF-67 as in situ sacrificial templates, hollow glass microspheres (HGM) and 9, 10-dihydro-9-oxa-10-phosphaphenanthrene 10-oxide (DOPO) as synergistic flame retardants. The obtained HGM@LDH@DOPO was added to the epoxy (EP) to prepare PPcomposites. The cone calorimeter test (CCT) results showed that the peak heat release rate (PHRR) and total heat release (THR) of EP composites were reduced by 56.4% and 14.7% with 5 wt% HGM@LDH@DOPO loadings, respectively. Typically, the loading level of LDH in polymer composites is relatively low (less than 5%). In order to achieve flame retardant requirements, LDH can be combined with other flame retardants to obtain the synergistic flame retardant effect [17].
As a rising two-dimensional material, molybdenum disulfide (MoS2) has excellent mechanical properties, low thermal conductivity and non-combustibility, this facilitates its application as a heat stabilizer and flame retardant in polymer composites [18]. However, the inert surface and interlayer van der Waals forces of MoS2 nanosheets easily lead to weak interfacial interaction between MoS2 and the polymer matrix, resulting in poor mechanical and flame retardant properties of polymer composites [19]. Therefore, it is necessary to exfoliate MoS2 into a single layer or few layers for the purpose of uniform dispersion in the polymer. Peng [20] et al. utilized carboxyl-rich poly(ionic liquid)-PCMVIm to exfoliate and non-covalently functionalize MoS2, and employed as nanofillers for polyacrylonitrile (PAN) fiber. The results showed that the tensile strength and elongation at break of the PCMVIm-MoS2/PAN composite fiber increased by 55% and 70.9%, respectively. In addition, the peak heat release rate, peak smoke release rate and peak CO generation rate of PCMVIm-MoS2/PAN composite fiber decreased by 48.7%, 51.4% and 63.5%, respectively. Hence, the combination of 3D hollow LDH and exfoliated MoS2 nanosheets is expected to play a great role in improving the flame retardancy and smoke suppression of TPU.
In this work, the novel 3D hollow NiCo-LDH was synthesized by hydrothermal method using ZIF-67 as in situ sacrificial templates, and the 3D hollow NiCo-LDH and MoS2 were hybridized to synthesize 3D hollow NiCo-LDH/MoS2 hybrid material. Simultaneously, the structure and morphology of the NiCo-LDH/MoS2 hybrid material were investigated in detail. Then MoS2, NiCo-LDH and NiCo-LDH/MoS2 filled TPU composites were prepared by melt blending, and their effects on the flame retardant, smoke suppression properties, thermal stability and toxic gas emission of TPU were further studied.

2. Experimental

2.1. Materials

Nickel (II) nitrate hexahydrate (Ni(NO3)2·6H2O, AR) was supplied by Tianjin Dingshengxin Chemical Co. Ltd., Tianjin, China. Molybdenum disulfide (MoS2) and n-butyllithium (C4H9Li, AR) were provided by Sinopharm Group Chemical Reagent Co. Ltd., Shanghai, China. Cobalt (II) nitrate hexahydrate (Co(NO3)2∙6H2O, AR), 2-Methylimidazole (2-MIM, AR), ethanol absolute, methanol were purchased from Aladdin Chemical Reagent Co., Ltd., Shanghai, China. Thermoplastic polyurethane (TPU, 9380A) was bought from Germany’s bayer, Shanghai, China.

2.2. Synthesis of 3D Hollow NiCo-LDH

ZIF-67 was synthesized according to previous reports in the literature [21,22]. 3D hollow NiCo-LDH was fabricated using the hydrothermal method. Typically, 200 mg of ZIF-67 was dissolved in 50 mL of anhydrous ethanol and ultrasonically dispersed for 30 min, which was recorded as liquid A. Then 600 mg of nickel nitrate hexahydrate was ultrasonically dispersed in 30 mL of anhydrous ethanol, which was recorded as liquid B. Finally, mix liquid A and liquid B uniformly and then transfer them into a 100 mL Teflon-lined autoclave, and reacted at 90 °C for 2 h. After cooling to room temperature, the obtained product was washed three times with ethanol in a centrifuge, and dried in an oven at 60 °C for 10 h to obtain hollow NiCo-LDH.

2.3. Synthesis of 3D Hollow NiCo-LDH/MoS2 hybrid material

Preparation of exfoliated MoS2 nanosheets by Li-ion intercalation [23]. The 3D hollow NiCo-LDH/MoS2 hybrid material was also synthesized by the hydrothermal method. Figure 1 is the preparation process diagram of the 3D hollow NiCo-LDH/MoS2 hybrid material.

2.4. Synthesis of TPU Composites

Under the mixing conditions of 180 °C and 30 rpm, 58 g of TPU was added to the mixer, and then the flame retardants with a mass fraction of 2 wt% were blended into the TPU matrix and stirred for 10 min. The specific formulations of TPU composites are shown in Table 1. Afterwards, the prepared TPU composites were put into a tablet press (180 °C, 10 MPa), and the TPU composites were hot-pressed for 10 min and cold-pressed for 3 min to obtain a size of 100 mm × 100 mm × 3 mm of TPU composites.

2.5. Characterization

X-ray diffraction (XRD) was recorded on an X-ray diffractometer equipped with Cu-Kα tube and Ni filter (λ = 0.1542 nm), and the diffraction angle (2θ) ranged from 5° to 80°. Fourier transform infrared (FTIR) spectra of the prepared samples were performed by a Nicolet 6700 FTIR spectrophotometer in the range of 4000 cm−1 to 400 cm−1. The morphology of the prepared samples was observed using a scanning electron microscope (SEM), accompanied by an accelerating voltage of 9 kV. Transmission electron microscopy-energy dispersive spectrometer (TEM-EDS) images were performed with a JEM-2100Plus instrument at 200 KV. X-ray photoelectron spectroscopy (XPS) characterizes the elemental chemical states of the prepared samples. The thermal stability of the samples was tested using a thermogravimetric analyzer (TGA). About 10.0 mg of the sample was placed in an alumina crucible and heated from 40 °C to 800 °C at a linear heating rate of 20 °C/min, setting the N2 flow rate to 20 mL/min. The combustion tests were carried out on a cone calorimeter according to the ISO 5660 test standard. All TPU composites (100 mm × 100 mm × 3 mm) were wrapped with aluminum foil and measured under an external heat flux of 50 kW/m2. Analysis of pyrolysis products by Thermogravimetric-Fourier transform infrared spectrometer (TG-FTIR).

3. Results and Discussions

3.1. Characterization of Hollow NiCo-LDH and Its hybrid material

The structural information of the prepared samples was analyzed by XRD, as shown in Figure 2. As demonstrated in Figure 2a, the XRD pattern of MoS2 exhibits an obvious peak at 2θ = 14.2°, corresponding to the (002) plane. In addition, the characteristic peaks of ZIF-67 are in agreement with the previously reported work [21]. For NiCo-LDH, reflections at 2θ = 11.3°, 22.9°, 34.1° and 60.7° can be indexed as (003), (006), (009), and (110) diffraction peaks of NiCo-LDH, respectively, while the diffraction peaks are sharper, indicating that NiCo-LDH has a good crystalline form [24]. It can be seen from the figure that the NiCo-LDH/MoS2 hybrid material has similar characteristic peaks to NiCo-LDH, and there is no diffraction peak corresponding to MoS2, indicating a high dispersion state of MoS2 in the hybrid material. This is mainly attributed to the loss of face-to-face stacking structure of MoS2 nanosheets for the growth of NiCo-LDH on MoS2 surfaces [25]. Compared with NiCo-LDH, the diffraction peaks of NiCo-LDH/MoS2 are blunt, which is caused by the disorder of the stacked structure between NiCo-LDH and MoS2 nanosheets.
Figure 3a shows the FTIR spectra of MoS2, NiCo-LDH and NiCo-LDH/MoS2. It can be seen from Figure 3a that the broad absorption peak at 3443 cm−1 of the three materials originates from the stretching vibration of the -OH group. The characteristic peak at 1627 cm−1 is ascribed to the bending vibration of water molecules. For NiCo-LDH, the stretching vibration of NO3− is also detected at around 1380 cm−1. Due to the lattice vibration of metal-O, NiCo-LDH exhibits characteristic absorption peaks at 500–800 cm−1 [26]. The BET surface area of hollow NiCo-LDH was detected by N2 adsorption/desorption isotherm, as shown in Figure 3b. Qin et al. reported that the BET surface area of solid NiCo-LDH is about 34 m2/g [27]. Interconnected NiCo-LDH nanosheets are loosely stacked on the precursor surface to form a highly porous structure, therefore NiCo-LDH has a high BET surface area of 80.3768 m2/g, which helps the NiCo-LDH to form more interfaces with the polymer matrix, thus improving the interaction between the two. Figure 3c shows the TG curves of MoS2, NiCo-LDH and NiCo-LDH/MoS2. It is noted that MoS2 nanosheets have high thermal stability, and the char yield of MoS2 is 90.29%. NiCo-LDH undergoes three thermal degradation processes by which the loss of interlayer H2O, decomposition of metal hydroxide, and collapse of metal organic framework. NiCo-LDH/MoS2 and NiCo-LDH have similar thermal decomposition trends, which might be attributed to the lower content of MoS2 in the hybrid material. In addition, the char yield of NiCo-LDH/MoS2 (58.28%) is higher than that of NiCo-LDH (57.64%), indicating that NiCo-LDH/MoS2 has better high temperature thermal stability. In Figure 3d, MoS2 nanosheets exhibit a sheet-like structure. The dark parts in the sample can be attributed to the partial aggregation of MoS2 nanosheets.
Morphologies of ZIF-67, NiCo-LDH and NiCo-LDH/MoS2 were observed by TEM and SEM, as shown in Figure 4. It can be seen from Figure 4a,d that the precursor ZIF-67 exhibits a solid regular dodecahedron morphology with uniform size (about 100 nm), and its surface is considerably smooth. As shown in Figure 4b,e, NiCo-LDH still maintains the morphology of the precursor and has a hollow interior, and NiCo-LDH nanosheets grown on the surface of the ZIF-67 precursor. From Figure 4c, it can be seen that the NiCo-LDH/MoS2 hybrid material fails to detect MoS2, which may be caused by the complete coverage of MoS2 nanosheets by NiCo-LDH.
Figure S1 gives the EDS spectrum and plan scan image of NiCo-LDH/MoS2. It can be seen from Figure S1 that Co, Ni and O elements are uniformly distributed on the ZIF-67-derived hollow dodecahedral framework. At the same time, the detected Mo element also confirms the existence of MoS2, indicating the successful preparation of NiCo-LDH/MoS2 hybrid material.
XPS was used to test the chemical composition of NiCo-LDH/MoS2 and the valence states of the elements, and the results are presented in Figure 5. Figure 5a is the XPS survey spectrum of NiCo-LDH/MoS2, indicating the presence of C, O, Ni, Co and Mo elements of hybrid material. This further proves the successful hybridization of NiCo-LDH and MoS2. In the high-resolution Ni 2p spectrum, the peaks at 853.2 ev and 870.8 ev can be attributed to Ni 2p3/2 and Ni 2p1/2. Another two peaks of 858.8 ev and 877.2 ev correspond to the satellite shake-up peaks of Ni 2p3/2 and Ni 2p1/2, respectively [27]. These peaks prove that the valence state of the Ni element is divalent. As shown in Figure 4c, the binding energies of Co2+ 2p3/2 and Co2+ 2p1/2 at fitting peaks 779.3 ev and 795.2 ev, while the binding energy peaks at 778.2 ev and 793.7 ev refer to Co3+ 2p3/2 and Co3+ 2p1/2 [28].

3.2. CCT Analysis

It has been demonstrated that the results of the CCT correlate well with the results obtained in the large-scale fire tests and can be used to predict the burning behavior of polymers in real fires [29]. Therefore, the effects of MoS2, NiCo-LDH and NiCo-LDH/MoS2 on the flame retardant and smoke suppression properties of TPU composites were further investigated by the cone calorimeter.
Heat release rate (HRR) is an important indicator to describe the fire hazard of polymers and can predict the behavior of polymers under real combustion conditions [30]. The HRR results for pure TPU and TPU composites are given in Figure 6 and Table 2. In Figure 6, pure TPU burns fiercely after being ignited and has the highest peak heat release rate (PHRR) of 1135 kW/m2. The addition of 2 wt% NiCo-LDH and MoS2 nanosheets slightly decreases the PHRR of TPU composites to 804 kW/m2 and 734 kW/m2, respectively, indicating that MoS2 and NiCo-LDH nanosheets can inhibit the heat release of TPU composites and improve the flame retardancy of TPU composites to a certain extent. It is worth noting that the PHRR value of NiCo-LDH/MoS2 filled TPU composite is lower than that of single MoS2 or NiCo-LDH filled TPU composites, indicating that NiCo-LDH and MoS2 have synergistic flame retardant effect. On the one hand, the transition metals nickel and cobalt in NiCo-LDH have catalytic carbonization effects. Coke can form a barrier effect on the polymer surface, slow down heat and mass transfer between the gas phase and the condensed phase, and protect the underlying material from further combustion [31]. On the other hand, two-dimensional MoS2 nanosheets have nano-barrier effect, which can hinder the release of volatile products including hydrocarbons, so that less volatile products form fuel into the combustion zone, thereby reducing the heat release rate [32]. It is not difficult to see from Figure 6 that the ignition time of TPU composites is longer than that of pure TPU, which is related to the decomposition of MoS2 and NiCo-LDH at low temperatures. Of note, The addition of MoS2 nanosheets or NiCo-LDH/MoS2 shortens the ignition time of TPU composites, which is attributed to the early decomposition of MoS2 nanosheets or NiCo-LDH/MoS2.
Figure 7 exhibits the total heat release (THR) curves of pure TPU and TPU composites. Pure TPU has the highest THR value of 118.8 MJ/m2. After the incorporation of 2 wt% NiCo-LDH and MoS2 separately, the THR values of TPU composites are decreased to 104.6 MJ/m2 and 100.7 MJ/m2, respectively, this is mainly because the uniformly dispersed NiCo-LDH and MoS2 nanosheets in the TPU matrix can inhibit the release of combustible gases during the combustion process, thereby promoting carbonization. Meanwhile, NiCo-LDH will release water vapor and reduce the surface temperature of TPU substrate during the combustion process, so as to achieve better flame retardant effect [33]. However, when incorporating 2 wt% NiCo-LDH/MoS2 hybrid material into TPU, the THR value of TPU3 increased to 106.1 MJ/m2, which may be due to the combination of MoS2 and NiCo-LDH further reducing the exfiltration rate of combustible gas, leading to more complete oxidative combustion of combustible volatiles such as hydrocarbons and thus generating more heat.
The amount of heavy smoke released during the combustion process is an important parameter to evaluate the fire hazard of TPU. The SPR (smoke production rate) curves of pure TPU and its composites are shown in Figure 8. The PSPR (peak smoke production rate) value of pure TPU reaches 0.113 m2/s, indicating the highest smoke emission. Nevertheless, the addition of MoS2 has little effect on the PSPR value of the TPU composite, indicating that MoS2 alone could not achieve satisfactory smoke suppression effect. In contrast, the PSPR value of NiCo-LDH filled TPU2 is further reduced to 0.056 m2/s, which is reduced by 50.4% as compared to that of pure TPU. It is ascribed that the transition metals Ni and Co have the effect of catalytic carbonization, and the formed carbon layer can reduce the combustible gas and smoke-forming materials in the gas phase. In addition, the porous structure of 3D hollow NiCo-LDH can absorb organic volatiles generated by the thermal decomposition of TPU, which are the main source of smoke particles [34]. When TPU composite is reinforced with NiCo-LDH/MoS2 hybrid material, its PSPR value is further reduced to 0.05 m2/s, clearly revealing the significant enhancement of smoke suppression performance of TPU composites. This is mainly attributed to NiCo-LDH and MoS2 decomposed nickel, cobalt and molybdenum compounds can catalyze the formation of carbon, which can suppress the smoke production rate of TPU composites [32].
The TSP (total smoke production) curves for pure TPU as well as TPU composites are given in Figure 9. Obviously, pure TPU releases the most smoke during combustion, with a TSP value as high as 12.3 m2. It is worth noting that the TSP value of TPU1 is 11.9 m2, which is basically the same as that of pure TPU. Compared with pure TPU, the TSP value of TPU2 is 8.8 m2, corresponding to a decrease of 28.5%. This can be explained that organic volatile is the main source of smoke particles, and the presence of NiCo-LDH makes TPU molecules more retained in the condensed phase without being converted into an organic volatile [35]. The TSP value of the TPU composite with NiCo-LDH/MoS2 hybrid material is further reduced to 8.2 m2, corresponding to a 33.3% reduction compared to pure TPU. The above results indicate that the combination of two additives imparts better smoke suppression to TPU.

3.3. Thermal Stability Analysis

TGA is a widely used technique to rapidly evaluate the thermal stability of materials, and can also reveal the thermal degradation behavior of polymers at different temperatures [36]. To profoundly understand the influence of MoS2, NiCo-LDH and NiCo-LDH/MoS2 hybrid material on the thermal stability of TPU composites, the thermal oxidative degradation behavior and carbon residues of different TPU composites were compared using TGA.
The TG and DTG profiles for pure TPU and TPU composites under N2 atmosphere are displayed in Figure 10, and the related data are summarized in Table 3. From Figure 10b, it can be seen that pure TPU mainly presents two decomposition stages. More precisely, the first decomposition stage corresponds to the removal of CO2, and the second decomposition stage is mainly attributed to the dehydration carbonization reaction [37]. In contrast, TPU composites exhibit only one thermal decomposition stage, the rapid decomposition stage of TPU composites occurs between 250 °C and 450 °C. From Figure 10a, it can be easily observed that the initial decomposition temperature (T−5%, temperatures at 5% weight loss) of the TPU composites is lower than that of pure TPU, which is mainly attributed to the early degradation of MoS2 and NiCo-LDH. In addition, the T−5% of TPU3 is 6 °C higher than that of TPU2, demonstrating that the NiCo-LDH/MoS2 hybrid material improved the thermal stability of TPU composites. As can be seen, the char yields of TPU1 and TPU2 at 800 °C are 7.93% and 8.02%, which are 1.36 and 1.37 times than that of pure TPU, respectively. The enhanced char yields may be due to the addition of MoS2 or NiCo-LDH, implying the formation of effective barrier layers in the TPU composites. Furthermore, the char yield of TPU3 reaches 11.87% at 800 °C. demonstrating that NiCo-LDH and MoS2 nanosheets jointly promote the improvement of char yield of TPU composite from the above analysis, the catalytic carbonization effect of NiCo-LDH/MoS2 hybrid material can enhance the thermal stability of TPU composites, which is beneficial to improve the fire safety of TPU composites [38].

3.4. Char Residue Analysis

In order to study the flame retardant mechanism of NiCo-LDH/MoS2 in the condensed phase, the digital photos of carbon residues of TPU composites were firstly investigated. Figure S2 gives digital photos of carbon residues of pure TPU of TPU composites after the cone calorimeter test. It can be clearly seen from Figure S2 that the pure TPU burns very completely, and there is no remaining carbon residue. For TPU1 added with MoS2, the carbon layer is not complete, which also leads to the inability of TPU1 to effectively suppress mass and heat transfer during the combustion process. Although the carbon residue of TPU2 covers the entire aluminum foil, the carbon residue is loose and fragile. On the contrary, by incorporating NiCo-LDH/MoS2 hybrid material into TPU, the amount of carbon residual increases significantly, and the carbon layer is thicker and harder, indicating that NiCo-LDH/MoS2 hybrid material has excellent catalytic carbonization effect.
The SEM images of the carbon residues of the TPU composite are shown in Figure 11. It is clear that there are obvious cracks and a large number of holes in the carbon residual of TPU1. When NiCo-LDH is added to TPU, the carbon residue of TPU2 has a more continuous structure, but there are still some cracks and holes. In comparison, the application of NiCo-LDH/MoS2 hybrid material in TPU gives a denser and less porous carbon residue. The dense carbon layer structure can not only effectively inhibit the transfer of heat and volatiles, but also protect the underlying polymer, thereby significantly improving the thermal stability and flame retardant properties of TPU composites [39].
The carbon residues of TPU1 and TPU3 were analyzed by XRD and Raman tests, and the results are shown in Figure 12. It can be found in Figure 12a that diffraction peaks of MoO3 and MoS2 appeared in the XRD pattern of the carbon residue of TPU1. As shown in Figure 12b, the XRD pattern of the carbon residue of TPU3 not only has characteristic peaks of metal oxides such as MoO3, NiO, Ni2O3 and Co2O3, but also has a diffraction peak of graphite crystallite around 2θ = 25°. The degree of graphitization of carbon residues was determined by Raman spectra, as shown in Figure 12c,d. It is clear from both Raman spectra that obvious peaks are observed at 1360 cm−1 and 1598 cm−1, representing the D and G bands, respectively. The area ratio of the D band and G band (ID/IG) is widely used to determine the degree of graphitization of carbon residues. The lower the value of ID/IG, the higher the degree of graphitization of the carbon residues [40]. The ID/IG value of TPU3 is 2.71, lower than that of TPU1 (3.19), which indicates that the addition of NiCo-LDH/MoS2 is beneficial to improving the degree of graphitization of carbon residues.

3.5. Thermal Decomposition Products Analysis

In order to obtain information about the variation of gaseous products with temperature during the thermal decomposition of TPU composites, 3D TG-FTIR spectra of TPU0 and TPU3 are given in Figure S3. As shown in Figure S3, the thermal decomposition process of TPU0 and TPU3 is similar, which indicates that the addition of NiCo-LDH/MoS2 hybrid material has little effect on the inherent properties of TPU. In addition, it can be obviously seen that the temperature at which TPU3 releases thermal decomposition products is lower than that of TPU0, which is primarily because the addition of NiCo-LDH/MoS2 hybrid material makes the initial decomposition temperature of TPU composite earlier.
Figure 13a presents the FTIR spectrum of the pyrolysis products of TPU0 and TPU3 at the maximum decomposition rate. The characteristic peak at 3548 cm−1 is ascribed to the vibration of the O-H bond in H2O. The absorption peak appearing at 2980 cm−1 is assigned to the symmetrical stretching vibration of the C-H bond in hydrocarbons. The peaks at 2360 cm−1 and 1766 cm−1 are typical absorption peaks of CO2 and carbonyl compounds, respectively. The absorption peaks of aromatic hydrocarbons and HCN are located at 1510 cm−1 and 678 cm−1, respectively. As shown in Figure 13b,c, the presence of NiCo-LDH/MoS2 hinders the release of HCN and CO2, which is mainly attributed to the formation of high-quality carbon residues and the barrier effect of MoS2 nanosheets [41]. From Figure 13d, it is observed that the amount of H2O released in the pyrolysis product of TPU3 is significantly higher than that of pure TPU, which is beneficial to diluting the combustible gas.

3.6. Flame Retardant Mechanism

Based on the flame retardant properties and condensed phase-gas phase analysis of TPU/NiCo-LDH/MoS2 composite above, a possible flame retardant mechanism was proposed. In the condensed phase: (1) The transition metals Ni, Co and Mo have the effect of catalytic carbonization. The formed carbon layer can block the transfer of heat and combustible gas between the combustion zone and the TPU matrix, and protect the unburned TPU matrix. (2) During combustion, MoS2 and NiCo-LDH act as physical barriers, slowing down the escape of combustible, hindering the permeation of oxygen and inhibiting the exudation of toxic substances. (3) The metal oxides generated by the decomposition of NiCo-LDH/MoS2 not only improve the degree of graphitization of the carbon layer, but also can absorb the flue gas generated during the combustion process [34]. In the gas phase, NiCo-LDH releases non-combustible gases (H2O, CO2) that can dilute the concentration of combustible gases to some extent.

4. Conclusions

In conclusion, 3D hollow NiCo-LDH was assembled on MoS2 nanosheets by the principle of electrostatic self-assembly to form 3D hollow NiCo-LDH/MoS2 hybrid material. Characterization of the structure and morphology of the NiCo-LDH/MoS2 by XRD, FTIR, SEM, TEM, BET and XPS. Then the NiCo-LDH/MoS2 was mixed with TPU by melt blending. With the addition of NiCo-LDH/MoS2, PHRR, PSPR and TSP values of the obtained TPU composite were remarkably decreased by 42.9%, 55.7% and 33.3%. Meanwhile, the TPU composite filled with NiCo-LDH/MoS2 hybrid material had higher char yield and thermal stability. In addition, SEM, XRD and Raman spectroscopy revealed that the NiCo-LDH/MoS2 filled TPU composite has dense carbon residue with enhanced graphitization degree, which is able to protect the underlying TPU matrix. TG-FTIR results showed NiCo-LDH/MoS2 hybrid material also exhibits excellent toxic gas (HCN) suppression performance. In summary, the catalytic carbonization effect and dilution effect of NiCo-LDH, and the barrier effect of MoS2 nanosheets enable TPU composites with excellent flame retardancy, thermal stability and toxic gas suppression ability.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/polym14112204/s1, Figure S1: EDS spectrum (a) and plan scan image (b) of NiCo-LDH/MoS2; Figure S2: Digital photographs of the char residues of TPU composites; Figure S3: TG-FTIR spectra of thermal decomposition products of TPU0(a) and TPU3(b).

Author Contributions

Conceptualization, Y.Q. and L.L.; methodology, Y.Q. and L.L.; software, W.S.; validation, Y.Q. and L.L.; formal analysis, W.S.; investigation, W.S.; resources, Y.Q.; data curation, H.F., J.L. and Q.G.; writing-original draft preparation, W.S.; writing-review and editing, W.S.; visualization, W.S.; supervision, H.F., J.L. and R.Z.; project administration, Y.Q., L.L., P.Z. and J.M.; funding acquisition, Y.Q. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the Key R&D Project of Shandong Province (No. 2019GSF109001 and 2019GSF109080), the Shandong Provincial Natural Science Foundation, China (No. ZR2021ME170 and ZR2021MB028), the Foundation of State Key Laboratory of High-efficiency Utilization of Coal and Green Chemical Engineering (No. 2022-K26) and the Opening Project of Shandong Ecochemical Engineering Collaborative Innovation Center (No. XTCXQN02).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Choi, J.; Jang, J.U.; Yin, W.B.; Lee, B.; Lee, K.J. Synthesis of highly functionalized thermoplastic polyurethanes and their potential applications. Polymer 2017, 116, 287–294. [Google Scholar] [CrossRef]
  2. Shi, Y.; Fu, L.; Chen, X.; Guo, J.; Yang, F.; Wang, J.; Zheng, Y.; Hu, Y. Hypophosphite/graphitic carbon nitride hybrids: Preparation and flame-retardant application in thermoplastic polyurethane. Nanomaterials 2017, 7, 259. [Google Scholar] [CrossRef] [Green Version]
  3. Spontak, R.J.; Patel, N.P. Thermoplastic elastomers: Fundamentals and applications. Curr. Opin. Colloid Interface Sci. 2000, 5, 333–340. [Google Scholar] [CrossRef]
  4. Ghariniyat, P.; Leung, S.N. Development of thermally conductive thermoplastic polyurethane composite foams via CO2 foaming-assisted filler networking. Compos. Part B Eng. 2018, 143, 9–18. [Google Scholar] [CrossRef]
  5. Chen, H.; Deng, C.; Zhao, Z.Y.; Wan, L.; Yang, A.H.; Wang, Y.Z. Novel piperazine-containing oligomer as flame retardant and crystallization induction additive for thermoplastics polyurethane. Chem. Eng. J. 2020, 400, 125941. [Google Scholar] [CrossRef]
  6. Wang, D.; Song, L.; Zhou, K.; Yu, X.; Hu, Y.; Wang, J. Anomalous nano-barrier effects of ultrathin molybdenum disulfide nanosheets for improving the flame retardance of polymer nanocomposites. J. Mater. Chem. A 2015, 3, 14307–14317. [Google Scholar] [CrossRef]
  7. Elbasuney, S. Surface engineering of layered double hydroxide (LDH) nanoparticles for polymer flame retardancy. Powder Technol. 2015, 277, 63–73. [Google Scholar] [CrossRef]
  8. Higginbotham, A.L.; Lomeda, J.R.; Morgan, A.B.; Tour, J.M. Graphite oxide flame-retardant polymer nanocomposites. ACS Appl. Mater. Interfaces 2009, 1, 2256–2261. [Google Scholar] [CrossRef]
  9. Sideris, P.J.; Nielsen, U.G.; Gan, Z.; Grey, C.P. Mg/Al ordering in layered double hydroxides revealed by multinuclear NMR spectroscopy. Science 2008, 321, 113–117. [Google Scholar] [CrossRef] [Green Version]
  10. Xu, W.; Zhang, B.; Wang, X.; Wang, G. The flame retardancy and smoke suppression effect of a hybrid containing dihydrogen phosphate anion modified reduced graphene oxide/layered double hydroxide on epoxy resin. RSC Adv. 2017, 7, 19662–19673. [Google Scholar] [CrossRef] [Green Version]
  11. Liu, J.; Tao, Y.; Zhou, K.; Shi, Y.; Feng, X.; Jie, G.; Richard, K.K.; Hu, Y. The influence of typical layered inorganic compounds on the improved thermal stability and fire resistance properties of polystyrene nanocomposites. Polym. Compos. 2017, 38, E320–E330. [Google Scholar] [CrossRef]
  12. Thapa, S.; Meng, L.; Hettiarachchi, E.; Bader, Y.K.; Dickie, D.A.; Rubasinghege, G.; Ivanov, S.A.; Vreeland, E.C.; Qin, Y. Charge-Separated and Lewis Paired Metal-Organic Framework for Anion Exchange and CO2 Chemical Fixation. Chem. A Eur. J. 2020, 26, 13788–13791. [Google Scholar] [CrossRef]
  13. Meng, L.; Yu, B.; Qin, Y. Templated interfacial synthesis of metal-organic framework (MOF) nano-and micro-structures with precisely controlled shapes and sizes. Commun. Chem. 2021, 4, 82. [Google Scholar] [CrossRef]
  14. Xu, H.; Shan, C.; Wu, X.; Sun, M.; Huang, B.; Tang, Y.; Yan, C.H. Fabrication of layered double hydroxide microcapsules mediated by cerium doping in metal-organic frameworks for boosting water splitting. Energy Environ. Sci. 2020, 13, 2949–2956. [Google Scholar] [CrossRef]
  15. Jiang, Z.; Li, Z.; Qin, Z.; Sun, H.; Jiao, X.; Chen, D. LDH nanocages synthesized with MOF templates and their high performance as supercapacitors. Nanoscale 2013, 5, 11770–11775. [Google Scholar] [CrossRef]
  16. Zhang, L.; Zhang, J.; Wang, D.Y. Hierarchical layered double hydroxide nanosheets/phosphorus-containing organosilane functionalized hollow glass microsphere towards high performance epoxy composite: Enhanced interfacial adhesion and bottom-up charring behavior. Polymer 2020, 210, 123018. [Google Scholar] [CrossRef]
  17. Yue, X.; Li, C.; Ni, Y.; Xu, Y.; Wang, J. Flame retardant nanocomposites based on 2D layered nanomaterials: A review. J. Mater. Sci. 2019, 54, 13070–13105. [Google Scholar] [CrossRef]
  18. Eksik, O.; Gao, J.; Shojaee, S.A.; Thomas, A.; Chow, P.; Bartolucci, S.F.; Lucca, D.A.; Koratkar, N. Epoxy nanocomposites with two-dimensional transition metal dichalcogenide additives. ACS Nano 2014, 8, 5282–5289. [Google Scholar] [CrossRef]
  19. Daniloska, V.; Keddie, J.L.; Asua, J.M.; Tomovska, R. MoS2 nanoplatelet fillers for enhancement of the properties of waterborne pressure-sensitive adhesives. ACS Appl. Mater. Interfaces 2014, 6, 22640–22648. [Google Scholar] [CrossRef] [Green Version]
  20. Peng, H.; Wang, D.; Fu, S. Simultaneous exfoliation and functionalization of MoS2 nanosheets by molecular-designed poly (ionic liquid): Integrated interfacial crosslinking effect for mechanical and flame retardance enhancement of polyacrylonitrile composite fiber. Compos. Commun. 2021, 27, 100902. [Google Scholar] [CrossRef]
  21. Wu, R.; Qian, X.; Rui, X.; Liu, H.; Yadian, B.; Zhou, K.; Wei, J.; Yan, Q.; Feng, X.; Long, Y.; et al. Zeolitic Imidazolate framework 67-derived high symmetric porous Co3O4 hollow dodecahedra with highly enhanced lithium storage capability. Small 2014, 10, 1932–1938. [Google Scholar] [CrossRef]
  22. Wan, C.; Ding, S.; Zhang, C.; Tan, X.; Zou, W.; Liu, X.; Yang, X. Simultaneous recovery of nitrogen and phosphorus from sludge fermentation liquid by zeolite adsorption: Mechanism and application. Sep. Purif. Technol. 2017, 180, 1–12. [Google Scholar] [CrossRef]
  23. Sanikop, R.; Budumuru, A.K.; Gautam, S.; Chae, K.H.; Sudakar, C. Robust ferromagnetism in Li-intercalated and deintercalated MoS2 nanosheets: Implications for 2D spintronics. ACS Appl. Nano Mater. 2020, 3, 11825–11837. [Google Scholar] [CrossRef]
  24. Sun, C.; Yang, J.; Rui, X.; Zhang, W.; Yan, Q.; Chen, P.; Hou, F.; Huang, W.; Dong, X. MOF-directed templating synthesis of a porous multicomponent dodecahedron with hollow interiors for enhanced lithium-ion battery anodes. J. Mater. Chem. A 2015, 3, 8483–8488. [Google Scholar] [CrossRef]
  25. Hou, Y.; Qiu, S.; Hu, Y.; Kundu, C.K.; Gui, Z.; Hu, W. Construction of bimetallic ZIF-derived Co-Ni LDHs on the surfaces of GO or CNTs with a recyclable method: Toward reduced toxicity of gaseous thermal decomposition products of unsaturated polyester resin. ACS Appl. Mater. Interfaces 2018, 10, 18359–18371. [Google Scholar] [CrossRef]
  26. Pan, Y.T.; Wan, J.; Zhao, X.; Li, C.; Wang, D.Y. Interfacial growth of MOF-derived layered double hydroxide nanosheets on graphene slab towards fabrication of multifunctional epoxy nanocomposites. Chem. Eng. J. 2017, 330, 1222–1231. [Google Scholar] [CrossRef]
  27. Qin, Y.; Wang, F.; Shang, J.; Iqbal, M.; Han, A.; Sun, X.; Xu, H.; Liu, J. Ternary NiCoFe-layered double hydroxide hollow polyhedrons as highly efficient electrocatalysts for oxygen evolution reaction. J. Energy Chem. 2020, 43, 104–107. [Google Scholar] [CrossRef] [Green Version]
  28. Wang, Q.; Wang, X.; He, H.; Chen, W. Fabrication of hollow LDH nanocages using ZIF-67 template as superb adsorbent for anionic organic pollutant. J. Porous Mater. 2021, 28, 471–480. [Google Scholar] [CrossRef]
  29. Ren, H.; Qing, K.; Chen, Y.; Lin, Y.; Duan, X. Smoke suppressant in flame retarded thermoplastic polyurethane composites: Synergistic effect and mechanism study. Nano Res. 2021, 14, 3926–3934. [Google Scholar] [CrossRef]
  30. Mouritz, A.P.; Mathys, Z.; Gibson, A.G. Heat release of polymer composites in fire. Compos. Part A Appl. Sci. Manuf. 2006, 37, 1040–1054. [Google Scholar] [CrossRef]
  31. Wen, X.; Gong, J.; Yu, H.; Liu, Z.; Wan, D.; Liu, J.; Jiang, Z.; Tang, T. Catalyzing carbonization of poly (L-lactide) by nanosized carbon black combined with Ni2O3 for improving flame retardancy. J. Mater. Chem. 2012, 22, 19974–19980. [Google Scholar] [CrossRef]
  32. Yang, H.; Wang, X.; Song, L.; Yu, B.; Yuan, Y.; Hu, Y.; Yuen, R.K.K. Aluminum hypophosphite in combination with expandable graphite as a novel flame retardant system for rigid polyurethane foams. Polym. Adv. Technol. 2015, 25, 1034–1043. [Google Scholar] [CrossRef]
  33. Nyambo, C.; Kandare, E.; Wang, D.; Wilkie, C.A. Flame-retarded polystyrene: Investigating chemical interactions between ammonium polyphosphate and MgAl layered double hydroxide. Polym. Degrad. Stab. 2008, 93, 1656–1663. [Google Scholar] [CrossRef] [Green Version]
  34. Qian, Y.; Su, W.; Li, L.; Fu, H.; Li, J.; Zhang, Y. Synthesis of 3D Hollow Layered Double Hydroxide-Molybdenum Disulfide Hybrid Materials and Their Application in Flame Retardant Thermoplastic Polyurethane. Polymers 2022, 14, 1506. [Google Scholar] [CrossRef]
  35. Dong, Y.; Zhou, G.; Yuan, H.; Yu, W.; Jiang, S. The influence of titanate nanotube on the improved thermal properties and the smoke suppression in poly (methyl methacrylate). J. Hazard. Mater. 2012, 209, 34–39. [Google Scholar] [CrossRef]
  36. Chen, X.; Jiao, C.; Zhang, J. Thermal and combustion behavior of ethylene-vinyl acetate/aluminum trihydroxide/Fe-montmorillonite composites. Polym. Eng. Sci. 2012, 52, 414–419. [Google Scholar] [CrossRef]
  37. Tang, Q.; Song, Y.; He, J.; Yang, R. Synthesis and characterization of inherently flame-retardant and anti-dripping thermoplastic poly(imides-urethane)s. J. Appl. Polym. Sci. 2014, 131, 776–781. [Google Scholar] [CrossRef]
  38. Huang, W.; Huang, J.; Yu, B.; Meng, Y.; Cao, X.; Zhang, Q.; Wu, W.; Shi, D.; Jiang, T.; Li, R.K. Facile preparation of phosphorus containing hyperbranched polysiloxane grafted graphene oxide hybrid toward simultaneously enhanced flame retardancy and smoke suppression of thermoplastic polyurethane nanocomposites. Compos. Part A Appl. Sci. Manuf. 2021, 150, 106614. [Google Scholar] [CrossRef]
  39. Wu, W.; Zhao, W.; Gong, X.; Sun, Q.; Cao, X.; Su, Y.; Yu, B.; Li, R.K.; Vellaisamy, R.A. Surface decoration of halloysite nanotubes with POSS for fire-safe thermoplastic polyurethane nanocomposites. J. Mater. Sci. Technol. 2022, 101, 107–117. [Google Scholar] [CrossRef]
  40. Cao, X.; Chi, X.; Deng, X.; Liu, T.; Yu, B.; Wang, B.; Anthony, C.Y.; Wu, W.; Li, R.K. Synergistic effect of flame retardants and graphitic carbon nitride on flame retardancy of polylactide composites. Polym. Adv. Technol. 2020, 31, 1661–1670. [Google Scholar] [CrossRef]
  41. Zhou, K.; Gao, R.; Qian, X. Self-assembly of exfoliated molybdenum disulfide (MoS2) nanosheets and layered double hydroxide (LDH): Towards reducing fire hazards of epoxy. J. Hazard. Mater. 2017, 338, 343–355. [Google Scholar] [CrossRef] [PubMed]
Polymers 14 02204 g001 550

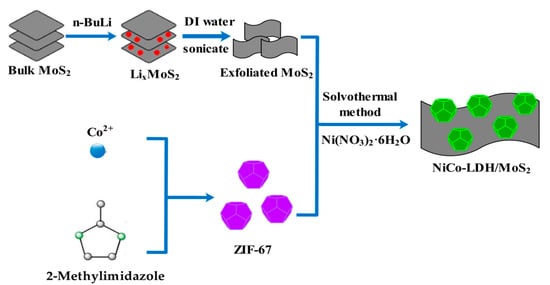

Figure 1. The preparation process diagram of 3D hollow NiCo-LDH/MoS2.
Figure 1. The preparation process diagram of 3D hollow NiCo-LDH/MoS2.
Polymers 14 02204 g001
Polymers 14 02204 g002 550

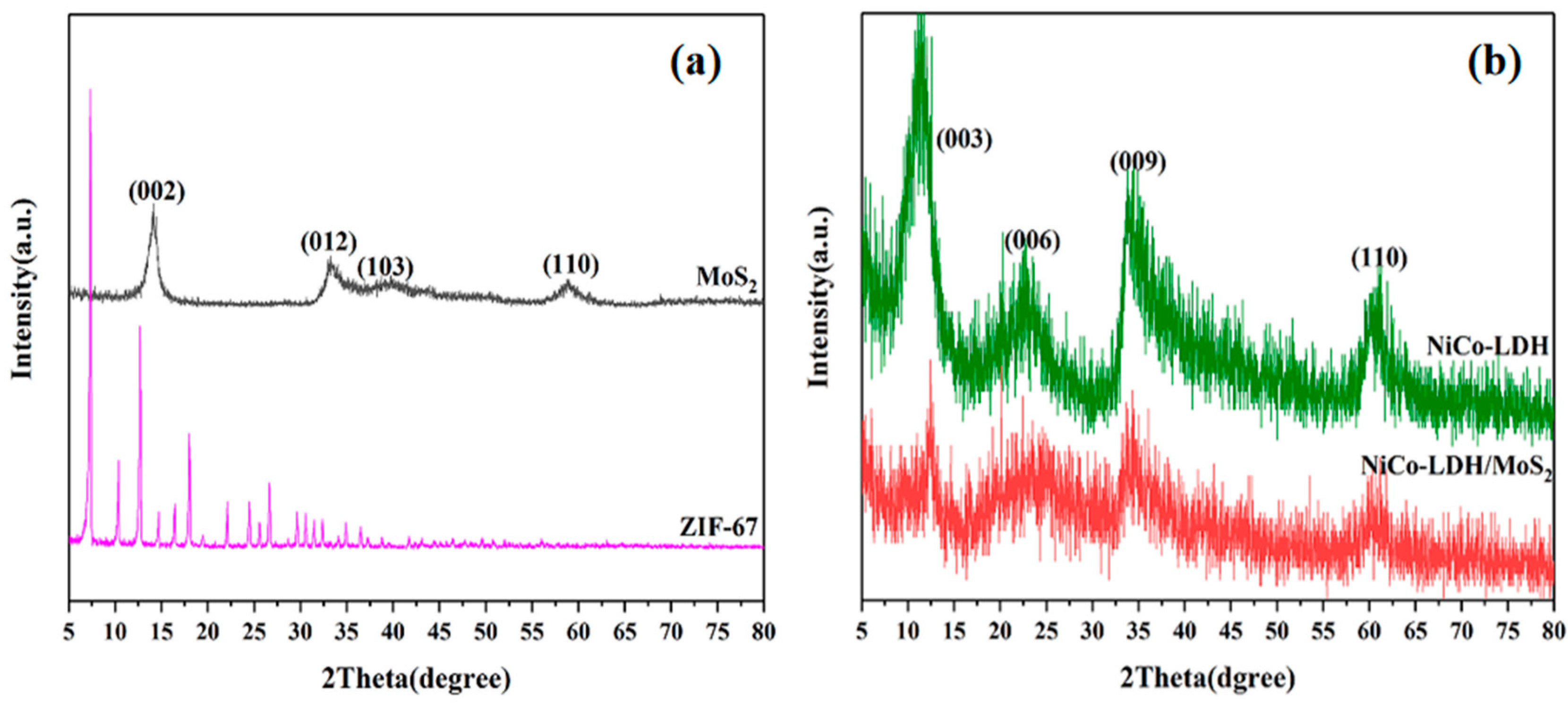

Figure 2. XRD patterns of MoS2, ZIF-67 (a) and NiCo-LDH, NiCo-LDH/MoS2 (b).
Figure 2. XRD patterns of MoS2, ZIF-67 (a) and NiCo-LDH, NiCo-LDH/MoS2 (b).
Polymers 14 02204 g002
Polymers 14 02204 g003 550

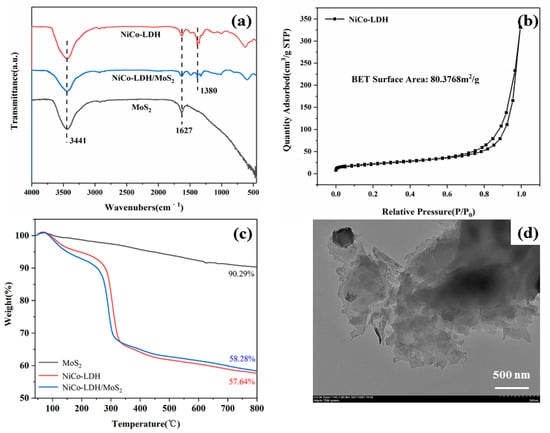

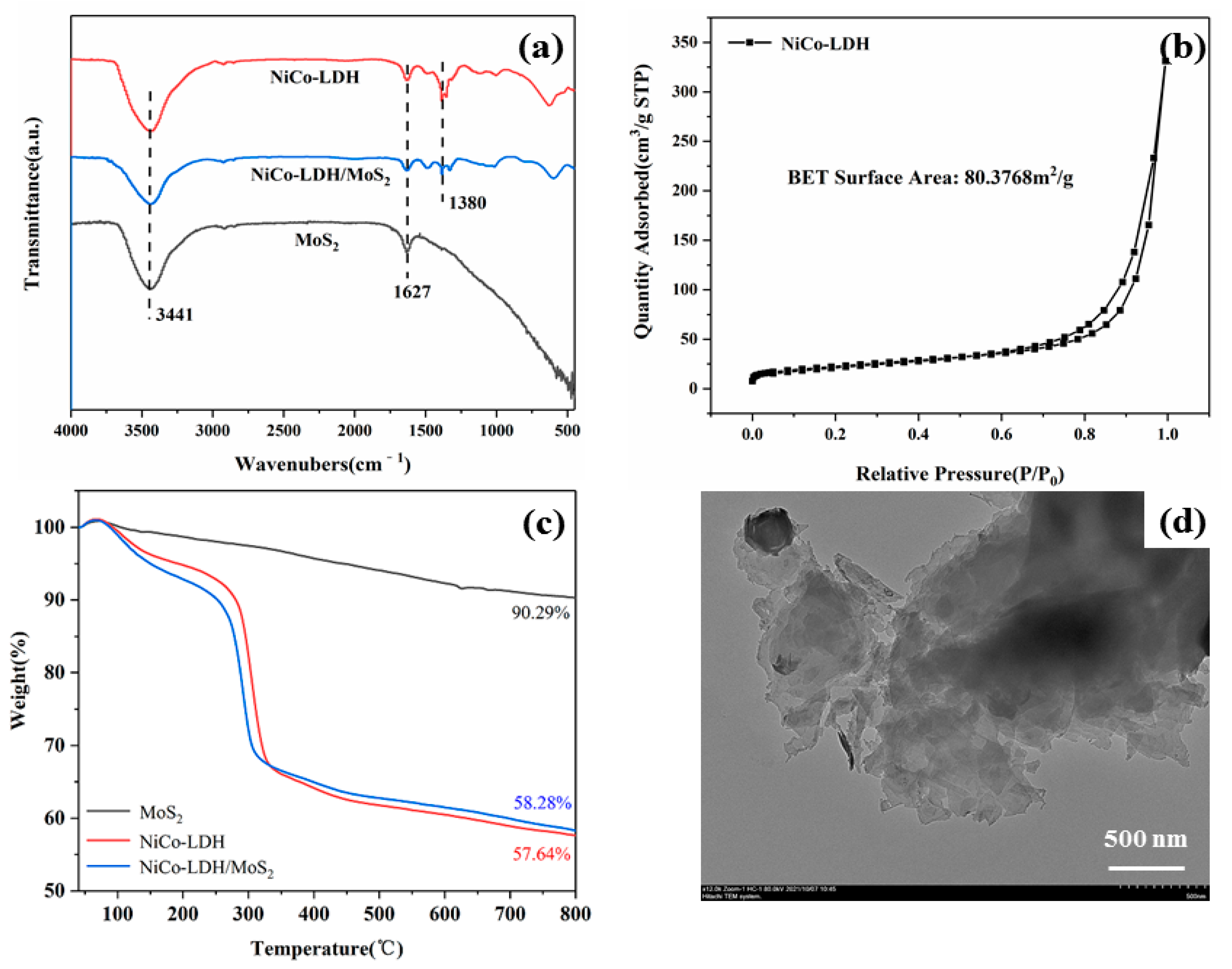

Figure 3. FTIR spectra of MoS2, NiCo-LDH and NiCo-LDH/MoS2 (a); N2 adsorption−desorption isotherms of NiCo-LDH (b); TG curves of MoS2, NiCo-LDH and NiCo-LDH/MoS2 (c); TEM image of MoS2 (d).
Figure 3. FTIR spectra of MoS2, NiCo-LDH and NiCo-LDH/MoS2 (a); N2 adsorption−desorption isotherms of NiCo-LDH (b); TG curves of MoS2, NiCo-LDH and NiCo-LDH/MoS2 (c); TEM image of MoS2 (d).
Polymers 14 02204 g003
Polymers 14 02204 g004 550
Figure 4. SEM and TEM images of ZIF-67 (a,d),NiCo-LDH (b,e) and NiCo-LDH/MoS2 (c,f).
Figure 4. SEM and TEM images of ZIF-67 (a,d),NiCo-LDH (b,e) and NiCo-LDH/MoS2 (c,f).
Polymers 14 02204 g004
Polymers 14 02204 g005 550

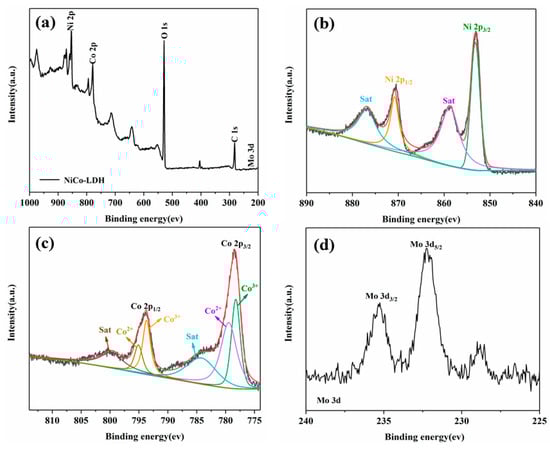

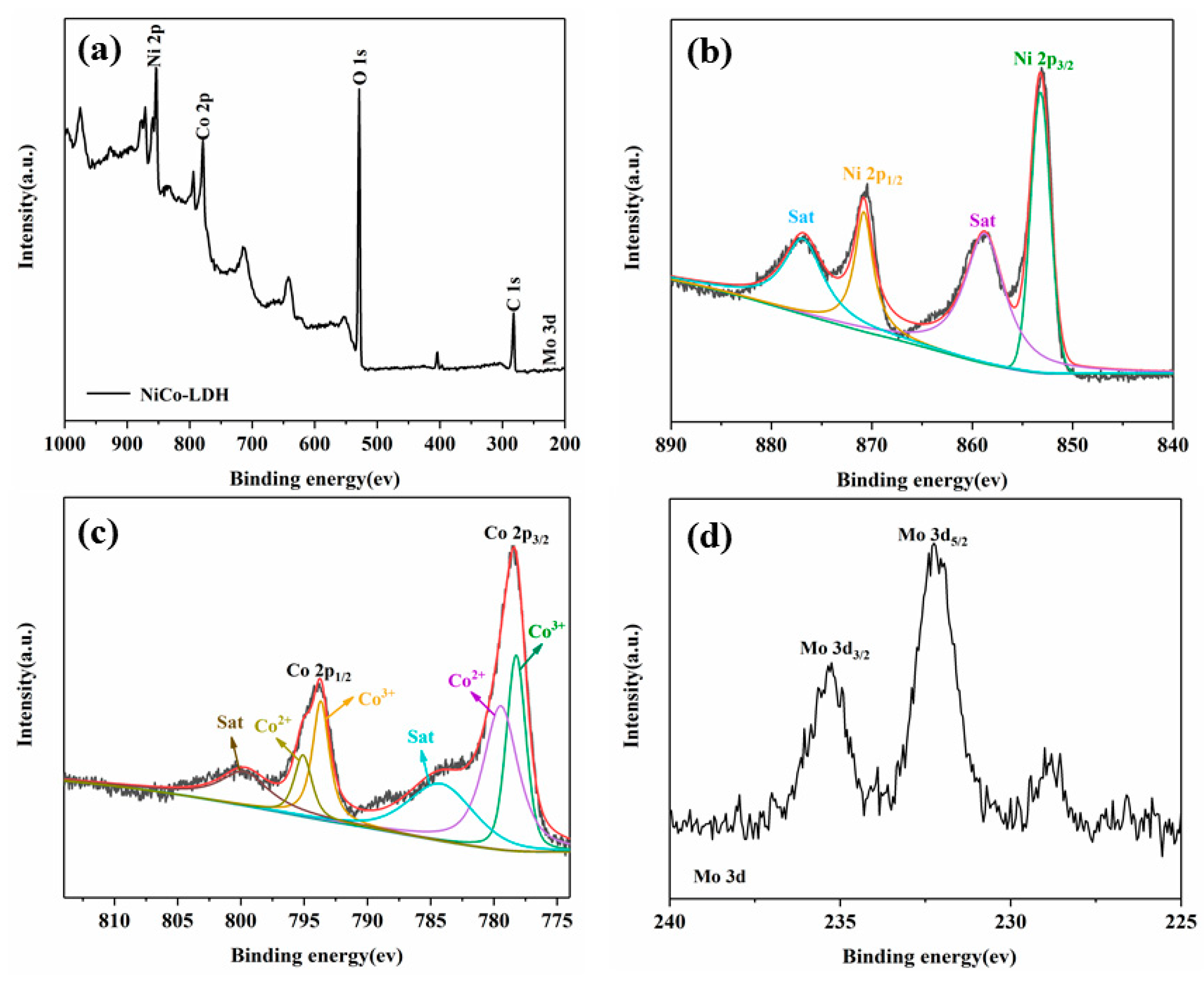

Figure 5. XPS survey spectrum of NiCo-LDH/MoS2 (a), high-resolution XPS spectra of Ni 2p, Co 2p and Mo 3d for NiCo-LDH/MoS2 (b–d).
Figure 5. XPS survey spectrum of NiCo-LDH/MoS2 (a), high-resolution XPS spectra of Ni 2p, Co 2p and Mo 3d for NiCo-LDH/MoS2 (b–d).
Polymers 14 02204 g005
Polymers 14 02204 g006 550

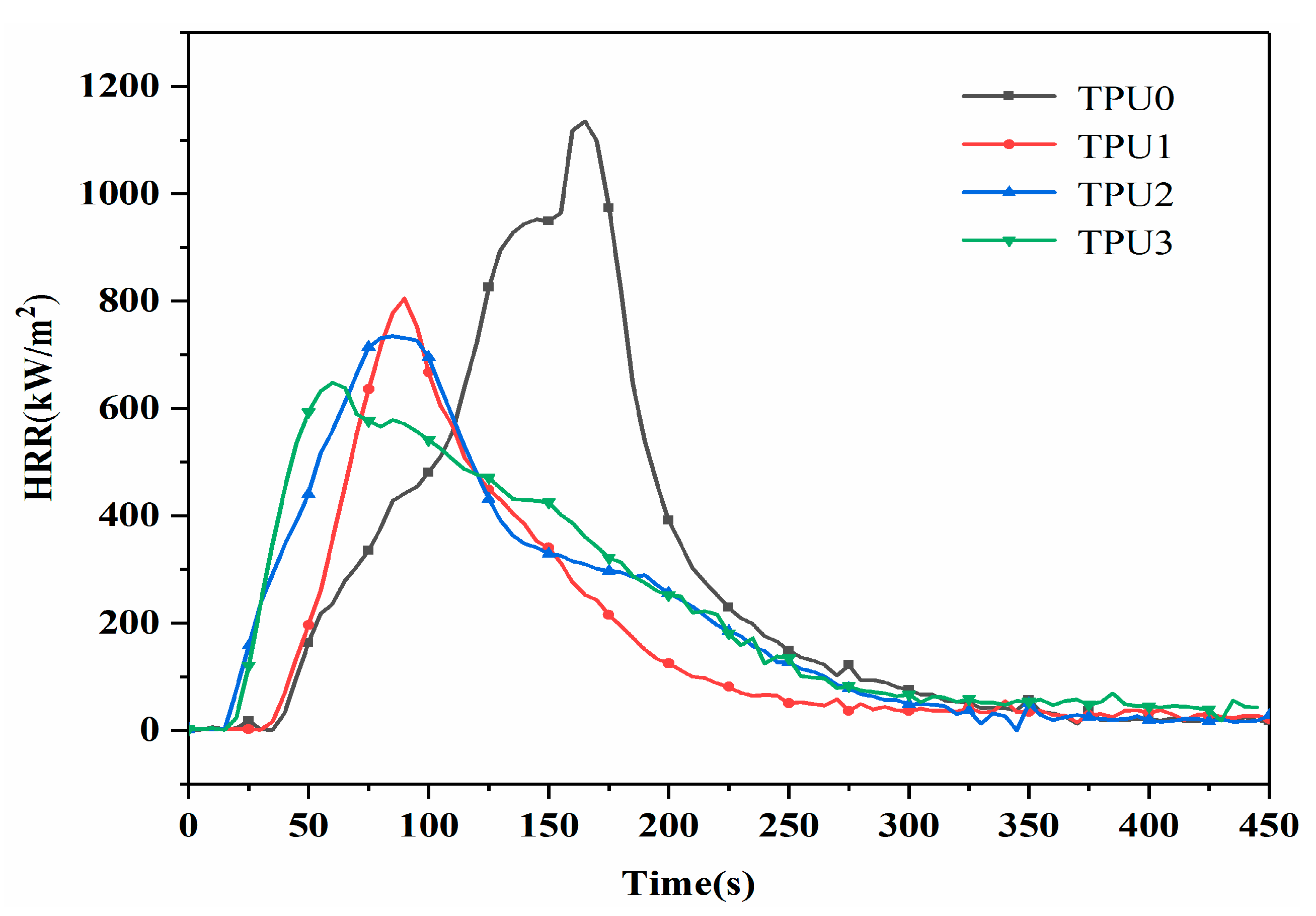

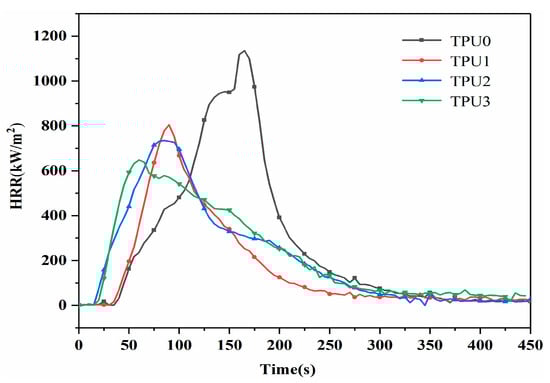

Figure 6. Heat release rate curves of TPU composites.
Figure 6. Heat release rate curves of TPU composites.
Polymers 14 02204 g006
Polymers 14 02204 g007 550

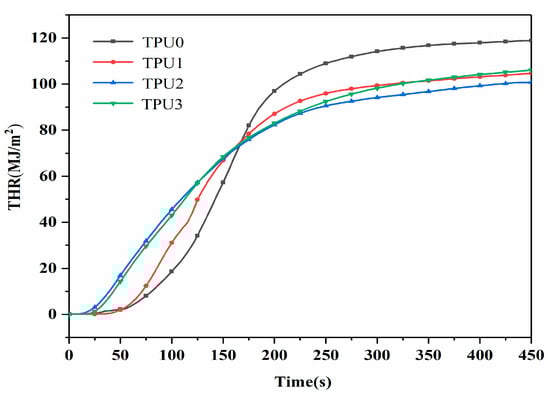

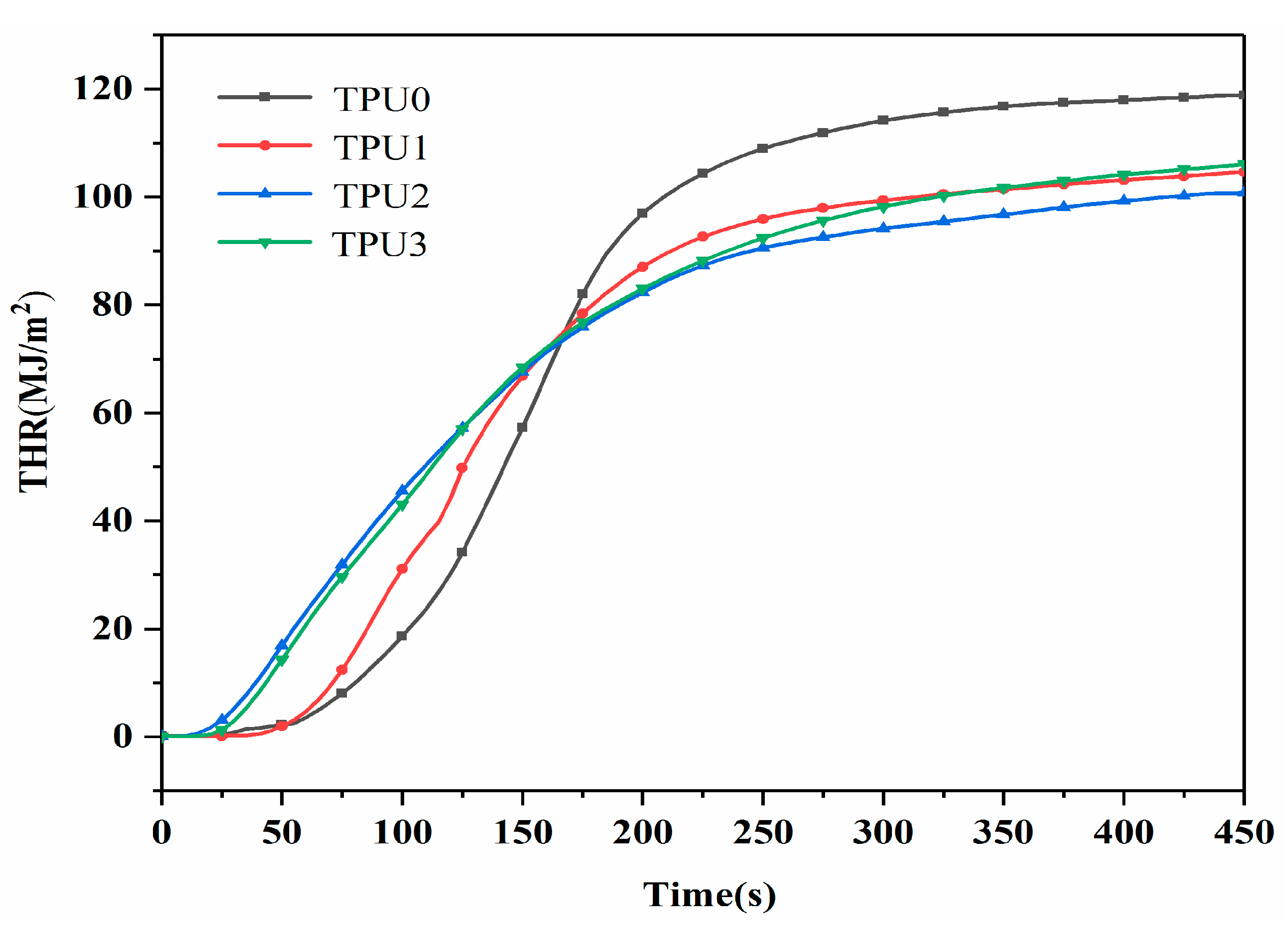

Figure 7. Total heat release curves of TPU composites.
Figure 7. Total heat release curves of TPU composites.
Polymers 14 02204 g007
Polymers 14 02204 g008 550

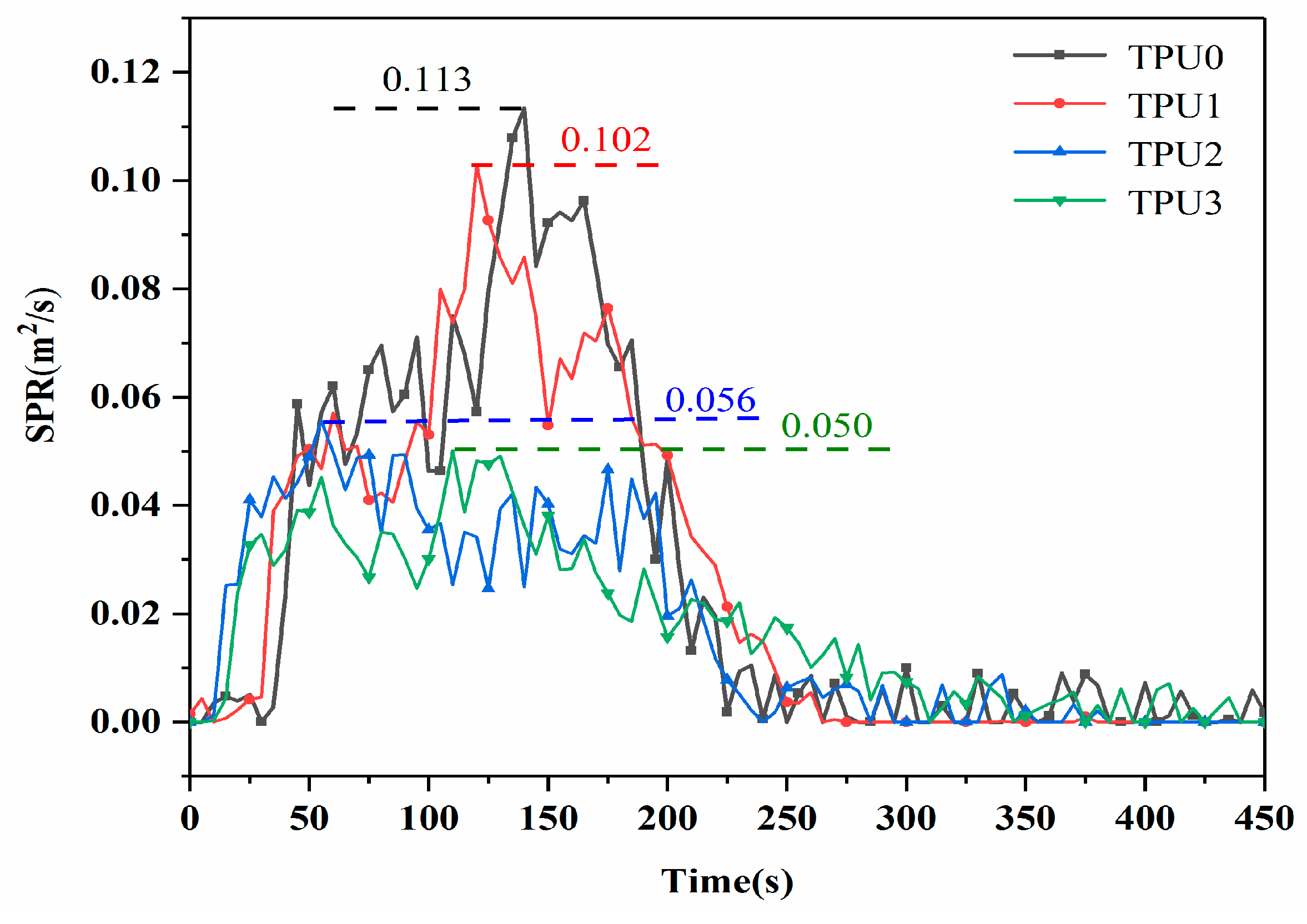

Figure 8. Smoke production rate curves of TPU composites.
Figure 8. Smoke production rate curves of TPU composites.
Polymers 14 02204 g008
Polymers 14 02204 g009 550

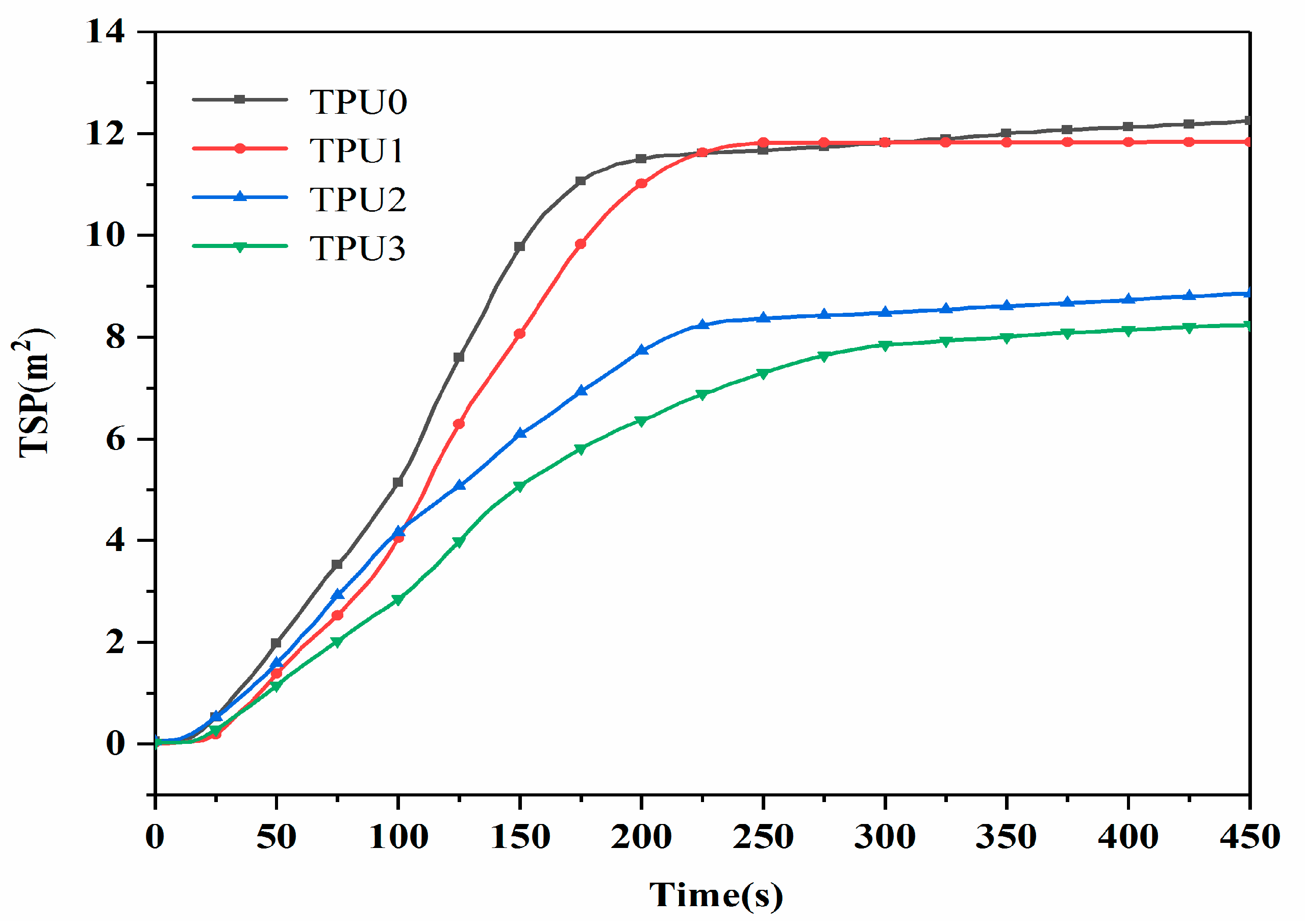

Figure 9. Total smoke production curves of TPU composites.
Figure 9. Total smoke production curves of TPU composites.
Polymers 14 02204 g009
Polymers 14 02204 g010 550

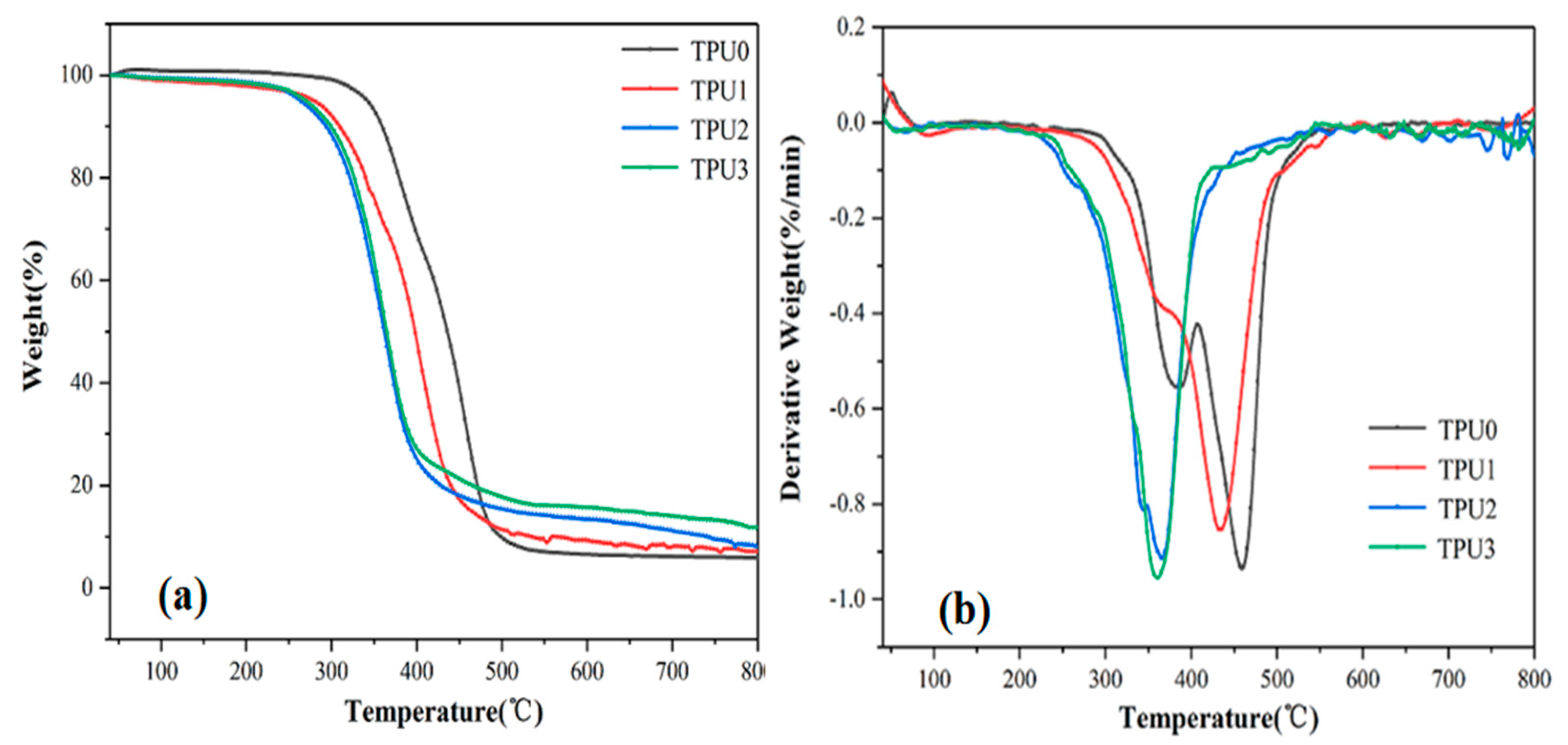

Figure 10. TG (a) and DTG (b) curves of pure TPU and TPU composites.
Figure 10. TG (a) and DTG (b) curves of pure TPU and TPU composites.
Polymers 14 02204 g010
Polymers 14 02204 g011 550
Figure 11. SEM images of the carbon residues of TPU composites.
Figure 11. SEM images of the carbon residues of TPU composites.
Polymers 14 02204 g011
Polymers 14 02204 g012 550

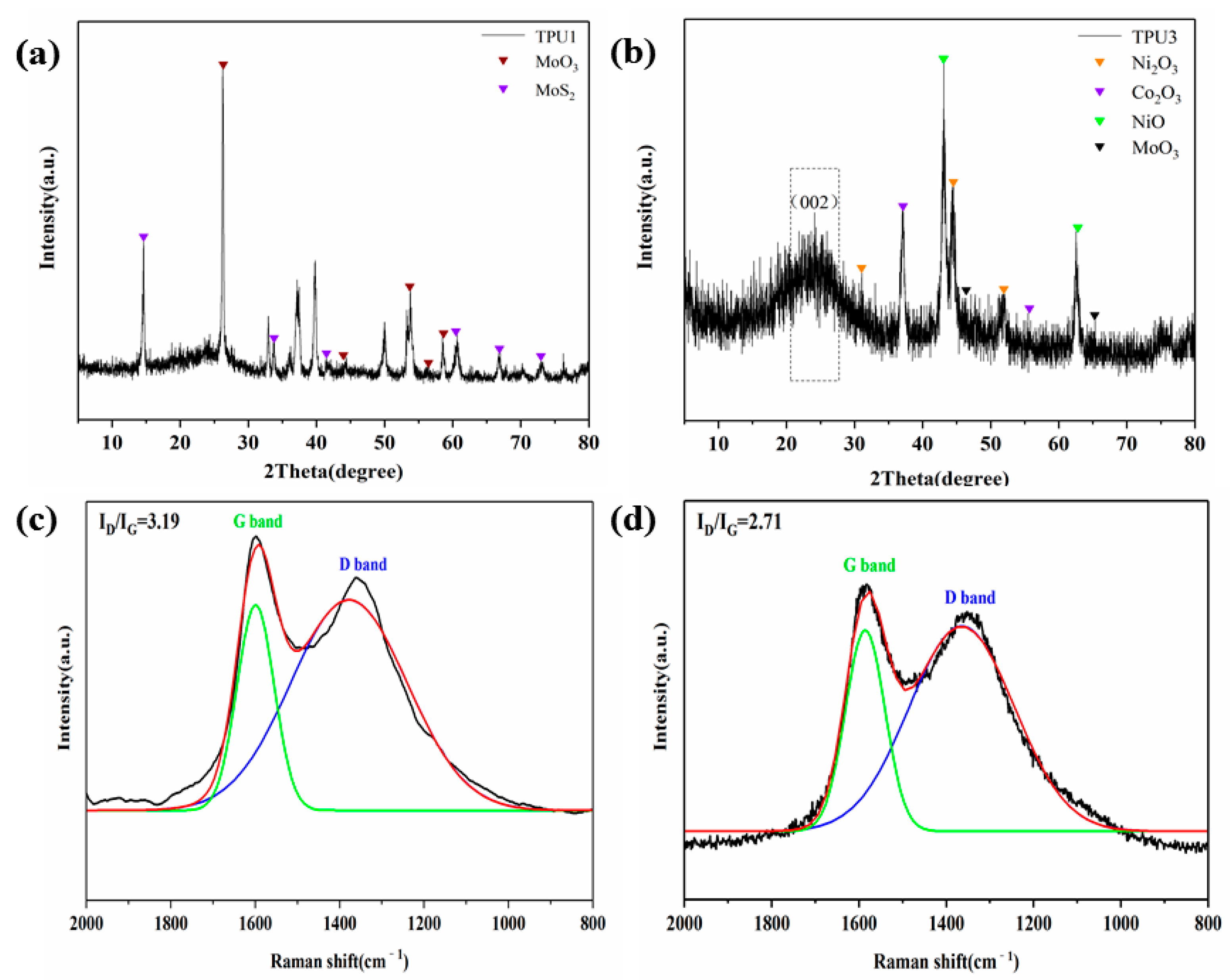

Figure 12. XRD patterns of carbon residues of TPU1 (a) and TPU3 (b); Raman spectra of TPU1 (c) and TPU3 (d).
Figure 12. XRD patterns of carbon residues of TPU1 (a) and TPU3 (b); Raman spectra of TPU1 (c) and TPU3 (d).
Polymers 14 02204 g012
Polymers 14 02204 g013 550

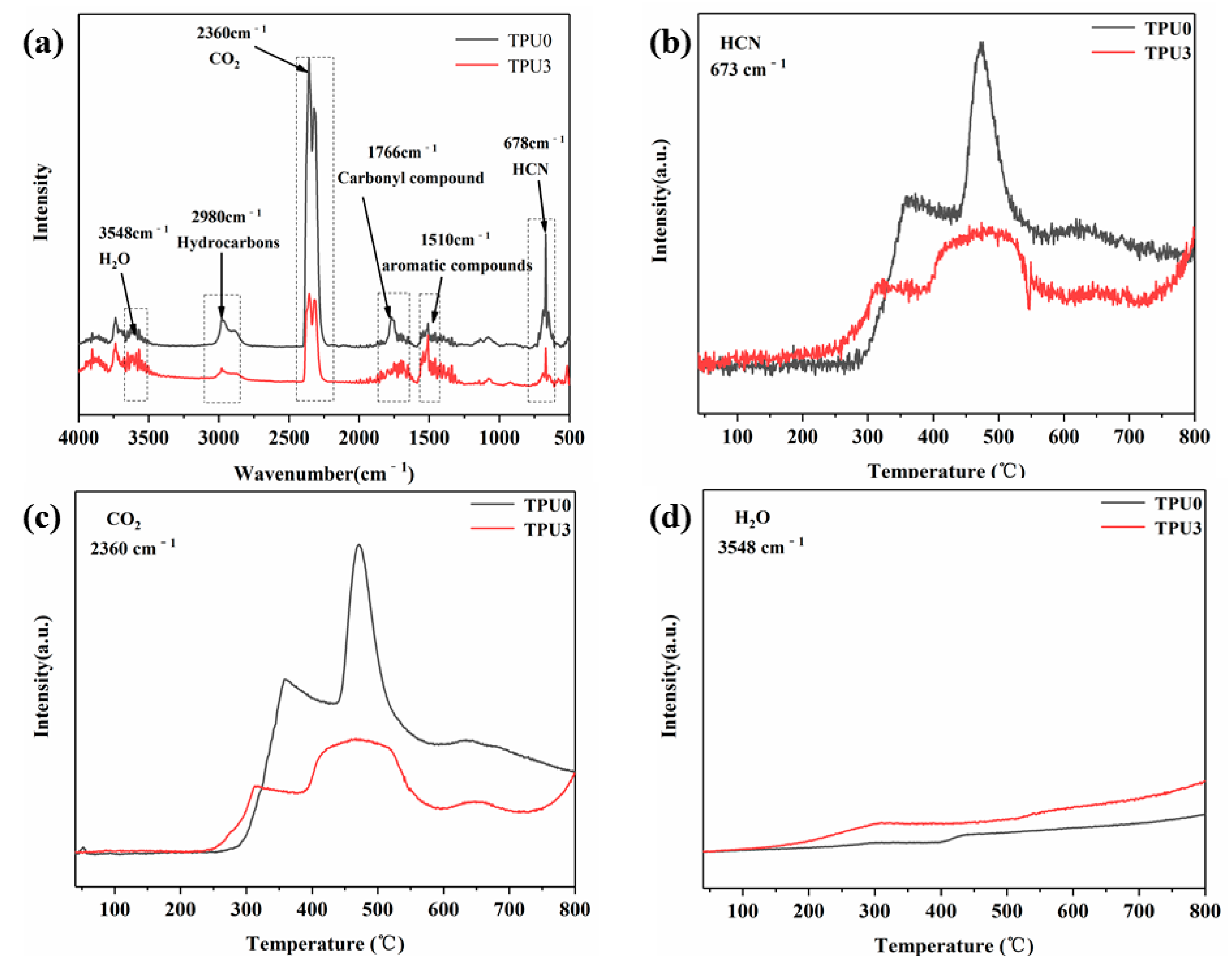

Figure 13. FTIR spectra of TPU0 and TPU3 pyrolysis products at maximum decomposition rate (a), the absorbance intensities of HCN (b), CO2 (c) and H2O (d) of TPU0 and TPU3.
Figure 13. FTIR spectra of TPU0 and TPU3 pyrolysis products at maximum decomposition rate (a), the absorbance intensities of HCN (b), CO2 (c) and H2O (d) of TPU0 and TPU3.
Polymers 14 02204 g013
Table
Table 1. TPU composites formula table.
Table 1. TPU composites formula table.
Sample CodeTPU (wt%)MoS2 (wt%)NiCo-LDH (wt%)NiCo-LDH/MoS2 (wt%)
TPU0100000
TPU198200
TPU298020
TPU398002
Table
Table 2. Cone calorimeter data of TPU composites.
Table 2. Cone calorimeter data of TPU composites.
Sample CodePHRR kW/m2THR MJ/m2PSPR m2/sTSP m2
TPU01135118.80.11312.3
TPU1804104.60.10211.9
TPU2734100.70.0568.8
TPU3648106.10.0508.2
Table
Table 3. Thermogravimetry data of pure TPU and TPU composites.
Table 3. Thermogravimetry data of pure TPU and TPU composites.
Sample CodeT−5% (°C)Tmax (°C)Char Yield (%)
TPU03334545.85
TPU13174327.93
TPU22643668.02
TPU327036011.87
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Qian, Y.; Su, W.; Li, L.; Zhao, R.; Fu, H.; Li, J.; Zhang, P.; Guo, Q.; Ma, J. Cooperative Effect of ZIF-67-Derived Hollow NiCo-LDH and MoS2 on Enhancing the Flame Retardancy of Thermoplastic Polyurethane. Polymers 2022, 14, 2204. https://doi.org/10.3390/polym14112204

AMA Style

Qian Y, Su W, Li L, Zhao R, Fu H, Li J, Zhang P, Guo Q, Ma J. Cooperative Effect of ZIF-67-Derived Hollow NiCo-LDH and MoS2 on Enhancing the Flame Retardancy of Thermoplastic Polyurethane. Polymers. 2022; 14(11):2204. https://doi.org/10.3390/polym14112204

Chicago/Turabian Style

Qian, Yi, Wenyuan Su, Long Li, Rongmin Zhao, Haoyan Fu, Jiayin Li, Peidong Zhang, Qingjie Guo, and Jingjing Ma. 2022. "Cooperative Effect of ZIF-67-Derived Hollow NiCo-LDH and MoS2 on Enhancing the Flame Retardancy of Thermoplastic Polyurethane" Polymers 14, no. 11: 2204. https://doi.org/10.3390/polym14112204

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
