Optical Properties and Color Stability of Dental PEEK Related to Artificial Ageing and Staining

by
Liliana Porojan
1,
Flavia Roxana Toma
1,
Roxana Diana Vasiliu
1,*,
Florin-Ionel Topală
2,
Sorin Daniel Porojan
3 and
Anamaria Matichescu
4
1
Department of Dental Prostheses Technology (Dental Technology), Center for Advanced Technologies in Dental Prosthodontics, Faculty of Dental Medicine, “Victor Babeș” University of Medicine and Pharmacy Timișoara, Eftimie Murgu Sq. No. 2, 300041 Timișoara, Romania
2
Department of Prosthodontics, Faculty of Dental Medicine, “Victor Babeș” University of Medicine and Pharmacy Timișoara, Eftimie Murgu Sq. No. 2, 300041 Timișoara, Romania
3
Department of Oral Rehabilitation (Dental Technology), Center for Advanced Technologies in Dental Prosthodontics, Faculty of Dental Medicine, “Victor Babeș” University of Medicine and Pharmacy Timișoara, Eftimie Murgu Sq. No. 2, 300041 Timișoara, Romania
4
Department of Preventive, Community Dentistry and Oral Health, Faculty of Dental Medicine, “Victor Babes” University of Medicine and Pharmacy Timișoara, 14A Tudor Vladimirescu Ave., 300173 Timisoara, Romania
*
Author to whom correspondence should be addressed.
Polymers 2021, 13(23), 4102; https://doi.org/10.3390/polym13234102
Submission received: 10 November 2021 / Revised: 20 November 2021 / Accepted: 21 November 2021 / Published: 25 November 2021
(This article belongs to the Section Polymer Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Considering that the processes of PEEK discoloration caused by either intrinsic or extrinsic factors require elucidation, the aim of this study was to investigate the long-term effect of the combined action of ageing and immersing solutions on the optical properties and color stability of PEEK material, related to surface processing (polishing or glazing). (2) Methods: This study aims to determine the influence of different ageing and staining protocols on optical properties, color changes, and surface roughness of a reinforced PEEK material (bioHPP, Bredent, Senden, Germany). For ageing, specimens were submitted to 5000 cycles in a 55 °C bath and a 5 °C bath filled with distilled water. For staining, thermal cycling was performed in a hot coffee bath (55 °C) and a bath filled with distilled water (37 °C) and in a cold juice bath (5 °C) and a bath filled with distilled water (37 °C). Translucency (TP) and opalescence (OP) parameters were determined, the total color change value (ΔΕ*) was calculated, specimens’ surface roughness was analyzed, and statistical analyses were performed. (3) Results: The mean TP values of the studied samples were in the interval of 1.25–3.60, which is lower than those reported for natural teeth or other aesthetic restoration materials. The OP values of PEEK were registered in the range of 0.27–0.75, being also lower than those of natural teeth or other aesthetic restoration materials. OP has a very strong positive relationship with TP. The mean registered Ra values for all subgroups were below 0.13 µm. Artificial ageing and staining in hot coffee proved to increase the roughness values. (4) Conclusions: The glazing of PEEK has a favorable effect on surface roughness and opalescence, irrespective of the artificial ageing or staining protocols. Artificial ageing damages the color stability and roughness of PEEK, regardless of surface processing, and decreases the translucency and opalescence of glazed surfaces. Immersion in hot coffee leads to perceivable discolorations.

Graphical Abstract

1. Introduction

The development of thermoplastic high-performance polymers (HPP) has led to an increasing interest in dentistry due to their excellent properties, which has made them suitable for many applications in the field of restorative and prosthetic dentistry. The polyaryletherketone (PAEK) family shows ultra-high mechanical performances and chemical resistance among all the thermoplastic polymers. These materials were introduced to substitute well-known metallic alloys and ceramics for achieving different fixed restorations and removable prostheses [1,2,3].
The term PAEK covers a number of closely related high-performance thermoplastics, like polyetheretherketone (PEEK), polyetherketoneketone (PEKK) and aryl ketone polymer (AKP). Polyetheretherketone (PEEK) is a linear, aromatic, semi-crystalline thermoplastic, developed from bisphenol salts and aromatic dihalides via nucleophilic substitution. The structures of PEEK and PEKK both have aromatic rings, which differ in terms of the ratio of ether and the keto group [4].
PEEK is a material known for its high biocompatibility, favorable mechanical properties, high temperature resistance, chemical stability, high polishing potential, low specific weight, good wear resistance, low plaque affinity, and good bond strength with veneering composites and luting cements. Compared to other materials, such as zirconia, glass ceramics, and metal alloys, PEEK has a low modulus of elasticity (4 GPa), similar to those of bone, and is therefore better from a biomechanical point of view, and it absorbs destructive fracture energy and functional stresses, reducing the forces transferred to the abutment teeth. PEEK composites reinforced with carbon fibers (CFR-PEEK) have a higher elastic modulus (18 GPa). PEKK shows better mechanical properties in terms of flexure, tensile, and compressive strength [2,5,6,7,8,9,10,11,12].
Reinforcing agents may be used in order to absorb and transfer occlusal forces from the weak polymeric matrix to the stronger filler material [1,13,14]. HPP are expected to withstand occlusal loads during functions and consequently have to display mechanical strength, in order to prevent cracks, fractures, plastic deformation, or even failures [12,15].
The thermal properties of dental polymers are essential for predicting their lifetime performances, developing adequate processing protocols, and monitoring the effects of ageing [16]. After ageing in different solutions, PEEK had lower solubility and water absorption values compared to composite resins, hybrid materials, and PMMA-based materials [17].
Veneering or glazing is challenging due to the stable chemical structure and the unreactive and inert surface characteristics of HPP [18,19,20,21].
Even though PEEK materials are the aesthetic alternative of metallic frameworks, due to the grayish-brown or pearl-white opaque color, frameworks of fixed restorations have to be veneered with a composite resin. If the veneer is only partial, a part of the framework remains visible in the oral cavity. In addition, when using the material for the removable partial denture frameworks, their compounds, either connectors, or direct retainers, clasps, attachments, or double crowns, will be exposed in the oral cavity. Therefore, the surface processing and finishing should be a challenge. Studies are needed in order to determine optical properties and color stability during artificial ageing and staining.
The discoloration of dental prostheses may be caused by either intrinsic factors, such as the type of resin matrix, percentage and filler size, composition and polymerization mode, chemical reactions within the restorative material, age, and restoration processing mode, or extrinsic factors, such as staining from food colorants, such as caffeine, theobromine, anthocyanidins, tannins, and nicotine, in drinks, beverages, mouth rinses, and smoking [22,23,24,25].
The processes of PEEK discoloration still remain to be elucidated. Color stability significantly depends on surface roughness and surface-free energy during surface processing. Several studies showed that there is a positive correlation between a high surface roughness and the discoloration of denture resins, explained by the larger contact area [26,27,28].
The aim of this study was to investigate the long-term effects of the combined actions of ageing and immersing solutions on the optical properties and the color stability of PEEK material, related to surface processing (polishing or glazing). The null hypotheses were: (a) surface processing by glazing has a positive effect on the optical properties, color stability, and surface roughness, (b) artificial ageing has no effect on the optical properties, color stability, and roughness, and (c) immersion in staining beverages leads to discolorations.

2. Materials and Methods

This study examined the influence of different ageing and staining protocols on optical properties, color changes, and surface roughness of a reinforced PEEK material (bioHPP, Bredent, Senden, Germany) The material was composed in 20% ceramic fillers with a size of 0,3 -0,5 microns [29] (Table 1).

2.1. Specimen Preparation

PEEK blanks were sliced in rectangular-shaped plates with a thickness of 1 mm. They were polished using silicon carbide papers (600–2000 grit) and the final thickness of each specimen was checked with a digital caliper. The specimens were finally manually polished with a low-speed handpiece and diamond polishing paste, Renfert Polish (Renfert, Hilzingen, Germany), ultrasonically cleaned for 10 min, degreased with 98% ethylic alcohol, and dried. Specimen surfaces were then divided into 2 groups (n = 40) in terms of the applied surface treatment method: conventional polishing (p) and glazing after polishing (g). Resin Glaze Primer (Shofu, Kyoto, Japan) was applied to the PEEK surfaces for 60 s and allowed to dry, and then two thin layers of glaze, Resin Glaze Liquid (Shofu, Kyoto, Japan), were applied with a soft brush, in one direction to eliminate air bubbles, and were polymerized for 180 s each in a light-polymerizing device, SIBARI Polymerizer SR620 (Sirio Dental, Meldola, Italy), with a wavelength between 400–560 nm. The specimens of each group were randomly divided into five subgroups (A, B, C, D, E) (n = 8) consisting of different protocols. The specimens of subgroup A represent the control group (Table 2).

2.2. Ageing Protocol

Specimens of subgroups B–E were stored in distilled water at 37 °C for 7 days. Specimens of subgroups C–E were subjected to 5000 cycles in a 55 °C bath and a 5 °C bath filled with distilled water. Each cycle lasted 80 s: 30 s in a 55 °C bath, 10 s to transfer the specimens to the other bath, 30 s in a 5 °C bath, and 10 s to transfer the specimens back to the 55 °C bath.

2.3. Staining Protocol

Specimens of subgroups D and E were subject to different staining protocols: thermal cycling in a hot coffee bath (55 °C) and a bath filled with distilled water (37 °C) (D) and thermal cycling in a cold juice bath (5 °C) and a bath filled with distilled water (37 °C), respectively (E). Each cycle lasted 80 s: 30 s in a 55 °C or 5 °C bath, 10 s to transfer the specimens to the other bath, 30 s in a 37 °C bath, and 10 s to transfer the specimens back to the 55 °C or 5 °C bath. A total of 720 cycles were used for simulating 2 min per day of contact with the respective beverages. The instant coffee solution consisted of 1.8 g of instant coffee powder (Nescafe Brasero, Nestle, Vevey, Switzerland) per 150 mL of boiling water. Coca-Cola juice was used as cold, carbonated soft beverage (Coca-Cola Company, Atlanta, GA, USA).

2.4. Optical Measurements and Color Change Determinations

Translucency and opalescence parameters were determined for all specimens before and after thermal cycling. Optical properties were calculated under a D65 illuminant, using a spectrophotometer, Vita Easyshade IV (Vita Zahnfabrick, Bad Säckingen, Germany). The spectrophotometer was calibrated before each measurement.
Black (b) and white (w) backgrounds were used to assess the measurements, using a grey card, WhiBal G7 (White Balance Pocket Card). L* is a measure of the lightness–darkness of material (perfect black has an L* = 0, and perfect white has an L* = 100). The a* coordinate represents the redness (positive value) or the greenness (negative value), while the b* coordinate is a measure of the yellowness (positive value) or the blueness (negative value) [30,31,32].
TP values were calculated using Equation (1):
TP = [(Lb − Lw)2 + (ab − aw)2 + (bb − bw)2]1/2
OP values were calculated using Equation (2):
OP = [(ab − aw)2 + (bb − bw)2]1/2
CR was achieved by Equation (3):
CR = Yb/Yw Y = [(L* + 16)/116]3 × 100
w and b are color coordinates of the specimens on the white and black backgrounds. In this calculation, CR = 0 is considered transparent, and CR = 1 is regarded as totally opaque [33].
The color changes (ΔE*) were calculated based on the CIE L*a*b*color system. L* represents lightness (+ bright, and − dark), a* represents the color scale from red (+) to green (−), and b* represents the color scale from yellow (+) to blue (−).
The total color change value (ΔΕ*) was calculated according to Equation (4), which represents the color difference before and after immersion:
ΔΕ* = [(ΔL*)2 + (Δa*)2 + (Δb*)2]1/2
Measurements were made for each group.
The National Bureau of Standards (NBS) system was used to quantify the levels of color change (Table 3). To relate the color change to a clinical standard, the ΔE* values were converted into NBS units: NBS = ΔE* × 0.92 [34,35,36,37,38].

2.5. Surface Roughness Measurements

Specimens’ surface roughness was analyzed with a contact 2 µm stylus profilometer, Surftest SJ-201 (Mitutoyo, Kawasaki, Japan), for each subgroup. Arithmetic average roughness (Ra) and maximum absolute vertical roughness (Rz) measurements were performed in 5 different directions and all data were recorded. The mean value of the 5 measurements was calculated for each surface. The sampling length was 0.8 mm, and a force of 0.7 mN was applied.

2.6. Statistical Analysis

Statistical analyses were performed by means of the IBM SPSS Statistics software (IBM, New York, NY, USA). The differences among the variables were noted. Average values and standard deviations (SD) were calculated. A paired t test was used to evaluate the comparisons between the means. A p value of under 0.05 was considered statistically significant. Spearman correlation was used to assess monotonic similar or dissimilar relationships (whether linear or not) between variables. It measures the strength of association between variables and the direction of the relationship. The significance was related to: 0.00–0.19—“very weak”, 0.20–0.39—“weak”, 0.40–0.59—“moderate”, 0.60–0.79—“strong”, and 0.80–1.0—“very strong”.

3. Results

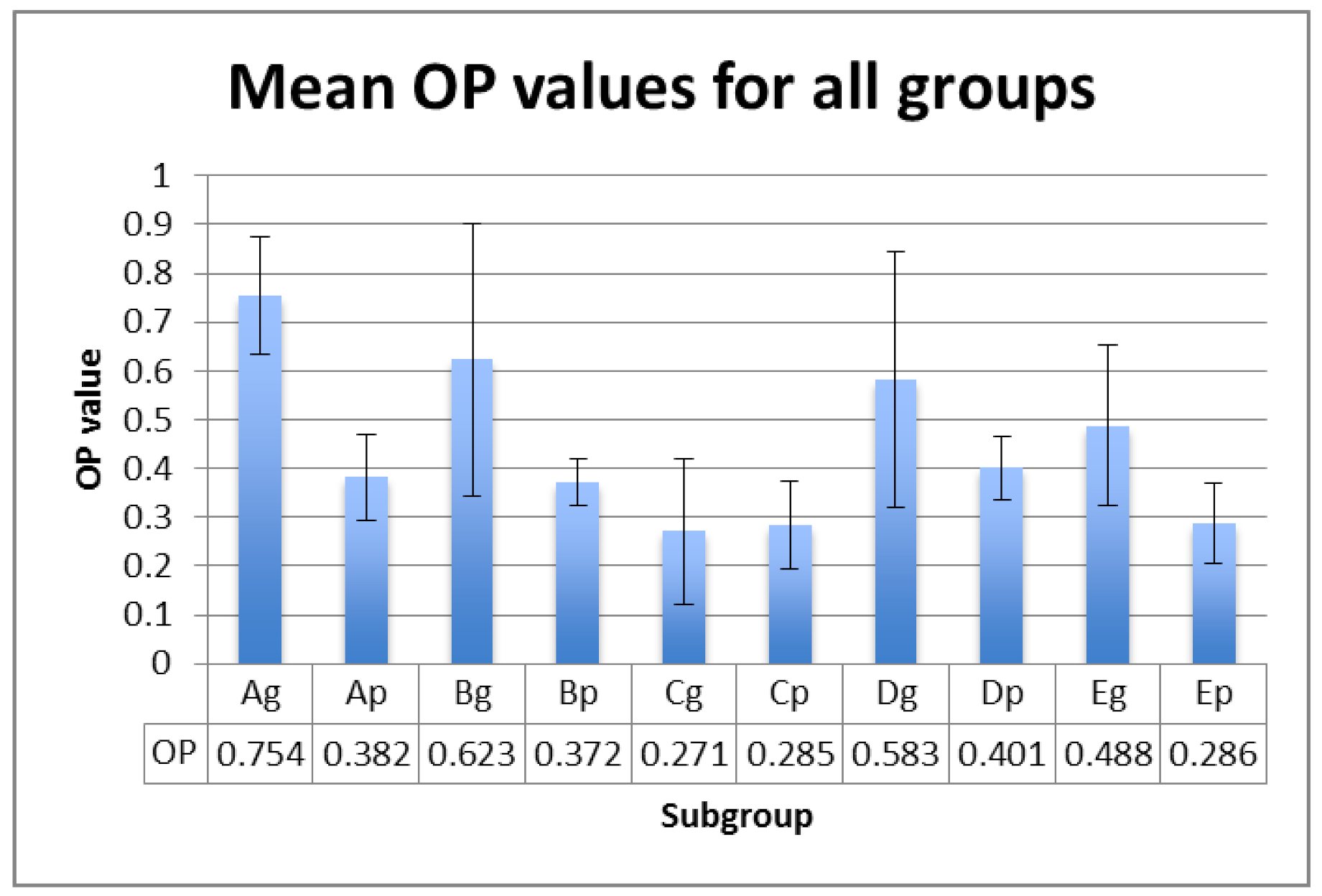

L*, a*, b* values were registered on white and black backgrounds, and the calculated TP, CR and OP values are displayed in Figure 1, Figure 2 and Figure 3 for each subgroup.
The mean values within groups exhibited significant differences between Ag and Cg (for TP and OP parameter) and between Ap and Bp (for CR parameter ) (Table 4). This means that the significant differences of optical properties between hydrated polished samples and the control group, and thermal cycled glazed samples and the control group, are registered.
Related to the differences between the polished and glazed samples, p values are unsignificant for TP (p = 0.120) and CR (p = 0.069), but significant for OP (p = 0.034), meaning that glazed subgroups are more opalescent than polished ones, both in the control subgroups, and after ageing and staining.
The correlations are positive and strong between TP and CR (r = 0.733) and CR and OP (r = 0.624) and very strong between TP and OP (r = 0.939).

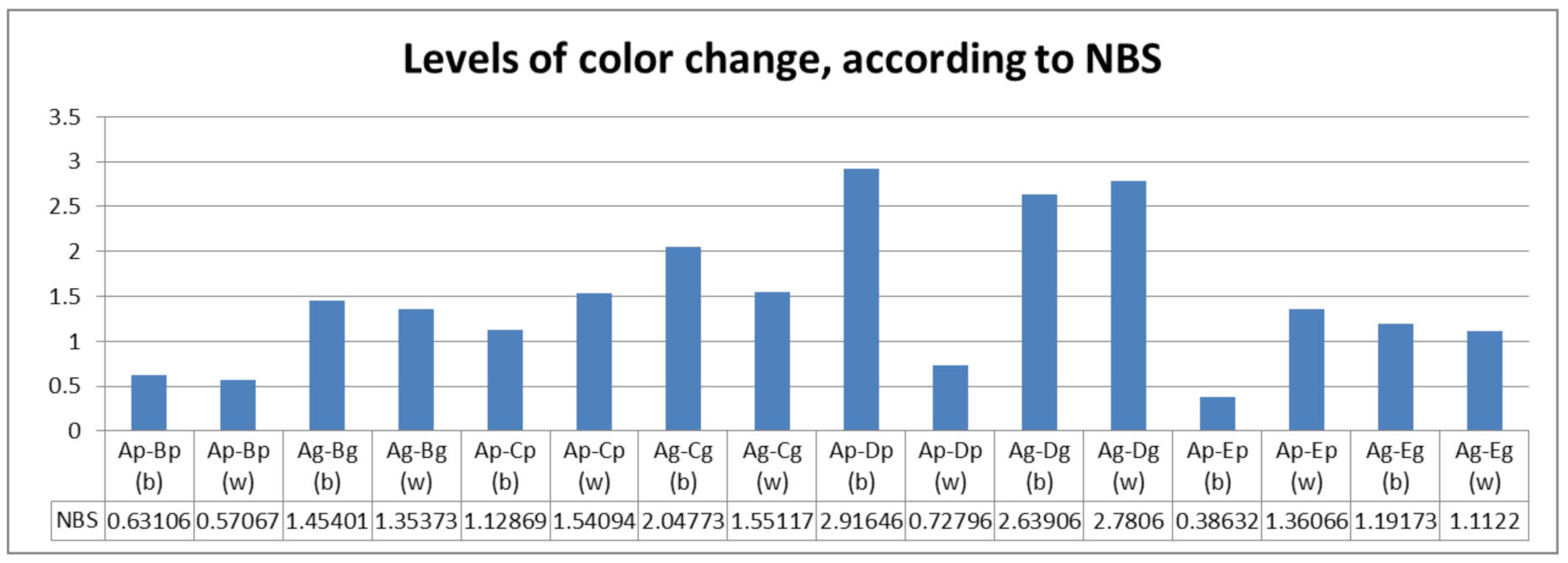

According to NBS units, perceivable color changes were calculated for ageing thermal cycled groups and groups thermal cycled in coffee (Figure 4). Related to surface processing, between polished and glazed samples, the differences were not significant (p = 0.061).

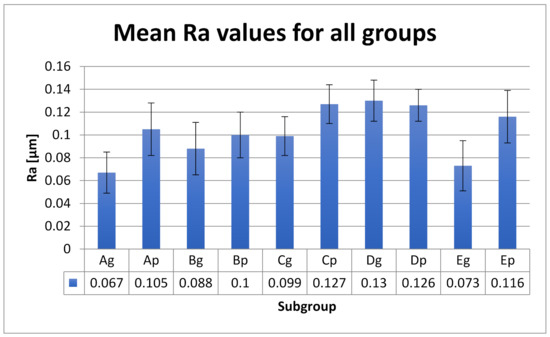

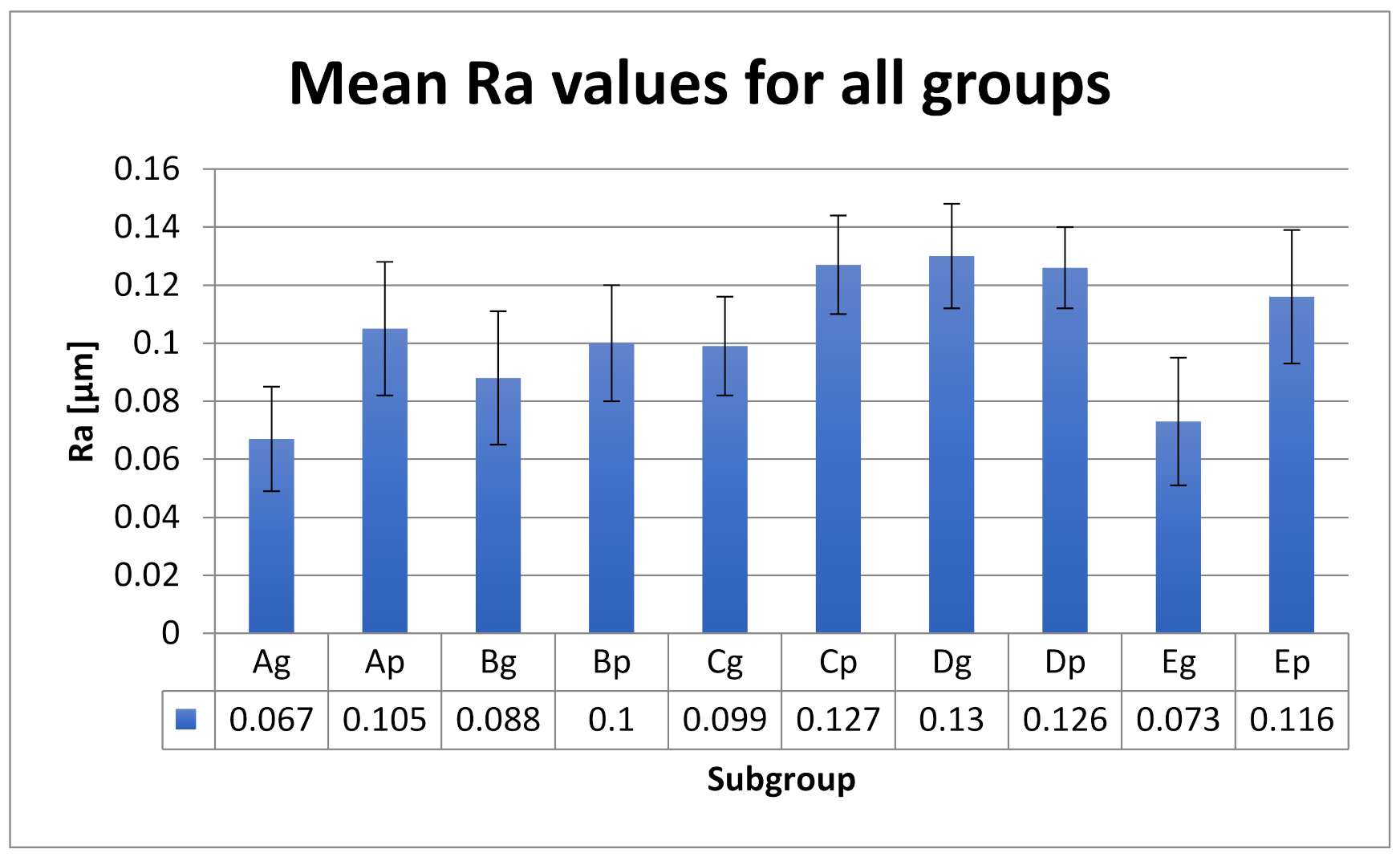

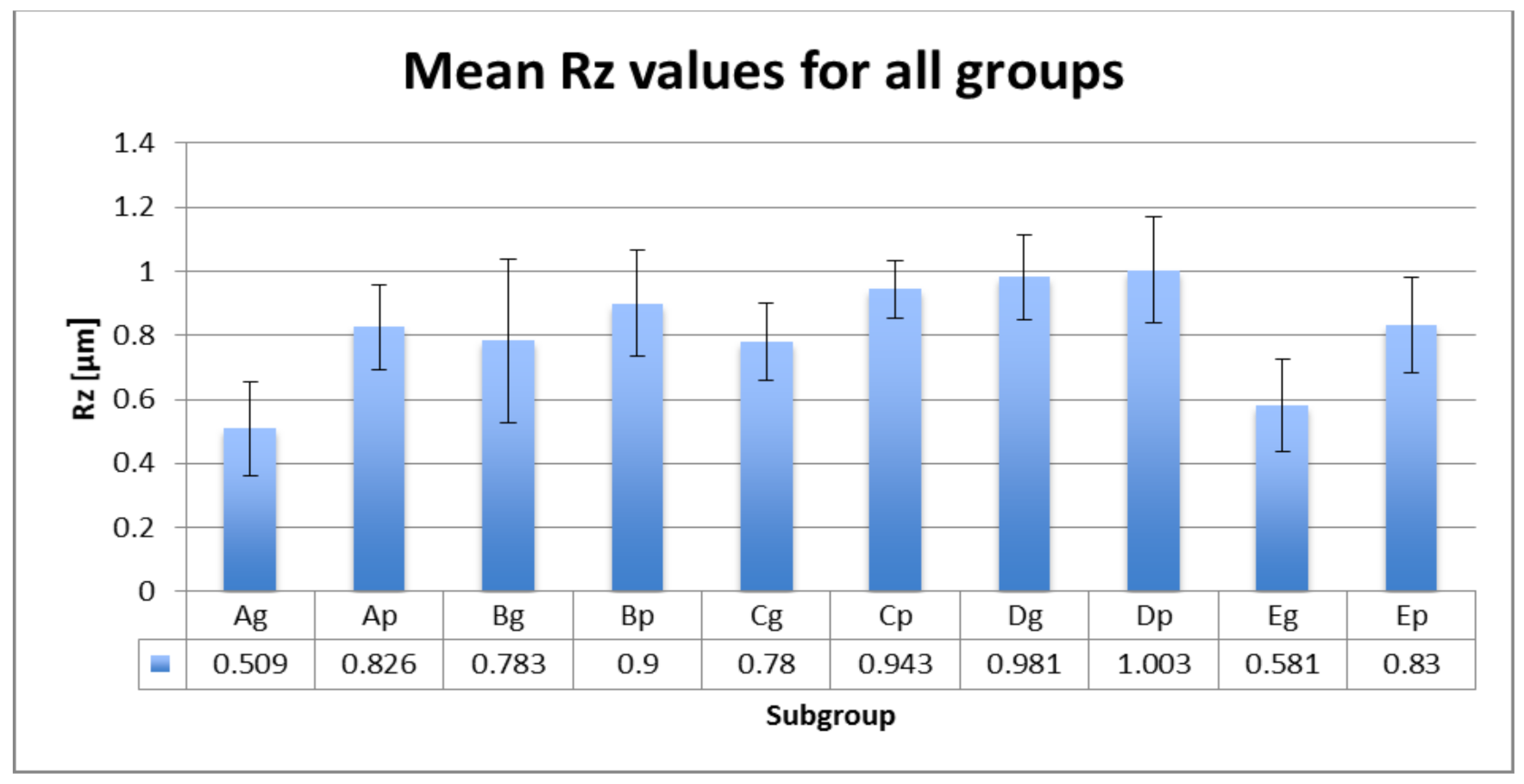

Mean roughness values Ra and Rz with SD values are included in Figure 5 and Figure 6.
Statistical analyses show significant Ra differences between the control group and the group aged by thermocycling and stained by thermocycling in coffee. The glazed control group shows additional significant differences with the group stored in water. Ageing and thermal cycling in coffee increased the Ra values (Table 5). Between Ra and Rz is a very strong positive correlation (r = 0.915). Between the polished and glazed groups, the roughness differences are significant (p = 0.020).
There is a very strong positive correlation (0.976) between the surface roughness (Ra) and the color stability (∆E) for the glazed samples and positive strong correlation (0.634) for the polished samples.
The first hypothesis, (a) “surface processing by glazing has a positive effect on the optical properties, color stability, and surface roughness”, is partially accepted; glazing has a positive significant effect on OP values from the optical properties, and on the surface roughness, but not on color stability.
The second hypothesis, (b) “artificial ageing has no effect on the optical properties, color stability, and roughness”, is rejected; it has a negative effect on the TP and OP values of glazed samples, and a negative effect on color stability and roughness for all samples.
Hypothesis (c), “immersion in staining beverages leads to discolorations”, is partially accepted; only samples thermal cycled in hot coffee registered perceivable color changes.

4. Discussion

Computer-aided design (CAD) and computer-aided manufacturing (CAM) technology enables processing PEEK by milling from prepressed blanks and is the most used at present. Related to the processing technology, studies proved that milled fixed and removable restorations showed appropriate mechanical properties. The use of different surface processing and finishing methods may be a subject of interest, in terms of the effect of the oral environment on the optical properties and color stability [3,12,39,40].
The optical properties of dental materials, such as translucency and opalescence, are critical factors for aesthetics and to mimic the natural appearance of the restorations. Translucency (TP) is defined as the difference in color at a uniform thickness measured by a spectrophotometer device over white and black backings. If the material is completely opaque, the TP value is zero. As the TP value increases, the translucency of the material also increases. Opalescence is defined as a scattering of wavelengths of visible light, and as a result, an object appears bluish and orange/brown in the reflected and transmitted color [29,41,42,43,44,45,46].
Translucency can be expressed as the relative amount of light passing through the unit thickness of a material. With respect to the factors which influence the translucency, the surface conditions, water content, and illumination were reported. Surface finishing procedures could modify surface topography and consecutive light scattering. As a result, surface finishing significantly affects translucency. The mean TP values of 1 mm-thick bovine enamel and dentine and human enamel and dentine were 14.7, 15.2, 18.7, and 16.4, respectively. The adjustment of the translucency of aesthetic dental restorative materials has been investigated, by the influence of filler size, and the difference between the transmitted, reflected colors and the translucency of experimental restorative materials were determined [47,48,49]. For zirconia, TP values were registered between 9.10 and 4.83 [50].
In addition to the effect of filler in dental composite materials, the effects of thermocycling and staining were found to influence TP values [51,52,53,54,55,56]. Even if PEEK materials belong to types not used for monolithic restorations, they are an aesthetic alternative to metallic frameworks. Therefore, their optical properties are important and have to be related to the optical features of teeth. The mean TP values of the studied samples were in the interval of 1.25–3.60, which is lower than those reported for natural teeth or other aesthetic restoration materials.
The CR and TP values of aesthetic dental materials were compared in different studies. As a result, CR varies inversely to TP (correlation coefficient: r = −0.93). The mean CR values of human and bovine enamel and dentine were negatively correlated with TP values (r = −0.93 to −0.78) [47,57,58]. This study shows a positive strong correlation between TP and CR, which is proof that the optical properties are not similar to those of natural teeth structures.
The OP value of the enamel–dentin complex was reported to be 4.8, and that of enamel, 7.4 [59,60]. The opalescence of tetragonal zirconia has been reported to be in the range of 1.25 to 2.83 [61]. The OP values of PEEK were registered to be in the range of 0.27–0.75, which is also lower than those of natural teeth or other aesthetic restoration materials.
OP is strongly positively correlated to CR and very strongly positively correlated to TP. The glazed samples proved to be more opalescent compared to the polished ones. A possible reason for this could be due to the glaze layers that increase the yellowness of the samples [62]. The behavior of the aesthetic dental restorations during their clinical use is essential and in vitro studies may simulate the oral environment, based on the type of material and processing method, in order to achieve reliable restorations. For the estimation of the long-term clinical stability of dental restorative materials, studies conducting thermal cycling tests to simulate oral environmental variables have been conducted [29,63,64]. Thermal cycling is a useful method to accelerate the artificial ageing of the samples. This is useful because it can estimate the clinical performance by reproducing the temperature in the oral environment, which contributes to long-term degradation [65]. The water ageing method includes standardized thermal variations with baths ranging from 5 to 55 °C for several cycles [66]. The thermal ageing protocol was involved in the artificial ageing simulation with 5000 cycles, simulating a clinical period of 6 months [65]. On the other hand, the staining cycling period has been equated with an immersion of 2 min/day, meaning 360 min/6 months, respective to 720 cycles for each sample and each beverage.
As the color of the restoration is also affected by the surface roughness, the roughness parameters were also taken into consideration in this study. A rough surface reflects less light than a smooth surface, altering the optical properties. In addition to the optical properties, increased surface roughness values adversely affect the strength of the materials and, implicitly, that of the restorations. Different surface roughness parameters are used to measure surface roughness, recording the highest peaks and lowest valleys of the surface profile [67,68,69,70]. Average roughness (Ra) is the most frequently used. Ra values below 0.2 μm are generally clinically accepted [71,72,73]. The mean registered Ra values for all subgroups were below 0.13 µm. Artificial ageing and thermal cycling in hot coffee proved to increase the roughness values. In this study, the maximum absolute vertical roughness (Rz) was also registered and a strong positive correlation was found. A possibility for the increased surface roughness after hot coffee immersion can be due to the absorption of water and the solubility of the colorants. Coffee contains a high number of molecular-weight, water-soluble colorants [74].

5. Conclusions

Within the limitations of this laboratory study, the following conclusions can be drawn:
  • The glazing of PEEK has a favorable effect on surface roughness and opalescence, irrespective of the artificial ageing or staining protocols.
  • Artificial ageing damages the color stability and roughness of PEEK, regardless of surface processing, and decreases the translucency and opalescence of glazed surfaces.
  • Immersion in hot coffee leads to perceivable discolorations.

Author Contributions

Conceptualization, L.P.; methodology, L.P. and S.D.P.; validation, L.P. and A.M.; formal analysis, L.P.; investigation, L.P. and F.-I.T.; resources, L.P. and F.R.T.; writing—original draft preparation, L.P.; writing—review and editing, L.P. and R.D.V.; supervision, L.P.; project administration, L.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Benli, M.; EkerGümüş, B. Thermal, structural and morphological characterization of dental polymers for clinical applications. J. Prosthodont. Res. 2021, 65, 176–185. [Google Scholar] [CrossRef]
  2. Alqurashi, H.; Khurshid, Z.; Syed, A.U.Y.; Habib, S.R.; Rokaya, D.; Zafar, M.S. Polyetherketoneketone (PEKK): An emerging biomaterial for oral implants and dental prostheses. J. Adv Res. 2020, 28, 87–95. [Google Scholar] [CrossRef]
  3. Alsadon, O.; Wood, D.; Patrick, D.; Pollington, S. Comparing the optical and mechanical properties of PEKK polymer when CAD/CAM milled and pressed using a ceramic pressing furnace. J. Mech. Behav. Biomed. Mater. 2019, 89, 234–236. [Google Scholar] [CrossRef]
  4. Micovic, D.; Mayinger, F. Is the high-performance thermoplastic polyetheretherketone indicated as a clasp material for re-movable dental prostheses? Clin. Oral Investig. 2021, 25, 2859–2866. [Google Scholar] [CrossRef]
  5. Qin, L.; Yao, S. Review on Development and Dental Applications of Polyetheretherketone-Based Biomaterials and Restora-tions. Materials 2021, 14, 408. [Google Scholar] [CrossRef]
  6. Polychronakis, N.; Lagouvardos, P.; Polyzois, G.; Sykaras, N.; Zoidis, P. Color changes of polyetheretherketone (PEEK) and polyoxymethelene (POM) denture resins on single and combined staining/cleansing action by CIELab and CIEDE2000 formulas. J. Prosthodont. Res. 2019, 64, 159–166. [Google Scholar] [CrossRef]
  7. Papathanasiou, I.; Kamposiora, P.; Papavasiliou, G.; Ferrari, M. The use of PEEK in digital prosthodontics: A narrative review. BMC Oral Health 2020, 20, 1–11. [Google Scholar] [CrossRef]
  8. Preis, V.; Hahnel, S.; Behr, M.; Bein, L.; Rosentritt, M. In-vitro fatigue and fracture testing of CAD/CAM-materials in implant-supported molar crowns. Dent. Mater. 2017, 33, 427–433. [Google Scholar] [CrossRef] [PubMed]
  9. Zoidis, P.; Bakiri, E.; Papathanasiou, I.; Zappi, A. Modified PEEK as an alternative crown framework material for weak abutment teeth: A case report. Gen. Dent. 2017, 65, 37–40. [Google Scholar] [PubMed]
  10. Zoidis, P.; Papathanasiou, I.; Polyzois, G. The Use of a Modified Poly-Ether-Ether-Ketone (PEEK) as an Alternative Framework Material for Removable Dental Prostheses. A Clinical Report. J. Prosthodont. 2016, 25, 580–584. [Google Scholar] [CrossRef] [PubMed]
  11. Alexakou, E.; Damanaki, M.; Zoidis, P.; Bakiri, E.; Mouzis, N.; Smidt, G.; Kourtis, S. PEEK High Performance Polymers: A Review of Properties and Clinical Applications in Prosthodontics and Restorative Dentistry. Eur. J. Prosthodont. Restor. Dent. 2019, 27, 113–121. [Google Scholar] [PubMed]
  12. Stawarczyk, B.; Eichberger, M.; Uhrenbacher, J.; Wimmer, T.; Edelhoff, D.; Schmidlin, P.R. Three-unit reinforced polyetheretherketone composite FDPs: Influence of fabrication method on load-bearing capacity and failure types. Dent. Mater. J. 2015, 34, 7–12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Nascimento, A.S.; Rodrigues, J.F.B.; Torres, R.H.N.; Santos, K.O.; Fook, M.V.L.; Albuquerque, M.S.; de Lima, E.A.; Filgueira, P.T.D.; dos Santos, J.B.M.; de Oliveira, L.J.R.; et al. Physicomechanical and thermal analysis of bulk-fill and conventional composites. Braz. Oral Res. 2019, 33, e008. [Google Scholar] [CrossRef]
  14. Alshali, R.Z.; Salim, N.A.; Satterthwaite, J.D.; Silikas, N. Post-irradiation hardness development, chemical softening, and thermal stability of bulk-fill and conventional resin-composites. J. Dent. 2015, 43, 209–218. [Google Scholar] [CrossRef]
  15. Skal’s’kyi, V.R.; Makeev, V.F. Alternation of the types of fracture for dentalpolymers in different stages of crack propagation. Mater. Sci. 2015, 50, 836–843. [Google Scholar] [CrossRef]
  16. EAG Laboratories. Characterization of Polymers Using Differential Scanning Calorimetry (DSC); White Page: San Diego, CA, USA, 2016; pp. 1–5. [Google Scholar]
  17. Liebermann, A.; Wimmer, T.; Schmidlin, P.R.; Scherer, H.; Löffler, P.; Roos, M.; Stawarczyk, B. Physicomechanical characterization of polyetheretherketone and current esthetic dental CAD/CAM polymers after aging in different storage media. J. Prosthet. Dent. 2016, 115, 321–328. [Google Scholar] [CrossRef] [Green Version]
  18. Lümkemann, N.; Eichberger, M.; Stawarczyk, B. Bond strength between a high-performance thermoplastic and a veneering resin. J. Prosthet. Dent. 2020, 124, 790–797. [Google Scholar] [CrossRef]
  19. Stawarczyk, B.; Keul, C.; Beuer, F.; Roos, M.; Schmidlin, P.R. Tensile bond strength of veneering resins to PEEK: Impact of different adhesives. Dent. Mater. J. 2013, 32, 441–448. [Google Scholar] [CrossRef] [Green Version]
  20. Ates, S.M.; Caglar, I. The effect of different surface pretreatments on the bond strength of veneering resin to polyetheretherketone. J. Adhes. Sci. Technol. 2018, 32, 2220–2231. [Google Scholar] [CrossRef]
  21. Panayotov, I.V.; Orti, V. Polyetheretherketone (PEEK) for medical applications. J. Mater. Sci. Mater. Med. 2016, 27, 118. [Google Scholar] [CrossRef]
  22. Falkensammer, F.; Arnetzl, G.V.; Wildburger, A.; Freudenthaler, J. Color stability of different composite resin materials. J. Prosthet. Dent. 2013, 109, 378–383. [Google Scholar] [CrossRef]
  23. Polychronakis, N.C.; Polyzois, G.L.; Lagouvardos, P.E.; Papadopoulos, T.D. Effects of cleansing methods on 3-D surface roughness, gloss and color of a polyamide denture base material. Acta Odontol. Scand. 2014, 73, 353–363. [Google Scholar] [CrossRef] [PubMed]
  24. Kumari, R.V.; Nagaraj, H.; Siddaraju, K.; Poluri, R.K. Evaluation of the Effect of Surface Polishing, Oral Beverages and Food Colorants on Color Stability and Surface Roughness of Nanocomposite Resins. J. Int. Oral Health 2015, 7, 63–70. [Google Scholar] [PubMed]
  25. Zoidis, P.; Polychronakis, N.; Lagouvardos, P.; Polyzois, G.; Ngo, H.C. Evaluation of a Realistic Cleansing Protocol for Preventing Discoloration of Denture Resins. J. Prosthodont. 2019, 28, e89–e95. [Google Scholar] [CrossRef] [Green Version]
  26. Heimer, S.; Schmidlin, P.R. Discoloration of PMMA, composite, and PEEK. Clin. Oral Investig. 2017, 21, 1191–1200. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Gönülol, N.; Yilmaz, F. The effects of finishing and polishing techniques on surface roughness and color stability of nano-composites. J. Dent. 2012, 40, e64–e70. [Google Scholar] [CrossRef] [PubMed]
  28. Türkün, L.S.; Leblebicioglu, E.A. Stain retention and surface characteristics of posterior composites polished by one-step sys-tems. Am. J. Dent. 2006, 19, 343–347. [Google Scholar]
  29. BioHPP—The New Class of Materials in Prosthetics. 2013. Available online: https://www.bredent.co.uk/wp-content/uploads/2017/02/BioHPP-2013.pdf (accessed on 5 November 2021).
  30. Porojan, L.; Vasiliu, R.D.; Bîrdeanu, M.I.; Porojan, S.D. Surface Characterization and Optical Properties of Reinforced Dental Glass-Ceramics Related to Artificial Aging. Molecules 2020, 25, 3407. [Google Scholar] [CrossRef]
  31. Kurt, M.; Güngör, M.B.; Nemli, S.K.; Bal, B.T. Effects of glazing methods on the optical and surface properties of silicate ceramics. J. Prosthodont. Res. 2019, 64, 202–209. [Google Scholar] [CrossRef]
  32. Hallmann, L.; Ulmer, P.; Lehmann, F.; Wille, S.; Polonskyi, O.; Johannes, M.; Köbel, S.; Trottenberg, T.; Bornholdt, S.; Haase, F.; et al. Effect of surface modifications on the bond strength of zirconia ceramic with resin cement resin. Dent. Mater. 2016, 32, 631–639. [Google Scholar] [CrossRef]
  33. Paravina, R.D.; Powers, J.M. Esthetic Color Training in Dentistry; Elsevier Mosby: St. Louis, MO, USA, 2004; pp. 51–78. [Google Scholar]
  34. Shirani, M.; Savabi, O.; Mosharraf, R.; Akhavankhaleghi, M.; Hebibkhodaei, M.; Isler, S. Comparison of translucency and opalescence among different dental monolithic ceramics. J. Prosthet. Dent. 2021, 126, 446.e1–446.e6. [Google Scholar] [CrossRef]
  35. Fang, D.; Zhang, N.; Chen, H.; Bai, Y. Dynamic stress relaxation of orthodontic thermoplastic materials in a simulated oral environment. Dent. Mater. J. 2013, 32, 946–951. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Agarwal, M.; Wible, E.; Ramir, T.; Altun, S.; Viana, G.; Evans, C.; Lukic, H.; Megremis, S.; Atsawasuwan, P. Long-term effects of seven cleaning methods on light transmittance, surface roughness, and flexural modulus of polyurethane retainer material. Angle Orthod. 2018, 88, 355–362. [Google Scholar] [CrossRef] [Green Version]
  37. Nguyen-Tri, P.; Prud’homme, R.E. Nanoscale analysis of the photodegradation of Polyester fibers by AFM-IR. J. Photochem. Photobiol. A Chem. 2019, 371, 196–204. [Google Scholar] [CrossRef]
  38. Biron, M. Detailed Accounts of Thermoplastic Resins. In Thermoplastics and Thermoplastic Composites, 3rd ed.; William Andrew: Kindlington, UK; Oxford, UK, 2018; pp. 203–766. [Google Scholar]
  39. Porojan, L.; Vasiliu, R.-D.; Porojan, S.-D.; Bîrdeanu, M.-I. Surface Quality Evaluation of Removable Thermoplastic Dental Appliances Related to Staining Beverages and Cleaning Agents. Polymers 2020, 12, 1736. [Google Scholar] [CrossRef] [PubMed]
  40. Mayinger, F.; Micovic, D. Retention force of polyetheretherketone and cobalt-chrome-molybdenum removable dental pros-thesis clasps after artificial aging. Clin. Oral Investig. 2021, 25, 3141–3149. [Google Scholar] [CrossRef]
  41. Sen, N.; Us, Y.O. Mechanical and optical properties of monolithic CAD-CAM restorative materials. J. Prosthet. Dent. 2018, 119, 593–599. [Google Scholar] [CrossRef]
  42. Della Bona, A.; Nogueira, A.D.; Pecho, O. Optical properties of CAD-CAM ceramic systems. J. Dent. 2014, 42, 1202–1209. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Vichi, A.; Carrabba, M.; Paravina, R.; Ferrari, M. Translucency of Ceramic Materials for CEREC CAD/CAM System. J. Esthet. Restor. Dent. 2014, 26, 224–231. [Google Scholar] [CrossRef] [PubMed]
  44. Paravina, R.D.; Ontiveros, J.C.; Powers, J.M. Curing-dependent changes in color and translucency parameter of composite bleach shades. J. Esthet. Restor. Dent. 2002, 14, 158–166. [Google Scholar] [CrossRef]
  45. Lee, Y.K.; Lu, H.; Powers, J.M. Measurement of opalescence of resin composites. Dent. Mater. 2005, 21, 1068–1074. [Google Scholar] [CrossRef] [PubMed]
  46. Cho, M.S.; Yu, B.; Lee, Y.K. Opalescence of all-ceramic core and veneer materials. Dent. Mater. 2009, 25, 695–702. [Google Scholar] [CrossRef] [PubMed]
  47. Lee, Y.K. Translucency of human teeth and dental restorative materials and its clinical relevance. J. Biomed. Opt. 2015, 20, 45002. [Google Scholar] [CrossRef] [PubMed]
  48. Akar, G.C.; Pekkan, G.; Cal, E.; Eskitaşçıoğlu, G.; Özcan, M. Effects of surface-finishing protocols on the roughness, color change, and translucency of different ceramic systems. J. Prosthet. Dent. 2014, 112, 314–321. [Google Scholar] [CrossRef] [PubMed]
  49. Monaco, C.; Arena, A.; Özcan, M. Effect of prophylactic polishing pastes on roughness and translucency of lithium disilicate ceramic. Int. J. Periodontics Restor. Dent. 2014, 34, e26–e29. [Google Scholar] [CrossRef]
  50. Al-Juaila, E.; Osman, E.; Segaan, L.; Shrebaty, M.; Farghaly, E.A. Comparison of translucency for different thicknesses of recent types of esthetic zirconia ceramics versus conventional ceramics … (in vitro study). Future Dent. J. 2018, 4, 297–301. [Google Scholar] [CrossRef]
  51. Johnston, W.M. Review of Translucency Determinations and Applications to Dental Materials. J. Esthet. Restor. Dent. 2014, 26, 217–223. [Google Scholar] [CrossRef]
  52. Depes de Gouvea, C.V.; Bedran, L.M.; Aguiar de Faria, M.; Cunha-Ferreira, N. Surface roughness and translucency of resin composites after immersion in coffee and soft drink. Acta Odontológica Latinoam. 2011, 24, 3–7. [Google Scholar]
  53. Yu, B.; Ahn, J.S.; Lim, J.I.; Lee, Y.K. Influence of TiO2 nanoparticles on the optical properties of resin composites. Dent. Mater. 2009, 25, 1142–1147. [Google Scholar] [CrossRef]
  54. Imamura, S.; Takahashi, H.; Hayakawa, I.; Loyaga-Rendon, P.G.; Minakuchi, S. Effect of filler type and polishing on the discoloration of composite resin artificial teeth. Dent. Mater. J. 2008, 27, 802–808. [Google Scholar] [CrossRef] [Green Version]
  55. Yu, B.; Lee, Y.K. Differences in color, translucency and fluorescence between flowable and universal resin composites. J. Dent. 2008, 36, 840–846. [Google Scholar] [CrossRef] [PubMed]
  56. Lee, S.H.; Lee, Y.K. Effect of thermocycling on optical parameters of resin composites by the brand and shade. Am. J. Dent. 2008, 21, 361–367. [Google Scholar]
  57. Lee, S.H.; Lee, Y.K.; Lim, B.S. Influence of thermocycling on the optical properties of laboratory resin composites and an all-ceramic material. J. Mater. Sci. Mater. Electron. 2004, 15, 1221–1226. [Google Scholar] [CrossRef] [PubMed]
  58. Yu, B.; Ahn, J.S.; Lee, Y.K. Measurement of translucency of tooth enamel and dentin. Acta Odontol. Scand. 2009, 67, 57–64. [Google Scholar] [CrossRef] [PubMed]
  59. Lee, Y.K. Opalescence of human teeth and dental esthetic restorative materials. Dent. Mater. J. 2016, 35, 845–854. [Google Scholar] [CrossRef] [Green Version]
  60. Ardu, S.; Feilzer, A.J.; Devigus, A.; Krejci, I. Quantitative clinical evaluation of esthetic properties of incisors. Dent. Mater. 2008, 24, 333–340. [Google Scholar] [CrossRef]
  61. Juntavee, N.; Attashu, S. Effect of sintering process on color parameters of nano-sized yttria partially stabilized tetragonal monolithic zirconia. J. Clin. Exp. Dent. 2018, 10, e794–e804. [Google Scholar] [CrossRef]
  62. Kim, H.K.; Kim, S.H.; Lee, J.B.; Han, J.S.; Yeo, I.S. Effect of polishing and glazing on the color and spectral distribution of monolithic zirconia. J. Adv. Prosthodont. 2013, 5, 296–304. [Google Scholar] [CrossRef] [Green Version]
  63. Hampe, R.; Lümkemann, N. The effect of artificial aging on Martens hardness and indentation modulus of different dental CAD/CAM restorative materials. J. Mech. Behav. Biomed. Mater. 2018, 86, 191–198. [Google Scholar] [CrossRef]
  64. Kelly, J.; Cesar, P.; Scherrer, S.; Della Bona, A.; van Noort, R.; Tholey, M.; Vichi, A.; Lohbauer, U. ADM guidance-ceramics: Fatigue principles and testing. Dent. Mater. 2017, 33, 1192–1204. [Google Scholar] [CrossRef] [Green Version]
  65. Gerogianni, P.; Lien, W. Fracture Resistance of Pressed and Milled Lithium Disilicate Anterior Complete Coverage Resto-rations Following Endodontic Access Preparation. J. Prosthodont. 2019, 28, 163–170. [Google Scholar] [CrossRef]
  66. Vasiliu, R.D.; Porojan, S.D.; Bîrdeanu, M.I.; Uțu, I.D.; Porojan, L. The Effect of Thermocycling and Surface Treatments on the Surface Roughness and Microhardness of Three Heat-Pressed Ceramics Systems. Crystals 2020, 10, 160. [Google Scholar] [CrossRef] [Green Version]
  67. Vasiliu, R.D.; Porojan, S.D.; Bîrdeanu, M.I.; Porojan, L. Effect of Thermocycling, Surface Treatments and Microstructure on the Optical Properties and Roughness of CAD-CAM and Heat-Pressed Glass Ceramics. Materials 2020, 13, 381. [Google Scholar] [CrossRef] [Green Version]
  68. Alnasser, M.; Finkelman, M.; Papathanasiou, A.; Suzuki, M.; Ghaffari, R.; Ali, A. Effect of acidic pH on surface roughness of esthetic dental materials. J. Prosthet. Dent. 2019, 122, 567.e1–567.e8. [Google Scholar] [CrossRef] [PubMed]
  69. Field, J.; Waterhouse, P.; German, M. Quantifying and qualifying surface changes on dental hard tissues in vitro. J. Dent. 2010, 38, 182–190. [Google Scholar] [CrossRef] [PubMed]
  70. Al-Shammery, H.A.; Bubb, N.L. The use of confocal microscopy to assess surface roughness of two milled CAD-CAM ceramics following two polishing techniques. Dent. Mater. 2007, 23, 736–741. [Google Scholar] [CrossRef] [PubMed]
  71. Kukiattrakoon, B.; Hengtrakool, C.; Kedjarune-Leggat, U. Effect of Acidic Agents on Surface Roughness of Dental Ceramics. Dent. Res. J. 2011, 8, 6–15. [Google Scholar]
  72. Köroğlu, A.; Sahin, O.; Dede, D.Ö.; Yilmaz, B. Effect of different surface treatment methods on the surface roughness and color stability of interim prosthodontic materials. J. Prosthet. Dent. 2015, 115, 447–455. [Google Scholar] [CrossRef]
  73. Şahin, O.; Koroglu, A. Effect of surface sealant agents on the surface roughness and color stability of denture base materials. J. Prosthet. Dent. 2016, 116, 610–616. [Google Scholar] [CrossRef]
  74. Ortengren, U.; Andersson, F. Influence of pH and storage time on the sorption and solubility behaviour of three composite resin materials. J. Dent. 2001, 29, 35–41. [Google Scholar] [CrossRef]
Polymers 13 04102 g001 550

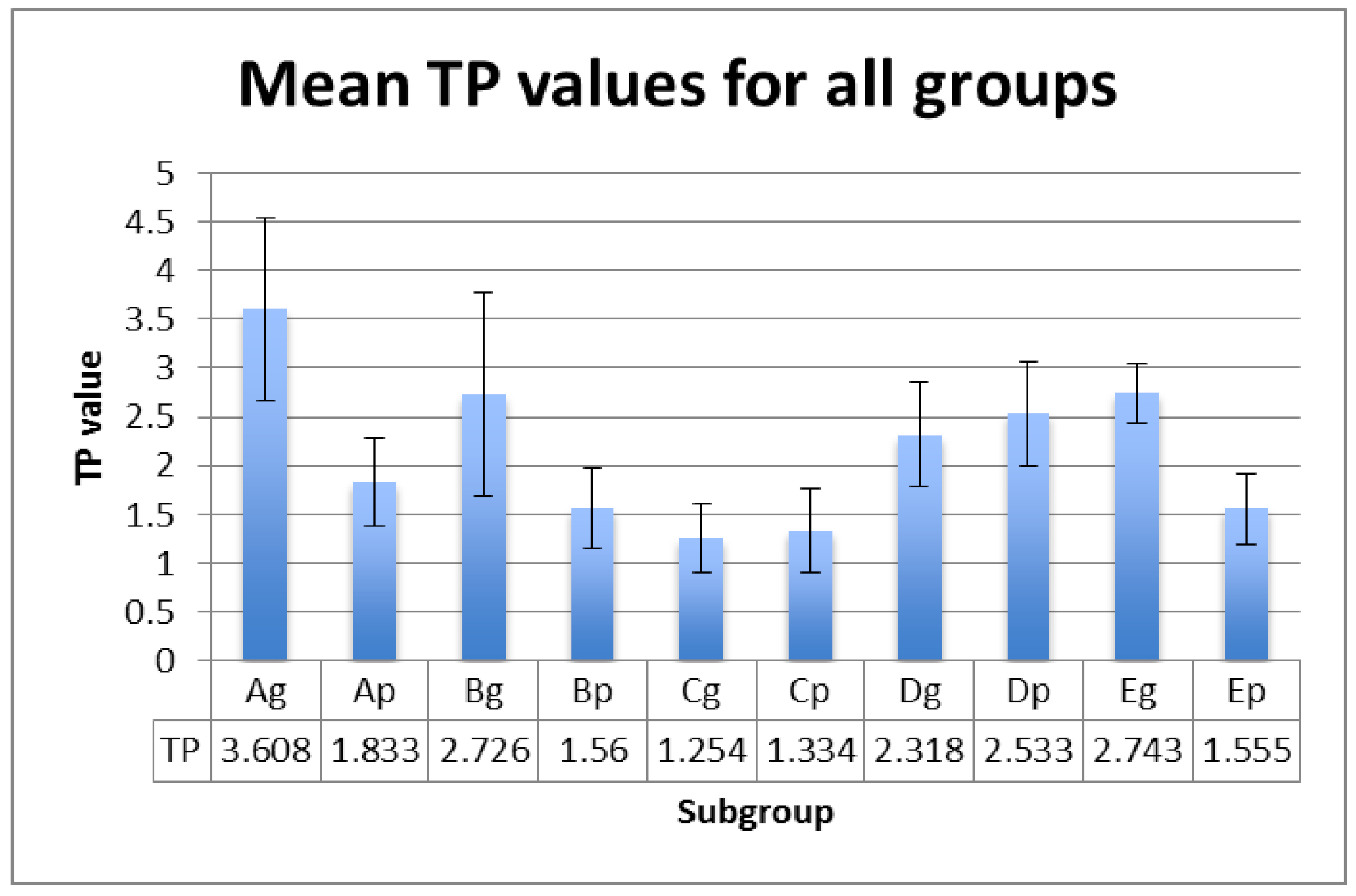

Figure 1. TP values (mean ± SD) for all tested groups.
Figure 1. TP values (mean ± SD) for all tested groups.
Polymers 13 04102 g001
Polymers 13 04102 g002 550

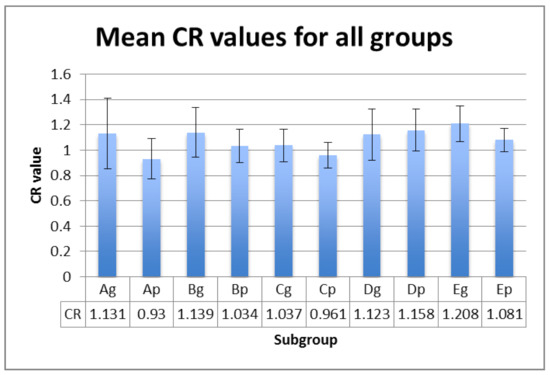

Figure 2. CR values (mean ± SD) for all tested groups.
Figure 2. CR values (mean ± SD) for all tested groups.
Polymers 13 04102 g002
Polymers 13 04102 g003 550
Figure 3. OP values (mean ± SD) for all tested groups.
Figure 3. OP values (mean ± SD) for all tested groups.
Polymers 13 04102 g003
Polymers 13 04102 g004 550
Figure 4. Levels of color change for each subgroup, according to NBS. b(black), w(white).
Figure 4. Levels of color change for each subgroup, according to NBS. b(black), w(white).
Polymers 13 04102 g004
Polymers 13 04102 g005 550
Figure 5. Ra values (mean ± SD) for all tested groups.
Figure 5. Ra values (mean ± SD) for all tested groups.
Polymers 13 04102 g005
Polymers 13 04102 g006 550
Figure 6. Rz values (mean ± SD) for all tested groups.
Figure 6. Rz values (mean ± SD) for all tested groups.
Polymers 13 04102 g006
Table
Table 1. The composition of the studied material.
Table 1. The composition of the studied material.
Name of the MaterialComposition
BioHPP, Bredent, Senden, Germany20% ceramic fillers in a high-performance polymer
Table
Table 2. Protocols according to each subgroup.
Table 2. Protocols according to each subgroup.
SubgroupProcessing Protocol
Ap, AgControl
Bp, BgStoring in distilled water for 7 days
Cp, CgStoring in distilled water + thermal cycling
Dp, DgStoring in distilled water + thermal cycling + hot coffee staining
Ep, EgStoring in distilled water + thermal cycling +cold juice bath (5 °C)
Table
Table 3. Levels of color change, according to NBS.
Table 3. Levels of color change, according to NBS.
NBS UnitsColor Changes
0.0–0.5extremely slight change
0.5–1.5slight change
1.5–3.0perceivable
3.0–6.0marked change
6.0–12.0extremely marked change
12.0 or morechange to another color
Table
Table 4. p values between groups, related to optical properties.
Table 4. p values between groups, related to optical properties.
Comparison of Optical Properties Values between Groupsp Value for TPp Value for CRp Value for OP
Ap–Bp0.5340.0450.891
Ap–Cp0.3280.5940.352
Ap–Dp0.1990.0180.864
Ap–Ep0.4950.0500.153
Ag–Bg0.3230.9530.453
Ag–Cg0.0040.4330.000
Ag–Dg0.0860.9440.212
Ag–Eg0.4270.5580.067
Table
Table 5. p values between groups, related to Ra.
Table 5. p values between groups, related to Ra.
Comparison of Ra Values between Groupsp-Value
Ap–Bp0.409
Ap–Cp0.005
Ap–Dp0.014
Ap–Ep0.205
Ag–Bg0.005
Ag–Cg0.000
Ag–Dg0.000
Ag–Eg0.454
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Porojan, L.; Toma, F.R.; Vasiliu, R.D.; Topală, F.-I.; Porojan, S.D.; Matichescu, A. Optical Properties and Color Stability of Dental PEEK Related to Artificial Ageing and Staining. Polymers 2021, 13, 4102. https://doi.org/10.3390/polym13234102

AMA Style

Porojan L, Toma FR, Vasiliu RD, Topală F-I, Porojan SD, Matichescu A. Optical Properties and Color Stability of Dental PEEK Related to Artificial Ageing and Staining. Polymers. 2021; 13(23):4102. https://doi.org/10.3390/polym13234102

Chicago/Turabian Style

Porojan, Liliana, Flavia Roxana Toma, Roxana Diana Vasiliu, Florin-Ionel Topală, Sorin Daniel Porojan, and Anamaria Matichescu. 2021. "Optical Properties and Color Stability of Dental PEEK Related to Artificial Ageing and Staining" Polymers 13, no. 23: 4102. https://doi.org/10.3390/polym13234102

APA Style

Porojan, L., Toma, F. R., Vasiliu, R. D., Topală, F.-I., Porojan, S. D., & Matichescu, A. (2021). Optical Properties and Color Stability of Dental PEEK Related to Artificial Ageing and Staining. Polymers, 13(23), 4102. https://doi.org/10.3390/polym13234102

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
