Current Status of Cellulosic and Nanocellulosic Materials for Oil Spill Cleanup

Fraunhofer Institute for Process Engineering and Packaging IVV, 85354 Freising, Germany
Mechanical Design & Production Department, Faculty of Engineering, Cairo University, Cairo 12613, Egypt
Mechanical Engineering Department, University of Alberta, Edmonton, AB T6G 2R3, Canada
Cellulose and Paper Department, National Research Centre, Dokki, Giza 12611, Egypt
Environmental Health and Safety Program, College of Health Sciences, Abu Dhabi University, Abu Dhabi 51133, United Arab Emirates
Author to whom correspondence should be addressed.
Polymers 2021, 13(16), 2739;
Submission received: 18 July 2021 / Revised: 5 August 2021 / Accepted: 9 August 2021 / Published: 16 August 2021
(This article belongs to the Special Issue Nanocellulose: Polymer Nanocomposites and all-Cellulose Materials)


Recent developments in the application of lignocellulosic materials for oil spill removal are discussed in this review article. The types of lignocellulosic substrate material and their different chemical and physical modification strategies and basic preparation techniques are presented. The morphological features and the related separation mechanisms of the materials are summarized. The material types were classified into 3D-materials such as hydrophobic and oleophobic sponges and aerogels, or 2D-materials such as membranes, fabrics, films, and meshes. It was found that, particularly for 3D-materials, there is a clear correlation between the material properties, mainly porosity and density, and their absorption performance. Furthermore, it was shown that nanocellulosic precursors are not exclusively suitable to achieve competitive porosity and therefore absorption performance, but also bulk cellulose materials. This finding could lead to developments in cost- and energy-efficient production processes of future lignocellulosic oil spillage removal materials.

1. Introduction

1.1. Oil Spillage as an Environmental and Economic Challenge

Regularly, more than 35 billion gallons of petroleum oil are transported on ships per annum, and more than 10 million gallons are spilled in marine water, which poses severe jeopardy to aquatic habitats and causes catastrophic consequences for tourism, the economy, and human health [1,2].
In disastrous situations, as in the Gulf of Mexico in 2010, 184 million gallons were released into the ocean [3]. During the Gulf War in Kuwait (1991), 38 million gallons were emptied into Arab Gulf water [4]. Tanker spills like Atlantic Empress in 1978 near the West Indies constituted more than 8.9 million gallons, and the tanker ABT Summer in 1991 near Angola coast spilled more than 8 million gallons [5]. Less severely, natural oil seepages in the Gulf of Mexico exceed 2.1 million gallons, and 0.6 million gallons in California and Alaska offshore regions [6], with a best estimate of 18 million gallons around the globe per annum [7].
Oil inhibits sunlight from underwater photosynthetic activity, which directly disturbs the marine food chain. As a result of the fact that nutrients were set free through the bio- or photochemical degradation of oil, massive amounts of green algae were found, often months or even years after the oil spills. Many creatures like mussels with plankton larvae have difficulty in re-settling as the algae then occupy the region. Coral reefs are susceptible to oil components and often die when oil spills occur near the reefs [5]. Oil droplets act as flypaper for many tiny organisms and entrap those organisms and kill them. Larger creatures may assimilate the oil when they go for their trapped microorganism prey, or they may inhale it and get it stuck on their gill membranes as they swim through the emulsion, which eventually intoxicates the human body (if fed on fish). If they are exposed to high concentrations, they will die; at much lower contamination levels, their physiologies will become impaired [8].
For being cost-effective, petroleum-based materials used for oil spillage clean-up have been widely used during the last few decades. However, their toxic effect in the marine environment—which is more harmful than the oil itself in some cases—has encouraged researchers and engineers to look for eco-friendly biodegradable alternatives which manifest almost zero toxicity and low cost.

1.2. Current Solutions and Materials Used for Oil Spill Clean-Up

Several solutions were implemented to solve oil spill (or seepage) problems. Those solutions can be used separately or jointly. Dave et al. [9] categorized solution methods into physical, chemical, biological, and in situ burning. Physical methods comprise containment booms, skimming machines, and adsorbent materials. Chemical methods contain dispersants and solidifiers [9]. The biological method (bioremediation) is simply utilizing microbial activity to biodegrade (assimilate) heavy crude oil components into cell biomass and lighter constituents that are ecofriendly [10]. Thermal solution or in situ burning is also an efficient solution to eliminate oil spills; however, combustion wastes sometimes jeopardize aquatic life [11].
Inorganic natural adsorbents including clay, glass, and sand [12], or synthetic adsorbent including polypropylene, polystyrene, and polyester foams exhibited good performance in oil spill removal [13]. However, lignocellulosic adsorbents still have substantial advantages compared to other materials particularly in terms of friendliness to the marine environment and light weight [14], in addition to other benefits that we will throw light upon in the next section. After conducting comparative analysis, mechanical processing and the application of dispersants followed by bioprocessing (bioremediation) is the most efficient procedure for marine oil spills [9].

1.3. Lignocelluloses Are Promising Alternatives

As per sorbent material functionality, lignocellulosic material is a promising candidate to carry out oil sorption tasks. Unlimited resource availability of this versatile biopolymer is roughly calculated to be 1.3 × 1010 metric tons per annum [15,16], which directly reflects the low cost of developed lignocellulose solutions. The significantly lower specific weight (0.9–1.2 g cm−3) than sand and clay (3.2 and 1.7 g cm−3) facilitates the floatability of lignocellulose compared to other materials. Biodegradability is the key advantage in promoting lignocellulose material, composed mainly of cellulose, hemicellulose, and lignin [17], and does not have any toxic effect on marine or terrestrial environments. Cellulose-based materials can be versatile functionalized and modified to alter their properties, including porosity and hydrophobicity (oleophilicity) [18]. The porosity of the materials is a prerequisite to allow their use as adsorbers, to enable incorporation of oil spillages in their matrix. To increase the wettability of lignocellulosic materials, which are hydrophilic by nature, with oil and oil-like liquids, their surface can be chemically modified. Both material properties, porosity and hydrophobicity account for the overall adsorption performance of the adsorption materials. Due to emerging interest of lignocellulosic materials for oil adsorption, several reviews on their production and use have been published recently [2,17,18,19,20,21,22,23,24].

2. Introduction to Lignocellulose and Nanocellulose

Lignocelluloses, such as wood and plants, are composites of three polymers: cellulose, hemicelluloses, and lignin [25,26]. Cellulose is a semicrystalline linear homopolymer of glucose units connected via 1,4-β-glycosidic bonds. The degree of polymerization of cellulose can go up to 15 thousand units [19,27]. Hemicelluloses are amorphous branched heteropolymers of several sugars, including glucose, galactose, xylose, mannose, arabinose, glucu- and galacturonic acids. These sugars and sugar acids are connected using a variety of glycosidic bonds [28]. Lignin is an amorphous networked polyphenol of three phenyl propane units that differ on the degree of methoxylation at the meta position [29]. Lignocelluloses’ microstructure is very complex. Initially, around 36 cellulose chains bundle together to form elementary fibrils (diameter of 3–4 nm). These fibrils aggregate together to form sheets of microfibrils with a thickness of 10–30 nm, which are in turn embedded in an amorphous matrix of lignin and hemicelluloses [30]. The three polymers interlock together through lignin-carbohydrate complexes [31]. During pulping, the lignin-carbohydrate complexes are chemically disintegrated, the hemicelluloses and lignin are depolymerized, and cellulose is extracted in the form of 20–40 µm pulp fibers. These fibers are directly used in the paper industry or dissolved and spun for the textile industry [32]. Recently, cellulose fibers have been chemically and mechanically disintegrated to form cellulose nanoparticles (NPs) or nanocellulose (NC) [33].
As shown in Figure 1, there are two primary forms of nanocellulose: cellulose nanofibrils (CNFs) and cellulose nanocrystals (CNCs). CNFs are semicrystalline spaghetti-like NPs with a thickness of 5–50 nm and a length of a few millimeters. They can be produced by the mechanical fibrillation of cellulose fibers using various equipment such as microfluidizers, homogenizers, and micro grinders [34]. A synonymous term for CNF is also MFC (micro fibrillated cellulose). CNCs are highly crystalline rod-like NPs with a thickness of 5–20 nm and a length of a few hundred nanometers [35]. They are produced by the chemical liberation of the cellulose crystallites from the pulp fibers using acid hydrolysis [36,37]. Sulfuric acid is mainly used, but other acids and chemical reagents have also been used [38]. If other mineral acids are used for hydrolysis, and larger particles are obtained, the resulting material is microcrystalline cellulose (MCC). Both forms of nanocellulose have been widely explored in the last two decades due to their attractive properties. A special kind of nanocellulose, which falls under the CNFs umbrella, is bacterial nanocellulose (BNC). Unlike other nanocelluloses, BNC is produced using a bottom-up approach by building up CNFs from simple sugars using bacteria [39].
Nanocelluloses have inherited both the properties of cellulose, such as low density, high mechanical properties, biodegradability, and biocompatibility, and the properties of NPs such as specific surface area and self-assembly [40]. However, nanocelluloses are most famous for the abundance of hydroxyl groups on their surfaces, opening the doors for unlimited possibilities to functionalize them [41]. A wide range of chemical moieties has been placed on the surface of nanocelluloses, including simple molecules and polymers [42]. Due to these exciting properties, nanocelluloses have shown great potential in a wide range of applications [43], including tissue engineering [44], automotive and aerospace industries [45], pharmaceutical formulation [46], water filtration [47], flexible electronics [48], packaging materials [49], lightweight composites and construction materials [50,51] and needless to say oil spillage clean up [52,53]. This has also led to massive interest from academia and industry. More than 3000 articles about nanocellulose were published in 2020 compared to around 200 in 2009. This has also led to the establishment of tens of nanocellulose manufacturing facilities worldwide [42].

3. Surface Modification of Cellulose and Nanocellulose

Cellulose and nanocellulose are highly hydrophilic materials due to their chemical nature. Hydroxyl groups exposed to the surface of cellulose fibrils and along the cellulose molecule backbone form intermolecular hydrogen bonds but also interfere with water molecules. The wettability of a surface with any solvent is determined via contact angle measurement of a sessile drop of respective solvent—in the case of water, this is defined as the water contact angle (WCA). The higher the WCA, the more hydrophobic is the wetted surface. The theoretical limits are WCA = 0° (full wettability with water) and WCA = 180° (no wettability with water = super-hydrophobic). In practice, materials with a WCA above 90° are related to hydrophobic materials, such as those with WCA above 150° which are considered super-hydrophobic. For increasing the hydrophobicity of cellulosic and nanocellulosic materials, the surface has to be chemically or physically modified. In the following, some methods are summarized and compared.

3.1. Silylation

Silylation or silanization is a ubiquitous, effective, and easy method for surface hydrophobization via grafting. Here the hydroxyl groups of cellulose undergo a condensation reaction with a wide range of silanes. Those silanes are generally alkoxy- (methoxy-, ethoxy-) or chlorosilanes, which have additional organic functionality, representing the hydrophobic part of the molecule (see Figure 2; nomenclature for silanes throughout this review: “hydrophobic chain type” + “number of cleavage groups” + “cleavage group type”-silane, e.g., methyltrichlorosilane, abbreviation MTCS).
The alkoxy- or chloro-functional groups are cleavage groups, forming either the respective free alcohols such as methanol or ethanol, or hydrochloric acid during the condensation reaction. The condensation reaction can be initiated thermally, e.g., via chemical vapor deposition of a chlorosilane onto the surface of the dry aerogel, at temperatures of 70–100 °C. Another possibility for grafting is the hydrolysis of alkoxysilanes with diluted acids and mixing with the cellulose matrix before freeze-drying or impregnating the ready-made aerogel and curing at temperatures up to 120 °C. The hydrophobicity depends on the grafting yield, which is related to the process parameters and the type of organic modification of the silane. For instance, long-chain alkyl residues (C16 [54,55,56,57,58], C18 [59]) show also higher hydrophobicity (WCA = 139–159°) as in short-chain alkyl residues (C8 [60,61], C12 [62]; WCA = 120–150°). However, very high WCAs can be achieved by grafting with methyl-substituted organosilanes (methyltrimethoxysilane, MTMS), probably due to a sterically favorable condensation reaction (WCA = 168.4° [63]). Also, vinyltrimethoxysilane (VTMS) is used [64]. Other silane-based surface hydrophobization agents contain fluorinated alkyls (perfluorooctyltriethoxysilane, PFOTES [65] and perfluorodecyltriethoxysilane, PFDTES [66]); however, the WCAs are similar to those achieved by non-fluorinated silanes (146 and 157°, respectively).

3.2. Carbon

Hydrophobic modification in the form of carbon has become increasingly important, since this is considered as a green alternative to silanization. Typically, organic matrices are pyrolyzed under the exclusion of oxygen (e.g., 800 °C under N2 [67] or at even lower temperatures, 350 °C [68]), and/or mixed with graphene oxide (GO), which could also be reduced to graphene (e.g., 200 °C under H2 [69,70]). In other cases, graphite flakes [71] or carbon nanotubes (CNTs) [72] are directly mixed with the cellulosic matrices before freeze-drying. The hydrophobicity (WCA) of carbonized surfaces is lower than that of silylated ones (WCA = 123–141° [67,72]), but still in a range to have effective wetting with oils and oil-like liquids. The adsorption capacities of such carbon-based adsorption materials can be quite high compared to those solely produced by freeze drying. However, this is more a function of the precursor used than the processing route, since adsorption capacities can vary tremendously [67,69,71,72].

3.3. Other Methods

Further strategies to increase hydrophobicity is the incorporation of inorganics (TiO2 layers [73] or NPs [74,75]) Cu-NPs [76], Ag-NPs [77], Al2O3-NPs, surfactants (cetyltrimethylammonium chloride, CTAC [78], SDS [79], stearic acid (SA) [71,80], oleic acid [56,81], epoxidized soybean oil (ESBO) [82]) or other types of grafting molecules (polydopamine PDA and octadecylamine ODA [83,84], poly(N,N-dimethylamino-2-ethyl methacrylate) PDMAEMA [85], polythiophene [86], acid chlorides [87,88], by carboxymethylation [60] or polymers [89,90]). As with the materials formed by carbonization, there cannot be a general rule deduced to state which hydrophobization method is the best in order to achieve the most beneficial material properties. Many different factors, like precursor type and origin, processing method and processing parameters, and even testing setup, influence the evaluation of the adsorption material performance.

4. Processing of Cellulose and Nanocellulose to 3D and 2D Materials

Cellulose and its derivatives, by nature, are among the perfect candidates to constitute aerogel textures. The high content of hydroxyl groups in cellulose chains increases the likelihood of linking with other chains to form a stable 3D gel texture, which is already stable without using a chemical crosslinker [91,92,93]. However, concerning improved mechanical stability, shape recovery, and insolubility, chemical crosslinkers could be beneficial. In the following lines, we will throw light on aerogel fabrication methods.

4.1. Sol-Gel Preparation

In a sol, colloidal cellulose particles with sizes ranging from 1 nm to 1000 nm are dispersed in a liquid. A gel consists of a solid, spongy 3D network whose clusters are filled with another liquid [94]. The sol-gel reaction is the process in which material converts from liquid sol phase to solid gel phase (gelation). The sol-gel reaction is the most decisive step in creating a porous 3D web structure in an aerogel. In other words, a sol-gel reaction is a reaction of fixing molecules in the same position via physical or chemical links after moving freely in liquid sol [95,96].
As a result of complex intermolecular and intramolecular hydrogen bond networking in cellulose macromolecules, cellulose is not soluble in water and shows amphiphilic nature, but can be dissolved in various solvents and be regenerated afterwards. LiCl/dimethylacetamide (DMAc) [97], LiCl/DMSO [98], alkali/water/urea [82,99,100,101,102] or thiourea [74,103], ionic liquids (IL), e.g., 1-allyl-3-methylimidazolium chloride (AmimCl) [59,104,105,106] and deep-eutectic solvents (DES), e.g., choline-chloride/urea [107]) are most famous cellulose dissolution systems. Cellulose solvents substantially influence regenerated cellulose properties, regardless of the fabricated material being membrane, hydrogel, or aerogel. After a homogenous solution is maintained, new cellulose chains are regenerated (coagulated) using several coagulants depending on the solvent type; for instance, the NaOH/urea system is regenerated by dilute H2SO4, the DMAc system is regenerated by ethyl acetate, and some other systems do not need anything but water as a coagulant. A wide variety of membranes, either by casting or spinning, can be fabricated by dissolution/regeneration reaction [108].

4.2. Stabilization of the Gel

4.2.1. Chemical Crosslinkers

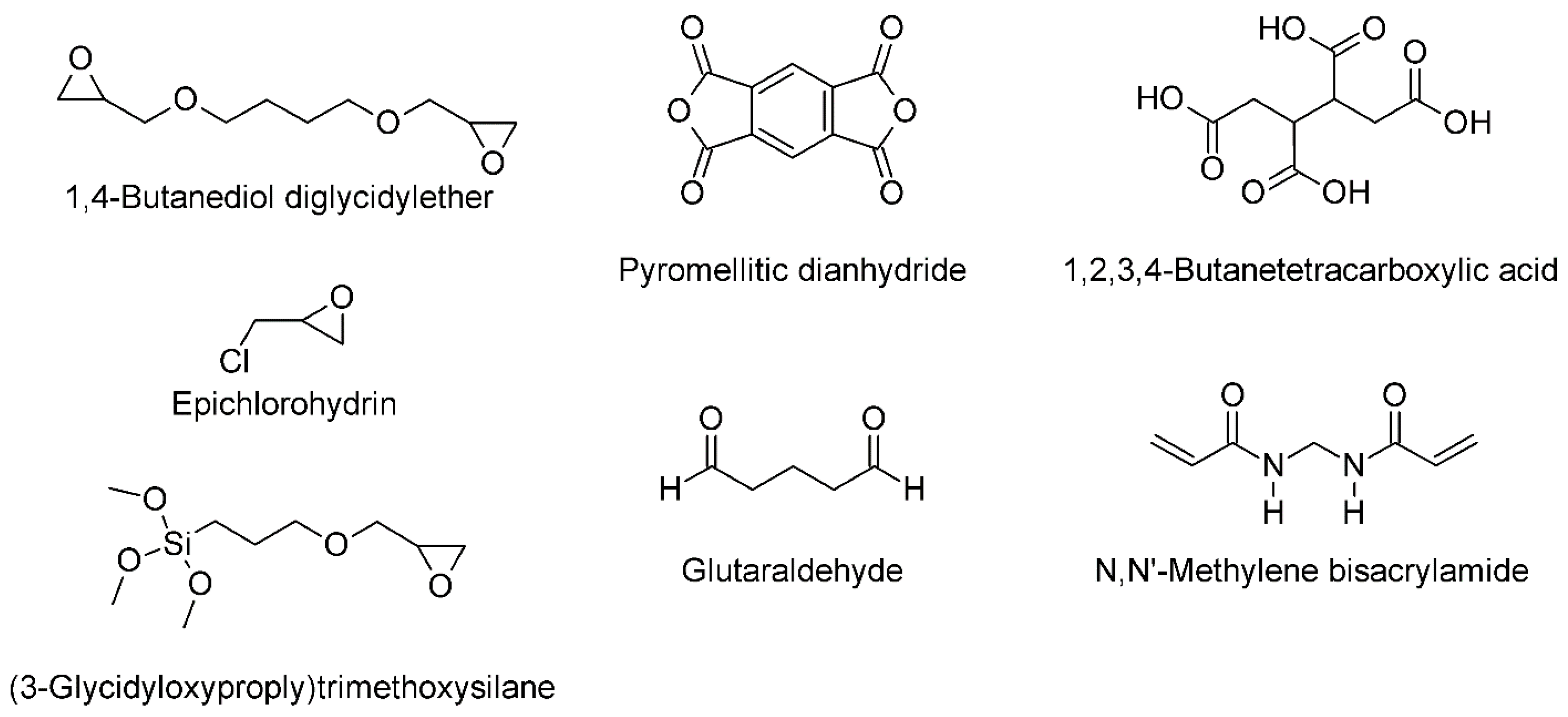

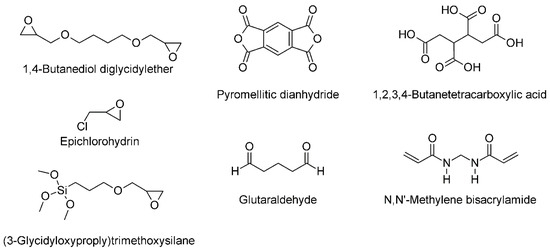

Chemical crosslinkers covalently crosslink the cellulose backbone of the aerogels to ensure higher mechanical stability, better shape recovery, and less solubility. They are usually mixed with the cellulose sol and activated via heat treatment after the aerogel formation. In many cases, the hydroxyl group of the cellulose is a target for crosslinking (typical examples for chemical crosslinkers see Figure 3). Ethers are formed with homo-biofunctional crosslinkers such as 1,4-butanediol diglycidylether (BDE) [82,109], glutaraldehyde (GA) [106,110,111,112], polymethylsilsesquioxane (PMSQ) [113], or hetero-bifunctional crosslinkers, such as (3-glycidyloxypropyl)trimethoxysilane (GPTMS), which undergoes subsequently self-condensation with its silanol-group [85], or epichlorohydrin (ECH) [57,77,114]. Oxidation of the cellulose pyrane ring with NaIO4 results in a highly reactive dialdehyde, which could be crosslinked with chitosan to form the Schiff base [101]. The dialdehyde functionality could also react with hydrazine-functionalized CNCs, originating from carboxylated CNCs via carbodiimide chemistry, forming a hydrazone cross-linkage [115]. Ester linkages can be formed between the hydroxyl group of cellulose and pyromellitic dianhydride (PMDA) [61] or butanetetracarboxylic acid (BTCA) [116,117]. The reactivity of cellulose acetoacetate (CAA) with primary amine groups of 3-aminopropyltriethoxysilane (APTES) [118], or the reaction of the azetidinium groups of polyamideamine-ECH (PAE) and carboxyl groups of CNFs [117,119], was used to form other types of covalent linkage. Another common crosslinker is N,N′-methylene bisacrylamide (MBA) [100,102], which forms urea-like linkages between hydroxyl groups of different cellulose molecules. Grafted VTMO (vinyl-trimethoxysilane) on nanocellulose surfaces can undergo radical polymerization with azobis(isobutyronitrile) (AIBN) [120].

4.2.2. Polymeric Matrix Stabilizers

For increasing the stiffness and hydrophobicity of formed aerogels, polymers can be used as matrix stabilizers. The main difference between chemical crosslinkers and polymers as matrix stabilizers is that polymers do not necessarily form covalent bonds with the cellulosic matrix, but are mainly physically adsorbed and interact by weaker intermolecular bonds. However, the stabilization of the cellulosic matrices by polymer networks is not less effective than by covalent crosslinkers, since the degree of formation of new covalent bonds with the cellulose is highly dependent on the accessibility of linking groups, which may vary between substrates, depending on their origin, morphology and pretreatment. Some examples for polymer-stabilized cellulosic materials are given as follows: wood fines coated with a poly(methyl methacrylate) (PMMA)-solution in tetrahydrofuran (THF) [121] or polyethyleneimine (PEI) on GPTMS stabilized aerogel [85] are examples of polymer coatings from solutions. Polyvinyl alcohol (PVOH), but also ethylene vinyl alcohol (EVOH) are widely used matrix polymers for cellulosic aerogels since they can be thermally cured and can, due to their chemical similarity to cellulose, be crosslinked with the same crosslinker types [89,111,114,116]. Also, natural polymers such as chitosan are used [70,122]. Matrix polymer coatings can also be formed in-situ, such as polyhemiaminals (PHAs) [90], polydopamine/PEI [58], or polymerization resins of methacrylates (styrene-butyl acrylate SBA, ethylene dimethacrylate EDMA) [123]. Also, metal oxide frameworks (MOFs) [124] or inorganic clay species [125], which are not strictly polymeric but also do not covalently crosslink with cellulose, can stabilize the final aerogel.

4.3. Drying Processes for Aerogel Formation

4.3.1. Supercritical CO2 Drying

Since CO2 has a suitable critical point (304 K, 7.4 MPa) in addition to low cost and high safety, it is a kind of fluid that is commonly used for drying cellulose aerogels [74]. Supercritical drying comprises two successive stages; firstly, supercritical carbon dioxide (scCO2) diffuse into the gel pores substituting solvent molecules that will be spilled out of the gel structure; secondly, the gel texture will be dominated by supercritical fluid which exhibit neither surface tension nor capillary action behavior; hence, no structure shrinkage will take place. In non-supercritical drying, shrinkage happens by climbing up liquid through capillary channels, leading to inward forces from the channel walls towards the channel axis, which shrinks the whole texture and induces cracks [126,127].

4.3.2. Vacuum Freeze Drying

Prior to the freeze-drying process, the gel is first cooled below the freezing point of the gel liquid (usually water) afterward; the liquid is eliminated by sublimation (transformation of solid to gas directly, without passing through the liquid phase), which is a major factor in preventing shrinkage texture collapse. Temperature and cooling rate play a drastic role in the crystallization and growth behavior of the newly formed structure, including pore size and distribution [105,128]. For cellulose aerogels, freeze-drying was found to be a more efficient way than scCO2. Moreover, rapid cooling to cellulose gels inhibits potential agglomeration of cellulose chains, yielding more coherent structure, which is why treatment with liquid nitrogen is so favored before freeze-drying of cellulose [129]. In some cases, bidirectional freeze-drying is favorable to achieve hierarchical structures with high diffusivity and outstanding mechanical properties [62,130].

4.4. Alternative Preparation Methods

In this section a brief overview about alternative preparation methods is given, which cannot be attributed to the previous techniques, but still play a role for preparation of porous lignocellulosic materials. In the easiest case, porous cellulose materials can be found in nature, like cellulose sponges typically used as kitchen wipes, but those have comparable low-specific surfaces [86]. The incorporation of chemical foaming agents (e.g., p-toluenesulfonyl hydrazide) or physical foaming agents (e.g., Na2SO4) into cellulose solutions were reported for the preparation of aerogels [59]. Electrospinning can be used to produce fibers from a dissolved polymer solution or melt. As cellulose acetate (CA) can be processed into deposited fibers with a very high specific surface [58,89], it could either be used directly as absorber material or regenerated to cellulose by deacetylation with NaOH [89]. Also, hydrothermal treatment is another method to produce heterogenous aerogels in a one-pot-approach, e.g., for the system cellulose/GO/silica/PFDTES [66].

5. Performance of Lignocellulosic Materials for Oil Spill Cleanup

5.1. Three-Dimensional (3D) Materials: Aerogels and Foams

In this review, 3D materials are defined as materials, which obtain their oil spillage cleanup properties via their volume dimension. They are typically aerogels, foams, or spongy materials and can perform either as absorbers or membranes/filters.

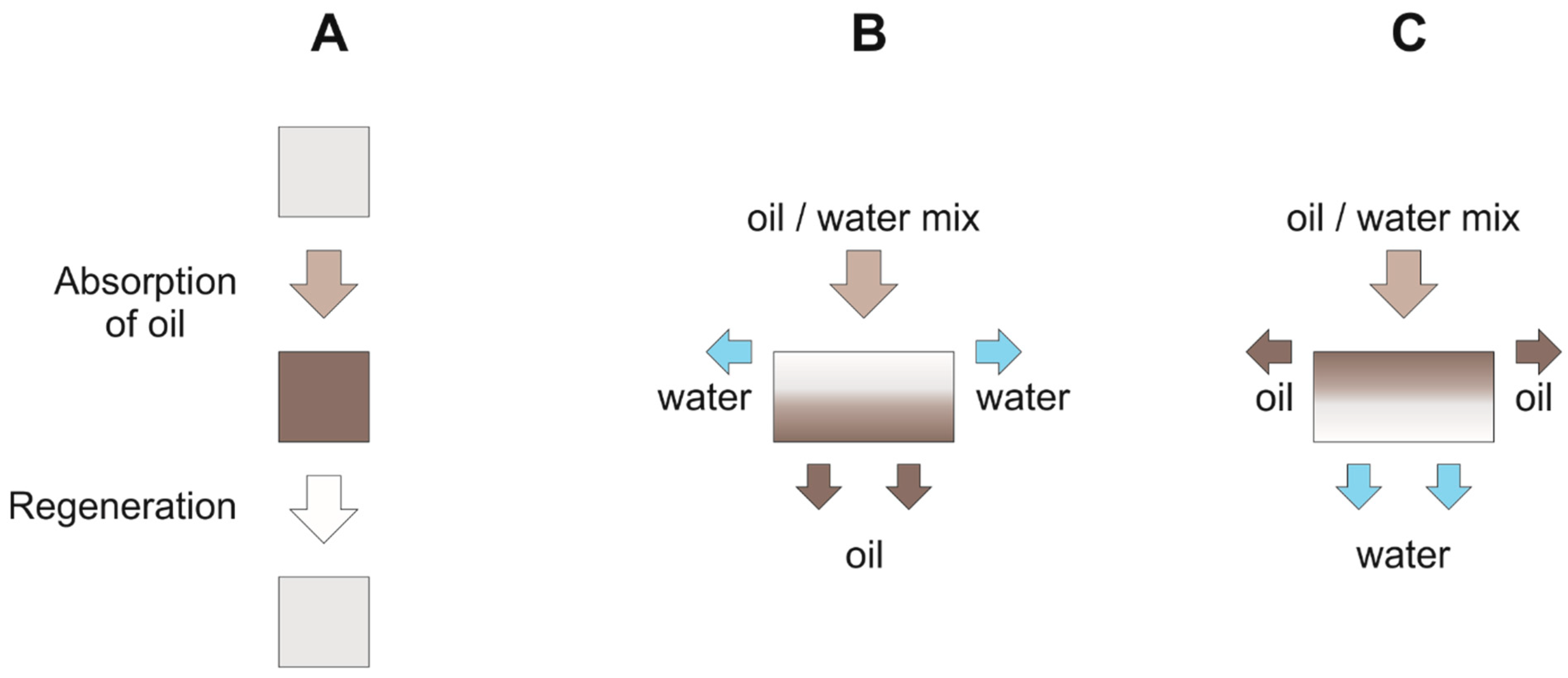

5.1.1. Separation Mechanism

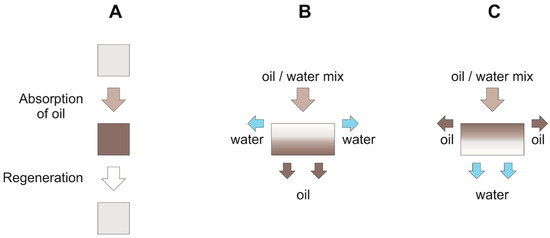

Depending on the surface modification, hydrophilic and hydrophobic 3D materials are reported. Hydrophobic 3D materials are typically absorber -like, which means that the oil is entirely absorbed by the porous material and has to be recovered after cleanup (see Table 1 [2,3,4,5,6,7,8,9,12,13,14,15,16,17,18,20,21,22,23,24,25,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,131,132], and Figure 4A). Alternatively, some hydrophobic 3D materials are also used as filters—here the hydrophobic surface repels the aqueous phase—whereby the oil phase passes through the porous material and is so separated (see Table 2, [54,63,65,75,77,85,133], and Figure 4B). By contrast, hydrophilic 3D materials, which are used as separating membranes, retain the oil phase and let the aqueous phase pass (see Table 3, [58,102,119], and Figure 4C). For those hydrophilic materials, for practical reasons, the oil contact angle is expressed as underwater contact angle (UWCA) of the oil droplet in water instead of the WCA. The comparison of different separation mechanisms is depicted in Figure 4A–C.

5.1.2. Material Performance

Comparability of Different Materials

The material performance for 3D materials can be expressed either as (a) maximum absorption capacity regarding oil or non-polar solvents, in the case of static absorption processes, or (b) (flux-dependent) separation efficiencies, expressed as the ratio of removal of oil from water (maximum value 100%). As there is no standardized process to test those parameters, the authors from Table 1 [55,62,72,74,76,83,131,132] used different solvents, different oils, and different flux rates to test their oil spill cleanup materials. Consequently, a direct comparison is difficult. Regarding the absorption capacity, it was found that although the gravimetric capacities (expressed as [g oil/g absorber]) are quite different, the volumetric capacities (defined as [cm3 oil per g absorber] = cm3 g−1) are comparable. This is reasonable since the maximum absorption of any oil is limited mainly by the pore volume of the absorber, so the volume of absorbed oils or solvents should be approximately equal. To define a material-specific, comparable parameter, the average volumetric absorption capacity among five selected oils or nonpolar solvents (n-hexane, toluene, chloroform, pump/vacuum oil, gasoline), from which at least one was reported in any experimental work in this review, was calculated. For this, their reported gravimetric absorption capacities were normalized via their respective densities and the means calculated. Although this is an easy approach to generate a comparable material parameter, the absorption capacity is also depending on viscosity and hydrophobicity of absorbed oils and solvents, as well as the absorption conditions such as flux and temperature. To estimate the significance of the average volumetric absorption capacity, also the standard deviation is reported here if more than one solvent could be considered in the calculation (Table 1).

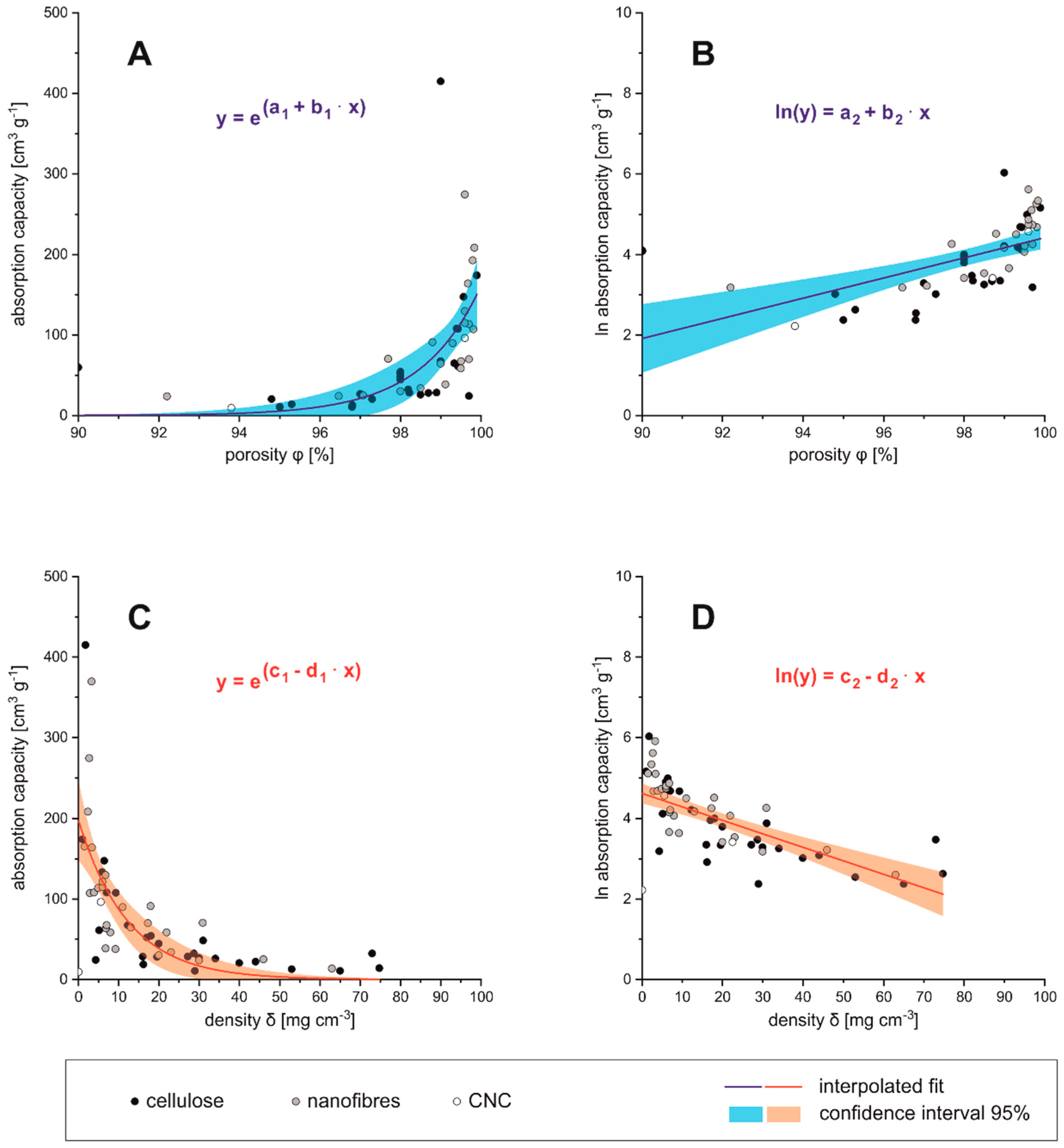

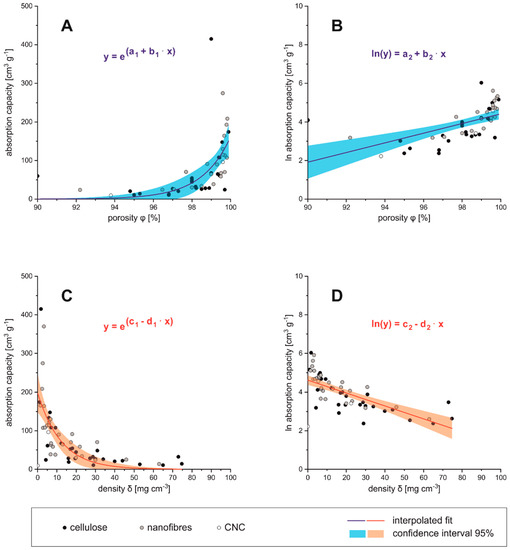

Correlation between Adsorption Capacity and Porosity/Density

The average volumetric absorption capacity was compared to material-specific dimensions of the absorber material, such as density (δ), porosity (ϕ) (see Figure 5A–D), but also BET surface area (SBET) and WCA. Volume-related dimensions, such as density and porosity, clearly correlate with the oil absorption capacity. The porosity and the density of a material are related via Equation (1),
ϕ = [ 1 δ p o r o u s δ n o n p o r o u s ] · 100 %
whereas δ p o r o u s would be the density of the final aerogel, and δ n o n p o r o u s is the density of the precursor, e.g., pure lignocellulose before aerogel formation. The higher the porosity of the absorber material, the higher is also the absorption capacity. Below 95% porosity the absorption capacity comes close to zero, which can be considered as the technical limit for those materials (see Figure 5A). The logarithmic absorption capacity is then almost proportional to the porosity, and becomes zero at low porosities (see Figure 5B). Vice versa, for high densities (>50 mg cm−3) the absorption capacity approaches the zero value (see Figure 5C,D). These relations can be fitted by an exponential expression (parameters see Table 4).
Regarding the cellulosic raw materials for aerogel preparation one could estimate that the dimensions of precursors (nano- or micrometer sized) would influence the porosity and, respectively, the density of the obtained aerogel. It can be seen from Figure 5A–D that although low density/high porosity aerogels are produced from a nano- and micro sized fibrous precursor (CNF/MFC), this is not exclusively limited to it, since low densities and high porosities are also found in aerogels produced from bulk cellulose and BNC. Vice versa, high density and low porosity aerogels could also be manufactured from CNF/MFC, bulk cellulose and BNC. Aerogels from CNC were located exclusively in the low density/high porosity region, with the lowest reported density of any aerogel in this review, 0.1 mg cm−3 [162]. However, CNCs as precursors are rarely reported [114,115,162,163]. Interestingly, cellulose derivatives, such as CA, are also efficient precursors for low density/high porosity aerogels [58,61,89,118]. It has to be assumed that density and porosity of cellulose based aerogels is not mainly depending on the raw materials, but likely on the manufacturing process, e.g., used dispersants or freeze-drying parameters. From economic considerations this could be beneficial, since cheaper precursors such as bulk cellulose could be used, resulting in the same material properties as expensive nano-sized precursors.

Correlation between Adsorption Capacity and Surface-Related Properties

Surface-related dimensions, such as SBET and WCA, were also related to the oil absorption capacity. However, although at least a weak correlation was expected, no significant trend could be found for both material parameters. Aerogels with high SBET showed low absorption capacity (e.g., SBET = 405 m2 g−1, oil absorption capacity = 31.1 cm3 g−1 [106]) and vice versa (e.g., SBET = 33 m2 g−1, oil absorption capacity = 415.1 cm3 g−1 [58]). It is noteworthy that there is a wide variation regarding the SBET even within precursor materials classes, which is most probably attributed to very different synthesis conditions and reactants. The SBET range from 3.4 m2 g−1 [61]–405 m2 g−1 [106] for bulk cellulose and derivatives, 3.8 m2 g−1 [156]–397 m2 g−1 [81] for nanostructured lignocellulose fibers (CNF/MFC), m2 g−1 [90]–449 m2 g−1 [67] for BNC to 23 m2 g−1 [162]–250 m2 g−1 [115] for CNC.
A high WCA is a prerequisite to empower cellulosic aerogels as hydrophobic oil absorption materials, therefore most reported aerogels have a WCA > 130°. Similar to the surface-related dimension SBET, also no clear correlation was found regarding the aerogels’ WCAs and oil absorption capacities. Although most materials show absorption capacities between 10 and 200 cm3 g−1 at WCA between 130 and 160°, there are also hydrophobic aerogels reported, which have very high absorption capacities at quite low WCA (WCA = 141°, oil absorption capacity = 369.4 cm3 g−1 [67]) or low absorption capacities even for the highest found WCA (WCA = 167.5°, oil absorption capacity = 9.5 cm3 g−1 [78]).

Filter-Like 3D Materials

For filter-like 3D materials it was found in general that with increasing flux, also the separation efficiency reduces significantly (see Figure 6 [77]). Fluxes range between 120 [54] to 4200 [85] L m−2 h−1 for hydrophobic materials and 360 [164] to 22,900 [102] L m−2 h−1 for oleophobic materials. Separation efficiencies are typically between 98% up to nearly 100%. Particularly some oleophobic materials obtain high flux rates with high separation efficiency (22,900 L m−2 h−1, 99.8% [102]) and could, therefore, be highly promising as 3D filters.

5.1.3. Recovery and Reusability

Reusability and recovery of 3D materials is vital for enormous applications, as those aspects affect cost and durability. There are three main methods for extracting the absorbed oil after certain use cycles which are mechanical, distillation and extraction. Distillation has a major advantage over other types as it keeps shape consistency after the recovery process. Also, the extraction process is more convenient for preventing hydrophobic layer failure which usually gets damaged by mechanical recovery. The main advantage of the mechanical recovery method is the cheap and easy application. In Table 1, Table 2 and Table 3 the recovery method, the number of reported cycles and the remaining absorption capacity are reported. From the data it cannot be concluded that the recovery method is limited to a kind of material. There is also no information available, if the number of reported cycles represent the last cycle before failure of the absorber, or an arbitrary number related to the experimental setup. Therefore, a comparison of experimental works regarding recovery and reusability is difficult. However, most materials are tested for 10 or more adsorption cycles, with a retaining capacity of 80% and higher. It should be mentioned that the oleophobic 3D materials, which can be used as a filter, show the highest remaining capacity after recovery (95–100%). Some materials also have magnetic properties to collect them more easily from the sea water [54,56,74,81].

5.2. Two-Dimensional (2D) Materials: Membranes, Fabrics and Meshes

In the previous section we discussed cellulosic materials which obtained their ability to purify water from oil contamination by their 3D structure. Two-dimensional materials, on the other hand, have a significant extension in two dimensions and therefore have the shape of membranes, fabric or meshes. Membranes are recently used more frequently in different fields, such as seawater desalination, gas separation, water purification, and so on [166]. Membranes with a smaller pore size than emulsions can solve the problem of a large amount of oily waste water treatment in which the simple use of adsorbents not only wastes time but also costs more. The membrane technology is attracting considerable attention with regards to oil removal from wastewater due to its advantages such as high effective oil droplets removal, low energy consumption and required medium temperature.
There are many varieties of fiber having different physical and chemical properties, such as cellulose fibers [167,168], CNFs [169,170,171], electrospun CNFs [172,173]. All of these can be used for membrane construction for specific separation requirements. Membranes of the coated biomass fibers prefabricated by either hydrophilic or oleophilic compounds become impermeable to the counterpart liquids, giving rise to oil–water separation efficiency in a broad spectrum of mixtures. Materials based on cellulose can be not only chemically modified for oil/water separation applications [174,175,176,177,178], but also by different methods such as coatings [167,179,180,181], grafting [182,183], electrospinning [170,172], phase inversion [184], and crosslinking [185,186]. These techniques and materials provide a vital platform to overcome various separation challenges. The different types of substrate, their processing and modification conditions, as well as their properties and separation efficiencies are listed in Table 5, Table 6 and Table 7.

5.2.1. Separation Mechanism

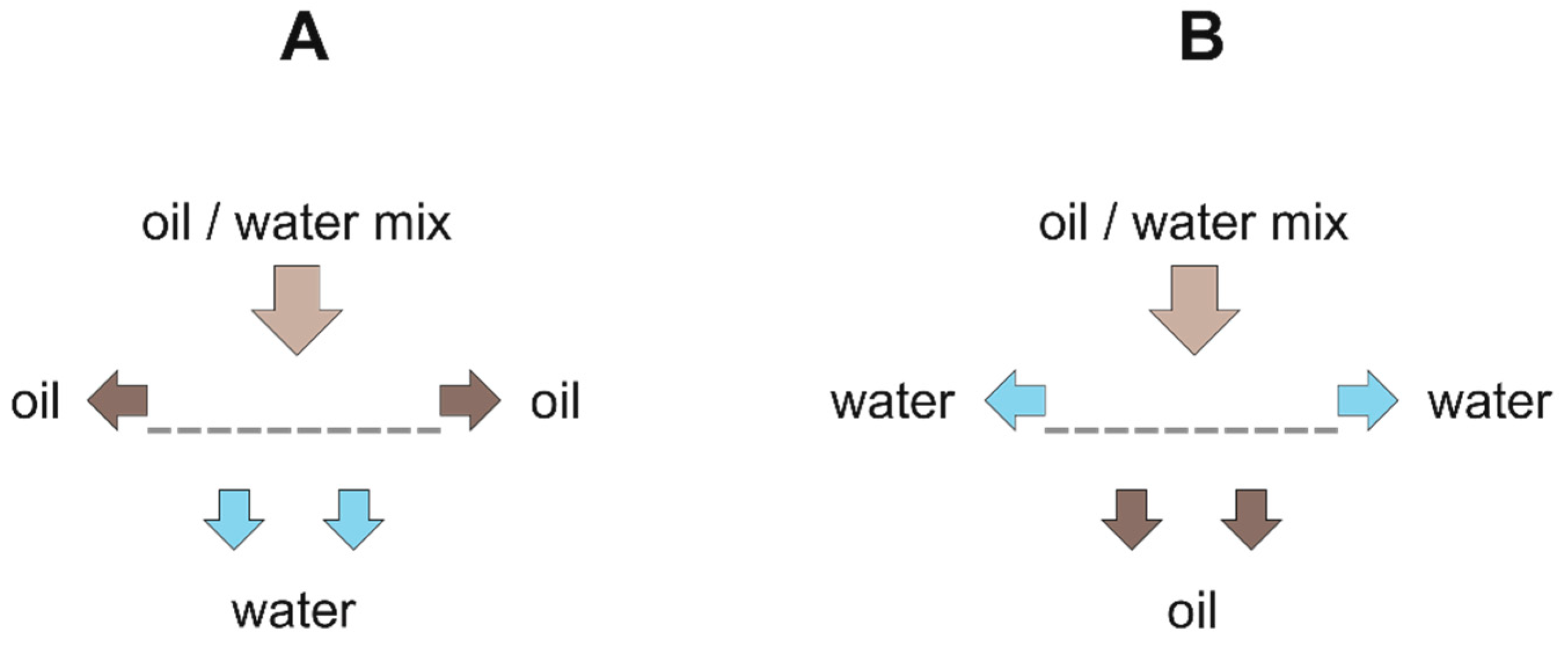

According to their shape, the 2D materials can be used as flow-through separators. For establishing a technical separation process, it is beneficial that the minor phase is retained, and the excess phase passes through the 2D material. Depending on the design of the separation process, the retained phase could either be oil or water, and vice versa the phase which passes through the material (see Figure 7A,B). If the retained phase is the oil phase, those 2D materials are designed as hydrophilic and (super-) oleophobic separators (Figure 7A). The surface tension is, therefore, expressed as UWCA, analogous to hydrophilic/oleophobic filter-like 3D-materials (cf. Table 3). If the retained phase is the water phase (Figure 7B), then the 2D material has to be hydrophobic/oleophilic, the surface tension is then expressed by the WCA, analog to hydrophobic/oleophilic filter-like 3D-materials (cf. Table 2).

5.2.2. Material Performance of Membranes

The membranes derived from environmentally friendly materials, especially from cotton or kapok fibers, show oil/water separation efficiencies of above 99.98%, fluxes ranging from 4000 to 22,200 L m−2 h−1, and robust performance for regeneration for the filtration of toluene/water mixture and repeated uses. Dual superlyophobic membranes are obtained based on fast and simple methodologies with low cost [167]. Recently, nano-fibrous membranes with special wettability, excellent antifouling property, and reusability have attracted increasing interest for oil/water emulsions separation were modified through coating polydopamine and polyethyleneimine on the membrane surface in an aqueous system by an electrospinning technique [170]. Here, emulsions were separated excellently by PNM@PDA@PEI membrane in the acidic, neutral, and alkaline environments with separation efficiency above 99.1%. In another study, GO@CNF membrane were fabricated in aqueous medium without any toxic regent, suggesting its environmentally friendly nature and cost-efficiency [187]. The membrane obtained exhibited a high separation efficiency, excellent antifouling properties, as well as a high flux for the gravity-driven oil/water separation. 2D layered hierarchical membranes usually have excellent permeability, but can also have anti-fouling performance [181]. If processed using SeP as 1D-modifier and GO and LDH as 2D substrate through layer-by-layer method, they show larger UWCA compared to pure GO and LDH coated membranes. SeP + GO coated membranes have better anti-oil-fouling properties and recycling performance (95.02% and 92.31% for the second and third cycle) and can retain higher water flux after six cycles.
Moreover, the hydrophilicity of nanocellulose-based membranes may be the main obstacle to their application in the separation of oil/water mixtures [188,189,190,191]. All-cellulosic membranes can be used in water cleaning applications, where the capture of oil micro droplets is important due to the affinity that CNCs show to oil under water. Cellulosic environmentally friendly and recyclable composite membranes with CNCs play a significant role in selective oil microdroplets removal from water emulsions with efficiency up to 80% [188]. Low cost and environmentally friendly polysaccharide membranes [177,189] and polysaccharide nanofibers membranes [192,193] can be fabricated with effective separation performances. Thin-film membranes with three kinds of polysaccharide nanofiber barrier layer can have very small diameters (e.g., 5 nm for cellulose nanofibers), which define a small pore size (average diameter about 20 nm) [192]. A CNC/Chitin-nanocrystals (ChiNC)/chitosan (CH) membrane had a typical porous poly-dispersity structure with a primary pore size distribution in the range of 2.9–80 nm. The porous structure, which was created on the surface and within the membrane, enhanced the separation performances [189]. Membranes of CNC/ChiNC/CH can be applied to separate water from water-in-oil emulsions, exhibiting a good separation efficiency and oil flux. In addition, it has an excellent flux recovery property and can be easily cleaned for long-term use. The performance of separation was affected by the thickness of the prepared membrane which directly relates to the concentrations of the complex solutions [189]. A novel dual superlyophobicity membrane with a good reusability, stability under various chemical conditions was developed by surface modification with polypyrrole [194]. The modified membranes had a good separation efficiency (around 99%)) at a low applied pressure difference (−0.9 MPa for emulsion separation and only under gravity for mixtures) for both oil/water mixture and oil/water emulsions. The polypyrrole modified cellulose membranes obtain high flux (over 3000 L∙m−2∙h−1 for mixtures, over 1000 for oil-in-water emulsions and over 100 for water-in-oil emulsions) [194]. Cigarette filter paper was modified through a dip-coating with dodecanethiol-modified polypyrrole particles for superhydrophobic oil/water separation [180]. The WCA reached 155°, because of the changes in the surface composition and the variation in the surface morphology. Filters with superhydrophobicity could effectively separate various oils and organic solvents with a separation efficiency of 98.8% and a good separation stability. A new route of easy fabrication of a membrane with low-cost and versatile availability of both synthetic and natural starting materials was reported [175]. A superhydrophobic/oleophilic membrane (SHP) was obtained by preparation mechanism, which confirmed different techniques of involving reactions. The pore volume was 0.0066 cm3 g−1 of final SHP membrane after n-dodecanethiol functionalization, particularly for the small pores of the size 18.52 nm. In recent years, several cellulose membranes derived from CA have been widely used in the oil/water separation field due to its abundant sources, environment friendliness, and biodegradability [183,195,196]. CA nanofiber membranes with anti-pollution and self-cleaning abilities can be used as water-removal substances for oil/water mixtures, as well as emulsified oil/water and oil/corrosive aqueous systems, with gravity as the only needed driving force. Membranes possess the highest separation flux 38,000 L m−2 h−1, and the highest separation efficiency of 99.97% for chloroform/water mixtures [171]. Although many studies used polydopamine (PDA) as a coating on polymeric membranes, PDA particles with an optimal concentration of 0.2 wt% to coat cellulose acetate (CA) to enhance membrane with high porosity, roughness and hydrophilicity have also been used [184]. The membrane delivered the highest pure water flux of ~772 L m−2 h−1, a high oil rejection rate (93–99%) and improved antifouling properties.

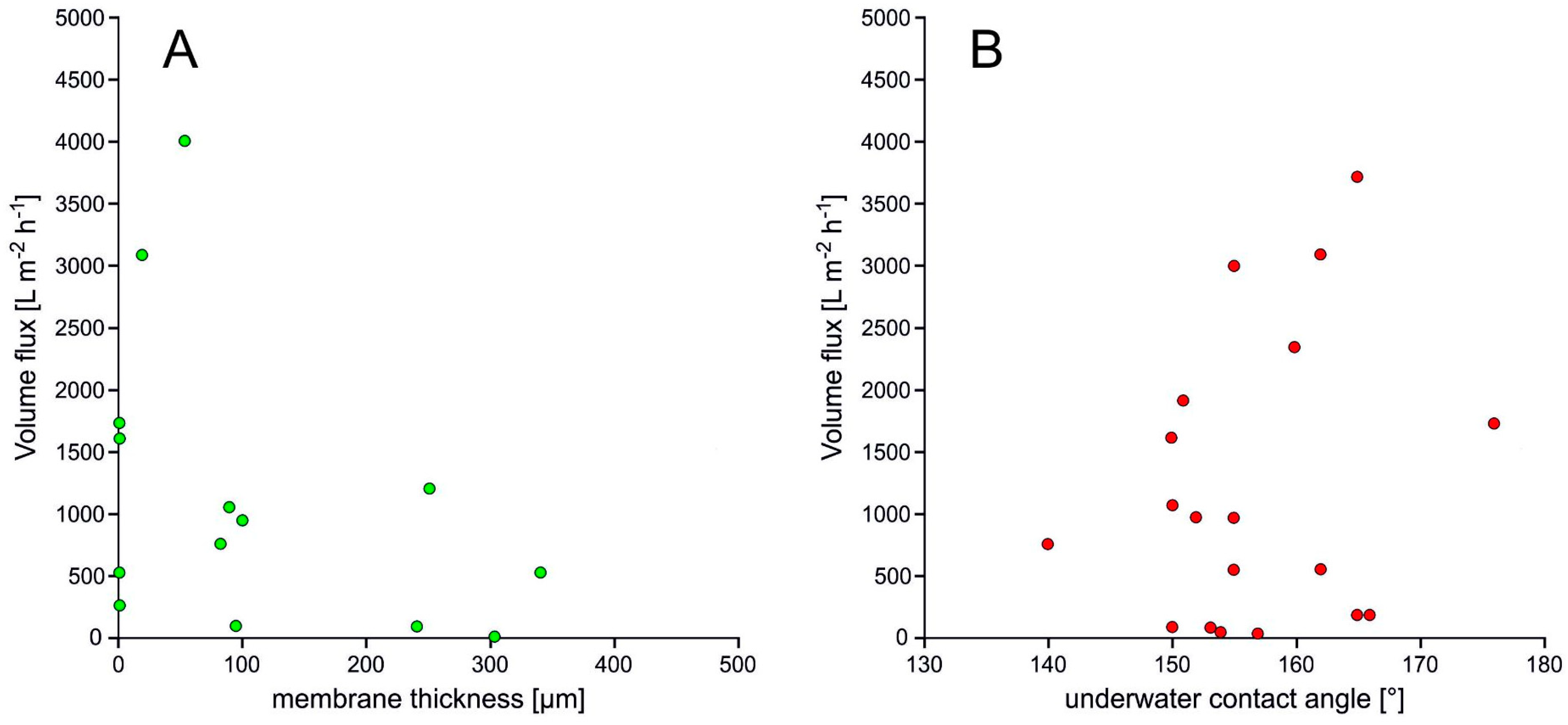

To elucidate a possible correlation between material properties and separation efficiency, we investigated the impact of thickness (Figure 8A) and under-water contact angle (Figure 8B) of the membranes on the volume flux. However, for the 2D materials no obvious relationship could be statistically deduced.

5.2.3. Material Performance of Fabrics

A superhydrophobic surface designed by less-expensive, biodegradable and environmentally friendly route for oil/water separation with fabrics has drawn increasing interest across the scientific community [86,197,198]. However, the applications of hydrophobic surfaces are still hampered by lengthy preparation procedures and high-cost manufacture. Recently, there have been many reports of fabricated non-fluorinated superhydrophobic fabrics with both oil/water separation properties and with antibacterial areas [199], flame-retardant finishing [200], UV shielding [201], self-cleaning [201,202], intelligent self-healing [203] or photocatalytic properties [204] of cellulosic cotton fabric surfaces. a durable superhydrophobic and antibacterial cotton fabric that demonstrated high oil/water separation capacity for a broad variety of oils and organic solvents. The as-prepared multifunctional cotton fabrics have the potential to be used in biomedical bandages or protective clothing that works in unsanitary and moist conditions. Facile construction of multifunctional fabrics with durability still remains a challenge in the past decade.
Modified cotton fabric with ultra-high absorptive capacity have been prepared, which can absorb oil over 12.5 times of its own weight [205]. The cost-effectiveness fabrication strategy and outstanding separation performance of modified fabric, which showing strong water-resistance and high oil/organics affinity, could be applied in harsh circumstances (pH from 2 to 14). Superhydrophobicity has been introduced by surface modification of fibers with mercapto silanes followed by click coupling with methacryl-heptaisobutyl polyhedral oligomeric silsesquioxane (MAPOSS), which could be used as an adsorbent material for removing oil from water [206]. Recently, a robust polyhedral oligomeric silsesquioxane (POSS) based self-cleaning hydrophobic fabric possesses strong stabilities against harsh environments and can deal with various oil-polluted solutions was reported [207]. Therefore, this modified cotton fabric can be of great importance in the preparation of robust hydrophobic filtration materials for oil/water separation. Also cellulose-coated cotton fabric with improved thermal stability, mechanical performance, low cost and high separation performance applications was prepared recently [208]. Coated cotton fabric had capability to separate chloroform-in-water emulsion with a residual rate of 6.8%, which was 10.0 and 6.8 times lesser than those by pristine (68.2%) and pretreated cotton fabrics (46.5%), respectively. The developed fabric had the capability to separate various emulsified oil–water mixtures produced in industry, with increased tensile performance by more than 30%. Its surface area was decreased to 81.85 cm2 g−1 and the volume of the pores in the 0–10 nm range was always less than 0.020 cm3 g−1. Both the nitrogen adsorption-desorption isotherm and pore distribution results and SEM observation suggested that the regenerated cellulose filled the pores in the fabric. The formation mechanism of a novel cotton fabric, which was functionalized with super hydrophobicity by immobilization and the in-situ reduction method, in which Cu2+ was uniformly immobilized on cotton fabric in [Cu(NH3)4]2+ solution, and then reduced by sodium borohydride (NaBH4) and modified by n-octadecathiol, was discussed [209]. Cu-fabric owned great chemical stability and reasonable mechanical durability, due to the low wear resistance of cotton fabric, the Cu-fabric surface would be destroyed and turned to hydrophobicity. CuO-coated fabric held superhydrophobicity by further 1-dodecanethiol modification had been fabricated via a simple, scalable, and cost-effective process [204]. The generated CuO nanoleaves were constructed on the surface of the fabric implying excellent photocatalytic activity. About 99.8% methylene blue as model substance was degraded, after being exposed to visible light for 120 min. Modified fabric was used for the separation of several oil/water mixtures and exhibited good recyclability [204]. Fabrication of superhydrophobic cotton fabrics commonly suffers from disadvantages such as extensive usage of toxic and expensive fluorinated adhesives, tedious and time-consuming treatment processes, poor durability and compromised mechanical properties. Therefore, a novel straightforward, cost-efficient, eco-friendly and durable PDMS/calcite composite coating for cotton fabric via one-step was explored, which has great potential in diverse applications including self-cleaning apparel, water-proof wall coverings and continuous oil clean-up [210]. Superhydrophobic cotton non-wovens, which are prepared by atmosphere pressure plasma polymerization in a one-step process, is another approach for efficient separation of oil/water mixtures. A superhydrophobic oil–water separation material was fabricated via an atmospheric pressure plasma jet with cotton non-woven as the substrate [211]. Compared with octamethylcyclotetrasiloxan (D4) plasma-treated cotton, hexamethyldisiloxan (HMDSO) plasma-treated cotton possesses much more stable coating, especially at a lower jet movement speed. Moreover, air/HMDSO plasma-treated cotton non-woven with a jet movement speed of 3 m min−1 has excellent self-cleaning ability and could be applied in the oil–water separation with a high separation efficiency and stability towards acid, salt, alkali solution and high temperature [211]. Traditional oil/water separation cotton fabrics were usually fabricated by surface coating with inorganic nanoparticles [212] combined with non-renewable and non-biodegradable or even toxic fossil based chemicals such as fluorine [212], which would lead to secondary environmental pollution after their lifetime. Recently, robust, nanoparticle-free, fluorine-free separation cotton fabric was prepared, which showed excellent mechanical stability and chemical/environmental resistances [197]. Conventional superhydrophobic materials for oil/water separation were usually prepared from non-degradable and non-renewable resources, which would not only increase resource crisis but also cause environmental pollution after being discarded. ZnO/SA-modified cotton fabrics have a biodegradability rate of 59.0% after immersion in phosphate buffer saline solution containing cellulase (pH = 4.8) for 15 days. They also have superhydrophobicity after immersion in acid, alkali solutions or under UV irradiation [202]. However, CNCs with plenty of advantages such as renewability, biodegradability, nanoscale size and low density, were given as an ideal alternative to the inorganic nanoparticles in the creation of rough structure for eco-friendly superhydrophobic oil/water separation materials. CNC has been used to fabricate eco-friendly cotton fabric with great viability as a sustainable and degradable alternative to traditional non-renewable and non-degradable oil/water separation materials [198]. Cellulosic fabric was degradable with weight loss of 14.4 wt% after hydrolytic degradation in phosphate buffer solution (pH 7.4) at 37 °C for 10 weeks. Preparation of CFs with thermal, chemical valve effect and responses to environmental factors by applying a thin layer of copolymer originated from isopropylacrylamide and acrylic acid was reported [213]. Due to the fact that the individual fibers were bonded with each other with the assistance of the polymer coating, this increased the friction and adhesion among fibers, and reduced the defects and weak points in yarn under the mechanical loading. Coated cotton fabrics enhanced their breaking force to 213.5 ± 3.4 N and their density to 140.0 ± 4.2 g m−2. Besides the excellent hydrophilicity of coated cotton fabrics, it exhibited selective permeability to water solutions with different pH values and temperatures. The value on the water flux increased by more than 14 times from 0.027 mL cm−2 s−1 at room temperature to 0.44 mL cm−2 s−1 at 50 °C, a reflection of excellent response to temperature. More specifically, the highest flux with a value of 0.31 mL cm−2 s−1 was observed when the solution with pH = 4.0 was poured for filtration, and liquid flux was decreased by more than 90% to 0.021 mL cm−2 s−1 with increasing pH value of solution till pH = 8.0 [213].
Table 5. Cellulose coated mesh for oil removal (values are marked with * if it is the WCA; otherwise the UWCA is reported).
Table 5. Cellulose coated mesh for oil removal (values are marked with * if it is the WCA; otherwise the UWCA is reported).
Cellulose Type/Mesh MaterialHydrophobic ModificationPore Diameter
Porosity [%]WCA */UWCA [°]Flux
[L m−2 h−1]
Separation Efficiency [%]Number of Recovery CyclesRef.
nylonhydroxylation 15015,84099.9912[215]
stainless steel--807215638,06498.910[216]
stainless steelsilanization17575163 *--9540[217]
filter paperhydroxylation20--1504000--12[218]
steelsilanization15061160 *--9950[219]
filter papersilanization22053156 *38,06498.9--[220]
polyamideplasma treatment64--155--99.625[223]
composite fibercellulose/polymer composite2084--191097.310[224]
Table 6. Cellulose based membranes for oil removal (values are marked with * if it is the WCA; otherwise the UWCA is reported).
Table 6. Cellulose based membranes for oil removal (values are marked with * if it is the WCA; otherwise the UWCA is reported).
Membrane Material/Cellulose TypeHydrophobic ModificationPore Diameter
Membrane Thickness
Porosity [%]WCA */UWCA [°]Flux
[L m−2 h−1]
Separation Efficiency [%]Number of Recovery CyclesRef.
CApolymerization360----155 *3000993[194]
CA--47030345.1154 *20----[172]
CA----18.867162 *31069910[225]
CA--4050--161 *------[195]
eucalyptus pulpgrafting------130 *--97.65[182]
filter paperchemical modification18----152 *96096.720[175]
filter paperhydroxylation------150 *7098.710[186]
filter papergrafting--1000--160 *2350--5[176]
nanofibersspray coating------144 *--94.57[169]
CAscreen printing--450--150--83--[188]
CAwet phase-inversion method------1572099.4--[177]
filter paperchemical modification------140750--4[174]
nanocrystalsvacuum-assisted filtration700.6--17617349010[190]
fiberspolydopamine (PDA) nanoparticles------15022,20099.9810[167]
linter pulplower critical solution temperature (LCST) system312----1652009910[168]
nanocrystalsvacuum-assisted filtration method8095431539999.26[189]
cigarette filtersdip-coating------155 *--98.830[180]
methylcellulosechemical bath deposition method--90--150 *1055--10[178]
qualitative filter papercombining in growth technique15,000340--155 *53794.450[232]
qualitative filter paperSA15,000340--154 *--95.150[233]
ECultraviolet induced crosslinking--------4332----[185]
paper fiberdeposition on the surface by alternating soaking process (ASP)--0.22--1625509920[179]
peanut shell----51----------[234]
Table 7. Cellulose fabrics for oil removal (values are marked with * if it is the WCA; otherwise the UWCA is reported).
Table 7. Cellulose fabrics for oil removal (values are marked with * if it is the WCA; otherwise the UWCA is reported).
Cellulose Type/Fabrics TypeHydrophobic ModificationWCA * [°]Flux
[L m−2 h−1]
Separation Efficiency [%]Recovery Method **/Cycles/Capacity afterRef.
plain weave fabricsilanization151 *--98DW/10/95%[199]
raw fabricsilanization164 *--99.95E/40/99.5%[205]
raw fabricsilanization142 *74,16196DW/50/96%[207]
raw fabricsilanization159 *114,74499.5UW/--/--[206]
raw fabricsilanization152.7 *30,00099--/10/99.4%[235]
raw fabricsalt solution150 *400093.2--/--/--[208]
raw fabricsilanization138 *--99W/7/95%[200]
raw fabricCu nanostructured150 *--98FW/30/97%[209]
raw fabricCu nanostructured151.5 *--96E/20/--[204]
raw fabricsilanization150 *--99SC/40/99%[210]
nonwoven fabricsilanization155 *--97SC/100/97.5%[211]
microfiberssilanization150 *--94E/7/94%[236]
raw fabricsilanization150 *1749.797.9SC/100/97.5%[197]
raw fabricsilanization160 *-- SC/20/--[201]
raw fabricgrafting164 *--96.5SC/10/--[202]
raw fabricsilanization154 *268896.2E + DW/10/92%[237]
raw fabricisopropylacrylamide and acrylic acid160 *--99.5--/4/99.5%[213]
raw fabricsilanization151.5 *--95E/20/98%[238]
raw fabricsilanization150 *41,80090DW/4/89%[239]
raw fabricsilanization164 *53,00098--/10/98%[198]
raw fabricsilanization155 *340098DW/20/--[240]
textile fabriclauric acid (LA)-TiO2 composites and Fe3O4-NPs153 *570099E + DW/25/98%[241]
textile fabricsilanization154 *450097E/50/97%[242]
Sorted with decreasing separation efficiency; *, in brackets: source or derivative; **, recovery methods: deionized water (DW), ethanol (E), ultrasonic washing (UW), water (W), flowing water (FW), self-cleaning (SC).

6. Conclusions and Recommendations

Extensive efforts have been made to investigate the potential of lignocellulosic materials for oil spill removal. In particular, a multitude of cellulose- and nanocellulose-based materials have been explored, which underwent a wide range of chemical modifications to enhance their hydrophobicity, including silanization with a variety of different silanes, grafting of polymers and hydrophobic molecules, and incorporation of inorganic nanoparticles and surface modifiers. Physical modification for hydrophobization has been used as well including carbonization via pyrolysis. The used materials were mostly 3D such as hydrophobic and oleophobic sponges and aerogels or 2D such as membranes, fabrics, films, and meshes. Regarding the 3D materials, there was a clear correlation between the material properties (mainly porosity) and their performance. In more detail, absorption increases exponentially with lower density (higher porosity). The trend can be observed over all dimensions of cellulosic precursors (cellulose, nanocellulose, cellulose derivatives). It is worth mentioning that nanocellulosic aerogels did not always yield higher porosity (lower density) than other cellulosic aerogels. The preparation conditions and techniques used together were the determinants of the materials properties; hence their performance. This discourages the use of nanocellulose due to its high cost since its nanosize did not add a value to the material performance (absorption capacity). Regarding the 2D materials, no clear correlations between the material properties (thickness and surface properties) and its performance were observable. Trends in production are the introduction of hierarchical porosity for fast adsorption and desorption processes while maintaining high surface area, increased mechanical stability for efficient recovery of adsorbed oil, and several life cycles of the absorber materials, and development of cost-efficient and reproducible processes while using less-toxic and environmental-friendly modifiers. Overall, cellulosic materials have shown promising capabilities to clean up oil spillage, although more thorough investigations should be performed regarding the impact of the material preparation conditions and techniques on its properties and performance, especially for 2D materials.

Author Contributions

Conceptualization, S.M., H.A., S.F.; methodology, S.M., H.A., S.F., M.H., A.E.; investigation and resources, S.M., H.A., S.F., M.H., A.E., S.A.G.; writing—original draft preparation, S.M., H.A., S.F., M.H., A.E., S.A.G.; formal analysis and visualization, S.F.; writing—review and editing, S.M., H.A., S.F., M.H., A.E. All authors have read and agreed to the published version of the manuscript.


The publication charges of this article were covered by the Fraunhofer publication funds for open access journals. No other funds were required for the preparation of this manuscript.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Radetic, M.; Ilic, V.; Radojevic, D.; Miladinovic, R.; Jocic, D.; Jovancic, P. Efficiency of recycled wool-based nonwoven material for the removal of oils from water. Chemosphere 2008, 70, 525–530. [Google Scholar] [CrossRef]
  2. Adebajo, M.O.; Frost, R.L.; Kloprogge, J.T.; Carmody, O.; Kokot, S. Porous materials for oil spill cleanup: A review of synthesis and absorbing properties. J. Porous Mater. 2003, 10, 159–170. [Google Scholar] [CrossRef] [Green Version]
  3. Crone, T.J.; Tolstoy, M. Magnitude of the 2010 Gulf of Mexico oil leak. Science 2010, 330, 634. [Google Scholar] [CrossRef] [Green Version]
  4. Lindén, O.; Jernelöv, A. Krigets Miljöeffekter; Nya Doxa: Nora, Sweden, 1999. [Google Scholar]
  5. Jernelöv, A. The threats from oil spills: Now, then, and in the future. Ambio 2010, 39, 353–366. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Mitchell, R.; MacDonald, I.R.; Kvenvolden, K. Estimates of total hydrocarbon seepage into the Gulf of Mexico based on satellite remote sensing images. EOS Suppl. 1999, 80, OS242. [Google Scholar]
  7. Kvenvolden, K.A. Revised Assessment of the Rate at Which Crude Oil Seeps Naturally into the Ocean. Available online: (accessed on 8 August 2021).
  8. Peterson, C.H.; Rice, S.D.; Short, J.W.; Esler, D.; Bodkin, J.L.; Ballachey, B.E.; Irons, D.B. Long-term ecosystem response to the Exxon Valdez oil spill. Science 2003, 302, 2082–2086. [Google Scholar] [CrossRef] [Green Version]
  9. Dave, D.; Ghaly, A.E. Remediation technologies for marine oil spills: A critical review and comparative analysis. Am. J. Environ. Sci. 2011, 7, 423. [Google Scholar] [CrossRef] [Green Version]
  10. Swannell, R.P.; Lee, K.; McDonagh, M. Field evaluations of marine oil spill bioremediation. Microbiol. Rev. 1996, 60, 342–365. [Google Scholar] [CrossRef]
  11. Davidson, W.F.; Lee, K.; Cogswell, A. Oil Spill Response: A Global Perspective; Springer Science & Business Media: Berlin, Germany, 2008. [Google Scholar]
  12. Ding, Z.; Kloprogge, J.T.; Frost, R.L.; Lu, G.Q.; Zhu, H.Y. Porous clays and pillared clays-based catalysts. Part 2: A review of the catalytic and molecular sieve applications. J. Porous Mater. 2001, 8, 273–293. [Google Scholar] [CrossRef]
  13. Teas, C.; Kalligeros, S.; Zanikos, F.; Stournas, S.; Lois, E.; Anastopoulos, G. Investigation of the effectiveness of absorbent materials in oil spills clean up. Desalination 2001, 140, 259–264. [Google Scholar] [CrossRef]
  14. Banerjee, S.S.; Joshi, M.V.; Jayaram, R.V. Treatment of oil spill by sorption technique using fatty acid grafted sawdust. Chemosphere 2006, 64, 1026–1031. [Google Scholar] [CrossRef]
  15. Kumar, R.; Singh, S.; Singh, O.V. Bioconversion of lignocellulosic biomass: Biochemical and molecular perspectives. J. Ind. Microbiol. Biotechnol. 2008, 35, 377–391. [Google Scholar] [CrossRef]
  16. Mehanny, S.; Abu-El Magd, E.E.; Ibrahim, M.; Farag, M.; Gil-San-Millan, R.; Navarro, J.; El Habbak, A.E.H.; El-Kashif, E. Extraction and Characterization of Nanocellulose from Three Types of Palm Residues. J. Mater. Res. Technol. 2021, 10, 526–537. [Google Scholar] [CrossRef]
  17. Xia, Z.; Li, J.; Zhang, J.; Zhang, X.; Zheng, X.; Zhang, J. Processing and valorization of cellulose, lignin and lignocellulose using ionic liquids. J. Bioresour. Bioprod. 2020, 5, 79–95. [Google Scholar] [CrossRef]
  18. Doshi, B.; Sillanpää, M.; Kalliola, S. A review of bio-based materials for oil spill treatment. Water Res. 2018, 135, 262–277. [Google Scholar] [CrossRef] [PubMed]
  19. Joseph, B.; Sagarika, V.K.; Sabu, C.; Kalarikkal, N.; Thomas, S. Cellulose nanocomposites: Fabrication and biomedical applications. J. Bioresour. Bioprod. 2020, 5, 223–237. [Google Scholar] [CrossRef]
  20. De France, K.J.; Hoare, T.; Cranston, E.D. Review of hydrogels and aerogels containing nanocellulose. Chem. Mater. 2017, 29, 4609–4631. [Google Scholar] [CrossRef]
  21. Lavoine, N.; Bergström, L. Nanocellulose-based foams and aerogels: Processing, properties, and applications. J. Mater. Chem. A 2017, 5, 16105–16117. [Google Scholar] [CrossRef] [Green Version]
  22. Liu, H.; Geng, B.; Chen, Y.; Wang, H. Review on the Aerogel-Type Oil Sorbents Derived from Nanocellulose. ACS Sustain. Chem. Eng. 2017, 5, 49–66. [Google Scholar] [CrossRef]
  23. Xu, H.; Fan, T.; Ye, N.; Wu, W.; Huang, D.; Wang, D.; Wang, Z.; Zhang, L. Plasticization effect of bio-based plasticizers from soybean oil for tire tread rubber. Polymers 2020, 12, 623. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Yang, W.-J.; Yuen, A.C.Y.; Li, A.; Lin, B.; Chen, T.B.Y.; Yang, W.; Lu, H.-D.; Yeoh, G.H. Recent progress in bio-based aerogel absorbents for oil/water separation. Cellulose 2019, 26, 6449–6476. [Google Scholar] [CrossRef]
  25. Stamm, A.J. Wood and Cellulose Science; Ronald Press Co.: New York, NY, USA, 1964. [Google Scholar]
  26. Mehanny, S.; Ibrahim, H.; Darwish, L.; Farag, M.; El-Habbak, A.-H.M.; El-Kashif, E. Effect of Environmental Conditions on Date Palm Fiber Composites. In Date Palm Fiber Composites; Springer: Singapore, 2020; pp. 287–320. [Google Scholar]
  27. Klemm, D.; Heublein, B.; Fink, H.-P.; Bohn, A. Cellulose: Fascinating biopolymer and sustainable raw material. Angew. Chemie Int. Ed. 2005, 44, 3358–3393. [Google Scholar] [CrossRef]
  28. Scheller, H.V.; Ulvskov, P. Hemicelluloses. Annu. Rev. Plant Biol. 2010, 61, 263–289. [Google Scholar] [CrossRef] [PubMed]
  29. Adler, E. Lignin chemistry—past, present and future. Wood Sci. Technol. 1977, 11, 169–218. [Google Scholar] [CrossRef]
  30. Moon, R.J.; Martini, A.; Nairn, J.; Simonsen, J.; Youngblood, J. Cellulose Nanomaterials Review: Structure, Properties and Nanocomposites. Chem. Soc. Rev. 2011, 40, 3941–3994. [Google Scholar] [CrossRef]
  31. Glasser, W.G.; Sarkanen, S. Lignin, properties and materials. In Assessment of Biobased Materials; U.S. Department of Energy: Washington, DC, USA, 1989. [Google Scholar]
  32. Lavanya, D.; Kulkarni, P.K.; Dixit, M.; Raavi, P.K.; Krishna, L.N.V. Sources of cellulose and their applications—A review. Int. J. Drug Formul. Res. 2011, 2, 19–38. [Google Scholar]
  33. Kargarzadeh, H.; Ioelovich, M.; Ahmad, I.; Thomas, S.; Dufresne, A. (Eds.) Methods for Extraction of Nanocellulose from Various Sources. In Handbook of Nanocellulose and Cellulose Nanocomposites, 1st ed.; Wiley-VCH Verlag GmbH & Co.: Weinheim, Germany, 2017; pp. 1–49. [Google Scholar]
  34. Nechyporchuk, O.; Belgacem, M.N.; Bras, J. Production of cellulose nanofibrils: A review of recent advances. Ind. Crop. Prod. 2016, 93, 2–25. [Google Scholar] [CrossRef]
  35. Trache, D.; Hussin, M.H.; Haafiz, M.K.M.; Thakur, V.K. Recent progress in cellulose nanocrystals: Sources and production. Nanoscale 2017, 9, 1763–1786. [Google Scholar] [CrossRef] [Green Version]
  36. Rånby, B.G. Fibrous macromolecular systems. Cellulose and muscle. The colloidal properties of cellulose micelles. Discuss. Faraday Soc. 1951, 11, 158–164. [Google Scholar] [CrossRef]
  37. Mao, J.; Abushammala, H.; Brown, N.; Laborie, M.-P. Comparative assessment of methods for producing cellulose I nanocrystals from cellulosic sources. Nanocellul. Their Prep. Prop. Appl. 2017, 1251, 19–53. [Google Scholar]
  38. Abushammala, H.; Krossing, I.; Laborie, M.-P. Ionic liquid-mediated technology to produce cellulose nanocrystals directly from wood. Carbohydr. Polym. 2015, 134, 609–616. [Google Scholar] [CrossRef]
  39. Jozala, A.F.; de Lencastre-Novaes, L.C.; Lopes, A.M.; de Carvalho Santos-Ebinuma, V.; Mazzola, P.G.; Pessoa, A., Jr.; Grotto, D.; Gerenutti, M.; Chaud, M.V. Bacterial nanocellulose production and application: A 10-year overview. Appl. Microbiol. Biotechnol. 2016, 100, 2063–2072. [Google Scholar] [CrossRef] [Green Version]
  40. Thomas, B.; Raj, M.C.; Joy, J.; Moores, A.; Drisko, G.L.; Sanchez, C. Nanocellulose, a versatile green platform: From biosources to materials and their applications. Chem. Rev. 2018, 118, 11575–11625. [Google Scholar] [CrossRef]
  41. Habibi, Y. Key advances in the chemical modification of nanocelluloses. Chem. Soc. Rev. 2014, 43, 1519–1542. [Google Scholar] [CrossRef]
  42. Abushammala, H.; Mao, J. A review of the surface modification of cellulose and nanocellulose using aliphatic and aromatic mono-and di-isocyanates. Molecules 2019, 24, 2782. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Mehanny, S.; Magd, E.E.A.-E.; Sorbara, S.; Navarro, J.; Gil-San-Millan, R. Spanish Poplar Biomass as a Precursor for Nanocellulose Extraction. Appl. Sci. 2021, 11, 6863. [Google Scholar] [CrossRef]
  44. Luo, H.; Cha, R.; Li, J.; Hao, W.; Zhang, Y.; Zhou, F. Advances in tissue engineering of nanocellulose-based scaffolds: A review. Carbohydr. Polym. 2019, 224, 115144. [Google Scholar] [CrossRef] [PubMed]
  45. Ferreira, F.V.; Pinheiro, I.F.; de Souza, S.F.; Mei, L.H.I.; Lona, L.M.F. Polymer composites reinforced with natural fibers and nanocellulose in the automotive industry: A short review. J. Compos. Sci. 2019, 3, 51. [Google Scholar] [CrossRef] [Green Version]
  46. Abushammala, H.; Hashaikeh, R.; Cooney, C. Microcrystalline cellulose powder tableting via networked cellulose-based gel material. Powder Technol. 2012, 217, 16–20. [Google Scholar] [CrossRef]
  47. Voisin, H.; Bergström, L.; Liu, P.; Mathew, A.P. Nanocellulose-based materials for water purification. Nanomaterials 2017, 7, 57. [Google Scholar] [CrossRef] [PubMed]
  48. Agate, S.; Joyce, M.; Lucia, L.; Pal, L. Cellulose and nanocellulose-based flexible-hybrid printed electronics and conductive composites—A review. Carbohydr. Polym. 2018, 198, 249–260. [Google Scholar] [CrossRef]
  49. Li, F.; Mascheroni, E.; Piergiovanni, L. The potential of nanocellulose in the packaging field: A review. Packag. Technol. Sci. 2015, 28, 475–508. [Google Scholar] [CrossRef]
  50. Spence, K.; Habibi, Y.; Dufresne, A. Nanocellulose-based composites. In Cellulose Fibers: Bio- and Nano-Polymer Composites; Springer: Berlin/Heidelberg, Germany, 2011; pp. 179–213. [Google Scholar]
  51. Hisseine, O.A.; Wilson, W.; Sorelli, L.; Tolnai, B.; Tagnit-Hamou, A. Nanocellulose for improved concrete performance: A macro-to-micro investigation for disclosing the effects of cellulose filaments on strength of cement systems. Constr. Build. Mater. 2019, 206, 84–96. [Google Scholar] [CrossRef]
  52. Haafiz, M.K.M.; Hassan, A.; Khalil, H.P.S.A.; Fazita, M.R.N.; Islam, M.S.; Inuwa, I.M.; Marliana, M.M.; Hussin, M.H. Exploring the effect of cellulose nanowhiskers isolated from oil palm biomass on polylactic acid properties. Int. J. Biol. Macromol. 2016, 85, 370–378. [Google Scholar] [CrossRef]
  53. Chen, Z.; An, C.; Yin, J.; Owens, E.; Lee, K.; Zhang, K.; Tian, X. Exploring the use of cellulose nanocrystal as surface-washing agent for oiled shoreline cleanup. J. Hazard. Mater. 2021, 402, 123464. [Google Scholar] [CrossRef]
  54. Peng, H.; Wang, H.; Wu, J.; Meng, G.; Wang, Y.; Shi, Y.; Liu, Z.; Guo, X. Preparation of Superhydrophobic Magnetic Cellulose Sponge for Removing Oil from Water. Ind. Eng. Chem. Res. 2016, 55, 832–838. [Google Scholar] [CrossRef]
  55. Rafieian, F.; Hosseini, M.; Jonoobi, M.; Yu, Q. Development of hydrophobic nanocellulose-based aerogel via chemical vapor deposition for oil separation for water treatment. Cellulose 2018, 25, 4695–4710. [Google Scholar] [CrossRef]
  56. Lu, Y.; Wang, Y.; Liu, L.; Yuan, W. Environmental-friendly and magnetic/silanized ethyl cellulose sponges as effective and recyclable oil-absorption materials. Carbohydr. Polym. 2017, 173, 422–430. [Google Scholar] [CrossRef] [PubMed]
  57. Lu, Y.; Yuan, W. Superhydrophobic/Superoleophilic and Reinforced Ethyl Cellulose Sponges for Oil/Water Separation: Synergistic Strategies of Cross-linking, Carbon Nanotube Composite, and Nanosilica Modification. ACS Appl. Mater. Interfaces 2017, 9, 29167–29176. [Google Scholar] [CrossRef]
  58. Xiao, J.; Lv, W.; Song, Y.; Zheng, Q. Graphene/nanofiber aerogels: Performance regulation towards multiple applications in dye adsorption and oil/water separation. Chem. Eng. J. 2018, 338, 202–210. [Google Scholar] [CrossRef]
  59. Zhang, H.; Li, Y.; Xu, Y.; Lu, Z.; Chen, L.; Huang, L.; Fan, M. Versatile fabrication of a superhydrophobic and ultralight cellulose-based aerogel for oil spillage clean-up. Phys. Chem. Chem. Phys. 2016, 18, 28297–28306. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Cervin, N.T.; Aulin, C.; Larsson, P.T.; Wågberg, L. Ultra porous nanocellulose aerogels as separation medium for mixtures of oil/water liquids. Cellulose 2012, 19, 401–410. [Google Scholar] [CrossRef]
  61. Tripathi, A.; Parsons, G.N.; Rojas, O.J.; Khan, S.A. Featherlight, mechanically robust cellulose ester aerogels for environmental remediation. ACS Omega 2017, 2, 4297–4305. [Google Scholar] [CrossRef] [PubMed]
  62. Mi, H.Y.; Jing, X.; Politowicz, A.L.; Chen, E.; Huang, H.X.; Turng, L.S. Highly compressible ultra-light anisotropic cellulose/graphene aerogel fabricated by bidirectional freeze drying for selective oil absorption. Carbon 2018, 132, 199–209. [Google Scholar] [CrossRef]
  63. Zhou, S.; You, T.; Zhang, X.; Xu, F. Superhydrophobic Cellulose Nanofiber-Assembled Aerogels for Highly Efficient Water-in-Oil Emulsions Separation. ACS Appl. Nano Mater. 2018, 1, 2095–2103. [Google Scholar] [CrossRef]
  64. Zhang, H.; Wang, J.; Xu, G.; Xu, Y.; Wang, F.; Shen, H. Ultralight, hydrophobic, sustainable, cost-effective and floating kapok/microfibrillated cellulose aerogels as speedy and recyclable oil superabsorbents. J. Hazard. Mater. 2021, 406, 124758. [Google Scholar] [CrossRef] [PubMed]
  65. Yu, L.; Zhang, Z.; Tang, H.; Zhou, J. Fabrication of hydrophobic cellulosic materials via gas–solid silylation reaction for oil/water separation. Cellulose 2019, 26, 4021–4037. [Google Scholar] [CrossRef]
  66. Mi, H.Y.; Jing, X.; Huang, H.X.; Peng, X.F.; Turng, L.S. Superhydrophobic Graphene/Cellulose/Silica Aerogel with Hierarchical Structure as Superabsorbers for High Efficiency Selective Oil Absorption and Recovery. Ind. Eng. Chem. Res. 2018, 57, 1745–1755. [Google Scholar] [CrossRef]
  67. Luo, H.; Xie, J.; Wang, J.; Yao, F.; Yang, Z.; Wan, Y. Step-by-step self-assembly of 2D few-layer reduced graphene oxide into 3D architecture of bacterial cellulose for a robust, ultralight, and recyclable all-carbon absorbent. Carbon 2018, 139, 824–832. [Google Scholar] [CrossRef]
  68. Long, S.; Feng, Y.; Liu, Y.; Zheng, L.; Gan, L.; Liu, J.; Zeng, X.; Long, M. Renewable and robust biomass carbon aerogel derived from deep eutectic solvents modified cellulose nanofiber under a low carbonization temperature for oil-water separation. Sep. Purif. Technol. 2021, 254, 117577. [Google Scholar] [CrossRef]
  69. Wang, Y.; Yadav, S.; Heinlein, T.; Konjik, V.; Breitzke, H.; Buntkowsky, G.; Schneider, J.J.; Zhang, K. Ultra-light nanocomposite aerogels of bacterial cellulose and reduced graphene oxide for specific absorption and separation of organic liquids. RSC Adv. 2014, 4, 21553–21558. [Google Scholar] [CrossRef] [Green Version]
  70. Gu, H.; Gao, C.; Zhou, X.; Du, A.; Naik, N.; Guo, Z. Nanocellulose nanocomposite aerogel towards efficient oil and organic solvent adsorption. Adv. Compos. Hybrid Mater. 2021, 1–10. [Google Scholar] [CrossRef]
  71. Calcagnile, P.; Caputo, I.; Cannoletta, D.; Bettini, S.; Valli, L.; Demitri, C. A bio-based composite material for water remediation from oily contaminants. Mater. Des. 2017, 134, 374–382. [Google Scholar] [CrossRef]
  72. Nie, X.; Lv, P.; Stanley, S.L.; Wang, D.; Wu, S.; Wei, Q. Ultralight nanocomposite aerogels with interpenetrating network structure of bacterial cellulose for oil absorption. J. Appl. Polym. Sci. 2019, 136, 1–8. [Google Scholar] [CrossRef]
  73. Korhonen, J.T.; Kettunen, M.; Ras, R.H.A.; Ikkala, O. Hydrophobic nanocellulose aerogels as floating, sustainable, reusable, and recyclable oil absorbents. ACS Appl. Mater. Interfaces 2011, 3, 1813–1816. [Google Scholar] [CrossRef]
  74. Chin, S.F.; Romainor, A.N.B.; Pang, S.C. Fabrication of hydrophobic and magnetic cellulose aerogel with high oil absorption capacity. Mater. Lett. 2014, 115, 241–243. [Google Scholar] [CrossRef]
  75. Zhang, H.; Li, Y.; Lu, Z.; Chen, L.; Huang, L.; Fan, M. A robust superhydrophobic TiO2 NPs coated cellulose sponge for highly efficient oil-water separation. Sci. Rep. 2017, 7, 3–10. [Google Scholar] [CrossRef]
  76. Li, Z.; Zhong, L.; Zhang, T.; Qiu, F.; Yue, X.; Yang, D. Sustainable, Flexible, and Superhydrophobic Functionalized Cellulose Aerogel for Selective and Versatile Oil/Water Separation. ACS Sustain. Chem. Eng. 2019, 7, 9984–9994. [Google Scholar] [CrossRef]
  77. Lu, Y.; Yuan, W. Superhydrophobic three-dimensional porous ethyl cellulose absorbent with micro/nano-scale hierarchical structures for highly efficient removal of oily contaminants from water. Carbohydr. Polym. 2018, 191, 86–94. [Google Scholar] [CrossRef] [PubMed]
  78. Liu, B.; Zhang, L.; Wang, H.; Bian, Z. Preparation of MCC/MC Silica Sponge and Its Oil/Water Separation Apparatus Application. Ind. Eng. Chem. Res. 2017, 56, 5795–5801. [Google Scholar] [CrossRef]
  79. Zhang, H.; Lyu, S.; Zhou, X.; Gu, H.; Ma, C.; Wang, C.; Ding, T.; Shao, Q.; Liu, H.; Guo, Z. Super light 3D hierarchical nanocellulose aerogel foam with superior oil adsorption. J. Colloid Interface Sci. 2019, 536, 245–251. [Google Scholar] [CrossRef]
  80. Meng, G.; Peng, H.; Wu, J.; Wang, Y.; Wang, H.; Liu, Z.; Guo, X. Fabrication of superhydrophobic cellulose/chitosan composite aerogel for oil/water separation. Fibers Polym. 2017, 18, 706–712. [Google Scholar] [CrossRef]
  81. Gu, H.; Zhou, X.; Lyu, S.; Pan, D.; Dong, M.; Wu, S.; Ding, T.; Wei, X.; Seok, I.; Wei, S.; et al. Magnetic nanocellulose-magnetite aerogel for easy oil adsorption. J. Colloid Interface Sci. 2020, 560, 849–856. [Google Scholar] [CrossRef]
  82. Xu, X.; Dong, F.; Yang, X.; Liu, H.; Guo, L.; Qian, Y.; Wang, A.; Wang, S.; Luo, J. Preparation and Characterization of Cellulose Grafted with Epoxidized Soybean Oil Aerogels for Oil-Absorbing Materials. J. Agric. Food Chem. 2019, 67, 637–643. [Google Scholar] [CrossRef] [PubMed]
  83. Gao, R.; Xiao, S.; Gan, W.; Liu, Q.; Amer, H.; Rosenau, T.; Li, J.; Lu, Y. Mussel Adhesive-Inspired Design of Superhydrophobic Nanofibrillated Cellulose Aerogels for Oil/Water Separation. ACS Sustain. Chem. Eng. 2018, 6, 9047–9055. [Google Scholar] [CrossRef]
  84. Peng, D.; Li, H.; Li, W.-J.; Zheng, L. Biosorbent with superhydrophobicity and superoleophilicity for spilled oil removal. Ecotoxicol. Environ. Saf. 2021, 209, 111803. [Google Scholar] [CrossRef]
  85. Li, Y.; Zhu, L.; Grishkewich, N.; Tam, K.C.; Yuan, J.; Mao, Z.; Sui, X. CO2-Responsive Cellulose Nanofibers Aerogels for Switchable Oil-Water Separation. ACS Appl. Mater. Interfaces 2019, 11, 9367–9373. [Google Scholar] [CrossRef]
  86. Durgadevi, N.; Swarnalatha, V. Polythiophene functionalized hydrophobic cellulose kitchen wipe sponge and cellulose fabric for effective oil-water separation. RSC Adv. 2017, 7, 34866–34874. [Google Scholar] [CrossRef] [Green Version]
  87. Chhajed, M.; Yadav, C.; Agrawal, A.K.; Maji, P.K. Esterified superhydrophobic nanofibrillated cellulose based aerogel for oil spill treatment. Carbohydr. Polym. 2019, 226, 115286. [Google Scholar] [CrossRef]
  88. Phanthong, P.; Reubroycharoen, P.; Kongparakul, S.; Samart, C.; Wang, Z.; Hao, X.; Abudula, A.; Guan, G. Fabrication and evaluation of nanocellulose sponge for oil/water separation. Carbohydr. Polym. 2018, 190, 184–189. [Google Scholar] [CrossRef]
  89. Xu, T.; Wang, Z.; Ding, Y.; Xu, W.; Wu, W.; Zhu, Z.; Fong, H. Ultralight electrospun cellulose sponge with super-high capacity on absorption of organic compounds. Carbohydr. Polym. 2018, 179, 164–172. [Google Scholar] [CrossRef]
  90. Li, Z.; Qiu, J.; Shi, Y.; Pei, C. Wettability-switchable bacterial cellulose/polyhemiaminal nanofiber aerogels for continuous and effective oil/water separation. Cellulose 2018, 25, 2987–2996. [Google Scholar] [CrossRef]
  91. Nguyen, B.N.; Cudjoe, E.; Douglas, A.; Scheiman, D.; McCorkle, L.; Meador, M.A.B.; Rowan, S.J. Polyimide cellulose nanocrystal composite aerogels. Macromolecules 2016, 49, 1692–1703. [Google Scholar] [CrossRef] [Green Version]
  92. Seantier, B.; Bendahou, D.; Bendahou, A.; Grohens, Y.; Kaddami, H. Multi-scale cellulose based new bio-aerogel composites with thermal super-insulating and tunable mechanical properties. Carbohydr. Polym. 2016, 138, 335–348. [Google Scholar] [CrossRef]
  93. Zou, Y.; Zhao, J.; Zhu, J.; Guo, X.; Chen, P.; Duan, G.; Liu, X.; Li, Y. A Mussel-Inspired Polydopamine-Filled Cellulose Aerogel for Solar-Enabled Water Remediation. ACS Appl. Mater. Interfaces 2021, 13, 7617–7624. [Google Scholar] [CrossRef] [PubMed]
  94. Hüsing, N.; Schubert, U. Aerogels—airy materials: Chemistry, structure, and properties. Angew. Chemie Int. Ed. 1998, 37, 22–45. [Google Scholar] [CrossRef]
  95. Gurav, J.L.; Jung, I.-K.; Park, H.-H.; Kang, E.S.; Nadargi, D.Y. Silica aerogel: Synthesis and applications. J. Nanomater. 2010, 2010, 409310. [Google Scholar] [CrossRef] [Green Version]
  96. Gesser, H.D.; Goswami, P.C. Aerogels and related porous materials. Chem. Rev. 1989, 89, 765–788. [Google Scholar] [CrossRef]
  97. Ishii, D.; Tatsumi, D.; Matsumoto, T.; Murata, K.; Hayashi, H.; Yoshitani, H. Investigation of the Structure of Cellulose in LiCl/DMAc Solution and Its Gelation Behavior by Small-Angle X-Ray Scattering Measurements. Macromol. Biosci. 2006, 6, 293–300. [Google Scholar] [CrossRef]
  98. Wang, Z.; Yokoyama, T.; Matsumoto, Y. Dissolution of ethylenediamine pretreated pulp with high lignin content in LiCl/DMSO without milling. J. Wood Chem. Technol. 2010, 30, 219–229. [Google Scholar] [CrossRef]
  99. Lin, R.; Li, A.; Zheng, T.; Lu, L.; Cao, Y. Hydrophobic and flexible cellulose aerogel as an efficient, green and reusable oil sorbent. RSC Adv. 2015, 5, 82027–82033. [Google Scholar] [CrossRef]
  100. Liao, Q.; Su, X.; Zhu, W.; Hua, W.; Qian, Z.; Liu, L.; Yao, J. Flexible and durable cellulose aerogels for highly effective oil/water separation. RSC Adv. 2016, 6, 63773–63781. [Google Scholar] [CrossRef]
  101. Li, Z.; Shao, L.; Hu, W.; Zheng, T.; Lu, L.; Cao, Y.; Chen, Y. Excellent reusable chitosan/cellulose aerogel as an oil and organic solvent absorbent. Carbohydr. Polym. 2018, 191, 183–190. [Google Scholar] [CrossRef] [PubMed]
  102. Fu, B.; Yang, Q.; Yang, F. Flexible Underwater Oleophobic Cellulose Aerogels for Efficient Oil/Water Separation. ACS Omega 2020, 5, 8181–8187. [Google Scholar] [CrossRef]
  103. Xiong, B.; Zhao, P.; Hu, K.; Zhang, L.; Cheng, G. Dissolution of cellulose in aqueous NaOH/urea solution: Role of urea. Cellulose 2014, 21, 1183–1192. [Google Scholar] [CrossRef]
  104. Zhu, S.; Wu, Y.; Chen, Q.; Yu, Z.; Wang, C.; Jin, S.; Ding, Y.; Wu, G. Dissolution of cellulose with ionic liquids and its application: A mini-review. Green Chem. 2006, 8, 325–327. [Google Scholar] [CrossRef]
  105. Jin, C.; Han, S.; Li, J.; Sun, Q. Fabrication of cellulose-based aerogels from waste newspaper without any pretreatment and their use for absorbents. Carbohydr. Polym. 2015, 123, 150–156. [Google Scholar] [CrossRef]
  106. Fan, P.; Yuan, Y.; Ren, J.; Yuan, B.; He, Q.; Xia, G.; Chen, F.; Song, R. Facile and green fabrication of cellulosed based aerogels for lampblack filtration from waste newspaper. Carbohydr. Polym. 2017, 162, 108–114. [Google Scholar] [CrossRef] [Green Version]
  107. Laitinen, O.; Suopajärvi, T.; Österberg, M.; Liimatainen, H. Hydrophobic, superabsorbing aerogels from choline chloride-based deep eutectic solvent pretreated and silylated cellulose nanofibrils for selective oil removal. ACS Appl. Mater. Interfaces 2017, 9, 25029–25037. [Google Scholar] [CrossRef] [Green Version]
  108. Douglass, E.F.; Avci, H.; Boy, R.; Rojas, O.J.; Kotek, R. A review of cellulose and cellulose blends for preparation of bio-derived and conventional membranes, nanostructured thin films, and composites. Polym. Rev. 2018, 58, 102–163. [Google Scholar] [CrossRef]
  109. Liu, H.; Wang, A.; Xu, X.; Wang, M.; Shang, S.; Liu, S.; Song, J. Porous aerogels prepared by crosslinking of cellulose with 1,4-butanediol diglycidyl ether in NaOH/urea solution. RSC Adv. 2016, 6, 42854–42862. [Google Scholar] [CrossRef]
  110. Lu, J.; Xu, D.; Wei, J.; Yan, S.; Xiao, R. Superoleophilic and Flexible Thermoplastic Polymer Nanofiber Aerogels for Removal of Oils and Organic Solvents. ACS Appl. Mater. Interfaces 2017, 9, 25533–25541. [Google Scholar] [CrossRef] [PubMed]
  111. Zheng, Q.; Cai, Z.; Gong, S. Green synthesis of polyvinyl alcohol (PVA)-cellulose nanofibril (CNF) hybrid aerogels and their use as superabsorbents. J. Mater. Chem. A 2014, 2, 3110–3118. [Google Scholar] [CrossRef]
  112. Jiang, J.; Zhu, J.; Zhang, Q.; Zhan, X.; Chen, F. A Shape Recovery Zwitterionic Bacterial Cellulose Aerogel with Superior Performances for Water Remediation. Langmuir 2019, 35, 11959–11967. [Google Scholar] [CrossRef]
  113. Zhang, J.; Cheng, Y.; Xu, C.; Gao, M.; Zhu, M.; Jiang, L. Hierarchical Interface Engineering for Advanced Nanocellulosic Hybrid Aerogels with High Compressibility and Multifunctionality. Adv. Funct. Mater. 2021, 31, 2009349. [Google Scholar] [CrossRef]
  114. Gong, X.; Wang, Y.; Zeng, H.; Betti, M.; Chen, L. Highly Porous, Hydrophobic, and Compressible Cellulose Nanocrystals/Poly(vinyl alcohol) Aerogels as Recyclable Absorbents for Oil-Water Separation. ACS Sustain. Chem. Eng. 2019, 7, 11118–11128. [Google Scholar] [CrossRef]
  115. Yang, X.; Cranston, E.D. Chemically cross-linked cellulose nanocrystal aerogels with shape recovery and superabsorbent properties. Chem. Mater. 2014, 26, 6016–6025. [Google Scholar] [CrossRef]
  116. Zhai, T.; Zheng, Q.; Cai, Z.; Xia, H.; Gong, S. Synthesis of polyvinyl alcohol/cellulose nanofibril hybrid aerogel microspheres and their use as oil/solvent superabsorbents. Carbohydr. Polym. 2016, 148, 300–308. [Google Scholar] [CrossRef]
  117. Dilamian, M.; Noroozi, B. Rice straw agri-waste for water pollutant adsorption: Relevant mesoporous super hydrophobic cellulose aerogel. Carbohydr. Polym. 2021, 251, 117016. [Google Scholar] [CrossRef]
  118. Li, L.; Rong, L.; Xu, Z.; Wang, B.; Feng, X.; Mao, Z.; Xu, H.; Yuan, J.; Liu, S.; Sui, X. Cellulosic sponges with pH responsive wettability for efficient oil-water separation. Carbohydr. Polym. 2020, 237, 116133. [Google Scholar] [CrossRef]
  119. He, Z.; Zhang, X.; Batchelor, W. Cellulose nanofibre aerogel filter with tuneable pore structure for oil/water separation and recovery. RSC Adv. 2016, 6, 21435–21438. [Google Scholar] [CrossRef]
  120. Wu, Z.; Li, Y.; Zhang, L.; Zhong, Y.; Xu, H.; Mao, Z.; Wang, B.; Sui, X. Thiol-ene click reaction on cellulose sponge and its application for oil/water separation. RSC Adv. 2017, 7, 20147–20151. [Google Scholar] [CrossRef] [Green Version]
  121. Colson, J.; Amer, H.; Liebner, F.; Gindl-Altmutter, W. Oil-absorbing porous cellulosic material from sized wood pulp fines. Holzforschung 2019, 73, 83–92. [Google Scholar] [CrossRef]
  122. Zhang, H.; Li, Y.; Shi, R.; Chen, L.; Fan, M. A robust salt-tolerant superoleophobic chitosan/nanofibrillated cellulose aerogel for highly efficient oil/water separation. Carbohydr. Polym. 2018, 200, 611–615. [Google Scholar] [CrossRef] [PubMed]
  123. Mulyadi, A.; Zhang, Z.; Deng, Y. Fluorine-Free Oil Absorbents Made from Cellulose Nanofibril Aerogels. ACS Appl. Mater. Interfaces 2016, 8, 2732–2740. [Google Scholar] [CrossRef]
  124. Li, J.; Zhai, S.; Wu, W.; Xu, Z. Hydrophobic nanocellulose aerogels with high loading of metal-organic framework particles as floating and reusable oil absorbents. Front. Chem. Sci. Eng. 2021, 1–11. [Google Scholar] [CrossRef]
  125. Sanguanwong, A.; Flood, A.E.; Ogawa, M.; Martín-Sampedro, R.; Darder, M.; Wicklein, B.; Aranda, P.; Ruiz-Hitzky, E. Hydrophobic composite foams based on nanocellulose-sepiolite for oil sorption applications. J. Hazard. Mater. 2021, 417, 126068. [Google Scholar] [CrossRef]
  126. García-González, C.A.; Alnaief, M.; Smirnova, I. Polysaccharide-based aerogels—Promising biodegradable carriers for drug delivery systems. Carbohydr. Polym. 2011, 86, 1425–1438. [Google Scholar] [CrossRef]
  127. Liebner, F.; Haimer, E.; Wendland, M.; Neouze, M.-A.; Schlufter, K.; Miethe, P.; Heinze, T.; Potthast, A.; Rosenau, T. Aerogels from unaltered bacterial cellulose: Application of scCO2 drying for the preparation of shaped, ultra-lightweight cellulosic aerogels. Macromol. Biosci. 2010, 10, 349–352. [Google Scholar] [CrossRef]
  128. Long, L.-Y.; Weng, Y.-X.; Wang, Y.-Z. Cellulose aerogels: Synthesis, applications, and prospects. Polymers 2018, 10, 623. [Google Scholar] [CrossRef] [Green Version]
  129. Zhang, X.; Yu, Y.; Jiang, Z.; Wang, H. The effect of freezing speed and hydrogel concentration on the microstructure and compressive performance of bamboo-based cellulose aerogel. J. Wood Sci. 2015, 61, 595–601. [Google Scholar] [CrossRef]
  130. Yang, J.; Xia, Y.; Xu, P.; Chen, B. Super-elastic and highly hydrophobic/superoleophilic sodium alginate/cellulose aerogel for oil/water separation. Cellulose 2018, 25, 3533–3544. [Google Scholar] [CrossRef]
  131. Nguyen, S.T.; Feng, J.; Le, N.T.; Le, A.T.T.; Hoang, N.; Tan, V.B.C.; Duong, H.M. Cellulose aerogel from paper waste for crude oil spill cleaning. Ind. Eng. Chem. Res. 2013, 52, 18386–18391. [Google Scholar] [CrossRef]
  132. Nguyen, S.T.; Feng, J.; Ng, S.K.; Wong, J.P.W.; Tan, V.B.C.; Duong, H.M. Advanced thermal insulation and absorption properties of recycled cellulose aerogels. Colloids Surf. A Physicochem. Eng. Asp. 2014, 445, 128–134. [Google Scholar] [CrossRef]
  133. Yang, X.; Ma, J.; Ling, J.; Li, N.; Wang, D.; Yue, F.; Xu, S. Cellulose acetate-based SiO2/TiO2 hybrid microsphere composite aerogel films for water-in-oil emulsion separation. Appl. Surf. Sci. 2018, 435, 609–616. [Google Scholar] [CrossRef]
  134. Jiang, F.; Hsieh, Y. Lo Dual Wet and Dry Resilient Cellulose II Fibrous Aerogel for Hydrocarbon-Water Separation and Energy Storage Applications. ACS Omega 2018, 3, 3530–3539. [Google Scholar] [CrossRef] [Green Version]
  135. Wang, H.; Chen, Y.; Dang, B.; Shen, X.; Jin, C.; Sun, Q.; Pei, J. Ultrafine Mn ferrite by anchoring in a cellulose framework for efficient toxic ions capture and fast water/oil separation. Carbohydr. Polym. 2018, 196, 117–125. [Google Scholar] [CrossRef]
  136. Feng, J.; Nguyen, S.T.; Fan, Z.; Duong, H.M. Advanced fabrication and oil absorption properties of super-hydrophobic recycled cellulose aerogels. Chem. Eng. J. 2015, 270, 168–175. [Google Scholar] [CrossRef]
  137. Cheng, H.; Gu, B.; Pennefather, M.P.; Nguyen, T.X.; Phan-Thien, N.; Duong, H.M. Cotton aerogels and cotton-cellulose aerogels from environmental waste for oil spillage cleanup. Mater. Des. 2017, 130, 452–458. [Google Scholar] [CrossRef]
  138. Wang, J.; Liu, S. Remodeling of raw cotton fiber into flexible, squeezing-resistant macroporous cellulose aerogel with high oil retention capability for oil/water separation. Sep. Purif. Technol. 2019, 221, 303–310. [Google Scholar] [CrossRef]
  139. Sanguanwong, A.; Pavasant, P.; Jarunglumlert, T.; Nakagawa, K.; Flood, A.; Prommuak, C. Hydrophobic cellulose aerogel from waste napkin paper for oil sorption applications. Nord. Pulp Pap. Res. J. 2020, 35, 137–147. [Google Scholar] [CrossRef]
  140. Thai, Q.B.; Nguyen, S.T.; Ho, D.K.; Du Tran, T.; Huynh, D.M.; Do, N.H.N.; Luu, T.P.; Le, P.K.; Le, D.K.; Phan-Thien, N.; et al. Cellulose-based aerogels from sugarcane bagasse for oil spill-cleaning and heat insulation applications. Carbohydr. Polym. 2020, 228, 115365. [Google Scholar] [CrossRef]
  141. Guan, H.; Cheng, Z.; Wang, X. Highly Compressible Wood Sponges with a Spring-like Lamellar Structure as Effective and Reusable Oil Absorbents. ACS Nano 2018, 12, 10365–10373. [Google Scholar] [CrossRef]
  142. Wan, C.; Lu, Y.; Jiao, Y.; Cao, J.; Sun, Q.; Li, J. Cellulose aerogels from cellulose-NaOH/PEG solution and comparison with different cellulose contents. Mater. Sci. Technol. 2015, 31, 1096–1102. [Google Scholar] [CrossRef]
  143. Wang, K.; Liu, X.; Tan, Y.; Zhang, W.; Zhang, S.; Li, J. Two-dimensional membrane and three-dimensional bulk aerogel materials via top-down wood nanotechnology for multibehavioral and reusable oil/water separation. Chem. Eng. J. 2019, 371, 769–780. [Google Scholar] [CrossRef]
  144. Zhao, L.; Li, L.; Wang, Y.; Wu, J.; Meng, G.; Liu, Z.; Guo, X. Preparation and characterization of thermo- and pH dual-responsive 3D cellulose-based aerogel for oil/water separation. Appl. Phys. A Mater. Sci. Process. 2018, 124, 9. [Google Scholar] [CrossRef]
  145. Jiang, F.; Hsieh, Y.-L. Amphiphilic superabsorbent cellulose nanofibril aerogels. J. Mater. Chem. A 2014, 2, 6337–6342. [Google Scholar] [CrossRef] [Green Version]
  146. Wang, S.; Peng, X.; Zhong, L.; Tan, J.; Jing, S.; Cao, X.; Chen, W.; Liu, C.; Sun, R. An ultralight, elastic, cost-effective, and highly recyclable superabsorbent from microfibrillated cellulose fibers for oil spillage cleanup. J. Mater. Chem. A 2015, 3, 8772–8781. [Google Scholar] [CrossRef]
  147. Fan, B.; Yao, Q.; Wang, C.; Jin, C.; Wang, H.; Xiong, Y.; Li, S.; Sun, Q. Natural cellulose nanofiber extracted from cell wall of bamboo leaf and its derived multifunctional aerogel. Polym. Compos. 2018, 39, 3869–3876. [Google Scholar] [CrossRef]
  148. Zhou, S.; Liu, P.; Wang, M.; Zhao, H.; Yang, J.; Xu, F. Sustainable, Reusable, and Superhydrophobic Aerogels from Microfibrillated Cellulose for Highly Effective Oil/Water Separation. ACS Sustain. Chem. Eng. 2016, 4, 6409–6416. [Google Scholar] [CrossRef]
  149. Shang, Q.; Chen, J.; Hu, Y.; Yang, X.; Hu, L.; Liu, C.; Ren, X.; Zhou, Y. Facile Fabrication of Superhydrophobic Cross-Linked Nanocellulose Aerogels for Oil--Water Separation. Polymers 2021, 13, 625. [Google Scholar] [CrossRef] [PubMed]
  150. Jiao, Y.; Wan, C.; Qiang, T.; Li, J. Synthesis of superhydrophobic ultralight aerogels from nanofibrillated cellulose isolated from natural reed for high-performance adsorbents. Appl. Phys. A Mater. Sci. Process. 2016, 122, 686. [Google Scholar] [CrossRef]
  151. Zhou, L.; Zhai, S.; Chen, Y.; Xu, Z. Anisotropic cellulose nanofibers/polyvinyl alcohol/graphene aerogels fabricated by directional freeze-drying as effective oil adsorbents. Polymers 2019, 11, 712. [Google Scholar] [CrossRef] [Green Version]
  152. Zhou, X.; Fu, Q.; Liu, H.; Gu, H.; Guo, Z. Solvent-free nanoalumina loaded nanocellulose aerogel for efficient oil and organic solvent adsorption. J. Colloid Interface Sci. 2021, 581, 299–306. [Google Scholar] [CrossRef]
  153. Zhang, Z.; Sèbe, G.; Rentsch, D.; Zimmermann, T.; Tingaut, P. Ultralightweight and flexible silylated nanocellulose sponges for the selective removal of oil from water. Chem. Mater. 2014, 26, 2659–2668. [Google Scholar] [CrossRef]
  154. Jiang, F.; Hsieh, Y. Lo Cellulose nanofibril aerogels: Synergistic improvement of hydrophobicity, strength, and thermal stability via cross-linking with diisocyanate. ACS Appl. Mater. Interfaces 2017, 9, 2825–2834. [Google Scholar] [CrossRef] [Green Version]
  155. Xu, Z.; Zhou, H.; Jiang, X.; Li, J.; Huang, F. Facile synthesis of reduced graphene oxide/trimethyl chlorosilane-coated cellulose nanofibres aerogel for oil absorption. IET Nanobiotechnol. 2017, 11, 929–934. [Google Scholar] [CrossRef]
  156. de Oliveira, P.B.; Godinho, M.; Zattera, A.J. Oils sorption on hydrophobic nanocellulose aerogel obtained from the wood furniture industry waste. Cellulose 2018, 25, 3105–3119. [Google Scholar] [CrossRef]
  157. Zanini, M.; Lavoratti, A.; Lazzari, L.K.; Galiotto, D.; Baldasso, C.; Zattera, A.J. Obtaining hydrophobic aerogels of unbleached cellulose nanofibers of the species eucalyptus sp. and pinus elliottii. J. Nanomater. 2018, 2018, 4646197. [Google Scholar] [CrossRef]
  158. Zanini, M.; Lavoratti, A.; Lazzari, L.K.; Galiotto, D.; Pagnocelli, M.; Baldasso, C.; Zattera, A.J. Producing aerogels from silanized cellulose nanofiber suspension. Cellulose 2017, 24, 769–779. [Google Scholar] [CrossRef]
  159. Xiao, S.; Gao, R.; Lu, Y.; Li, J.; Sun, Q. Fabrication and characterization of nanofibrillated cellulose and its aerogels from natural pine needles. Carbohydr. Polym. 2015, 119, 202–209. [Google Scholar] [CrossRef]
  160. Sai, H.; Fu, R.; Xing, L.; Xiang, J.; Li, Z.; Li, F.; Zhang, T. Surface modification of bacterial cellulose aerogels’ web-like skeleton for oil/water separation. ACS Appl. Mater. Interfaces 2015, 7, 7373–7381. [Google Scholar] [CrossRef]
  161. He, J.; Zhao, H.; Li, X.; Su, D.; Zhang, F.; Ji, H.; Liu, R. Superelastic and superhydrophobic bacterial cellulose/silica aerogels with hierarchical cellular structure for oil absorption and recovery. J. Hazard. Mater. 2018, 346, 199–207. [Google Scholar] [CrossRef]
  162. de Morais Zanata, D.; Battirola, L.C.; do Carmo Gonçalves, M. Chemically cross-linked aerogels based on cellulose nanocrystals and polysilsesquioxane. Cellulose 2018, 25, 7225–7238. [Google Scholar] [CrossRef]
  163. Zhang, Y.; Yin, M.; Lin, X.; Ren, X.; Huang, T.S.; Kim, I.S. Functional nanocomposite aerogels based on nanocrystalline cellulose for selective oil/water separation and antibacterial applications. Chem. Eng. J. 2019, 371, 306–313. [Google Scholar] [CrossRef]
  164. Sun, F.; Liu, W.; Dong, Z.; Deng, Y. Underwater superoleophobicity cellulose nanofibril aerogel through regioselective sulfonation for oil/water separation. Chem. Eng. J. 2017, 330, 774–782. [Google Scholar] [CrossRef]
  165. Wang, Y.; Uetani, K.; Liu, S.; Zhang, X.; Wang, Y.; Lu, P.; Wei, T.; Fan, Z.; Shen, J.; Yu, H.; et al. Multifunctional Bionanocomposite Foams with a Chitosan Matrix Reinforced by Nanofibrillated Cellulose. ChemNanoMat 2017, 3, 98–108. [Google Scholar] [CrossRef]
  166. Ali, N.; Bilal, M.; Khan, A.; Ali, F.; Iqbal, H.M.N. Design, engineering and analytical perspectives of membrane materials with smart surfaces for efficient oil/water separation. TrAC Trends Anal. Chem. 2020, 127, 115902. [Google Scholar] [CrossRef]
  167. Mai, V.C.; Das, P.; Zhou, J.; Lim, T.T.; Duan, H. Mussel-Inspired Dual-Superlyophobic Biomass Membranes for Selective Oil/Water Separation. Adv. Mater. Interfaces 2020, 7, 1901756. [Google Scholar] [CrossRef]
  168. Hu, M.X.; Niu, H.M.; Chen, X.L.; Zhan, H.B. Natural cellulose microfiltration membranes for oil/water nanoemulsions separation. Colloids Surf. A Physicochem. Eng. Asp. 2019, 564, 142–151. [Google Scholar] [CrossRef]
  169. Roy, S.; Zhai, L.; Van Hai, L.; Kim, J.W.; Park, J.H.; Kim, H.C.; Kim, J. One-step nanocellulose coating converts tissue paper into an efficient separation membrane. Cellulose 2018, 25, 4871–4886. [Google Scholar] [CrossRef]
  170. Wang, J.; Wang, L. Superhydrophilic and underwater superoleophobic nanofibrous membrane for separation of oil/water emulsions. J. Mater. Res. 2020, 35, 1504–1513. [Google Scholar] [CrossRef]
  171. Wang, W.; Lin, J.; Cheng, J.; Cui, Z.; Si, J.; Wang, Q.; Peng, X.; Turng, L.S. Dual super-amphiphilic modified cellulose acetate nanofiber membranes with highly efficient oil/water separation and excellent antifouling properties. J. Hazard. Mater. 2020, 385, 121582. [Google Scholar] [CrossRef]
  172. Hou, D.; Wang, Z.; Wang, K.; Wang, J.; Lin, S. Composite membrane with electrospun multiscale-textured surface for robust oil-fouling resistance in membrane distillation. J. Membr. Sci. 2018, 546, 179–187. [Google Scholar] [CrossRef]
  173. Dizge, N.; Shaulsky, E.; Karanikola, V. Electrospun cellulose nanofibers for superhydrophobic and oleophobic membranes. J. Membr. Sci. 2019, 590, 117271. [Google Scholar] [CrossRef]
  174. Li, S.; Yang, S.; Zhu, X.; Jiang, X.; Kong, X.Z. Easy preparation of superoleophobic membranes based on cellulose filter paper and their use for water–oil separation. Cellulose 2019, 26, 6813–6823. [Google Scholar] [CrossRef]
  175. Xu, D.; Gong, M.; Li, S.; Zhu, X.; Kong, X.Z. Fabrication of superhydrophobic/oleophilic membranes by chemical modification of cellulose filter paper and their application trial for oil–water separation. Cellulose 2020, 27, 6093–6101. [Google Scholar] [CrossRef]
  176. Kollarigowda, R.H.; Abraham, S.; Montemagno, C.D. Antifouling cellulose hybrid biomembrane for effective oil/water separation. ACS Appl. Mater. Interfaces 2017, 9, 29812–29819. [Google Scholar] [CrossRef] [PubMed]
  177. Yu, H.; Liu, H.; Yuan, X.; Ding, W.; Li, Y.; Wang, J. Separation of oil-water emulsion and adsorption of Cu(II) on a chitosan-cellulose acetate-TiO2 based membrane. Chemosphere 2019, 235, 239–247. [Google Scholar] [CrossRef]
  178. Babiker, D.M.D.; Zhu, L.; Yagoub, H.; Xu, X.; Zhang, X.; Shibraen, M.H.M.A.; Yang, S. Hydrogen-bonded methylcellulose/poly(acrylic acid) complex membrane for oil-water separation. Surf. Coat. Technol. 2019, 367, 49–57. [Google Scholar] [CrossRef]
  179. Yang, J.; Xie, A.; Cui, J.; Chen, Y.; Lang, J.; Li, C.; Yan, Y.; Dai, J. An acid–alkali–salt resistant cellulose membrane by rapidly depositing polydopamine and assembling BaSO4 nanosheets for oil/water separation. Cellulose 2020, 27, 5169–5178. [Google Scholar] [CrossRef]
  180. Zhang, J.; Xu, H.; Guo, J.; Chen, T.; Liu, H. Superhydrophobic polypyrrole-coated cigarette filters for effective oil/water separation. Appl. Sci. 2020, 10, 1985. [Google Scholar] [CrossRef] [Green Version]
  181. Li, F.; Gao, R.; Wu, T.; Li, Y. Role of layered materials in emulsified oil/water separation and anti-fouling performance of modified cellulose acetate membranes with hierarchical structure. J. Membr. Sci. 2017, 543, 163–171. [Google Scholar] [CrossRef]
  182. Cheng, M.; He, H.; Zhu, H.; Guo, W.; Chen, W.; Xue, F.; Zhou, S.; Chen, X.; Wang, S. Preparation and properties of pH-responsive reversible-wettability biomass cellulose-based material for controllable oil/water separation. Carbohydr. Polym. 2019, 203, 246–255. [Google Scholar] [CrossRef]
  183. Chen, W.; Su, Y.; Zheng, L.; Wang, L.; Jiang, Z. The improved oil/water separation performance of cellulose acetate-graft-polyacrylonitrile membranes. J. Membr. Sci. 2009, 337, 98–105. [Google Scholar] [CrossRef]
  184. Ang, M.B.M.Y.; Macni, C.R.M.; Caparanga, A.R.; Huang, S.H.; Tsai, H.A.; Lee, K.R.; Lai, J.Y. Mitigating the fouling of mixed-matrix cellulose acetate membranes for oil–water separation through modification with polydopamine particles. Chem. Eng. Res. Des. 2020, 159, 195–204. [Google Scholar] [CrossRef]
  185. Zhang, Y.; Lin, L.; Wang, Q.; Qiang, R.; Gao, Y.; Ma, S.; Cheng, Q.; Zhang, Y. Polyrotaxane crosslinked modified EC/PVDF composite membrane displaying simultaneously enhanced pervaporation performance and solvent resistance for benzene/cyclohexane separation. J. Mater. Sci. 2020, 55, 8403–8419. [Google Scholar] [CrossRef]
  186. Xu, X.; Long, Y.; Li, Q.; Li, D.; Mao, D.; Chen, X.; Chen, Y. Modified cellulose membrane with good durability for effective oil-in-water emulsion treatment. J. Clean. Prod. 2019, 211, 1463–1470. [Google Scholar] [CrossRef]
  187. Ao, C.; Yuan, W.; Zhao, J.; He, X.; Zhang, X.; Li, Q.; Xia, T.; Zhang, W.; Lu, C. Superhydrophilic graphene oxide@electrospun cellulose nanofiber hybrid membrane for high-efficiency oil/water separation. Carbohydr. Polym. 2017, 175, 216–222. [Google Scholar] [CrossRef] [PubMed]
  188. Almeida, A.P.C.; Oliveira, J.; Fernandes, S.N.; Godinho, M.H.; Canejo, J.P. All-cellulose composite membranes for oil microdroplet collection. Cellulose 2020, 27, 4665–4677. [Google Scholar] [CrossRef]
  189. Yagoub, H.; Zhu, L.; Shibraen, M.H.M.A.; Altam, A.A.; Babiker, D.M.D.; Rehan, K.; Mukwaya, V.; Xu, J.; Yang, S. Manipulating the surface wettability of polysaccharide based complex membrane for oil/water separation. Carbohydr. Polym. 2019, 225, 115231. [Google Scholar] [CrossRef] [PubMed]
  190. Cheng, Q.; Ye, D.; Chang, C.; Zhang, L. Facile fabrication of superhydrophilic membranes consisted of fibrous tunicate cellulose nanocrystals for highly efficient oil/water separation. J. Membr. Sci. 2017, 525, 1–8. [Google Scholar] [CrossRef]
  191. Sobolčiak, P.; Tanvir, A.; Popelka, A.; Moffat, J.; Mahmoud, K.A.; Krupa, I. The preparation, properties and applications of electrospun co-polyamide 6,12 membranes modified by cellulose nanocrystals. Mater. Des. 2017, 132, 314–323. [Google Scholar] [CrossRef]
  192. Ma, H.; Burger, C.; Hsiao, B.S.; Chu, B. Ultrafine polysaccharide nanofibrous membranes for water purification. Biomacromolecules 2011, 12, 970–976. [Google Scholar] [CrossRef]
  193. Ma, H.; Yoon, K.; Rong, L.; Mao, Y.; Mo, Z.; Fang, D.; Hollander, Z.; Gaiteri, J.; Hsiao, B.S.; Chu, B. High-flux thin-film nanofibrous composite ultrafiltration membranes containing cellulose barrier layer. J. Mater. Chem. 2010, 20, 4692–4704. [Google Scholar] [CrossRef]
  194. Li, Y.; He, Y.; Fan, Y.; Shi, H.; Wang, Y.; Ma, J.; Li, H. Novel dual superlyophobic cellulose membrane for multiple oil/water separation. Chemosphere 2020, 241, 125067. [Google Scholar] [CrossRef]
  195. Shang, Y.; Si, Y.; Raza, A.; Yang, L.; Mao, X.; Ding, B.; Yu, J. An in situ polymerization approach for the synthesis of superhydrophobic and superoleophilic nanofibrous membranes for oil-water separation. Nanoscale 2012, 4, 7847–7854. [Google Scholar] [CrossRef]
  196. Chen, W.; Su, Y.; Zhang, L.; Shi, Q.; Peng, J.; Jiang, Z. In situ generated silica nanoparticles as pore-forming agent for enhanced permeability of cellulose acetate membranes. J. Membr. Sci. 2010, 348, 75–83. [Google Scholar] [CrossRef]
  197. Cheng, Q.Y.; Zhao, X.L.; Li, Y.D.; Weng, Y.X.; Zeng, J.B. Robust and nanoparticle-free superhydrophobic cotton fabric fabricated from all biological resources for oil/water separation. Int. J. Biol. Macromol. 2019, 140, 1175–1182. [Google Scholar] [CrossRef]
  198. Cheng, Q.Y.; Guan, C.S.; Wang, M.; Li, Y.D.; Zeng, J.B. Cellulose nanocrystal coated cotton fabric with superhydrophobicity for efficient oil/water separation. Carbohydr. Polym. 2018, 199, 390–396. [Google Scholar] [CrossRef]
  199. Yang, Y.; Guo, Z.; Huang, W.; Zhang, S.; Huang, J.; Yang, H.; Zhou, Y.; Xu, W.; Gu, S. Fabrication of multifunctional textiles with durable antibacterial property and efficient oil-water separation via in situ growth of zeolitic imidazolate framework-8 (ZIF-8) on cotton fabric. Appl. Surf. Sci. 2020, 503, 144079. [Google Scholar] [CrossRef]
  200. Nabipour, H.; Wang, X.; Song, L.; Hu, Y. Hydrophobic and flame-retardant finishing of cotton fabrics for water–oil separation. Cellulose 2020, 27, 4145–4159. [Google Scholar] [CrossRef]
  201. Zhu, T.; Li, S.; Huang, J.; Mihailiasa, M.; Lai, Y. Rational design of multi-layered superhydrophobic coating on cotton fabrics for UV shielding, self-cleaning and oil-water separation. Mater. Des. 2017, 134, 342–351. [Google Scholar] [CrossRef]
  202. He, Y.; Wan, M.; Wang, Z.; Zhang, X.; Zhao, Y.; Sun, L. Fabrication and Characterization of Degradable and Durable Fluoride-Free Super-Hydrophobic Cotton Fabrics for Oil/Water Separation. Surf. Coat. Technol. 2019, 378, 125079. [Google Scholar] [CrossRef]
  203. Li, Y.; Li, Q.; Zhang, C.; Cai, P.; Bai, N.; Xu, X. Intelligent self-healing superhydrophobic modification of cotton fabrics via surface-initiated ARGET ATRP of styrene. Chem. Eng. J. 2017, 323, 134–142. [Google Scholar] [CrossRef]
  204. Cao, C.; Wang, F.; Lu, M. Superhydrophobic CuO coating fabricated on cotton fabric for oil/water separation and photocatalytic degradation. Colloids Surf. A Physicochem. Eng. Asp. 2020, 601, 125033. [Google Scholar] [CrossRef]
  205. Song, Q.; Wang, H.; Han, S.; Wang, J.; Zhang, B.; Zhang, Y. Halloysite nanotubes functionalized cotton fabric for oil/water separation. Prog. Org. Coat. 2020, 148, 105839. [Google Scholar] [CrossRef]
  206. Hou, K.; Zeng, Y.; Zhou, C.; Chen, J.; Wen, X.; Xu, S.; Cheng, J.; Pi, P. Facile generation of robust POSS-based superhydrophobic fabrics via thiol-ene click chemistry. Chem. Eng. J. 2018, 332, 150–159. [Google Scholar] [CrossRef]
  207. Deng, Y.; Han, D.; Deng, Y.Y.; Zhang, Q.; Chen, F.; Fu, Q. Facile one-step preparation of robust hydrophobic cotton fabrics by covalent bonding polyhedral oligomeric silsesquioxane for ultrafast oil/water separation. Chem. Eng. J. 2020, 379, 122391. [Google Scholar] [CrossRef]
  208. Zhang, Y.R.; Chen, J.T.; Hao, B.; Wang, R.; Ma, P.C. Preparation of cellulose-coated cotton fabric and its application for the separation of emulsified oil in water. Carbohydr. Polym. 2020, 240, 116318. [Google Scholar] [CrossRef]
  209. Zhao, W.; Xiao, X.; Pan, G.; Ye, Z. Fabrication of Cu species functionalized cotton fabric with oil/water separating reusability by in-situ reduction process. Surf. Coat. Technol. 2020, 385, 125405. [Google Scholar] [CrossRef]
  210. Mai, Z.; Shu, X.; Li, G.; Chen, D.; Liu, M.; Xu, W.; Zhang, H. One-step fabrication of flexible, durable and fluorine-free superhydrophobic cotton fabrics for efficient oil/water separation. Cellulose 2019, 26, 6349–6363. [Google Scholar] [CrossRef]
  211. Yang, J.; Pu, Y.; He, H.; Cao, R.; Miao, D.; Ning, X. Superhydrophobic cotton nonwoven fabrics through atmospheric plasma treatment for applications in self-cleaning and oil–water separation. Cellulose 2019, 26, 7507–7522. [Google Scholar] [CrossRef]
  212. Liang, J.; Zhou, Y.; Jiang, G.; Wang, R.; Wang, X.; Hu, R.; Xi, X. Transformation of hydrophilic cotton fabrics into superhydrophobic surfaces for oil/water separation. J. Text. Inst. 2013, 104, 305–311. [Google Scholar] [CrossRef]
  213. Chen, J.; Shen, C.; Yang, S.; Rana, M.; Ma, P.C. Acid and temperature dual-responsive cotton fabrics with polymer coating. Compos. Commun. 2017, 4, 10–15. [Google Scholar] [CrossRef]
  214. Ao, C.; Hu, R.; Zhao, J.; Zhang, X.; Li, Q.; Xia, T.; Zhang, W.; Lu, C. Reusable, salt-tolerant and superhydrophilic cellulose hydrogel-coated mesh for e ffi cient gravity-driven oil/water separation. Chem. Eng. J. 2018, 338, 271–277. [Google Scholar] [CrossRef]
  215. Lu, F.; Chen, Y.; Liu, N.; Cao, Y.; Xu, L.; Wei, Y.; Feng, L. A fast and convenient cellulose hydrogel-coated colander for high-efficiency oil–water separation. RSC Adv. 2014, 4, 32544–32548. [Google Scholar] [CrossRef]
  216. Xie, X.; Liu, L.; Zhang, L.; Lu, A. Strong cellulose hydrogel as underwater superoleophobic coating for e ffi cient oil/water separation. Carbohydr. Polym. 2020, 229, 115467–115475. [Google Scholar] [CrossRef]
  217. Huang, J.; Wang, S.; Lyu, S.; Fu, F. Preparation of a robust cellulose nanocrystal superhydrophobic coating for self-cleaning and oil-water separation only by spraying. Ind. Crop. Prod. 2018, 122, 438–447. [Google Scholar] [CrossRef]
  218. Wu, M.B.; Zhang, C.; Pi, J.K.; Liu, C.; Yang, J.; Xu, Z.K. Cellulose nanocrystals as anti-oil nanomaterials for separating crude oil from aqueous emulsions and mixtures. J. Mater. Chem. A 2019, 7, 7033–7041. [Google Scholar] [CrossRef]
  219. Mahbubul Bashar, M.; Zhu, H.; Yamamoto, S.; Mitsuishi, M. Superhydrophobic surfaces with fluorinated cellulose nanofiber assemblies for oil–water separation. RSC Adv. 2017, 7, 37168–37174. [Google Scholar] [CrossRef] [Green Version]
  220. Paul, U.C.; Fragouli, D.; Bayer, I.S.; Athanassiou, A. Functionalized Cellulose Networks for Efficient Oil Removal from Oil—Water Emulsions. Polymers 2016, 8, 52. [Google Scholar] [CrossRef] [Green Version]
  221. Zhang, X.; Wu, Y.; Gao, Y. 3D printed cellulose-based high-efficiency oil-water separation mesh. In IOP Conference Series: Earth and Environmental Science; IOP Publishing: Bristol, UK, 2020; pp. 022088–022096. [Google Scholar]
  222. Koh, J.J.; Hao, G.L.J.; Zhou, X.; Zhang, X.; Ding, J.; He, C. 3D-Printed Anti-Fouling Cellulose Mesh for Highly Efficient Oil/Water Separation Applications. ACS Appl. Mater. Interfaces 2019, 11, 13787–13795. [Google Scholar] [CrossRef]
  223. Zhao, P.; Qin, N.; Ren, C.L.; Wen, J.Z. Surface modification of polyamide meshes and nonwoven fabrics by plasma etching and a PDA/cellulose coating for oil/water separation. Appl. Surf. Sci. 2019, 481, 883–891. [Google Scholar] [CrossRef]
  224. Karki, H.P.; Kafle, L.; Ojha, D.P.; Song, J.H.; Kim, H.J. Cellulose/polyacrylonitrile electrospun composite fiber for effective separation of the surfactant-free oil-in-water mixture under a versatile condition. Sep. Purif. Technol. 2019, 210, 913–919. [Google Scholar] [CrossRef]
  225. Ma, W.; Guo, Z.; Zhao, J.; Yu, Q.; Wang, F.; Han, J.; Pan, H.; Yao, J.; Zhang, Q.; Samal, S.K.; et al. Polyimide/cellulose acetate core/shell electrospun fibrous membranes for oil-water separation. Sep. Purif. Technol. 2017, 177, 71–85. [Google Scholar] [CrossRef] [Green Version]
  226. Shoba, B.; Jeyanthi, J.; Vairam, S. Synthesis, Characterization of Cellulose Acetate Membrane and Application for the Treatment of Oily Wastewater. Environ. Technol. 2020, 41, 1590–1605. [Google Scholar] [CrossRef] [PubMed]
  227. Mansourizadeh, A.; Javadi Azad, A. Preparation of blend polyethersulfone/cellulose acetate/polyethylene glycol asymmetric membranes for oil-water separation. J. Polym. Res. 2014, 21, 375. [Google Scholar] [CrossRef]
  228. Halim, A.; Xu, Y.; Lin, K.H.; Kobayashi, M.; Kajiyama, M.; Enomae, T. Fabrication of cellulose nanofiber-deposited cellulose sponge as an oil-water separation membrane. Sep. Purif. Technol. 2019, 224, 322–331. [Google Scholar] [CrossRef]
  229. Wang, Y.; Lai, C.; Hu, H.; Liu, Y.; Fei, B.; Xin, J.H. Temperature-responsive nanofibers for controllable oil/water separation. RSC Adv. 2015, 5, 51078–51085. [Google Scholar] [CrossRef]
  230. Zhou, K.; Zhang, Q.G.; Li, H.M.; Guo, N.N.; Zhu, A.M.; Liu, Q.L. Ultrathin cellulose nanosheet membranes for superfast separation of oil-in-water nanoemulsions. Nanoscale 2014, 6, 10363–10369. [Google Scholar] [CrossRef]
  231. Zhang, S.; Wang, P.; Fu, X.; Chung, T.S. Sustainable water recovery from oily wastewater via forward osmosis-membrane distillation (FO-MD). Water Res. 2014, 52, 112–121. [Google Scholar] [CrossRef]
  232. Yue, X.; Zhang, T.; Yang, D.; Qiu, F.; Li, Z.; Zhu, Y.; Yu, H. Oil removal from oily water by a low-cost and durable flexible membrane made of layered double hydroxide nanosheet on cellulose support. J. Clean. Prod. 2018, 180, 307–315. [Google Scholar] [CrossRef]
  233. Yue, X.; Li, J.; Zhang, T.; Qiu, F.; Yang, D.; Xue, M. In situ one-step fabrication of durable superhydrophobic-superoleophilic cellulose/LDH membrane with hierarchical structure for efficiency oil/water separation. Chem. Eng. J. 2017, 328, 117–123. [Google Scholar] [CrossRef]
  234. Reis, A.M.S.; Vieira, A.T.; Santos, A.L.R.; Ferreira, M.V.; Batista, A.C.F.; Assunção, R.M.N.; Filho, G.R.; Ribeiro, E.A.M.; Faria, A.M. Regenerated Cellulose Membrane from Peanut Shell for Biodiesel Purification. J. Braz. Chem. Soc. 2020, 31, 1011–1020. [Google Scholar] [CrossRef]
  235. Wang, M.; Peng, M.; Zhu, J.; Li, Y.D.; Zeng, J.B. Mussel-inspired chitosan modified superhydrophilic and underwater superoleophobic cotton fabric for efficient oil/water separation. Carbohydr. Polym. 2020, 244, 116449. [Google Scholar] [CrossRef]
  236. Wang, B.; Lei, B.; Tang, Y.; Xiang, D.; Li, H.; Ma, Q.; Zhao, C.; Li, Y. Facile fabrication of robust superhydrophobic cotton fabrics modified by polysiloxane nanowires for oil/water separation. J. Coat. Technol. Res. 2018, 15, 611–621. [Google Scholar] [CrossRef]
  237. Li, Y.; Yu, Q.; Yin, X.; Xu, J.; Cai, Y.; Han, L.; Huang, H.; Zhou, Y.; Tan, Y.; Wang, L.; et al. Fabrication of superhydrophobic and superoleophilic polybenzoxazine-based cotton fabric for oil–water separation. Cellulose 2018, 25, 6691–6704. [Google Scholar] [CrossRef]
  238. Zhou, C.; Chen, Z.; Yang, H.; Hou, K.; Zeng, X.; Zheng, Y.; Cheng, J. Nature-Inspired Strategy toward Superhydrophobic Fabrics for Versatile Oil/Water Separation. ACS Appl. Mater. Interfaces 2017, 9, 9184–9194. [Google Scholar] [CrossRef]
  239. Cheng, Q.Y.; An, X.P.; Li, Y.D.; Huang, C.L.; Zeng, J.B. Sustainable and Biodegradable Superhydrophobic Coating from Epoxidized Soybean Oil and ZnO Nanoparticles on Cellulosic Substrates for Efficient Oil/Water Separation. ACS Sustain. Chem. Eng. 2017, 5, 11440–11450. [Google Scholar] [CrossRef]
  240. Fan, T.; Qian, Q.; Hou, Z.; Liu, Y.; Lu, M. Preparation of smart and reversible wettability cellulose fabrics for oil/water separation using a facile and economical method. Carbohydr. Polym. 2018, 200, 63–71. [Google Scholar] [CrossRef] [PubMed]
  241. Yan, T.; Chen, X.; Zhang, T.; Yu, J.; Jiang, X.; Hu, W.; Jiao, F. A magnetic pH-induced textile fabric with switchable wettability for intelligent oil/water separation. Chem. Eng. J. 2018, 347, 52–63. [Google Scholar] [CrossRef] [Green Version]
  242. Chen, L.; Guo, Z. A facile method to mussel-inspired superhydrophobic thiol-textiles@polydopamine for oil/water separation. Colloids Surf. A Physicochem. Eng. Asp. 2018, 554, 253–260. [Google Scholar] [CrossRef]
Figure 1. From cellulose pulp fibers to CNFs and CNCs. The photo of the cellulose pulp fibers was obtained using a scanning electron microscope (500 × 500 µm), while those of CNFs and CNCs are atomic force microscopy images (5 × 5 µm).
Figure 1. From cellulose pulp fibers to CNFs and CNCs. The photo of the cellulose pulp fibers was obtained using a scanning electron microscope (500 × 500 µm), while those of CNFs and CNCs are atomic force microscopy images (5 × 5 µm).
Polymers 13 02739 g001
Figure 2. Typical functional groups for hydrophobic silanes.
Figure 2. Typical functional groups for hydrophobic silanes.
Polymers 13 02739 g002
Figure 3. Typical molecules for cellulose crosslinking.
Figure 3. Typical molecules for cellulose crosslinking.
Polymers 13 02739 g003
Figure 4. Separation mechanism of 3D materials: (A) absorber type; (B) hydrophobic filters; (C) hydrophilic filters.
Figure 4. Separation mechanism of 3D materials: (A) absorber type; (B) hydrophobic filters; (C) hydrophilic filters.
Polymers 13 02739 g004
Figure 5. Density (A,B) and porosity (C,D) in relation to absorbance capacity.
Figure 5. Density (A,B) and porosity (C,D) in relation to absorbance capacity.
Polymers 13 02739 g005
Figure 6. Decreasing separation efficiency (rate) with increasing flux (adapted from [77]).
Figure 6. Decreasing separation efficiency (rate) with increasing flux (adapted from [77]).
Polymers 13 02739 g006
Figure 7. Separation mechanism of 2D materials: (A) hydrophilic/oleophobic filters; (B) hydrophobic/oleophilic filters.
Figure 7. Separation mechanism of 2D materials: (A) hydrophilic/oleophobic filters; (B) hydrophobic/oleophilic filters.
Polymers 13 02739 g007
Figure 8. Volume flux of membranes depending from membrane thickness (A) and UWCA (B).
Figure 8. Volume flux of membranes depending from membrane thickness (A) and UWCA (B).
Polymers 13 02739 g008
Table 1. Hydrophobic aerogels used for oil absorption.
Table 1. Hydrophobic aerogels used for oil absorption.
Matrix Material *Hydrophobic ModificationSBET
[m2 g−1]
[mg cm−3]
WCA [°]Oil Removal Rate
[cm3 g−1]
Recovery Method **/Cycles/Capacity afterRef.
(CA) + grapheneHDTMS3318.4159.0415.1 ± 38.8M/10/95%[58]
C. (electrospun)MTCS7.91 174.1 ± 9.5M/10/80%[134]
(CA) + graphenePVOH 6.45141.2147.2 ± 10.9M/10/80%[89]
GODDTES47.35.9150.0133.2 ± 17.2M,D/10/90%, 100%[62]
(bamboo) + MnFe2O4-NPNR182NR153.0119.8 ± 5.3M/10/70.5%[135]
(paper waste)Kymene/MTMSNR7153.5108.0NR[136]
(sisal) + Cu-NPNRNR4.56–11.23150.3107.4 ± 0.4D/10/85%[76]
(CA butyrate) + EVOH + GANRNR12.3145.067.1 ± 6.8D,M/10, 15/100%[110]
(wood fines) + PMMAAlkyl-ketene dimerNR13–127135.064.8NR[121]
(cotton, paper waste)MTMSNR5.13–8.5142.861.1D, M/5[137]
(CAA) + CNF + APTESalkylaminesNR 146.059.8 ± 4.0-/10/85, 90%[118]
(ethylcellulose EC) + oleic-acid coated Fe3O4 –NPHDTMSNR<18152.854.3 ± 3.1D/50/88%[56]
(Corn stalk pits)ODA2.7NR157.249.8 ± 6.1E/20/80%[84]
(cotton) + (MBA)MTCSNR31141.048.2 ± 12.9M/10/70%[100]
(EC) + ECH/Si-CNT/nanosilicaHDTMSNR<20158.244.5 ± 1.9D/50/86%[57]
(paper waste)/GATMCS40528.7135.032.1 ± 2.5NR[106]
(hardwood)/BDEESBONR73132.632.1 ± 0.2M/30/90%[82]
(reg. MCC) + Fe2O3-NPTiO2 (sol-gel)NRNRNR31.8E[74]
(cotton)MTMSNRNR154.029.2 ± 1.018/90.6%[138]
(waste paper)MTMSNR27.2146.128.4M/10/60%[139]
(sugarcane bagasse)MTMSNR16–112150.528.4 ± 2.5NR[140]
(cotton)MTCSNR19.6150.028.1 ± 1.2D/15/100%[99]
(balsa wood)MTMS23.430151.026.7 ± 1.4M/10/94%[141]
(bamboo, cotton)ODTMSNR34156.025.8 ± 3.0E/30/[59]
(C. diacetate) + PMDAOTCS3.44.3120.024.2 ± 7.1M/10/40%[61]
(wheat straw)TMCS36–14344–150136.021.8NR[142]
(paper waste)MTMSNR40135.320.5M[132]
+butanediol diglycidyl ether crosslinked (BDE)NRNR14–24NR18.5M/30/18%[109]
(balsa wood)PDMSNR74.8150.013.8 ± 0.5M/18[143]
+chitosanTMCSNR53152.812.7 ± 9.0M/50/83%[101]
(foam) + PE, PP, graphiteSA/graphiteNRNR145.011.3 ± 1.8M/15/40–60%[71]
(paper waste)MTCSNR29136.010.7M/5[105]
+chitosansodium stearateNR65156.010.7E/5[80]
(cotton)DMAEMANRNR130.09.8 ± 2.4-/5[144]
(MCC)CTACNRNR167.59.5 ± 0.9M/20[78]
(natural sponge)polythiopheneNRNR126.66.8 ± 0.3-/5/70%[86]
(Rice Straw)OTES10.91.7–1.8NR274.6 ± 18.8D/6/48%[145]
MOFMTMSNR9150209 ± 49M/25/86%[124]
NRMTMSNR2.4154.0208.2 ± 14.6M/30/100%[146]
(bamboo leaf)MTMSNRNR152.0205.1NR[147]
(cotton) + nanochitosanreduced GO1109.3115.3186.1 ± 17.2M/10/92%[70]
(soft wood Kraft pulp)MTES94.8–195.53.41–5.08151.8164.0 ± 29.3E/30/65%[148]
(rice straw) + (PAE)MTMS178.82.2151135.7 ± 19.7M/5/45%[117]
BTCAHTMSNR6151134 ± 15E/30/78%[149]
clay sepioliteMTMSNR6128126.8 ± 33.5M[125]
NRPDA/ODA93.16.04152.5121.6 ± 3.7M/1/50%[83]
+PVOH, BTCAMTCS35.1–106.14.66–16.54 114.5 ± 12.1NR[116]
(recycled waste fibers)MTMS/HDTMSNR2.9150.0106.9 ± 7.3M/30/71–81%[107]
CNF + Al2O3-NPNR1245.1NR84.3 ± 15.5NR[152]
(oat straw pulp powder)MTMS2517.3136.069.9 ± 2.8E/10[153]
(mango wood)Stearoyl chloride1567–20159.067.5 ± 2.2M/15/75%[87]
(eucalyptus) + PVOH, GAMTCS17213150.064.4 ± 3.3NR[111]
MDI2286.9, 8.3NR63.6E/5[154]
+GO, silicaPFDTES29.5–93.510–40155.558.4 ± 8.1D/10/100%[66]
stearoyl chlorideNRNR160.045.2 ± 3.9M/10/56%[88]
(bamboo)TMCS 6.78117.038.6NR[155]
+Fe3O4oleic acid3979.284.537.8NR[81]
(recycled waste fibers) + SBA, EDMAKymene18.423149.034.1 ± 2.1D/5/40%[123]
TiO2 (ALD) 20–3090.030.2 ± 2.1D/10/100%[73]
(furniture waste)MTMS3.846138.825.1NR[156]
MTCSNRNR148.724.0 ± 2.1M/10/92.4%[130]
(eucalyptus, pinus)MTMSNR30134.023.9NR[157]
(pulp waste)MTMSNRNR133.519.1NR[158]
(eukalyptus)carbonizationNR1121307.4 ± 0.8D/100/95%[68]
(pine needles)MTCS20.13.12135.0 NR[159]
carbon4493.3141.0369.4 ± 57.7M/10/94.6%[67]
MTMS/PMSQNR0.7168148.8 ± 13.0M/10/90%[113]
TMCS180.76.77146.5129.7 ± 7.2M, E/10[160]
+silicaMTESNR63152.013.5 ± 1.9M[161]
+hydrazineNR2505.6 96.0M/20/80%[115]
+PVOH, ECHMTCS3822.5–36.1114.930.4 ± 7.1M, E/10/90%[114]
+polysilsesquioxaneIPTES23–900.11–0.17 9.2NR[162]
CPTES 86 NRE/10[163]
Sorted with decreasing oil removal rate, *, in brackets: source or derivative; **, recovery methods: Extraction (E), distillation (D), mechanical (M); Not Reported (NR).
Table 2. Hydrophobic aerogels used as filters.
Table 2. Hydrophobic aerogels used as filters.
Matrix Material *Hydrophobic ModificationSBET
[m2 g−1]
[mg cm−3]
WCA [°]Flux
[L m−2 h−1]
Separation Efficiency [%]Recovery Method **/Cycles/Capacity afterRef.
+SiO2-NP, TiO2-NPAPTMS230135138.566799.99NR[133]
(EC) + ECH + Ag-NPN-dodecyl mercaptan 17161.3NR99.76D/50/90%[77]
TiO2 (sol-gel)/OTMS NR171.0NR98.50E/40/93%[75]
+Fe3O4-NPHDTMS NR156.012098.00E/5[54]
(filter paper)PFOTES 146.0 M/30[65]
+GPTMS + PEIPDMAEMA12.7257130.0420099.96NR[85]
CNF + SiO2-NPMTMS108.6<6.43168.4200099.50E/20/100%[63]
BNC + GA + Ag-NPsilane-based zwitterionic compound 13153.0NR99.22-/10[112]
Sorted with decreasing oil removal rate, *, in brackets: source or derivative; **, recovery methods: Extraction (E), distillation (D), mechanical (M); Not Reported (NR).
Table 3. Oleophobic aerogels used as filters.
Table 3. Oleophobic aerogels used as filters.
Matrix Material *Hydrophobic ModificationSBET
[m2 g−1]
[mg cm−3]
UWCA [°]Flux
[L m−2 h−1]
Separation Efficiency [%]Recovery Method **/Cycles/Capacity afterRef.
(cotton) + MBA + GOGO 10NR22,90099.80M/10/99%[102]
(CA) + graphenepolydopamine/PEI3318.4143.5NRNRM/10/95%[58]
mercaptopropionic acid NR147NR100.00E/10/95–100%[120]
sulfonation 52.2416036099.97E/20/100%[164]
+chitosanNR 18.6160NR99.00-/40/98.6%[122]
+PAENR NR155.6240598.60-/10/100%[119]
+chitosanNR 6.1143NRNR-/16[165]
Sorted with decreasing oil removal rate, *, in brackets: source or derivative; **, recovery methods: Extraction (E), distillation (D), mechanical (M); Not Reported (NR).
Table 4. Fit parameters to describe the relation between porosity or density and absorption capacity.
Table 4. Fit parameters to describe the relation between porosity or density and absorption capacity.
Related FigureConstant TermFactor
Figure 5Aa1 = −62.29 ± 15.37b1 = 0.67 ± 0.15
Figure 5Ba2 = −20.62 ± 4.98b2 = 0.25 ± 0.05
Figure 5Cc1 = 5.29 ± 0.12d1 = 0.08 ± 0.02
Figure 5Dc2 = 4.62 ± 0.13d2 = 0.03 ± 0.005
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Fürtauer, S.; Hassan, M.; Elsherbiny, A.; Gabal, S.A.; Mehanny, S.; Abushammala, H. Current Status of Cellulosic and Nanocellulosic Materials for Oil Spill Cleanup. Polymers 2021, 13, 2739.

AMA Style

Fürtauer S, Hassan M, Elsherbiny A, Gabal SA, Mehanny S, Abushammala H. Current Status of Cellulosic and Nanocellulosic Materials for Oil Spill Cleanup. Polymers. 2021; 13(16):2739.

Chicago/Turabian Style

Fürtauer, Siegfried, Mostafa Hassan, Ahmed Elsherbiny, Shaimaa A. Gabal, Sherif Mehanny, and Hatem Abushammala. 2021. "Current Status of Cellulosic and Nanocellulosic Materials for Oil Spill Cleanup" Polymers 13, no. 16: 2739.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
