Article

Rigid Polyurethane Foams with Various Isocyanate Indices Based on Polyols from Rapeseed Oil and Waste PET

by
Aiga Ivdre
1,2,*,
Arnis Abolins
1,
Irina Sevastyanova
1,
Mikelis Kirpluks
1,
Ugis Cabulis
1 and
Remo Merijs-Meri
2
1
Latvian State Institute of Wood Chemistry, Polymer Laboratory, 27 Dzerbenes St., LV-1006 Riga, Latvia
2
Riga Technical University, Institute of Polymer Materials, 3/7 Paula Valdena St., LV-1048 Riga, Latvia
*
Author to whom correspondence should be addressed.
Polymers 2020, 12(4), 738; https://doi.org/10.3390/polym12040738
Submission received: 28 January 2020 / Revised: 13 March 2020 / Accepted: 14 March 2020 / Published: 26 March 2020
(This article belongs to the Special Issue Cellular Polymeric Materials)
Browse Figures
Versions Notes

Abstract

:
Developing polyols derived from natural sources and recycling materials attracts great interest for use in replacing petroleum-based polyols in polyurethane production. In this study, rigid polyurethane (PUR) foams with various isocyanate indices were obtained from polyols based on rapeseed oil and polyethylene terephthalate (RO/PET). The various properties of the prepared PUR foams were investigated, and the effect of the isocyanate index was evaluated. The closed-cell content and water absorption were not impacted by the change of the isocyanate index. The most significant effect of increasing the isocyanate index was on the dimensional stability of the resulting foams. This is due to the increased crosslink density, as evidenced by the increased formation of isocyanurate and increase of the glass transition temperature. Additionally, the influence on compression strength, modulus, and long-term thermal conductivity were evaluated and compared with reference PUR foams from commercially available polyols. Rigid PUR foams from RO/PET polyol were found to be competitive with reference materials and could be used as thermal insulation material.

Graphical Abstract

1. Introduction

Polyurethanes (PURs) have been widely used for different applications, such as coatings, adhesives, sealants, elastomers, resins, and foams. Most of these PUR materials are obtained from petrochemicals which are non-renewable, have low sustainability, and cause environmental concerns for society [1]. Due to that, as well as increasing emphasis on issues concerning waste disposal and depletion of non-renewable resources, the development and production of polyols derived from natural sources and recyclable materials attracts great interest [2].
Over the past few decades, oils and fats of vegetable origin have served as a viable alternative to petroleum resources [3]. Researchers have managed to obtain PUR materials with up to 20%–35% of renewable material content [4]. Polyols from vegetable oils, such as soybean [5,6], castor [7,8], palm oils [9,10], sunflower [11,12], and rapeseed oil (RO) [13,14] have been synthesized and investigated as alternatives to petrochemical polyols in the production of PURs. Rapeseed is an especially important oil plant in the temperate climate region. Its production is showing a growing trend, both in Europe and around the world [15,16].
Typical methods used to produce polyols from vegetable oils are applied for RO too: epoxidation and opening of oxirane rings [13,17], transesterification with triethanolamine, and transamidation with diethanolamine [17,18]. Hence, various RO polyols can be offered for the PUR market. According to Zieleniewska et al., investigations of PUR foams from RO polyols show competitive advantages such as lower water absorption (due to the hydrophobicity of fatty acids), higher thermal stability, and improved biological properties for rigid PUR foams. However, lower compressive strength and higher friability have been reported as disadvantages [13]. The incorporation of hard segments into the structure of PUR foam improves mechanical properties [19]. For this purpose, polyols from recycled polyethylene terephthalate (PET) can be successfully employed for PUR formulations to obtain rigid foams [20,21,22].
PET is one of the most versatile commodity thermoplastics, widely used in a broad range of applications, like fibres and disposable soft-drink bottles. The high popularity of PET as packaging material and its non-biodegradability creates huge amounts of waste. Therefore, effective recycling of PET is crucial [23,24]. PET waste can be recycled either physically or chemically.
One of the chemical recycling products of PET, that is suitable for obtaining PUR, is an aromatic polyester polyol. There are various chemical recycling pathways for aromatic polyester polyol synthesis: hydrolysis, aminolysis, methanolysis, and glycolysis [25]. Glycolysis is one of the most popular chemical recycling methods which has been commercialized [26]. Different depolymerization agents are employed (e.g., ethylene glycol [23,27], diethylene glycol (DEG) [28,29], propylene glycol [30], etc.) in glycolysis to obtain oligomers or oligoester diols/polyols with hydroxyl terminal groups. As mentioned before, aromatic polyester polyols improve the mechanical properties and thermal stability of PUR foams. Furthermore, it partly solves PET waste problems and decreases PUR dependence on petroleum feedstock. However, PET polyols’ high viscosity, fast crystallization, and incompatibility with a blowing agent were reported as its drawbacks [31], whereas polyols from plant oils do not have such problems. The combination of PET and natural oils, such as RO and tall oil, eliminates the mentioned disadvantages of aromatic polyester polyols. Novel polyols are compatible with a physical blowing agent, less viscous, and more stable against crystallization. Therefore, these polyols are suitable for the preparation of rigid PUR foams [21,32,33].
Rigid PUR and polyisocyanurate (PIR) foams are one of the most energy-efficient thermal insulation materials, which are mainly used in civil engineering as well as in the refrigeration industry. PUR and PIR foams are also applied as impact absorption materials for structural and functional engineering apllications [34]. PURs are made by the exothermic reactions between alcohols with two or more reactive hydroxyl groups (-OH) per molecule (diols, triols, polyols) and isocyanates that have more than one reactive isocyanate group (-NCO) per molecule (diisocyanates, polyisocyanates). Isocyanurate forms via trimerization of isocyanate as a side reaction during PUR formation [35].
The amount of PUR bonds and isocyanurate rings is closely related to a parameter called isocyanate index, which is the ratio of the equivalent amount of isocyanate used relative to the theoretical equivalent amount times 100. A theoretical equivalent amount is equal to one equivalent isocyanate per equivalent OH group. Higher isocyanate index incorporates more isocyanurate rings and increases the non-renewable material concentration in the end-product. The amount of isocyanurate rings in the polymer matrix affects the performance of PUR foams. The increase of glass transition temperature (Tg), dimensional stability, thermal stability, as well as thermal insulation with increasing isocyanate index value is reported [17,36]. Formulations for the production of rigid PUR foams normally have an index between 105 and 125, and those for rigid PUR-PIR foams have an index between 180 and 350 [37]. Hence, there is no precise limit where PUR foams end and PIR foams start. The influence of isocyanate index on the performance of rigid PUR and PIR foams, based on polyols synthesised from both PET and natural oil, have not been previously reported.
In the present study, rigid PUR foams were obtained from polyols based on RO and PET. Different isocyanate indices (from 110 to 180) were used for development of PUR foam formulations. The various properties (apparent density, foaming parameters, dimensional stability, water absorption, glass transition temperature, compression strength, and thermal conductivity) of the prepared PUR foams were investigated. For comparison, three series of reference rigid PUR foams were obtained from commercially available polyols. The isocyanate index effect on the foams’ performance was evaluated, as well as optimal isocyanate index as a compromise of sustainable material content, and foam performance was determined.

2. Materials and Methods

2.1. Materials

Aromatic polyester polyol based on RO and PET (RO/PET polyol, OH = 408 mg KOH/g) with RO/PET molar ratio 1:4 was synthesized, as described in our previous work [30]. Three base polyols for reference foams were chosen: aliphatic polyether polyol Lupranol 3300 (OH = 400 mg KOH/g, functionality f = 3) from BASF; aromatic polyester polyol Neopolyol 380 (OH = 370 mg KOH/g, f = 3.3 [4]) based on industrial PET waste and purchased from NEO Group (Lithuania); and RO/triethanolamine (RO/TEA) polyol (OH = 373 mg KOH/g, f = 2.6 [4]), which was synthesized by Latvian State Institute of Wood Chemistry via RO transesterification with TEA, and contains long dangling chains in its structure.
Rigid PUR foams were prepared by reacting synthesized RO/PET or reference polyols with different amounts of polymeric diphenylmethane diisocyanate (PMDI) (NCO group content = 31.5%) purchased from BASF. Other reagents used were: high functional polyether polyol Lupranol 3422 (OH = 490 mg KOH/g) from BASF, catalysts CAT NP-10 and 30 wt% solution of potassium acetate (KAc) in DEG from Performance Chemicals Handels, surfactant NIAX Silicone L6915 from Momentive Performance Materials, flame retardant Levagard PP (tris (2-chloroisopropyl)-phosphate)) from Lanxess, and physical blowing agent Solkane 365/227 (pentafluorobutane:heptafluoropropane = 87:13) from Solvay. These materials were used without any additional prior treatment.

2.2. Preparation of Rigid PUR Foams

Rigid PUR foam series RO/PET was prepared from synthesized RO/PET polyol. In addition, three series of reference foams were prepared. As mentioned before, three base polyols for reference foams were chosen: Lupranol 3300, NEO 380, and RO/TEA. The obtained foam series were named LUPR, NEO, and RO/TEA, respectively. Chosen isocyanate indices were 110, 120, 130, 150, and 180. Foam samples were named SERIES NAME II = n, where n is the relevant isocyanate index. For example, RO/PET II = 120 is an RO/PET series rigid PUR foam with an isocyanate index of 120.
Polyols’ systems were prepared by mixing all of its components according to the formulations presented in Table 1.
The necessary amount of PMDI was calculated according to the equation:
m P M D I = I I w N C O ⋅ ( ∑   O H n ⋅ m n 1336 + 4.67 ⋅ m H 2 O )
where II is the isocyanate index; mPMDI, mn, and mH2O refer to the mass of PMDI, each polyol, and summary water, respectively; wNCO refers to the content of NCO groups of PMDI (31.5%); and OHn is the hydroxyl value of each polyol (mg KOH/g).
The calculated amount of PMDI was added to a polyol system, and the resulting mixture was stirred vigorously at 2000 rpm for 10 s. Afterward, it was instantaneously poured into an open mold with the dimensions 30 × 30 × 10 cm to obtain free-rise foams. After preparing all foam samples, they were allowed to cure at ambient conditions for 24 h before any further tests.

2.3. Characterization of Rigid PUR Foams

The process of rigid PUR foam formation was monitored by measuring foaming parameters: the duration of cream time, gel time, and tack-free time. The closed-cell content and apparent density were measured according to the standards ISO 4590 and ISO 845, respectively. The compression strength of rigid PUR foams were tested on testing machine Zwick/Roell Z100 (standard ISO 844, maximum load-cell capacity 1 kN, test speed—10%/min, six specimens for each composition). Cylinder specimens with diameter and height of ≈20 mm were cut with a drill press using a crown drill bit. Water absorption was tested immersing PUR specimens into the water for seven days, according to ISO 2896. The dimensional stability measurements were acquired according to ISO 2796. Two modes were chosen: 28 days at 70 °C, ambient relative humidity (R.H.); and 28 days at 70 °C, R.H. = 97%. The initial thermal conductivity of the rigid PUR foams was measured, as well as thermal conductivity after 24 weeks. These tests were carried out with Linseis Heat Flow Meter 200 according to the ISO 8301 standard. The temperature range was +10...+30 °C, and dimensions of specimens were 200 × 200 × 30 mm. The FTIR data was collected using an attenuated total reflectance technique with a ZnSe and Diamond crystals on a Thermo Fisher Nicolet iS50 spectrometer. A total of 32 scans were averaged at 4 cm−1 resolution for each spectrum. Dynamic mechanical analysis (DMA) was carried out with Mettler Toledo DMA/SDTA861e: temperature range from 25 to 200 °C, ramp rate of 3 °C/min, frequency of 1 Hz, amplitude 40 μm, and maximal force of 2 N. Compression oscillation mode was used. Three cylinder specimens with a diameter of ≈16 mm and a height of ≈8 mm were tested for each composition. Specimens were cut with a drill press using a crown drill bit. The maximum of the peak in the viscoelastic parameter tan δ was used to define Tg.

3. Results and Discussion

3.1. Sustainable Material Content

Rigid PUR foams with different isocyanate indices were obtained by the free-rise method. Renewable and recycled material content was calculated and is shown in Figure 1.
The amount of renewable and recycled materials in RO/PET foams is between 11% to 14%. In comparison, reference LUPR series foams contain up to 8%; NEO series, 15%; and RO/TEA series, 20%. The difference in sustainable material content between series of PUR foams depends mainly on the sustainability of the base polyol. The largest quantity of non-renewables in PUR formulations is made by PMDI. Hence, the sustainable material content decreases by rising isocyanate index.

3.2. Apparent Density and Closed-Cell Content

The obtained rigid PUR foams were characterized by apparent density and closed-cell content (Table 2). Closed-cell content of RO/PET PUR foams was higher than 95 vol.% (on average, 97 vol.%) and was not impacted by the isocyanate index. Reference foams, LUPR (ρ = 40–43 kg/m3), NEO (ρ = 40–45 kg/m3), and RO/TEA (ρ = 41–48 kg/m3) series, showed slightly lower closed-cell content: 93 vol.%, 95 vol.%, and 93 vol.% on average, respectively. Closed-cell content 92–98 vol.% is suggested as a typical rigid PUR foam characteristic [38]. All obtained rigid PUR foams are suitable for thermal insulation according to this indicator.

3.3. Reactivity of Foam Formation

Reactivity of the polyol system is characterized by foaming parameters, such as cream time (the visible increase of foam volume), gel time (the transition from liquid to solid), and the tack-free time (when the outer surface of the foam is not sticky anymore). Gel time is the starting point of a stable network formation by intensive allophanate crosslinking as well as urethane and urea linkages [36]. Table 3 shows that all three foaming parameters increase with an increase in the isocyanate index. The absolute amount of foaming catalyst, PC CAT NP-10, was identical for all foams in the RO/PET series. Therefore, its part by weight to the total mass of foams decreased by increasing the isocyanate index, and that increased the cream time. The increasing tendency of gel time is due to the increased production of low molecular weight polymers, including the unreacted monomers, as the stoichiometric imbalance between the reacting groups is increased. Because of their low free energy, the low molecular weight species are typically exposed to the free surfaces, causing adhesiveness and prolonging tack-free time [36,39].
As mentioned earlier, the amount of foaming catalyst for reference foams was adjusted according to the reactivity of their polyol mixes. The series RO/TEA and RO/PET polyol systems were required to add less catalyst, as they showed higher reactivity. The higher reactivity was due to a tertiary amine group in the main polyol structure [32].

3.4. FTIR and DMA Results

It is expected that at a higher isocyanate index, the crosslinking density will increase. Two effects contribute to this. First, the functionality of PMDI is 2.7 and its molecular mass is relatively small (aprox. 381 g/mol), so it will work as a crosslinking reagent by itself. Second, when an excess of isocyanate is added, allophanates, biurets, and isocyanurates can be formed via side reactions. That will add additional crosslink points in the PUR polymer matrix, which gives a decrease in Mc and an increase in elasticity. Additionally, the increase in Tg is expected for higher crosslinking [40].
FTIR analysis was carried out for RO/PET series to judge the amount of isocyanurate formation. An isocyanurate band appears at 1410 cm-1, and it is shown in Figure 2.
The peak intensity for foams with II = 110–130 is very similar. It is clearly seen that for higher isocyanate indices, more isocyanurates are formed. As no trimerization agent is added for formulations with II = 110–130, for those foams, crosslinking due to the formation of isocyanurate is closely similar. It agrees with the results of DMA. Tg was determined from damping factor curves, as shown in Figure 3. Tg of PUR foams for RO/PET II = 120 and II = 130 are similar: 121 °C and 129 °C, respectively. A higher increase of Tg is observed by increasing the isocyanate index, and it reached 172 °C for RO/PET II = 180.
FTIR and DMA results prove that crosslink density increases because more crosslinks are formed due to the formation of isocyanurates. Additionally, an increase in elasticity can be expected [36].

3.5. Compression Strength

Compression strength is strongly affected by apparent density. Therefore, compression strength and modulus values for all samples were normalized for an apparent density of 45 kg/m3 using the equations of Hawkins et al [41]. Relating to the impact of isocyanate index, both decrease and increase in compression strength were reported. In the investigation of Javni et al., the soy polyol sample at the lowest index (II = 110) showed the highest compression strength because of the highest apparent density [42]. Additionally, Kim et al. showed a decrease of compression strength with an increase in isocyanate value (from 90 to 130) due to the decrease in apparent density [36].
In our case, the compression strength of RO/PET PUR foams slightly increases with an increase in isocyanate index (Figure 4a). It raises from 0.30 MPa for the sample with II = 110, to 0.37 MPa for the sample with II = 180. The same growing trend is observed for compression modulus, which raises from 6.35 MPa to 7.61 MPa (Figure 4b).
Due to the enhancement of foam elasticity, anisotropic ratio (AR, strength ratio of parallel to perpendicular direction) for RO-PET 1/4 II = 180 is smaller (AR = 1.79) than for samples with lower isocyanate index (AR = 1.85–2.16). RO/PET shows higher compression strength than reference foams, LUPR and RO/TEA series, but slightly lower than the NEO series. NEO performance could be explained by the higher number of hard segments from recycled PET in its PUR foam matrix.
Reference foams show an unexpected decrease in compression strength and modulus with an increase in isocyanate index from 110 to 130. It could be related to the lack of isocyanate trimerization catalyst in their formulations, hence no addition crosslinks are formed and unreacted isocyanate remains in foams. Nevertheless, all samples are within commercially acceptable limits. According to Javni et al., typical industrial PUR rigid insulating foams have compression strength at 10% strain between 0.15 and 0.25 MPa [42].

3.6. Dimensional Stability and Water Absorption

The results of water absorption are presented in Figure 5. No impact of isocyanate index is observed for all series, with the exception of RO/TEA polyol based foam series, where a slight increase in water absorption for samples with II = 130, 150, and 180 is observed. PUR foams with base polyols containing aromatic structure (NEO and RO/PET series) show lower water absorption.
The increase of the isocyanate index improves dimensional stability due to the incorporation of the isocyanurate ring into the PUR foam matrix [43]. The results of dimensional stability are presented in Figure 6. Volume relative change after 28 days at 70 °C, ambient R.H., decreases from 4.0% to 1.0% with increasing isocyanate index. At mode where R.H. = 97%, volume change for RO/PET series is below 15% and reaches 3.4% when II = 180.
Although RO/PET polyols show better compatibility with blowing agents [32], which could improve dimensional stability, it was not observed in the results of the present study. As the standard ISO 2796 gives various options for modes and test duration, it is quite difficult to compare our results with other investigations. For example, Kim et al. suggested that volume change at 80 °C and −30 °C less than 1% in one day is desired for sufficient strength [36]. All of our series foams at 70 °C in one day showed volume change less than 1%, except for RO/TEA II = 110 (ΔV = 1.7%). Overall, starting from II = 130 and up, the dimensional stability is considered to be within commercially acceptable bounds.

3.7. Thermal Conductivity

Initial thermal conductivity of rigid PUR foams with apparent density 42 ± 3 kg/m3 was measured, as well as thermal conductivity, after 24 weeks. The initial values are given in Figure 7a, where one can observe that foams from RO/PET polyol show as good thermal insulation property (average λ = 20.7 ± 0.7 mW/(m⋅K)) as foams from commercially used NEO (average λ = 21.2 ± 0.7 mW/(m⋅K)) and LUPR (average λ = 21.9 ± 0.2 mW/(m⋅K)). Rigid PUR foams from RO/TEA polyol showed slightly worse results for thermal conductivity (λ = 22.9 ± 1.2 mW/(m⋅K)). Additionally, it can be observed that the isocyanate index does not affect the initial thermal conductivity.
To evaluate the retention of thermal conductivity in the long term, Figure 7b is given with results of thermal conductivity relative change in 24 weeks. The best retention of thermal conductivity was shown in NEO series PUR foams from PET-based aromatic polyester polyol. The same results were observed in previous investigations by our research group [21,32]. The retention of thermal conductivity depends on the blowing agent gas diffusion rate through rigid PUR foam material. This is related to the crosslink density of PUR polymer matrix, cohesion energy, and ability of macromolecular conformation of PUR polymer chains. NEO and RO/PET polyol structure have aromatic groups derived from PET polymer and additional carboxylic groups that allow the formation of hydrogen bonds between polymer chains. Both of these aspects contribute to a stronger and more neatly packed polymer matrix, which minimizes the outward flow of the carbon dioxide (λ = 14.6 mW/(m⋅K)) and inward flow of air (λ = 24 mW/(m⋅K)), thus enhancing long-term thermal conductivity retention [44]. Galakhova et al. reported that carbon dioxide leaves rigid PUR foams already after 2.5 months [45].
No impact of isocyanate index on the retention of thermal conductivity for rigid PUR foams series NEO, RO/PET, and LUPR is observed. Only for PUR foams based on RO/TEA polyol, does the increase of isocyanate index improve retention. RO/TEA polyol chemical structure introduces long dangling chains into the PUR polymer matrix, which causes a low packing degree of PUR macromolecules [46]. The excess of PMDI introduces aromatic groups and increases crosslink density. As mentioned above, a more neatly packed polymer matrix is formed and long-term thermal conductivity retention is improved.

4. Conclusions

Rigid PUR foams with isocyanate index 110–180 were obtained from polyols based on rapeseed oil and polyethylene terephthalate. Additionally, reference PUR foams were obtained from commercially available polyols: Lupranol 3300, Neopolyol 380, and rapeseed oil/triethanolamine polyol.
Closed-cell content of rapeseed oil/polyethylene terephthalate PUR foams was ≈97 vol.% and was not impacted by the isocyanate index. Additionally, no effect of the isocyanate index on water absorption was observed.
The values of foaming parameters increased with an increase in isocyanate index. The increasing tendency of gel time was due to the lower molecular weight polymers formed, which are typically exposed to the free surfaces, causing adhesiveness and prolonging tack-free time.
The increase of compression strength, compression modulus, and dimensional stability of RO/PET PUR foams with the increase of isocyanate index were caused by the higher ratio of crosslinking due to the formation of isocyanurate (evidenced by FTIR and DMA).
Overall, the optimum complex of the physical and mechanical properties of RO/PET PUR foams was achieved for formulations with isocyanate indices of 130–180. Therefore, it is possible to obtain commercially competitive rigid PUR foams with sustainable material content up to 13%.

Author Contributions

Investigation, A.I., A.A., and I.S.; writing—original draft preparation, A.I.; supervision, U.C. and R.M.-M.; formal analysis, A.I. and M.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the European Regional Development Fund Contract “Development of innovative polyols and polyol systems from recycled polyethylene terephthalate (PET) flakes and renewable raw materials”, No 2014/0043/2DP/2.1.1.1.0./14/APIA/VIAA/063.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Babb, D.A. Polyurethanes from Renewable Sources. Adv. Polym. Sc. 2011, 245, 315–360. [Google Scholar]
  2. Thakur, S.; Karak, N. Castor oil-based hyperbranched polyurethanes as advanced surface coating materials. Prog. Org. Coat. 2013, 76, 157–164. [Google Scholar] [CrossRef]
  3. Okieimen, F.E.; Pavithran, C.; Bakare, I.O. Epoxidation and hydroxlation of rubber seed oil: One-pot multi-step reactions. Eur. J. Lipid. Sci. Technol. 2005, 107, 330–336. [Google Scholar] [CrossRef]
  4. Kirpluks, M.; Cabulis, U.; Ivdre, A.; Kuranska, M.; Zieleniewska, M.; Auguscik, M. Mechanical and Thermal Properties of High-Density Rigid Polyurethane Foams from Renewable Resources. J. Renew. Mater. 2016, 4, 86–100. [Google Scholar] [CrossRef]
  5. Mizera, K.; Ryszkowska, J. Polyurethane elastomers from polyols based on soybean oil with a different molar ratio. Polym. Degrad. Stab. 2016, 132, 21–31. [Google Scholar] [CrossRef]
  6. Ji, D.; Fang, Z.; He, W.; Luo, Z.; Jiang, X.; Wang, T.; Guo, K. Polyurethane rigid foams formed from different soy-based polyols by the ring opening of epoxidised soybean oil with methanol, phenol, and cyclohexanol. Ind. Crops Prod. 2015, 74, 76–82. [Google Scholar] [CrossRef]
  7. Ionescu, M.; Radojčić, D.; Wan, X.; Shrestha, M.L.; Petrović, Z.S.; Upshaw, T.A. Highly functional polyols from castor oil for rigid polyurethanes. Eur. Polym. J. 2016, 84, 736–749. [Google Scholar] [CrossRef] [Green Version]
  8. Zhang, M.; Pan, H.; Zhang, L.; Hu, L.; Zhou, Y. Study of the mechanical, thermal properties and flame retardancy of rigid polyurethane foams prepared from modified castor-oil-based polyols. Ind. Crops Prod. 2014, 59, 135–143. [Google Scholar] [CrossRef]
  9. Tanaka, R.; Hirose, S.; Hatakeyama, H. Preparation and characterization of polyurethane foams using a palm oil-based polyol. Bioresour. Technol. 2008, 99, 3810–3816. [Google Scholar] [CrossRef]
  10. Ng, W.S.; Lee, C.S.; Chuah, C.H.; Cheng, S.-F. Preparation and modification of water-blown porous biodegradable polyurethane foams with palm oil-based polyester polyol. Ind. Crops Prod. 2017, 97, 65–78. [Google Scholar] [CrossRef]
  11. Omrani, I.; Farhadian, A.; Babanejad, N.; Shendi, H.K.; Ahmadi, A.; Nabid, M.R. Synthesis of novel high primary hydroxyl functionality polyol from sunflower oil using thiolyne reaction and their application in polyurethane coating. Eur. Polym. J. 2016, 82, 220–231. [Google Scholar] [CrossRef]
  12. Das, B.; Konwar, U.; Mandal, M.; Karak, N. Sunflower oil based biodegradable hyperbranched polyurethane as a thin film material. Ind. Crops Prod. 2013, 44, 396–404. [Google Scholar] [CrossRef]
  13. Zieleniewska, M.; Leszczyński, M.K.; Kurańska, M.; Prociak, A.; Szczepkowski, L.; Krzyzowska, M.; Ryszkowska, J. Preparation and characterisation of rigid polyurethane foams using a rapeseed oil-based polyol. Ind. Crops Prod. 2015, 74, 887–897. [Google Scholar] [CrossRef]
  14. Kurańska, M.; Prociak, A. The influence of rapeseed oil-based polyols on the foaming process of rigid polyurethane foams. Ind. Crops Prod. 2016, 89, 182–187. [Google Scholar] [CrossRef]
  15. Zając, T.; Klimek-Kopyra, A.; Andrzej, O.; Lorenc-Kozik, A.; Ratajczak, K. Analysis of yield and plant traits of oilseed rape (Brassica napus L.) cultivated in temperate region in light of the possibilities of sowing in arid areas. Acta Agrobotan. 2016, 69, 1696. [Google Scholar]
  16. Paciorek-Sadowska, J.; Borowicz, M.; Isbrandt, M.; Czupryński, B.; Apiecionek, Ł. The Use of Waste from the Production of Rapeseed Oil for Obtaining of New Polyurethane Composites. Polymers 2019, 11, 1431. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Kurańska, M.; Prociak, A.; Kirpluks, M.; Cabulis, U. Polyurethane–polyisocyanurate foams modified with hydroxyl derivatives of rapeseed oil. Ind. Crops Prod. 2015, 74, 849–857. [Google Scholar] [CrossRef]
  18. Yakushin, V.; Stirna, U.; Bikovens, O.; Misane, M.; Sevastyanova, I.; Vilsone, D. Synthesis and Characterization of Novel Polyurethanes Basedon Vegetable Oils Amide and Ester Polyols. Mater. Sci. 2014, 20, 277–282. [Google Scholar]
  19. Oprea, S. Effect of Composition and Hard-segment Content on Thermo-mechanical Properties of Cross-linked Polyurethane Copolymers. High Perform. Polym. 2008, 21, 353–370. [Google Scholar] [CrossRef]
  20. Badri, K.H.; Mohd Dawi, L.I.; Abd Aziz, N.A. Rigid polyurethane foam from glycolysed polyethylene terephthalate dissolved in palm-based polyol. Sains Malaysiana 2013, 42, 449–457. [Google Scholar]
  21. Ivdre, A.; Fridrihsone-Girone, A.; Abolins, A.; Cabulis, U. Effect of different concentration of rapeseed oil and recycled poly (ethylene terephthalate) in polyols for rigid polyurethane foams. J. Cell. Plast. 2018, 54, 161–177. [Google Scholar] [CrossRef]
  22. Roy, P.K.; Mathur, R.; Kumar, D.; Rajagopal, C. Tertiary recycling of poly(ethylene terephthalate) wastes for production of polyurethane-polyisocyanurate foams. J. Environ. Chem. Eng. 2013, 1, 1062–1069. [Google Scholar] [CrossRef]
  23. Pingale, N.D.; Shukla, S.R. Microwave assisted ecofriendly recycling of poly (ethylene terephthalate) bottle waste. Eur. Polym. J. 2008, 44, 4151–4156. [Google Scholar] [CrossRef]
  24. De Mello, D.; Pezzin, S.H.; Amico, S.C. The effect of post-consumer PET particles on the performance of flexible polyurethane foams. Polym. Test. 2009, 28, 702–708. [Google Scholar] [CrossRef]
  25. Sinha, V.; Patel, M.R.; Patel, J.V. Pet waste management by chemical recycling: A review. J. Polym. Environ. 2010, 18, 8–25. [Google Scholar] [CrossRef]
  26. Scheirs, J. Recycling of PET, Polymer Recycling; Science, Technology and Applications; Wiley Series in Polymer Science; Wiley & Sons: Chichester, UK, 1998; pp. 119–182. [Google Scholar]
  27. Mosadeghzad, Z.; Ahmad, I.; Daik, R.; Ramli, A.; Jalaludin, Z. Preparation and properties of acacia sawdust / UPR composite based on recycled PET. Malaysian Polym. J. 2009, 4, 30–41. [Google Scholar]
  28. Pardal, F.; Tersac, G. Comparative reactivity of glycols in PET glycolysis. Polym. Degrad. Stab. 2006, 91, 2567–2578. [Google Scholar] [CrossRef]
  29. Pardal, F.; Tersac, G. Kinetics of poly(ethylene terephthalate) glycolysis by diethylene glycol. Part II: Effect of temperature, catalyst and polymer morphology. Polym. Degrad. Stab. 2007, 92, 611–616. [Google Scholar] [CrossRef]
  30. Cata, A.; Bandur, G.; Balcu, I.; Buzatu, D.; Tanasie, C.; Rosu, D. Preliminary studies about PET degradation. Rheological determinations on glycolysis products obtained with propylene glycol. Chem. Bull. POLITEHNICA Univ. (Timişoara) 2007, 52, 143–146. [Google Scholar]
  31. Vitkauskiene, I.; Makuska, R.; Stirna, U.; Cabulis, U. Synthesis and physical- mechanical properties of polyurethane-polyisocyanurate foams based on PET-waste-derived modified polyols. J. Cell Plast. 2011, 47, 467e82. [Google Scholar] [CrossRef]
  32. Paberza, A.; Fridrihsone-Girone, A.; Abolins, A.; Cabulis, U. Polyols from recycled poly (ethylene terephthalate) flakes and rapeseed oil for polyurethane foams. Polimery 2015, 60, 572–578. [Google Scholar] [CrossRef]
  33. Ivdre, A.; Soto, G.D.; Cabulis, U. Polyols Based on Poly(ethylene terephthalate) and Tall Oil: Perspectives for Synthesis and Production of Rigid Polyurethane Foams. J. Renew. Mater. 2016, 4, 285–293. [Google Scholar] [CrossRef]
  34. Linul, E.; Marşavina, L.; Vălean, C.; Bănică, R. Static and dynamic mode I fracture toughness of rigid PUR foams under room and cryogenic temperatures. Eng. Fract. Mech. 2018, 106274, 2020. [Google Scholar] [CrossRef]
  35. Romero, R.R. A Study of the Reaction Kinetics of Polyisocyanurate Foam Formulations using Real-time FTIR. J. Cell. Plast. 2005, 41, 339–359. [Google Scholar] [CrossRef]
  36. Kim, S.H.; Kim, B.K.; Lim, H. Effect of isocyanate index on the properties of rigid polyurethane foams blown by HFC 365mfc. Macromol. Res. 2008, 16, 467–472. [Google Scholar] [CrossRef]
  37. Kapps, M.; Buschkamp, S. The Production of Polyurethane Foams; Bayers Material Science: Leverkusen, Germany, 2004; p. 10. [Google Scholar]
  38. Szycher, M. Handbook of Polyurethanes; CRC Press: Boca Raton, FL, USA, 2012; p. 262. [Google Scholar]
  39. Abdel Hakim, A.A.; Nassar, M.; Emam, A.; Sultan, M. Preparation and characterization of rigid polyurethane foam prepared from sugar-cane bagasse polyol. Mater. Chem. Phys. 2011, 129, 301–307. [Google Scholar] [CrossRef]
  40. Ionescu, M. Chemistry and Technology of Polyols for Polyurethanes; Smithers Rapra Publishing: Shawbury, UK, 2005; p. 17. [Google Scholar]
  41. Hawkins, M.C. Cell Morphology and Mechanical Properties of Rigid Polyurethane Foam. J. Cell Plast. 2005, 41, 267–285. [Google Scholar] [CrossRef]
  42. Javni, I.; Zhang, W.; Petrovic, Z.S. Soybean-oil-based polyisocyanurate rigid foams. J. Polym. Environ. 2004, 12, 123–129. [Google Scholar] [CrossRef]
  43. Stirna, U.; Cabulis, U.; Beverte, I. Water-Blown Polyisocyanurate Foams From Vegetable Oil Polyols. J. Cell. Plast. 2008, 44, 139–160. [Google Scholar] [CrossRef]
  44. Septevani, A.A.; Evans, D.A.C.; Chaleat, C.; Martin, D.J.; Annamalai, P.K. A systematic study substituting polyether polyol with palm kernel oil based polyester polyol in rigid polyurethane foam. Ind. Crop. Prod. 2015, 66, 16–26. [Google Scholar] [CrossRef]
  45. Galakhova, A.; Santiago-Calvo, M.; Tirado-Mediavilla, J.; Villafañe, F.; Rodríguez-Pérez, M.Á.; Riess, G. Identification and quantification of cell gas evolution in rigid polyurethane foams by novel GCMS methodology. Polymers 2019, 11, 7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Paciorek-Sadowska, J.; Borowicz, M.; Czupryński, B.; Isbrandt, M. Effect of evening primrose oil-based polyol on the properties of rigid polyurethane-polyisocyanurate foams for thermal insulation. Polymers 2018, 10, 12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Polymers 12 00738 g001 550

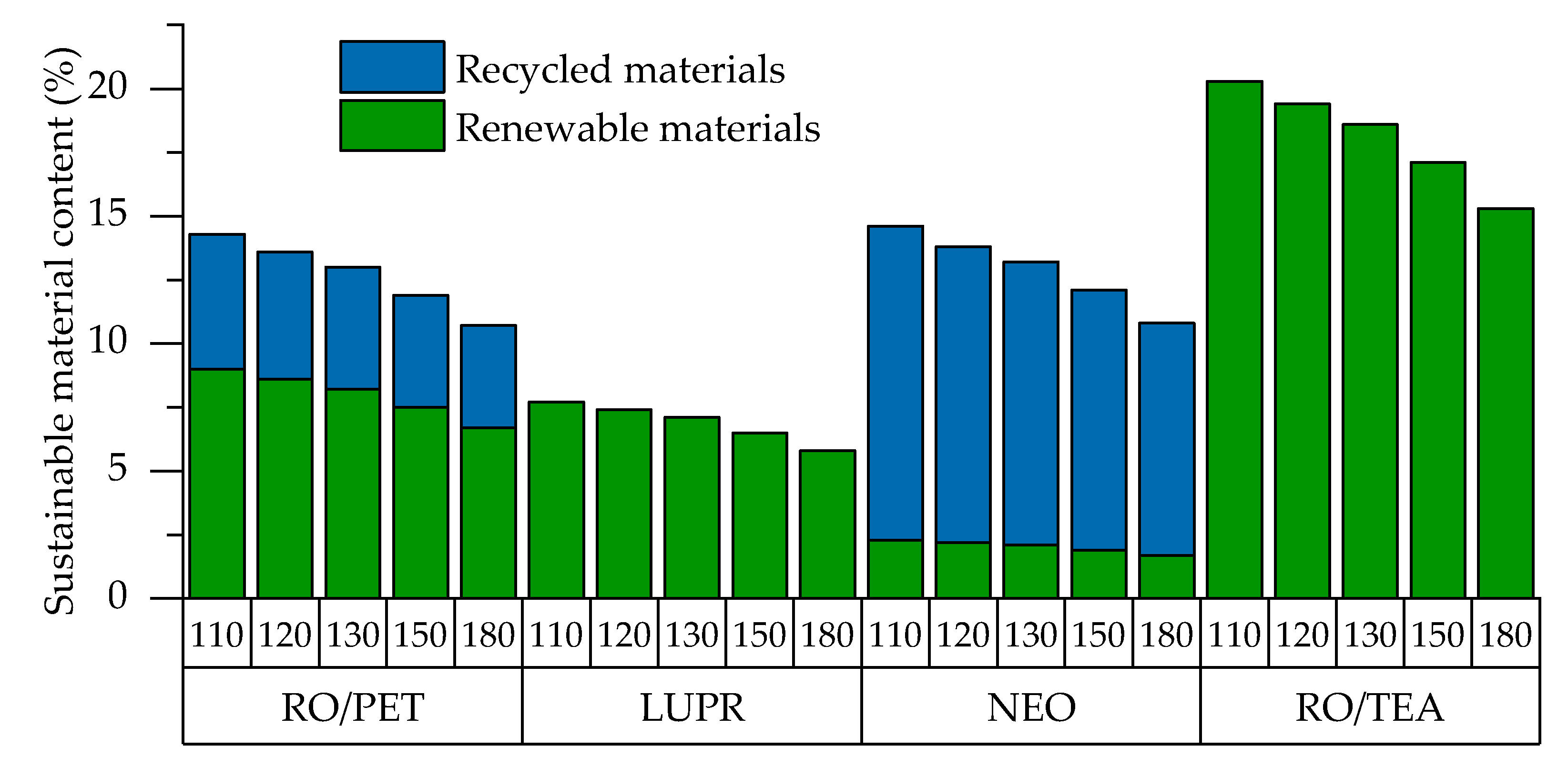

Figure 1. Sustainable material content in all series of rigid PUR foams.
Figure 1. Sustainable material content in all series of rigid PUR foams.
Polymers 12 00738 g001
Polymers 12 00738 g002 550

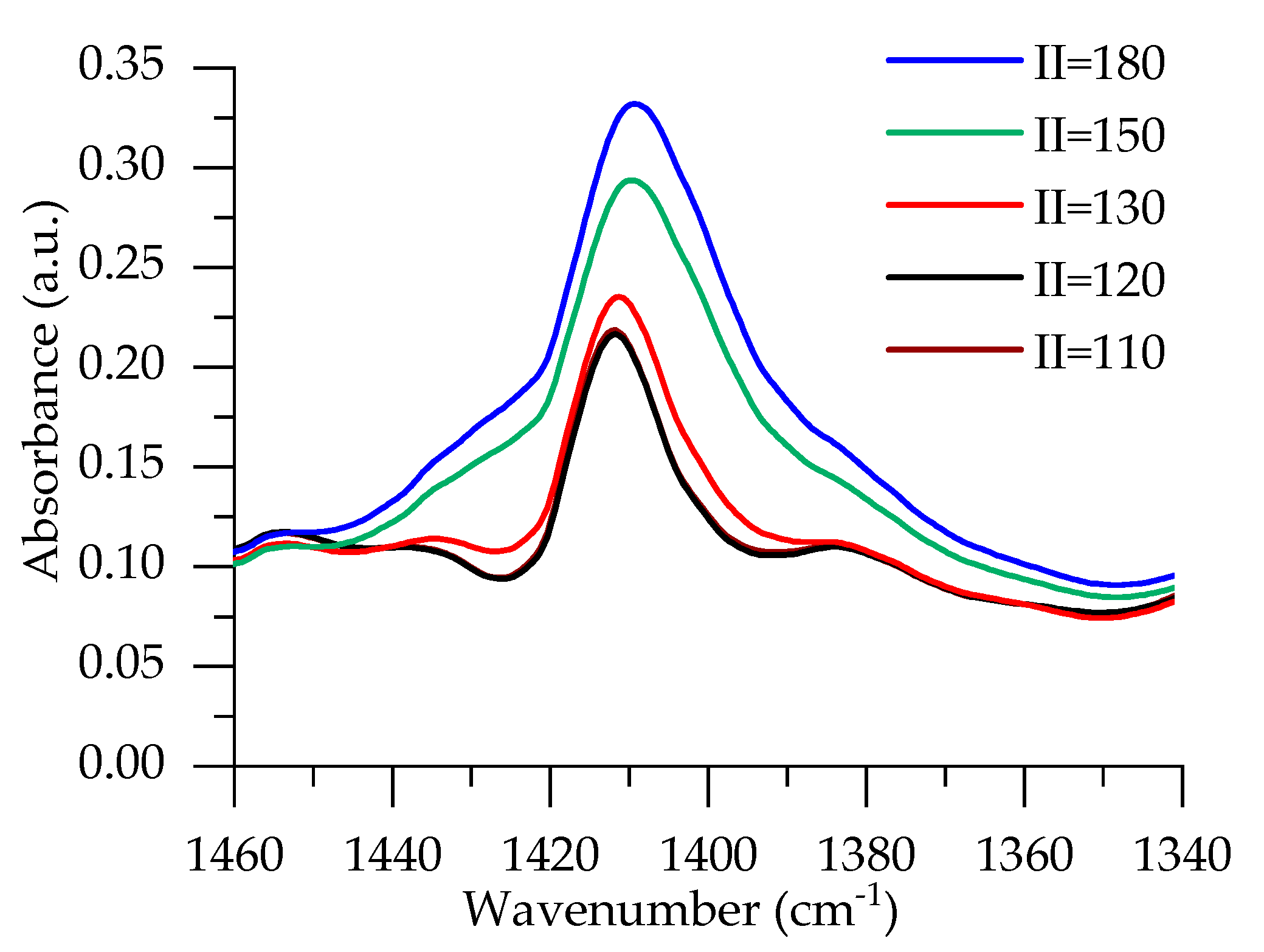

Figure 2. FTIR spectra for RO/PET rigid PUR foams, band at 1410 cm−1.
Figure 2. FTIR spectra for RO/PET rigid PUR foams, band at 1410 cm−1.
Polymers 12 00738 g002
Polymers 12 00738 g003 550

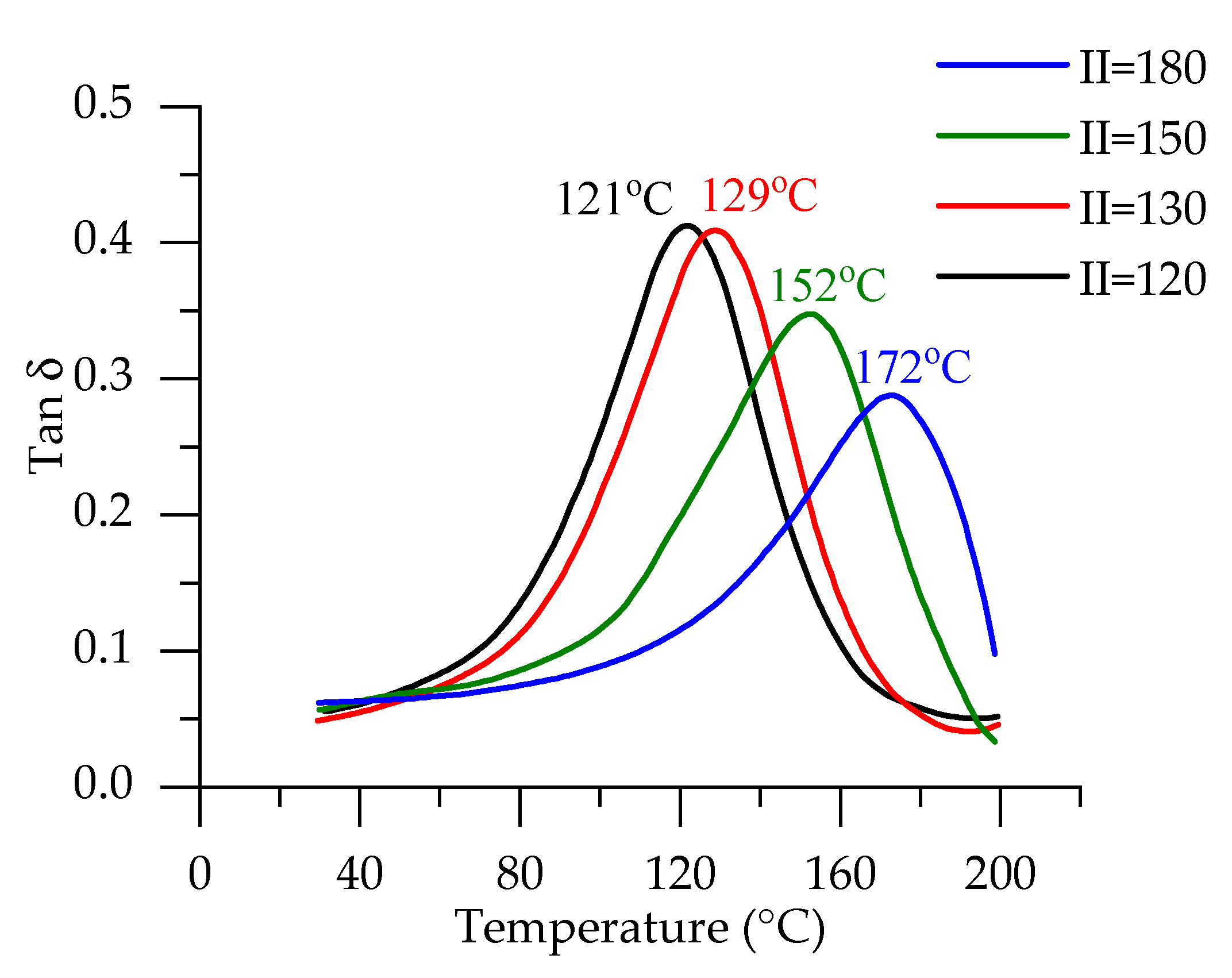

Figure 3. Damping factor curves of RO/PET series rigid PUR foams.
Figure 3. Damping factor curves of RO/PET series rigid PUR foams.
Polymers 12 00738 g003
Polymers 12 00738 g004 550

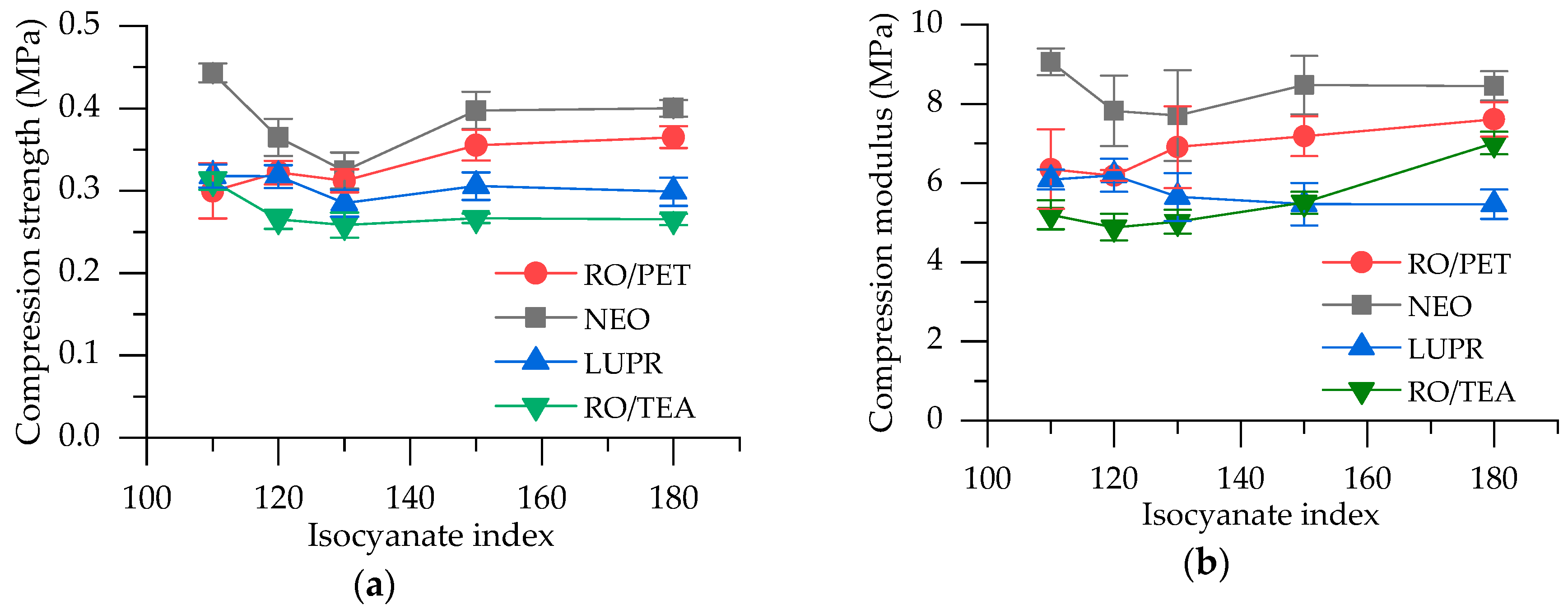

Figure 4. Physical-mechanical properties: (a) The compression strength of the RO/PET and reference rigid PUR foams; (b) Compression modulus of the RO/PET and reference rigid PUR foams.
Figure 4. Physical-mechanical properties: (a) The compression strength of the RO/PET and reference rigid PUR foams; (b) Compression modulus of the RO/PET and reference rigid PUR foams.
Polymers 12 00738 g004
Polymers 12 00738 g005 550

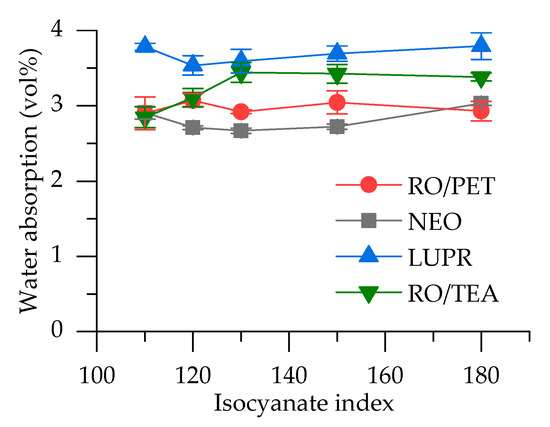

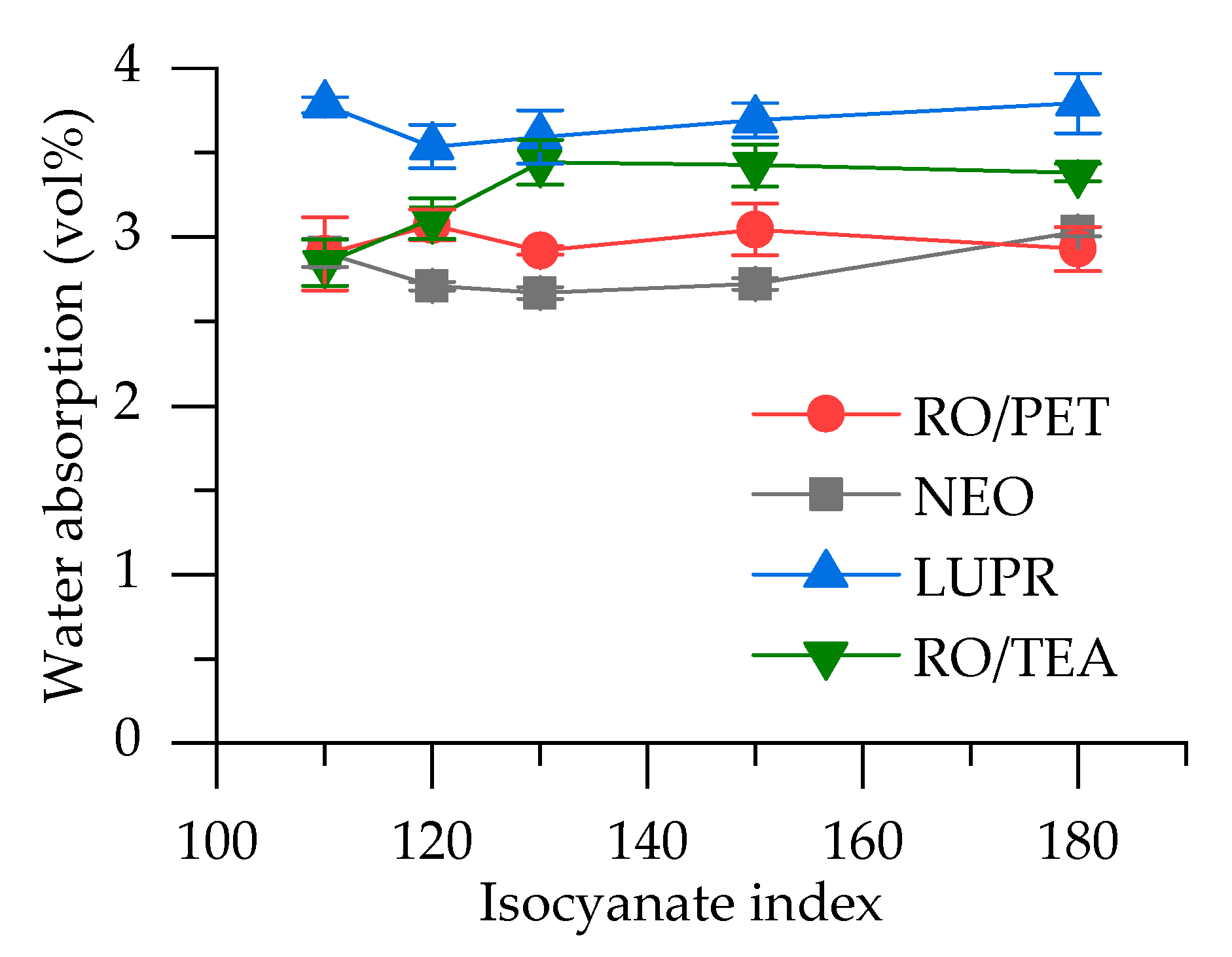

Figure 5. Water absorption after seven days of immersion.
Figure 5. Water absorption after seven days of immersion.
Polymers 12 00738 g005
Polymers 12 00738 g006 550

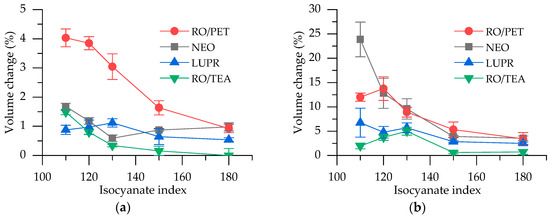

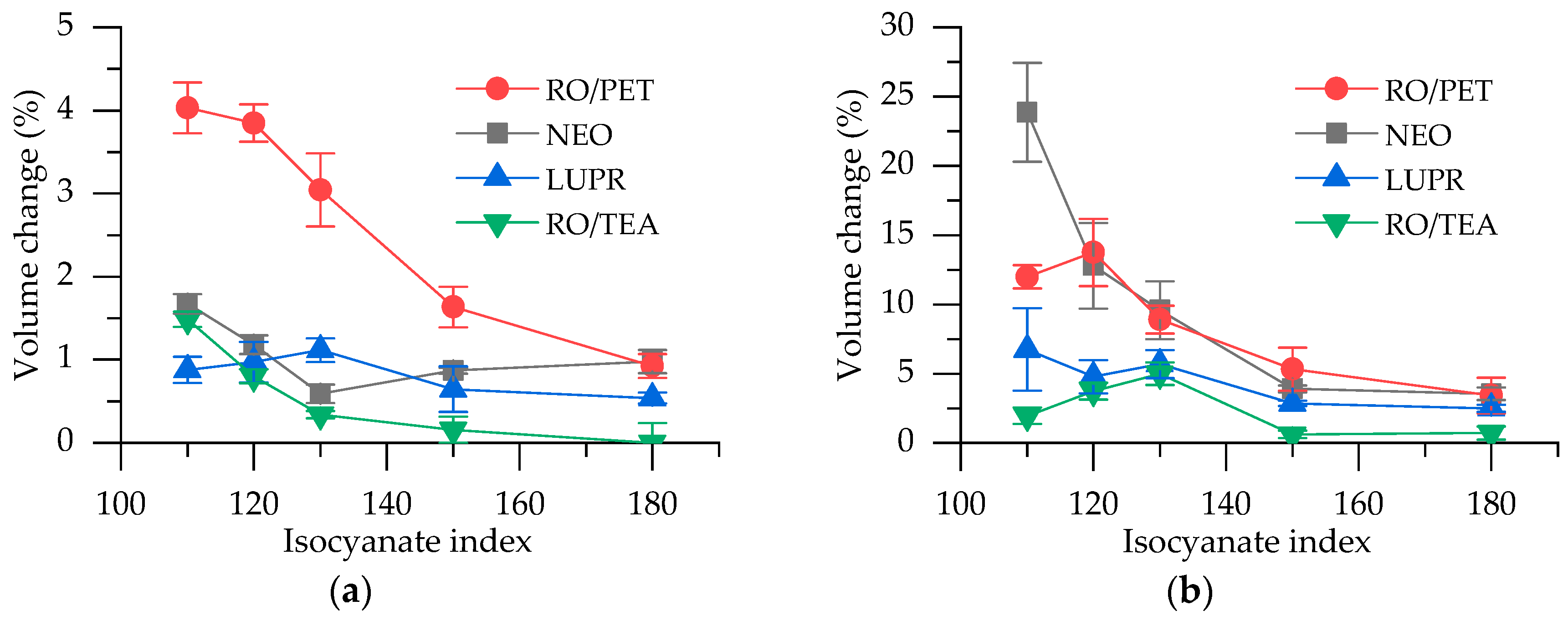

Figure 6. Dimensional stability–volume relative change at two modes: (a) 28 days at 70 °C, ambient relative humidity (R.H.); (b) 28 days at 70 °C, R.H. = 97%.
Figure 6. Dimensional stability–volume relative change at two modes: (a) 28 days at 70 °C, ambient relative humidity (R.H.); (b) 28 days at 70 °C, R.H. = 97%.
Polymers 12 00738 g006
Polymers 12 00738 g007 550

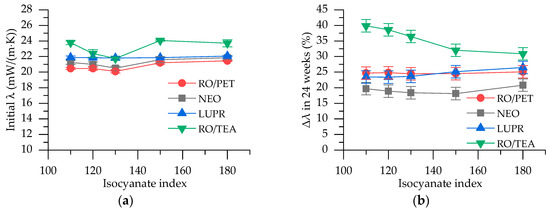

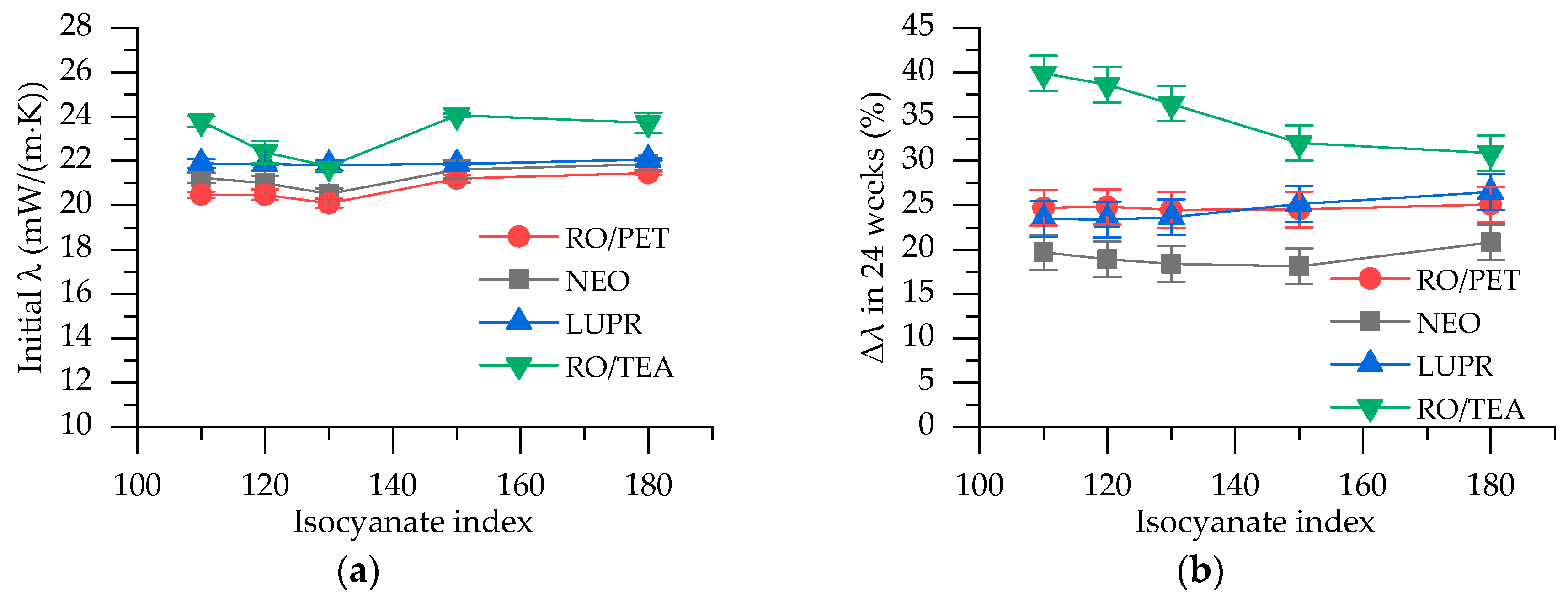

Figure 7. Results of thermal conductivity: (a) Initial thermal conductivity; (b) Thermal conductivity relative change in 24 weeks.
Figure 7. Results of thermal conductivity: (a) Initial thermal conductivity; (b) Thermal conductivity relative change in 24 weeks.
Polymers 12 00738 g007
Table
Table 1. Formulations of rigid polyurethane (PUR) foams.
Table 1. Formulations of rigid polyurethane (PUR) foams.
ComponentApplicationAmount, pbw 1
Rapeseed oil/PET (RO/PET) or reference polyolBase polyol75
Lupranol 3422Crosslinking agent25
Levagard PPFlame retardant20
NIAX Silicone L6915Surfactant2.0
30 wt% potassium acetate (KAc) solution in diethylene glycolCatalyst1.0–1.5 2
PC CAT NP-10Catalyst1.6–4.0 3
WaterBlowing agent2.2
Solkane 365/227Blowing agent16
1 part by weight. 2 KAc was added only in PUR formulations with isocyanate indices 150 and 180. 3 4.0 pphp were added for reference foams based on Lupranol 3300 to enhance reactivity.
Table
Table 2. Apparent density and closed-cell content of RO/PET series rigid PUR foams.
Table 2. Apparent density and closed-cell content of RO/PET series rigid PUR foams.
SampleApparent Density, kg/m3Closed-Cell Content, vol.%
RO/PET II = 11039.1 ± 0.495.2 ± 0.2
RO/PET II = 12038.5 ± 0.198.0 ± 0.4
RO/PET II = 13044.3 ± 1.397.6 ± 0.3
RO/PET II = 15039.1 ± 0.498.7 ± 0.2
RO/PET II = 18041.7 ± 0.197.4 ± 0.4
Table
Table 3. Foaming parameters.
Table 3. Foaming parameters.
Time, s
SampleCream Gel Tack-Free
RO/PET II = 110225275
RO/PET II = 120225275
RO/PET II = 130235490
RO/PET II = 150255493
RO/PET II = 1802556108

Share and Cite

MDPI and ACS Style

Ivdre, A.; Abolins, A.; Sevastyanova, I.; Kirpluks, M.; Cabulis, U.; Merijs-Meri, R. Rigid Polyurethane Foams with Various Isocyanate Indices Based on Polyols from Rapeseed Oil and Waste PET. Polymers 2020, 12, 738. https://doi.org/10.3390/polym12040738

AMA Style

Ivdre A, Abolins A, Sevastyanova I, Kirpluks M, Cabulis U, Merijs-Meri R. Rigid Polyurethane Foams with Various Isocyanate Indices Based on Polyols from Rapeseed Oil and Waste PET. Polymers. 2020; 12(4):738. https://doi.org/10.3390/polym12040738

Chicago/Turabian Style

Ivdre, Aiga, Arnis Abolins, Irina Sevastyanova, Mikelis Kirpluks, Ugis Cabulis, and Remo Merijs-Meri. 2020. "Rigid Polyurethane Foams with Various Isocyanate Indices Based on Polyols from Rapeseed Oil and Waste PET" Polymers 12, no. 4: 738. https://doi.org/10.3390/polym12040738

APA Style

Ivdre, A., Abolins, A., Sevastyanova, I., Kirpluks, M., Cabulis, U., & Merijs-Meri, R. (2020). Rigid Polyurethane Foams with Various Isocyanate Indices Based on Polyols from Rapeseed Oil and Waste PET. Polymers, 12(4), 738. https://doi.org/10.3390/polym12040738

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
