Next Article in Journal
Inclusion of Cross-Linked Elastin in Gelatin/PEG Hydrogels Favourably Influences Fibroblast Phenotype
Previous Article in Journal
Correlation between Functional Group and Formation of Nanoparticles in PEBAX/Ag Salt/Al Salt Complexes for Olefin Separation
Open AccessArticle

Influence of Polyol/Crosslinker Blend Composition on Phase Separation and Thermo-Mechanical Properties of Polyurethane Thin Films

1
Energy, Materials and Environmental Group, GEMA, Faculty of engineering, Universidad de La Sabana, 140013 Chía, Cundinamarca, Colombia
2
Doctoral program of biosciences, Universidad de La Sabana, 140013 Chía, Cundinamarca, Colombia
3
Bioprospecting Research Group, GIBP, Faculty of engineering, Universidad de La Sabana, 140013 Chía, Cundinamarca, Colombia
4
Centre for Biomaterials and Tissue Engineering, CBIT, Universitat Politècnica de València, Camino de Vera s/n, 46022 Valencia, Spain
5
Biomedical Research Networking Center in Bioengineering, Biomaterials and Nanomedicine (CIBER-BBN), 46022 Valencia, Spain
*
Author to whom correspondence should be addressed.
Polymers 2020, 12(3), 666; https://doi.org/10.3390/polym12030666
Received: 15 January 2020 / Revised: 9 March 2020 / Accepted: 10 March 2020 / Published: 17 March 2020
(This article belongs to the Special Issue Polymer Structure and Property II)

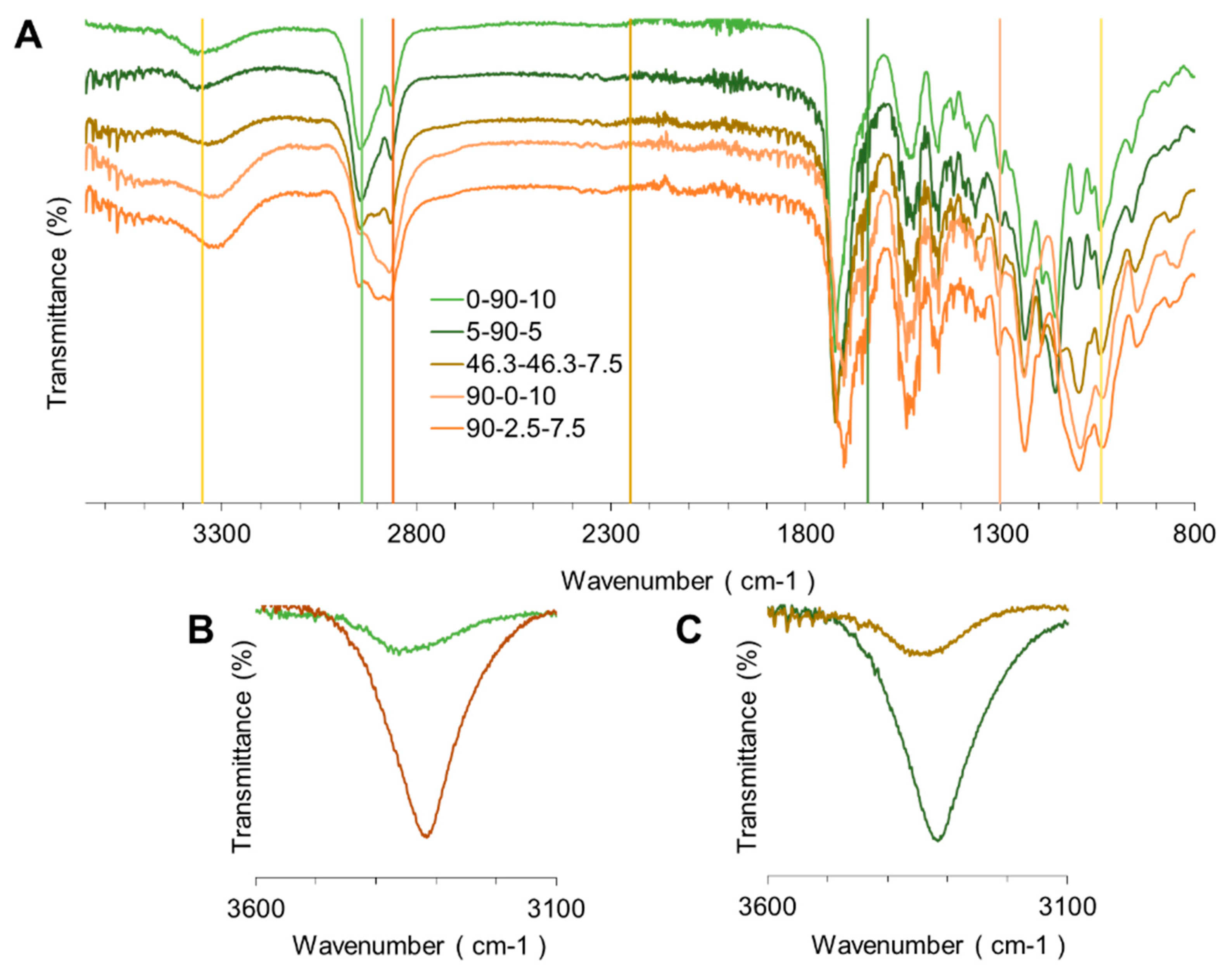

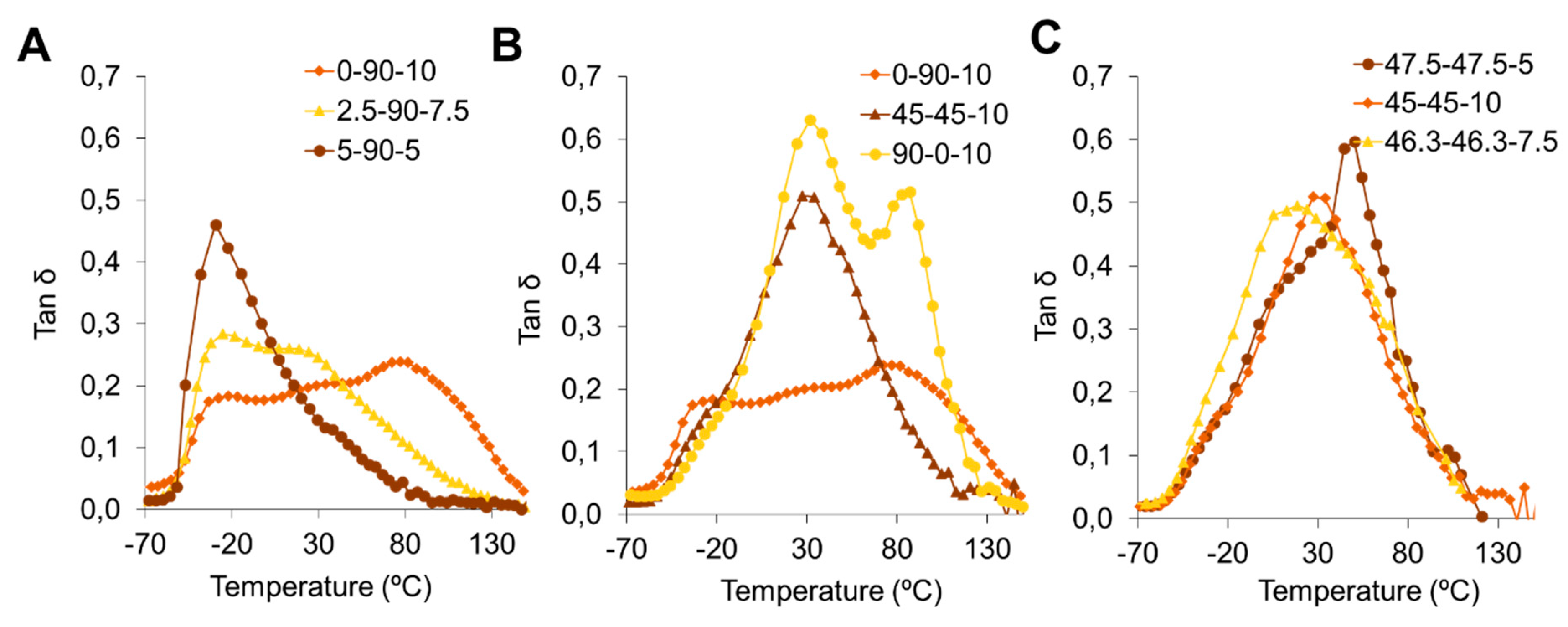

Polyurethanes (PUs) from Polyethylene glycol (PEG) and polycaprolactone diol (PCL) and a crosslinker, Pentaerythritol (PE), were synthetized with isophorone diisocyanate (IPDI). In this study, we investigated the effect of polyol and crosslinker composition on phase separation and thermo-mechanical properties. The properties were studied through dynamic mechanical analysis, X-ray scattering, atomic force microscopy (AFM), and thermogravimetric analysis (TGA). The results showed changes in PUs properties, microphase structure, and separation due to the composition of polyol/crosslinker blend. So, the largest concentration of PE produced multimodal loss factor patterns, indicating segment segregation while PUs with a PEG/PCL = 1 displayed a monomodal loss factor pattern, indicating a homogeneously distributed microphase separation. Additionally, the increase of the PEG concentration enhanced the damping capacity. On the other hand, agglomeration and thread-like structures of hard segments (HS) were observed through AFM. Finally, the thermal behavior of PUs was affected by chemical composition. Lower concentration of PE reduced the crosslinking; hence, the temperature with the maximum degradation rate. View Full-Text
Keywords: polyurethane; polyol; crosslinker; phase separation; thermo-mechanical properties polyurethane; polyol; crosslinker; phase separation; thermo-mechanical properties
Show Figures

Figure 1

MDPI and ACS Style

Arévalo-Alquichire, S.; Morales-Gonzalez, M.; Navas-Gómez, K.; Diaz, L.E.; Gómez-Tejedor, J.A.; Serrano, M.-A.; Valero, M.F. Influence of Polyol/Crosslinker Blend Composition on Phase Separation and Thermo-Mechanical Properties of Polyurethane Thin Films. Polymers 2020, 12, 666.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
