Article

Polystyrene Chain Growth Initiated from Dialkylzinc for Synthesis of Polyolefin-Polystyrene Block Copolymers

by
Tae Jin Kim
,
Jun Won Baek
,
Seung Hyun Moon
,
Hyun Ju Lee
,
Kyung Lee Park
,
Sung Moon Bae
,
Jong Chul Lee
,
Pyung Cheon Lee
and
Bun Yeoul Lee
*
Department of Molecular Science and Technology, Ajou University, Suwon 443-749, Korea
*
Author to whom correspondence should be addressed.
Polymers 2020, 12(3), 537; https://doi.org/10.3390/polym12030537
Submission received: 4 January 2020 / Revised: 15 January 2020 / Accepted: 16 January 2020 / Published: 2 March 2020
(This article belongs to the Special Issue Catalytic Olefin Polymerisation and Polyolefins)
Browse Figures
Versions Notes

Abstract

:
Polyolefins (POs) are the most abundant polymers. However, synthesis of PO-based block copolymers has only rarely been achieved. We aimed to synthesize various PO-based block copolymers by coordinative chain transfer polymerization (CCTP) followed by anionic polymerization in one-pot via conversion of the CCTP product (polyolefinyl)2Zn to polyolefinyl-Li. The addition of 2 equiv t-BuLi to (1-octyl)2Zn (a model compound of (polyolefinyl)2Zn) and selective removal or decomposition of (tBu)2Zn by evacuation or heating at 130 °C afforded 1-octyl-Li. Attempts to convert (polyolefinyl)2Zn to polyolefinyl-Li were unsuccessful. However, polystyrene (PS) chains were efficiently grown from (polyolefinyl)2Zn; the addition of styrene monomers after treatment with t-BuLi and pentamethyldiethylenetriamine (PMDTA) in the presence of residual olefin monomers afforded PO-block-PSs. Organolithium species that might be generated in the pot of t-BuLi, PMDTA, and olefin monomers, i.e., [Me2NCH2CH2N(Me)CH2CH2N(Me)CH2Li, Me2NCH2CH2N(Me)Li·(PMDTA), pentylallyl-Li⋅(PMDTA)], as well as PhLi⋅(PMDTA), were screened as initiators to grow PS chains from (1-hexyl)2Zn, as well as from (polyolefinyl)2Zn. Pentylallyl-Li⋅(PMDTA) was the best initiator. The Mn values increased substantially after the styrene polymerization with some generation of homo-PSs (27–29%). The Mn values of the extracted homo-PS suggested that PS chains were grown mainly from polyolefinyl groups in [(polyolefinyl)2(pentylallyl)Zn]−[Li⋅(PMDTA)]+ formed by pentylallyl-Li⋅(PMDTA) acting onto (polyolefinyl)2Zn.

1. Introduction

The synthesis of block copolymers has been a topical issue in the field of polymer science and chemistry [1]. Conventionally, block copolymers are synthesized by controlled living anionic or radical polymerizations [2,3]. A typical example is polystyrene-block-polybutadiene-block-polystyrene (SBS), which is industrially produced by controlled living anionic polymerization at a large scale. Polyolefins (POs) are the most abundant polymers, produced with ethylene and α-olefins, at a scale of more than 120 million metric tons per year worldwide. However, PO-based block copolymers have rarely been synthesized because α-olefins cannot be polymerized by either anionic or radical initiators [4,5,6]. The lack of versatile synthetic tools has promoted the development of multistep routes for the syntheses of PO-based block copolymers [7,8,9,10,11,12,13,14,15]. For example, polystyrene-block-poly(ethylene-co-1-butene)-block-polystyrene is produced industrially via a two-step process: Controlled living anionic polymerization of styrene and butadiene, and subsequent hydrogenation of the resulting SBS [16].
POs are mainly produced by coordination polymerization with transition-metal-based catalysts. Catalysts that can polymerize ethylene, α-olefins, or both, in a controlled living fashion, enable the synthesis of olefin block copolymers (OBCs). However, these copolymers are composed of solely PO chains with a varying ethylene/α-olefin composition [17,18,19]. An intrinsic drawback of this method is the growth of only one polymer chain per catalyst site, i.e., [PO chains]/[catalyst] = 1. A practical method for the industrial production of OBCs is based on coordinative chain transfer polymerization (CCTP). In CCTP, a transition-metal-based catalyst (e.g., 1 in Scheme 1) that can polymerize ethylene, α-olefins, or both in a controlled living fashion is used with a chain transfer agent (CTA, e.g., Et2Zn) in excess relative to the catalyst (e.g., [Zn]/[Hf] > 100). In CCTP, PO chains are grown uniformly and progressively from all the fed CTAs via rapid alkyl exchange between the zinc sites and the chain-growing catalyst sites [20,21]. Therefore, it is possible to grow PO chains with a varying ethylene/α-olefin composition either, by the sequential variation of ethylene/α-olefin feed ratio or by employing a dual catalytic system with distinctly different monomer reactivities. Thus, we can successfully produce diblock and multiblock copolymers composed of hard crystalline, and soft rubbery PO blocks [22,23,24,25,26].
(Polyolefinyl)2Zn results from CCTP and is usually quenched with acid to destroy the Zn-C bonds. The further growth of polymer chains initiating from (polyolefinyl)2Zn may be useful for the syntheses of PO-based block copolymers [27]. Syntheses of polyethylene-block-polyester and polyethylene-block-polyether have been attempted with POs functionalized with -OH end groups, which were generated by treatment of the CCTP product (polyolefinyl)2Zn with O2 [28,29,30,31]. We also discovered a method to grow polystyrene (PS) chains initiating from (polyolefinyl)2Zn that allows the syntheses of commercially more relevant PO-block-PS and PS-block-PO-block-PS in one-pot [32,33,34,35]. In those works, n-BuLi·(TMEDA) (TMEDA = tetramethylethylenediamine, i.e., Me2NCH2CH2NMe2) and Me3SiCH2Li·(PMDTA) (PMDTA = pentamethyldiethylenetriamine, i.e., Me2NCH2CH2N(Me)CH2CH2NMe2) were introduced to grow PS chains from (polyolefinyl)2Zn. In this work, we pursued a more efficient method for PS chain growth from (polyolefinyl)2Zn with an additional aim to expand the scope of the chains that can be grown from (polyolefinyl)2Zn (Scheme 1). Recently, syntheses of functionalized POs are a topical issue [36,37,38].

2. Materials and Methods

All manipulations were performed under an inert atmosphere using a standard glove box and Schlenk techniques. Methylcyclohexane was purchased from Sigma-Aldrich and purified over Na/K alloy. The ethylene/propylene mixed gas was purified over trioctylaluminum (0.6 M in methylcyclohexane) in a bomb reactor (2.0 L). 1H NMR (600 MHz) and 13C NMR (150 MHz) spectra were recorded on a JEOL ECZ600 instrument. The gel permeation chromatography (GPC) data were obtained in 1,2,4-trichlorobenzene at 160 °C using a PL-GPC 220 system equipped with an RI detector and two columns [PLgel mixed-B 7.5 × 300 mm from Varian (Polymer Lab)]. (1-Octyl)2Zn and (1-hexyl)2Zn were prepared and purified as described in the literature [26]. n-BuLi and sec-BuLi were used as neat oils, while t-BuLi as solid after removing the solvent inside the glove box.
Conversion of (1-octyl)2Zn to (1-octyl)Li. (1-Octyl)2Zn (58.4 mg, 0.200 mmol) was added to a solution of t-BuLi (25.6 mg, 0.400 mmol) in methylcyclohexane (27.0 g). After stirring for 15 min at room temperature, volatiles were removed using a vacuum line. A light-yellow oil was obtained, of which the 1H and 13C NMR spectra agreed with those of 1-octyllithium. Differently, (1-octyl)2Zn (0.29 g, 1.0 mmol) was added to a solution of t-BuLi (0.13 g, 2.0 mmol) in decane (10 g). The solution was stirred for 20 min at 130 °C while venting off the generated gases. A black solid was generated, which was filtered through Celite. Decane was distilled at 50 °C under full vacuum to obtain a light-yellow oil of which the 1H and 13C NMR spectra agreed with those of 1-octyllithium (0.22 g, 91%). 1H NMR (C6D6): δ 1.54 (s, 2H, CH2), 1.49-1.30 (br, 10H, CH2), 0.94 (t, J = 7.2 Hz, 3H, CH3), 0.33 (s, 2H, LiCH2) ppm. 13C NMR (C6D6): δ 38.79, 32.50, 32.23, 29.94, 29.79, 29.68, 23.20, 14.43 ppm.
1-Octene, n-BuLi, and PMDTA in methylcyclohexane.n-BuLi (1.10 g, 17.3 mmol) was added dropwise to a solution containing PMDTA (3.00 g, 17.3 mmol) and 1-octene (3.90 g, 34.6 mmol) in methylcyclohexane (77 g). After stirring overnight at room temperature, the yellowish solution (2.16 mmol-Li/g) was used for the styrene polymerizations.
Me2NCH2CH2N(Me)CH2CH2N(Me)CH2Li.sec-BuLi (12.8 mg, 0.200 mmol) was added dropwise to a solution of PMDTA (34.6 mg, 0.200 mmol) in methylcyclohexane (1.50 g). After stirring for 30 min at room temperature, the solution (0.129 mmol-Li/g) was used for the styrene polymerizations. Additionally, sec-BuLi (12.8 mg, 0.200 mmol) and PMDTA (34.6 mg, 0.200 mmol) were dissolved in C6D12 (~0.5 mL) and an 1H NMR spectrum was recorded after 30 min.
Me2NCH2CH2N(Me)Li.n-BuLi (10 mL, 1.65 M, 16.5 mmol) was added dropwise to a solution of Me2NCH2CH2N(Me)H (1.69 g, 16.5 mmol) in hexane (25 mL). After stirring for 5 h at room temperature, the resulting solution was filtered through Celite. The solvent was removed using a vacuum line, and we obtained a white solid (1.56 g, 88%) that was used for styrene polymerizations after adding it to an equivalent amount of PMDTA in methylcyclohexane. 1H NMR (C6D6): δ 3.21 (br, 2H, CH2), 3.11 (br, 3H, NLi(CH3)), 2.45 (br, 2H, CH2), 1.98 (br, 6H, N(CH3)2) ppm.
Pentylallyl-Li⋅(PMDTA).n-BuLi (0.14 mg, 2.2 mmol) was added dropwise to PMDTA (0.37 g, 2.2 mmol) in 1-octene (13.0 g). After stirring overnight at room temperature, the yellowish solution (0.16 mmol-Li/g) was used for the styrene polymerizations. An aliquot was analyzed with 1H NMR spectroscopy. After recording the 1H NMR spectrum, the solution in C6D6 was quenched with H2O (or D2O) and filtered over a short pad of anhydrous MgSO4 in a pipette to re-record an 1H NMR spectrum.
PhLi⋅(PMDTA).n-BuLi (12.8 mg, 0.200 mmol) was added dropwise to a solution of PMDTA (34.6 mg, 0.200 mmol) in C6D6 (0.600 g). After stirring for 30 min at room temperature, the solution (0.31 mmol-Li/g) was analyzed with 1H NMR spectroscopy and used for the styrene polymerizations.
PS chain growth from (1-hexyl)2Zn. Pentylallyl-Li⋅(PMDTA) (96 µmol) was added to a flask containing (1-hexyl)2Zn (22.6 mg, 96 µmol) and methylcyclohexane (27 g) inside a glove box. Styrene (5.0 g, 48.0 mmol) was added, and the anionic polymerization was performed at 90 °C for 5 h. Then, aqueous HCl (2 N, 0.3 mL) was added, and the resulting solution was stirred for 30 min at 90 °C to destroy the zinc species. The solution was filtered through a short pad of silica gel, which was subsequently washed with toluene. In order to isolate PS, toluene was removed with a rotary evaporator; the isolated sample was dried in a vacuum oven at 130 °C for 5 h (5.00 g, 100%).
Synthesis of poly(ethylene-co-propylene)-b-PS. A bomb reactor (125 mL) was evacuated at 60 °C for 1 h. After filling the reactor with ethylene gas at atmospheric pressure, a solution of Me3Al (29.0 mg, 200 µmol-Al) in methylcyclohexane (15.5 g) was added. The mixture was stirred for 40 min at 100 °C using a mantle, and the solution was subsequently removed using a cannula. The reactor was evacuated again to remove any residual solvent, and it was filled with ethylene/propylene gas at atmospheric pressure. This washing procedure was performed to remove any catalyst poisons. The reactor was charged with methylcyclohexane (15.5 g) containing MMAO (modified-methylaluminoxane, AkzoNobel, 6.7 wt%-Al in heptane, 20 mg, 50 µmol-Al) and the temperature was set to 80 °C. A solution of (1-hexyl)2Zn (35.4 mg, 150 µmol-Zn) in methylcyclohexane (10.0 g) and a solution of 1 in cyclohexane (8.7 μmol/g, 230 mg, 2.0 µmol) diluted with methylcyclohexane (0.5 g) were successively injected. An ethylene/propylene mixed gas (10 bar/15 bar, total 25 bar) was charged from a tank into the reactor at 25 bar, and the mixture was polymerized for 40 min. The temperature increased spontaneously to 110 °C within 5 min and was subsequently maintained at 90–100 °C with a controller. The pressure in the tank decreased from 23 to 21 bar. After the remaining ethylene/propylene mixed gas was vented off, an aliquot was taken for a GPC study. Pentylallyl-Li⋅(PMDTA) (200 µmol) in methylcyclohexane (10.0 g) was injected at 95 °C. After stirring for 15 min at 95 °C, a solution of styrene (5.0 g) in methylcyclohexane (5.0 g) was injected, and the mixture was polymerized for 4 h while controlling the temperature within the range of 90–100 °C. An aliquot was taken for 1H NMR spectroscopy; the spectrum showed no signals due to the styrene monomer. Acetic acid (2.0 mL) and ethanol (30 mL) were successively injected into the reactor. The generated polymer was dried in a vacuum oven at 160 °C (18.1 g). After dissolving the polymer (3.0 g) in chloroform (30 g) at 60 °C for 3 h, acetone (60 g) was added to precipitate the PO-block-PS. Homo-PS, which is soluble in chloroform/acetone mixed solvents, was isolated by filtration.

3. Results and Discussion

3.1. Converting Dialkylzinc to Alkyllithium

Alkyllithium is a very reactive species commonly used in living anionic polymerizations as an initiator. A developed method to convert dialkylzinc to alkyllithium would be a powerful tool for the syntheses of various types of PO-based block copolymers (Scheme 1) [39]. Alkyllithium is a more reactive species than the corresponding dialkylzinc, and the reaction for converting alkyllithium to dialkylzinc is conventionally adopted, whereas its reverse reaction, i.e., converting dialkylzinc to alkyllithium is not favored and not yet realized. We expected that the addition of very reactive and bulky t-BuLi (2.0 eq) to dialkylzinc (e.g., (1-octyl)2Zn) might transiently generate 1-octyllithium and (tBu)2Zn and that the generated (tBu)2Zn might be selectively removed from the reaction pot through evacuation or decomposition at a high temperature (Scheme 2). The removal of volatiles under full vacuum from a flask containing (1-octyl)2Zn and t-BuLi in methylcyclohexane yielded 1-octyllithium in 91% yield. In the 1H NMR spectrum of the remaining, we observed a set of signals that was assigned to 1-octyllithium, especially by comparison with the signals of the commercial source of 1-hexyllithium (Figure 1, and Figure S1 for 13C NMR spectrum). The use of bulky t-BuLi was essential for the successful conversion of (1-octyl)2Zn to 1-octyllithium; when n-BuLi, sec-BuLi, or Me3SiCH2Li were used instead of t-BuLi, only a mixture of alkyllithium and (1-octyl)2Zn remained after evacuation, and not 1-octyllithium.
The transiently generated (tBu)2Zn could also be removed via selective decomposition at a high temperature of 130 °C. (Primary alkyl)2Zn compounds (e.g., Et2Zn and (1-octyl)2Zn) are stable up to 150 °C and can be readily used in CCTP as CTAs at high temperatures of 125–140 °C [23]. In contrast, we found that (tBu)2Zn was decomposed at 130 °C, and a black solid precipitated when a solution of (tBu)2Zn in decane was heated at 130 °C. Isobutene and H2 signals were detected in the 1H NMR spectrum when the reaction was performed in a sealed tube in toluene-d8 (Scheme 2b). (Primary alkyl)lithium, e.g., n-BuLi, was negligibly decomposed in decane at 130 °C (half-life, 6 h) [40]. We found that t-BuLi was also persistent at 130 °C for a short time of ~30 min. Accordingly, when a solution of (1-octyl)2Zn and t-BuLi (2.0 eq) in decane was heated at 130 °C for 30 min, a black solid precipitated, which was indicative of the decomposition of (tBu)2Zn; 1-octyllithium was cleanly isolated from the reaction pot by filtration in 91% yield. When benzaldehyde was added after the thermal treatment, PhCH(OH)(CH2)7CH3 was afforded, which additionally supported the successful generation of 1-octyllithium; (1-octyl)2Zn does not react with benzaldehyde. Employing the same method, (2-ethylhexyl)2Zn was also converted to 2-ethylhexyl-Li in high yield (84%; Figure S2).

3.2. Attempts to Synthesize Block Copolymers

(Polyolefinyl)2Zn was prepared via coordinative chain transfer copolymerizations (CCTcoPs) performed using a pyridylamidohafnium catalyst (1 in Scheme 1) in methylcyclohexane at high temperatures of 90–110 °C by feeding ethylene/propylene mixed gases. Catalyst 1 is the best in performing CCTcoPs [22,33,41,42,43]. It undergoes fast alkyl exchange with Zn sites to generate PO chains with a narrow molecular weight distribution [21,44]. The β-elimination process can be avoided with 1, preventing the generation of PO chains that are not attached to Zn sites [18,45,46]. Moreover, 1 is capable of incorporating a significant amount of α-olefins in an ethylene/α-olefin copolymerization [47]. A minimal amount of MMAO (50 μmol-Al) had to be fed, in addition to the CTA (1-hexyl)2Zn (100 or 200 μmol-Al), to realize the full activity of 1, even though PO chain growth from some Al-sites was unavoidable [26,48,49]. The generated (polyolefinyl)2Zn was treated with t-BuLi ([Li] = 2 × [Zn] + [Al], i.e., 250 or 450 μmol) at 130–135 °C for 1.0 h aiming to generate polyolefinyl-Li by destroying the transiently generated (tBu)2Zn. Among other monomers, styrene (5.0 g) was fed, aiming to grow a PS chain initiating from polyolefinyl-Li. All the fed styrene monomers were completely converted to polymer in 4 h, but the desired PO-block-PS was not generated. In GPC studies, two signals were observed in opposite directions relative to the base line: A very high molecular weight negative signal (Mn 1 150 000, Mw/Mn 1.2) assigned to homo-PS, and a main positive signal assigned to PO; the Mn value of this signal (Mn 61 000, Mw/Mn 2.3) was not increased relative to that of the homo-PO sample taken before feeding styrene (Mn 65 000, Mw/Mn 2.1, Figure S3, entry 1 in Table 1). This observation indicated that the isolated polymer was not a block copolymer but a mixture of homo-PO and homo-PS. However, when PMDTA was added alongside the styrene monomer, the high molecular weight homo-PS signal disappeared, and unimodal curves were observed with narrow molecular weight distributions (Mw/Mn l.3–1.5). Moreover, after the styrene polymerization, the GPC curves were shifted to a high molecular weight direction with a significant increase in the Mn values (ΔMn 13–41 kDa), indicating the generation of the desired PO-block-PS (Figure S4, entries 2–5).
Attempts to grow other polymer chains (e.g., polyisoprene and polycaprolactone) initiating from polyolefinyl-Li, which was assumed to be generated, were unsuccessful. After performing anion polymerization of isoprene, the GPC curves were not shifted to a high molecular weight direction, i.e., the Mn values increased negligibly. We eventually found that t-BuLi reacted with olefin monomers; hence, we attempted to convert the CCTP product (polyolefinyl)2Zn to polyolefinyl-Li by thoroughly flushing ethylene/propylene residual gases before adding t-BuLi. However, many attempts were also unsuccessful. Either the low concentration of Zn species relative to that in the (1-octyl)2Zn model studies or the difficulty of the formation of aggregates, in the case of polyolefinyl-Li, might have caused the failure in converting (polyolefinyl)2Zn to polyolefinyl-Li.

3.3. Initiators for PS Chain Growth from Dialkylzinc

PO-block-PSs were efficiently generated when the CCTP product (polyolefinyl)2Zn was treated with t-BuLi and PMDTA in the presence of residual propylene gas. We assumed that allyl-Li⋅(PMDTA), generated from the reaction of t-BuLi, propylene and PMDTA, might work as an efficient initiator to grow PS chains from (polyolefinyl)2Zn (Scheme 3). Therefore, we prepared a reaction of 1-octene with n-BuLi in methylcyclohexane in the presence of PMDTA. After overnight stirring, n-BuLi signals completely disappeared from the 1H NMR spectrum, and the resulting solution was used as an initiator for styrene polymerization in the presence of (1-hexyl)2Zn (entries 1–3 in Table 2). The number of PS chains was calculated by dividing the isolated PS weight by the measured Mn value. The obtained PS chains were twofold the fed Zn amount (205, 203, and 203 μmol vs. 2 × 100 = 200 μmol), and their numbers were unaltered by the amount of the fed lithium species (50, 70, and 100 μmol, respectively). These observations indicated that the PS chains were grown selectively from all the fed (1-hexyl)2Zn and that the lithium species worked only as an activator in the PS chain-growth process, not directly engaging as a PS chain-growing site. One disadvantage was that the styrene monomers were not completely converted to polymer, affording a 92–96% yield, even considering the long reaction time of 5 h at a high temperature of 90 °C. The molecular weight distributions were rather broad (Mw/Mn, 1.35–1.45).
We observed broad and unassignable signals in the 1H NMR spectrum of the lithium species generated in the reaction pot of “1-octene + n-BuLi + PMDTA” in methylcylohexane (Figure S5). However, the spectra recorded after quenching with H2O and D2O, indicated the presence of pentylallyl-Li, Me2NCH2CH2N(Me)Li, and Me2NCH2CH2N(Me)CH2CH2N(Me)CH2Li (Figure S6). The reaction of n-BuLi with PMDTA in C6D12 was monitored with 1H NMR spectroscopy, which revealed that n-BuLi reacted with PMDTA slowly, requiring ~8 h at room temperature for the complete consumption of n-BuLi, to generate mainly Me2NCH2CH2N(Me)CH2CH2N(Me)CH2Li (Figure S7) [50,51]. The generated Me2NCH2CH2N(Me)CH2CH2N(Me)CH2Li was unstable; thus, it converted to Me2NCH2CH2N(Me)Li, Me2NLi, and PMDTA [45]. sec-BuLi reacted with PMDTA within 30 min at room temperature, to generate mainly Me2NCH2CH2N(Me)CH2CH2N(Me)CH2Li in C6D12 (Figure S8) [52]. PMDTA treated with n-BuLi in C6D6 cleanly afforded C6D5Li⋅(PMDTA) (Figure S9). When PMDTA was mixed with n-BuLi in 1-octene (as a solvent as well as a reactant), the color of the solution slowly turned to yellow. The 1H NMR spectrum of the lithium species generated in the reaction pot of “PMDTA + n-BuLi” in 1-octene was ambiguous; however, the signals assigned to 2-octene (as a mixture of cis- and trans-isomers) and 1-octene were observed after quenching with H2O, indicating the generation of pentylallyl-Li species in the reaction pot of “PMDTA + n-BuLi” in 1-octene (Figure S10).
Upon these observations, organolithium species that might be generated by the reaction of BuLi, olefin, and PMDTA, were screened as initiators for styrene polymerization in the presence of (1-hexyl)2Zn (Table 2). Organolithium species generated in situ or prepared were fed in the polymerization pot containing styrene (5.0 g) and (1-hexyl)2Zn (100 μmol) in methylcyclohexane and polymerization was performed at 90 °C for 5 h. The numbers of PS chain-growing sites were calculated by dividing the isolated PS weights by the measured Mn values, which were monitored to see whether PS chains were well-grown from (1-hexyl)2Zn. When Me2NCH2CH2N(Me)CH2CH2N(Me)CH2Li (100 μmol) was generated, in situ, in the reaction pot of “sec-BuLi + PMDTA in methylcyclohexane” in 30 min was used (entry 4), styrene monomers were not completely converted to PS (95% yield) and the calculated number of PS chain-growing sites was 240 μmol, exceeding the value of “2 × Zn (μmol)”, but not surpassing the value of “2 × Zn (μmol) + Li (μmol)”. The molecular weight distribution was narrow (Mw/Mn, 1.25). When Me2NCH2CH2N(Me)Li was used (entry 5), styrene conversion was unsatisfactorily low (23%). However, when Me2NCH2CH2N(Me)Li·(PMDTA) was used instead (entries 6–8), the conversions were high but not quantitative (91–93%). The calculated number of PS chains agreed well with the value of “2 × Zn (μmol)” (217, 208, and 195 μmol versus 2 × 100 μmol) and it was almost unaffected by the increase in the feed amount of lithium species (50, 70, and 100 μmol, respectively), which indicated that the PS chains were grown selectively from all the fed Zn species, and not from Me2NCH2CH2N(Me)Li.
When pentylallyl-Li⋅(PMDTA) generated in situ in the reaction pot of “n-BuLi + PMDTA” in 1-octene was used (entries 9–11), styrene monomers were completely converted to PS, and the number of PS chain-growing sites exceeded the value of “2 × Zn (μmol)” (233, 240, and 258 μmol, respectively) and it increased with the increase in the feed amount of lithium species (50, 70, and 100 μmol, respectively). These observations indicated that PS chains were grown from all the Zn sites, as well as from some portion of the fed organolithium species (Scheme 3). PhLi⋅(PMDTA) showed similar results with pentylallyl-Li, which exhibited performance comparable to that of Me3SiCH2Li⋅(PMDTA) and n-BuLi⋅(PMDTA)—previously introduced as initiators in growing PS chains from dialkylzinc (entries 15 and 16) [33,45]. Styrene monomers were quantitatively converted to PS and the numbers of PS chains were comparable, exceeding the value of “2 × Zn (μmol)” (220–260 μmol), in all cases. The molecular weight distributions in the cases of pentylallyl-Li⋅(PMDTA), PhLi⋅(PMDTA), and Me3SiCH2Li⋅(PMDTA) were narrow (Mw/Mn 1.24–1.30), while the distribution in the case of n-BuLi⋅(PMDTA) was rather broad (Mw/Mn 1.48).

3.4. Synthesis of PO-Block-PS

CCTcoPs were performed with (1-hexyl)2Zn (150 or 300 μmol) as CTA using 1 as a catalyst by feeding an ethylene/propylene mixed gas to generate (polyolefinyl)2Zn. After CCTcoP, lithium species ([Li] = [Zn] + [Al], i.e., 450 or 650 μmol) and styrene monomers (5.0 or 10 g) were sequentially fed and styrene polymerization was performed for 4 h, at a reasonably high temperature of 90–100 °C to prevent precipitation of the generated polymers. Running the styrene polymerization at higher temperature up to 120 °C was not problematic. At the initial stage of the styrene polymerization, a clear yellowish solution was developed, which became turbid for approximately 5 min, and eventually turned back to a clear yellowish viscous solution once the block copolymers were well-generated. When the block copolymers were not generated well (e.g., entry 1 in Table 1 and entry 3 in Table 3), the polymerization solution was turbid throughout the styrene polymerization. The isolated PO-block-PS polymers were transparent, while mixtures of homo-PO and homo-PS were opaquely white.
When the lithium species generated in the reaction pot of “1-octene + n-BuLi + PMDTA” in methylcyclohexane was used as an initiator, the styrene monomers were completely converted to polymer. However, the increase in the molecular weight was marginal after the styrene polymerization (ΔMn 5 kDa, entry 1 in Table 3). The molecular weight distribution was also marginally narrowed from an Mw/Mn value of 1.75 to 1.64 after the styrene polymerization. When Me2NCH2CH2N(Me)CH2CH2N(Me)CH2Li generated in the reaction pot of “sec-BuLi + PMDTA” in methylcyclohexane was used, the styrene polymerization was not initiated at all. When Me2NCH2CH2N(Me)Li·(PMDTA) was used, the styrene monomers were partially converted to PS (~60% conversion, entry 3).
Pentylallyl-Li⋅(PMDTA) generated in the reaction pot of “n-BuLi + PMDTA” in 1-octene was the best initiator. The GPC curves were shifted to a high molecular weight direction after the styrene polymerization (Figure 2 and Figure S11). Increases in the Mn values, after styrene polymerization, were substantial and reasonable (ΔMn 22, 37, 11, 20 kDa, entries 4–7). By feeding the amount of styrene monomers twice under otherwise identical conditions, the ΔMn values almost doubled from 22 kDa to 37 kDa and from 11 kDa to 20 kDa. By feeding twice the amount of Zn species in CCTcoP and accordingly twice the amount of lithium species under otherwise identical conditions, the ΔMn values were reduced almost by half from 22 kDa to 11 kDa and from 37 kDa to 20 kDa. The molecular weight distributions were also substantially narrowed after the styrene polymerization from the Mw/Mn values of 1.61, 1.61, 1.50, and 1.54, to 1.39, 1.30, 1.35, and 1.26, respectively (ΔPDI 0.22, 0.31, 0.15, and 0.28). A weak melting (Tm) signal corresponding to poly(ethylene-co-propylene) block and a glass transition (Tg) signal corresponding to PS block were independently observed at a broad range of 30–80 °C and ~100 °C, respectively, on differential scanning calorimetry (DSC) (Figure S12).
Homo-PS could be separated from the block copolymers by extraction with an acetone/chloroform mixed solvent. The extracted homo-PS was ~1/3 (27–29%) of the amount of the total consumed styrene, from which we hypothesized that the PS chains were grown from both polyolefinyl and pentylallyl groups in the zincate species [(polyolefinyl)2(pentylallyl)Zn]−[Li⋅(PMDTA)]+ formed by the action of pentylallyl-Li⋅(PMDTA) onto (polyolefinyl)2Zn; PS chain growth from polyolefinyl groups results in the generation of the desired poly(ethylene-co-propylene)-block-PS, while that from pentylallyl generates homo-PS in 1/3 of the total consumed styrene. However, the number of the PS chain-growing sites calculated by dividing the weights of the total consumed styrene by the measured homo-PS Mn values, did not match the value of “3 × Zn (μmol)”, opposing the hypothesis. Conversely, that number agreed with the value of “2 × Zn (μmol)” (310 and 360 μmol vs. 2 × 150 = 300 μmol for entries 4 and 5; 630 μmol vs. 2 × 300 = 600 μmol for entry 7). Thus, we hypothesized that the PS chains were grown mainly from polyolefinyl groups in the formed zincate species [(polyolefinyl)2(pentylallyl)Zn]−[Li⋅(PMDTA)]+ (Scheme 4); we attributed the extracted homo-PS to the PS chains grown either from the 1-hexyl group, which may remain intact during CCTP or from the polyolefinyl groups, which are grown shortly in CCTP. When the feed amount of Zn species was high (300 μmol) and the feed amount of styrene monomers was too low (5.0 g) (entry 6), the number of PS chain-growing sites did not exceed the value of “2 × Zn (μmol)” (450 μmol vs. 2 × 300 = 600 μmol), which indicated that the PS chains were not grown from all the polyolefinyl-Zn groups. The molecular weight distributions of the extracted homo-PS were fairly narrow (Mw/Mn 1.23–1.25), indicating that the anionic styrene polymerization was well-controlled.
PhLi⋅(PMDTA) was as effective an initiator as pentylallyl-Li⋅(PMDTA) for growing PS chains from (polyolefinyl)2Zn. Increases of the Mn values after the styrene polymerization were substantial (ΔMn 12, 38, 10, 21 kDa, entries 8–11; Figure S11), and the molecular weight distributions were significantly narrowed after the styrene polymerization, with the Mw/Mn values going from 1.65, 1.63, 1.58, and 1.64 to 1.49, 1.29, 1.41, and 1.34, respectively. However, the amounts of the extracted homo-PSs were slightly higher (30–34% vs. 27–29%) and the molecular weight distributions of the extracted homo-PSs were broader than those in the case of pentylallyl-Li⋅(PMDTA) (Mw/Mn 1.38–1.52 vs. 1.23–1.25), indicating that pentylallyl-Li⋅(PMDTA) might be a better initiator than PhLi⋅(PMDTA) in growing PS chains from (polyolefinyl)2Zn. Previously, we introduced n-BuLi⋅(TMEDA) and Me3SiCH2Li⋅(PMDTA) as initiators for growing PS chains from the CCTP product (polyolefinyl)2Zn, mainly based on the model studies performed with R2Zn (R = Et, 1-hexyl, benzyl) [32,33]. Though significant performance differences could not be observed among pentylallyl-Li⋅(PMDTA), PhLi⋅(PMDTA), n-BuLi⋅(TMEDA), and Me3SiCH2Li⋅(PMDTA) in the model studies performed with (1-hexyl)2Zn (Table 2), the studies performed with actual (polyolefinyl)2Zn indicated that pentylallyl-Li⋅(PMDTA) and PhLi⋅(PMDTA) were superior to the previous initiators. When n-BuLi⋅(PMDTA) was used, a substantial amount of homo-PS was generated (45%, entry 12). When Me3SiCH2Li⋅(PMDTA) was used, the increase in the Mn value after performing the styrene polymerization was not as substantial as that observed for pentylallyl-Li⋅(PMDTA) or PhLi⋅(PMDTA) (entry 13).

4. Conclusions

Developing a versatile synthetic tool for polyolefin-base block copolymers, we unsuccessfully attempted to convert the CCTP product (polyolefinyl)2Zn to polyolefinyl-Li though 1-octyl-Li was efficiently synthesized from (1-octyl)2Zn (a model compound of (polyolefinyl)2Zn). However, an efficient initiator to grow PS chains from (polyolefinyl)2Zn was eventually found. Pentylallyl-Li⋅(PMDTA) (generated in a pot containing n-BuLi and PMDTA in 1-octene) and styrene monomers were added to a reactor containing (polyolefinyl)2Zn generated via CCTcoP, affording the desired poly(ethylene-co-propylene)-block-PSs. The Mn values increased substantially after the styrene polymerization, and the increments (i.e., ΔMn values) were reasonable. By feeding twice the amount of styrene, the increments doubled and, by feeding twice the amount of Zn species in CCTcoP, and accordingly, twice the amount of lithium species in styrene polymerization, the increments were reduced by half. Homo-PS was concomitantly generated at 27–29% the amount of the total consumed styrene. The numbers of PS chain-growing sites were calculated by dividing the weights of the total consumed styrene with the measured homo-PS Mn values, which roughly agreed with the value of “2 × Zn (μmol)”, indicating the growth of PS chains mainly from polyolefinyl groups in zincate species [(polyolefinyl)2(pentylallyl)Zn]−[Li⋅(PMDTA)]+ formed by the action of pentylallyl-Li⋅(PMDTA) onto (polyolefinyl)2Zn. Pentylallyl-Li⋅(PMDTA) was superior to n-BuLi⋅(PMDTA) and Me3SiCH2Li⋅(PMDTA)—previously introduced as initiators to grow PS chains from (polyolefinyl)2Zn. Thus, pentylallyl-Li⋅(PMDTA) may be useful in the production of the commercially relevant PS-block-PO-block-PS copolymer [33,34,52].

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/12/3/537/s1, Figure S1: 13C spectrum of 1-octyllithium prepared from (1-octyl)2Zn in C6D6, Figure S2: 1H and 13C NMR spectra of 2-ethylhexyllithium prepared from (2-ethylhexyl)2Zn in C6D6, Figure S3: GPC curve after styrene polymerization performed with no addition of PMDTA (Entry 1 in Table 1), Figure S4: GPC curves before and after styrene polymerization, Figure S5: 1H NMR spectrum (C6D6) of the lithium species generated in the pot of “1-octene + n-BuLi + PMDTA” in methylcyclohexane, Figure S6: 1H NMR spectrum (C6D6) of the species generated by quenching the reaction pot of “1-octene + n-BuLi + PMDTA” in methylcyclohexane with H2O or D2O, Figure S6: 1H NMR spectrum (C6D6) of the species generated by quenching the reaction pot of “1-octene + n-BuLi + PMDTA” in methylcyclohexane with H2O or D2O, Figure S8: 1H spectrum of “sec-BuLi + PMDTA” in C6D12 (30 min), Figure S9: 1H spectrum of C6D5Li × (PMDTA) prepared in the reaction pot of “n-BuLi + PMDTA” in C6D6, Figure S10: 1H spectrum (C6D6) of the lithium species in the pot of “n-BuLi + PMDTA” in 1-octene, Figure S11: GPC curves before and after styrene polymerization, Figure S12: DSC thermogram of PO-block-PS (Entry 5 in Table 3).

Author Contributions

Conceptualization and design of experiments, B.Y.L. and P.C.L.; coordinative chain transfer polymerization, T.J.K., J.W.B., and H.J.L.; styrene polymerizations, S.H.M. and S.M.B.; NMR studies, K.L.P. and J.C.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Korea CCS R&D Center (KCRC), grant number 2012-0008935, and by the Priority Research Centers Program, grant number 2019R1A6A1A11051471 funded by the National Research Foundation of Korea (NRF).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Bates, C.M.; Bates, F.S. 50th Anniversary Perspective: Block Polymers—Pure Potential. Macromolecules 2017, 50, 3–22. [Google Scholar] [CrossRef]
  2. Guo, X.; Choi, B.; Feng, A.; Thang, S.H. Polymer Synthesis with More Than One Form of Living Polymerization Method. Macromol. Rapid Commun. 2018, 39. [Google Scholar] [CrossRef]
  3. Polymeropoulos, G.; Zapsas, G.; Ntetsikas, K.; Bilalis, P.; Gnanou, Y.; Hadjichristidis, N. 50th Anniversary Perspective: Polymers with Complex Architectures. Macromolecules 2017, 50, 1253–1290. [Google Scholar] [CrossRef]
  4. Kermagoret, A.; Debuigne, A.; Jérôme, C.; Detrembleur, C. Precision design of ethylene- and polar-monomer-based copolymers by organometallic-mediated radical polymerization. Nat. Chem. 2014, 6, 179–187. [Google Scholar] [CrossRef] [PubMed]
  5. Dommanget, C.; D’Agosto, F.; Monteil, V. Polymerization of Ethylene through Reversible Addition–Fragmentation Chain Transfer (RAFT). Angew. Chem. Int. Ed. 2014, 53, 6683–6686. [Google Scholar] [CrossRef] [PubMed]
  6. Wolpers, A.; Bergerbit, C.; Ebeling, B.; D’Agosto, F.; Monteil, V. Aromatic Xanthates and Dithiocarbamates for the Polymerization of Ethylene through Reversible Addition–Fragmentation Chain Transfer (RAFT). Angew. Chem. Int. Ed. 2019, 58, 14295–14302. [Google Scholar] [CrossRef] [PubMed]
  7. Goring, P.D.; Morton, C.; Scott, P. End-functional polyolefins for block copolymer synthesis. Dalton Trans. 2019, 48, 3521–3530. [Google Scholar] [CrossRef] [PubMed]
  8. Dong, J.Y.; Chung, T.C. Synthesis of Polyethylene Containing a Terminal p-Methylstyrene Group:  Metallocene-Mediated Ethylene Polymerization with a Consecutive Chain Transfer Reaction to p-Methylstyrene and Hydrogen. Macromolecules 2002, 35, 1622–1631. [Google Scholar] [CrossRef]
  9. Chung, T.C.; Dong, J.Y. A Novel Consecutive Chain Transfer Reaction to p-Methylstyrene and Hydrogen during Metallocene-Mediated Olefin Polymerization. J. Am. Chem. Soc. 2001, 123, 4871–4876. [Google Scholar] [CrossRef]
  10. Yan, T.; Walsh, D.J.; Qiu, C.; Guironnet, D. One-Pot Synthesis of Block Copolymers Containing a Polyolefin Block. Macromolecules 2018, 51, 10167–10173. [Google Scholar] [CrossRef]
  11. Kay, C.J.; Goring, P.D.; Burnett, C.A.; Hornby, B.; Lewtas, K.; Morris, S.; Morton, C.; McNally, T.; Theaker, G.W.; Waterson, C.; et al. Polyolefin–Polar Block Copolymers from Versatile New Macromonomers. J. Am. Chem. Soc. 2018, 140, 13921–13934. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Jeon, C.; Kim, D.W.; Chang, S.; Kim, J.G.; Seo, M. Synthesis of Polypropylene via Catalytic Deoxygenation of Poly (methyl acrylate). ACS Macro Lett. 2019, 8, 1172–1178. [Google Scholar] [CrossRef]
  13. Kayser, F.; Fleury, G.; Thongkham, S.; Navarro, C.; Martin-Vaca, B.; Bourissou, D. Microphase Separation of Polybutyrolactone-Based Block Copolymers with Sub-20 nm Domains. Macromolecules 2018, 51, 6534–6541. [Google Scholar] [CrossRef]
  14. Walsh, D.J.; Su, E.; Guironnet, D. Catalytic synthesis of functionalized (polar and non-polar) polyolefin block copolymers. Chem. Sci. 2018, 9, 4703–4707. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Chapman, R.; Melodia, D.; Qu, J.-B.; Stenzel, M.H. Controlled poly (olefin)s via decarboxylation of poly(acrylic acid). Polym. Chem. 2017, 8, 6636–6643. [Google Scholar] [CrossRef]
  16. Higaki, Y.; Suzuki, K.; Kiyoshima, Y.; Toda, T.; Nishiura, M.; Ohta, N.; Masunaga, H.; Hou, Z.; Takahara, A. Molecular Aggregation States and Physical Properties of Syndiotactic Polystyrene/Hydrogenated Polyisoprene Multiblock Copolymers with Crystalline Hard Domain. Macromolecules 2017, 50, 6184–6191. [Google Scholar] [CrossRef]
  17. Hotta, A.; Cochran, E.; Ruokolainen, J.; Khanna, V.; Fredrickson, G.H.; Kramer, E.J.; Shin, Y.-W.; Shimizu, F.; Cherian, A.E.; Hustad, P.D.; et al. Semicrystalline thermoplastic elastomeric polyolefins: Advances through catalyst development and macromolecular design. Proc. Natl. Acad. Sci. USA 2006, 103, 15327–15332. [Google Scholar] [CrossRef] [Green Version]
  18. Eagan, J.M.; Xu, J.; Di Girolamo, R.; Thurber, C.M.; Macosko, C.W.; La Pointe, A.M.; Bates, F.S.; Coates, G.W. Combining polyethylene and polypropylene: Enhanced performance with PE/iPP multiblock polymers. Science 2017, 355, 814–816. [Google Scholar] [CrossRef] [Green Version]
  19. Song, X.; Cao, L.; Tanaka, R.; Shiono, T.; Cai, Z. Optically Transparent Functional Polyolefin Elastomer with Excellent Mechanical and Thermal Properties. ACS Macro Lett. 2019, 8, 299–303. [Google Scholar] [CrossRef]
  20. Valente, A.; Mortreux, A.; Visseaux, M.; Zinck, P. Coordinative chain transfer polymerization. Chem. Rev. 2013, 113, 3836–3857. [Google Scholar] [CrossRef]
  21. van Meurs, M.; Britovsek, G.J.P.; Gibson, V.C.; Cohen, S.A. Polyethylene Chain Growth on Zinc Catalyzed by Olefin Polymerization Catalysts:  A Comparative Investigation of Highly Active Catalyst Systems across the Transition Series. J. Am. Chem. Soc. 2005, 127, 9913–9923. [Google Scholar] [CrossRef] [PubMed]
  22. Arriola, D.J.; Carnahan, E.M.; Hustad, P.D.; Kuhlman, R.L.; Wenzel, T.T. Catalytic production of olefin block copolymers via chain shuttling polymerization. Science 2006, 312, 714–719. [Google Scholar] [CrossRef] [PubMed]
  23. Hustad, P.O.; Kuhlman, R.L.; Arriola, D.J.; Carnahan, E.M.; Wenzel, T.T. Continuous production of ethylene-based diblock copolymers using coordinative chain transfer polymerization. Macromolecules 2007, 40, 7061–7064. [Google Scholar] [CrossRef]
  24. Saeb, M.R.; Mohammadi, Y.; Kermaniyan, T.S.; Zinck, P.; Stadler, F.J. Unspoken aspects of chain shuttling reactions: Patterning the molecular landscape of olefin multi-block copolymers. Polymer 2017, 116, 55–75. [Google Scholar] [CrossRef] [Green Version]
  25. Vittoria, A.; Busico, V.; Cannavacciuolo, F.D.; Cipullo, R. Molecular Kinetic Study of “Chain Shuttling” Olefin Copolymerization. ACS Catal. 2018, 8, 5051–5061. [Google Scholar] [CrossRef]
  26. Kim, S.D.; Kim, T.J.; Kwon, S.J.; Kim, T.H.; Baek, J.W.; Park, H.S.; Lee, H.J.; Lee, B.Y. Peroxide-Mediated Alkyl–Alkyl Coupling of Dialkylzinc: A Useful Tool for Synthesis of ABA-Type Olefin Triblock Copolymers. Macromolecules 2018, 51, 4821–4828. [Google Scholar] [CrossRef]
  27. Chenal, T.; Visseaux, M. Combining Polyethylene CCG and Stereoregular Isoprene Polymerization: First Synthesis of Poly (ethylene)-b-(trans-isoprene) by Neodymium Catalyzed Sequenced Copolymerization. Macromolecules 2012, 45, 5718–5727. [Google Scholar] [CrossRef]
  28. Rutkowski, S.; Zych, A.; Przybysz, M.; Bouyahyi, M.; Sowinski, P.; Koevoets, R.; Haponiuk, J.; Graf, R.; Hansen, M.R.; Jasinska-Walc, L.; et al. Toward Polyethylene–Polyester Block and Graft Copolymers with Tunable Polarity. Macromolecules 2017, 50, 107–122. [Google Scholar] [CrossRef]
  29. Li, T.; Wang, W.J.; Liu, R.; Liang, W.H.; Zhao, G.F.; Li, Z.; Wu, Q.; Zhu, F.M. Double-Crystalline Polyethylene-b-poly (ethylene oxide) with a Linear Polyethylene Block: Synthesis and Confined Crystallization in Self-Assembled Structure Formed from Aqueous Solution. Macromolecules 2009, 42, 3804–3810. [Google Scholar] [CrossRef]
  30. Thomas, T.S.; Hwang, W.; Sita, L.R. End-Group-Functionalized Poly (α-olefinates) as Non-Polar Building Blocks: Self-Assembly of Sugar-Polyolefin Hybrid Conjugates. Angew. Chem. Int. Ed. 2016, 55, 4683–4687. [Google Scholar] [CrossRef]
  31. Ota, Y.; Murayama, T.; Nozaki, K. One-step catalytic asymmetric synthesis of all-syn deoxypropionate motif from propylene: Total synthesis of (2R,4R,6R,8R)-2, 4, 6, 8-tetramethyldecanoic acid. Proc. Natl. Acad. Sci. USA 2016, 113, 2857–2861. [Google Scholar] [CrossRef] [Green Version]
  32. Jeon, J.Y.; Park, S.H.; Kim, D.H.; Park, S.S.; Park, G.H.; Lee, B.Y. Synthesis of polyolefin-block-polystyrene through sequential coordination and anionic polymerizations. J. Polym. Sci. Part A Polym. Chem. 2016, 54, 3110–3118. [Google Scholar] [CrossRef]
  33. Park, S.S.; Kim, C.S.; Kim, S.D.; Kwon, S.J.; Lee, H.M.; Kim, T.H.; Jeon, J.Y.; Lee, B.Y. Biaxial Chain Growth of Polyolefin and Polystyrene from 1, 6-Hexanediylzinc Species for Triblock Copolymers. Macromolecules 2017, 50, 6606–6616. [Google Scholar] [CrossRef]
  34. Kim, C.S.; Park, S.S.; Kim, S.D.; Kwon, S.J.; Baek, J.W.; Lee, B.Y. Polystyrene chain growth from di-end-functional polyolefins for polystyrene-polyolefin-polystyrene block copolymers. Polymers 2017, 9, 481. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Kim, D.H.; Park, S.S.; Park, S.H.; Jeon, J.Y.; Kim, H.B.; Lee, B.Y. Preparation of polystyrene-polyolefin multiblock copolymers by sequential coordination and anionic polymerization. RSC Adv. 2017, 7, 5948–5956. [Google Scholar] [CrossRef] [Green Version]
  36. Keyes, A.; Basbug  Alhan, H.E.; Ordonez, E.; Ha, U.; Beezer, D.B.; Dau, H.; Liu, Y.-S.; Tsogtgerel, E.; Jones, G.R.; Harth, E. Olefins and Vinyl Polar Monomers: Bridging the Gap for Next Generation Materials. Angew. Chem. Int. Ed. 2019, 58, 12370–12391. [Google Scholar] [CrossRef]
  37. Tan, C.; Chen, C. Emerging Palladium and Nickel Catalysts for Copolymerization of Olefins with Polar Monomers. Angew. Chem. Int. Ed. 2019, 58, 7192–7200. [Google Scholar] [CrossRef]
  38. Zou, C.; Chen, C. Polar-Functionalized, Crosslinkable, Self-Healing, and Photoresponsive Polyolefins. Angew. Chem. Int. Ed. 2020, 59, 395–402. [Google Scholar] [CrossRef] [Green Version]
  39. Georges, S.; Hashmi, O.H.; Bria, M.; Zinck, P.; Champouret, Y.; Visseaux, M. Efficient One-Pot Synthesis of End-Functionalized trans-Stereoregular Polydiene Macromonomers. Macromolecules 2019, 52, 1210–1219. [Google Scholar] [CrossRef]
  40. Finnegan, R.A.; Kutta, H.W. Organometallic Chemistry. XII.1 The Thermal Decomposition of n-Butyllithium, a Kinetic Study2, 3. J. Org. Chem. 1965, 30, 4138–4144. [Google Scholar] [CrossRef]
  41. Boussie, T.R.; Diamond, G.M.; Goh, C.; Hall, K.A.; LaPointe, A.M.; Leclerc, M.K.; Murphy, V.; Shoemaker, J.A.W.; Turner, H.; Rosen, R.K.; et al. Nonconventional Catalysts for Isotactic Propene Polymerization in Solution Developed by Using High-Throughput-Screening Technologies. Angew. Chem. Int. Ed. 2006, 45, 3278–3283. [Google Scholar] [CrossRef] [PubMed]
  42. Kwon, S.J.; Baek, J.W.; Lee, H.J.; Kim, T.J.; Ryu, J.Y.; Lee, J.; Shin, E.J.; Lee, K.S.; Lee, B.Y. Preparation of Pincer Hafnium Complexes for Olefin Polymerization. Molecules 2019, 24, 1676. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Baek, J.W.; Kwon, S.J.; Lee, H.J.; Kim, T.J.; Ryu, J.Y.; Lee, J.; Shin, E.J.; Lee, K.S.; Lee, B.Y. Preparation of half- and post-metallocene hafnium complexes with tetrahydroquinoline and tetrahydrophenanthroline frameworks for olefin polymerization. Polymers 2019, 11, 1093. [Google Scholar] [CrossRef] [Green Version]
  44. Rocchigiani, L.; Busico, V.; Pastore, A.; Macchioni, A. Comparative NMR Study on the Reactions of Hf(IV) Organometallic Complexes with Al/Zn Alkyls. Organometallics 2016, 35, 1241–1250. [Google Scholar] [CrossRef] [Green Version]
  45. De Rosa, C.; Di Girolamo, R.; Talarico, G. Expanding the Origin of Stereocontrol in Propene Polymerization Catalysis. ACS Catal. 2016, 6, 3767–3770. [Google Scholar] [CrossRef]
  46. Domski, G.J.; Eagan, J.M.; De Rosa, C.; Di Girolamo, R.; LaPointe, A.M.; Lobkovsky, E.B.; Talarico, G.; Coates, G.W. Combined Experimental and Theoretical Approach for Living and Isoselective Propylene Polymerization. ACS Catal. 2017, 7, 6930–6937. [Google Scholar] [CrossRef] [Green Version]
  47. Frazier, K.A.; Froese, R.D.; He, Y.; Klosin, J.; Theriault, C.N.; Vosejpka, P.C.; Zhou, Z.; Abboud, K.A. Pyridylamido hafnium and zirconium complexes: Synthesis, dynamic behavior, and ethylene/1-octene and propylene polymerization reactions. Organometallics 2011, 30, 3318–3329. [Google Scholar] [CrossRef]
  48. Cueny, E.S.; Landis, C.R. Zinc-Mediated Chain Transfer from Hafnium to Aluminum in the Hafnium-Pyridyl Amido-Catalyzed Polymerization of 1-Octene Revealed by Job Plot Analysis. Organometallics 2019, 38, 926–932. [Google Scholar] [CrossRef] [Green Version]
  49. Lee, H.J.; Baek, J.W.; Kim, T.J.; Park, H.S.; Moon, S.H.; Park, K.L.; Bae, S.M.; Park, J.; Lee, B.Y. Synthesis of Long-Chain Branched Polyolefins by Coordinative Chain Transfer Polymerization. Macromolecules 2019, 52, 9311–9320. [Google Scholar] [CrossRef]
  50. Strohmann, C.; Gessner, V.H. From the Alkyllithium Aggregate [{(nBuLi)2⋅PMDTA}2] to Lithiated PMDTA. Angew. Chem. Int. Ed. 2007, 46, 4566–4569. [Google Scholar] [CrossRef]
  51. Wang, Y.; Liu, J.; Huang, L.; Zhu, R.; Huang, X.; Moir, R.; Huang, J. KOtBu-Catalyzed lithiation of PMDTA and the direct functionalization of bridged alkenes under mild conditions. Chem. Commun. 2017, 53, 4589–4592. [Google Scholar] [CrossRef] [PubMed]
  52. Luitjes, H.; Schakel, M.; Aarnts, M.P.; Schmitz, R.F.; de Kanter, F.J.J.; Klumpp, G.W. Reactions of the Butyllithiums with Tertiary Oligoethylenepolyamines. Tetrahedron 1997, 53, 9977–9988. [Google Scholar] [CrossRef]
Polymers 12 00537 sch001 550

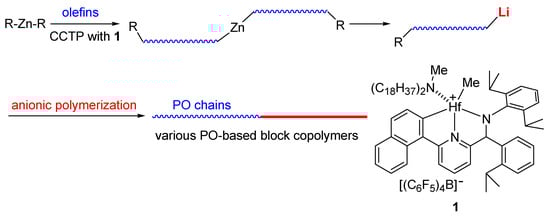

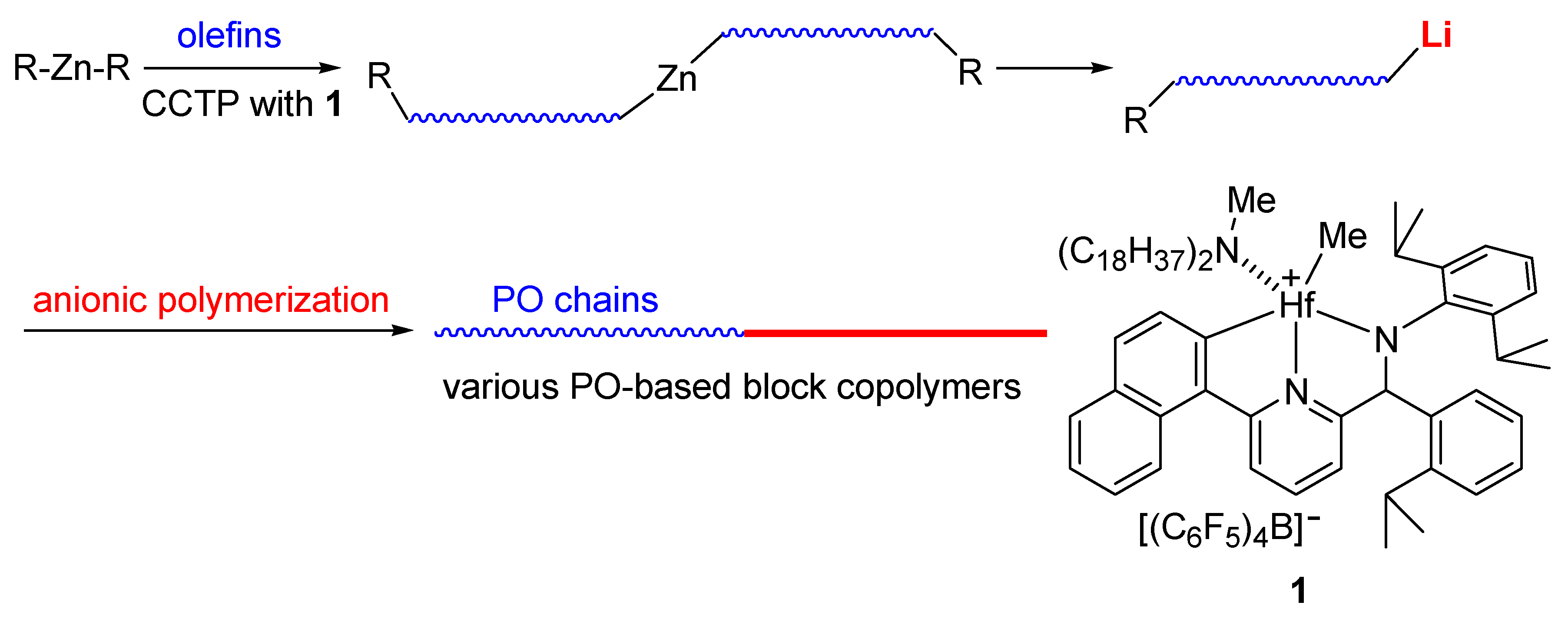

Scheme 1. Synthetic scheme for various polyolefin-based block copolymers.
Scheme 1. Synthetic scheme for various polyolefin-based block copolymers.
Polymers 12 00537 sch001
Polymers 12 00537 sch002 550

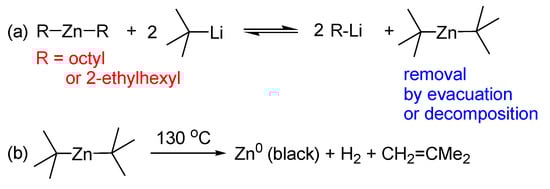

Scheme 2. Converting R2Zn to RLi.
Scheme 2. Converting R2Zn to RLi.
Polymers 12 00537 sch002
Polymers 12 00537 g001 550

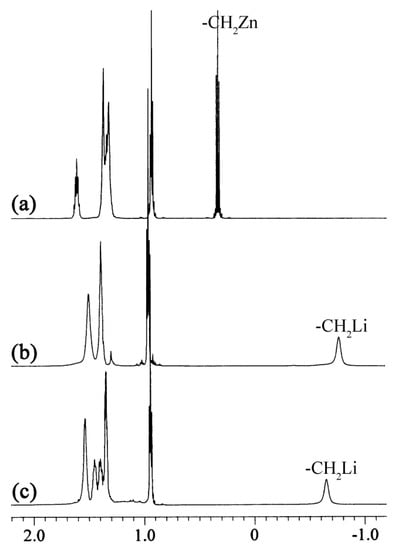

Figure 1. 1H NMR spectra of: (a) (1-Octyl)2Zn; (b) Commercial source of 1-hexyllithium; (c) 1-Octyllithium generated from (1-octyl)2Zn.
Figure 1. 1H NMR spectra of: (a) (1-Octyl)2Zn; (b) Commercial source of 1-hexyllithium; (c) 1-Octyllithium generated from (1-octyl)2Zn.
Polymers 12 00537 g001
Polymers 12 00537 sch003 550

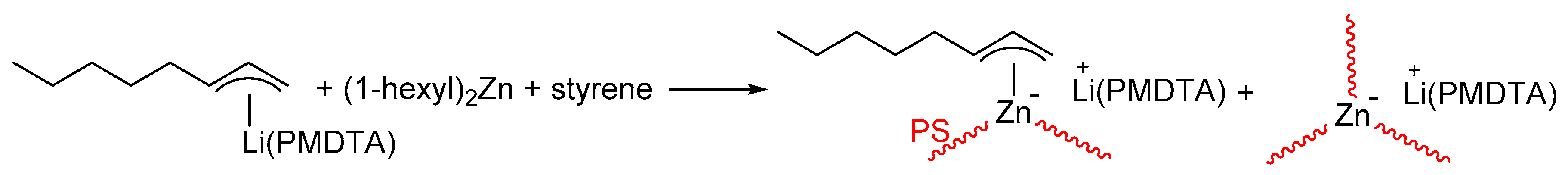

Scheme 3. PS chain-growth process from dialkylzinc.
Scheme 3. PS chain-growth process from dialkylzinc.
Polymers 12 00537 sch003
Polymers 12 00537 g002 550

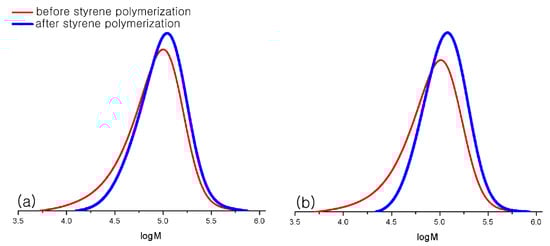

Figure 2. GPC curves of the polymers before and after styrene polymerization: (a) entry 4; (b) entry 5 in Table 2.

Figure 2. GPC curves of the polymers before and after styrene polymerization: (a) entry 4; (b) entry 5 in Table 2.
Polymers 12 00537 g002
Polymers 12 00537 sch004 550
Scheme 4. Synthetic scheme for PO-block-PS.
Scheme 4. Synthetic scheme for PO-block-PS.
Polymers 12 00537 sch004
Table
Table 1. Results for preparation of poly(ethylene-co-propylene)-b-PS a.
Table 1. Results for preparation of poly(ethylene-co-propylene)-b-PS a.
Entry(1-hexyl)2Zn
(μmol)		t-BuLi
(μmol)		PO (g); FC3 (mol%) bPS (g); Homo Fraction (%)Mn (kDa); PDI before Styrene Polym cMn (kDa); PDI after Styrene Polym c
1 d10025013.1; 23.45.0; -64.6 (2.10)61.3 (2.30)
210025011.4; 20.55.0; 21108 (1.48)121 (1.48)
310025012.5; 22.610; 2792 (1.62)111 (1.54)
420045012.9; 22.45.0; 2851 (1.66)75 (1.33)
520045015.2; 22.810; 3048 (1.74)89 (1.28)
a Polymerization conditions: methylcyclohexane (26 g), catalyst (2.0 μmol), and MMAO (modified-methylaluminoxane) as a scavenger (50 μmol-Al) for coordinative chain transfer polymerization (CCTP) and then t-BuLi and styrene (5 or 10 g) in methylcyclohexane (15 g) and pentamethyldiethylenetriamine (PMDTA) ([PMDTA] = [Li]) for anionic polymerization. b Propylene content in poly(ethylene-co-propylene) block was calculated from 1H NMR spectra. c Measured with gel permeation chromatography (GPC) at 160 °C using trichlorobenzene relative to polystyrene (PS) standards. d Styrene polymerization was performed in the absence of PMDTA.
Table
Table 2. Results of anionic styrene polymerization in the presence of (1-hexyl)2Zn (100 μmol) a.
Table 2. Results of anionic styrene polymerization in the presence of (1-hexyl)2Zn (100 μmol) a.
EntryInitiatorLi (μmol)yield (g; %)Mn (Da) bMw/Mn# of PS chains (μmol) c
11-octene + n-BuLi + PMDTA in MeCy504.69; 9422,9001.45205
21-octene + n-BuLi + PMDTA in MeCy704.62; 9222,8001.39203
31-octene + n-BuLi + PMDTA in MeCy1004.82; 9623,8001.35203
4Me2NCH2CH2N(Me)CH2CH2N(Me)CH2Li1004.75; 9519,7001.25240
5Me2NCH2CH2N(Me)Li1001.14; 2374002.10154
6Me2NCH2CH2N(Me)Li·(PMDTA)504.56; 9121,0001.32217
7Me2NCH2CH2N(Me)Li·(PMDTA)704.63; 9322,3001.33208
8Me2NCH2CH2N(Me)Li·(PMDTA)1004.67; 9324,0001.27195
9pentylallyl-Li⋅(PMDTA)505.00; 10021,5001.28233
10pentylallyl-Li⋅(PMDTA)705.00; 10020,8001.24240
11pentylallyl-Li⋅(PMDTA)1005.00; 10019,4001.30258
12PhLi⋅(PMDTA)505.00;10022,0001.30227
13PhLi⋅(PMDTA)704.98; 9921,1001.27236
14PhLi⋅(PMDTA)1004.98; 9921,0001.24237
15n-BuLi⋅(PMDTA)1004.96; 9921,0001.48236
16Me3SiCH2Li⋅(PMDTA)1005.00; 10023,0001.25217
a Polymerization conditions: (1-hexyl)2Zn (22.6 mg, 100 μmol), methylcyclohexane (27 g), styrene (5.0 g, 48 mmol), 90 °C, 5 h. b Measured by GPC at 40 °C using toluene eluent. c Calculated as yield (g)/Mn.
Table
Table 3. Results for preparation of poly(ethylene-co-propylene)-b-PS a.
Table 3. Results for preparation of poly(ethylene-co-propylene)-b-PS a.
Entry(hexyl)2Zn
(μmol)		InitiatorPO (g); FC3 (mol%) bPS (g); Homo Fraction (%)Homo-PS Mn (kDa); PDIMn (kDa); PDI before Styrene Polym cMn (kDa); PDI after Styrene Polymc
11501-octene + n-BuLi + PMDTA in MeCy15.6; 225.0; 2924 (1.41)61 (1.75)66 (1.64)
2150Me2NCH2CH2N(Me)CH2CH2N(Me)CH2Li12.4; 21 ~0 060 (1.65)59 (1.65)
3150Me2NCH2CH2N(Me)Li·(PMDTA)15.9; 233.5; 3039 (2.77)60 (1.76)64 (1.70)
4150pentylallyl-Li⋅(PMDTA)13.1; 175.0; 2916 (1.25)60 (1.61)82 (1.39)
5150pentylallyl-Li⋅(PMDTA)13.5; 2110; 2827 (1.24)62 (1.61)99 (1.30)
6300pentylallyl-Li⋅(PMDTA)14.2; 225.0; 2711 (1.23)40 (1.50)51 (1.35)
7300pentylallyl-Li⋅(PMDTA)13.0; 1910; 2816 (1.24)35 (1.54)54 (1.26)
8150PhLi⋅(PMDTA)15.2; 245.0; 3020 (1.52)64 (1.65)76 (1.49)
9150PhLi⋅(PMDTA)13.0; 1710; 3428 (1.39)67 (1.63)105 (1.29)
10300PhLi⋅(PMDTA)12.0; 225.0; 3011 (1.40)33 (1.58)43 (1.41)
11300PhLi⋅(PMDTA)14.8; 2310; 3316 (1.38)38 (1.64)59 (1.34)
12150n-BuLi⋅(PMDTA)14.6; 245.0; 4523 (1.33)63 (1.73)71 (1.65)
13150Me3SiCH2Li⋅(PMDTA)16.0; 215.0; 2719 (1.35)71 (1.59)76 (1.49)
a Polymerization conditions: methylcyclohexane (26 g), catalyst (2.0 μmol), and MMAO (50 μmol-Al) as a scavenger for CCTP and then lithium compound ([Li] = [Zn] + [Al]) and styrene (5.0 g or 10 g) in methylcyclohexane (15 g) for anionic polymerization. b Propylene content in poly(ethylene-co-propylene) block was calculated from 1H NMR spectra. c Measured by GPC at 160 °C using trichlorobenzene relative to PS standards.
