Antimicrobial Activities of Starch-Based Biopolymers and Biocomposites Incorporated with Plant Essential Oils: A Review

Laboratory of Biocomposite Technology, Institute of Tropical Forestry and Forest Products (INTROP), Universiti Putra Malaysia, UPM Serdang, Selangor 43400, Malaysia
Advanced Engineering Materials and Composites Research Centre (AEMC), Department of Mechanical and Manufacturing Engineering, Universiti Putra Malaysia, UPM Serdang, Selangor 43400, Malaysia
Author to whom correspondence should be addressed.
Polymers 2020, 12(10), 2403;
Submission received: 7 August 2020 / Revised: 19 September 2020 / Accepted: 24 September 2020 / Published: 19 October 2020
(This article belongs to the Special Issue Biopolymers for Medicinal, Macromolecules, and Food Applications)


Recently, many scientists and polymer engineers have been working on eco-friendly materials for starch-based food packaging purposes, which are based on biopolymers, due to the health and environmental issues caused by the non-biodegradable food packaging. However, to maintain food freshness and quality, it is necessary to choose the correct materials and packaging technologies. On the other hand, the starch-based film’s biggest flaws are high permeability to water vapor transfer and the ease of spoilage by bacteria and fungi. One of the several possibilities that are being extensively studied is the incorporation of essential oils (EOs) into the packaging material. The EOs used in food packaging films actively prevent inhibition of bacteria and fungi and have a positive effect on food storage. This work intended to present their mechanical and barrier properties, as well as the antimicrobial activity of anti-microbacterial agent reinforced starch composites for extending product shelf life. A better inhibition of zone of antimicrobial activity was observed with higher content of essential oil. Besides that, the mechanical properties of starch-based polymer was slightly decreased for tensile strength as the increasing of essential oil while elongation at break was increased. The increasing of essential oil would cause the reduction of the cohesion forces of polymer chain, creating heterogeneous matrix and subsequently lowering the tensile strength and increasing the elongation (E%) of the films. The present review demonstrated that the use of essential oil represents an interesting alternative for the production of active packaging and for the development of eco-friendly technologies.

Graphical Abstract

1. Introduction

Food packaging can prevent food damage [1,2,3,4,5,6]. It is essential to select the proper materials and packaging techniques to retain food quality and freshness [7,8,9]. Edible film packaging is new and environmentally friendly food preservation technique compared to conventional packaging. The biodegradable film retains food quality and is environmentally friendly [7,8,9,10,11,12,13]. Although several kinds of new polymers such as (polylactic acid (PLA), polyhydroxyalkanoates (PHA), polycaprolactone (PCL), and poly(ethylene adipate) (PEA) are industrially produced, agricultural based polymers are the most investigated by researchers, mainly polysaccharides [14,15,16,17,18,19,20,21,22,23,24]. Numerous researchers reported that reinforcement of essential oil into starch based packaging can increase their stability and retain their flavour and functional properties [25,26,27,28,29,30,31,32,33]. Figure 1 shows the trend of study on the starch biopolymer incorporated essential oils. It is possible to add essential oils (EOs) as additional materials to enhance the antimicrobial properties of the edible film. An edible film with antimicrobial characteristics has potential to prevent contamination in food product [34]. The usage of small amounts of EOs can reduce cost while having higher mechanical properties to allow the film to maintain its structure for a long time. The incorporation of antimicrobial agents into starch based films provide benefits, such as low antimicrobial concentrations and low diffusion speed. Antimicrobial activity was observed to be more active against the bacteria tested than the control film to extend product shelf life [35]. Antimicrobial packaging is among the best practices aimed at increasing food shelf life by inhibiting microbial growth. EO components (EOCs) extracted from aromatic plants have a broad spectrum of antimicrobials (bacteria, fungi, and yeast) and have proven their efficiency as antimicrobial additives in food packaging materials [36,37,38]. One of the drawbacks of using EOCs in food packaging is their strong odour that can change fresh3 food’s organoleptic properties. The techniques used in the recycling program were unable to cater for excessive amount of non-degradable waste accumulated due to different challenges and the funds required during recycling [22,28].
Starch-based polymers have real potential as feedstock to manufacture bio-plastic film on a large scale [39]. Starch-based edible film has similar mechanical properties and the transparent appearance with conventional plastic [40,41,42,43]. On the other hand, these polymers have poor physical properties, such as fragile structure, short-term stability, low mechanical strength, high gas permeability, low heat distortion temperature, low water barrier resistance, and low melting viscosity for subsequent processes [31]. Oliveira et al. [44] worked on the development and characterization of biopolymer films based on bocaiuva flour reinforced clove essential oil. The addition of the essential oil increased the elongation at break, indicating it acted as plasticizer, which has higher value of water vapor permeability (WVP) [44]. Thus, this review paper highlighted the antimicrobial effect of starch-based biopolymer incorporated with essential oil. Besides that, mechanical, thermal and barrier properties of the biopolymer were reviewed.

2. Starch-Based Polymer Film Incorporated with Antimicrobial Plant Essential Oils

2.1. Antimicrobial Properties of Starch-Based Polymer Film Incorporated with Antimicrobial Plant Essential Oils

As a current antibacterial agent, EO has a long history of use for antibacterial activity [45,46]. Table 1 shows the starch-based polymer film incorporated with antimicrobial plant EOs for food packaging applications. Currently, EO has increased its reputation as a harmless, natural, and active antibacterial. Many sectors such as pharmaceutical and cosmetic products have proposed to use it externally as the primary antimicrobial or as a natural preservative [47,48,49,50,51,52,53,54,55]. The tests of Escherichia coli cells or other microbes using an electron microscopy after having contact with EOs discovered a damage of cellular electron-dense material and coagulation of cytoplasmic parts. [45,56]. In addition, various types of antimicrobial EO additives and concentrates have been applied to the composite film to overcome microbial activity in the film. Improving these completely biodegradable packaging films is helpful in resolving the ongoing environmental issues and gradually replacing traditional packaging materials that are commonly used [57,58].
The best concentrations of EOs that are effective against different microorganisms depend on the type’s of EOs and biopolymers used as shown in Table 2. According to the study conducted by Helal et al. [59], the results showed that the EOs from Origanum vulgare showed the lowest minimum inhibitory concentration (MIC) of 0.025 mg/mL for Staphylococcus aureus and Streptococcus pyogenes if compared with Mentha cervina (0.05 mg/mL) and Ocimum basilicum (1.6 mg/mL). Besides that, the EOs from O. vulgare, Ocimum basilicum and Mentha cervina were the most active against all isolates, with the inhibitory zone ranges between 17 and 45 mm. Meanwhile, Mentha pulegium L. demonstrated moderate activity from 13 to 45 mm. This might be attributed to the presence of bioactive metabolites of various chemical types, such as 1-Terpineol (19.68%), L-Linalool (60.97%), and Pulegone (58.54%) of O. vulgare, O. basilicum and M. cervina, respectively.
There are large number of published studies describing the role of EOs as antimicrobial agents as shown in Table 2. Ferreira et al., [60] conducted a study on the evaluation of in vitro antimicrobial activity of six types of EOs against S. aureus, E. coli, and S. enterica. Among the six EOs studied, three EOs (sweet orange, rosemary, and cinnamon) did not show any significant differences between Gram-positive and Gram-negative bacteria, thus revealing a good spectrum of action (Table 1) [60]. The authors summarized that the Gram-negative bacteria (SE, EC) were less sensitive to the action of EOs when compared with Gram-positive bacteria (SA). This phenomenon might be attributed to the difficulty of the compounds to act on the complex structure of the cell wall of Gram-negative bacteria.
Song et al. [56] investigated the antimicrobial properties of biodegradable films process through injection of EOs into the starch films of different concentrations of lemon EOs (LO) and surfactants (Span 80, Tween 80). Active packaging corn/wheat (CW) starch-based biopolymer can be made by reinforcing it with lemon oil and surfactant. The result showed that LO and surfactant would affect the structure and antibacterial properties of biopolymer film. Besides that, emulsification was observed in CW-LO-T/S films, where the Tween 80 and Span 80 showed different effects on the films’ colour, solubility, and water vapor permeability. The most surprising aspect of the data was that, higher LO contents had larger inhibition zone and microporous holes.
Souza et al. [7] studied the impact of EOs of clove and cinnamon combined with cassava starch films to develop an active packaging. The result exhibited that all the films, containing different amounts of EOs, showed effective antimicrobial activity against fungi, Eurotium amstelodami and Penicillium commune in bread products. The minimum amount of oil used to inhibit 100% of the microorganisms were 2.0 g/100 g and 16.0 g/100 g for cinnamon and clove EOs, respectively. Figure 2 shows the inhibition of P. commune caused by active films produced by three different concentrations of cinnamon Eos, which are 0.88 mg/g, 1.08 mg/g, 1.19 mg/g. From Figure 2, it can be seen that no inhibition zone against the microorganisms was observed for the control film, as compared to the film disks incorporated with cinnamon EOs. A better inhibition was observed with higher content of cinnamon essential oil. Besides that, according to Souza et al. [7] in their research, they had concluded that the E. amstelodami was more sensitive to cinnamon EOs because its inhibition were greater, reaching approximately 91% of inhibition with the highest concentration used, compared to other microorganisms.
No microorganism inhibition zone for film disk without the inclusion of essential oil (control film) was found. E. Amstelodami became more susceptible to cinnamon EOs because its inhibition was stronger, achieving about 91% of the maximum concentration inhibition reported. Figure 2 shows the inhibition of P. commune from active films produced with three separate contents of cinnamon EOs [7].
Iamareerat et al. [57] studied the biodegradable starch-based films combined with cinnamon EOs and sodium bentonite clay nanoparticles based on their anti-bacterial potential to evaluate the life span of meatballs. The control films, exceeded the limit of 48 h as compared to meatballs, packed in cassava starch film integrated with cinnamon oil and nanoclay at ambient temperature that substantially inhibited microbial growth in foods up to 96 h below the Food and Drug Administration (FDA) limit (106 CFU/g). The highest acceptable amount of total plate count in meat is 106 CFU/g, as per the (FDA) report. Besides that, it is reported by Iamareerat et al. [57] that the meatballs packed in cassava starch film with cinnamon oil and sodium bentonite stayed under the highest permissible level until 96 h, whereas the control film exceeded the maximum permissible level within 48 h [36].
Silveira et al. [61] studied the development of active cassava starch incorporated with natural antimicrobial tea tree essential oil based on the physical, structural, and antimicrobial properties of the film. The antimicrobial activity of the tea tree oil at concentration of 0.08% was 77% to inhibit S. aureus while 65% to inhibit C. albicans. The result showed biological growth inhibition needed higher oil concentration or the isolated action of tea tree oil [61]. Tea tree oil contains terpinen-4-ol and 1,8-cineole as the evidence to inhibit S. aureus [61].
Utami et al. [62] reported a research on characteristics of edible film and quality of fresh beef for the effects of cinnamon bark essential oil. It was reported that the higher the concentration of essential oil, the larger area of inhibition zone. Cinnamon essential oil contains about 85% cinnamaldehyde, it can react with enzymes and proteins as well as the membrane phospholipid bilayer by penetrating the membrane of microorganisms, which causes disruption of microbial and enzyme systems or interferes with the function of genetic materials [62].

2.2. The Mechanisms of Action of EOs in Antimicrobial Activity

Several researchers have conducted comprehensive studies on the EOs antimicrobial properties as well as their compounds. Although the mechanism of action of EOs components has been well explained in numerous works in the past, extensive knowledge of most of the compounds and their mechanical properties is still lacking [63]. This knowledge is very important to determine the effect of EOs on different microorganisms, their mechanism in combination with other antimicrobial EOs, as well as their interaction with food matrix components. Chouhan et al. [64] performed a comprehensive review on the antimicrobial activity of selected EOs. They discussed different antimicrobial agents from different sources of EOs for microbial resistance purpose. They also discussed the mechanisms of action of different Eos, for instance, cinnamon. It targeted microorganisms such as E. coli and S. aureus and the mechanism of action was the disruption of cell membrane. Other possible mechanisms of actions included permeabilized membrane and cell wall damage [65].
Moreover, Saad et al. [66] reported that the antimicrobial activities of EOs such as antibacterial, antifungal and antiviral activities were extensively studied in the past but admitted that very limited works have been carried out on their mechanisms of action. Once the mechanism of action is determined, it helps in the selection of the ideal conditions of EOs during growth, harvest, and oil extraction [66]. The work of Li et al. [67] was concerned with developing EOs from the finger citron EOs (FCEOs), Citrus medica L. var. sarcodactylis. It was used as an antimicrobial against food-borne bacteria. Li et al. [67] further reported that the mechanisms of action were studied by the morphological change in bacteria using important techniques, such as scanning electron microscope (SEM), and time-kill analysis. The bacterial morphology tested had changed and was seriously damaged by the concentration and exposure time of FCEO. FCEO exhibited a significant reduction in bacterial growth rate and led to cell wall lysis, intracellular material leakage, and consequently, cell death.
Tao et al. [68] studied the effects of EOs from the leaves of Phyllostachys heterocycla cv. pubescens (bamboo) against food-borne pathogens, such as Gram-negative (E. coli), Gram-positive (Bacillus subtilis and Staphylococcus aureus), yeast (Saccharomyces cerevisiae), and bacteria. Different characterization of the EOs were performed. The mechanism of action of bamboo leaf EOs was described as a disruption to the pathogen’s membrane integrity.
To assess the resistance to microbial degradation of plastic materials, some of the standard methods [69] had been formed, such as:
  • IEC 68-2-10: Clear techniques for monitoring the environment
  • EN ISO 846: Plastics-appraisal of microorganisms’ action
  • ASTM G21-90: Standard practice for determining synthetic polymeric fabric’s resistance to fungi
  • ASTM G22-76: Standard practice for assessing immunity to bacteria in synthetic polymeric products.
There is a variety of test methods that can be applied. There is no standard method for determining antimicrobial polymer efficacy [70]. The method for inorganic antimicrobials, such as silver replaced zeolites was established. The goal was to define the plastic’s resistance to microbial growth, but it also helped to find if polymers were self-sterilizing.
Interest in natural antimicrobials is also driven by the fact that the requirements of international regulatory agencies for toxicological evaluation of novel direct food antimicrobials are generally very strict. Toxicological testing for new synthetic substances could take several years and millions of dollars to be explored by researchers around the world. A payback may be necessary for some kind of food additives like artificial sweeteners. It is less likely that it would be feasible to gain clearance for meat antimicrobials. An argument often used to justify natural antimicrobials is that they will produce “green” labels, like one in the list of ingredients with few or no “synthetic” additives. Although this reasoning might be valid, it should originate from natural sources, such as the following [71]:
  • Acetic acid from vinegar
  • Benzoic acid from cranberries, plums, prunes, cinnamon, cloves, and most berries
  • Lactic acid from lactic acid bacteria
  • Propionic acid from Swiss cheese (Propionibacterium freudenreichii ssp. Shermanii)
  • Sorbic acid from rowanberries
If an effective antimicrobial has been found from natural sources, it is more cost-effective than synthesizing it in the laboratory. This rationale also leads consumers to believe that food additives currently in use are highly toxic and should be averted [71].

2.3. Mechanical Properties of Anti-Microbacterial Agent Incorporated Starch Biopolymer

Various studies have assessed the efficacy of EOs with starch-based biopolymer, as shown in Table 3. The mechanical properties of starch reinforced by the anti-microbacterial agent were tested on tensile strength, Young’s modulus, and elongation at break. From Table 3, it can be observed that potato starch mix of 2% lavender EOs had the highest tensile strength for this study. Cassava starch added with cinnamon EOs resulted in the highest value of elongation at break. According to Table 3, the tensile strength recorded at 2% of lavender EOs was 62.8 ± 1.9 MPa, while elongation at break was 19.5% ± 2.6%.
To develop an effective packaging, Souza et al. [7] conducted a research on the impact of cinnamon and clove essential oils, combined with cassava starch films. The tensile strength (TS) and elongation at break (E) ranged from 2.32 ± 0.40 to 1.05 ± 0.16 MPa and from 264.03% ± 35.06% to 191.27% ± 22.62%, respectively. They were compared to the control film which presented higher TS of 3.96 ± 0.60 MPa and lower E of 123.61% ± 19.57%. Song et al. [56] had conducted a research on the molecular structure and mechanical properties (tensile strength (TS) and elongation at break (E)) of active packaging corn/wheat (CW) starch-based biopolymer reinforced with lemon oil and surfactant. The mechanical properties (tensile strength and elongation at break) of corn/wheat reinforced lemon EOs with Tween 80 and Span 80 were 11.16 ± 1.03 MPa and 11.50 ± 1.0 MPa, and 626.50% ± 0.39% and 32.20% ± 0.55%, respectively. In another study conducted by Iamareerat et al. [57], a biodegradable cassava starch-based film was incorporated with cinnamon EOs and sodium bentonite clay nanoparticles based on mechanical properties to assess the shelf life of meatballs. From Table 3, the film with 1.5% of EOs had high value of tensile strength, which was 0.63 ± 0.09 MPa, as compared to other percentage of EOs.
A considerable amount of literature has been published on starch biopolymer reinforced with EOs. Jamróz et al. [58] conducted a research on the addition of lavender EOs (LEOs) to starch, furcellar and gelatin (S/F/G) films with respect to mechanical properties. The tensile strength reduced significantly with increasing oil concentration, while the elongation at break parameters remained. Tensile strength decrease might result in lower mechanical strength.
Another study had been conducted by Cano et al. [73], in which they investigated the physical and antimicrobial properties of starch-PVA blend film. Influenced by the introduction of natural antimicrobial agents, the films were worthy and innovative alternatives in food packaging applications. The films’ mechanical performances were also changed by the incorporation of oils, but this was released at the maximum oil ratios. At the minimum oil concentration, the mechanical properties of the films were in the range of those that were commercially available. Based on Table 3, the tensile strength of the film for oregano EOs and neem EOs were 26 ± 2 MPa and 21.5 ± 1.0 MPa, respectively. This showed that the film containing oregano EOs had higher value of tensile strength than the film that contained neem EOs. The better film that represented a novel and good alternative for use in food packaging was the film that contained oregano EOs [1].
Besides that, Silveira et al. [61] reported the mechanical properties of the film at 1.5% of the tea tree oil (F3) was 3.03 ± 0.46 MPa for the tensile strength, while 25.1% ± 2.8% for elongation at break. From the Figure 3 it can be observed that the addition of 0.08% TTO (F1) increased the tensile strength (TS) while formulations with 1.5% TTO (F3) decrease the TS comparing to control films, for both levels of cellulose nanofiber (NFC). Besides that, the incorporation of 0.08% TTO in a 0.3% NFC-starch matrix caused a significant increase of 184% in the TS, raising from 3.37 to 6.87 MPa, for films C1 and F1, respectively. The present of NFC can increased the mechanical properties of the films due to its intrinsic properties as reported by numerous authors [84,85,86,87,88,89,90,91,92,93]. In addition, the result was slightly decreased for tensile strength as the increasing of essential oil while elongation at break was increased. This result shows that low concentrations of TTO can improve the mechanical properties of film. A strong interaction between the oil and the NFC–starch matrix can produce chemical modifications, for example, crosslinking effect. Whereas, the increasing of essential oil caused the reduction of the cohesion forces of polymer chain, creating heterogeneous matrix and subsequently lowering the TS and increasing the elongation (E%) of the films [61].
Mechanical properties of the tapioca film incorporated with cinnamon bark essential oil were researched by Utami et al. [62]. The tensile strength was increased only up to 1% concentration of essential oil, after that the tensile strength started to decrease by the increasing of the concentration of essential oil. Changes in the water content of the film caused the tensile strength to improve. The increasing concentration of the essential oil decreased the tensile strength of the films. Addition of essential oil to the film solution weakened the film tensile strength, which induced the development of a heterogeneous film structure [62]. The elongation at break also decreased by the increasing of the essential oil concentration. Essential oil created a compact structure by improving continuity in a network of polysaccharides, which caused the elongation at break to decrease. Gao et al. [94] reported the mechanical properties on corn/octenylsuccinated starch incorporated with soybean oil. The tensile strength of the film incorporated with 0.5% soybean oil was 5.21 MPa, while elongation at break was found to be at 36.54%. The strong interaction between the starch molecules produced a cross-linker effect, which decreased the molecular mobility of the starch [94].

2.4. Water Barrier Properties of Anti-Microbacterial Agent Reinforced Starch Biopolymer

Water barrier is an important properties for food packaging application [98,99,100]. Cano et al. [73] carried out the experiment by mixing pea starch with PVA (polyvinyl alcohol) reinforced with oregano EOs (OEOs) and neem EOs (NEOs). The moisture contents of the S-PVA blend films were 4.40% and 4.33% for 1% and 10% of the solution, respectively. Films containing bioactive substances showed lower levels of moisture after one week of processing. Films with the highest amount of neem oil hit the balance after one week of processing. Based on the concentration, the different behaviours of the films contributed to the specific relationship between the matrix and the oil components. Through hydrogen bonding, oil components could be linked to hydroxyl groups accessible in starch and PVA, thus limiting the interactions between polymer and water, and resulted in a decrease in film-moisturizing speed [101]. The integration of oils into the film did not lead to significant variations in the water vapor permeability (WVP) standards. Consequently, the change of structure caused by oils in the polymer matrices did not imply the significant variations in their barrier potential for water vapor. Such active films containing oregano EOs thus provide a novel and effective alternative for use in food packaging. Such films could be used to prolong the life of bread and cheese, and, by using only natural compounds with antimicrobial activity, as a coating agent for bananas and mangos. Oil incorporation cannot affect the capacity of water sorption and water vapor barrier properties of S-PVA films, particularly at the highest concentrations, but can decrease their transparency and gloss [73].
Besides, Resianingrum et al. [1] proved that the introduction of lemongrass EOs had no significant effect on the cassava starch-based edible film’s water vapor transmission rate. The main factor was the edible film’s high water vapor transmission rate because the hydrophilic component was higher than the hydrophobic one [1]. According to Djunaedy et al. [102], the water vapor permeability of edible film decreased if the edible film hydrophobic component was increased. The hydrophobic properties will increase, and the hydrophilic properties will decrease with the introduction of hydrophobic compounds to an edible film solution. Thus, it is assumed that the hydrophobic properties of the cassava starch-based edible film with the addition of lemongrass EOs did not change significantly, and the addition of lemongrass EOs did not significantly vary the rate of water vapor transmission on the film. The hydrophilic ratio of the edible film was still higher than the hydrophobic ratio [102].
The moisture content of the various films, which were a mixture of maize starch with lemon essential oil (LEOs) was analysed by Song et al. [56]. The water content in the films decreased with increasing LEOs concentrations. This may be due to the interaction between the two functional groups of LEOs and the starch, which decreased the interaction between polysaccharides and water, resulting in a reduction in water content. The inclusion of surfactants in the polymer films affected their water content. The water content decreased significantly when Span 80 was applied to the films (P < 0.05). Hydrophobic surfactants such as Span may reduce water vapor adsorption of hydroxypropyl methylcellulose films and result in decreased water content. In this study, the low concentration of Tween in the film formulation can cause this phenomenon. The most important point in their suitability for food packaging is the films’ WVP [56]. Other researchers noted an increase in the WVP of films containing EOs [101]. We can also see that by adding surfactants in the film matrix, the films’ WVP values were decreased. The results revealed that the surfactants had a major impact on the variation in WVP values. The WVP values decreased with the inclusion of starch/decolourised hsian-tsao leaf gum composite films. The film containing only Tween 80 displayed a higher water content and WVP as compared to the film containing only Span 80. The incorporation of LEOs resulted in a reduction in water content and WVP [56].
Regarding the characteristics of the barrier properties, Souza et al. [7] tried to increase the amount of glycerol, emulsifier, and EOs for cinnamon effect, thus resulting in higher values of both permeabilities. Due to this finding, an increase in glycerol content in the starch films produced in this study could also lead to a decrease in the properties of the barriers studied. A lepidic component added to the formulation can act as a barrier in the films. Therefore, the responsible agent for elevating permeability values was not supposed to be cinnamon EOs. Water vapor permeability (WVP) and oxygen permeability coefficient (P’O2) of films combined with cinnamon EOs ranged from (9.78 ± 1.40 to 14.79 ± 2.76) g mm m−2 d−1 kPa−1 and from (27.50 ± 0.60 to 143.47 ± 8.30) × 109 cm3 m−1 d−1 Pa−1, respectively. The emulsifier was possibly responsible for the WVP based on previous observations. It should be noted, however, that its presence in the film phase is important, as it facilitates the incorporation of the antimicrobial agent in the aqueous solution, resulting in a homogeneous polymer matrix [7].
The water content of the potato starch film was obtained by Jamróz et al. [58] at the concentrations of 0%, 2%, 4%, and 6% LEOs. There was a reduction in the absorption of water in the film when LEOs were added as compared to the control test. The film’s water content with the addition was 68.81–72.28%. The film with the highest oil concentration (6%) had an order of 68.81% for water absorption. The control film’s water content was 74.48%. The reduction in water absorption films with a concentration of 2%, 4% and 6% LEOs, which were different from the control sample, was 2.95%, 5.8%, and 7.61%, respectively as shown in Table 3. This was due to the interactions between LEOs, potato starch, furcellaran, and gelatin functional groups that restricted polysaccharide-water-protein interactions, leading to a reduction in water content.
Silveira et al. [61] reported the trend of WVP of the film found to be decreasing by the increasing of the tea tree essential oil. The decreasing of WVP indicated the cohesion of polymeric chain formed. The strong intermolecular interactions that created barriers to water vapor diffusion through the matrix. Furthermore, the presence of the oil droplets caused it to become hygroscopic nature [61]. Water vapor permeability (WVP) of the tapioca film incorporated with cinnamon bark essential oil reported by Utami et al. [62] was decreased by the increasing concentration of essential oil. The better protection from moisture of food has the criteria of lower value of WVP [62]. Besides that, water vapor permeability occurs only in the hydrophilic condition. According to Gao et al. [94] the water vapor permeability (WVP) for the corn/octenylsuccinated composite film incorporated with soybean oil slightly decreased, according to the increasing of the concentration of essential oil. The hydrophobic property of the film by the decreasing of the WVP value weakened the ability of film to bind with water [94]. The incorporation of soybean oil into the film, formed a discontinuity in the hydrophilic phase that caused an increasing of the effective path length for diffusion and decreased the film’s WVP [94].

2.5. Antimicrobial Activities of Nanocellulose Reinforced Starch Bionanocomposites with EOs

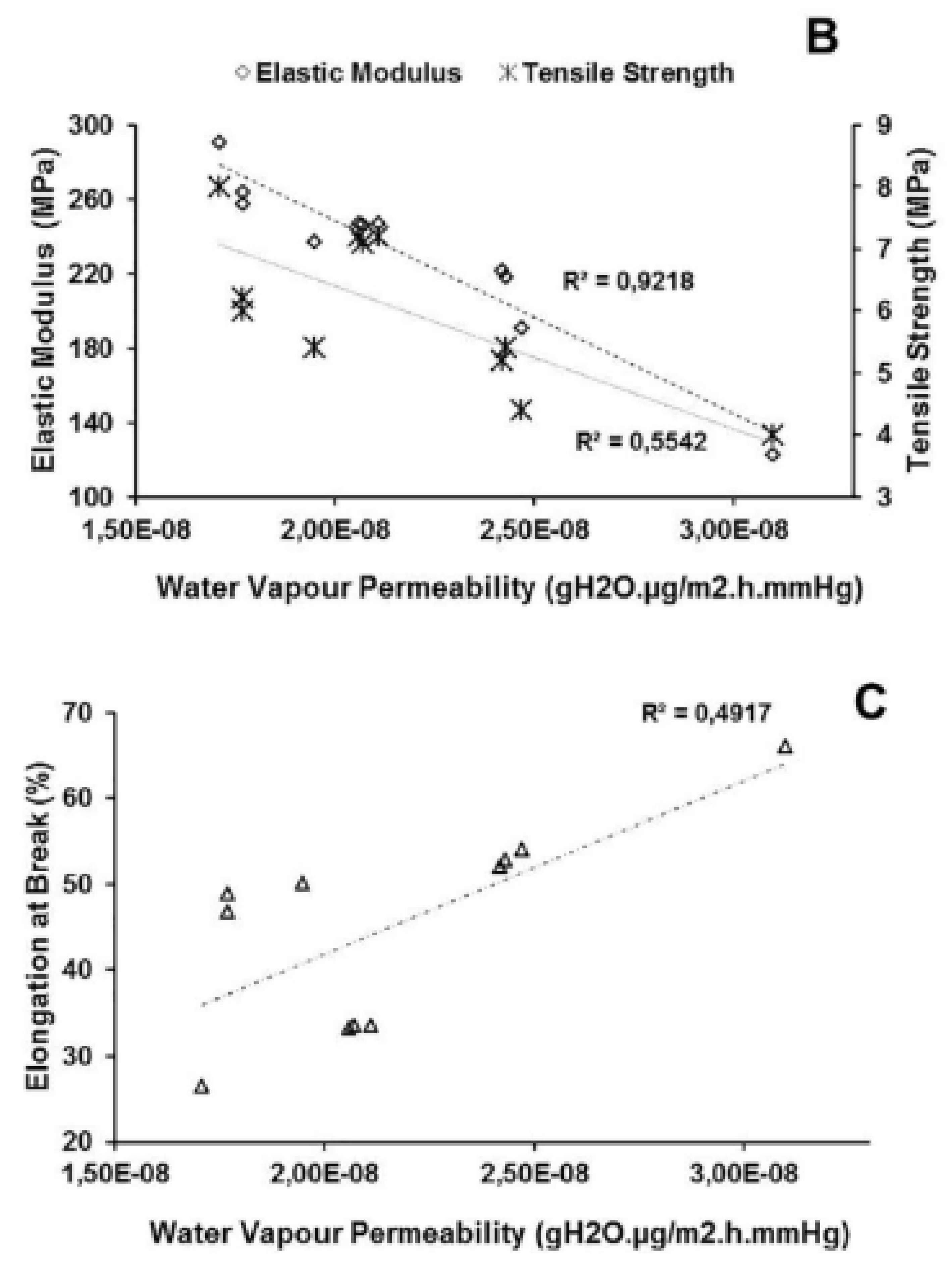

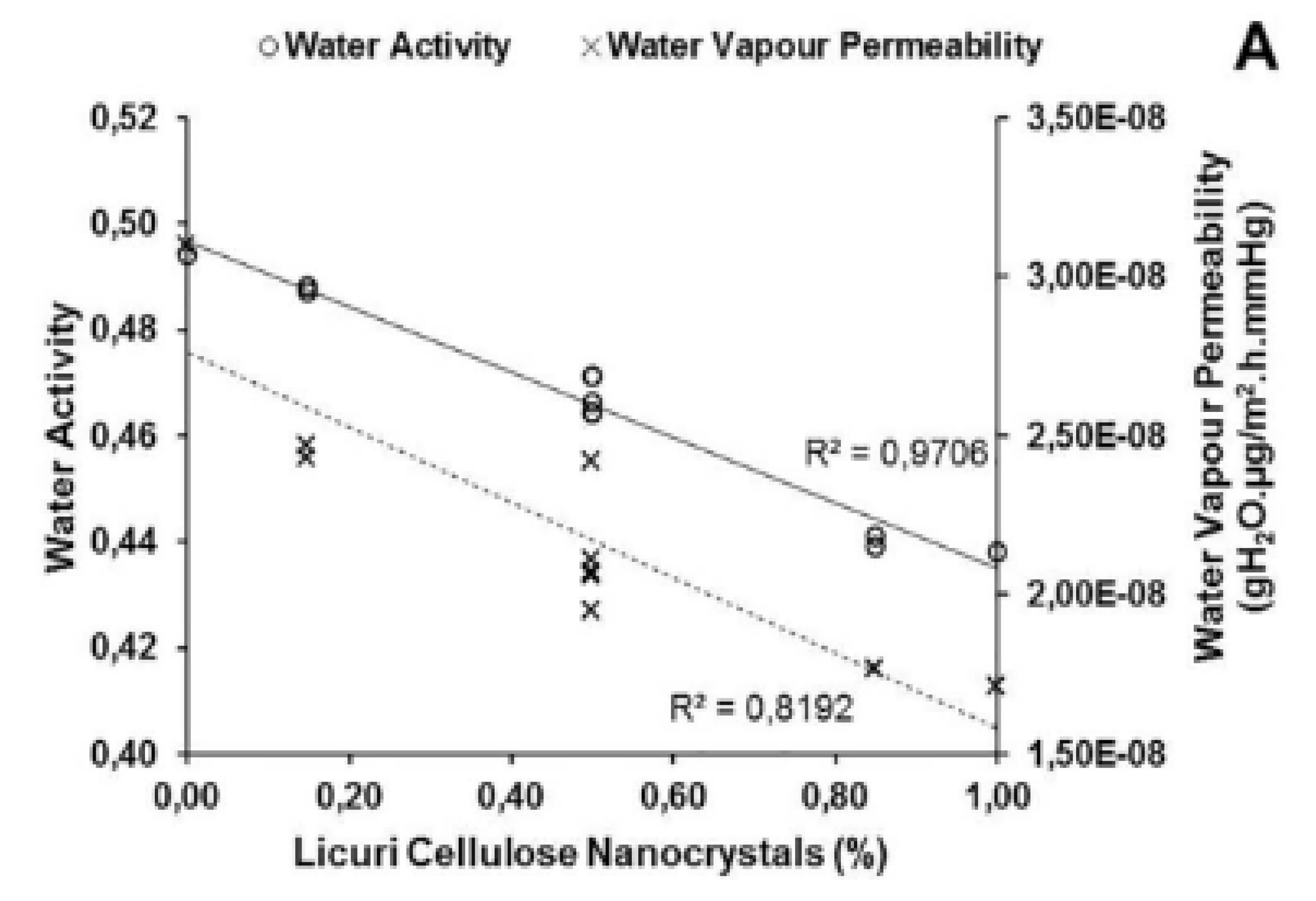

Costa et al. [103] studied the characterization and determination of the bifunctional efficacy of active packaging films produced with starch and glycerol reinforced with cellulose nanocrystals (CNC). This film was activated by extracted red propolis (ERP). The use of the active films for packaging cheese curds and butter were evaluated on the antimicrobial and antioxidant efficacy, respectively. The addition of the cellulose nanocrystals will increase the mechanical strength of the films and can reduce the water permeability and water activity. The testing was done on their total phenolic compounds and mechanical properties. Besides, the films were characterized by using moisture, water-activity analyses, and water vapor permeability tests.
The number of colony-forming unit (CFU) specified that the ERP in the active film had an inhibitory activity against the microorganism, as shown in Figure 4A. It was assessed that the lowest number of CFU was reached during the storage period. The effectiveness of the compounds can be reduced by the interaction between the polymer groups and active compound of the embedded agent. It can reduce or even prevent the diffusion of active compounds to the system [103]. The result from Figure 4B suggested that these films did not provide any protection to the product during storage. The mechanical reinforcement achieved by the addition of nanocellulose to the films reduced both the films’ permeability to water vapor and their permeability to gases. It would have a direct effect on the oxidation of the stored product. The use of antioxidants in packaging was the main reason for the food lipids to delay a significant accumulation of free radicals and thus improve oxidative stability [103].
CNC decreased the water availability within the matrix of the nanocomposite material and had a relevant role in controlling water availability due to the rise in the number of hydrogen bonds with the polymeric matrix and plasticiser [104]. The WVP values and the CNC concentrations of the films showed an inverse proportional and linear relationship (Figure 5A). At any concentration, the cellulose nanocrystals in the films were intended to reduce the WVP by providing a physical barrier, reducing the free spaces in the polymer matrix, restricting the passage of vapors and inhibiting water absorption [103]. The degree of crystallinity of the cellulose nanoparticles and the strong hydrogen bonds formed within the matrix restricted access, and hence, the permeability of water through the films [105]. Figure 5B,C show the linear correlation between the WVP values and mechanical properties of the films. There was a linear and inverse proportional correlation between the WVP and elastic modulus of the films [103]. The increased permeability of the films significantly reduced the films’ stiffness and their ability to stretch. This correlation mainly indicated that the addition of CNC can linearly reduce the WVP and increase the elastic modulus of the films, thus making the films more reasonable with standard products.

3. Antimicrobial Properties of Polymer Composites Reinforced Essential Oil

Polymers are widely used in many applications, such as in food packaging. Commercial polymers used fossil fuels as the main source, causing the increasing environmental concern regarding their use. To replace the petroleum-based polymers, there are many researches on the usage of bio-based materials. There are several types of renewable sources for biopolymers, including polysaccharide such as pectin, cellulose, starch, gelatin, and alginate [89,106,107,108,109,110].
Recently, many researchers have done the researches on the utilization of chitosan as biopolymer. Although chitosan is a biopolymer for food packaging, it has no significant antimicrobial and ambiguous antioxidant activities. Improvement needed as the antimicrobial activity of chitosan could expand its applications in food packaging. Essential oils (EO)s are used in different industries that are produced by angiosperm plants. Only aromatic plants will be used as sources of EOs. EOs are secondary metabolites which could be derived from different parts on the plant, including flowers, buds, leaves, fruits, twigs, bark, seeds, wood, rhizome, and roots. Nowadays, EOs extracted from plants as active agents have received much attention to be incorporated into biodegradable active films. Various researches have shown that the incorporation of EOs into biopolymers resulted in the increasing of the film’s antimicrobial activity and antioxidant properties. Besides that, the water vapor permeability was decreased. Table 4 summarizes the essential oils reinforced various polymer composites that have been successfully used in food packaging for improved efficiency.

4. Conclusions

Antimicrobial biodegradable polymeric films can substitute the conventional packaging material to reduce environmental hazards and extend the shelf life of food products. Due to their environmentally friendly and anti-microbial properties, EO-starch-based films has the potential to be used in food packaging product applications. Although starch films are most likely to be applied as alternative packaging materials, they must possess adequate mechanical properties to resist maximum external stress and preserve the integrity and barrier properties, like food packaging application. According to antimicrobial activity results, almost all the essential oil (i.e., lemon, peppermint, cinnamon, lavender, mexican oregano, oregano, neem, lemon grass, tea tree, Lavandula angustifolia, Mentha pulegium, turmeric, lime, Origanum vulgare L., Ziziphora clinopodioides, grape seed, and Zataria multiflora Boiss etc.) can be used as antimicrobial agent against the microorganism and fungi selected. It can be observed that the incorporation of lemon, lemon grass and tea tree essential oil within starch-based films are very effective against E. coli, S. aureus and A. niger, respectively. Whereas cinnamon essential oil is very effective against C. albicans, P. commune, and E. amstelodami microorganisms. It can be concluded that a better inhibition was observed with higher content of essential oil. Even at minimum concentration applied into the film formulation, essential oil showed inhibition against microorganisms, which was considered an important result since that higher concentrations could imply a sensorial impact, altering the natural taste of the food packaged by exceeding the acceptable flavor thresholds. Besides that, the incorporation of essential oil within starch-based film would affect the mechanical properties of the films. It can be summarized that the high concentration of the essential oil within starch-based polymer can reduce the mechanical properties of the film. The increasing of essential oil caused the reduction of the cohesion forces of polymer chain, creating heterogeneous matrix and subsequently lowering the tensile strength and increasing the elongation at break value of the film. The development of such fully biodegradable packaging films will help to tackle the current environmental problems caused by the disposal of non-biodegradable plastics. The successful production of such green materials would provide an opportunity to enhance the world’s farmers’ quality of life by generating non-food economic development sources for rural areas.

Author Contributions

R.S.: 1st draft writing, data—graphs diagrams, S.M.S.: idea correction—final writing and control, M.Y.M.Z.: idea correction—final writing and control, R.A.I.: data analyses and graphs literature survey, A.N.: data analyses and literature, S.F.K.S.: data analyses and literature and A.K.: idea, correction and final writing and control. All authors have read and agreed to the published version of the manuscript.


The authors would like to thank Universiti Putra Malaysia and the Ministry of Higher Education, Malaysia for the financial support through the Graduate Research Fellowship (GRA) scholarship from the Fundamental Research Grant Scheme, grant number FRGS/1/2017/TK05/UPM/01/1 and vote number (5540048). The authors gratefully acknowledge Universiti Putra Malaysia for funding this project through Geran Putra Berimpak(GPB), UPM/800-3/3/1/GPB/2019/9679800.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Resianingrum, R. Characterization of cassava starch-based edible film enriched with lemongrass oil (Cymbopogon citratus). Nusant. Biosci. 2016, 8, 278–282. [Google Scholar] [CrossRef]
  2. Aisyah, H.A.; Tahir, P.M.; Sapuan, S.M.; Khalina, A.; Berkalp, O.B.; Lee, S.H.; Lee, C.H.; Nurazzi, N.M.; Ramli, N.; Wahab, M.S.; et al. Thermal properties of woven kenaf/carbon fibre-reinforced epoxy hybrid composite panels. Int. J. Polym. Sci. 2019, 2019, 5258621. [Google Scholar] [CrossRef] [Green Version]
  3. Atiqah, A.; Jawaid, M.; Jawaid, M.; Ishak, M.; Ansari, M.; Ilyas, R. Physical and thermal properties of treated sugar palm/glass fibre reinforced thermoplastic polyurethane hybrid composites. J. Mater. Res. Technol. 2019, 8, 3726–3732. [Google Scholar] [CrossRef]
  4. Abral, H.; Ariksa, J.; Mahardika, M.; Handayani, D.; Aminah, I.; Sandrawati, N.; Pratama, A.B.; Fajri, N.; Sapuan, S.; Ilyas, R. Transparent and antimicrobial cellulose film from ginger nanofiber. Food Hydrocoll. 2020, 98, 105266. [Google Scholar] [CrossRef]
  5. Abral, H.; Basri, A.; Muhammad, F.; Fernando, Y.; Hafizulhaq, F.; Mahardika, M.; Sugiarti, E.; Sapuan, S.; Ilyas, R.; Stephane, I.; et al. A simple method for improving the properties of the sago starch films prepared by using ultrasonication treatment. Food Hydrocoll. 2019, 93, 276–283. [Google Scholar] [CrossRef]
  6. Abral, H.; Atmajaya, A.; Mahardika, M.; Hafizulhaq, F.; Kadriadi; Handayani, D.; Sapuan, S.; Ilyas, R. Effect of ultrasonication duration of polyvinyl alcohol (PVA) gel on characterizations of PVA film. J. Mater. Res. Technol. 2020, 9, 2477–2486. [Google Scholar] [CrossRef]
  7. Souza, A.; Goto, G.; Mainardi, J.; Coelho, A.C.V.; Tadini, C. Cassava starch composite films incorporated with cinnamon essential oil: Antimicrobial activity, microstructure, mechanical and barrier properties. LWT Food. Sci. Technol. 2013, 54, 346–352. [Google Scholar] [CrossRef]
  8. Ilyas, R.A.; Sapuan, S.M.; Atiqah, A.; Ibrahim, R.; Abral, H.; Ishak, M.R.; Zainudin, E.S.; Nurazzi, N.M.; Atikah, M.S.N.; Ansari, M.N.M.; et al. Sugar palm (Arenga pinnata [Wurmb.] Merr) starch films containing sugar palm nanofibrillated cellulose as reinforcement: Water barrier properties. Polym. Compos. 2019, 41, 459–467. [Google Scholar] [CrossRef]
  9. Ilyas, R.; Sapuan, S.; Atikah, M.; Asyraf, M.; Rafiqah, S.A.; Aisyah, H.; Nurazzi, N.M.; Norrrahim, M. Effect of hydrolysis time on the morphological, physical, chemical, and thermal behavior of sugar palm nanocrystalline cellulose (Arenga pinnata (Wurmb.) Merr). Text. Res. J. 2020, 004051752093239. [Google Scholar] [CrossRef]
  10. Ilyas, R.; Sapuan, S.M.; Ishak, M.; Zainudin, E.S. Development and characterization of sugar palm nanocrystalline cellulose reinforced sugar palm starch bionanocomposites. Carbohydr. Polym. 2018, 202, 186–202. [Google Scholar] [CrossRef]
  11. Sanyang, M.L.; Ilyas, R.A.; Sapuan, S.M.; Jumaidin, R. Sugar palm starch-based composites for packaging applications. In Bionanocomposites for Packaging Applications; Springer International Publishing: Cham, Switzerland, 2018; pp. 125–147. ISBN 9783319673196. [Google Scholar]
  12. Ilyas, R.A.; Sapuan, S.M.; Ishak, M.R.; Zainudin, E.S. Sugar palm nanocrystalline cellulose reinforced sugar palm starch composite: Degradation and water-barrier properties. In IOP Conference Series: Materials Science and Engineering, Proceedings of the Wood and Biofiber International Conference (WOBIC 2017), Selangor, Malaysia, 21–23 November 2017; Hotel Putrajaya-Bangi: Selangor, Malaysia, 2018; Volume 368. [Google Scholar]
  13. Mazani, N.; Sapuan, S.M.; Sanyang, M.L.; Atiqah, A.; Ilyas, R.A. Design and fabrication of a shoe shelf from kenaf fiber reinforced unsaturated polyester composites. In Lignocellulose for Future Bioeconomy; Elsevier: Amsterdam, The Netherlands, 2019; pp. 315–332. ISBN 9780128163542. [Google Scholar]
  14. Syafri, E.; Sudirman; Mashadi; Yulianti, E.; Deswita; Asrofi, M.; Abral, H.; Sapuan, S.; Ilyas, R.; Fudholi, A. Effect of sonication time on the thermal stability, moisture absorption, and biodegradation of water hyacinth (Eichhornia crassipes) nanocellulose-filled bengkuang (Pachyrhizus erosus) starch biocomposites. J. Mater. Res. Technol. 2019, 8, 6223–6231. [Google Scholar] [CrossRef]
  15. Ilyas, R.; Sapuan, S. The preparation methods and processing of natural fibre bio-polymer composites. Curr. Org. Synth. 2020, 16, 1068–1070. [Google Scholar] [CrossRef]
  16. Ilyas, R.A.; Sapuan, S.M.; Ishak, M.R.; Zainudin, E.S.; Atikah, M.S.N. Characterization of sugar palm nanocellulose and its potential for reinforcement with a starch-based composite. In Sugar Palm Biofibers, Biopolymers, and Biocomposites, 1st ed.; CRC Press: Boca Raton, FL, USA, 2018; pp. 189–220. [Google Scholar]
  17. Ilyas, R.A.; Sapuan, S.M.; Sanyang, M.L.; Ishak, M.R. Nanocrystalline cellulose reinforced starch-based nanocomposite: A review. In Proceedings of the 5th Postgraduate Seminar on Natural Fiber Composites, Serdang, Selangor, Malaysia, 28 December 2016; Institute of Tropical Forestry and Forest Products (INTROP), Universiti Putra Malaysia: Serdang, Selangor, Malaysia, 2016; pp. 82–87. [Google Scholar]
  18. Ilyas, R.; Sapuan, S.M.; Ishak, M. Isolation and characterization of nanocrystalline cellulose from sugar palm fibres (Arenga pinnata). Carbohydr. Polym. 2018, 181, 1038–1051. [Google Scholar] [CrossRef]
  19. Jumaidin, R.; Ilyas, R.A.; Saiful, M.; Hussin, F.; Mastura, M.T. Water transport and physical properties of sugarcane bagasse fibre reinforced thermoplastic potato starch biocomposite. J. Adv. Res. Fluid Mech. Therm. Sci. 2019, 61, 273–281. [Google Scholar]
  20. Jumaidin, R.; Khiruddin, M.A.A.; Saidi, Z.A.S.; Salit, M.S.; Ilyas, R.A.; Sapuan, S.M. Effect of cogon grass fibre on the thermal, mechanical and biodegradation properties of thermoplastic cassava starch biocomposite. Int. J. Biol. Macromol. 2020, 146, 746–755. [Google Scholar] [CrossRef] [PubMed]
  21. Atikah, M.; Ilyas, R.; Sapuan, S.M.; Ishak, M.; Zainudin, E.; Ibrahim, R.; Atiqah, A.; Ansari, M.; Jumaidin, R. Degradation and physical properties of sugar palm starch/sugar palm nanofibrillated cellulose bionanocomposite. Polimery 2019, 64, 27–36. [Google Scholar] [CrossRef] [Green Version]
  22. Abral, H.; Ariksa, J.; Mahardika, M.; Handayani, D.; Aminah, I.; Sandrawati, N.; Sapuan, S.; Ilyas, R. Highly transparent and antimicrobial PVA based bionanocomposites reinforced by ginger nanofiber. Polym. Test. 2020, 81, 106186. [Google Scholar] [CrossRef]
  23. Nazrin, A.; Sapuan, S.M.; Zuhri, M.Y.M.; Ilyas, R.A.; Syafiq, R.; Sherwani, S.F.K. Nanocellulose reinforced thermoplastic starch (TPS), polylactic acid (PLA), and polybutylene succinate (PBS) for food packaging applications. Front. Chem. 2020, 8, 213. [Google Scholar] [CrossRef]
  24. Ayu, R.S.; Khalina, A.; Saffian, H.A.; Zaman, K.; Isma, T.; Liu, Q.; Ilyas, R.; Lee, C.H. Characterization study of empty fruit bunch (EFB) fibers reinforcement in poly(Butylene) succinate (PBS)/starch/glycerol composite sheet. Polymers 2020, 12, 1571. [Google Scholar] [CrossRef]
  25. Liang, R.; Xu, S.; Shoemaker, C.F.; Li, Y.; Zhong, F.; Huang, Q. Physical and antimicrobial properties of peppermint oil nanoemulsions. J. Agric. Food Chem. 2012, 60, 7548–7555. [Google Scholar] [CrossRef]
  26. Fernandes, R.V.D.B.; Borges, S.V.; Botrel, D.A. Gum arabic/starch/maltodextrin/inulin as wall materials on the microencapsulation of rosemary essential oil. Carbohydr. Polym. 2014, 101, 524–532. [Google Scholar] [CrossRef] [PubMed]
  27. Oriani, V.; Molina, G.; Chiumarelli, M.; Pastore, G.M.; Hubinger, M.D. Properties of cassava starch-based edible coating containing essential oils. J. Food Sci. 2014, 79, E189–E194. [Google Scholar] [CrossRef] [PubMed]
  28. Varona, S.; Rodriguez-Rojo, S.; Martin, A.; Cocero, M.J.; Duarte, C.M.; Alonso, M.J.C. Supercritical impregnation of lavandin (Lavandula hybrida) essential oil in modified starch. J. Supercrit. Fluids 2011, 58, 313–319. [Google Scholar] [CrossRef]
  29. Romani, V.P.; Prentice-Hernández, C.; Martins, V.G. Active and sustainable materials from rice starch, fish protein and oregano essential oil for food packaging. Ind. Crop. Prod. 2017, 97, 268–274. [Google Scholar] [CrossRef]
  30. Ghasemlou, M.; Aliheidari, N.; Fahmi, R.; Shojaee-Aliabadi, S.; Keshavarz, B.; Cran, M.J.; Khaksar, R. Physical, mechanical and barrier properties of corn starch films incorporated with plant essential oils. Carbohydr. Polym. 2013, 98, 1117–1126. [Google Scholar] [CrossRef] [Green Version]
  31. Caetano, K.D.S.; Lopes, N.A.; Costa, T.M.H.; Brandelli, A.; Rodrigues, E.; Flôres, S.H.; Cladera-Olivera, F. Characterization of active biodegradable films based on cassava starch and natural compounds. Food Packag. Shelf Life 2018, 16, 138–147. [Google Scholar] [CrossRef]
  32. Evangelho, J.A.D.; Dannenberg, G.; Biduski, B.; El Halal, S.L.M.; Kringel, D.H.; Gularte, M.A.; Fiorentini, Â.M.; Zavareze, E.D.R. Antibacterial activity, optical, mechanical, and barrier properties of corn starch films containing orange essential oil. Carbohydr. Polym. 2019, 222, 114981. [Google Scholar] [CrossRef]
  33. Sari, N.H.; Pruncu, C.I.; Sapuan, S.M.; Ilyas, R.A.; Catur, A.D.; Suteja, S.; Sutaryono, Y.A.; Pullen, G. The effect of water immersion and fibre content on properties of corn husk fibres reinforced thermoset polyester composite. Polym. Test. 2020, 91, 106751. [Google Scholar] [CrossRef]
  34. Norrrahim, M.N.F.; Sapuan, S.M.; Yasim-Anuar, T.A.T.; Padzil, F.N.M.; Sharip, N.S.; Ng, L.Y.F.; Megashah, L.N.; Shazleen, S.S.; Rahim, N.F.A.; Syafiq, R.; et al. Antimicrobial Studies on Food Packaging Materials. In Food Packaging, 1st ed.; Rangappa, S.M., Parameswaranpillai, J., Thiagamani, S.M.K., Krishnasamy, S., Siengchin, S., Eds.; CRC Press: Boca Raton, FL, USA, 2020; pp. 141–170. [Google Scholar]
  35. Restrepo, A.E.; Rojas, J.D.; Garcia, O.R.; Sanchez, L.T.; Pinzon, M.I.; Villa, C.C. Mechanical, barrier, and color properties of banana starch edible films incorporated with nanoemulsions of lemongrass (Cymbopogon citratus) and rosemary (Rosmarinus officinalis) essential oils. Food Sci. Technol. Int. 2018, 24, 705–712. [Google Scholar] [CrossRef]
  36. Campos-Requena, V.H.; Rivas, B.L.; Pérez, M.A.; Figueroa, C.R.; Figueroa, N.E.; Sanfuentes, E.A. Thermoplastic starch/clay nanocomposites loaded with essential oil constituents as packaging for strawberries—In vivo antimicrobial synergy over Botrytis cinerea. Postharvest Biol. Technol. 2017, 129, 29–36. [Google Scholar] [CrossRef]
  37. Suppakul, P.; Miltz, J.; Sonneveld, K.; Bigger, S.W. Antimicrobial properties of basil and its possible application in food packaging. J. Agric. Food Chem. 2003, 51, 3197–3207. [Google Scholar] [CrossRef] [PubMed]
  38. Campos-Requena, V.H.; Rivas, B.L.; Perez, M.A.; Garrido-Miranda, K.A.; Pereira, E.D. Release of essential oil constituent from thermoplastic starch/layered silicate bionanocomposite film as a potential active packaging material. Eur. Polym. J. 2018, 109, 64–71. [Google Scholar] [CrossRef]
  39. Sapuan, S.M.; Ilyas, R.A.; Ishak, M.R.; Leman, Z.; Huzaifah, M.R.M.; Ammar, I.M.; Atikah, M.S.N. Development of sugar palm–based products: A community project. In Sugar Palm Biofibers, Biopolymers, and Biocomposites, 1st ed.; CRC Press: Boca Raton, FL, USA, 2018; pp. 245–266. ISBN 9780429443923. [Google Scholar]
  40. Mohsenabadi, N.; Rajaei, A.; Tabatabaei, M.; Mohsenifar, A. Physical and antimicrobial properties of starch-carboxy methyl cellulose film containing rosemary essential oils encapsulated in chitosan nanogel. Int. J. Biol. Macromol. 2018, 112, 148–155. [Google Scholar] [CrossRef] [PubMed]
  41. Asrofi, M.; Sujito; Syafri, E.; Sapuan, S.; Ilyas, R. Improvement of biocomposite properties based tapioca starch and sugarcane bagasse cellulose nanofibers. Key Eng. Mater. 2020, 849, 96–101. [Google Scholar] [CrossRef]
  42. Azammi, A.M.N.; Ilyas, R.A.; Sapuan, S.M.; Ibrahim, R.; Atikah, M.S.N.; Asrofi, M.; Atiqah, A. Characterization studies of biopolymeric matrix and cellulose fibres based composites related to functionalized fibre-matrix interface. In Interfaces in Particle and Fibre Reinforced Composites; Elsevier: London, UK, 2020; pp. 29–93. ISBN 9780081026656. [Google Scholar]
  43. Jumaidin, R.; Saidi, Z.A.S.; Ilyas, R.A.; Ahmad, M.N.; Wahid, M.K.; Yaakob, M.Y.; Maidin, N.A.; Rahman, M.H.A.; Osman, M.H. Characteristics of cogon grass fibre reinforced thermoplastic cassava starch biocomposite: Water absorption and physical properties. J. Adv. Res. Fluid Mech. Therm. Sci. 2019, 62, 43–52. [Google Scholar]
  44. Silva, A.D.O.D.; Cortez-Vega, W.R.; Prentice, C.; Fonseca, G.G. Development and characterization of biopolymer films based on bocaiuva (Acromonia aculeata) flour. Int. J. Biol. Macromol. 2020, 155, 1157–1168. [Google Scholar] [CrossRef]
  45. Cox, S.D.; Mann, C.M.; Markham, J.L.; Bell, H.C.; Gustafson, J.E.; Warmington, J.R.; Wyllie, S.G. The mode of antimicrobial action of the essential oil of Melaleuca alternifolia (tea tree oil). J. Appl. Microbiol. 2000, 88, 170–175. [Google Scholar] [CrossRef]
  46. Almasi, H.; Azizi, S.; Amjadi, S. Development and characterization of pectin films activated by nanoemulsion and Pickering emulsion stabilized marjoram (Origanum majorana L.) essential oil. Food Hydrocoll. 2020, 99, 105338. [Google Scholar] [CrossRef]
  47. De Andrade, M.F.; Silva, I.D.D.L.; Da Silva, G.A.; Cavalcante, P.V.D.; Da Silva, F.T.; De Almeida, Y.M.B.; Vinhas, G.M.; De Carvalho, L.H. A study of poly (butylene adipate-co-terephthalate)/orange essential oil films for application in active antimicrobial packaging. LWT 2020, 125, 109148. [Google Scholar] [CrossRef]
  48. Klimek-Szczykutowicz, M.; Szopa, A.; Ekiert, H. Citrus limon (lemon) phenomenon—A review of the chemistry, pharmacological properties, applications in the modern pharmaceutical, food, and cosmetics industries, and biotechnological studies. Plants 2020, 9, 119. [Google Scholar] [CrossRef] [Green Version]
  49. Feyaerts, A.F.; Luyten, W.; Van Dijck, P. Striking essential oil: Tapping into a largely unexplored source for drug discovery. Sci. Rep. 2020, 10, 2867. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Cruz-Tirado, J.; Ferreira, R.S.B.; Lizárraga, E.; Tapia-Blácido, D.R.; Silva, N.; Angelats-Silva, L.; Siche, R. Bioactive Andean sweet potato starch-based foam incorporated with oregano or thyme essential oil. Food Packag. Shelf Life 2020, 23, 100457. [Google Scholar] [CrossRef]
  51. Taban, A.; Saharkhiz, M.J.; Khorram, M. Formulation and assessment of nano-encapsulated bioherbicides based on biopolymers and essential oil. Ind. Crop. Prod. 2020, 149, 112348. [Google Scholar] [CrossRef]
  52. Zerrifi, S.E.A.; Kasrati, A.; Redouane, E.M.; Tazart, Z.; El Khalloufi, F.; Abbad, A.; Oudra, B.; Campos, A.; Vasconcelos, V. Essential oils from Moroccan plants as promising ecofriendly tools to control toxic cyanobacteria blooms. Ind. Crop. Prod. 2020, 143, 111922. [Google Scholar] [CrossRef]
  53. Ataei, S.; Azari, P.; Hassan, A.; Pingguan-Murphy, B.; Yahya, R.; Muhamad, F. Essential oils-loaded electrospun biopolymers: A future perspective for active food packaging. Adv. Polym. Technol. 2020, 2020, 9040535. [Google Scholar] [CrossRef]
  54. Doost, A.S.; Nasrabadi, M.N.; Kassozi, V.; Nakisozi, H.; Van Der Meeren, P. Recent advances in food colloidal delivery systems for essential oils and their main components. Trends Food Sci. Technol. 2020, 99, 474–486. [Google Scholar] [CrossRef] [Green Version]
  55. Esmael, A.; Hassan, M.G.; Amer, M.M.; Abdelrahman, S.; Hamed, A.M.; Abd-Raboh, H.A.; Foda, M.F. Antimicrobial activity of certain natural-based plant oils against the antibiotic-resistant acne bacteria. Saudi J. Biol. Sci. 2020, 27, 448–455. [Google Scholar] [CrossRef]
  56. Song, X.; Zuo, G.; Chen, F. Effect of essential oil and surfactant on the physical and antimicrobial properties of corn and wheat starch films. Int. J. Biol. Macromol. 2018, 107, 1302–1309. [Google Scholar] [CrossRef]
  57. Iamareerat, B.; Singh, M.; Sadiq, M.B.; Anal, A.K. Reinforced cassava starch based edible film incorporated with essential oil and sodium bentonite nanoclay as food packaging material. J. Food Sci. Technol. 2018, 55, 1953–1959. [Google Scholar] [CrossRef]
  58. Jamróz, E.; Juszczak, L.; Kucharek, M. Investigation of the physical properties, antioxidant and antimicrobial activity of ternary potato starch-furcellaran-gelatin films incorporated with lavender essential oil. Int. J. Biol. Macromol. 2018, 114, 1094–1101. [Google Scholar] [CrossRef]
  59. Helal, I.; El-Bessoumy, A.; Al-Bataineh, E.; Joseph, M.R.P.; Rajagopalan, P.; Chandramoorthy, H.C.; Ahmed, S.B.H. Antimicrobial efficiency of essential oils from traditional medicinal plants of asir region, saudi arabia, over drug resistant isolates. BioMed Res. Int. 2019, 2019, 8928306. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Ferreira, L.R.; Rosário, D.K.A.; Silva, P.I.; Carneiro, J.C.S.; Pimentel Filho, N.J.; Bernardes, P.C. Cinnamon essential oil reduces adhesion of food pathogens to polystyrene. Int. Food Res. J. 2019, 26, 1103–1110. [Google Scholar]
  61. Silveira, M.P.; Silva, H.C.; Pimentel, I.C.; Poitevin, C.G.; Stuart, A.K.D.C.; Carpiné, D.; Jorge, L.M.D.M.; Jorge, R.M.M. Development of active cassava starch cellulose nanofiber-based films incorporated with natural antimicrobial tea tree essential oil. J. Appl. Polym. Sci. 2020, 137, 48726. [Google Scholar] [CrossRef]
  62. Utami, R.; Khasanah, L.U.; Manuhara, G.J.; Ayuningrum, Z.K. Effects of cinnamon bark essential oil (Cinnamomum burmannii) on characteristics of edible film and quality of fresh beef. Pertanika J. Trop. Agric. Sci. 2019, 42, 1173–1184. [Google Scholar]
  63. Sarifuddin, N.; Shahrim, N.A.A.; Azman, K.S. Effect of oregano essential on the properties of mango kernel starch films. MS&E 2018, 429, 012062. [Google Scholar] [CrossRef] [Green Version]
  64. Chouhan, S.; Sharma, K.; Guleria, S. Antimicrobial activity of some essential oils—Present status and future perspectives. Medicines 2017, 4, 58. [Google Scholar] [CrossRef] [Green Version]
  65. Sapper, M.; Wilcaso, P.; Santamarina, M.P.; Roselló, J.; Chiralt, A. Antifungal and functional properties of starch-gellan films containing thyme (Thymus zygis) essential oil. Food Control 2018, 92, 505–515. [Google Scholar] [CrossRef]
  66. Saad, N.; Muller, C.D.; Lobstein, A. Major bioactivities and mechanism of action of essential oils and their components. Flavour Fragr. J. 2013, 28, 269–279. [Google Scholar] [CrossRef]
  67. Li, Z.H.; Sun, P.; Liu, Y.S.; Sun, P.; Luo, S.L. Antibacterial Activity and Mechanisms of Essential Oil from Citrus medica L. var. sarcodactylis. Molecules 2019, 24, 1577. [Google Scholar] [CrossRef] [Green Version]
  68. Tao, C.; Wang, Y.; Zhang, X.; Li, L.; Wu, Y. Mechanism of action of essential oils extracted from bamboo (phyllostachys heterocycla cv. pubescens) leaves: Chemical composition and antimicrobial activity. BioResources 2019, 14, 1419–1434. [Google Scholar] [CrossRef]
  69. Ochs, D. Antimicrobials. In Plastic Additives Handbook; Hanser: Munich, Germany, 2000; pp. 647–680. [Google Scholar]
  70. Appendini, P.; Hotchkiss, J. Review of antimicrobial food packaging. Innov. Food Sci. Emerg. Technol. 2002, 3, 113–126. [Google Scholar] [CrossRef]
  71. Zeuthen, P.; Bøgh-Sørensen, L. Food Preservation Techniques; Elsevier: Amsterdam, The Netherlands, 2003. [Google Scholar]
  72. Avila-Sosa, R.; Hernández-Zamoran, E.; López-Mendoza, I.; Palou, E.; Jiménez-Munguía, M.T.; Nevárez-Moorillon, G.; López-Malo, A. Fungal inactivation by Mexican oregano (lippia berlandieri schauer) essential oil added to amaranth, chitosan, or starch edible films. J. Food Sci. 2010, 75, M127–M133. [Google Scholar] [CrossRef] [PubMed]
  73. Cano, A.; Cháfer, M.; Chiralt, A.; González-Martínez, C. Physical and antimicrobial properties of starch-pva blend films as affected by the incorporation of natural antimicrobial agents. Foods 2016, 5, 3. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Aitboulahsen, M.; El Galiou, O.; Laglaoui, A.; Bakkali, M.; Zerrouk, M.H. Effect of plasticizer type and essential oils on mechanical, physicochemical, and antimicrobial characteristics of gelatin, starch, and pectin-based films. J. Food Process. Preserv. 2020, 44, e14480. [Google Scholar] [CrossRef]
  75. Mustapha, F.; Jai, J.; Raikhan, N.N.; Sharif, Z.; Yusof, N. Response surface methodology analysis towards biodegradability and antimicrobial activity of biopolymer film containing turmeric oil against Aspergillus niger. Food Control 2019, 99, 106–113. [Google Scholar] [CrossRef]
  76. Liakos, I.L.; Rizzello, L.; Scurr, D.J.; Pompa, P.P.; Bayer, I.; Athanassiou, A. All-natural composite wound dressing films of essential oils encapsulated in sodium alginate with antimicrobial properties. Int. J. Pharm. 2014, 463, 137–145. [Google Scholar] [CrossRef]
  77. Aldana, D.S.; Andrade-Ochoa, S.; Aguilar-González, C.N.; Contreras-Esquivel, J.C.; Nevárez-Moorillon, G. Antibacterial activity of pectic-based edible films incorporated with Mexican lime essential oil. Food Control 2015, 50, 907–912. [Google Scholar] [CrossRef]
  78. Hosseini, S.F.; Rezaei, M.; Zandi, M.; Farahmandghavi, F. Development of bioactive fish gelatin/chitosan nanoparticles composite films with antimicrobial properties. Food Chem. 2016, 194, 1266–1274. [Google Scholar] [CrossRef]
  79. Shahbazi, Y. The properties of chitosan and gelatin films incorporated with ethanolic red grape seed extract and Ziziphora clinopodioides essential oil as biodegradable materials for active food packaging. Int. J. Biol. Macromol. 2017, 99, 746–753. [Google Scholar] [CrossRef]
  80. Lee, J.Y.; Garcia, C.V.; Shin, G.H.; Kim, J.T. Antibacterial and antioxidant properties of hydroxypropyl methylcellulose-based active composite films incorporating oregano essential oil nanoemulsions. LWT 2019, 106, 164–171. [Google Scholar] [CrossRef]
  81. Rojas-Graü, M.A.; Avena-Bustillos, R.J.; Olsen, C.; Friedman, M.; Henika, P.R.; Martín-Belloso, O.; Pan, Z.; McHugh, T. Effects of plant essential oils and oil compounds on mechanical, barrier and antimicrobial properties of alginate–apple puree edible films. J. Food Eng. 2007, 81, 634–641. [Google Scholar] [CrossRef]
  82. Nazari, M.; Majdi, H.; Milani, M.; Abbaspour, S.; Hamishehkar, H.; Lim, L.T. Cinnamon nanophytosomes embedded electrospun nanofiber: Its effects on microbial quality and shelf-life of shrimp as a novel packaging. Food Packag. Shelf Life 2019, 21, 100349. [Google Scholar] [CrossRef]
  83. Dashipour, A.; Razavilar, V.; Hosseini, H.; Shojaee-Aliabadi, S.; German, J.B.; Ghanati, K.; Khakpour, M.; Khaksar, R. Antioxidant and antimicrobial carboxymethyl cellulose films containing Zataria multiflora essential oil. Int. J. Biol. Macromol. 2015, 72, 606–613. [Google Scholar] [CrossRef] [PubMed]
  84. Ilyas, R.A.; Sapuan, S.M.; Ibrahim, R.; Abral, H.; Ishak, M.; Zainudin, E.; Asrofi, M.; Atikah, M.S.N.; Huzaifah, M.R.M.; Radzi, A.M.; et al. Sugar palm (Arenga pinnata (Wurmb.) Merr) cellulosic fibre hierarchy: A comprehensive approach from macro to nano scale. J. Mater. Res. Technol. 2019, 8, 2753–2766. [Google Scholar] [CrossRef]
  85. Ilyas, R.A.; Sapuan, S.M.; Ishak, M.R.; Zainudin, E.S. Effect of delignification on the physical, thermal, chemical, and structural properties of sugar palm fibre. BioResources 2017, 12, 8734–8754. [Google Scholar] [CrossRef]
  86. Ilyas, R.A.; Sapuan, S.M.; Sanyang, M.L.; Ishak, M.R.; Zainudin, E.S. Nanocrystalline cellulose as reinforcement for polymeric matrix nanocomposites and its potential applications: A review. Curr. Anal. Chem. 2018, 14, 203–225. [Google Scholar] [CrossRef]
  87. Ilyas, R.; Sapuan, S.M.; Ishak, M.; Zainudin, E.S. Sugar palm nanofibrillated cellulose (Arenga pinnata (Wurmb.) Merr): Effect of cycles on their yield, physic-chemical, morphological and thermal behavior. Int. J. Biol. Macromol. 2019, 123, 379–388. [Google Scholar] [CrossRef]
  88. Ilyas, R.; Sapuan, S.M.; Ibrahim, R.; Abral, H.; Ishak, M.; Zainudin, E.; Atikah, M.; Nurazzi, N.M.; Atiqah, A.; Ansari, M.; et al. Effect of sugar palm nanofibrillated cellulose concentrations on morphological, mechanical and physical properties of biodegradable films based on agro-waste sugar palm (Arenga pinnata (Wurmb.) Merr) starch. J. Mater. Res. Technol. 2019, 8, 4819–4830. [Google Scholar] [CrossRef]
  89. Ilyas, R.A.; Sapuan, S.M.; Ibrahim, R.; Abral, H.; Ishak, M.R.; Zainudin, E.S.; Atiqah, A.; Atikah, M.S.N.; Syafri, E.; Asrofi, M.; et al. Thermal, biodegradability and water barrier properties of bio-nanocomposites based on plasticised sugar palm starch and nanofibrillated celluloses from sugar palm fibres. J. Biobased Mater. Bioenergy 2020, 14, 234–248. [Google Scholar] [CrossRef]
  90. Brinchi, L.; Cotana, F.; Fortunati, E.; Kenny, J.M. Production of nanocrystalline cellulose from lignocellulosic biomass: Technology and applications. Carbohydr. Polym. 2013, 94, 154–169. [Google Scholar] [CrossRef]
  91. De Azeredo, H.M.C.; Rosa, M.D.F.; Mattoso, L.H.C. Nanocellulose in bio-based food packaging applications. Ind. Crop. Prod. 2017, 97, 664–671. [Google Scholar] [CrossRef]
  92. Kian, L.; Saba, N.; Jawaid, M.; Sultan, M. A review on processing techniques of bast fibers nanocellulose and its polylactic acid (PLA) nanocomposites. Int. J. Biol. Macromol. 2019, 121, 1314–1328. [Google Scholar] [CrossRef] [PubMed]
  93. Ilyas, R.A.; Sapuan, S.M.; Ishak, M.R.; Zainudin, E.S. Water transport properties of bio-nanocomposites reinforced by sugar palm (Arenga pinnata) nanofibrillated cellulose. J. Adv. Res. Fluid Mech. Therm. Sci. J. 2018, 51, 234–246. [Google Scholar]
  94. Gao, W.; Wu, W.; Liu, P.; Hou, H.; Li, X.; Cui, B. Preparation and evaluation of hydrophobic biodegradable films made from corn/octenylsuccinated starch incorporated with different concentrations of soybean oil. Int. J. Biol. Macromol. 2020, 142, 376–383. [Google Scholar] [CrossRef] [PubMed]
  95. Salarbashi, D.; Tajik, S.; Ghasemlou, M.; Shojaee-Aliabadi, S.; Noghabi, M.S.; Khaksar, R. Characterization of soluble soybean polysaccharide film incorporated essential oil intended for food packaging. Carbohydr. Polym. 2013, 98, 1127–1136. [Google Scholar] [CrossRef]
  96. Shaili, T.; Abdorreza, M.N.; Fariborz, N. Functional, thermal, and antimicrobial properties of soluble soybean polysaccharide biocomposites reinforced by nano TiO2. Carbohydr. Polym. 2015, 134, 726–731. [Google Scholar] [CrossRef]
  97. Akhter, R.; Masoodi, F.; Wani, T.A.; Rather, S.A. Functional characterization of biopolymer based composite film: Incorporation of natural essential oils and antimicrobial agents. Int. J. Biol. Macromol. 2019, 137, 1245–1255. [Google Scholar] [CrossRef]
  98. Ghanbarzadeh, B.; Almasi, H.; Entezami, A.A. Improving the barrier and mechanical properties of corn starch-based edible films: Effect of citric acid and carboxymethyl cellulose. Ind. Crop. Prod. 2011, 33, 229–235. [Google Scholar] [CrossRef]
  99. Li, X.; Qiu, C.; Ji, N.; Sun, C.; Xiong, L.; Sun, Q. Mechanical, barrier and morphological properties of starch nanocrystals-reinforced pea starch films. Carbohydr. Polym. 2015, 121, 155–162. [Google Scholar] [CrossRef]
  100. Jansson, A.; Järnström, L. Barrier and mechanical properties of modified starches. Cellulose 2005, 12, 423–433. [Google Scholar] [CrossRef]
  101. PirouziFard, M.; Yorghanlu, R.A.; Pirsa, S. Production of active film based on potato starch containing Zedo gum and essential oil of Salvia officinalis and study of physical, mechanical, and antioxidant properties. J. Thermoplast. Compos. Mater. 2019, 33, 915–937. [Google Scholar] [CrossRef]
  102. Djunaedy, A. Systemic fungicide applications and utilization of mycorrhizae in the framework of the soil control of plant pathogens tular soybean (Glycine max L.). Embryo 2008, 5, 1–9. [Google Scholar]
  103. Costa, S.S.; Druzian, J.I.; Machado, B.A.S.; De Souza, C.O.; Gil Guimarães, A. Bi-functional biobased packing of the cassava starch, glycerol, licuri nanocellulose and red propolis. PLoS ONE 2014, 9, e112554. [Google Scholar] [CrossRef] [Green Version]
  104. Da Silva, J.B.; Pereira, F.V.; Druzian, J.I. Cassava starch-based films plasticized with sucrose and inverted sugar and reinforced with cellulose nanocrystals. J. Food Sci. 2012, 77, 14–19. [Google Scholar] [CrossRef]
  105. Mathlouthi, M. Water content, water activity, water structure and the stability of foodstuffs. Food Control 2001, 12, 409–417. [Google Scholar] [CrossRef]
  106. Ilyas, R. Biopolymers and biocomposites: Chemistry and technology. Curr. Anal. Chem. 2020, 16, 500–503. [Google Scholar] [CrossRef]
  107. Ilyas, R.A.; Sapuan, S.M.; Kadier, A.; Kalil, M.S.; Ibrahim, R.; Atikah, M.S.N.; Nurazzi, N.M.; Nazrin, A.; Lee, C.H.; Faiz Norrrahim, M.N.; et al. Properties and characterization of PLA, PHA, and other types of biopolymer composites. In Advanced Processing, Properties, and Applications of Starch and Other Bio-Based Polymers; Al-Oqla, F., Sapuan, S.M., Eds.; Elsevier: Amsterdam, The Netherlands, 2020; pp. 111–138. [Google Scholar]
  108. Lee, C.H.; Sapuan, S.M.; Ilyas, R.A.; Lee, S.H.; Khalina, A. Development and processing of PLA, PHA, and other biopolymers. In Advanced Processing, Properties, and Applications of Starch and Other Bio-Based Polymers; Al-Oqla, F., Sapuan, S.M., Eds.; Elsevier: Amsterdam, The Netherlands, 2020; pp. 47–63. [Google Scholar]
  109. Ilyas, R.A.; Sapuan, S.M.; Norrrahim, M.N.F.; Yasim-Anuar, T.A.T.; Kadier, A.; Kalil, M.S.; Atikah, M.S.N.; Ibrahim, R.; Asrofi, M.; Abral, H.; et al. Nanocellulose/starch biopolymer nanocomposites: Processing, manufacturing, and applications. In Advanced Processing, Properties, and Applications of Starch and Other Bio-Based Polymers; Al-Oqla, F., Sapuan, S.M., Eds.; Elsevier: Amsterdam, The Netherlands, 2020; pp. 65–88. [Google Scholar]
  110. Ilyas, R.A.; Sapuan, S.M.; Kadier, A.; Krishnan, S.; Atikah, M.S.N.; Ibrahim, R.; Nazrin, A.; Syafiq, R.; Misri, S.; Huzaifah, M.R.M.; et al. Mechanical testing of sugar palm fiber reinforced sugar palm biopolymer composites. In Advanced Processing, Properties, and Applications of Starch and Other Bio-Based Polymers; Al-Oqla, F., Sapuan, S.M., Eds.; Elsevier: Amsterdam, The Netherlands, 2020; pp. 89–110. [Google Scholar]
  111. De-Melo, A.A.M.; Silveira, M.F.A.; Torres, M.C.L.; Rezende, C.S.M.E.; Fernandes, T.H.; De Oliveira, A.N.; Geraldine, R.M. Microbiological quality and other characteristics of refrigerated chicken meat in contact with cellulose acetate-based film incorporated with rosemary essential oil. Braz. J. Microbiol. 2012, 43, 1419–1427. [Google Scholar] [CrossRef]
  112. Peng, Y.; Li, Y. Combined effects of two kinds of essential oils on physical, mechanical and structural properties of chitosan films. Food Hydrocoll. 2014, 36, 287–293. [Google Scholar] [CrossRef]
  113. Oussalah, M.; Caillet, S.; Salmiéri, S.; Saucier, L.; Lacroix, M. Antimicrobial Effects of alginate-based films containing essential oils on listeria monocytogenes and salmonella typhimurium present in bologna and ham. J. Food Prot. 2007, 70, 901–908. [Google Scholar] [CrossRef]
  114. Sanchez-Gonzalez, L.; Pastor, C.; Vargas, M.; Chiralt, A.; Gonzalez-Martinez, C.; Chafer, M. Effect of hydroxypropylmethylcellulose and chitosan coatings with and without bergamot essential oil on quality and safety of cold-stored grapes. Postharvest Biol. Technol. 2011, 60, 57–63. [Google Scholar] [CrossRef] [Green Version]
  115. Seydim, A.C.; Sarikus, G. Antimicrobial activity of whey protein based edible films incorporated with oregano, rosemary and garlic essential oils. Food Res. Int. 2006, 39, 639–644. [Google Scholar] [CrossRef]
  116. Jouki, M.; Yazdi, F.T.; Mortazavi, S.A.; Koocheki, A. Quince seed mucilage films incorporated with oregano essential oil: Physical, thermal, barrier, antioxidant and antibacterial properties. Food Hydrocoll. 2014, 36, 9–19. [Google Scholar] [CrossRef]
  117. Botre, D.A.; Soares, N.D.F.F.; Espitia, P.J.P.; De Sousa, S.; Renhe, I.R.T. Avaliação de filme incorporado com óleo essencial de orégano para conservação de pizza pronta. Rev. Ceres 2010, 57, 283–291. [Google Scholar] [CrossRef] [Green Version]
  118. Otero, V.; Becerril, R.; Santos, J.A.; Rodríguez-Calleja, J.M.; Nerín, C.; García, M. Evaluation of two antimicrobial packaging films against Escherichia coli O157:H7 strains in vitro and during storage of a Spanish ripened sheep cheese (Zamorano). Food Control 2014, 42, 296–302. [Google Scholar] [CrossRef]
  119. Emiroğlu, Z.K.; Yemiş, G.P.; Coşkun, B.K.; Candoğan, K. Antimicrobial activity of soy edible films incorporated with thyme and oregano essential oils on fresh ground beef patties. Meat Sci. 2010, 86, 283–288. [Google Scholar] [CrossRef]
  120. Zinoviadou, K.G.; Koutsoumanis, K.P.; Biliaderis, C.G. Physico-chemical properties of whey protein isolate films containing oregano oil and their antimicrobial action against spoilage flora of fresh beef. Meat Sci. 2009, 82, 338–345. [Google Scholar] [CrossRef]
  121. Takala, P.N.; Vu, K.D.; Salmieri, S.; Khan, R.A.; Lacroix, M. Antibacterial effect of biodegradable active packaging on the growth of Escherichia coli, Salmonella typhimurium and Listeria monocytogenes in fresh broccoli stored at 4 °C. LWT Food Sci. Technol. 2013, 53, 499–506. [Google Scholar] [CrossRef]
  122. Tongnuanchan, P.; Benjakul, S.; Prodpran, T. Physico-chemical properties, morphology and antioxidant activity of film from fish skin gelatin incorporated with root essential oils. J. Food Eng. 2013, 117, 350–360. [Google Scholar] [CrossRef]
  123. Shojaee-Aliabadi, S.; Hosseini, H.; Mohammadifar, M.A.; Mohammadi, A.; Ghasemlou, M.; Ojagh, S.M.; Hosseini, S.M.; Khaksar, R. Characterization of antioxidant-antimicrobial κ-carrageenan films containing Satureja hortensis essential oil. Int. J. Biol. Macromol. 2013, 52, 116–124. [Google Scholar] [CrossRef]
  124. Oussalah, M.; Caillet, S.; Salmiéri, S.; Saucier, L.; Lacroix, M. Antimicrobial and antioxidant effects of milk protein-based film containing essential oils for the preservation of whole beef muscle. J. Agric. Food Chem. 2004, 52, 5598–5605. [Google Scholar] [CrossRef]
  125. Gómez-Estaca, J.; De Lacey, A.L.; López-Caballero, M.; Gómez-Guillén, M.; Montero, P. Biodegradable gelatin–chitosan films incorporated with essential oils as antimicrobial agents for fish preservation. Food Microbiol. 2010, 27, 889–896. [Google Scholar] [CrossRef] [PubMed]
  126. Salgado, P.R.; López-Caballero, M.E.; Gómez-Guillén, M.C.; Mauri, A.N.; Montero, M.P. Sunflower protein films incorporated with clove essential oil have potential application for the preservation of fish patties. Food Hydrocoll. 2013, 33, 74–84. [Google Scholar] [CrossRef]
  127. Choi, W.S.; Singh, S.; Lee, Y.S.; Choi, W.S. Characterization of edible film containing essential oils in hydroxypropyl methylcellulose and its effect on quality attributes of ‘Formosa’ plum (Prunus salicina L.). LWT 2016, 70, 213–222. [Google Scholar] [CrossRef]
  128. Yun, J.; Fan, X.; Li, X.; Jin, T.Z.; Jia, X.; Mattheis, J.P. Natural surface coating to inactivate Salmonella enterica serovar Typhimurium and maintain quality of cherry tomatoes. Int. J. Food Microbiol. 2015, 193, 59–67. [Google Scholar] [CrossRef] [PubMed]
  129. Vu, K.; Hollingsworth, R.; Leroux, E.; Salmieri, S.; Lacroix, M. Development of edible bioactive coating based on modified chitosan for increasing the shelf life of strawberries. Food Res. Int. 2011, 44, 198–203. [Google Scholar] [CrossRef]
  130. Perdones, Á.; Escriche, I.; Chiralt, A.; Vargas, M. Effect of chitosan–lemon essential oil coatings on volatile profile of strawberries during storage. Food Chem. 2016, 197, 979–986. [Google Scholar] [CrossRef]

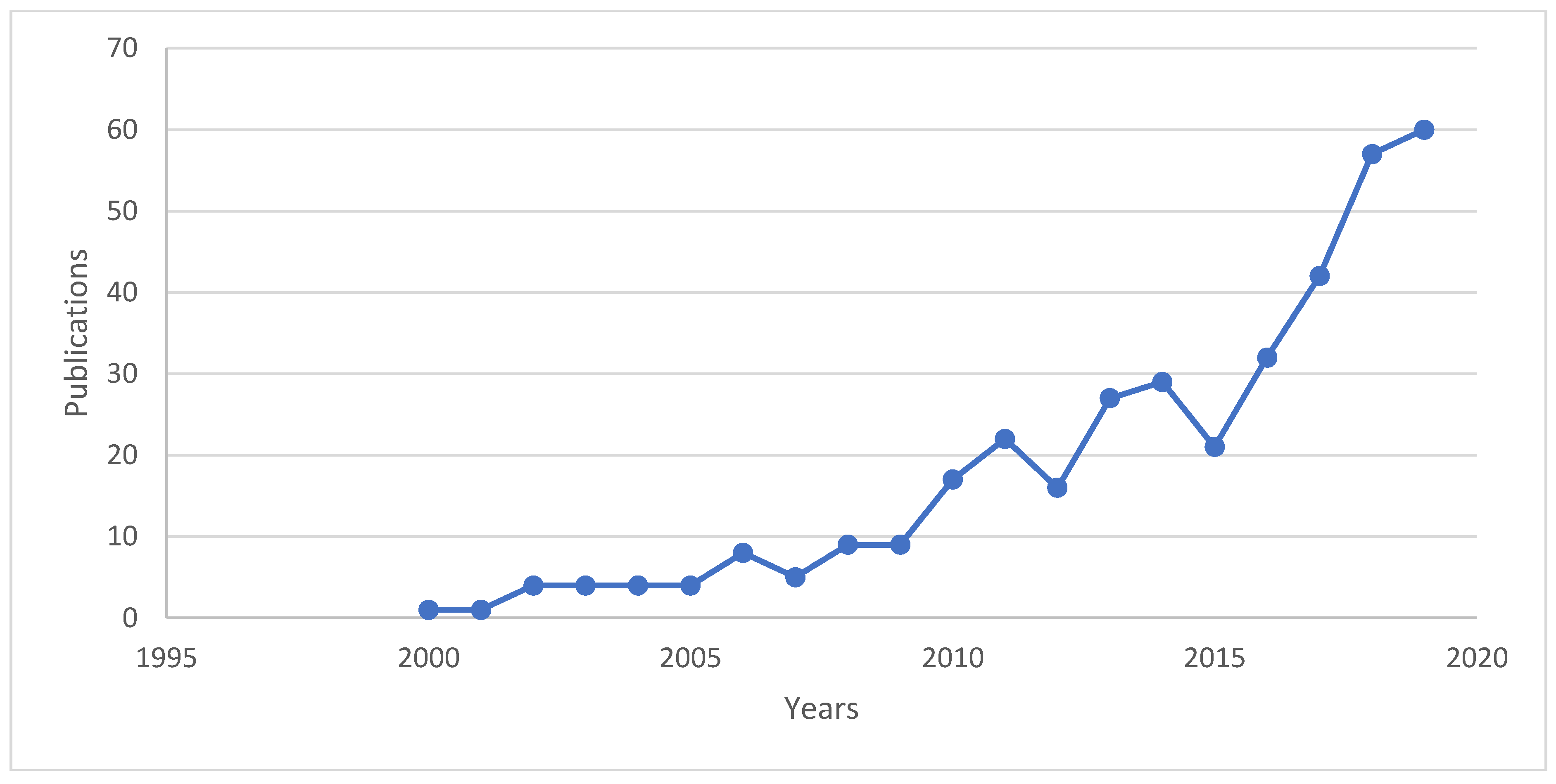

Figure 1. The trend research on starch based composite reinforced essential oil as biopolymer (SCOPUS, August 2020, Keywords: starch, essential oil).
Figure 1. The trend research on starch based composite reinforced essential oil as biopolymer (SCOPUS, August 2020, Keywords: starch, essential oil).
Polymers 12 02403 g001
Figure 2. Petri dishes with circular disks of film incorporated with three different concentrations of cinnamon EOs, showing the inhibitory zone against Penicillium commune in comparison with the Petri dish without the active film. (Reproduced with a copyright permission from Souza et al. [7]).
Figure 2. Petri dishes with circular disks of film incorporated with three different concentrations of cinnamon EOs, showing the inhibitory zone against Penicillium commune in comparison with the Petri dish without the active film. (Reproduced with a copyright permission from Souza et al. [7]).
Polymers 12 02403 g002

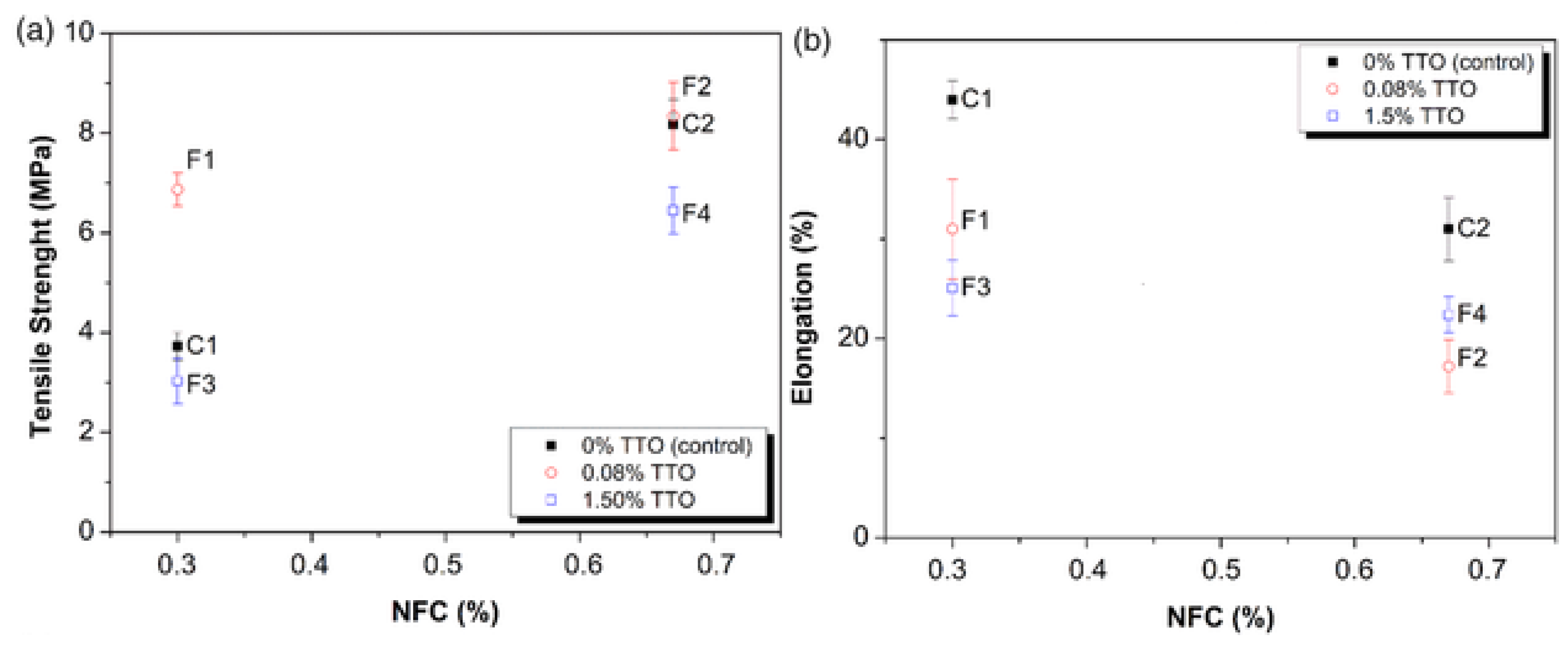

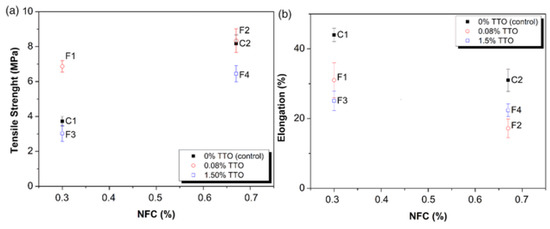

Figure 3. TS (a) and Elongation (b) of the films for different levels of NFC and TTO. Control films: C1 (0.3% m/v, NFC); C2 (0.67% m/v, NFC); and films with TTO: F1 (0.3% m/v, NFC, 0.08% v/v, TTO); F2 (0.67% m/v, NFC; 0.08% v/v, TTO); F3 (0.3% m/v, NFC; 1.5% v/v, TTO); F4 (0.67% m/v, NFC; 1.5% v/v, TTO). (Reproduced with a copyright permission from Silveira et al. [61]).
Figure 3. TS (a) and Elongation (b) of the films for different levels of NFC and TTO. Control films: C1 (0.3% m/v, NFC); C2 (0.67% m/v, NFC); and films with TTO: F1 (0.3% m/v, NFC, 0.08% v/v, TTO); F2 (0.67% m/v, NFC; 0.08% v/v, TTO); F3 (0.3% m/v, NFC; 1.5% v/v, TTO); F4 (0.67% m/v, NFC; 1.5% v/v, TTO). (Reproduced with a copyright permission from Silveira et al. [61]).
Polymers 12 02403 g003

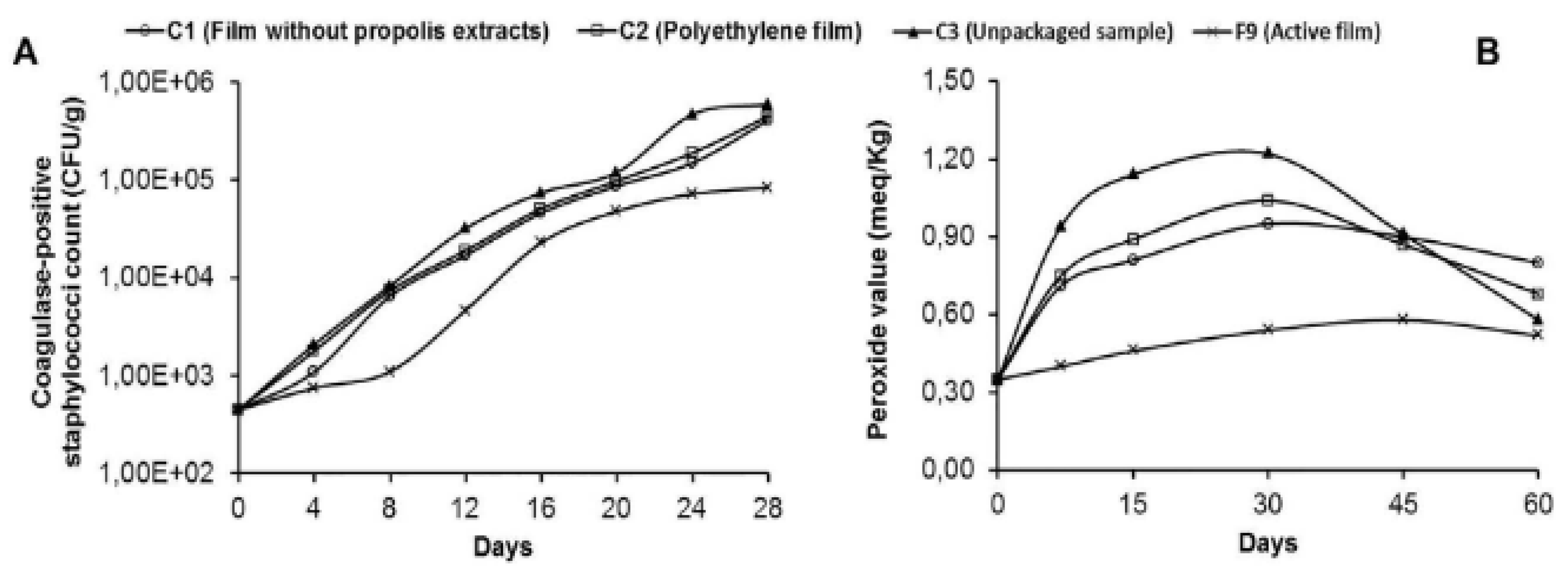

Figure 4. Antimicrobial efficacy (A) and antioxidant efficacy (B) of the active film during storage. [103] (Reproduced with a copyright permission from Creative Commons Attribution License).
Figure 4. Antimicrobial efficacy (A) and antioxidant efficacy (B) of the active film during storage. [103] (Reproduced with a copyright permission from Creative Commons Attribution License).
Polymers 12 02403 g004
Figure 5. (A) Linear correlation between the CNC and the physico-chemical properties, (B) water vapor permeability (WVP), and, (C) mechanical properties of the films [103]. (Reproduced with a copyright permission from Creative Commons Attribution License).
Figure 5. (A) Linear correlation between the CNC and the physico-chemical properties, (B) water vapor permeability (WVP), and, (C) mechanical properties of the films [103]. (Reproduced with a copyright permission from Creative Commons Attribution License).
Polymers 12 02403 g005aPolymers 12 02403 g005b
Table 1. Antimicrobial activity of EOs by disc diffusion assay [60].
Table 1. Antimicrobial activity of EOs by disc diffusion assay [60].
EOsDiameter of Inhibitory Zone (mm)
aureus (SA)
coli (EC)
enterica (SE)
Cinnamon18.2 ± 1.819.7 ± 1.815.5 ± 2.8
Pepper mint12.4 ± 2.35.8 ± 0.3NA
Rosemary9.6 ± 2.57.9 ± 1.89.0 ± 1.2
7.8 ± 0.68.7 ± 1.47.9 ± 0.7
6.8 ± 0.4NANA
Ginger6.0 ± 2.2NANA
NA = not applicable.
Table 2. Starch-based polymer film incorporated with antimicrobial plant EOs for food packaging application.
Table 2. Starch-based polymer film incorporated with antimicrobial plant EOs for food packaging application.
StarchEOsInhibition Zone (%)References
S. aureus Gram (+)E. coli Gram (-)
Corn/WheatLemon47.72 ± 2.8745.56 ± 3.15[56]
Corn/WheatLemon45.89 ± 3.3645.34 ± 3.48[56]
L. monocytogenes
Modified StarchPeppermint oil--[25]
P. communeE. amstelodami
CassavaCinnamon25.94 ± 5.7291.06 ± 15.48[7]
Escherichia coliS. aureus
CassavaCinnamon12.17 ± 0.2911.17 ± 0.29[57]
E.coli ATCC 25922S.aureus ATCC 25923
Aspergillus nigerPenicillium spp.
Amaranth/Chitosan/StarchMexican Oregano--[72]
A. nigerP. expansum
PeaNeem4.35 ± 0.104.34 ± 0.06[73]
Pseudomonas fluorescensAspergillus niger
Cassava Lemon Grass (0.5%)25.89 ± 0.1211.97 ± 0.176[1]
S. aureus Gram (+)Candida albicans
CassavaTea tree (TTO) (1.5%) 77 ± 0.2465 ± 0.24[61]
Pseudomonas fluorescens
TapiocaCinnamon bark (2.0%)28.6 ± 0.85 [62]
S. aureusL. monocytogenes
PotatoLavandula angustifolia (0.5%)13.69 ± 0.8917.25 ± 0.59[74]
PotatoMentha pulegium (0.5%)21.01 ± 0.4222.90 ± 0.90[74]
A. niger
CassavaTumeric (0.5%)17.02 ± 0.42 [75]
Escherichia coliCandida albicans
Sodium Alginate (NaAlg)Cinnamon (50%)6 ± 0.1213 ± 0.06[76]
Lavender (50%)0.5 ± 0.892 0.90
Tea tree (50%)0.5 ± 0.591.5 ± 0.10
Peppermint (50%)1 ± 0.062 ± 0.12
Escherichia coliS. aureus
lime bagasse pectic extractLime (0.5%)11.8 ± 1.013.5 ± 0.8[77]
lime pomace pectic extractLime (0.5%)9.5 ± 0.98.3 ± 0.8
Escherichia coliS. aureus
Fish gelatin/Chitosan nanoparticleOriganum vulgare L. (1.2%)33.00 ± 1.0026.33 ± 0.57[78]
B. SubtilisS. aureus
ChitosanZiziphora clinopodioides (1%) 5.4 ± 0.16.1 ± 0.1[79]
Grape seed (1%)1.7 ± 0.13.1 ± 0.1
GelatinZiziphora clinopodioides (1%)4.3 ± 0.25.6 ± 0.1
Grape seed (1%)1.3 ± 0.12.1 ± 0.1
Escherichia coliS. aureus
Hydroxypropyl methylcellulose (HPMC)Oregano (0.75%)31.22 ± 0.2435.46 ± 0.33[80]
Escherichia coli
Alginate–apple pureeOregano (0.1%)49.8 [81]
Cinnamon (0.5%)40.8
Lemongrass (0.5%)19.6
Escherichia coliS. aureus
Polyvinyl alcohol nanofibreCinnamon nanophytosome (5%)12 ± 0.8212 ± 2.12[82]
Escherichia coliS. aureus
Carboxymethyl celluloseZataria multiflora Boiss (3%)56.33 ± 1.5257.66 ± 1.15[83]
Table 3. Moisture content, water vapor permeability (WVP), Tensile strength (MPa) and elongation at break (%) of anti-microbacterial agent reinforced starch biopolymer.
Table 3. Moisture content, water vapor permeability (WVP), Tensile strength (MPa) and elongation at break (%) of anti-microbacterial agent reinforced starch biopolymer.
StarchEOsMoisture Content (%)Water Vapor Permeability (g−1·s−1·Pa−1)Tensile Strength (MPa)Tensile Modulus
Elongation %References
Corn/WheatLemon16.2 ± 0.293.28 ± 0.0611.16 ± 1.03-26.50 ± 0.39[56]
Corn/WheatLemon11.0 ± 0.333.07 ± 0.0811.50 ± 1.06-32.20 ± 0.55[56]
CassavaCinnamon-9.78 ± 1.461.05 ± 0.16-191.27 ± 22.62[7]
CassavaCinnamon (1.5%)-14.79 ± 2.760.63 ± 0.09 -108.85 ± 7.29[57]
PotatoLavender (2%)72.28 ± 9.75-62.8 ± 1.9-19.5 ± 2.6[58]
PeaOregano4.33 ± 0.134.9 ± 0.526 ± 2.0502 ± 5042 ± 11[73]
PeaNeem6.7 ± 0.134.1 ± 0.421.5 ± 1.0413 ± 3244 ± 7 [73]
Cassava Lemon Grass (0.5%)-23.28 ± 1.170.52 ± 0.022 -30.02 ± 1.46[1]
CassavaTea tree (1.5%) 9.958 ± 1.203.03 ± 0.46 25.1 ± 2.8[61]
TapiocaCinnamon bark (2.0%) 21.38 ± 1.291.23 ± 0.09 58.56 ± 1.23[62]
Corn/octenylsuccinatedSoybean (0.5%) 2.72 ± 0.135.21 ± 0.20 36.54 ± 6.36[94]
Potato Lavandula angustifolia (0.5%) 2.65 ± 0.0745.88 ± 1.19 15.33 ± 0.15[74]
PotatoMentha pulegium (0.5%) 2.59 ± 0.4336.15 ± 1.91 17.63 ± 2.42[74]
Soybean Zataria multi- flora Boiss (ZEO) (3%)18.92 ± 0.531.2 ± 0.05 8.43 ± 0.43 40.66 ± 0.74[95]
SoybeanMentha pulegium (MEO) (3%)27.02 ± 2.071.7 ± 0.036.72 ± 0.56 38.73 ± 0.36[95]
Soybeannano titanium dioxide (TiO2-N) (3%) 5.27 ± 0.1717.22 ± 0.420.332 ± 0.03222.2 ± 4.3[96]
ChitosanMint oil (0.5%)10.98 ± 0.180.028 ± 0.00416.99 ± 0.461.14 ± 0.6014.87 ± 0.34[97]
ChitosanRosemary oil (0.5%)5.08 ± 0.500.014 ± 0.00125.95 ± 0.481.42 ± 0.5318.20 ± 0.30[97]
Fish gelatin/Chitosan nanoparticleOriganum vulgare L. (1.2%) 0.683 ± 0.0503.28 ± 0.43153.75 ± 25.2487.20 ± 17.14[78]
ChitosanZiziphora clinopodioides (1%) 24.31 ± 0.0139.31 ± 0.43 [79]
grape seed (1%) 21.06 ± 0.2734.48 ± 0.06
GelatinZiziphora clinopodioides (1%) 24.12 ± 0.1830.80 ± 0.03 [79]
grape seed (1%) 20.54 ± 0.2427.12 ± 0.08
Hydroxypropyl methylcellulose (HPMC)Oregano (0.75%)10.83 ± 0.552.53 ± 0.0725.46 ± 0.0640 ± 0.348.65 ± 0.34[80]
Alginate–apple pureeOregano (0.1%) 5.25 ± 0.332.47 ± 0.375.75 ± 0.9656.96 ± 3.86[81]
Cinnamon (0.5%) 4.90 ± 0.272.84 ± 0.486.86 ± 1.1657.88 ± 5.37
Lemongrass (0.5%) 4.91 ± 0.402.56 ± 0.466.02 ± 1.0755.95 ± 5.55
Polyvinyl alcohol nanofibreCinnamon nanophytosome (5%)29 ± 2.011.07 ± 0.0445.32 ± 5.0636.79 ± 4.811.07 ± 5.1[82]
Carboxymethyl celluloseZataria multiflora Boiss (3%)15.64 ± 0.845.79 ± 0.2916.96± 0.95 20.77 ± 0.51[83]
Table 4. Antimicrobial properties of polymer composites reinforced essential oil.
Table 4. Antimicrobial properties of polymer composites reinforced essential oil.
Essential OilProperties Food ProductFilm MaterialReferences
RosemaryAntimicrobialChickenCellulose acetate[111]
Cinnamon cloveAntimicrobialBakeryCassava starch[7]
Lemon, thyme and cinnamonAntibacterialNAChitosan[112]
Cinnamon, winter savory and oreganoAntimicrobialBologna and hamAlginate[113]
BergamotAntifungal and antibacterialNAChitosan[114]
Garlic, rosemary, oreganoAntimicrobialNAWhey protein isolate (WPI)[115]
OreganoAntimicrobial (against S. aureus, Shewanella putrefaciens and Yersinia enterocolitica) and antioxidantsNAQuince seed mucilage[116]
OreganoAntimicrobialPizzaCellulosic resin[117]
OreganoAntimicrobialRipened sheep cheese modelPolypropylene (PP) and polyethylene terephthalate (PET)[118]
Oregano and thymeAntimicrobial (against Pseudomonas spp. and coliform bacteria)Fresh ground beefSoy protein[119]
OreganoAntimicrobial Fresh beefWhey protein isolate (WPI)[120]
Mixture of oregano, pimento berry, and lemongrass (mixture A)
Mixture of nutmeg, lemongrass and citral (mixture B)
Antimicrobial (against L. monocytogenes)Fresh broccoliMethylcellulose (MC) and blend of polycaprolactone/alginate (PCL/ALG)[121]
Ginger, turmeric and plaiAntioxidant NAFish skin gelatin[122]
Satureja hortensisAntibacterial and antioxidantNAk-Carrageenan[123]
Oregano and pimentoAntioxidantWhole beef muscleMilk protein[124]
CloveAntibacterialFishGelatin chitosan[125]
Clove (57)Antibacterial and antioxidantSardine pattiesSunflower protein concentrate[126]
Linalool or methyl chavicol (39)AntimicrobialCheddar cheeseLow-density polyethylene (LDPE)[126]
Oregano and bergamot (58)AntimicrobialFormosa plumHydroxypropyl methylcellulose and limonene constituent EO
Cinnamon and mustardAntibacterialTomatoesZein[128]
Limonene constituent EO, lemongrass and oreganoAntimicrobialStrawberriesChitosan[129]
Peppermint, red thyme, chitosan and lemonFlavoringStrawberryChitosan[130]
NA = not available.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Syafiq, R.; Sapuan, S.M.; Zuhri, M.Y.M.; Ilyas, R.A.; Nazrin, A.; Sherwani, S.F.K.; Khalina, A. Antimicrobial Activities of Starch-Based Biopolymers and Biocomposites Incorporated with Plant Essential Oils: A Review. Polymers 2020, 12, 2403.

AMA Style

Syafiq R, Sapuan SM, Zuhri MYM, Ilyas RA, Nazrin A, Sherwani SFK, Khalina A. Antimicrobial Activities of Starch-Based Biopolymers and Biocomposites Incorporated with Plant Essential Oils: A Review. Polymers. 2020; 12(10):2403.

Chicago/Turabian Style

Syafiq, R., S. M. Sapuan, M. Y. M. Zuhri, R. A. Ilyas, A. Nazrin, S. F. K. Sherwani, and A. Khalina. 2020. "Antimicrobial Activities of Starch-Based Biopolymers and Biocomposites Incorporated with Plant Essential Oils: A Review" Polymers 12, no. 10: 2403.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
