Article

Rapid, Single-Step Protein Encapsulation via Flash NanoPrecipitation

by
Shani L. Levit
,
Rebecca C. Walker
and
Christina Tang
*
Chemical and Life Science Engineering Department, Virginia Commonwealth University, Richmond, VA 23284-3028, USA
*
Author to whom correspondence should be addressed.
Polymers 2019, 11(9), 1406; https://doi.org/10.3390/polym11091406
Submission received: 24 July 2019 / Revised: 22 August 2019 / Accepted: 23 August 2019 / Published: 27 August 2019
Browse Figures
Review Reports Versions Notes

Abstract

:
Flash NanoPrecipitation (FNP) is a rapid method for encapsulating hydrophobic materials in polymer nanoparticles with high loading capacity. Encapsulating biologics such as proteins remains a challenge due to their low hydrophobicity (logP < 6) and current methods require multiple processing steps. In this work, we report rapid, single-step protein encapsulation via FNP using bovine serum albumin (BSA) as a model protein. Nanoparticle formation involves complexation and precipitation of protein with tannic acid and stabilization with a cationic polyelectrolyte. Nanoparticle self-assembly is driven by hydrogen bonding and electrostatic interactions. Using this approach, high encapsulation efficiency (up to ~80%) of protein can be achieved. The resulting nanoparticles are stable at physiological pH and ionic strength. Overall, FNP is a rapid, efficient platform for encapsulating proteins for various applications.

Graphical Abstract

1. Introduction

Flash NanoPrecipitation (FNP) is a versatile method to incorporate hydrophobic drugs, dyes, or inorganic nanoparticles with a hydrophobic coating into polymeric nanoparticles via rapid mixing achieved with confined impinging jets [1]. Typically, nanoparticle self-assembly involves precipitation of the supersaturated hydrophobic material via nucleation and growth as well as adsorption of a micellizing amphiphilic block copolymer. The resulting nanoparticles are sterically stabilized with a hydrophobic core—hydrophilic shell structure [1,2]. Due to the rapid precipitation rate and strong hydrophobic interaction with the hydrophobic block of the amphiphilic block copolymer necessary for stabilization, the use of FNP has generally been limited to encapsulation of hydrophobic materials (logP > 6) [3]. Due to the increasing emphasis on biologically derived therapeutics [4] such as proteins and peptides, encapsulation to prevent rapid clearance from natural mechanisms and enzymatic degradation of the biologics [5,6] via FNP is of considerable interest.
Encapsulation of less hydrophobic materials (logP < 6) [7,8,9,10] using FNP has been achieved via in situ complexation [7,8,9,10]. For example, hydrophobic ion pairs [9] or insoluble coordination complexes can be formed during mixing and stabilized with an amphiphilic block copolymer [10]. To encapsulate peptides, hydrophilic imaging agents, and small proteins (~14 kDa), inverse Flash NanoPrecipitation (iFNP) has recently been reported [11,12]. In iFNP, the biologic and the amphiphilic block copolymer are solubilized in a polar organic solvent (e.g., dimethyl sulfoxide) and rapidly mixed with a miscible nonpolar solvent (e.g., acetone or chloroform) which leads to precipitation of the biologic, adsorption of the hydrophilic block, and stabilization by the hydrophobic block in the nonpolar solvent. These initial particles, with a hydrophilic core and hydrophobic coating, are then crosslinked for stabilization and dispersed in an appropriate solvent for a second FNP step for encapsulation within a second block copolymer [11,12]. While promising, this approach inherently requires multiple processing steps.
Another approach to encapsulate biologics has been Flash Nanocomplexation in which polyelectrolytes complex with biologics (e.g., negatively charged DNA) to impart stability. For gene delivery, Santos et al. stabilized DNA with linear polyethylenimine (lPEI) (22 kDa) via rapid mixing [13]. This approach of leveraging electrostatic interactions has been successful for strong polyelectrolytes such as DNA. Use of this approach for encapsulation of diffusely charged, globular proteins has not yet been established.
Therefore, we investigate a single-step method for encapsulation of proteins via FNP. We use bovine serum albumin (BSA) as a model protein and form an insoluble precipitate in situ with tannic acid [14,15,16]. We study various stabilizers (i.e., an amphiphilic block copolymer and a polyelectrolyte). The effects of formulation parameters e.g., stabilizer concentration, molecular weight, pH, and ionic strength on nanoparticle size, zeta potential, stability, protein encapsulation efficiency are discussed.

2. Materials and Methods

2.1. Materials

ACS grade tannic acid (TA), calcium chloride (CaCl2), and ACS grade hydrochloric acid (HCl) were purchased from Sigma-Aldrich (St. Louis, MO, USA). The branched polyethylenimine (PEI) with weight average molecular weight (MW) of 2000 g/mol and 10,000 g/mol, were obtained from PolySciences (Warrington, PA, USA), and MW = 750,000 g/mol 50% (w/v) in H2O was obtained from Sigma-Aldrich (St. Louis, MO, USA). Bovine serum albumin (BSA), ACS grade acetone, HPLC grade tetrahydrofuran (THF), diethyl ether, ammonium hydroxide (NH4OH) (aq. 10% v/v), and ACS certified sodium chloride (NaCl) were obtained from Fisher Scientific (Pittsburg, PA, USA). These reagents were used as received. Phosphate-buffered saline (PBS) was made with 156 mM NaCl, 10 mM sodium phosphate dibasic anhydrous (Na2HPO4, Fisher Scientific, Pittsburg, PA, USA), and 2 mM potassium phosphate monobasic (KH2PO4, Fisher Scientific, Pittsburg, PA, USA). Prior to use, BioRad Protein Assay Dye Reagent (Bradford dye, BioRad, Hercules, CA, USA) was filtered with a 0.45 µm PTFE filter (Fisher Scientific, Pittsburg, PA, USA) and diluted 4-fold with deionized water. Additionally, polystyrene-b-polyethylene glycol (1600-b-500 g/mol) (PS-b-PEG) obtained from Polymer Source (Product No. P13141-SEO, Montreal, Canada) was dissolved in THF (500 mg/mL) and precipitated in diethyl ether (1:20 v:v THF:ether). The PS-b-PEG was recovered by centrifuging, decanting, and drying under vacuum at room temperature for two days as previously described [17].

2.2. Nanoparticle Preparation

Flash NanoPrecipitation (FNP) was performed with a hand-operated confined impinging jet (CIJ) mixer similar to previous reports [10]. Using the amphiphilic block copolymer stabilizer, PS-b-PEG was dissolved with TA (5 mg/mL) in acetone by sonication (~40 °C) and rapidly mixed with BSA dispersed in water (9 mg/mL or 20 mg/mL). The block copolymer to core material (BSA/TA) ratio was 2:1 by mass. The effluent from the CIJ mixer was immediately diluted in deionized water to maintain an acetone:water volume ratio of 1:9.
To use PEI as a stabilizer, TA (5 mg/mL) was dissolved in acetone and rapidly mixed with BSA dispersed in water (9 mg/mL); the mixer effluent was immediately diluted into PEI dispersed in water. The amount of PEI was varied relative to the mass of BSA/TA to achieve a final ratio PEI:BSA/TA of 1:1, 2:1, or 3:1 by mass. The volume of aqueous PEI was set to maintain a final acetone/water ratio of 1:9 by volume. To determine the role of TA, FNP was performed without TA using PEI as a stabilizer by rapidly mixing BSA dispersed in water with acetone and immediately diluting with PEI dispersed in water. In some cases, the ionic strength or the pH of the aqueous BSA stream was adjusted with HCl and NH4OH to achieve pH values between 2 and 10. In some cases following FNP, dialysis was performed to remove the organic solvent using regenerated cellulose tubing with a molecular weight cutoff of 6–8 kD MWCO (Spectra/Por, Spectrum Laboratories, Houston, TX, USA) against deionized water at a ratio of 1:100. The bath water was replaced four times in a 24-hour period.

2.3. Nanoparticle Characterization

The size and zeta potential of the resulting nanoparticle dispersions were measured after formulation with a Malvern Zetasizer ZS with a backscatter detection angle of 173° (Malvern Instruments Ltd., Malvern, United Kingdom). The intensity average particle size and distribution are reported using normal resolution mode with an average of 4 measurements. The polydispersity index (PDI) is used as a measure of the breadth of the particle distribution defined from the moments of the cumulant fit of the autocorrelation function calculated by the instrument software as previously described. Nanoparticles with a PDI below 0.300 were considered uniform [10,18].
To assess nanoparticle stability, the pH of the nanoparticle dispersions following FNP was adjusted between pH 2 and 10 with HCl or NH4OH. The size and zeta potential were tracked by DLS for up to a week. Additionally, the effect of ionic strength on particle stability by adding NaCl or CaCl2 (10 to 300 mM) after FNP and the resulting size and zeta potential were tracked for 24 h.

2.4. Protein Quantification

The amount of protein encapsulated in the resulting nanoparticles was quantified using a Bradford assay. After FNP, nanoparticles were recovered by centrifugal filtration (Amicon Ultracel 50K, 50,000 NMWL, Merck Millipore Ltd., Burlington, MA, USA). Briefly, filters were centrifuged (5804 R 15 amp. version, Eppendorf, Hamburg, Germany) at ~4000 rpm for 30–40 min. The recovered nanoparticles were separated from the supernatant. The recovered particles were washed 3 times with acetone (1 mL) to precipitate the BSA and solubilize the other nanoparticle components. The precipitated BSA was recovered from the acetone soluble nanoparticle components by centrifugation (10,000 rpm for 5–10 min) and decanting the acetone supernatant. The recovered protein was redispersed in water. A Bradford assay was performed on the sample following the manufacture’s protocol. Briefly, 10 µL of sample and 200 µL of Bradford dye were added to 96-well plate and measured with a microplate reader (VersaMax ELISA microplate reader, Molecular Devices, San Jose, CA, USA or Cytation 3 multi-mode reader, BioTek, Winooski, VT, USA) at a wavelength of 595 nm. Performing the procedure with a known amount of BSA, we confirmed 98 ± 3% protein recovery (Table S1).

3. Results and Discussion

Tannins such as tannic acid (TA) are known to precipitate proteins. Thus, to encapsulate proteins via Flash NanoPrecipitation (FNP), our approach was to form an insoluble complex with tannins during mixing in the presence of a stabilizer to facilitate nanoparticle self-assembly and impart stability. We use TA and bovine serum albumin (BSA) as a model system. Initially, we examined the precipitation of the BSA-TA complex via FNP. We mixed BSA dispersed in water with TA dissolved in acetone, which immediately formed a cloudy dispersion with a zeta potential of −13.1 ± 0.6 mV (Table 1). Without a stabilizer, the precipitate continued to grow and macroscopic precipitation was observed within 24 h. These observations indicate that BSA and TA complex and precipitate sufficiently fast upon mixing for nanoparticle self-assembly with FNP. We varied the ratio of BSA to TA (between 3:7 and 7:3 by mass) and observed the amount of macroscopic precipitate that formed. A mass ratio of 9:5 BSA to TA, produced the greatest amount of macroscopic precipitate (Figure S1a), and was thus used for subsequent experiments.
Based on these results of rapidly precipitating BSA with TA, we initially formulated nanoparticles using an amphiphilic block copolymer (PS-b-PEG) as a stabilizer. To perform FNP, BSA was dispersed in water and rapidly mixed with TA and PS-b-PEG which were dissolved in acetone. At a BSA to TA mass ratio of 9:5 and a block copolymer to core mass ratio of 2:1, the nanoparticle dispersion was polydisperse with multiple peaks at ~100 nm, ~20 nm, and ~10 nm (Figure S2). The peaks can be attributed to TA/PS-b-PEG micelles [10], empty PS-b-PEG micelles [19], and soluble BSA [20], respectively. The lack of visible TA/BSA precipitate suggests that TA preferentially interacts with the block copolymer rather than with BSA during FNP. Further, there is a mismatch in timescales of complexation/precipitation and block copolymer micellization such that the block copolymer rapidly forms micelles and on a longer time scale stabilizes TA [10,21].
To promote BSA/TA interactions, we performed FNP with an excess of protein. When the BSA to TA ratio was increased to 4:1, nanoparticles were initially formed with a size of ~600 nm with a PDI of 0.347 ± 0.045 similar to BSA-TA without stabilizer (Figure 1A,B). The measured zeta potential, −18.0 ± 3.0 mV, is consistent with other PEG based block copolymer stabilized nanoparticles [3,22]. Therefore, it appears that upon mixing BSA and TA complex and precipitate then the hydrophobic block of the amphiphilic block copolymer stabilizes the precipitate. TA also undergoes intermolecular interactions with the PEG block of the block copolymer via hydrogen bonding forming an insoluble complex that is confined to the nanoparticle core with the TA/BSA precipitate. The hydrophobic block of the block copolymer adsorbs to the precipitating nanoparticle core (hydrophobic PS-block, TA/BSA precipitate, TA:PEG) due to hydrophobic interactions. The PEG that is not complexed with TA microphase separates from the PS-block and orients into the aqueous phase providing steric stabilization. In this case, nanoparticle assembly is driven by a combination of hydrophobic and hydrogen bonding interactions.
While PS-b-PEG initially facilitated nanoparticle self-assembly, the resulting nanoparticle dispersion, initially transparent, turned cloudy over several hours indicating nanoparticle growth. Over 24 h, TA and BSA partitioned out and re-precipitated outside of the nanoparticle core. Similar behavior has been observed with TA [10] and peptides [11] which is attributed to low affinity between the hydrophobic block of PS-b-PEG and the BSA/TA precipitate.
Therefore, we next considered alternative stabilizers. Since we observed the initial BSA/TA complex showed a negative zeta potential of −13.1 ± 0.6 mV, we considered a cationic polyelectrolyte, polyethylenimine (PEI). To perform FNP, BSA dispersed in water was rapidly mixed with TA dissolved in acetone. The effluent of the mixer was immediately diluted into PEI with a molecular weight of 750,000 g/mol (750 kDa PEI) dispersed in water. The resulting nanoparticles were 107 ± 5 nm with a PDI 0.285 ± 0.004 (Table 2). TEM imaging confirms that the particles are spherical and the size is consistent with DLS measurements (Figure S3). No macroscopic precipitate was observed over at least 7 days whereas macroscopic precipitate was observed within 24 h without a stabilizer (Figure 1C). Further, the zeta potential of the resulting +18.8 ± 0.9 mV (Table 2) compared to −13.1 ± 0.6 mV (Table 1) for BSA/TA without a stabilizer. The positive zeta potential suggests that PEI was present at the surface of the nanoparticles encapsulating the anionic BSA-TA precipitate providing some degree of steric stabilization as zeta potentials greater than +35 mV are required for entirely electrostatic stabilization [22]. Taken together, these results indicate that introducing the PEI stabilizer facilitated nanoparticle self-assembly and conferred nanoparticle stability.
Since stabilizer properties can greatly affect the resulting nanoparticle properties [3,23,24,25], we investigated the effect of PEI molecular weight (Table S2) on nanoparticle assembly and stability. We used molecular weights of 750 kDa, 10 kDa, and 2 kDa. Interestingly, while 750 kDa PEI resulted in 107 ± 5 nm stable nanoparticle, 10 kDa PEI formed monodisperse, stable particles with a diameter of 153 ± 7 nm with a PDI of 0.125 ± 0.022 and a zeta potential +14.4 ± 1.9 mV (Table 2, Figure S4). The 2 kDa PEI did not facilitate nanoparticle assembly (Table S3) and FNP resulted in macroscopic precipitate. Thus, PEI molecular weights 10 kDa or greater were necessary for nanoparticle formation via self-assembly to encapsulate the BSA/TA complex. High molecular weight polyelectrolytes have been reported to strongly absorb onto surfaces which improve the stabilization of dispersions [26,27] such as the BSA/TA precipitate. In contrast, lower molecular weight polyelectrolytes have higher intermolecular charge repulsion which limits the electrostatic stabilization of the BSA/TA precipitate [27].
We confirmed the role of electrostatic interactions in nanoparticle assembly and stabilization by examining the effect of pH of the BSA stream on particle formation. First, we confirmed TA precipitates BSA at various pH conditions; we observed macroscopic precipitation for pH between 7 and 4.5, and no visible precipitate at pH 2 (Figure S1b). The maximum amount of visible BSA-TA precipitate was produced around pH 5 which can be attributed to protein aggregation near the isoelectric point of BSA (pI = 4.8) [28] comparable to previous reports [14]. Subsequently, the pH of the BSA stream was adjusted to between 2 and 10 prior to FNP while the PEI reservoir was unbuffered (pH ~ 10) and the nanoparticle size and zeta potential were examined. Varying the pH of the BSA stream did not change the size or zeta potential of the 750 kDa PEI NPs (Table S4) indicating the measured properties are dictated by the PEI. Interestingly, decreasing the pH to 2 using 10 kDa PEI disrupted particle assembly (Figure S5, Table S5) and instead formation of a visible precipitate was observed. The net charge of BSA is dependent on pH; decreasing pH below the isoelectric point results in protonation of the protein and a net positive charge [14,16]. With a net positive charge, BSA repels the cationic PEI (pKa ~ 10) [26,29] and thus particles do not form. Therefore, particle assembly requires the pH to be at or above the isoelectric point of the protein (i.e., pH > 5) to ensure electrostatic interaction with the PEI stabilizer.
Based on these results, we propose that the mechanism of nanoparticle self-assembly differs between the 10 kDa and the 750 kDa PEI. Interestingly, 750 kDa PEI NPs have a size of ~100 nm, similar to the hydrodynamic diameter of 750 kDa PEI (Table S2). Therefore, the high molecular weight PEI aggregates and these aggregates serve as the nanoparticle template and a sink for absorbing the anionic BSA/TA complex. In contrast, nanoparticles formulated with 10 kDa PEI (~150 nm) are much larger than their corresponding polymer in aqueous media (~5 nm). For this stabilizer, BSA/TA complex and precipitate. Particle assembly occurs as cationic 10 kDa PEI adsorbs to the anionic BSA/TA precipitate via electrostatic interactions. This mechanism of nanoparticle self-assembly is analogous to previous work with FNP encapsulating coordination complexes or ion pairs formed during mixing [7,10,11,12,30]. Schematics of the particle self-assembly mechanisms for the 750 kDa and 10 kDa PEI are shown in Figure 2.
Building on these results, we next sought to understand the effect of formulation parameters on nanoparticle assembly, specifically nanoparticle size. Typically, when nanoparticle assembly occurs due to hydrophobic interactions between the precipitation core material and micellizing block copolymer, the nanoparticle size can be tuned with the mass ratio of the block copolymer to the core materials as well as the total solids concentration [31].
The mass ratio of PEI to BSA-TA complex was adjusted from 3:1 to 2:1. However, for the 750 kDa PEI, decreasing the relative amount of stabilizer resulted in unstable nanoparticles with visible precipitate forming within 24 h (Table S6a). For the 10 kDa PEI, stable particles were achieved with lower relative amounts of stabilizer. While the size was not significantly affected, the PDI increased indicating less uniform particles (Table S7). Overall, we observe that the range of stabilizer to core ratio that forms stable, uniform nanoparticles is relatively narrow compared to the range used with hydrophobic interactions driving nanoparticle self-assembly. This finding is consistent with particle formation involving in situ coordination complexation [10] or cationic polysaccharides [32]. A ratio of 3:1 PEI to BSA-TA complex was used for subsequent experiments.
To vary particle size, the total solids concentration of the BSA, TA, and PEI in the final dispersion was varied from 5.6 mg/mL to 11.2 mg/mL; the 9:5 ratio of BSA:TA and 3:1 ratio of PEI:BSA/TA were held constant. We note that with the 750 kDa PEI stabilizer, the total solids concentration did not affect particle size or stability (Table S6b). Using 750 kDa PEI as a stabilizer, particle assembly was templated by the aggregated polymer [27,29,33]. The results are comparable to previous reports with various PEI systems at constant charge ratios [34,35]. Interestingly, with the 10 kDa PEI stabilizer, doubling the total solids concentration resulted in a two-fold increase in particle size from 143 ± 8 nm to 319 ± 185 nm while maintaining a PDI less than 0.300 (Table S7). The trend of increasing size with total solids concentration is comparable to previous results with FNP [1,31].
Traditionally, FNP involves an amphiphilic block copolymer and hydrophobic core materials. Upon mixing, the rapid decrease in solvent quality leads to simultaneous precipitation of the hydrophobic core material via nucleation and growth and self-assembly of the amphiphilic block copolymer. Nanoparticle assembly is arrested when sufficient hydrophobic block of the amphiphilic block copolymer adsorbs to the precipitating core material preventing further nanoparticle growth and the nanoparticle is sterically stabilized by the water-soluble block of the block copolymer. Typically, the nanoparticle size can be affected by varying the total mass concentration. Specifically, increasing the total mass concentration leads to an increase in particle size which has been attributed to a greater rate of core growth relative to the rate of nucleation which results in larger particle size [1,31]. In this case, the mechanism of particle self-assembly is analogous to traditional FNP because BSA/TA complexation and subsequent precipitation via nucleation and growth is sufficiently fast relative to adsorption of the PEI stabilizer. Thus, these results support the mechanism of particle self-assembly in which TA precipitates the protein and further precipitation is arrested by adsorption of the 10 kDa PEI stabilizer.
Salt and pH are expected to greatly affect electrostatic assemblies [36], thus we examined nanoparticle stability as a function of pH and ionic strength. After mixing, the nanoparticle dispersion had a pH of ~10 due to the PEI. As expected, decreasing the pH to 2 caused the nanoparticles with the 10 kDa PEI stabilizer to disassemble, as indicated by DLS. The presence of a peak on the order of 10 nm can be attributed to unencapsulated BSA [20] (Figure 3A). At acidic conditions, protonation of PEI and BSA leads to a net positive charge on both molecules and charge repulsion, which destabilizes the particles. Similar results were observed after dialysis of the nanoparticles against deionized water (Figure S6) due to decrease in pH near the isoelectric point of BSA. Therefore, the pH of the nanoparticle dispersion should be greater than the isoelectric point of the protein to maintain particle stability. Surprisingly, the particles using the 750 kDa stabilizer were stable below the isoelectric point of BSA (pH < 4.8) when both the PEI and BSA are expected to carry a net positive charge (Figure 3B). The PEI aggregates may provide a localized buffering effect preventing protonation of BSA [29].
To further understand particle stability, we investigated the effect of adjusting the ionic strength of the particle dispersion between 0.01 M to 0.3 M with monovalent and divalent salts. With the 750 kDa PEI stabilizer, the measured size decreased slightly in the presence of salt at ionic strengths greater than 0.01 M (Table S8). The decrease in particle size with ionic strength has been observed previously and was attributed to decreased intra-molecular charge repulsion forces which allow for tighter PEI aggregate formation [29].
In the presence of NaCl, the size of 10 kDa PEI stabilized nanoparticles was not affected at ionic strengths less than 0.03 M and increased two-fold at an ionic strength of 0.3 M. The presence of salts introduce charge screening and reduce the electrostatic interactions between the 10 kDa PEI stabilizer and anionic TA/BSA precipitate leading to the increase in particle size [27,37]. Interestingly, the diameter of the 10 kDa PEI stabilized nanoparticles was 290 ± 6 nm in the presence of NaCl, compared to 188 ± 7 nm with CaCl2 at the same ionic strength (0.3 M) (Table 3). The difference in particle size in the presence of Ca2+ and Na+ ions at the same ionic strength can be attributed to a 3-fold difference in ion concentration of Na+ ions compared to Ca2+ which resulted in greater charge screening and thus larger particle size. Additionally, calcium promotes protein/TA precipitation compared to sodium [16] and specific BSA-calcium interactions promote BSA aggregation compared to sodium [38], which prevents particle swelling.
Taken together, these results demonstrate that self-assembled nanoparticles are stable at physiologically relevant ionic strengths (~0.15 M). The particles are pH labile. Specifically, they are stable at basic pH (e.g., 7.4) and disassemble at acidic pH. Such properties may be promising for controlled release application such as intracellular delivery [10,39,40,41].
Finally, we quantified the amount of BSA in the nanoparticles in terms of encapsulation efficiency and protein loading for both molecular weights of PEI via Bradford assay. To understand the role of TA in nanoparticle assembly, we compared formulations with and without TA. Interestingly, while TA did not affect particle size or zeta potential (Table S9), it greatly affected the amount of protein incorporated into the nanoparticles (Table 4). For example, using the 750 kDa PEI stabilizer, the protein encapsulation increased from 50% with TA to 74% without the presence of TA. This result suggests that the charge density of BSA alone compared to the BSA/TA complex enhances interactions with PEI. Additionally, the absence of TA may increase BSA–PEI interactions. In contrast, with the 10 kDa PEI NPs, the protein encapsulation increased from 8% without TA to 79% with TA. This result supports the mechanism of self-assembly in which TA/BSA complex and precipitate and further growth of the precipitate is prevented by adsorption of the 10 kDa PEI stabilizer.
Interestingly, the 10 kDa PEI stabilizer resulted in higher protein loading (13% compared to 8%) and encapsulation efficiency (79% compared to 50%) than achieved with the 750 kDa PEI stabilizer (Table 4). Nanoparticle assembly using the 10 kDa PEI that occurs due to adsorption of the stabilizer to the precipitate forms kinetically trapped and enhances protein encapsulation compared to the absorption of the precipitate with the 750 kDa PEI aggregates. This improvement in loading is analogous to traditional FNP with hydrophobic small molecules [42]. Excitingly, the encapsulation efficiency of protein via rapid mixing with 10 kDa PEI is greater (~80%) than generally reported for encapsulating biologics via nanoprecipitation (7%–40%) [11,43]. These results suggest that FNP facilitated by TA/BSA complexation and precipitation is a highly efficient, rapid process for encapsulating proteins. Alternatively, we demonstrate it is possible to encapsulate protein via FNP without the need of precipitation using the 750 kDa PEI stabilizer.

4. Conclusions

Overall, we have demonstrated a rapid, single-step method using Flash NanoPrecipitation for encapsulating biologics (i.e., proteins) with high encapsulation efficiency (up to ~80%). Using the 10 kDa PEI stabilizer, nanoparticle formation involves complexation and precipitation with tannic acid and stabilization with a cationic polyelectrolyte. Nanoparticle self-assembly is driven by hydrogen bonding between TA and protein, then electrostatic interactions between the TA/protein precipitate and polyelectrolyte stabilizer. The resulting particles are stable at physiological ionic strengths and pH labile, i.e., stable above the isoelectric point of the protein and disassemble at pH below the isoelectric point of the protein, to facilitate potential controlled release applications.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/11/9/1406/s1, Table S1: BSA recovery; Table S2: Size and zeta potential of PEI dispersed in water; Table S3: Effect of PEI molecular weight on nanoparticle formulation; Table S4: Effect of pH of the BSA stream and PEI reservoir on 750 kDa PEI nanoparticles; Table S5: Effect of pH of the BSA stream and PEI reservoir on 10 kDa PEI NPs formulation; Table S6a: Varying ratio of stabilizer to core for 750 kDa PEI nanoparticles; Table S6b: Varying total solids of 750 kDa PEI nanoparticles; Table S7: Varying total solids concentration and ratio of BSA to TA by mass for nanoparticles made with 10 kDa PEI; Table S8: Effect of ionic strength on particle stability of 750 kDa PEI nanoparticles; Table S9: Effect of TA on nanoparticle formulation; Figure S1a: Precipitation of BSA and TA—varying BSA:TA ratio; Figure S1b: Precipitation of BSA and TA—varying pH; Figure S2: Nanoparticles formulated with PS-b-PEG (28 mg/mL) and TA (5 mg/mL) dissolved in acetone and rapidly mixed with BSA (9 mg/mL) dispersed in water via FNP; Figure S3: TEM of BSA/TA nanoparticles stabilized by 750 kDa PEI; Figure S4: Effect of PEI molecular weight on nanoparticle formulation; Figure S5: DLS of the 10 kDa PEI nanoparticles formulated under different pH conditions; Figure S6: DLS of 10 kDa PEI nanoparticles after dialysis.

Author Contributions

Conceptualization, S.L.L. and C.T.; Formal analysis, S.L.L., R.C.W. and C.T.; Funding acquisition, C.T.; Investigation, S.L.L. and R.C.W.; Methodology, S.L.L. and R.C.W.; Project administration, C.T.; Resources, C.T.; Supervision, S.L.L. and C.T.; Validation, S.L.L., R.C.W. and C.T.; Writing—original draft, S.L.L. and C.T.; Writing—review & editing, S.L.L., R.C.W. and C.T.

Funding

This work was partially supported by startup funding at Virginia Commonwealth University, and NSF (Award number 1651957).

Acknowledgments

The authors gratefully acknowledge Stephen S. Fong, Nastassja A. Lewinski, and Judy Williamson for instrumental support and Raven Smith for her assistance with experiments. Microscopy was performed at the VCU Microscopy Facility, supported, in part, by funding from NIH-NCI Cancer Center Support Grant P30 CA016059.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Tang, C.; Prud’homme, R.K. Targeted Theragnostic Nanoparticles Via Flash Nanoprecipitation: Principles of Material Selection. In Polymer Nanoparticles for Nanomedicines: A Guide for their Design, Preparation and Development; Vauthier, C., Ponchel, G., Eds.; Springer: Basel, Switzerland, 2016; pp. 55–85. ISBN 978-3-319-41421-8. [Google Scholar] [CrossRef]
  2. Zhang, C.; Pansare, V.J.; Prud’homme, R.K.; Zhang, C.; Priestley, R.D. Flash nanoprecipitation of polystyrene nanoparticles. Soft Matter 2012, 8, 86–93. [Google Scholar] [CrossRef]
  3. Pustulka, K.M.; Wohl, A.R.; Lee, H.S.; Michel, A.R.; Han, J.; Hoye, T.R.; McCormick, A.V.; Panyam, J.; Macosko, C.W. Flash nanoprecipitation: Particle structure and stability. Mol. Pharm. 2013, 10, 4367–4377. [Google Scholar] [CrossRef] [PubMed]
  4. Calo-Fernández, B.; Martínez-Hurtado, J.L. Biosimilars: Company Strategies to Capture Value from the Biologics Market. Pharmaceuticals 2012, 5, 1393–1408. [Google Scholar] [CrossRef] [PubMed]
  5. Sato, A.K.; Viswanathan, M.; Kent, R.B.; Wood, C.R. Therapeutic peptides: Technological advances driving peptides into development. Curr. Opin. Biotechnol 2006, 17, 638–642. [Google Scholar] [CrossRef] [PubMed]
  6. Desai, N. Challenges in Development of Nanoparticle-Based Therapeutics. AAPS J 2012, 14, 282–295. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Pinkerton, N.M.; Behar, L.; Hadri, K.; Amouroux, B.; Mingotaud, C.; Talham, D.R.; Chassaing, S.; Marty, J.-D. Ionic Flash NanoPrecipitation (iFNP) for the facile, one-step synthesis of inorganic–organic hybrid nanoparticles in water. Nanoscale 2017, 9, 1403–1408. [Google Scholar] [CrossRef] [PubMed]
  8. Pinkerton, N.M.; Hadri, K.; Amouroux, B.; Behar, L.; Mingotaud, C.; Destarac, M.; Kulai, I.; Mazières, S.; Chassaing, S.; Marty, J.-D. Quench ionic flash nano precipitation as a simple and tunable approach to decouple growth and functionalization for the one-step synthesis of functional LnPO 4 -based nanoparticles in water. Chem. Commun. 2018, 54, 9438–9441. [Google Scholar] [CrossRef] [PubMed]
  9. Pinkerton, N.M.; Grandeury, A.; Fisch, A.; Brozio, J.; Riebesehl, B.U.; Prud’homme, R.K. Formation of Stable Nanocarriers by in Situ Ion Pairing during Block-Copolymer-Directed Rapid Precipitation. Mol. Pharm. 2013, 10, 319–328. [Google Scholar] [CrossRef] [PubMed]
  10. Tang, C.; Amin, D.; Messersmith, P.B.; Anthony, J.E.; Prud’homme, R.K. Polymer Directed Self-Assembly of pH-Responsive Antioxidant Nanoparticles. Langmuir 2015, 31, 3612–3620. [Google Scholar] [CrossRef] [PubMed]
  11. Pagels, R.F.; Prud’homme, R.K. Polymeric nanoparticles and microparticles for the delivery of peptides, biologics, and soluble therapeutics. J. Control. Release 2015, 219, 519–535. [Google Scholar] [CrossRef]
  12. Markwalter, C.E.; Prud’homme, R.K. Design of a Small-Scale Multi-Inlet Vortex Mixer for Scalable Nanoparticle Production and Application to the Encapsulation of Biologics by Inverse Flash NanoPrecipitation. J. Pharm. Sci. 2018, 107, 2465–2471. [Google Scholar] [CrossRef] [PubMed]
  13. Santos, J.L.; Ren, Y.; Vandermark, J.; Archang, M.M.; Williford, J.-M.; Liu, H.-W.; Lee, J.; Wang, T.-H.; Mao, H.-Q. Continuous Production of Discrete Plasmid DNA-Polycation Nanoparticles Using Flash Nanocomplexation. Small 2016, 12, 6214–6222. [Google Scholar] [CrossRef] [PubMed]
  14. Van Buren, J.P.; Robinson, W.B. Formation of Complexes between Protein and Tannic Acid. J. Agric. Food Chem. 1969, 17, 772–777. [Google Scholar] [CrossRef]
  15. Hagerman, A.E.; Butler, L.G. Determination of Protein in Tannin-Protein Precipitates. J. Agric. Food Chem. 1980, 28, 944–947. [Google Scholar] [CrossRef] [PubMed]
  16. Martin, M.M.; Rockholm, D.C.; Martin, J.S. Effects of surfactants, pH, and certain cations on precipitation of proteins by tannins. J. Chem. Ecol. 1985, 11, 485–494. [Google Scholar] [CrossRef] [Green Version]
  17. Levit, S.L.; Stwodah, R.M.; Tang, C. Rapid, Room Temperature Nanoparticle Drying and Low-Energy Reconstitution via Electrospinning. J. Pharm. Sci. 2018, 107, 807–813. [Google Scholar] [CrossRef] [PubMed]
  18. Nanocomposix’s Guide to Dynamic Light Scattering Measurement and Analysis 2015. Available online: http://50.87.149.212/sites/default/files/nanoComposix%20Guidelines%20for%20DLS%20Measurements%20and%20Analysis.pdf (accessed on 24 July 2019).
  19. Johnson, B.K.; Prud homme, R.K. Flash NanoPrecipitation of Organic Actives and Block Copolymers using a Confined Impinging Jets Mixer. Aust. J. Chem. 2003, 56, 1021–1024. [Google Scholar] [CrossRef]
  20. Meechai, N.; Jamieson, A.M.; Blackwell, J. Translational Diffusion Coefficients of Bovine Serum Albumin in Aqueous Solution at High Ionic Strength. J. Colloid Interface Sci. 1999, 218, 167–175. [Google Scholar] [CrossRef] [PubMed]
  21. Johnson, B.K.; Prud’homme, R.K. Mechanism for Rapid Self-Assembly of Block Copolymer Nanoparticles. Phys. Rev. Lett. 2003, 91, 118302. [Google Scholar] [CrossRef] [PubMed]
  22. Tang, C.; Sosa, C.L.; Pagels, R.F.; Priestley, R.D.; Prud’homme, R.K. Efficient preparation of size tunable PEGylated gold nanoparticles. J. Mater. Chem. B 2016, 4, 4813–4817. [Google Scholar] [CrossRef]
  23. Saad, W.S.; Prud’homme, R.K. Principles of nanoparticle formation by flash nanoprecipitation. Nano Today 2016, 11, 212–227. [Google Scholar] [CrossRef]
  24. Zhu, Z. Effects of amphiphilic diblock copolymer on drug nanoparticle formation and stability. Biomaterials 2013, 34, 10238–10248. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Kumar, V.; Wang, L.; Riebe, M.; Tung, H.-H.; Prud’homme, R.K. Formulation and stability of itraconazole and odanacatib nanoparticles: Governing physical parameters. Mol. Pharm. 2009, 6, 1118–1124. [Google Scholar] [CrossRef] [PubMed]
  26. Dietrich, A.; Neubrand, A. Effects of Particle Size and Molecular Weight of Polyethylenimine on Properties of Nanoparticulate Silicon Dispersions. J. Am. Ceram. Soc. 2001, 84, 806–812. [Google Scholar] [CrossRef]
  27. Lindquist, G.M.; Stratton, R.A. The role of polyelectrolyte charge density and molecular weight on the adsorption and flocculation of colloidal silica with polyethylenimine. J. Colloid Interface Sci. 1976, 55, 45–59. [Google Scholar] [CrossRef] [Green Version]
  28. Shi, Q.; Zhou, Y.; Sun, Y. Influence of pH and ionic strength on the steric mass-action model parameters around the isoelectric point of protein. Biotechnol. Prog. 2005, 21, 516–523. [Google Scholar] [CrossRef] [PubMed]
  29. Curtis, K.A.; Miller, D.; Millard, P.; Basu, S.; Horkay, F.; Chandran, P.L. Unusual Salt and pH Induced Changes in Polyethylenimine Solutions. PLoS ONE 2016, 11, 1–20. [Google Scholar] [CrossRef]
  30. Jo, A.; Zhang, R.; Allen, I.C.; Riffle, J.S.; Davis, R.M. Design and Fabrication of Streptavidin-Functionalized, Fluorescently Labeled Polymeric Nanocarriers. Langmuir 2018, 34, 15783–15794. [Google Scholar] [CrossRef]
  31. Pagels, R.F.; Edelstein, J.; Tang, C.; Prud’homme, R.K. Controlling and Predicting Nanoparticle Formation by Block Copolymer Directed Rapid Precipitations. Nano Lett. 2018, 18, 1139–1144. [Google Scholar] [CrossRef]
  32. Zhu, Z.; Margulis-Goshen, K.; Magdassi, S.; Talmon, Y.; Macosko, C.W. Polyelectrolyte stabilized drug nanoparticles via flash nanoprecipitation: A model study with beta-carotene. J. Pharm. Sci. 2010, 99, 4295–4306. [Google Scholar] [CrossRef]
  33. Kosacheva, E.M.; Kudryavtsev, D.B.; Bakeeva, R.F.; Kuklin, A.I.; Islamov, A.K.; Kudryavtseva, L.A.; Sopin, V.F.; Konovalov, A.I. The aggregation of branched polyethylenimine and cationic surfactants in aqueous systems. Colloid J. 2006, 68, 713–720. [Google Scholar] [CrossRef]
  34. Zhang, M.; Xue, Y.-N.; Liu, M.; Zhuo, R.-X.; Huang, S.-W. Biocleavable Polycationic Micelles as Highly Efficient Gene Delivery Vectors. Nanoscale Res. Lett. 2010, 5, 1804–1811. [Google Scholar] [CrossRef] [Green Version]
  35. Dai, Z.; Wu, C. How Does DNA Complex with Polyethylenimine with Different Chain Lengths and Topologies in Their Aqueous Solution Mixtures? Macromolecules 2012, 45, 4346–4353. [Google Scholar] [CrossRef]
  36. Blocher, W.C.; Perry, S.L. Complex coacervate-based materials for biomedicine. Wiley Interdiscip. Rev. Nanomed. Nanobiotechnol. 2017, 9. [Google Scholar] [CrossRef]
  37. Salt-Induced Charge Screening and Significant Conductivity Enhancement of Conducting Poly(3,4-ethylenedioxythiophene):Poly(styrenesulfonate)—Macromolecules (ACS Publications). Available online: https://pubs.acs.org/doi/10.1021/ma900327d (accessed on 14 February 2019).
  38. Donato, L.; Garnier, C.; Doublier, J.-L.; Nicolai, T. Influence of the NaCl or CaCl2 Concentration on the Structure of Heat-Set Bovine Serum Albumin Gels at pH 7. Biomacromolecules 2005, 6, 2157–2163. [Google Scholar] [CrossRef]
  39. Meng, F.; Zhong, Y.; Cheng, R.; Deng, C.; Zhong, Z. pH-sensitive polymeric nanoparticles for tumor-targeting doxorubicin delivery: Concept and recent advances. Nanomedicine 2014, 9, 487–499. [Google Scholar] [CrossRef]
  40. Lynn, D.M.; Amiji, M.M.; Langer, R. pH-Responsive Polymer Microspheres: Rapid Release of Encapsulated Material within the Range of Intracellular pH. Angew. Chem. Int. Ed. 2001, 40, 1707–1710. [Google Scholar] [CrossRef]
  41. Du, J.-Z.; Du, X.-J.; Mao, C.-Q.; Wang, J. Tailor-Made Dual pH-Sensitive Polymer–Doxorubicin Nanoparticles for Efficient Anticancer Drug Delivery. J. Am. Chem. Soc. 2011, 133, 17560–17563. [Google Scholar] [CrossRef]
  42. Kumar, V.; Prud’homme, R.K. Thermodynamic limits on drug loading in nanoparticle cores. J. Pharm. Sci. 2008, 97, 4904–4914. [Google Scholar] [CrossRef]
  43. Barichello, J.M.; Morishita, M.; Takayama, K.; Nagai, T. Encapsulation of Hydrophilic and Lipophilic Drugs in PLGA Nanoparticles by the Nanoprecipitation Method. Drug Dev. Ind. Pharm. 1999, 25, 471–476. [Google Scholar] [CrossRef]
Polymers 11 01406 g001 550

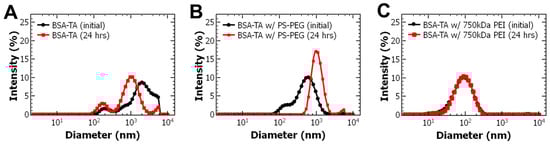

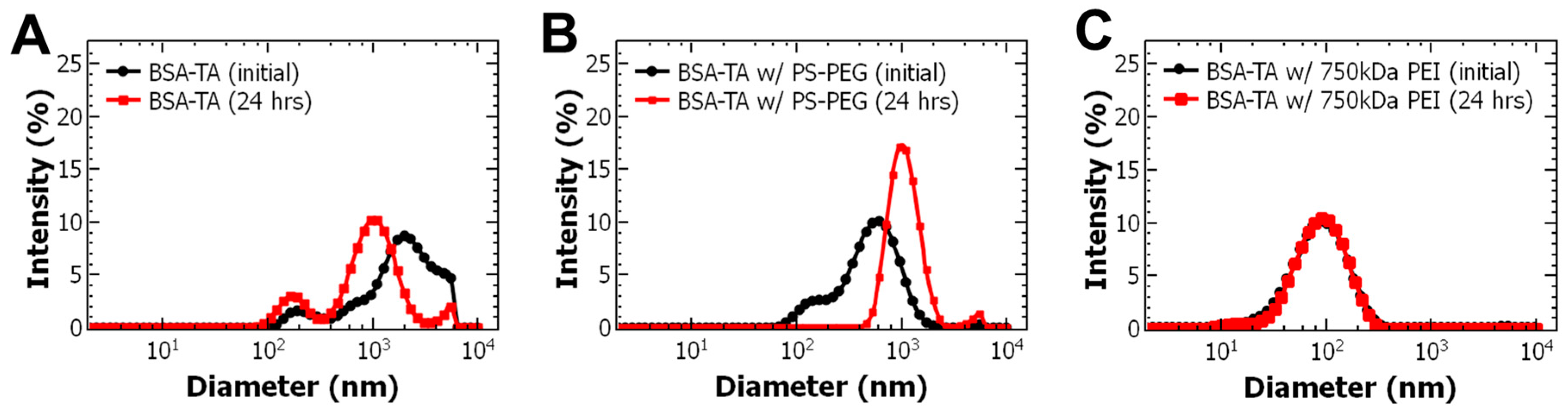

Figure 1. Dynamic light scattering (DLS) intensity weighted size distribution results of (A) bovine serum albumin-tannic acid (BSA-TA) complex without the presence of a stabilizer, (B) BSA-TA complex with an amphiphilic block copolymer, and (C) the BSA-TA complex stabilized with 750kDa polyethylenimine (PEI), immediately upon mixing and after 24 h. The BSA-TA complex stabilized with PEI did not change in size after 24 h.
Figure 1. Dynamic light scattering (DLS) intensity weighted size distribution results of (A) bovine serum albumin-tannic acid (BSA-TA) complex without the presence of a stabilizer, (B) BSA-TA complex with an amphiphilic block copolymer, and (C) the BSA-TA complex stabilized with 750kDa polyethylenimine (PEI), immediately upon mixing and after 24 h. The BSA-TA complex stabilized with PEI did not change in size after 24 h.
Polymers 11 01406 g001
Polymers 11 01406 g002 550

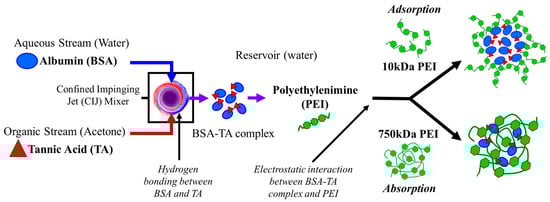

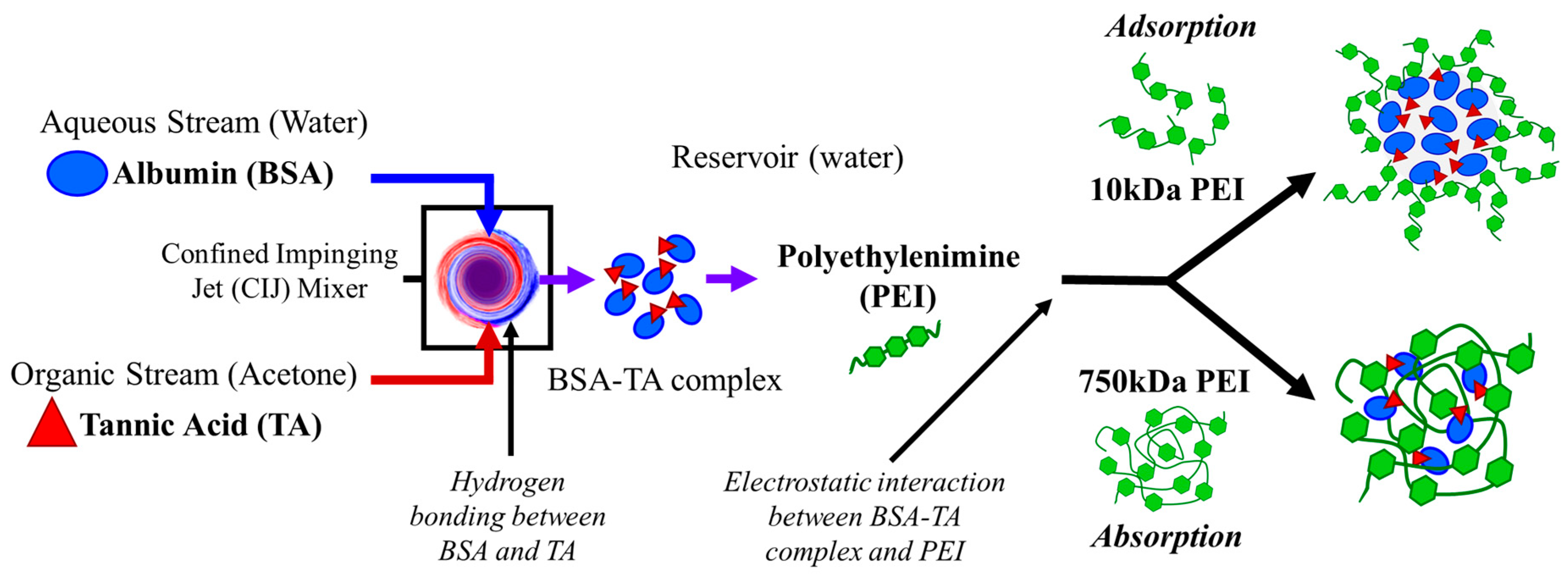

Figure 2. Schematic of the proposed self-assembly mechanisms using 750 kDa and 10 kDa polyethylenimine (PEI) via flash nanoprecipitation (FNP) with PEI stabilizer. In the confined impinging jet (CIJ) mixer the bovine serum albumin (BSA) and tannic acid (TA) interact via hydrogen bonding to form an insoluble complex. Then the complex is immediately diluted in a reservoir containing PEI. The BSA-TA complex interacts with the PEI via electrostatic interaction. High molecular weight 750 kDa PEI aggregates template nanoparticle assembly and absorb the BSA-TA precipitate. In contrast, 10 kDa PEI adsorbs on the precipitating BSA-TA complex forming a core-shell structure.
Figure 2. Schematic of the proposed self-assembly mechanisms using 750 kDa and 10 kDa polyethylenimine (PEI) via flash nanoprecipitation (FNP) with PEI stabilizer. In the confined impinging jet (CIJ) mixer the bovine serum albumin (BSA) and tannic acid (TA) interact via hydrogen bonding to form an insoluble complex. Then the complex is immediately diluted in a reservoir containing PEI. The BSA-TA complex interacts with the PEI via electrostatic interaction. High molecular weight 750 kDa PEI aggregates template nanoparticle assembly and absorb the BSA-TA precipitate. In contrast, 10 kDa PEI adsorbs on the precipitating BSA-TA complex forming a core-shell structure.
Polymers 11 01406 g002
Polymers 11 01406 g003 550

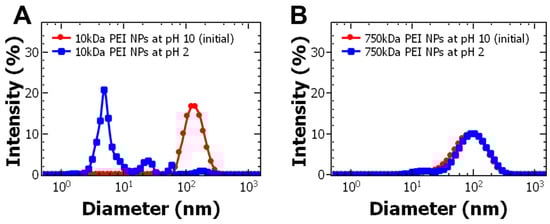

Figure 3. Effect of nanoparticle dispersion pH on size for (A) 10 kDa polyethylenimine nanoparticles (PEI NPs) and (B) 750 kDa PEI NPs. The size of the particles was measured 24 h after adjusting the pH. The 10 kDa PEI NPs destabilized under acidic conditions and released bovine serum albumin (BSA). The 750 kDa PEI NPs did not change size at acidic pH.
Figure 3. Effect of nanoparticle dispersion pH on size for (A) 10 kDa polyethylenimine nanoparticles (PEI NPs) and (B) 750 kDa PEI NPs. The size of the particles was measured 24 h after adjusting the pH. The 10 kDa PEI NPs destabilized under acidic conditions and released bovine serum albumin (BSA). The 750 kDa PEI NPs did not change size at acidic pH.
Polymers 11 01406 g003
Table
Table 1. Zeta potential of BSA-TA complex with polymer stabilizers.
Table 1. Zeta potential of BSA-TA complex with polymer stabilizers.
SampleZeta Potential (mV)
BSA-TA precipitate−13.1 ± 0.6
BSA-TA with PS-b-PEG−18.0 ± 3.0
PEI+34. 3 ± 4.2
BSA-TA with PEI+18.8 ± 0.9
Table
Table 2. Effect of polyelectrolyte stabilizer molecular weight on nanoparticle properties and stability.
Table 2. Effect of polyelectrolyte stabilizer molecular weight on nanoparticle properties and stability.
SampleInitial7 days
Zeta Potential (mV)Diameter (nm)PDIZeta Potential (mV)Diameter (nm)PDI
10 kDa PEI+15.7 ± 1.0153 ± 70.125 ± 0.022+14.4 ± 1.9152 ± 10.055 ± 0.013
750 kDa PEI+18.5 ± 1.3107 ± 50.285 ± 0.004+18.5 ± 1.394 ± 30.259 ± 0.011
Table
Table 3. Effect of ionic strength on 10 kDa PEI nanoparticle properties.
Table 3. Effect of ionic strength on 10 kDa PEI nanoparticle properties.
Salt AddedConcentration (mM)Ionic Strength (M)Diameter (nm)PDIZeta Potential (mV)
Initial 10 kDa PEI00146 ± 20.125 ± 0.02015.7 ± 2.0
NaCl100.01145 ± 20.065 ± 0.01913.5 ± 2.6
300.03139 ± 20.069 ± 0.00713.4 ± 2.0
1000.1194 ± 30.035 ± 0.02314.3 ± 0.3
3000.3290 ± 60.110 ± 0.02411.8 ± 1.4
CaCl2100.03138 ± 60.351 ± 0.01915.8 ± 1.0
1000.3188 ± 70.148 ± 0.02216.1 ± 0.5
Table
Table 4. Effect of tannic acid (TA) on protein encapsulation.
Table 4. Effect of tannic acid (TA) on protein encapsulation.
SampleConditionEncapsulation Efficiency (EE%)Drug Loading (DL%)
10 kDa PEI NPsno TA8% ± 3%1% ± 0%
with TA79% ± 7%13% ± 1%
750 kDa PEI NPsno TA74% ± 6%12% ± 1%
with TA50% ± 10%8% ± 2%
