Polymers 2019, 11(12), 1948; https://doi.org/10.3390/polym11121948

Article
The Use of a Biopolymer Conjugate for an Eco-Friendly One-Pot Synthesis of Palladium-Platinum Alloys
1
Institute for Nanomaterials, Advanced Technologies and Innovation, Technical University of Liberec, 46117 Liberec, Czech Republic
2
Institute of Engineering Materials and Biomaterials, Faculty of Mechanical Engineering, Silesian University of Technology, 44–100 Gliwice, Poland
*
Authors to whom correspondence should be addressed.
Received: 6 November 2019 / Accepted: 25 November 2019 / Published: 27 November 2019

Abstract

:
Raising health and environmental concerns over the nanoparticles synthesized from hazardous chemicals have urged researchers to focus on safer, environmentally friendlier and cheaper alternatives as well as prompted the development of green synthesis. Apart from many advantages, green synthesis is often not selective enough (among other issues) to create shape-specific nanoparticle structures. Herein, we have used a biopolymer conjugate and Pd and Pt precursors to prepare sustainable bimetallic nanoparticles with various morphology types. The nanoparticles were synthesized by a novel green approach using a bio-conjugate of chitosan and polyhydroxybutyrate (Cs-PHB). The bio-conjugate plays the simultaneous roles of a reducing and a capping agent, which was confirmed by attenuated total reflection Fourier transform infrared spectroscopy (ATR-FTIR) and energy dispersive X-ray spectrometry (EDS) analysis, proving the presence of a Cs-PHB layer on the surface of the prepared nanoparticles. The EDS profile also revealed the elemental structure of these nanoparticles and confirmed the formation of a Pd/Pt alloy. TEM morphological analysis showed the formation of star-like, octahedron or decahedron Pd/Pt nanoparticles, depending on the synthesis conditions. The bimetallic Pd/Pt nanoparticles synthesized with various Pd/Pt molar ratios were successfully applied for the catalytic reduction of 4-nitrophenol to 4-aminophenol by borohydride. The calculated κc values (ratio of kapp to the concentration of the catalyst) revealed that the decahedron nanoparticles (size of 15 ± 4 nm), synthesized at the molar ratio of 2:1 (Pd/Pt), temperature of 130 °C, 10 g/L of Cs-PHB conjugate and time of 30 min, exhibited excellent catalytic activity compared to other bimetallic nanoparticles reported in the literature.
Keywords:
green synthesis; biopolymers; bimetallic nanoparticles; catalytic reduction; 4-nitrophenol

1. Introduction

The raising health and environmental concerns over nanoparticles synthesized from hazardous chemicals, which are also often economically unfeasible, have urged researchers to focus on safer, environmentally-friendlier and cheaper alternatives. These reasons have prompted the development of green nanoparticle syntheses, which are safe and adhere to the green chemistry approach [1]. Biopolymers, which are abundantly available and easily biodegradable, are promising materials for providing an environmentally-benign synthesis of nanomaterials. These natural polymers have been successfully used as reducing, stabilizing and capping agents in the synthesis of nanoparticles [2,3,4], allowing alterations in the nanoparticle size [5] and shape [6]. Furthermore, the different functional groups present in these biopolymers can actively contribute to the improvement of metallic nanoparticle catalytic reactions [7,8]. A typical example of a simple monometallic and bimetallic nanoparticle synthesis is the one-step reduction and stabilization of Au and Ag nanoparticles [9,10].
Chitosan is considered one of the most studied biopolymers in the literature, and has been successfully used in different applications such as the synthesis and stabilization of various different nanoparticles [11,12,13], bio-medical applications [14], drug delivery [15], water treatment [16] and many other uses [17,18,19]. Chitosan is obtained from chitin, which is mainly extracted from crustacean shell wastes [20]. While its non-toxicity for mammals and biodegradability make it popular, its insolubility in water is one of its drawbacks.
Another biopolymer that is starting to gain interest in different scientific fields is poly(3-hydroxybutyrate) (PHB), which can be produced by different bacteria [21] and also from waste materials [22,23]. It is usually used as a carbon source in in-situ bioremediation [24], a drug delivery carrier [25], a biodegradable bioplastic [26], and a stabilizing agent for nanoparticles [27]. However, difficulties such as the solubility of PHB in only organic solvents, which are toxic to both humans and the environment [28,29], need to be addressed to achieve good dispersions for synthesis.
Motivated by the above situation, our group developed a water-soluble conjugate of chitosan and PHB, which was successfully applied to control not only the growth and aggregation of the Au nanoparticles but also their surface properties [30].
Due to interactions between two metals and their unique and more flexible surface structures in comparison to monometallic nanoparticles, bimetallic nanoparticles have gained precedence over traditional heterogeneous catalysts due to their excellent catalytic activity [31]. The nanoparticle surface area plays a key role in heterogeneous catalysis because it is directly correlated to the catalyst active sites on which the catalytic reactions are taking place. Moreover, the nanoparticles are often easily recovered from the reaction medium, and they possess steric environments within their active sites, both features that can positively influence the catalytic activity [32]. Among the noble metals, both palladium (Pd) and platinum (Pt) are well known for their unique characteristics, and both are used successfully in different scientific fields, including catalysis [33,34,35,36,37,38]. Due to the fact they have similar face-centred cubic (fcc) crystal structures and a high lattice match (lattice mismatch of 0.77%), palladium and platinum are highly miscible [39,40].
We propose a one-pot, quick and green synthesis of decahedral Pd/Pt using solely Pd and Pt precursors and a Cs-PHB bio-conjugate as a reducing reagent. Based on our previous studies, we hypothesize that Cs-PHB cannot only help to control the growth and aggregation of the nanoparticles but also to tailor their catalytic activity. To the best of our knowledge, this is the first report to use Cs-PHB for the green synthesis of bimetallic nanoparticles. In addition, we believe in the simplicity of this procedure for obtaining decahedron Pd/Pt bimetallic nanoparticles. The synthesized nanoparticles were characterized by ATR-FTIR, TEM, and EDS, and successfully tested on the standard reduction reaction of the 4-nitrophenol (4-NP) to 4-aminophenol (4-AP).

2. Materials and Methods

2.1. Reagents and Solutions

Chitosan (low Mw of 50–190 kDa, 75%–85% deacetylated), sodium borohydride (98%), 4‑nitrophenol (ReagentPlus, >99%), K2PdCl4 (98%), PtCl4 (96%) were purchased from Sigma–Aldrich (Saint Louis, MO, USA); polyhydroxybutyrate (PHB, Biomer P209) from Biomer (Krailing, Germany); nitric acid (65%) from Lach-ner (Neratovice, Czech Republic). Deionized water (DI; 18.2 MΩ·cm–1, ELGA, Veolia Water, Marlow, UK) was used in all of the experiments.

2.2. Analytical Methods

ATR-FTIR spectra were recorded at a resolution of 4 cm−1 over the 4000–700 cm−1 range using a NICOLET IZ10 spectrometer (Thermo Scientific, Waltham, MA, USA) equipped with a germanium ATR crystal and a single reflection angle 45° horizontal ATR accessory. The UV-Vis spectroscopic analysis was performed using a DR 3900 UV-Vis spectrophotometer (Hach Lange, Loveland, CO, USA) equipped with 1 cm quartz cuvettes. High-resolution transmission electron microscopy (HR-TEM) analysis was carried out using transmission electron microscopy/scanning transmission electron microscopy (TEM/STEM) system (Titan 80-300, FEI, city, state abbrev if USA, country) with a super twin-lens operated at 300 kV and equipped with an annular dark field detector. The presence of various elements in the obtained nanoparticles was analysed using energy-dispersive X-ray spectroscopy (EDX, Aztec, Oxford Instruments, Abingdon, UK). ICP-MS (Elan 6000, Perkin Elmer, Waltham, MA, USA) was used to determine the Pd/Pt concentration.

2.3. Preparation of Cs-PHB Conjugate

The conjugate was prepared following the procedure reported previously by our group [30]. Briefly, a chitosan solution was made by adding chitosan (0.5 g) to acidified deionized water (100 mL) and stirring to obtain a homogeneous solution. Subsequently, PHB (0.12 g) was added to the mixture and stirred overnight at 80 °C. The resulting solution was sonicated for 30 min at 80 °C, purified by a dialysis tube, and finally freeze-dried.

2.4. Synthesis of Bimetallic Nanoparticles

Pd/Pt bimetallic nanoparticles were synthesized following a modified co-reduction method of Lim et al. [41]. Briefly, K2PdCl4 and PtCl4 were dissolved in DI to get two (Pd and Pt) stock solutions with a concentration of 10 mM each. Both solutions were stirred for 5 minutes in order to dissolve the salts. Cs-PHB was dissolved in DI to get a stock solution of 20 g/L. Subsequently, a certain amount of palladium and platinum precursor stock solutions (0.5 mL of Pd and 0.5 mL of Pt precursor stock solution for the Pd:Pt ratio of 1:1; 0.25 mL of Pd and 0.5 mL of Pt precursor stock solution for the Pd:Pt ratio of 1:2; 0.5 mL of Pd and 0.25 mL of Pt precursor stock solution for the Pd:Pt ratio 2:1) were added to the Cs-PHB solution (2.5 mL), the volume was raised to 5 mL by adding DI. The reactor was heated (130–150 °C) for 30 min following the procedure reported by Venkateshaiah et al. [42]. The reaction was stopped by cooling down the samples in cold water. The obtained nanoparticles were washed three times with deionized water and stored in a refrigerator (4 °C) for future use.

2.5. Catalytic Test

The catalytic test of 4-NP reduction to 4-AP by NaBH4 was carried out in a standard 1 cm path length quartz cuvette. The procedure was reported previously by Baruah et al. [43]. A typical test involves the mixing of 24 µL of 4-NP (5 mM), and an excess of NaBH4 (120 µL of 0.1 M) in an Eppendorf tube (1.5 mL). A certain amount of nanoparticles was added, and the volume was adjusted to 1 mL using DI water. Then the solution was immediately transferred into a quartz cuvette and the absorbance was recorded by UV-Vis at regular intervals. All of the tests were carried out at room temperature (25 °C) in triplicate. An excess of NaBH4 (12 mM of NaBH4 and 0.12 mM of 4-NP) was used in the reduction process.

3. Results and Discussion

Pd/Pt nanoparticles were synthesized under different conditions (temperature from 130 to 150 °C) and using different ratios of Pd and Pt precursors (from 1:2 to 2:1). The resulting particles were characterised by ATR-FTIR, HR-TEM and EDS. Three types of nanoparticles synthetized at a constant temperature but at different metallic ratio were also compared for their catalytic activity.

3.1. Characterization of the Nanoparticles

3.1.1. ATR-FTIR

An ATR-FTIR analysis was performed to examine the functional groups located on the Pd/Pt bimetallic nanoparticles (Figure 1). The peak observable at ~1724 cm−1 in the PHB spectrum (Figure 1a) may be attributed to the ester group present in the PHB. The chitosan spectrum shows a peak at ~3300 cm−1 due to the O–H and N–H bonds, whereas the peak at ~2900 cm−1 may be ascribed to the symmetric or asymmetric CH2 stretching vibrations. The peak at ~1600 cm−1 may be assigned to the NH2 groups, while at ~1380 cm−1 the peak may be ascribed to CH3 symmetrical deformations [44]. The last representative peak at ~1100 cm−1 may be attributed to C–O–C glycosidic linkage. The conjugate spectrum (Figure 1c) shows differences when comparing the PHB (Figure 1a) to the chitosan (Figure 1b) spectra. A decrease in the intensity of the NH2 group at ~1600 cm−1 [30] was observed, while an increase in the intensity at ~1555 cm−1 was observed, which may correspond to the amide type II bond formation [30]. This suggests that the amino group of chitosan reacts with the C–O–C group of PHB to form the amide bond.
The ATR-FTIR spectra of Pd/Pt nanoparticles (Figure 1d–f) showed several bands. The first one (~3330 cm−1) may be attributed to the NH/OH bond, whereas the one at ~2926 cm−1 is compatible with asymmetric or symmetric CH2 stretching vibration. The peak at 1724 cm−1 may be related to the ester group, while the one at ~1555 cm−1 to the amide type II bond. The hydroxyl groups present in the conjugate may assist in the reduction of the precursor as reported by Dang et al. [45] and by Dorjnamjin et al. [46], while the rest of the polymer may coat the nanoparticles. The differences in intensity between the variously synthesized Pd/Pt nanoparticles may indicate different amounts of organic and inorganic material that could be found in samples. For example, Pd/Pt = 1:1 nanoparticles were synthesized with the highest ratio of metal precursors concentration (2 mM overall) to the polymer conjugate concentration, and in the low frequencies (<1500 cm−1) their spectrum exhibits a (high absorbance) baseline sloping down to the left (typical for some metal nanoparticles; similar phenomena could be observed e.g. in the work of Hu et al. [47]).

3.1.2. HR-TEM

In order to obtain more information about the morphology of the synthesized Pd/Pt nanoparticles, a HR‑TEM analysis was performed. Figure 2 shows the different shapes obtained by altering the synthesis temperature (from 130 to 150 °C) and Pd/Pt molar ratio (1:1, 1:2 and 2:1).
The sample synthesized at 150 °C and with a molar ratio 1:1 (Pd/Pt) (Figure 2a) shows a star-like structure, while lowering the temperature of synthesis to 140 °C (Figure 2b) changed the morphology of the nanoparticles to an octahedron. An additional decrease of temperature to 130 °C (Figure 2c) caused a synthesis of smaller nanoparticles with a surface characterized by different, randomly-orientated faces. Moreover, when the molar ratio changed to 2:1 and 1:2 (Pd/Pt) at the remaining temperature (130 °C), nanoparticles with decahedral morphology were observed (Figure 2d,e). The decahedral shape of the nanoparticles occurs only under strict conditions [48]. When certain conditions are applied, the ions specifically interact to form a Cs-PHB/precursor complex, which determines the formation of decahedron shapes upon reduction. However, when the conditions and the ratios vary, other shapes are formed. Zhang et al. [49] reported that hydroxyl groups may affect the shape of the nanoparticles. Ghosh et al. [50] showed the possibility of obtaining flower-shaped zero-valent iron by controlling the amount of hydroxyl groups during the synthesis process, which suggests that the presence of hydroxyl groups may influence the formation of decahedral morphology. The SAED pattern for a Pd/Pt ratio of 2:1 indicates the polycrystalline nature of an as-synthesized Pd/Pt bimetallic alloy (Figure 2f). The SAED analysis identified (111), (220) and (311) planes of fcc. For this sample, the nanoparticle size distribution was calculated from TEM micrographs, and the mean size of these nanoparticles was found to be 15 ± 4 nm (Figure S2 in Supplementary Materials).
The various synthesis strategies used to obtain bimetallic Pd/Pt nanoparticles with varying morphologies are shown in Table 1. As stated earlier, changes to the synthesis procedure may result in the formation of structurally different nanoparticles, e.g. nanocubes are obtained by reduction with poly(vinylpyrrolidone) (PVP) while nanotetrahedra are formed when Na2C2O4 and formaldehyde are used [39]. Conventionally for these kind of reactions, high temperatures [51] and prolonged synthesis times [52,53] are required. Very often the reducing agents used are hazardous, e.g. sodium borohydride [44,45].
Wang et al. [59] reported the possibility to synthesize decahedral Pd/Pt, wherein the synthesis procedure can be divided into two steps: the first is to obtain Pd decahedraln structures, followed by the platinum deposition. Nano star-shaped Pd/Pt particles were reported by Lim et al. [41] using a co-reduction method involving Na2PdCl4 and K2PtCl4 in a PVP aqueous medium at 80 °C for 18 h. Another example of shape-specific synthesis of Pd/Pt was a seeded growth method using palladium truncated octahedral seeds for the synthesis of Pd/Pt nanodendrites [60].

3.1.3. EDS, Mapping and Profile

The EDS analysis of the bimetallic nanoparticles shows that all of the samples contain both palladium and platinum metals (Figure 3). Moreover, carbon and oxygen were also present in all of the analysed samples. The presence of both C and O may be attributed to the existence of a conjugate on the surface of these nanoparticles, which may act as a stabilizing agent.
The EDS mapping analysis of the bimetallic nanoparticles (molar ratio of Pd/Pt of 2:1 and temperature of 130 °C) clearly shows the presence of both metals ubiquitously on the surface of the nanoparticle (Figure 4a,b). The EDS mapping also determined the presence of Pd/Pt alloy. The EDS profile analysis (Figure 4c) shows the presence of carbon (due to the presence of the conjugate), and it is in accordance with the previous ATR-FTIR analysis (see above). The profile also confirmed the predominant presence of Pd in almost all of the particle regions due to the initial Pd/Pt ratio of 2:1.

3.2. Catalysis

The catalytic performance of the Pd/Pt nanoparticles was proven by employing the reduction of 4-NP to 4-AP by NaBH4 as a model [61]. The aqueous 4-NP solution shows a maximum absorption at ~317 nm, which upon addition of sodium borohydride shifts to 401 nm, indicating the formation of 4-nitrophenolate, and the solution turns from pale yellow to bright yellow. The reduction does not take place in the absence of a catalyst (kinetic barrier), which was verified by the unchanged intensity of the maximum absorption at 401 nm in the absence of the catalysts for 40 min (data not shown).
When the Pd/Pt nanoparticles were added to the solution, the intensity at 401 nm gradually decreased until it disappeared. Because an excess of NaBH4 was used, the pseudo first-order kinetics model was applied to evaluate the catalytic performance of the Pd/Pt nanoparticles [62]. Due to the fact that the absorbance at 401 nm was linearly dependent on the 4-NP concentration (through 4-nitrophenolate), the rate constant k of the reaction can be calculated from the linear plot of ln(At/A0) versus the reaction time t(min) [63,64,65,66,67]:
ln(At/A0) = −kappt
where At and A0 is absorbance at time t and 0, respectively. The pseudo-first-order kinetic rate constants (kapp) of the 4-NP reduction calculated based on Equation (1) for the various concentrations of nanoparticles synthesized with different molar (Pd/Pt) ratios of 1:1, 1:2 and 2:1, respectively are summarized in Table 2.
The reduction of 4-NP to 4-AP with borohydride catalysed by Pd/Pt nanoparticles may be explained by an electrochemical reaction, where the nanoparticles facilitate the electron transfer from BH4 to 4-NP. The mechanism is divided into the following steps: first both borohydride and 4-NP are adsorbed on the surface of the Pd/Pt nanoparticles, then electrons are transferred from BH4 to the nanoparticles with the formation of a negatively charged layer on their surface, later the electrons are transferred to 4-NP with a consequent formation of reduced products (Figure 5).
4-NP is often used for testing the catalytic activities of nanoparticles; nevertheless, catalytic performance comparisons are not easy. Most studies report only the kapp, but the kapp is strongly dependent on the concentration of reactants and the catalyst used for the reaction. Increasing the amount of catalyst in the reactor increases the total surface area available for the reaction, which means that a higher reaction rate is facilitated, and the time needed for reduction is shortened. Also, it was not possible in our study to add the same amounts of catalysts at different Pd/Pt ratios during the experiments. To overcome this, the activity parameter (κc) was employed to compare the efficiencies. This was determined by calculation of the slope of kapp (s−1) as a function of the catalyst concentration (g/L) [65].
To the best of our knowledge, κc is the most appropriate parameter for comparing the catalytic activity of catalysts reported in the literature [65,67]. The κc values were calculated for these three different Pd/Pt ratios and, therefore, different morphologies. While for the same Pd/Pt ratio (1:1) and excess of Pt (1:2), the κc value is approximately 10, for the excess of Pd (2:1), the κc value of 51 is significantly higher. This is probably caused by a higher Pd ratio and not by morphology, since both excesses of one of the metals (1:2 and 2:1) have the same morphology of a decahedron, but significantly different κc values (Figure 6).
Table 3 shows a comparison of the κc values obtained by different bimetallic catalysts for the reduction of 4-NP. The value determined by this study for a Pd/Pt ratio of 2:1 is one of the highest known to-date.

4. Conclusions

The present research describes a facile mediated green synthesis of bimetallic Pd/Pt nanoparticles of various morphologies. The nanoparticles were synthesized from K2PdCl4 and PtCl4 precursor salts by a co-reduction with a Cs-PHB conjugate. Depending on the temperature and metal ratio, nanoparticles with a star-like structure, and octahedral or decahedral morphology were formed. The optimal conditions to obtain a decahedral shape were found to be: (Pd/Pt) molar ratio of 2:1, synthesis temperature of 130 °C, 10 g/L of Cs-PHB conjugate and time of 30 min. While ATR-FTIR and EDS confirmed the presence of a Cs-PHB layer on the surface of the nanoparticles, EDS verified the formation of a Pd/Pt alloy. TEM analysis confirmed the different shapes and sizes of the nanoparticles by changing the temperature and molar metal ratio. The decahedral bimetallic nanoparticles prepared at a molar ratio of 2:1 show an excellent catalytic performance for the catalytic reduction of 4-NP by borohydride. The pseudo-first-order kinetic constant for the nanoparticles synthesized with molar ratios (Pd/Pt) of 1:1, 1:2 and 2:1 were found to be 0.898 min−1 (catalyst concentration: 1.515 mg/L), 0.305 min−1 (0.586 mg/L) and 1.968 min−1 (0.809 mg/L), respectively. Compared with the other bimetallic nanoparticles, the (2:1) decahedral Pd/Pt nanoparticles exhibit excellent catalytic performance, which is demonstrated by the high κc value (51 ± 11 L s−1 g−1).

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/11/12/1948/s1, Figure S1 FTIR analysis of Pd/Pt ratio 1:1, Figure S2: Size distribution of Pd/Pt synthesized at 130 °C and molar ratio 2:1 (Pd:Pt), Figure S3: pseudo-first-order kinetics of sample synthesized with molar ratio of 1:1 with differet concentration of nanoparticles (a) 0.379 mg/L (R2 0.993), (b) 0.757 mg/L (R2 0.992), (c) 1.515 mg/L (R2 0.982) and (d) HRTEM image of Pd/Pt decahedron nanoparticle (molar ratio 1:1 (Pd/Pt) 130 °C), Figure S4: pseudo-first-order kinetics of sample synthesized with molar ratio of 1:2 with differet concentration of nanoparticles (a) 0.147 mg/L (R2 0.992), (b) 0.293 mg/L (R2 0.998), (c) 0.586 mg/L (R2 0.984) and (d) HRTEM image of Pd/Pt decahedron nanoparticle (molar ratio 1:2 (Pd/Pt) 130 °C), Figure S5: pseudo-first-order kinetics of sample synthesized with molar ratio of 2:1 with different concentration of nanoparticles (a) 0.202 mg/L (R2 0.997) (b) 0.404 mg/L (R2 0.986) (c) 0.809 g/L (R2 0.979) and d) HRTEM image of Pd/Pt decahedron nanoparticle (molar ratio 2:1 (Pd/Pt) 130 °C).

Author Contributions

Conceptualization, D.S. and S.W.; Funding acquisition, M.Č.; Investigation, D.S. and R.K.R.; Methodology, R.K.R., A.V. and B.S.; Supervision, S.W.; Writing—original draft, D.S.; Writing—review & editing, S.W., K.K., V.V.T.P., B.S. and M.Č.

Funding

This work was supported by the Student Grant Scheme 2019 project of the Technical University of Liberec. The authors would also like to acknowledge the assistance provided by the Research Infrastructure NanoEnviCz, supported by the Ministry of Education, Youth and Sports of the Czech Republic in the framework of Project No. LM2015073, and the project Pro-NanoEnviCz (Reg. No. CZ.02.1.01/0.0/0.0/16_013/0001821) supported by the Ministry of Education, Youth and Sports of the Czech Republic and the European Union - European Structural and Investments Funds in the frame of Operational Programme Research Development and Education.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Virkutyte, J.; Varma, R.S. Green synthesis of metal nanoparticles: Biodegradable polymers and enzymes in stabilization and surface functionalization. Chem. Sci. 2011, 2, 837–846. [Google Scholar] [CrossRef]
  2. Moulton, M.C.; Braydich-Stolle, L.K.; Nadagouda, M.N.; Kunzelman, S.; Hussain, S.M.; Varma, R.S. Synthesis, characterization and biocompatibility of “green” synthesized silver nanoparticles using tea polyphenols. Nanoscale 2010, 2, 763–770. [Google Scholar] [CrossRef] [PubMed]
  3. Vinod, V.T.P.; Saravanan, P.; Sreedhar, B.; Devi, D.K.; Sashidhar, R.B. A facile synthesis and characterization of Ag, Au and Pt nanoparticles using a natural hydrocolloid gum kondagogu (Cochlospermum gossypium). Colloids Surf. B Biointerfaces 2011, 83, 291–298. [Google Scholar] [CrossRef] [PubMed]
  4. Padil, V.V.T.; Černík, M.; Thekkae Padil, V.V.; Černík, M. Green synthesis of copper oxide nanoparticles using gum karaya as a biotemplate and their antibacterial application. Int. J. Nanomed. 2013, 8, 889–898. [Google Scholar] [CrossRef]
  5. Nadagouda, M.N.; Speth, T.F.; Varma, R.S. Microwave-assisted green synthesis of silver nanostructures. Acc. Chem. Res. 2011, 44, 469–478. [Google Scholar] [CrossRef]
  6. Hebbalalu, D.; Lalley, J.; Nadagouda, M.N.; Varma, R.S. Greener techniques for the synthesis of silver nanoparticles using plant extracts, enzymes, bacteria, biodegradable polymers, and microwaves. ACS Sustain. Chem. Eng. 2013, 1, 703–712. [Google Scholar] [CrossRef]
  7. Seo, E.; Kim, J.; Hong, Y.; Kim, Y.S.; Lee, D.; Kim, B.S. Double hydrophilic block copolymer templated au nanoparticles with enhanced catalytic activity toward nitroarene reduction. J. Phys. Chem. C 2013, 117, 11686–11693. [Google Scholar] [CrossRef]
  8. Machmudah, S.; Sato, T.; Wahyudiono; Sasaki, M.; Goto, M. Silver nanoparticles generated by pulsed laser ablation in supercritical CO2 medium. High Press. Res. 2012, 32, 60–66. [Google Scholar] [CrossRef]
  9. Zhao, L.; Song, J.; Xue, Y.; Zhao, X.; Deng, Y.; Li, Q.; Xia, Y. Green synthesis of Ag–Au bimetallic nanoparticles with alginate for sensitive detection of H2O2. Catal. Lett. 2018, 148, 3248–3256. [Google Scholar] [CrossRef]
  10. Padil, V.V.T.; Wacławek, S.; Černík, M. Green Synthesis: Nanoparticles and Nanofibres Based on Tree Gums for Environmental Applications. Ecol. Chem. Eng. S 2016, 23, 533–557. [Google Scholar] [CrossRef]
  11. Sun, L.; Li, J.; Cai, J.; Zhong, L.; Ren, G.; Ma, Q. One pot synthesis of gold nanoparticles using chitosan with varying degree of deacetylation and molecular weight. Carbohydr. Polym. 2017, 178, 105–114. [Google Scholar] [CrossRef] [PubMed]
  12. Chen, X.; Xu, X.J.; Zheng, X.C.; Guan, X.X.; Liu, P. Chitosan supported palladium nanoparticles: The novel catalysts for hydrogen generation from hydrolysis of ammonia borane. Mater. Res. Bull. 2018, 103, 89–95. [Google Scholar] [CrossRef]
  13. Oliveira, Â.A.S.; Medeiros, R.L.B.A.; Figueredo, G.P.; Macedo, H.P.; Braga, R.M.; Maziviero, F.V.; Melo, M.A.F.; Melo, D.M.A.; Vieira, M.M. One-step synthesis of LaNiO3 with chitosan for dry reforming of methane. Int. J. Hydrogen Energy 2018, 43, 9696–9704. [Google Scholar] [CrossRef]
  14. Anitha, A.; Sowmya, S.; Kumar, P.T.S.; Deepthi, S.; Chennazhi, K.P.; Ehrlich, H.; Tsurkan, M.; Jayakumar, R. Chitin and chitosan in selected biomedical applications. Prog. Polym. Sci. 2014, 39, 1644–1667. [Google Scholar] [CrossRef]
  15. Ali, A.; Ahmed, S. A review on chitosan and its nanocomposites in drug delivery. Int. J. Biol. Macromol. 2018, 109, 273–286. [Google Scholar] [CrossRef]
  16. Hahn, T.; Zibek, S. Sewage Polluted Water Treatment via Chitosan: A Review. In Chitin-Chitosan—Myriad Functionalities in Science and Technology; InTechOpen: London, UK, 2018. [Google Scholar]
  17. Logithkumar, R.; Keshavnarayan, A.; Dhivya, S.; Chawla, A.; Saravanan, S.; Selvamurugan, N. A review of chitosan and its derivatives in bone tissue engineering. Carbohydr. Polym. 2016, 151, 172–188. [Google Scholar] [CrossRef]
  18. Baig, R.B.N.; Varma, R.S. Copper on chitosan: A recyclable heterogeneous catalyst for azide-alkyne cycloaddition reactions in water. Green Chem. 2013, 15, 1839. [Google Scholar] [CrossRef]
  19. Sedghi, R.; Heidari, B.; Shahmohamadi, H.; Zarshenas, P.; Varma, R.S. Pd Nanocatalyst Adorned on Magnetic [email protected] Carbene: Eco-Compatible Suzuki Cross-Coupling Reaction. Molecules 2019, 24, 3048. [Google Scholar] [CrossRef]
  20. Devi, R.; Dhamodharan, R. Pretreatment in Hot Glycerol for Facile and Green Separation of Chitin from Prawn Shell Waste. ACS Sustain. Chem. Eng. 2018, 6, 846–853. [Google Scholar] [CrossRef]
  21. Al Rowaihi, I.S.; Paillier, A.; Rasul, S.; Karan, R.; Grötzinger, S.W.; Takanabe, K.; Eppinger, J. Poly(3-hydroxybutyrate) production in an integrated electromicrobial setup: Investigation under stress-inducing conditions. PLoS ONE 2018, 13, e0196079. [Google Scholar] [CrossRef]
  22. Silva, F.; Campanari, S.; Matteo, S.; Valentino, F.; Majone, M.; Villano, M. Impact of nitrogen feeding regulation on polyhydroxyalkanoates production by mixed microbial cultures. New Biotechnol. 2017, 37, 90–98. [Google Scholar] [CrossRef] [PubMed]
  23. Valentino, F.; Morgan-Sagastume, F.; Campanari, S.; Villano, M.; Werker, A.; Majone, M. Carbon recovery from wastewater through bioconversion into biodegradable polymers. New Biotechnol. 2017, 37, 9–23. [Google Scholar] [CrossRef] [PubMed]
  24. Baric, M.; Pierro, L.; Pietrangeli, B.; Papini, M.P. Polyhydroxyalkanoate (PHB) as a slow-release electron donor for advanced in situ bioremediation of chlorinated solvent-contaminated aquifers. New Biotechnol. 2014, 31, 377–382. [Google Scholar] [CrossRef] [PubMed]
  25. Michalak, M.; Marek, A.A.; Zawadiak, J.; Kawalec, M.; Kurcok, P. Synthesis of PHB-based carrier for drug delivery systems with pH-controlled release. Eur. Polym. J. 2013, 49, 4149–4156. [Google Scholar] [CrossRef]
  26. Getachew, A.; Woldesenbet, F. Production of biodegradable plastic by polyhydroxybutyrate (PHB) accumulating bacteria using low cost agricultural waste material. BMC Res. Notes 2016, 9, 1–9. [Google Scholar] [CrossRef] [PubMed]
  27. Wacławek, S.; Chronopoulou, L.; Petrangeli Papini, M.; Vtp, V.; Palocci, C.; Kupčík, J.; Černík, M. Enhancement of stability and reactivity of nanosized zero-valent iron with polyhydroxybutyrate. Desalin. Water Treat. 2017, 69. [Google Scholar] [CrossRef]
  28. Torkelson, T.R.; Oyen, F.; Rowe, V.K. The toxicity of chloroform as determined by single and repeated exposure of laboratory animals. Am. Ind. Hyg. Assoc. J. 1976, 37, 697–705. [Google Scholar] [CrossRef]
  29. Rannug, U. Genotoxic effects of 1,2-dibromoethane and 1,2-dichloroethane. Mutat. Res. Rev. Genet. Toxicol. 1980, 76, 269–295. [Google Scholar] [CrossRef]
  30. Silvestri, D.; Wacławek, S.; Sobel, B.; Torres-Mendieta, R.; Novotný, V.; Nguyen, N.H.A.; Ševců, A.; Padil, V.V.T.; Müllerová, J.; Stuchlík, M.; et al. A poly(3-hydroxybutyrate)-chitosan polymer conjugate for the synthesis of safer gold nanoparticles and their applications. Green Chem. 2018, 20, 4975–4982. [Google Scholar] [CrossRef]
  31. Sharma, G.; Kumar, A.; Sharma, S.; Naushad, M.; Prakash Dwivedi, R.; ALOthman, Z.A.; Mola, G.T. Novel development of nanoparticles to bimetallic nanoparticles and their composites: A review. J. King Saud Univ. Sci. 2019, 31, 257–269. [Google Scholar] [CrossRef]
  32. Shifrina, Z.B.; Matveeva, V.G.; Bronstein, L.M. Role of polymer structures in catalysis by transition metal and metal oxide Nanoparticle Composites. Chem. Rev. 2019. [Google Scholar] [CrossRef] [PubMed]
  33. Mei, Y.; Lu, Y.; Polzer, F.; Ballauff, M.; Drechsler, M. Catalytic activity of palladium nanoparticles encapsulated in spherical poly electrolyte brushes and core-shell microgels. Chem. Mater. 2007, 19, 1062–1069. [Google Scholar] [CrossRef]
  34. Mei, Y.; Sharma, G.; Lu, Y.; Ballauff, M.; Drechsler, M.; Irrgang, T.; Kempe, R. High catalytic activity of platinum nanoparticles immobilized on spherical polyelectrolyte brushes. Langmuir 2005, 21, 12229–12234. [Google Scholar] [CrossRef] [PubMed]
  35. Li, Z.; Yao, C.; Wang, Y.C.; Mikael, S.; Gunasekaran, S.; Ma, Z.; Cai, Z.; Wang, X. High-density platinum nanoparticle-decorated titanium dioxide nanofiber networks for efficient capillary photocatalytic hydrogen generation. J. Mater. Chem. A 2016, 4, 11672–11679. [Google Scholar] [CrossRef]
  36. Wu, M.C.; Hsiao, K.C.; Chang, Y.H.; Chan, S.H. Photocatalytic hydrogen evolution of palladium nanoparticles decorated black TiO2 calcined in argon atmosphere. Appl. Surf. Sci. 2018, 430, 407–414. [Google Scholar] [CrossRef]
  37. Elsey, J.; Bubley, J.A.; Zhu, L.; Rao, S.; Sasaki, M.; Pollack, B.P.; Yang, L.; Arbiser, J.L. Palladium based nanoparticles for the treatment of advanced melanoma. Sci. Rep. 2019, 9, 3255. [Google Scholar] [CrossRef] [PubMed]
  38. Samadi, A.; Klingberg, H.; Jauffred, L.; Kjær, A.; Bendix, P.M.; Oddershede, L.B. Platinum nanoparticles: A non-toxic, effective and thermally stable alternative plasmonic material for cancer therapy and bioengineering. Nanoscale 2018, 10, 9097–9107. [Google Scholar] [CrossRef]
  39. Lai, J.; Luque, R.; Xu, G. Recent Advances in the Synthesis and Electrocatalytic Applications of Platinum-Based Bimetallic Alloy Nanostructures. ChemCatChem 2015, 7, 3206–3228. [Google Scholar] [CrossRef]
  40. Wang, L.; Yamauchi, Y. Metallic nanocages: Synthesis of bimetallic Pt-Pd hollow nanoparticles with dendritic shells by selective chemical etching. J. Am. Chem. Soc. 2013, 135, 16762–16765. [Google Scholar] [CrossRef]
  41. Lim, B.; Wang, J.; Camargo, P.H.C.; Cobley, C.M.; Kim, M.J.; Xia, Y. Twin-induced growth of palladium-platinum alloy nanocrystals. Angew. Chem. Int. Ed. 2009, 48, 6304–6308. [Google Scholar] [CrossRef]
  42. Venkateshaiah, A.; Silvestri, D.; Ramakrishnan, R.K.; Wacławek, S.; Padil, V.V.T.; Černík, M.; Varma, R.S. Gum Kondagogu/Reduced Graphene Oxide Framed Platinum Nanoparticles and Their Catalytic Role. Molecules 2019, 24, 3643. [Google Scholar] [CrossRef] [PubMed]
  43. Baruah, B.; Gabriel, G.J.; Akbashev, M.J.; Booher, M.E. Facile synthesis of silver nanoparticles stabilized by cationic polynorbornenes and their catalytic activity in 4-nitrophenol reduction. Langmuir 2013, 29, 4225–4234. [Google Scholar] [CrossRef] [PubMed]
  44. Queiroz, M.F.; Melo, K.R.T.; Sabry, D.A.; Sassaki, G.L.; Rocha, H.A.O. Does the use of chitosan contribute to oxalate kidney stone formation? Mar. Drugs 2015, 13, 141–158. [Google Scholar] [CrossRef] [PubMed]
  45. Dang Nguyen Vô, K.; Kowandy, C.; Dupont, L.; Coqueret, X. Evidence of chitosan-mediated reduction of Au(III) to Au(0) nanoparticles under electron beam by using OH and e-aq scavengers. Chem. Commun. 2015, 51, 4017–4020. [Google Scholar] [CrossRef]
  46. Dorjnamjin, D.; Ariunaa, M.; Shim, Y.K. Synthesis of silver nanoparticles using hydroxyl functionalized ionic liquids and their antimicrobial activity. Int. J. Mol. Sci. 2008, 9, 807–820. [Google Scholar] [CrossRef]
  47. Hu, P.; Song, Y.; Rojas-Andrade, M.D.; Chen, S. Platinum Nanoparticles Functionalized with Ethynylphenylboronic Acid Derivatives: Selective Manipulation of Nanoparticle Photoluminescence by Fluoride Ions. Langmuir 2014, 30, 5224–5229. [Google Scholar] [CrossRef]
  48. Mendoza-Pérez, R.; Guisbiers, G. Bimetallic Pt-Pd nano-catalyst: Size, shape and composition matter. Nanotechnology 2019, 30, 305702. [Google Scholar] [CrossRef]
  49. Zhang, Q.; Li, N.; Goebl, J.; Lu, Z.; Yin, Y. A systematic study of the synthesis of silver nanoplates: Is citrate a “magic” reagent? J. Am. Chem. Soc. 2011, 133, 18931–18939. [Google Scholar] [CrossRef]
  50. Ghosh, A.; Dutta, S.; Mukherjee, I.; Biswas, S.; Chatterjee, S.; Saha, R. Template-free synthesis of flower-shaped zero-valent iron nanoparticle: Role of hydroxyl group in controlling morphology and nitrate reduction. Adv. Powder Technol. 2017, 28, 2256–2264. [Google Scholar] [CrossRef]
  51. Long, N.V.; Hien, T.D.; Asaka, T.; Ohtaki, M.; Nogami, M. Synthesis and characterization of Pt–Pd nanoparticles with core-shell morphology: Nucleation and overgrowth of the Pd shells on the as-prepared and defined Pt seeds. J. Alloys Compd. 2011, 509, 7702–7709. [Google Scholar] [CrossRef]
  52. Tuo, Y.; Liu, G.; Dong, B.; Yu, H.; Zhou, J.; Wang, J.; Jin, R. Microbial synthesis of bimetallic PdPt nanoparticles for catalytic reduction of 4-nitrophenol. Environ. Sci. Pollut. Res. 2017, 24, 5249–5258. [Google Scholar] [CrossRef]
  53. Li, H.; Han, L.; Cooper-White, J.; Kim, I. Palladium nanoparticles decorated carbon nanotubes: Facile synthesis and their applications as highly efficient catalysts for the reduction of 4-nitrophenol. Green Chem. 2012, 14, 586. [Google Scholar] [CrossRef]
  54. Huang, X.; Li, Y.; Li, Y.; Zhou, H.; Duan, X.; Huang, Y. Synthesis of PtPd bimetal nanocrystals with controllable shape, composition, and their tunable catalytic properties. Nano Lett. 2012, 12, 4265–4270. [Google Scholar] [CrossRef] [PubMed]
  55. Zhu, C.; Guo, S.; Dong, S. Rapid, general synthesis of pdpt bimetallic alloy nanosponges and their enhanced catalytic performance for ethanol/methanol electrooxidation in an alkaline medium. Chem. A Eur. J. 2013, 19, 1104–1111. [Google Scholar] [CrossRef] [PubMed]
  56. Yin, A.X.; Min, X.Q.; Zhang, Y.W.; Yan, C.H. Shape-selective synthesis and facet-dependent enhanced electrocatalytic activity and durability of monodisperse Sub-10 nm Pt-Pd tetrahedrons and cubes. J. Am. Chem. Soc. 2011, 133, 3816–3819. [Google Scholar] [CrossRef] [PubMed]
  57. Lee, Y.W.; Ko, A.R.; Han, S.B.; Kim, H.S.; Park, K.W. Synthesis of octahedral Pt–Pd alloy nanoparticles for improved catalytic activity and stability in methanol electrooxidation. Phys. Chem. Chem. Phys. 2011, 13, 5569. [Google Scholar] [CrossRef]
  58. Liu, X.Y.; Zhang, Y.; Gong, M.X.; Tang, Y.W.; Lu, T.H.; Chen, Y.; Lee, J.M. Facile synthesis of corallite-like Pt-Pd alloy nanostructures and their enhanced catalytic activity and stability for ethanol oxidation. J. Mater. Chem. A 2014, 2, 13840–13844. [Google Scholar] [CrossRef]
  59. Scott, R.W.J.; Datye, A.K.; Crooks, R.M. Bimetallic Palladium-Platinum Dendrimer-Encapsulated Catalysts. J. Am. Chem. Soc. 2003, 125, 3708–3709. [Google Scholar] [CrossRef]
  60. Datta, K.J.; Datta, K.K.R.; Gawande, M.B.; Ranc, V.; Čépe, K.; Malgras, V.; Yamauchi, Y.; Varma, R.S.; Zboril, R. [email protected] Core-Shell Nanoparticles with Branched Dandelion-like Morphology as Highly Efficient Catalysts for Olefin Reduction. Chem. A Eur. J. 2016, 22, 1577–1581. [Google Scholar] [CrossRef]
  61. Wang, X.; Vara, M.; Luo, M.; Huang, H.; Ruditskiy, A.; Park, J.; Bao, S.; Liu, J.; Howe, J.; Chi, M.; et al. [email protected] Core—Shell Concave Decahedra: A Class of Catalysts for the Oxygen Reduction Reaction with Enhanced Activity and Durability. J. Am. Chem. Soc. 2015, 137, 15036–15042. [Google Scholar] [CrossRef]
  62. Lim, B.; Jiang, M.; Camargo, P.H.C.; Cho, E.C.; Tao, J.; Lu, X.; Zhu, Y.; Xia, Y. Pd-Pt bimetallic nanodendrites with high activity for oxygen reduction. Science 2009, 324, 1302–1305. [Google Scholar] [CrossRef]
  63. Wacławek, S.; Gončuková, Z.; Adach, K.; Fijałkowski, M.; Černík, M. Green synthesis of gold nanoparticles using Artemisia dracunculus extract: Control of the shape and size by varying synthesis conditions. Environ. Sci. Pollut. Res. 2018, 25, 24210–24219. [Google Scholar] [CrossRef] [PubMed]
  64. Stumm, W.; Morgan, J.J. Aquatic Chemistry: Chemical Equilibria and Rates in Natural Waters; Wiley: Hoboken, NJ, USA, 2012; ISBN 1118591488. [Google Scholar]
  65. Kästner, C.; Thünemann, A.F. Catalytic Reduction of 4-Nitrophenol Using Silver Nanoparticles with Adjustable Activity. Langmuir 2016, 32, 7383–7391. [Google Scholar] [CrossRef] [PubMed]
  66. Gangula, A.; Podila, R.; Karanam, L.; Janardhana, C.; Rao, A.M. Catalytic reduction of 4-nitrophenol using biogenic gold and silver nanoparticles derived from breynia rhamnoides. Langmuir 2011, 27, 15268–15274. [Google Scholar] [CrossRef] [PubMed]
  67. Lara, L.R.S.; Zottis, A.D.; Elias, W.C.; Faggion, D.; Maduro De Campos, C.E.; Acuña, J.J.S.; Domingos, J.B. The catalytic evaluation of in situ grown Pd nanoparticles on the surface of [email protected] particles in the p-nitrophenol reduction reaction. RSC Adv. 2015, 5, 8289–8296. [Google Scholar] [CrossRef]
  68. Ma, T.; Liang, F.; Chen, R.; Liu, S.; Zhang, H. Synthesis of Au-Pd bimetallic nanoflowers for catalytic reduction of 4-nitrophenol. Nanomaterials 2017, 7, 239. [Google Scholar] [CrossRef]
  69. Chen, X.; Cai, Z.; Chen, X.; Oyama, M. AuPd bimetallic nanoparticles decorated on graphene nanosheets: Their green synthesis, growth mechanism and high catalytic ability in 4-nitrophenol reduction. J. Mater. Chem. A 2014, 2, 5668–5674. [Google Scholar] [CrossRef]
  70. Wu, W.; Lei, M.; Yang, S.; Zhou, L.; Liu, L.; Xiao, X.; Jiang, C.; Roy, V.A.L. A one-pot route to the synthesis of alloyed Cu/Ag bimetallic nanoparticles with different mass ratios for catalytic reduction of 4-nitrophenol. J. Mater. Chem. A 2015, 3, 3450–3455. [Google Scholar] [CrossRef]
  71. El-Bahy, Z.M.; Hanafy, A.I.; El-Bahy, S.M. Preparation of Pt, Pd and Cu nano single and bimetallic systems-supported NaY zeolite and test their activity in p-nitrophenol reduction and as anticancer agents. J. Environ. Chem. Eng. 2019, 7, 103117. [Google Scholar] [CrossRef]
  72. Wang, Y.; Li, Q.; Zhang, P.; O’Connor, D.; Varma, R.S.; Yu, M.; Hou, D. One-pot green synthesis of bimetallic hollow palladium-platinum nanotubes for enhanced catalytic reduction of p-nitrophenol. J. Colloid Interf. Sci. 2019, 539, 161–167. [Google Scholar] [CrossRef]

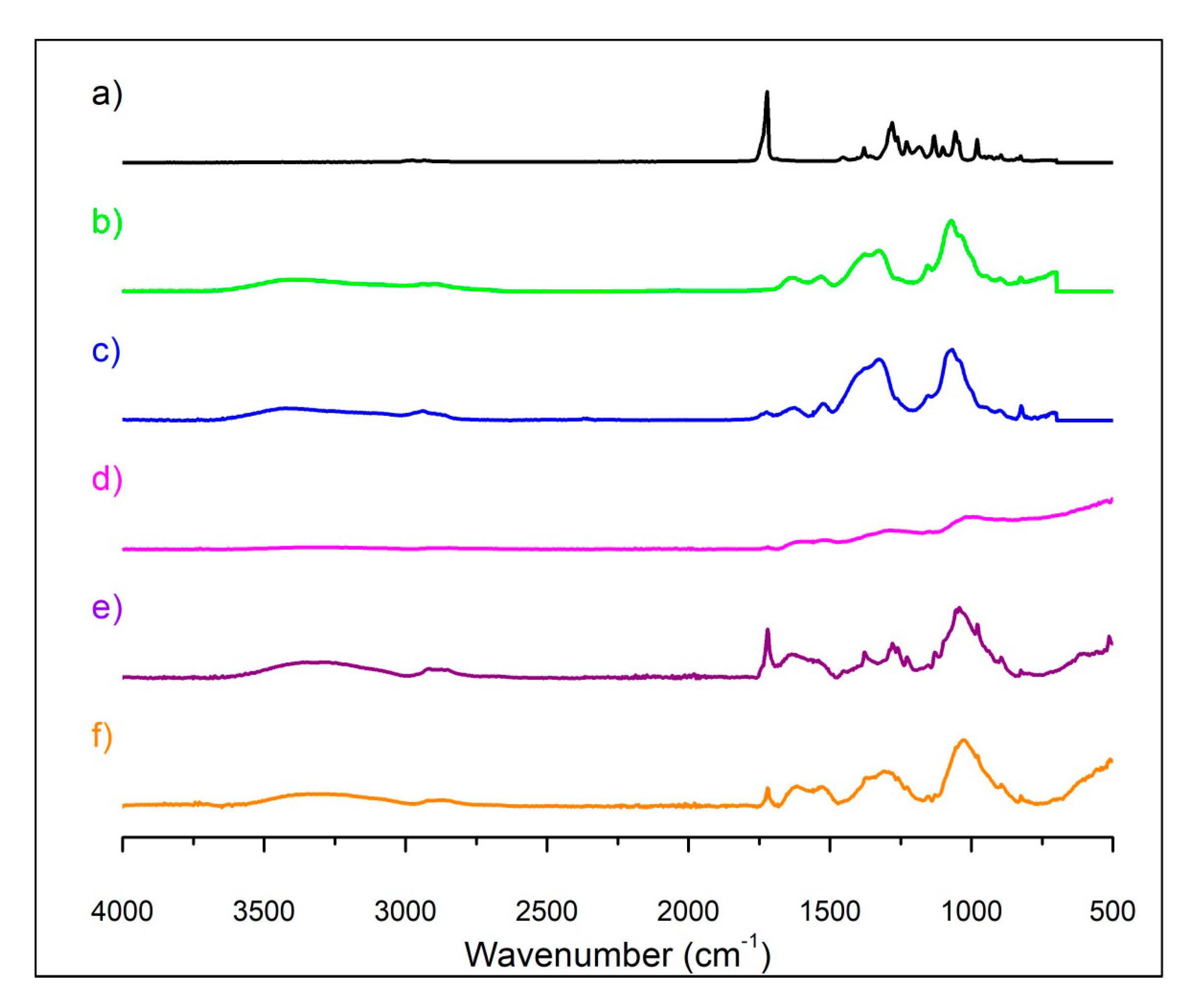

Figure 1. ATR-FTIR analysis of (a) PHB, (b) chitosan, (c) Cs-PHB, (d) Pd/Pt ratio 1:1 (zoom on the region of the 4000–1500 cm−1 spectrum part is available in Figure S1 in Supplementary Materials), (e) Pd/Pt ratio 1:2 and (f) Pd/Pt ratio 2:1 (synthesis temperature of Pd/Pt: 130 °C).
Figure 1. ATR-FTIR analysis of (a) PHB, (b) chitosan, (c) Cs-PHB, (d) Pd/Pt ratio 1:1 (zoom on the region of the 4000–1500 cm−1 spectrum part is available in Figure S1 in Supplementary Materials), (e) Pd/Pt ratio 1:2 and (f) Pd/Pt ratio 2:1 (synthesis temperature of Pd/Pt: 130 °C).
Polymers 11 01948 g001
Figure 2. HR-TEM images of characteristic Pd/Pt nanoparticles synthesized with different molar ratios and temperatures (a) Pd/Pt 1:1 at 150 °C, (b) 1:1 at 140 °C, (c) 1:1 at 130 °C, and (d) 2:1 at 130 °C; (e) 1:2 at 130 °C and (f) SAED pattern of Pd/Pt (2:1). For all of the samples, the scale bar stands for 5 nm.
Figure 2. HR-TEM images of characteristic Pd/Pt nanoparticles synthesized with different molar ratios and temperatures (a) Pd/Pt 1:1 at 150 °C, (b) 1:1 at 140 °C, (c) 1:1 at 130 °C, and (d) 2:1 at 130 °C; (e) 1:2 at 130 °C and (f) SAED pattern of Pd/Pt (2:1). For all of the samples, the scale bar stands for 5 nm.
Polymers 11 01948 g002

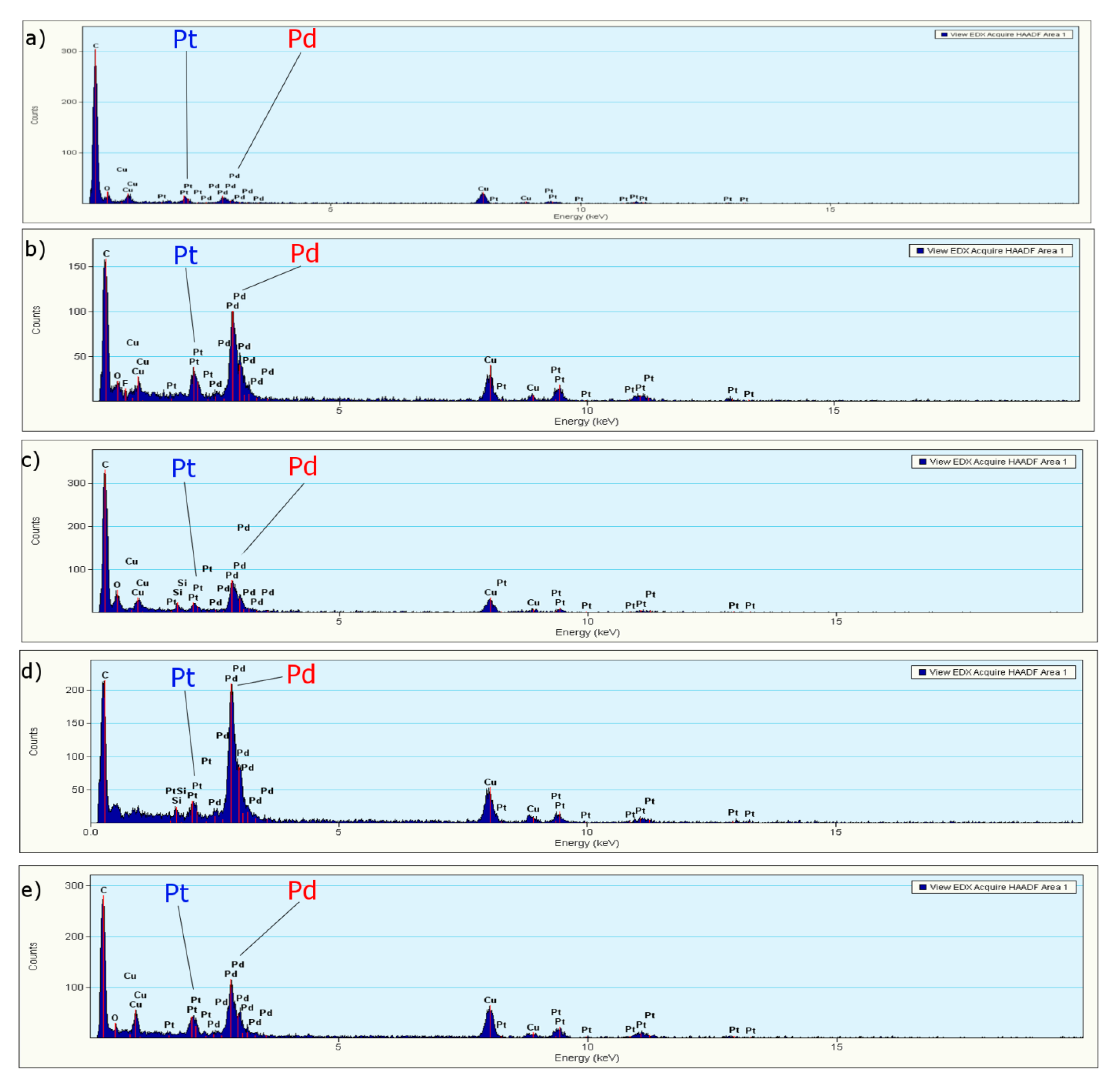

Figure 3. EDS analysis of Pd/Pt nanoparticles synthesized at different temperatures and molar ratios (a) 150 °C and 1:1, (b) 140 °C and 1:1, (c) 130 °C and 1:1, (d) 130 °C and 2:1, and (e) 130 °C and 1:2.
Figure 3. EDS analysis of Pd/Pt nanoparticles synthesized at different temperatures and molar ratios (a) 150 °C and 1:1, (b) 140 °C and 1:1, (c) 130 °C and 1:1, (d) 130 °C and 2:1, and (e) 130 °C and 1:2.
Polymers 11 01948 g003

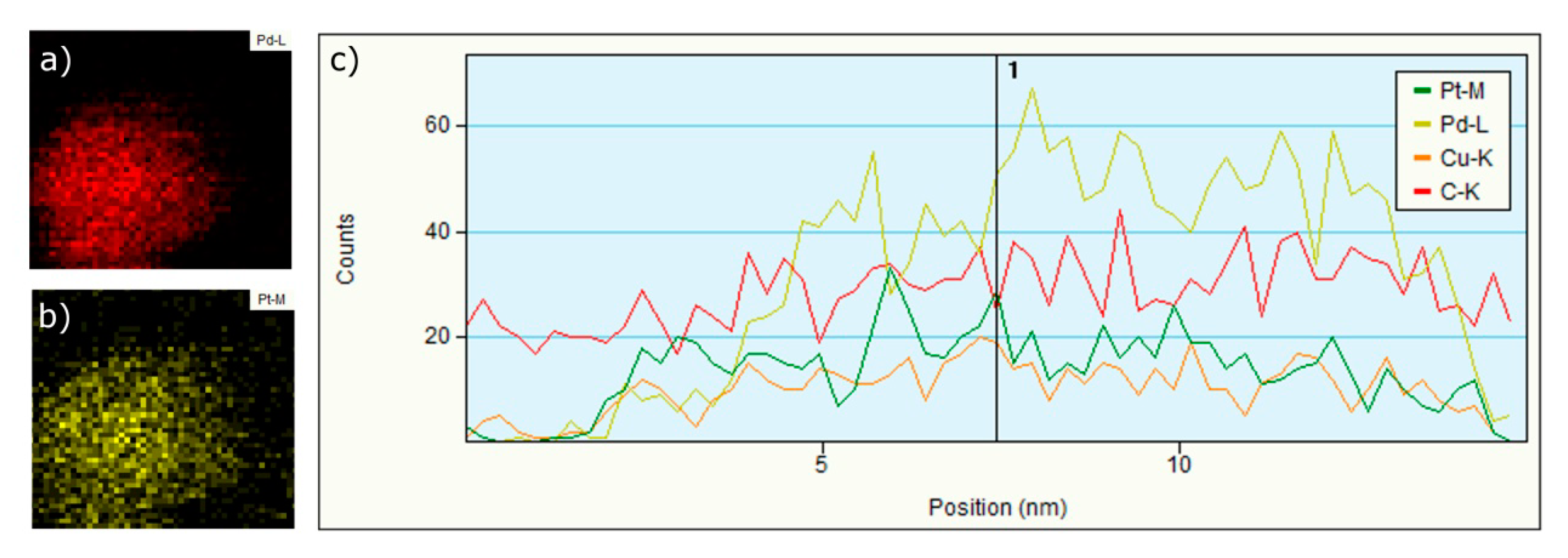

Figure 4. EDS mapping of (a) Pd and (b) Pt, and (c) EDS profile analysis of Pd/Pt nanoparticles (synthesis condition: Pd/Pt ratio 2:1, 10 g/L of Cs-PHB and temperature of 130 °C).
Figure 4. EDS mapping of (a) Pd and (b) Pt, and (c) EDS profile analysis of Pd/Pt nanoparticles (synthesis condition: Pd/Pt ratio 2:1, 10 g/L of Cs-PHB and temperature of 130 °C).
Polymers 11 01948 g004

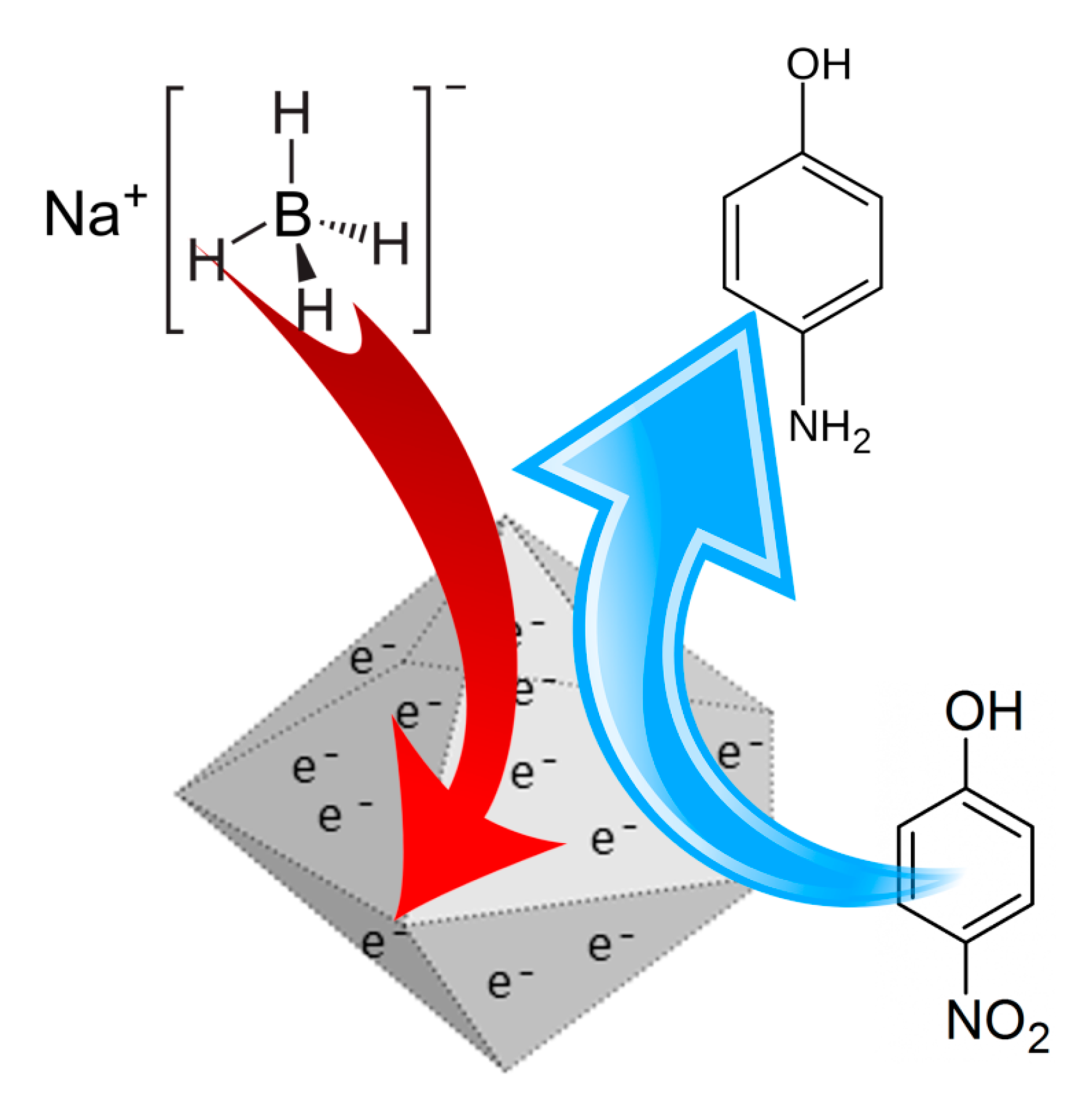

Figure 5. Electron transfer mechanism for reduction of 4-NP to 4-AP.
Figure 5. Electron transfer mechanism for reduction of 4-NP to 4-AP.
Polymers 11 01948 g005

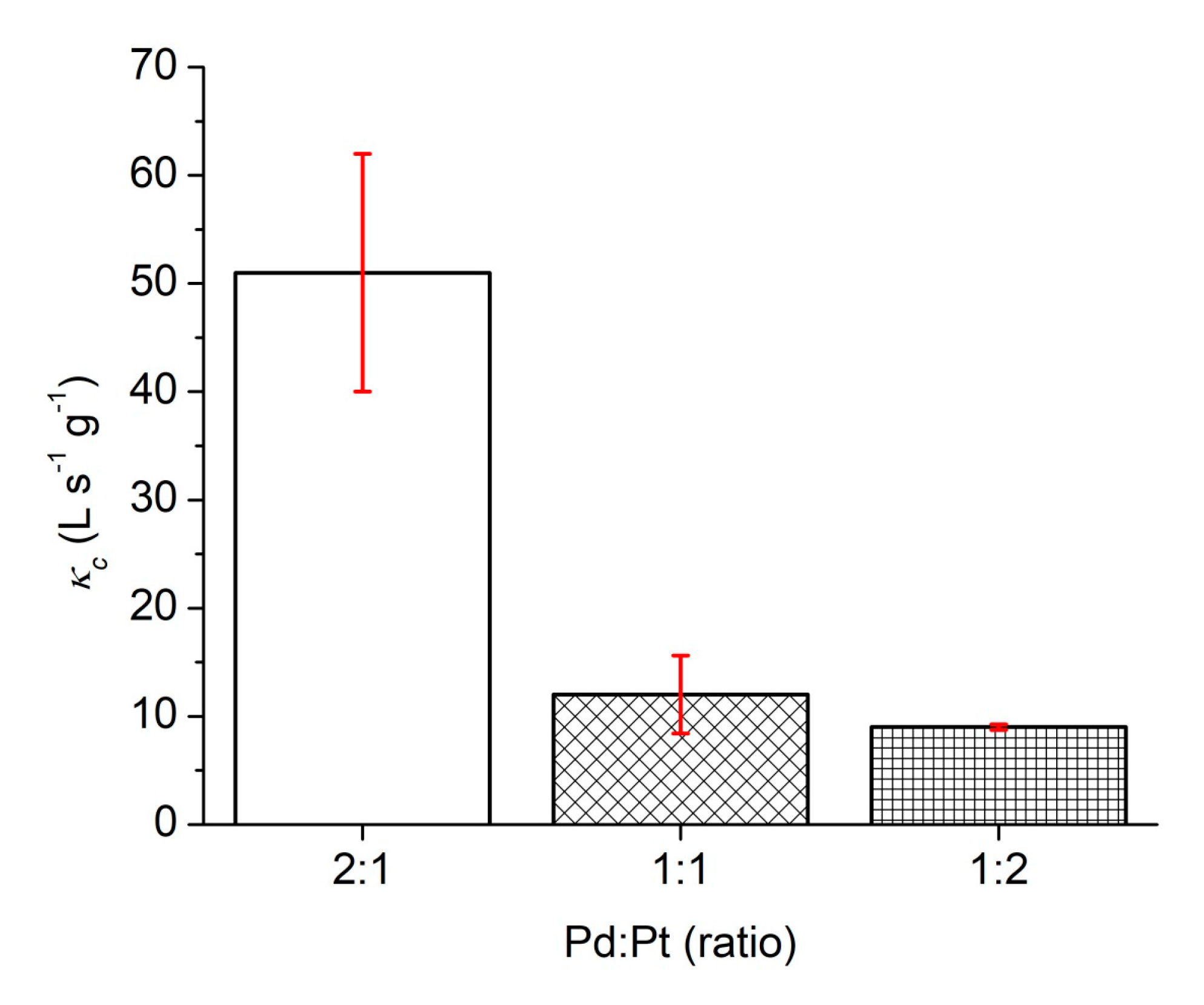

Figure 6. Comparison between the κc values of nanoparticles obtained by different ratios of Pd and Pt precursors (the red error bars represent the slope error).
Figure 6. Comparison between the κc values of nanoparticles obtained by different ratios of Pd and Pt precursors (the red error bars represent the slope error).
Polymers 11 01948 g006
Table 1. Synthesis procedures reported in the literature for obtaining Pd/Pt nanoparticles with different shapes.
Table 1. Synthesis procedures reported in the literature for obtaining Pd/Pt nanoparticles with different shapes.
ShapeSolventPrecursorsMolar Pd/Pt RatioReducing AgentTemperature (°C)Synthesis Time (min)Reference
CubeDMFNa2PdCl4
K2PtCl6
1:1-130300[54]
NanospongesWaterH2PdCl4
K2PtCl6
1:1NaBH4Room temperature~5[55]
TetrahedronWaterNa2PdCl4
K2PtCl6
1:1HCHO180120[56]
OctahedronWaterNa2PdCl4
H2PtCl6
1:1Glycerol100180[57]
Corallite-like structureWaterK2PdCl4
K2Pt(CN)4
2.05:1NaBH4Room temperature120[58]
Branched Dandelion-likeWaterNa2PdCl4
K2PtCl6
1:7Ascorbic acidRoom temperature30[55]
NanocagesWaterK2PdBr4
Na2PtBr6
1:2Ascorbic acidRoom temperature480[40]
Irregular polyhedronWaterK2PdCl4
PtCl4
1:1Cs-PHB13030This work
DecahedronWaterK2PdCl4
PtCl4
1:2Cs-PHB13030This work
DecahedronWaterK2PdCl4
PtCl4
2:1Cs-PHB13030This work
Table 2. The pseudo-first-order kinetic rate constants (kapp) of Pd/Pt synthesized in different ratios and κc value obtained by linear approximation of kapp (s−1) vs concentration of catalysts (g/L).
Table 2. The pseudo-first-order kinetic rate constants (kapp) of Pd/Pt synthesized in different ratios and κc value obtained by linear approximation of kapp (s−1) vs concentration of catalysts (g/L).
CatalystsSynthesis Temperature (°C)Concentration (mg/L)kapp
(min−1)
κc
(L s−1 g−1)
Pd/Pt (1:1)1300.3790.03812 ± 4
0.7570.546
1.5150.897
Pd/Pt (1:2)1300.1470.0669 ± 1
0.2930.152
0.5860.305
Pd/Pt (2:1) 1300.2020.19851 ± 11
0.4040.424
0.8091.967
Table 3. Comparison of different bimetallic catalysts on the reduction of 4-NP reported in the literature.
Table 3. Comparison of different bimetallic catalysts on the reduction of 4-NP reported in the literature.
CatalystsCatalyst Concentration (mg/L)4-NP Concentration (mM)NaBH4 Concentration (mM)kapp (s−1)κc (L s−1 g−1)Ref.
Pd/Au80.07210.25832[68]
Au53Pd47/graphene nanosheets0.060.0550.014240[69]
Cu/Ag0.480.09611.20.00037.18[70]
PdCuY200.721.50.0020.12[71]
Pd/Pt nanotubes3.40.091000.00825[72]
Pd/Pt (2:1)0.8090.12120.03351 ± 11This work
Pd/Pt (1:1)0.7570.12120.00912 ± 4This work
Pd/Pt (1:2)0.5860.12120.0059 ± 1This work
Back to TopTop
