Article

Preparation of Microparticles Capable of Glucose-Induced Insulin Release under Physiological Conditions

by
Kentaro Yoshida
1,*,
Kazuma Awaji
2,
Seira Shimizu
2,
Miku Iwasaki
2,
Yuki Oide
2,
Megumi Ito
2,
Takenori Dairaku
1,
Tetsuya Ono
1,
Yoshitomo Kashiwagi
1 and
Katsuhiko Sato
2
1
School of Pharmaceutical Sciences, Ohu University 31-1 Misumido, Tomita-Machi, Koriyama, Fukushima 963-8611, Japan
2
Graduate School of Pharmaceutical Sciences, Tohoku University, 6-3 Aoba, Aramaki, Aoba-ku, Sendai 980-8578, Japan
*
Author to whom correspondence should be addressed.
Polymers 2018, 10(10), 1164; https://doi.org/10.3390/polym10101164
Submission received: 25 September 2018 / Revised: 17 October 2018 / Accepted: 17 October 2018 / Published: 18 October 2018
Browse Figures
Versions Notes

Abstract

:
Hydrogen peroxide (H2O2)-sensitive layer-by-layer films were prepared based on combining phenyl boronic acid (PBA)-modified poly(allylamine) (PAH) with shikimic acid (SA)-modified-PAH through boronate ester bonds. These PBA-PAH/SA-PAH multilayer films could be prepared in aqueous solutions at pH 7.4 and 9.0 in the presence of NaCl. It is believed that the electrostatic repulsion between the SA-PAH and PBA-PAH was diminished and the formation of ester bonds between the SA and PBA was promoted in the presence of NaCl. These films readily decomposed in the presence of H2O2 because the boronate ester bonds were cleaved by an oxidation reaction. In addition, SA-PAH/PBA-PAH multilayer films combined with glucose oxidase (GOx) were decomposed in the presence of glucose because GOx catalyzes the oxidation of D-glucose to generate H2O2. The surfaces of CaCO3 microparticles were coated with PAH/GOx/(SA-PAH/PBA-PAH)5 films that absorbed insulin. A 1 mg quantity of these particles released up to 10 μg insulin in the presence 10 mM glucose under physiological conditions.

Graphical Abstract

1. Introduction

Stimuli-sensitive drug release devices such as microchips [1], gels [2,3] and microcapsules [4,5] have been widely studied with regard to biomedical applications. Glucose-sensitive insulin release has attracted particular attention, since the development of insulin delivery systems for the self-regulation of blood glucose levels would be helpful for diabetes mellitus patients. Glucose-sensitive materials such as lectins [6], glucose oxidase [7,8] and phenyl boronic acid (PBA) [9,10,11] have been employed for this purpose. Because the glucose-sensitive release of insulin could mimic the function of the pancreas, this technology might eliminate repetitive insulin injections.
Layer-by-layer (LbL) multilayer films can be prepared by the alternating and repeated deposition of polymeric materials on the surface of a solid substrate [12]. The polymers are deposited on the substrate by attractive forces that include electrostatic interaction [13,14,15], hydrogen bonds [16,17], avidin-biotin binding [18] and sugar-lectin binding [19]. Thus, both synthetic polymers and biological materials can be used to produce LbL films, with applications in sensors [20,21], separation and purification [22,23], microcapsules [24,25,26], drug delivery systems (DDSs) [27,28,29] and stimuli-sensitive devices [30,31]. There have been many studies devoted to stimuli-sensitive LbL films that decompose in response to environmental stimuli such as pH [32], ionic strength [33], biological molecules [34] and electrical signals [35]. If such films can incorporate glucose-sensitive materials, a release process based on physiological conditions could be realized. Therefore, it has been suggested that glucose-sensitive multilayer films could be used to develop insulin delivery systems.
Our own groups have previously developed pH- and sugar-sensitive LbL films composed of PBA-modified poly(allylamine hydrochloride) (PBA-PAH) and poly(vinyl alcohol) (PVA) [36]. PBA derivatives are of particular interest because they selectively bind 1,2- and 1,3-diol compounds such as sugars [37,38]; Figure 1 shows the binding of a diol compound to a boronate ester. For this reason, the use of PBA derivatives in the development of sugar-sensitive drug delivery systems has been suggested [39,40,41,42]. It is difficult to decompose these PBA-PAH/PVA LbL films under physiological conditions, but PBA and boronate esters are sensitive to reactive oxygen species (ROS). As an example, these compounds can be irreversibly decomposed as the result of the oxidative scission of the carbon-boron bond by hydrogen peroxide (H2O2) [43]. We have previously reported the H2O2-induced decomposition of LbL films consisting of PBA-PAH and PVA [44], as well as the glucose-induced decomposition of multilayer PBA-PAH/PVA films by glucose oxidase (GOx) [45].
Microparticles coated with LbL films are extremely useful in DDS applications, although such materials made with PBA-PAH/PVA multilayer films have a tendency to aggregate. In the present work, LbL films capable of undergoing H2O2- and glucose-induced decomposition were applied as coatings to fine particles, with the aim of developing a system for glucose-induced insulin release under physiological conditions (Figure 2)

2. Experimental

2.1. Materials

PAH (molecular weight: 150,000) and insulin (human, recombinant) were obtained from Nittobo Co. (Tokyo, Japan) and Wako Pure Chemical Ind. (Osaka, Japan), respectively. GOx (activity: 100 units mg−1 solid) was obtained from Toyobo Co., Ltd. (Osaka, Japan) and H2O2 (30% aqueous solution) was obtained from Santoku Chemical Industries Co., Ltd. (Tokyo, Japan). Shikimic acid (SA), 4-carboxyphenyl boronic acid and 4-(N,N-dimethylaminosulfonyl)-7-(2-aminoethylamino)-2,1,3-benzoxadiazole (DBD-ED) were purchased from Tokyo Chemical Industry Co., Ltd. (Tokyo, Japan) while 1-ethyl-3-(3-dimethylaminopropyl)carbodiimide hydrochloride (EDC) and N-hydroxysuccinimide (NHS) were obtained from Nacalai Tesque Co. (Kyoto, Japan). All other reagents were of the highest possible grade and were used as received without further purification.
PBA-PAH was synthesized according to a literature procedure [36]. The PAH contained approximately 15% PBA residues (based on the molar ratio of PBA to primary amine groups) as calculated from the proportions of nitrogen and carbon determined by elemental analysis. The calculated elemental composition of the PBA-PAH was C = 39.99%, H = 7.55% and N = 11.53%, and the experimental results showed C = 42.29%, H = 6.2% and N = 11.42%.
SA-modified PAH (SA-PAH) was synthesized by reacting SA and PAH in water in the presence of NHS and EDC. In this process, EDC (109 mg) was added to a solution of SA (100 mg), PAH (100 mg) and NHS (66 mg) in water (30 mL) and the reaction mixture was stirred for 1 h at 0 °C and then for 12 h at room temperature. The resulting SA-PAH was purified by dialysis in water using a dialysis membrane (molecular weight cut-off of 12,000–14,000, Fast Gene, Nippon Genetics). The PAH contained approximately 26% SA residues (based on the molar ratio of SA to primary amine groups) as calculated from the proportions of nitrogen and carbon determined by elemental analysis. The calculated elemental composition of the SA-PAH was C = 47.00%, H = 7.81% and N = 11.32%. The C /N ratio based on these data is 4.15, and so SA-PAH bearing 26% SA was obtained.
DBD-labeled insulin (DBD-insulin) was synthesized by reacting DBD-ED and insulin in water in the presence of NHS and EDC. EDC (3.30 mg) was added to a solution of DBD-ED (4.91 mg) in a mixture of DMF (0.5 mL), insulin (100 mg) and NHS (1.98 mg) in water. The reaction mixture was stirred for 1 h at 0 °C and then for 12 h at room temperature. The resulting DBD-insulin was purified by dialysis in water using a dialysis membrane, after which it was freeze-dried. The chemical structures of the PBA-PAH, SA-PAH and DBD-ED are shown in Figure 3.

2.2. Apparatus

A quartz crystal microbalance (QCM, QCA 917 system, Seiko EG & G, Tokyo, Japan) and a flow cell were used for gravimetric analysis of the LbL films. A 9 MHz AT-cut quartz resonator coated with a thin Au layer (surface area: 0.2 cm2) was used as a probe, such that the adsorption of 1 ng of a substance induced a −0.91 Hz change in the resonance frequency. UV-vis and fluorescence spectra were acquired using a 3100PC spectrophotometer (Shimadzu, Kyoto, Japan) and an FP-6500 fluorescence spectrophotometer (JASCO, Tokyo, Japan), respectively. Optical microscopy and fluorescence microscopy images were obtained with an LSM510 instrument (ZEISS, Oberkochen, Germany).

2.3. Preparation of SA-PAH/PBA-PAH Multilayer Films

SA-PAH/PBA-PAH multilayer films were prepared on solid substrates. Each substrate was initially immersed in an SA-PAH solution (0.1 mg/mL) for 15 min to deposit the first SA-PAH layer. After rinsing in a working buffer for 5 min to remove any weakly adsorbed SA-PAH, the substrate was immersed in a PBA-PHA solution (0.1 mg/mL) for 15 min to deposit PBA-PHA. The second SA-PAH and PBA-PHA layers were deposited using the same technique and this deposition process was repeated to build an (SA-PAH/PBA-PAH)10 multilayer film. The working buffers consisted of 10 mM 2-(N-morpholino)ethanesulfonic acid (MES) buffer (pH 5.0), 10 mM 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES) buffer (pH 7.4) or 10 mM N-Cyclohexyl-2-aminoethanesulfonic acid (CHES) buffer (pH 9.0). The effect of ionic strength on the SA-PAH/PBA-PAH multilayer films was investigated by adding NaCl to the buffers.
SA-PAH/PBA-PAH films containing GOx was prepared by building (SA-PAH/PBA-PAH)10 multilayer films on PAH/GOx films at ambient temperature (approximately 20 °C). A solid substrate was coated in advance with a PAH/GOx film by immersing the slide alternately in 0.1 mg mL−1 PAH and 0.1 mg mL−1 GOx solutions [39]. The glucose response was studied in a series of 10 mM HEPES buffers (pH 7.4, 150 mM or 1 M NaCl) and 10 mM CHES buffer (pH 9.0, 1 M NaCl). A 9 MHz Au-coated quartz resonator and a quartz slide (4.5 × 0.9 × 0.1 cm) were used for QCM analysis and UV-vis absorption measurements, respectively.

2.4. H2O2- and Glucose-Induced Decomposition of LbL Films

The H2O2- and glucose-induced decompositions of various films were studied by UV-vis absorption spectroscopy. To determine the kinetics of film decomposition, one side of a quartz slide was coated with an LbL film and the slide was placed in a quartz cuvette (optical path length: 10 mm) filled with a buffer solution. The slide was placed near the sidewall of the cuvette, parallel to the light path, in order to avoid blocking the incident light. The absorbance of the solution at 255 nm was monitored with gentle stirring of the buffer to estimate the extent of film decomposition at different pH values in the absence and presence of H2O2 and glucose.

2.5. Preparation of Microparticles Coated with SA-PAH/PBA-PAH Multilayer Films

In this procedure, 10 mL of a Ca(NO3)2 (472 mg) solution was combined with 10 mL of a Na2CO3 (210 mg) solution and the mixture was stirred for 30 min, after which the precipitated CaCO3 particles were collected by centrifugation and washed with water [46]. The surfaces of these particles was coated with multilayer films by immersing them alternately in 0.1 mg/mL SA-PAH and 0.1 mg/mL PBA-PAH solutions (both in a pH 9.0 10 mM CHES buffer) for 15 min. After each deposition, the CaCO3 particles were collected by centrifugation and rinsed in the working buffer for 5 min. The alternating deposition of SA-PAH and PBA-PAH was repeated in this manner to prepare (SA-PAH/PBA-PAH)5 multilayer films on the CaCO3 particles.
Glucose-sensitive microparticles coated with SA-PAH/PBA-PAH multilayer films were prepared by building (SA-PAH/PBA-PAH)5 multilayer films on PAH/GOx film-coated CaCO3 particles. The CaCO3 particles were initially coated with a PAH/GOx film by immersing them alternately in 0.1 mg mL−1 PAH and 0.1 mg mL−1 GOx solutions. Microparticles containing DBD-insulin were prepared using a PBA-PAH solution with 0.1 mg/mL DBD-insulin added. These glucose-sensitive films were prepared in a 10 mM HEPES buffer (pH 7.4, 150 mM NaCl) and were freeze-dried after being prepared.

2.6. H2O2- and Glucose-Induced Decomposition of Microparticles Coated with LbL Films

H2O2-sensitive microparticles coated with SA-PAH/PBA-PAH multilayer films were assessed using UV-vis absorption spectroscopy (UV-3100PC, Shimazu Co., Kyoto, Japan). The freeze dried microparticles (20 mg) were immersed in solutions containing from 0.1 to 10 mM H2O2 and stirred. After a specific time period, the microparticles were removed by centrifugation and the supernatant was collected. The H2O2 in the supernatant was decomposed by adding 1.0 mg/mL catalase (100 μL) and the absorbance of the supernatant at 255 nm was monitored to determine the amount of PBA in solution due to decomposition of the SA-PAH/PBA-PAH multilayer films.
The DBD-insulin release from glucose-sensitive PAH/GOx/(SA-PAH/PBA-PAH)5 film-coated-microparticles were studied by fluorescence emission spectroscopy. The freeze-dried microparticles (10 mg) were immersed in solutions containing 1 to 100 mM glucose and stirred for 60 min. The microparticles were subsequently removed by centrifugation and the supernatant was collected. The supernatant was passed through a filter (pore size 0.45 μm, RC-membrane, Sartorius Stedim, Germany) and the fluorescence intensity of the filtrate was recorded at 505 nm (excitation: 488 nm) to estimate the amount of DBD-insulin released.

3. Results and Discussion

3.1. SA-PAH/PBA-PAH Multilayer Films Characterization

In a previous study, we attempted to prepare H2O2- and glucose-responsive multilayer films composed of microparticles coated with PBA-PAH and PVA [36]. However, microparticles coated with PBA-PAH/PVA multilayer films were found to aggregate. Multilayer films composed of PBA-PAH were found to accumulate positive charges, while the PVA films had low charge densities. Therefore, aggregation of the particles was attributed to a reduction in the repulsive force between them. In the present study, H2O2-responsive multilayer films composed of SA-PAH and PBA-PAH were prepared via the formation of boronate ester bonds between the boronic acid moieties in the PBA-PAH and the diol units in the SA. However, the deposition of SA-PAH/PBA-PAH multilayer films could potentially be hindered by the electrostatic repulsion between the SA-PAH and PBA-PAH. For this reason, increasing the ionic strength of the associated solutions was assessed as a means of promoting film formation. The effect of ionic strength (as reflected by changes in the NaCl concentration) during the preparation of SA-PAH/PBA-PAH multilayer films was investigated using QCM (Figure 4). Variations in the resonance frequency (ΔF) were monitored after rinsing with the working buffer, and −ΔF was found to increase when the quartz resonator was exposed to the SA-PAH and PBA-PAH solutions in the presence of NaCl, indicating that SA-PAH/PBA-PAH multilayer films were successfully formed on the surface of the quartz resonator. In contrast, SA-PAH/PBA-PAH multilayers could not be prepared in the absence of NaCl. The deposition densities of the (SA-PAH/PBA-PAH)10 film were calculated to be 2.80 and 5.45 µg cm−2 when using the 150 mM and 1 M NaCl solutions, respectively. Thus, as expected, higher NaCl concentrations increased the amount of SA-PAH/PBA-PAH multilayer film that was deposited. This likely occurred because the electrostatic repulsion between the SA-PAH and PBA-PAH was diminished, promoting the formation of ester bonds between the shikimic and boronic acid moieties. A high ionic strength in the buffer also causes the polyelectrolyte to contract so as to increase the amount of polymer deposited per layer [47].
Figure 5 shows the UV-vis absorption spectra of SA-PAH/PBA-PAH multilayer films prepared on quartz slides. These spectra exhibit adsorption maxima at approximately 242 nm, originating from the PBA units in the PBA-PAH. The intensity of these peaks increased with increasing number of depositions, suggesting that SA-PAH/PBA-PAH multilayer films were successfully prepared on the slides. In agreement with the QCM results, increasing the NaCl concentration of the solution increased the amount of PBA-PAH deposited.
The bonding of PBA to diols is known to be unstable at neutral and acidic pH values [31,32]. Therefore, we evaluated the stability of the SA-PAH/PBA-PAH multilayer films in aqueous solutions with different pH values. Figure 6 presents the −ΔF values determined for SA-PAH/PBA-PAH multilayer films at various pH values. Films were successfully prepared at pH values of 7.4 and 9.0 but not at pH 5. Under low pH conditions, bonding between the PBA and diols decreased and the formation of multilayer film was made more difficult [37,38] as a result of the electrostatic repulsion between the SA-PAH and PBA-PAH.
Figure 7 summarizes the kinetics of the decomposition of the (SA-PAH/PBA-PAH)10 films in solutions with pH values of 5.0, 7.4 and 9.0. The percentage decomposition was estimated from the changes in the absorption intensity at 255 nm. The films evidently decomposed rapidly at pH 5.0, presumably because the bonding between the PBA and diols decomposed under weakly acidic conditions. In contrast, the films were stable at pH 9.0 for 3 h, and only 10% decomposition was observed at pH 7.4 over 3 h. It should be noted that the evident stability at pH 7.4 suggests that such films have potential applications in biomedical devices. Similar pH-dependent stability has been reported for PVA/PBA-poly(amidoamine) dendrimer films [48].
Figure 8 presents the UV-vis absorption spectra of (SA-PAH/PBA-PAH)10 films before and after 60 min immersion in 1 mM H2O2. Due to PBA, the absorption intensity at 242 nm decreased markedly over time during this process. As shown in Figure 1, the carbon-boron bonds in PBA and boronate esters are oxidatively cleaved by H2O2, suggesting that the H2O2 induced the decomposition of the (SA-PAH/PBA-PAH)10 films. The absorption at 290 nm also increases slightly over time in these spectra, due to the formation of phenol resulting from the oxidation of PBA.
The decomposition kinetics of the (SA-PAH/PBA-PAH)10 films in the presence of H2O2 was assessed by monitoring the adsorption intensity at 255 nm (Figure 9). This wavelength represents an isosbestic point for a combination of PBA-PAH and PBA-PAH during oxidation by H2O2. The (SA-PAH/PBA-PAH)10 film was found to decompose markedly in the presence of H2O2 and the rate of decomposition increased with increases in the H2O2 concentration. As an example, the decomposition percentages of films were determined to be 13%, 81% and 94% after 60, 60 and 20 min in the presence of 0.1, 1 and 10 mM H2O2, respectively.
A (SA-PAH/PBA-PAH)10 film was prepared on a quartz resonator modified with GOx to develop a glucose-responsive unit. GOx was adsorbed into the PAH layer and PBA-PAH layer via electrostatic interactions due to the negative charges present on the GOx at neutral pH (as a result of an isoelectric point of pH 4.2) [49]. The QCM data confirmed that an LbL film could be prepared on a GOx film (see Appendix A Figure A1). Table 1 summarizes the data related to the decomposition of PAH/GOx/(SA-PAH/PBA-PAH)10 films after immersion for 60 min in glucose solutions, based on ΔF values obtained by QCM. These data demonstrate that the decomposition of the multilayer films was affected by the glucose concentration. The PAH/GOx/(SA-PAH/PBA-PAH)10 films were decomposed because GOx catalyzed the oxidation of D-glucose to generate H2O2 (Equation (1)).
D-glucose + O2 → D-glucono-δ-lactose + H2O2
In contrast, two negative decomposition values were obtained in the presence of 1 M NaCl and the values were all negative when using pH 9.0 and 1 mM NaCl. These values are attributed to decreases in the GOx activity due to changes in the ionic strength and basicity of the solutions. Also, glucose was evidently adsorbed on the PBA in the films, thus actually increasing the film masses.

3.2. Preparation of Microparticles Coated with SA-PAH/PBA-PAH Multilayer Films

Microparticles coated with LbL films were obtained via the deposition of polymers on CaCO3 microparticles [46]. Figure 10 shows optical and fluorescence microscopy images of PAH/GOx/(SA-PAH/PBA-PAH)5 film-coated CaCO3 microparticles in which the PBA-PAH and GOx units have been labeled with fluorescein isothiocyanate (FITC) and tetramethylrhodamine isothiocyanate (TRITC). It is evident that there was no aggregation of the particles during the film deposition process, and that it was possible to apply multilayer films to the particles. The fluorescence images confirm that both PBA-PAH and GOx were deposited on the CaCO3.
Figure 11 plots the absorbance at 255 nm following the H2O2-induced decomposition of (SA-PAH/PBA-PAH)5 film-coated CaCO3 microparticles. This wavelength represents the isosbestic point of PBA-PAH and PBA-PAH oxidized by H2O2. The absorbance values increased significantly in the presence of H2O2, with absorbance values of 0.027, 0.082 and 0.091 in conjunction with exposure to H2O2 concentrations of 0.1, 1 and 10 mM for 1 h. The increase in absorbance is derived from PBA-PAH oxidized by H2O2, which is a decomposition component of the (SA-PAH/PBA-PAH)5 film on the CaCO3 microparticles. On the other hand, the multilayer films were not decomposed in the absence of H2O2. It was found that the SA-PAH/PBA-PAH multilayer film on CaCO3 microparticles decomposed in the presence of H2O2.
This work also developed microparticles capable of the glucose-induced release of insulin via the catalytic reaction of GOx under physiological conditions. Glucose-sensitive microparticles containing insulin were prepared by adsorbing DBD-insulin on multilayer films. Because insulin has a net negative charge at pH 7.4 (as the isoelectric point of insulin is 5.4 [50]), it will be adsorbed on the PAH layer of the LbL film [51,52]. The glucose-induced decomposition of SA-PAH/PBA-PAH films would therefore be expected to release the insulin adsorbed on the microparticles. Figure 12 shows the DBD-insulin release from 1 mg of PAH/GOx/(SA-PAH/PBA-PAH)5 film-coated CaCO3 microparticles in glucose solutions of varying concentrations, as calculated from fluorescence intensities of DBD. The amounts of DBD-insulin released were determined to be 0.40, 0.85 and 2.32 μg following the exposure of CaCO3 microparticles coated with PAH/GOx/(SA-PAH/PBA-PAH)5 films to 1, 10 and 100 mM glucose solutions for 1 h at pH 7.4. DBD-insulin was also found to be released from PAH/GOx/(SA-PAH/PBA-PAH)5 film-coated CaCO3 microparticles in glucose solution, suggesting that the SA-PAH/PBA-PAH multilayer films on the CaCO3 were decomposed because GOx catalyzed the oxidation of D-glucose to generate H2O2. Once again, the amount of DBD-insulin released from the PAH/GOx/(SA-PAH/PBA-PAH)5 film-coated CaCO3 microparticles increased with increasing glucose concentration. This process was superior in reactivity to the decomposition of the film under physiological conditions as compared with the method of glucose bound to PBA-PAH/PVA film to cleave the boronate ester bonds [36].

4. Conclusions

This work demonstrated that multilayer films can be constructed by the alternating deposition of SA-PBA and PBA-PAH, via the formation of boronate ester bonds. SA-PBA/PBA-PAH films were prepared at pH 7.4 and pH 9 in the presence of NaCl. PAH/GOx/(SA-PBA/PBA-PAH)n films were found to decompose in the presence of glucose due to oxidative scission of the carbon-boron bond of PBA-PAH by enzymatically-generated H2O2. All steps of the preparation and decomposition of PAH/GOx/(SA-PBA/PBA-PAH)n films could be performed under physiological conditions. In addition, glucose-sensitive microparticles were fabricated by coating CaCO3 particles with PAH/GOx/(SA-PBA/PBA-PAH)5 films. Insulin pre-absorbed in the PAH/GOx/(SA-PAH/PBA-PAH)5 films was released following the addition of glucose, and the extent of release was dependent on the glucose concentration. Again, all steps of this process could be carried out under physiological conditions. These results demonstrate the potential application of microparticles that undergo glucose-induced decomposition in the development of insulin delivery systems. In insulin delivery systems, insulin loading microparticles remain stable at normal levels of blood glucose (~5 mM), and glucose-induced delivery microparticles that release insulin only when the blood glucose is higher than the diabetic level (>10 mM) under physiological conditions are highly desirable [53]. Insulin release system depending on blood glucose will be realized by improving the suitable design of the film composition and the chemical structures of PBA-polymers.

Author Contributions

K.S. designed the work. K.Y., Y.K. and K.S. collected the materials. K.Y., K.A., S.S., M.I., Y.O. and M.I. were involved in the experimental works. Y.K., T.D., and T.O. helped drafting the article. The manuscript was prepared by K.Y and Y.K.

Funding

This work was supported by Grants-in-Aid for Scientific Research (numbers JP16K08189, JP18K06791 and JP18K19936) from the Japan Society for the Promotion of Science (JSPS).

Acknowledgments

This work was partially supported by JSPS KAKENHI grants (numbers JP16K08189, JP18K06791 and JP18K19936). The Ohu University Research Fund is also acknowledged for financial support.

Conflicts of Interest

The authors declare no conflicts of interest.

Appendix A

Polymers 10 01164 g0a1 550

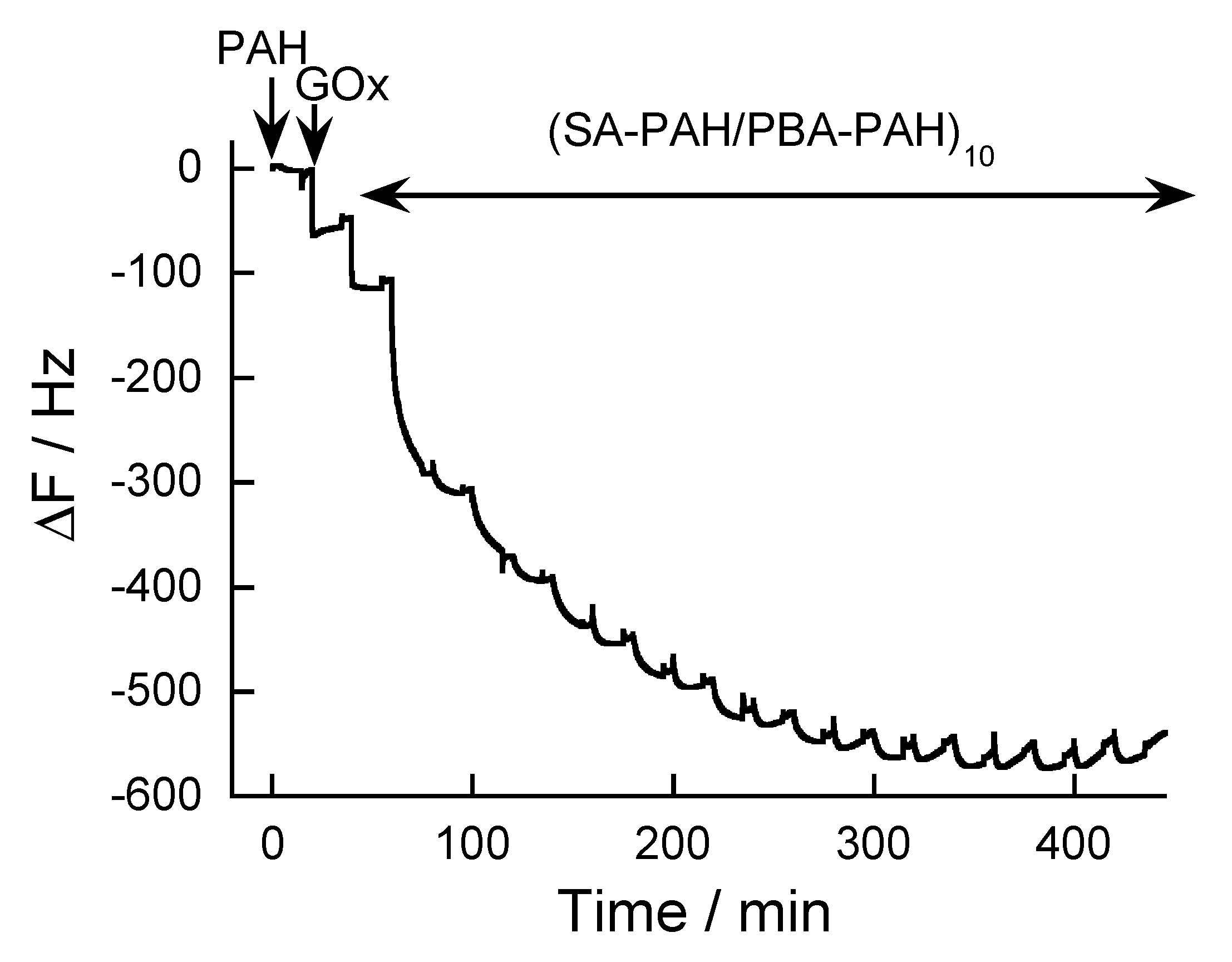

Figure A1. QCM resonator frequency changes during the preparation of a (PAH/GOx) (SA-PAH/PBA-PAH)10 film in a 10 mM HEPES buffer (pH 7.4) in the presence of 150 mM NaCl.
Figure A1. QCM resonator frequency changes during the preparation of a (PAH/GOx) (SA-PAH/PBA-PAH)10 film in a 10 mM HEPES buffer (pH 7.4) in the presence of 150 mM NaCl.
Polymers 10 01164 g0a1

References

  1. Santini, J.T., Jr.; Cima, M.J.; Langer, R. A controlled-release microchip. Nature 1999, 397, 335–338. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, J.; Ye, Y.; Yu, J.; Kahkoska, A.R.; Zhang, X.; Wang, C.; Sun, W.; Corder, R.D.; Chen, Z.; Khan, S.A.; et al. Core-shell microneedle gel for self-regulated insulin delivery. ACS Nano 2008, 27, 2466–2473. [Google Scholar] [CrossRef] [PubMed]
  3. Lim, H.P.; Tey, B.T.; Chan, E.S. Particle designs for the stabilization and controlled-delivery of protein drugs by biopolymers: A case study on insulin. J. Control. Release 2014, 186, 11–21. [Google Scholar] [CrossRef] [PubMed]
  4. Donath, E.; Sukhorukov, G.B.; Caruso, F.; Davis, S.A.; Mȍhwald, H. Novel hollow polymer shells by colloid-templated assembly of polyelectrolytes. Angew. Chem. Int. Ed. Eng. 1998, 37, 2201–2205. [Google Scholar] [CrossRef]
  5. Sundaramurthy, A.; Sundramoorthy, A.K. Polyelectrolyte capsules preloaded with interconnected alginate matrix: An effective capsule system for encapsulation and release of macromolecules. Int. J. Biol. Macromol. 2018, 107, 2251–2261. [Google Scholar] [CrossRef] [PubMed]
  6. Yao, H.; Hu, N. pH-Switchable bioelectrocatalysis of hydrogen peroxide on layer-by-layer films assembled by concanavalin A and horseradish peroxidase with electroactive mediator in solution. J. Phys. Chem. B 2010, 114, 9926–9933. [Google Scholar] [CrossRef] [PubMed]
  7. Qi, W.; Yan, X.; Fei, J.; Wang, A.; Cui, Y.; Li, J. Triggered release of insulin from glucose-sensitive enzyme multilayer shells. Biomaterials 2009, 30, 2799–2806. [Google Scholar] [CrossRef] [PubMed]
  8. Chen, X.; Wu, W.; Guo, Z.; Xin, J.; Li, J. Controlled insulin release from glucose-sensitive self-assembled multilayer films based on 21-arm star polymer. Biomaterials 2011, 32, 1759–1766. [Google Scholar] [CrossRef] [PubMed]
  9. Shiino, D.; Murata, Y.; Kubo, A.; Kim, Y.J.; Kataoka, K.; Koyama, Y.; Kikuchi, A.; Yokoyama, M.; Sakurai, Y.; Okano, T. Amine containing phenylboronic acid gel for glucose-responsive insulin release under physiological pH. J. Control. Release 1995, 37, 269–276. [Google Scholar] [CrossRef]
  10. Mandal, D.; Mandal, S.K.; Ghosh, M.; Das, P.K. Phenylboronic acid appended pyrene-based low-molecular-weight injectable hydrogel: Glucose-stimulated insulin release. Chemistry 2015, 21, 12042–12052. [Google Scholar] [CrossRef] [PubMed]
  11. Takei, C.; Ohno, Y.; Seki, T.; Miki, R.; Seki, T.; Egawa, Y. Sugar-responsive layer-by-layer film composed of phenylboronic acid-appended insulin and poly(vinyl alcohol). Chem. Pharm. Bull. 2018, 66, 368–374. [Google Scholar] [CrossRef] [PubMed]
  12. Decher, G. Fuzzy Nanoassemblies: Toward layered polymeric multicomposites. Science 1997, 277, 1232–1237. [Google Scholar] [CrossRef]
  13. Das, B.P.; Tsianou, M. From polyelectrolyte complexes to polyelectrolyte multilayers: Electrostatic assembly, nanostructure, dynamics, and functional properties. Adv. Colloid Interface Sci. 2017, 244, 71–89. [Google Scholar] [CrossRef] [PubMed]
  14. Crouzier, T.; Boudou, T.; Picart, C. Polysaccharide-based polyelectrolyte multilayers. Curr. Opin. Colloid Interface Sci. 2010, 15, 417–426. [Google Scholar] [CrossRef]
  15. Yoshida, K.; Sato, K.; Ono, T.; Dairaku, T.; Kashiwagi, Y. Preparation of nafion/polycation layer-by-layer films for adsorption and release of insulin. Polymers 2018, 10, 812. [Google Scholar] [CrossRef]
  16. Yang, S.; Zhang, Y.; Guan, Y.; Tan, S.; Xu, J.; Cheng, S.; Zhang, X. Water uptake behavior of hydrogen-bonded PVPON–PAA LBL film. Soft Matter 2006, 2, 699–704. [Google Scholar] [CrossRef]
  17. Sun, J.; Su, C.; Zhang, X.; Li, J.; Zhang, WB.; Zhao, N.; Xu, J.; Yang, S. Responsive complex capsules prepared with polymerization of dopamine, hydrogen-bonding assembly, and catechol dismutation. J. Colloid Interface Sci. 2018, 513, 470–479. [Google Scholar] [CrossRef] [PubMed]
  18. Inoue, H.; Sato, K.; Anzai, J.-I. Disintegration of layer-by-layer assemblies composed of 2-iminobiotin-labeled poly(ethyleneimine) and avidin. Biomacromolecules 2005, 6, 27–29. [Google Scholar] [CrossRef] [PubMed]
  19. Polak, R.; Crouzier, T.; Lim, R.M.; Ribbeck, K.; Beppu, M.M.; Pitombo, R.N.M.; Cohen, R.E.; Rubner, M.F. Sugar-mediated disassembly of mucin/lectin multilayers and their use as pH-Tolerant, on-demand sacrificial layers. Biomacromolecules 2014, 15, 3093–3098. [Google Scholar] [CrossRef] [PubMed]
  20. Kumarasamy, J.; Camarada, M.B.; Venkatraman, D.; Ju, H.; Dey, R.S.; Wen, Y. One-step coelectrodeposition-assisted layer-by-layer assembly of gold nanoparticles and reduced graphene oxide and its self-healing three-dimensional nanohybrid for an ultrasensitive DNA sensor. Nanoscale 2018, 3, 1196–1206. [Google Scholar] [CrossRef] [PubMed]
  21. Jang, E.; Son, K.J.; Koh, W. Metal-enhanced fluorescence using silver nanoparticles-embedded polyelectrolyte multilayer films for microarray-based immunoassays. Colloid Polym. Sci. 2014, 292, 1355–1364. [Google Scholar] [CrossRef]
  22. Hoffman, K.; Tieke, B. Layer-by-layer assembled membranes containing hexacyclen-hexaacetic acid and polyethyleneimine N-acetic acid and their ion selective permeation behavior. J. Membr. Sci. 2009, 341, 261–267. [Google Scholar] [CrossRef]
  23. Huang, Z.; Li, M.; Li, N.; Tang, X.; Ouyang, Z. Antibacterial properties enhancement of layer-by-layer self-assembled nanofiltration membranes. J. Nanosci. Nanotechnol. 2018, 18, 4524–4533. [Google Scholar] [CrossRef] [PubMed]
  24. Ribero, C.; Borges, J.; Costa, A.M.S.; Gaspar, V.M.; Bermudez, V.Z.; Mano, J.F. Preparation of well-dispersed chitosan/alginate hollow multilayered microcapsules for enhanced cellular internalization. Molecules 2018, 23, 625. [Google Scholar] [CrossRef] [PubMed]
  25. Xu, W.; Ledin, P.A.; Iatridi, Z.; Tsitsilianis, C.; Tsukruk, V.V. Multicompartmental microcapsules with orthogonal programmable two-way sequencing of hydrophobic and hydrophilic cargo release. Angew. Chem. Int. Ed. 2016, 55, 4908–4913. [Google Scholar] [CrossRef] [PubMed]
  26. Liu, P. Stabilization of layer-by-layer engineered multilayered hollow microspheres. Adv. Colloid Interface Sci. 2014, 207, 178–188. [Google Scholar] [CrossRef] [PubMed]
  27. Yoshida, K.; Ono, T.; Kashiwagi, Y.; Takahashi, S.; Sato, K.; Anzai, J.-I. pH-dependent release of insulin from layer-by-layer-deposited polyelectrolyte microcapsules. Polymers 2015, 7, 1269–1278. [Google Scholar] [CrossRef]
  28. Koker, S.D.; Hoogenboom, R.; De Geest, B.G. Polymeric multilayer capsules for drug delivery. Chem. Soc. Rev. 2012, 41, 2867–2884. [Google Scholar] [CrossRef] [PubMed]
  29. Delcea, M.; Möhwald, H.; Skirtach, A.G. Stimuli-responsive LbL capsules and nanoshells for drug delivery. Adv. Drug Deilv. Rec. 2011, 63, 730–747. [Google Scholar] [CrossRef] [PubMed]
  30. Anandhakumar, S.; Gokul, P.; Raichur, A.M. Stimuli-responsive weak polyelectrolyte multilayer films: A thin film platform for self triggered multi-drug delivery. Mater. Sci. Eng. C Mater. Biol. Appl. 2016, 58, 622–628. [Google Scholar] [CrossRef] [PubMed]
  31. Dou, Y.; Han, J.; Wang, T.; Wei, M.; Evans, D.G.; Duan, X. Temperature-controlled electrochemical switch based on layered double hydroxide/poly(N-isopropylacrylamide) ultrathin films fabricated via layer-by-layer assembly. Langmuir 2012, 28, 9535–9542. [Google Scholar] [CrossRef] [PubMed]
  32. Kim, B.A.; Gao, H.; Argun, A.A.; Matyjaszewski, K.; Hammond, P.T. All-star polymer multilayers as pH-responsive nanofilms. Macromolecules 2009, 42, 368–375. [Google Scholar] [CrossRef]
  33. Ren, K.; Wang, Y.; Ji, J.; Lin, Q.; Shen, J. Construction and deconstruction of PLL/DNA multilayered films for DNA delivery: Effect of ionic strength. Colloids Surf. B Biointerfaces 2005, 46, 63–69. [Google Scholar] [CrossRef] [PubMed]
  34. Zeng, G.; Xing, Y.; Gao, J.; Wang, Z.; Zhang, X. Unconventional layer-by-layer assembly of graphene multilayer films for enzyme-based glucose and maltose biosensing. Langmuir 2010, 26, 15022–15026. [Google Scholar] [CrossRef] [PubMed]
  35. Mawad, D.; Molino, P.; Gambhir, G.; Loche, J.M.; Officer, D.L. Electrically induced disassembly of electroactive multilayer films fabricated from water soluble polythiophenes. Adv. Funct. Mater. 2012, 22, 5020–5027. [Google Scholar] [CrossRef]
  36. Seno, M.; Yoshida, K.; Sato, K.; Anzai, J.-I. pH- and sugar-sensitive multilayer films composed of phenylboronic acid (PBA)-modified poly(allylamine hydrochloride) (PBA-PAH) and poly(vinyl alcohol) (PVA): A signigicant effect of PBA content on the film stability. Mater. Sci. Eng. C 2016, 62, 474–479. [Google Scholar] [CrossRef] [PubMed]
  37. Yan, J.; Springsteen, G.; Deeter, S.; Wang, B. The relationship among pKa, pH, and binding constants in the interactions between boronic acids and diols—It is not as simple as it appears. Tetrahedron 2004, 60, 11205–11209. [Google Scholar] [CrossRef]
  38. Springsteen, G.; Wang, B. A detailed examination of boronic acid-diol complexation. Tetrahedron 2002, 58, 5291–5300. [Google Scholar] [CrossRef]
  39. Egawa, Y.; Miki, R.; Seki, T. Colorimetric sugar sensing using boronic acid-substituted azobenzenes. Materials 2014, 7, 1201–1220. [Google Scholar] [CrossRef] [PubMed]
  40. Bull, S.D.; Davidson, M.G.; van den Elsen, J.M.H.; Fossey, J.S.; Jenkins, A.T.A.; Jiang, Y.; Kubo, Y.; Marken, F.; Sakurai, K.; Zhao, J.; et al. Exploiting the reversible covalent bonding of boronic acids: Recognition, sensing, and assembly. Acc. Chem. 2013, 46, 312–326. [Google Scholar] [CrossRef] [PubMed]
  41. Ding, Z.; Guan, Y.; Zhang, Y.; Zhu, X.X. Layer-by-layer multilayer films linked with reversible boronate ester bonds with glucose-sensitivity under physiological conditions. Soft Matter 2009, 5, 2302–2309. [Google Scholar] [CrossRef]
  42. Sato, K.; Takahashi, S.; Anzai, J.-I. Layer-by-layer thin films and microcapsules for biosensors and controlled release. Anal. Sci. 2012, 28, 929–938. [Google Scholar] [CrossRef] [PubMed]
  43. Simon, J.; Salzbrunn, S.; Prakash, G.K.S.; Petasis, N.A.; Olah, G.A. Regioselective conversion of arylboronic acids to phenols and subsequent coupling to symmetrical diaryl ethers. J. Org. Chem. 2001, 66, 633–634. [Google Scholar] [CrossRef] [PubMed]
  44. Sato, K.; Takahashi, M.; Ito, M.; Abe, E.; Anzai, J.-I. H2O2-induced decomposition of layer-by-layer films consisting of phenylboronic acid-bearing poly(allylamine) and poly(vinyl alcohol). Langmuir 2014, 30, 9247–9250. [Google Scholar] [CrossRef] [PubMed]
  45. Sato, K.; Takahashi, M.; Ito, M.; Abe, E.; Anzai, J.-I. Glucose-induced decomposition of layer-by-layer films composed of phenylboronic acid-bearing poly(allylamine) and poly(vinyl alcohol) under physiological conditions. J. Mater. Chem. B 2015, 3, 7796–7802. [Google Scholar] [CrossRef]
  46. Tong, W.; Dong, W.; Ga, C.; Mȍhwald, H. Multilayer capsules with cell-like topology: Fabrication and spontaneous loading of various substances in aqueous and ethanol solutions. Macromol. Chem. Phys. 2005, 206, 1784–1790. [Google Scholar] [CrossRef]
  47. Kolasińska, M.; Warszyński, P. The effect of support material and conditioning on wettability of PAH/PSS multilayer films. Bioelectrochemistry 2005, 66, 65–70. [Google Scholar] [CrossRef] [PubMed]
  48. Suwa, K.; Nagasaka, M.; Niina, S.; Egawa, Y.; Seki, T.; Anzai, J.-I. Sugar response of layer-by-layer films composed of poly(vinyl alcohol) and poly(amidoamine) dendrimer bearing 4-carboxyphenylboronic acid. Colloid Polym. Sci. 2015, 293, 1043–1048. [Google Scholar] [CrossRef]
  49. Sato, K.; Abe, E.; Takahashi, M.; Anzai, J.-I. Loading and release of fluorescent dye from layer-by-layer film-coated magnetic particles in response to hydrogen peroxide. J. Colloid Interface Sci. 2014, 432, 92–97. [Google Scholar] [CrossRef] [PubMed]
  50. Cui, F.; Shi, K.; Zhang, L.; Tao, A. Biodegradable nanoparticles loaded with insulin-phospholipid complex for oral delivery: Preparation, in vitro characterization and in vivo evaluation. J. Control. Release 2006, 114, 242–250. [Google Scholar] [CrossRef] [PubMed]
  51. Yoshida, K.; Hashide, R.; Ishii, T.; Takahashi, S.; Sato, K.; Anzai, J.-I. Layer-by-layer films composed of poly(allylamine) and insulin for pH-triggered release of insulin. Colloid Surf. B 2012, 91, 274–279. [Google Scholar] [CrossRef] [PubMed]
  52. Hashide, R.; Yoshida, K.; Hasebe, Y.; Takahashi, S.; Sato, K.; Anzai, J.-I. Insulin-containing layer-by-layer films deposited on poly(lactic acid) microbeads for pH-controlled release of insulin. Colloid Surf. B 2012, 89, 242–247. [Google Scholar] [CrossRef] [PubMed]
  53. Wang, B.; Yoshida, K.; Sato, K.; Anzai, J.-I. Phenylboronic acid-finctionalized layer-by-layer assemblies for biomedical applications. Polymers 2017, 9, 202. [Google Scholar] [CrossRef]
Polymers 10 01164 g001 550
Figure 1. Sequential equilibrium and oxidation reactions of phenyl boronic acid with a diol and H2O2, respectively.
Figure 1. Sequential equilibrium and oxidation reactions of phenyl boronic acid with a diol and H2O2, respectively.
Polymers 10 01164 g001
Polymers 10 01164 g002 550

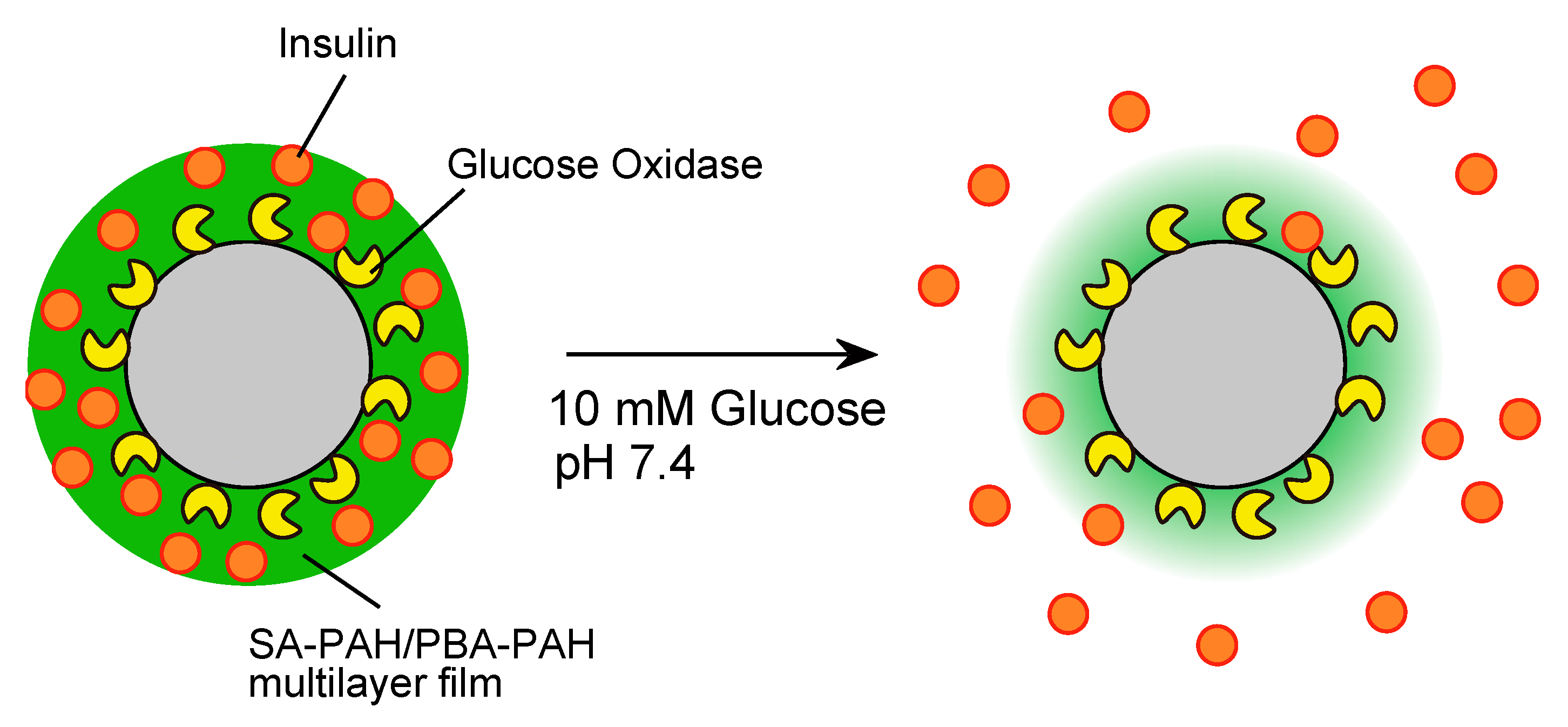

Figure 2. A schematic illustration of the functioning of a glucose-induced insulin release microparticle.
Figure 2. A schematic illustration of the functioning of a glucose-induced insulin release microparticle.
Polymers 10 01164 g002
Polymers 10 01164 g003 550
Figure 3. The chemical structures of the PAH, PBA-PAH, SA-PAH and DBD-ED.
Figure 3. The chemical structures of the PAH, PBA-PAH, SA-PAH and DBD-ED.
Polymers 10 01164 g003
Polymers 10 01164 g004 550
Figure 4. QCM resonator frequency changes during the preparation of (SA-PAH/PBA-PAH)n films in a 10 mM CHES buffer (pH 9.0) in the presence and absence of NaCl (150 mM or 1 M).
Figure 4. QCM resonator frequency changes during the preparation of (SA-PAH/PBA-PAH)n films in a 10 mM CHES buffer (pH 9.0) in the presence and absence of NaCl (150 mM or 1 M).
Polymers 10 01164 g004
Polymers 10 01164 g005 550

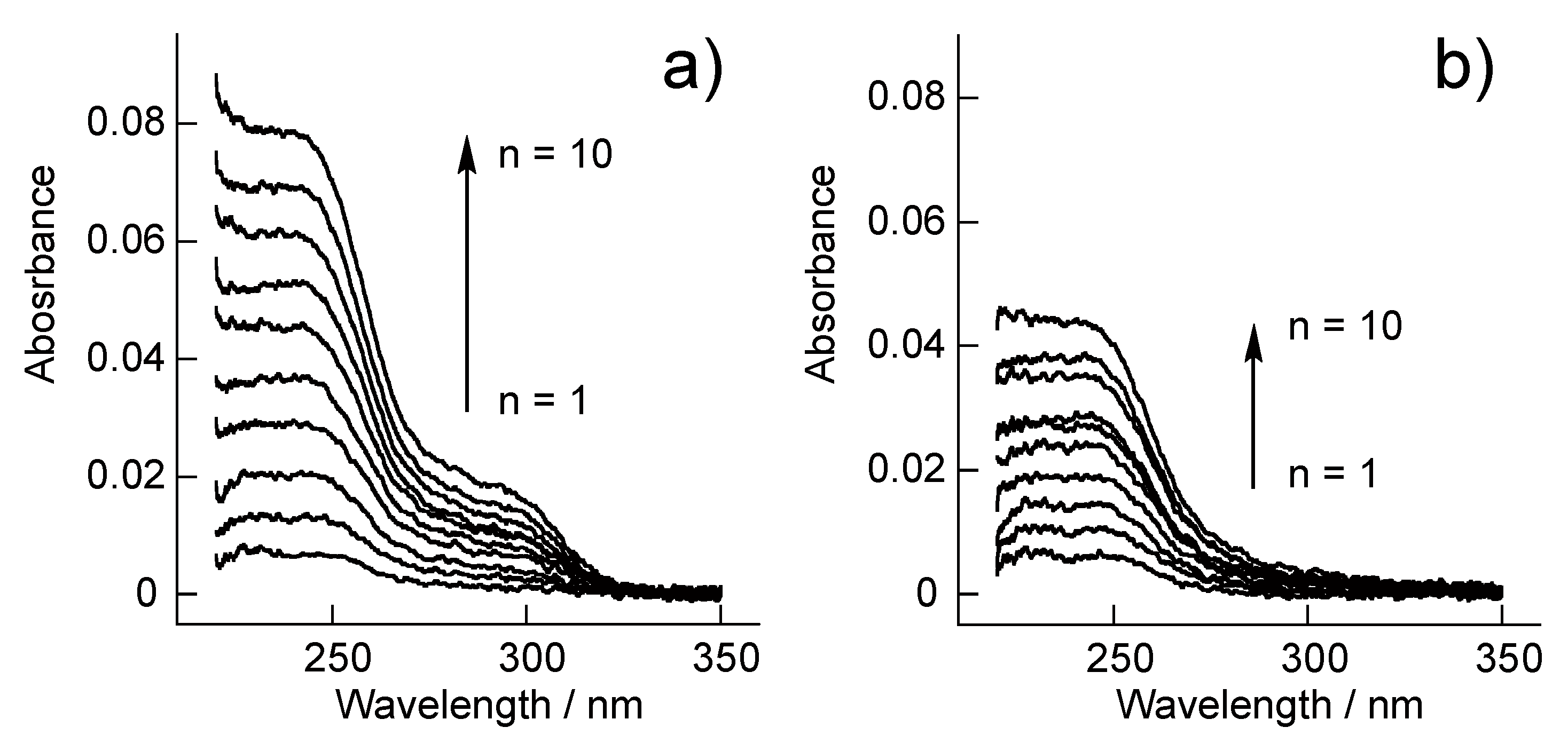

Figure 5. UV-vis absorption spectra during the preparation of (SA-PAH/PBA-PAH)n films in a 10 mM CHES buffer (pH 9.0) in the presence of 1 M NaCl (a) or 150 mM NaCl (b).
Figure 5. UV-vis absorption spectra during the preparation of (SA-PAH/PBA-PAH)n films in a 10 mM CHES buffer (pH 9.0) in the presence of 1 M NaCl (a) or 150 mM NaCl (b).
Polymers 10 01164 g005
Polymers 10 01164 g006 550
Figure 6. The effect of the pH value during the preparation of SA-PAH/PBA-PAH multilayer films in a 10 mM MES (pH 5.0), 10 mM HEPES (pH 7.4) or 10 mM CHES buffer (pH 9.0). All buffer solutions contained 150 mM NaCl.
Figure 6. The effect of the pH value during the preparation of SA-PAH/PBA-PAH multilayer films in a 10 mM MES (pH 5.0), 10 mM HEPES (pH 7.4) or 10 mM CHES buffer (pH 9.0). All buffer solutions contained 150 mM NaCl.
Polymers 10 01164 g006
Polymers 10 01164 g007 550

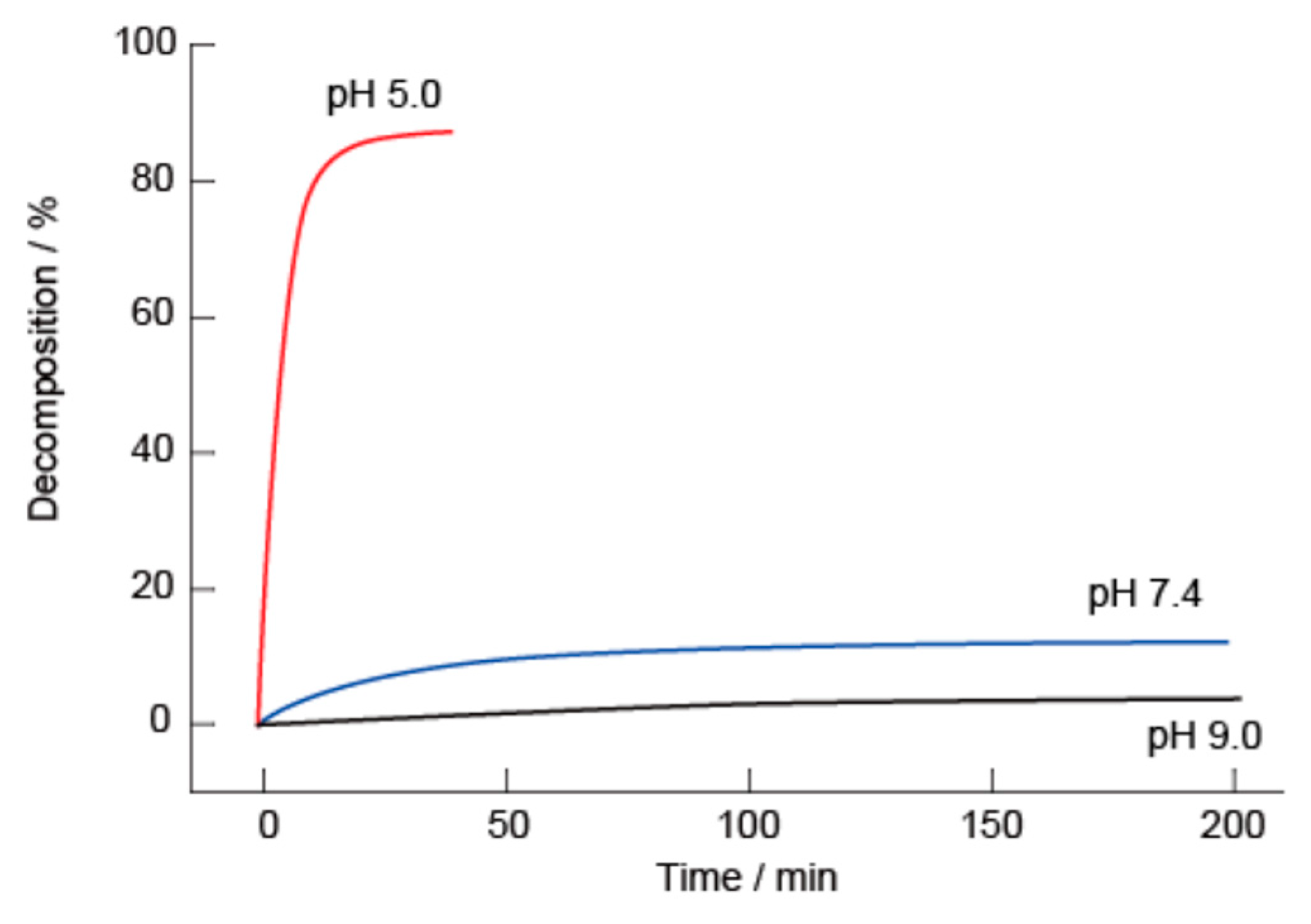

Figure 7. Decomposition kinetics of (SA-PAH/PBA-PAH)10 films in 10 mM MES (pH 5.0), 10 mM HEPES (pH 7.4) or 10 mM CHES (pH 9.0) buffers. The films were prepared using a 10 mM CHES buffer (pH 9.0). All buffer solutions contained 1 M NaCl.
Figure 7. Decomposition kinetics of (SA-PAH/PBA-PAH)10 films in 10 mM MES (pH 5.0), 10 mM HEPES (pH 7.4) or 10 mM CHES (pH 9.0) buffers. The films were prepared using a 10 mM CHES buffer (pH 9.0). All buffer solutions contained 1 M NaCl.
Polymers 10 01164 g007
Polymers 10 01164 g008 550
Figure 8. UV-vis absorption spectra of a (SA-PAH/PBA-PAH)10 film before (Blue line) and after 60 min immersion in 1 mM H2O2 (red line). The film was prepared in a 10 mM CHES buffer (pH 9.0) in the presence of 1 M NaCl.
Figure 8. UV-vis absorption spectra of a (SA-PAH/PBA-PAH)10 film before (Blue line) and after 60 min immersion in 1 mM H2O2 (red line). The film was prepared in a 10 mM CHES buffer (pH 9.0) in the presence of 1 M NaCl.
Polymers 10 01164 g008
Polymers 10 01164 g009 550

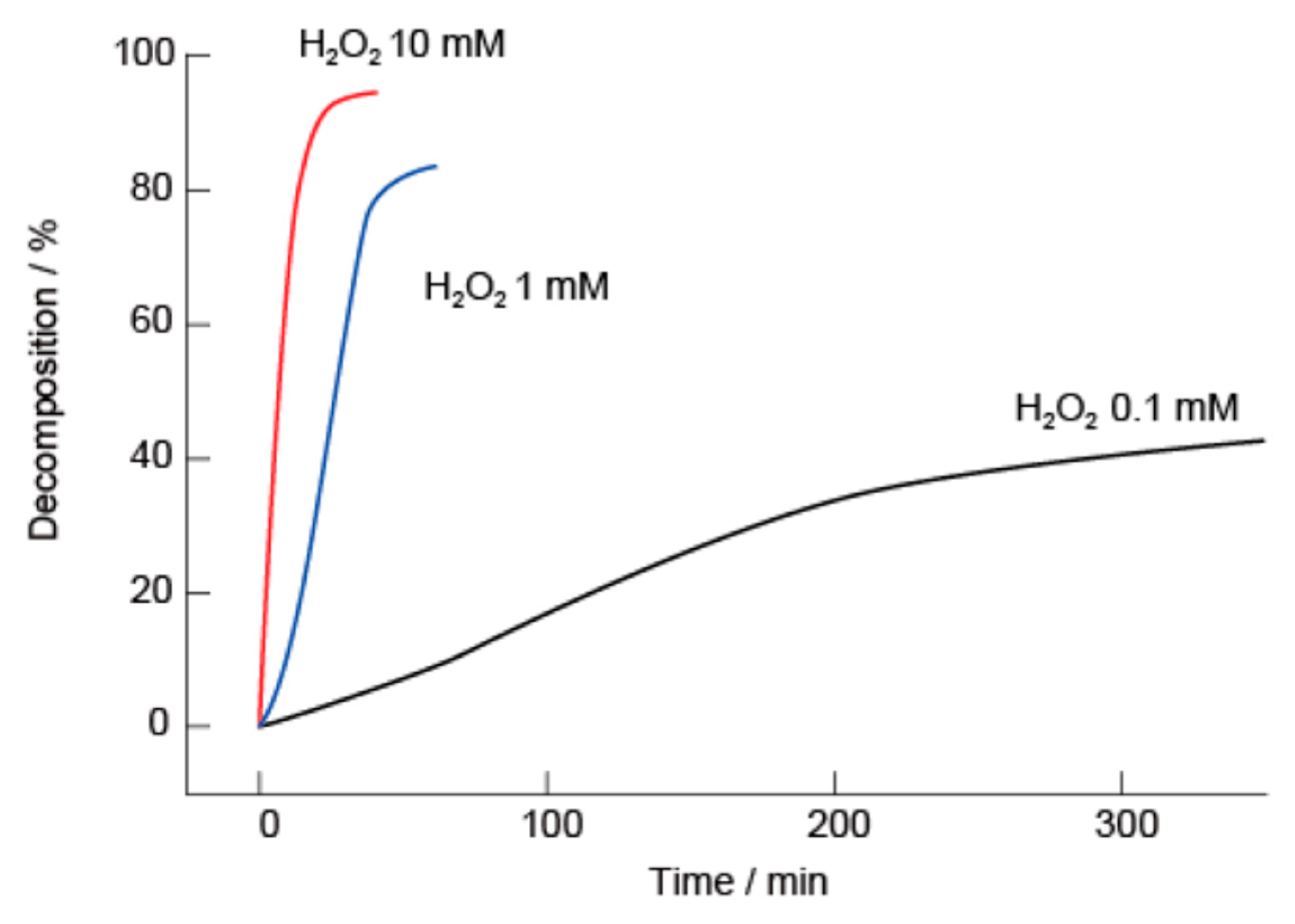

Figure 9. Decomposition kinetics of (SA-PAH/PBA-PAH)10 films in the presence of 0.1, 1 and 10 mM H2O2 in a 10 mM CHES buffer (pH 9.0). The films were prepared in a 10 mM CHES buffer (pH 9.0). All buffer solutions contained 1 M NaCl.
Figure 9. Decomposition kinetics of (SA-PAH/PBA-PAH)10 films in the presence of 0.1, 1 and 10 mM H2O2 in a 10 mM CHES buffer (pH 9.0). The films were prepared in a 10 mM CHES buffer (pH 9.0). All buffer solutions contained 1 M NaCl.
Polymers 10 01164 g009
Polymers 10 01164 g010 550
Figure 10. Optical microscopy (a) and fluorescence microscopy ((b), excitation: 488 nm) and ((c) excitation: 543 nm) images of PAH/GOx/(SA-PAH/PBA-PAH)5 film-coated CaCO3 microparticles in which PBA-PAH and GOx have been labeled with FITC and TRITC, respectively. The scale bar is 5 μm.
Figure 10. Optical microscopy (a) and fluorescence microscopy ((b), excitation: 488 nm) and ((c) excitation: 543 nm) images of PAH/GOx/(SA-PAH/PBA-PAH)5 film-coated CaCO3 microparticles in which PBA-PAH and GOx have been labeled with FITC and TRITC, respectively. The scale bar is 5 μm.
Polymers 10 01164 g010
Polymers 10 01164 g011 550
Figure 11. Absorbance at 255 nm resulting from the H2O2-induced decomposition of (SA-PAH/PBA-PAH)5 films on CaCO3 microparticles in a 10 mM CHES buffer (pH 9.0) containing 1 M NaCl in the presence of 0, 0.1, 1 or 10 mM H2O2.
Figure 11. Absorbance at 255 nm resulting from the H2O2-induced decomposition of (SA-PAH/PBA-PAH)5 films on CaCO3 microparticles in a 10 mM CHES buffer (pH 9.0) containing 1 M NaCl in the presence of 0, 0.1, 1 or 10 mM H2O2.
Polymers 10 01164 g011
Polymers 10 01164 g012 550
Figure 12. Amounts of DBD-insulin released from 1 mg quantities of PAH/GOx/(SA-PAH/PBA-PAH)5 film-coated CaCO3 microparticles in a 10 mM HEPES buffer (pH 7.4, containing 150 mM NaCl) in the presence of 1, 10 or 100 mM glucose.
Figure 12. Amounts of DBD-insulin released from 1 mg quantities of PAH/GOx/(SA-PAH/PBA-PAH)5 film-coated CaCO3 microparticles in a 10 mM HEPES buffer (pH 7.4, containing 150 mM NaCl) in the presence of 1, 10 or 100 mM glucose.
Polymers 10 01164 g012
Table
Table 1. The decomposition of PAH/GOx/(SA-PAH/PBA-PAH)10 films after immersion for 60 min in glucose solutions.
Table 1. The decomposition of PAH/GOx/(SA-PAH/PBA-PAH)10 films after immersion for 60 min in glucose solutions.
GlucosepH 7.4pH 7.4pH 9.0
NaCl 150 mMNaCl 1 MNaCl 1 M
1 mM16.9 Hz−2.9 Hz−18.9 Hz
10 mM34.6 Hz−8.6 Hz−25.8 Hz
100 mM43.8 Hz31.7 Hz−26.8 Hz

Share and Cite

MDPI and ACS Style

Yoshida, K.; Awaji, K.; Shimizu, S.; Iwasaki, M.; Oide, Y.; Ito, M.; Dairaku, T.; Ono, T.; Kashiwagi, Y.; Sato, K. Preparation of Microparticles Capable of Glucose-Induced Insulin Release under Physiological Conditions. Polymers 2018, 10, 1164. https://doi.org/10.3390/polym10101164

AMA Style

Yoshida K, Awaji K, Shimizu S, Iwasaki M, Oide Y, Ito M, Dairaku T, Ono T, Kashiwagi Y, Sato K. Preparation of Microparticles Capable of Glucose-Induced Insulin Release under Physiological Conditions. Polymers. 2018; 10(10):1164. https://doi.org/10.3390/polym10101164

Chicago/Turabian Style

Yoshida, Kentaro, Kazuma Awaji, Seira Shimizu, Miku Iwasaki, Yuki Oide, Megumi Ito, Takenori Dairaku, Tetsuya Ono, Yoshitomo Kashiwagi, and Katsuhiko Sato. 2018. "Preparation of Microparticles Capable of Glucose-Induced Insulin Release under Physiological Conditions" Polymers 10, no. 10: 1164. https://doi.org/10.3390/polym10101164

APA Style

Yoshida, K., Awaji, K., Shimizu, S., Iwasaki, M., Oide, Y., Ito, M., Dairaku, T., Ono, T., Kashiwagi, Y., & Sato, K. (2018). Preparation of Microparticles Capable of Glucose-Induced Insulin Release under Physiological Conditions. Polymers, 10(10), 1164. https://doi.org/10.3390/polym10101164

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
