Synthesis of Three-Dimensional Hierarchical Urchinlike Tungsten Trioxide Microspheres for High-Performance Supercapacitor Electrode

Abstract

In this work, hierarchical three-dimensional (3D) urchinlike WO₃ microspheres with a self-assembled nanorod core, and a connected and quasiconnected nanothorn network shell were synthesized with the hydrothermal method. For the surface or near-surface regions of pseudocapacitive materials that are involved in the Faradaic reaction, the urchinlike WO₃ special microstructure provided more effective charge-storage area, exhibiting a high specific capacitance of 488.78 F g⁻¹, low average equivalent-series resistance of 0.966 Ω cm⁻², and excellent cycling stability (84.75% of its initial value after the 10,000 cycles). This performance indicates the urchinlike WO₃ microspheres are promising electrode materials for high-performance supercapacitors.

1. Introduction

Due to their characteristics of high-power density, long cycling stability, high conversion efficiency, and easy maintenance, supercapacitors have become a promising candidate for renewable-energy conversion and storage devices, especially for photovoltaic- and wind-power generation and transition [1,2]. However, the relatively low specific capacitance and relatively high average equivalent-series resistance caused by the preparation technique limit further applications in the renewable-energy field [3]. It is well known that pseudocapacitive materials obtain higher specific capacitance than double-layer capacitive materials due to their unique energy-storage method, which depends on the Faraday reactions on the surface or near-surface regions of the microstructure of the materials to charge and discharge. Thus, methods to control the structures of pseudocapacitive materials (i.e., morphology and crystal structure) should be found to improve charge and ion-transfer efficiency, and to enhance the utilization of the pseudoactive material. Designing and synthesizing high-performance transition metal-oxide electrode materials with various nano-/micromorphologies and spatial structures can significantly improve the electrochemical performance of supercapacitors [4,5]. For example, Gao et al. [6] designed hierarchical hollow MnO₂ nanostructures by using polyaniline spheres as reactive templates that revealed a specific capacitance of 308 F g⁻¹. Xiao et al. designed rough NiCo₂S₄ nanorod arrays with open-top electrode materials that exhibited a specific capacitance of 497 F g⁻¹ [7]. Zhang et al. synthesized and prepared Zn–Co–S rhombic dodecahedral-cage electrode materials that demonstrated a specific capacitance of 1266 F g⁻¹ [8]. In recent years, tungsten oxides have received extensive attention from scholars as transition metal oxides. For example, Yao et al. [9] reported that nanowires assembled sub-WO3 urchinlike nanostructures for a superior room-temperature alcohol sensor. Li et al. [10] introduced a type of excellent catalytic tungsten oxide nanostructure. They have also been researched as supercapacitor electrodes because of their characteristics of multiple oxidation states, high electronic conductivity, and fast ion insertion/deinsertion. Xu et al. [11] prepared nanofiber self-assembled mesoscopic WO₃ microspheres with the hydrothermal method, which revealed a specific capacitance of 797.05 F g⁻¹. Yoon et al. [12] synthesized ordered mesoporous tungsten oxide electrode materials with the template method that exhibited a specific capacitance of 199 F g⁻¹. Though remarkable progress has been made, transition metal-oxide electrode materials are still limited by the relatively short cyclic life caused by expansion/contraction during the charging and discharging process [13].

In this study, hierarchical 3D urchinlike WO₃ microspheres with a self-assembled nanorod core and a connected- and quasiconnected-nanothorn network shell were synthesized with the hydrothermal method. The unique microstructures could minimize structural damage during the charging and discharging process, and provide numerous active sites for Faradaic reactions, which increases the utilization of pseudocapacitive materials. Different from other WO₃ materials, urchinlike WO₃ is composed of numerous WO₃ nanorods that can still show excellent performance even when using the traditional wafer electrode fabrication process. Hence, the prepared WO₃ electrode exhibited high specific capacitance, low average equivalent-series resistance, and excellent stability, demonstrating great potential in practical applications.

2. Materials and Methods

All reagents used in the experiment were purchased from Sinopharm Chemical Reagent Co. Ltd. The 3D urchinlike WO₃ microspheres were hydrothermally prepared following an annealing process. In brief, 15 mmol of Na₂WO₃·2H₂O was dissolved in 100 mL deionized water (DI) and stirred for 20 min at room temperature (25 °C). Then, 9 mL of a 3 M HCl solution was dropwise added into the Na₂WO₃·2H₂O solution under magnetic stirring. Subsequently, 42 mmol H₂C₂O₄ was added in to the above solution with 5 min magnetic stirring. Then, the mixture solution was diluted to 250 mL. Next, 50 mL of the previous solution was transferred to a 100 mL beaker, and 2.5 g of (NH₄)₂SO₄ was added into the solution and stirred for 2 h at 60 °C. Subsequently, 30 mL of the precursor was transferred into a Teflon-lined stainless autoclave, sealed, and maintained at 180 °C for 16 h. After the hydrothermal treatment, the blue–green solid product was centrifuged and rinsed thoroughly with DI and ethanol. Finally, the 3D urchinlike WO₃ microsphere sample was obtained by annealing at 450 °C for 1 h.

The general and detailed morphologies and nanostructures were examined by field-emission scanning electron microscope (FESEM; JEOL JEM 6700F, JEOL, Ltd, Tokyo, Japan). The composition and phase of the samples were evaluated by X-ray diffraction (XRD, Shimadzhu 6000, Shimadzu Co., Ltd, Kyoto, Japan) and X-ray photoelectron spectroscopy (XPS, ESCALAB 250, ThermoFisher Scientific Co., Ltd, Massachusetts, USA).

The working electrode was prepared by mixing as-prepared WO₃ powder with polytetrafluoroethylene and acetylene black at a weight ratio of 8:1:1, and then the slurry was pasted onto the 1.0 × 1.5 cm² stainless-steel mesh (the pasted zone was 1.0 × 1.0 cm²). The resulting paste was pressed under 10 MPa and dried at 40 °C overnight. Each WO3 electrode contained about 10 mg of electroactive material. The prepared sample was tested in a 3-electrode cell on CHI-760E electrochemical station by cycle voltammetry (CV) and galvanostatic charge–discharge (GCD) measurements.

3. Results and Discussion

The XRD patterns of the 3D urchinlike WO₃ sample are presented in Figure 1a. All the sharp peaks could be well-indexed to the monoclinic WO₃ (JCPDS No.071-2141), and no other diffraction peaks could be observed, revealing the high purity and high crystallinity of the sample. In the XRD patterns, some characteristic peaks were found at 2θ ≈ 23.1°, 23.58°, 24.39°, 26.6°, 28.95°, 33.27°, 33.59°, 34.19°, 35.67°, 41.45°, 41.91°, 44.29°, 44.92°, 45.4°, 47.26°, 48.24°, 49.96°, 50.34°, 53.48°, 54.16°, 54.78°, 55.8°, 57.64°, 58.19°, 60.98°, 61.89°, 62.27°, 66.66°, 67.28°, 69.85°, 71.36°, 71.99°, 73.03°, 76.84°, and 78.61°, which could unambiguously be indexed to the (002), (020), (200), (120), (112), (022), (−202), (202), (122), (−222), (222), (320), (132), (−312), (004), (040), (140), (−114), (024), (042), (240), (142), (−332), (332), (043), (105), (340), (234), (324), (044), (144), (035), (−441), (424), and (600) planes of the monoclinic WO₃. Figure 1b and c shows the SEM images of the surface morphologies of the urchinlike WO₃ sample from low to high magnification. In Figure 1b, the WO₃ microspheres with diameters of 3–6 μm were like sea urchins, exhibiting spherical and thorniness characteristics.

The individual and high magnification SEM images of the WO₃ microstructure are shown in Figure 2c,d. The unique microstructure was self-assembled by nanorods with diameters of 70 to 100 nm forming surface roughness and a porous core with radially standing nanothorns, with an average length of 400 to 1000 nm, and it showed an urchinlike hierarchical microstructure. Meanwhile, some nanothorns randomly overlapped, forming the connected and quasiconnected networks, and the surface of the nanothorns was rough and uneven. Unlike other WO₃ materials, the sea urchin-shaped WO₃ was composed of numerous WO₃ nanorods. Even if more active materials were bonded to the current collector, this microstructure could provide a more effective working area to obtain better charge-storage capacity. Those structures together provided a significantly number of active sites for redox reactions, shortening electron transfer pathways, and reducing crystal-structure failure during the ion-insertion/-desertion processes.

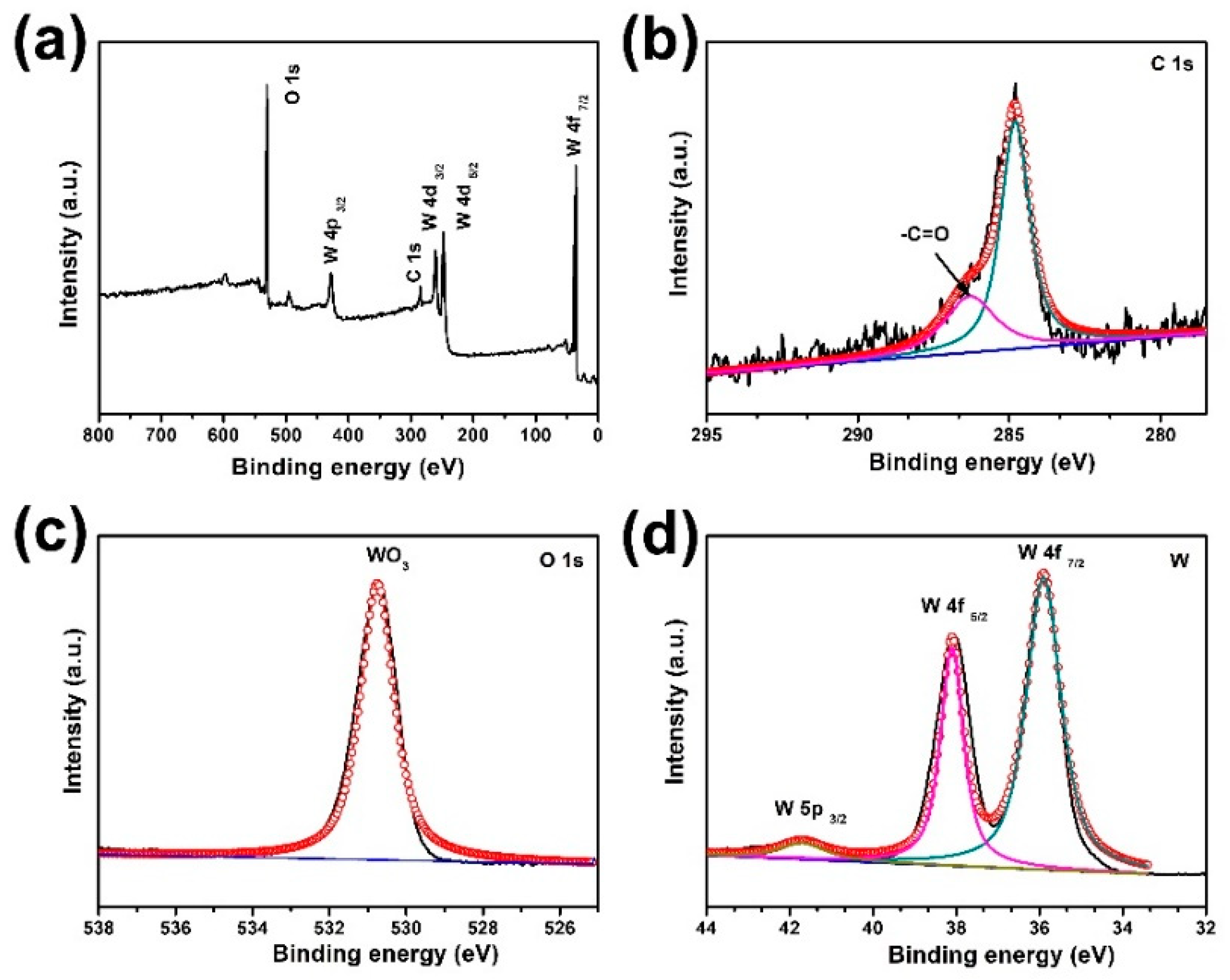

To further confirm the chemical composition and valence states of the urchinlike WO₃ sample, XPS measurements were conducted. The typical survey spectrum of the sample is shown in Figure 2a, which indicated the presence of W, C, and O elements; no other elements could be found. Figure 2b shows the C1s spectrum, which could be fitted to two peaks located at 284.6 and 286.3 eV, caused by the vacuum oil contamination of the XPS equipment [14,15,16]. The high-resolution spectrum of the W4f core level of the urchinlike WO₃ sample is shown in Figure 2d, which reveals two main peaks at 35.9 and 38.1 eV, with spin-energy separation of 2.2 eV that can be assigned to the binding energy of W4f _7/2 and W4f _5/2, indicating the presence of W⁶⁺ in the sample [17]. Meanwhile, one peak located at 41.7 eV could be assigned to binding energy of W5p _3/2, which also indicated the existence of W⁶+ states [18]. The spectrum of O1s showed one peak at 530.8 eV, as shown in Figure 2c, which could be assigned to the metal–oxygen bonds of the WO₃ phase. These observations, together with the XRD results, confirmed that the sample was prepared.

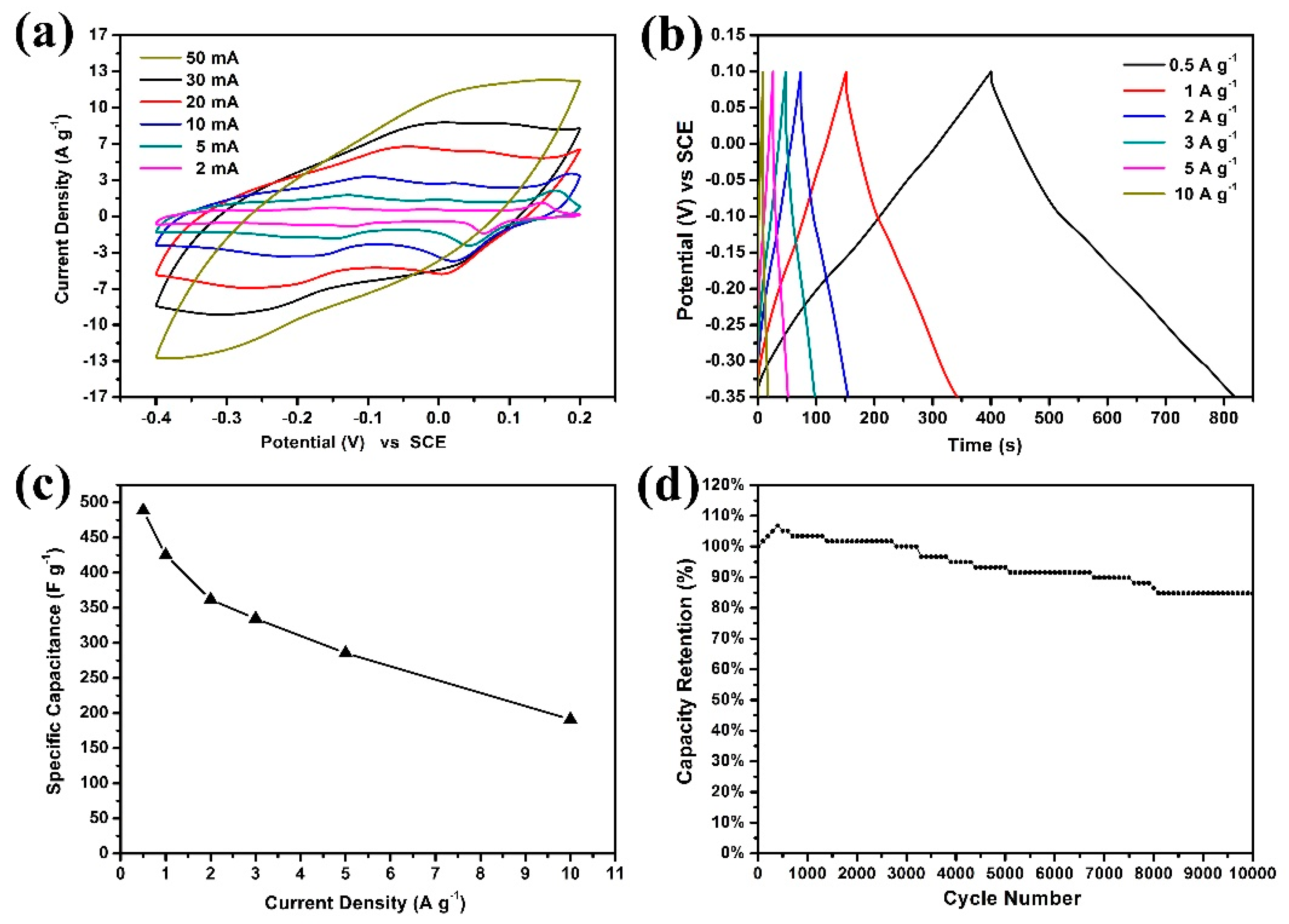

To evaluate the electrochemical performance of the WO₃ electrode, typical CV and GCD measurements were conducted in a three-electrode configuration with 2 M H₂SO₄ aqueous solution as electrolyte. Figure 3a shows the CV curves of the WO₃ electrode collected from different scan rates, from 2 to 50 mV s⁻¹. The profiles of the CV curves were obviously different from the typical rectangular shape of electrical double-layer capacitors, revealing the pseudocapacitive-capacitance characteristics of the WO₃ electrode. The peak current and integral areas of the WO₃ electrode were significantly increased with the increase of the scan rate, revealing fast charge-transfer and ion-insertion/-desertion properties. In the meantime, CV profiles at low scan rates could be maintained, and three pairs of redox peaks could be observed, revealing good reversibility. However, distortion CV profiles could be observed at high scan rates, and only two unobvious anodic peaks and two broad cathodic peaks could be observed, indicating the redox mechanism was dominant by the mass transfer [19]. Meanwhile, the position of anodic peaks cathodic peaks shifted separately to higher and lower potential with the increase of the scan rates, revealing the fast current response of the material. The properties of the WO₃ pseudocapacitance can be explained by the following equation [20]:

$$W{O}_3+x{H}^{+}+x{e}^{-}\leftrightarrow H_{x}W{O}_3$$

(1)

Figure 3b shows the GCD curves of the WO₃ electrode at different current densities within a potential window of –0.35 to 0.1 V. The GCD curves exhibited almost linear properties, with only some slight curvature changes in the charge curve and at about –1.0 V in the discharge curve, corresponding to the anodic and cathodic peaks in the CV curves, indicating the Faradaic pseudocapacitive characteristic of the WO₃ electrode. Meanwhile, the discharge curves showed relatively low V_drop, even at high current density, revealing the fast I–V response property of the material [21]. The average equivalent-series resistance of the sample was calculated to only be 0.966 Ω cm⁻² according to the V_drop through all current densities by Equation (2) [17]:

$$R_{ESR}=\frac{V_{drop}}{2I}$$

(2)

The charging and discharging curves exhibited almost symmetric property, accounting for good redox reversibility. With more linear and smoother charging and discharging curves, the WO₃ electrode may be more suitable in high-energy-storage devices. The specific capacitance values could be calculated according to the discharge time by using the following equation [22]:

$$C_s=\frac{I\Delta t}{m\Delta V}$$

(3)

Where C_s (F g⁻¹) is specific capacitance, I (A) is charge–discharge current, Δt (s) is discharging time, ΔV (V) is voltage window, and m (g) is the mass of the active material within the electrode. The specific capacitances were calculated to be 488.78, 425.11, 361.78, 334.67, 285.56, and 191.11 F g⁻¹ at 0.5, 1, 2, 3, 5, and 10 A g⁻¹ (Figure 3c), respectively. Moreover, with excellent capacitance, the 3D urchinlike WO₃ electrode revealed excellent long-term cycling stability. As shown in Figure 3d, capacitance reached 106.78% of its initial value during the first 400 cycles caused by the activation of the electrode. In the rest of the cycling test, capacitance retention was maintained at nearly 100% until 3000 cycles, when it was then slightly decreased to 84.75% of its initial value after the 10,000 cycle test, which showed better cycling performance than previously reported [23,24,25], indicating the excellent cycling stability and the practical-application potential of the 3D urchinlike WO₃ electrode. Based on the above characteristics, urchinlike WO₃ materials may be used as the base material of composite supercapacitor electrode materials to prepare electrode materials with excellent performance. This work is still in progress.

4. Conclusions

In summary, hierarchical 3D urchinlike WO₃ microspheres were synthesized with the hydrothermal method. Benefiting from a unique microstructure consisting of WO₃ nanorods with a porous core and a connected and quasiconnected nanothorn network shell, compared to previous reports about WO₃ enumerated by Pragati A. Shinde et al. [26], the WO₃ electrode exhibited a relatively high specific capacitance of 488.78 F g⁻¹. Unlike other reports, the WO₃ in this work was in powder form and could be combined with the substrate with better application value (including higher mass load, 10 mg/cm² here) [27,28,29,30,31]. In addition, it had a low average R_ESR of 0.966 Ω cm⁻² and excellent stability. These indicate that urchinlike WO₃ electrodes would be promising electrodes for supercapacitor applications and may extend the potential application of transition metal oxide-based devices.
