Next Article in Journal
Structural Chemistry of Akdalaite, Al10O14(OH)2, the Isostructural Aluminum Analogue of Ferrihydrite
Previous Article in Journal
Extending the pool of compatible peptide hydrogels for protein crystallization
Article Menu

Export Article

Open AccessArticle

Czochralski Growth, Magnetic Properties and Faraday Characteristics of CeAlO3 Crystals

College of Chemistry, Fuzhou University, Fuzhou 350116, China
*
Author to whom correspondence should be addressed.
Crystals 2019, 9(5), 245; https://doi.org/10.3390/cryst9050245
Received: 3 April 2019 / Revised: 2 May 2019 / Accepted: 8 May 2019 / Published: 11 May 2019
  |
PDF [3814 KB, uploaded 11 May 2019]
  |

Abstract

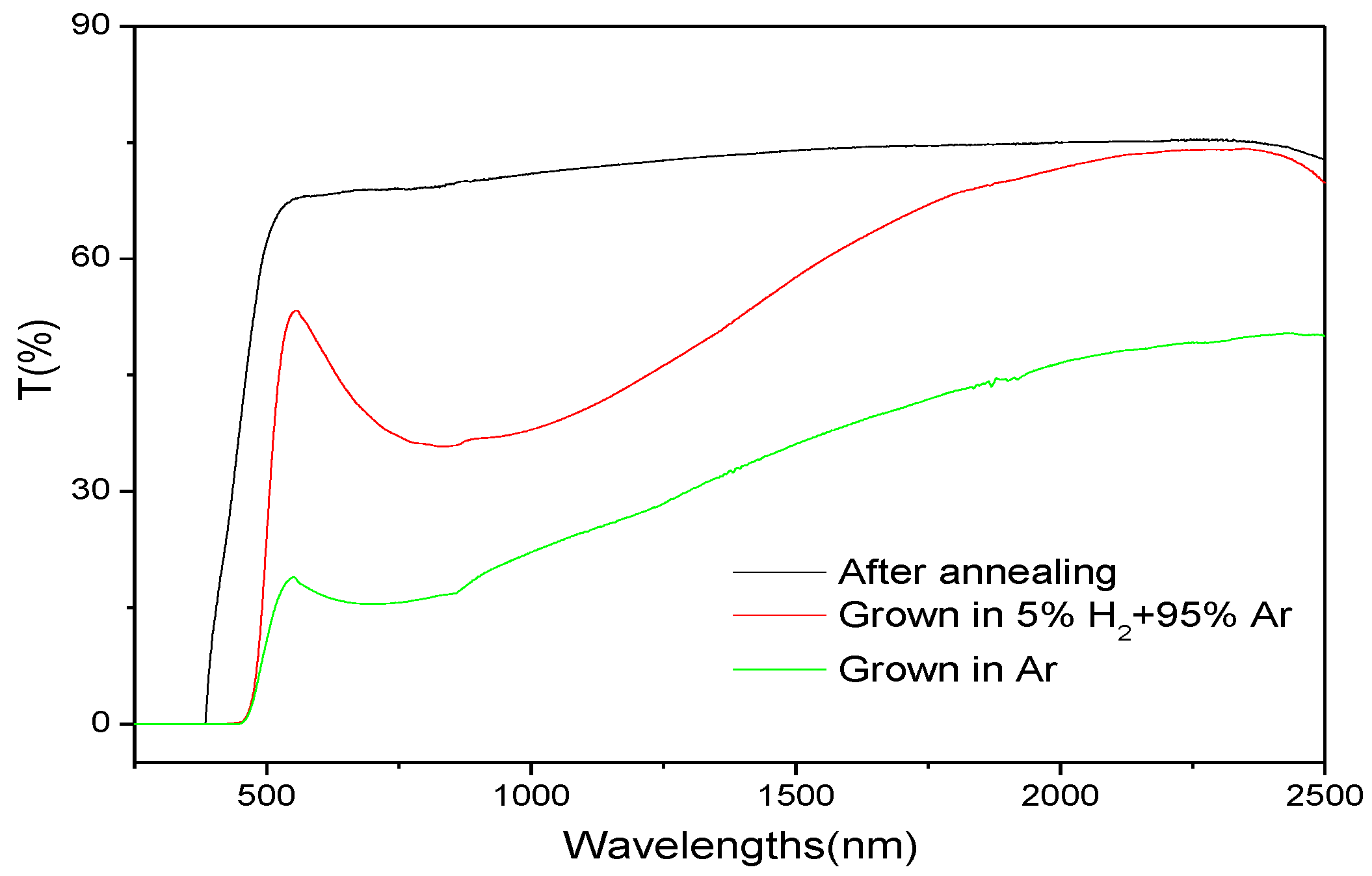

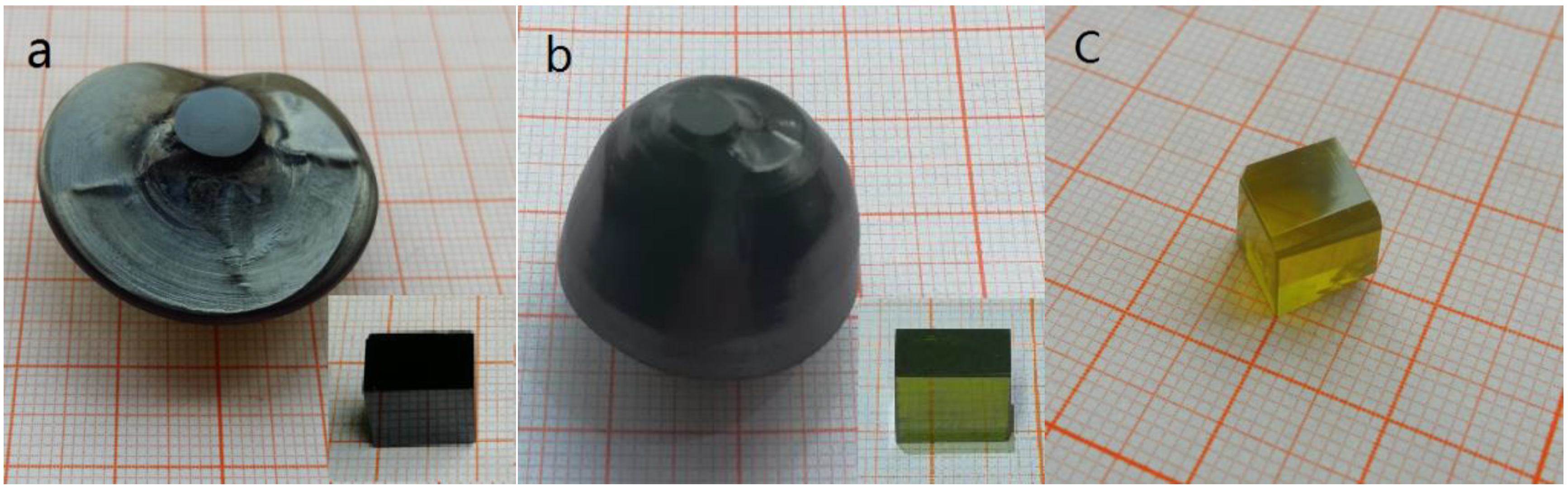

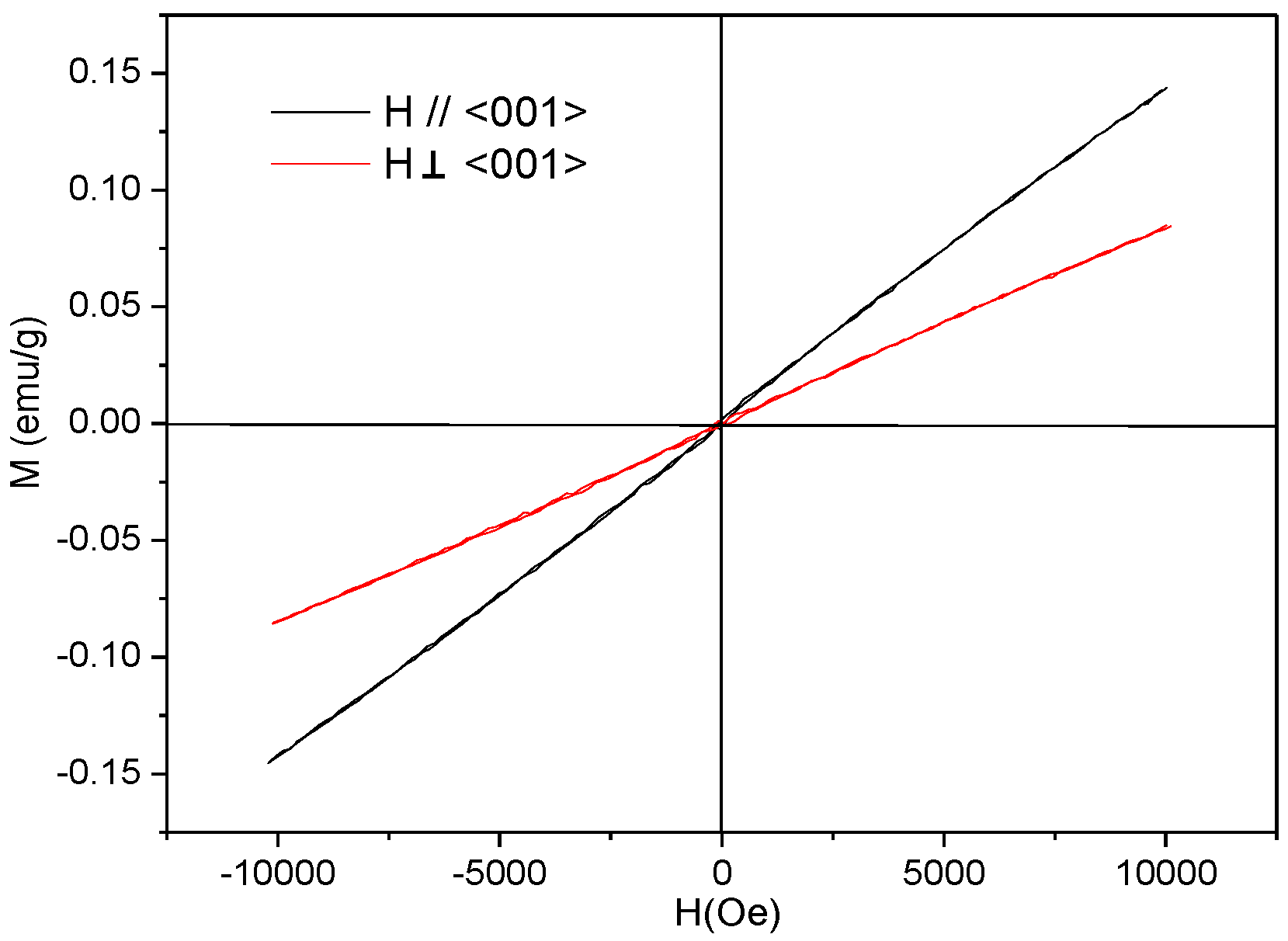

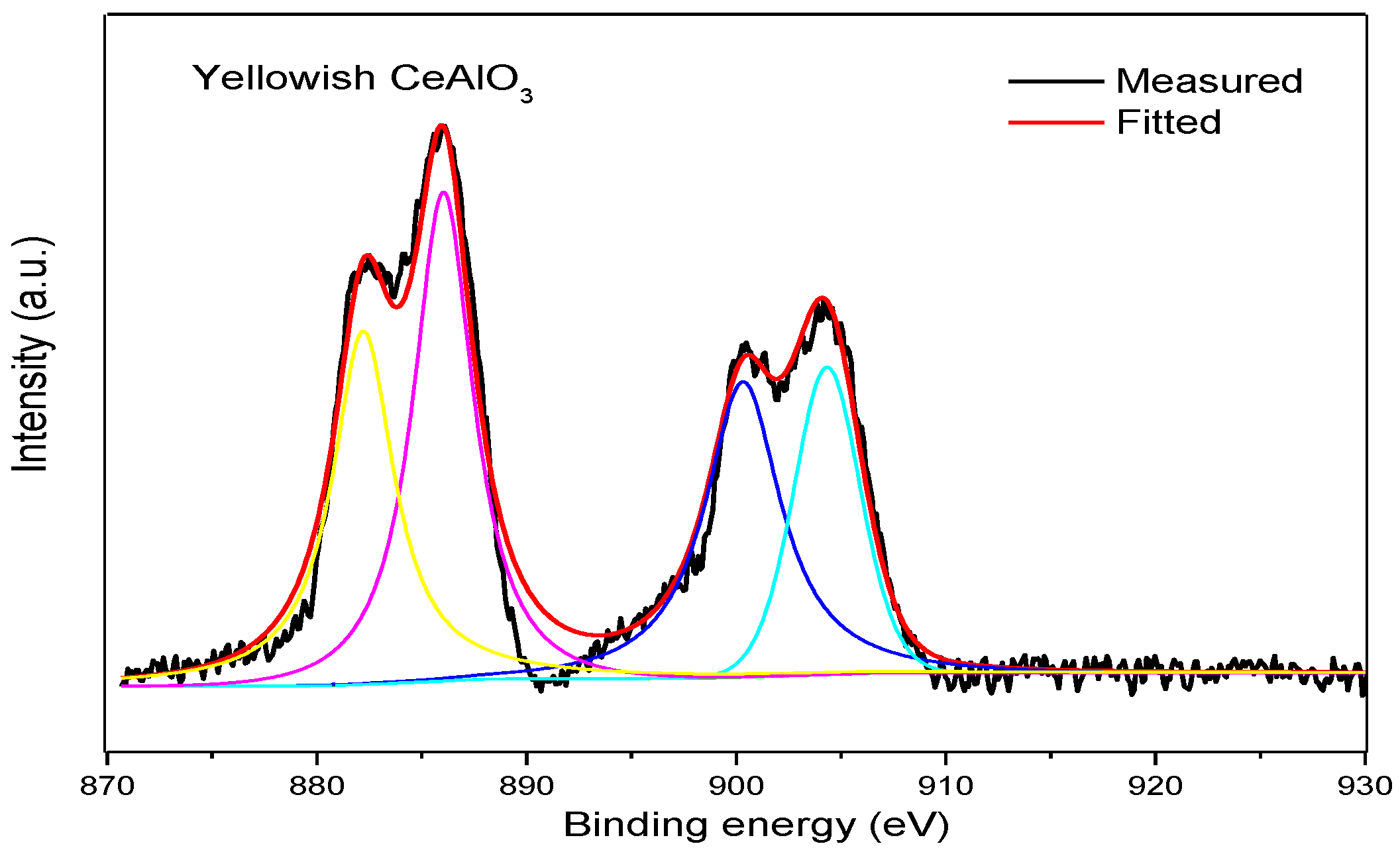

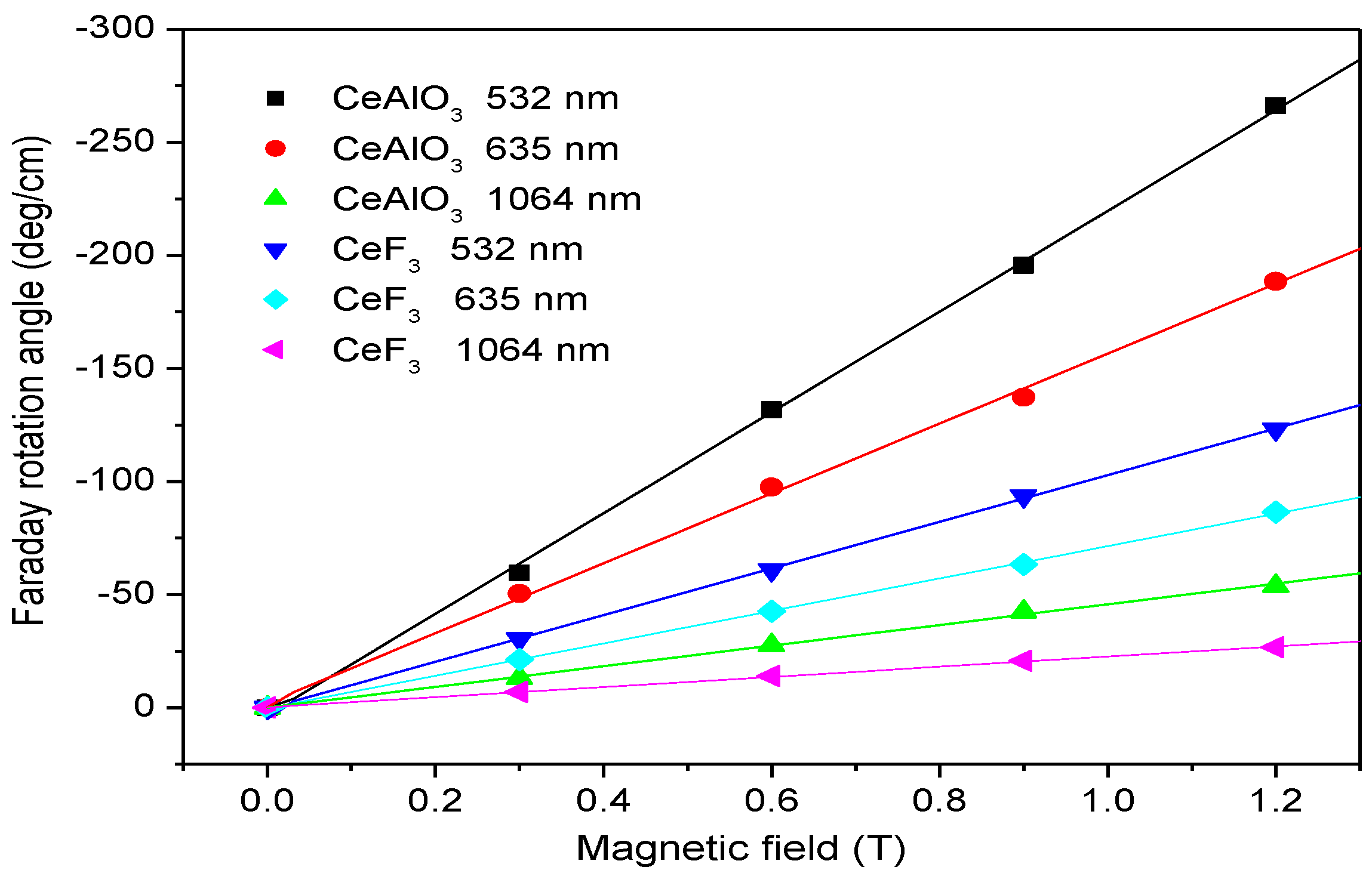

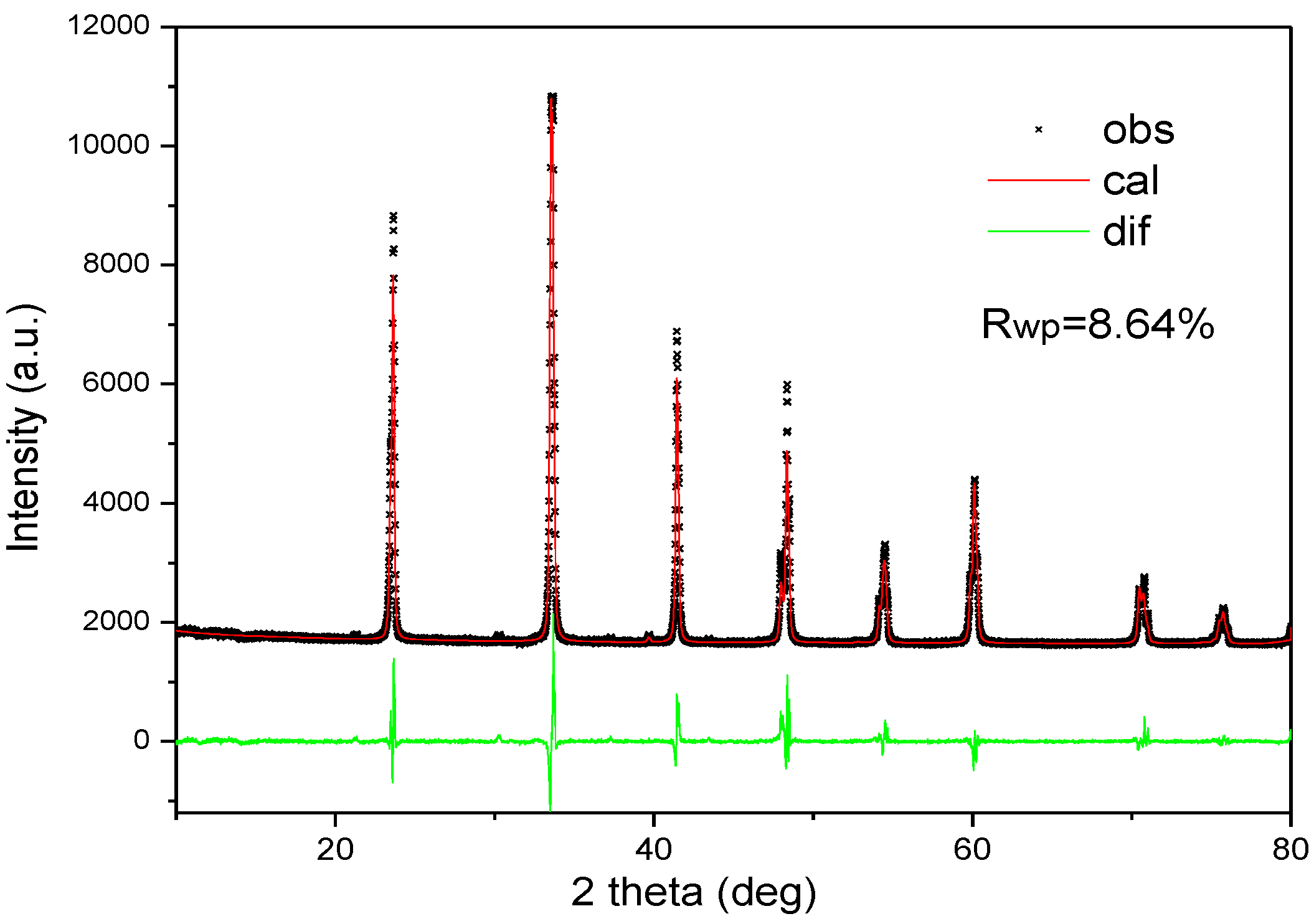

CeAlO3 crystals were grown in different growth atmospheres by the Czochralski method. The lattice parameters and space group of CeAlO3 crystal were determined by Rietveld structure refinement of X-ray diffraction (XRD) data. The influence of Ce4+ ions in the crystal on the transmittance and crystal color was confirmed by XPS analysis. Magnetization curve at room temperature and temperature dependencies of the magnetic susceptibility in two different directions were measured, indicating that CeAlO3 crystal has remarkable magnetic anisotropy and there is an abnormal magnetic behavior in the vertical <001> direction in the temperature range of 50–150 K. Faraday characteristics of CeAlO3 crystal were investigated at room temperature. Verdet constants of CeAlO3 at 532, 635 and 1064 nm are about 2.1 times as large as those of CeF3. The reason of large Verdet constants was analyzed based on the Van Vleck–Hebb theory and the magnetic circular dichroism (MCD) spectrum. View Full-Text
Keywords: Czochralski method; lattice parameters; magnetic properties; Faraday rotation Czochralski method; lattice parameters; magnetic properties; Faraday rotation
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Guo, F.; Li, Q.; Zhang, H.; Yang, X.; Tao, Z.; Chen, X.; Chen, J. Czochralski Growth, Magnetic Properties and Faraday Characteristics of CeAlO3 Crystals. Crystals 2019, 9, 245.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Crystals EISSN 2073-4352 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
