Next Article in Journal
Effect of Ag/rGO on the Optical Properties of Plasmon-Modified SnO2 Composite and Its Application in Self-Powered UV Photodetector
Previous Article in Journal
Growth of KDP: Fe3+ Crystals from Oversaturated Aqueous Solutions
Open AccessArticle

Crystallization of CaCO3 in Aqueous Solutions with Extremely High Concentrations of NaCl

School of Chemistry and Molecular Engineering, Nanjing Tech University, Nanjing 211816, China
Authors to whom correspondence should be addressed.
These authors contributed equally.
Crystals 2019, 9(12), 647;
Received: 20 November 2019 / Revised: 1 December 2019 / Accepted: 5 December 2019 / Published: 6 December 2019
(This article belongs to the Special Issue Carbonates Volume II)

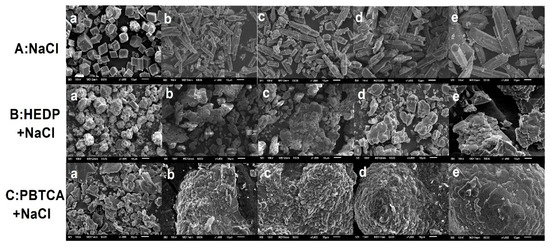

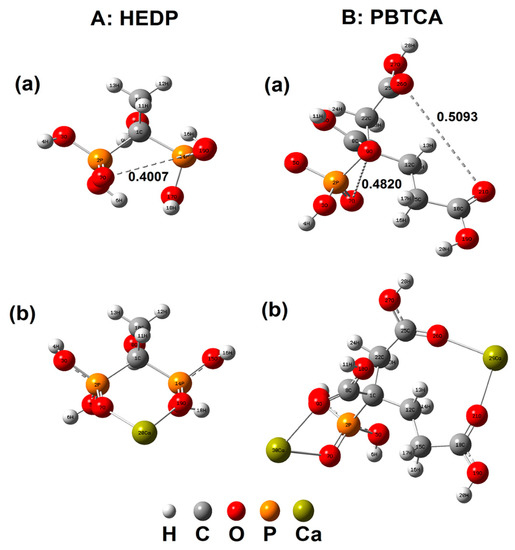

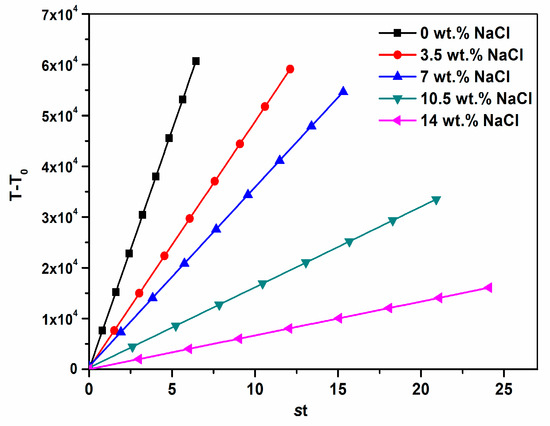

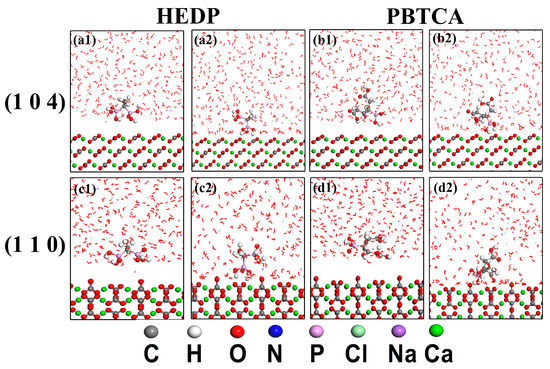

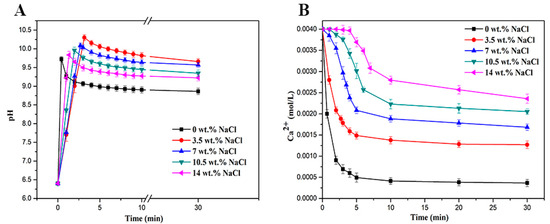

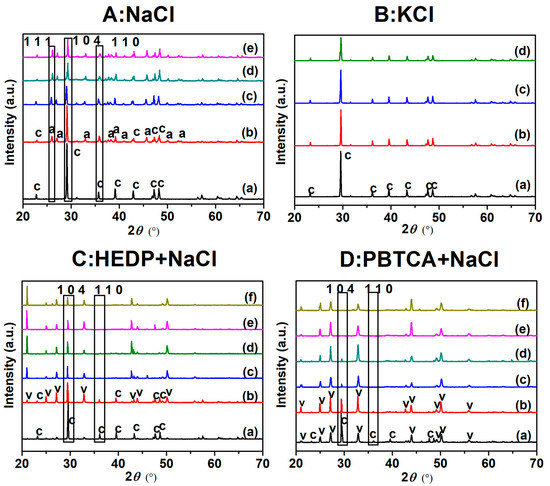

The effect of NaCl at extremely high concentrations from 3.5 to 14 wt. % on the crystallization of CaCO3 was investigated in depth. The static test experiment verified that the Ca2+ retention efficiency (η) of NaCl on CaCO3 scale increased from 31.06% (3.5 wt. %) to 41.56% (14 wt. %). Based on the calculation of supersaturation rations, the high concentration of NaCl could reduce the activity coefficients of [Ca2+] and [CO32−], thus reducing the actual concentration of CaCO3. The CaCO3 deposition rate constants (k) showed that NaCl slowed down the rate of CaCO3 crystallization. The X–ray diffraction (XRD) testing disclosed that the growth of (1 0 4) and (1 1 0) faces from calcite was impeded, while the formation of (1 1 1) face from aragonite was induced by the increasing concentration of NaCl. The inductively coupled plasma optical emission spectrometry (ICP–OES) results indicated that Na+ could be doped into CaCO3, leading to the one–dimensional crystal growth. It was further proved that NaCl heightens the efficiency of the typical phosphate inhibitors (2–phosphonobutane–1,2,4–tricarboxylic acid (PBTCA) and 1–hydroxyethane–1,1–diphosphonic acid (HEDP)) on prohibiting the scale of CaCO3. View Full-Text
Keywords: calcium carbonate; NaCl; lattice distortion; PBTCA; HEDP calcium carbonate; NaCl; lattice distortion; PBTCA; HEDP
Show Figures

Figure 1

MDPI and ACS Style

Qian, M.; Zuo, Y.; Chen, Z.; Yin, X.; Liu, Y.; Yang, W.; Chen, Y. Crystallization of CaCO3 in Aqueous Solutions with Extremely High Concentrations of NaCl. Crystals 2019, 9, 647.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Back to TopTop
