Pressure-Induced Phase Transitions in Sesquioxides

Francisco Javier Manjón
Juan Angel Sans
Jordi Ibáñez
2 and
André Luis de Jesús Pereira
Instituto de Diseño para la Fabricación y Producción Automatizada, MALTA-Consolider Team, Universitat Politècnica de València, 46022 Valencia, Spain
Institute of Earth Sciences Jaume Almera, MALTA-Consolider Team, Consell Superior d’Investigacions Científiques (CSIC), 08028 Barcelona, Catalonia, Spain
Grupo de Pesquisa de Materiais Fotonicos e Energia Renovável—MaFER, Universidade Federal da Grande Dourados, Dourados 79825-970, MS, Brazil
Author to whom correspondence should be addressed.
Crystals 2019, 9(12), 630;
Submission received: 12 November 2019 / Revised: 25 November 2019 / Accepted: 26 November 2019 / Published: 28 November 2019
(This article belongs to the Special Issue Pressure-Induced Phase Transformations)


Pressure is an important thermodynamic parameter, allowing the increase of matter density by reducing interatomic distances that result in a change of interatomic interactions. In this context, the long range in which pressure can be changed (over six orders of magnitude with respect to room pressure) may induce structural changes at a much larger extent than those found by changing temperature or chemical composition. In this article, we review the pressure-induced phase transitions of most sesquioxides, i.e., A2O3 compounds. Sesquioxides constitute a big subfamily of ABO3 compounds, due to their large diversity of chemical compositions. They are very important for Earth and Materials Sciences, thanks to their presence in our planet’s crust and mantle, and their wide variety of technological applications. Recent discoveries, hot spots, controversial questions, and future directions of research are highlighted.

1. Introduction

The family of sesquioxides (SOs), i.e., compounds with A2O3 stoichiometry, is very important from an applied point of view, since SOs play a vital role in the processing of ceramics as additives, grain growth inhibitors and phase stabilizers. They also have potential applications in nuclear engineering and as hosts for optical materials for rare-earth (RE) phosphors. Besides, SOs with corundum-like structure, like corundum (α-Al2O3), hematite (α-Fe2O3) and eskolaite (α-Cr2O3), are relevant to Earth and planetology Sciences, because they are minerals present in the Earth’s crust or in meteorites. Therefore, knowledge and understanding of phase transitions (PTs) occurring at high pressure (HP) in SOs is very important for Physics, Chemistry and Earth and Materials Sciences.
SOs are mainly formed by materials featuring an A cation of valence 3+, so that the two A cations compensate the total negative valence (6−) of three O atoms acting with valence 2−. Among the cations featuring 3+ valence, we find all group-13 and group-15 elements, some transition metal (TM) elements and all RE elements. Additionally, we can also find SOs where cations show an average 3+ valence. In this context, SOs with cations showing both 2+ and 4+ valences (both valences present in the A2O3 compound), are named mixed-valence (MV) SOs. The different compositions of these compounds provide a very rich environment ranging from molecular or zero-dimensional (0D), one-dimensional (1D) and two-dimensional (2D) solids to the conventional (bulk) three-dimensional (3D) solids; all of them showing radically different properties and behaviors under compression.
After more than 50 years of exploration of pressure-induced PTs in SOs, we present in this work a review of the PTs of SOs at HP, including those occurring at high temperatures (HTs), at low temperatures like room temperature (RT), and even at room pressure (RP). We have structured the present paper in five main sections that are devoted to RE-SOs, group-13-SOs, group-15-SOs, TM-SOs, and MV-SOs.
Finally, before attempting to present our results, we must comment that several reviews of the PTs in SOs at HP have been already published. We can cite the review on oxides of Liu and Basset in 1986 [1], of Adachi and Imanaka in 1998 [2], of Smyth et al. in 2000 [3], of Zinkevich in 2007 [4] and of Manjón and Errandonea in 2009 [5]. The present review goes beyond previous studies of SOs by expanding the number of families studied, by discussing the most recent results published in the last decade, and by suggesting pressure-based studies still to be performed.

2. High-Pressure Phase Transitions in Sesquioxides

2.1. Rare-Earth Sesquioxides

RE-SOs are highly interesting and versatile for different types of applications, since the atomic radius can be finely tuned along the lanthanide family, thus enabling a wide range of technological applications, including light emitters (lasers and improved phosphors), catalysts, and high-dielectric constant (high-k) gates.
RE-SOs, and in particular lanthanide SOs (Ln2O3; Ln = La to Lu, including Y and Sc), usually crystallize at room conditions in either the A-, B-, or C-type structures, depending on the RE atomic size. Large cations from La to Nd usually crystallize in the trigonal A-type structure ( s . g .   P 3 ¯ m 1 ), medium-size cations from Sm to Gd tend to show a monoclinic B-type structure (s.g. C2/m), and small cations from Tb to Lu, including Sc and Y, tend to adopt a cubic C-type structure (s.g. Ia 3 ¯ ). At HTs, two additional phases, hexagonal H (s.g.   P 6 3 / m m c ) and cubic X (s.g. I m 3 ¯ m ) structures, have also been found in Ln2O3 [6]. Zinkevich has reviewed temperature-induced PTs in RE-SOs and found that a C→B→A sequence of PTs usually occurs upon an increase in temperature [4]. Since the density and cation coordination of the A-, B- and C-type structures increase in the sequence C-B-A, C→B, B→A, and even direct C→A transitions are expected on increasing pressure (upstroke), while inverse PTs are expected on decreasing pressure (downstroke) [7,8]. Curiously, it has been found that the cationic distances in the three structures of the RE-SOs at room conditions are similar to those in the bcc, fcc and hcp structures of the RE metals, thus suggesting that a relationship must exist between them [9,10].
The effect of HP on Ln2O3 has been extensively studied by many research groups, mainly by X-ray diffraction (XRD), Raman scattering (RS) and photoluminescence measurements. The HP behavior of C-type compounds has been studied in Lu2O3 [11,12,13,14], Yb2O3 [15,16,17,18], Tm2O3 [19,20], Er2O3 [11,21,22], Ho2O3 [23,24,25,26], Dy2O3 [27,28], Gd2O3 [11,29,30,31,32,33,34,35,36], Eu2O3 [11,37,38,39,40,41,42,43], Sm2O3 [11,32,44,45], Sc2O3 [46,47,48], Y2O3 [11,32,49,50,51,52,53,54,55,56,57,58,59,60], and recently on Tb2O3 [61]. Examples of pressure-driven C→B, B→A, direct C→A, and even C→A+B transitions have been shown to occur in a number of RE-SOs. As example, Lu2O3 was found to show either a C→B PT around 12 GPa without B→A PT up to 47 GPa [12,13], or a C→A+B PT above 25 GPa, with a recovery of a single B phase on downstroke from 47 GPa [14]. Similarly, Yb2O3 was found to exhibit a C→B PT above 13 GPa, and no further PT was found up to 20 GPa [15], but an A phase was found above 19.6 GPa that transforms into the B phase below 12 GPa [16]. The A phase in coexistence with the B phase was confirmed by RS measurements up to 45 GPa [17]. The C→B→A sequence of PTs was also found in Y2O3, the most studied RE-SO at HP, around 12 and 19 GPa [49], and has been confirmed in many studies [60]. In this context, it must be stressed that the pressure-induced PT sequence in Y2O3 has been shown to be affected by the nature of the sample, since different sequences of PTs have been observed in nanocrystals [33]. It must be stressed that direct C→A PT, with A→B PT on downstroke from 44 GPa, has been observed in Sm2O3 [44]. This sequence of PTs has also been observed in Gd2O3 [31]. Other PTs in RE-SOs have been found at HP and HT. In particular, an orthorhombic Gd2S3-type structure (s.g. Pnma) has been found in C-type Y2O3 above 8 GPa [57].
The HP behavior of B-type compounds has been also studied in Y2O3 [62], Eu2O3 [63], and Sm2O3 [64,65]. A reversible pressure-induced B→A PT has been observed in all B-type compounds. Additionally, the Gd2S3-type structure has been found in B-type Sc2O3 above 19 GPa upon laser heating [47]. Table 1 summarizes the experimental PT pressures observed in C- and B-type RE-SOs.
The HP behavior of A-type compounds has been studied in Nd2O3 [67,68], Ce2O3 [69], and La2O3 [11]. A-type Nd2O3 has been observed to suffer a reversible PT above 27 GPa towards a monoclinic s.g. P2/m phase [67]. However, other work has suggested a 1st-order isostructural PT above 10 GPa [68]. This behavior is in contrast with that of Ce2O3, which seems to be stable in the A-type phase up to 70 GPa. Curiously, A-type Ce2O3 shows anomalies in the compressibility of the lattice parameters around 20 GPa, which could be related to an isostructural PT similar to that of Nd2O3. Finally, A-type La2O3 seems not to be stable above 4 GPa, following a PT to a hexagonal superlattice and eventually to a distorted monoclinic structure with a group–subgroup relationship with the hexagonal one [11].
It must be mentioned that RE-SOs and their pressure-induced PTs have also been investigated theoretically, and the simulations of the bandgap, volume, bulk modulus and its pressure derivative for the C, B and A phases, as well as their PT pressures, have been reported and found in rather good agreement with experiment [70,71,72,73,74,75,76,77,78,79,80,81,82,83]. Theoretical studies have found that the C→A and C→B PTs result in a decrease in the unit cell volume per formula unit at the transition pressure of the order of 10% ± 2%, in good agreement with experiments [81]. On the other hand, the B→A PT results in a decrease in the unit cell volume per formula unit at the transition pressure of the order of less than 2%, in good agreement with experiments [76]. Figure 1, Figure 2 and Figure 3 show a comparison of experimental data (from Table 1) and theoretical data for the C→A, C→B and B→A PT pressures in bulk RE-SOs as a function of the atomic number of the lanthanide, ZLn, and of the ionic radius of the RE cation. In general, a good agreement between theoretical and experimental data can be found for all PTs. As regards the C→A PT, the pressure of the transition increases along the lanthanide series with the increase in atomic number, i.e., with the decrease in the ionic radius. It must be noted that no work has reported the C→A PT for Sc2O3, and that the reported C→A PT in materials with a small ionic radius, like Lu2O3 and Yb2O3, are doubtful. Regarding the C→B PT, the pressure of the transition also increases along the lanthanide series with the increase in atomic number or the decrease in the ionic radius. Unfortunately, no theoretical data exist for the C→B PT along the whole RE-SOs series; consequently, theoretical data for the C→A PTs are plotted for comparison with experimental data of the C→B PTs. It must be noted that the C→B PT is not observed in Sm2O3 and Eu2O3, since these two SOs undergo a direct C→A PT. Finally, as regards the B→A PT, the pressure of the transition once again increases along the lanthanide series with the increase in atomic number or the decrease in the ionic radius. As observed, no experimental data for the B→A PT has been reported in Sc2O3, Lu2O3 and Tm2O3. This will require new experiments up to 40 GPa in Lu2O3 and Tm2O3 and above 80 GPa in Sc2O3.

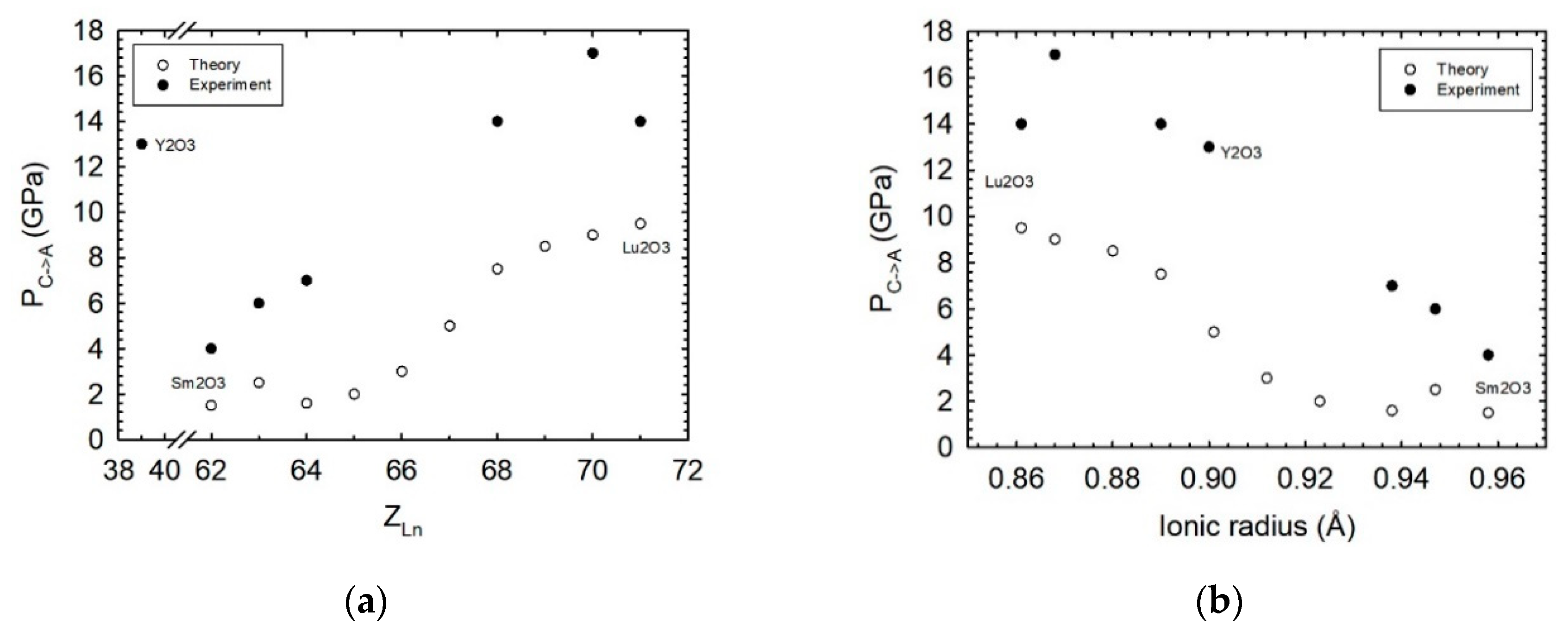

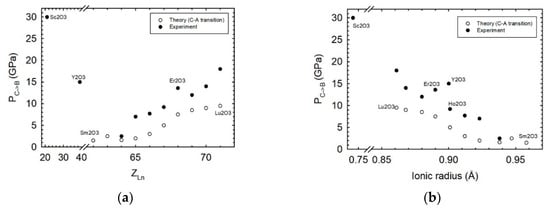

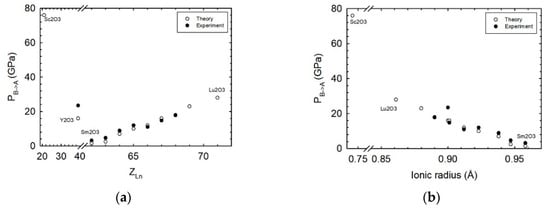

In summary, there are many HP studies in cubic C-type RE-SOs that allow us to conclude that this structure undergoes a pressure-induced irreversible 1st-order PT either to a hexagonal A-type structure or to an intermediate monoclinic B-type structure. It is also observed that the A-type structure of RE-SOs usually reverts to the B-type structure on decreasing pressure, but the B-type structure remains metastable at room conditions and does not revert to the C-type structure unless it is conveniently heated. The irreversibility of the C→A and C→B PTs means that there is a considerable kinetic energy barrier between the C-type and the A- and B-type structures, due to the reconstructive nature of these PTs. On the other hand, the reversibility of the B→A PT is consequence of the weak 1st-order nature of this PT, as expected, because A- and B-type structures obey a group-subgroup relationship. In this context, HP studies of B-type RE-SOs show a pressure-induced reversible weak 1st-order PT to the A-type structure. It must be noted that some PTs for RE-SOs with a small RE ionic radius have yet to be reported. Besides, a pressure-induced PT to the Gd2S3 structure has been found from some C- and B-type RE-SOs at HT. Finally, we must comment that HP studies on trigonal A-type RE-SOs are quite scarce and do not allow us to conclude which is the typical HP phase of A-type RE-SOs. Consequently, more work has to be done in A-type RE-SOs, either studying C- or B-type RE-SOs at higher pressures or studying in better detail RE-SOs crystallizing in the A phase at room conditions, in order to understand the behavior of the trigonal structure and its pressure-induced PTs.

2.2. Group-13 Sesquioxides

Group-13-SOs are highly interesting compounds, due to their chemical and physical properties, which enable their application as catalyst, lasers and light emitting materials [84]. HP studies in group-13-SOs have been conducted on the five compounds. Al2O3, also known as alumina, is by far the most studied compound [85,86,87,88,89,90,91,92,93,94,95,96,97,98,99], followed by In2O3 [100,101,102,103,104,105,106,107,108,109], Ga2O3 [107,110,111,112,113,114], and B2O3 [115,116,117,118,119,120,121]. Finally, Tl2O3 has been the least studied compound [122].
The interest in alumina comes from its high stability, making it interesting for HP science applications, especially as windows in shockwave experiments [123]. However, its main application occurs when alumina is doped with a small amount of Cr3+. Al2O3:Cr3+, also known as ruby, presents fluorescence lines that are pressure-dependent and is used as a pressure standard in static HP experiments using anvil cells [124]. Corundum (α-Al2O3) is a mineral of alumina that is found in abundance in the earth mantle incorporated into enstatite (MgSiO3) [99]. Given that both minerals might adopt similar structures at ultra-HPs, their study is interesting from a geophysical point of view. In fact, the most stable phase of alumina at room conditions is the corundum structure (s.g. R 3 ¯ c), where coordination of all Al atoms is six-fold and of O atoms is four-fold [94]. The unit cell has two formula units, with O atoms forming a slightly distorted, hexagonal, close-packed structure [88,125]. The same structure is also found in other SO minerals, such as hematite (Fe2O3), eskolaite (Cr2O3), karelianite (V2O3), and also Ti2O3 and Ga2O3 [125]. In this structure, cations occupy positions (0, 0, z) and oxygens occupy positions (x, 0, ¼) and, if both z and x coordinates were 1/3, the corundum-type structure would have a perfect hexagonal close-packed packing [125].
β-Al2O3 is another very interesting polymorph of alumina from a technological application point of view. This material is a non-stoichiometric compound (Na2Ox ·Al2O3, 5 ≤ x ≤ 11) and not a simple variation of alumina [126,127]. Due to its layered crystalline structure, β-Al2O3 has a high ionic conductivity and has been studied for solid state battery applications [126,127]. We have not found any HP study of this material.
Theoretical studies of corundum predicted a pressure-induced PT to the Rh2O3-II structure (s.g. Pbcn) between 78 and 91 GPa [87,92,96,98] and a second PT to an orthorhombic perovskite (Pv) structure (s.g. Pbnm) at 223 ± 15 GPa [87,92,96,98,128]. Other theoretical studies predicted that the post-perovskite (PPv) CaIrO3-type structure (s.g. Cmcm) would be more stable than the Pv structure at pressures higher than 150 GPa [85,99,129]. However, RT measurements performed up to 175 GPa under hydrostatic and non-hydrostatic conditions showed no PT [88,89]. The PT to the Rh2O3-II structure was only observed at HP (>95 GPa) and HT (>1200 K) [86,97] once the energy supplied by temperature allows the overcoming of the kinetic barrier of this 1st-order PT [86,89,96,97,128]. The Rh2O3-II structure is directly related to corundum structure; nevertheless, it presents a great distortion in the AlO6 octahedron [97]. Lin et al. reported that the Rh2O3-II-type Al2O3 (Cr3+ doped) remains stable up to 130 GPa and 2000 K [97]. However, studies using shock waves have shown that a decrease by one order of magnitude in resistivity occurs at 130 GPa [123] that it is coincident with an increase in the density of Al2O3 [130], thus indicating a possible PT. This hypothesis was supported by the discovery of a PPv CaIrO3-type polymorph of Fe2O3 [131] and MgSiO3 [132]. In 2005, Oganov and Ono were finally able to synthesize the PPv CaIrO3-type phase of Al2O3 at ~ 170 GPa and 2500 K [94,129]. They showed that the Rh2O3-II → CaIrO3-type PT is a 1st-order PT with ~ 5% of volume decrease [94,129]. The possibility of obtaining this structure at HP and HT was important to understand the physical properties of the elements present in the D’’ layer of the earth mantle [129]. This layer is basically composed of a solid solution of MgSiO3, Fe2O3 and Al2O3. Since, under the HP and HT conditions of the Earth mantle, all these materials are isostructural, their solubility may be facilitated [94].
When synthesized as nanoparticles smaller than 20 nm, alumina tends to crystallize into a cubic structure known as a phase γ (s.g. Fd 3 ¯ m) [133]. HP experiments at room temperature observed an amorphization of γ-Al2O3 around 5 GPa [133]. On the other hand, it was also observed that the γ-Al2O3R 3 ¯ c PT, which occurs at RP near 1473 K, decreases to ~ 1023 K when γ-Al2O3 is pressurized at 1 GPa [134]. In addition, HP-HT experiments have revealed other phases of alumina, like polymorphs of RE-SOs B- and C-type, as well as polymorphs λ and μ [135,136]; however, no HP studies on these phases have been reported to our knowledge.
The search for new high hardness materials, such as Al2O3, has attracted the attention of many research groups for SOs, including indium oxide (In2O3) and gallium oxide (Ga2O3) [106]. In2O3 is a semiconductor with high potential for many transparent oxide applications, including touch and photovoltaic devices, thermoelectric and gas sensors [137]. At room conditions, In2O3 crystallizes in the cubic bixbyite structure (s.g. Ia 3 ¯ ), also known as the C-type RE-SO structure (c-In2O3) [106]. In this structure there are two types of In atoms (they are surrounded by oxygen in the octahedral and trigonal prismatic coordination) located at positions 8b and 24d and one type of O located at position 48e [138]. In the 1960s, a PT from c-In2O3 to a metastable corundum-like rhombohedral phase (rh-In2O3; s.g. R 3 ¯ c) was reported at HP and HT (6.5 GPa and 1000 °C) [106,139,140]. This PT was also observed through shockwave compression experiments between 15 and 25 GPa [141]. Some HP-XRD studies of both bulk and nanoparticle samples claimed that the c-In2O3 → rh-In2O3 PT occurs at RT when the sample is exposed to pressures between 12 and 25 GPa [103,104]. This result is controversial since other studies using HP-XRD and HP-RS measurements did not clearly observe this PT up to 30 GPa [100,101]. On the other hand, García-Domene et al. reported that bulk c-In2O3 actually undergo a PT to an Rh2O3-II-type structure (o1-In2O3; s.g. Pbcn) orthorhombic phase at pressures above 31 GPa at RT [101]. This structure was also obtained at 7 GPa after laser heating at 1500 °C [106]. This result is consistent with the prediction of theoretical calculations that the Rh2O3-II-type phase is the most stable In2O3 structure between 8 GPa and 36 GPa [101]. On top of that, looking for a possible CaIrO3-type PPv phase in In2O3, Yusa et al. observed another PT from Rh2O3-II-type to α-Ga2S3-type structure (s.g. Pnma) above 40 GPa and 2000 K [107]. A reduction of 7%–8% in volume was observed, unlike the reduction of 2% expected for a Rh2O3-II-type → CaIrO3-type transition [107].
Releasing the pressure after obtaining the Rh2O3-II-type structure in In2O3, García-Domene et al. demonstrated that, at 12 GPa, o1-In2O3 undergoes a PT to a previously unknown phase [101]. The combination of experimental and theoretical results helped to conclude that, upon decreasing the pressure to 12.1 GPa, the In2O3 recrystallizes in a distorted bixbyite-like structure (o3-In2O3; s.g. Pbca), isostructural to Rh2O3-III [101,108]. Decreasing the pressure below 1 GPa, o3-In2O3 undergoes another PT to the metastable rh-In2O3 structure. The metastable rh-In2O3 phase at room conditions remains stable up to 15 GPa and above this pressure shows a reversible PT to o3-In2O3, which is stable up to 25 GPa [101]. The observation of the Pbca phase took place only when decreasing pressure using original bulk c-In2O3 samples was related to kinetic barriers in the c-In2O3 → o3-In2O3 PT, that cannot be overcome at RT during upstroke [101]. Similar studies in c-In2O3 nanoparticles performed up to 44 GPa did not clearly show these PTs [100,104,105]. Qi et al. reported that, when compressing 6 nm c-In2O3 nanoparticles, an irreversible PT to the rh-In2O3 phase occurs between 20–25 GPa [104]. Nowadays, it is now possible to synthesize In2O3 nanoparticles at room conditions with the rh-In2O3 metastable phase at relatively low temperatures (250 to 500 °C) [142,143,144]. Sans et al. studied rh-In2O3 nanoparticles (10–30 nm) up to 30 GPa using XRD and RS measurements [109]. XRD measurements did not show any PT up to 30 GPa, but RS measurements showed peaks of the o3-In2O3 phase above 20 GPa [109]. One reason for this discrepancy was attributed to the sensitivity of RS measurements to local structural changes, which is responsible for the observation of PTs at lower pressures in RS compared to XRD measurements [109]. Another reason might be related to the use of less hydrostatic pressure-transmitting medium in RS (MEW) than in XRD (Ar) measurements [109].
Regarding Ga2O3, its most stable structure at room conditions is the monoclinic phase (s.g. C2/m), known as β-Ga2O3 [145,146]. However, depending on the pressure, temperature and atmosphere conditions, it is possible to find Ga2O3 in the α, β, γ, σ and ε phases [111,147]. Compared to Al2O3 and In2O3, HP studies on Ga2O3 are scarcer. In 1965, Remeika and Marezio reported the synthesis of α-Ga2O3 (s.g. R 3 ¯ c), which is isostructural to α-Al2O3, by pressurizing β-Ga2O3 to 4.4 GPa, after heating to 1000 °C and quenching to room conditions [147]. Lipinska-Kalita et al. reported that, upon pressing nanoparticles (~15 nm) of β-Ga2O3 homogeneously dispersed in a host silicon oxide-based glass matrix, it is possible to observe a PT to α-Ga2O3 at 6 GPa [111]. In that study, the β-Ga2O3 → α-Ga2O3 PT is not completed up to 15 GPa and it is not clear whether the PT is induced by glass matrix densification or is an intrinsic behavior of the β-Ga2O3 nanoparticles [111]. This work led Machon et al. to study the behavior of β-Ga2O3 microparticles by XRD and RS measurements with different pressure-transmitting media [113]. They observed a PT to the α phase above 20 GPa, unlike what was observed in reference [111]. A highly disordered α-Ga2O3 was recovered at RP after a fast decompression from 25 GPa and a mixture of α and β phases were recovered when decompression was performed slowly [113]. The β-Ga2O3 → α-Ga2O3 PT can be considered to be of 1st-order and involves a change in O2- ions packing from cubic to hexagonal, accompanied by a change in Ga3+ coordination from four to six [111,113,148].
The β-Ga2O3 → α-Ga2O3 PT was not clearly observed in an experiment performed up to 65 GPa without pressure-transmitting medium [106]. Instead, XRD measurements at 65 GPa showed only a diffraction pattern similar to a material with low crystallinity or amorphous. After laser heating (~2300 K), a recrystallization to an orthorhombic phase Rh2O3-II-type (s.g. Pbcn) was observed [106]. This phase remained stable up to 108 GPa and 2500 K. During decompression, the Rh2O3-II-type → α-Ga2O3 PT was observed between 32 and 21 GPa, being the α phase metastable at RP [106]. These results differ from other published by Lipinska-Kalite et al. up to 70 GPa with (N2) and without pressure-transmitting medium [110]. In that study, a β-Ga2O3 → α-Ga2O3 PT was clearly observed, which starts at 6.5–7.0 GPa (3 GPa) and completes at 40 GPa (30 GPa) when measured with (without) pressure-transmitting medium [110]. Through XRD measurements, Lipinska-Kalita et al. observed no evidence of pressure-induced amorphization or deterioration of the diffractogram up to 70 GPa [110]. The β-Ga2O3 → α-Ga2O3 PT was also observed at 16 GPa in shockwave experiments [149]. Wang et al. conducted HP studies on β-Ga2O3 nanoparticles (14 nm) at RT and found the PT to α-Ga2O3 above 13.6 GPa [114]. Above this pressure, the α phase remains stable up to 64.9 GPa and stays metastable upon returning to RP [114].
Boron sesquioxide (B2O3) is one of the most important oxides in applications involving vitreous systems. In glass form, B2O3 has a low melting point (750 K) and a structure similar to vitreous SiO2 and H2O [117]. When pressing the glassy material, it is possible to observe a structural rearrangement around 3 GPa that was considered a low- to high-density vitreous PT [118]. Furthermore, starting from the glassy material, it is possible to obtain B2O3 crystals at HP and HT. At room conditions, the most stable structure of B2O3 is a trigonal structure (s.g. P3121) known as B2O3-I, where B is in the center of triangles of O atoms [115,116,117,119,121]. Despite its stability at room conditions, working with this material is not simple due to its strong hygroscopic behavior, capable of decomposing the sample in a few minutes [121]. Above 3.5 GPa and 800 K, B2O3-I undergoes a PT to an orthorhombic structure, known as B2O3-II (s.g. Ccm21), composed of distorted BO4 tetrahedra [116,120]. The B2O3-I → B2O3-II transition leads to an increase of B and O coordination from 3 to 4, and from 2 to an intermediate between 2 and 3, respectively, and a volume change of ~27% [117,120,150].
The last group-13-SO is thalium oxide (Tl2O3). This material is very interesting from a technological point of view as it has potential for interesting applications such as solar cell electrode, optical communication and HT superconductors [151,152,153,154]. Its most stable phase at room conditions is c-Tl2O3, a bixbyite body-centered cubic phase isostructural to c-In2O3. A corundum-like structure (s.g. R 3 ¯ c) was also observed at HP (6.5 GPa) and HT (500-600 °C) [140]. So far, only one paper reports the properties of the c-Tl2O3 at HP, probably due to the toxicity of this material [122]. Theoretical calculations predict a c-Tl2O3 → Rh2O3-II-type (s.g. Pbcn) PT at 5.8 GPa and a second Rh2O3-II-type → α-Gd2S3-type (s.g. Pnma) PT at 24.2 GPa [122]. However, ADXRD measurements at RT, performed using MEW as pressure-transmitting medium, showed only an irreversible pressure-induced amorphization at 25.2 GPa, which was a consequence of kinetic barriers that cannot be overcome at RT [122]. In addition, theoretical calculations predicted a mechanical instability of c-Tl2O3 above 23.5 GPa [122]. Future work involving HP and HT is needed to better understand the behavior of Tl2O3 at HP.
To finish this section, we summarize in Table 2 the phase transition pressures observed in group-13-SOs.

2.3. Transition-Metal Sesquioxides

TM-SOs belong to a highly heterogeneous family of compounds, as their fundamental (electronic, magnetic) properties strongly depend on the number, and therefore on the spin state, of d electrons in the A3+ cation. TM-SOs include, among others, the ubiquitous ferric oxide (Fe2O3), the commonly-used green pigment Cr2O3, or the relatively rare Ti2O3 oxide, found in the famous Allende meteorite as the mineral tistarite [155]. Thus, each of these compounds has its own particularities and, regarding the HP structural properties, its specific behavior upon compression.
Among all the TMs, excluding the f-block lanthanide and actinide series and including group-3 and group-12 elements, in this section we will only consider A2O3 compounds with at least one d electron. Thus, Sc2O3, Y2O3 and La2O3 are not included here, since they have been discussed together with the RE-SOs in Section 2.1. Among the rest of possible TM-SOs, only the following compounds have been found to be stable at room conditions: Ti2O3, V2O3, Cr2O3, Mn2O3, Fe2O3, Co2O3, Ni2O3, Rh2O3 and Au2O3. Other compounds, like Hf2O3 and Zr2O3, might be metastable at HP [156].
With the exception of Mn2O3, the most stable form of all TM-SOs at room conditions corresponds to the rhombohedral structure of the corundum. As can be seen in Figure 4a, the lattice parameters of the corundum-like structure adopted by most of TM-SOs are barely reduced by increasing the number of d electrons in the A3+ cation. This result simply reflects the slight reduction in the atomic radius of the cations with increasing atomic number. However, as can be seen in Figure 4b, the c/a ratio of these compounds displays a well-known anomaly around Ti2O3 and V2O3 that deserves further attention. In particular, V2O3 has highly remarkable properties and behaves, upon compression, in a highly different fashion than other corundum-type TM-SOs [157]. In turn, Mn2O3 crystallizes in the so-called bixbyite structure (s.g. 206, Ia 3 ¯ ), which takes the name of the mineral form of Mn2O3. The absence of the corundum structure in Mn2O3 at room conditions has been attributed to the Jahn-Teller distortion associated with the d4 Mn3+ ion [158].
Most TM-SOs have also been found to exhibit other stable or metastable polymorphs at room conditions, as well as at HP. Next, we focus on the rich and varied HP behavior of the different phases of TM-SOs, with special emphasis on Fe2O3, Mn2O3 and V2O3.
Iron oxides are highly important materials in a large variety of disciplines, including materials science, geology, mineralogy, corrosion science, planetology and biomedicine. In the particular case of iron SO (iron (III) oxide or ferric oxide), there exist several polymorphs that are stable or metastable at room conditions: α, β, γ, ε and ζ. First, we will briefly describe these phases at room conditions and, afterwards, we will discuss their HP behavior.
The most common phase of Fe2O3 is the α phase, which has the corundum structure and is ubiquitously found in nature as the mineral hematite. α-Fe2O3 is a wide-gap antiferromagnetic insulator, with a Morin transition around 250 K. It is weakly ferromagnetic from this temperature up to a Néel temperature around 950 K, above which it becomes paramagnetic. Besides temperature and doping, pressure is a highly convenient tool to modify the insulating/metallic state of this type of material. In particular, hematite can be considered as an archetypal Mott insulator [159] and is interesting from the point of view of metal-insulator PTs in highly correlated electron systems.
The mineral hematite is the main ore of iron and a very common phase in sedimentary rocks, where it occurs as a weathering or alteration product. It is, however, unlikely that Fe2O3 or any of its HP phases have much relevance in the Earth’s lower mantle, where Fe3+ is mainly incorporated into other minerals, like bridgmanite or garnet, with the possible coexistence of reduced iron-rich metal (Fe0) [160]. In contrast, it cannot be ruled out that Fe2O3 may be responsible for the presence of magnetic anomalies in the upper mantle arising from deep-subduction processes [161]. Thus, the HP behavior of hematite may still be highly relevant from a geophysical point of view, as it might play a key role in relation to the magnetic properties of recycled crust materials in subduction zones.
The γ phase of Fe2O3 is also found in the Earth’s crust as the relatively common mineral maghemite, which is formed by weathering or low-temperature oxidation of magnetite and related spinel minerals. Maghemite, which is also a very common corrosion product, is metastable and transforms upon heating into the α phase. γ-Fe2O3 has the same cubic spinel ferrite structure (s.g. 227, Fd 3 ¯ m) as magnetite (Fe2+Fe3+2O4), with 1/3 of Fe atoms tetrahedrally coordinated with oxygen (A sites), and 2/3 octahedrally coordinated with oxygen (B sites). Thus, maghemite can be considered as a Fe2+-deficient magnetite, with all A sites filled with Fe3+ and only 5/6 of the total available B sites filled with Fe3+; i.e., with 1/6 of vacant (V) B sites, so it can be noted as (Fe3+)A(Fe3+5/3V1/3)BO4. γ-Fe2O3 exhibits soft ferrimagnetism at RT, with a Curie temperature around 950 K [162]. Most remarkably, ultrafine particles of γ-Fe2O3 exhibit super-paramagnetism, which is related to the thermally induced random flip of the magnetization in ferromagnetic nanoparticles. This phase is being intensively investigated in order to construct an appropriate theoretical framework for this phenomenon, which might set a limit on the storage density of hard disk drives.
A rare orthorhombic polymorph of Fe2O3, named ε-Fe2O3 (s.g. 33, Pna21), has also been found to be stable at room conditions. This phase seems to exist only in nanosized form and was first reported back in 1934 [163]. A few years later, it was synthesized and characterized by Schrader et al. [164]. The crystal arrangement of ε-Fe2O3 is considered as intermediate between the structures of the α and γ phases, with three octahedral FeO6 units (two of which are distorted) and a FeO4 tetrahedral unit. It is worth noting that this phase has recently been found in nature as the Al-bearing nanomineral luogufengite, which is an oxidation product of Fe-rich basaltic glass at HT [165]. It has also been found in ancient black-glazed wares from Jianyang county, China, produced during the Song dynasty (960–1279 AD) [166]. Recent studies have also shown that this polymorph is a non-collinear ferrimagnet [167]. Owing to its remarkable magnetic properties, such as giant coercive field, ferromagnetic resonance and magnetoelectric coupling [168], this phase is highly promising to develop a broad range of novel applications. Besides, the giant coercive field of lougufengite might explain the observed high-remanent magnezitation in some igneous and metamorphic rocks [169].
In contrast to ε-Fe2O3, β-Fe2O3 and the recently discovered “ζ-Fe2O3” phase [170] have not been found to occur in nature so far. These two rare polymorphs are metastable phases that have been obtained by synthetic methods and which only exist in nanocrystalline form. The beta phase exhibits the bixbyite structure, with trivalent Fe ions occupying two non-equivalent octahedral sites. It exhibits paramagnetic behavior at room conditions, with a Néel temperature just above 100 K. Antiferromagnetic ordering is observed below this temperature. Upon heating, β-Fe2O3 undergoes a PT to either the α or γ phases. In turn, “ζ- Fe2O3” displays a monoclinic structure (s.g. 15, I2/a) and was obtained by applying HP (>30 GPa) to β-Fe2O3 [169]. Surprisingly, this new phase (with a Néel temperature around 70 K) is metastable after releasing pressure, being able to withstand pressures up to ~70 GPa.
In spite of much effort to elucidate the structural, magnetic and electronic properties of α-Fe2O3 (hematite) at HT and HP [159,170,171,172,173,174,175,176], the HP behavior of the most important phase of Fe2O3 is still under debate. Only recently was a complete T-P phase diagram of α-Fe2O3 established [176]. According to that work, α-Fe2O3 transforms at RT to a HP phase above ~50 GPa, with an ~8.4% volume discontinuity. It is worth noting that in this work the HP phase was called “ζ-phase” and was indexed as triclinic (P 1 ¯ ) [175]. This phase is not equivalent to the monoclinic s.g. I2/a phase stable at room conditions, also named “ζ-Fe2O3”, which was produced by Tucek et al. [169]. It must be noted that the P 1 ¯ phase was previously indexed as monoclinic (P21/n) in reference [175]. The fact that this HP phase is relabeled as “double perovskite” in reference [170] and treated as s.g. P21/n only adds confusion to the nomenclature of the different phases of such an important compound as Fe2O3.
As already mentioned, the single-crystal diffraction patterns of the P 1 ¯ HP phase were initially indexed in a monoclinic unit cell [173], but were subsequently refined into a triclinic s.g. P 1 ¯ structure [175]. However, previous works had assigned the HP phase (~50 GPa) of hematite to either a distorted corundum phase (Rh2O3-II-type structure, s.g. Pbcn) [159,170,172,177] or to a Pv structure (s.g. Pbnm) [129,178]. According to reference [175], the P 1 ¯ structure of Fe2O3 is closer to a distorted (and not “double”, as in reference [176]) Pv structure. However, a more recent study up to ~79 GPa has put into question the very existence of the distorted Pv phase [174], in agreement with previous results [179]. The data and analysis of reference [159] indicate that the 1st-order PT around 50 GPa is accompanied by an insulator-to-metal transition with collapse of the magnetic properties. The structural PT would thus be very progressive [160,170], starting from the corundum-type structure and leading to a distorted Rh2O3-II-type structure. In contrast, Bykova et al. suggested that the Rh2O3-II-type structure only occurs below 50 GPa at HT and would be reconstructive, with a volume change of ~1.3% [173]. According to this work, the distorted Pv phase shows a PT at RT around ~67 GPa to a possibly metastable orthorhombic structure (s.g. 41, Aba2) or to a CaIrO3-type PPv phase (s.g. Cmcm) [175]. In fact, the Aba2 to PPv PT was observed at HT (above 1600 K). After quenching the samples to RT, the PPv polymorph was found to be stable up to 100 GPa and down to 26 GPa; however, hematite was recovered below this pressure. In turn, the metastable Aba2 phase seems to be preserved at 78 GPa, up to 1550 K. This polymorph, also observed by Greenberg et al. [176] at RT, can be considered as a metastable HP phase at low temperature. It adopts a similar packing to the Rh2O3-II-type structure observed at low pressures, but, instead of octahedra, it consists of FeO6 prisms. Recent results obtained by Sanson et al. are compatible with the existence of the Aba2 polymorph [174]. However, these authors seem to rule out not only the P21/n HP phase, but also the Pbnm one.
Regarding the PPv structure, Ono et al. had previously reported a PT from hematite to the PPv structure above 30 GPa at HT [131]. Moreover, a new phase was found above 50 GPa to an unknown phase that was tentatively assigned to an orthorhombic or a monoclinic lattice. In relation to the magnetic and electronic properties of this phase, Shim et al. showed that the magnetic ordering of PPv-type Fe2O3 is recovered after laser heating at 73 GPa [179]. According to these authors, the appearance of the PPv phase gives rise to the transformation of Fe3+ ions from a low-spin to a high-spin state, with Fe2O3 undergoing a semiconducting-to-metal PT. This effect might be relevant to understand the electromagnetic coupling between the Earth’s mantle and the core. Previous research had already investigated with Mössbauer spectroscopy the high-spin to low-spin PT in α-Fe2O3, at HP associated to the structural PT [180,181].
Indeed, one of the main interests of studying hematite at HP, besides its crystal structure and phase diagram, has to do with its electronic properties and the nature of the HP-PT [171]. What drives the HP-PT in hematite? Is it the crystal structure, or the electronic structure? Note that one could expect that electronic PTs, such as the insulator-metal Mott PT observed at 50 GPa [159] or the high-spin to low-spin PT, are isostructural. According to this argument, the PT observed in hematite at ~50 GPa, accompanied by a large volume change, should drive the change in electronic properties. Badro et al. reached this conclusion and indicated that the electronic PT is isostructural and occurs after the crystal structure PT [171]. However, Sanson et al. have recently reached the opposite conclusion, i.e., that the structural PT is driven by the electronic transition [174]. These authors analyzed the local structure and observed no FeO6 octahedra distortion at HP, in disagreement with previous works [170]. A careful analysis recently performed by Greenberg et al. suggests that the pressure-induced insulator-to-metal PT in hematite arises from site-selective delocalization of electrons [176]. According to this study, such site-selective Mott transition ought to be characterized by delocalization (i.e., metallization) of Fe 3d electrons on only half of the sites in the unit cell. This work suggests that the interplay between crystal structure and electronic correlations may yield a complex behavior that could be also relevant to understand the HP behavior of other TM-SOs.
With regard to the rest of Fe2O3 phases stable at room conditions (γ, β and ε), the amount of published works regarding their HP behavior is sizably lower in comparison to hematite. The phase diagram of γ-Fe2O3 (maghemite) is relatively simple, since this phase readily transforms to α-Fe2O3 around 35 GPa [182]. Therefore, much of the effort regarding this phase has been in relation to the comparison of the compression behavior between bulk and nanocrystalline samples (see reference [183] and references therein). Further details about polymorphic PTs of nanosized Fe2O3, including doping, temperature and HP, can be found in reference [184]. In the case of maghemtite, Jiang et al. found that nanocrystalline γ-Fe2O3 transforms to hematite at ~27 GPa, below the PT pressure for bulk material [182]. As shown by Zhu et al., the γ-to-α PT might be initiated at the same pressure, around 16 GPa, both in bulk and nanocrystalline forms [183]. According to these authors, vacancies might play an important role in the structural PT. More recently, a combination of XRD and Mössbauer spectroscopy up to 30 GPa on vacancy-ordered maghemite has shown that the γ-to-α PT would be initiated at 13–16 GPa, giving rise to a particular texture in the transformed α-Fe2O3 material [185].
Finally, in relation to the Fe2O3 polymorphs, we must mention the recent HP study of ε-Fe2O3 by Sans et al. [186]. These authors found that this rare nanocrystalline phase, which is a promising magnetic material for a range of technological applications, is stable up to 27 GPa. Above this pressure, evidence for a PT, in which the tetrahedrally coordinated iron ions change towards quasi-octahedral coordination, was observed. Given that this phase has very high magnetic coercivity, it remains to be investigated whether its mineral form may play any relevant role in the magnetic remanence of mantle xenoliths, and in the magnetism of subducting slabs at depths corresponding to the mantle transition zone [161].
Manganese SO (Mn2O3) is unique among 3d-TM-SOs because its most stable phase at room conditions (α-Mn2O3) does not adopt the corundum structure. Instead, it crystallizes in the so-called cubic bixbyite structure that takes the name from the mineral form of this compound. In bixbyite, Mn3+ occupies five different crystallographic sites, each of them surrounded by a highly distorted octahedron of O atoms. Such distortion originates from the Jahn-Teller effect, due to the lowering of overall energy as a consequence of a distortion-induced loss of degeneracy in the 3d-orbitals of the sixfold-coordinated Mn3+ ions. As discussed by several authors, the Jahn-Teller distortion might explain the fact that Mn2O3 does not adopt the corundum structure at room conditions [158]. Also, it has been predicted that HP might suppress the Jahn-Teller effect, which would make Mn2O3 transform to a corundum-type polymorph and, afterwards, follow the usual sequence of pressure-induced PTs observed in the rest of TM-SOs [140]. α-Mn2O3 has been shown to be antiferromagnetic, with a Néel temperature of around 79 K [187] and has recently attracted considerable interest due to its potential use in chemical catalysis and magnetic devices, and also for energy conversion and storage applications.
Interestingly, the bixbyite structure actually occurs in doped samples and/or at temperatures slightly above RT. Indeed, it has been shown that Mn2O3 undergoes a subtle cubic-to-orthorhombic (Pcab) PT around RT and that the bixbyite structure is stabilized by the presence of impurities [188]. The low-temperature phase Pcab is just an orthorhombically distorted bixbyite structure. There exists another polymorph of Mn2O3 stable at room conditions, namely γ-Mn2O3. It is a tetragonal spinel-like polymorph (s.g. I41/amd), related to Mn3O4. This phase, which is ferrimagnetic below 39 K, can be viewed as the equivalent of maghemite in the case of the Fe2O3 system.
Several studies have investigated the HP phases of Mn2O3 [140,189,190,191,192,193,194]. It is now clear that α-Mn2O3 transforms at RT to a CaIrO3-type PPv-like structure above 16 GPa [190,191,192,193,194] with a large volume collapse of ~12%. Thus, no Pv polymorph is observed between the bixbyite and PPv structures at RT. As pointed out by Santillán et al. [190], this might be due to the similarity between the two structures (cubic bixbyite and PPv). Yamanaka et al. also reported a monoclinic HP phase of Mn2O3 that has not been confirmed by any other study [189]. More recently, synthesis performed with a multianvil apparatus and subsequent study of the recovered material has shown that, at HTs (between ~850 and 1150 K) the Pv structure, also called ζ-Mn2O3, can be synthesized and recovered at room conditions [193]. This polymorph is formed by a Pv octahedral framework with strongly tilted MnO6 octahedra. Its crystal structure was determined within the a= 4ap supercell, s.g. F 1 ¯ (s.g. P 1 ¯ in the standard setting, see reference [193]), where Mn cations are preferentially found in different sites depending on their valence state (Mn2+, Mn3+, Mn4+). This phase has been shown to be a narrow and direct bandgap semiconductor (0.45 eV) with remarkable hardness [195], and to exhibit a 3:1 charge ordering between two different sites, and a unique orbital texture involving a remarkable alternation of orbitals states [196].
A corundum-type polymorph of Mn2O3 (ε-Mn2O3) was also recovered at room conditions after applying intermediate pressures (15 GPa) and HT (> 1200 K) [193]. This phase, which is about 1% denser than the bixbyite polymorph, seems to confirm the existence of the undistorted, corundum-type structure in the exotic Mn2O3. It should be noted that, in contrast to this phase and the ζ phase, the more usual HP PPv polymorph is not quenchable at room conditions. The multianvil apparatus experiments also show that reduction of Mn2O3 to Mn3O4 is observed below 12 GPa at HT (>1200 K) [193]. No HP studies of ε and γ phases are available to our knowledge.
Among TM-SOs, vanadium oxide (V2O3) is one of the most interesting materials both from fundamental and applied points of view, due to its remarkable electronic and magnetic properties. This compound has a very rich phase diagram at RP and is often considered a paradigmatic example of metal to Mott-insulator transition in strongly correlated materials. Depending on temperature and doping with small amounts of Cr or Ti, V2O3 exhibits different phases including a paramagnetic metallic state, a paramagnetic insulating state or a low-temperature antiferromagnetic insulating state [197,198]. V2O3 adopts a corundum-type structure at atmospheric conditions and is found in nature as the rare mineral karelianite, first found in glacial boulders from the North Karelia region, in Finland. A metastable polymorph of V2O3 with bixbyite structure was obtained by synthetic methods [199]. This phase transforms into the stable corundum phase above 800 K, and is found to exhibit a paramagnetic to canted antiferromagnetic transitions at about 50 K.
The application of HP strongly modifies the phase diagram of corundum-type V2O3. Several studies have investigated the Mott-insulator transition in V2O3 and Cr-doped V2O3 at HP with a range of different experimental techniques [200,201,202,203,204,205]. Here, we would like to first focus on the link between the structural and electronic properties of V2O3. In particular, McWhan and Remeika [200] studied V2O3 and (V0.96Cr0.04)2O3 samples and found that the metallic state typically found in undoped V2O3 is recovered by compressing the Cr-doped sample. These authors also showed that the c/a ratio of the trigonal lattice is related to the insulating/metallic state as a function of Cr-doping level and as a function of pressure. In particular, they found that the a parameter of their Cr-doped sample, which was larger than that of undoped V2O3 at RP, dropped to the value of V2O3 at 4 GPa. In contrast, the c parameter was found to barely increase at HP in both samples, implying a remarkable increase in the c/a ratio in the Cr-doped sample as the metallic state was approached. In fact, they found a sharp increase in c/a ratio just at the insulator–metal transition. These authors also showed that undoped V2O3 becomes even more metallic at HP, with a suppression of the antiferromagnetic-insulating phase above 0.3 GPa.
More recently, Lupi et al. [198] studied with submicron resolution the Mott-insulator transition in Cr-doped V2O3. These authors found that, with decreasing temperature (which yields the antiferromagnetic insulator phase), microscopic domains become metallic and coexist with an insulating matrix. This seems to explain why the paramagnetic metallic phase is a poor metal. They attributed the observed phase separation to a thermodynamic instability around the Mott-insulator transition, showing that such instability is reduced at HP. Therefore, they concluded that the Mott-insulator transition is a more genuine Mott transition in compressed samples, which also exhibited an abrupt increase in the c/a ratio around the insulator-to-metal transition (i.e., around 0.3 GPa). This result confirms the close relationship between the structural properties of V2O3, the nature of the Mott-insulator transition and the role of HP in the modification of the electronic properties of this interesting compound.
In contrast to other TM-SOs, the compression of V2O3 is highly anisotropic (the a axis is nearly three times more compressible than the c axis) [206] and the unusual behavior of the c/a ratio is closely related to the Mott-insulator transition. It was also shown that the atomic positions in V2O3 tend to those of the ideal hcp lattice at HP, with large changes in interionic distances and bond angles upon compression [206]. Zhang et al. observed a pressure-induced PT to an unknown phase around 30 GPa [207]. Ovsyannikov et al. found two different PTs above 21 GPa and 50 GPa, respectively, and attributed the first HP phase to an Rh2O3-II-type orthorhombic structure [157]. With regard to the second HP phase, they conclude that it seems not to be related to the Th2S3- and α-Gd2S3-type structures predicted by Zhang et al. in V2O3, of around 30–50 GPa [208]. In conclusion, more work is needed to unveil the HP behavior of both the corundum and bixbyite polymorphs of V2O3.

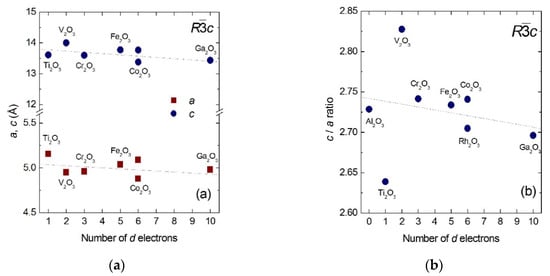

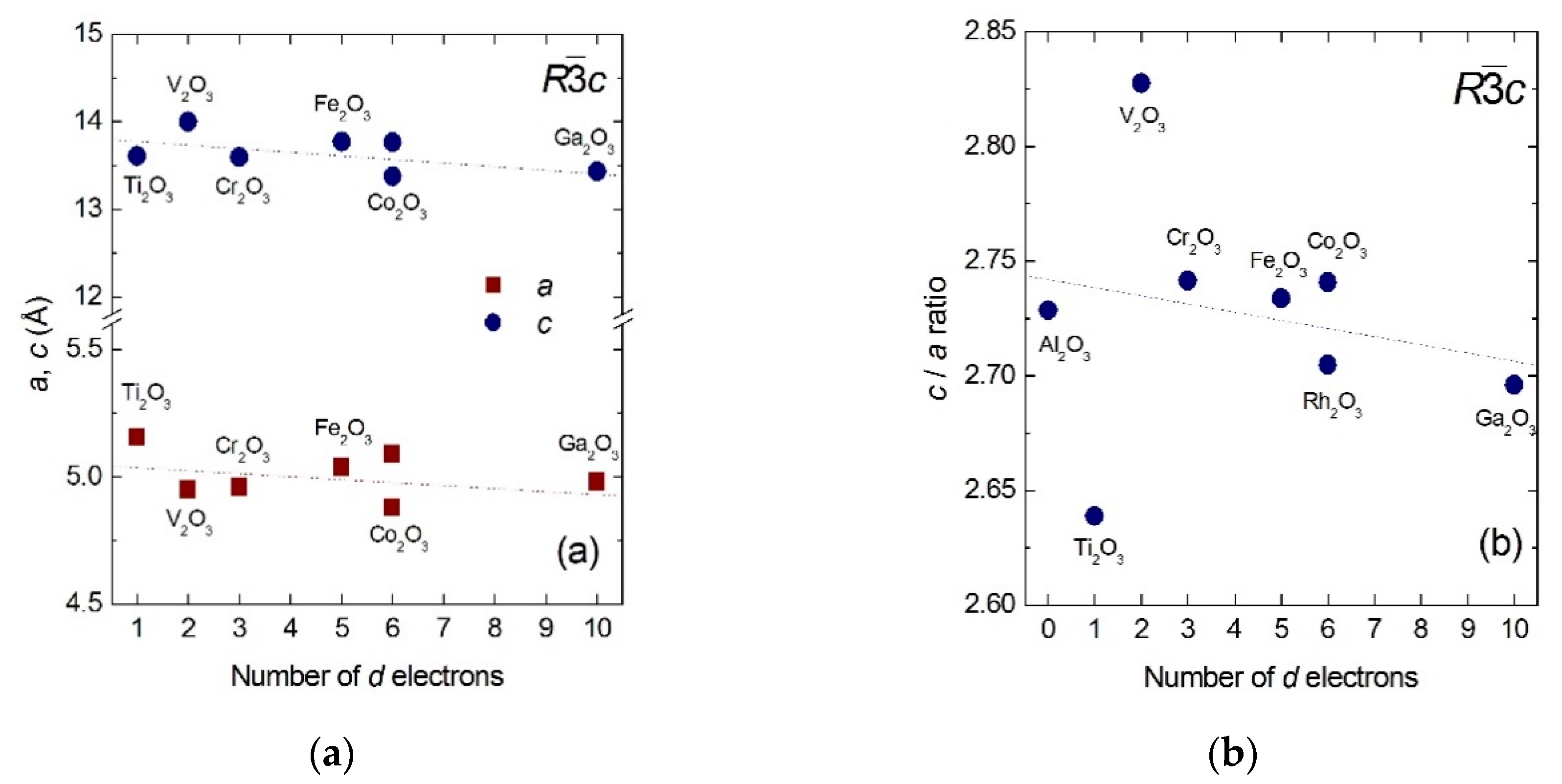

Besides the compounds discussed above, other TM-SOs have been synthesized and/or exist in nature that crystallize in the corundum-structure at room conditions: the 3d-SOs Ti2O3, Cr2O3, and Co2O3, and the 4d-SO Rh2O3. There are also a few reports about the possible synthesis and characterization at room conditions of hexagonal Ni2O3 [209,210] and 5d-SO Au2O3 [211]. However, more work would be required to unambiguously demonstrate the stability of these two latter compounds at room conditions. Note that no natural occurrence of SOs with Ni or Co ions, both of which are more stable as divalent cations, has been found so far. On the other hand, no HP study is known for Au2O3.
The amount of HP investigations on the above mentioned materials is variable. Minomura and Drickammer [212] reported HP resistance measurements on several compounds at RT. They found a resistance maximum around 11 GPa in Ni2O3 that could be indicative of a PT. Unfortunately, no additional HP investigations can be found in the literature on this material. In the case of Co2O3, Chenavas et al. reported a low spin to high spin transition in quenched material, subject to 8 GPa and 850 °C, from a synthesis process involving different chemical reactions [213]. Therefore, the fundamental properties of both Ni2O3 and Co2O3 at HP have yet to be fully investigated.
Chromia (Cr2O3) is another important TM-SO, both from technological and fundamental points of view. This material with corundum structure occurs in nature as the uncommon mineral eskolaite. However, it is probably better known for its high stability and hardness, which makes it a commonly used green pigment and abrasive material. Cr2O3 is a typical antiferromagnetic insulator with a Néel temperature TN ~307 K, but it is remarkable as it shows an intriguing linear magnetoelectric effect that has attracted some research attention in relation to spintronic applications. Although the existence of HP polymorphs of Cr2O3 have not yet been well-established [214,215], it is clear that HP affects the magnetic properties of this compound. For instance, as recently shown by Kota et al., hydrostatic pressure may increase the TN of corundum-type Cr2O3, which could provide an enhancement of the magnetoelectric operating temperature in compressed samples [215]. However, there is an ongoing controversy in the literature in relation to the sign of dTN/dP (see reference [215] and references therein). With regard to its crystal structure at HP, no PT was found either by Finger and Hazen up to 5 GPa [206], or by Kantor et al. up to ~70 GPa [216]. In contrast, Shim et al. observed several changes around 15–30 GPa on pure synthetic Cr2O3 under cold compression that were compatible with a PT to a monoclinic V2O3-type (I2/a) structure [217]. According to these authors, a second PT could occur above 30 GPa at HT. The new HP-HT phase might be explained by either orthorhombic, Pv, or Rh2O3-II-type structures. In fact, the orthorhombic Rh2O3-II-type phase had been previously predicted to exist at ~15 GPa by first-principles calculations [218]. However, the recent results by Golosova et al. up to 35 GPa, also on synthetic Cr2O3, seem to rule out both PTs [219]. While these authors report a somewhat lower (1/TN)(dTN/dP) value in relation to reference [215] (0.0091 GPa−1 vs. 0.016 GPa−1), their structural data point towards a slight anisotropy in the pressure behavior of the c/a axis at around 20 GPa, which could be of magnetic origin. Additional work is thus required to fully understand the HP behavior of chromia.
In the case of Ti2O3, which can be found in nature as the rare tistarite mineral, HP-XRD studies were first conducted by McWhan and Remeika [200] with the aim of comparing the results obtained for this compound with those of V2O3. Later on, Nishio-Hamane et al. reported a PT from corundum-type Ti2O3 to an orthorhombic Th2S3-type (s.g. Pnma) structure above 19 GPa and 1850 K, being the new polymorph metastably recovered at room conditions [220]. The same structure had been previously predicted at ultra HP for the case of Al2O3 [221]; hence, the synthesis of the Th2S3-type polymorph in Ti2O3 has been a remarkable finding, shedding new light on the fundamental properties of the TM-SOs family. In Ti2O3, the Th2S3-type structure was found to be ~10% denser than the corundum-type phase. Subsequently, Ovsyannikov et al. [222] synthesized polycrystalline Ti2O3 samples with Th2S3-type structure with the aim of studying its structural stability up to 73 GPa and 2200 K. The HP behavior of the structural, optical and electronic properties of this unusual, golden-colored polymorph of Ti2O3 were later thoroughly investigated [223,224], together with the T-P phase diagram of Ti2O3 [224].
With regard to 4d-SOs, there are a few reports on the existence of such compounds at room conditions, the most relevant of which is Rh2O3. Two low-pressure polymorphs of this material are known, namely Rh2O3-I and Rh2O3-III. While the stable phase at room conditions, Rh2O3-I, adopts a corundum-type structure, the Rh2O3-III polymorph crystallizes in an orthorhombic Pbca structure and is only stable at RP and HT (>750 °C) [225]. In addition, an HP phase, known as Rh2O3-II, was synthesized by Shannon and Prewitt at 6.5 GPa and 1200 °C [226]. This phase was found to adopt an orthorhombic Pbna structure, similar to that of corundum as it contains RhO6 octahedra that share their faces. In Rh2O3-II, however, only two edges of each octahedra are shared with other octahedra. In spite of the use of HP to synthesize Rh2O3-II, only a limited number of HP studies on this phase can be found in the literature. Zhuo and Sohlberg investigated theoretically the stability of this phase in comparison to Rh2O3-I and Rh2O3-III, which allowed them to predict the phase diagram of Rh2O3 [227]. According to their results, Rh2O3-II is stable below ~5 GPa and HT (>700 K), while the Rh2O3-III form is the main phase above 5 GPa, regardless of temperature. Unfortunately, no experimental HP studies dealing with the structural properties of any of the Rh2O3 phases have been published so far. Experimental work on this material, and, in particular, on the Rh2O3-III polymorph, due to its connection to the HP phases of other SOs, as described above, is still necessary.
Possible stable forms of other 4d-SOs, like Mo2O3 and W2O3, have been reported in relation to the growth of thin films or coatings (see bibliography in reference [228]). Recent DFT calculations predict that corundum-type Mo2O3 might be stabilized at 15 GPa, while a much higher pressure (60 GPa) is obtained by these authors for W2O3 [228]. Similar conclusions have been reached by other authors in relation to Hf2O3 and Zr2O3 using crystal prediction methods [157,229]. These two SOs might be metastable at HP. So far, however, there is no experimental evidence for the existence and stability of these SOs at HP. Much experimental and theoretical effort is still required to understand the stability and behavior of these two SOs upon compression, which could lead to the discovery of new HP phases with remarkable properties.
To finish this section, we summarize in Table 3 the phase transition pressures and HP phases observed in the best studied TM-SOs.

2.4. Group-15 Sesquioxides

Group-15-SOs are relevant in a multitude of technological [230,231,232] and medical [233,234,235] applications, but the main interest in the study of the properties of these compounds resides in the physical–chemical interactions of their chemical bonds. The progressive increase in the strength of the stereoactive cationic lone electron pair (LEP) going up along the group 15 column, i.e., as the cation becomes lighter, dominates the formation and compressibility of the resulting crystallographic structures. In other words, the influence of the cation LEP determines the different existing polymorphs of group-15-SOs and it is possible to observe several trendlines of their behavior at HP. According to the literature, the group-15-SO polymorphs can be obtained from a defective fluorite structure where oxygen vacancy arrays are applied along different crystallographic directions [236,237]. These arrays define most of the polymorphs found at room conditions in these SOs. Nevertheless, the crystalline phases formed are quite different from the rest of SOs, mainly due to the above-mentioned influence of the LEP.
Structural phases belonging to the cubic family are observed in group-15-SOs since the most usual structures of arsenic and antimony SO crystallizes in the s.g. Fd 3 ¯ m. They are obtained by applying an array model along the (111) direction to a defective fluorite structure. They have been experimentally found in c-As2O3 (whose mineral form is called arsenolite) and α-Sb2O3 (whose mineral form is called senarmontite). These SOs are also noted as As4O6 and Sb4O6, respectively, because this notation reflects the molecular arrangement of these two molecular or zero-dimensional solids. The molecular units X4O6 (X= As, Sb) are disposed in a closed-compact adamantane-type molecular cages, joined together by van der Waals (vdW), and chalcogen bonding among the closest arsenics belonging to different molecular units. In this case, the cations belonging to the same molecular unit form pseudo-tetrahedral units following the same disposition as their counterpart, the white phosphorus (P4). The molecular cages are stabilized by the cationic LEP oriented towards the outside of the cage, which confers great stability to the molecular unit. The HP behavior of both Sb4O6 and As4O6 dimorphs is quite different. They undergo different PTs [238,239,240,241,242], and both compounds show a pressure-induced amorphization driven by mechanical instability [238,239,240]. The origin of this instability is associated with the steric repulsion caused by the increase in the interaction between different molecular units when pressure increases [238]. It has been shown in a HP study using different pressure-transmitting media that the instability is enhanced by the loss of the hydrostatic conditions [241]. However, up to 15 GPa, both compounds behave differently. Whereas two 2nd-order isostructural PTs were observed in Sb4O6 at 3.5 and 12 GPa, respectively [242], no pressure-induced PT was reported in As4O6 [239,240]. The PTs exhibited by Sb4O6 at 3.5 and 12 GPa were suggested to be due to the loss of its molecular character and related to changes in the hybridization of Sb 5s and O 2p electrons, i.e., they are related to the decrease in LEP stereoactivity at HP [242].
At 15 GPa, Sb4O6 tends to form a new HP structure that can be defined by a distortion of the structural lattice due to the loss of the molecular character [238]. This HP phase crystallizes in a tetragonal structure (s.g. P 4 ¯ 21c) similar to that of β-Bi2O3 [243] that will be described later. At HP (9-11 GPa) and HT (573–773 K), cubic Sb4O6 undergoes a 1st-order PT towards a new polymorph called γ-Sb2O3 [244]. This new phase crystallizes in an orthorhombic structure s.g. P212121, where the trigonal pyramid form given by the coordination of the Sb atom surrounded by O atoms in the cubic phase is changed by a tetrahedral unit in the orthorhombic phase, where the LEP acts as a pseudo-ligand. The tetrahedral units are arranged, forming chains or rods along the a-axis that show strong similarities with the β-Sb2O3 polymorph (s.g. Pccn), whose ( Sb 2 O 3 ) rods are aligned along the c-axis. Due to its rod-like structure, orthorhombic β-Sb2O3 is a quasi-molecular or acicular solid with two independent rods in the unit cell. In this structure, each Sb atom is bonded to three oxygen atoms, with their LEP oriented towards the void formed by the rod arrangement. Thus, this SO can be described by rods and linear voids oriented along the c-axis, being isostructural to the ε-Bi2O3 phase [245]. No HP study of ε-Bi2O3 is known so far.
HP studies of β-Sb2O3 revealed a 1st-order PT around 15 GPa [246,247]. Nevertheless, the nature of its HP phase is still under debate. Zou et al. tentatively assigned it to a monoclinic structure with s.g. P21/c. β-Sb2O3 also shows strong similarities with the tetragonal phase of bismuth SO (named β-Bi2O3), which crystallizes in s.g. P 4 ¯ 21c [243]. In fact, β-Bi2O3 is a metastable polymorph obtained by heating the most stable phase of the bismuth SO (α-Bi2O3) to 650 °C [248]. This material can be considered a defective fluorite structure, where an (100) array of vacants is applied [236]. This polymorph contains a linear channel, as well as β-Sb2O3, with the cation LEP oriented towards the center of this empty channel. β-Bi2O3 is very interesting from a physical–chemical point of view because it is a clear example of an isostructural 2nd-order PT. This structure is characterized by a Bi atom located at an 8e Wyckoff site and two O atoms located at 8e and 4d Wyckoff sites, with the Bi atom coordinated to six O atoms, forming a distorted pyramid. Above 2 GPa, several Wyckoff coordinates of β-Bi2O3 symmetrize, remaining fixed up to 12 GPa [243]. Thus, the six different Bi-O interatomic distances observed at RP in the polyhedral unit only become three different Bi-O bond lengths, thus reducing the eccentricity of the Bi atom drastically, up to 2 GPa. This PT is even more explicit when analyzing the compressibility of the unit cell volume below and above 2 GPa. Finally, a progressive broadening of the peaks leads to a pressure-induced amorphization above 12 GPa that is completed at 20 GPa [243].
α-Bi2O3 crystallizes in a monoclinic s.g. P21/c structure, where Bi atoms are located in two inequivalent crystallographic 4e sites and O atoms are located in three inequivalent 4e Wyckoff positions. One of the Bi atoms is penta-coordinated and the other is hexa-coordinated. This polymorph remains in the same structure up to 20 GPa, where a pressure-induced amorphization occurs [249]. The amorphization was explained by a frustrated PT towards the HPC-Bi2O3 polymorph, since the HPC-phase is thermodynamically more stable than the α-phase above 6 GPa, according to DFT calculations. This ongoing PT is likely inhibited by the kinetic barriers between both phases. The correlation between the amorphous phase and the HPC polymorph was revealed, thanks to the analysis of the diffraction pattern as a function of the interionic distances, using the process described in reference [250]. Results indicated average interatomic Bi-O distances closer to those of the HPC-Bi2O3 than to any other polymorph. HPC-Bi2O3 crystallizes in the hexagonal s.g. P63mc structure, and it is the HP phase of the HP-Bi2O3 phase, above 2 GPa [251]. In turn, HP-Bi2O3 with s.g. P31c was obtained from α-Bi2O3 at HP and HT (6 GPa and 880 °C) [252]. The strong polymorphism exhibited by Bi2O3 does not require the application of HP. It must be noted that α-Bi2O3 at HT (above 400 °C) shows a PT to R-Bi2O3 (s.g. P21/c) [252], which, despite belonging to the same s.g. as α-Bi2O3, has a completely different structure. No HP study of R-Bi2O3 is known.
In the same s.g. P21/n, related to the α- and R-Bi2O3 phases, one can find two additional As2O3 polymorphs, whose names are claudetite-I [253] and claudetite-II [254]. The naturally stable phase, claudetite-I, has been only characterized by HP-RS measurements to our knowledge, revealing a possible PT between 7–13 GPa and a lack of pressure-induced amorphization up to 40 GPa [255]. Claudetite-II is a synthesized quasi-layered material, similar to As4O6, where the molecular unit is an open shell forming AsO3E pseudo-tetrahedra (where E denotes the cation LEP) [256]. In this case, the LEPs of neighboring cations are oriented towards opposite neighboring layers. This particular structure shows several pressure-induced 2nd-order PTs around 2 and 6 GPa [257], given by two abrupt breakdowns of inversion centers that lead to doubling and hexaplicating the original unit cell, respectively. Additionally, a PT around 10.5 GPa leads to the non-centrosymmetric HP phase β-As2O3 (s.g. P21).
Another group-15-SO crystallizing in the monoclinic s.g. P21/n structure is the phosphorous SO (P2O3), which keeps the molecular character of cubic arsenic and antimony SOs, i.e., P4O6 [258]. Nevertheless, the symmetric distribution of the different P4O6 molecular cages is distorted in the case of monoclinic P2O3. The HP study of P2O3 exhibits strong difficulties, since it is only stable at low-temperatures, below RT. Thus, the HP behavior of this compound is still unknown.
To finish, we summarize in Table 4 the 1st- and 2nd-order PTs observed in group-15-SOs.

2.5. Mixed-Valence Sesquioxides

As mentioned in the introduction, there are A2O3 compounds where the A has two different valences, which constitute the subfamily MV-SOs. MV-SOs are highly interesting because they feature cations with different valences and consequently can be differently coordinated, thus resulting in a distortion in the structures of normal SOs. Examples of this kind of SOs are Sn2O3 and Pb2O3, where Sn and Pb cations show both 2+ and 4+ valences. While Pb2O3 has been known for almost a century [259] and crystallizes in the monoclinic s.g. P21/a [260], Sn2O3 has just recently been predicted [261] and experimentally found to crystallize in the triclinic s.g. P 1 ¯ [262,263]. No HP studies on these two interesting but complex compounds have been reported to our knowledge.

3. Conclusions and Future Prospects

A great deal of work has been done on sesquioxides under compression and many pressure-induced phase transitions have been elucidated. In particular, the pressure-induced phase transitions of rare-earth sesquioxides and group-13 sesquioxides are quite well known, except for Tl2O3. The knowledge of pressure-induced phase transitions in transition-metal sesquioxides are not so well known, and those of group-15 sesquioxides have been recently studied, but still require more work. Finally, pressure-induced phase transitions in mixed-valence sesquioxides are completely unknown. It must be stressed that most of the high-pressure work done on sesquioxides corresponds to cubic, tetragonal, hexagonal, rhombohedral, and orthorhombic phases, while most of the high-pressure work still to be done on sesquioxides corresponds to complex monoclinic and triclinic phases. The study of these complex phases was rather difficult in the past, and is a challenge that must be accomplished in the 21st century with current and future experimental and theoretical techniques.
It must be noticed that the crystalline structures of the different subfamilies of sesquioxides and their pressure-induced phase transitions have some features in common. The archetypic structure of rare-earth sesquioxides is the C-type structure, which is isostructural to the bixbyite structure of several transition metal sesquioxides (Mn2O3) and group-13 sesquioxides (In2O3 and Tl2O3). On the other hand, the archetypic structure of group-13 and transition-metal sesquioxides is the corundum structure (Al2O3). In this context, it is remarkable that the pressure-induced transitions of C-type rare-earth sesquioxides, including Sc2O3 and Y2O3, are markedly different to those of C-type group-13 and transition-metal sesquioxides. In fact, these last compounds seem to have pressure-induced transitions that are closer to those of corundum-type structures of group-13 and transition-metal sesquioxides. On the other hand, the crystalline structures and pressure-induced phase transitions of group-15 sesquioxides are completely different to those of other sesquioxides, due to the stereochemically active lone electron pair of group-15 cations, which lead to more open-framework structures than those present in other subfamilies. Consequently, we can speculate that a similar behavior is expected to be observed in future experiments of mixed-valence sesquioxides under compression, since this subfamily is also characterized by having some cations with lone electron pairs.
Finally, it should be mentioned that we are not aware of studies of negative pressures in sesquioxides. In principle, it is possible to reach absolute negative pressures (of the order of a few GPa) [264] where novel structures might appear [265]. In fact, negative pressures have been found in several solids, such CaWO4 nanocrystals [266] and ice polymorphs [267]. Therefore, the application of negative pressures to materials is a route that can also be explored in sesquioxides, since it would lead to the expansion of the crystalline lattice, leading to the possible instability of the stable phase at room conditions in certain compounds, thus opening a new avenue to obtain novel and exotic metastable phases.

Author Contributions

F.J.M. contributed to the conceptualization and writing of the introduction, Section 2.1 and Section 2.5 and conclusions; A.L.J.P. contributed to the writing of Section 2.2; J.I. contributed to the writing of Section 2.3 and J.A.S.T. contributed to the writing of Section 2.4 and the revision of the manuscript.


This research was funded by Spanish Ministerio de Ciencia, Innovación y Universidades under grants MAT2016-75586-C4-1/2/3-P, FIS2017-83295-P, PGC2018-094417-B-100, and RED2018-102612-T (MALTA-Consolider-Team network) and by Generalitat Valenciana under grant PROMETEO/2018/123 (EFIMAT). J. A. S. also acknowledges Ramón y Cajal Fellowship for financial support (RYC-2015-17482).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
