Crystal Structure, Raman Spectroscopy and Dielectric Properties of New Semiorganic Crystals Based on 2-Methylbenzimidazole

Abstract

New single crystals, based on 2-methylbenzimidazole (MBI), of MBI-phosphite (C₁₆H₂₄N₄O₇P₂), MBI-phosphate-1 (C₁₆H₂₄N₄O₉P₂), and MBI-phosphate-2 (C₈H₁₆N₂O₉P₂) were obtained by slow evaporation method from a mixture of alcohol solution of MBI crystals and water solution of phosphorous or phosphoric acids. Crystal structures and chemical compositions were determined by single crystal X-ray diffraction (XRD) analysis and confirmed by XRD of powders and elemental analysis. Raman spectroscopy of new crystals evidences the presence in crystals of MBI-, H₃PO₃-, or H₃PO₄- and water molecules. Dielectric properties of crystals reveal strong increase and low frequency dispersion of dielectric constant and losses at heating, indicating the appearance of proton conductivity. At low temperatures in MBI-phosphate-2, an increase of dielectric constant analogous to quantum paraelectric state is observed.

1. Introduction

The search for and study of new organic and semiorganic materials possessing ferroelectric, ferroelastic, antiferroelectric, or piezoelectric properties is at present a subject of intensive research [1,2,3]. The interest in such substances is caused, in particular, by the need to obtain ecological, flexible, and low-cost functional materials for electronics, sensors for different fields, piezoelements, nonlinear optical devices [4,5], membranes for fuel cells for hydrogen energetics [6], biomedical and biotechnological devises, [7] etс.

The mechanisms responsible for the appearance of spontaneous polarization, piezoelectricity, and phase transformations in organic and semiorganic materials are also of fundamental interest. This is caused by specific features of organic molecules possessing an effect of tautomerism [8], and specific crystal structure, which often contains the chains of hydrogen bonds giving rise to polarization due to freezing of protons, or permits manifestation of charge transfer-induced polarization [9]. It is worth noting that organic and semiorganic crystals reveal a wide spectrum of phases including ferroelectric, antiferroelectric, ferroelastic phase [1,10,11,12,13], and quantum paraelectric states [14,15,16].

The last time, a number of organic and semiorganic ferroelectrics (croconic acid [12], diisopropylammonium iodide [17], etc.) were discovered, which revealed a high value of spontaneous polarization P_S up to ~ 20–30 µC/cm² at room temperature, comparable with that in PbZr_xTi_1−xO₃ (PZT), Pb_1-yLa_yZr_1−xTi_xO₃ (PLZT). Organic single component ferroelectric 2-methylbenzimidazole (MBI), which crystalizes in a pseudo-tetragonal structure, has a smaller value of the spontaneous polarization Ps ~ 5 µC/cm² [18]. Nevertheless, in this crystal the polarization components may appear in two orthogonal directions along chains of hydrogen bonds between nitrogen ions, and the coercive field is relatively small E_c ~ 2 kV/cm, which makes this substance attractable for applications.

Recently, [19] new crystals based on a combination of MBI or imidazole with organic molecules (bridged bis(benzimidazole)s) have been grown and studied for getting thermally robust and highly polarizable dielectric substances due to multistability of their polar supramolecular architectures. Some of these crystals have noncentrosymmetric structure, and reveal increased thermostability and antiferroelectric double hysteresis loops.

It is well known that crystals formed by a combination of organic and inorganic acids may possess ferroelectricity. An example of this is a family of amino-acid ferroelectrics which are compositions of amino-acids (glycine, betaine, sarcosine, etс.) and inorganic (phosphorous, phosphoric, etc.) acids or salts [11,20,21]. Ferroelectric or antiferroelectric properties of such substances (betaine phosphate, betaine phosphite, betaine arsenate, glycine phosphite, etc.) are related mainly to freezing of protons in hydrogen bonds forming the zig-zag chains [11]. The value of polarization is about 3 µC/cm² and Curie temperature may be above room temperature in deuterated crystals [22,23].

Because the cyclic molecules, such as imidazole or amino acid molecules, containing the imidazole ring (for example, histidine), can form with inorganic acids the crystals with noncentrosymmetric structure [24,25], it looks interesting to see which new crystals can be synthesized using a combination of organic MBI and inorganic acids, and also study their structural and dielectric properties. In this paper we present the results of a study of three new crystals grown from a solution of 2-methylbenzimidazole and phosphorous H₃PO₃ or phosphoric H₃PO₄ acids. X-ray diffraction (XRD) studies of crystal structures are confirmed by analysis of Raman spectra of new crystals. Dielectric measurements are also presented.

2. Materials and Methods

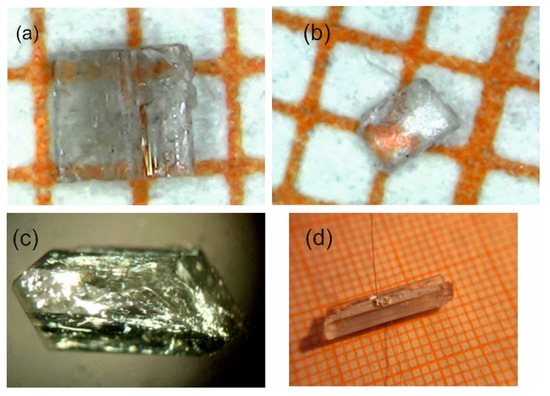

The crystals of MBI-phosphite (C₁₆H₂₄N₄O₇P₂) were grown by slow evaporation method from a mixture of alcohol solution of MBI single crystals and water solution of phosphorous acid. The molar proportion of MBI and H₃PO₃ components in the mixture was 1:1. The crystals were recrystallized several times from a solution in deionized water.

Chemical formula of MBI-phosphate-1 (C₁₆H₂₄N₄O₉P₂) and MBI-phosphate-2 (C₈H₁₆N₂O₉P₂) crystals is characterized by 1:1 and 1:2 molar proportions of MBI and H₃PO₄ components, correspondingly. These crystals were grown by slow evaporation method from a mixture of saturated alcohol solution of MBI single crystals and 75% water solution of phosphoric acid. The molar proportion of the MBI and the acid in the mixture was 1:1 and 1:2. MBI crystals used in these processes were obtained by recrystallization of commercial MBI powder in alcohol solution with adding the activated carbon. Figure 1 shows the photos of synthesized crystals. Images obtained in a polarizing microscope indicate that the crystals are homogeneous without blocks and intergrowths.

For a single crystal XRD experiment, suitable crystals were fixed on a micro mount and placed on a Bruker Kappa APEX DUO diffractometer (Bruker AXS, Madison, WI, USA) and were measured at a room temperature using monochromated Mo-Kα radiation. The structures were solved by the direct methods by means of the SHELX program [26] incorporated in the OLEX2 program package [27]. The intensity data were reduced and corrected for Lorentz, polarization, and background effects using the Bruker software APEX2 (Version 2014.11-0, Bruker-AXS, Madison, WI, USA) [28]. A semiempirical absorption-correction based upon the intensities of equivalent reflections was applied using SADABS (Version 2007, Bruker-AXS, Madison, WI, USA) [29]. The crystallographic data and some parameters of refinement are placed in the

Table 1. Details of crystal data and structure refinement of single crystals.

	MBI-Phosphite	MBI-Phosphate-1	MBI-Phosphate-2
Chemical Formula	C16H24N4O7P2	C16H24N4O9P2	C8H16N2O9P2
Temperature, K	293	293	296
Formula Weight	446.33	478.33	345.16
Crystal System	Monoclinic	Triclinic	Triclinic
Space Group	P21/c (N 14)	P$\overline{1}$(N 2)	P$\overline{1}$ (N 2)
a, Å	17.1966(6)	9.574(9)	6.8476(3)
b, Å	17.7098(7)	9.779(9)	10.1778(4)
c, Å	6.9992(4)	11.796(10)	11.0834(5)
α, °	90	88.294(18)	87.953(1)
β, °	94.963(4)	78.07(2)	85.546(1)
γ, °	90	87.646(19)	74.760(1)
V, Å3	2123.60(17)	1079.3(17)	742.93(6)
Z	4	2	2
Dcalc, g cm−3	1.396	1.472	1.548
F(000)	936.0	500.0	358.0
μ, mm−1	0.250	0.258	0.337
Crystal Size, mm3	0.22 × 0.18 × 0.12	0.25 × 0.14 × 0.10	0.22 × 0.16 × 0.11
Radiation	Mo-Kα (λ = 0.71073 Å)	Mo-Kα (λ = 0.71073 Å)	Mo-Kα (λ = 0.71073 Å)
2θ Range for Data Collection	4.600 to 54.998°	3.530 to 51.992°	3.686 to 73.350 °
Miller Indices	−22 ≤ h ≤ 22, −23 ≤ k ≤ 22, −9 ≤ l ≤ 8	−11 ≤ h ≤ 11, −12 ≤ k ≤ 12, −14 ≤ l ≤ 14	−5 ≤ h ≤ 11, −17 ≤ k ≤ 17, −18 ≤ l ≤ 18
Reflections Collected	26288	15284	20949
Independent Reflections	4857 [Rint = 0.0644, Rsigma = 0.0554]	4131[Rint = 0.0545, Rsigma = 0.0495]	6792[Rint = 0.0223, Rsigma = 0.0231]
Data/restraints/Parameters	4857/4/288	4131/6/306	6792/7/219
GoF	1.035	1.025	1.034
Final R Factors [I ≥2σ (I)]	R1 = 0.0605, wR2 = 0.1426	R1 = 0.0461, wR2 = 0.1149	R1 = 0.0358, wR2 = 0.1059
Final R Factors [All Data]	R1 = 0.1174, wR2 = 0.1701	R1 = 0.0609, wR2 = 0.1250	R1 = 0.0462, wR2 = 0.1138
Largest Diff. Peak/Hole, eÅ−3	0.29/−0.27	0.45/−0.41	0.37/−0.51

. The carbon and nitrogen-bound H atoms were placed in calculated positions and included in the refinement in the ‘riding’ model approximation, with U_iso(H) set to 1.2U_eq(C) and C–H 0.93 Å for the CH groups, with U_iso(H) set to 1.5U_eq(C) and C–H 0.96 Å for the CH₃ groups, and with U_iso(H) set to 1.2U_eq(N) and N–H 0.86 Å for the NH groups. All H atoms bonded to O atoms were located in the difference Fourier map and refined in an isotropic approximation and were fixed using DFIX instruction. The H atoms of HPO₃ groups were localized from difference Fourier maps as well. Crystal structures were drawn by means of program VESTA [30].

MBI-phosphite and MBI-phosphate-1 were investigated by means of powder XRD as well. XRD measurement of MBI-phosphite powder was carried out on the powder X-ray diffractometer D2 PHASER (Bruker AXS, Germany) in the vertical Bragg-Brentano geometry. Cu-Kα radiation (λ = 1.540598 Å) monochromatized by Ni filter was used. The XRD powder patterns were measured using the position-sensitive semiconductor linear X-ray detector LYNXEYE.

Due to a small amount of the material necessary for investigations by other techniques, MBI-phosphate-1 was not milled and was utilized for XRD powder measurements as is. The powder of MBI-phosphite was thoroughly ground in a corundum mortar to reduce the possible effects of the preferred orientation of the crystallites. The MBI-phosphite powder without milling was measured for comparison as well.

The prepared powder was poured onto the glass substrate without the use of any fluids to avoid dissolution. To reduce the effects of the preferred orientation of the crystallites during the measurements, the powder sample was rotated around the goniometer axis perpendicular to the substrate. The correction shifts (Δ2θ_zero) of the XRD patterns were applied utilizing the results of the additional measurements of the sample powders in the mixture with certified standard silicon powder Si640d (NIST, USA). All measurements were performed at room temperature.

The model XRD patterns were simulated and fitted to the experimental ones by means of the Rietveld program TOPAS [31]. For the reflection profile fitting, a modified Thompson-Cox-Hastings pseudo-Voigt (TCHZ) model [32,33] was used. For description of the emission spectrum of the Cu-Kα radiation, the Berger model of the five spectral lines [34] was utilized.

As primary data for Rietveld refinement [35] of the structure, the atomic coordinates determined in corresponding single crystal investigations (Tables S1, S11 of Supplementary Materials (SM)) were used. Conventional weight scheme w_i = 1/I_i (I_i is the intensity value at diffraction angle 2θ_i of the i-th step of the XRD pattern) was utilized for the refinement. The start values of unit cell parameters for the Rietveld refinement were obtained by means of Le Bail whole powder pattern fitting [36] the simulated XRD pattern to the experimental one. During the refinement, the overall isotropic temperature factors U_iso^overall were refined for every sort of atom. The XRD patterns, especially in the case of MBI-phosphate-1, which was not milled, were influenced by the effect of preferred orientation of crystallites, resulting in enhanced intensities of some reflections and decreased intensities of others. The main contribution of the preferred orientation effect was corrected in frames of the March–Dollase approach [33,37] using two directions of the preferred orientation ([101] and [102] for MBI-phosphate-1 and [110] and [100] for MBI-phosphite) as it is implemented in TOPAS. The remaining contribution of other directions of preferred orientation was corrected using a model of spherical harmonics of eighth order [38]. Strong influence of the preferred orientation on the XRD pattern of MBI-phosphate-1 resulted in difficulties in obtaining the reliable interatomic distances after refinement of the atomic coordinates. Therefore, the atomic coordinates of the MBI-phosphate-1 determined by means of single crystal investigation were not refined from the XRD powder data. Grinding of the powder in the case of MBI-phosphite greatly reduced the effect of the preferential orientation. In the subsequent stages, the coordinates of nonhydrogen atoms were refined, following the reliability of interatomic distances. The coordinates of the hydrogen atoms were recalculated from those determined on the single crystal investigation, taking into account the refined parameters of the unit cell. At the final stage, they were refined by imposing restrictions on the values of the M-H distances in the nearest coordination sphere of the M atoms (M = P, O, N, C), assuming that these distances cannot deviate from the average values obtained from single crystal data by more than 0.1 Å. Further details [39,40] of the experiment and refinement procedure are thoroughly described in SM.

The elemental composition of the crystals was analyzed by energy dispersive X-ray spectroscopy (EDX) using electron microprobe analysis exploring an EVA-40 microscope (Carl Zeiss Jena) and INCA (Oxford Instruments), an energy dispersive detector. The energy of the electron beam was 12 keV. The energy resolution of the detector was 200 eV, and it can identify elements from Be to Pu.

Raman spectroscopy measurements were carried out on both powders and single crystals. Raman spectra of MBI, MBI-phosphate-1, and MBI-phosphate-2 single crystals were obtained in the spectral region 80–3300 cm⁻¹ by means of Alpha 300R confocal microscope (Witec, Germany) in geometry of backscattering with the use of a laser diode operating at λ = 532 nm. Incident light was linearly polarized along or perpendicular to the longest of the edges of the crystal. No polarizer was there on the way of scattered light.

Polarized Raman spectra of the MBI-phosphite on both powders and single crystals were measured with use of T64000 Advanced Research Raman System (Horiba Jobin–Yvon, France). Measurements were carried out in the spectral interval 5–4000 cm⁻¹ in backscattering for different experimental geometries -Z(XX)Z, -Z(YY)Z, and -Z(XY)Z, where Z-axis is oriented normally to the crystal surface (100), and X and Y are along с*- and b-crystal axes, respectively.

Measurements of capacity and dielectric losses were performed in the frequency range 25–10⁶ Hz and temperature interval 8–380 K with LCR meter E4980A (Agilent Technologies, USA), LCR-meters MIT 9216A (Protek, USA), and Е7-20 (MNIPI, Belarus), using the LabView software package (Version 2011, NIST, USA). Silver glue was used for preparing the electrodes on the natural faces of the crystals. Temperature dependence of conductivity was calculated from dielectric data.

3. Results and Discussion

3.1. Single Crystal XRD

Crystal data and structure refinement details of obtained crystals are summarized in Table 1. Crystallographic information files (CIFs) were deposited at Cambridge Crystallographic Data Centre (1949405–1949407) and can be obtained free of charge via www.ccdc.cam.ac.uk/data_request/cif. Coordinates of atoms and their equivalent isotropic/isotropic temperature factors U_eq/U_iso, atomic displacemence parameters, bond lengths, bond angles, and geometry of hydrogen bonds according to the results of the single crystal refinements are presented in Tables S1–S15 of the SM. (See Supplementary Materials)

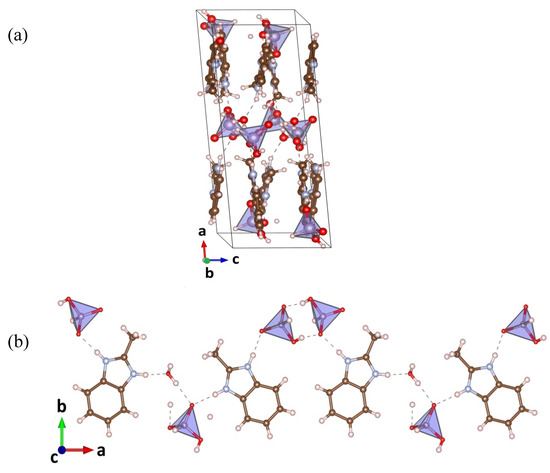

The MBI-phosphite crystal belongs to monoclinic symmetry (space group P2₁/c). The unit cell contains four formula units of (C₈H₉N₂)₂*(PO₃H₂)₂*H₂O and includes eight MBI molecules, eight molecules of phosphorous acid, and four molecules of water. In MBI crystal, the MBI molecule C₈H₈N₂ includes eight hydrogen atoms. However, benzimidazoles are known to be amphoteric, and when interacting with a strong acid, a chemical reaction of protonation occurs: In MBI-phosphite crystal, the MBI molecule attaches a hydrogen ion and turns into a cation C₈H₉N₂ (MBI + H)⁺ (see Figure 2). Cation (MBI + H)⁺ formation is confirmed also by XRD analysis in MBI-phosphate-1 and MBI-phosphate-2. The acid molecule H₃PO₃ or H₃PO₄ loses a hydrogen atom and becomes an anion H₂PO₃⁻ or H₂PO₄⁻. Proton forms a valence bond with one of the nitrogen atoms of the imidazole ring [41].

In the unit cell of the MBI-phosphite crystal, half of the (MBI + H) + cations lies almost in the ab plane, and the other at an angle of ~15° to this plane (Figure 3a). The crystal structure consists of goffered layers in the ab plane. There are 24 non-equivalent positions of hydrogen atom, 8 of them fall on hydrogen bonds. So, there are 8 different N…H - O or O…H - O hydrogen bonds (lengths 2.6–2.9 Å) forming a complicated three-dimensional net. Cations (MBI + H)⁺ connected by the HPO₃²⁻ tetrahedrons and the water molecules form zig-zag chains along the a-axis (Figure 3b). Protons H⁺ in two hydrogen bonds connecting two HPO₃²⁻ tetrahedra are placed near the different tetrahedrons. Protons in the hydrogen bonds between the imidazole ring and the tetrahedron are placed near the imidazole ring. There are also the hydrogen bonds between the water molecules and the tetrahedrons formed by protons of the water molecules. In such bonds, proton is placed near the water. The same arrangement of the protons in the hydrogen bonds is observed in MBI-phosphate-1 and MBI-phosphate-2. In contrast to MBI crystal in new crystals the N…H - N hydrogen bonds between the MBI molecules are absent.

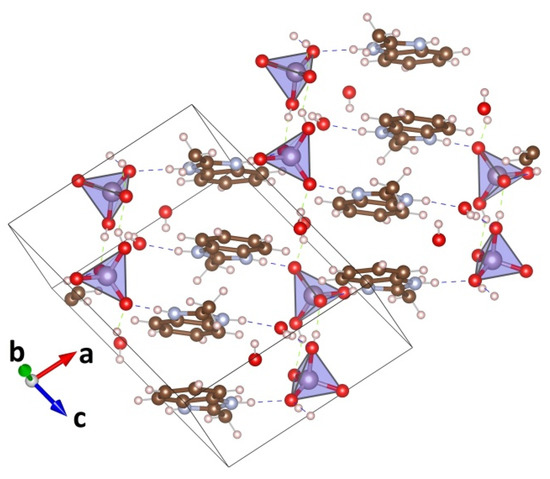

The MBI-phosphate-1 crystal belongs to triclinic symmetry (space group P$\overline{1}$). The unit cell contains two formula units of (C₈H₉N₂)₂*(PO₄H₂)₂*H₂O and includes four MBI molecules, four molecules of phosphoric acid, and two molecules of water. Analogously to MBI-phosphite, in the MBI-phosphate-1 for each MBI molecule there is one molecule of acid. There are 10 non-equivalent N…H-O or O…H-O hydrogen bonds (lengths 2.5–2.8 Å) in crystal structure. Cations (MBI + H)⁺ form goffered layers parallel to the (10$\overline{1}$) plane (Figure 4). In one layer there are two non-equivalent positions for the cations. In these positions the directions, along which the MBI cations are elongated, are close to the b-axis but differ by angle ~31°. In adjacent layers the MBI cations are rotated at 180° around an axis perpendicular to their plane. Thus, the situation is different from the MBI crystal [18] where the molecules in the same layer are rotated 180°, and the molecules in the neighboring layers are rotated 90° relative to each other. The hydrogen bonds in MBI-phosphate-1 crystal form a two-dimensional (2D) network in a layer. There are also interlayer hydrogen bonds connecting the phosphorous tetrahedra. They form broken chains. The hydrogen bonds of the chain link connect only four layers.

The MBI-phosphate-2 crystal, like MBI-phosphate-1, belongs to triclinic symmetry (space group P$\overline{1}$). The unit cell contains two formula units of (C₈H₉N₂)*(PO₄H₂)*(PO₄H₃)*H₂O and includes two MBI molecules, four molecules of phosphoric acid, and two molecules of water. In contrast to MBI-phosphite and MBI-phosphate-1, in MBI-phosphate-2 for each MBI molecule there are two molecules of acid, and only one of them is deprotonated. There are layers, perpendicular to the b-axis, formed by the phosphoric acid and the water molecules (see Figure 5a,b). These inorganic layers are connected through the molecules of 2-methylbenzimidazole with the hydrogen bonds N…H - O, directed along the [011] and [010] axes (see Figure 5c).

A comparison of the lengths and the angles between bonds of the MBI molecule in MBI crystal [42], and in the crystals studied in this work (Table S17 in SM) showed that the protonation led to noticeable changes of the imidazole ring. In particular, in the new crystals, the bond lengths of N (1) - C(2) and C(2) - N(2) bonds of the imidazole ring were ~1% shorter than in the MBI crystals. The angle in the imidazole ring, whose apex is the nitrogen atom, increased from 106° in the MBI crystal to 109°, and the angle N-C-N decreased from 113° to 109° (see Table S17 in SM). Note that similar changes caused by protonation were observed in organometallic complexes [43]. This provides additional confirmation of proton transfer from the acid tetrahedron to the MBI molecule in the new crystals.

3.2. Powder XRD

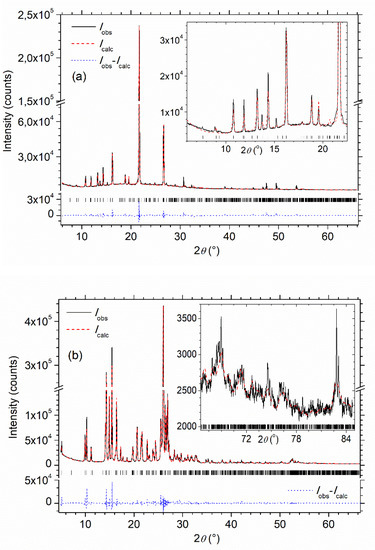

The sufficiently good Rietveld fit quality is illustrated in Figure 6 for MBI-phosphate-1 and MBI-phosphite. The coordinates and overall isotropic temperature factors of atoms of MBI-phosphite refined by Rietveld method from powder data and the selected calculated interatomic distances are given in Tables S11 and S13 of SM. Reached values of agreement factors are summarized in Table S16 of SM.

For the powder XRD measurements and the single crystal XRD investigation of the MBI-phosphate-1, even without refining of atomic coordinates by the Rietveld method, a rather low value of weighted profile factor R_wp = 12.57% was obtained, proving the rather good quality of the XRD pattern fitting (Figure 6a). Reached low value of Bragg factor R_B = 4.34% evidenced the correctness of the MBI-phosphate-1 structure model (see, for example, [33] for definition of the agreement factors). Even better agreement factors and XRD pattern fitting quality (Figure 6b) were obtained for MBI-phosphite (R_wp = 9.72%, R_B = 1.83%), where atomic coordinates obtained from single crystal investigation were refined by the Rietveld method. In spite of the single crystals being chosen from the same powder, which was investigated by means of powder XRD, the unit cell parameters and atomic coordinates obtained in the Rietveld refinement of the powder data differ slightly, but more than two values of estimated standard deviation (ESD) from those obtained on a single crystal, although they are close. For triclinic MBI-phosphate-1 and monoclinic MBI-phosphite powders, a = 9.682(1) Å, b = 9.827(9) Å, c = 11.804(2) Å, α = 88.98(7)°, β = 78.15(10)°, γ = 87.37(9)°, and a = 17.1974(3) Å, b = 17.7198(6) Å, c = 7.01193(8) Å, β = 94.878(2)°, respectively (see the unit cell parameters from single crystal investigation in Table 1 for comparison). The atomic coordinates of MBI-phosphite obtained from the single crystal and powder XRD data are shown together for comparison in Table S11 of SM. The differences in structural parameters can be explained by the fact that in the powder experiment all information is averaged over all crystallites involved in the reflection of X-rays, and the information obtained in the single crystal experiment is individual for each single crystal. Nevertheless, the interatomic distances calculated from the powder XRD (Table S13 of SM) lie in allowed range and agree with the single crystal results.

Thus, the data of XRD obtained on powders confidently confirm the structure model determined by XRD analysis of single crystals.

3.3. Elemental Analysis

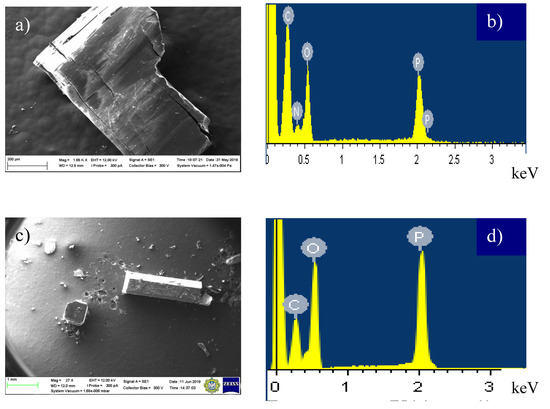

Figure 7 demonstrates the images obtained by SEM of MBI-phosphite (a) and MBI-phosphate-2 (c) single crystals and their EDX spectra (b) and (d), respectively.

EDX spectra confirm the presence of C, N, O, and P elements and the absence of other elements in the crystals. Hydrogen atoms were not registered in the framework of the method used. The experimental and calculated elemental composition are presented in SM (Table S18). The experimental values of phosphorous concentration are smaller than the calculated ones, most probably due to the low energy resolution of the detector in the region of light elements and the possible presence of an organic layer on the surface. Note that the crystals were not covered by a conductive layer and were studied without cleaning. The spectrum of MBI-phosphite, shown in Figure 7b, is similar to MBI-phosphate-1 because the difference in their composition is only two oxygen atoms. For the MBI-phosphate-2 (Figure 7d), an increase of the phosphorus concentration in accordance with their composition was observed.

3.4. Raman Spectroscopy

Raman spectra of organic molecular crystals usually consist of a number of lines originated from internal molecular vibrations of different nature. This makes it possible to use Raman spectroscopy for checking the molecular compositions of crystals. Figure 8 presents Raman spectra of MBI-phosphite powder (T64000 Advanced Research Raman System) and single crystals of MBI, MBI-phosphate-1, and MBI-phosphate-2 (Alpha 300R confocal microscope). Spectra of single crystals were obtained in geometry of backscattering for two orthogonal polarizations of incident light without output polarizer. Because of low symmetry of MBI-phosphate-1, MBI-phosphate-2 (C_i(P$\overline{1}$)), and MBI (C_s(Pn)) crystals, the spectra in each crystal have the same number of lines for both polarizations with approximately the same intensity.

Table 2. Raman shifts in cm⁻¹ for lines observed in MBI, MBI-phosphite, MBI-phosphate-1, and MBI-phosphate-2 samples. Last column shows interpretation of lines for MBI from [44]. Lines marked by * have been observed for the first time. Abbreviations: vs – very strong, s – strong, m – medium, w – weak, b – broad, Γ – out-of-plane bending, δ – in-plane bending, ν – stretching, M – methyl group.

№	MBI	MBI-Phosphite	MBI-Phosphate-1	MBI-Phosphate-2	Assignment
1	3065m 3075m	3076s	3073s 3085s	3086s	MBI: νCH
2	2968m		2984w		MBI: M νCH
3	2919m 2929m	2934s	2933s 2940s	2938s	MBI: M νCH
4		2363s, 2382s			H3PO3: νPH [5,20,45,46,47]
5		1637m	1637m	1637s	δH2O [48,49,50]
6	1589m	1583s	1585s	1584m	MBI: νCC
7	1545s				MBI: νCN (double bond) + νCC
8		1517w	1515w	1512m	δH2O [48,49,50]
9	1472w 1488m				MBI: MδCH2+ΓCCCN + δCCH
10	1438m 1452s	1466s	1436w 1464s	1466s	MBI: δCCH+ νCC
11	1425m				*MBI: δCNH +νCN +νCC+ δCCH
12	1418w	1408s	1405m	1403s	MBI: MδCH2 + δCCH
13	1363m	1369m	1368w	1364s	MBI: νCC+ νCN+ MδCH2
14	1322m		1332w	1337m	MBI: δCCH+ νCN
15			1303w	1302s	δOH…O [51]
16	1272s	1276s	1276s	1266s	MBI: νCN+ νCC+ δCCH
17	1222m			1224w	MBI: δCCH+ νCN + νCC
18	1155m	1157m	1156w	1160m	*MBI: δCCH
19	1113m 1120m	1119s	1115m	1121s	MBI: δCCH+ νCC
20	1044m				MBI: δCCH + ΓNCCH
21	1030s	1028s	1026s	1028vs	MBI: νCC+ νCN
22	1004s	1006s	1002m	1004w	MBI: νCC+ δCCH
23		991m	990w	991w	νOPO [45,52]
24	960w				*MBI: ΓHCCH + ΓCCCH
25		933m	908m	924s	νOPO [5,47,49,53]
26	921w				MBI: ΓHCCH + ΓCCCH
27	893m		897w		MBI: δCCC + δCCH
28	868m	867m		878w	*MBI: ΓCCCH + ΓHCCN + ΓHCCH + ΓCCCH
29	839s	840s	840s	839s	MBI: νCC
30	764w		761w	768w	MBI: ΓCCCH + ΓCCCC
31	741m	745w			MBI: ΓCCCH + ΓHCCN
32	677s	667s	669s	667s	MBI: νCC + δCCC + δCCN
33	657m	656m	656w	652s	*MBI: ΓCNCN + ΓHCCN + ΓCCCN + ΓHNCN
34	623w 628m	624s	623m	624s	MBI: δCCN + δCCC + νCC
35	582s			581w	*MBI: ΓCCCC + ΓCCCN + ΓCCCH
36			546w	546w 566m	H3PO4: PO4 bending (ν4) [49;52]
37		537m			H3PO3: PO3 asym. bending [5,54]
38			516w	513sb	H3PO4 [53,55]
39	499s	497s	500s	497s	MBI: δCCC + νCC + νCN
40	483m	483w		483w	*MBI: δCCN + δCCC + νCC
41	435m	435w		435w	MBI: ΓCCCC + ΓCCCH + ΓCCNH + ΓCCNC
42		415m	419w		Water libration? lattice modes?
43			379w	364s 383mb	H3PO4:PO4 sym. bending [53,56]
44	329w 334m	318m	339w	324w	MBI: ΓCCCN + ΓCCNH
45	274m	279m	288w	285s	MBI: δCCN
46	123vs	115w 160s	114w 159w	122vs	MBI: ΓCCCN + ΓHCCN lattice modes?
47		89sb	90m, 108m	96vs	*MBI: ΓHCCN? lattice modes?

reveals Raman shifts in cm⁻¹ for lines observed in MBI, MBI-phosphite, MBI-phosphate- 1, and MBI-phosphate-2.

Experimental Raman and Fourier-transform infrared (FTIR) spectra of MBI crystal powder and their interpretation have been presented in [44]. Theoretical analysis based on density functional theory (DFT) method has shown that the vibration spectrum of MBI molecule (C_S(m) symmetry) consists of 48 modes corresponding, in particular, to the stretching vibrations of carbon–hydrogen valence bonds with frequencies of about 3000 cm⁻¹, carbon–nitrogen, and carbon–carbon valence bonds in the region of 600–1700 cm⁻¹, bendings of the benzene and imidazole rings in the region of 100–1200 cm⁻¹ and others. There were 32 of oscillation modes related to in-plane (labelled as A′) and 16 to out-of-plane (A″) deformations of molecule. From the predicted 48 modes, 32 were detected experimentally in [44], among them 25 in Raman and 19 modes in FTIR spectra. There were 12 modes detected in both spectra that has been confirmed the noncentrosymmetric structure of the MBI crystal.

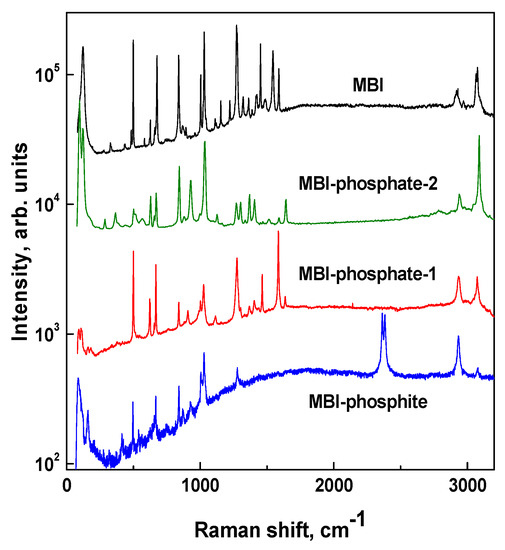

Raman spectrum of the MBI single crystal obtained in our work (Figure 8) is similar to that of [44]. The positions of the 10 strongest lines coincide with accuracy of 2 cm⁻¹. Experimentally, we observed 42 lines. Among them there were lines which were observed in Raman and FTIR spectra in [44], and also seven lines which were predicted theoretically but not observed experimentally before. In Table 2 these lines are marked by *.

Large numbers of these lines, observed in Raman spectra of three new crystals (Figure 8, Table 2), correspond well to vibrations of the MBI molecule. Some of these lines (characteristic lines) have the same Raman shift as in the MBI crystal. Difference in Raman shifts for other lines may be of the order of 10 cm⁻¹. That may be attributed to some modification in interaction between molecules in these crystals. Another reason may be the effect of imidazole ring protonation [43].

It is worth noting that the strong line (No. 7, Table 2) at 1545 cm⁻¹ arising due to the stretching vibration of the carbon–nitrogen double valence bond in the imidazole ring [44], which presents in MBI spectrum, is absent in spectra of the new crystals. This is in excellent agreement with the results of XRD study of crystal structure. According to XRD analysis, all MBI molecules in new crystals are protonated and both nitrogen atoms in the cation (MBI + H)⁺ form a valence bond with hydrogen atoms. So, the double carbon–nitrogen valence bonds disappear as well as the corresponding line in the Raman spectra.

In Raman spectra of new crystals there are lines which are characteristic of phosphoric or phosphorous acid. A doublet (No. 4 in Table 2) at 2363 and 2382 cm⁻¹, which presents in the MBI-phosphite spectrum, corresponds to the stretching vibration of the valence bond P–H, characteristic to phosphites [5,20,45,46,47].

In the spectral range from 900 to 1000 cm⁻¹ in Raman spectra of new crystals there are lines (Nos. 23 and 25), which are absent in spectrum of MBI. These lines correspond to the symmetric stretching vibration of the valence bonds in acid molecules in phosphite anion [5,45,47] and phosphate anion [49,52,53]. In the region of lower frequencies, two lines (Nos. 38 and 43) at 515 and 380 cm⁻¹ observed in spectrum of the MBI-phosphate-1 and the MBI-phosphate-2 are characteristic to oscillations of the phosphoric acid molecule [53,55]. Line No. 37 at 537 cm⁻¹ in spectrum of the MBI-phosphite, corresponds well to the line observed in H₂PO₃- phosphite anion [5,54]. The line at 1302 cm⁻¹ (No. 15), which manifests itself in both MBI phosphates, may be interpreted as a bending of the hydrogen bond between the tetrahedra of phosphoric acid, similarly to potassium dihydrogenphosphate (KDP) [51]. The lines at 1637 cm⁻¹ and 1515 cm⁻¹ (Nos. 5 and 8), observed in three new crystals, probably correspond to oscillations inside the water molecule [48,49,50].

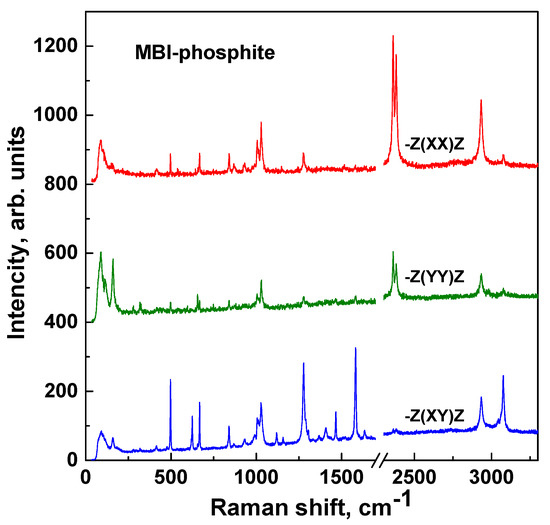

Figure 9 demonstrates the polarized Raman spectra of the MBI-phosphite crystal (recorded by T64000 Advanced Research Raman System) in different experimental geometries. Positions of lines are presented in

Table 3. Lines observed in MBI-phosphite polarized Raman spectra. Abbreviations: vs – very strong, s – strong, m – medium, w – weak, b – broad, Γ – out-of-plane bending, δ – in-plane bending, ν – stretching, M – methyl group. The vibrational symmetry in assignments is provided in terms of the C_3v structure for the internal HPO₃²⁻ vibrations and in terms of the C_s structure for the internal MBI vibrations.

Wavenumber, cm−1	-Z(XX)Z	-Z(YY)Z	-Z(XY)Z	Powder	Assignment	Sym.
3076	m	w	s	sb	MBI: νCH (A′)	Bg
2934	s	m	s	s	MBI: MνCH (A″)	Ag, Bg
2363 2382	vs vs	vs vs	w w	vs vs	H3PO3: νPH (А1)	Ag
1637			m	w	δH2O	Bg
1583	w	mb	vs		MBI: νCC (A′)	Bg
1517	w		w		δH2O	Ag, Bg
1466			s		MBI: δCCH + νCC (A′)	Bg
1408			s		MBI: MδCH2 + δCCH (A′)	Bg
1369			m		MBI: νCC + νCN + MδCH2 (A′)	Bg
1276	m	w	vs	s	MBI: νCN + νCC + δCCH (A′)	Bg
1157			m		MBI: δCCH (A′)	Bg
1119			m		MBI: δCCH + νCC (A′)	Bg
1028	s	s	s	s	MBI: νCC + νCN (A′)	Ag, (Bg)
1006	m	m	s	s	MBI: νCC + δCCH (A′)	Ag, Bg
991			m		νOPO (А1)	Bg
930	w		mb	sb	νOPO (А1)	Bg, (Ag)
867	m		mb	s	MBI: ΓCCCH + ΓHCCN + ΓHCCH + ΓCCCH (A″)	Ag, (Bg)
840	m	m	s	s	MBI: νCC (A′)	Bg, (Ag)
745	w	w			MBI: ΓCCCH + ΓHCCN (A″)	Ag
667	m	w	s	s	MBI: νCC + δCCC + δCCN (A′)	Bg, (Ag)
656	m	m	w	w	MBI: ΓCNCN + ΓHCCN + ΓCCCN + ΓHNCN (A″)	Ag, (Bg)
624			s	w	MBI: δCCN + δCCC + νCC (A′)	Bg
537	m			w	H3PO3: HPO3 asym. bending (E)	Ag
497	m	m	vs	s	MBI: δCCC + νCC + νCN (A′)	Bg, (Ag)
415	mb		m	m	lattice modes? Water libration? ΓCCNH	Ag, (Bg)
318		m	m		MBI: ΓCCCN + ΓCCNH (A″)	Ag, (Bg)
279		w	w		MBI: δCCN (A′)	Ag, (Bg)
160	mb	s	s	s	MBI: ΓCCCN + ΓHCCN (A″)	Ag, (Bg)
89	sb	sb	sb	sb	MBI: ΓHCCN (A″)? lattice mode?	Ag, (Bg)

. The MBI-phosphite belongs to monoclinic syngony, and its Raman spectra show pronounced polarization dependence. Raman spectra of the MBI-phosphite were obtained for -Z(XX)Z, -Z(YY)Z, and -Z(XY)Z backscattering geometries, where Z is normal to the crystal plane (100), X is c*-axis, and Y is b-axis (C₂).

The unit cell of the MBI-phosphite consists of 212 atoms; that gives 3*212-3 = 633 external and internal optic phonon modes. They are distributed according to irreducible representations as follows: 159 Аg + 159 Bg + 158 Аu + 157 Bu. For Р2₁/с crystal symmetry, there are two irreducible representations, Аg and Bg for Raman active modes, which Raman tensors have the following form [57]:

$$\mathrm{Ag}=\left(\begin{array}{ccc}a& d& 0\\ d& b& 0\\ 0& 0& c\end{array}\right)$$

(1)

$$\mathrm{Bg}=\left(\begin{array}{ccc}0& 0& e\\ 0& 0& f\\ e& f& 0\end{array}\right)$$

(2)

These tensors are written for a set of crystal axes (x, y, and z), chosen such that the crystallographic axis of the C₂ point group (b-axis) is along the z direction and the xy plane is perpendicular to the z-axis. Selection rules for experimental geometries used in our study, written in laboratory coordinate system X, Y, Z, are given in

Table 4. Results of the factor group analysis for the MBI-phosphite crystal vibrations and selection rules for Ag and Bg Raman active modes. Space group P2₁/c (Z = 4). Abbreviations: N = total number of modes, A = acoustic, T = translational, L = librational, i = inactive. Selection rules are given for backscattering geometries -Z(XX)Z, -Z(YY)Z, -Z(XY)Z.

C2h	N	A	T	L	Internal Modes			Hydrogen Bonds between HPO32− Vibrations	Selection Rules
					(MBI+H)+	HPO32−	H2O
Ag	159	0	15	15	102	18	3	6	XX,YY
Bg	159	0	15	15	102	18	3	6	XY
Au	159	1	14	15	102	18	3	6	i
Bu	159	2	13	15	102	18	3	6	i

. Also, Table 4 presents the number of acoustic, translational, librational, and internal modes related to Ag, Bg, Au, and Bu irreproducible representations. Note that in the crystal structure there are H₂PO₃⁻ anions interconnected by the hydrogen bonds formed by one of two protons of H₂PO₃⁻ anion. In Table 4 we consider separately the internal modes of tetrahedrons HPO₃²⁻ and oscillations of protons in the hydrogen bonds.

Classification of lines (Ag or Bg) observed in Raman spectra of MBI-phosphite (Figure 9) is presented in Table 3. Also, in the last column of Table 3 for lines, which are present in MBI and MBI-phosphite spectra, classification (A′ or A″) is given. Note that most of the MBI molecule oscillations related to in-plane deformation (A′) correspond to Bg modes in MBI-phosphite crystal. In experimental Raman spectra we observe lines active in XX and YY geometries, but inactive in XY geometry (Ag), and lines active in XY geometry, but passive in XX and YY geometries (Bg). Some lines apart from strong components allowed in Ag or Bg mode have a small admixture of Bg or Ag. Such lines are marked as Ag(Bg) or Bg(Ag).

Two strong lines at 2363 and 2382 cm⁻¹, which are observed in XX and YY polarizations but not in XY polarization, correspond to phosphite-anione’s fundamental mode ν1 (Ag) caused by the stretching of a P–H valence bond [5,20,45,46,47]. The presence of two lines indicates the existence of two nonequivalent positions occupied by the phosphorous acid tetrahedron HPO₃²⁻ in the MBI-phosphite crystal that is confirmed by crystal XRD analysis. Note that the intensity of these lines in XX polarization is approximately two times stronger than in YY polarization. This may be due to the fact that the P–H bond is closer to the c*-axis than to the b-axis.

Concluding this section, we note, that the analysis of Raman spectra of new crystals confirms the results of XRD studies. In Raman spectra of new crystals there are lines related to vibrations of MBI or corresponding acids and water molecules.

3.5. Dielectric Measurements

3.5.1. MBI-Phosphite

Small signal dielectric response (ε and tgδ) in the MBI-phosphite single crystals along а, b, с* - crystal axes reveals considerable anisotropy. Below room temperature, no dielectric anomalies was observed. The values of dielectric constant ε_a = 18, ε_b = ε_c* = 3 only slightly depend upon frequency and the dielectric losses are small (tgδ ~ 0.01–0.02). Maximal value of the dielectric constant is observed along the a-axis, i.e., along zig-zag chains of hydrogen bonds type N…H-O and O…H-O between the MBI molecules and the HPO₃ tetrahedra in the crystal structure (see Figure 3b).

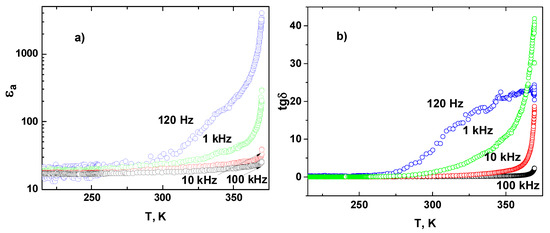

Figure 10 presents the temperature dependence of dielectric constant ε_a and dielectric losses tgδ along [100] direction in MBI-phosphite at different frequencies. With heating above 250 K, a strong increase and a low frequency dispersion of ε_a and tgδ was observed.

Such temperature behavior is characteristic for ionic (protonic) conductivity in crystals with hydrogen bonds [23,58,59]. Specific electric conductivity is calculated as σ = ωε₀ε′tgδ = ωε₀ε″, where ω = 2πf the angular frequency. Figure 11a shows the MBI-phosphite-specific conductivity σ as a function of inverse temperature for a-, b-, and c*-axes in a semilogarithmic scale. In just-prepared crystal at heating above 250 K up to 330 K, the conductivity σ_a along the a-axis did not reveal frequency dispersion in the frequency range 120–1k Hz that indicates manifestation of direct current (DC) conductivity. In this temperature range and in this direction, the increase of DC conductivity is described by Arrhenius law:

$$\sigma (T)={\sigma }_0{e}^{-\frac{E_a}{kT}}$$

(3)

where E_a = 0.46 eV is the activation energy and σ₀ = 140 Sm⁻¹ the preexponential factor. The value of conductivity along the b- and c*-axes is much smaller, comparable with the level of experimental errors, up to the temperature T = 330 K.

The annealing of the MBI-phosphite at a higher temperature results in the conductivity increase by several orders of magnitude. Above 330 K the conductivity strongly increases along all axes and the crystal transforms into a “conducting state”, in which it remains upon subsequent cooling to room temperature. Figure 11b shows frequency dependence of conductivity along the b- and c*-axes at high temperature in the MBI-phosphite. In the frequency range 10³–5⋅× 10⁴ Hz the conductivity is approximately constant. That indicates DC conductivity σ_dc. The decrease of conductivity at low frequencies below 10³ Hz is caused by the electrode polarization effect characteristic for ionic conductivity [60,61]. The increase of conductivity above 10⁴ indicated manifestation of hopping mechanism [61]. The only candidates for the role of charge carriers are the protons. Note that the proton conductivity has been observed in a large number of crystals with hydrogen bonds such as DBPI-DBP [23,58], MBI [59,62], etc.

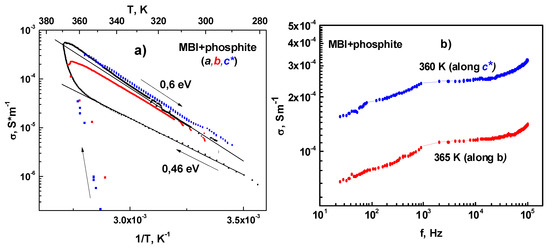

The magnitude of DC conductivity decreased with cooling in accordance to Arrhenius law with isotropic activation energy E_a = 0.6 eV. This value of E_a is smaller than for protonic conductivity in ferroelectrics with hydrogen bonds, where E_a ≈ 0.8–1 eV [23,58,59], but is close to the value of activation energy of conductivity in proton superionics [63]. Note that both the sharp increase in conductivity above a certain temperature and the value of activation energy of conductivity is characteristic of proton superionics [63].

Because the annealing of the MBI-phosphite transforms it into a “conducting state”, a thermal cycling of the crystals was performed with increasing maximum temperature T_max. The increase of conductivity at temperatures above 350 K occurred even at a constant temperature with time. This means that the preexponential factor σ₀ in the Arrhenius law (Equation (3)) depends on both the temperature T and duration of annealing t.

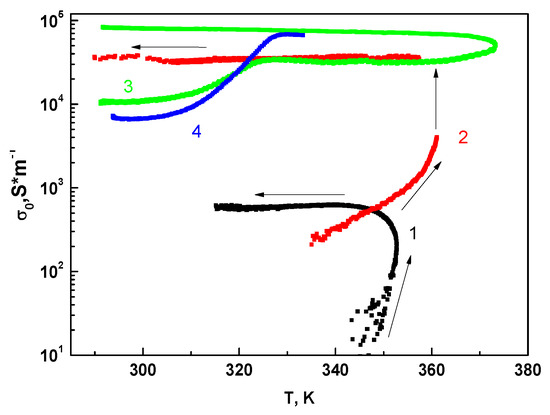

Figure 12 shows the temperature dependence of preexponential factor σ₀ for several heating–cooling circles. The speed of temperature change was dT/dt ~ 1 K/min. The first circle corresponds to the temperature increase up to 353 K and consequent cooling to 315 K. The value of σ₀ reaches ~ 7*10² Sm⁻¹ and remains constant at cooling. The second circle was started after keeping the crystal at room temperature for 18 hours. During this circle the temperature was increased up to 360 K, stopped for 30 min, and then decreased to 295 K. We clearly see that the process of defect generation successfully goes at constant temperature. The value of σ₀ was increased up to 3 × 10⁴ Sm⁻¹ and was not changed under cooling. Keeping the sample at room temperature for 2 days was followed by some decrease of conductivity, but the following temperature increased up to 325 K resulted in recovery of a preexponential factor up to 3 × 10⁴ Sm⁻¹. Analogous recovery was observed in the conductivity circle 4. The preexponential factor σ₀ increased with the temperature T_max increase during the thermal cycling. At cooling the conductivity followed well to Arrhenius law with constant preexponential factor σ₀ (see Figure 11a). The activation energy of conductivity E_a at cooling in all crystallographic directions was always equal to 0.6 eV. We can suppose that the annealing of crystal at temperatures above 350 K resulted in generation of defects, which contributed to the conductivity. The preexponential factor σ₀ in the Arrhenius law in this case should be proportional to concentration n of thermoactivated defects.

So, the temperature increase above 350 K was followed by the appearance of defects, which contributed to the conductivity. Defects concentration was approximately constant at cooling but decreased with keeping the sample at room temperature for several days. It is remarkable that the temperature increase up to relatively low temperature 325 K resulted in recovery of the defect concentration n up to the value reached during the previous heating–cooling circle (memory effect). It appears that while keeping a crystal at room temperature, some of defects transformed to the state in which they do not contribute to total conductivity, and for their recovery to the “conducting state” the heating up to temperature 325 K is needed. The possibility to manipulate by conductivity in large limits may be attractive for some applications, for example, for preparing membranes for fuel elements.

3.5.2. MBI-Phosphate-2

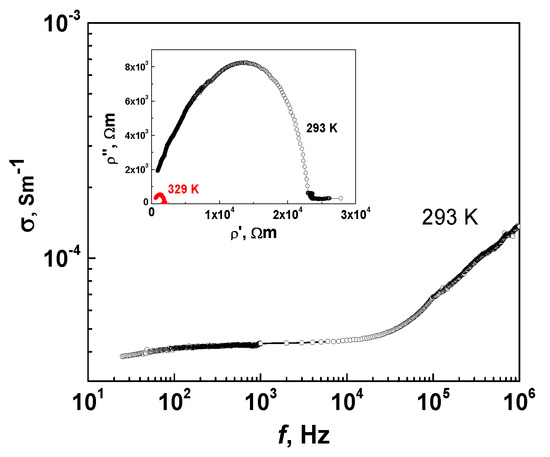

Figure 13 presents frequency dependence of conductivity in the MBI-phosphate-2 along [011] direction for temperatures T = 293 calculated from dielectric data. Frequency dependence of the conductivity (Figure 13) obeyed the well-known general formula [60] σ = σ_dc + Aω^s with temperature-dependent parameters A and s (s ≤ 1). A rough estimation of parameters from our experiments showed that the magnitude of s in the studied temperature range was in the limits from 0.3 to 1 that is in agreement with theory. Up to f = 10 kHz the conductivity did not depend on frequency that evidence the direct current conductivity. The Cole–Cole plot for complex resistivity (ρ* = 1/[iε₀ω(ε′ - iε″)] is presented in the inset of Figure 13. The Cole–Cole plot showed very good half circle that indicates on an Ohmic contacts in the sample and gives the value of DC resistivity for the sample at different temperature. In the MBI-phosphate-2 crystal at room temperature (293 K), the value of specific conductivity along [011] axis is about σ = 4 × 10⁻⁵ Sm⁻¹. Temperature increase up to 329 K was followed by the increase of the conductivity to σ= 5 × 10⁻⁴ Sm⁻¹. The cooling up to 200 K resulted in the conductivity decrease to values of ~10⁻⁸ Sm⁻¹.

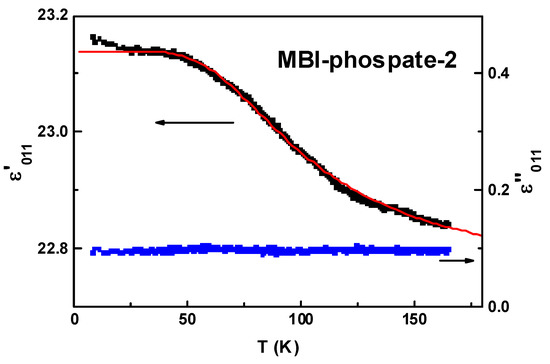

Figure 14 reveals the temperature dependence of a real and imaginary part of dielectric constant of the MBI-phosphate-2 crystal at low temperatures along [011] crystal axis. The real part of the dielectric constant is relatively large, ε′ ≈ 23, and is increased with cooling. The imaginary part ε″ is approximately two orders of magnitude smaller and does not reveal considerable temperature dependence. Such behavior of ε (T) is similar to quantum paraelectrics and can be described by the Barrett formula [64]:

$$\epsilon ={\epsilon }_{bg}+ \frac{C_{CW}}{\frac{T_1}{2}coth\left(\frac{T_1}{2T}\right)-T_0}$$

(4)

Parameters obtained by best fitting the experimental ε′(T) dependence by Equation (4) are as follows: T₁ = 326 K, T₀ = 146 K, Curie–Weiss constant C_CW = 6.8 K, phone dielectric constant ε_bg = 22.7. In quantum paraelectrics the Curie–Weiss constant usually is larger and T₁ considerably smaller. In particular, in rutile TiO₂ T₁ = 135 K, C_CW = 39500 K [65]. Note that quantum paraelectric behavior has been observed also in organic and semiorganic materials [14,15,16,66]. In semiorganic molecular crystal tetrathiafulvalene+halogen-substituted quinone (TTF+QBr₂I₂) T₁ = 71 K, C_CW = 6300 K [16]. A small value of Curie–Weiss constant in MBI-phosphate-2 reflects weakness of dielectric anomaly. Note that analogous relatively small increase of dielectric constant has been observed in [16]. The large value of T₁ can be explained by the fact that MBI-phosphate-2 consists of light atoms. In the single-ion microscopic model, T₁ is inversely proportional to the square root of the ion mass [64].

Anomalous dielectric behavior in the MBI-phosphate-2 was observed in direction of [011] type which is oriented at 45° to the chains of the MBI molecules and phosphoric tetrahedrons connected by hydrogen bonds (see Figure 5c). High values of dielectric constant were also observed along similar chains in MBI-phosphite crystals (Figure 3b). This means that there was some polar mode responsible for the high value of dielectric constant at room temperature and the increase of dielectric constant at temperature decrease. Also, this mode may be suppressed by quantum fluctuations at low temperature.

4. Conclusions

Three new crystals based on 2-methylbenzimidazole and inorganic phosphorous or phosphoric acids were grown by evaporation method. X-ray measurements of single crystals and powders showed that the crystal structure of the MBI-phosphite ((C₈H₉N₂)₂*(PO₃H₂)₂*H₂O) belonged to centrosymmetric space group P2₁/c of monoclinic syngony. Crystals of the MBI-phosphate-1 and the MBI-phosphate-2 belonged to centrosymmetric space group P$\overline{1}$ of triclinic syngony. Crystal structures of these substances were formed by the cations (MBI+H)⁺, anions H₂PO₃¯or H₂PO₄¯, and water molecules. The appearance of the cations and anions was due to the protonation process, in which the MBI molecule attracted proton from acid molecules. Flat (MBI + H)⁺ cations formed a layered structure connected by 2D⁻ or 3D⁻ net of hydrogen bonds. The protonation resulted in the absence of N…H-N hydrogen bonds between the MBI molecules, which were present in MBI crystals and were responsible for ferroelectricity of this material.

Raman spectra of new crystals consisted of lines corresponding to internal vibration of the MBI, acids, and water molecules, and confirm the results of XRD analysis, in particular, the absence of double carbon–nitrogen valence bonds. Polarization of lines measured in different experimental geometries was in accordance with the symmetry obtained by XRD.

As shown dielectric measurements of the MBI-phosphite and MBI-phosphate-2, the dielectric constant in direction of N-H…O and O-H…O hydrogen bonds, which connected the MBI molecules and inorganic acid tetrahedra, had relatively high value ε ~ 20. The heating of the new crystals resulted in considerable (several orders of magnitude) increase of the conductivity and low frequency dispersion of real and imaginary parts of the dielectric constant, characteristic to proton superionics. Similar phenomena were observed in ferroelectric crystals with hydrogen bonds at high temperature.

The value of conductivity depended on temperature and time of annealing. A possible explanation for such behavior suggested that temperature increase above 350 K resulted in generation of defects, which produced the DC conductivity. Following cooling, the concentration of defects remained constant and conductivity is described by Arrhenius law with activation energy 0.6 eV.

At low temperatures, MBI-phosphate-2 manifested properties analogous to quantum paraelectrics. Anizotropy of dielectric constant in the crystals allowed one to propose the existence of polar mode, which frequency can be stabilized by quantum fluctuations at low frequencies.
