Impurity-Induced Spin-State Crossover in La_0.8Sr_0.2Co_1−xAl_xO₃

Abstract

We have prepared a set of polycrystalline samples of La${}_{0.8}$Sr${}_{0.2}$Co${}_{1-x}$Al${}_x$O${}_3$ ($0\le x\le 0.2$), and have measured the magnetization as functions of temperature and magnetic field. We find that the average spin number per Co ion ($S_{\mathrm{Co}}$) evaluated from the room-temperature susceptibility is around 1.2–1.3 and independent of x. However, we further find that $S_{\mathrm{Co}}$ evaluated from the saturation magnetization at 2 K is around 0.3–0.7, and decreases dramatically with x. This naturally indicates that a significant fraction of the Co${}^{3+}$ ions experience a spin-state crossover from the intermediate- to low-spin state with decreasing temperature in the Al-substituted samples. This spin-state crossover also explains the resistivity and the thermopower consistently. In particular, we find that the thermopower is anomalously enhanced by the Al substitution, which can be consistently explained in terms of an extended Heikes formula.

1. Introduction

The spin state is one of the most fundamental concepts in transition-metal oxides/complexes [1]. The d electrons in a transition-metal ion feel the Coulomb repulsion from the neighboring oxygen anions. In a transition-metal ion surrounded with octahedrally-coordinated oxygen anions, the five-fold degenerate d orbitals in a vacuum are split into the triply degenerate $t_{2g}$ orbitals and the doubly degenerate $e_g$ orbitals. An energy gap from $t_{2g}$ to $e_g$ levels is called “ligand field splitting”, and competes with the Hund coupling [2]. For a larger ligand field splitting, the d electrons occupy the $t_{2g}$ levels first to minimize the total spin number S. On the other hand, for a larger Hund coupling, S is maximized to satisfy Hund’s rule. The former state is called the low-spin state, and the latter the high-spin state.

While the two spin states can be seen from $d^4$ to $d^7$ electron systems, Co${}^{3+}$ is of particular importance in the sense that the low-spin state ($e_g^0{t}_{2g}^6$, S = 0) and the high-spin state ($e_g^2{t}_{2g}^4$, S = 2) are almost degenerate in energy, in which various external conditions such as temperature, pressure, and magnetic field can induce the spin-state transition/crossover [3]. LaCoO${}_3$ [4,5,6,7] and Sr${}_3$YCo${}_4$O${}_{10.5}$ [8,9,10,11] are prime examples.

In addition to the high- and low-spin states, the intermediate-spin state ($e_g^1{t}_{2g}^5$, S = 1) has been theoretically proposed in the Co${}^{3+}$ oxides, [12] and has been controversial for long time. Nakao et al. [13] have observed the characteristic resonant X-ray diffraction in a single-crystal sample of Sr${}_3$YCo${}_4$O${}_{10.5}$ at low temperatures, indicating an $e_g$-like elongated electron density distribution around the Co${}^{3+}$ ion. This naturally suggests that the Co${}^{3+}$ ions are in the intermediate-spin state. In the case of LaCoO${}_3$, however, no critical experiments have been done thus far, and it is still under debate whether or not the intermediate-spin state exists [14,15,16,17,18,19,20]. Recently, the intermediate-spin state has been regarded as a kind of excitonic insulator from the low-spin state, [21,22,23] and its excited properties have been reinvestigated [24].

In contrast to the undoped LaCoO${}_3$, researchers in the community seem to reach a consensus that the Co${}^{3+}$ ions exist as the intermediate-spin state in the doped LaCoO${}_3$, and are responsible for the ferromagnetic metal state (FMM) in the heavily-doped samples [25,26,27,28,29]. Figure 1 shows an electronic phase diagram of La${}_{1-x}$Sr${}_x$CoO${}_3$ simplified from the original one [30]. Note that the FMM phase shows cluster glass behavior, however, we do not further explore the glass nature of this phase in this paper. For $x\ll 0.05$, the system is insulating, and the magnetic Co${}^{3+}$ ions experience the spin-state crossover denoted by the reverse triangles, showing the nonmagnetic ground state. According to this figure, the spin-state crossover is quickly suppressed with increasing Co${}^{4+}$ content x. This has been explained in terms of spin polaron, [31] which is a spin cluster consisting of one Co${}^{4+}$ ion in the low-spin state surrounded by several Co${}^{3+}$ ions in the intermediate-spin state [32].

In this paper, we report on the effects of Al substitution for Co on the magnetic and transport properties of doped LaCoO${}_3$. Impurity has been a powerful test for the essential properties of novel materials. Bardeen-Cooper-Schrieffer-type superconductors are robust against nonmagnetic impurities which is demonstrated in the Anderson theorem, but are very susceptible against magnetic impurity as explained by the Abrikosov-Gor’kov theory [33]. For unconventional superconductors, nonmagnetic impurity has revealed various anomalous properties in the high-temperature superconducting copper oxides, [34] and possible orbital-fluctuation-driven superconductivity in the Fe-based superconductors [35]. How the impurity effects deviate from simple dilution effects and/or percolation theories in various magnetic materials has been discussed. The Haldane chain compound exhibits anomalous S = 1/2 excitation on the Ni${}^{2+}$ chain against Cu${}^{2+}$ impurity doping, [36] and a transition from the dimered to uniform antiferromagnetic order is observed in Mg-doped CuGeO${}_3$ [37]. In the case of LaCoO${}_3$, Kyomen et al. [38] conducted a pioneering study focused on this, and they have found that the Rh substitution enhances the paramagnetism, while the Al and Ga substitution increases the spin-state crossover temperature to stabilize the low-spin state. Following their work, we studied the Co-site substitution effects in the doped and undoped LaCoO${}_3$. In particuar, Asai et al. [39] found a weak ferromagnetism in LaCo${}_{1-x}$Rh${}_x$O${}_3$, below around 15 K for 0.1 $\le x\le$ 0.4, which can be regarded as a ferromagnetism emerging from nonmagnetic end phases. As a natural extension, we conducted an extensive study of the Al-substitution effect in the doped LaCoO${}_3$, where the carrier concentration is set to 0.2 per Co because metallic conduction is reported in this carrier concentration. Here we propose that spin-state crossover takes place in the doped LaCoO${}_3$, and the substitution of Al for Co excellently highlights this crossover.

2. Experimental

Polycrystalline samples of La${}_{0.8}$Sr${}_{0.2}$Co${}_{1-x}$Al${}_x$O${}_3$ (x = 0, 0.05, 0.10, and 0.15) were prepared by a standard solid-state reaction. Stoichiometric amounts of La${}_2$O${}_3$, SrCO${}_3$, Co${}_3$O${}_4$, and Al${}_2$O${}_3$ powders were mixed and calcined at 1273 K for 24 h in air. The calcined powder was ground and pressed into pellets, and sintered at 1473 K for 48 h in air.

The X-ray diffraction pattern was taken with a laboratory X-ray diffractometer (RINT-2200, Rigaku) in $\theta$-$2\theta$ scan mode with Cu K$\alpha$ as an X-ray source. The temperature dependence of the magnetization was measured with an SQUID susceptometer (MPMS, Quantum Design) in a field-cooling process in 0.1 T from 4 to 300 K. The magnetization–field curve was measured with the SQUID susceptometer from −7 to 7 T. The resistivity was measured with a four-probe technique with a homemade measurement station from 4 to 300 K in a liquid He cryostat. The thermopower was measured with a steady state and two-probe technique from 4 to 300 K in a liquid He cryostat. The sample bridged two separated copper heat baths, and the resistance heater made temperature differences between the two heat baths, which was monitored through a copper-constantan differential thermocouple. The contribution of the voltage leads were carefully subtracted.

3. Results

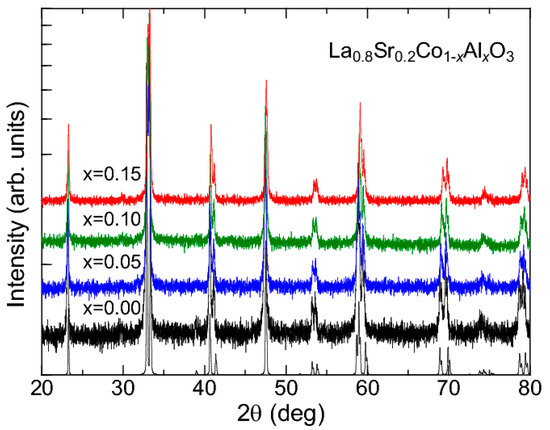

Figure 2 shows X-ray diffraction patterns of the prepared samples measured at room temperature. All the peaks are indexed as rhombohedral ($R\overline{3}c$), and no impurity phases are seen. The lattice parameter a slightly decreased with increasing Al content x (a = 5.440, 5.434, 5.429, and 5.421 Å for x = 0, 0.05, 0.10, and 0.15, respectively), and this indicates that the Al ion substituted well for Co in the whole set of the samples.

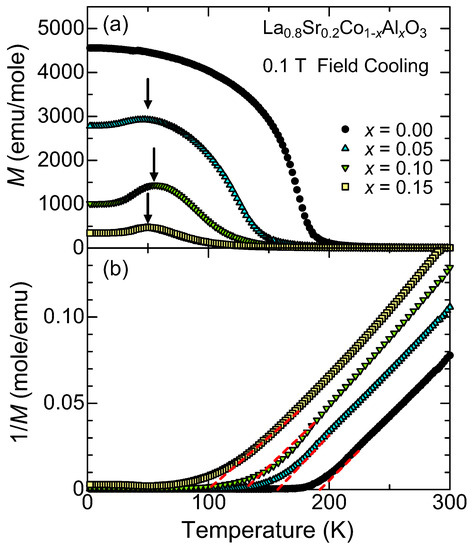

Figure 3a shows the temperature dependence of the magnetization in an external field of 0.1 T in the field-cooling process. All the samples showed a gradual increase in the magnetization below a certain temperature, indicating weak-ferromagnetic or cluster glass-like behavior. The data for $x=0$ are consistent with preceding studies, [25,26,27] and the Al substitution systematically suppressed the low temperature magnetization and the transition temperature. As the Al ion is chemically stable as trivalent, it substitutes for Co${}^{3+}$. Thus, the present results suggest that Co${}^{3+}$ ions play a vital role in the FMM phase of the doped LaCoO${}_3$, although FMM is driven by the doped holes (i.e., the Co${}^{4+}$ ions). For $x>0$, a broad maximum is seen in the magnetization as indicated by the arrows. The physical meaning of this maximum will be discussed later.

To see the transition temperature $T_c$ and the susceptibility at high temperatures clearly, Figure 3b shows the inverse magnetization for the same data. Although the transition is broadened with increasing x, $T_c$ decreases from 190 K for x = 0 down to 100 K for x = 0.15, as was estimated from the intersection points between the dotted lines and the temperature axis. This suppression is severer by a factor of three than the prediction from a simple dilution effect ($T_c\left(x\right)/T_c\left(0\right)\sim 1-3x$). This means that the Al substitution dramatically alters the ferromagnetic order. In contrast, the inverse magnetization above 250 K shows that the temperature slope is nearly the same for all the samples, and can be explained with a simple Curie–Weiss law in which the slope corresponds to the density of the magnetic moment. This indicates that the Al substitution left the whole number of magnetic moment almost unchanged. On one hand, this seems reasonable because Al${}^{3+}$ is nonmagnetic, but on the other hand it is in contradiction with the strong suppression of the ferromagnetic order.

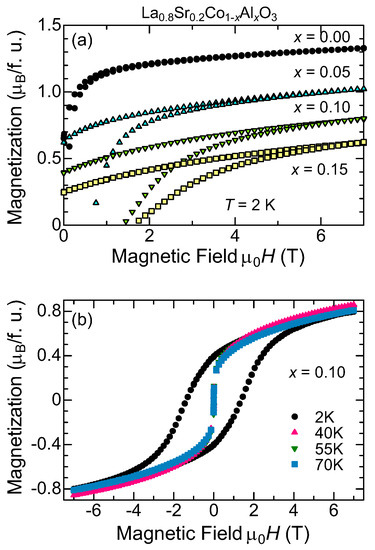

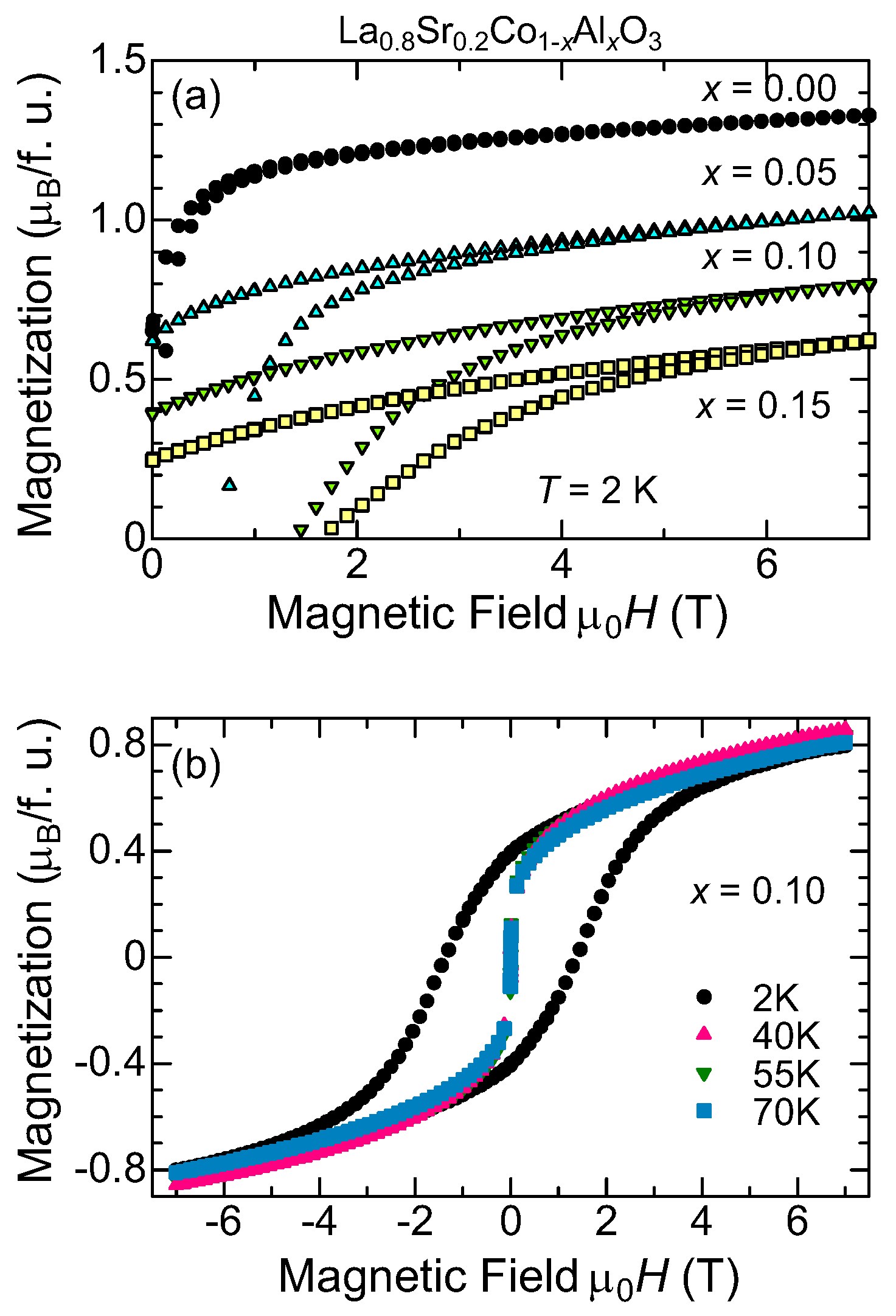

Figure 4a shows the magnetization hysteresis plotted as a function of external field for all the samples at 2 K. We show only the positive magnetization part just for clarity. All the curves tend to saturate at high magnetic fields, which is a hallmark of ferromagnetism. The saturation magnetization is around 1.3 ${\mu }_B$/f.u. for $x=0$, while that for $x=0.05$ it is around 1.0 ${\mu }_B$/f.u. This indicates that 5% substituted Al decreases the saturation moment of 0.3 ${\mu }_B$/f.u., i.e., one Al ion decreases a substantial value 6 ${\mu }_B$. For further substitution, the decrease in saturation magnetization is somewhat tempered, but still one Al ion suppresses roughly 4 ${\mu }_B$. Another notable feature is that the Al substitution makes the ferromagnetism harder; it increases the coercive field drastically. Owing to this hardening, the magnetization in 0.1 T shown in Figure 3a was measured as being smaller values than expected which underestimate the saturation magnetization.

Figure 4b shows how the magnetic hysteresis evolves with temperature for $x=0.10$. At 2 K, the magnetic hysteresis shows a clear loop with the coercive field of 1.5 T as was already mentioned above. With increasing temperature, the coercive field rapidly decreases above 40 K, and the magnetization does not show appreciable temperature dependence up to 70 K.

Let us evaluate the average spin number per Co ion quantitatively. We fit the magnetization above 250 K using the Curie–Weiss formula given by

$$\frac{M}{H}=\frac{C}{T-T_c}.$$

(1)

The parameter C is the Curie constant which is further written by

$$C=\frac{N{\mu }_{\mathrm{eff}}^2}{3k_B}=\frac{N{g}^2{\mu }_B^{2}S(S+1)}{3k_B},$$

(2)

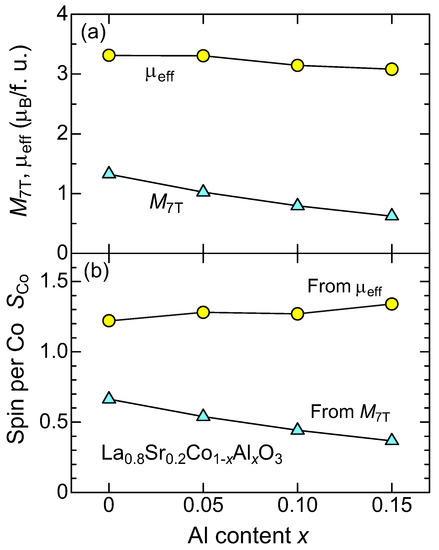

where ${\mu }_{\mathrm{eff}}$ is the effective magnetic moment, N the density of the effective moment, and S the effective spin number. Figure 5 shows the thus evaluated ${\mu }_{\mathrm{eff}}$ plotted as a function of the Al content x. Clearly ${\mu }_{\mathrm{eff}}$ is almost independent of x (slightly decreases with x), which is consistent with the fact that the temperature slope of the inverse magnetization is almost independent of x as was already discussed in Figure 3b. In contrast, the saturation magnetization below $T_c$ rapidly decreases with x. We regard the magnetization at 7 T at 2 K ($M_{7\mathrm{T}}$) as the saturation magnetization, and plot in the same figure.

We evaluate the average spin number per Co ($S_{\mathrm{Co}}$) from ${\mu }_{\mathrm{eff}}$ and $M_{7\mathrm{T}}$. In Figure 5b we plot the two kinds of $S_{\mathrm{Co}}$, where we assume the g-factor to be 2. From ${\mu }_{\mathrm{eff}}$, $S_{\mathrm{Co}}$ is around 1.2–1.3 and almost independent of x. This suggests that most of the Co${}^{3+}$ ions are in the intermediate state (S = 1). On the other hand, from $M_{7\mathrm{T}}$, $S_{\mathrm{Co}}$ is much smaller than unity and decreases with x. By combining these two, we are led to the conclusion that $S_{\mathrm{Co}}$ decreases with decreasing temperature, and such tendency becomes more remarkable upon the Al substitution. This naturally indicates that some portion of the Co ions show a crossover to the low-spin state at low temperatures.

We think that the spin-state crossover is the origin for the broad maximum observed in the magnetization for $x>$ 0 in Figure 3a, which looks similar to the drop of the magnetization in Sr${}_3$YCo${}_4$O${}_{10.5}$ around 200 K [8,40]. Since the two $S_{\mathrm{Co}}$ values do not coincide for x = 0, we propose that a small fraction of the Co${}^{3+}$ ions may experience spin-state crossover even for x = 0. This conclusion is consistent with the magnetic-resonance experiment by Smith et al. [41], from which they propose that the spin-state transition survives around 100 K up to 15% doped LaCoO${}_3$. In La${}_{1-x}$Sr${}_x$CoO${}_3$, Rodoriguez and Goodenough [26] have reported $S_{\mathrm{Co}}$ above $T_c$ is almost independent of Sr content, while $S_{\mathrm{Co}}$ below $T_c$ is much smaller and depends on Sr content. Kriener et al. [29] have found that the saturation magnetization is smaller in La${}_{1-x}$Ca${}_x$CoO${}_3$ than in La${}_{1-x}$Sr${}_x$CoO${}_3$ for the same x, which cannot be explained by a simple combination of the low-spin state Co${}^{4+}$ and the intermediate-spin state Co${}^{3+}$. Prakash et al. [42] have also reported that the magnetization curves in La${}_{1-x}$Ca${}_x$CoO${}_3$ are quantitatively different from those in La${}_{1-x}$Sr${}_x$CoO${}_3$ in the form of nano-particles.

4. Discussion

4.1. Effects on Transport Properties

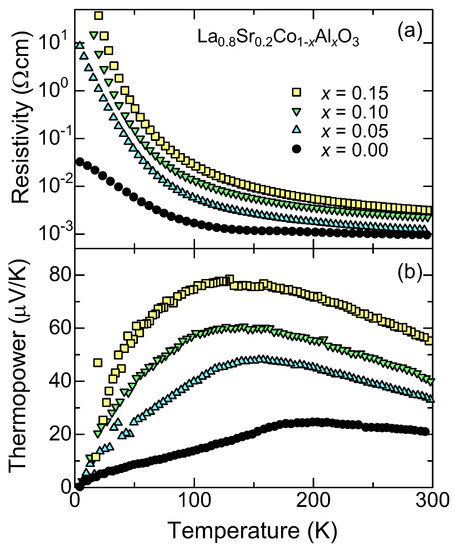

Let us discuss the effects of the Al substitution on the charge transport. Figure 6a shows the resistivity of the prepared samples plotted as a function of temperature. The resistivity for x = 0 shows a low value of 1 m$\mathsf{\Omega }$cm at room temperature, and weakly depends on temperatures above 100 K. With decreasing temperatures below 100 K, it turns into nonmetallic conduction, which has been regarded as the strong localization of carriers. This nonmetallic behavior happens when the double-exchange hopping between Co${}^{3+}$ and Co${}^{4+}$ ions is gradually suppressed below the magnetic transition temperature. The Al substitution increases the resistivity systematically at all temperatures, and makes the low-temperature upturn remarkable. We should note that the Al ions are expected to replace Co${}^{3+}$ ions in the system, thereby leaving the carrier concentration (the Co${}^{4+}$ concentration) intact. This is supported by the fact that the room-temperature resistivity remains in the order of m$\mathsf{\Omega }$cm. Accordingly, we attribute the nonmetallic behavior to the reduced mobility arising from the localization of the spin polaron.

Figure 6b shows the thermopower of the same set of the samples plotted as a function of temperature. The thermopower for x = 0 shows a small value of 20 $\mu$V/K at room temperature, and shows weak temperature dependence above the Curie temperature $T_c$ of 190 K. Then it shows a broad kink at $T_c$, and shows a temperature-linear dependence which is expected in the thermopower of degenerate semiconductors [43]. Since the diffusion term does not include scattering time directly, the T-linear thermopower is not in contradiction to the nonmetallic resistivity upturn as a result of the localization.

Most notably, the Al substitution systematically enhances the thermopower at all the temperatures. The increment in the thermopower reaches 60 $\mu$V/K at 100 K from x = 0 to 0.15, which is quite substantial. The T-linear thermopower at low temperatures indicates that their electronic states are essentially metallic without an energy gap in the density of states, being consistent with the picture of localized spin polaron. The samples for x = 0.05, 0.10, and 0.15 show a broad peak, and the peak temperature decreases with x. The peak temperature seems to decrease with x similarly to $T_c$, but the relationship between the two temperatures is yet to be explored. We should note once again that the Al ions are supposed to replace Co${}^{3+}$ rather than Co${}^{4+}$. Within a simple semiconductor physics, the thermopower depends mainly on the carrier concentration, not on the mobility. Thus, it is expected to be related to the Co${}^{4+}$ concentration, but not to the Co${}^{3+}$ concentration. Thus, the thermopower enhancement induced by the Al substitution is highly nontrivial.

The thermopower of the cobalt oxides has been discussed in terms of an extended Heikes formula proposed by Koshibae et al. [44]. The theoretical expression is given by

$$S=\frac{k_B}{e}ln\frac{g_{\mathrm{A}}}{g_{\mathrm{B}}}\frac{p}{1-p},$$

(3)

where p is the concentration of the A ions, and $g_i$ (i = A and B) is the internal electronic degeneracy due to the spin and orbital degrees of freedom. In the present case, p equals 0.2 (the Co${}^{4+}$ concentration) for all the samples. Consequently, $ln{g}_{{\mathrm{Co}}^{4+}}/g_{{\mathrm{Co}}^{3+}}$ should determine the magnitude of the thermopower. We experimentally showed that the Co${}^{3+}$ ions in the low-spin state can give a large value of $ln{g}_{{\mathrm{Co}}^{4+}}/g_{{\mathrm{Co}}^{3+}}$ [45,46,47].

In this respect, we can associate the thermopower enhancement at low temperatures with the spin-state crossover induced by Al substitution. Although the spin-state crossover is suggested at low temperatues from the magnetic measurements, the thermopower already increases at room temperature. We do not yet understand this clearly. One possibility is that the substituted Al ions bring additional entropy into the system, and give additional thermopower in the Heikes formula ($g_{\mathrm{A}}$ for Al ion and $g_{\mathrm{B}}$ for Co ion in Equation (3)). Another possibility is that the formation of the spin polaron gradually starts from room temperature, and is suppressed by the Al substitution. Consequently, the Co${}^{4+}$ ion is not fully surrounded with the intermediate-spin state Co${}^{3+}$ at room temperature.

4.2. Comparison with Other Impurities

In this subsection, we review the Co-site substitution effects on LaCoO${}_3$ and the related cobalt oxides. After the pioneering work of Kyomen et al. [38], we have studied the Co-site substitution effects in the doped and undoped LaCoO${}_3$. Asai et al. [39] found that the Rh substitution induces weak ferromagnetism in LaCo${}_{1-x}$Rh${}_x$O${}_3$ and further found that the Ga substitution in the weak-ferromagnetic LaCo${}_{0.8}$Rh${}_{0.2}$O${}_3$ severely suppresses the effective moment in the Co site [48]. These two works suggest that the Rh substitution stabilizes the Co${}^{3+}$ ion in the high-spin state, while the Ga substitution does the Co${}^{3+}$ ion in the low-spin state [49]. Knizek et al. [50] have reported from GGA+U electronic structure calculations that the Rh impurity can stabilize the high-spin state of the neighboring Co${}^{3+}$ ion. This tendency was further verified from optical reflectivity [51] and from X-ray absorption [52]. From the Curie–Weiss analysis, one substituted Rh ion leaves the value of $S_{\mathrm{Co}}$ unchanged up to 50% substitution, while one substituted Ga ion reduces $S_{\mathrm{Co}}$ by 4.6 ${\mu }_B$. Tomiyasu et al. [53] have recently shown that the doped magnetic impurity, such as Cr${}^{3+}$, Fe${}^{3+}$, Mn${}^{4+}$, or Ni${}^{2+}$, is surrounded by magnetic Co ions in LaCoO${}_3$.

In the case of the doped LaCoO${}_3$, Shibasaki et al. [54] found that the Rh substitution in La${}_{0.8}$Sr${}_{0.2}$Co${}_{1-x}$Rh${}_x$O${}_3$ does not change $S_{\mathrm{Co}}$ above $T_c$ while one Rh substitution effectively decreases $S_{\mathrm{Co}}$ by 9 ${\mu }_B$ below $T_c$. Since their findings are qualitatively the same as those in the present work, we can also explain the big drop in $S_{\mathrm{Co}}$ from room temperature down to 5 K in La${}_{0.8}$Sr${}_{0.2}$Co${}_{1-x}$Rh${}_x$O${}_3$ in terms of spin-state crossover. As mentioned in the previous section, one Al substitution decreases $S_{\mathrm{Co}}$ by 6 ${\mu }_B$ in La${}_{0.8}$Sr${}_{0.2}$Co${}_{1-x}$Al${}_x$O${}_3$. It is not clear at present whether or not the difference between 9 ${\mu }_B$ for Rh and 6 ${\mu }_B$ for Al is intrinsic. One possibility is that the Rh ion destroy the spin polaron more seriously than the Al ion. While the 10% Rh substituted sample is nearly paramagnetic [54], the 10% Al substituted sample still shows ferromagnetic behavior.

4.3. An Origin of Impurity-Induced Spin-State Crossover

Let us discuss a possible mechanism of spin-state crossover induced by impurities. As already mentioned, the spin polaron is formed in the lightly-doped LaCoO${}_3$. Podlesnyak et al. [31] have shown that the doped hole exists in the low-spin state Co${}^{4+}$ ion and is surrounded by six octahedrally-coordinated Co${}^{3+}$ ions in the intermediate spin state. The intermediate-spin state Co${}^{3+}$ is believed to be induced by Co${}^{4+}$ in order that the doped hole can gain kinetic energy through the double exchange interaction. This spin polaron acts as a super-spin of S = 13/2 via the double exchange interaction within the cluster. From the earlier magnetic measurement, Yamaguchi et al. [32] have found that the magnetization–field curve can be fitted with a large spin number of S = 10–16, which is consistent with the spin-polaron picture. The above experiments consistently show that the unit of magnetic moment extends to several unit cells.

Thus, it is naturally expected that the doped Al replaces one of the Co${}^{3+}$ ions in the spin polaron, and suppresses the double exchange. In the strong coupling limit, a single Al ion can block the spin-polaron formation, and practically act as plural nonmagnetic ions. As already shown, the transition temperature is rapidly reduced with x roughly expressed by $T_c\left(x\right)/T_c\left(0\right)\sim 1-3x$. The factor of three may come from the picture that one Al ion effectively makes around three Co ions be in the low-spin state at low temperatures. This is consistent with the fact that one Al ion suppress 6 ${\mu }_B$ in the saturation magnetization.

Since $S_{\mathrm{Co}}$ is independent of x above $T_c$, the spin polaron is likely formed around $T_c$ below which the effect of Al becomes remarkable. This is also suggested by the resistivity; the nonmetallic conduction becomes more remarkable below $T_c$. Since the spin polaron is strongly pinned or destroyed by the Al ion, it cannot act as a charge carrier in this system, where the isolated Co${}^{4+}$ ion is strongly localized in the sea of the low-spin state Co${}^{3+}$. At room temperature where the spin polaron is not yet formed, the resistivity is weakly dependent on x.

4.4. Coercive Field Induced by Al Substitution

As was already mentioned in the previous section, the weak ferromagnetism becomes harder with increasing Al concentration as shown in Figure 4. The coercive field ${\mu }_0{H}_c$ is unusually high, and reaches near 2 T at 2 K for x = 0.15. This is difficult to understand from a conventional theory of ferromagnets, [55] in which the anisotropy energy and the pinning force determine ${\mu }_0{H}_c$. Accordingly, ${\mu }_0{H}_c$ increases roughly with $T_c$ in conventional hard ferromagnets. In the present case, however, ${\mu }_0{H}_c$ increases and $T_c$ decreases with x. In particular, the coercive energy of ${\mu }_0{H}_{c}g{\mu }_B{S}_{\mathrm{Co}}$ is of 2 K/f.u. for x = 0.15, which is comparable with the ferromagnetic energy of $BH$/f.u. at 6 T. In the first place, polycrystalline samples are expected to show smaller coercive field than single crystal [56].

Such giant coercive fields have been overlooked thus far, possibly because they are regarded as coming from extrinsic origins such as pinning centers, dislocations, and particle size [57]. Actually nano-size ferromagnetic particles of $\epsilon$-Fe${}_2$O${}_3$ exhibit a giant coercive field of 2 T, [58] and three-atom-width nanowires of Co metal show ${\mu }_0{H}_c$ = 1.2 T [59].

Aside from nano-magnetics, huge coercive fields have been reported in various oxide materials. For example, ${\mu }_0{H}_c$ equals 5.9 T at 4.2 K for Co${}_2$(OH)${}_2$(C${}_8$H${}_4$O${}_4$) [60], 9 T at 4.2 K for LuFe${}_2$O${}_4$ [61], 12 T at 2 K for the hexagonal Sr${}_5$Ru${}_{5-x}$O${}_{15}$ [62], and 2 T at 100 K for BaIrO${}_3$ [63]. Although the origin of these huge ${\mu }_0{H}_c$ is different from material to material, a strong spin-orbit interaction and Ising-like anisotropy seem to play vital roles.

We have discussed a possible spin-state crossover induced by Al substitution. In this context, we can associate the giant ${\mu }_0{H}_c$ with magnetic-field induced spin-state crossover. As was discussed above, the substituted Al ion pins the spin polaron, and lets the neighboring Co${}^{3+}$ ion be in the low-spin state. Since this pinning competes with the intra-polaron double exchange, we expect that the energy difference between the low- and intermediate-spin states is within the order of $k_{B}T$. In such a situation, an external field helps the intermediate-spin state to grow through the Zeeman effect, and the number of the intermediate spins gradually increases with increasing field. This is a kind of metamagnetic transition in the sense that the total spin number changes with external field, and accompanies a magnetic field hysteresis because the spin-state crossover causes a large magnetostriction [64]. The spin-state transition is induced by external field in LaCoO${}_3$ and the related oxides, but the critical field is around 60 T for LaCoO${}_3$ [65,66] and 53 T for Sr${}_3$YCo${}_4$O${}_{10.5}$ [40]. It is not surprising that they are much higher than those in the present case, because the spin-state crossover in the pure cobalt oxides is caused by a cooperative interaction among the Co${}^{3+}$ ions, while the spin-state energy and cooperative interaction are reduced near the Al impurity.

5. Summary

In summary, we prepared a set of polycrystalline samples of La${}_{0.8}$Sr${}_{0.2}$Co${}_{1-x}$Al${}_x$O${}_3$ (0 $\le x\le$ 0.15), and measured the X-ray diffraction, magnetization, resistivity, and thermopower. We obtained the average spin number per Co ion ($S_{\mathrm{Co}}$) in two ways, and found that $S_{\mathrm{Co}}$ is around 1.2–1.3 at room temperature, and rapidly reduces to 0.3–0.7 at 2 K. The reduction of $S_{\mathrm{Co}}$ becomes more remarkable as x becomes larger. We have ascribed this to a spin-state crossover and proposed that the Al substitution enhances this crossover by pinning the spin polaron. The spin-state crossover also semi-quantitatively explains the enhanced thermopower and the anomalously large coercive field induced by the substituted Al ion.
