Design and Numerical Demonstration of All-Optical Logic Devices Based on Topological Valley Photonic Crystals with Circular Ring Dielectric Columns

Abstract

One of the bottlenecks in realizing all-optical computing is the lack of on-chip all-optical logic devices that combine compactness, low loss, and high robustness. Valley photonic crystals (VPCs) have become an important solution for realizing such devices, relying on the excellent transmission characteristics of topological valley states. However, existing structures still face issues such as limited design flexibility. In this paper, a high-performance topological all-optical logic device based on VPCs consisting of circular ring dielectric columns is designed and demonstrated. By introducing the inner radius as an independent design parameter, we construct a new type of VPC and systematically investigate its influence on the photonic band gap. Based on this, we design a beam splitter with high operational bandwidth and low insertion loss (<0.5 dB) and then realize fundamental OR and XOR logic gates, achieving extinction ratios of 18.9 dB for the OR gate and up to 44 dB for the XOR gate at an operating frequency of 193.5 THz. The platform also supports the NOT gate and, through cascading, can implement more logic functions such as the AND gate.

1. Introduction

With the rapid development of artificial intelligence and big data, traditional electronic computing is approaching its physical limits—the slowdown of Moore’s Law and the increasing severity of power consumption issues. By harnessing the inherent ultra-high speed and parallel processing capability of photons, all-optical information processing serves as a core enabling technology for breaking through this bottleneck [1,2,3,4]. To realize all-optical computing, the key lies in developing on-chip all-optical logic devices that combine compact, low-loss, and highly robust [5,6,7,8,9,10]. However, conventional approaches based on nonlinear effects or microring resonators often face limitations such as large device footprints, high power consumption, limited bandwidth, and sensitivity to fabrication errors—factors that severely hinder their integration. For instance, interferometric logic gates, while structurally simple, are highly sensitive to the output phase and suffer from considerable power attenuation, which makes cascading difficult.

The rise in topological photonics offers a new approach to addressing these challenges [11,12]. Its core is to use the topological invariants of materials to construct topologically protected photonic edge states [13]. These edge states are inherently robust against structural defects, disorder perturbations, and sharp bends, thus enabling low-loss and backscattering-immune optical transmission [14,15]. In particular, VPCs, which serve as a typical two-dimensional topological photonic platform [16,17,18,19,20], generate non-zero valley Chern numbers at the valleys of the Brillouin zone by breaking spatial inversion symmetry, thereby inducing valley-selective unidirectional edge states and laying a theoretical foundation for developing compact and robust photonic devices. In recent years, VPC-based devices such as power splitters, wavelength-division multiplexers, and optical switches have been extensively explored, demonstrating the performance advantages conferred by topological protection [21,22,23,24,25,26,27,28].

Essentially, valley photonic crystals break the spatial inversion symmetry of the lattice to open a photonic band gap at the K and K’ valleys of the Brillouin zone, generating opposite valley Chern numbers at the two valleys. At the domain wall between VPCs with distinct topological phases, topologically protected valley-dependent edge states are formed, featuring valley pseudospin-locked unidirectional propagation and strong robustness against structural defects and sharp bends [29]. Benefiting from these unique properties, VPCs have been widely applied in various on-chip photonic devices, including topological routers, valley microcavities, slow-light waveguides, all-optical logic gates, decoders, and terahertz interconnection systems. Very recent studies have further expanded their application scenarios to topology-controlled photonic cavities and valley Hall lasers, demonstrating broad development prospects [30,31].

In terms of performance characteristics, the VPC platform has distinct advantages: its band structure and edge state properties can be flexibly tailored by adjusting structural parameters; it is compatible with standard micro-nano fabrication processes; and topological edge states exhibit ultralow backscattering loss even at large-angle bends. Nevertheless, it also faces inherent limitations: photonic crystal slabs suffer from unavoidable out-of-plane radiation losses, device performance is sensitive to fabrication precision, and for conventional solid-column VPCs, it remains challenging to simultaneously achieve wide operating bandwidth and low inter-channel crosstalk [29,30,31]. However, conventional VPCs based on solid dielectric columns offer limited design freedom, which restricts the flexible control of band structures and edge states. Integrating multiple logic functions on a single compact platform also remains an open challenge [32,33,34].

Inspired by recent studies [35,36] and to address the above challenges, we propose a topological VPC based on circular ring dielectric columns. By introducing the inner radius as an independent tuning parameter, we expand the control over the band structure beyond the conventional outer radius and lattice constant. This enables complete spectral separation of two types of topological edge states (TES), fundamentally eliminating multi-channel crosstalk. Using this platform, we demonstrate a 50:50 beam splitter (BS) with an insertion loss below 0.5 dB across the operational band and as low as 0.21 dB at 193.5 THz. Leveraging reciprocity and interference effects, we realize OR, XOR, and NOT logic gates on the same structure and further demonstrate an AND gate through cascading. All devices exhibit an extinction ratio of 18.9 dB at 193.5 THz (193.5 THz corresponds to a vacuum wavelength of approximately 1550 nm), with the XOR gate reaching up to 44 dB, and maintain stable performance over a broad frequency range.

2. Materials and Methods

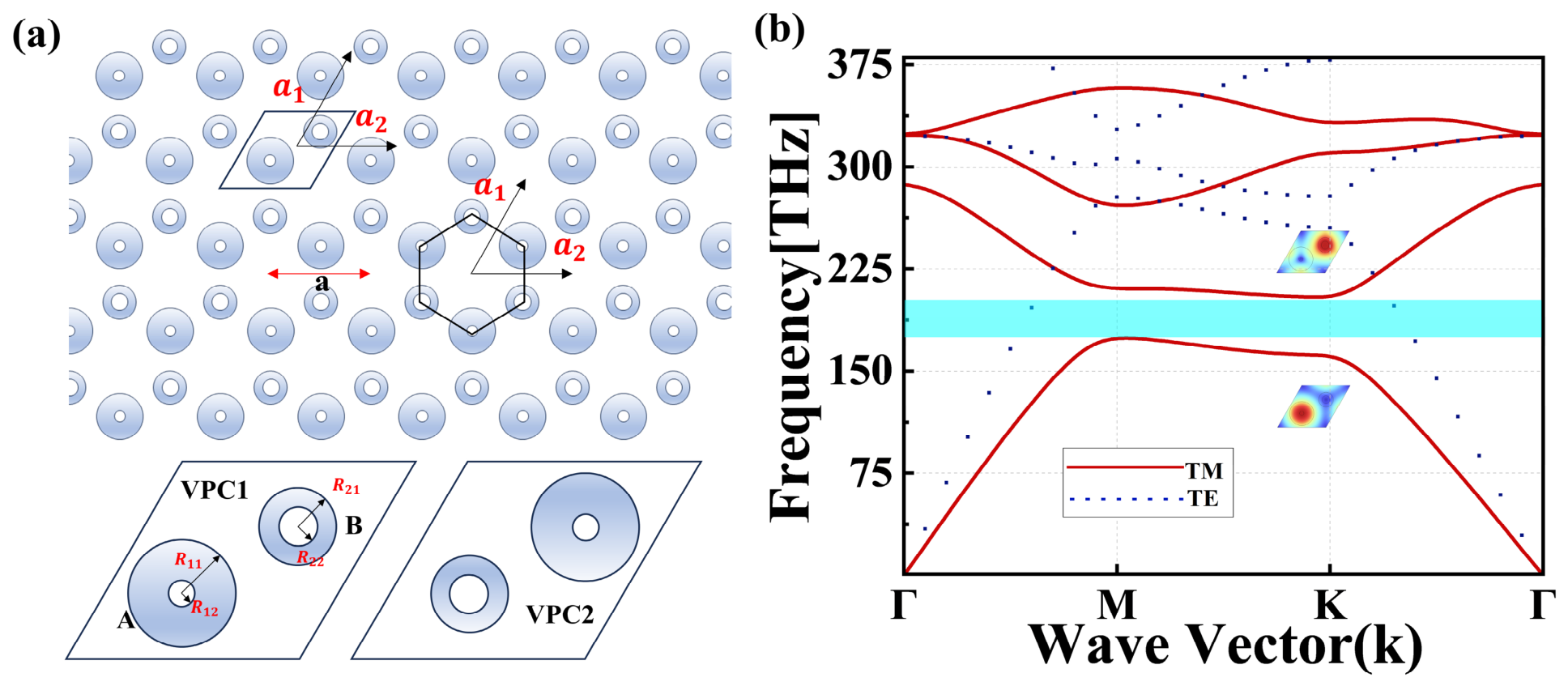

In this work, we construct VPCs based on circular ring dielectric columns. Figure 1 illustrates the structural characteristics and band properties of the VPCs. Figure 1a shows a schematic of the periodic lattice and the unit cell. The photonic crystal consists of circular ring dielectric columns arranged in a triangular lattice with lattice constant $a=430 \mathrm{n}\mathrm{m}$. The lattice basis vectors are ${\mathit{a}}_1=a/2i+a\sqrt{3}/2j,{\mathit{a}}_2=ai$. The parallelogram in the figure marks a unit cell of the VPC. The background is air, and the dark regions represent silicon ring columns with refractive index n = 3.48 and relative permeability ${\mu }_r$ = 1. In the simulation, we assumed that the refractive index of silicon was a constant value and material dispersion was not introduced. This was because within the operating frequency band, the change in the refractive index of silicon was extremely small (approximately 0.01), and its influence on the topological band structure and device performance could be neglected. This approach is consistent with the common practice in similar topological photonic numerical studies [11,37]. Two types of ring columns, A and B, are defined with the following geometric parameters: for column A, outer radius $R_{11}=0.25a$ and inner radius $R_{12}=0.25R_{11}$; for column B, outer radius $R_{21}=0.19a$ and inner radius $R_{22}=0.5R_{21}$. Based on these parameters, we obtain two distinct unit cells, labeled VPC1 and VPC2. Using finite-element method simulations, we calculate the band structures of the VPCs. Figure 1b presents the band structure along the high-symmetry path in the Brillouin zone, where the blue region indicates the topological photonic band gap. The eigenstate distribution at the K point for VPC1 is also shown. Calculations confirm that VPC1 and VPC2 possess valley Chern numbers of opposite signs at the K and K′ points, indicating distinct and complementary topological phases [36]. Throughout this work, only the transverse-magnetic (TM) mode is considered. All numerical simulations in this work are performed using COMSOL Multiphysics 6.1 based on the finite element method.

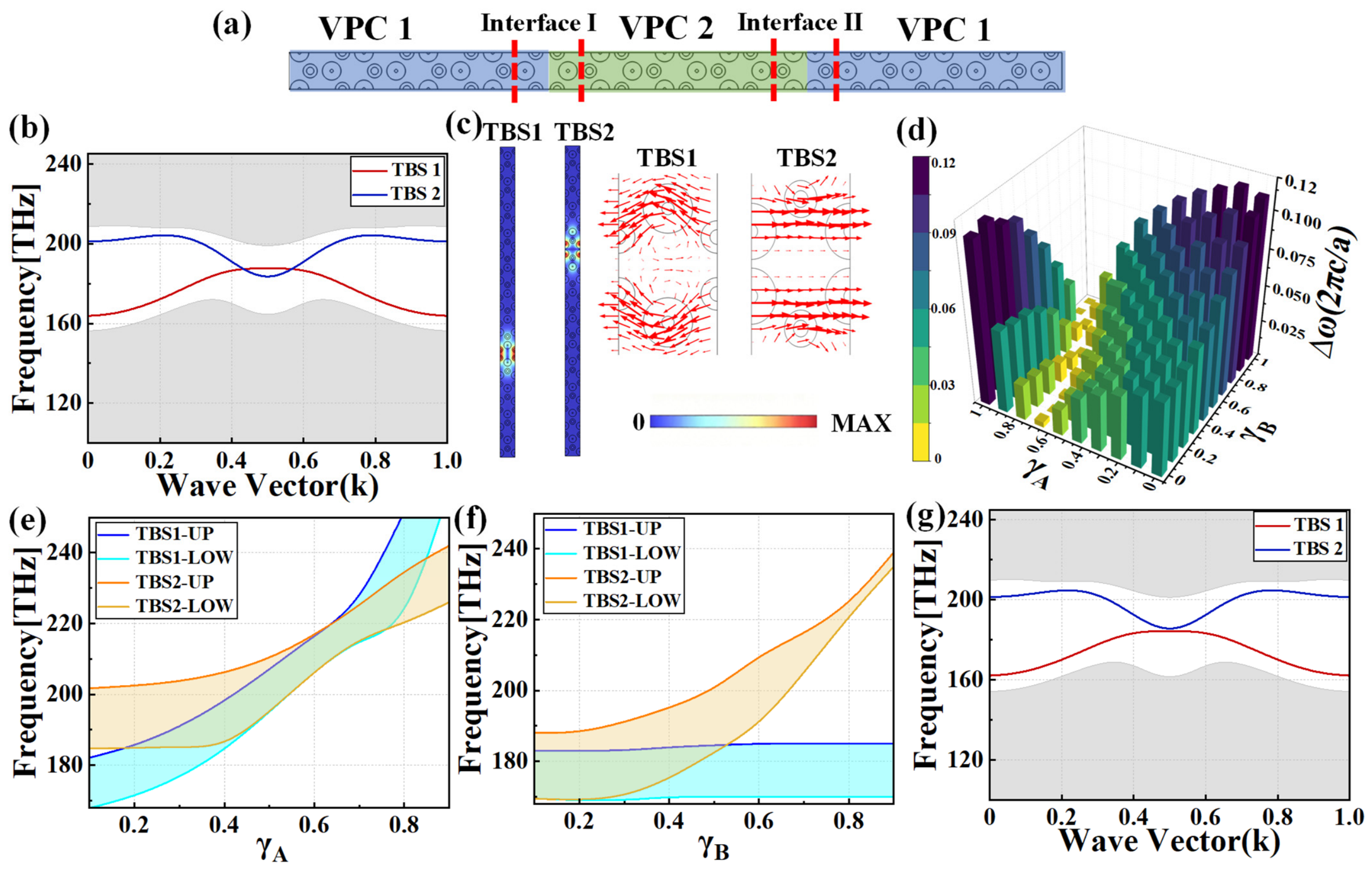

To construct topologically protected edge states, we combine VPC1 and VPC2 with opposite topological phases to form a sandwich-like supercell, as shown in Figure 2a. At interfaces I and II, this structure supports TES1 and TES2, respectively. As shown in Figure 2b, the band structure of the initial configuration reveals that TES1 operates within the frequency range of 172.5–187.5 THz, with TES2 covering 182.75–198.75 THz. The dispersion curves consist of two pairs of separated linear branches with opposite slopes. For comparison, a previous study reported a relative band gap width of $∆\omega /{\omega }_c=12.7\%$ (where ${\omega }_c$ is the mid-gap frequency) in ref. [37]. Ref. [37] is selected as the performance baseline since it adopts the identical topological VPC heterostructure design and finite-element simulation method as this work, and its reported 12.7% relative band gap represents the typical performance level of such structures. In this work, the overall relative band gap width is $∆\omega /{\omega }_c=14.3\%$, with TES1 and TES2 exhibiting relative bandwidths of 8.33% and 8.39%, respectively. Notably, the two bands exhibit significant overlap, which can induce inter-valley scattering, causing crosstalk and reducing the effective operational bandwidth [38]. Figure 2c shows the electric field distribution and Poynting vector at k = 0.4, confirming the topological locking between propagation direction and valley degree of freedom [39].

To achieve high-performance logic devices with broader operational bandwidth and enhanced crosstalk immunity, we introduce a radius ratio parameter γ, defined as the ratio of inner radius to outer radius. Specifically, ${\gamma }_A=R_{12}$/$R_{11}$ and ${\gamma }_B$= $R_{22}$/$R_{21}$. Fixing the outer radii at $R_{11}=0.25a$ and $R_{21}=0.19a$, we systematically scan ${\gamma }_A$ and ${\gamma }_B$ from 0 to 1 in steps of 0.1 to investigate their influence on the PBG and the bandwidths of the TES. Figure 2d shows the PBG width as a function of ${\gamma }_A$ and ${\gamma }_B$. As ${\gamma }_A$ increases, the PBG initially decreases and then increases, corresponding to the band gap closing at the Dirac point followed by band inversion. Before band inversion, increasing ${\gamma }_B$ monotonically widens the PBG. Therefore, to maximize the PBG, one can choose a small ${\gamma }_A$ and a large ${\gamma }_B$. The width of the PBG directly determines the upper limit of the operational bandwidth and the transmission stability of the topological edge states [40]. We further analyze the dependence of the TES band structures on ${\gamma }_A$ and ${\gamma }_B$. For fixed ${\gamma }_B$ = 0.5 (${\gamma }_A$ = 0.25), Figure 2e shows that increasing ${\gamma }_A$ shifts the central frequencies of both TES1 and TES2 upward, with TES2 shifting more significantly, leading to band overlap or even inversion when ${\gamma }_A$ > 0.2. Conversely, for fixed ${\gamma }_A$ = 0.5, Figure 2f indicates that ${\gamma }_B$ has a weak effect on TES1 but raises the central frequency of TES2 and broadens its bandwidth; however, the bandwidth shrinks markedly when ${\gamma }_B$ > 0.5. To maximize the operational bandwidth while minimizing band overlap, we identify the optimal parameter range as ${\gamma }_A$ < 0.2 and 0.5 < ${\gamma }_B$ < 0.6. The final chosen values are ${\gamma }_A$ = 0.175 and ${\gamma }_B$ = 0.525, yielding the band structure shown in Figure 2g. The overall relative band gap width reaches 17.8%, a 40.6% improvement over ref. [37]. TES1 operates from 169.2 to 184.5 THz (relative bandwidth 8.65%), and TES2 from 184.7 to 201 THz (relative bandwidth 8.45%), with a 0.2 THz isolation gap. Each bandwidth is increased by approximately 0.3 THz compared to the initial design, effectively suppressing disorder-induced scattering between edge states while preserving the original bandwidth.

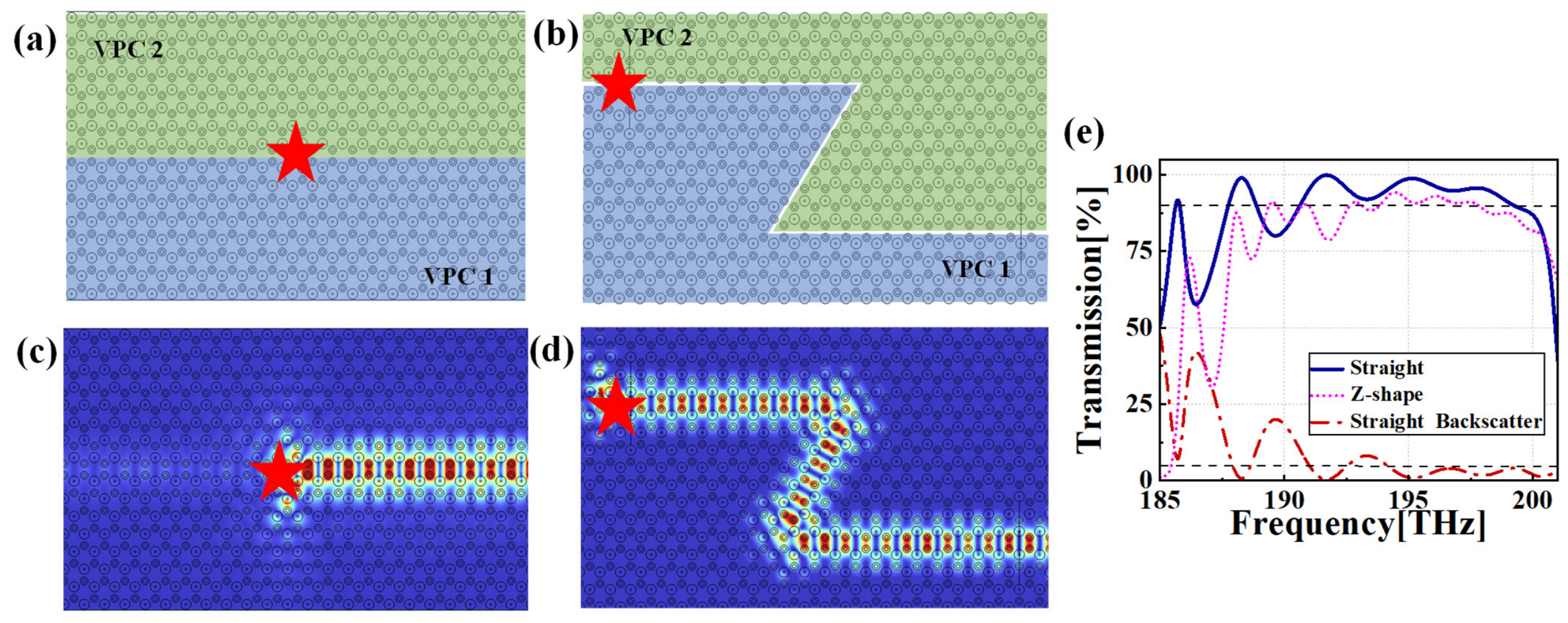

The stable operation of the all-optical logic gate relies on the low-loss optical transmission channel, the unidirectional transmission characteristic, bending resistance and transmission loss level of the topological optical waveguide, which directly affect the operation accuracy and integration adaptability of the logic gate. After successfully constructing a stable topological boundary state, this study focuses on its actual waveguide transmission performance and conducts performance tests on the light transmission of two structures: the straight waveguide and the 60° Z-shaped bent waveguide (Figure 3a,b). At the red star-marked interface of the waveguide, circularly polarized light is introduced as the excitation source. The straight waveguide and the Z-shaped waveguide use left-handed circularly polarized light to excite rightward light transmission, thereby testing the polarization-dependent unidirectional transmission characteristics of the boundary state. The transmission rate curve shown in Figure 3e indicates that within the frequency range of 190.5–199 THz, the forward transmission rate of the straight waveguide remains above 90%, and the reverse scattering rate can be controlled below 5%; within the frequency range of 189.2–199.8 THz, the forward transmission rate of the Z-shaped waveguide remains above 80%, and the overall transmission stability is good. Combining the waveguide electric field Ez distribution results shown in Figure 3c,d, it can be seen that the optical energy is strictly localized at the topological boundary interface and realizes unidirectional transmission, without any leakage to the bulk state or significant backscattering phenomenon. At the working frequency of 193.5 THz, the transmission rates of the straight waveguide and the Z-shaped bent waveguide reach 92.3% and 89.5% respectively. This result indicates that the ring valley photonic crystal topological boundary state not only has ultra-low transmission loss, but also has excellent bending resistance and scattering resistance, highlighting the core advantages of this waveguide system of wide bandwidth and high robust transmission, providing support for the subsequent integration application of all-optical logic gates.

3. Results and Discussion

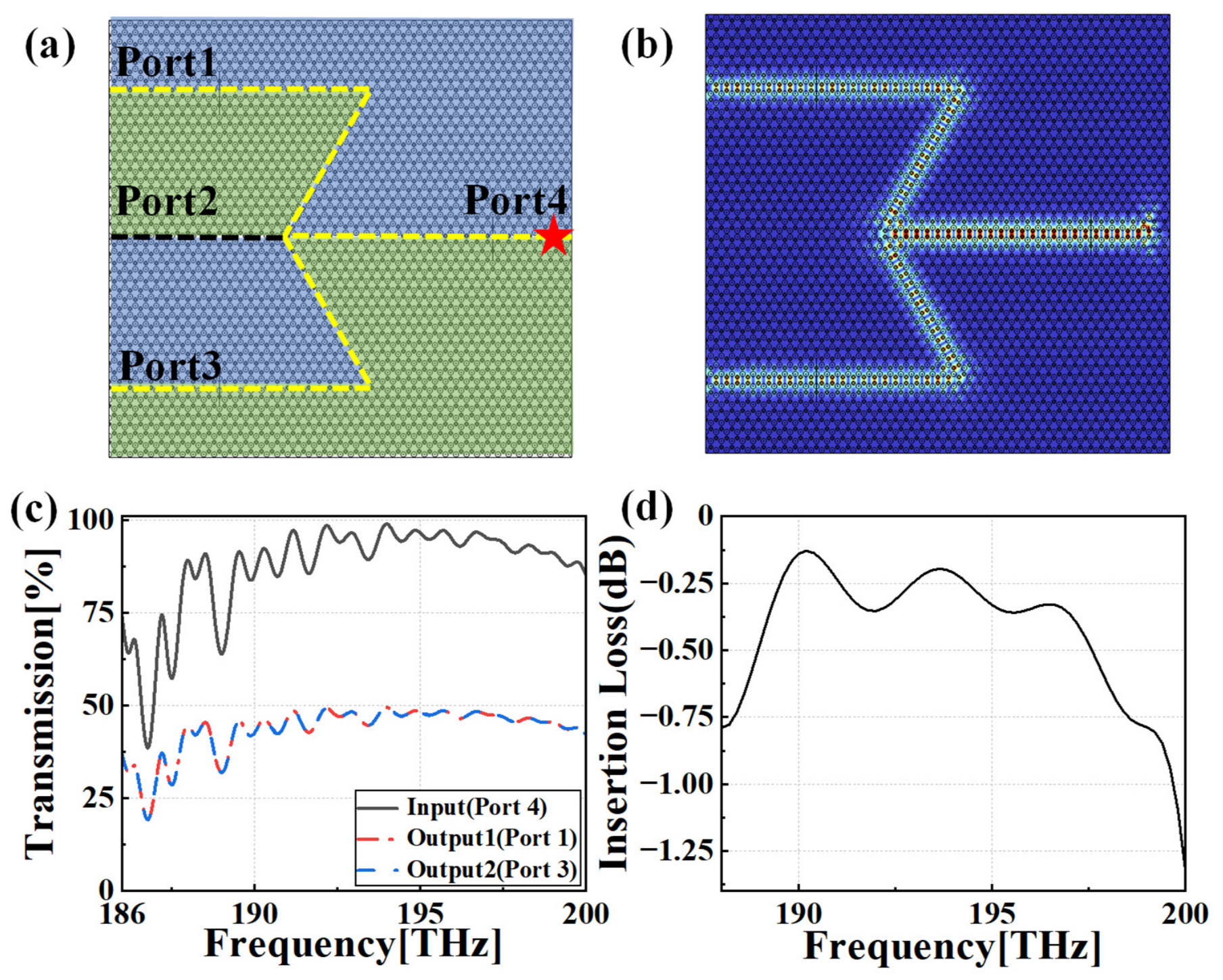

Based on the characteristics of the TES discussed above, we design and analyze a topological beam splitter (BS) as the fundamental building block for all-optical logic functions. The structure of the BS is shown in Figure 4a, and the corresponding electric field distribution at 193.5 THz is presented in Figure 4b. The blue and green regions represent VPC1 and VPC2, respectively. The yellow dashed line marks the transmission path along interface II (supporting TES2), while the black dashed line indicates interface I (supporting TES1). Circularly polarized light propagates in opposite directions on the two interfaces due to valley-spin locking. The yellow path forms a three-port waveguide structure. In terms of port configuration, Ports 1, 3, and 4 are designed to excite TES2, whereas Port 2 excites TES1. The operational frequency band is chosen as 185–201 THz, which lies within the TES2 band; therefore, Port 2 theoretically does not participate in the device function. Both the main waveguide and the two branch waveguides incorporate 60° bends. When right-handed circularly polarized (RCP) light is launched into Port 4, it couples at the junction into the two output branch waveguides, Ports 1 and 3, thus realizing the beam-splitting function.

We performed power scanning and quantitative monitoring for each port within the 185–201 THz frequency range. As shown in Figure 4c, we present the curves of power variation with frequency for the input port (Port 4) and the two output ports (Ports 1 and 3). Throughout the entire monitored band, the power values at Ports 1 and 3 are strictly consistent with a relative error of ≤0.01%, each accounting for half of the total power in the main waveguide—confirming that the device achieves precise 50:50 beam splitting across the entire band. At the operating frequency of 193.5 THz, the total transmittance of the system reaches 96.4%.

The insertion loss (IL) of the beam splitter, calculated as $IL=10{log}_{10}{\displaystyle \frac{P_{out}}{P_{in}}}$, is shown in Figure 4d. Over the range 189.2–197.4 THz, the IL remains below 0.5 dB, and at 193.5 THz it is as low as 0.21 dB. For comparison, conventional silicon-based photonic crystal beam splitters typically exhibit insertion losses between 0.4 and 2.5 dB. Even state-of-the-art topological splitters, such as the one reported in ref. [41], show an insertion loss of 0.38 dB. The footprint of our device is 18.92 μm × 17.87 μm, which can be further reduced if needed. These results highlight the compactness, broad bandwidth, and low loss of the proposed beam splitter.

It is worth noting that this beam splitter not only achieves a 50:50 equal power splitting but also has reciprocity and can further support stable on-chip interference functions: when signals are launched backward into the two branch waveguides, they interfere at the main waveguide junction. This feature lays the foundation for implementing optical logic functions on the same topological platform [6]. Using the BS configuration, we designate the two branch waveguides (Ports 1 and 3) as logic inputs A and B, and the main waveguide (Port 4) as the output Y, as shown in Figure 5a. The red stars on the two input waveguide paths indicate the positions of the simulated excitation sources. Within the TES2 operational band, left-handed circularly polarized (LCP) light propagates to the right and is defined as logic “1”, while right-handed circularly polarized (RCP) light, which does not support rightward propagation, is defined as logic “0”. Therefore, when an input port is excited by RCP light, the excitation source propagates to the left, which is functionally equivalent to a logic “0” input. The field distribution visible on the left side of the figure is the physical manifestation of this leftward propagation mode. Meanwhile, the backward scattering generated on the right side during leftward propagation simulates the actual output of the logic gate under the influence of backscattering. The output is considered logic “1” if the transmittance at Port 4 exceeds 70%, and logic “0” if it is below 30%. The transmittance range between 30% and 70% is defined as a transition (indeterminate) region reserved as noise margin to avoid logic misjudgment caused by noise fluctuations. Within the core operating bandwidth, all steady-state outputs of the logic gates strictly lie outside this range. When the output temporarily falls into the transition region under dynamic disturbances, the state is judged as invalid and does not participate in subsequent logic operations. This threshold is selected based on the device’s actual output characteristics and noise robustness requirements, in line with common evaluation practices in the field of all-optical logic gates.

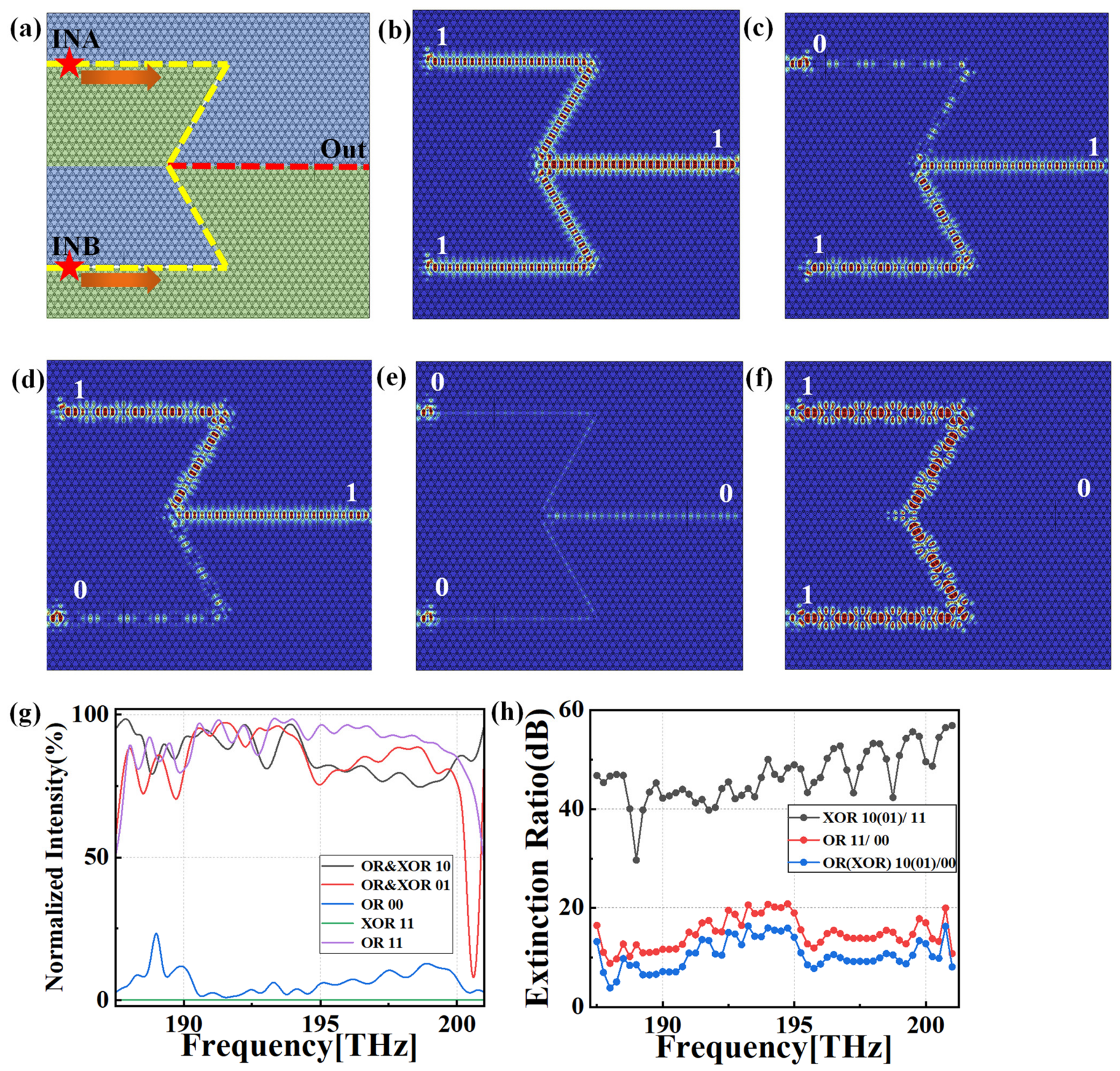

Based on this, the OR gate is directly realized through the reciprocity of the beam splitter: if at least one of the inputs A or B is “1”, the output Y is “1”. The truth table and the corresponding field distributions at 193.5 THz are presented in

Table 1. Truth table of OR and XOR logic gates at the operating frequency of 193.5 THz (a π phase shift is introduced at Port 3 for XOR gate operation).

Input A (Port 1)	Input B (Port 3)	Output (Port 4)		Transmittance
		OR	XOR	OR	XOR
1	1	1	0	0.973	0.006
0	0	0	0	0.008	0.003
1	0	1	1	0.962	0.966
0	1	1	1	0.914	0.914

and Figure 5b–e, respectively. Transmittance in the table and Figure 5g is defined as the ratio of the output port power to the total input power of all input ports. In Figure 5b, the input state is “11” for the OR gate configuration, where there is no additional phase difference between the two input signals, resulting in an output of “1”.

The XOR gate is implemented on the same structure by introducing phase control: a π phase shift is added at Port 3, so that the signal from input B arrives at the Y junction with a 180° phase difference relative to the signal from input A. This phase shift can be monolithically integrated by designing a deliberate length mismatch between the two input waveguides. Specifically, extending one arm (e.g., Port 3) by $∆L=\lambda /2n_{eff}$ accumulates a π phase shift during propagation, where λ is the operating wavelength and $n_{eff}$ the effective index of the topological edge state. This approach is fully compatible with standard silicon photonic fabrication processes and requires no external components such as half-wave plates. When both inputs are “1”, the equal-amplitude, out-of-phase signals interfere destructively, yielding output “0”. When the inputs are different (01 or 10), a single input reaches the output without interference, resulting in “1”. The truth table and field distributions at 193.5 THz are given in Table 1 and Figure 5c–f, respectively. In Figure 5f, the input state is also labeled as “11”, but this corresponds to the XOR gate configuration (with a π phase shift introduced at Port 3). The two out-of-phase signals interfere destructively, yielding an output of “0”. Therefore, Figure 5b,f correspond to different logic functions realized on the same physical structure under different phase configurations.

As shown in Figure 5g, the normalized output power for various logic states across the operational band confirms that the logic gates work correctly over the full monitored range. The extinction ratio (ER), a key figure of merit quantifying the contrast between logic “1” and “0”, is defined as $ER=10{log}_{10}\left({\displaystyle \frac{P_1}{P_0}}\right)$, where P1 and P0 are the output powers for the “1” and “0” logic levels, respectively. The ER curves are plotted in Figure 5h. At the operating frequency of 193.5 THz, the OR gate exhibits an ER of 18.9 dB for the “10” and “01” input states and up to 24.9 dB for the “11” state. For the XOR gate, due to destructive interference, the output power for the “11” state is much lower than that for a logic “1”, resulting in an ER as high as 44 dB. In contrast, for the “00” state, the output power is slightly higher due to residual backscattering, leading to a lower ER. The weak residual output in the “00” state (~1.4%) can be attributed to several factors. In simulations, possible contributors include impure valley excitation and end reflections from finite-length waveguides, which may lead to weak standing-wave interference within the domain wall. In fabricated devices, structural disorder (e.g., size/position fluctuations and sidewall roughness) is often a major source, especially when its backscattering efficiency is further enhanced by the slow-light effect near the band edge. These results demonstrate the excellent logic-level discrimination capability of the proposed logic gates.

Furthermore, a NOT gate can be realized using the same XOR gate structure by designating one input as a fixed auxiliary port. Specifically, input A is set as the auxiliary port and held at logic “1”, while input B serves as the signal input. The operating principle again relies on interference: when input B is “0” (no signal), only the auxiliary signal reaches the output, giving Y = 1. When input B is “1”, the two signals interfere destructively at the junction, yielding Y = 0. Since the NOT gate shares the identical physical structure with the XOR gate without introducing any additional components, its performance parameters are the same. The corresponding electric field distributions for the NOT gate can be found in Figure 5d,f corresponding to the “0 → 1” and “1 → 0” logic states, respectively. It is worth noting that the reliable operation of the NOT gate strictly depends on the stable π phase difference between the auxiliary port and the signal port. In practical on-chip experiments, both ports can be driven by the same laser source to ensure optical coherence, and the π phase difference can be realized by integrating a thermo-optic phase shifter on the auxiliary path or designing a precise waveguide length difference. Benefiting from the robustness of topological edge states against structural perturbations and environmental fluctuations, the structure has certain tolerance to slight phase drift. Supported by mature silicon photonic phase regulation technology, this scheme has feasible experimental prospects, and we will carry out further experimental verification in future work.

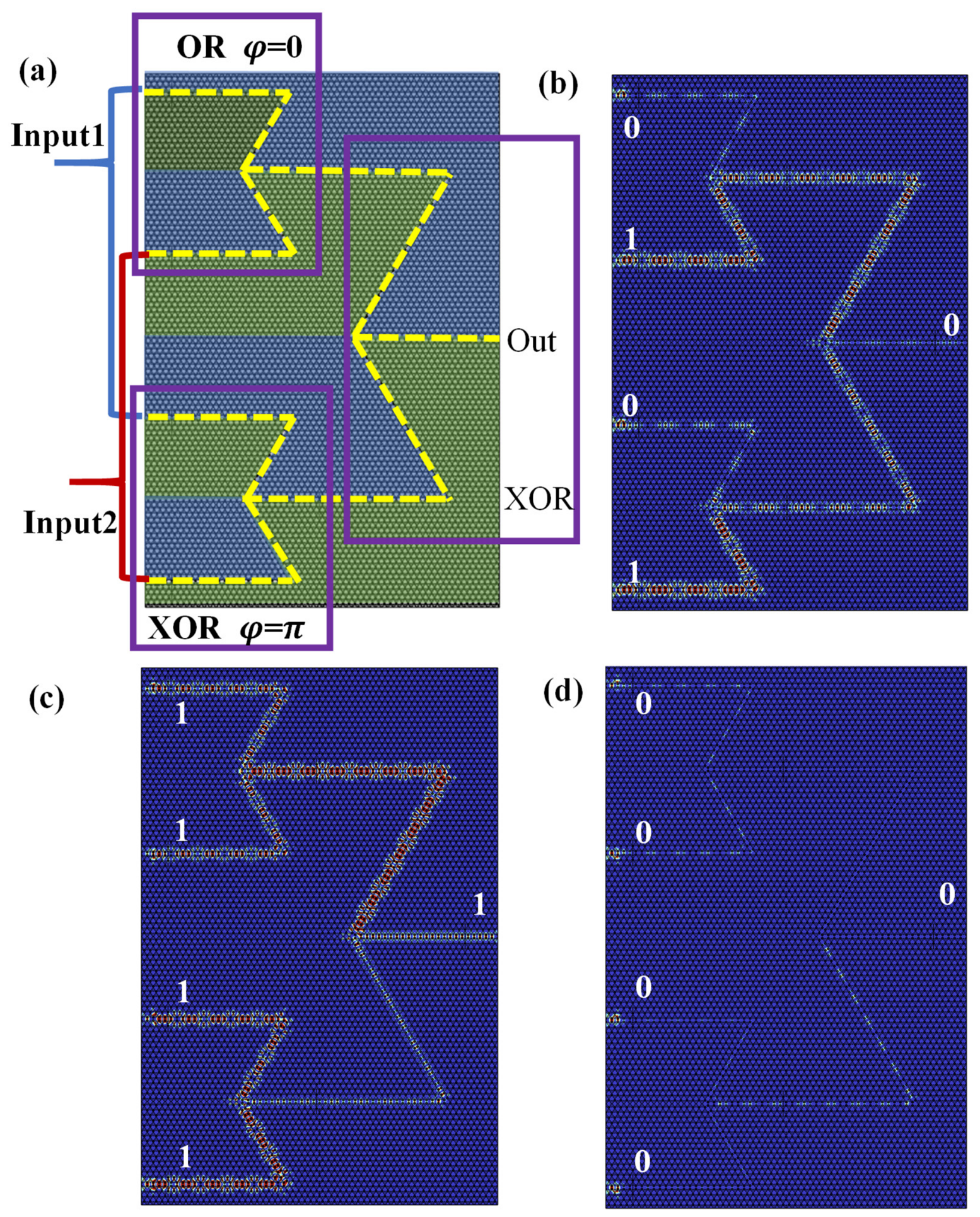

To realize more complex logic functions, the basic gates (OR and XOR) can be cascaded. Taking the AND gate as an example, its logic expression can be written as A AND B = (A OR B) XOR (A XOR B). The implementation is shown in Figure 6a: an OR gate and an XOR gate are used as the first stage, with their inputs (Port 1 and Port 3) receiving the same logic signals. The phases are adjusted so that the two output signals have a 180° phase difference. These outputs are then fed into a second-stage XOR gate, realizing the AND function. The outputs of the first-stage gates are directly routed to the inputs of a second-stage XOR gate through topological edge-state waveguides (the yellow interface-II paths). No additional external components (such as amplifiers or phase shifters) are introduced between the two stages. Figure 6b–d depict the electric field distributions for the AND gate under different input logic states, where Figure 5b corresponds to input state “01”, Figure 6c to input state “11”, and Figure 6d to input state “00”. The complete truth table, excitation conditions, and output results for the AND gate are summarized in

Table 2. Truth table of the cascaded AND logic gate at the operating frequency of 193.5 THz (The initial phase of the first-stage OR gate is set to 0, and the first-stage XOR gate maintains a π phase difference with respect to the OR gate.).

In1	In2	Output (Port 4)			Transmittance
(OR φ = 0)	(XOR φ =$\mathit{\pi }$)	OR	XOR	AND	OR	XOR	AND
1	1	1	0	1	0.941	0.018	0.717
0	0	0	0	0	0.058	0.009	0.043
1	0	1	1	0	0.925	0.883	0.054
0	1	1	1	0	0.913	0.954	0.027

. With the demonstrated OR, XOR, NOT, and AND gates, further cascading can in principle construct all other logic gates, forming a complete set of all-optical logic units.

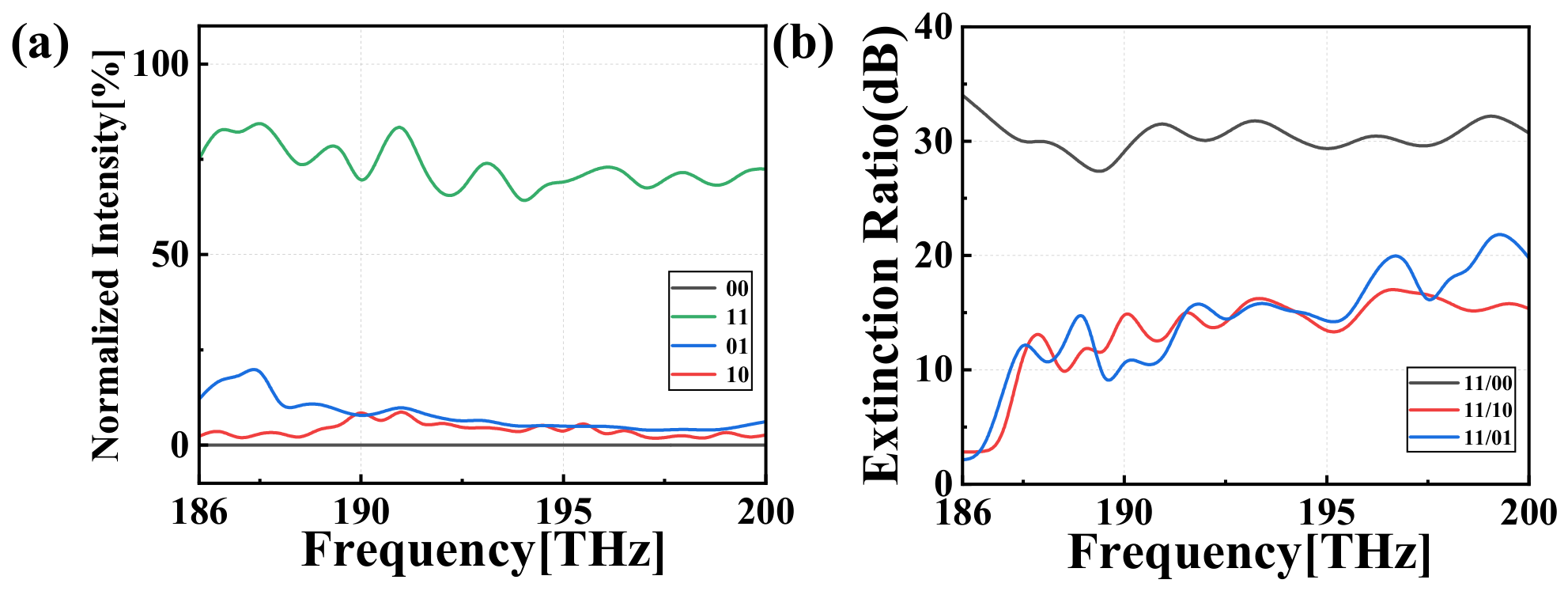

The transmittance and extinction ratio curves of the AND gate are depicted in Figure 7. Within the monitored frequency range of 186–200 THz, the cascaded AND gate yields a normalized output transmittance stably above 70% only when both inputs are logic ‘1’, reaching 71.7% at the central operating frequency of 193.5 THz, while the transmittance remains below 10% for all other input states, consistent with the preset logic criteria. At 193.5 THz, the extinction ratio of the cascaded AND gate exceeds 30 dB for the ‘11/00’ state and is higher than 15 dB for other logic states. Within the core operating bandwidth of 189.2–197.4 THz, the device extinction ratio is consistently above the practical threshold of 10 dB, fully verifying the excellent logic scalability and performance robustness of the proposed topological platform.

One of the core advantages of topological photonic crystals is that their edge states are protected by global topological invariants, theoretically providing natural immunity against structural defects, lattice disorders, and sharp bends. However, there remains a gap between the verification of this “defect-robust transmission” property in ideal simulations and the actual performance of micro/nano-fabricated devices. Specifically, unavoidable fabrication imperfections in practice—such as sidewall roughness, process deviations in the inner/outer radii and positions of the dielectric columns, non-uniform etching depth, as well as the weak but non-negligible intrinsic absorption of silicon at telecommunication wavelengths—may introduce additional scattering or absorption losses, thereby affecting the transmission of topological edge states.

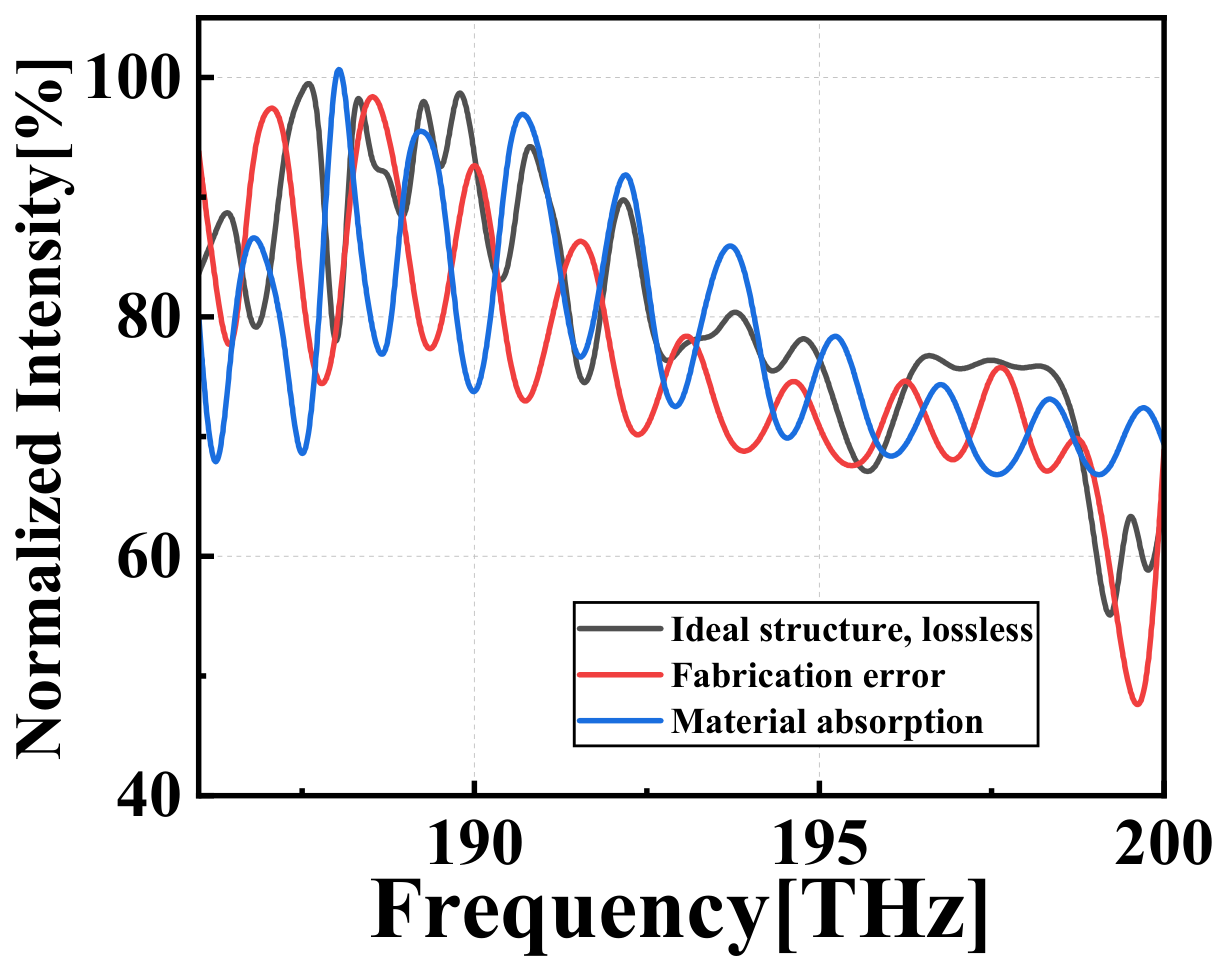

To quantitatively evaluate the influence of the above non-ideal factors on the performance of our device, we take the OR gate as the test vehicle and select the typical “101” logic input state (i.e., input INA = logic “1”, INB = logic “0”, output Out = logic “1”). Two practical loss scenarios are simulated and systematically compared with the ideal case in terms of transmission spectra and extinction ratio: (1) Fabrication error. To emulate the common dimensional deviations of the dielectric columns in real processes, a uniform −10% relative deviation is applied to the inner radii of the ring columns. The original design values are $R_{12}=0.175R_{11}$, $R_{22}=0.525R_{21}$; within the error range, the parameters become $R_{12}=0.1575R_{11}$,$R_{22}=0.4725R_{21}$. (2) Material absorption. To simulate the actual absorption effect of silicon at the optical communication C-band (193.5 THz), the refractive index of silicon is changed from the ideal lossless real value n = 3.48 to a complex form $n=3.48-i\times {10}^{-4}$, where the extinction coefficient $k=i\times {10}^{-4}$ corresponds to the typical absorption level of lightly doped silicon at 193.5 THz. By comparing the transmission spectra and extinction ratios under the three conditions (ideal parameters, fabrication error, and material absorption), the robustness of the proposed logic gate under practical process conditions is verified. The transmission spectra obtained from the simulations are shown in Figure 8. It can be observed that, under the interference of these two types of defects, the transmission spectra exhibit only minor perturbations compared with the ideal case, without significant performance degradation, confirming the robustness of the all-optical OR gate. This characteristic indicates that the proposed all-optical OR gate structure possesses a certain defect immunity, which ensures high feasibility for practical operation.

These results can be further explained from the perspective of topological protection mechanism. The dimensional deviation of circular ring dielectric columns mainly slightly shifts the central frequency of the photonic band gap by changing the local equivalent refractive index, but it does not destroy the topological phase and valley-locked propagation property of the structure. Thus, the backscattering-immune property of topological edge states is well maintained, and only a minor rise in insertion loss is introduced. As for material absorption, it acts as a uniform propagation loss that only reduces the overall output power without impairing the phase interference relation between the two input branches, so the extinction ratio of logic levels only decreases slightly and will not affect accurate logic state discrimination. Benefiting from the wide operating bandwidth of the device, performance fluctuations caused by conventional fabrication tolerances are all within an acceptable range, demonstrating favorable fabrication feasibility of the proposed structure.

4. Conclusions

In this work, we have constructed topological VPCs based on circular ring dielectric columns. By introducing the inner radius as an independent tuning parameter, we overcome the limitations of conventional solid-column structures in controlling band structures and edge states, enabling the realization of all-optical logic devices. We systematically investigated the influence of the radius ratio parameters on the PBG and the characteristics of TES. Complete spectral separation of the two edge states (TES1 and TES2) was achieved, with an isolation gap of 0.2 THz, effectively eliminating multi-channel crosstalk. Based on this platform, we successfully demonstrated a 50:50 BS with high transmittance, broad bandwidth, and low insertion loss. Using this beam splitter, we implemented fundamental OR and XOR logic gates, achieving extinction ratios of 18.9 dB at 193.5 THz for OR and up to 44 dB for XOR. By fixing one input as a bias, a NOT gate was derived from the XOR structure, and through cascading, an AND gate was constructed, validating the feasibility of realizing a complete set of logic operations on this topological platform. The proposed ring-based valley photonic crystal platform exhibits significant advantages in compactness, low loss, high robustness, and logic scalability. This work establishes a complete technological pathway from structural design and parameter optimization to functional device implementation. It offers a new solution for developing high-performance on-chip all-optical information processing systems and holds important theoretical and practical value for advancing topological photonics toward applications in optical computing and high-speed optical communications.
