Reanalysis of Raman Spectra of Singly and Doubly Charged BEDT-TTF Dimers in the Solid State

Abstract

Recent first principles simulation of the Raman spectral intensity of a bis(ethylenedithio)-tetrathiafulvalene (BEDT-TTF or ET) singly charged dimer suggested that the very important C=C stretching region of a κ-phase BEDT-TTF salt needs a reinterpretation. In fact, the possible presence of the out-of-phase coupled infrared active C=C anti-symmetric stretching b_1uν₂₇ did not receive the proper attention Here, the comparison of the calculated Raman spectra of ET⁺ cation with those of a doubly charged dimer, (ET)₂²⁺, shows that in a dimer, not only the C=C stretching modes but also anti-symmetric C-S stretching and ring breathing b_1u modes show Raman intensity comparable to that of the corresponding totally symmetric phonons. The calculations are validated through the comparison with the experimental Raman spectra of two charge-transfer salts, (ET)₂[Re₂Cl₈] and (ET)₂[Re₂Br₆CH₃COO]0.5(C₂H₃Cl₃), in which the ET molecules form almost isolated centrosymmetric (ET)₂²⁺ dimers. We also present the Raman spectra of a well-known ET salt, κ-(ET)₂Cu[N(CN)₂]Br (κ-CuBr), the experiment being performed on the rarely investigated (101) crystal face. The comparison with the Raman calculations on a singly charged ET dimer oriented as in the κ-CuBr salt allows us to clearly identify the out-of-phase coupled b_1u phonons, yielding a reliable interpretation of the most important (ET)₂⁺ spectral regions, i.e., the C=C and C-S stretching, and the ring breathing ones. The present results constitute a reliable basis for the interpretation of the Raman spectra of ET crystals characterized by the presence of isolated or almost isolated singly or doubly charged ET dimers.

1. Introduction

Since the discovery of superconductivity in its iodide salts [1], the organic donor molecule bis(ethylenedithio)-tetrathiafulvalene (BEDT-TTF or ET) occupies a prominent role in the field of molecular materials [2,3]. Most of the salts exhibit 2:1 stoichiometry with closed-shell counter-anions (i.e., formally +0.5e charge per ET molecule), and the ET donors are usually arranged in two-dimensional conducting layers alternating with insulating acceptor layers. Inside the layers, the ET molecules are arranged in various patterns described by Greek letters: α, β, θ, κ … [4,5].

In many salts, the ET molecules are grouped in dimers, isolated like in the (ET)₂²⁺[Mo₆O₁₉] salt [6], or weakly interacting, like in the so-called κ-phase salts, where the layers of ET molecules form (ET)₂⁺ dimers oriented perpendicularly to each other in a chessboard pattern [5]. The dimer approach is quite naturally used to model the complex physics of ET salts, particularly for the just-mentioned κ-phase [7], the one that has attracted most attention since it exhibits a plethora of intriguing phenomena such as unconventional superconductivity, Mott metal–insulator transition, etc. [2,3]. A dimer model has also been used for the analysis of the coupling of electrons with intra-molecular vibrations (e-mv coupling) [6,8,9], and the model has indeed been often used for the analysis of the spectra of many other organic charge-transfer (CT) salts based on different donors like TMTTF and TMTSF [10,11] or acceptors like Ni(dmit)₂ [12] and TCNQ [13,14,15].

The presence of mobile, low-energy electrons implies important electron-phonon coupling, and its relevance for the unusual physical properties of ET salts cannot be underestimated [3,16,17]. In addition to the characterization of e-mv coupling, vibrational spectroscopy is a valid and rather precise method to estimate the average charge on the molecular units, based on phonon frequency shift upon charge variation. For these reasons, a lot of effort has been devoted to the full characterization of ET complex vibrational spectra, starting with the pioneering experiments and calculations by Kozlov and co-workers [18,19]. To simplify the analysis, the empirical calculations, the spectral assignments, and the mode labeling were based on the D_2h symmetry of the tetrathiafulvalene (TTF) planar central skeleton, whose vibrations are the most coupled to electrons and display important frequency lowering upon ionization [20]. This simplification ended up introducing some confusion in the overall assignment of the modes, as the classification and associated selection rules are more stringent than in the D₂ lower symmetry induced by the position of the CH₂-CH₂ end groups [9]. On the other hand, Kozlov et al.’s papers provided a reliable starting basis for subsequent work, both experimental [20,21] and computational [9,20,22].

From the above-cited literature, it seemed that the interpretation of the vibrational spectra of ET salts was settled, with particular reference to the C=C stretching region, where two totally symmetric modes are expected in Raman spectra (a_g ν₂ and ν₃ in Kozlov’s D_2h labeling), and one anti-symmetric stretching (b_1uν₂₇) in infrared (IR) spectra. But recent calculations of the Raman intensities of a symmetric dimer (ET)₂⁺ showed, rather surprisingly, that three bands, not two, have to be expected: the in-phase (i-ph) coupling of a_gν₂ and a_gν₃ of the monomer, and the out-of-phase (o-ph) coupling of b_1uν₂₇ [22]. Of course, this is just what is predicted by vibrational selection rules, but since only two intense bands were observed in the relevant spectral region, researchers assumed that the intensity of o-ph b_1uν₂₇ was small. On the opposite, according to calculations, the Raman intensity of o-ph b_1uν₂₇ is the highest, and obscures the presence of the nearby a_gν₃, which appears as a shoulder of the main band. The calculations have been compared with the experimental spectra of one κ-phase salt, κ-(ET)₂Hg(SCN)₂Cl in the C=C spectral region [22]. The spectra are polarized and of high quality, but of course, a single comparison does not constitute an unquestionable proof of the validity of the calculations: the shoulder visible in the spectra might be due to a Davydov splitting (there are two ET dimers in the unit cell), or resonance Raman effects might be at stake. To confirm and extend the above finding, in this paper, we present calculations and experiments relevant to the full Raman spectra of the doubly charged and singly charged ET dimers, as well as calculations for the isolated ET⁺ cation. We show that o-ph b_1uν₂₇ is not the only vibration showing intensity comparable to the totally symmetric i-ph phonons: other in-plane modes involving the central TTF core also do. In this way, a complete and reliable interpretation of Raman spectra of singly and doubly charged BEDT-TTF dimers is achieved.

2. Methods and Materials

Quantum chemical calculations have been performed with the ORCA package [23,24], version 6.1, using DFT-B3LYP, and the 6-31G(d) basis set, following the previously adopted protocol [9,22]. The initial dimer geometry was taken from the 10 K structure of κ-(ET)₂Hg(SCN)₂Cl [25], imposing the D₂ geometry for the ET⁺ ion radical, and the inversion symmetry to (ET)₂ singly and doubly charged dimers, so the charge is equally shared between the two molecules. The calculations are relevant to an isolated (gas-phase) molecule, so that the starting geometry has little influence on the convergence to the final equilibrium position for the vibrational part. No imaginary frequencies appeared, but since the computed equilibrium geometry is different from that in the solid state, low-frequency modes have to be evaluated with care.

For the interpretation of the Raman spectra of (ET)₂²⁺ dimers, we have chosen to reanalyze the Raman spectra of two CT salts: (ET)₂[Re₂Cl₈] (ReCl salt) and (ET)₂[Re₂Br₆CH₃COO]0.5(C₂H₃Cl₃) (ReBr salt). The donor molecules in both salts are arranged into almost isolated centro-symmetrical (ET)₂²⁺ dimers. Details about sample preparation, crystal structures, and spectra collection can be found in the original literature [26,27,28]. The IR spectra of the powders of ReCl salt dispersed in a KBr pellet have been collected using an Equinox 55 FT-IR spectrometer (Bruker Optics, Ettlingen, Germany.)

For a complete analysis of the spectra of singly ionized (ET)₂⁺, we focus on the Raman spectra of a well-known and widely investigated compound κ-(ET)₂Cu[N(CN)₂]Br (κ-CuBr salt) [21,29,30,31,32,33,34], in which the dimers (ET)₂⁺ in the conducting two-dimensional layers are perpendicular to each other. As we shall detail in Section 3.3, we extend the measurements to the full spectral range of both κ-CuBr and its fully deuterated analog, using the less studied (101) face with 780 nm excitation and in the 298-10 K temperature range. The samples were prepared as described elsewhere [21], and the spectra were measured in backscattering geometry with a Ramascope System-1000 (Renishaw, Woodchester, UK) with a spectral resolution of 2 cm⁻¹. To avoid sample damage, the laser beam power was kept to about 0.1 mW, and it was focused on an area with a diameter of about 5 μm. The polarization of the scattered light was not analyzed.

3. Results

3.1. Comparison of the Computed Raman Spectra of ET ⁺ and (ET)₂²⁺

When two identical molecules associate to form a symmetric C_i dimer, all the single-molecule vibrations couple in-phase and out-of-phase, and become active in Raman spectra and IR spectra (cf. Table I of Ref. [22]). With reference to the D_2h symmetry of the TTF core, the o-ph coupled gerade modes become IR-active (and the a_g modes give rise to the strong IR bands due to the e-mv coupling [8]) and the o-ph ungerade ones become Raman-active. Up to now, the possible presence of the latter in the Raman spectra of ET dimers has not received due attention.

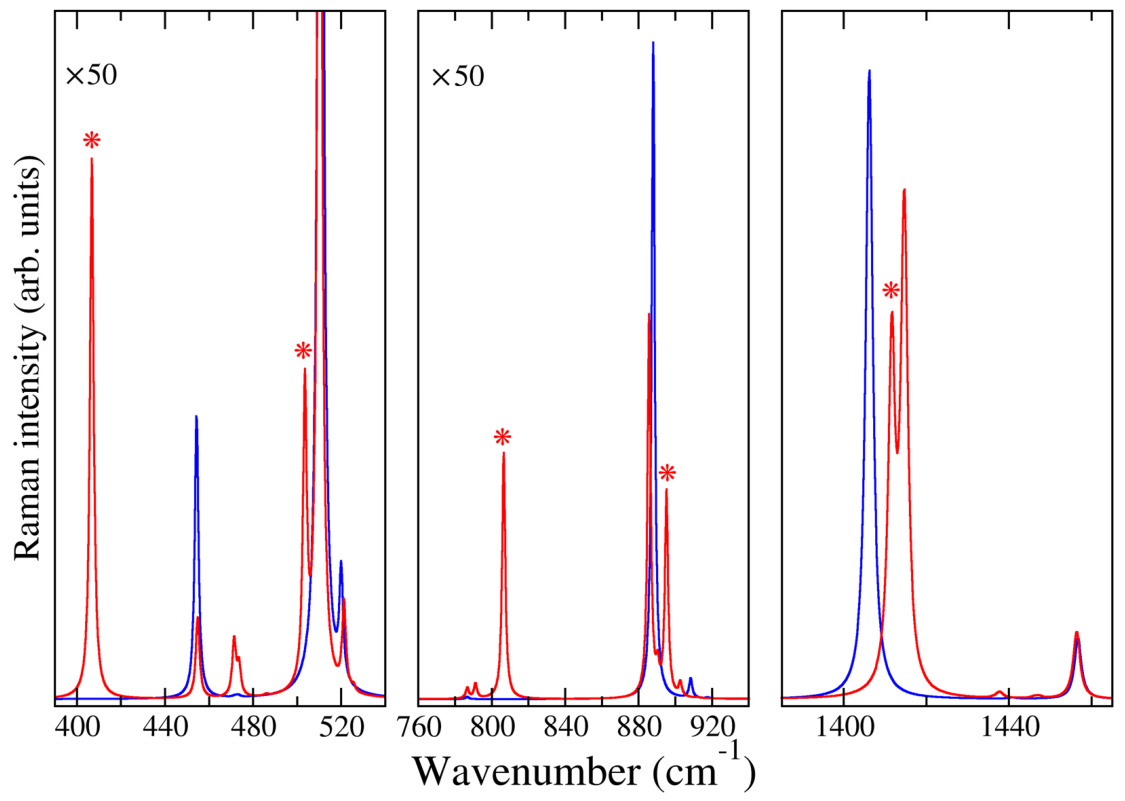

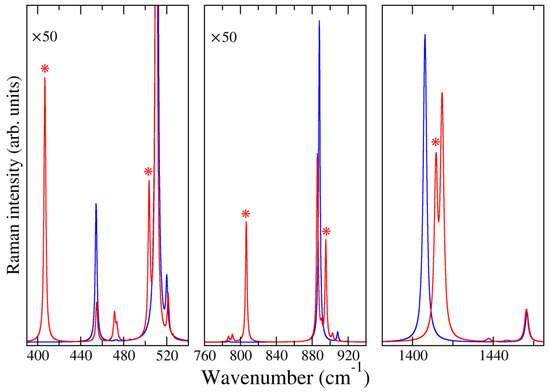

In Figure 1, we report the computed Raman spectra of isolated ET⁺ and (ET)₂²⁺. The comparison allows us to identify the o-ph phonons of the dimer, obviously not present in the monomer spectra. The vibrations relevant to CH stretching or bending are not considered, and we report only spectral regions where bands due to the dimer have intensity comparable to that of corresponding monomer vibrations. We identify five dimer bands, marked with an asterisk in Figure 1.

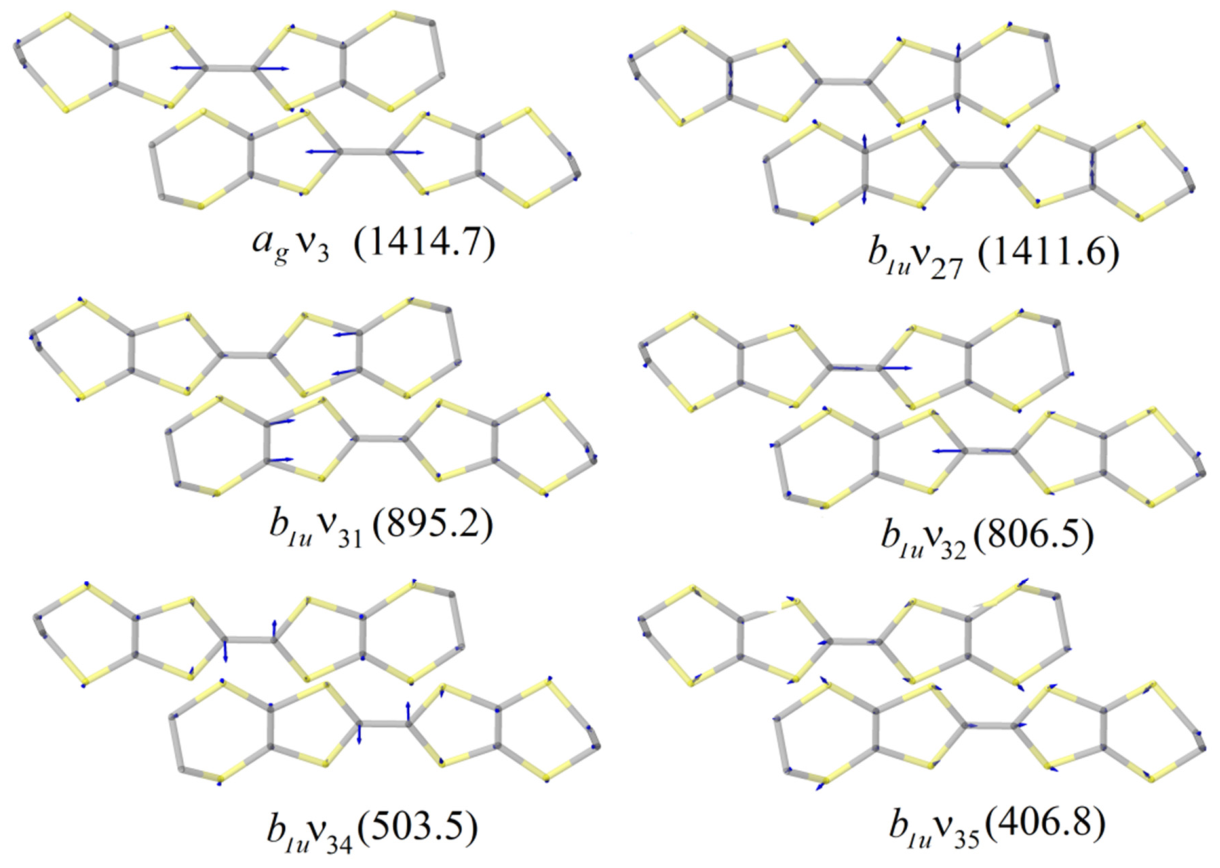

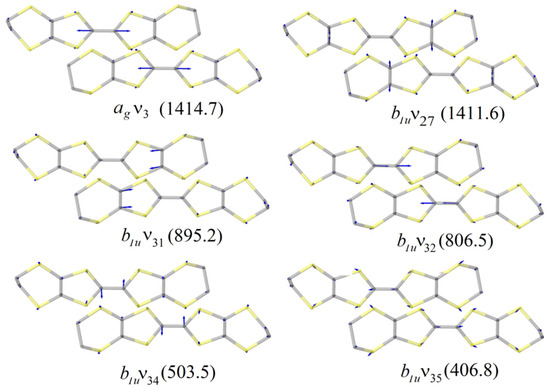

Figure 2 reports the eigenvectors relevant to the five extra Raman bands marked with an asterisk in the previous Figure 1. All the vibrational motions mostly occur in the plane defined by the central TTF core, implying C=C stretching, ring breathing, etc., so we label them following Kozlov’s scheme that adopts the D_2h symmetry. However, it has to be kept in mind that some mixing with out-of-plane vibrations may occur (e.g., the b_1uν₃₄ in Figure 2) since no symmetry constraints except the C_i are imposed on the dimer calculations. In the following, wherever it is necessary to avoid confusion, we shall add the D₂ labeling [9] in parentheses. From Figure 2, it is seen that the important Raman intensity can be ascribed to the charge oscillation induced by the planar core vibrations along the long axis of the molecule.

3.2. Analysis of the Raman Spectra of ET Salts with Well-Isolated (ET)₂²⁺ Dimers

The crystal structures of ReCl and ReBr salts we are going to analyze are different: ReCl crystallizes in the monoclinic system, space group P-1, with two inequivalent (ET)₂²⁺ dimers in the unit cell, whereas ReBr crystallizes in the orthorhombic system, space group I 2/a, with eight equivalent dimers in the unit cell [26,27]. However, in both cases, the dimers are well separated by the Re-containing anions, i.e., the interdimer interaction is very small, and the spectra can be assimilated to those of isolated (ET)₂²⁺, in a manner analogous to what is done in the case of (ET)₂[Mo₆O₁₉] salt [6].

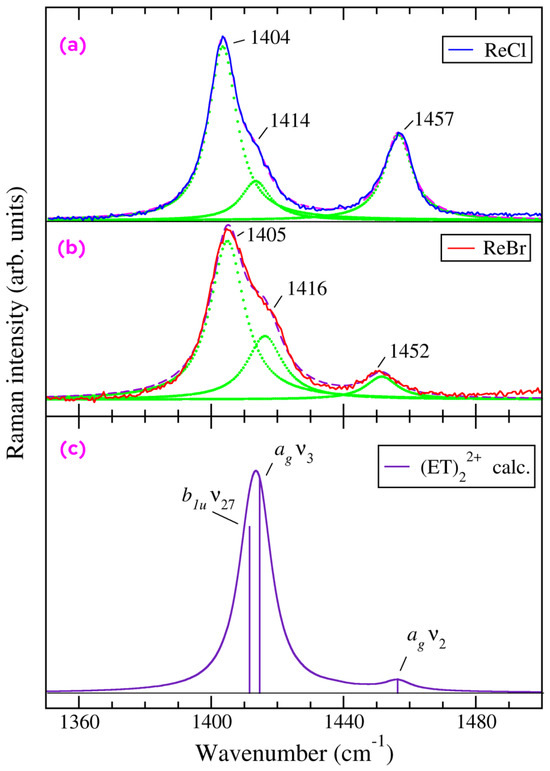

The room-temperature unpolarized Raman spectra of ReCl and ReBr salts (excitation λ_exc = 488 nm) in the region of C=C stretching are displayed in Figure 3a,b. In both cases, a clear shoulder is present on the high-frequency side of the most intense band, which has been left unassigned in Ref. [28]. From a band deconvolution (green dots in Figure 3), the frequency difference between the band and its shoulder is about 10 cm⁻¹ in both salts, with a bandwidth of about 5 cm⁻¹. Figure 3c reports the calculated spectra, where, to better simulate the experiment, we have used Lorentzians with a bandwidth of 5 cm⁻¹. Vertical lines indicate the phonon frequency and Raman relative intensity.

Despite the above-mentioned difference in the unit cell, the spectra of ReCl and ReBr appear very similar. We see three bands: a medium intensity one at 1457 cm⁻¹ (1452 cm⁻¹ in the Br salt), due to the i-ph a_gν₂ mode, and a strong one at 1404 cm⁻¹ (1405 cm⁻¹ in the Br salt) with a shoulder at 1414 cm⁻¹ (1416 cm⁻¹ in ReBr), which we assign to the o-ph b_1uν₂₇ and i-ph a_gν₃ modes of the dimer, respectively. The same three-band pattern is observed (albeit with some difference in relative intensities due to resonance effects) by changing the excitation line [28], and also in the (ET)₂[Mo₆O₁₉] salt [6], whose deconvoluted spectrum (digitized from the original figure) is reported in Figure S1 of Supplementary Materials.

As in the case of singly charged (ET)₂⁺ dimer [22], for the double-charged (ET)₂²⁺ dimer, the calculated o-ph b_1uν₂₇ frequency is lower than that of i-ph a_gν₃, but its calculated intensity is comparable, whereas for (ET)₂⁺ dimer, the o-ph b_1uν₂₇ is by far the most intense. On the other hand, we have to keep in mind that the two modes are very close in frequency (only 3 cm⁻¹ in the calculation, cf. Figure 2) and mixing and intensity borrowing are likely to occur. Therefore, it is inappropriate to choose between the two alternative assignments on the basis of the calculated frequencies and intensities, a question relatively unimportant at this stage—we have just chosen the most plausible. On the other hand, the present data definitely demonstrate the presence of the o-ph b_1uν₂₇ together with the a_gν₃ (and of course of the a_gν₂) in the Raman spectra of strongly dimerized ET salts.

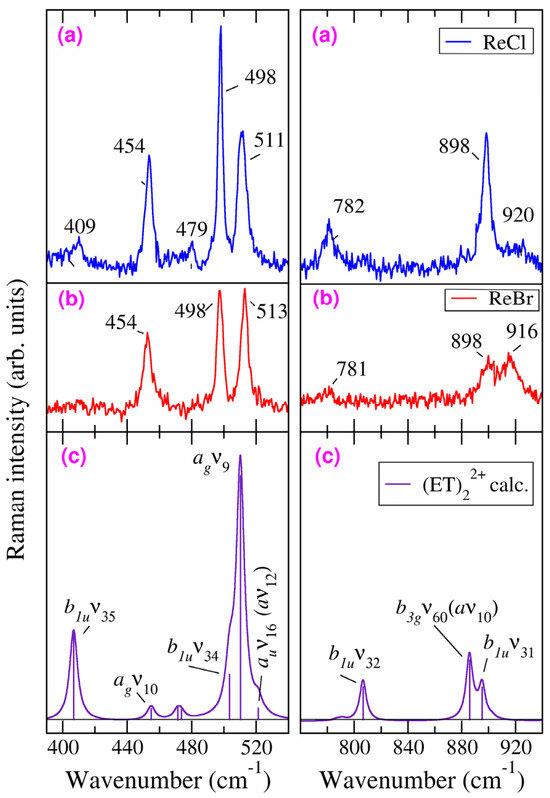

We now turn attention to the far less investigated ring breathing and C-S stretching spectral regions, namely the 940–760 cm⁻¹ and the 540–390 cm⁻¹, respectively. The relevant experimental room-temperature ReCl and ReBr Raman spectra are reported in Figure 4a,b. We have chosen the blue excitation (λ_exc = 488 nm) to avoid the resonance effects with the anions [28]. The calculated dimer spectrum is reported in the bottom panels of the figure. In both experiment and calculation, the spectral intensity is far weaker than that relevant to the C=C stretching region, but in any case the detected bands—with the exception of the very weak band at 479 cm⁻¹, that we attribute to the b_2g ν₄₀ (b₂ν₄₈ in D₂ symmetry [9])—can be associated either to i-ph coupling of totally symmetric a_g modes, or to o-ph coupling of b_1u modes. In particular, for ReCl salt, the 511 and 454 cm⁻¹ bands are associated with a_g modes, whereas the 920, 782, 498, and 409 cm⁻¹ bands are assigned to modes b_1uν₃₁, b_1uν₃₂, b_1uν₃₄, and b_1uν₃₅, respectively. The experimental frequency of the bands that we assign to b_1uν₃₂ is rather different from the calculation (781 vs. 807 cm⁻¹), but the calculation does not predict any other band in the relevant spectral region. Furthermore, as we have mentioned in Section 2, the calculated equilibrium geometry is not the one in the crystal, and this may have a role in the discrepancy. Finally, a particular mention can be reserved for the 898 cm⁻¹ band, which puzzled the researchers, since it appeared coupled to the electronic system, despite the fact that in D_2h symmetry, it was attributed to a non-totally symmetric species (b_3gν₆₀) [30,31,32,33,34]. The puzzle has been solved by calculations and experiments showing that the vibrational motion also involves the lateral CH₂-CH₂ wings [9,35], and therefore, it is better to be classified in terms of the D₂ symmetry (aν₁₀).

Therefore, by taking into account the presence of o-ph b_1u modes, we have reached a satisfactory and rather complete reinterpretation of the published Raman spectra of ReCl and ReBr [28]. For completeness, we report and shortly discuss in Supplementary Materials (Section S2) the unpublished IR spectra of ReCl powders dispersed in a KBr matrix.

3.3. Analysis of the Raman Spectra of κ-Phase ET Salts

We now turn our attention to the spectra of κ-phase ET salts, where (ET)₂⁺ dimers are present, arranged in a chessboard pattern. In this case, the dimers are not as isolated as in the case of (ET)₂²⁺ dimers in the ReCl and ReBr salts, discussed in Section 3.2. Nevertheless, the effects of inter-dimer interaction can be disregarded or dealt with as a perturbation, and its analysis becomes important when inter-dimer e-mv coupling is involved [22]. In this paper, we shall present and interpret the Raman spectra of κ-(ET)₂Cu[N(CN)₂]Br (κ-CuBr). Several vibrational studies of this salts have already appeared [21,29,30,31,32,33,34], so it would seem that very little can be added. However, most of the studies collected the spectrum from the most developed crystal face (010) (or ac), and, apart from the pioneering work by Eldridge et al. [29,30,31,32,33], were not aimed at obtaining an exhaustive interpretation of the spectra, but focused on particular aspects, most notably on the e-mv coupled modes and on the analysis of the C=C stretching spectral region. A deep Raman analysis of the latter spectral region has been reported by Maksimuk et al. [21], with the use of different laser excitations and isotopically substituted ET, but still lacking the fundamental help provided by calculations of the Raman intensities. Here, we shall compare calculations with extended Raman spectra of κ-CuBr and its fully deuterated analog, κ-CuBr[d₈], collected on the less studied (101) crystal face. The spectra have been recorded as a function of temperature down to 10 K and using the far-red excitation λ_exc = 780 nm, to avoid as much as possible resonance effects, which may be confusing, notably in making comparison with calculations relevant to normal, non-resonance Raman.

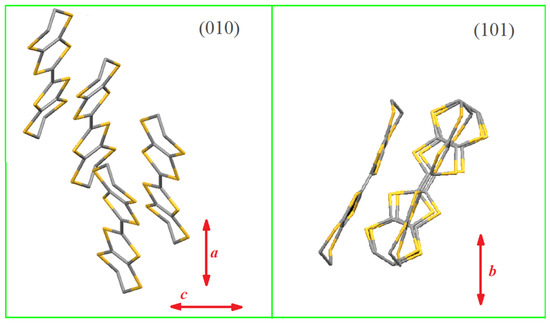

The κ-CuBr salt crystallizes in the orthorhombic system, Pnma, with four dimers in the unit cell (CCDC 1185003). In order to understand the difference in the information gathered by collecting the Raman from different crystal faces, we show in Figure 5 the orientation of two ET dimers (the other two are in a parallel layer, separated by the counterions) with respect to the ac face and with respect to the (101) face. The direction of the laser/collection polarization is also indicated. The figure shows that when the (010) plane is used, the ET long molecular axes are almost perpendicular to the light polarization directions a and c, whereas when the investigated plane is (101), the long molecular axes are roughly directed along the b polarization. Therefore, the information gathered from the two crystal faces complements each other.

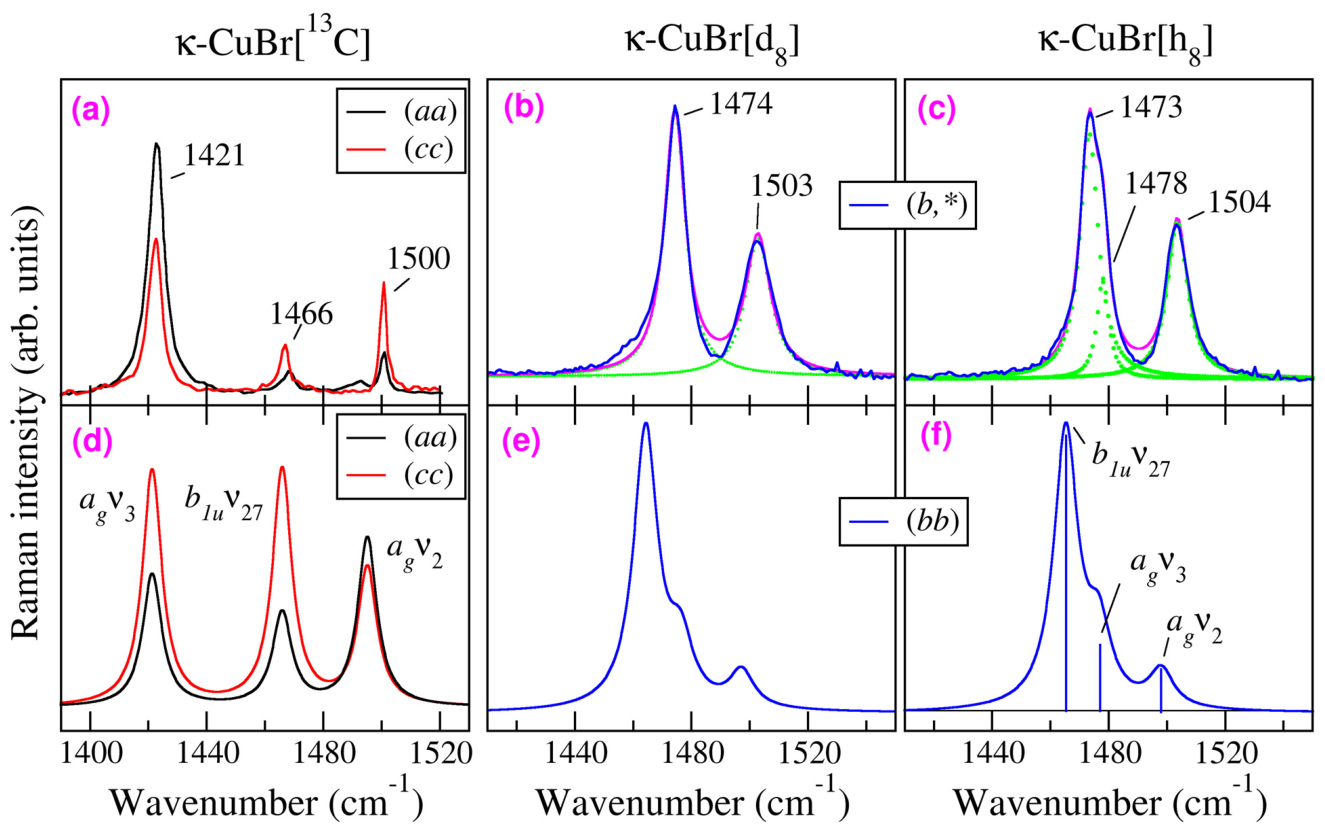

Figure 6 compares the experimental and calculated spectra in the C=C stretching spectral region. Panels (b) and (c) report the experimental spectra of fully deuterated and pristine κ-CuBr, collected at 120 K from the (101) crystal face, incident 780 nm laser with polarization along the b crystal axis, and no polarization analyzer for the scattered light, which therefore is a mixture of (bb), (ab), and (bc) Raman polarizability components. The full temperature dependence of pristine and fully deuterated κ-CuBr is reported in the Supplementary Materials. We have chosen to report in the main paper only the 120 K spectrum because at this temperature in the pristine κ-CuBr, the overlap of two bands deconvoluted at 1473 and 1478 cm⁻¹ is clearly evident. On the other hand, in the spectrum of the deuterated sample shown in Figure 6, panel (b), the presence of two peaks cannot be hinted at, and although two Lorentzians would give a better fit, we have used only one, assuming complete overlap. The calculation (panels (e) and (f) of the Figure) indeed predicts the overlapping of a_gν₂ and b_1uν₂₇ modes [22], with the b_1uν₂₇ dominating the spectra. In the calculation, we have chosen for comparison the (bb) polarization, assuming that this polarization is predominant in the experiment, where the polarization of the scattered light has not been analyzed (symbolized by inserting an asterisk in the Figure’s notation).

A confirmation of the assignment reported in the bottom panels of Figure 6 is given by the comparison of calculations with the literature spectrum of κ-CuBr, where the C atoms of the central C=C bond have been substituted by ¹³C isotope (κ-CuBr [¹³C]) [21]. The experimental spectra, reported in Figure 6, panel (a), have been recorded on the ac face only, and we selected the diagonal polarizations (aa) and (cc) obtained with red excitation (633 nm), the most similar to our excitation for the (101) face. The isotopic substitution lowers the frequency of the a_gν₃ mode, decoupling it from a_gν₂ and b_1uν₂₇, involving the lateral C=C, and the calculation reported in panel (d) shows that the intensity of the three bands is similar, as in the experiment. So, we can safely assign the band at 1466 cm⁻¹ to the o-ph b_1uν_27, confirming the tentative assignment of Ref. [21].

The reason for the qualitatively different relative intensity of the three C=C stretching bands in the ac and (101) Raman spectra derives from the mentioned decoupling of a_gν₃ mode, with consequent change in the eigenvectors: in the κ-CuBr [¹³C] salt, the o-ph b_1uν₂₇ Raman polarizability becomes predominantly along the ET long molecular axis [22], perpendicular to the ac plane (Figure 5). In the Supplementary Materials (Figure S3), we compare the calculated spectra relevant to the ac and (101) planes, showing that in the former case, the o-ph b_1uν₂₇ intensity is strongly attenuated, whereas it dominates the spectra polarized along the b crystal axis or the unpolarized spectra. On the other hand, Figure S3 also shows that in pristine κ-CuBr, the o-ph b_1uν₂₇ stretching is the strongest band also in the ac spectra, obscuring almost completely the nearby i-ph a_gν₃. Thus, the analysis of the κ-CuBr [¹³C] spectra in light of the dimer calculations indirectly confirms the assignment of the o-ph b_1uν₂₇ mode as the strongest band in the pristine salt.

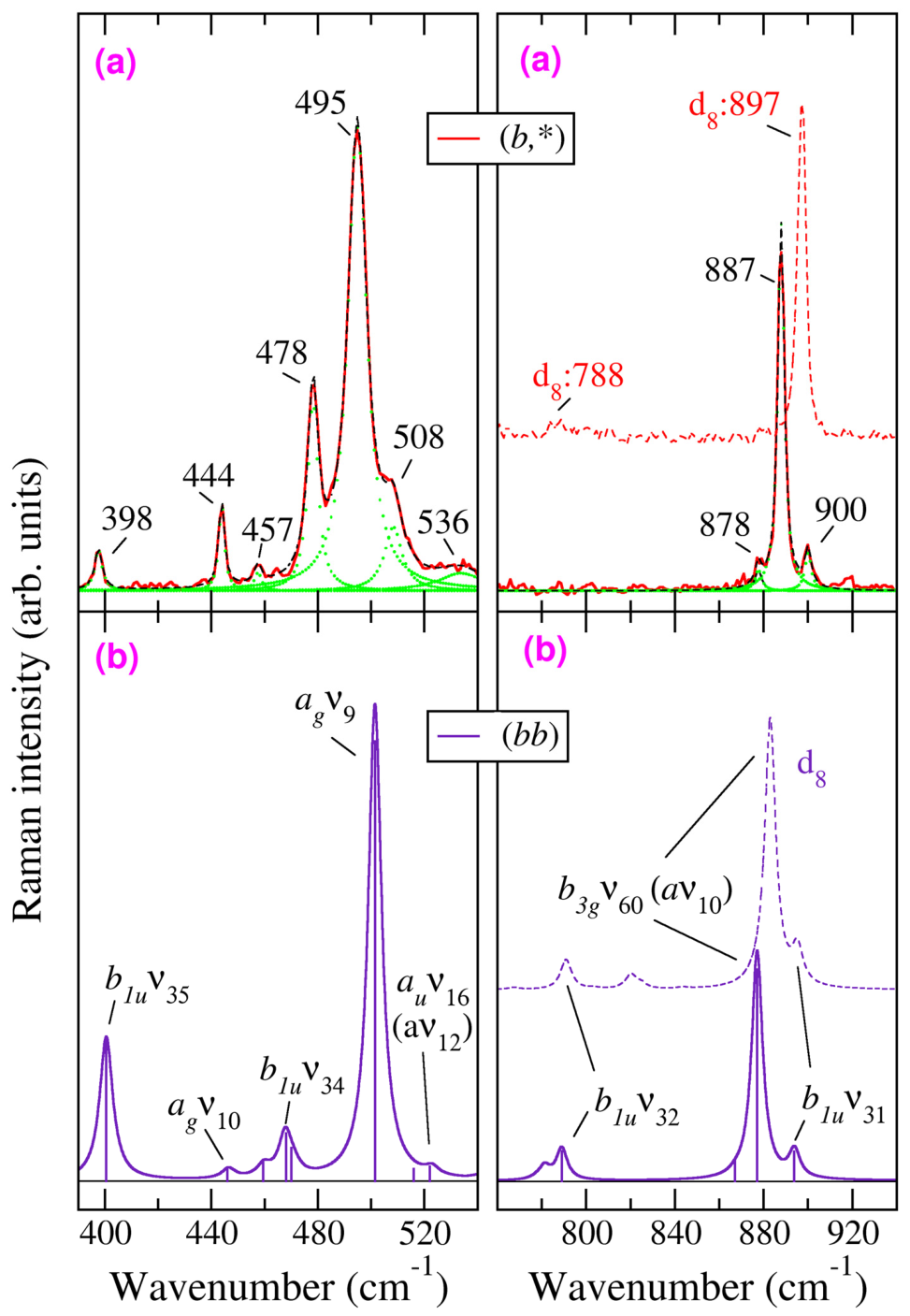

Raman spectra of κ-CuBr salt within the region of ring breathing and C-S stretching spectral regions are presented in Figure 7, where, as in the previous figures, the top panels report the experiment and the bottom panels the calculation. The right panels also show the spectra of the fully deuterated κ-CuBr salt to evidence the upward 10 cm⁻¹ frequency shift of the b_3gν₆₀ (aν₁₀) vibration, reproduced in the calculation. As already mentioned above, the 887 cm⁻¹ band attracted much attention since it is e-mv coupled to the electronic system and is sensitive to chemical and physical tuning [32,33,34]. These properties appeared anomalous in a classification and normal coordinated analysis based on the planar D_2h symmetry [18,19], but phonon calculations in terms of the proper D₂ molecular symmetry showed that this mode involves both the central TTF skeleton and the CH₂-CH₂ lateral wings, fully explaining the origin of the apparent anomalies [9]. In the 390–540 cm⁻¹ spectral region, the deuterated sample spectra essentially overlap those of the pristine compound and are omitted in Figure 7. The full temperature dependence of Raman spectra of κ-CuBr and its deuterated analog is reported in the Supplementary Materials.

The proposed assignment of the b_1u and a_g modes descends directly from the comparison of the upper and lower panels of Figure 7, whereas the overall assignment of (ET)₂²⁺ and (ET)₂⁺ Raman spectra is reported in

Table 1. Assignment of the main Raman bands of singly and doubly occupied BEDT-TTF dimers. Frequencies in cm⁻¹.

(ET)22+ Experiment, 298 K		(ET)22+ Calc.	(ET)2+ Experiment, 120 K		(ET)2+ Calculation		Assignment
ReBr	ReCl		κ-CuBr	κ-d8CuBr	h8	d8	D2h (D2)
1452	1457	1456	1504	1503	1498	1497	ag ν2 (aν3)
1416	1414	1415	1478	(1474) 1	1477	1476	ag ν3 (aν4)
1405	1404	1411	1473	1474	1465	1464	b1uν27 (b1ν22)
916	920	895	901	(897) 1	894	892	b1uν31 (b1ν28)
898	898	886	887	897	877	889	b3gν60 (aν10)
--	--	890	878		868	872	b2uν50 (b2ν45)
781	782	807		788	789	789	b1uν32 (b1ν29)
--	--	525	536	536	540	530	b1gν23 (b1ν31)
--	--	521	508	505	523	523	auν16 (aν12)
513	511	510	495	494	501	501	ag ν9 (aν13)
498	498	504	478	478	471	465	b1u ν34 (b1ν32)
--	479	474	460		468	450	b2g ν40 (b2ν48)
--	--	471	457	457	460	428	b3u ν68 (b3ν65)
454	454	455	444	445	447	422	ag ν10 (a ν14)
--	409	407	398	397	401	401	b1u ν35 (b1ν33)

¹ Frequencies in parentheses indicate that the band overlaps and is obscured by the more intense nearby band.

of the next section. Here, we comment only on the two bands appearing at 478 and 508 cm⁻¹ besides the strong a_g ν₉ mode at 495 cm⁻¹. We associate the former with the b_1uν₃₄ vibration despite the appreciable frequency difference between calculation and experiment, since, as we mentioned in the previous section in discussing the analogous discrepancy for the b_1uν₃₂ mode, the calculated equilibrium geometry is not the one in the crystal, and this may have a role in this spectral region. On the other hand, at room temperature, the 508 cm⁻¹ band is fully masked by the a_gν_9, and it becomes evident as a shoulder when the main band narrows due to temperature lowering. We assign it to the a_u ν₁₆ mode, which is an out-of-plane vibration. It should be Raman-inactive in D_2h symmetry, but again it is actually a Raman-active mode in the proper D₂ symmetry (totally symmetric aν₁₂).

4. Discussion and Conclusions

Table 1 collects the achieved interpretation of the Raman spectra of singly and doubly charged ET dimers in the spectral regions of C=C stretching, ring breathing, and C-S stretching. The spectral regions where the CH stretching and bending occur are of minor importance for the characterization of ET e-mv coupling and charge distribution, and easily interpreted on the basis of the available calculations [9]. Even though the adoption of the less stringent and more realistic D₂ symmetry is needed for a proper ET spectral interpretation, in this paper, we have chosen to follow the conventional mode labeling based on D_2h molecular symmetry. In fact, the main achievement of this paper is the confirmation that in ET dimers o-ph coupled b_1u (b₁) modes involving the central planar TTF skeleton have Raman intensity comparable to that of the corresponding i-ph coupled a_g (a) phonons. This has already been suggested for the most studied C=C stretching region [22], but this finding needed confirmation since it was based on a single example, and the a_gν₃ and b_1uν₂₇ are almost degenerate, appearing as a single band with a shoulder. In Section 3.2, we have shown that Raman spectra of almost isolated (ET)₂²⁺ dimers in ReBr and ReCl exhibit the same pattern of a single band with a shoulder (Figure 3), irrespective of the number of dimers per unit cell, hence excluding Davydov effects. Moreover, calculations on an isolated (ET)₂⁺ dimer oriented as in the widely studied κ-CuBr crystal demonstrate that in the spectra of the most investigated ac crystal plane, the o-ph b_1uν₂₇ is weakened, since its Raman polarization is mainly along the ET long axis, perpendicular to such plane (Figure 5 and Figure 6, leftmost panels). On the other hand, many o-ph b_1u modes (not only the ν₂₇) are particularly evident in the Raman spectra presented here on the (010) face (Figure 5 and Figure S3), which allows the straightforward assignment reported in Table 1.

Assessing the role of o-ph b_1u modes is particularly important for the correct interpretation of the complex C-S stretching region (350–550 cm⁻¹), where notable e-mv coupled modes are found, which so far have not been exhaustively analyzed due to the fact that the possible presence of b_1u modes was overlooked. We stress that such a result has been achieved by standard calculations of isolated dimers, avoiding the complexity of a computation for the whole crystal. Indeed, a mixed approach (crystal calculation for the lattice modes, and molecular calculation for intramolecular ones) has been recently suggested for accurate and efficient phonon calculations in molecular crystals [35]. Of course, the dimer approach may not be suitable to model the phonon structure in the case of different packing of the ET layer, like in the so-called β or θ phases, where dimeric units are less isolated or not present [4,5].
