Article

High-Temperature Oxidation Behavior of FeCoCrNi+(Cu/Al)-Based High-Entropy Alloys in Humid Air

by
Emma Marie Hamilton White
1,*,
Mary-Lee Bürckner
1,
Clara Schlereth
1,
Maciej Bik
2 and
Mathias Christian Galetz
1
1
DECHEMA Research Institute, Theodor-Heuss-Allee 25, 60486 Frankfurt am Main, Germany
2
Faculty of Materials Science and Ceramics, AGH University of Krakow, Al. Mickiewicza 30 B8 3.12, 30-059 Krakow, Poland
*
Author to whom correspondence should be addressed.
Crystals 2024, 14(1), 60; https://doi.org/10.3390/cryst14010060
Submission received: 28 September 2023 / Revised: 28 December 2023 / Accepted: 29 December 2023 / Published: 31 December 2023
(This article belongs to the Special Issue High-Entropy Alloys: Progress and Prospects)
Browse Figures
Review Reports Versions Notes

Abstract

:
Previous studies showed some transition metal high-entropy alloy (HEA) compositions can have good oxidation resistance in air up to 800 °C. Four equiatomic HEAs have been developed based on FeCoCrNi with additions of Mn, Cu, Al or Al+Cu. The oxidation behavior of these HEAs was compared in humid (10 vol.% H2O) air at 800 °C for 100–500 h to investigate the influence of water vapor on the oxidation mechanisms. The Cu- and Al-containing alloys exhibited improved oxidation resistance over the Mn composition. For the Cu-containing alloy, a local attack of the Cu-rich phase was observed, which formed an Fe/Ni/Co/Cr spinel that was surrounded by Cr2O3. This oxide was thicker for the humid air atmosphere when compared to dry air, and the transition of the Cu oxide to the spinel was accelerated. The Al-containing HEA formed a thin Al2O3 scale with humidity suppressing AlN formation and forming a smoother oxide layer. The Al+Cu composition had the highest overall oxidation resistance (minimal local attack, no nitridation) and also showed a smooth oxide scale topography under humid air oxidation as opposed to a plate-like, rougher scale under dry air.

1. Introduction

High-entropy alloys (HEAs) have demonstrated unique properties, as shown in the innovative work by Cantor et al. [1,2], Yeh et al. [3] and many others [4,5,6]. One of the most well-known HEAs is the “Cantor” composition, which is an equiatomic FeCoCrNiMn alloy, well characterized for its mechanical, corrosive and oxidation performance [1,2,3,4,7,8,9,10]. The oxidation behavior of the Cantor composition shows that Mn determines the oxidation rate, rather than Cr [7,9,11]. With Mn, several unprotective oxides form, which have a high density of vacancies, which lead to a fast growth rate [7,9,11]. For other HEA compositions, the available data are still limited in terms of their oxidation and corrosion resistance [12]. Veselkov et al. [13] and Gorr et al. [14] agreed in their recent reviews that Al-containing HEAs are the second most investigated alloys, after Cantor, since Al generally improves high-temperature oxidation performance through alumina scale formation. Oxidation studies of the AlxCoCrFeNi system by Butler et al. at 1050 °C for 100 h exhibited parabolic oxidation kinetics [15]. If the Al content was high enough, a double-layered oxide structure (Cr2O3 and Al2O3) was observed [15], as also confirmed by Hong et al. for Al0.3CoCrCuFeNi [16].
The majority of HEA oxidation studies have been conducted under dry atmosphere conditions; however, humid atmospheres generally have a strong influence on the oxide scale formation of various alloys [17,18]. Kofstadt already described in 1988 [19] that most technical steels oxidize faster in gases containing water vapor than in dry conditions, and Young [17] provided a comprehensive overview of the different underlying mechanisms occurring in humid atmospheres. These include volatile metal hydroxide formation, gas-scale reactions and oxide density and defect concentration changes (and thus scale growth and scale morphology), as described in detail in [17,19,20,21]. Additionally, hydrogen adsorption during oxidation into the metal can impact the behavior [22,23].
The behavior of a set of transition metal HEAs—FeCoCrNiCu (HEA+Cu), FeCoCrNiAl (HEA+Al) and FeCoCrNiCuAl (HEA+Cu/Al)—was previously investigated under metal dusting conditions [24]. At 620 °C in a low-oxygen partial pressure atmosphere, the Al-containing alloys had thermally grown Al2O3 or Cr2O3 scales and effectively inhibited carbon ingress [24]. These alloys, plus the Cantor composition for comparison, were also studied at higher temperatures of 600–800 °C for up to 500 h in synthetic air to elucidate their oxidation mechanisms [25]. Of even further scientific and industrial interest is the performance of this set of transition metal HEAs under humid atmospheres. Therefore, in this paper, the HEA+Cu, HEA+Al and HEA+Cu/Al oxide compositions, morphologies and subsurface phenomena at 800 °C in humid air for up to 500 h are investigated and compared to dry air. Additionally, the Cantor composition was included for comparison, since generally the influence of water vapor on the oxide scale formation is not well understood for these novel compositions.

2. Experimental Methods

Arc-melted button samples were produced by the U.S. Department of Energy’s Ames National Laboratory (Ames, IA, USA) using an electric arc furnace on a water-cooled Cu hearth. To ensure alloy homogeneity, each button was flipped and remelted three times. The buttons were cut using wire electro-discharge machining into samples sized 3 × 4 × 7 mm3. These were then ground to P800 grit with SiC paper and cleaned with acetone in an ultrasonic bath.
The samples were placed in a quartz glass tube in a six-zone furnace where the tube was flooded with dry or humid synthetic air (80N2-20%O2, +10 vol.% H2O, 4.8 L/h) at 800 °C for 100, 300 and 500 h. After being removed from the furnace, the exposed samples were cleaned, Au-sputter-coated, placed in a Ni electrochemical bath and then embedded for cross-sectional characterization. Most samples were hot-embedded; however, those samples that showed a more porous oxide scale, likely prone to spallation, were chemically embedded to preserve the adherence of the oxide scale for characterization.
The sample microstructures were imaged with light microscopy and scanning electron microscopy (SEM, HITACHI SU1000, Tokyo, Japan), equipped with energy dispersive spectroscopy (EDS). The oxide scales and subsurface microstructures were characterized qualitatively and quantitatively using an electron probe microanalysis (EPMA, JXA-8100 manufactured by Jeol (Akishima, Japan)). X-ray diffraction (XRD) measurements were performed in order to identify the thermally grown oxide scales of all HEAs. Unfortunately, the results were unsatisfactory due to the high fluorescence of the bulk materials. Therefore, Raman spectroscopy was pursued instead to identify the oxide scale compositions. A WITec alpha 300 M+ spectrometer with a 488 nm laser line and laser spot of ca. 650 nm in diameter, a 100× ZEISS Epiplan-Neufluar (ZEISS, Jena, Germany) objective with NA = 0.9, 600 grooves/mm grating and an Andor CCD detector (Oxford Instruments, Abingdon, UK) were used to determine phase compositions. The scanning area during mapping was varied depending on the dimensions of the oxide scales. Single accumulations lasted either 1 s (Al2O3 detection) or 2 s (detection of all other phases) and the sampling density was equal to 500 nm in each case. WITec Control FIVE was used to collect the data, and subsequently both the WITec Project FIVE 5.3 PLUS and OPUS 7.2 software (Oxford Instruments, Abingdon, UK) were used to post-process the recorded spectra. First, the selected ranges (110–1200 cm−1 and 5000–7200 cm−1) were extracted and cosmic spikes were removed using the CRR filter. Then, integration was carried out using a special filter of predefined width and position depending on the targeted analyzed phase, e.g., the 555 cm−1 band for Cr2O3. Component concentration maps were generated, as well as the most representative spectra for each phase that were extracted manually. Distribution images were assembled to create a combined distribution image that was overlayed with the confocal image. For all Raman results, the distribution images of the phases (based on integration of the characteristic band with the Raman shift given in the brackets) are presented with the corresponding spectra.

3. Results

The as-solidified chemical compositions and microstructures were previously determined and discussed and are listed in Table 1 [24,25].

3.1. Cantor (HEA+Mn)

The single phase FCC Cantor composition has been extensively discussed in terms of dry air oxidation resistance elsewhere [6,7,9,11,12,25] and so is only briefly included as a baseline in the current study. HEA+Mn forms a thick oxide at 800 °C for up to 500 h as seen in Figure 1. The oxide scale is porous and irregular, spalls locally and contains three layers: an exterior Mn-rich oxide, a Cr/Co/Fe/Co-rich spinel-type oxide and a thin Cr2O3 layer at the oxide/substrate interface as evidenced by the EPMA results in Figure 2. Mn (and to a lesser extent Cr) is depleted in the metal subsurface zone due to fast outward diffusion leaving Kirkendall voids. Under humid air, the initial oxide layer appears to be thinner, but simultaneously the presence of water vapor increases outward diffusion as evidenced by the increased Kirkendall porosity in the subsurface microstructure. Additionally, some internal Mn oxidation appears, as evidenced by the internal Mn depletion in the EPMA of Figure 2. Chromia also appears to form around the internal Mn oxides when connected with the external scale (Figure 2).

3.2. HEA+Cu

A selective attack of the Cu-rich phase of the HEA+Cu is prominent at all exposure times and under both dry and humid air as shown in Figure 3. Additionally, blisters formed on top of the surface preferentially over the Cu-rich phase with apparent Cu outward diffusion and then subsequent oxidation. The remaining surface formed a thin Cr-rich oxide scale, which after 500 h becomes thick enough that the oxidized blisters then become indistinguishable. The depth of the internal oxidation of the Cu-rich phase increases with water vapor exposure as is clearly shown in the elemental maps of Figure 4. The former Cu-rich phase converts to a Cr/Co/Fe/Ni-rich spinel-type oxide with Cr2O3 at the prior interface, mitigating further oxygen penetration [25].
Figure 5 (dry) and Figure 6 (humid) include Raman spectra and corresponding component distribution maps identifying the formed spinels and other oxides for the HEA+Cu exposed in dry and humid air after both 100 h and 300 h. The labeled Fe doping in CuCr2O4 is based on the high intensity of the ca. 540 ÷ 545 cm−1 band versus the band at ca. 685 ÷ 695 cm−1 [26]. The labelled Co doping of the NiO is based on the combined EPMA results and the shift of the main Raman band from ca. 510 to 530 cm−1—although, e.g., Cu and Fe could also be involved since any cation of a lower radius than Ni shifts the main band toward higher values [27,28,29]. The NiFe2O4 had no or very minimal Co doping as the bands at high positions are characteristic for NiFe2O4 with the main one at ca. 706 cm−1 and the lower intensity band at 489 cm−1. The labeled Fe doping of the CoCr2O4 and CuCr2O4 for the HEA+Cu is based on cross-correlating with the EPMA maps. Based on the literature, Fe should substitute Cr in small amounts: x ≤ 0.1 for the CoCr2−xFexO4 composition [30,31] as well as the CuCr2−xFexO4 composition, which is in line with the highest intensity of the A1g band at ca. 690 cm−1 [26].
The Raman results highlight differences between 100 h and 300 h for the HEA+Cu exposed to dry air at 800 °C as oxidation progresses. After 300 h, there is more Cr2O3, less NiO and more Fe in the CoCr spinel (shift of the A1g band toward lower Raman shift values [31]), less CuCrFe spinel and most likely a higher concentration of Cu2O. Compared to the dry-air samples at the same time points, under humid air, the HEA+Cu samples after 100 h and 300 h have less Cu2O as Cu had further oxidized to CuO. The internal oxidation evident after 300 h of oxidation in humid air contains Cr2O3 as the main constituent and a minor quantity of the spinel, most likely CoFe2O4.

3.3. HEA+Al

For the HEA+Al, a thin, homogeneous, continuous Al2O3 layer forms after 100 h in both dry and humid air (Figure 7). With continued exposure after 300 h in dry air, an Al depletion zone is evident with some N uptake and internal Al2O3 oxidation, so the entire scale becomes thicker, more needle-like and less uniform. Qualitative and quantitative measurements with EPMA (Figure 8) indicate the internal attack is related to the formation of AlN [25]. However, this scale appears stable as no further significant changes can be detected up to 500 h in dry air. In humid air, on the other hand, the nitride formation is less pronounced and the alumina layer remains protective and thin at 300 h and is only slightly thicker after 500 h with a much thinner Al depletion zone beneath the scale when compared to dry air.
According to Figure 9, the Raman spectra and corresponding component distribution maps showed that after 500 h under dry air the HEA+Al formed more Cr2O3 and α-Al2O3 (not fully crystallized/transformed from metastable alumina based on the Raman band contour), as well as θ-Al2O3. Such phases are not uniformly distributed across the surface. Under humid air after 500 h, no θ-Al2O3 could be observed in the continuous external scale, and the α-Al2O3 was less crystallized based on its broad Raman band contour. For humid air, a greater share of Fe in the CoCr spinel could be observed based on the shift of the A1g band toward lower Raman shift values [31]. The EPMA results on nitridation were confirmed. Based on different intensity ratios of the characteristic bands coming from AlN, one can distinguish between the different crystallographic planes exposed to the Raman laser—either 100 or 002—which was also described in [32], showing that there is no preferred orientation of the internally grown AlN.

3.4. HEA+Cu/Al

Similar to the HEA+Al, HEA+Cu/Al forms a continuous, thin Al2O3 layer after 100 h at 800 °C in both dry and humid synthetic air as seen in Figure 10. A local attack of the Cu-rich phase (as seen in HEA+Cu) was greatly inhibited, occurring only minimally where larger regions of the Cu-rich phase were directly at the surface. Some Al depletion was observable beneath the oxide scale of the HEA+Cu/Al in both atmospheres, which increases with further exposure time. In contrast to the HEA+Al, no formation of AlN nor extensive internal oxidation could be observed as confirmed in the EPMA maps of Figure 11 and the Raman measurements of Figure 12. In the case of dry air exposure, the HEA+Cu/Al formed metastable alumina phases (θ and γ) and (Co,Ni)Fe2O4 spinel in the small regions of a local attack after 500 h at 800 °C. For humid air exposure, the HEA+Cu/Al forms an external γ-Al2O3 scale with some θ-alumina, but less than for dry air. Additionally, no spinels were evident for the humid air exposure. Some minor Cr2O3 and co-located α-Al2O3 formation occurred internally after the humid air atmosphere. This occurred most likely in pores within the sample. No Cu oxides were present for either atmosphere, nor were any signs of nitridation found for the HEA+Cu/Al. The oxide scale remains especially thin and smooth for the humid air environment, while the dry synthetic air exposure shows a needle-like scale morphology after 300 h and 500 h. This topographical difference is further highlighted in the higher-magnification SEM images of the 300 h exposures in both atmospheres in Figure 13.
For the humid-air results, the Raman distribution image for Cr2O3 was not taken into account when preparing the combined distribution image due to its very small concentration.
While some surface porosity prevented mass gain measurements for these samples, the average oxide scale thicknesses were measured (using SEM images) for an approximation of the oxidation kinetics. Figure 14 shows the scale thickness versus time for the air and humid air exposures for the three alloys HEA+Cu, HEA+Al and HEA+Cu/Al. The HEA+Cu clearly has the thickest scale in both atmospheres, while the Al-containing HEAs have much thinner scales with the thinnest forming under water vapor exposure.

4. Discussion

As already mentioned for water vapor, complicated effects on high-temperature oxidation behavior were found including increasing proton defects in the oxide scale [33,34], accelerating the transformation of θ- to α-Al2O3 [35], forming H2–H2O (facilitating rapid inward transport of O across pores) [36,37] and increasing the vaporization of some oxides by forming hydroxides [35]. The relevant hydroxides and the partial pressures of each hydroxide for pH2O = 1 atm and pO2 = 0.5 atm at 600 °C and 1200 °C are included in Table 2 [38,39]. Here, it is clear that the Cr hydroxide is by far the most volatile, followed by the hydroxides of Ni, Co, Fe, Mn and finally Al as temperatures increase [38]. Experimentally, it was confirmed that volatile Cr hydroxide formation from chromia is the most severe in these types of air plus water vapor conditions [40]. Beyond volatilization, water vapor has been shown to refine the grains of Cr2O3 scales, and the growth kinetics are simultaneously accelerated by grain boundary diffusion of OH- or H2O [41]. These mechanisms and effects are discussed separately for each alloy in the following.

4.1. HEA+Mn

The oxidation mechanisms observed here for the HEA+Mn (Cantor) are in good accordance with the literature [6,7,9,11]. Poor oxidation resistance is primarily characterized by the fast Mn-oxide growth rates leading to severe Mn depletion and formation of Kirkendall voids in the metal subsurface [7,9,11,17]. Mn outward diffusion is ~2 orders of magnitude higher than Cr, Ni and Co [19]. Additionally, oxygen inward diffusion through the outer Mn oxide is relatively high due to the high number of vacancies in the oxide [42].
Under water vapor exposure, the Kirkendall voids and internal oxidation of Mn were more prevalent, although the oxide scale remained thinner, at least after 100 h and 300 h at 800 °C. Extensive scale cracking and spallation can be seen in the cross-sections of Figure 1, for both dry and humid air. Nevertheless, Stephan-Scherb et al. [11] recently proposed the oxide composition and the oxidation state of the Mn oxide could vary under humid air. As an Fe/Co/Cr-spinel forms on the HEA+Mn alloy [25], which does not look too different in humid air, the evaporation of Cr as a Cr hydroxide under a humid air atmosphere is also likely increasing the outward diffusion and subsequent void formation [41]. Some suppression of Cr volatilization has been observed through outer Mn oxide scale formation, which could be why the humid- and dry-air scales are similar after 500 h due to the similar behavior of the manganese chromium spinel in both atmospheres [43]. Eventually, Cr does enrich in the interior of the oxide scale due to the higher outward diffusion of Mn, and even Fe and Co. However, due to the highly local variation in the oxide scale composition, the alloy is only partially protected, especially with further oxide spallation. A schematic of the oxidation process under humid air is shown in Figure 15.

4.2. HEA+Cu

The two-phase microstructure of the HEA+Cu greatly affects the oxidation behavior as the Cu-rich and Cu-lean phases have varying oxidation resistance [25,44,45,46]. While a triplex oxide scale consisting of an external Cu oxide, an Fe/Co/Cr-spinel interlayer and an interior Cr-rich oxide layer at the metal oxide interface eventually forms, the initial, transient stage above the surface-connected Cu-rich phase is complex, as has been previously described [25,45]. Still, the elimination of Mn and addition of Cu to the alloy provide better oxidation protection in the form of a thinner oxide layer in both dry and humid atmospheres at 800 °C than what was observed for the HEA+Mn. Without Mn, Cr can act more effectively as a protective oxide forming element in the HEA system. However, the observed selective attack of the Cu-rich phase serves as a diffusion path for oxygen and hence facilitates further oxidation.
The presence of water vapor appears to accelerate outward diffusion of Cu and Cr, as not only are the blisters larger, but also after only 100 h there is a thin external scale over the Cu-rich blisters, while after 300 h the blisters are already difficult to differentiate from the other oxides (Figure 3). Additionally, the depth of internal oxidation is deeper with steam exposure and the external oxide scale becomes thicker. This is most likely due to the accelerated kinetics from grain boundary diffusion of OH- or H2O [17,41]. There are three possible oxidation mechanisms for the HEA+Cu alloy to form the triplex scale: (1) multiple distinctive oxidation–reduction steps [25], (2) volume expansion from internal spinel formation [25] or (3) activity gradient of oxygen [47,48] driving Cu outward. Unfortunately, the differences for the humid air oxidation do not allow a conclusion to be drawn between the three mechanisms, as accelerated diffusion would be relevant to all. Nevertheless, a comparison with the effect of water vapor on the defect chemistry and growth rate of wüstite [36], along with the observation that the outward diffusion of Cu atoms in Cu2O determines the growth rate of pure copper [49], leads to the conclusion that, also here, the diffusion of the cations within the oxide is accelerated by the presence of water vapor. A schematic of the proposed oxidation evolution of the HEA+Cu under humid air at 800 °C is shown in Figure 16.

4.3. HEA+Al

The two-phase (BCC and FCC) HEA+Al had significantly better oxidation resistance compared to the HEA+Mn and HEA+Cu alloys, especially in the humid atmosphere. As previously noted, the external alumina scale has a needle-like morphology and becomes thicker and rougher, with some AlN formation and Al depletion in the subscale zone, after 300 h and 500 h at 800 °C in air [25]. After water vapor exposure, the formed external Al2O3 is extremely thin, and a much thinner Al depletion zone becomes evident, showing a very stable, protective oxide layer up to 500 h at 800 °C. Figure 17 summarizes the oxidation behavior of HEA+Al schematically under a humid atmosphere.
The water vapor atmosphere influenced the nitrogen uptake, possibly through a combination of lower nitrogen partial pressure, fewer defects in the alumina scale and/or an accelerated transition from metastable to stable Al2O3. Additionally, dipole H2O attaches more easily to the metal surface than O2 and N2 and tends to react more slowly, which then decreases the diffusion of O and N, as the adsorbed H2O is blocking the adsorption sites on the surface [50,51,52]. Naumenko et al. observed a similar impact of the atmosphere on TiN formation during the oxidation of a Ni-base alloy [53]. Nowak et al. also detected reduced nitridation of TiN underneath an Al2O3 layer through the addition of water vapor to the atmosphere [51].
In agreement with the results here, Saunders et al. [20] described faster oxidation rates for most elements, but not Al, when exposed to water vapor. Typically, humidity facilitates the growth of protective hexagonal oxides such as α-Al2O3 over metastable oxides such as θ-Al2O3 [20] and here, after 500 h under humid air, no θ-Al2O3 could be observed. Under humid air exposure, the formed α-Al2O3 is less crystallized, indicating additional defects in the scale, which has also been seen in the literature [33,34]. Often, a visible difference between samples exposed to dry versus humid atmospheres can be seen in the morphology of the oxide scales, as humidity has been observed to facilitate whisker formation [20]. This is the opposite in the current system, where more whiskers and a rougher scale are observed for dry air, suggesting the impact due to the lower nitrogen uptake being higher than the water vapor effect on the growth of the alumina scale. Additionally, the work here suggests a strong influence of water vapor on the stability and prevalence of γ-Al2O3, which seems to assist in forming smooth and protective scales.
The thicker Al depletion zone underneath the oxide scale in dry air will eventually become an issue for self-healing of the oxide scale when compared to the humid air exposure. In this case, Cr and spinel would form with increased exposure time and result in the detrimental behavior demonstrated for the Al-free compositions. This HEA+Al alloy shows such extremely protective behavior under water vapor at 800 °C that additional studies at longer exposure durations (to test if Cr2O3 does eventually form) and at higher temperatures (to examine stability) are of great interest.

4.4. HEA+Cu/Al

Under humid air exposure, the HEA+Cu/Al alloy showed excellent oxidation resistance similar to the HEA+Al. While there is a change in the microstructure of the HEA+Cu/Al, as observed previously with the formation of the σ phase [25,54], this has minor to no effect on the oxidation behavior in these studies. The amount of Al is sufficient in both the Cu-rich (>5 at.%) and the Cu-lean (>15 at.%) phases to allow protective, external alumina scale formation [25]. One of the most notable differences was the type of alumina that formed on the HEA+Cu/Al: θ and γ were present under dry air and mostly γ formed under humid air. In contrast to the HEA+Cu, the alumina scales form on the HEA+Cu/Al before a significant local attack of the Cu-rich phase could occur, forming (Co,Ni)Fe2O4 spinel. The formation of mixed oxides or spinels (HEA+Cu) was suppressed, and nitridation (HEA+Al) was fully suppressed even after 500 h. The nitridation was seen to be suppressed in the HEA+Cu/Al even in dry air [25], so this protection is compounded by the presence of water vapor occupying adsorption sites on the surface [50,51].
As already shown for the HEA+Al alloy, the morphology of the Al2O3 scale was affected by the presence of water vapor, shifting from needle-like in dry air to extremely smooth in water vapor. The shift in morphology and shift in crystal structure is most likely the reason for the extremely slow kinetics, with potentially even thinner scales resulting at 500 h for both Al-containing alloys. One explanation could be alumina phase changes or slower crystallization under humid air exposure. Further investigation of the early, transient oxidation of the HEA+Cu/Al alloy would be interesting to see if Cu might act similar to Pt, which is long known to counteract sulfur segregation and void formation [55], which enhances adhesion of alumina scales and lowers the tendency of scale spallation. An increase in scale adhesion is especially important in a water vapor environment, where alumina scales tend to spall more easily [56]. Other oxidation studies of Al and Cu containing HEAs in dry air showed spallation at 1000 °C, which was attributed to a mismatch of the coefficients of thermal expansion (CTE) between the oxide and alloy [57,58]. While spallation was not observed at the 800 °C of this study, further higher-temperature exposures would potentially see this issue, indicating these alloys are potentially better for service at 800 °C and below for their oxidation resistance [59].
As a result of the thinner and smoother scale, the Al consumption, and thus depletion zone, also appears to be slightly less for the HEA+Cu/Al under water vapor, but this must be confirmed through higher-resolution investigations, such as transmission electron microscopy. It is also possible the Al depletion is confounded by the change in microstructure during exposure. The proposed HEA+Cu/Al humid-air oxidation mechanism is schematically shown in Figure 18.
Interestingly, the majority of the detrimental effects of water vapor that were previously listed could not be observed for these HEA alloy systems, except the accelerated growth kinetics of the Cu- and Mn-rich scales via grain boundary diffusion of OH- or H2O [41], leading to thicker scales (HEA+Mn, HEA+Cu) and higher Kirkendall porosity (HEA+Mn). The exact mechanisms of the alumina-forming HEAs as compared to classical systems under humid air oxidation remain to be fully resolved; however, the scale morphologies clearly change (HEA+Al, HEA+Cu/Al) with water vapor exposure. David Young stated “the situation is complicated by interactions between water vapor and transient alumina phases” [17] and this seems to be even more the case when the substrate is a transition metal high-entropy alloy.

5. Conclusions

The humid (10 vol.% H2O) air oxidation behaviors of FeCrMnNiCo (HEA+Mn), FeCrNiCoCu (HEA+Cu), FeCrNiCoAl (HEA+Al) and FeCrNiCoCuAl (HEA+Cu/Al) were investigated at 800 °C for 100, 300 and 500 h.
  • All alloys showed variations in their oxidation behavior under the humid atmosphere exposure with the HEA+Al and HEA+Cu/Al demonstrating outstanding oxidation resistance.
  • The HEA+Mn formed a fast-growing Mn-containing triplex oxide scale with Kirkendall void formation in the substrate, both of which became worse with longer water vapor exposure.
  • The HEA+Cu showed a complex multi-layer oxide scale, which transitioned with longer exposure to CuO/spinel/Cr2O3. Water vapor accelerated the oxide scale formation, forming a thicker scale, which transitioned sooner, and with deeper internal oxidation of the Cu-rich phase.
  • The HEA+Al formed a protective Al2O3 layer, especially under water vapor exposure, maintaining a thin external scale with a shallow Al depletion zone and less AlN formation than in dry air.
  • Lastly, the HEA+Cu/Al also formed a protective Al2O3 layer with long-term stability and a very minimal local attack of the Cu-rich phase and no AlN formation.
  • Both the HEA+Al and HEA+Cu/Al formed smoother oxide scales under humid air exposure, in contrast to needle-like morphologies under synthetic air at 800 °C.
Both HEA alloys with Al showed highly promising behavior when it comes to oxidation behavior in humid atmospheres. This is most relevant for further HEA alloy development and the fundamental understanding of differences in aluminum oxide and nitride formation in water vapor and their dependence on the substrate elements.

Author Contributions

Conceptualization, E.M.H.W., C.S. and M.C.G.; Methodology, M.C.G.; Formal analysis, E.M.H.W., C.S., M.B. and M.C.G.; Investigation, M.-L.B. and C.S.; Resources, E.M.H.W., M.B. and M.C.G.; Data curation, M.-L.B.; Writing—original draft, E.M.H.W., M.-L.B. and M.B.; Writing—review & editing, E.M.H.W., C.S., M.B. and M.C.G.; Visualization, E.M.H.W. and M.B.; Supervision, E.M.H.W. and M.C.G.; Funding acquisition, E.M.H.W. and M.C.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Data are contained within the article.

Acknowledgments

EPMA measurements were conducted by Gerald Schmidt at DECHEMA Research Institute. Materials for this study were provided by the “Science-based Acceleration of the Full Value Stream for Metal Additive Manufacturing: Expedited AM Powder Development (X-P4AM)” project funded by the U.S.DOE-EERE-AMO through Ames Lab contract DE-AC02-07CH11358.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cantor, B. Multicomponent and High Entropy Alloys. Entropy 2014, 16, 4749–4768. [Google Scholar] [CrossRef]
  2. Cantor, B. Multicomponent high-entropy Cantor alloys. Prog. Mater. Sci. 2020, 120, 100754. [Google Scholar] [CrossRef]
  3. Yeh, J.-W. Alloy Design Strategies and Future Trends in High-Entropy Alloys. JOM 2013, 65, 1759–1771. [Google Scholar] [CrossRef]
  4. Miracle, D.B.; Senkov, O.N.; Wilks, J. A critical review of high entropy alloys and related concepts. Acta Mater. 2017, 122, 448–511. [Google Scholar] [CrossRef]
  5. Tsai, M.-H.; Yeh, J.-W. High-Entropy Alloys: A Critical Review. Mater. Res. Let. 2014, 2, 107–123. [Google Scholar] [CrossRef]
  6. Melia, M.A.; Carroll, J.D.; Whetten, S.R.; Esmaeely, S.N.; Locke, J.; White, E.; Anderson, I.; Chandross, M.; Michael, J.R.; Argibay, N.; et al. Mechanical and Corrosion Properties of Additively Manufactured CoCrFeMnNi High Entropy Alloy. Addit. Manuf. 2019, 29, 100833. [Google Scholar] [CrossRef]
  7. Laplanche, G.; Volkert, U.F.; Eggeler, G.; George, E.P. Oxidation Behavior of the CrMnFeCoNi High-Entropy Alloy. Oxid. Met. 2016, 85, 629–645. [Google Scholar] [CrossRef]
  8. George, E.P.; Raabe, D.; Ritchie, R.O. High-entropy alloys. Nat. Rev. Mater. 2019, 4, 515–534. [Google Scholar] [CrossRef]
  9. Holcomb, G.R.; Tylczak, J.; Carney, C. Oxidation of CoCrFeMnNi High Entropy Alloys. JOM 2015, 67, 2326–2339. [Google Scholar] [CrossRef]
  10. Kai, W.; Li, C.; Cheng, F.; Chu, K.; Huang, R.; Tsay, L.; Kai, J. The oxidation behavior of an equimolar FeCoNiCrMn high-entropy alloy at 950 °C in various oxygen-containing atmospheres. Corros. Sci. 2016, 108, 209–214. [Google Scholar] [CrossRef]
  11. Stephan-Scherb, C.; Schulz, W.; Schneider, M.; Karafiludis, S.; Laplanche, G. High-Temperature Oxidation in Dry and Humid Atmospheres of the Equiatomic CrMnFeCoNi and CrCoNi High- and Medium-Entropy Alloys, High Temperature Corrosion. Oxid. Met. 2020, 95, 105–133. [Google Scholar] [CrossRef]
  12. Anne, B.R.; Shaik, S.; Tanaka, M.; Basu, A. A crucial review on recent updates of oxidation behavior in high entropy alloys. SN Appl. Sci. 2021, 3, 366. [Google Scholar] [CrossRef]
  13. Veselkov, S.; Samoilova, O.; Shaburova, N.; Trofimov, E. High-Temperature Oxidation of High-Entropic Alloys: A Review. Materials 2021, 14, 2595. [Google Scholar] [CrossRef]
  14. Gorr, B.; Schellert, S.; Müller, F.; Christ, H.-J.; Kauffmann, A.; Heilmaier, M. Current Status of Research on the Oxidation Behavior of Refractory High Entropy Alloys. Adv. Eng. Mater. 2021, 23, 2001047. [Google Scholar] [CrossRef]
  15. Butler, T.M.; Weaver, M.L. Oxidation behavior of arc melted AlCoCrFeNi multi-component high-entropy alloys. J. Alloys Compd. 2016, 674, 229–244. [Google Scholar] [CrossRef]
  16. Hong, Y.; Kivy, M.B.; Zaeem, M.A. Competition between formation of Al2O3 and Cr2O3 in oxidation of Al0.3CoCrCuFeNi high entropy alloy: A first-principles study. Scr. Mater. 2019, 168, 139–143. [Google Scholar] [CrossRef]
  17. Young, D.J. High Temperature Oxidation and Corrosion of Metals; Elsevier: Oxford, UK, 2008. [Google Scholar]
  18. Young, D.J.; Pint, B.A. Chromium Volatilization Rates from Cr2O3 Scales into Flowing Gases Containing Water Vapor. Oxid. Met. 2006, 66, 137–153. [Google Scholar] [CrossRef]
  19. Kofstad, P. High Temperature Corrosion; Elsevier Applied Science: London, UK; New York, NY, USA, 1988. [Google Scholar]
  20. Saunders, S.; Monteiro, M.; Rizzo, F. The oxidation behaviour of metals and alloys at high temperatures in atmospheres containing water vapour: A review. Prog. Mater. Sci. 2008, 53, 775–837. [Google Scholar] [CrossRef]
  21. Zhu, D.; Wang, X.; Zhao, J.; Lu, J.; Zhou, Y.; Cai, C.; Huang, J.; Zhou, G. Effect of water vapor on high-temperature oxidation of NiAl alloy. Corros. Sci. 2020, 177, 108963. [Google Scholar] [CrossRef]
  22. Chandra-Ambhorn, S.; Wongpromrat, P.; Thublaor, T.; Chandra-Ambhorn, W. CHAPTER 5 Effect of Water Vapour on the High Temperature Oxidation of Stainless Steels. Solid State Phenom. 2020, 300, 107–134. [Google Scholar] [CrossRef]
  23. Alnegren, P.; Sattari, M.; Svensson, J.-E.; Froitzheim, J. Severe dual atmosphere effect at 600 °C for stainless steel 441. J. Power Sources 2016, 301, 170–178. [Google Scholar] [CrossRef]
  24. Galetz, M.C.; Schlereth, C.; White, E.M.H. Behavior of copper-containing high-entropy alloys in harsh metal-dusting environments. Mater. Corros. 2021, 72, 1232–1242. [Google Scholar] [CrossRef]
  25. Bürckner, M.; Mengis, L.; White, E.M.H.; Galetz, M.C. Influence of copper and aluminum substitution on high-temperature oxidation of the FeCoCrNiMn “Cantor” alloy. Mater. Corros. 2022, 74, 79–90. [Google Scholar] [CrossRef]
  26. Bai, M.; Li, W.; Hong, Y.; Wang, S.; Wang, Y.; Chang, Q. Synthesis and characterization of Fe/Mn co-doped CuCr2O4 black pigment with high near-infrared reflectance. Sol. Energy 2022, 234, 240–250. [Google Scholar] [CrossRef]
  27. Aswathy, N.; Varghese, J.; Nair, S.R.; Kumar, R.V. Structural, optical, and magnetic properties of Mn-doped NiO thin films prepared by sol-gel spin coating. Mater. Chem. Phys. 2022, 282, 125916. [Google Scholar] [CrossRef]
  28. Patel, K.N.; Deshpande, M.; Gujarati, V.P.; Pandya, S.; Sathe, V.; Chaki, S. Structural and optical analysis of Fe doped NiO nanoparticles synthesized by chemical precipitation route. Mater. Res. Bull. 2018, 106, 187–196. [Google Scholar] [CrossRef]
  29. Saguì, N.A.; Ström, P.; Edvinsson, T.; Pehlivan, I.B. Nickel Site Modification by High-Valence Doping: Effect of Tantalum Impurities on the Alkaline Water Electro-Oxidation by NiO Probed by Operando Raman Spectroscopy. ACS Catal. 2022, 12, 6506–6516. [Google Scholar] [CrossRef]
  30. Tian, Z.; Zhu, C.; Wang, J.; Xia, Z.; Liu, Y.; Yuan, S. Size dependence of structure and magnetic properties of CoCr2O4 nanoparticles synthesized by hydrothermal technique. J. Magn. Magn. Mater. 2015, 377, 176–182. [Google Scholar] [CrossRef]
  31. Raman Spectroscopic Study of Solid Solution Spinel Oxides. Available online: https://digitalscholarship.unlv.edu/cgi/viewcontent.cgi?article=2088&context=thesesdissertations (accessed on 28 September 2023).
  32. Jawańska, M.; Dąbrowa, J.; Bik, M.; Cieślak, G.; Jeleń, P.; Mroczka, K.; Wyrwa, J.; Rogal, Ł.; Gil, A.; Galetz, M.; et al. Role of the rare-earth elements effect in transforming the oxidation behavior of Al CoCrFeNi high entropy alloys. Corros. Sci. 2023, 222, 111412. [Google Scholar] [CrossRef]
  33. Sedriks, A.J. Corrosion of Stainless Steels, 2nd ed.; John Wiley: New York, UK, 1996. [Google Scholar]
  34. Schütze, M.; Kofstad, P.; Douglass, D.L.; Gesmundo, F.; Doychak, J.K.; Dieckmann, R.; Jacobson, N.; Nickel, K.G.; Meier, G.H. International Workshop on High Temperature Corrosion. Oxid. Met. 1996, 45, 529–620. [Google Scholar]
  35. Chevalier, S.; Juzon, P.; Przybylski, K.; Larpin, J.-P. Water vapor effect on high-temperature oxidation behavior of Fe3Al intermetallics. Sci. Technol. Adv. Mater. 2009, 10, 045006. [Google Scholar] [CrossRef] [PubMed]
  36. Rahmel, A.; Tobolski, J. Einfluβ von Wasserdampf und Kohlendioxyd auf die Oxydation von Eisen in Sauerstoff bei hohen Temperaturen. Corros. Sci. 1965, 5, 333–346. [Google Scholar] [CrossRef]
  37. Tuck, C.; Odgers, M.; Sachs, K. The oxidation of iron at 950 °C in oxygen/water vapour mixtures. Corros. Sci. 1969, 9, 271–285. [Google Scholar] [CrossRef]
  38. Meschter, P.J.; Opila, E.J.; Jacobson, N.S. Water Vapor–Mediated Volatilization of High-Temperature Materials. Annu. Rev. Mater. Res. 2013, 43, 559–588. [Google Scholar] [CrossRef]
  39. Opila, E.J. Volatility of Common Protective Oxides in High-Temperature Water Vapor: Current Understanding and Unan-swered Questions. Mater. Sci. Forum 2004, 461–464, 765–774. [Google Scholar] [CrossRef]
  40. Pint, B.A. Invited Review Paper in Commemoration of Over 50 Years of Oxidation of Metals: Addressing the Role of Water Vapor on Long-Term Stainless Steel Oxidation Behavior. Oxid. Met. 2021, 95, 335–357. [Google Scholar] [CrossRef]
  41. Young, D.J. Effects of Water Vapour on the Oxidation of Chromia Formers. Mater. Sci. Forum 2008, 595–598, 1189–1197. [Google Scholar] [CrossRef]
  42. High Temperature Oxidation of Sanergy HT: Oxidation Kinetics and Growth Mechanism of a Metallic Interconnect. Available online: https://core.ac.uk/download/pdf/30899934.pdf (accessed on 28 September 2023).
  43. Stenzel, A.; Fähsing, D.; Schütze, M.; Galetz, M.C. Volatilization kinetics of chromium oxide, manganese oxide, and manganese chromium spinel at high temperatures in environments containing water vapor. Mater. Corros. 2019, 70, 1426–1438. [Google Scholar] [CrossRef]
  44. Kai, W.; Jang, W.L.; Huang, R.T.; Lee, C.C.; Hsieh, H.H.; Du, C.F. Air Oxidation of FeCoNi-Base Equi-Molar Alloys at 800–1000 °C, High Temperature Corrosion of mater. Oxid. Met. 2005, 63, 169–192. [Google Scholar] [CrossRef]
  45. Apell, J.; Wonneberger, R.; Pügner, M.; Lampke, T.; Lippmann, S.; Undisz, A. Microstructure and Early-Stage Oxidation Behavior of Co-Cr-Cu-Fe-Mn-Ni High-Entropy Alloys. JOM 2023, 75, 5439–5450. [Google Scholar] [CrossRef]
  46. Li, M.; Zhang, H.; Zeng, Y.; Liu, J. A perspective on investigating transition metal high-entropy alloys for high-temperature applications. Acta Mater. 2022, 240, 118313. [Google Scholar] [CrossRef]
  47. Schimmel, G.; Sorina-Müller, J.; Kempf, B.; Rettenmayr, M. On the mechanism of Ag exudation during internal oxidation. Acta Mater. 2010, 58, 2091–2102. [Google Scholar] [CrossRef]
  48. Jiang, C.; Zhang, J.; Young, D.J. The Effect of Water Vapor on NiO Formation by Ni–Cr Alloys at 650 °C (HTCPM Focus Issue, FNS-111). Oxid. Met. 2021, 96, 57–68. [Google Scholar] [CrossRef]
  49. Mimura, K.; Lim, J.-W.; Isshiki, M.; Zhu, Y.; Jiang, Q. Brief review of oxidation kinetics of copper at 350 °C to 1050 °C. Met. Mater. Trans. A 2006, 37, 1231–1237. [Google Scholar] [CrossRef]
  50. Xie, Y.; Cai, Y.; Zhang, J.; Gleeson, B.; Young, D.J. Effects of sulphate deposits on corrosion behaviour of Ni-base alloys in wet CO2 gas at 750 °C. Corros. Sci. 2020, 181, 109227. [Google Scholar] [CrossRef]
  51. Nowak, W.J.; Wierzba, P.; Naumenko, D.; Quadakkers, W.J.; Sieniawski, J. Water vapour effect on high temperature oxidation behaviour of superalloy Rene 80. Adv. Manuf. Sci. Technol. 2016, 40, 41–52. [Google Scholar] [CrossRef]
  52. Anghel, C.; Hörnlund, E.; Hultquist, G.; Limbäck, M. Gas phase analysis of CO interactions with solid surfaces at high temper-atures. Appl. Surf. Sci. 2004, 233, 392–401. [Google Scholar] [CrossRef]
  53. Michalik, M.; Tobing, S.L.; Hänsel, M.; Shemet, V.; Quadakkers, W.J.; Young, D.J. Effects of water vapour on the high temperature nitridation of chromium. Mater. Corros. 2013, 65, 260–266. [Google Scholar] [CrossRef]
  54. Laplanche, G. Growth kinetics of σ-phase precipitates and underlying diffusion processes in CrMnFeCoNi high-entropy alloys. Acta Mater. 2020, 199, 193–208. [Google Scholar] [CrossRef]
  55. Hou, P.; Tolpygo, V. Examination of the platinum effect on the oxidation behavior of nickel-aluminide coatings. Surf. Coat. Technol. 2007, 202, 623–627. [Google Scholar] [CrossRef]
  56. Onal, K.; Maris-Sida, M.C.; Meier, G.H.; Pettit, F.S. Water vapor effects on the cyclic oxidation resistance of alumina forming alloys. Mater. High Temp. 2003, 20, 327–337. [Google Scholar] [CrossRef]
  57. Daoud, H.M.; Manzoni, A.M.; Völkl, R.; Wanderka, N.; Glatzel, U. Oxidation Behavior of Al8Co17Cr17Cu8Fe17Ni33, Al23Co15Cr23Cu8Fe15Ni15, and Al17Co17Cr17Cu17Fe17Ni17 Compositionally Complex Alloys (High-Entropy Alloys) at Elevated Temperatures in Air. Adv. Eng. Mater. 2015, 17, 1134–1141. [Google Scholar] [CrossRef]
  58. Dabrowa, J.; Cieølak, G.; Stygar, M.; Mroczka, K.; Berent, K.; Kulik, T. Danielewski, Influence of Cu content on high temper-ature oxidation behavior of AlCoCrCuxFeNi high entropy alloys (x = 0; 0.5; 1). Intermetallics 2017, 84, 52–61. [Google Scholar] [CrossRef]
  59. Chen, L.; Zhou, Z.; Tan, Z.; He, D.; Bobzin, K.; Zhao, L.; Öte, M.; Königstein, T. High temperature oxidation behavior of Al0.6CrFeCoNi and Al0.6CrFeCoNiSi0.3 high entropy alloys. J. Alloys Compd. 2018, 764, 845–852. [Google Scholar] [CrossRef]
Crystals 14 00060 g001

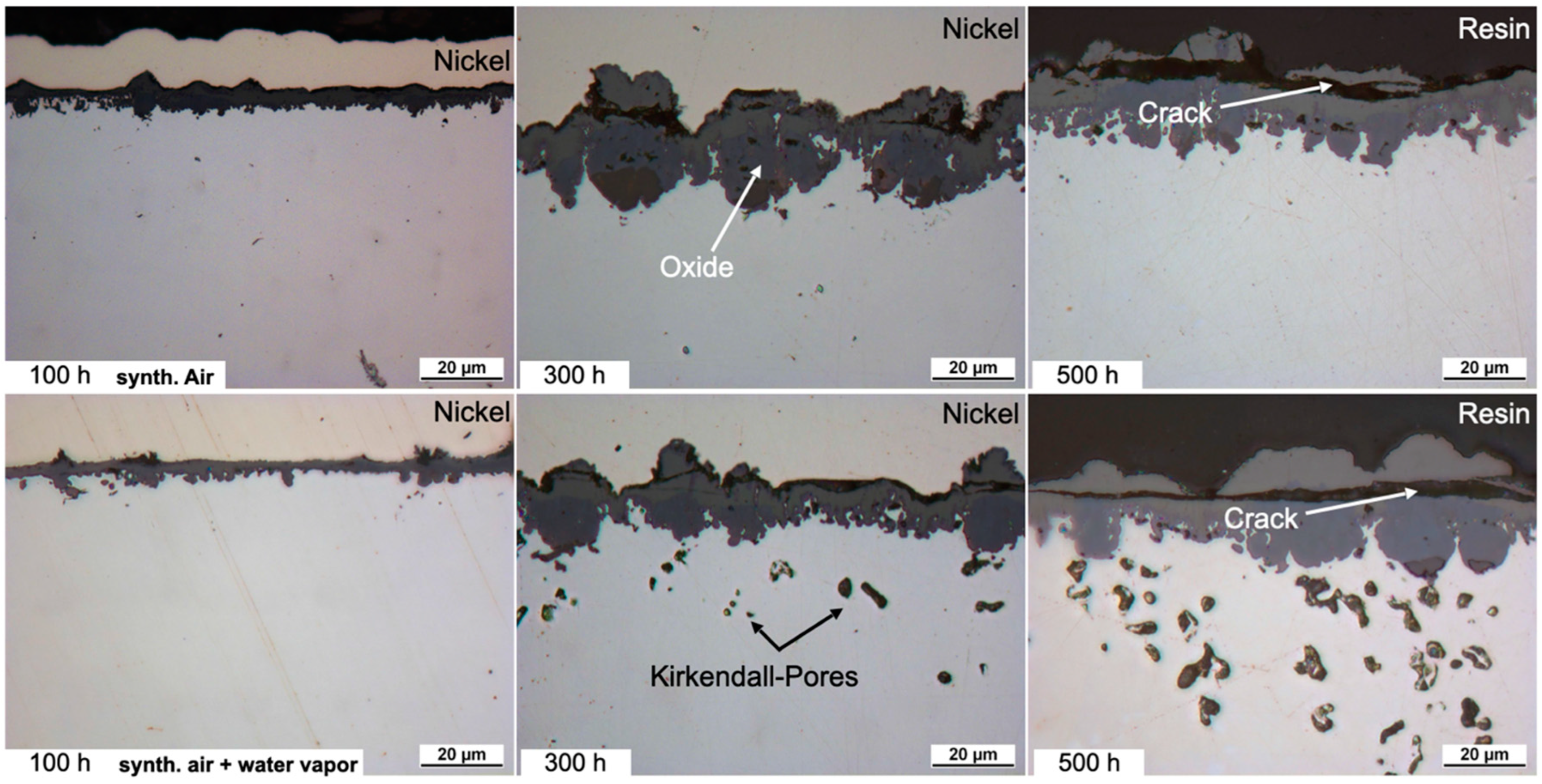

Figure 1. Light microscope images of the cross-sections of HEA+Mn after exposure at 800 °C for 100, 300 and 500 h in dry air and air + 10 vol.% H2O. Dry-air images from [25].
Figure 1. Light microscope images of the cross-sections of HEA+Mn after exposure at 800 °C for 100, 300 and 500 h in dry air and air + 10 vol.% H2O. Dry-air images from [25].
Crystals 14 00060 g001
Crystals 14 00060 g002

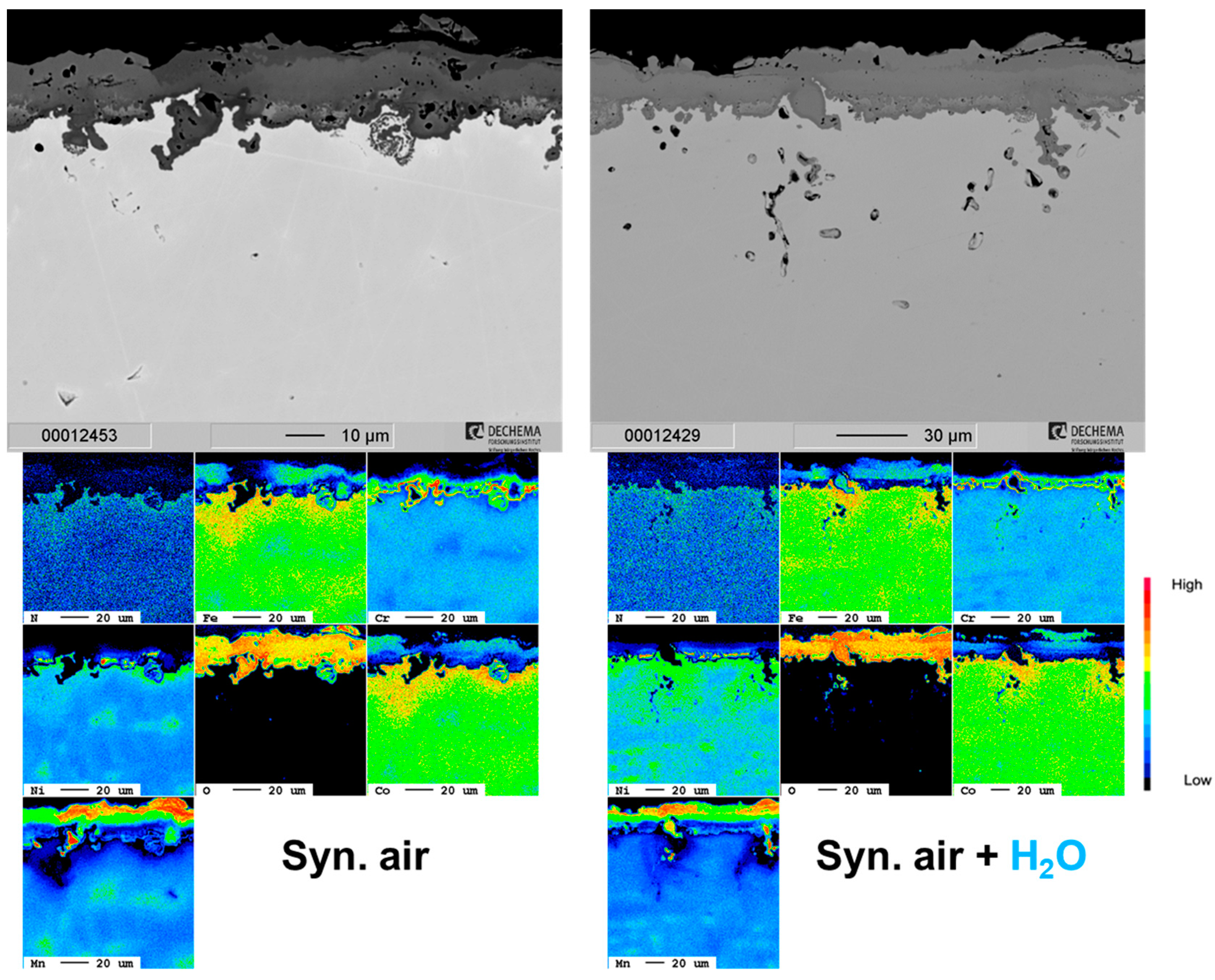

Figure 2. Cross-section SEM images and corresponding EPMA element maps of the HEA+Mn in dry and humid air at 800 °C after 500 h.
Figure 2. Cross-section SEM images and corresponding EPMA element maps of the HEA+Mn in dry and humid air at 800 °C after 500 h.
Crystals 14 00060 g002
Crystals 14 00060 g003

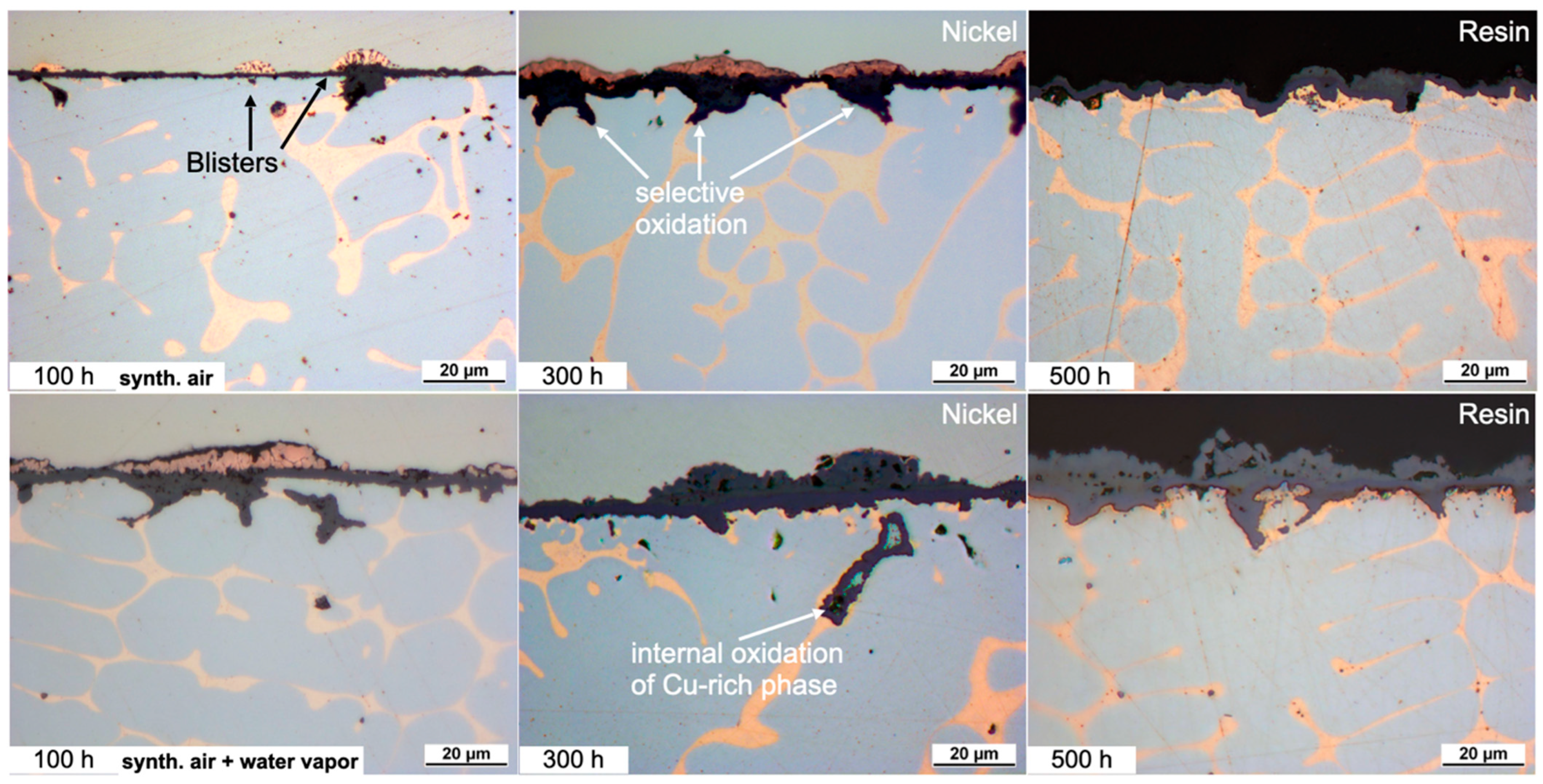

Figure 3. Light microscope images of the cross-sections of the HEA+Cu after exposure at 800 °C for 100, 300 and 500 h. Dry-air images from [25].
Figure 3. Light microscope images of the cross-sections of the HEA+Cu after exposure at 800 °C for 100, 300 and 500 h. Dry-air images from [25].
Crystals 14 00060 g003
Crystals 14 00060 g004

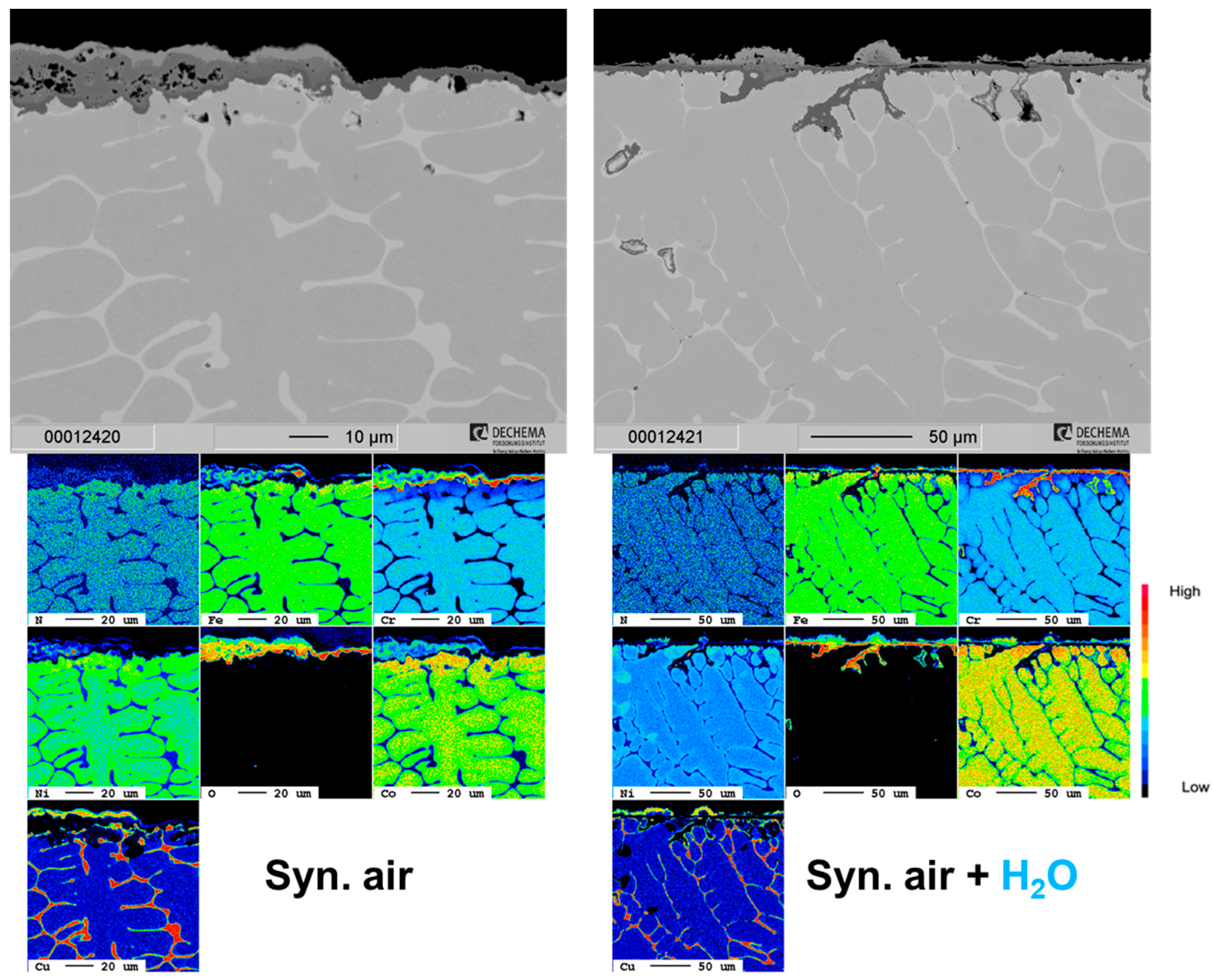

Figure 4. Cross-section SEM images and corresponding EPMA element maps of the HEA+Cu in dry and humid air at 800 °C after 500 h.
Figure 4. Cross-section SEM images and corresponding EPMA element maps of the HEA+Cu in dry and humid air at 800 °C after 500 h.
Crystals 14 00060 g004
Crystals 14 00060 g005

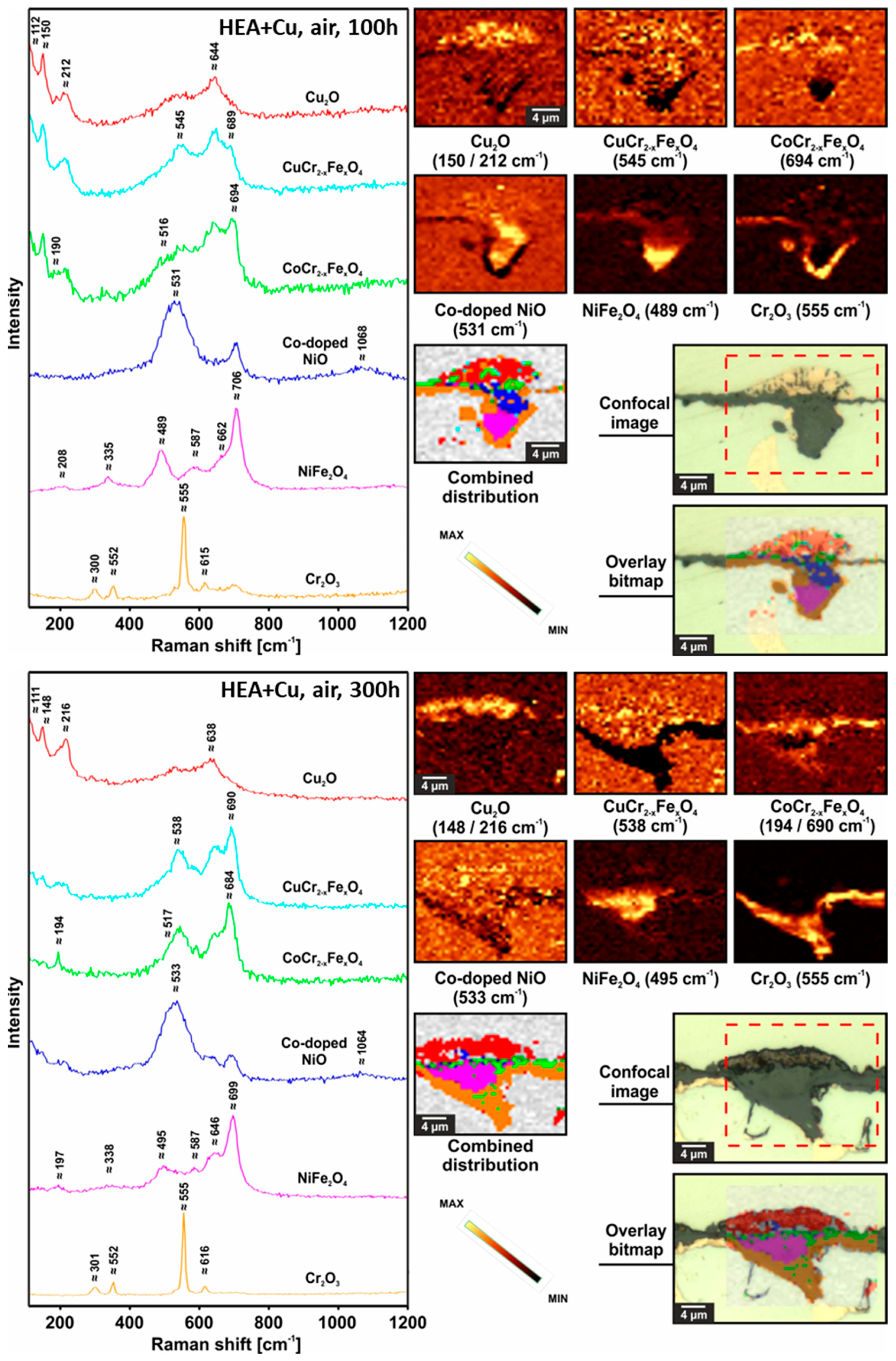

Figure 5. Raman confocal imaging for HEA+Cu after exposure at 800 °C for 100 h in dry air (top) and for 300 h in dry air (bottom). For the 300 h results, the investigated area was chosen from the optical image presented in Figure 3, and the Raman distribution image for CuCr2−xFexO4 spinel was not taken into account when preparing combined distribution image due to its very small concentration.
Figure 5. Raman confocal imaging for HEA+Cu after exposure at 800 °C for 100 h in dry air (top) and for 300 h in dry air (bottom). For the 300 h results, the investigated area was chosen from the optical image presented in Figure 3, and the Raman distribution image for CuCr2−xFexO4 spinel was not taken into account when preparing combined distribution image due to its very small concentration.
Crystals 14 00060 g005
Crystals 14 00060 g006

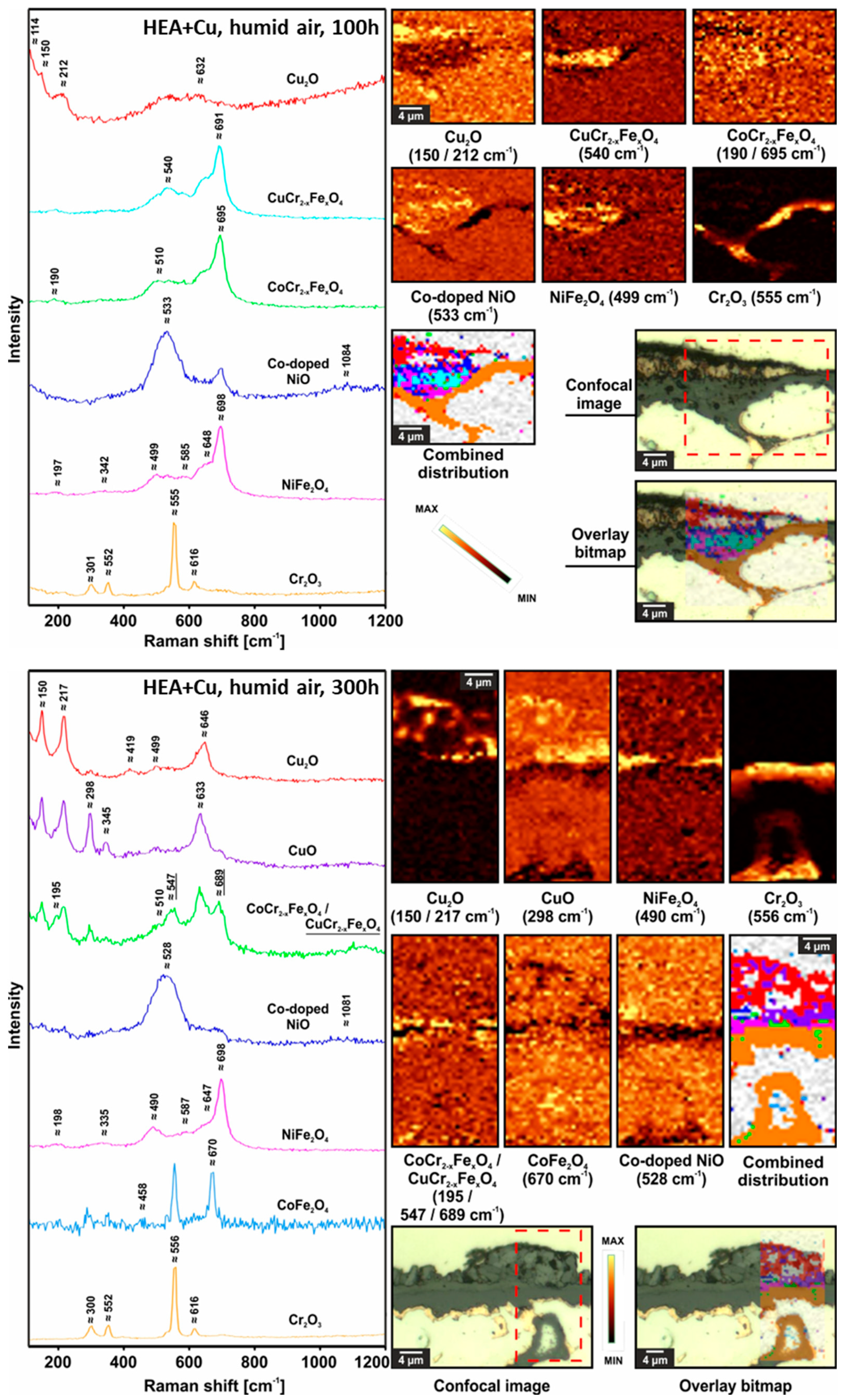

Figure 6. Raman confocal imaging for HEA+Cu after exposure at 800 °C for 100 h in humid air (top) and for 300 h in humid air (bottom). The investigated areas were chosen from optical images presented in Figure 3.
Figure 6. Raman confocal imaging for HEA+Cu after exposure at 800 °C for 100 h in humid air (top) and for 300 h in humid air (bottom). The investigated areas were chosen from optical images presented in Figure 3.
Crystals 14 00060 g006
Crystals 14 00060 g007

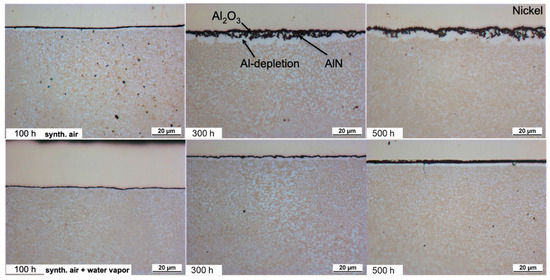

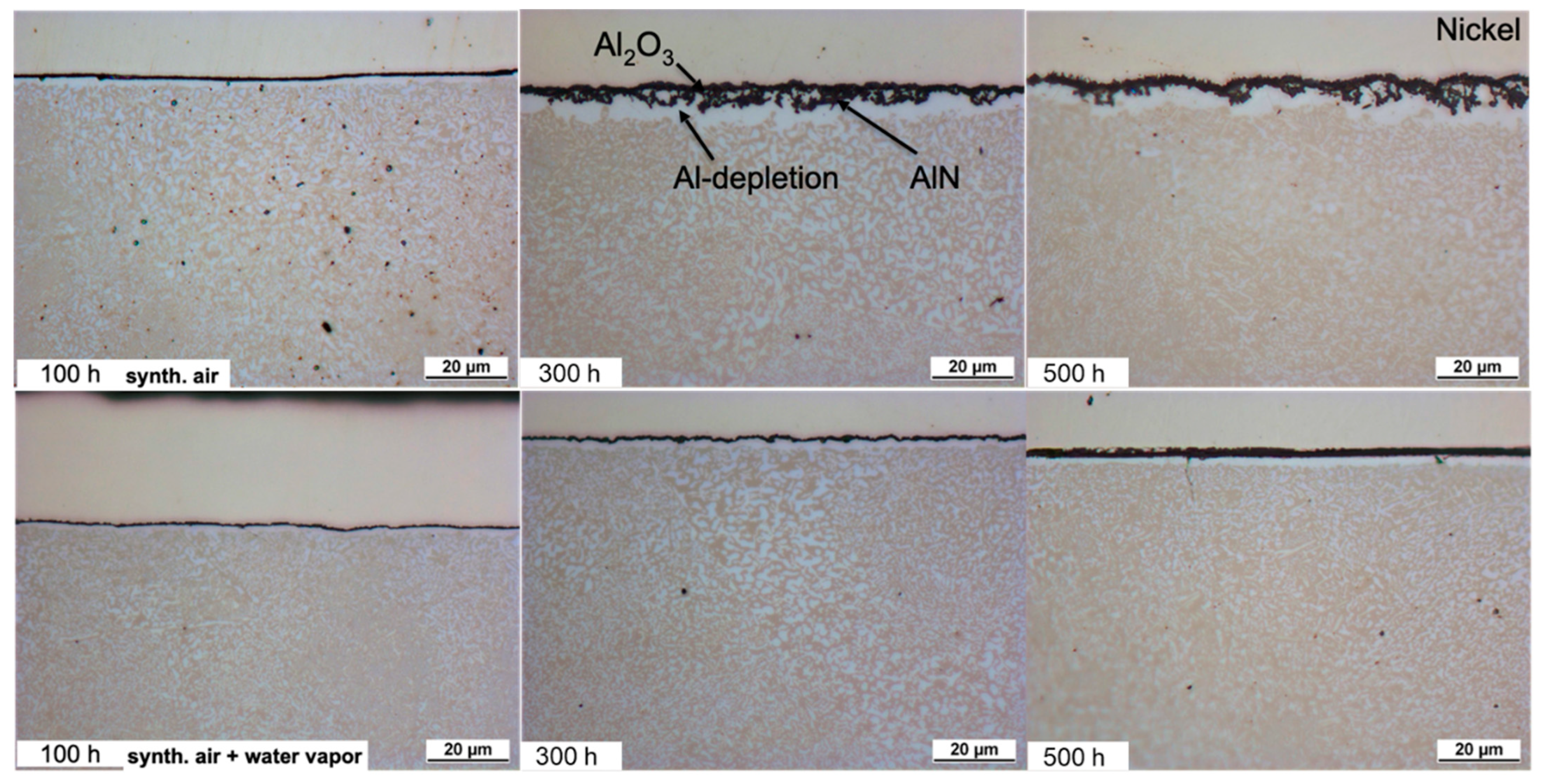

Figure 7. Light microscopic images of the cross-sections of HEA+Al after exposure at 800 °C. Dry-air images from [25].
Figure 7. Light microscopic images of the cross-sections of HEA+Al after exposure at 800 °C. Dry-air images from [25].
Crystals 14 00060 g007
Crystals 14 00060 g008

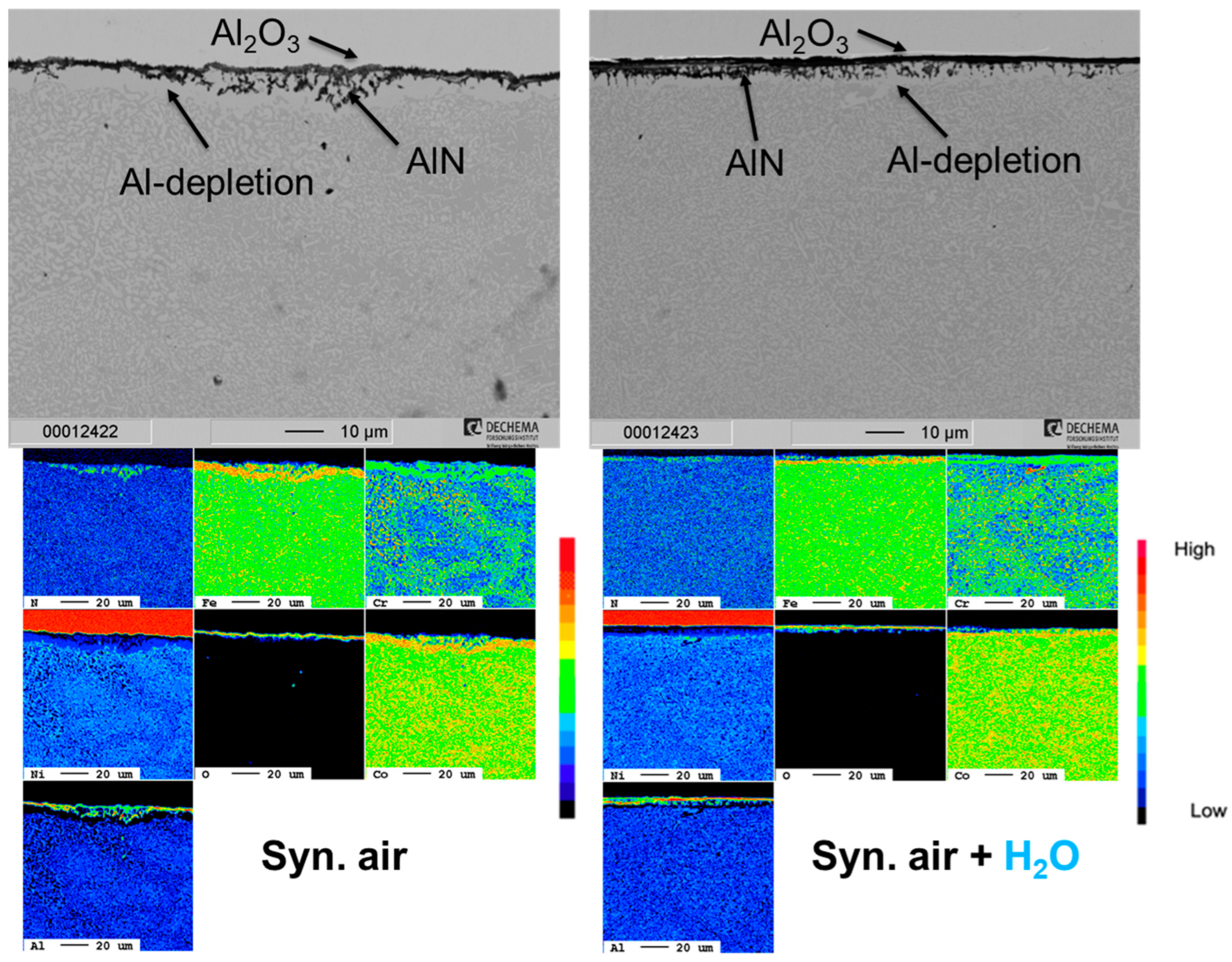

Figure 8. Cross-section SEM images and corresponding EPMA element maps of the HEA+Al in dry and humid air at 800 °C after 500 h. Synthetic air adapted from [25].
Figure 8. Cross-section SEM images and corresponding EPMA element maps of the HEA+Al in dry and humid air at 800 °C after 500 h. Synthetic air adapted from [25].
Crystals 14 00060 g008
Crystals 14 00060 g009

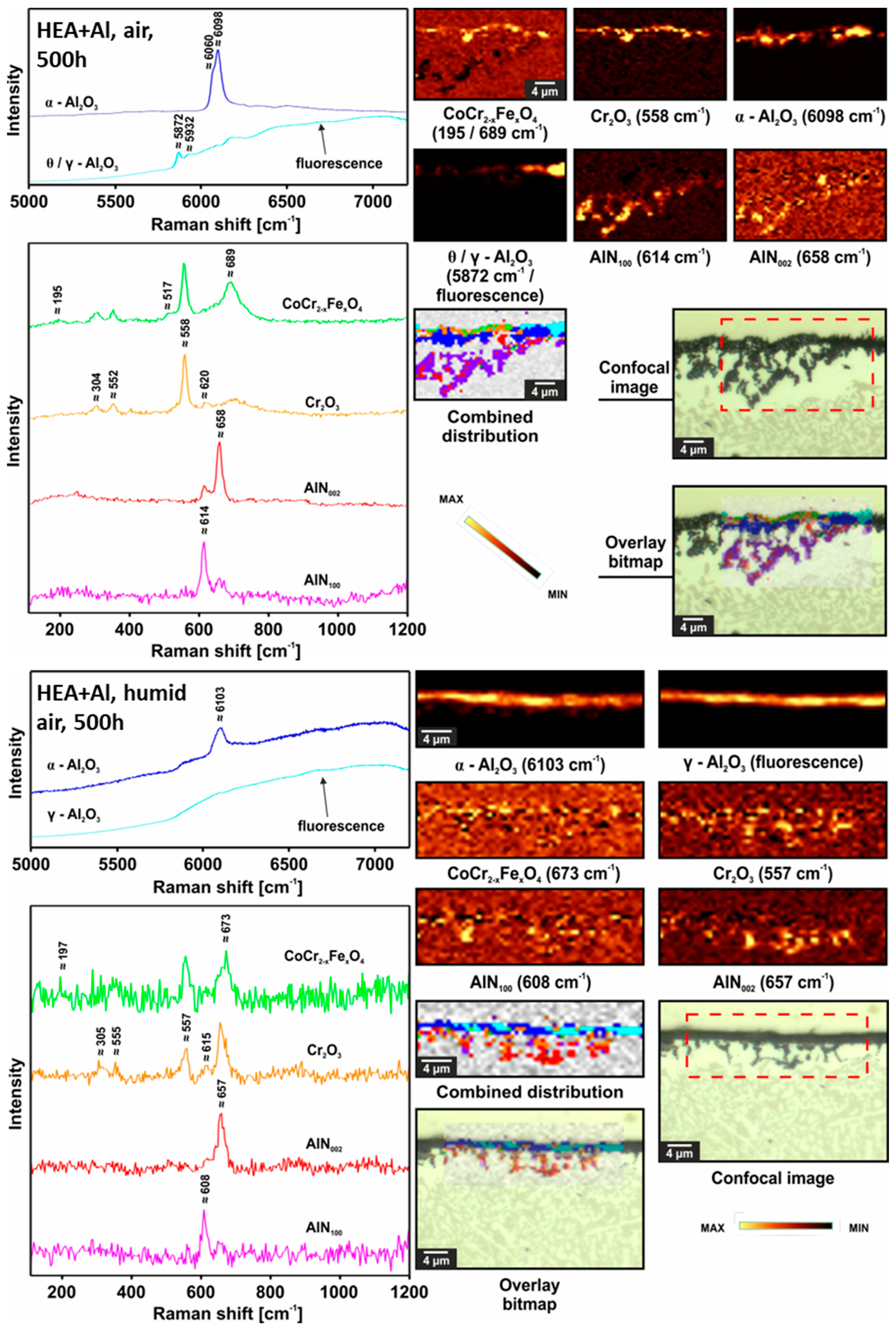

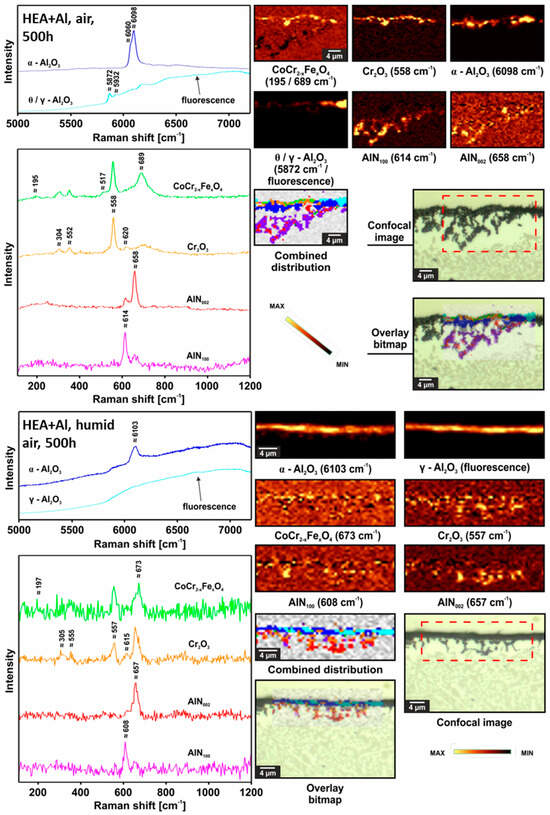

Figure 9. Raman confocal imaging for HEA+Al after exposure at 800 °C for 500 h in dry air (top) and in humid air (bottom). The investigated areas were chosen from the SEM images presented in Figure 6.
Figure 9. Raman confocal imaging for HEA+Al after exposure at 800 °C for 500 h in dry air (top) and in humid air (bottom). The investigated areas were chosen from the SEM images presented in Figure 6.
Crystals 14 00060 g009
Crystals 14 00060 g010

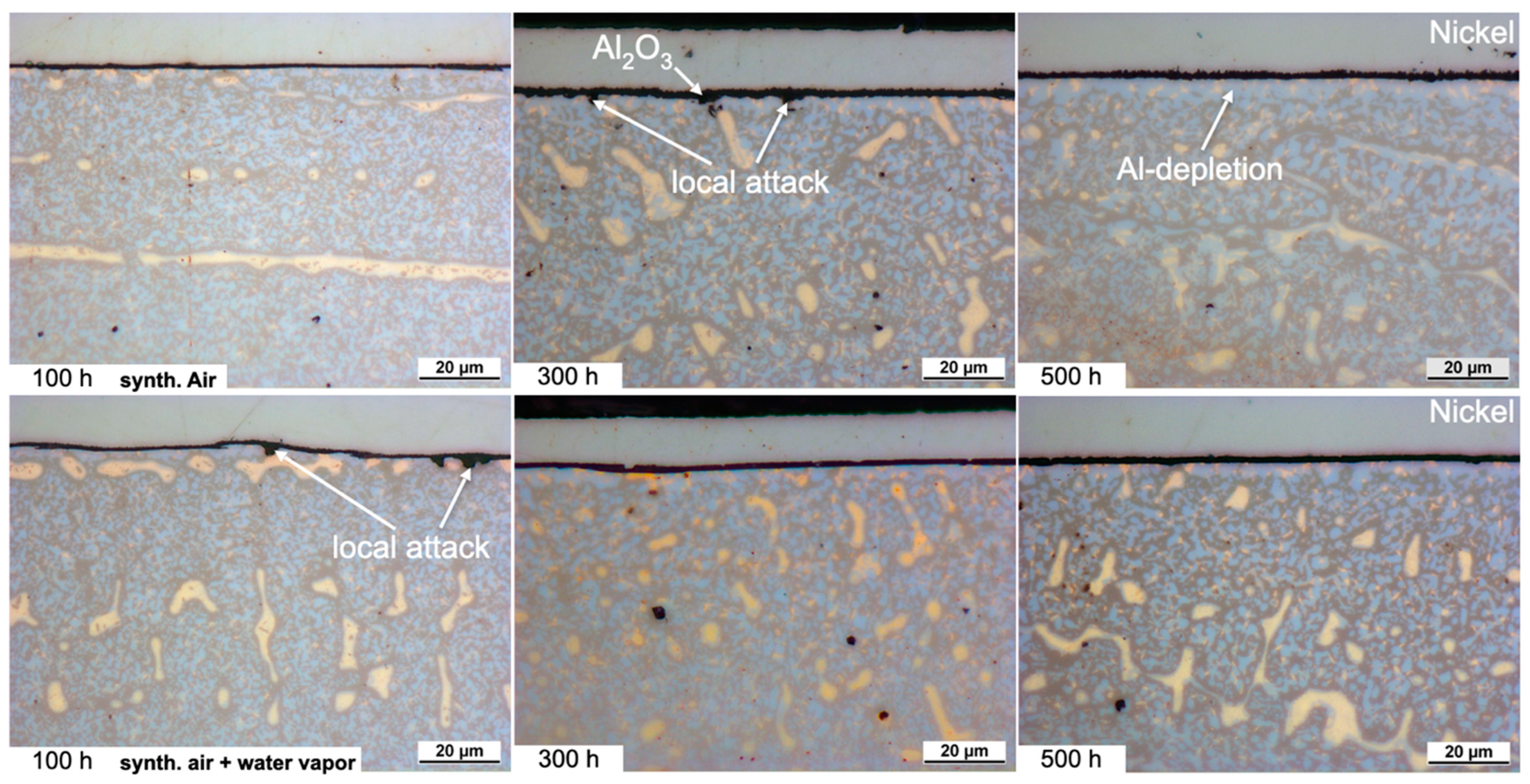

Figure 10. Light microscopic images of the cross-sections of HEA+Cu/Al after exposure at 800 °C. Dry-air images from [25].
Figure 10. Light microscopic images of the cross-sections of HEA+Cu/Al after exposure at 800 °C. Dry-air images from [25].
Crystals 14 00060 g010
Crystals 14 00060 g011

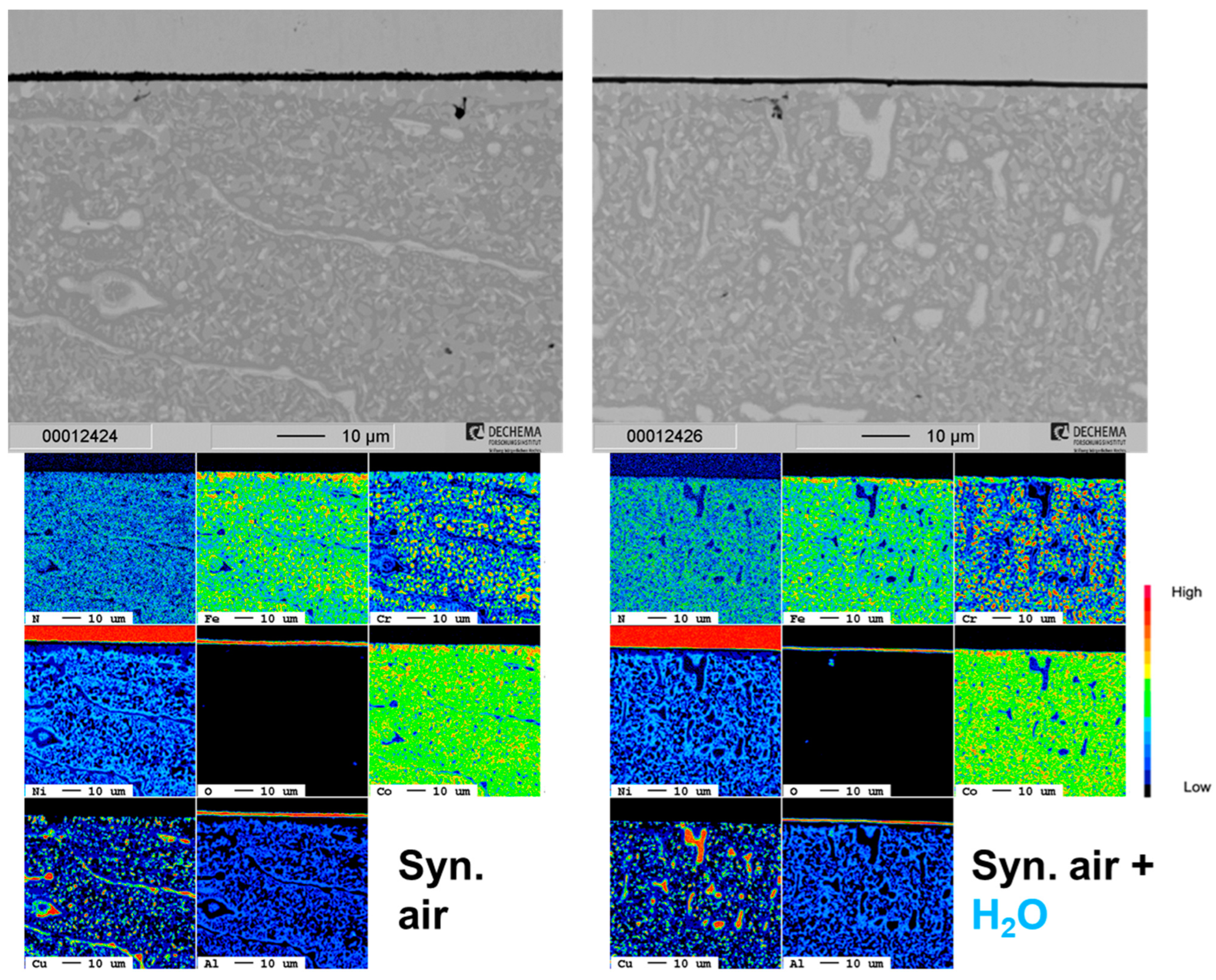

Figure 11. Cross-section SEM images and corresponding EPMA element maps of the HEA+Cu/Al in dry and humid air at 800 °C after 500 h. Synthetic air adapted from [25].
Figure 11. Cross-section SEM images and corresponding EPMA element maps of the HEA+Cu/Al in dry and humid air at 800 °C after 500 h. Synthetic air adapted from [25].
Crystals 14 00060 g011
Crystals 14 00060 g012

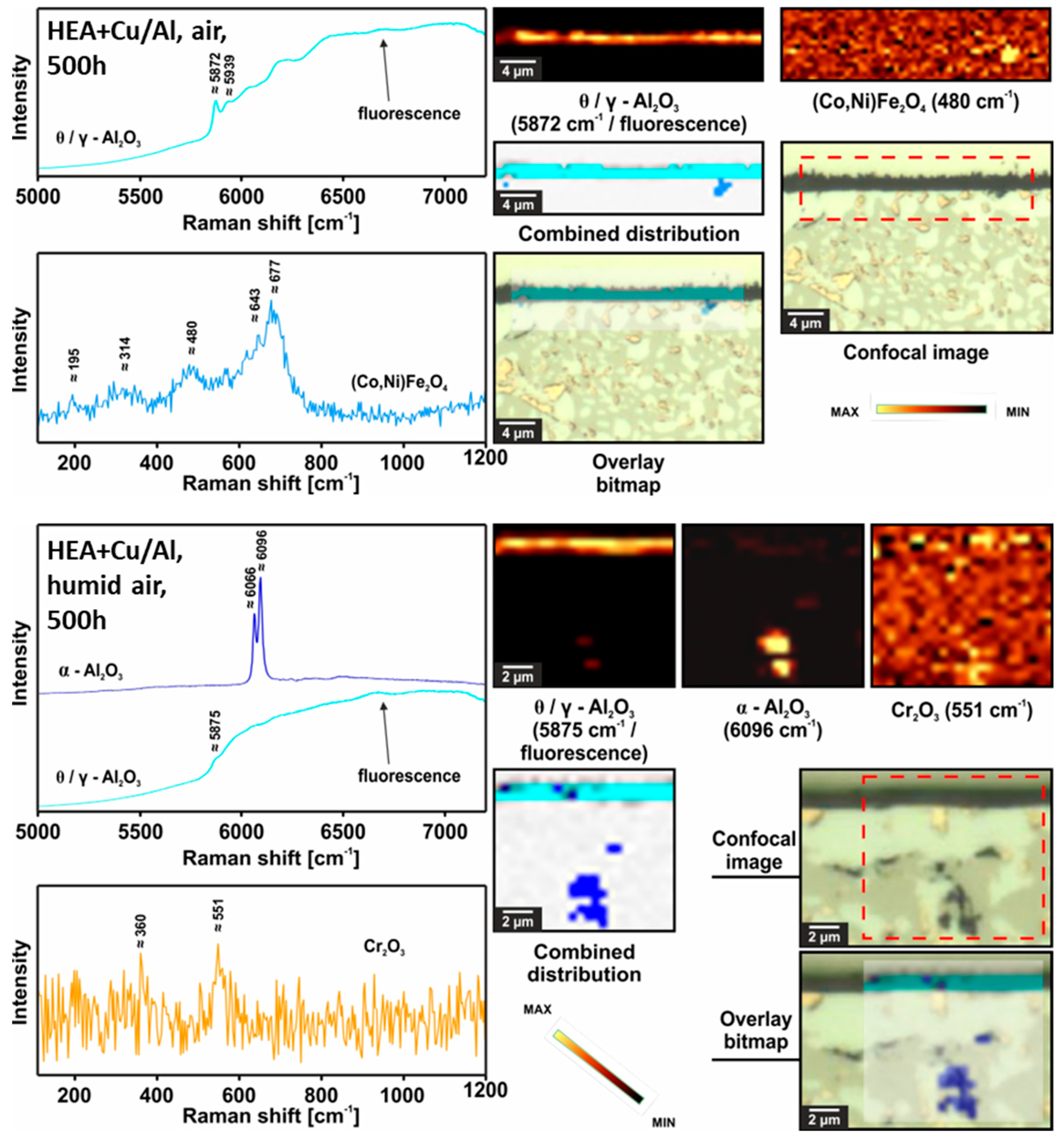

Figure 12. Raman confocal imaging for HEA+Cu/Al after exposure at 800 °C for 500 h in dry air (top) and humid air (bottom). The investigated areas were chosen from the SEM images presented in Figure 8.
Figure 12. Raman confocal imaging for HEA+Cu/Al after exposure at 800 °C for 500 h in dry air (top) and humid air (bottom). The investigated areas were chosen from the SEM images presented in Figure 8.
Crystals 14 00060 g012
Crystals 14 00060 g013

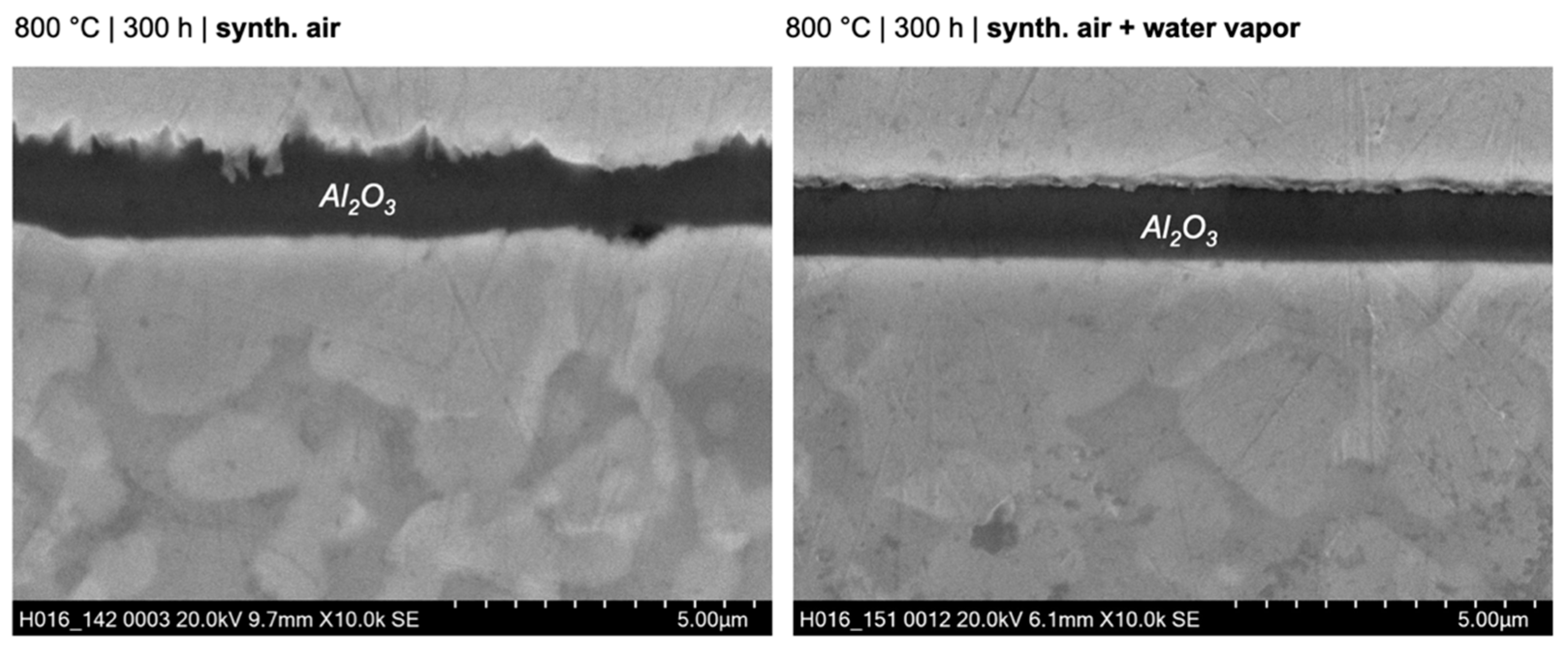

Figure 13. Scanning electron microscopy images of the morphology of HEA+Cu/Al after exposure for 300 h at 800 °C in dry and humid synthetic air.
Figure 13. Scanning electron microscopy images of the morphology of HEA+Cu/Al after exposure for 300 h at 800 °C in dry and humid synthetic air.
Crystals 14 00060 g013
Crystals 14 00060 g014

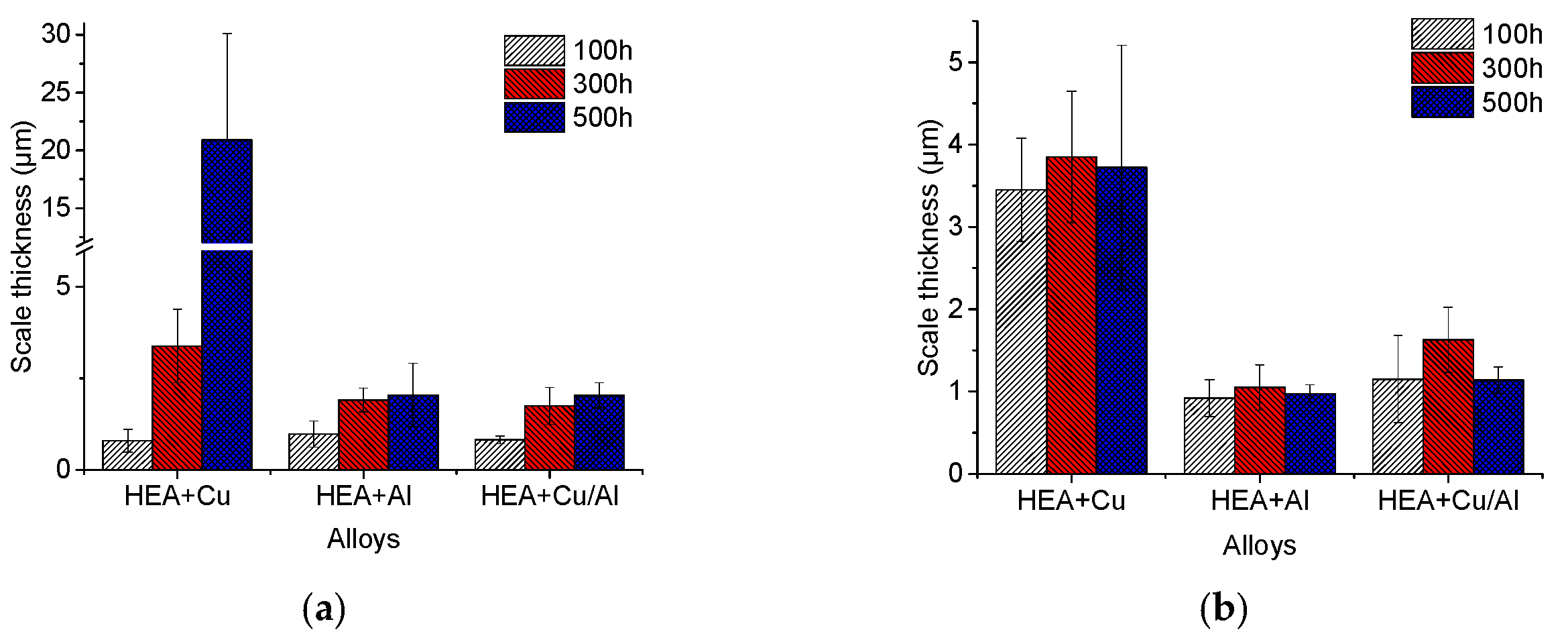

Figure 14. Oxide scale thicknesses of HEA+Cu, HEA+Al and HEA+Cu/Al after exposure for 100, 300 and 500 h at 800 °C in dry (a) and humid (b) synthetic air.
Figure 14. Oxide scale thicknesses of HEA+Cu, HEA+Al and HEA+Cu/Al after exposure for 100, 300 and 500 h at 800 °C in dry (a) and humid (b) synthetic air.
Crystals 14 00060 g014
Crystals 14 00060 g015

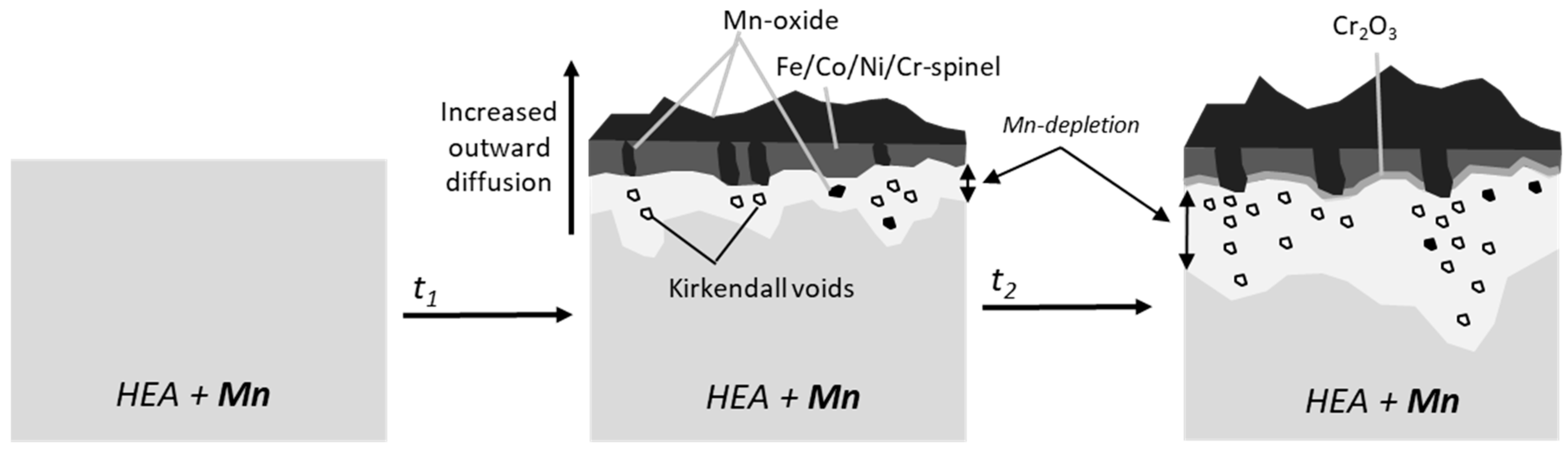

Figure 15. Proposed oxidation mechanism of HEA + Mn as a function of time under humid air exposure at 800 °C.
Figure 15. Proposed oxidation mechanism of HEA + Mn as a function of time under humid air exposure at 800 °C.
Crystals 14 00060 g015
Crystals 14 00060 g016

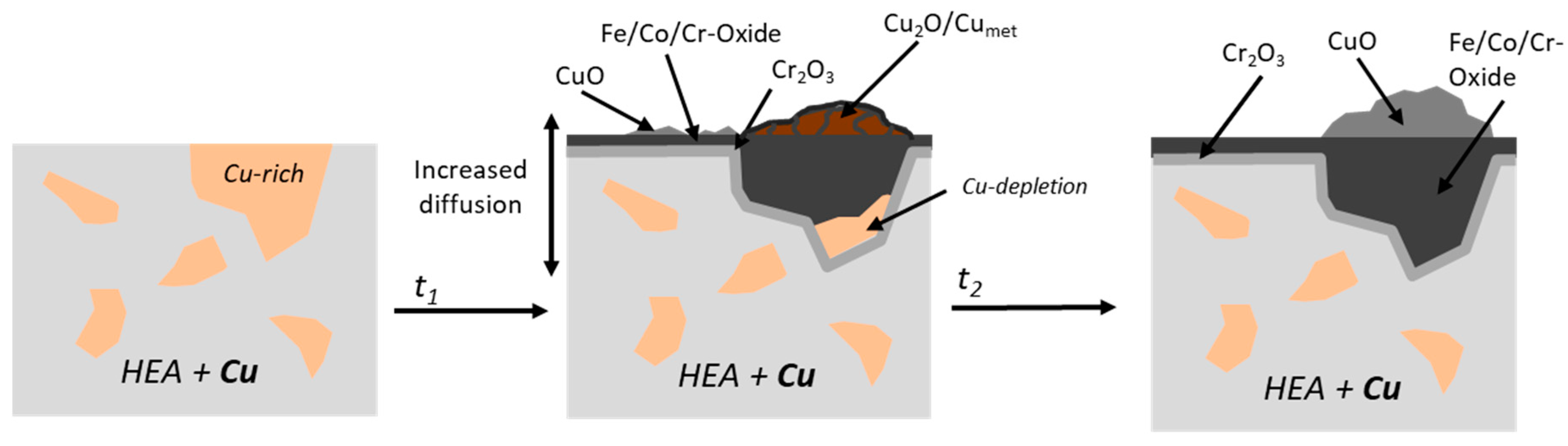

Figure 16. Proposed oxidation mechanism of HEA+Cu under humid air exposure at 800 °C as a function of time.
Figure 16. Proposed oxidation mechanism of HEA+Cu under humid air exposure at 800 °C as a function of time.
Crystals 14 00060 g016
Crystals 14 00060 g017

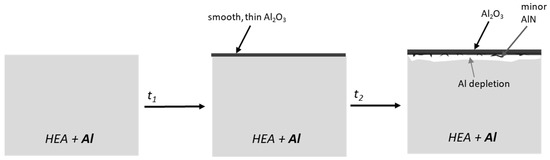

Figure 17. Proposed oxidation mechanism of HEA+Al under humid air exposure at 800 °C as a function of time.
Figure 17. Proposed oxidation mechanism of HEA+Al under humid air exposure at 800 °C as a function of time.
Crystals 14 00060 g017
Crystals 14 00060 g018

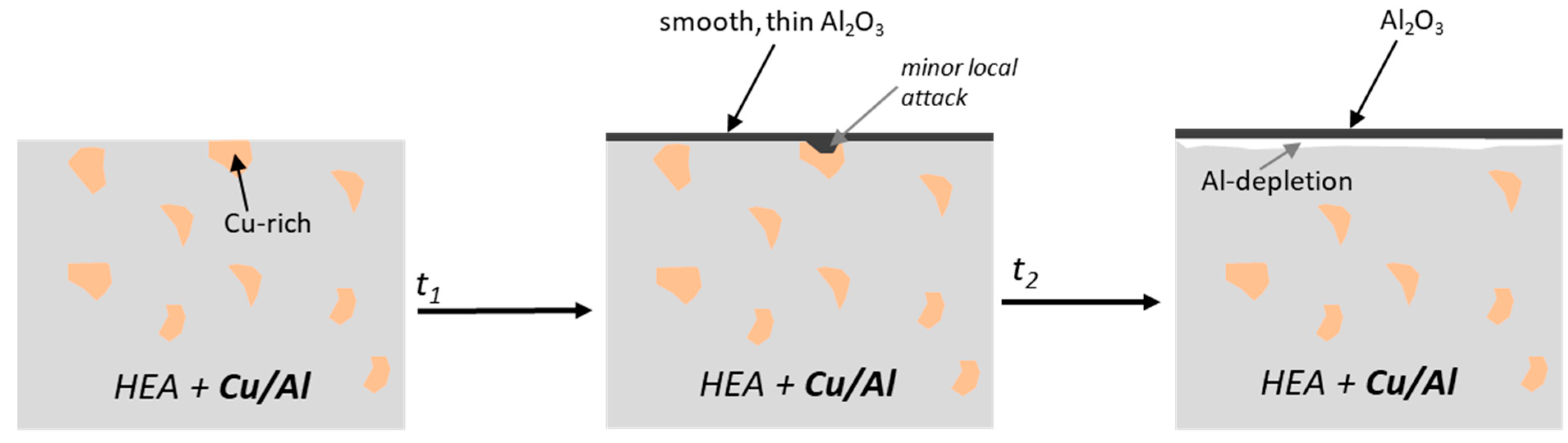

Figure 18. Proposed oxidation mechanism of HEA+Cu/Al under humid air exposure at 800 °C as a function of time.
Figure 18. Proposed oxidation mechanism of HEA+Cu/Al under humid air exposure at 800 °C as a function of time.
Crystals 14 00060 g018
Table 1. Chemical compositions in wt.% (from EDS) and microstructural descriptions of the investigated Al- and Cu-containing HEAs (adapted from [24,25]).
Table 1. Chemical compositions in wt.% (from EDS) and microstructural descriptions of the investigated Al- and Cu-containing HEAs (adapted from [24,25]).
AlloyCuCoCrFeNiAlMnMicrostructure
HEA+Cu21.920.417.919.320.3--FCC+FCC Cu-rich (45 at.%)
HEA+Al-23.320.622.123.210.7-interdendritic BCC (18.8 at.%Al, 23.7 at.%Cr) and FCC (12.8 at.%Al, 29.2 at.%Cr)
HEA+Cu/Al20.118.616.417.718.68.5-BCC+FCC Cu-rich (up to 66 at.%)
Table 2. Selected thermodynamic data for hydroxide vapor species, partial pressures of each hydroxide for pH2O = 1 atm and pO2 = 0.5 atm at 600 °C and 1200 °C. Adapted from [38,39].
Table 2. Selected thermodynamic data for hydroxide vapor species, partial pressures of each hydroxide for pH2O = 1 atm and pO2 = 0.5 atm at 600 °C and 1200 °C. Adapted from [38,39].
Reaction600 °C1200 °C
0.5Cr2O3(c) + H2O(g) + 0.75O2(g) = CrO2(OH)2(g)1.97 × 10−64.40 × 10−5
0.5Mn2O3(s) + H2O(g) = Mn(OH)2(g) + 0.25O2(g)1.57 × 10−15-
0.333Mn3O4(s) + H2O(g) = Mn(OH)2(g) + 0.167O2(g)-1.62 × 10−7
0.5Fe2O3(c) + H2O(g) = Fe(OH)2(g) + 0.25O2(g)7.01 × 10−153.46 × 10−7
0.333Co3O4(c) + H2O(g) = Co(OH)2(g) + 0.167O2(g)1.04 × 10−12-
CoO(c) + H2O(g) = Co(OH)2(g)-4.70 × 10−6
NiO(c) +H2O(g) = Ni(OH)2(g)1.56 × 10−115.10 × 10−6
0.5Al2O3(c) + 1.5H2O(g) = Al(OH)3(g)3.87 × 10−121.42 × 10−7
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

White, E.M.H.; Bürckner, M.-L.; Schlereth, C.; Bik, M.; Galetz, M.C. High-Temperature Oxidation Behavior of FeCoCrNi+(Cu/Al)-Based High-Entropy Alloys in Humid Air. Crystals 2024, 14, 60. https://doi.org/10.3390/cryst14010060

AMA Style

White EMH, Bürckner M-L, Schlereth C, Bik M, Galetz MC. High-Temperature Oxidation Behavior of FeCoCrNi+(Cu/Al)-Based High-Entropy Alloys in Humid Air. Crystals. 2024; 14(1):60. https://doi.org/10.3390/cryst14010060

Chicago/Turabian Style

White, Emma Marie Hamilton, Mary-Lee Bürckner, Clara Schlereth, Maciej Bik, and Mathias Christian Galetz. 2024. "High-Temperature Oxidation Behavior of FeCoCrNi+(Cu/Al)-Based High-Entropy Alloys in Humid Air" Crystals 14, no. 1: 60. https://doi.org/10.3390/cryst14010060

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
