Chirality as a Feature of the Crystal Structure of Lanthanide Ion Complexes—Some Simple Examples

by
Lioubov I. Semenova
1,
Irene Ling
2 and
Alexandre N. Sobolev
1,*
1
School of Molecular Sciences, M310, The University of Western Australia, 35 Stirling Highway, Perth, WA 6009, Australia
2
School of Science, Monash University Malaysia, Jalan Lagoon Selatan, Bandar Sunway 47500, Selangor, Malaysia
*
Author to whom correspondence should be addressed.
Crystals 2023, 13(2), 337; https://doi.org/10.3390/cryst13020337
Submission received: 19 January 2023 / Revised: 6 February 2023 / Accepted: 12 February 2023 / Published: 16 February 2023
(This article belongs to the Special Issue Feature Papers in Crystal Engineering in 2022)
Browse Figures
Versions Notes

Abstract

:
Single-crystal X-ray structure determinations are reported for four lanthanide complexes, [Dy(bipy)2Cl2(OH2)2]Cl.H2O (bipy = 2,2′-bipyridine), 1; [La2(phen)2(O2CCH3)4(NO3)2] (phen = 1,10-phenanthroline), 2; [Lu(terpy)(O2CCH3)3].NaNO3 (terpy = 2,2′;6′,2″-terpyridine) 3; and [Lu(phen)(O2CH)3(OH2)].H2O, 4. Dispersion interactions within the stacked arrays of coordinated aza-aromatic units found in all four complexes appear to be a significant structural influence in the solid state. For complex 1, there are additional interactions beyond dispersion, which suggests that it may be the means whereby the Δ and Λ forms contribute to the overall chiral nature of the crystal. These weak intermolecular interactions were investigated in detail using the Hirshfeld surface analysis.

1. Introduction

Lanthanides are strong Lewis acids that typically form complexes through coordination with ligands that have highly electronegative donor atoms, notably N- or O-, although their organometallic chemistry is also well developed [1]. The variable and commonly high coordination numbers (7 to 10), which typify lanthanide(III) ion coordination chemistry, mean that chirality (optical activity) can be an important aspect of the complex ion structures [2]. An early review article by Aspinall [3] provides numerous examples of chiral lanthanide complexes, involving a wide range of ligands, which have various applications; however, the point is made that, in most cases, the chirality of the complexes is derived from the use of stable enantiomeric forms of the ligands alone. In the solution, the lability of the lanthanide(III) cations, some of the most labile of all metal ions known [4], usually results in their rapid inversion, a factor that limits the possible applications in chiral catalysis unless a chiral ligand is used to fix the configuration at the metal ion. This approach has seen spectacular progress over the past decades [5], although it may be noted that the chirality of a ligand does not necessarily inhibit interconversion between the diastereomeric forms of its complexes [6]. Lanthanide complexes in general have well established biomedical applications, ranging from cancer diagnosis and therapy to cell imagery [7]; however, since all biological systems are chiral, complexes which are themselves also chiral offer prospects for improved targeting [8]. In the solid-state, it has been found that the use of chiral bridging ligands to form lanthanide coordination polymers has considerable prospects in the development of new photoelectronic devices [9] and even that the selectivity involved in the crystallization of the complexes of a chiral ligand (camphorate) can be used to separate the lanthanides [10]. However, because inversion processes are inhibited in the solid state, it is not necessary to use chiral ligands in order to obtain a chiral crystal, so that even stoichiometrically simple materials may be of interest in this regard. This would depend, of course, on the occurrence of “spontaneous resolution” and the deposition of crystals belonging to the Sohncke space groups [11], a relatively rare phenomenon, though certainly not unknown [3,12,13,14,15,16,17,18,19,20,21]. Understanding the molecular properties and the formation of supramolecular assemblies involving chiral lanthanide complexes is deemed crucial because chiral interactions could lead to dramatic improvements in the sensitivity and selectivity of their applications. Thus, the phenomenon of chiral crystallization has drawn our interest and we intend to explore this area both by revisiting certain previously studied compounds and by investigating the structural properties of new lanthanide(III) complexes. In the present work, we report four crystal structures of lanthanide(III) complexes that reflect these two themes and involve quite different solid state supramolecular architectures. Of the four crystal structures presently described, one is that of a chiral crystal, one that of a crystal where the lanthanide(III) ion centre is achiral (as is the crystal) and two involve similar ways of incorporating chiral lanthanide ion units into an achiral structure. Possible reasons for such variations in behaviour are assessed through a detailed analysis of the weak interactions revealed in each structure.

2. Materials and Methods

2.1. Synthesis

The materials studied in the present work, [Dy(bipy)2Cl2(OH2)2]Cl.H2O (bipy = 2,2′-bipyridine), 1; [La2(phen)2(O2CCH3)4(NO3)2] (phen = 1,10-phenanthroline), 2; [Lu(terpy)(O2CCH3)3].NaNO3 (terpy = 2,2′;6′,2″-terpyridine) 3; and [Lu(phen)(O2CH)3(OH2)].H2O, 4, (Scheme 1) were all prepared some time ago as part of a series of systematic studies of lanthanide ion solid-state coordination chemistry [22,23,24] and all reagents of analytical grades were purchased from the commercial suppliers and used without further purification. The complexes were crystallized from water/ethanol solutions for their structure determinations. The complex [Er(bipy)2Cl2(OH2)2]Cl.H2O, 5, structurally characterized in the original work [24], was also recrystallized from water/ethanol solution and its structure was confirmed by a redetermination (CCDC number 222101).

2.2. Crystallography

Crystallographic data for the structures were measured using MoKα (λ = 0.71073 Å) radiation on an Enraf-Nonius CAD four-circle single-counter diffractometer for complexes 1-3,5 and for complex 4 on a Bruker AXS CCD area-detector diffractometer. Data were corrected for Lorentz and polarization effects, and absorption correction applied using multiple symmetry equivalent reflections. The structures were solved by direct methods and refined against F2 with full-matrix least-squares using the program suite SHELX [25]. Anisotropic displacement parameters were employed for the non-hydrogen atoms. Most of the hydrogen atoms were added at calculated positions and refined by the use of a riding model with isotropic displacement parameters based on those of the parent atom (C—H = 0.95 Å, Uiso(H) = 1.2UeqC for CH (aromatic)). The hydroxyl and water molecule hydrogen atoms were located from experimental data and refined with O-H distances restrained to their idealized values. The details of the data collection and processing, structure solution and refinement are summarized below and for compound 5 in Table S1. Crystallographic data for the structures reported in this paper have been deposited at the Cambridge Crystallographic Data Centre. Copies of the cifs with CCDC numbers 2204924, 2220098-2220101 can be obtained free of charge via https://www.ccdc.cam.ac.uk/structures/ (accessed on 1 February 2023) or from the Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge CB2 1EZ, UK (fax+ 441223336033; email [email protected]).

2.2.1. Crystal/Refinement Details for Complex 1: [Dy(bipy)2Cl2(OH2)2]Cl.H2O:

Empirical formula C20H20Cl3DyN4O2, M = 617.25, colourless prism, 0.375 × 0.160 × 0.138 mm3, cubic, space group I23 (No. 197), a = 25.932(4), V = 17438(8) Å3, Z = 24, Dc = 1.411 g cm−3, μ = 2.865 mm−1. F000 = 7224, diffractometer Enraf-Nonius CAD-4, T = 297(2) K, 2θmax = 46.0°, 6502 reflections collected, 2175 unique (Rint = 0.2331). Final GooF = 1.001, R1 = 0.0699, wR2 = 0.1314, R indices based on 1184 reflections with I > 2σ(I), largest diff. peak and hole are 0.707 and −0.654 (e Å−3, 291 parameters, 195 restraints. Absolute structure parameter = 0.45(6) (Flack, H. D. Acta Cryst. 1983, A39, 876–881). CCDC number 2220098.

2.2.2. Crystal/Refinement Details for Complex 2: La2(phen)2(O2CCH3)4(NO3)2

Empirical formula C32H28La2N6O14, M = 998.42, colourless block, 0.35 × 0.30 × 0.25 mm3, triclinic, space group P-1 (No. 2), a = 9.902(5), b = 9.918(9), c = 10.139(5) Å, α = 108.89(7), β = 99.89(4), γ = 90.21(6)°, V = 926.2(11) Å3, Z = 1, Dc = 1.790 g cm−3, μ = 2.349 mm−1. F000 = 488, diffractometer Enraf-Nonius CAD-4, T = 297(2) K, 2θmax = 45.9°, 5126 reflections collected, 2565 unique (Rint = 0.1079). Final GooF = 1.002, R1 = 0.0838, wR2 = 0.1930, R indices based on 1820 reflections with I > 2σ(I), largest diff. peak and hole are 3.041 and −2.255 (e Å−3), 246 parameters, 12 restraints. CCDC number 2220099.

2.2.3. Crystal/Refinement Details for Complex 3: Lu(terpy)(O2CCH3)3].NaNO3

Empirical formula C21H20LuN4NaO9, M = 670.37, colourless prism, 0.225 × 0.100 × 0.030 mm3, triclinic, space group P 1 ¯ (No. 2), a = 9.724(12), b = 11.536(4), c = 12.108(17) Å, α = 69.44(9), β = 69.72(12), γ = 86.15(9)°, V = 1191(3) Å3, Z = 2, Dc = 1.870 g cm−3, μ = 4.223 mm−1. F000 = 656, diffractometer Enraf-Nonius CAD-4, T = 297(2) K, 2θmax = 50.0°, 4444 reflections collected, 4178 unique (Rint = 0.0673). Final GooF = 1.279, R1 = 0.0967, wR2 = 0.2124, R indices based on 2877 reflections with I > 2σ(I), largest diff. peak and hole are 6.115 and −3.097 (e Å−3), 328 parameters, 18 restraints. CCDC number 2220100.

2.2.4. Crystal/Refinement Details for Complex 4: Lu(phen)(O2CH)3(OH2)].H2O

Empirical formula C15H15LuN2O8, M = 526.26, colourless plate, 0.40 × 0.20 × 0.07 mm3, monoclinic, space group P21/m (No. 11), a = 10.665(1), b = 6.5735(7), c = 12.465(1) Å, β = 109.257(2)°, V = 824.98(13) Å3, Z = 2, Dc = 2.119 g cm−3, μ = 6.032 mm−1. F000 = 508, diffractometer Bruker ASX CCD, T = 150(2) K, 2θmax = 52.7°, 8127 reflections collected, 1837 unique (Rint = 0.0422). Final GooF = 1.002, R1 = 0.0271, wR2 = 0.0813, R indices based on 1823 reflections with I > 2σ(I), largest diff. peak and hole are 1.001and −1.552 (e Å−3), 190 parameters, 97 restraints. CCDC number 2204924.

3. Results

As all the complexes presently described are members of families that were subjected to structural characterization [22,23,24] some time ago and present no anomalies with respect to composition or connectivity, we focus here only on ways they reflect the importance of chirality of Ln(III) centres, an issue of general significance but not a real focus of the earlier work.
The complex [Dy(bipy)2Cl2(OH2)2]Cl.H2O, 1, forms chiral crystals in cubic crystal system, space group I23 and is isomorphous with its Er(III) analogue (CCDC refcode: RIRLUB) [24]. The intervening lanthanide between Dy(III) and Er(III) is Ho(III), and thus it might be considered surprising that the Ho(III) complex, which is of similar stoichiometry, does not have the same structure [23], although the capricious nature of lanthanide(III) complexes’ crystallisation is rather well known [24]. We have, however, confirmed the reproducibility of the crystallisation of the Dy(III) and Er(III) complexes in their I23 form. The cation present in 1 has C2 symmetry and for present purposes it is sufficient to specify its chirality in terms of the projection of the edges spanned by the 2,2′-bipyridine ligands on the C2 axis (Figure 1). In the crystal chosen for the structure determination, only the enantiomer designated as Λ is present (as is the case for the Er(III) complex determinations).
The symmetry of the crystal structure is such that the cations assemble in groups of three, with the Dy(III) atoms forming an equilateral triangle, Dy...Dy 6.474(2) Å, and with the C2 axes and the chloro and aqua ligands directed to the centroid of that triangle. Each Dy(III) is eight-coordinated. The possibility that this association might be due to the O-H...O bonding of the aqua ligands is denied by the long O...O separations (shortest, O1...O2i 3.55(3) Å; i = 1 − y, 1 − z, x), and bound-Cl...O separations are in fact much shorter (O1...Cl1i 3.26(2) Å; Cl2...O2i 3.21(2) Å), consistent with Cl...H-O bonding being the dominant influence (Figure 2a). The strong Cl...H-O interaction is evident on the dnorm-mapped Hirshfeld surface as highlighted by the deep red spots (Figure 2b), which covers 32.1% of the total surface, as obtained using CrystalExplorer17 [26,27].
While it is difficult to predict exactly what the consequences of replacing one in three Λ cations by a Δ might be (equivalent, of course, to replacing one in three Δ by Λ, so that only two situations need be considered), the simple inversion at one Dy(III) in the species shown in Figure 2 would disrupt four of the Cl…H-O interactions and thus we assume that the presence of six equivalent Cl...H-O bonds in the homochiral species is the reason it is homochiral. Note that the uncoordinated chloride also appears to have a role in stabilising the trinuclear species, although its distribution in partial occupancy over five sites complicates any comparison of its influence with that of the coordinated chlorides. Cl3 and Cl4, each with a site occupancy of 1/3, are found within hydrogen bonding distance of three bound water molecules in the cation groups (Cl3...O1 3.11(2) Å; Cl4...O2 3.13(2) Å), but the closest contacts to Cl5, Cl6 and Cl7 (populations 1/6, 1/12 and 1/12; this is the main difference from the results published earlier for the Er(III) analogue) are CH atoms, presumably involved in very weak interactions. These interactions alone do not explain why only Λ cations are found in the entire crystal, so that extended interactions of the trinuclear units must be carefully examined.
In any complexes of aza-aromatic ligands, an obvious factor to be considered as an influence on their solid-state structure, is the stacking of the aza-aromatic units [28,29]. In complex 1, stacking of both 2,2′-bipyridine ligands of the one enantiomer of the cations is involved in the formation of the right-handed helical arrays, which extend throughout the crystal, and the examination of the Hirshfeld surface for the structure, shows that at least one interaction exceeding dispersion (C14′...C25 3.19(3) Å) occurs within this supramolecular polymeric unit (Figure 3). In combination, C...C and Cl...O interactions give three-dimensionality to a lattice based on a single enantiomer of the complex and explain the formation of a chiral crystal. The disposition of the molecules in the cubic crystal lattice comprising aggregates of an eight-cation grouping in a cluster about a site of 222 symmetry at (1/2, 1/2, 0), (1/2, 0, 1/2) and (0, 1/2, 1/2) in a projection down the three axes with restricted hydrogen bonding between clusters. The arrangement of the clusters (Figure 4) resulted in a rather interesting assembly in the overall structure with interstices/channels between the aggregates filled with chloride ions (estimated to be 15.9% of the total unit cell volume).
Early studies of the synthesis of aza-aromatic ligand complexes of lanthanide(III) carboxylates, surveyed in reference [22], showed that the use of commercially available lanthanide(III) nitrates as reactants could lead to the isolation of mixed nitrate–acetates. When initially following these procedures [22], such materials were obtained and were recrystallized as part of the present work in order to obtain [La2(phen)2(O2CCH3)4(NO3)2], 2, and [Lu(terpy)(O2CCH3)3].NaNO3, 3.
The ligands bipy, phen and terpy (Scheme 1) are all relatively large chelating species which are inherently achiral, although bipy can adopt a chiral conformation by twisting about the 1,1′ bond. In 1:1 complexes, phen and terpy provide no particular bias in favour of a chiral form and chirality can only result from interactions with other ligands within the primary coordination sphere, possibly influenced by interactions beyond that sphere. In [La2(phen)2(O2CCH3)4(NO3)2], the other ligands are acetate and nitrate, both species are capable of forming compact, four-membered chelate rings expected to be favoured on relatively large cations, such as the lanthanide(III) ions [30]. Indeed, in binuclear [La2(phen)2(O2CCH3)4(NO3)2], the phen and nitrate ligands are simply chelating, while two acetates are μ2-κ2O,O′;κ1O′ bridging and two are μ2-κ1O,κ1O′ bridging (Figure 5a); however, any influence of one upon the other appears to be symmetrical, so that the nine-coordinated La(III) primary coordination sphere is achiral and the complex is centrosymmetric. Indeed, the environment of the phen ligands in particular is rather sparse, a fact which may be explained by the capacity of acetate, as a much stronger base than nitrate, to satisfy the demand for high coordination numbers of La(III) by acting as a bridge to form the binuclear complex and thus being localised between the two metal ions. However, another reason for the apparent isolation of phen from the nitrate and acetate ligands, is the fact that it is not isolated from the phen ligands of adjacent complex molecules. The chains of complexes running parallel to [101] involve phen unit stacking that contributes approximately 3.7% to the total interaction surface. This part of the whole assembly is apparently the result of purely dispersive forces, again involving important overlap in projection of each pair and resulting in one possibly significant acetate-O...H-C contact, O32...H14′ 2.56(6) Å. An interesting possibility is that it is the centrosymmetric nature of each stacked (phen)2 unit which determines the centrosymmetric form of the dimeric complex, meaning that as for complex 1, extended interactions throughout the structure may be the determinants of local coordination geometry. This may be an explanation of why there are various examples reported that pertain to the different coordination behaviours of lanthanide(III) centres in the solid-state and solution [31,32,33].
Complex 3, [Lu(terpy)(O2CCH3)3].NaNO3, has certain similarities to complex 2, in that while the nine-coordinated lanthanide component, triacetatolutetium(III), is binuclear and centrosymmetric, it is in fact a heterometallic coordination polymer, due to the lutetium acetate units being linked by centrosymmetric, binuclear Na2(NO3)2 bridges (Figure 6). Unsurprisingly, stacking of the larger 2,2′;6′,2″-terpyridine units is a more prominent feature of the structure (Figure 6d), here being associated with contact of four Lu2Na2 polymer chains running parallel to [100] with any other. The chains therefore extend both along [100] and [010], and as a result of their cross linking through the dimeric lutetium acetate units, they generate the tridimensional nature of the complete structure. Within both chains, there are two types of overlap, depending upon whether one or two pyridine rings are involved, but any one pair of adjacent terpyridines is centrosymmetric, possibly explaining why both the lutetium and sodium dimers are also centrosymmetric. A centrosymmetric dimer can be formed from enantiomeric chiral components, and this is the case for both dimers here, marking another point of distinction from complex 2. For both, however, rather minor bond rotations can convert them into achiral forms, so the influences here are presumably rather subtle.
Complex 4, [Lu(phen)(O2CH)3(OH2)].H2O, is a double-stranded, monoperiodic, homometallic coordination polymer. Each eight-coordinated Lu(III) centre has no (C1) symmetry and is therefore chiral, but the crystal is achiral due to the polymer being formed as a racemic mixture of right- and left-handed helical chains involving just one of the two enantiomeric Lu(III) centres in each of the two enantiomeric chains (Figure 7). Once again, stacking of the aza-aromatic ligands is a prominent feature of the structure, with the phen groups to each side of the polymer chains interdigitating along [010] (Figure 7b), contributing 11.0% to the overall surface (Figure S8).

4. Discussion

The four complexes presently are all considered to be members of larger, isostructural families and thus need only be considered as illustrating the frequent occurrence of chirality at Ln(III) in lanthanide ion complexes. The observation in general of various coordination numbers and geometry renders the development of a nomenclature for the description of their absolute configuration as particularly complicated [2] and our description of complex 1 as having Δ and Λ forms, though adequate for the present discussion, does not include the designation of the location of the bound pairs of chloride and water ligands, which could, for example, each be in a cisoid array rather than the observed transoid. For complexes formed with achiral ligands, chirality has long been recognized as an important feature in species of higher symmetry, such as the D3-symmetric [Ln(oda)3]3− anions [18,21,34] (oda = oxydiacetate); however, in many other instances of relatively simple species, such as in [Eu(terpy)(NO3)3OH2] [35], where the lanthanide ion is found at a site with no point symmetry but within an achiral crystal, the focus has been on the coordination number and geometry rather than definition of the absolute configuration. While it is, in general, conventional to analyse the crystal structure of a metal ion complex in terms of the bonding selectivity and the stereochemical preferences of the metal ion, for lanthanide(III) complexes of aza-aromatic ligands, in particular one of the reasons crystal structure determinations are essential, is that it is often found that such ligands are incorporated into the crystal without being bound to the lanthanide ion [36], testifying to an influence of aromatic–aromatic interactions—not just between coordinated species [28,29] in determining the crystal structures. The four present structures illustrate only the stacking arrays of coordinated aza-aromatics, where dispersive interactions appear to be dominant, although in the case of complex 1, there are additional interactions beyond dispersion which we have suggested may be the cause of the overall chiral nature of the crystal. The fact that [Dy(bipy)2Cl2(OH2)2]Cl.H2O and its Er(III) analogue are the only members of the family of the bis(2,2′-bipyridine) complexes of hydrated lanthanide(III) chlorides [23,24] to form chiral crystals is possibly a sign of another subtle influence on the structures and the difference in Ln-(donor atom) bond lengths even for neighbouring elements. That more remote members of the lanthanide series may show that differences are unsurprising, but it is nonetheless remarkable that the crystalline complexes of La(O3SCF3)3 and Yb(O3SCF3)3 with an achiral cyclic triamide [19] both incorporate diperiodic, chiral and cationic coordination polymers, but in the La(III) complex, space group P 6 ¯ , the chirality of the polymer sheets, alternates from one to the next, giving an achiral crystal, whereas in the Yb(III) complex, space group P1, the sheets all have the same chirality, giving a polar chiral crystal. The alliance of chirality with other properties specific to a given lanthanide(III) ion, such as its paramagnetism, is another issue that must be considered in relation to any application [37]. One characteristic shared by most lanthanide(III) ions is that of luminescence and this, coupled with chirality, renders appropriate complexes as useful sources of circularly polarised radiation, seemingly a subtle aspect to be exploited but one considered to be potentially more valuable than simple luminescence measurements [38].

5. Conclusions

The structures of four different complexes resulting from the complexation of three lanthanides(III) (Ln(III) = Dy(III), La(III) and Lu(III)) with different polypyridines (2,2′-bipyridine, 1,10-phenanthroline and 2,2′;6′,2″-terpyridine) represent an important extension of earlier work with the emphasis on the ways these complexes reflect on the chirality of Ln(III) centres and comprises the focus in the present work. The structural analysis revealed that dispersive interaction appears to be dominant in all structures. Additionally, the stacking arrays of the coordinated aza-aromatics appear to be an important factor in the self-assembly and may explain why a chiral crystal is obtained in one of the structures.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cryst13020337/s1, Table S1: Crystal and structure refinement data for the redefined Er(bipy)2Cl2(OH2)2]Cl.H2O structure described in the reference [24]; Table S2: Metal atom environment for Dy(bipy)2Cl2(OH2)2]Cl·H2O, 1; Table S3: Metal atom environment for La2(phen)2(O2CCH3)4(NO3)2, 2; Table S4: Metal atom environment for Lu(terpy)(O2CCH3)3]·NaNO3, 3; Table S5: Metal atom environment for Lu(phen)(O2CH)3(OH2)]·H2O, 4; Figures S1–S4: Details of atom numbering in each complex; Figures S5–S8: Two-dimensional fingerprint plots generated from the Hirshfeld surfaces, using CrystalExplorer17.

Author Contributions

Conceptualization, L.I.S. and A.N.S.; methodology, L.I.S. and A.N.S.; software, A.N.S.; validation, L.I.S., A.N.S. and I.L.; formal analysis, L.I.S. and A.N.S.; investigation, L.I.S. and A.N.S.; resources, L.I.S.; data curation, L.I.S. and A.N.S.; writing—original draft preparation, L.I.S. and A.N.S.; writing—review and editing, L.I.S., A.N.S. and I.L.; visualization, L.I.S., A.N.S. and I.L.; project administration, L.I.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Crystallographic data for the structures reported in this paper have been deposited at the Cambridge Crystallographic Data Centre. Copies of the cifs with CCDC numbers 2204924, 2220098-2220101 can be obtained free of charge via https://www.ccdc.cam.ac.uk/structures/ (accessed on 1 February 2023).

Acknowledgments

We thank Jack Harrowfield for his help in discussing and preparing the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cotton, S.A. Upconverting Nanomaterials: Synthesis Applications and Perspectives; Altavilla, C., Ed.; Taylor and Francis: New York, NY, USA, 2016; pp. 3–18. [Google Scholar]
  2. Silva, F.T.; Lins, S.L.S.; Simas, A.M. Stereoisomerism in Lanthanide Complexes: Enumeration, Chirality, Identification, Random Coordination Ratios. Inorg. Chem. 2018, 57, 10557–10567. [Google Scholar] [CrossRef] [PubMed]
  3. Aspinall, H.C. Chiral Lanthanide Complexes: Coordination Chemistry and Applications. Chem. Rev. 2002, 102, 1807–1850. [Google Scholar] [CrossRef] [PubMed]
  4. Lincoln, S.F. Mechanistic Studies of Metal Aqua Ions: A Semi-historical Perspective. Helv. Chim. Acta 2005, 88, 523–545. [Google Scholar] [CrossRef]
  5. Wong, H.-Y.; Lo, W.-S.; Yim, K.-H.; Law, G.-L. Chirality and Chiroptics of Lanthanide Molecular and Supramolecular Assemblies. Chem 2019, 5, 3058–3095. [Google Scholar] [CrossRef]
  6. Parker, D.; Dickins, R.S.; Puschmann, H.; Crossland, C.; Howard, J.A.K. Being Excited by Lanthanide Coordination Complexes: Aqua Species, Chirality, Excited-State Chemistry, and Exchange Dynamics. Chem. Rev. 2002, 102, 1977–2010. [Google Scholar] [CrossRef] [PubMed]
  7. Teo, R.D.; Termini, J.; Gray, H.B. Lanthanides: Applications in Cancer Diagnosis and Therapy. J. Med. Chem. 2016, 59, 6012–6024. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Muller, G. Luminescent chiral lanthanide(III) complexes as potential molecular probes. Dalton Trans. 2009, 44, 9692–9707. [Google Scholar] [CrossRef] [Green Version]
  9. Zhao, Z.; Wong, M.; Mao, C.; Trieu, T.X.; Zhang, J.; Feng, P.; Bu, X. Site-Selective Crystallisation of Homochiral Camphorate Metal-Organic Frameworks for Lanthanide Separation. J. Am. Chem. Soc. 2014, 136, 12572–12575. [Google Scholar] [CrossRef]
  10. Zeng, M.; Ren, A.; Wu, W.; Zhao, Y.; Zhan, C.; Yao, J. Lanthanide MOFs for inducing molecular chirality of achiral stilbazolium with strong circularly polarized luminescence and efficient energy transfer for color tuning. Chem. Sci. 2020, 11, 9154–9161. [Google Scholar] [CrossRef]
  11. Nespomo, M.; Benahsene, A.H. Symmetry and Chirality in Crystals. J. Appl. Cryst. 2021, 54, 1594–1599. [Google Scholar] [CrossRef]
  12. Liu, C.-M.; Hao, X. Asymmetric Assembly of Chiral Lanthanide(III) Tetranuclear Cluster Complexes Using Achiral Mixed Ligands: Single-molecule Magnet Behavior and Magnetic Entropy Change. ACS Omega 2022, 7, 20229–20236. [Google Scholar] [CrossRef] [PubMed]
  13. Qin, T.; Feng, Z.; Yang, J.; Shen, X.; Zhu, D. Unprecedented three-dimensional hydrogen-bonded hex topological chiral lanthanide–organic frameworks built from an achiral ligand. Acta Cryst. 2018, C74, 1403–1412. [Google Scholar] [CrossRef] [PubMed]
  14. Sun, J.-W.; Zhu, J.; Song, H.-F.; Li, G.-M.; Yao, X.; Yan, P.F. Spontaneous Resolution of Racemic Salen-Type Ligand in the Construction of 3D Homochiral Lanthanide Frameworks. Cryst. Growth Des. 2014, 14, 5356–5360. [Google Scholar] [CrossRef]
  15. Mihalcea, I.; Zill, N.; Mereacre, V.; Anson, C.E.; Powell, A.K. Spontaneous Resolution in Homochiral Helical [Ln(nic)2(Hnic)(NO3)] Coordination Polymers Constructed from a Rigid Non-chiral Organic Ligand. Cryst. Growth Des. 2014, 14, 4729–4734. [Google Scholar] [CrossRef]
  16. Gao, M.-J.; Yang, P.; Cai, B.; Dai, J.-W.; Wu, J.-Z.; Yu, Y. Spontaneous resolution of lanthanide coordination polymers with 2-hydroxypyrimidine-4,6-dicarboxylic acid. CrystEngComm 2011, 14, 1264–1270. [Google Scholar] [CrossRef]
  17. Chen, H.-F.; Guo, G.-C.; Wang, M.-S.; Xu, G.; Zou, W.-Q.; Guo, S.-P.; Wu, M.-F.; Huang, J.-S. Spontaneous chiral resolution, nonlinear optical and luminescence of eight-coordinate lanthanide(III) complexes. Dalton Trans. 2009, 46, 10166–10168. [Google Scholar] [CrossRef]
  18. Kremer, C.; Torres, J.; Dominguez, S. Lanthanide complexes with oda, ida and nda: From discrete coordination compounds to supramolecular assemblies. J. Mol. Struct. 2008, 879, 130–149. [Google Scholar] [CrossRef]
  19. Masu, H.; Tominaga, M.; Katagiri, K.; Kato, T.; Azumaya, I. 2-D coordination network of a cyclic amide with a lanthanide metal cation and its columnar stacking. CrystEngComm 2006, 8, 578–580. [Google Scholar] [CrossRef]
  20. Brayshaw, P.A.; Bünzli, J.-C.G.; Froidevaux, P.; Harrowfield, J.M.; Kim, Y.; Sobolev, A.N. Synthetic, Structural, and Spectroscopic Studies on Solids Containing Tris(dipicolinato) Rare Earth Anions and Transition or Main Group Metal Cations. Inorg. Chem. 1995, 34, 2068–2076. [Google Scholar] [CrossRef]
  21. Albertsson, J. Structural Studies on the Rare Earth Carboxylates. 1. The Crystal and Molecular Structure of Na3[M(OCOCH2OCH2OCO)3].2NaClO4.6H2O, M = Nd, Gd and Yb. Acta Chem. Scand. 1968, 22, 1563–1578. [Google Scholar] [CrossRef] [Green Version]
  22. Kepert, C.J.; Lu, W.-M.; Semenova, L.I.; Skelton, B.W.; White, A.H. Structural Systematics of Rare Earth Complexes. XII. Solvated 1:1 Adducts of Some Lanthanoid(III) Carboxylates with 1,10-Phenanthroline and 2,2′:6′,2″-Terpyridine. Aust. J. Chem. 1999, 52, 481–496. [Google Scholar] [CrossRef]
  23. Semenova, L.I.; Skelton, B.W.; White, A.H. Structural Systematics of Rare Earth Complexes. XVIII. (Hydrated) Mononuclear 1:1 Adducts of Lanthanoid(III) Chlorides with 2,2′-Bipyridine. Aust. J. Chem. 1999, 52, 551–569. [Google Scholar] [CrossRef]
  24. Semenova, L.I.; White, A.H. Structural Systematics of Rare Earth Complexes. XIX. (Hydrated) 1:2 Mononuclear Adducts of Lanthanoid(III) Chlorides with 2,2′-Bipyridine and 1,10-Phenanthroline. Aust. J. Chem. 1999, 52, 571–600. [Google Scholar] [CrossRef]
  25. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. 2015, C71, 3–8. [Google Scholar]
  26. McKenzie, C.F.; Spackman, P.R.; Jayatilaka, D.; Spackman, M.A. CrystalExplorer model energies and energy frameworks: Extension to metal coordination compounds, organic salts, solvates and open-shell systems. IUCrJ 2017, 4, 575–587. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Spackman, P.R.; Turner, M.J.; McKinnon, J.J.; Wolff, S.K.; Grimwood, D.J.; Jayatilaka, D.; Spackman, M.A. Crystal Explorer 21.5; University of Western Australia: Perth, Australia, 2021. [Google Scholar]
  28. Janiak, C. A critical account on π-π stacking in metal complexes with aromatic nitrogen-containing ligands. J. Chem. Soc. Dalton Trans. 2000, 3885–3896. [Google Scholar] [CrossRef]
  29. McMurtrie, J.; Dance, I. Engineering grids of metal complexes: Development of the 2D M(terpy)2 embrace motif in crystals. CrystEngComm 2005, 7, 216–229. [Google Scholar] [CrossRef]
  30. Hancock, R.D.; Martell, A.E. Ligand design for selective complexation of metal ions in aqueous solution. Chem. Rev. 1989, 89, 1875–1914. [Google Scholar] [CrossRef]
  31. Cotton, S.A.; Raithby, P.R. Systematics and surprises in lanthanide coordination chemistry. Coord. Chem. Rev. 2017, 340, 220–231. [Google Scholar] [CrossRef]
  32. Chan, E.J.; Harrowfield, J.M.; Skelton, B.W.; Sobolev, A.N.; White, A.H. Structure and Stereochemistry of Adducts of Tris(dipivaloylmethanide)europium(III), Eu(dpm)3, with Some Dipolar Aprotic Unidentate O-donors. Aust. J. Chem. 2020, 73, 455–461. [Google Scholar] [CrossRef] [Green Version]
  33. Lundberg, D.; Persson, I.; Eriksson, L.; D′Angelo, P.; De Panfilis, S. Structural Study of the N,N′-Dimethylpropyleneurea Solvated Lanthanoid(III) Ions in Solution and Solid State with an Analysis of the Ionic Radii of Lanthanoid(III) Ions. Inorg. Chem. 2010, 49, 4420–4432. [Google Scholar] [CrossRef] [PubMed]
  34. Riehl, J.P.; Richardson, F.S. Circularly Polarised Luminescence Spectroscopy. Chem. Rev. 1986, 86, 1–16. [Google Scholar] [CrossRef]
  35. Cotton, S.A.; Noy, O.E.; Liesenen, F.; Raithby, P.R. Unequivocal characterisation of a [Ln(terpy)(NO3)3·(H2O)] complex: The synthesis and structure of [M(terpy)(NO3)3·(H2O)] (M=Eu, Tb); a comparison with the structure of [Eu(bipy)2(NO3)3] and with other europium nitrate complexes {terpy=2,2′:6′,2″-terpyridyl; bipy=2,2′-bipyridyl}. Inorg. Chim. Acta 2003, 344, 37–42. [Google Scholar]
  36. Cotton, S.A.; Harrowfield, J.M.; Semenova, L.I.; Skelton, B.W.; Sobolev, A.N.; White, A.H. Allan White and Polypyridines: Extending the Lanthanide(III) Complex Series. Aust. J. Chem. 2020, 73, 434–446. [Google Scholar] [CrossRef]
  37. Mitcov, D.; Platunov, M.; Buch, C.D.; Reinholdt, A.; Dœssing, A.R.; Wilhelm, F.; Rogalev, A.; Pilikgos, S. Hard X-ray magnetochiral dichroism in a paramagnetic molecular 4f complex. Chem. Sci. 2020, 11, 8306–8311. [Google Scholar] [CrossRef]
  38. Zinna, F.; Di Bari, L. Lanthanide Circularly Polarized Luminescence: Bases and Applications. Chirality 2015, 27, 1–13. [Google Scholar] [CrossRef]
Crystals 13 00337 sch001 550

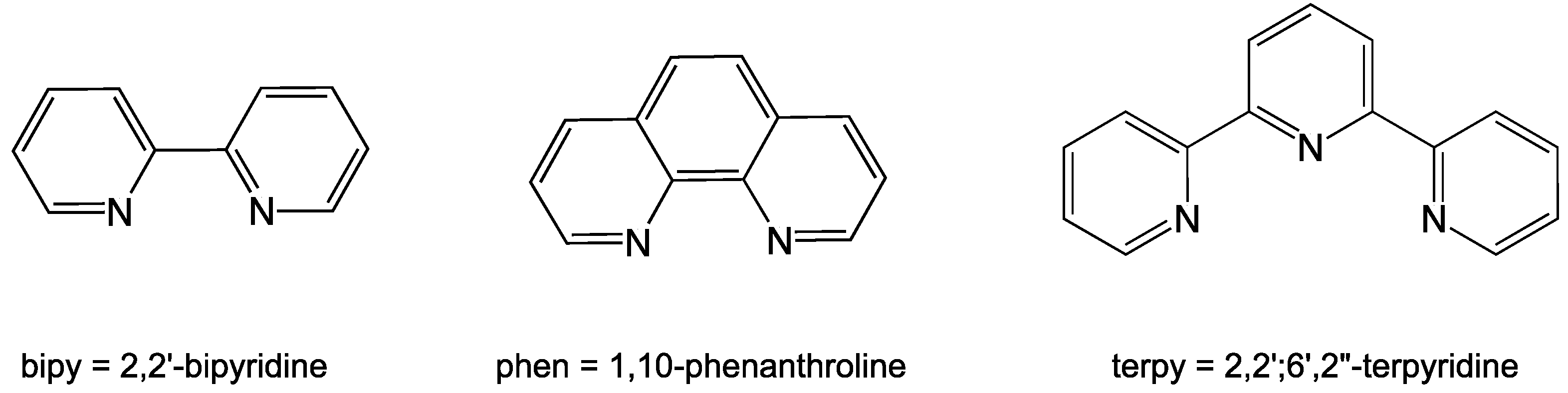

Scheme 1. Schematic representation of the three ligands discussed in this paper.
Scheme 1. Schematic representation of the three ligands discussed in this paper.
Crystals 13 00337 sch001
Crystals 13 00337 g001 550

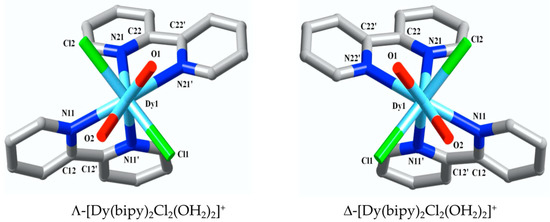

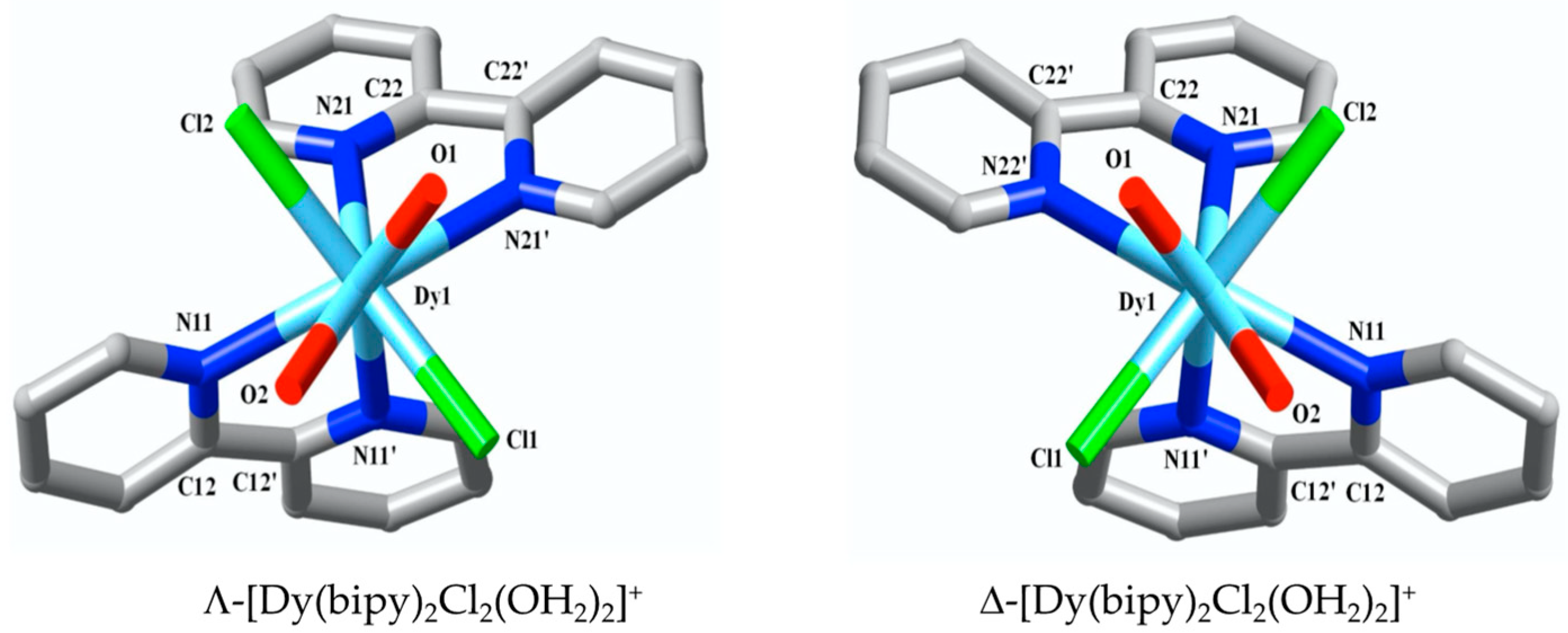

Figure 1. Enantiomeric forms of [Dy(bipy)2Cl2(OH2)2]+, viewed down the C2 axis of the cation, only the Λ enantiomer being found in the structure of 1. Stick representation; colour code: C = grey, N = dark blue, O = red, Cl = green, Dy = light blue. H-atoms are omitted for clarity.
Figure 1. Enantiomeric forms of [Dy(bipy)2Cl2(OH2)2]+, viewed down the C2 axis of the cation, only the Λ enantiomer being found in the structure of 1. Stick representation; colour code: C = grey, N = dark blue, O = red, Cl = green, Dy = light blue. H-atoms are omitted for clarity.
Crystals 13 00337 g001
Crystals 13 00337 g002 550

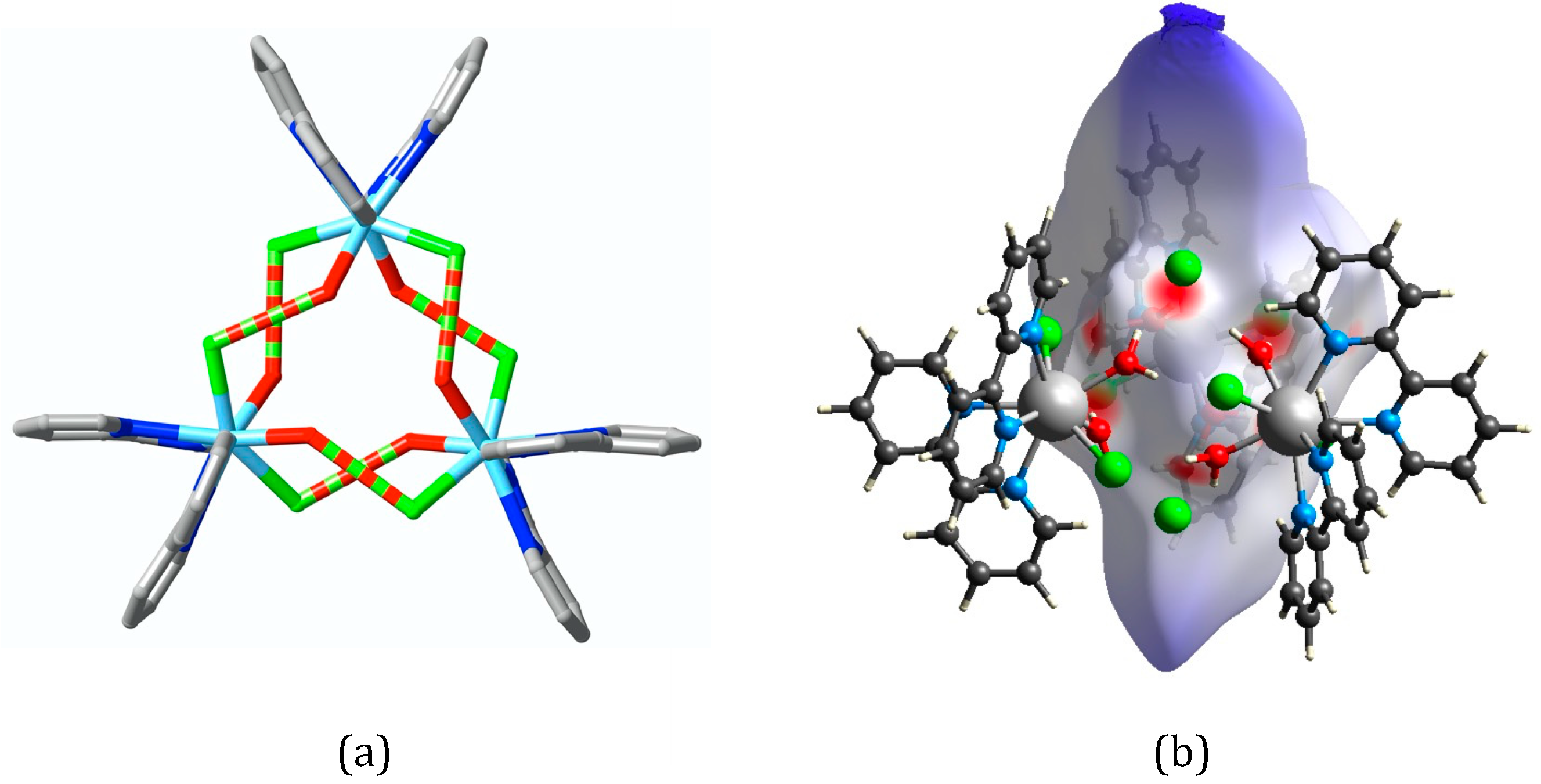

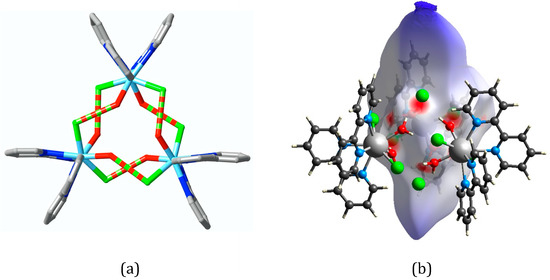

Figure 2. Proposed Cl…HO interactions (red–green dashed lines (a) and deep red spots on the Hirshfeld surface mapped using dnorm (b)) in one of the trinuclear groups of [Dy(bipy)2Cl2(OH2)2]+ cations present in the crystal of [Dy(bipy)2Cl2(OH2)2]Cl.H2O, here as seen in the view down [111]. Some H-atoms are omitted for clarity.
Figure 2. Proposed Cl…HO interactions (red–green dashed lines (a) and deep red spots on the Hirshfeld surface mapped using dnorm (b)) in one of the trinuclear groups of [Dy(bipy)2Cl2(OH2)2]+ cations present in the crystal of [Dy(bipy)2Cl2(OH2)2]Cl.H2O, here as seen in the view down [111]. Some H-atoms are omitted for clarity.
Crystals 13 00337 g002
Crystals 13 00337 g003 550

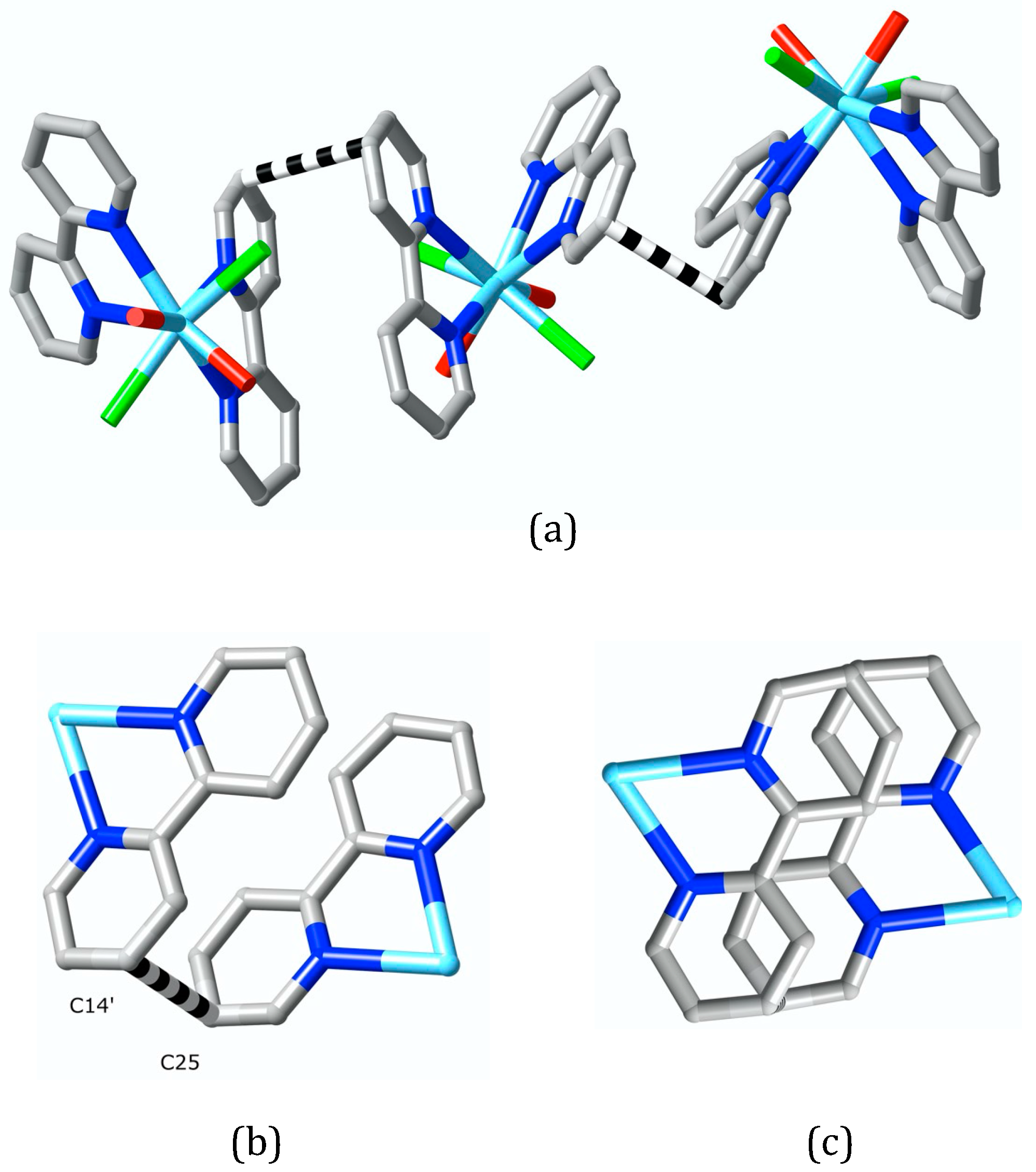

Figure 3. Stick representation of (a) a portion of the right-handed helical chain involving C...C interactions of the 2,2′-bipyridine ligands of the Λ-[Dy(bipy)2Cl2(OH2)2]+ cations found in complex 1; (b) atom numbering of the interacting units; (c) overlap in the projection of the interacting ligands, indicating the extent of pure dispersion interactions (also involving the H-atoms, which are not shown).
Figure 3. Stick representation of (a) a portion of the right-handed helical chain involving C...C interactions of the 2,2′-bipyridine ligands of the Λ-[Dy(bipy)2Cl2(OH2)2]+ cations found in complex 1; (b) atom numbering of the interacting units; (c) overlap in the projection of the interacting ligands, indicating the extent of pure dispersion interactions (also involving the H-atoms, which are not shown).
Crystals 13 00337 g003
Crystals 13 00337 g004 550

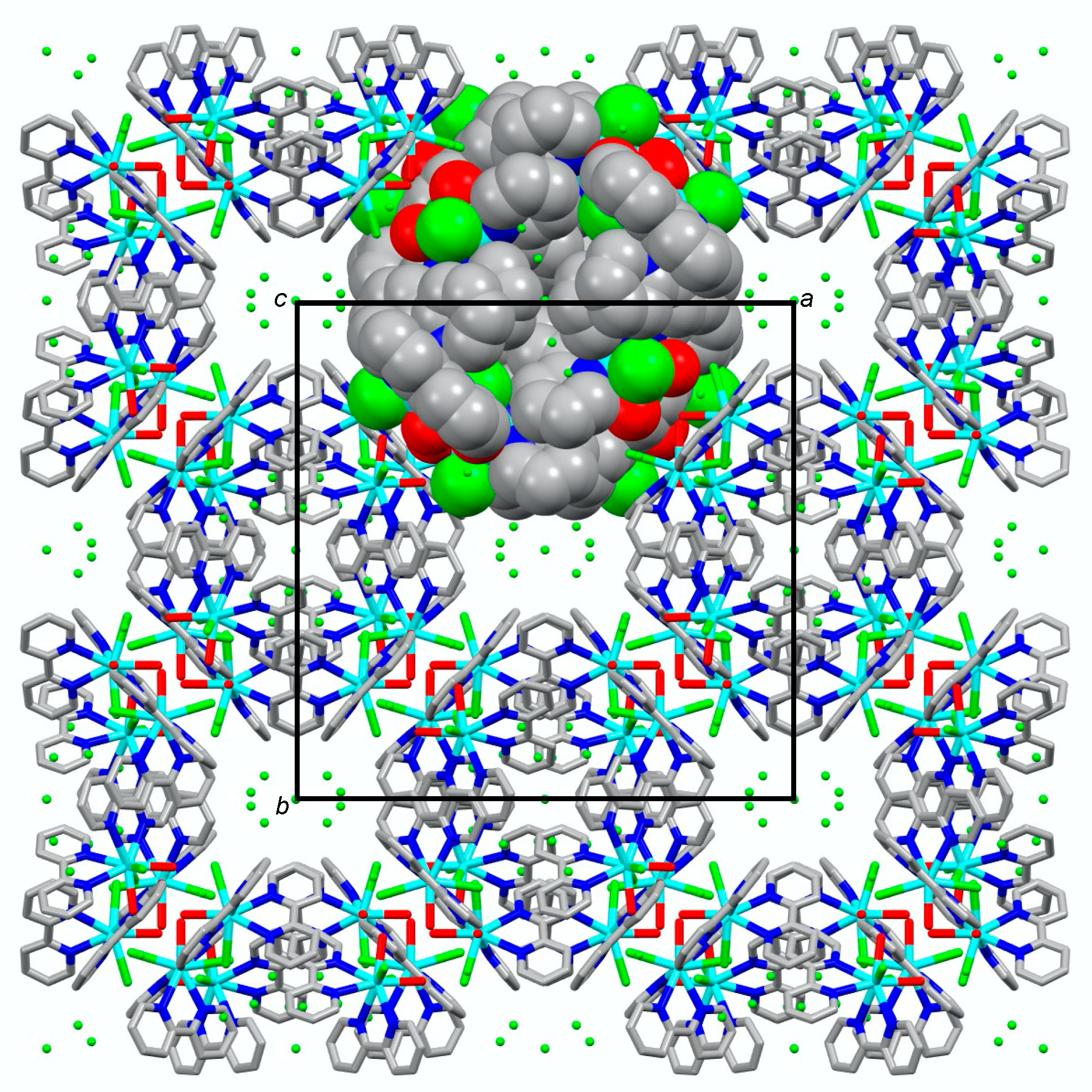

Figure 4. The unit cell contents of complex 1, projected down c-axis, comprising an overlay of the aggregates (each of eight molecules in space-filling representation).
Figure 4. The unit cell contents of complex 1, projected down c-axis, comprising an overlay of the aggregates (each of eight molecules in space-filling representation).
Crystals 13 00337 g004
Crystals 13 00337 g005 550

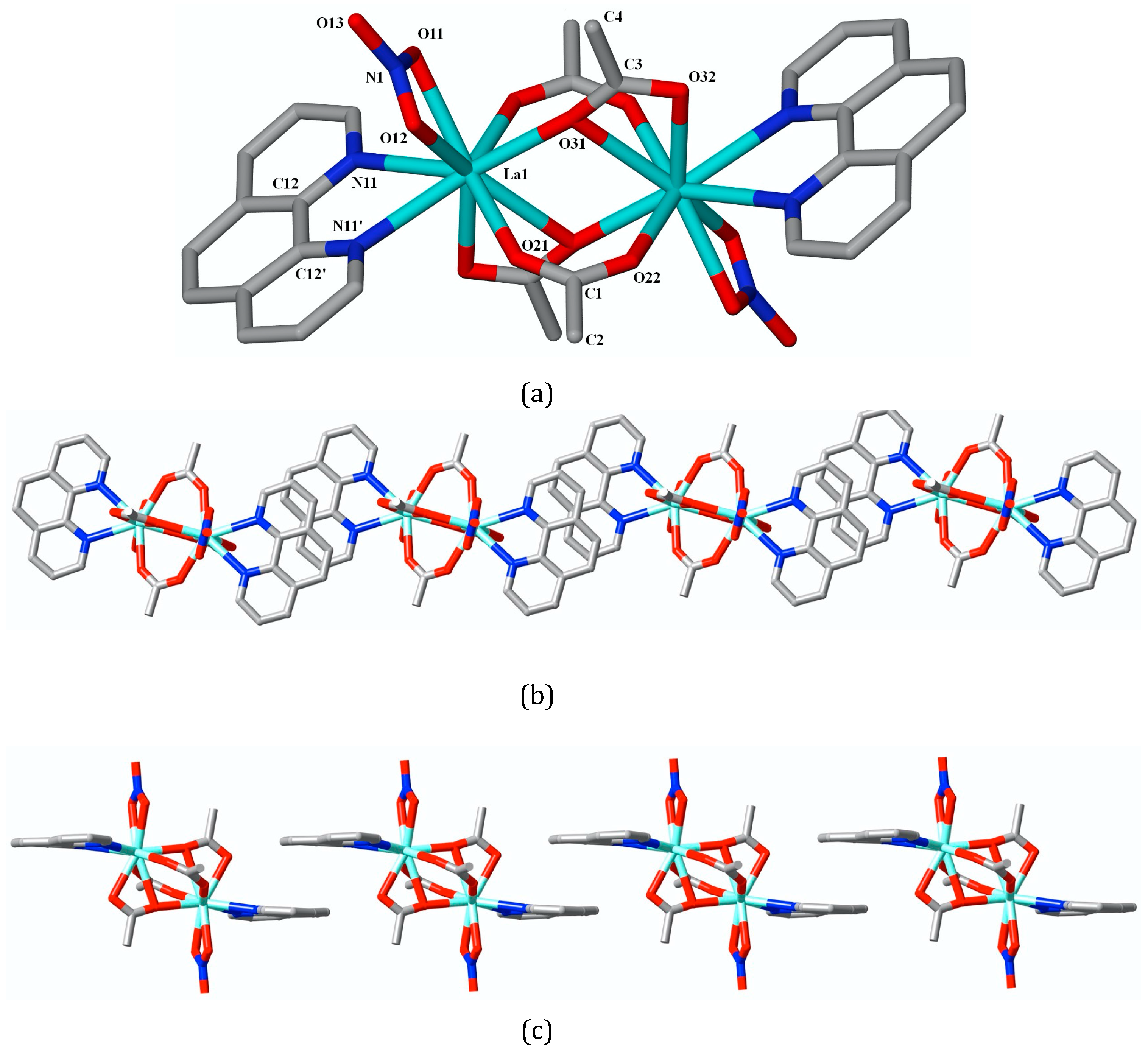

Figure 5. Stick representations showing (a) the centrosymmetric binuclear complex [La2(phen)2(O2CCH3)4(NO3)2], and (b) orthogonal views of part of one chain of complexes involving phen stacking; (c) same view rotated by 90°. H-atoms not shown for clarity; colour code C = grey, N = blue, O = red, La = pale greenish-blue.
Figure 5. Stick representations showing (a) the centrosymmetric binuclear complex [La2(phen)2(O2CCH3)4(NO3)2], and (b) orthogonal views of part of one chain of complexes involving phen stacking; (c) same view rotated by 90°. H-atoms not shown for clarity; colour code C = grey, N = blue, O = red, La = pale greenish-blue.
Crystals 13 00337 g005
Crystals 13 00337 g006 550

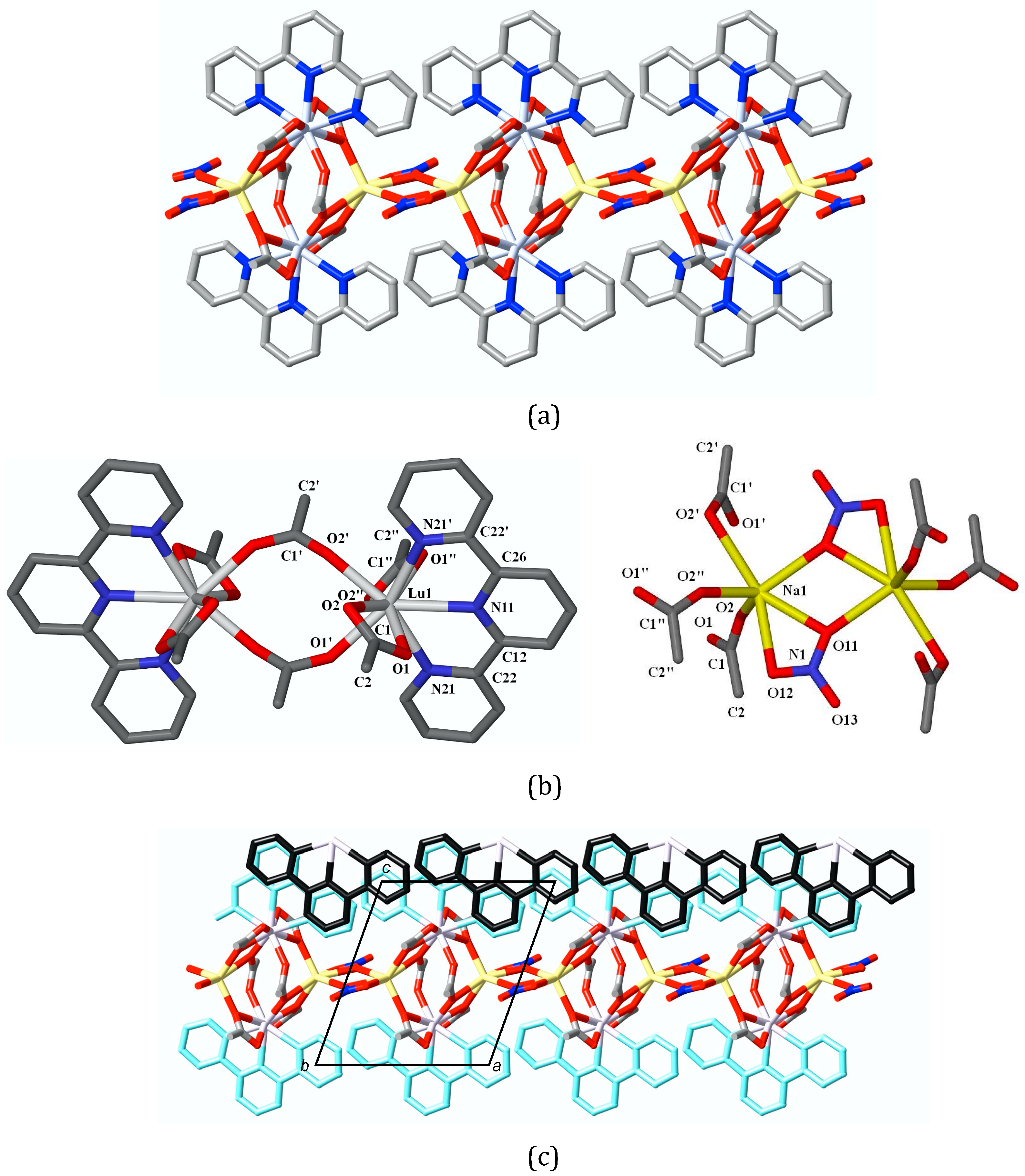

Figure 6. Stick representations showing (a) part of the monoperiodic, heterometallic coordination polymer forming chains along [010] in the structure of [Lu(terpy)(O2CCH3)3].NaNO3; (b) the two centrosymmetric units found in the coordination polymer; (c) part of one polymer chain with its terpyridine atoms shown in blue and those of one of the four adjacent strands shown in black to highlight the two-ring, one-ring alternation in the stacking pattern projected down the b-axis.
Figure 6. Stick representations showing (a) part of the monoperiodic, heterometallic coordination polymer forming chains along [010] in the structure of [Lu(terpy)(O2CCH3)3].NaNO3; (b) the two centrosymmetric units found in the coordination polymer; (c) part of one polymer chain with its terpyridine atoms shown in blue and those of one of the four adjacent strands shown in black to highlight the two-ring, one-ring alternation in the stacking pattern projected down the b-axis.
Crystals 13 00337 g006
Crystals 13 00337 g007 550

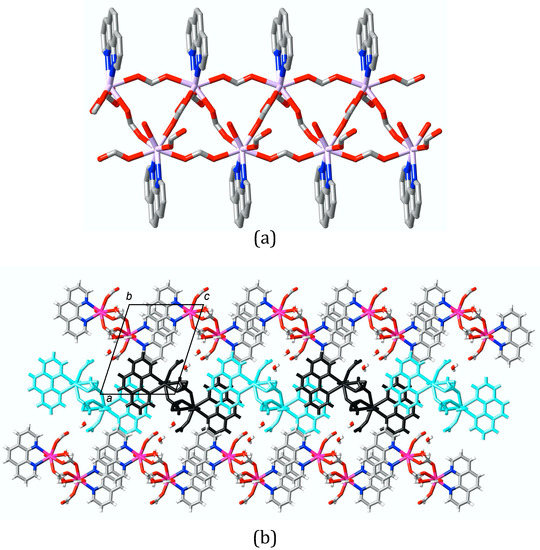

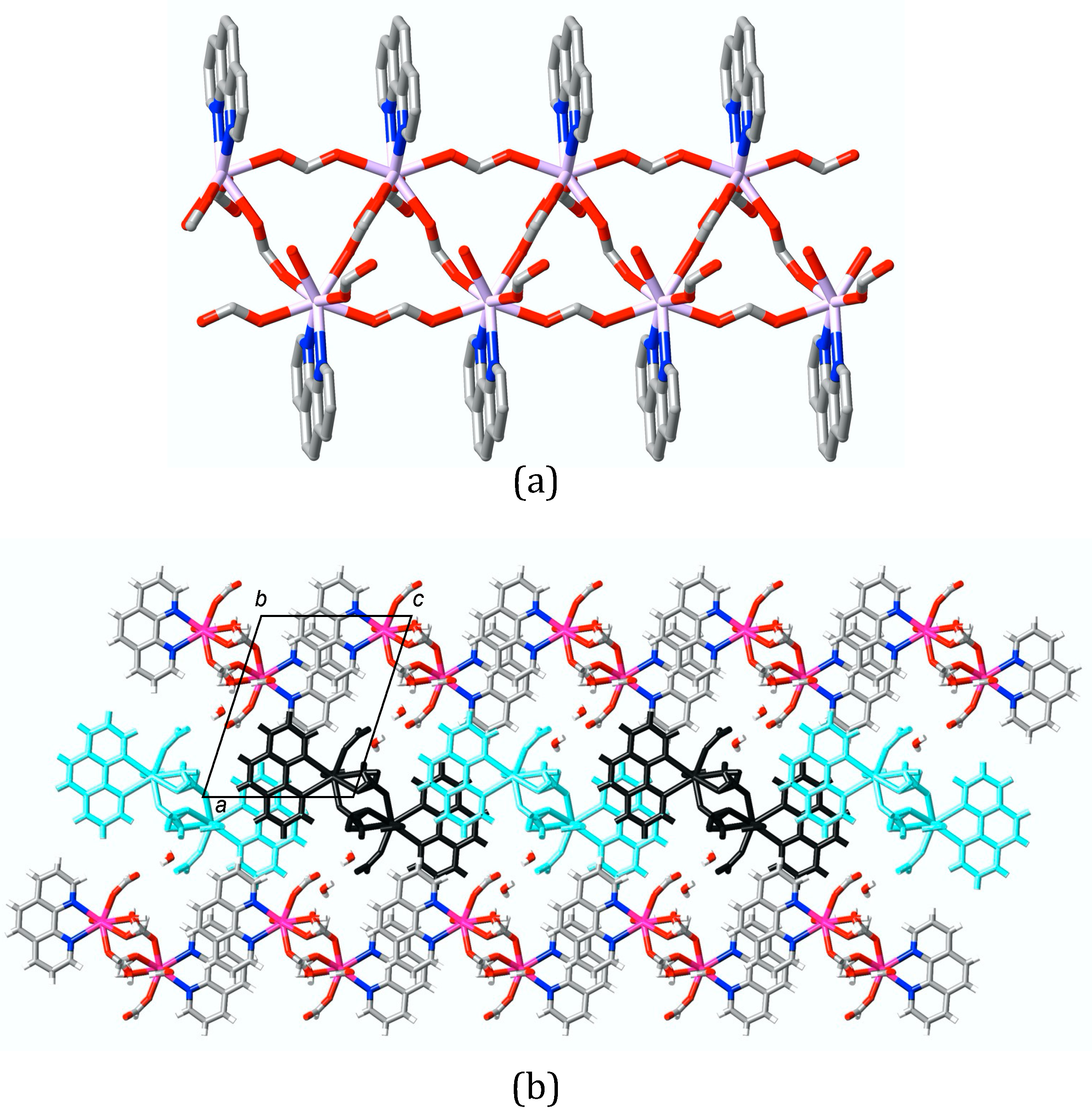

Figure 7. Stick representations showing (a) partial view of one of the left-handed helical chains of the coordination polymer in [Lu(phen)(O2CH)3(OH2)].H2O, the helix axis being parallel to [010]; (b) viewed down [010], of part of the structure ([001] horizontal) with some of the polymer units coloured alternately in blue and black to highlight the overlap in projection of the phen units. The detailed atomic numbering scheme of this complicated structure can be found in Figure S4 of SI.
Figure 7. Stick representations showing (a) partial view of one of the left-handed helical chains of the coordination polymer in [Lu(phen)(O2CH)3(OH2)].H2O, the helix axis being parallel to [010]; (b) viewed down [010], of part of the structure ([001] horizontal) with some of the polymer units coloured alternately in blue and black to highlight the overlap in projection of the phen units. The detailed atomic numbering scheme of this complicated structure can be found in Figure S4 of SI.
Crystals 13 00337 g007
