Carbon-Supported Noble-Metal Nanoparticles for Catalytic Applications—A Review

Abstract

Noble-metal nanoparticles (NMNPs), with their outstanding properties, have been arousing the interest of scientists for centuries. Although our knowledge of them is much more significant today, and we can obtain NMNPs in various sizes, shapes, and compositions, our interest in them has not waned. When talking about noble metals, gold, silver, and platinum come to mind first. Still, we cannot forget about elements belonging to the so-called platinum group, such as ruthenium, rhodium, palladium, osmium, and iridium, whose physical and chemical properties are very similar to those of platinum. It makes them highly demanded and widely used in various applications. This review presents current knowledge on the preparation of all noble metals in the form of nanoparticles and their assembling with carbon supports. We focused on the catalytic applications of these materials in the fuel-cell field. Furthermore, the influence of supporting materials on the electrocatalytic activity, stability, and selectivity of noble-metal-based catalysts is discussed.

1. Introduction

Not without reason, metals such as gold and silver are referred to by the adjective noble, which means causing admiration for a particular appearance or quality. For centuries, people have valued and used gold and silver for many purposes. These noble metals, known since ancient times, have been frequently used as a means of payment, even before the invention of coins. However, their value was derived from other applications, particularly those related to esthetic and medicinal purposes. Gold, like all precious metals, is resistant to corrosion and oxidation, but is also malleable, ductile, has a natural luster that can be polished to create a shiny appearance, and does not tarnish. These qualities meant that gold was used for special decorative ornaments, jewelry, and religious artifacts [1]. From antiquity to the middle ages, artisans used a mixture of gold salts with molten glass to produce gold colloids with a rich ruby color for coloring glass, ceramics, and pottery. An excellent example of the unique properties of gold nanoparticles dates from the 4th century AD, the famous Lycurgus cup made from glass that appears red in transmitted light and green in reflected light [2]. In addition to the decorative use of gold, its use for medical purposes should be mentioned. All ancient civilizations utilized gold in medicine because of the belief in its immortal nature as a rejuvenating agent, but also as a cure for diseases such as heart and venereal problems, dysentery, epilepsy, and tumors [2,3]. Silver was valued primarily as an antimicrobial and wound-healing agent [4]. Until the Middle Ages, silver was also used as a cure for diseases such as wound infections, epilepsy, or ulcers. In addition, ancient Egyptians, Greeks and Romans used silver vessels to keep water, wine, and food fresh [4]. From the 17th century onwards, systematic research into the chemical processing of metal ores has taken place, with many discoveries, as presented in a scheme in Figure 1 [4,5].

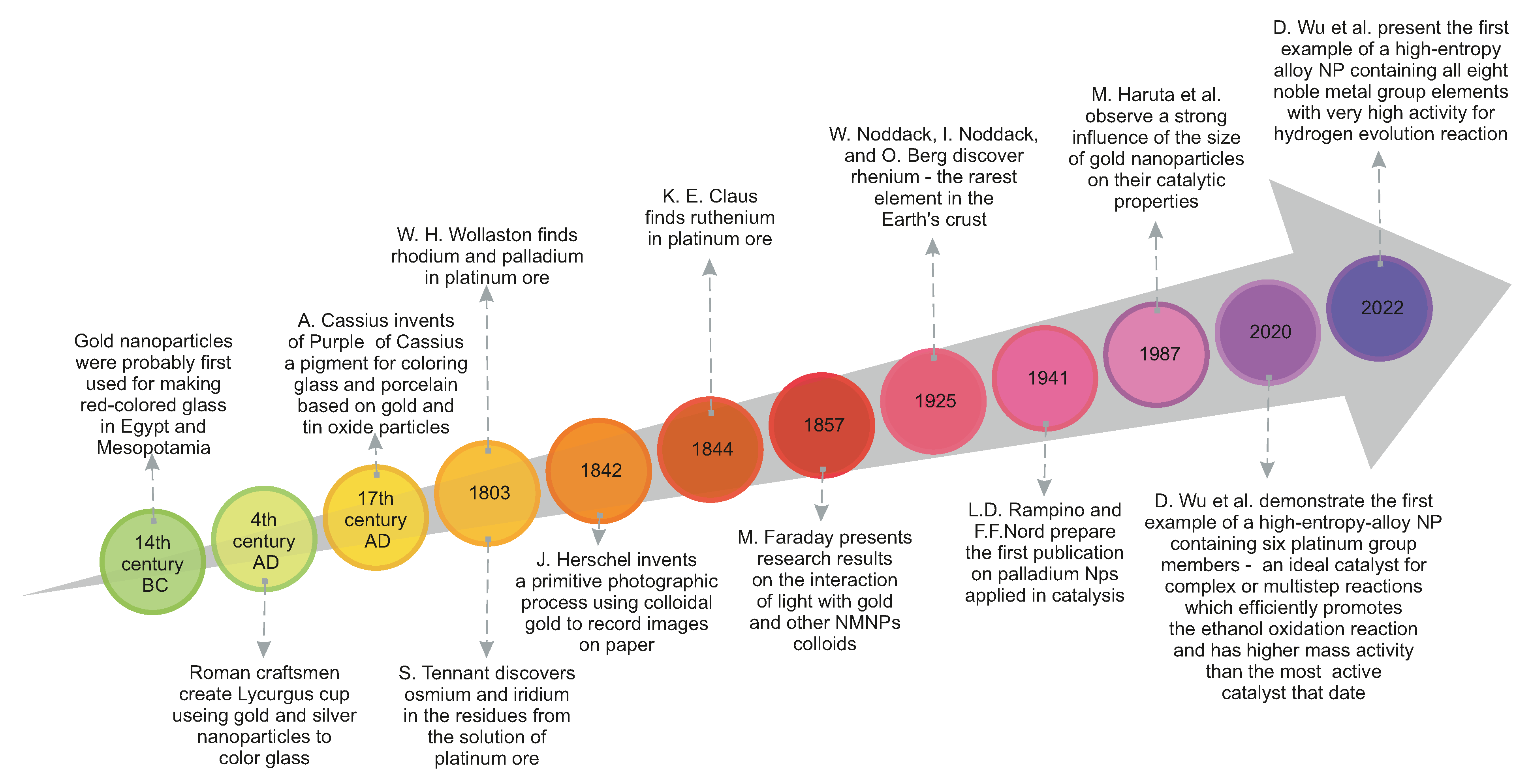

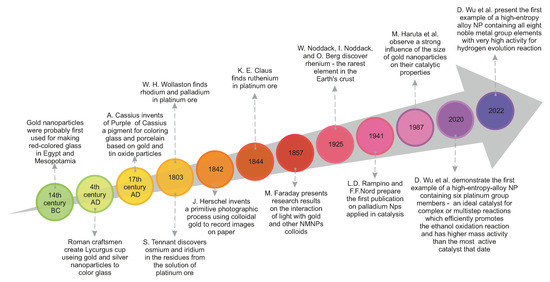

The modern era of NMNPs synthesis began in 1857, when Michael Faraday presented the results of his research on gold and other metal colloids, thin films, and transparent leaves. His research involved gold and other metals, such as silver, platinum, rhodium, palladium, copper, zinc, aluminium, tin, lead, iron, mercury, and antimony, their film formation and interaction with light [6,7]. M. Faraday examined most of the noble metals known at that time.

Noble metals, for centuries, have given immortality to objects made of them, prolonged human lives, and kept the food stored in them in good condition. Today, we are at a point in history where we must again reach for the unique properties of precious metals to return our planet to a good condition. Bearing in mind environmental pollution, global warming, and the current situation of finite fossil-fuel resources, we need to reduce CO₂ emissions and air pollution due to the emissions of SO_x and NO_x and focus on renewable energy sources [13]. We need to find a new way to utilize and store green energy. Many people believe that hydrogen may be the best option. However, is it a new way? The devices for obtaining hydrogen and fuel cells utilizing it as fuel have been known for over a century, and indeed, they seem to be good candidates to replace fossil fuels and internal-combustion engines. Then why did it not happen that these technologies have been used? In the early stage of fuel-cell development, at the beginning of the 20th century, the widespread availability of fossil fuels made the use of fuel cells economically unreasonable.

Nevertheless, fuel cells have many advantages. Above all, they convert chemical energy directly to electrical energy by electrochemical reactions. Their theoretical conversion efficiency is very high compared to heat engines [14]. They have no moving parts, so they are very quiet. It should also be mentioned that fuel cells are zero-emission environmentally friendly technology with water as a waste product. An additional advantage of this technology is its flexibility, which makes fuel cells suitable for various applications. They are suitable for both mobile and stationary devices and can power large vehicles as well as small phones [15]. Despite all the advantages, they are not widely used, mainly for economic reasons. One of the most significant barriers for the widespread commercialization of fuel cells and unitized-regenerative-fuel cells (URFC) is the high cost of their production, which requires a precious Pt electrocatalyst [16,17]. Intensive research for solutions leading to reducing their production costs is constantly ongoing. Among the possible solutions to reduce the cost of these devices is a reduction in the amount of the noble metal electrocatalyst, which can be achieved by reducing the size of the particles, combining them with other metals into alloys, and modifying the shape of the particles. Another way is using a high-surface-area support to enhance the dispersion of metal nanoparticles and thus to increase the utilization and efficiency of the precious metal electrocatalyst [18].

This article reviews the recent progress of research on carbon-supported noble-metal NPs assembly for catalytic application in fuel-cell technologies. With that in mind, we will highlight, in this article, the current state of knowledge in the field of fuel cells and hydrogen-based energy technology in general. We also want to show the progress that has been made in the area of the synthesis of NMNPs in recent years, which manifests in a number of synthesis methods as well as a variety of obtained nanoparticles. Finally, the heterogenization of noble metals on carbon supports will be discussed.

2. Hydrogen-Based Energy Technology

Fuel cells are highly effective electrochemical devices that dynamically convert chemical energy into electrical energy, which have been known for over 180 years. In 1838, the main concept of the fuel cell was presented by William Robert Grove. He used two platinum electrodes with one end of each immersed in a solution of sulphuric acid, and the other ends separately sealed in containers of oxygen and hydrogen, and he observed that a constant current flowed between the electrodes [19]. It was the first hydrogen fuel cell, called a “gas battery,” because it was built by combining several sets of these electrodes in a series circuit. A schematic illustration of Grove’s “gas battery” powering an electrolyser is shown in Figure 2. Generally, fuel cells work just like batteries, converting chemical energy directly to electrical energy, but they produce electricity from an external supply of fuel and an oxidant, so they can work constantly. The inverse process to the one occurring in the hydrogen fuel cell was observed by Anthony Carlisle and William Nicholson three decades before Grove’s experiment. It was the first observed electrochemical reaction, which relied on the decomposition of water into hydrogen and oxygen using electricity [20].

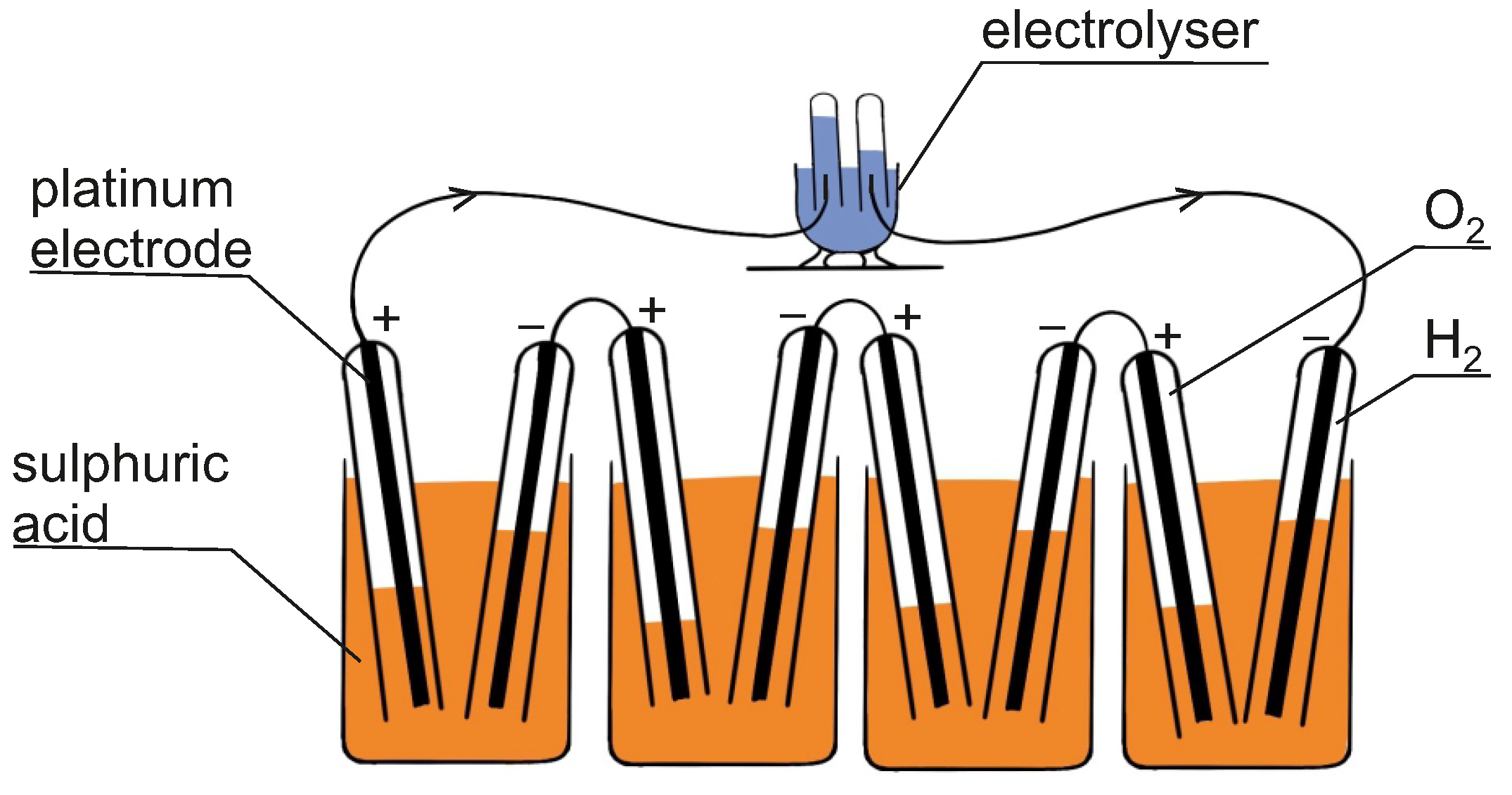

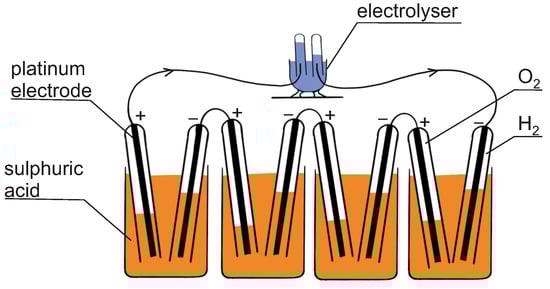

A fuel cell can be combined with an electrolyser, which is a hydrogen generation device, to constitute a system often called a regenerative fuel cell (RFC) or unitized-regenerative fuel cell (URFC). This technology enables hydrogen production using green energy to reduce the effects of intermittency associated with daily and seasonal fluctuations in sunlight and wind availability [13]. This technology allows for the more efficient and stable operation of wind and solar power plants, which are strictly dependent on weather conditions.

When writing about the early history of fuel cells, it is important to mention the crucial role of Friedrich Wilhelm Ostwald, who is considered as the founder of chemistry–physics. His pioneering work in 1893 concerning the chemistry of fuel cells was the basis for further research in this field. In this work, he presented an experimental determination of the proper interconnection of a fuel cell’s components and a theoretical understanding of its roles [21,22]. The 20th century was a time of intense research on the complete explanation and optimization of electrodes, electrolyte, oxidizing and reducing agents, anions, and cations’ roles and properties. In its results, many types of fuel cells were developed. Among them, we can distinguish many types according to the operating temperature, electrolyte type (a polymer–electrolyte membrane, also called a proton-exchange membrane fuel cell (PEMFC), alkaline fuel cell (AFC), molten-carbonate fuel cell (MCFC), solid-oxide fuel cell (SOFC) ect.) [14] or type of fuel (hydrogen [23], hydrocarbons [24], alcohols [25], etc.).

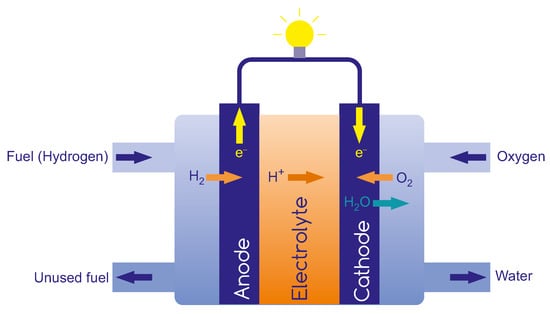

Nowadays, one of the most promising fuel cell types is the proton-exchange membrane fuel cell (PEMFC). This technology currently gives the best chance for a quick reduction in production costs and, thus, for widespread commercialization [26]. There are numerous advantages of this technology, such as high power density, low-temperature operation (under 90 ${}^{°}$C), a compact system, fast start up, and ease in handling liquid fuel [27]. These are the reasons why this type of fuel cell has found many applications. PEMFCs are excellent electrical-power sources for vehicles and portable applications such as phones, but also for large-scale power generation [15].

The very high production costs of fuel cells and difficulties in reducing them result directly from fuel-cell construction. Figure 3 shows the essential components in a PEM fuel cell, with its central component membrane-electrode assembly (MEA), which consists of an electrolyte sandwiched between electrodes—an anode and a cathode. The electrodes provide the flow of current by an external circuit and, at the same time, serve as an electrocatalyst. The anode is the electrode on the fuel side where the hydrogen oxidation reaction (HOR) occurs, while the cathode is the electrode on the air side where the oxygen-reduction reaction (ORR) takes place. The electrolyte serves as a barrier to gas diffusion but allows ions migration across it [28]. The cathode and anode reactions for PEM supplied by pure hydrogen are the following:

Anode:

$${\mathrm{H}}_2\to 2{\mathrm{H}}^{+}+2{\mathrm{e}}^{-}$$

(1)

Cathode:

$$\frac{1}{2}{\mathrm{O}}_2+2{\mathrm{H}}^{+}+2{\mathrm{e}}^{-}\to {\mathrm{H}}_2\mathrm{O}$$

(2)

The simplest and most common fuel for the PEMFC is hydrogen. It can be delivered to the cell in the form of a pure gas stream or in the form of a reformate produced from various fuels, such as methane, methanol, or petrol. Among PEMFCs, we can also find cells supplied directly by alcohols. Examples of these cells are called the direct methanol fuel cell (DMFC) and the direct ethanol fuel cell (DEFC). In these fuel cells, a methanol-oxidation reaction (MOR) and an ethanol-oxidation reaction (EOR) occur [29]. For a DMFC, the cathode and anode reactions can be written as follows [30]:

Anode:

$${\mathrm{CH}}_3\mathrm{OH}+{\mathrm{H}}_2\mathrm{O}\to {\mathrm{CO}}_2+6{\mathrm{H}}^{+}+6{\mathrm{e}}^{-}$$

(3)

Cathode:

$$\frac{3}{2}{\mathrm{O}}_2+6{\mathrm{H}}^{+}+6{\mathrm{e}}^{-}\to 3{\mathrm{H}}_2\mathrm{O}$$

(4)

In both cases, these reactions need catalysts to increase the rate of the particular reactions occurring on the anode and cathode, which leads to reducing the electrochemical over-potential and increasing the voltage output [31].

The requirement for precious metals as electrocatalysts is one reason for the high production costs. The other reasons arise from the specific requirements for individual membrane-electrode assembly (MEA) components. Intensive work is still underway to improve power densities and reduce operative costs at the same time. On the one hand, researchers are focused on reaching a proton-exchange membrane with high proton conductivity, low electronic conductivity, low permeability to fuel, a low electroosmotic drag coefficient, high chemical and thermal stability, good mechanical properties, and of course, a low cost [32]. On the other hand, work is underway to develop the optimal electrode, which must meet three conditions: (i) be able to transport gaseous or liquid species, (ii) be able to transport ions, and (iii) be able to transport electrons to rapidly catalyze electro-oxidation (anode) or electroreduction (cathode) [28]. To meet these requirements, the electrode must be electronically and ionically conducting, electrochemically active, porous, and have a high surface area, which is hard to fulfill by one material. Therefore, most cathodes are made of composite materials and one of the components is an electrocatalyst. The typical PEMFC needs Pt-based electrocatalysts for both the anodic hydrogen-oxidation reaction and the cathodic oxygen-reduction reaction [26].

Generally, Pt-based electrocatalysts are utilized. The anode requires a low Pt loading due to its fast hydrogen-oxidation reaction (HOR) kinetics, but the cathode requires a much more efficient and durable electrocatalyst. The kinetics of the oxygen-reduction reaction (ORR) that occurs on the cathode is much slower than the HOR. The sluggish kinetics of the reaction on the cathode, which is around five orders of magnitude lower than for the reaction on the anode, often demand better electrocatalysts than pure platinum [26]. Beermann et al. point to the necessity to create nanoparticle catalysts based on alloying platinum with transition metals (e.g., Fe, Co, Ni, Cu) [33]. Especially promising electrocatalysts can be high-entropy alloys (HEAs) with less than 50 at.% Pt that can maintain high-ORR activity and stability in various environments [34]. An excellent example of an HEA nanoparticle, presented by Wu et al., is a nanoparticle that consists of all the platinum group members, which can be an efficient catalyst for complex or multistep reactions [12]. However, catalytic activity is not the only challenge. Another challenging task is the durability of the catalysts used in fuel cells.

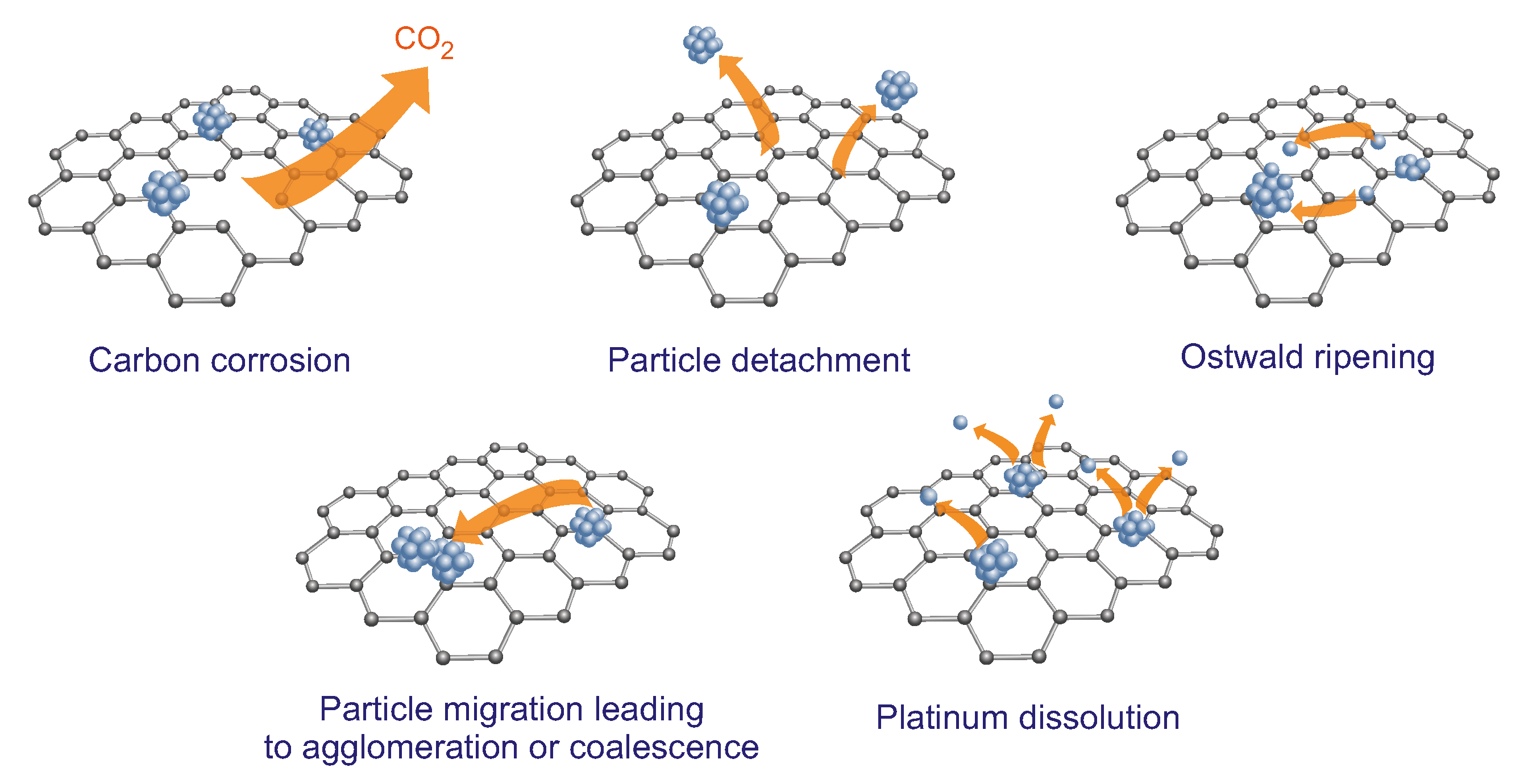

Numerous authors point out the difficulties of maintaining a constant high- electrochemical performance. Among the potential degradation mechanisms, they mention carbon corrosion, particle detachment, Ostwald ripening, particle migration, which can lead to agglomeration or coalescence, and platinum dissolution (Figure 4) [35,36]. In Section 4, the methods that can be implemented to eliminate degradation mechanisms through the appropriate selection of the carbon supports or the method of immobilizing nanoparticles on the carbon support will be analyzed.

Another challenge facing researchers is the high cost of platinum, which is the main reason for very high operating costs. Therefore many efforts have been made to reduce the costs associated with the use of precious metals as electrocatalysts. Among the different approaches proposed are a reduction in Pt loadings, the use of less expensive noble metals such as Pd and Ru, and the development of alternative low-cost electrocatalysts based on non-noble metals and molecular chemistry [37]. Many studies also indicate the significant impact of the carbon substrate as a carrier of NMNPs on their catalytic activity. Therefore, in the following parts of this article, particular types of carbon substrates and their influence on the catalytic properties of NMNPs will be discussed.

3. Synthesis of Noble-Metal Nanoparticles

Historically, the first method described was that used by Michael Faraday. He prepared his colloidal dispersions of gold by a process of reducing an aqueous solution of a gold salt, such as sodium tetrachloroaurate (Na[AuCl₄]), with a solution of phosphorus in carbon disulfide. At room temperature, this reaction proceeds very quickly and the light yellow colour of the Na[AuCl₄] solution changes within a few minutes to the ruby-red colour typical of colloidal gold [38]. Since then, many various synthesis procedures have been developed and described in thousands of publications.

Generally, the procedures of obtaining noble-metal nanoparticles can be divided into two groups: the bottom-up and top-down approaches. The bottom-up method is the most frequently used approach in the synthesis of nanoparticles because it gives many advantages, such as the ability to obtain monodispersity and precisely controlled particle size and structure. This method involves building up material from the bottom: atom by atom or molecule by molecule. Top-down approaches depend on the partitioning of bulk materials (milling, sputtering, pyrolysis, laser ablation) or on the miniaturization of production processes to produce the desired structure with the appropriate size and properties (lithography). This method is simpler but has many disadvantages and limitations, one of which is the inability to control particle size and structure. In addition, this method causes imperfections in the surface structure, which significantly affects the physical and chemical properties of the resulting nanoparticles.

Another distinction of noble-metal NPs preparation methods could be the division between chemical and physical methods. The chemical methods include chemical reduction using a reducing agent [39,40], the electrochemical method [41,42], the sonochemical method [43,44] and green synthesis [45,46]. The physical methods comprise of pyrolysis [47,48], nanolithography [49,50], thermolysis [51] and radiation-induced methods [52,53]. Physical methods usually require special equipment, so they are infrequently available. Therefore, in this review, we will describe simple chemical methods that can be repeated in an averagely equipped laboratory.

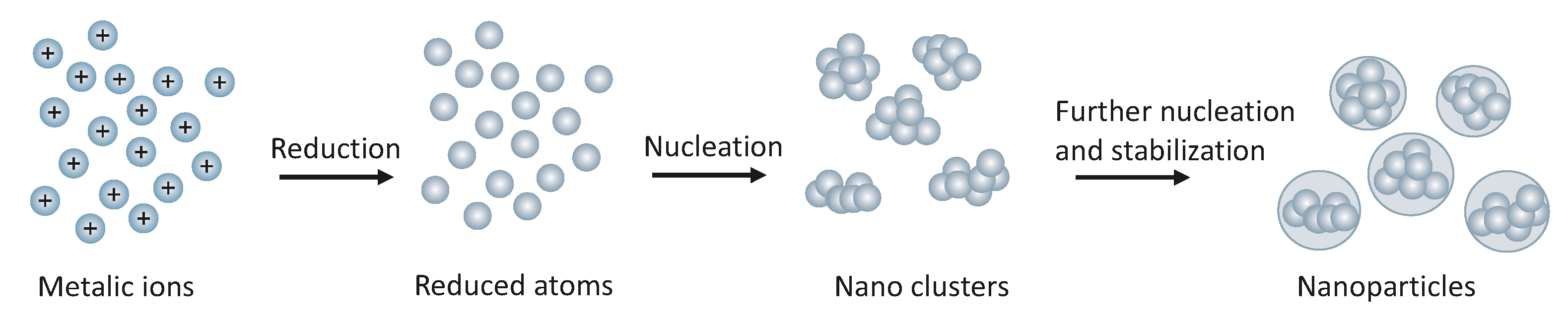

The most frequently applied and reliable method of NMNPs synthesis is chemical reduction [54]. This reaction includes the reduction of a precursor dissolved in a solvent by reducing agents and stabilization, as presented in Figure 5. As reducing agents, borohydrides, aminoboranes, hydrogen, acetylene, formaldehyde, hydrazine, hydroxylamine, polyols, citric and oxalic acids, sugars, hydrogen peroxide, carbon monoxide, sulfites can be used and other electronic reducing agents including electron-rich transition-metal sandwich complexes [55]. The choice of reductant is dictated by the conditions in which the reaction is carried out because the activity of reducing agents is strongly conditioned by the pH of the solution [56]. Among inorganic reductants, alkali metals borohydrides, such as sodiumborohydride (NaBH₄), are powerful reagents and they represent a historical cornerstone in the list of such compounds. Sodiumborohydride is one of the most powerful inorganic reductants, which is suitable to reduce cations of noble metals such as gold [57], silver [58,59], platinum [60], palladium [61], rhodium [62], ruthenium [63], osmium [64], iridium [65], to their nanosized elemental state, according to the equation below [56]:

$$n{\mathrm{BH}}_4^{-}+8{\mathrm{Me}}^{n+}+8{\mathrm{nOH}}^{-}\to n{\mathrm{BO}}_2^{-}+8\mathrm{Me}+6{\mathrm{nH}}_2\mathrm{O}$$

(5)

An example of a simple and efficient method for the synthesis of NMNPs with controlled size and shape is the chemical reduction of the metallic precursor in the presence of a capping agent. The first shape-controlled colloid–chemical synthesis of Pt nanoparticles used the hydrogen reduction of potassium tetrachloroplatinate(II) (K₂PtCl₄) in the presence of sodium polyacrylate (NaPA) [66,67,68]. Similar reduction techniques have been used by several other authors to prepare differently shaped noble-metal nanocrystals in the presence of a number of other capping agents, for example, surfactants (e.g., CTAB, SDS) [69,70,71,72], polymers (e.g., PVP, PVA) [73,74], and ligands (e.g., inorganic ions, thiols, amines) [75]. These additives, present in the reaction medium, play important roles in controlling the morphology of particles produced. Capping agents interacting with particle surfaces can significantly change the growth rate of the NPs, inhibiting the incorporation rate of growth units onto the particle surfaces and changing the surface free energies of different facets [71,76,77]. Unfortunately, surfactants, as organic molecules deposited on the surface of NPs, can block the catalytic active sites and prevent the use of such nanoparticles in catalytic processes. Therefore, it is necessary to use effective methods of removing surfactants without disturbing the shape of NPs before their application as catalysts [78,79].

Another frequently used method is the seed-mediated growth method. A popular example of its use is the synthesis of Au nanorods, but other shapes can also be achieved using this method [80]. Gold nanorods could be synthesized by adding small Au seeds into a growth solution containing a gold (III) chloride solution (HAuCl₄), silver nitrate (AgNO₃), ascorbic acid (AA) and cetyltrimethylammonium bromide (CTAB). The acid reduces Au³⁺ to Au⁺, and the addition of seeds catalyzes the reduction of Au⁺ to Au⁰, leading to the generation of Au nanorods [80,81,82].

The synthesis of NMNPs with the ability to control size and shape has attracted the wide attention of researchers because of the strong relation between structure and catalytic performance [83,84,85].It is well-known today that size, shape, and morphology determine the catalytic properties of NMNPs since the catalytic performance directly depends on the distribution of atoms on the nanoparticle surface [86,87,88]. A higher NMNPs mass activity, i.e., the catalytic activity per given mass of nanoparticles, should be achieved. This will reduce the required consumption of noble metals in fuel cells. To date, the highest specific activities (normalized by surface area) have generally been achieved on single-crystal surfaces or well-defined platinum nanoparticles and its alloys with specifically engineered facet structure [84,88]. One of the first reports on the influence of nanoparticle size on their catalytic properties was the work of Haruta et al. in 1987 [10]. They claimed that size plays a crucial role in enhancing gold nanoparticles’ catalytic activity. Gold NPs with a 5 nm diameter were not only much more active but also were much more stable than the conventional catalyst. In the same publication, the authors also drew attention to the proper selection of the support for nanoparticles and their role in the catalytic process, presenting the results for three different metal oxides as supports for gold nanoparticles.

One of the parameters that depends on the nanoparticle diameter is its specific surface area, which is the key parameter in catalysis. Some research focuses on increasing the surface of catalysts not only by decreasing the diameter but also by forming porous particles [89], stars [90], or frames [91].

Chemical composition is another critical factor that affects the catalytic activity of nanoparticles. Over the years, methods to create multimetallic nanoparticles such as bi- [92,93] or three-metallic [94,95,96] NPs have been developed. Especially, alloy materials exhibit various mechanical and chemical properties not observed for single-component NPs. Thus, designing alloy NPs seems to be a promising way for new catalyst preparation. Among different alloy NPs, high-entropy alloys (HEAs) are attracting much attention. It should be mentioned that the first HEA nanoparticle containing six platinum group members was demonstrated by D. Wu et al. in 2020. One year later, D. Wu et al. presented the first example of a high-entropy-alloy NP containing all eight noble-metal-group elements. Designing precisely tailored HEA NPs is the most promising direction for the further development of catalytic nanomaterials [8,12].

In summary, by using simple chemical methods, numerous researchers have succeeded in synthesizing a variety of nanoparticles with different shapes for specific applications (spheres, octahedrons, cubes, cuboids, rods, wires, decahedrons, icosahedrons, and wafers) [97,98].

Table 1. Examples of NMNPs with different shapes and sizes along with reagents used to synthesize them.

Metal	Shape	Size [nm]	Precursor	Reductant	Stabilizer	References
Au	Spherical	20–50	HAuCl4	SC	-	[99]
	Spherical	3.5–4	HAuCl4	NaBH4	SC	[100]
	Nanoprisms	144 ± 30 (edge length)	HAuCl4	NaBH4	CTAB and AA	[101]
	Nanostars	37 ± 2	HAuCl4	HEPES	PVP	[102]
Ag	Cubic	18–32	CF3COOAg	DEG	PVP	[103]
	Nanorods	80–100 (diameter)	AgNO3	EG	PVP	[104]
	Nanostars	~300	AgNO3	HA	CCA	[105]
	Flower-like	~450	AgNO3	CCA	CTAB	[106]
	Spherical	10–200 (tunable)	AgNO3	SC and TA	-	[107]
Pt	Spherical	4.9	H2PtCl6/K2PtCl4	NaBH4	PEI	[108]
	Cubic Tetrahedral	5.2	H2PtCl6/K2PtCl4	NaBH4	PEI	[108]
	Spherical Tetrahedral Octahedral (tunable)	3–30	H2PtCl6	EG	PVP	[109]
Pd	Spherical	5–15	PdCl2	TEG	PVP	[110]
	Nanodendrites	50	Na2PdCl4	SA	Phosphonic acids with aromatic side chains	[111]
	Spherical	1.5–23.3 (tunable)	PdCl2	NaBH4	PVP	[112]
Rh	Spherical	1.5–4	Rh(acac)(CO)2	-	PVP/PVA	[113]
	Spherical	2.9–5.6	RhCl3	NaBH4	PEG-tagged imidazolium salts	[114]
	Triangular	10	RhCl3	TREG	PVP	[115]
Ru	Pompon-like	~148	RuCl3	TREG	PVP	[116]
	Spherical	1.4–7.4	RuCl3	EG/DEG/TEG	PVP	[117]
	Cubic	2.4–5	Ru(acac)3/RuCl3	EG/TEG	PVP	[118]
Ir	Spherical	2.5 ± 0.5	IrCl3	NaBH4	SC	[119]
	Spherical	~3	H2IrCl6	EG	-	[120]
	Spherical	3–4	IrCl3	NaBH4	TA	[65]
Os	Spherical NPs forming nanochains	1–1.5 (single NP)	OsCl3	AA	AA	[121]
	Cubic	0.7–1.8	Os(acac)3/OsCl3	EG	PVP	[122]

shows the variety of NMNPs obtained by the simplest reduction method and summarizes the procedures for the synthesis of noble-metal NPs depending on the type, size and shape of the nanoparticles obtained.

4. Carbon-Supported Noble-Metal Nanoparticles

As presented in the previous sections of this article, the numerous physicochemical properties of NMNPs, including optical, catalytic, as well as biological properties, have led to a growing interest in these nanomaterials in laboratories in recent years [97,123,124]. Gold and silver nanoparticles, due to their optical properties which are related to the existence of localized surface plasmon resonance (LSPR), are used in highly sensitive analytical methods such as surface enhanced Raman spectroscopy (SERS) [125,126] for biolomedical applications [127,128]. Biological properties, including the high antibacterial activity of NMNPs, have made them very attractive in nanotechnology and medicine [129,130]. For years, Pt-based nanostructures have been widely used to obtain various types of catalysts [131,132,133]. Among the unique properties used for fuel-cell applications are the catalytic activity, selectivity and stability of the nanocomposites [134]. The catalytic processes are localized on the surface of the particles, so their efficiency is directly related to their morphology, size and shape, and composition [135,136]. By reducing the particle size, a greater specific surface area (SSA) is achieved, as well as more active catalytic sites, resulting in higher electrocatalytic activity [137]. Despite the great progress in the synthesis of new noble metal nanoparticles, there are still some difficulties in their application in catalytic processes. Besides the low yield and high cost of the syntheses, issues of their agglomeration under conventional catalytic-reaction conditions remain [138,139,140]. Therefore, work has begun on integrating them with other stable and inexpensive materials, which have helped to optimize their properties and minimize their consumption [141,142,143,144]. The resulting compositions not only possess the combined properties of the individual components, but also potentially exhibit new functions and enhanced performance [145,146,147]. The support provides NMNPs with a higher surface-area-to-volume ratio, contributing to the increased catalytically active areas in which reactions occur [148,149].

To date, noble-metal nanoparticles have been successfully incorporated with polymers [150,151,152], oxides (e.g., SiO₂ [153], Al₂O₃, TiO₂ and CeO₂ [154] Nb₂O₅, Ta₂O₅, and ZrO₂ [155]), metal–organic frameworks (e.g., ZIF-8, MIL-101-NH2) [156,157] and carbon materials (e.g., carbon black, carbon nanotubes, graphene) [158,159,160,161]. Over the past decades, carbon materials have been recognized as an ideal substrate because of their extraordinary physical and chemical properties and their universal availability, processibility, environmental friendliness, and relative stability in both acidic and basic media [162]. At this point, it should be added that carbonaceous materials (CMs) have a large specific surface area, high porosity, excellent electron conductivity, relative chemical inertness, good thermal stability under an inert atmosphere, an intrinsic hydrophobic nature, and the presence of vast functional groups that facilitate metal loading [159,163].

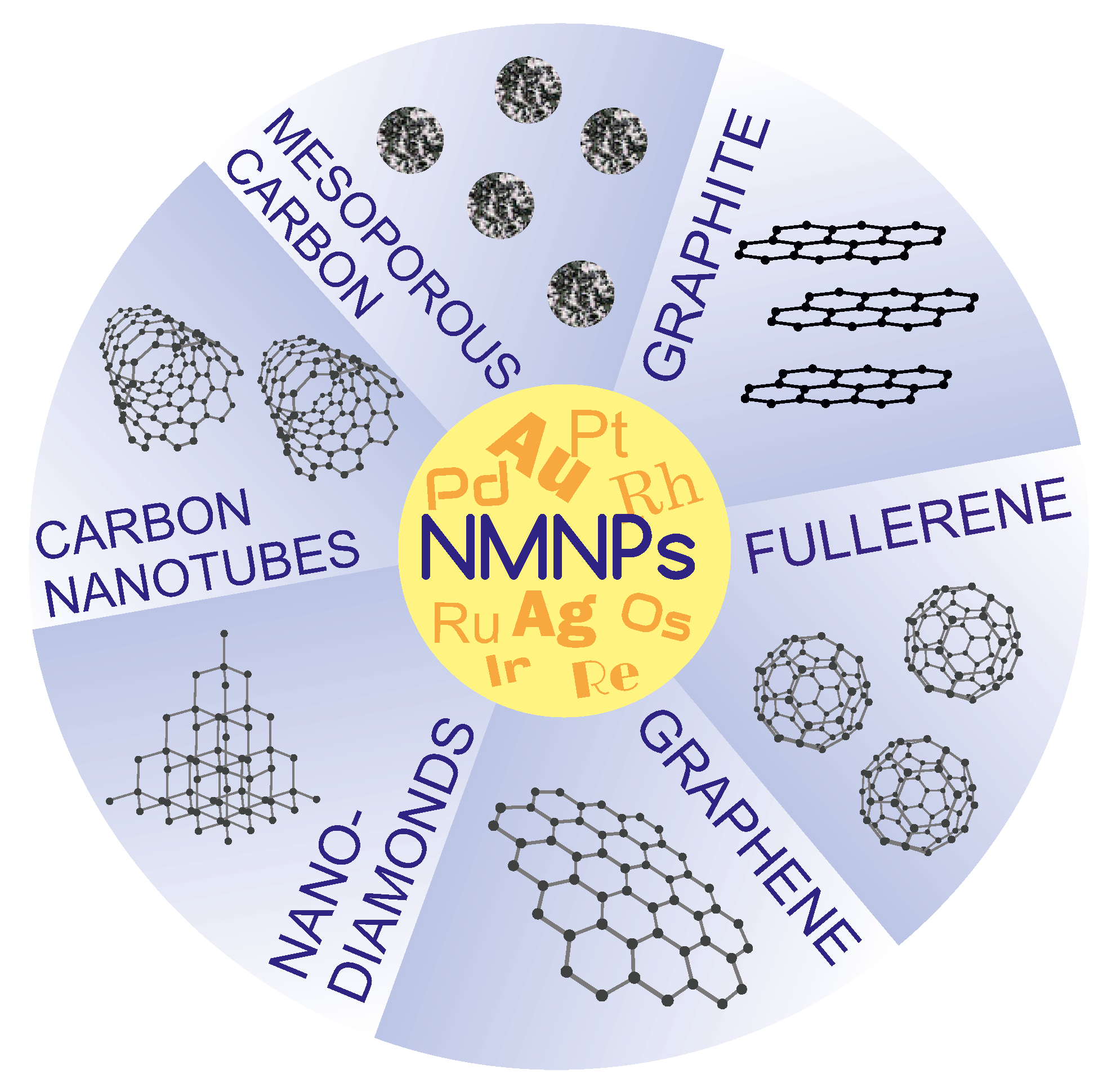

Depending on distinct types of crystal structures, carbon atoms can form a variety of allotropes with different properties [164]. In particular, carbon nanomaterials, such as 0D fullerenes, 1D carbon nanotubes, 2D graphene, etc., have dynamized research in the field of electrocatalysis. Built on them, NMNPs/CMs nanocomposites are an ideal option for various electrochemical reactions in energy conversion and storage, including hydrogen evolution and oxygen reduction. These materials withstand various types of electrochemical oxidation reactions, which reduce the lifetime of electrocatalysts due to sintering and poisoning effects [165,166].

In conventional systems, carbon black, which is a product produced by the pyrolysis of petroleum hydrocarbons, is usually used as a carrier for Pt nanoparticles. Due to its high availability and low cost, it is widely used in electrocatalysis applications [167]. Common carbon blacks include acetylene black, Vulcan XC-72, Ketjen Black, etc. Their major physicochemical characteristics include specific surface area, electronic conductivity, large surface-to-volume ratio, stability, and surface functionality [168,169,170,171,172].

4.1. Methods of Obtaining NMNPs/CMs Nanocomposites

Thus far, a lot of work has been devoted to developing new, efficient methods for the preparation of electrochemically active NMNPs/CMs nanocomposites. It was found that the smaller and more homogeneous the immobilized metal particles are, the better the electrocatalytic properties of the nanohybrid [173,174,175]. Among the chemical-deposition methods of NMNPs on carbonaceous supports, one can distinguish: surface-functionalization methods, electrochemical deposition, and electroless deposition [176,177]. In this work, it has been decided that detailed descriptions of the syntheses of nanocomposites and their catalytic properties are to be presented for the most frequently described, i.e., widely understood, mesoporous carbon materials, carbon nanotubes, and graphene (Figure 6). Examples of other carbon supports along with an indication of the synthesis method are summarized in

Table 2. Examples of carbon-supported nanocomposites categorized by synthesis method.

Synthesis Method	Precursors	Type of NMNPs	NM Particle Size [nm]	References
Surface functionalization	CNF, NaOH, H2SO4, H2PtCl6	Pt	6	[178]
	CNF/TiO2, EG, NaOH, H2PtCl6	Pt	3.8	[179]
	Ketjen Black, HNO3, H2PtCl6	Pt	2.5	[180]
	N-CNT, HCOOH, H2PtCl6	Pt (nanorods)	3–4 × 10	[181]
	Vulcan XC72, HNO3, H2PtCl6	Pt	2.2 ± 0.4	[182]
	rGO, HCOOH, H2PtCl6, PdCl2	PtPd	4 × 20–200	[183]
		Pt nanowires
		Pd nanoparticles	5
	Ni-N-CNTs, PDDA, PdCl2	Pd	2–5	[184]
	MWCNTs, THF, H2PtCl6, SnCl4	PtSn	~4	[185]
	CX, HNO3, H2PtCl6, RuCl3	PtRu	3.8–4.4	[186]
	BDD, NaOH, SDBS, RuCl3, H2PtCl6	PtRu	2–5	[187]
	rGO, KAuCl4, K2PtCl6	Pt	2.34 ± 0.52	[188]
		Pt-Au	2.86 ± 1.30
	rGO, Vulcan XC-72, H2PtCl6	Pt	0.5–2.5	[189]
	G-CNTs, KOH, H2PtCl6	Pt	4.3–6.8	[190]
	rGO, EG, HAuCl4, H2PtCl6	Pt-Au		[191]
	CQD, Vulcan XC-72, H2PtCl6, NaBH4	Pt		[192]
	N-GQD, Na2CO3, HCl, PdCl2	Pd		[193]
	N-GN, CoCl2, RuCl3	RuCo	6.2	[194]
	C60, H2PtCl6,	Pt	<5	[195]
	C60, NaOH, H2PtCl6	Pt	3.93–4.20	[196]
	GO-PyrC60, PdCl2	Pd	10	[197]
	CA, Vulcan XC-72R, H2PtCl6, NaBH4	Pt	3.24	[198]
	MNC, CCA, NaOH, H2PtCl6, NaBH4	Pt	3.1	[199]
	Vulcan XC-72R, NaOH, H2PtCl6, H2IrCl6	PtIr	3.6–3.9	[200]
	CNT, H2SO4, IrCl3	Ir	~1	[201]
	MWCNT, EG, HNO3, H2SO4, H2PtCl6, RuCl3, ReCl3	Pt-Ru	2.79 ± 0.58	[202]
		Pt-Re	3.53 ± 0.80
		Pt-Ru-Re	2.88 ± 0.64
		Pt-Ru-Re	2.68 ± 0.55
		Pt-Ru-Re	3.19 ± 0.54
Electrochemical deposition	CNT, EG, H2PtCl6, RuCl3	Pt-Ru	3.1–5.6	[203]
	GO, H2PtCl6, KH2PO4	Pt	10	[204]
	GO, CNF, H2PtCl6, H2SO4	Pt	350–500	[205]
	CP, H2PtCl6, RuCl3, HCl, KOH	Pt-Ru	52.9 ± 9.2	[206]
	GR, ZnO, K2PtCl6, H2SO4	Pt	250	[207]
	BDD, NaBH4, NaOH, H2PtCl6	Pt	15 ± 5	[208]
	BDD, Ni(NO3)2, HCl, PdCl2	Pd	~13	[209]
	Vulcan XC-72, H2PtCl6, H2SO4	Pt	1–4	[210]
Electroless deposition	CNO, H2PtCl6	Pt	20	[211]
	CNT, CoCl2, H2PtCl6	Pt	30–40	[212]
	CNT, SDS, EG, Na2PdCl4	Pd	2–5	[213]
	MWCNT, HAuCl4	Au	10	[214]
	PC, C6H5K3O7, RhCl3, RuCl3, IrCl3	Ir	0.96 ± 0.13	[215]
		Rh	1.11 ± 0.31
		Ru	1.37 ± 0.39
	NiO/Ni/CNTs, K2PtCl6	Pt	~2	[216]

.

Two types of procedures can be used depending on the requirement. In type 1: previously synthesized metal nanoparticles are deposited on carbon substrates. In type 2: the formation of nanoparticles and their deposition on carbon substrates occurs during a single process. These two processes can be based on the creation of covalent or noncovalent interactions between individual elements of nanocomponents. Both functionalization processes serve to enhance the number of active binding sites for the deposition of metal-nanoparticle catalysts and also to improve the dispersibility of the carbon substrate in water or solvents. These aspects ultimately enhance the catalytic effect [217,218]. In the case of noncovalent functionalization, the hybridization of the material in question remains unchanged. It also has little effect on its electronic properties, as a result of the weak van der Waals forces of attraction between the adsorbates and carbon substrates [176,177,219]. In the case of covalent functionalization, different types of binding sites are generated. One form of covalent functionalization is oxidative means, during which oxygen groups such as carboxyl, carbonyl and hydroxyl groups, are formed [177,220]. They stabilize the dispersion of carbonaceous materials in polar solvents and provide active sites for metal adsorption. Such functionalized carbon materials with noble metal precursors can be further reduced by the addition of reducing agents (e.g., ethylene glycol (EG), NaBH₄, H₂, formic acid (HCOOH), etc.) to form NMNPs/CMs hybrids [221,222]. The synthesis process can be significantly accelerated by using an irradiation-assisted technique, for example, visible light or microwave irradiation [223,224]. Particularly noteworthy is the microwave-assisted polyol method, which has numerous advantages such as ease of procedure, speed and safety [225,226].

In the electrochemical method, the MNNPs/CMs nanocompounds are obtained via the reduction of noble metal complexes, such as H[AuCl₄], H₂[PtCl₄], or (NH₄)₂[PdCl₄], by electrons. It consists of the following steps: deposition of carbon material on the electrode, immersion of the carbon-coated electrode in an electrolytic solution containing metallic precursors, and application of an electrochemical potential. Carbonaceous materials act as molecular conductors to provide support for the deposited NMNPs. It should be noted that, in this case, CMs do not react with noble metal salts. The nucleation process and subsequent growth of NPs can be effectively controlled by adjusting electrodeposition parameters such as nucleation potential, deposition time, metal salt concentration, etc., [176,177,204,206,227,228].

The electrodeless deposition method constitutes a chemical process involving a direct redox reaction, by electron transfer between metal ions (higher reducing potential), and a carbon support [229,230]. Due to the fact that such a process does not require any external reducing agents, electrodeless deposition is considered as a green strategy for producing metal NPs on carbon substrates [231].

4.1.1. Noble-Metal Nanoparticles on Mesoporous Carbon Materials

Carbon materials with mesoporous characteristics (2 nm < pore sizes < 50 nm) have received considerable attention in electrocatalytic applications. They can facilitate the transport of reactants to the electrocatalysts and simultaneously exhibit large surface areas and low charge-transfer resistance [232,233,234]. On this basis, numerous examples of the use of mesoporous carbon materials [186,235,236] have attracted much interest as electrocatalyst supports for fuel-cell applications. Using ordered and highly ordered mesopoporous carbon materials as substrates for Pt and PtRu nanoparticles, respectively, it was shown that the size and distribution of mesopores play an important role in electrochemical reactions [236,237]. Qi et al. synthesized PtRu nanoparticles with graphitic mesoporous carbon (GMC) substrates using a chemical reduction process, with H₂PtCl₆ and RuCl₃ as precursor nanoparticles [232]. The study involved the use of GMCs with different pore sizes, and the results clearly indicated that this parameter affects the performance of direct methanol fuel cells. Carbon aerogels (CA), which can be synthesized from cellulosic biomass, are another favorable porous material for fuel-cell-energy-storage and conversion applications [238,239,240,241]. An example is the work of Gu et al., in which the effect of CA pore size on the deposition of Pt NPs was reported for proton-exchange-membrane-fuel-cell (PEMFC) applications [198]. In the initial stage, CA was impregnated with Vulcan XC-72R carbon, and then platinum nanoparticles (from H₂PtCl₆) were attached to the prepared system by chemical reduction with NaBH₄. In turn, Cheng et al. manipulated the potential (potentiostatic deposition or square wave potential deposition) produced Au nanostructures with different sizes and shapes on the surface of carbon fiber paper electrodes [242]. Pt monolayers were deposited onto the resulting urchin-like nanostructures using a surface-limited redox replacement method. The resulting systems were tested in a methanol electrooxidation reaction.

An important step during the synthesis of nanocomposites is the regulation of the surface properties of the MC through different surface-modification methods before the deposition of metal NPs [186,243]. For example, Su et al. deposited uniformly dispersed Pt NPs on the surface of N-doped porous carbon nanospheres (PCNs) [244]. Pt/PCNs hybrids were synthesized by the reduction method using EG as a reducing agent and H₂PtCl₄ as precursor. The process was assisted by microwave irradiation for 3 min. The authors found that Pt/PCNs exhibited increased activity in the methanol oxidation reaction (MOR) than the commercial E-TEK catalyst. In turn, in Ott’s group, N-functionalized Ketjen Black carbon powder was used as a substrate for Pt nanoparticles [180]. Modification of the carbon support was carried out by pre-oxidizing the pristine carbon in concentrated HNO₃ at 70, 200, 400 and 600 ${}^{°}$C. That modification contributed to the formation of carboxylic, hydroxylic and NO_x groups at the surface and also altered the meso- and microporous structure of the carbon supports. An increase in nitrogen content and a higher proportion of mesopores for media subjected to higher temperatures were observed. Following this, the polyol method was used, in which the carbon and Pt precursor (H₂PtCl₆) were dispersed in ethylene glycol and reduced at 120 ${}^{°}$C for 2 h. As a result, Pt NPs were deposited on the outer and inner surface of carbon powder particles, and, thus, a high power density in the fuel-cell catalyst, with high stability under voltage cycling, was obtained.

A parameter that also improves fuel-cell performance is the method of catalyst synthesis [245]. Harzer et al. determined the performance of PEMFC cells depending on the way platinum nanoparticles were distributed on Ketjen Black. Using a polyol method and reducing a highly dilute platinum precursor in ethylene glycol, Pt nanoparticles were obtained on the outer carbon surface and in solution. In contrast, using a prewetting method in which the carbon support is impregnated with a highly concentrated Pt precursor solution, nanoparticles were obtained inside the pores of the carbon particles. The catalyst with more Pt particles deposited on the outer surface of the carbon achieved better results.

4.1.2. Noble-Metal Nanoparticles on Carbon Nanotubes

Discovered by Iijimain in 1991, carbon nanotubes (CNTs) are one of the most widely used substrates for the formation of NMNPs/CMs complexes. They are defined as the ordered, hollow graphene-based nanomaterials made up of carbon sp² - hybridised atoms. They can be classified into the following two categories: (1) single-walled carbon nanotubes (SWCNTs), consisting of a single sheet of carbon that has been rotated into a tubular form, and (2) multi-walled carbon nanotubes (MWCNTs), which are comprised of several concentric SWCNTs having a mutual longitudinal axis [159,246]. The diameter of CNTs is in the nanometer scale, while their length can reach several microns. Numerous examples of NMNPs/CNTs nanohybrids have been reported in the literature for catalytic applications. The first application of NMNPs/CNTs nanocomposites in heterogeneous catalysis dates back to 1994 [247]. This kind of composite material advantageously integrates the unique properties of individual materials and exhibits some innovative features resulting from the interactions between CNTs and NMNPs. These features directly translate into numerous attractive applications in many fields, especially in catalysis, fuel cells, and environmental-contaminant sensing [159,248,249,250,251].

Obtaining small size, dispersed particles of noble-metal NPs on CNTs is desirable due to high catalytic activity and also for economic reasons. Despite the fact that CNTs exhibit excellent electrical, mechanical, and thermal properties, however, they are chemically inactive and hydrophobic. As a consequence of this, they often do not have enough binding sites for anchoring guest molecules, which results in low dispersion and a large particle size of nanoparticles. Therefore, functionalization of the external surfaces of CNTs is generally carried out [252]. Preformed NMNPs can be deposited on functionalized CNTs or functionalization and synthesis can be carried out in a single process of the formation of NMNPs/CNTs complexes (Figure 7). The surface modification of carbon nanotubes can be performed either covalently or noncovalently [253]. Such CNTs functionalization methods serve both to increase the number of active binding sites for NMNP deposition and to improve the dispersibility of CNTs in solvents, which enhances the catalytic effects [217,218].

Covalent functionalization of CNTs is often carried out via an aggressive oxidation treatment with a HNO₃ or HNO₃/H₂SO₄ mixture [253]. This process contributes to the formation of several functional groups, such as carboxylic, carbonyl, and hydroxyl groups, on the surface of nanotubes. It can also be carried out by pretreatment of CNTs in HCl, HF, KMnO₄ or H₂O₂ [254]. Then, covalently functionalized CNTs often undergo subsequent functionalization processes to control the size and dispersion of the NMNPs deposited on them. That approach was used by Wang’s group [255]. In the first step, they functionalized the nanotubes with COOH groups. They then attached amine-terminated ionic liquids (NH₂-IL) to the functionalized nanotubes. The gold salt [AuCl₄]⁻ was adsorbed to the thus-formed amide bond between MWCNTs-COOH and NH₂-IL through electrostatic interaction and ion exchange. As a result of this process, well dispersed 1–2 nm Au NPs were obtained.

Noncovalent functionalization involves the attraction of the hydrophobic end of an adsorbed molecule to the walls of CNTs via van der Waals forces or π–π interactions [176]. This is carried out without disturbing the electron structure of the CNTs, as the covalent bonds are not affected. In this case, the following may be used aromatic organic compounds such as derivatives of pyrene, thionine, or triphenylphosphine, and they contribute to the formation of several functional groups such as thiol, amine, or carboxyl groups, which can be used as the linkers to anchor NMNPs onto CNTs surfaces. In paper [256], it was shown that, by using the in situ polymerization method, it was possible to obtain a homogeneous polymer coating on the surface of MWCNTs, which allows for better dispersion of the nanotubes. An example of such noncovalent functionalization is the modification of carbon nanotubes presented by Zheng [257]. The synthesis of Pd/MWCNTs nanocomposites with particle sizes of 3 nm was achieved by π–π stacking interactions of MWCNTs and naphthalen-1-ylmethylphosphonic acid (NYPA).On such functionalized carbon nanotubes, Pd nanoparticles were deposited by means of a homogeneous precipitation–reduction reaction method by using PdCl₂ as a noble metal precursor and NaBH₄ as a reduction agent.

Using the same method, it is also possible to form bimetallic-based composites. For example, by reduction with H₂PtCl₆, the addition of ruthenium and molybdenum precursors (Ru₃(CO)₁₂, Mo(CO)₆), followed by annealing for 2 h at 400 ${}^{°}$C in a N₂ atmosphere, bilemetallic Pt-Ru/SWCNTs and Pt-Mo/SWCNTs composites were obtained. Moreover, the as-synthesized Pt-Ru/SWCNTs composite showed better current and power densities than Pt/SWCNTs catalysts [258]. Another bimetallic electrocatalyst that plays an important role in the development of direct-methanol-fuel-cell applications is the PtIr/MWCNTs composite [259].

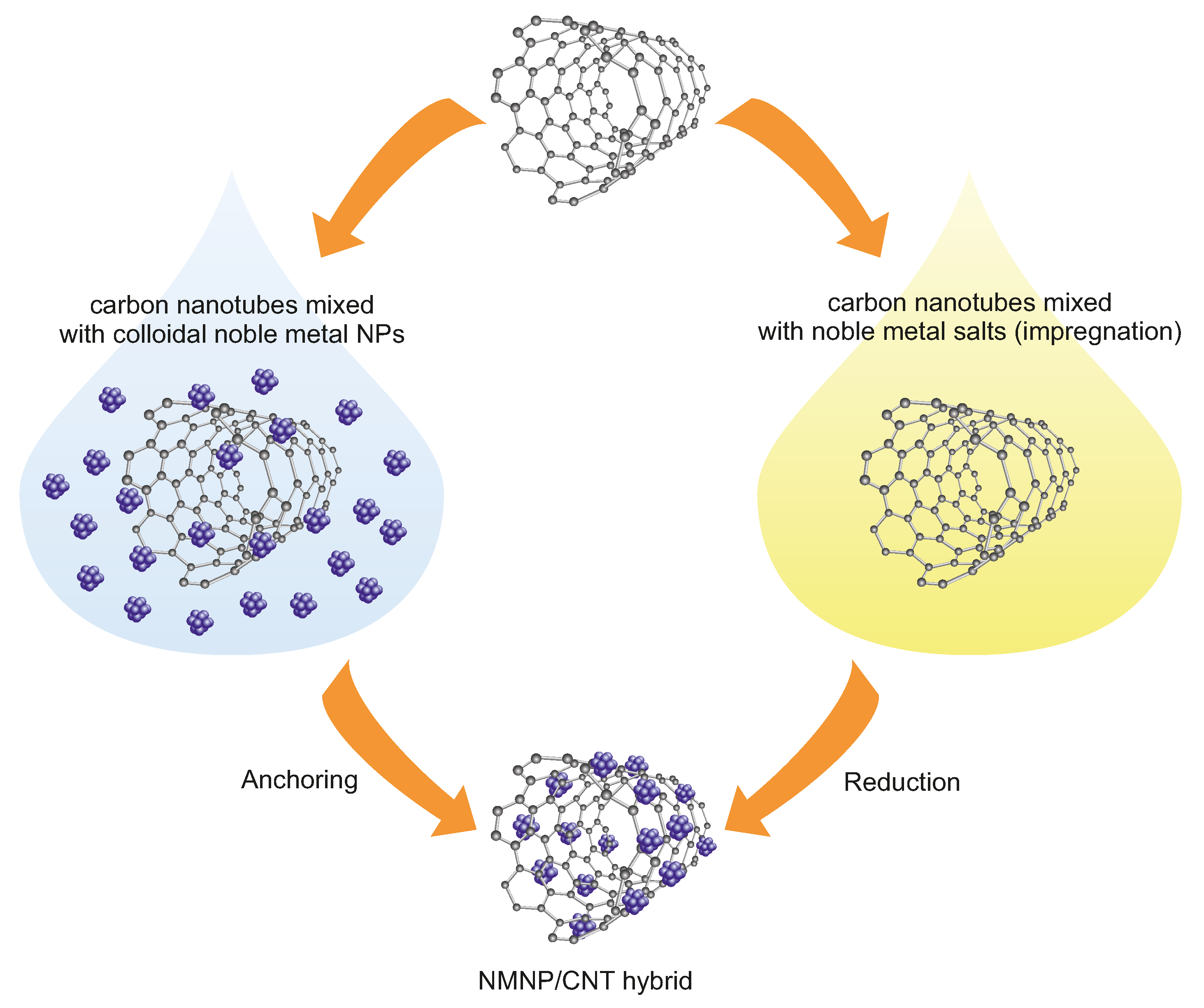

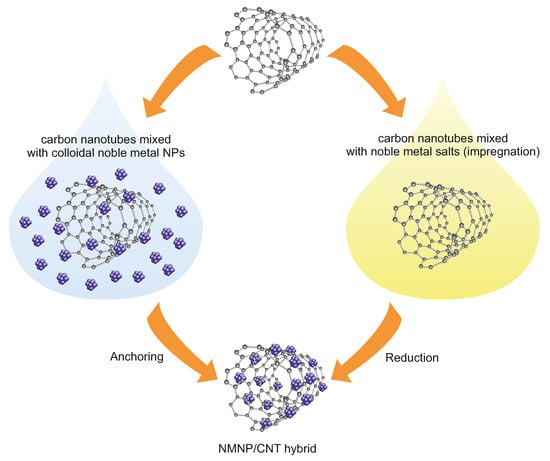

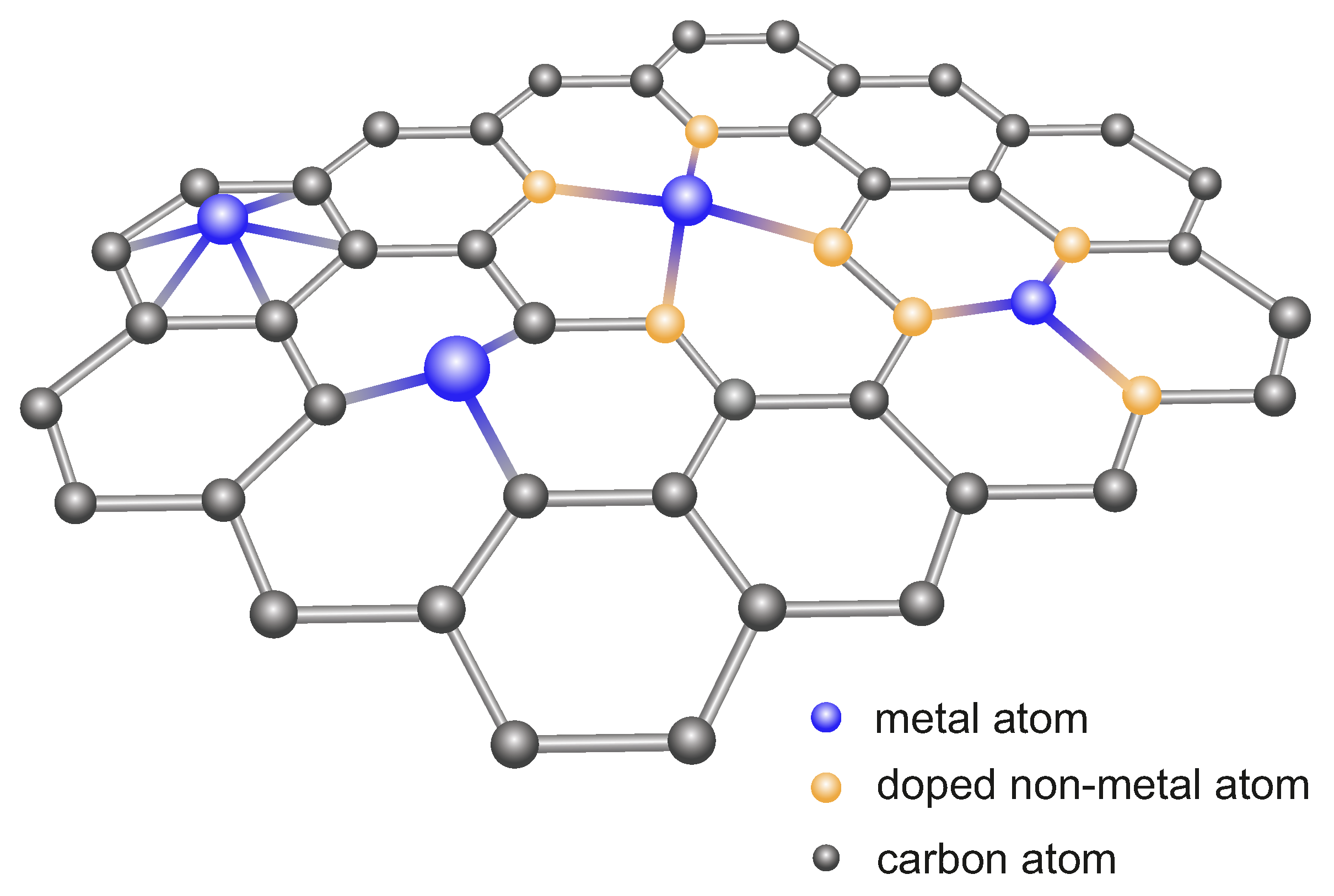

Another way to improve physical and catalytic properties is doping, realized by replacing the carbon atoms in carbon nanotubes with other elements such as nitrogen, phosphorus or boron. For example, Yu et al. [260] reported doping of MWCNTs with phosphorus (P) and nitrogen (N), which improves their durability and increases their electrocatalytic activity. In turn, Jin et al. reported that Pt/CNTs doped with selenium atoms show long-term stability and good activity in comparison with a commercial Pt/C catalyst [261]. Nitrogen can be used both as a dopant and a surfactant in the growth of CNTs [262]. Nitrogen-functionalized CNTs (N-CNTs) have a high number of surface nucleation sites, which allow the anchorage and high dispersion of the noble metal particles [263]. N-CNTs, as substrate material, possess high resistance to surface oxide corrosion, which is an attractive feature, e.g., in oxygen reduction reactions (ORR) [184]. Noteworthy is also paper [264], which shows that boron doping increases the binding energies of transition metals to CNTs supports more than nitrogen. In turn, Rajala and co-workers fabricated platinum nanowires on SWCNTs (Pt NWs/SWCNTs) then pretreated with ozone, which resulted in the formation of polar surface groups on the carbon nanotubes. The fabricated Pt NWs/SWCNTs-O₃ composites were more hydrophilic in nature and outperformed in the hydrogen evolution reaction (HER) than non-ozonized compounds [265].

The current trend is the replacement of noble metal nanoparticles in NMNPs/CNTs complexes with cost-effective alternatives, including, for example, nickel. Nickel-doped materials have relatively high electrochemical activity (e.g., ORR, CO₂ reduction) and are low-cost [184]. Zhang et al. developed Pd nanoparticles assembled on Ni- and N-doped carbon nanotubes. The resulting CNTs-based composite with homogeneous and monodispersed Pd and Ni particles (2–5 nm and <1 nm, respectively) achieved much better hydrogen evolution reaction (HER) activity compared with the commercial Pd/C sample.

By using an electrochemical method, a very high purity of nanoparticles and their good adhesion to CNTs substrate can be ensured. However, the NMNPs/CNTs nanocomposites prepared by this method usually receive particles with big particles size (between 10 and 100 nm), as shown in He’s work [228]. Pt or bimetallic Pt–Ru nanoparticles were electrodeposited on the CNTs by the potentiostatic method from H₂SO₄ aqueous solution with ruthenium chloride and chloroplatinic acid. The nanoparticles obtained by this method, although characterized by high purity, also had a grain diameter larger than 60 nm. In order to decrease the size of the metal NPs on the CNTs, Tsai et al. [266] synthesized a Pt and a Pt–Ru/CNTs by potentiostatic electrodeposition in mixed sulfuric acid and ethylene glycol containing aqueous electrolytes. It was found that the addition of EG led to the formation of uniformly dispersed and non-agglomerating Pt and Ru NPs with small sizes, ranging from approximately 4.5–9.5 nm and 4.8–5.2 nm for Pt and Pt–Ru, respectively. Grain size reduction can also be achieved by using methods such as cyclic potential scanning [267], pulsed electrodeposition [268], ultrasonic-electrodeposition [269] and a co-electrodeposition/stripping protocol [270].

The formation of NMNPs/CNTs complexes is also possible by using electroless deposition. An example is the use of the one-pot method, which uses a redox reaction between metal ions and reduced CNTs [271]. Using this procedure, Au and Pd NPs were successfully anchored to the surface of MWCNTs and SWCNTs. Another method that overcomes the limitations of classical electroless deposition is substrate-enhanced electroless deposition (SEED). In the SEED method, CNTs are supported with metal substrates whose redox potential is suitably lower than that of the metal species being reduced. In this case, CNTs are no longer a reducing agent and act only as cathodes and templates for metal deposition from the corresponding noble-metal salts [214].

4.1.3. Noble-Metal Nanoparticles on Graphene

In addition to carbon nanotubes, graphene (GR) as carbon support also improves the catalytic activity and stability of supported Pt catalysts compared to mesoporous counterparts through enhanced electrical conductivity and metal–substrate interaction [181]. Graphene is a single-atom-thick two-dimensional carbon nanosheet of sp² bonded carbon atoms packed into a honeycomb lattice that was first synthesized in 2004 by Geim and Novoselov [272]. In 2010, this discovery was awarded the Nobel Prize in Physics for its significant contributions to the development of graphene-based catalysts [273]. Over the years, graphene, as well as its derivatives, including graphene oxide (GO) and reduced graphene oxide (rGO), have become promising candidates for many applications such as batteries, photovoltaic devices, biosensors, supercapacitors and fuel cells. This wide range of applicability is influenced by its unique properties such as large surface area, thermal conductivity, high electron mobility and good stability [159,177,274,275]. Significantly, the numerous oxygen-containing groups present in GO and rGO provide many opportunities for further functionalization and modification [276,277,278,279]. Graphene is an excellent building block in the fabrication of various nanocomposites representing the most recent advance in many fields of chemistry, physics, and electronics [219,274,275,280,281]. Combining GR with noble-metal nanoparticles improves electrochemical performance and provides perfect thermal stability, which is important in electrocatalytic applications (e.g., oxygen reduction and hydrogen/oxygen evolution reactions) [282,283].

The preparation of GR-based noble-metal nanocomposites by using wet-chemical synthesis methods has many advantages, such as an economic cost of production, high yield, mass production and commonness. The most popular strategy is the direct chemical reduction of a noble metal precursor (e.g., HAuCl₄, AgNO₃, H₂PdCl₄ or K₂PtCl₄) in the presence of graphene and its derivative sheets using a reducing agent such as amines, NaBH₄, and ascorbic acid [284,285,286]. For example, Iqbal’s group prepared 34 nm mesoporous Pd nanoparticles on rGO sheets modified by the block copolymer F127 [287]. This block copolymer has served as a template for better dispersion of Pd nanoparticles. As a precursor to palladium particles, H₂PdCl₄ was used, which was reduced by ascorbic acid. By using direct chemical reduction, it is also possible to synthesize GR-based multimetallic noble-metal nanocomposites. For example, Pt-Pd supported on rGO were obtained by the reduction of a noble-metal precursor (H₂PtCl₆ and PdCl₂) by ascorbic acid and octylphenoxypolyethoxyethanol (NP-40) as a soft template [288]. Vilian et al. reported the synthesis of Pt-Au/rGO nanohybrids by a direct chemical-reduction methodology. The reported methanol oxidation is found to exhibit excellent electrocatalytic performance, reliability, and stability, surpassing that of several reported modified electrodes that can also be used for platinum-based catalysts in fuel-cell applications [289].

The chemical reduction process can also be assisted by microwave irradiation for the synthesis of chemically converted graphene sheets and metal nanoparticles dispersed on them [290]. In turn, the sonochemical method has been used, for example, in the development of Au/GR nanocomposite [291]. In this study, by using an ultrasonication probe of 20 kHz on the surface of exfoliated few-layer graphene sheets, the in situ growth of gold nanoparticles (Au NPs) after the reduction of gold chloride took place. Alternatively, Huang et al. synthesized Pd/rGO nanohybrids with ~3 nm nanoparticles using a one-pot photoassisted citrate reduction. In the process shown, the mixture of GO solution, Na₂PdCl₄, sodium citrate, and deionized water was irradiated by a 500 W high-pressure mercury lamp for 12 h. This synthetic approach allows for the formation onto the rGO surface of Pd nanoparticles with the desired size with excellent activity and stability of complexes in oxygen reduction and ethanol oxidation reactions. The prepared Pd/rGO nanocomposite exhibited 5.2 times higher mass activity for ethanol oxidation reaction than the commercial Pt/C catalyst [292].

By analogy with other carbonaceous supports, it is possible to use an electroless method to prepare NMNPs/GR composites. In this case, graphene derivatives (GO or rGO) themselves can donate electrons to reduce the noble-metal precursors in an aqueous phase without any additional reductant. In accordance with this, metal precursors (e.g., HAuCl₄, H₂PdCl₄, or AgNO₃) can be reduced to form metallic Au, Pd, and Ag nanoparticles, respectively, solely by GO or rGO [284,293,294]. An example would be the work of [295], in the synthesis of the redox reaction between Au, Ag or Pd precursors and the partially reduced graphene oxide (prGO) in an aqueous solution. The as-obtained Au, Ag and Pd/prGO nanocomposites display excellent catalytic activities, and the size distributions of the Au, Ag, and Pd particles were 1–20 nm, 3–10 nm and 0.5–3 nm, respectively.

Interesting conclusions presented by Qin et al. claim that a heating treatment and strong alkaline conditions enhance the reducing ability of the hydroxyl groups on GO. In their work, Au/rGO nanocomposites were prepared through a one-pot strategy, conducted by heating a mixture of HAuCl₄, NaOH and graphene oxide solution at 90 ${}^{°}$C [294]. It is also possible to obtain NMNPs/GR nanocomposites by using pure graphene without any additional groups. This strategy was proposed in a paper by Jeong et al., in which graphene was covered onto a reducing substrate (e.g., Si or Al) [286]. As a result, Au/GR or Pt/GR nanocomposites could be prepared because electrons were transferred from the substrate, via graphene, to the precursors (HAuCl₄ or KPtCl₄). In Zou et al.’s paper, using a two-step electrochemical deposition method, spherical Au nanoparticles and a 3D flower-like structure graphene were obtained on a glassy carbon electrode (Au/rGE/GCE) [296]. Another example was presented by Liu et al.: an electrochemically seed-mediated method by which sub-10 nm tetrahexahedral (THH) Pt NCs supported on graphene were synthesized. The obtained nanohybrids exhibited a higher mass activity than a commercial Pt/C catalyst for ethanol electrooxidation [297].

All of the GR-based nanohybrid examples presented above focus on graphene and its derivatives’ 2D morphology. However, the practical application of graphene is associated with difficulties in the form of the stacking and folding of its sheets. In particular, it is hindered by 2D GR wrinkles that wrap around MNNPs. This limits electron and mass transport and makes its application in electrocatalysis much more difficult [298]. Therefore, the focus has been on designing various 3D GR nanostructures (e.g., framework, network, foam, etc.). These treatments aim to minimize wrinkles as well as reduce agglomeration of nanoparticles [299,300,301,302]. Qiu et al., by using a layer-by-layer assembly method, presented a versatile synthesis strategy based on sacrificial templates to obtain three-dimensional graphene-assisted PtM (M = Fe, Co, Ni) nanospheres [303]. In the first step, electrostatic attraction was used to wind 2D GO sheets on positively charged SiO2 nanospheres. Next, PtM (M = Fe, Co, Ni) alloy nanoparticles were deposited on the surface of 3D rGO nanospheres. Finally, after etching SiO₂, the 3D rGO-supported PtM hollow nanospheres were formed. These nanocomposites exhibit enhanced electrocatalytic activity, durability, and stability for methanol oxidation reactions (MOR), compared with commercial Pt/C. On the other hand, Yao et al. showed that Pd nanoparticles encapsulated in hollow microspheres of N-doped graphene, exhibited higher EOR activity in an alkaline medium than Pd/rGO [304]. Additionally, it should be noted that the structure of N-doped GR hollow microspheres greatly facilitates the diffusion of reactants, which, in turn, improves the catalytic reactions [305].

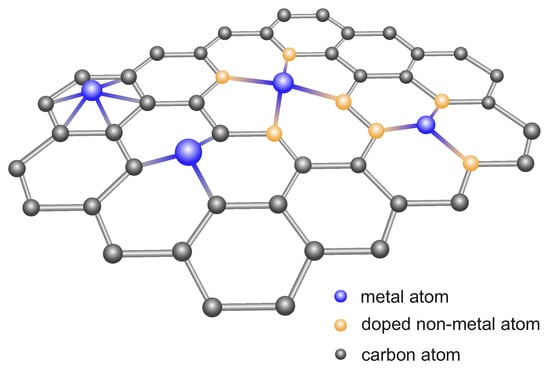

Reducing the particle size of noble metals positively affects the activity of the catalysts constructed on their basis, by significantly increasing the specific activity per metal atom. Therefore, single-atom catalysts (SACs) containing single-metal atoms anchored on supports are sought. The surface of pristine graphene and metal atoms are not firmly fixed, and they easily diffuse together to form nanoparticles [306]. Therefore, obtaining dispersed metal atoms on pure GR is difficult. Accordingly, the surfaces of an ultrathin thickness and large specific surface area of 2D GR nanosheets have been doped with heteroatoms such as N, O, or S, which provide anchors for SAC (Figure 8) [307].

The atomic layer deposition (ALD) technique has become a promising method to obtain monoatomic catalysts on graphene derivatives [306,308,309]. This cyclic process was based on sequential self-terminating reactions between a solid surface and gas-phase precursor molecules [310]. For example, Sun et al. described the practical construction of isolated Pt atoms anchored in graphene nanosheets (GNSs) using the ALD method [311]. In the construction process, oxygen and (methylcyclopentadienyl)-trimethyl platinum (MeCpPtMe₃) were used as precursors. In the first step, the number of oxygen-functional groups on the rGO surface was selected to form a thin Pt monolayer. Subsequently, oxygen exposure formed new surface oxygen on the pre-existing Pt layer. This process completed one cycle of a complete reaction. The morphology, size and loading density of platinum over graphene were controlled by simply tuning the cycles of the ALD (i.e., 50, 100, and 150 cycles). Finally, the best results, i.e., single Pt atoms, were obtained after 50 ALD cycles. All the discussed ALDPt/GNSs catalysts show several-times-higher activity for MOR than the Pt/C catalyst. Among them, ALD50Pt/GNS is more than 9.5 times more active than the Pt/C catalyst. Another example of using the ALD method was presented by Yan et al. They described the growth of single Pd atoms anchored to phenyl groups on rGO substrates [309]. Using the same method, they also presented the deposition of Pt₂ dimers on graphene [312].

Wet impregnation is another method for the synthesis of single noble-metal atoms supported on graphene [313,314,315]. For example, Zhang et al. synthesized single Ru atoms on N-doped GD [314]. For example, Zhang et al. synthesized single Ru atoms on N-doped GO by using the Ru(NH₃)₆Cl₃ as a precursor. The mixture thus formed was lyophilized to prevent the restacking of GO sheets. The resulting GO impregnated with Ru atoms was annealed in NH₃ gas at 750 ${}^{°}$C. This process led to the reduction of GO to form GR. Finally, nitrogen atoms were doped into the graphene plane as anchor sites for ruthenium atoms.

5. Conclusions

The history of noble-metal nanoparticles presented in this article dates back to the antiquity and extends to recent years, in which thousands of scientists, still, have been looking for the perfect nanoparticle. This research has been carried out by examining their various shapes, sizes, and elemental compositions, including the possibility of combining them with carbon substrates allowing for the enhancement of the expected and so much desired catalytic properties.

The research concerning carbon-supported NMNPs and their electrocatalytic activity has been rapidly developing in the previous years. Various forms of carbon, such as MCs, CNTs, fullerenes, GRs, etc., have been successfully used as promising substrate candidates for noble-metal nanoparticles for fuel-cell catalysts. Until now, much effort has gone into low-cost, simple, and controlled methods for producing NMNPs/carbon hybrids in order to obtain a specific surface area and uniform nanoparticle dispersions. Special attention is given to the fact that reducing the Pt loading can decrease the fuel-cell cost, while the suitable supporting materials can enhance the long-term durability and thus can achieve excellent catalytic performance. Moreover, numerous reports indicate that the use of multimetallic electrocatalysts can improve performance stability.

Among the vast literature on carbon-supported nanoparticles, there is no universal type that would be suitable for all applications. Every year, many papers are published showing more and more perfect solutions for specific applications. However, there are still no catalysts efficient enough to fully meet the needs of fuel-cell manufacturers and enable the commercialization of such devices.

The development of high-performance and inexpensive catalysts based on metallic nanoparticles would allow the widespread commercialization of hydrogen technology. However, bearing in mind the growing demand for energy, if only because of the ever-increasing population of our globe, this technology is essential for the further development of humanity. Introducing it into common use would allow the implementation of many climate-protection procedures without the need to introduce major changes in human behavior, because hydrogen technology allows almost unlimited access to renewable energy sources in an ecological and emission-free manner.
