High pO₂ Flux Growth and Characterization of NdNiO₃ Crystals

Abstract

Single crystals of the perovskite nickelate NdNiO₃ with dimensions of up to 50 μm on edge have been successfully grown using the flux method at a temperature of 400 °C and oxygen pressure of 200 bar. The crystals were investigated by a combination of techniques, including high-resolution synchrotron X-ray single-crystal and powder diffraction and physical property measurements such as magnetic susceptibility and resistivity. Resistivity measurements revealed a metal-insulator transition (MIT) at T_MIT~180 K with apparent thermal hysteresis; however, no superlattice peaks or peak splitting below T_MIT, which corresponds to a structural transition from Pbnm to P2₁/n, was observed. The successful growth of NdNiO₃ crystals at relatively low temperatures and oxygen pressure provides an alternative approach for preparing single crystals of interesting perovskites such as RNiO₃ (R = Sm-Lu) and parent phases of superconducting square planar nickelates.

1. Introduction

The discovery of superconductivity in the thin film of Nd_0.8Sr_0.2NiO₂ by Li et al. [1] has attracted intense attention in the fields of condensed matter physics and materials science and launched the Nickel Age of Superconductivity [2,3,4,5,6,7,8,9,10,11,12,13,14]. Until today, superconductivity with a critical temperature (T_c) in the range of 9–15 K has been observed in the infinite-layer R_1-xM_xNiO₂ (R = La, M = Ca, Sr; R = Pr, Nd, M = Sr) [15,16,17,18,19] and the quintuple-layer Nd₆Ni₅O₁₂ [20]. Under high static pressure, T_c has been increased to 30 K in Pr_0.8Sr_0.2NiO₂ films [21]. After 3 years of intense research, several fundamental issues still exist [2,3,4,5,6,7,8,9,10,11,12,13,14], including the mechanism of superconductivity, the similarity and difference between nickelate and cuprate superconductivity, whether the ground state is magnetic, and whether competing phases such as pseudogaps and strange metals exist. Single crystals are the ideal platform to solve the abovementioned open questions. However, no direct method has been found to synthesize these nickelates; instead, they were prepared by topotactical reduction through their parent compounds, i.e., Ruddlesden–Popper (RP) phases R_n+1-xM_xNi_nO_3n+1 (R = La-Nd, M = Ca, Sr, n = 5, and ∞) [4,13].

The n = ∞ RP nickelates is the well-known perovskite RNiO₃ (R = La-Lu, Y), which has attracted extensive attention in the past few decades in two areas: (1) as a model system for studying metal-insulator transition (MIT, R ≠ La) and the lattice-charge-spin-orbital interaction [22] and (2) potential applications such as new morphological computing, bioelectronic interfaces, and electrocatalysis [23]. For RNiO₃ (R = Pr, Nd), antiferromagnetic ordering occurs simultaneously at T_MIT while for R³⁺ < Nd³⁺, T_N < T_MIT. Regarding the underlying physics behind MIT, there have been various proposals, including charge disproportionation, bipolaron condensation, and negative charge transfer, but it remains under debate [22]. In addition, type-II multiferroics have been theoretically predicted [24,25].

Single crystals of RNiO₃ are in high demand in preparing infinite-layer nickelate crystals via topotactical reduction and for addressing the underlying mechanism of MIT and magnetism. Nickel ions usually exist in the divalent form, and the preparation of RNiO₃ requires high oxygen pressure to stabilize the trivalent nickel ion. With the decrease of R³⁺ ions, the required oxygen pressure increases sharply. LaNiO₃ and PrNiO₃ single crystals have been grown using the high-pressure floating zone method under pO₂ of 40 bar [26] and 290 bar [27], respectively. However, for RNiO₃ whose R³⁺ is smaller than Pr³⁺, the required oxygen pressure exceeds 300 bar, which is the highest pressure that can be achieved using a commercial floating zone furnace [28]. RNiO₃ crystals can also be grown using a high-pressure flux method. Among the literature [29,30,31,32], chloride or perchlorate (NaCl/NaClO₄/KCl/KClO₄) are mostly used as the flux, and growth was conducted at a temperature of 900–1500 °C and isostatic pressure of 4–4.5 GPa. In 2021, Klein et al. [33] first successfully grew crystals of RNiO₃ (R= Nd, Sm, Gd, Dy, Y, Ho, Er, Lu) under pO₂ = 2000 bar and T = 850 °C using used LiCl-KCl flux. The dimensions of NdNiO₃ crystals are up to 10 μm on edge [33].

In this contribution, we report the successful growth of NdNiO₃ crystals with dimensions up to 50 μm under pO₂ = 200 and T = 400 °C using NaOH-KOH as flux. The crystals show a MIT as evidenced by transport measurements. High-resolution synchrotron X-ray single-crystal diffraction and high-resolution X-ray powder diffraction have been used to investigate the structural response across MIT. Our successful growth of NdNiO₃ crystals using hydroxide flux at low temperature and reduced pO₂ opens the door to a new opportunity for preparing single crystals of other interesting nickelates, including RNiO₃ (R = Sm-Lu), parent phases of superconducting square planar nickelates, and potential multiferroic nickelates.

2. Materials and Synthesis

2.1. High-Pressure Flux Growth of NdNiO₃ Crystals

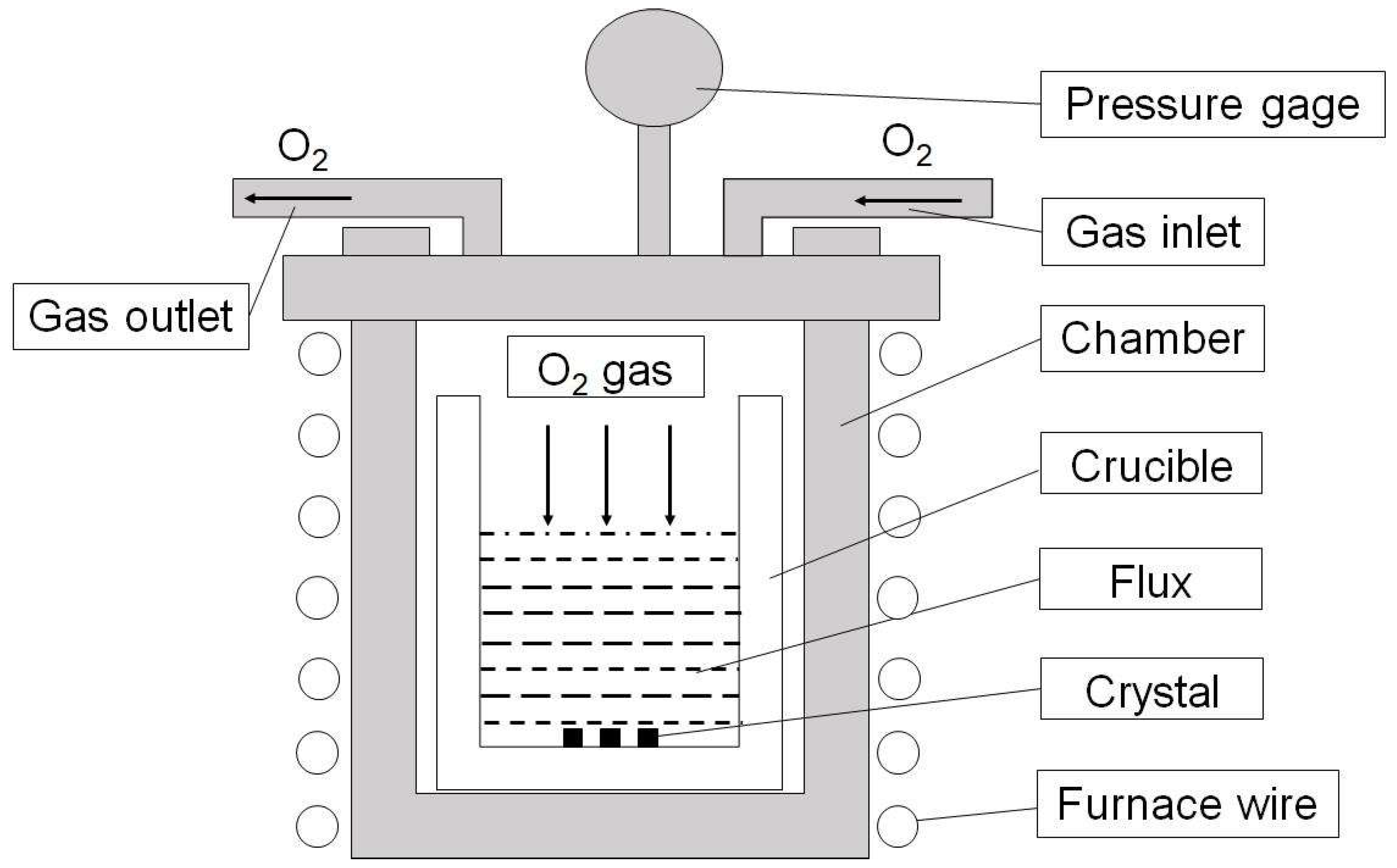

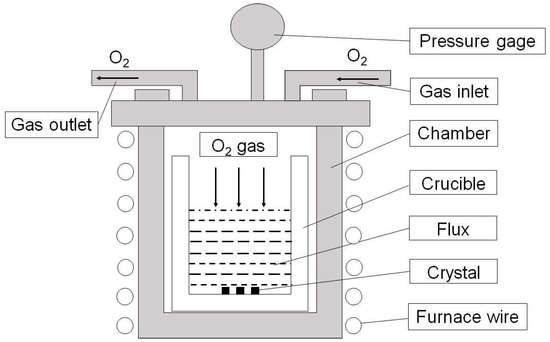

NdNiO₃ crystals were grown using a high-pressure flux furnace designed for operation at T_max = 650 °C and P_max = 300 bar (Model HP45, TOP Industrie). A scheme of the reaction chamber within the furnace is shown in Figure 1. Nd₂O₃ (Alfa Aesar, Haverhill, MA, USA, 99.99%) and NiO (Sigma-Aldrich, St. Louis, MO, USA, 99.99%) were used as starting materials. Nd₂O₃ was baked at 900 °C for 24 h before use. A stoichiometric ratio of Nd₂O₃ and NiO powder was weighted, mixed, and thoroughly ground, and then it was mixed with NaOH/KOH (molar ratio 1:1) flux in a glove box at a weight ratio of 1:10. The mixture was loaded into a Pt crucible, which was then put into the high-pressure furnace HP45. The furnace was filled with oxygen gas at room temperature so as to reach the targeted pO₂ (5, 20, 40, 100, 200, or 300 bar) when the furnace was heated to 400 or 500 °C. During this process, oxygen is consumed due to the reaction of raw materials to form NdNiO₃. Therefore, when the pressure is lower than the expected value, gas was manually filled in: (1) in the range of 150–300 bar, we used a booster pump to increase the pressure (error bar 5%), and (2) below 150 bar, gas was added by opening the valve of gas cylinder. The furnace was maintained at targeted temperature and pO₂ for 48 h in order to dissolve raw materials. After dwelling, the furnace was cooled down to 360 °C at the rate of 5 °C/h and then to 260 °C at 10 or 1 °C/h, followed by furnace cooling to room temperature. No gas was filled during cooling. Finally, flux was dissolved using distilled water and black polycrystals were obtained.

2.2. In-House X-ray Powder Diffraction (PXRD)

Bruker AXS D2 Phaser X-ray powder diffractometer was used to check phase purity. Data were collected at room temperature using Cu-K_α radiation (λ = 1.5418 Å) in the 2θ range of 10–90° with a scan step of 0.02° and 0.2 s per step. Rietveld refinement was performed using TOPAS 6. Refined parameters include background (Chebychev function, 5 order), sample displacement, lattice parameters, crystallite size (L and G), strain L, and atomic positions. Thermal parameters were not refined.

2.3. Synchrotron X-ray Single-Crystal Diffraction (SXRD)

X-ray single-crystal diffraction data were collected with a Pilatus3 X 1M (CdTe) area detector using synchrotron radiation (λ = 0.41328 Å) at 250 K and 120 K at Beamline 15-ID-D (NSF’s ChemMatCARS) at the Advanced Photon Source, Argonne National Laboratory. A piece of a single crystal with dimensions of 0.015 × 0.015 × 0.015 mm³ was mounted to the tip of glass fiber and measured using a Huber 3-circle diffractometer. Indexing, data reduction, and image processing were performed using Bruker APEX3 software [34].

2.4. High-Resolution Synchrotron X-ray Powder Diffraction (HRPXRD)

HRPXRD data were collected at Beamline 11-BM in the 2θ range of 0.5–50° with a step size of 0.001°, counting time of 0.1 s per step, and a wavelength of λ = 0.458961 Å at 295 K and λ = 0.458956 Å at 100 K. Fine-ground polycrystalline powders were loaded into a ϕ0.8-mm Kapton capillary for installation on a magnetic sample base used by the beamline sample changer. The sample was spun continuously at 5600 rpm during data collection. An Oxford Cryostream 700 Plus N₂ gas blower was used to control the temperature at 100 K. Rietveld refinement was performed using TOPAS 6. Refined parameters include background (Chebychev function, 5 order), zero error, lattice parameters, crystallite size (L and G), strain (L and G), atomic positions, and thermal parameters (B_eq). Simple axial Model was used for axial convolutions.

2.5. Scanning Electron Microscopy (SEM)

SEM was used to investigate the microstructure of the crystals. SEM images were obtained with a Hitachi S-4800 microscope at 5.0 kV incident electrons.

2.6. Energy Dispersive Spectrometer (EDS)

The X-ray spectrometer EDAX GENESIS XM2 SYSTEM 60x on S-4800 was used for qualitative and quantitative analysis of the as-grown crystals. The experiment was carried out on a 0.040 × 0.030 × 0.030 mm³ crystal.

2.7. Electrical Transport

Resistivity was measured using the standard four-probe method. The single crystals were too small to make four contacts, so instead, crystals were ground into powders, pressed into thin pellets, and then annealed under different conditions. The pellets were cut into thin bars for making four contacts with silver paint. The temperature was controlled using the Quantum Design Physical Properties Measurement System (Dynacool-9) in the range of 2–300 K.

2.8. Magnetic Susceptibility

The DC magnetization of the samples was measured using a PPMS Dynacool-9. The polycrystalline sample was packed in a clear plastic capsule. The sample was cooled in zero fields to 2 K, and DC magnetization data were recorded on warming (3 K/min). We also measured the magnetization of the empty capsule under the same conditions, which was negligible compared with the sample.

3. Results and Discussion

3.1. High pO₂ Single Crystal Growth

The flux method was used to grow NdNiO₃ crystals. We first consider the LiCl-KCl flux system, as Klein et al. [33] grew NdNiO₃ crystals of 10 µm under 2000 bar at 850 °C, and Prakash et al. [35] successfully synthesized polycrystalline powders of EuNiO₃ and GdNiO₃ at 180 bar O₂. Higher pO₂ is needed for RNiO₃ with smaller R ions [26,27], thus we expect to grow NdNiO₃ crystals below pO₂ = 180 bar. Unfortunately, we failed to grow crystals but found erosion in our furnace due to the reaction between LiCl-KCl and the chamber (Ni-superalloy).

We noticed that the mixture of NaOH/KOH (molar ratio 1:1) has a low melting point of ~170 °C, which could possibly lower the growth temperature of NdNiO₃ significantly and reduce defects in the as-grown crystals. In addition, we found that single crystals of YBa₂Cu₄O₈ and NaNiO₂ were successfully grown by Song et al. [36] and Brion et al. [37], respectively, using such a hydroxide flux system. Initially, we attempted to grow NdNiO₃ at pO₂ = 20 bar at 400 °C. Black powders with tiny shiny crystals of ~10 µm were obtained. Figure 2 shows the Rietveld refinement of in-house powder X-ray diffraction data with R_wp = 6.52% (see Table S1 for Rietveld details). All peaks can be indexed in the space group Pbnm with lattice parameters a = 5.4019 (3) Å, b = 5.3697 (3) Å, c = 7.6009 (5) Å, which are comparable to the results reported by Wang et al. [38]. Therefore, we obtained the same size of NdNiO₃ crystals at less than a half in temperature and two orders lower in oxygen pressure of Klein et al [33].

We then optimized the growth conditions of NdNiO₃, including pO₂, dwelling time, dwelling temperature, and cooling rate (see

Table 1. Growth conditions of NdNiO₃ crystals.

T (°C)	pO2 (Bar)	Dwelling Time (h)	Cooling Rate (°C/h)	Phase (s)	Crystal Size (μm)
400	5	24	10	NdNiO3 + NiO (trace)	<5
400	20	24	10	NdNiO3 + NiO (trace)	<5
400	20	48	10	NdNiO3	<5
400	100	48	10	NdNiO3	5–15
400	200	48	10	NdNiO3	15–25
400	300	48	10	NdNiO3	15–28
500	300	48	10	NdNiO3 + Na0.6Ni3O5.4	15–28
400	200	48	1	NdNiO3	20–50

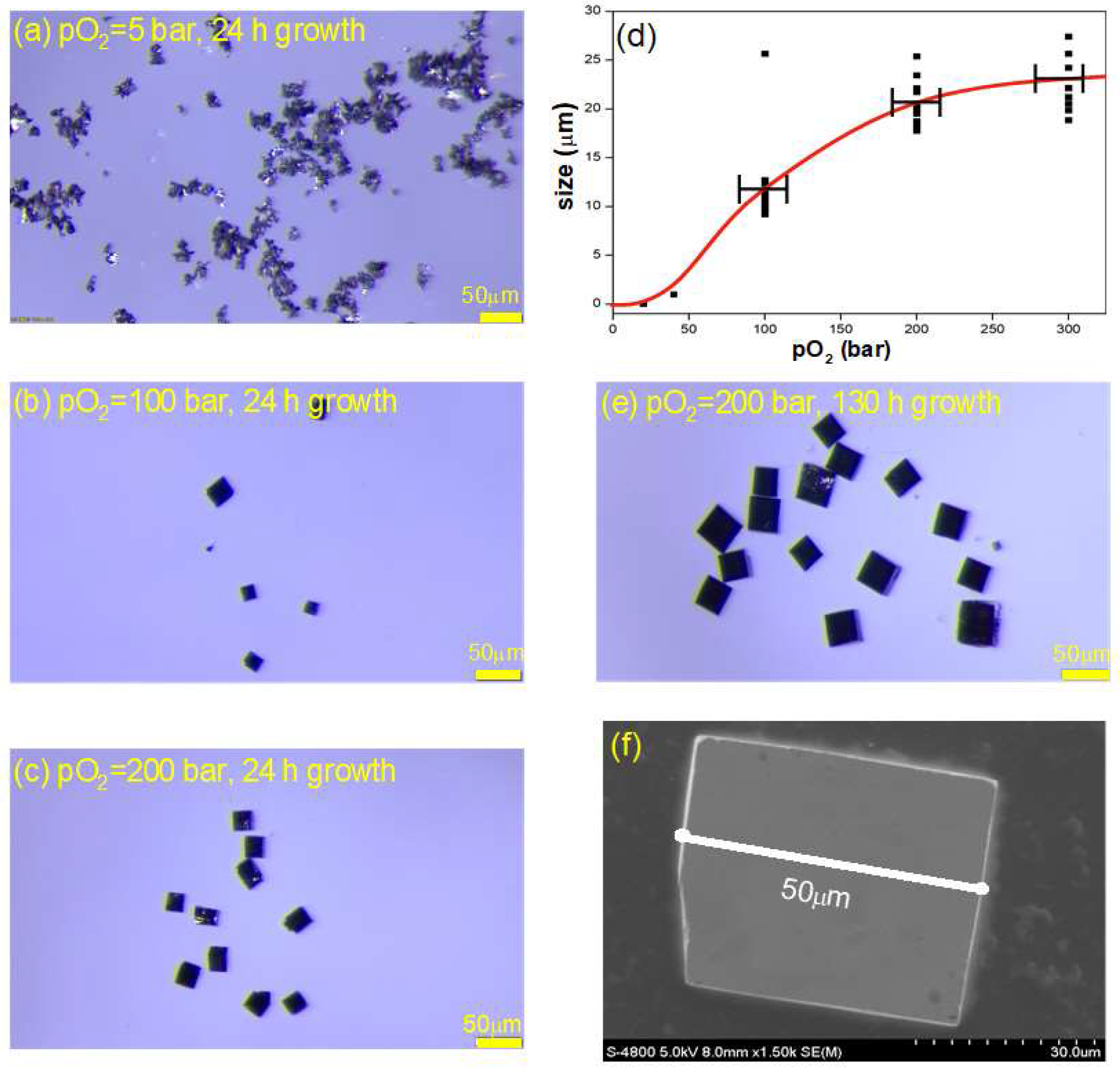

) in order to improve the dimensions and quality of crystals. We first optimized the dwelling time under pO₂ = 20 bar, and the content of the NiO impurity phase in the product decreased significantly after the dwelling time was extended from 24 to 48 h; there was no obvious improvement after 48 h. Therefore, the dwelling time was selected as 48 h in the subsequent experiments. We then turned to optimizing pO₂. Unexpectedly, the pure phase of NdNiO₃ could be obtained at the lowest oxygen pressure of 5 bar, but the overall particles were small and no crystals could be observed under the microscope using 185 times magnification (Figure 3a). When the oxygen pressure was increased to 100 bar, prismatic crystals appeared (see Figure 3b). With the increase of pO₂ to 200 bar, the crystal size and morphology are remarkably improved (Figure 3c). Further increasing the pO₂ to 300 bar, the crystal size increased to a small extent (not shown). Figure 3d presents the crystal size as a function of pO₂ under the same conditions: NdNiO₃/flux = 1:10 (weight), dwelling time 48 h at 400 °C, and cooling rate 10 °C/h. As can be seen, the size of crystals increases significantly as pO₂ increases and improves limitedly beyond 200 bar. For dwelling temperature, we went to 500 °C under pO₂ of 300 bar, and the dimensions of the obtained NdNiO₃ were the same level as 400 °C, while the corrosion of the flux to crucible was much worse. Furthermore, NaOH in the flux reacted with NiO to form Na_0.6Ni₃O_5.4 impurities. Thus, we determined 200 bar as the optimized pO₂. We further slowed down the cooling rate to 1 °C/h, and finally obtained shiny NdNiO₃ crystals with a maximum size of about 50 μm (Figure 3e). SEM showed that the crystal had a regular appearance without obvious defects (Figure 3f). The composition of the crystals was estimated using EDS Figure S1 (See Supplementary Materials). The EDS data showed that the crystals contained Nd, Ni, and O elements, and the molar ratio of Nd: Ni is close to 1.

3.2. Physical Properties

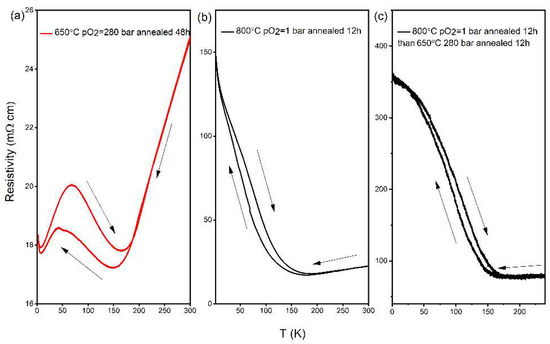

Resistivity. To check if our crystals show metal-insulator transition, we performed resistivity measurements. As the crystals are not large enough, we measured resistivity on polycrystalline thin bars using the four-probe method. Figure 4 shows the resistivity of NdNiO₃ as a function of temperature on heating and cooling from three samples: (a) annealed at 650 °C for 48 h under pO₂ = 280 bar, (b) annealed at 800 °C for 12 h under pO₂ = 1 bar (see Figure S2 for PXRD), and (c) initially annealed at 800 °C for 12 h under pO₂ = 1 bar and then at 650 °C for 12 h under pO₂ = 280 bar. All three samples exhibit metal-insulator transition, although the transition temperature is a bit lower compared with 196 K reported in Ref. [33]. This T_MIT-reduced behavior is consistent with previously reported polycrystalline samples that contain oxygen vacancies [39]. Sample (a) shows a large hysteresis and re-enters a metallic state at a lower temperature. This re-entry behavior has also been observed in PrNiO₃ single crystals, which was attributed to the presence of oxygen vacancies [27]. The existence of oxygen deficiency in our samples is not unexpected as this is a common phenomenon in perovskite oxides and the pO₂ we used for crystal growth is one order smaller than Klein et al. [33] The above three samples are expected to have different oxygen contents, and the oxygen content of as-grown crystals should fall into their range; thus, one expects to see metal-insulator transition in the as-grown crystals. To achieve stoichiometric oxygen contents, annealing at high pO₂ and longer time are needed.

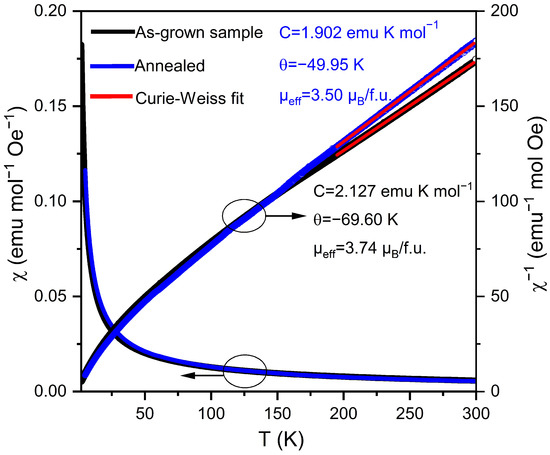

Magnetic susceptibility. Complementary to transport properties, magnetic measurements offer an additional way to assess the properties of our sample. It was reported that antiferromagnetic order occurs concomitantly with MIT for NdNiO₃ [22]. The temperature dependent DC magnetic susceptibility (χ) and the inverse magnetic susceptibility (1/χ) of as-grown NdNiO₃ and annealed at 650 °C for 48 h under pO₂ = 280 bar are shown in Figure 5. No anomaly, discontinuity, or change in slope, which would mark the onset of magnetic ordering, was observed down to 2 K. This is likely because the magnetic susceptibility is dominated by the paramagnetic contribution of Nd³⁺, which mask the weak signal of the Ni sublattice. A Curie–Weiss fit to the as-grown data in the range of 200–300 K, χ = C/(T-θ), where C and θ are the Curie and Weiss constants, respectively, yields C = 2.127 emu K mol⁻¹ and θ = −69.6 K. The resulting effective moment is µ_eff = 3.74 µ_B/f.u., which is close to the expected value of 3.89 µ_B/f.u. of the free ion Nd³⁺. The large negative value of the Weiss constant indicates strong antiferromagnetic interactions.

3.3. Structural Study at Various Temperatures

Perovskite nickelates (R = Pr-Lu) exhibit an MIT from a high-temperature metallic state to a low-temperature antiferromagnetic insulator. It has been reported that NdNiO₃ has subtle Pbnm→P2₁/n symmetry breaking and associated Ni site splitting below T_MIT [22]. To check the monoclinic distortion and possible orbital ordering [40], we have performed high-resolution X-ray single-crystal and powder diffraction using synchrotron radiation.

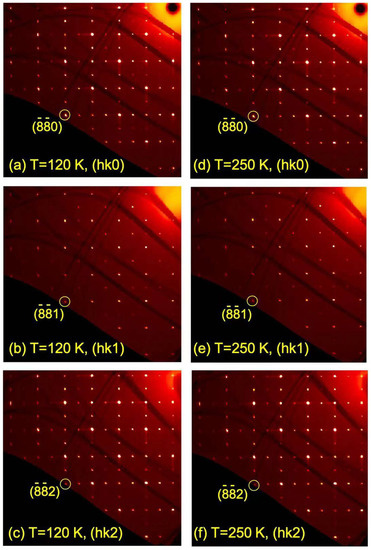

We found our NdNiO₃ single crystals are twinned even at room temperature, resulting in a pseudocubic lattice with an average lattice parameter of a~7.6 Å in our synchrotron X-ray single-crystal diffraction at 15-ID-D. This is understandable because, in the two translation symmetry reductions going from the SrTiO₃ structure, space group Pm-3m, to the orthorhombically distorted GdFeO₃ type, space group Pbnm, twinning is highly probable, according to the Bärnighausen tree for the various perovskite superstructures. Figure 6 shows the pseudocubic (hk0), (hk1), and (hk2) planes measured by single-crystal X-ray diffraction at 120 and 250 K. There are no superlattice peaks below MIT, consistent with the lack of orbital ordering reported in Ref. [41].

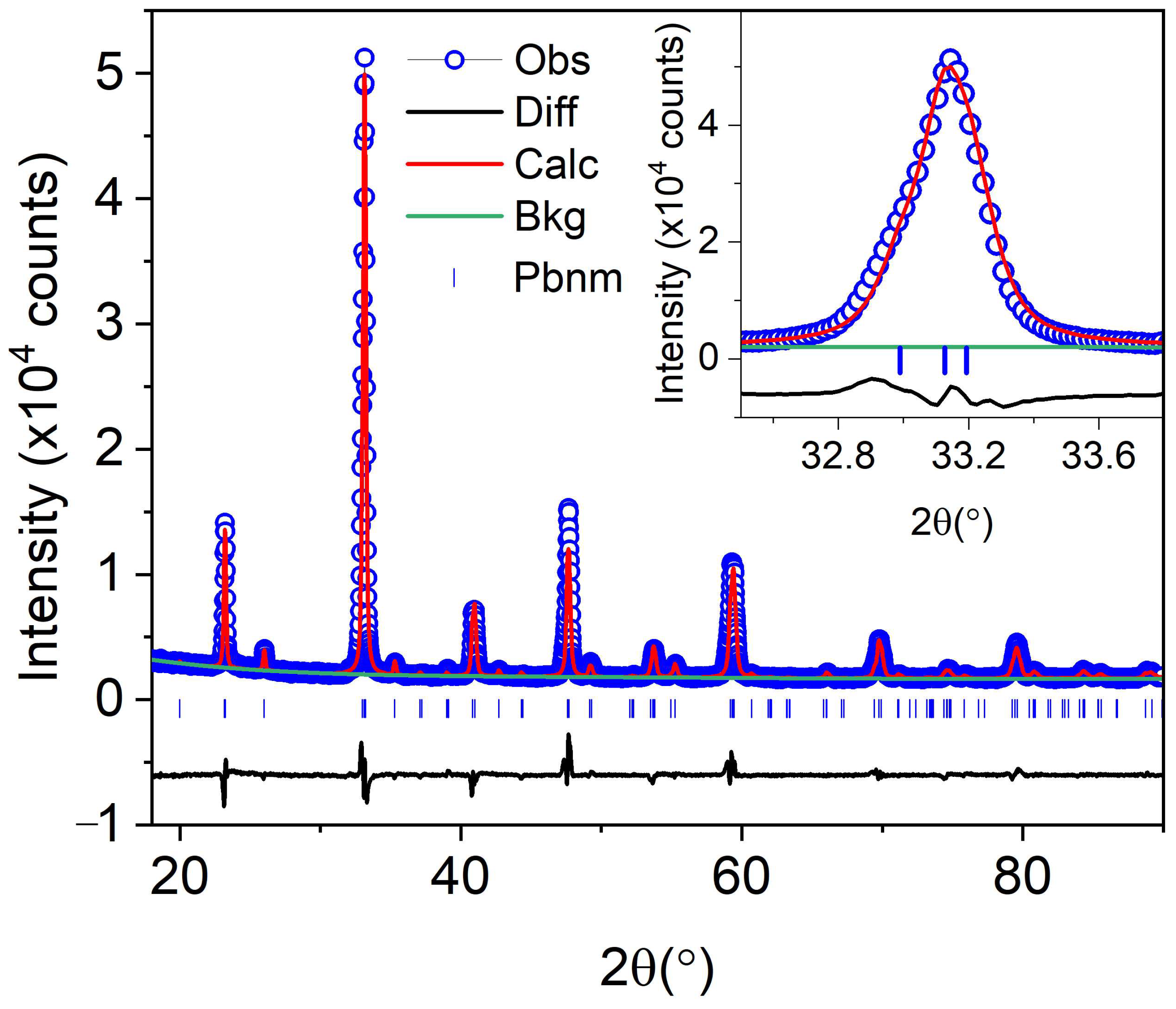

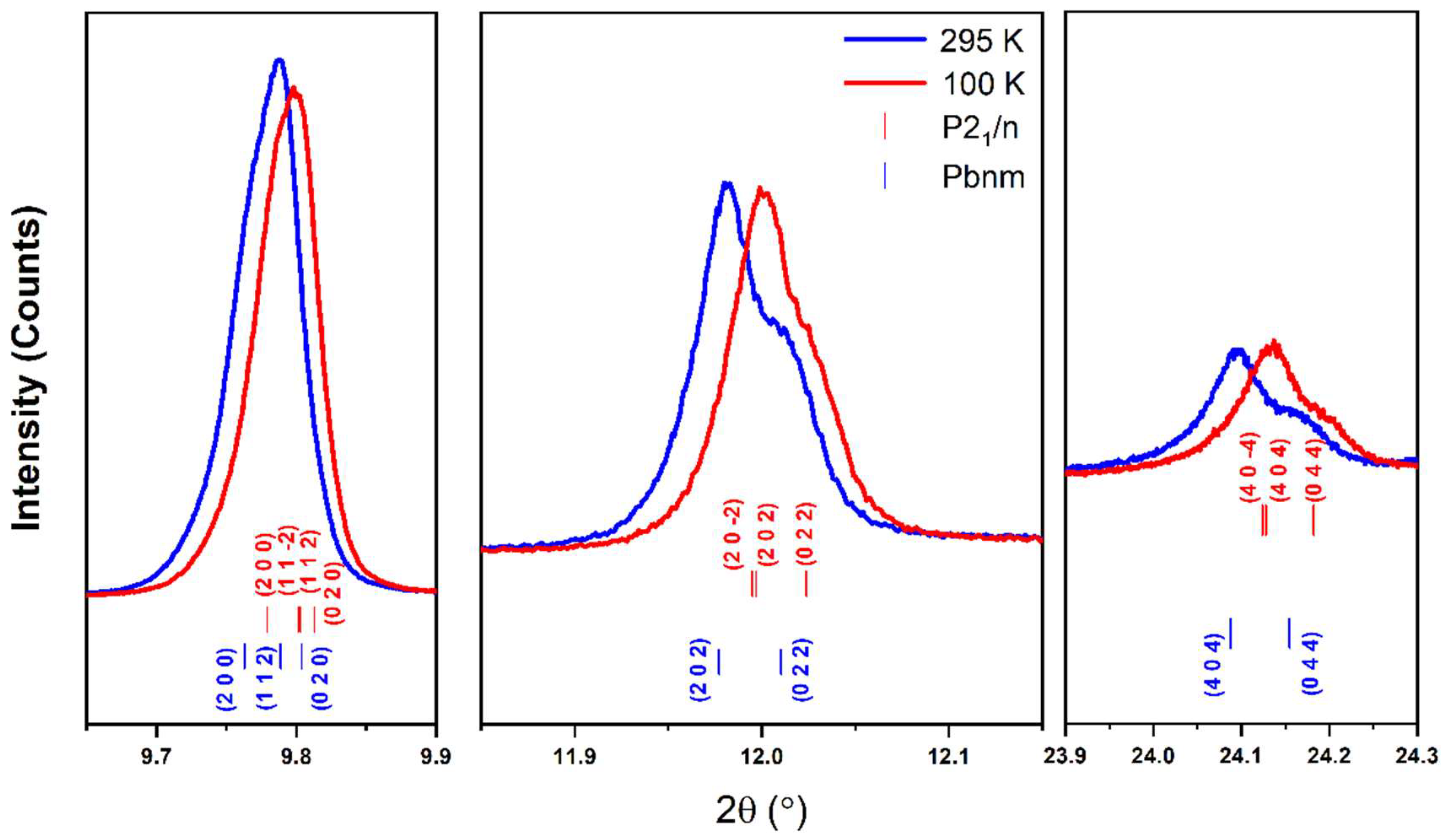

Due to twinning and possible subtle structural change across MIT, we turn to synchrotron X-ray high-resolution powder diffraction to check if any peak splitting. Synchrotron diffraction data were collected at 295 and 100 K at 11-BM at the Advanced Photon Source, Argonne National Laboratory. Tables S2–S4 list details of Rietveld refinements and obtained crystallographic data such as unit cell parameters and atomic positions. At 295 K, the diffraction pattern is in good agreement with Pbnm, and Rietveld refinement converged to R_wp = 14.88% and GOF = 2.34. Our refinement shows that there are 3.99 (4)%wt NiO impurities in the sample (Figure S3a). For the diffraction data of 100 K, we fitted the data using both the orthorhombic Pbnm model and the monoclinic P2₁/n model, and slight improvement was obtained using the latter model (Figure S3b–c). Compared with the 50 K diffraction data in the literature [42], we did not observe a clear splitting of the (40$\overline{4}$)/(404) reflections that signals the lowering symmetry to P2₁/n (Figure 7). This may be because the structural phase transition is too subtle to be detected at 100 K, and a lower temperature may be needed.

4. Conclusions

We have successfully grown NdNiO₃ single crystals with dimensions of up to 50 μm on edge at 400 °C and 200 bar oxygen pressure using the KOH-NaOH flux system. The grown crystals have well-defined faces and regular, slightly truncated prismatic habits. Compared with previous flux systems, the hydroxide flux system significantly reduces the growth temperature and oxygen pressure while obtaining larger NdNiO₃ single crystals. A clear metal-insulator transition was observed in resistivity. In contrast, no superlattice peaks were observed in synchrotron X-ray single-crystal diffraction at 120 K, nor was peak splitting found in high-resolution synchrotron X-ray powder diffraction at 100 K. The absence of the (40$\overline{4}$)/(404) peak splitting may be due to too subtle structural change across MIT and measurements at liquid helium temperature may be needed. Finally, the high pO₂ flux growth method described here provides an alternative approach for preparing single crystals of interesting perovskites, including parent phases of superconducting infinite nickelates and potential multiferroic nickelates, at a relatively low temperature and oxygen pressure [24,25].
