Bandgap and Carrier Dynamic Controls in CsPbBr₃ Nanocrystals Encapsulated in Polydimethylsiloxane

Abstract

Bandgap tunability through ion substitution is a key feature of lead halide perovskite nanocrystals (LHP-NCs). However, the low stability and low luminescent performance of CsPbCl₃ hinder their full-color applications. In this work, quantum confinement effect (QCE) was utilized to control the bandgap of CsPbBr₃ NCs instead of using unstable CsPbCl₃, which possess much higher emission efficiency in blue spectra region. Studies of microstructures, optical spectra and carrier dynamics revealed that tuning the reaction temperature was an effective way of controlling the NC sizes as well as QCE. Furthermore, the obtained CsPbBr₃ NCs were encapsulated in a PDMS matrix while maintaining their size distribution and quantum-confined optoelectronic properties. The encapsulated samples showed long-term air and water stability. These results provide valuable guidance for both applications of LHP-NCs and principal investigation related to the carrier transition in LHP-NCs.

1. Introduction

Lead halide perovskite (LHP) crystals, be they hybrid organic−inorganic MAPbX₃ (MA = CH₃NH₃⁺; X = Cl⁻, Br⁻ and I⁻), FAPbX₃ (FA = CH(NH₂)²⁺) or their fully inorganic counterpart CsPbX₃, have been attracting widespread attention since Kojima et al. [1] demonstrated their high potentials in photovoltaic (PV) applications in 2009 [2,3,4]. Based on their excellent optoelectronic properties such as large absorption coefficients, long diffusion length and high charge carrier mobility, they have come under the spotlight in numerous fields far beyond thin-film absorber layers in PV devices in the past few years [5,6,7]. Colloidal perovskite nanocrystals (CPNCs) are the most recent type of LHP material [8], which differ from the previous epitaxially grown perovskite thin film materials. The facile solution-phase synthesis processes for CPNCs make them superior to traditional epitaxial thin films in the applications of new generation low-cost, flexible and large-scale lighting and display devices [9,10,11,12,13,14,15]. Furthermore, CPNCs are suitable to combine other solution-processable materials such as other NCs, polymers or molecules to obtain special optoelectronic, magnetic or catalytic properties.

Perovskites are direct-bandgap semiconductors, spectrally tunable through compositional control of halides. For example, by controlling the Cl:Br or Br:I ratio in halides, the photoluminescence (PL) peak can be tuned from 400 nm to 850 nm, covering the whole visible range [16,17]. Therefore, one of the advantages of perovskites is the excellent ability to tune their optoelectronic properties by ion substitution. Unfortunately, the stabilities and luminescent efficiencies of LHPs with different halides are different. The cubic-phased CsPbBr₃ crystals show green emission with photoluminescent quantum yield (PLQY) up to 90% and long-term stability, whereas cubic-phased CsPbCl₃ or CsPbCl_3–xBr_x crystals are not stable at room temperature and show violet to blue emission with PLQY close to 1%, which also easily degrade in few hours [17]. These divergences are intrinsically based on differences in radii of the halide ions, which lead to difficulty in fabricating blue and violet light sources based on CPNCs and hinder their full-color applications. However, it is worth noting that besides ion substitution, particle size control can be another method to tune the bandgap. If the CPNC diameter is comparable or smaller than the exciton Bohr diameter, the quantum confinement effect (QCE) will lead to the broadening of bandgap and splitting of quasi-continuous in-band energy levels [18]. This method has been proved effective in traditional IV, II-VI and III-V group semiconductor NCs [19,20,21,22]. In the case of CPNCs, Protesescu et al. [8] for the first time reported that the sizes and optical bandgaps of square-shaped CsPbBr₃ NCs could be well-controlled by reaction temperature and the bandgaps. Alivisatos et al. [23] and Manna et al. [24] reported the layer-by-layer growth of LHP nanoplatelets (NPLs) and their tunable emission due to QCE.

In this work, CsPbBr₃ NCs with high PLQYs were fabricated by solution-phase hot-injection process. During the fabrication processes, the size of CsPbBr₃ NCs was tuned in the range of 4–10 nm by controlling reaction temperature at 80–160 °C. It was found that the NCs remained in the cubic phase even with a reaction temperature as low as 80 °C and showed tunable absorption and emission bands which both blueshifted with decreasing NC size. The broadening of bandgaps was well-matched with the quantum confinement model of effective mass approximation (EMA). Furthermore, based on the time-resolved PL spectrum results, decay lifetimes of Wannier–Mott excitons were found increasing following the decrease of NC sizes. These results clearly indicated the contribution of QCE that led to the bandgap enlargement, which provided a well approach for tailoring the emission wavelength of CPNCs that are with stable structure. More importantly, this result implies that, as the exciton lifetime can be prolonged as a strong confinement region, the QCE may also bring in other special optoelectronic behaviors, such as multiple exciton generation effect (MEG), which requires extra high energy level at least twice the bandgap to absorb incident photons and limited carrier relaxation rate. For further enhancing the chemical stability of obtained CsPbBr₃ NCs, we encapsulated them into polymer matrix (polydimethylsiloxane, PDMS) to form stable functionalized mixtures while maintaining the NC size distribution and optoelectronic properties. The encapsulated NCs showed extra stable luminescence in air or in water for months. This result provided good guidance of applying the bandgap tunable CsPbBr₃ NCs in optoelectronic devices.

2. Materials and Methods

2.1. Material

Chemicals. Cesium carbonate (Cs₂CO₃, 99.9%), lead (II) bromide (PbBr₂, 99.9%), octadecene (ODE, 90%), oleylamine (OAM, 90%), oleic acid (OA, 90%) and n-hexane (HEX, 90%) were purchased from Aladdin. PDMS Sylgard 184 was purchased from Dow Corning. All chemicals were used as received without any further purification.

Synthesis of Cs-oleate precursor. In a typical synthesis, 0.814 g of Cs₂CO₃, 2.5 mL of OA and 40 mL of ODE were mixed in a four-neck flask and dried under vacuum at 120 °C for 30 min, then they were heated at 150 °C under N₂ environment until Cs₂CO₃ was totally dissolved. 15 mL of ODE and 0.207 g of PbBr₂ were mixed in a four-neck flask and dried under vacuum at 120 °C for 30 min.

Synthesis of CsPbBr₃. 1.5 mL of OA and 1.5 mL of OAm were injected at 120 °C under N₂ flow. Then, heating was continued at 120 °C until PbBr₂ was totally dissolved. Afterward, 1.2 mL of Cs-oleate precursor, which was also pre-heated at 100 °C, was injected into the prepared solution. By controlling the temperature of PbBr₂, the precursors were controlled between 80 °C and 160 °C during injection for the purpose of tuning the size of final NC products. After 5 s, the four-necked flask was placed in an ice bath and cooled to room temperature.

Encapsulation of CsPbBr₃. A mixture of polymer and curing agent in a ratio of 10:1 and CsPbBr₃ NC solution were mixed to form PDMS precursor. The mixture was stirred uniformly and then was kept under vacuum for 2 h. After that, the samples were cured in an oven at 60 °C for 10 h.

2.2. Characterization

The transmission electron microscopy (TEM) (FEI TECNAI G2 F30, Hillsboro, OR, USA) images were acquired on a FEI TECNAI G2 F30 transmission electron microscope. The obtained structure and phase of the CsPbBr₃ NCs were characterized through X-ray powder diffraction (SMARTLAB3KW, Cu Kα radiation λ = 1.5418 Å) (Rigaku SMARTLAB3KW, Tokyo, Japan). The ultraviolet-visible (UV-Vis) absorption spectra were collected by using a Shimadzu UV-2700 (Shimadzu UV-2700, Kyoto, Japan) in transmission mode at room temperature. The nanocrystals were dispersed in n-hexane. PL and fluorescent decay curve measurements were conducted utilizing the Edinburgh FLS1000 spectrophotometer (Edinburgh FLS1000, Livingston, UK) equipped with 375 nm laser as excitation source.

3. Results and Discussion

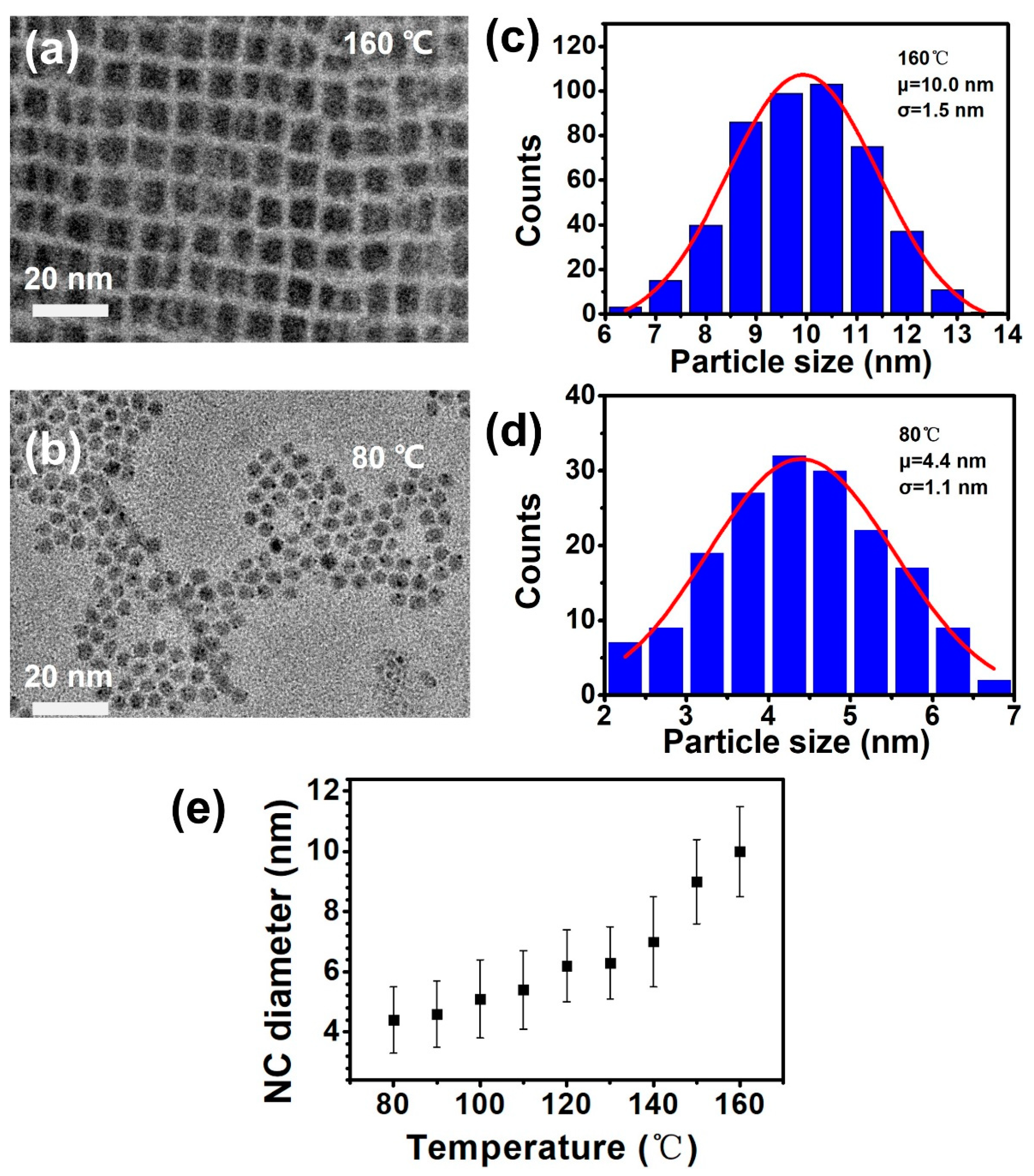

According to the method described in the Materials and Methods section, a series of CsPbBr₃ samples with different reaction temperatures (80–160 °C) were prepared. TEM was used to examine the morphology and the particle diameters of CsPbBr₃ NCs as shown in Figure 1a,b. The prepared CsPbBr₃ NCs at 160 °C showed quasi cubic shape with high monodispersity and formed self-assembled arrays. In contrast, CsPbBr₃ NCs obtained at the lowest 80 °C showed more spherical shape with smaller sizes. This indicated the initial growth of CsPbBr₃ was more spatially isotropic. The size distribution of the above NC samples was shown as in Figure 1c,d by counting a group of NC sizes from TEM images. The results turned out that sizes of both kinds of NCs accorded Gaussian distribution. The diameter distribution of NC is 10.0 ± 1.5 nm for the sample fabricated at 160 °C and 4.4 ± 1.1 nm for the sample fabricated at 80 °C. More systematic investigation revealed that the obtained NCs with reaction temperature between 80 °C and 160 °C resulted in NC size in the range of 4.4–10.0 nm, which increased with raised temperature, as shown in Figure 1e.

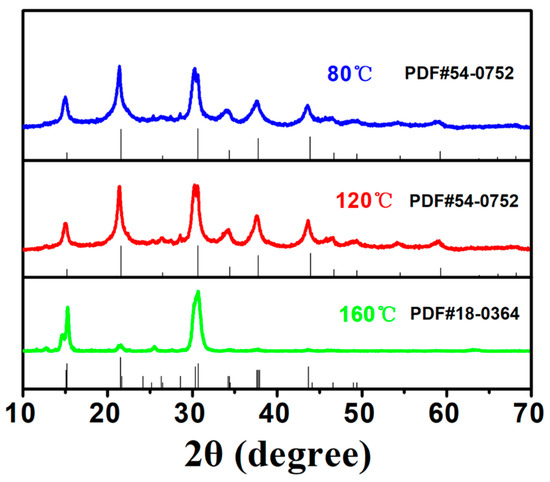

Then, XRD patterns were used to examine the crystalline structures of synthesized CsPbBr3 NCs with different reaction temperature. As shown in Figure 2, the XRD patterns of samples synthesized at 80 °C and 120 °C were both ascribable to typical cubic phase perovskite crystals (PDF#54-0752) without any other miscellaneous phase. It is already known that bulk CsPbBr₃ single crystals require a crystalline temperature above 200 °C. Therefore, here the extra low forming temperature of CsPbBr₃ NCs may originate from the surface effect of extra small particles as that large surface energy reduces the crystalline temperature for the cubic phase. Furthermore, it was found that further increasing the reaction temperature up to 160 °C led to slight changes in crystalline structures as it became a monoclinic phase (PDF#18-0364) crystal. This result indicated that overhigh reaction temperature led to the lattice distortion; in other words, the backbone of corner sharing [PbCl₃] octahedra slightly tilts toward certain directions in high temperature conditions.

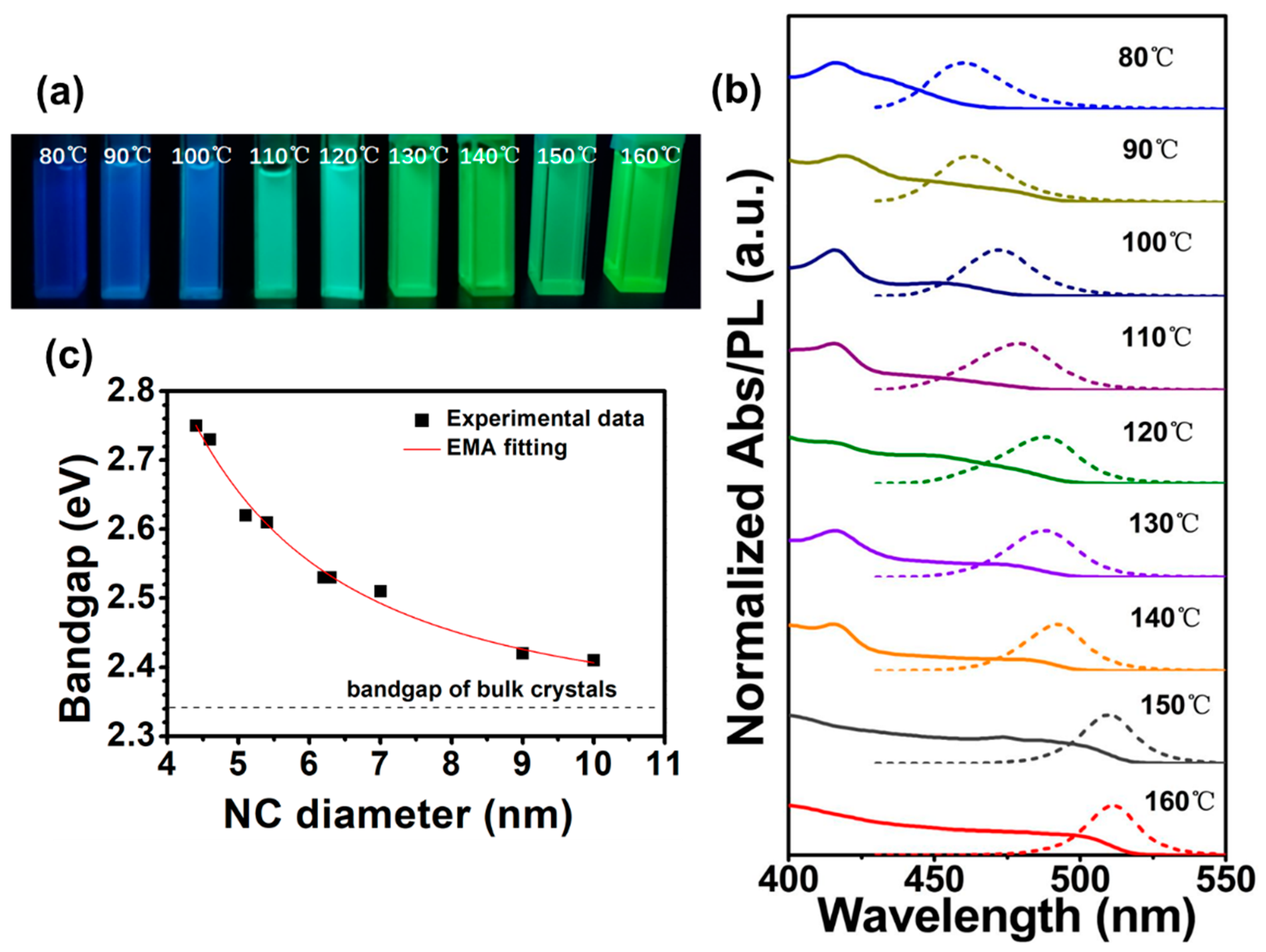

The purpose of controlling the CsPbBr₃ NC sizes is to adjust their optoelectronic properties, especially to continuously adjust their absorption and emission wavelengths. Here, these properties were examined by UV-Vis and PL spectroscopies in our samples. Firstly, as shown in Figure 3a, under 296 nm irradiation of a UV lamp, the CsPbBr₃ NC samples showed continuously changing emission color from bright green to dark blue following the decrease of reaction temperature from 160 °C to 80 °C. Under optical conditions, The PLQY results turned out to be 80–90%, which were found to weakly depend on NC sizes. Obviously, the PLQY of samples with blue emission (80–100 °C) possessed much higher PLQYs than CsPbCl₃ or CsPbCl_3–xBr_x NCs. Their exact emission peaks excited by 375 nm laser were shown in Figure 3b for quantitative analysis. The peak wavelength was found blueshifting from 510 nm to 460 nm with shrinking NC sizes. Meanwhile, the full width at half maximum (FWHM) was found enlarged following the blueshifting peak position. For instance, the FWHM for NCs synthesized at 160 °C, 120 °C and 80 °C were 22 nm, 31 nm and 50 nm, respectively. This result indicated that as QCE appears, the bandgap of a single NC becomes more sensitive to its size. Thus, the overall width of emission peak tends to be more correlated to the size distribution of NCs compared to bulk crystals. Another explanation is that splitting of in-band energy levels leads to the in-band relaxation of carriers becoming forbidden; therefore, their recombination can continue via several split sub-energy levels, which leads to the broadening of emission peak.

Furthermore, the optical absorption band of the CsPbBr₃ NCs was found blueshifting in the same manner of emission peak. Besides, an extra absorption peak at around 415 nm was also found after the reaction temperature was lower than 140 °C, whose peak position is fixed. This absorption peak fixed at the high energy side can be ascribed to the formation of 2D single-layered perovskite nanoplatelets [24]. By Tauc-plot analysis, the optical bandgaps of CsPbBr₃ NCs were found well-matching with their peak energy. This result verifies the band-to-band transition behaviors stays dominant for the PL processes in NC samples, and their bandgaps broaden with reduced sizes. It has also been determined that the effective Bohr diameter of CsPbBr₃ crystal is ~7 nm [8]. Here, the obtained NC diameters are close to or smaller than this value. Thus, the broadening of NC bandgaps can be estimated following EMA for 0D isotropic quantum dots as $\mathsf{\Delta }E={\hslash }^2{\pi }^2/2m^{*}{r}^2$, in which $r$ represents the NC radius and $m^{*}$ represents the effective mass of excitons. As shown in Figure 3c, fitting result revealed that the broadening of bandgaps matched the EMA model well in the NC size range of 4–10 nm. This result indicated that the obtained CsPbBr₃ NCs possessed 0D confinement structures with lengths in all three dimensions close to or smaller than the Bohr diameter, which is similar to the behaviors of nanocubes first reported by Protesescu and coworkers [8], instead of ones of layer-by-layer grown NPLs.

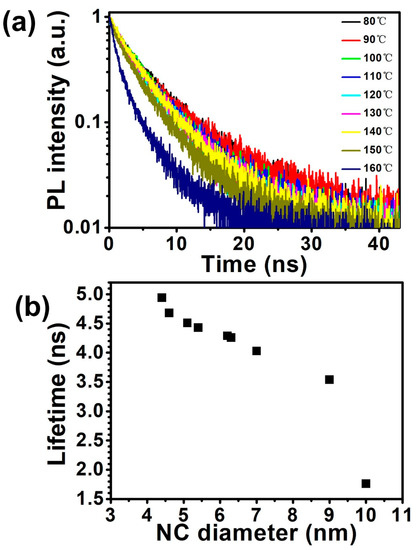

Although steady-state PL and absorption have shown clear signs of bandgap adjustments throughout size controls, QCE needs further verification throughout analysis of carrier dynamics mechanism in the system. As shown in Figure 4a, pumped by a 375 nm pulse laser and detected at their PL maximums, the PL intensities of CsPbBr₃ NCs were found all decaying in periods of tens of nanoseconds, which agreed with the decay behaviors of intrinsic transitions found in bulk CsPbBr₃ crystals. Interestingly, the PL decay seems to become slower with decreasing reaction temperature or NC size. Ordinarily, smaller size means larger surface defect density as well as a faster PL decay caused by shorter non-radiative recombination lifetime at room temperature. However, perovskites possess an inherent advantage as their defect tolerance factor: defects in CPNCs are benign to the electronic and optical properties, even being abundant, because defects in perovskites form states localizing within valence bands and conduction bands, or at worst, shallow states below conduction bands, so they do not form mid-gap trap states [25,26]. Therefore, the above result can be only explained as the increase of radiative recombination lifetime. By fitting the PL decay curves with single exponential decay function, the obtained PL lifetimes were summarized in Figure 4b for quantitative analysis. It turns out that PL lifetime monotonously increases following the shrinking of NC size, and there are two distinguishable periods of lifetime evolution: it raises quickly from 1.7 ns to 3.5 ns in the temperature range from 160 °C to 140 °C, at which the NC size decreased from 10 nm to 7 nm; then, it raises more steadily from 3.5 ns to 5 ns in the temperature range from 140 °C to 80 °C, at which the NC size decreased from 7 nm to 4.4 nm. Based on the above discussion, if the contribution of non-radiative recombination lifetime has been ruled out, the rapid change of radiative recombination lifetime may indicate a major change in radiative recombination pathway. Considering that Bohr diameter (~7 nm) is the threshold of weak confinement regime and strong confinement regime, this major change can be ascribed to the forming of Wannier–Mott excitons which have a longer radiative recombination lifetime than free electron–hole pairs. Meanwhile, the slow increase in PL lifetime in a strong confinement regime is due to the splitting of in-band energy level, which limits in-band relaxation of hot carriers.

By considering both the bandgap broadening that accords to the EMA model and exciton dynamics, we can confirm that the bandgap control is due to QCE. Furthermore, these results indicate the possibility of controlling the exciton dynamics, which provides the platform to investigate other beneficial effects such as MEG’s effect on the perovskite system. MEG requires an extra high energy level at least twice the bandgap to absorb incident photons, limited carrier relaxation rate within in-band energy level to prevent hot carrier cooling and relaxation of momentum conservation, which may be all fulfilled by QCE [27]. Thus, controlling QCE is one of the prerequisites of realizing MEG in CPNCs.

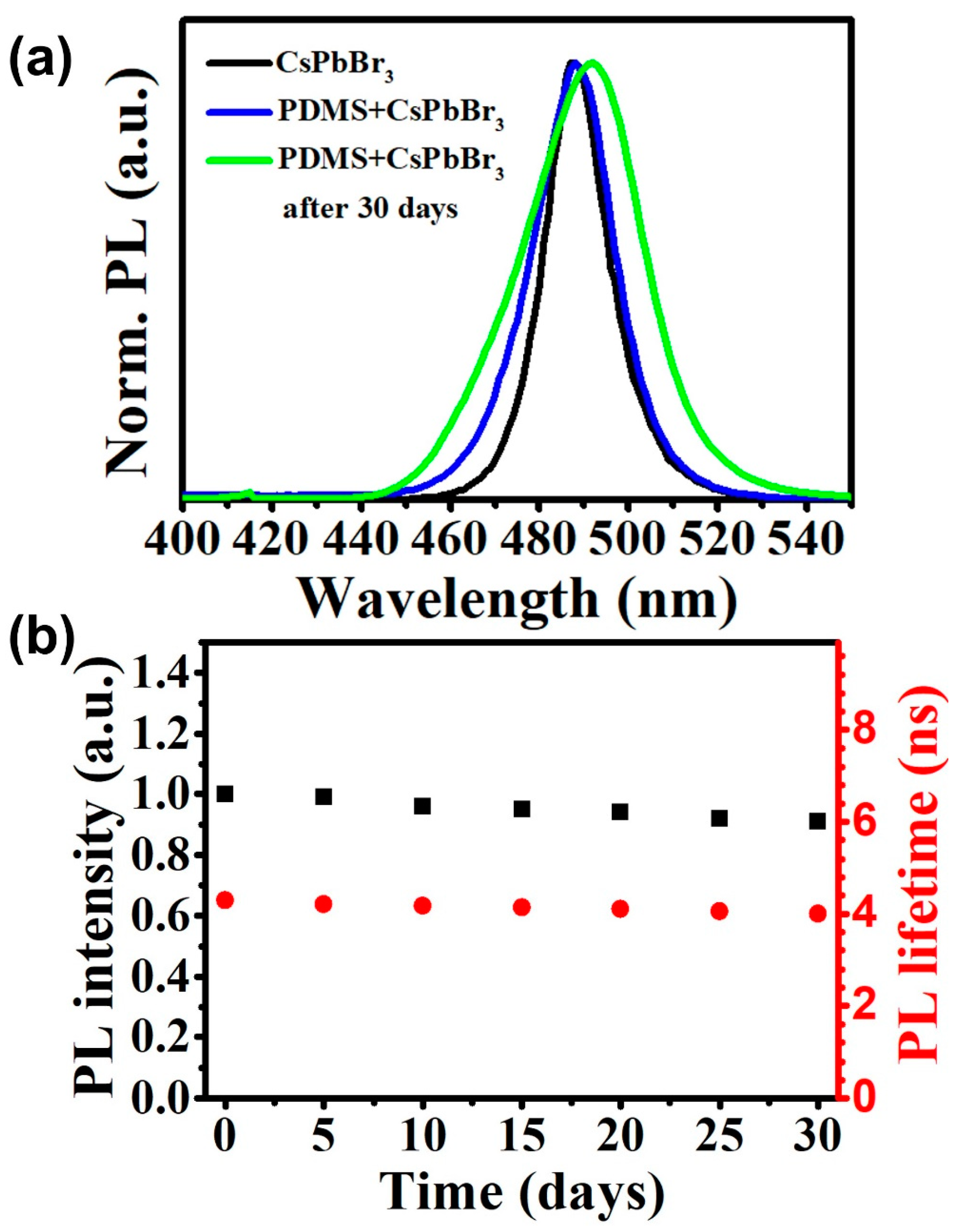

In practical applications of CsPbBr₃ NCs, stability is a critical issue, for they easily deform if contacting polar solvent, moisture, oxygen or are exposed to UV light. There have been several surface-capping or encapsulation methods developed for solving these problems [28,29,30,31,32]. However, one difficulty is that most of these techniques may lead to the growth of NCs in the processes, which will vanish the QCE in the particles. In this work, we attempted to disperse and stabilize the as-prepared CsPbBr₃ NCs in organic polymer PDMS matrix with maintaining their size distribution and optoelectronic properties. The final product can be made into functional slides, thin films or powders for several kinds of applications such as luminescent glass, photovoltaics or phosphors. As an example, the luminescent properties of the NC sample synthesized at 120 °C are shown as Figure 5a,b. By optimizing the synthesis process, the as-prepared stabilized NC sample in PDMS can be found with almost the same emission band with an expansion of FWHM less than 5 nm. This result indicates that the encapsulation process did not induce notable regrowth or aggregation of NCs. Then, the sample was put under an ambient condition for one month to examine the air and water stability. Its PL peak showed a redshift of 5 nm and a broadening of 10 nm. Its PL intensity and PL lifetime was continuously observed during the month. The PL intensity dropped only 10%, and the PL lifetime was found decreasing from 4.3 ns to 4.0 ns. These results indicate that the encapsulated sample showed outstanding resistance to oxygen and water.

4. Conclusions

In summary, CsPbBr₃ NCs with 80–90% PLQYs were synthesized by a hot-injection method. The NC sizes were successfully tuned in the range of 4–10 nm by controlling reaction temperature at 80–160 °C. The absorption bands and emission peaks of these CsPbBr₃ NCs were found blueshifting with decreasing NC size. There behaviors were ascribed to QCE, which induces the bandgap broadening following the EMA model for 0D isotropic quantum dots. The carrier dynamic investigation revealed that exciton recombination lifetime increased rapidly in the case that the NC diameter shrined below exciton Bohr diameter, which indicated the forming of Wannier–Mott excitons. Further decreasing of the NC diameter led to a slow raise of exciton lifetime, which was induced by stronger size confinement effect. This result indicated that the exciton lifetime was also controllable by shrinking of NC size.

Furthermore, the as-prepared CsPbBr₃ NCs were dispersed and stabilized into PDMS matrix while maintaining their size distribution and optoelectronic properties. The encapsulated samples showed long-term air and water stability, which showed high potentials in optoelectronic applications.
