Electrochemical Detection of Sarcosine and Supercapacitor Based on a New Ni–Metal Organic Framework Electrode Material

by
Shaomin Lin
1,
Yi Wang
2,
Chenyang Zhang
1,
Yunying Wu
1,3,
Bodong Zhang
1,
Chunjuan Zhou
1 and
Huan Yang
1,*
1
The School of Material Science and Engineering, Hanshan Normal University, Chaozhou 521041, China
2
College of Chemistry and Material Engineering, Guiyang University, Guiyang 550005, China
3
Guangdong Chaoshan Institute of Higher Education and Technology, Chaozhou 521041, China
*
Author to whom correspondence should be addressed.
Crystals 2021, 11(9), 1036; https://doi.org/10.3390/cryst11091036
Submission received: 14 July 2021 / Revised: 19 August 2021 / Accepted: 25 August 2021 / Published: 28 August 2021
(This article belongs to the Section Materials for Energy Applications)
Browse Figures
Versions Notes

Abstract

:
A new Ni metal organic framework based on 2,2′-Biphenyldicarboxylic, 4,4′- bipyridine as linker is prepared by hydrothermal reaction and directly used as an electrode material for supercapacitor and the detection of sarcosine. [Ni3(BIPY)3(BPDA)2(HCOO)2(H2O)2]n (Ni-1; BIPY = 4,4′-bipyridine; BPDA = 2,2′-Biphenyldicarboxylate) displays the specific capacitance of the Ni-1 are 667 F/gat 1 A/g and retention is 82% of initial capacitance at 1 A/g. The excellent electrochemical property is ascribed to the intrinsic nature of Ni-1. Furthermore, the sarcosine sensing performance of the Ni-1 electrode is evaluated in 0.1 M of NaOH solution and the electrode showed a wider range of linear response 1 × 10−4 M to 1 × 10−3 M. Thus, the results show that the Ni-1 is a potential candidate for not only sensing of sarcosine but also supercapacitor application.

Graphical Abstract

1. Introduction

Potential threatening energy crisis and environmental pollution force scientists and engineers to develop clean and very efficient energy storage technologies to overcome these issues. Supercapacitors are among such novel energy solutions because they demonstrate high-power density, long-termstability, and fast charging and discharging when needed [1,2,3,4,5,6]. Pseudocapacitance is stored by the rapid Faraday redox reactions occurring on the active material surfaces. Pseudocapacitive materials have higher specific capacitances than carbon materials (EDLCs). For the purposes, MOFs have been demonstrated to be useful for electrochemical energy storage and are considered as the most promising electrode material candidatefor SCs due to their high surface area, tunable pore size, controllable pore structure, and special structures with potentialpseudo-capacitive redox centers [7,8,9,10].
Panprostate cancer (PCa), the most common malignant tumor diagnosed in males, if diagnosed early, could be successfully treated. Early diagnosis of PCA also significantly reduced the mortality rate [8]. Sarcosine, is considered as a differential metabolite, since sarcosine is increased during PCa progression to metastasis sarcosine and can be detected non-invasively in urine. Recently, many papers have reported sarcosine sensing [11,12,13,14,15]. Sarcosine detection techniques include high-performance liquid chromatography-mass spectrometry (HPLC-MS) [16,17] and gas chromatography. However, these methods are very specialized, expensive, and time-consuming. Therefore, new, very sensitive, specific, fast, and inexpensive alternative methods are still desired.
MOFs, highly ordered porous crystalline containing metal ions and organic ligands, attracted attention for applications related to gas storage and separation [18,19,20], luminescent sensing [21,22,23,24,25,26,27], and catalysis [28,29,30,31] due to high surface area and suitable pore size. MOF structures are very diverse because of limitless combinations of their building blocks, cations (from main and transition groups), and ligands [32,33,34]. Thus, by varying cation/ligand, combination MOFs with various functionalities can be obtained. MOFs are considered excellent materials for supercapacitor and sensing applications.
Herein, a new Ni metal organic framework was synthesized and directly used as an electrode material for super capacitor and electrochemical sensing for sarcosine. The [Ni3(BIPY)3(BPDA)2(HCOO)2(H2O)2]n (Ni-1; BIPY = 4,4′-bipyridine; BPDA = 2,2′-Biphenyldicarboxylate, CCDC number 1935262) exhibited a high specific capacitance, and long-term cycling stability. The Ni-1 exhibited good sensitivity and a wider range of linear response 1 × 10−4 M to 1 × 10−3 M for the determination of sarcosine. This is the first time that a new metal organic framework is served as supercapacitor electrode and sensor.

2. Experimental Section

2.1. Materials and Methods

Nickel nitrate hexahydrate was purchased from J&K Chemical. 2,2′-Biphenyldicarboxylic and 4,4′-bipyridine were purchased from Jinan Henghua Technology company. All reagents used were commercially available and used without further purification. IR of [Ni3(BIPY)3(BPDC)2(HCOO)2(H2O)2]n (Ni-1;BIPY = 4,4′-bipyridine; BPDC = 2,2′-Biphenyldicarboxylate) was recorded on Affinity-1 FT-IR spectrometer ranging from 200 to 4000 cm−1. Powder X-ray diffraction (PXRD) patterns were carried out through Cu-Karadiation from 5–40°. Thermal gravimetric analysis (TG) was carried out by using aNetzsch STA 449C system with a heating rate of 5 K/min under N2 protection.

2.2. Synthesis of Ni-1

Firstly, 2,2′- Biphenyldicarboxylic Acid and 4,4′- bipyridine were dissolved in DMA to form 1 mol/L DMA solution, and nickel nitrate hexahydrate was dissolved in water to form 1 mol/L aqueous solution, The above solution 200 μL:300 μL:300 μL and 8 mL H2O was added to a 25 mL Teflon-lined stainless autoclave, sealed and heated at 160 °C for 72 h, then cooled to room temperature. The green block crystals of Ni-1 were obtained (yield: 75% based on Ni(II)).

2.3. Single-Crystal Structure Determination

Crystal of Ni-1 was collected from the mother liquor. Single-crystal data of Ni-1 were collected on a Rigaku Oxford CCD diffractometer equipped with graphite-monochromatic Mo-Kα radiation (λ = 0.71073 Å) at 293 K. The structure was solved by direct methods, and refined by full-matrix least-square method with the OLEX-2 program package. The crystallographic data and refinements and the selected bond lengths and angles for Ni-1 are listed in Table 1 and Table 2.

2.4. Fabrication of Working Electrode

80% of Ni-1, 10% of acetylene black and 10% of PVDF were mixed in N-methyl pyrrolidone (NMP) until a homogeneous slurry was obtained, which was then applied to Ni foam and dried at 60 °C in the air. Electrochemical sensing tests were performed using the glassy carbon electrode (GCE, model CHI104, 3 mm in diameter). Prior to the tests, it was polished with 0.05 μm alumina, followed by ultrasonicated in 50% HNO3, absolute ethanol and distilled water mixture for 30 at each step. Two milligrams of MOF was dispersed in 1 mL of DMF ultrasonically. Five microliters of this suspension was dropped onto the GCE surface to obtain a Ni-1 based working electrode (NHCPs-GCE).

2.5. Electrochemical Measurements

All the electrochemical measurements were conducted on an electrochemical workstation (CHI760E). In a three-electrode system, the Ni-1 was used as the working electrode, with Pt plate as the counter electrode, Hg/HgO as the reference electrode, and 6 M KOH as the electrolyte, respectively.

3. Results and Discussion

3.1. Structure Description

The Compound Ni-1 shows two-dimensional structure and belongs to C2 space group. The asymmetric unit contains one and a half nickel (II) centers, one bridging BPDC2− group, one and a half BIPY, one formic acid group, and one water molecule. As shown in Figure 1, the Ni2+ are six-coordinated by four O atoms and two N atoms. In coordination mode of Ni(1), N1, and N2 come from two bipyridine molecules, O1 is from biphenyl dicarboxylic acid molecules, O6 and O6d are from two formic acid molecules, and O5 is from water molecules. Formic acid comes from the decomposition of solvent molecules. In coordination mode of Ni(2), N3 and N4a are from two bipyridine molecules, O2, O3, O2c, and O3c come from two BPDC2− group (Figure 1). As a bridging ligand, two N atoms in pyridine participate in the coordination, and only three oxygen atoms of BPDC2− group are involved in the coordination. It is interesting that in this structure, the conformation of the bipyridine molecule in which N1 is located is quite different from that of N3 (Figure 2). The bipyridine molecule in which N3 is located has a symmetry plane, and the two planes of N3 and N4 form a certain angle of 38.60(9)°, which is close to the normal bipyridine molecular structure, while the bipyridine molecule of N1is relatively deformed (without plane of symmetry), N1 and N2 the two planes rotate to the same plane through the δ bond between C17 and C18 (the angle is 14.89°). Although this conformation is not a stable conformation of the bipyridine molecule, the structure δ-bond rotation precisely enhances the relationship between pyridine rings π-π accumulation. In this two-dimensional structure, the bipyridine molecule where N1 resides forms a straight chain with Ni1 via a coordination bond. Similarly, the bipyridine molecule in which N2 resides forms another straight chain with Ni2 via a coordination bond. The Ni(1) chain and the other Ni1 chains are connected by O6 atom in two coordinated formic acid molecules. After connecting with Ni1 chain, Ni1 is coordinated with Ni2 chain via O atom of Biphenyldicarboxylic Acid Molecule. Finally, a two-dimensional layered structure is formed by O-coordination and π-π stacking (Figure 3)

3.2. Purity and Thermal Stability

In order to explore the properties of Ni-1, the purity and thermal stability of the material were investigated. Figure 4a shows the PXRD patterns of the Ni-1, The PXRD patterns of Ni-1 showed the diffraction peaks corresponding to the simulated Ni-1 pattern. FT-IR spectrum of Ni-1 showed bands at 1610 and 1493 cm−1, which correspond to bending and stretching of C = O (Figure 4b), while peaks at 1305 and 1542 cm−1 were ascribed to the pyridine bending. The Ni-1 thermal stability was analyzed by the thermogravimetric analysis (TGA) performed in the 50–800 °C range under N2 (see Figure 4c). The first weight-loss stage occurred at 100–350 °C due to the loss of weakly bonded water and DMA solvent molecule. The second weight-loss step occurred at 350–400 °C due to the decomposition of the organic ligand in the MOF.

3.3. Investigation of Electrochemical Properties

CV curves of the Ni-1 supercapacitor electrode were recorded at 10–100 mV/s scan rates at 0–0.6 V showed faradaic redox peaks (see Figure 5a), which is indicative of the Faradaic behavior. As the scan rate was increased, no changes in the redox peaks were detected, which indicates excellent rate capability of the Ni-1 based electrode. The GCD test showed that the specific capacitances of the Ni-1 based electrodes were equal to 667, 334, 300, 267, and 240 F/g at 1, 2, 5, 8, and 10 A/g current densities, respectively (see Figure 5b). EIS tests showed straight curves in the low-frequency region (see Figure 5c), which indicates very low diffusion resistance and fast ion diffusion of electrolyte in the Ni-1 based electrode. Such excellent electrochemical properties are very beneficial for excellent capacitive performance. Analysis of the EIS curve in the high-frequency region revealed low resistance (Rs), judging by the small intercept of the arc with the real axis. Thus, the Ni-1 based electrode possessed low intrinsic and ionic resistances as well as excellent contact resistance with the current collector. The retention rate is up to 82% after 5000 cycles at a current density of 1 A/g, which indicates good cycling performance and stability. The capacitance in comparison with those reported ones is depicted in Table 3.

3.4. Selectivity and Stability of the Sensor

The selectivity of the Ni-1/GCE-based electrode was tested under the presence of 1.0 mM species (Streptomycin, Erythromycin, Norfloxacin, Tetracycline, Tryptophan) with 0.1 M KOH as an electrolyte. The presence of the compounds did not affect the performance of our electrode (see Figure 6b), which indicates excellent anti-interference properties of our Ni-1/GCE.
Figure 6c exhibits the DPV curves of the Ni-1/GCE (recorded at 0.2–0.6 V/s scan rate and 0.2–0.6 V range in 0.1 M KOH) under the presence of 1 × 10−4– 1 × 10−3 M of sarcosine. The peak current rose linearly (with the correlation coefficient R2 = 0.9981, see Figure 4c) as the sarcosine content in the solution was increased, which indicates excellent sensitivity of the electrode. This linear relationship could be expressed as I (A) = 0.95044 × −1.4326. The shelf life of the Ni-1 based GCE was examined by its response (measured every two days) during its storage at 2 °C for two weeks. Our sensor demonstrated the same current after 10 days of storage (see Figure 6e,f), which suggests its excellent storage stability and post-storage performance.

4. Conclusions

We developed a novel Ni2+-containing metal-organic framework (Ni-MOF) material, which was then used as an active material for sarcosine sensing and for a high-performing supercapacitor (with excellent capacitance 667 F/g at 1 A/g and long-term cycling stability 82% after 5000 cycles). In fact, the sensor was very sensitive to sarcosine (with a low detection limit), and its response was linear relative to the increasing sarcosine contractions. Sarcosine was even detected when other interfering substances (such as Streptomycin, Erythromycin, Norfloxacin, Tetracycline, Tryptophan) were present. Our results strongly indicate that the Ni-MOFs are aspiring materials for next-generation supercapacitors and sensors.

Author Contributions

Conceptualization: S.L.; Methodology: S.L.; Writing—original draft: Y.W. (Yi Wang);Visualization: C.Z. (Chenyang Zhang); Validation: Y.W. (Yunying Wu); Formal analysis: B.Z.; Software: C.Z. (Chunjuan Zhou); Investigation: H.Y.; All authors have read and agreed to the published version of the manuscript.

Funding

Financial support from Guangdong Province Department of Education Innovation Strong school funding (2018KTSCX136), Hanshan Normal University (XN201925).

Data Availability Statement

https://ccdc.cam.ac.uk/ (accessed on 28 August 2021).

Acknowledgments

Thanks for the support of Guangdong Chaoshan Institute of higher education and technology.

Conflicts of Interest

The authors declare that they have no known competing financial interests.

References

  1. Zheng, K.; Zeng, Y.X.; Liu, S.; Zeng, C.H.; Tong, Y.X.; Zheng, Z.K.; Zhu, T.S.; Lu, X.H. Valence and Surface Modulated Vanadium Oxide Nanowires as New High-Energy and Durable Negative Electrode for Flexible Asymmetric Supercapacitors. Energy Storage Mater. 2019, 22, 410–417. [Google Scholar] [CrossRef]
  2. Li, J.; Xia, W.; Tang, J.; Tan, H.; Wang, J.; Kaneti, Y.V.; Bando, Y.; Wang, T.; He, J.; Yamauchi, Y. MOF nanoleaves as new sacrificial templates for the fabrication of nanoporous Co–Nx/C electrocatalysts for oxygen reduction. Nanoscale Horiz. 2019, 4, 1006–1013. [Google Scholar] [CrossRef]
  3. Young, C.; Kim, J.; Kaneti, Y.V.; Yamauchi, Y. One-Step Synthetic Strategy of Hybrid Materials from Bimetallic Metal–Organic Frameworks for Supercapacitor Applications. ACS Appl. Energy Mater. 2018, 1, 2007–2015. [Google Scholar]
  4. Zhang, S.; Xi, W.; Yang, Q.; Kaneti, Y.V.; Xu, X.; Alshehri, S.M.; Ahamad, T.; Hossain, M.S.A.; Na, J.; Tang, J.; et al. Core-shell motif construction: Highly graphitic nitrogen-doped porous carbon electrocatalysts using MOF-derived carbon@COF heterostructures as sacrificial templates. Chem. Eng. J. 2020, 396, 125154. [Google Scholar] [CrossRef]
  5. Vijayakumar, M.; Sankar, A.B.; Rohita, D.S.; Rao, T.N.; Karthik, M. Conversion of Biomass Waste into High Performance Supercapacitor Electrodes for Real-Time Supercapacitor Applications. ACS Sustain. Chem. Eng. 2019, 7, 17175–17185. [Google Scholar] [CrossRef]
  6. Han, Y.; Lu, Y.Z.; Shen, S.H.; Zhong, Y.; Liu, S.; Xia, X.H.; Tong, Y.X.; Lu, X.H. Enhancing the Capacitive Storage Performance of Carbon Fiber Textile by Surface and Structural Modulation for Advanced Flexible Asymmetric Supercapacitors. Adv. Funct. Mater. 2019, 29, 1806329. [Google Scholar] [CrossRef]
  7. Liu, T.; Li, C.Y.; Liu, H.C.; Zhang, S.; Yang, J.L.; Zhou, J.; Yu, J.L.; Ji, M.W.; Zhu, C.Z.; Xu, J. Tear resistant Tyvek/Ag/poly(3,4-ethylenedioxythiophene): Polystyrene sulfonate (PEDOT:PSS)/carbon nanotubes electrodes for flexible high-performance supercapacitors. Chem. Eng. J. 2020, 2020, 127665. [Google Scholar] [CrossRef]
  8. Soram, B.S.; Dai, J.Y.; Thangjam, I.S.; Kim, N.H.; Lee, J.H. One-step electrodeposited MoS2@Ni-mesh electrode for flexible and transparent asymmetric solid-state supercapacitors. J. Mater. Chem. A 2020, 8, 24040–24052. [Google Scholar] [CrossRef]
  9. Liu, Y.L.; Yan, C.; Wang, G.G.; Li, F.; Shang, Y.; Zhang, H.Y.; Han, J.C.; Yang, H.Y. Self-templated formation of (NiCo)9S8yolk–shelled spheres for high-performance hybrid supercapacitors. Nanoscale 2020, 12, 23497–23505. [Google Scholar] [CrossRef] [PubMed]
  10. Zhang, X.L.; Wang, J.M.; Sui, Y.W.; Wei, F.X.; Qi, J.Q.; Meng, Q.K.; He, Y.Z.; Zhuang, D.D. Hierarchical Nickel–Cobalt Phosphide/Phosphate/Carbon Nanosheets for High-Performance Supercapacitors. ACS Appl. Nano Mater. 2020, 3, 11945–11954. [Google Scholar] [CrossRef]
  11. Wang, Y.Z.; Ji, S.Y.; Xu, H.Y.; Zhao, W.; Xu, J.J.; Chen, H.Y. Bidirectional Electrochemiluminescence Color Switch: An Application in Detecting Multimarkers of Prostate Cancer. Anal. Chem. 2018, 90, 3570–3575. [Google Scholar] [CrossRef]
  12. Mbage, B.; Li, Y.M.; Si, H.P.; Zhang, X.Y.; Li, Y.; Wang, X.H.; Salah, A.; Zhang, K.Z. Fabrication of folate functionalized polyoxometalate nanoparticle to simultaneously detect H2O2 and sarcosine in colorimetry. Sens. Actuators B 2020, 304, 127429. [Google Scholar] [CrossRef]
  13. Yang, Q.G.; Li, N.; Li, Q.; Chen, S.Q.; Wang, H.L.; Yang, H.P. Amperometric sarcosine biosensor based on hollow magnetic Pt–Fe3O4@C nanospheres. Anal. Chim. Acta 2019, 1078, 161–167. [Google Scholar] [CrossRef]
  14. Hu, J.; Wei, W.W.; Ke, S.M.; Zeng, X.R.; Lin, P. A novel and sensitive sarcosine biosensor based on organic electrochemical transistor. Electrochim. Acta 2019, 307, 100–106. [Google Scholar] [CrossRef]
  15. Roy, A.; Chen, Y.P.; Qiu, J.T.T.; Maikap, S. Sarcosine Prostate Cancer Biomarker Detection by Controlling Oxygen inNiOx Membrane on Vertical Silicon Nanowires in Electrolyte–Insulator–Nanowire Structure. Anal. Chem. 2020, 92, 8064–8071. [Google Scholar] [CrossRef] [PubMed]
  16. Meyer, T.E.; Fox, S.D.; Issaq, H.J.; Xu, X.; Chu, L.W.; Veenstra, T.D.; Hsing, A.W. A Reproducible and High-Throughput HPLC/MS Method To Separate Sarcosine from α- and β-Alanine and To Quantify Sarcosine in Human Serum and Urine. Anal. Chem. 2011, 83, 5735–5740. [Google Scholar] [CrossRef] [PubMed]
  17. Jiang, Y.Q.; Cheng, X.L.; Wang, C.; Ma, Y.F. Quantitative Determination of Sarcosine and Related Compounds in Urinary Samples by Liquid Chromatography with Tandem Mass Spectrometry. Anal. Chem. 2010, 82, 9022–9027. [Google Scholar] [CrossRef]
  18. Yin, C.; Zhuang, Q.; Xiao, Q.; Wang, Y.; Xie, J. Electropolymerization of poly(methylene blue) on flower-like nickel-based MOFs used for ratiometric electrochemical sensing of total polyphenolic content in chrysanthemum tea. Anal. Methods 2021, 13, 1154–1163. [Google Scholar] [CrossRef]
  19. Hu, R.; Zhang, X.; Chi, K.N.; Yang, T.; Yang, Y.H. Bifunctional MOFs-Based Ratiometric Electrochemical Sensor for Multiplex Heavy Metal Ions. ACS Appl. Mater. Interfaces 2020, 12, 30770–30778. [Google Scholar] [CrossRef] [PubMed]
  20. Gumilar, G.; Kaneti, Y.V.; Henzie, J.; Chatterjee, S.; Na, J.; Yuliarto, B.; Nugraha, N.; Patah, A.; Bhaumik, A.; Yamauchi, Y. General synthesis of hierarchical sheet/plate-like M-BDC (M = Cu, Mn, Ni, and Zr) metal–organic frameworks for electrochemical non-enzymatic glucose sensing. Chem. Sci. 2020, 11, 3644–3655. [Google Scholar] [CrossRef] [Green Version]
  21. Yang, L.F.; Qian, S.H.; Wang, X.B.; Cui, X.L.; Chen, B.L.; Xing, H.B. Energy-efficient separation alternatives: Metal–organic frameworks and membranes for hydrocarbon separation. Chem. Soc. Rev. 2020, 49, 5359–5406. [Google Scholar] [CrossRef]
  22. Murray, L.J.; Dincă, M.; Long, J.R. Hydrogen storage in metal–organic frameworks. Chem. Soc. Rev. 2009, 38, 1294–1314. [Google Scholar] [CrossRef]
  23. Mason, J.A.; Veenstra, M.; Long, J.R. Evaluating metal–organic frameworks for natural gas storage. Chem. Sci. 2014, 5, 32–51. [Google Scholar] [CrossRef] [Green Version]
  24. Lustig, W.P.; Mukherjee, S.; Rudd, N.D.; Desai, A.V.; Li, J.; Ghosh, S.K. Metal–organic frameworks: Functional luminescent and photonic materials for sensing applications. Chem. Soc. Rev. 2017, 46, 3242–3285. [Google Scholar] [CrossRef] [PubMed]
  25. Chen, H.J.; Fan, P.; Tu, X.X.; Min, H.; Yu, X.Y.; Li, X.F.; Zeng, J.L.; Zhang, S.W.; Cheng, P. A Bifunctional Luminescent Metal–Organic Framework for the Sensing of Paraquat and Fe3+Ions in Water. Chem. Asian J. 2019, 14, 3611–3619. [Google Scholar] [CrossRef] [PubMed]
  26. Zheng, K.; Liu, Z.Q.; Huang, Y.; Chen, F.; Zeng, C.H.; Zhong, S.L.; Ng, S.W. Highly luminescent Ln-MOFs based on 1,3-adamantanediacetic acid as bifunctional sensor. Sens. Actuators B Chem. 2018, 257, 705–713. [Google Scholar] [CrossRef]
  27. Wang, J.; Jiang, M.; Yan, L.; Peng, R.; Huang, M.J.; Guo, X.X.; Li, Y.; Wu, P.Y. Multifunctional LuminescentEu(III)-Based Metal–Organic Framework for Sensing Methanol and Detection and Adsorption of Fe(III) Ions in Aqueous Solution. Inorgan. Chem. 2016, 55, 12660–12668. [Google Scholar] [CrossRef] [PubMed]
  28. Huang, N.; Drake, H.; Li, J.L.; Pang, J.D.; Wang, Y.; Yuan, S.; Wang, Q.; Cai, P.Y.; Qin, J.S.; Zhou, H.C. Flexible and Hierarchical Metal–Organic Framework Composites for High-Performance Catalysis. Angew. Chem. Int. Ed. 2018, 57, 8916–8920. [Google Scholar] [CrossRef] [PubMed]
  29. Maeda, K.; Uemura, Y.; Chun, W.J.; Satter, S.S.; Nakajima, K.; Manaka, Y.; Motokura, K. Controllable Factors of Supported Ir Complex Catalysis for Aromatic C–H Borylation. ACS Catal. 2020, 10, 14552–14559. [Google Scholar] [CrossRef]
  30. Karmakar, A.; Pombeiro, A.J.L. Recent advances in amide functionalized metal organic frameworks for heterogeneous catalytic applications. Coord. Chem. Rev. 2019, 395, 86–129. [Google Scholar] [CrossRef]
  31. Fei, H.H.; Shin, J.W.; Meng, Y.S.; Adelhardt, M.; Sutter, J.; Meyer, K.; Cohen, S.M. Reusable Oxidation Catalysis Using Metal-Monocatecholato Species in a Robust Metal–Organic Framework. J. Am. Chem. Soc. 2014, 136, 4965–4973. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Ghasemzadeh, M.A.; Eshkevari, B.M.; Tavakoli, M.; Zamani, F. Metal–organic frameworks: Advanced tools for multicomponent reactions. Green Chem. 2020, 22, 7265–7300. [Google Scholar] [CrossRef]
  33. Bao, Z.B.; Chang, G.G.; Xing, H.B.; Krishna, R.; Ren, Q.L.; Chen, B.L. Potential of microporous metal–organic frameworks for separation of hydrocarbon mixtures. Energy Environ. Sci. 2016, 9, 3612–3641. [Google Scholar] [CrossRef]
  34. Ajdari, F.B.; Kowsari, E.; Shahrak, M.N.; Ehsani, A.; Kiaei, Z.; Torkzaban, H.; Ershadi, M.; Eshkalak, S.K.; Asl, V.H.; Chinnappan, A.; et al. A review on thefield patents and recent developments over the application of metal organic frameworks (MOFs) in supercapacitors. Coord. Chem. Rev. 2020, 422, 213441. [Google Scholar] [CrossRef]
  35. Ghosh, S.; Maity, C.K.; Nayak, G.C.; Nayek, H.P. A Cobalt(II) Metal-organic Framework Featuring Supercapacitor Application. J. Solid State Chem. 2020, 282, 121093. [Google Scholar] [CrossRef]
  36. Lee, D.Y.; Yoon, S.J.; Shrestha, N.K.; Lee, S.-H.; Ahn, H.; Han, S.-H. Unusual energy storage and charge retention in Co-based metal–organic-frameworks. Microporous Mesoporous Mater. 2012, 153, 163–165. [Google Scholar] [CrossRef]
  37. He, H.; Wang, G.; Shen, B.; Wang, Y.; Lu, Z.; Guo, S.; Zhang, J.; Yang, L.; Jiang, Q.; Xiao, Z. Three isostructural Zn/Ni nitro-containing metal-organic frameworks for supercapacitor. J. Solid State Chem. 2020, 288, 121375. [Google Scholar] [CrossRef]
Crystals 11 01036 g001 550

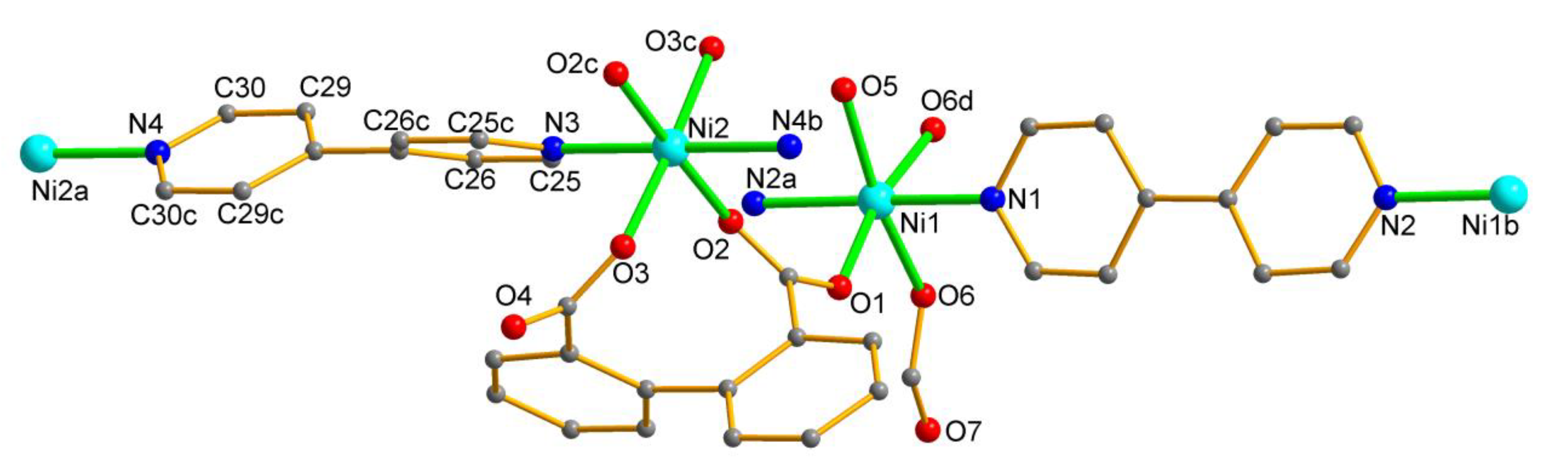

Figure 1. Coordination mode of Ni-1. Symmetric code: a(x, −1 + y, z), b(x, 1 + y, z), c(1 − x, y, 1 − z), d(1 − x, y, −z).
Figure 1. Coordination mode of Ni-1. Symmetric code: a(x, −1 + y, z), b(x, 1 + y, z), c(1 − x, y, 1 − z), d(1 − x, y, −z).
Crystals 11 01036 g001
Crystals 11 01036 g002 550

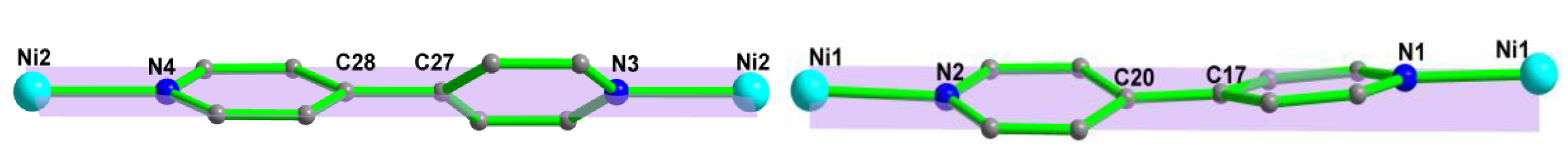

Figure 2. Conformations of two bipyridine molecules.
Figure 2. Conformations of two bipyridine molecules.
Crystals 11 01036 g002
Crystals 11 01036 g003 550

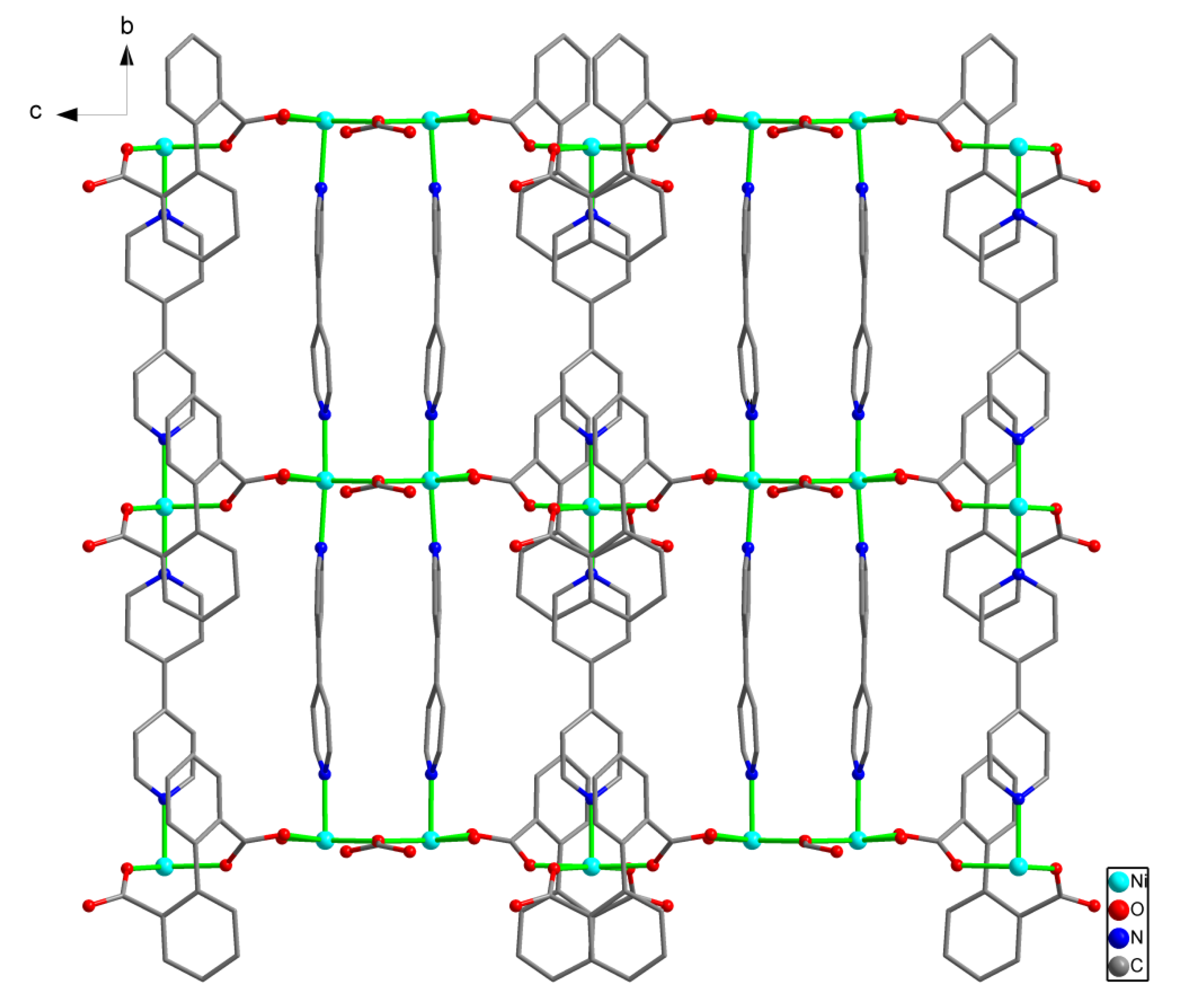

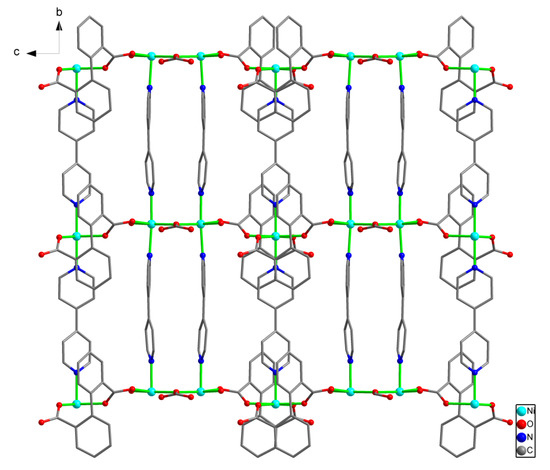

Figure 3. 2D structure in the a direction of Ni-1.
Figure 3. 2D structure in the a direction of Ni-1.
Crystals 11 01036 g003
Crystals 11 01036 g004 550

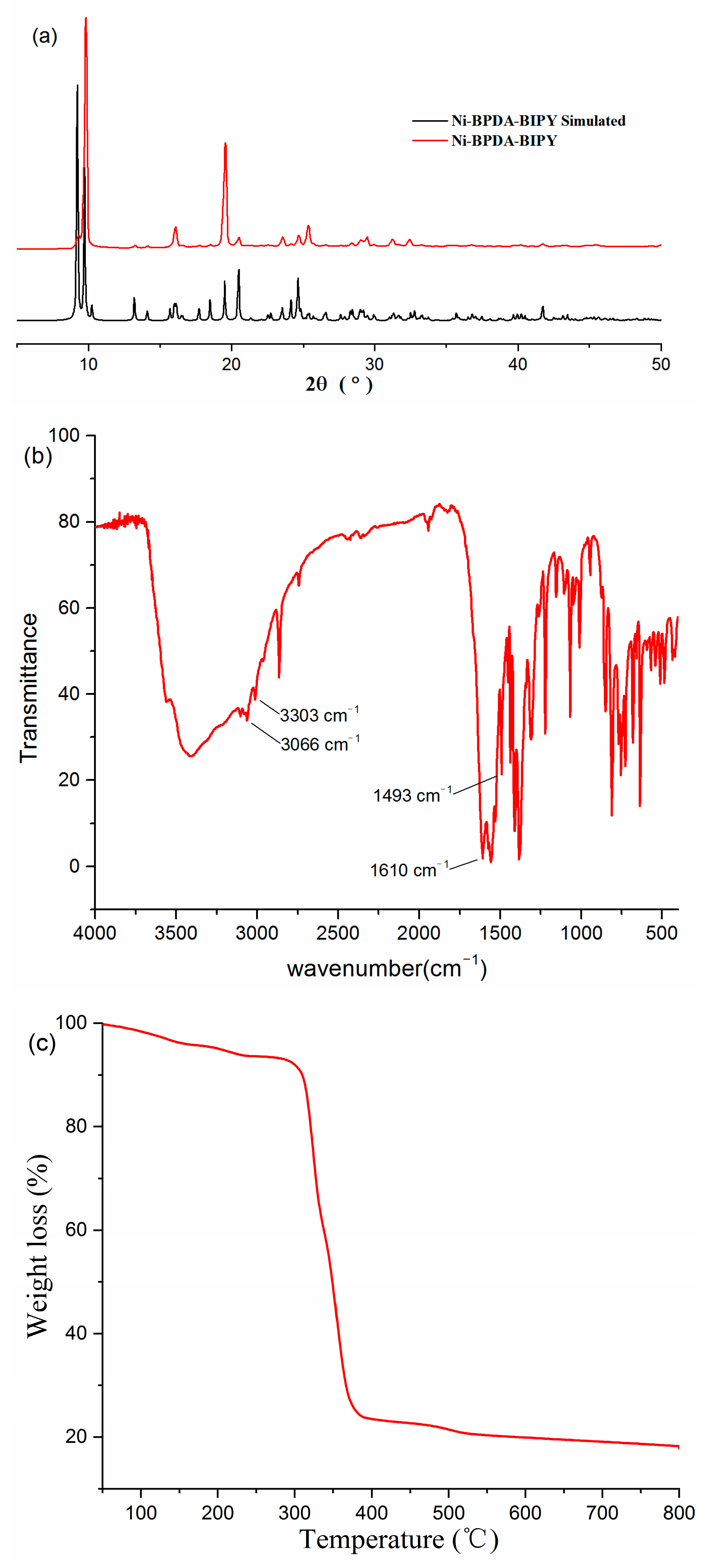

Figure 4. (a) PXRD patterns of simulated and the synthesized Ni-1; (b) FT-IR spectra of Ni-1; (c) Thermogravimetric analysis of Ni-1.
Figure 4. (a) PXRD patterns of simulated and the synthesized Ni-1; (b) FT-IR spectra of Ni-1; (c) Thermogravimetric analysis of Ni-1.
Crystals 11 01036 g004
Crystals 11 01036 g005 550

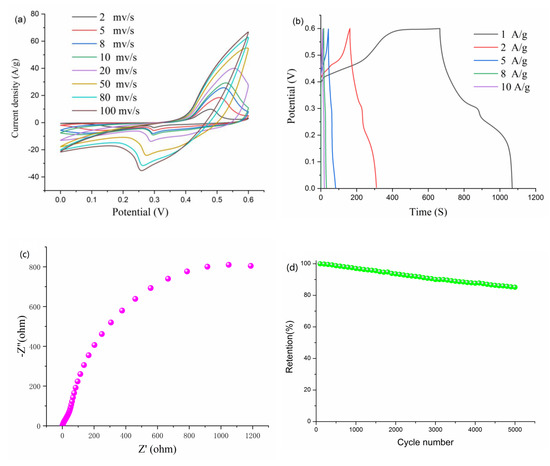

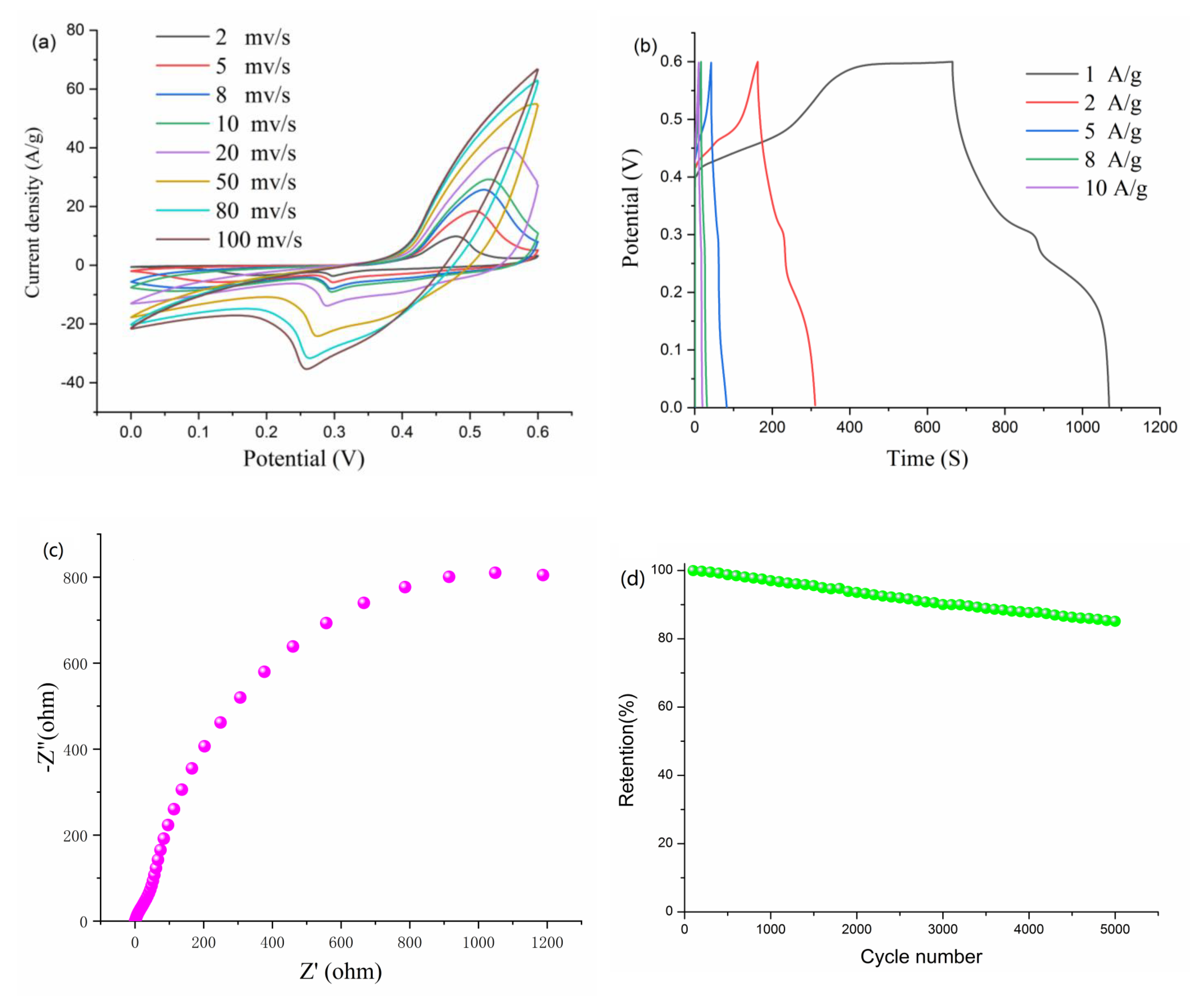

Figure 5. (a) CV curves at different scan rates from 2 mV/s to 100 mV/s and (b) GCD curves at different current densities from 1 to 10 A/g. (c) Electrochemical impedance spectra of Ni-1. (d) Cyclic stability of Ni-1 up to 5000 cycles.
Figure 5. (a) CV curves at different scan rates from 2 mV/s to 100 mV/s and (b) GCD curves at different current densities from 1 to 10 A/g. (c) Electrochemical impedance spectra of Ni-1. (d) Cyclic stability of Ni-1 up to 5000 cycles.
Crystals 11 01036 g005
Crystals 11 01036 g006a 550Crystals 11 01036 g006b 550

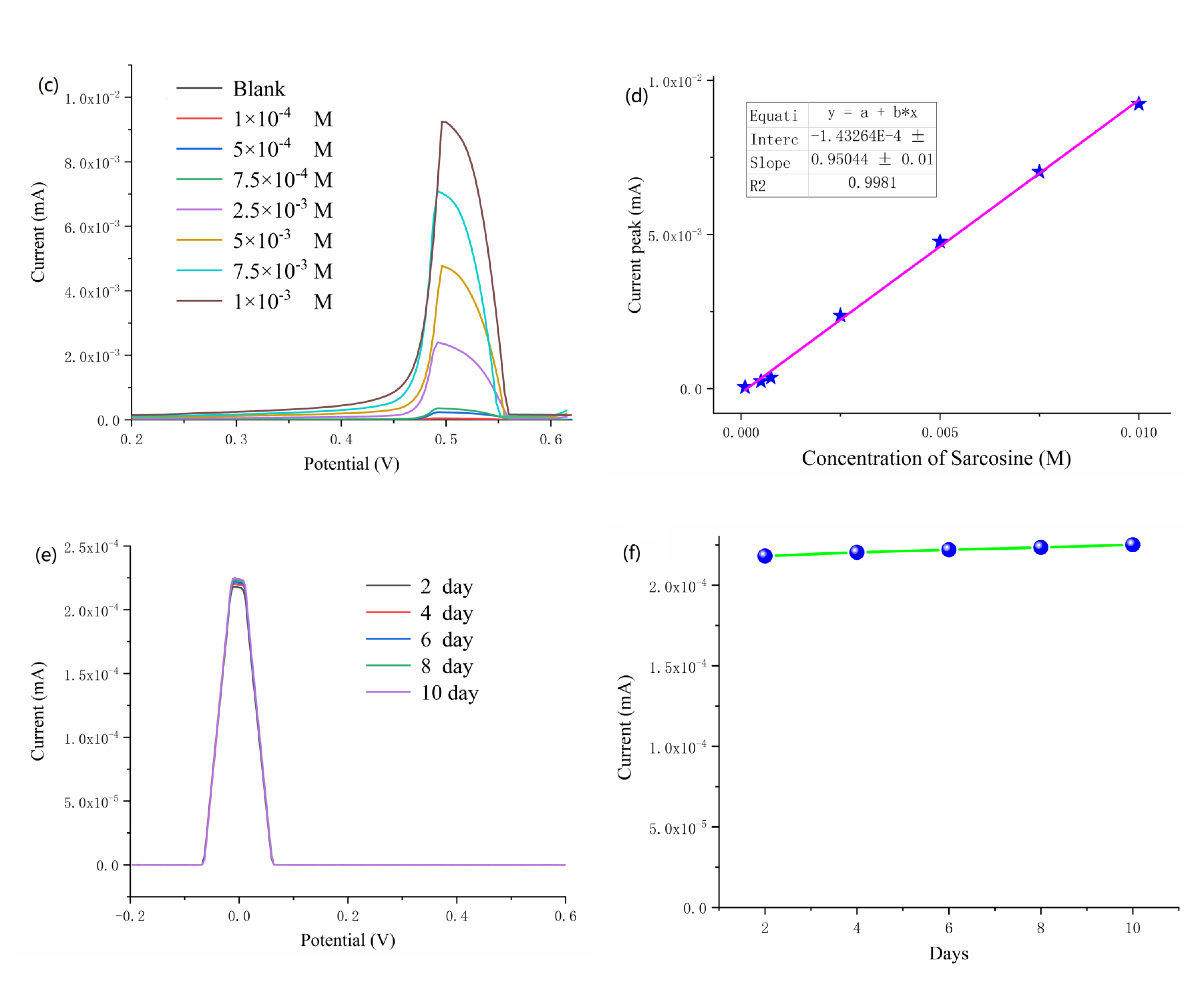

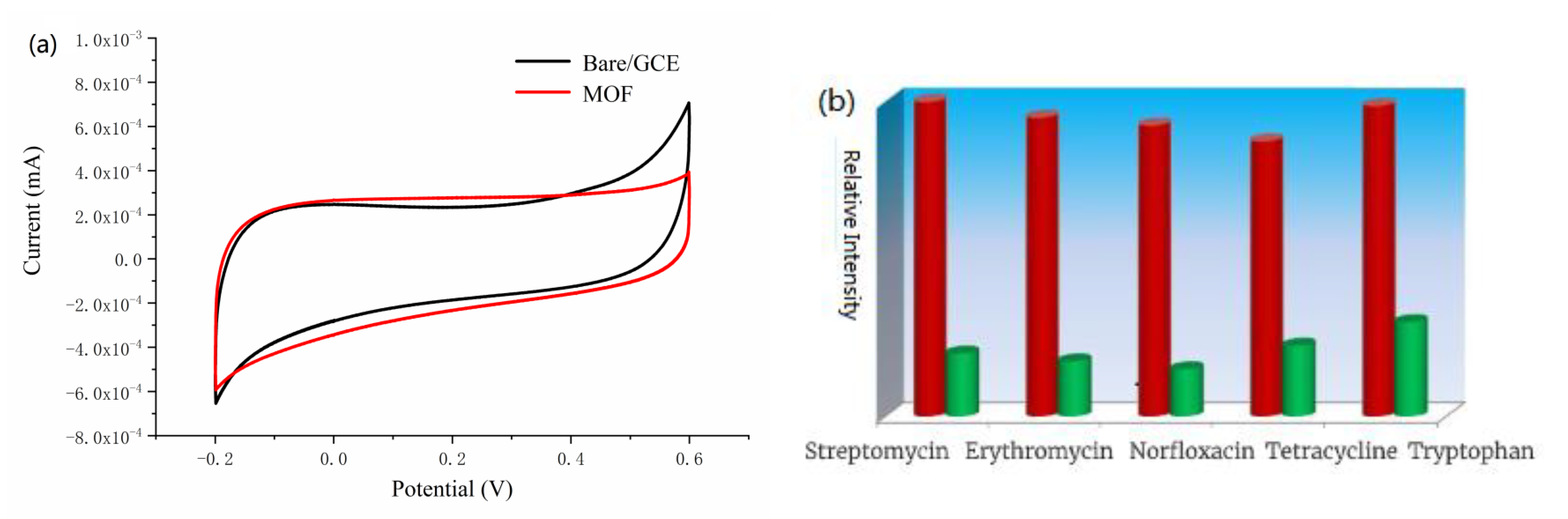

Figure 6. (a) CV curves of bare GCE and Ni-1/GCE (b) The ratios of current peak intensities of in KOH electrolyte solutions after the respective additions of different interferences with a coexisting concentration of 1.0 mM sarcosine (c) DPV curves of the Ni-1/GCE with successive additions of sarcosine in 0.1 M KOH, and (d) peak current versus sarcosine concentration plot showing a linear relationship (e,f) peak current of the electrode after two weeks.
Figure 6. (a) CV curves of bare GCE and Ni-1/GCE (b) The ratios of current peak intensities of in KOH electrolyte solutions after the respective additions of different interferences with a coexisting concentration of 1.0 mM sarcosine (c) DPV curves of the Ni-1/GCE with successive additions of sarcosine in 0.1 M KOH, and (d) peak current versus sarcosine concentration plot showing a linear relationship (e,f) peak current of the electrode after two weeks.
Crystals 11 01036 g006aCrystals 11 01036 g006b
Table
Table 1. Crystal data and structure refinement for Ni-1.
Table 1. Crystal data and structure refinement for Ni-1.
CompoundNi-1
Chemical FormulaC60H54N6Ni3O18
Formula weight1323.16
Crystal systemMonoclinic
Space group C2
a (Å)22.501(2)
b (Å)11.2879(12)
c (Å)13.4015(12)
α (°)90
β (°)126.099(10)
γ (°)90
V (Å3)2750.3(5)
Z2
Dc (g/cm3)1.598
μ (mm−1)1.101
T (K)293(2)
Wavelength (Å)0.71073
F(000)1368.0
Crystal size (mm)0.20 × 0.19 × 0.12
θ range(°)7.22 to 59.298
Index ranges−28 ≤ h ≤ 31
−15 ≤ k ≤ 15
−18 ≤ l ≤ 16
Reflections collected11,900
Independent reflections11,900 [Rint = 0.0759, Rsigma = 0.1150]
Parameters396
Goodness-of-fit on F21.056
R1 indices [I > 2σ(I)]0.0769
wR2 indices [I > 2σ(I)]0.1609
R1 indices [all data]0.1005
wR2 indices [all data]0.1772
Peak and hole (e Å-3)1.37/−0.95
Table
Table 2. Selected Bond lengths [Å] and Angles [deg] for Ni-1.
Table 2. Selected Bond lengths [Å] and Angles [deg] for Ni-1.
Ni1- O1 = 2.029(7)Ni2- O3 = 2.078(8)
Ni1- O7 = 2.048(6)Ni2- O3 2 = 2.078(8)
Ni1- N2 = 2.090(12) Ni2- N3 = 2.098(15)
Ni1- O5 1 = 2.091(6) Ni2- O2 2 = 2.118(7)
Ni1- N1 = 2.113(12)Ni2- O2 = 2.118(7)
Ni1- O5 = 2.120(6) Ni2- N4 = 2.127(15)
O1-Ni1-O7 98.1(3)O3-Ni2-O3 2 176.6(5)
O1-Ni1-N2 84.6(3)O3-Ni2-N3 88.3(3
O7-Ni1-N2 87.3(4) O3 2-Ni2-N3 88.3(3)
O1-Ni1-O5 1 93.2(3) O3-Ni2-O2 2 99.7(3)
O7-Ni1-O5 1 168.4(3O3 2-Ni2-O2 2 80.4(3)
N2-Ni1-O5 1 91.2(4)N3-Ni2-O2 2 91.0(2)
O1-Ni1-N1 92.0(4)O3-Ni2-O2 80.4(3)
O7-Ni1-N1 90.8(4)O3 2-Ni2-O2 99.7(3)
N2-Ni1-N1 175.9(3) N3-Ni2-O2 91.0(2)
O5 1-Ni1-N1 91.3(4)O2 2-Ni2-O2 178.0(5)
O1-Ni1-O5 168.3(3)O3-Ni2-N4 91.7(3)
O7-Ni1-O5 92.6(3) O3 2-Ni2-N4 91.7(3)
N2-Ni1-O5 91.1(4) N3-Ni2-N4 180.0
O5 1-Ni1-O5 76.0(3)O2 2-Ni2-N4 89.0(2)
N1-Ni1-O5 92.6(4) O2-Ni2-N4 89.0(2)
Symmetry transformations used to generate equivalent atoms: 1 1 − X, +Y, −Z; 2 1 − X, +Y, 1 − Z.
Table
Table 3. Comparation of Ni-1 and other materials.
Table 3. Comparation of Ni-1 and other materials.
Chemical Compound PerformanceRef.
[Co3(μ3-OH)(L)2(H2O)3]−300 F/g[35]
Co-MOF206 F/g[36]
[Zn3(NIPA)3(1,3-dpp)(H2O)2·H2O]n22.8 F/g[37]
