Synthesis of Carbon-Supported MnO₂ Nanocomposites for Supercapacitors Application

Abstract

In this study, carbon-supported MnO₂ nanocomposites have been prepared using the microwave-assisted heating method followed by two different approaches. The MnO₂/C nanocomposite, labeled as sample S1, was prepared directly by the microwave-assisted synthesis of mixed KMnO₄ and carbon powder components. Meanwhile, the other MnO₂/C nanocomposite sample labeled as S2 was prepared indirectly via a two-step procedure that involves the microwave-assisted synthesis of mixed KMnO₄ and MnSO₄ components to generate MnO₂ and subsequent secondary microwave heating of synthesized MnO₂ species coupled with graphite powder. Field emission scanning electron microscopy (FE-SEM), transmission electron microscopy (TEM), X-ray photoelectron spectroscopy (XPS), and inductively coupled plasma optical emission spectroscopy have been used for characterization of MnO₂/C nanocomposites morphology, structure, and composition. The electrochemical performance of nanocomposites has been investigated using cyclic voltammetry and galvanostatic charge/discharge measurements in a 1 M Na₂SO₄ solution. The MnO₂/C nanocomposite, prepared indirectly via a two-step procedure, displays substantially enhanced electrochemical characteristics. The high specific capacitance of 980.7 F g⁻¹ has been achieved from cyclic voltammetry measurements, whereas specific capacitance of 949.3 F g⁻¹ at 1 A g⁻¹ has been obtained from galvanostatic charge/discharge test for sample S2. In addition, the specific capacitance retention was 93% after 100 cycles at 20 A g⁻¹, indicating good electrochemical stability.

1. Introduction

The development of high-performance, environmentally friendly, flexible, light and inexpensive energy storage devices has become one of the most significant worldwide concerns over the past few decades [1,2,3,4]. In this regard, supercapacitors (SCs) are widely viewed as potential candidates for next-generation energy storage devices [5,6]. They are of particular interest for high power capability, cyclic stability, safe and simple operation principle, and speedy charge dynamics compared to the other storage devices [7,8].

The decisive role in the fabrication of efficient SCs is directly related to the intrinsic properties of the electrode material used [2,9]. Various new advanced nanostructured materials or their hybrid combinations of two or more components are being looked at. Currently, transition metal oxides (TMOs) coupled mainly with high-surface-area carbon-based materials have been allowed to achieve various hybrid SCs systems, which have superior characteristics of power and energy densities compared to those values obtained at each system separately [10,11]. Among the preferential TMO materials for SCs, a series of manganese oxide-based hybrids were developed recently [12,13,14,15,16]. Exceptional attention has been focused on MnO₂ for its relatively low cost, environmental friendliness, natural abundance, multiple oxidation states of Mn, wide operating voltage range (0–1.00 V vs. NHE in the neutral electrolyte), and high theoretical specific capacitance (C_s) close to 1370 F g⁻¹ [17,18].

However, regardless of the above-mentioned superb characteristics, the main drawback for MnO₂ widespread application is relatively poor electronic (10⁻⁵–10⁻⁶ S cm⁻¹) and ionic (10⁻¹³ S cm⁻¹) conductivity [8,15]. The experimentally achieved actual capacitance value is far below the theoretically predicted value and depends strongly on the mass loading of MnO₂. Typically it decreases rapidly with the increase in the MnO₂ mass [19]. To improve the capacitive performance of MnO₂, several strategies have been proposed. Nanostructured MnO₂-based electrodes with various morphologies have a high specific surface area and a large surface-to-volume ratio for more effective contact with electrolyte ions, such as mesoporous MnO₂ nanotubes/nanosheets [20], nanowires [21], or flowerlike, urchinlike, and nano rodlike structures that have been developed. Multiple-phase heterostructures for high-capacitance electrodes have been created as well [22]. Two high-capacitance crystal phases of MnO₂, namely α-MnO₂ nanowires and δ-MnO₂ ultrathin nanoflakes, have been combined and generated a self-branch heterostructure with a high C_s value of 178 F g⁻¹ at 5 mV s⁻¹ [22].

To enhance the electric conductivity of MnO₂, the incorporation of conductive metals including Au, Al, Cu, Fe, Mg, Co [23,24,25,26,27,28,29,30,31] able to act as electron donors have been applied. Changes in electron structure by foreign heteroatoms resulted in the improved capacitive performance of MnO₂ and revealed that, for example, Cu-doped δ -MnO₂ film delivered the maximum C_s value as high as 296 F g⁻¹ at 1 A g⁻¹ [26]; for Fe-doped MnO₂ nanostructures, this value was of 267.0 F g⁻¹ even under a high mass loading of 5 mg cm⁻² [28]. In the presence of Co, the achieved C_s value was of 350 F g⁻¹ at a current density of 0.1 A g⁻¹ [29]. The Al-doped MnO₂ demonstrated a high mass and areal specific capacitance of 213 F g⁻¹ and 146 F cm⁻², respectively, at 0.1 A g⁻¹ [25]. Meanwhile, Au-doped MnO₂ showed a high C_s value of 626 F g⁻¹ at 5 mV s⁻¹ [24].

However, the most effective and currently most widely used way to improve C_s of MnO₂-based electrodes is the deposition of thin films of latter materials on highly conductive and large surface areas containing materials, such as carbon-based substrates, including activated carbon, carbon nanotubes (CNTs), graphene, carbon fiber, or graphitic carbon. Carbon-based materials are the most widely used because of their physical and chemical properties, including low cost, variety of forms, low effort of processing, relatively inert electrochemistry, controllable porosity, and numerous electrocatalytic active sites for a variety of redox reactions [32,33,34] However, the performance of carbon-based substrates has some limitations related to the insufficient penetration of ions on the inert surface. Therefore, nanohybrids from two or more materials have been developed to overcome such limitations and gained special attention due to synergetic effects in enhancing the surface and electron donor properties. S.V. Prabhakar Vattikuti et al. reported 1D/2Dcarbon-CuO-graphitic carbon nitride (C/CuO@g-C₃N₄) ternary heterostructure that showed a better specific capacitance of 247.2 F g⁻¹ compared with the pristine g-C₃N₄ of 83.7 F g⁻¹, at the same time possessing good stability, with 92.1% of the initial capacitance remaining even after 6000 cycles [35]. Newly designed nanohybrids with Bi₂S₃ nanorod core@ amorphous carbon shell heterostructure C@Bi₂S₃ displayed a high specific capacity of 333.43 F g⁻¹ at a current density of 1 A g⁻¹ and outperformed that of pristine Bi₂S₃ of 124.24 F g⁻¹, due to well-defined cross linkages between the Bi₂S₃ core and carbon shell [36]. The carbon layer was supposed to bind efficiently with Bi₂S₃ nanorods, and thus improve electrical contact with the current collector, confirming the more active carbon participation in the charge/discharge reaction process. These highly porous structures allow the free permeation of electrolyte ensuring rapid movement of ions. Further on, a novel Na₂Ti₃O₇/single-walled carbon nanotubes SWCNTs nanostructure electrode material due to high surface area, enriched interfacial conductivity, abundant active edge sites, and mesoporous nature demonstrated a capacity of 576.01 F g⁻¹, at 0.8 A g⁻¹, with cycling stability featuring 91.43% retaining of capacitance after 5000 cycles [37].

Recently, a synergy of such carbon-based materials, featuring excellent conductivity and ultrastability, with MnO₂ substances having less lower conductivity but larger electrochemical capacitance, has allowed overcoming limitations of each material separately by making full use of their advantages due to the synergistic effects between those two types of SCs materials [38,39,40,41,42,43,44]. Y. Ping et al. produced the hierarchically porous CJE/MnO₂ composite with a large specific capacitance of 283 F g⁻¹ at 1 A g⁻¹, which was on account of high specific surface area (1283 m² g⁻¹) and abundant active sites for pseudocapacitance, that particularly resulted from the introduction of MnO₂ [38]. Meanwhile, highly loaded MnOx of 7.02 mg cm⁻², electrodeposited on conductive carbon cloth allowed achieving excellent rate capability due to the dual-tuning effect and showed specific capacitance of 161.2 F g⁻¹ (1.13 F cm⁻²) at a high current density of 20 mA cm⁻² [39]. Recently, an MnO₂ nanowires/graphenated CNTs composite was grown in situ on 316 L stainless steel and exhibited a high capacitance of 495.2 mF cm⁻² (615.6 F g⁻¹) at a current density of 0.5 mA cm⁻² and 95% capacity retention after 5000 cycles due to the synergistic effects of the high conductivity of graphenated CNTs and high pseudocapacitance of MnO₂ nanowires [42].

Bearing in mind that the structure of the electrode material directly affects the electrochemical properties of the electrode and simultaneously determines the performance of SCs, different methods have been tested to develop high capacitive MnO₂-based electrode materials. Among them are such methods as hydrothermal synthesis [20,45,46], electrochemical deposition [42,47,48], electrochemical exfoliation [48], electrospinning [49], chemical coprecipitation [50], or even those, using templates [40]. Particular attention has been focused on the simple, fast, cost-effective, and reliable microwave-assisted approach. This method has several advantages that count the possibility to get great gain in energy savings and enhanced fabrication of homogeneous materials since they do not need expensive equipment or complicated procedures; microwave reactions take less time compared to conventional methods and overtake all the substance uniformly, providing uniform particle-size distribution in the sample. Recently, this approach was successfully introduced to synthesize MnO₂ materials that proved themselves for possible use in high-performance supercapacitor applications [51,52,53,54,55,56,57].

In this study, the carbon-supported MnO₂ nanocomposites (MnO₂/C) were prepared by the rapid and simple microwave-assisted heating method by employing manganese(II) sulfate (MnSO₄) or potassium permanganate (KMnO₄) and carbon powder as the microwave absorbing material. The electrochemical properties of the prepared MnO₂/C nanocomposites have been studied to evaluate the possibility of using these nanocomposites as potential supercapacitor electrode materials.

2. Materials and Methods

Graphite powder, KMnO₄, MnSO₄∙H₂O, Na₂SO₄, polyvinylidene fluoride (2%, PVDF), N-methyl-2-pyrrolydone (NMP) were obtained from a Sigma-Aldrich supplier (Taufkirchen, Germany). All reagents were of analytical grade and used as received without further purification. Aqueous solutions were prepared using Milli-Q water with a resistivity of 18.2 MΩ cm⁻¹.

MnO₂/C nanocomposite labeled as sample S1 was prepared by the following steps: 2 g of KMnO₄ was mixed with 0.1 g of graphite powder and 20 mL of deionized water in an ultrasound bath for 30 min. Then, the reaction mixture was put into a microwave reactor Monowave 300 (Anton Paar, Graz, Austria). The synthesis of MnO₂/C was carried out at a temperature of 150 °C for 5 min. After that, the precipitate was filtered out, washed with deionized water, and dried in a vacuum oven at a temperature of 80 °C for 2 h. Equation (1) describes the formation of MnO₂ [18]:

4KMnO₄ + 3C + H₂O → 4MnO₂ + K₂CO₃ + 2KHCO₃

(1)

Another MnO₂/C nanocomposite labeled as sample S2 was prepared by the following procedure: at first, the pure MnO₂ was prepared. In a typical experiment, 0.063 g of KMnO₄ and 0.1 g of MnSO₄∙H₂O was dispersed in 20 mL of deionized water and mixed in an ultrasound bath for 30 min. Then, the reaction mixture was put into a microwave reactor, and the synthesis was carried out at a temperature of 150 °C for 5 min. The precipitate was filtered out, washed with deionized water, and dried in a vacuum oven at 80 °C for two h. Equation (2) shows the formation process of pure MnO₂ [58]:

2KMnO₄ + 3MnSO₄ + 2H₂O → 5MnO₂ + 2H₂SO₄ + K₂SO₄

(2)

Then, 0.01 g of the prepared MnO₂ was mixed with 0.1 g of graphite powder and 20 mL of deionized water in an ultrasound bath for 30 min. The synthesis of MnO₂/C was carried out under the same conditions as for the sample S1.

The prepared nanocomposites’ morphology, structure and composition were characterized using an SEM-focused ion beam facility (Helios Nanolab 650, FEI, Eindhoven, The Netherlands) equipped with an EDX spectrometer (INCA Energy 350 X-Max 20, Oxford Instruments, Oxford, UK). The amount of active material was determined using an ICP optical emission spectrometer Optima700DV (Perkin Elmer, Waltham, MA, USA).

The shape and size of catalyst particles were examined using a Transmission Electron Microscope Tecnai G2 F20 X-TWIN (FEI, Eindhoven, The Netherlands) equipped with an EDAX spectrometer with an r-TEM detector. For microscopic examinations, 10 mg of sample was first sonicated in 1 mL of ethanol for 1 h and then deposited on the Cu grid covered with a continuous carbon film.

XPS measurements were carried out to obtain information about the elemental chemical states and surface composition of powders on the upgraded Vacuum Generator (VG) ESCALAB MKII spectrometer (VG Scientific, UK) fitted with a new XR4 twin anode. The non-monochromatized Al K_α X-ray source was operated at hν = 1486.6 eV with 300 W power (20 mA/15 kV), and the pressure in the analysis chamber was lower than 5 × 10⁻⁷ Pa during spectral acquisition. The analyzer work function was determined, assuming the binding energy of the Au4f7/2 peak to be 84.0 eV. The spectra were acquired with an electron analyzer pass energy of 20 eV for narrow scans and resolution of 0.05 eV and with a pass energy of 100 eV for survey spectra. All spectra were recorded at a 90° take-off angle. The spectra calibration, processing, and fitting routines were done using Avantage software (v5.962) provided by Thermo VG Scientific (Waltham, MA, USA). Core level peaks of Mn 2p, Mn 3s, O 1s, and C 1s were recorded and analyzed using a nonlinear Shirley-type background. The calculation of the elemental composition was performed on the basis of Scofield’s relative sensitivity factors.

XRD patterns of studied powders were measured using an X-ray diffractometer SmartLab (Rigaku, Japan) equipped with a 9 kW rotating Cu anode X-ray tube. The measurements were performed using Bragg–Brentano geometry with a graphite monochromator on the diffracted beam and a step scan mode with the step size of 0.02° (in 2θ scale) and counting time of 1s per step. The measurements were conducted in the 2θ range 10–75°. Phase identification was performed using software package PDXL (Rigaku, Japan) and ICDD powder diffraction database PDF-4+ (2020 release).

All electrochemical measurements were performed with a three-electrode cell using cyclic voltammetry (CV) and galvanostatic charge/discharge (GCD). The prepared MnO₂/C nanocomposites coated on the glassy carbon electrode (GCE) were employed as the working electrode; a Pt sheet as a counter electrode and an Ag/AgCl/KCl electrode were used as a reference. The working electrodes were prepared as follows: the required amount of the active material (MnO₂/C) was dispersed ultrasonically in 2% of PVDF in an NMP solution for 1 h. Then, the obtained slurry was pipetted onto the polished surface of GCE and dried in an oven at a temperature of 80 °C for 2 h.

All electrochemical measurements were performed with a Zennium electrochemical workstation (ZAHNER-Elektrik GmbH & Co.KG, Kronach, Germany). Cyclic voltammograms (CVs) were recorded in a 1 M Na₂SO₄ solution at different scan rates between 10 and 200 mV s⁻¹. All solutions were de-aerated by argon for 15 min before measurements. The specific capacitance Cs (F g⁻¹) of the electrode material was calculated from the CV test according to the following equation (Equation (3)) [43]:

$$Cs=\frac{1}{m·v·\Delta V}{{\displaystyle \int }}^{ }idv,$$

(3)

where C_s, is the specific capacitance (F g⁻¹), m—the mass of the active material (g), v—the scan rate of potential (V s⁻¹), ΔV—the range of scan potential (V), and i—the current (A).

Further, galvanostatic charge/discharge cycling was carried out within a potential range between 0 and 1 V at a current density of 1, 2, 5, 10, and 20 A g⁻¹. The C_s was calculated using the following equation (Equation (4)) [55]:

$$Cs=\frac{\mathrm{I}\Delta t}{m·\Delta V},$$

(4)

where I is the discharge current (A), Δt is the time for a full discharge (s), and ΔV represents the voltage change during the discharge process (V).

3. Results

The carbon-supported MnO₂ nanocomposites were prepared using the microwave-assisted heating method and two different approaches. The MnO₂/C nanocomposite, labeled as sample S1, was prepared directly by the microwave-assisted synthesis of mixed KMnO₄ and carbon powder components. Another MnO₂/C nanocomposite, labeled as sample S2, was prepared in another way: at first, pure MnO₂ was obtained by synthesizing KMnO₄ and MnSO₄. Then, the mixture of the obtained MnO₂ and carbon powder was affected by microwave-assisted heating.

SEM images of the prepared MnO₂/C samples S1 (a, b) and S2 (c, d) under different magnifications are presented in Figure 1.

As evident, both samples are composed of spherical manganese nanograins located on the carbon surface, but they differ significantly in particle number, size and density. In the case of sample S1, a sparse population of almost separate particles under a low MnO₂ aggregation level is arranged (Figure 1a,b). The size of particles in this sample is close to 20 nm. In the case of sample S2, a nanograins’ aggregate forms a large porous network structure with carbon embedded inside (Figure 1c,d). The aggregation level of MnO₂ develops to a large extent without any clear interparticle boundaries.

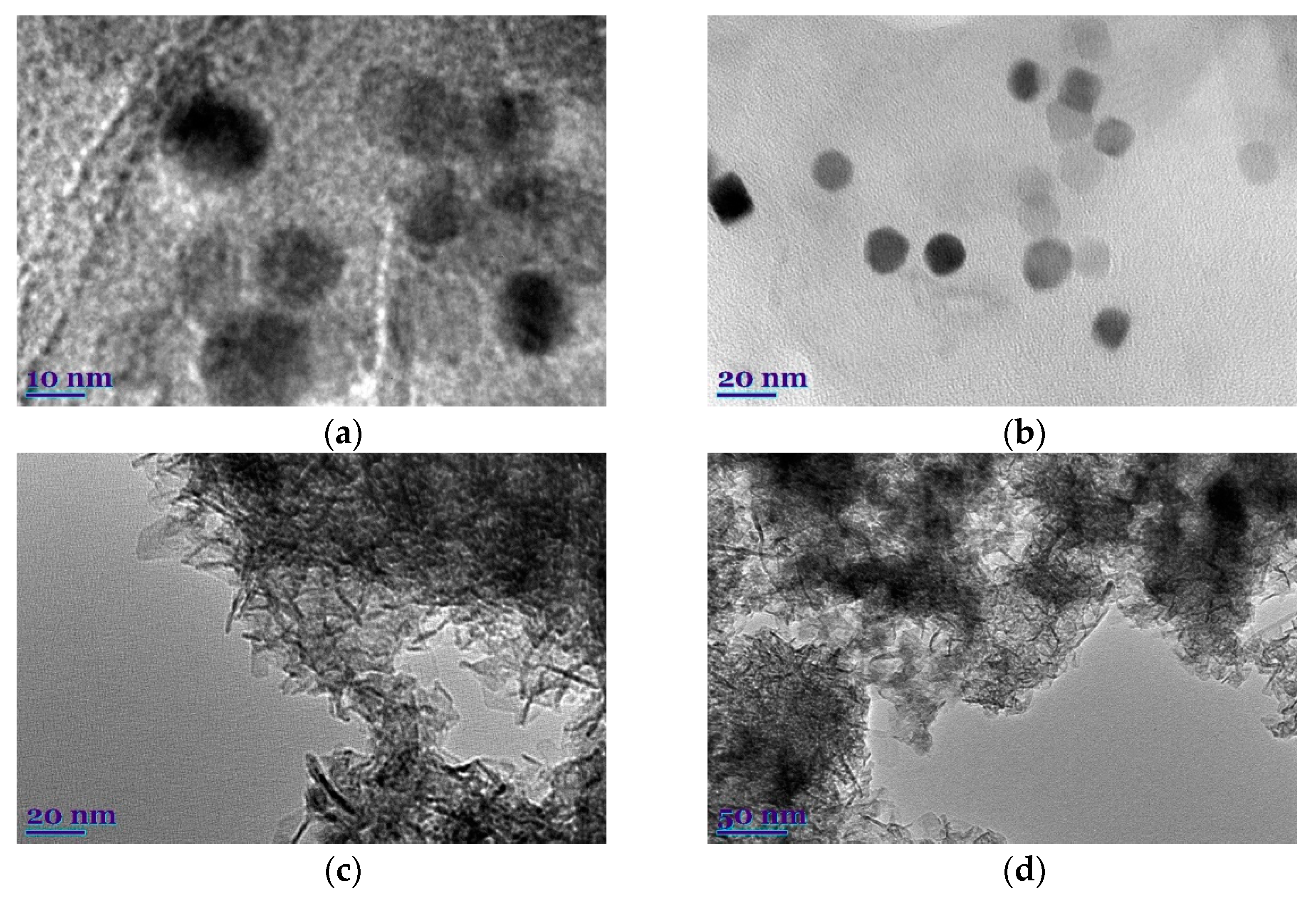

The samples S1 and S2 were further characterized by TEM analysis. TEM images of the samples S1 and S2 confirm the fibrous morphologies of both samples with the more expressed one for sample S2 (Figure 2). It was found that in the prepared sample S1, the MnO₂ nanoparticles are spherical and are ca. 13–18 nm in size (Figure 2a,b). Furthermore, no large MnO₂ nanoparticles are present within the prepared sample, indicating their negligible aggregation. In the case of sample S2, thin flakelike morphology is observed (Figure 2c,d).

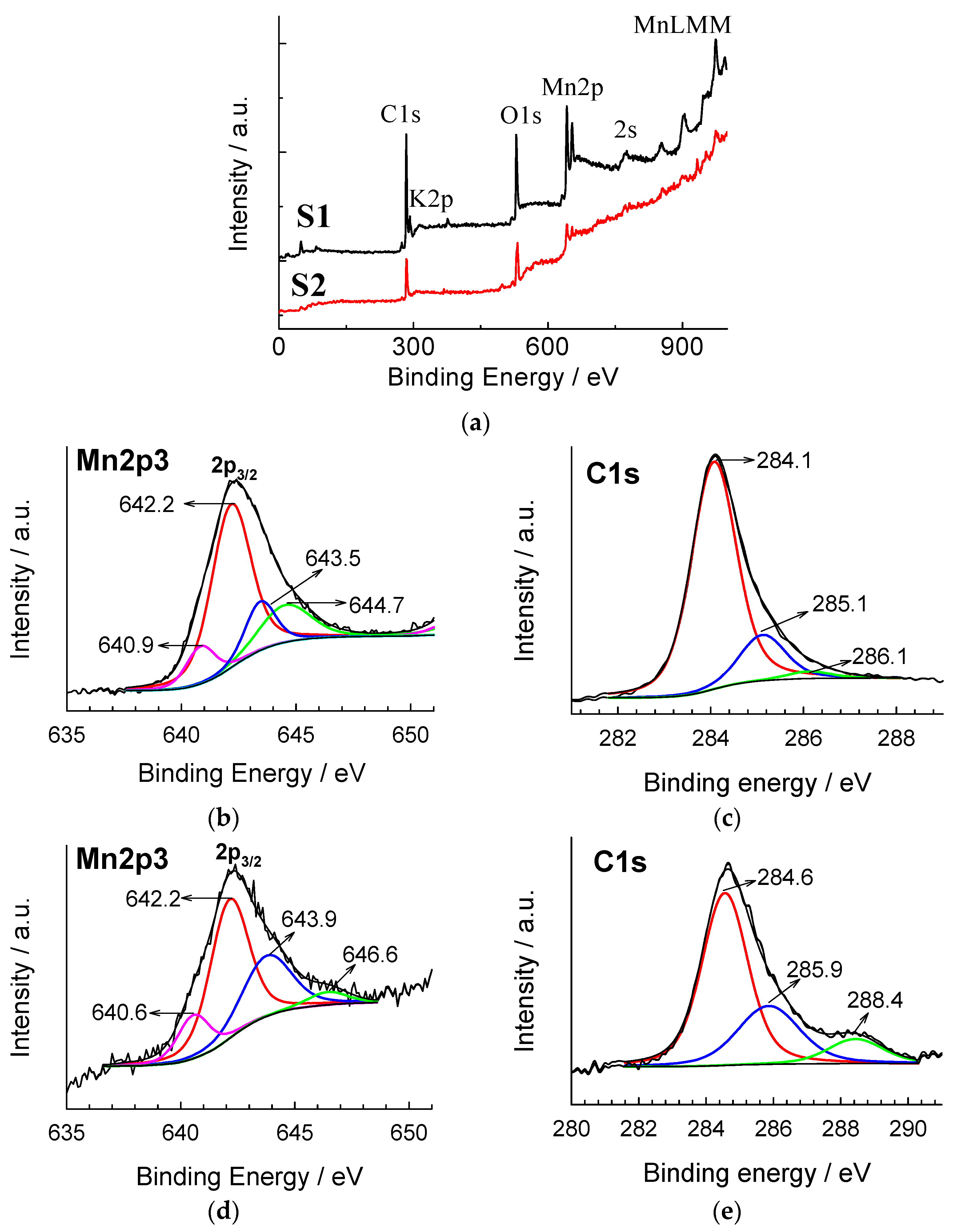

The chemical composition and the surface electronic state of the prepared MnO₂/C nanocomposites were analyzed using XPS. The C 1s signal and Mn 2p and O 1s peaks were observed in the XPS survey spectra of both samples S1 and S2 (Figure 3a). It indicates the successful synthesis of MnO₂/C, while K content in the samples S1 and S2 was ca. 3.5 and 0.88 at.%, respectively. In both cases, the deconvoluted spectra of Mn show a spin-orbit doublet of the main Mn 2p3/2 and Mn 2p1/2 peaks located at binding energies (E_b) of 642.2 eV and 654.0 eV, respectively, with a spin-energy separation of 11.8 eV (not shown). This value confirms the presence of MnO₂ in the prepared nanocomposites [59,60,61,62].

XPS spectra of Mn2p3/2 and C 1s for MnO₂/C samples S1 and S2 are shown in Figure 3b–e. As evident, for both samples, the Mn 2p3/2 peaks were deconvoluted into four peaks at binding energies of 640.6 ± 0.3, 642.2, 643.5, and 644.7 and 646.6 eV, indicating the mixed-valence of manganese oxide phases (Figure 3b,c). Following the data reported in [59,60,61,62,63,64], the position of deconvoluted Mn 2p3/2 peaks are generally assigned to Mn (IV) or Mn (II) oxidation state at E_b ranging between 641.85–643.0 eV or 640.10–641.12 eV, respectively. Therefore, peaks determined at 640.6 ± 0.3 and 642.2 eV confirm the presence of Mn(II) and Mn(IV) species in the samples S1 and S2 (Figure 3b,c). Moreover, the additional peak at 644.7 eV close to that obtained at 644.9 eV in [65,66] could similarly be assigned to a satellite shake-up peak located at higher Eb values than the main component and is a characteristic feature of the MnO phase Mn 2p core peak maximum at 640.6 ± 0.3 eV [67]. Meanwhile, peaks at 643.5 eV and 644.7 eV based on data in [66] could be related to Mn (VI and VII) species in the samples. There is no Mn 2p3/2 signal (647 eV) from permanganate ions, suggesting permanganate ions have been reduced to MnO₂ [68]. It should be noted that the dominating fraction in the prepared samples S1 and S2 is the MnO₂ phase and is equal to ~59 and 53%, respectively. At the same time, the MnO (Mn (II)) phase remains significantly lower compared to that determined for the MnO₂ (Mn (IV)) phase.

The high-resolution C 1s spectrum for sample S1 can be deconvoluted into three peaks centered at E_b of 284.1, 285.1 and 286.1 eV (Figure 3d). The first one value could be assigned to carbon atoms C–C; meanwhile, other peaks could be assigned to oxygen functionalized carbon atoms, such as C–O, or C–OH and C=O [60,69].

In the case of the sample S2, the C 1s XPS spectrum could be fitted into three peaks at 284.6, 285.8, and 288.4 eV (Figure 3e), which corresponded to C–C/C=C, C–O, and O–C=O bonds, respectively [70]. The strong peak of C–C/C=C bonds shows that carbon contained high graphitization.

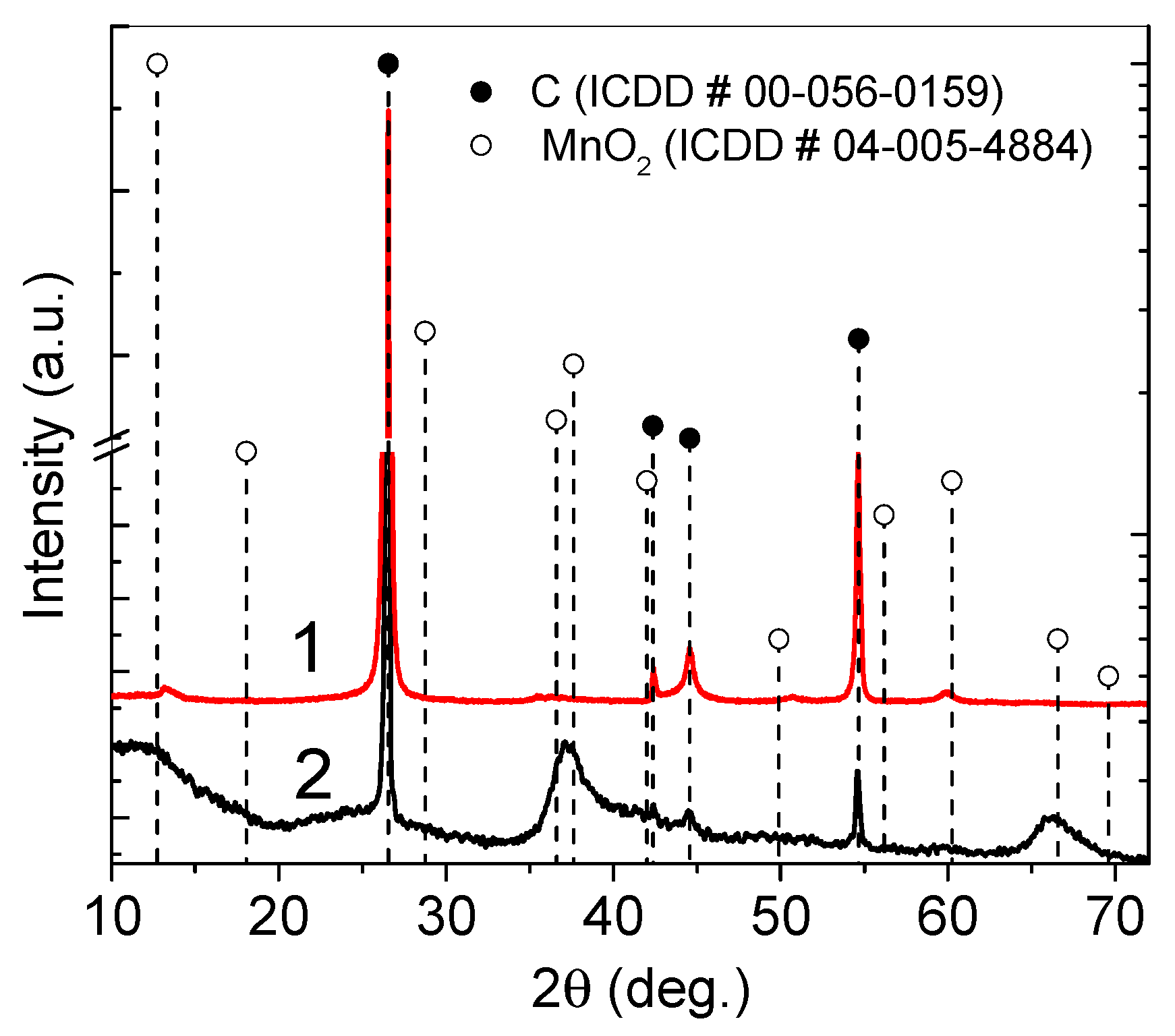

The obtained XRD patterns for both MnO₂/C samples are shown in Figure 4. The presence of broad peaks implied that the synthesized samples S1 and S2 are essentially a mixture of amorphous and nanocrystalline phases. The prominent peaks from both samples (Figure 4) locate at 26°, which can be assigned to the (002) crystal plane of graphitic carbon (ICDD card no. 00-056-0159). The diffraction peaks of α-MnO₂ are indexed according to ICDD card no. 04-005-4884, indicating a tetragonal unit cell with lattice parameters of a = b = 9.82 Å and c = 2.85 Å. The synthesized powders are composed of small crystallites with an average size of about 3.2 ± 0.3 nm.

The electrochemical performance of samples S1 and S2 was evaluated from the cyclic voltammetry and galvanostatic charge/discharge measurements using a three-electrode system in a 1 M Na₂SO₄ solution. Figure 5 shows the CV curves of the sample S1 (a), sample S2 (b), and pure carbon (c) at the scan rates of 10, 50, 100, and 200 mV s⁻¹. No obvious peaks are observed in all the CV curves. This indicates that the electrodes are charged and discharge at a constant rate over the complete cycle.

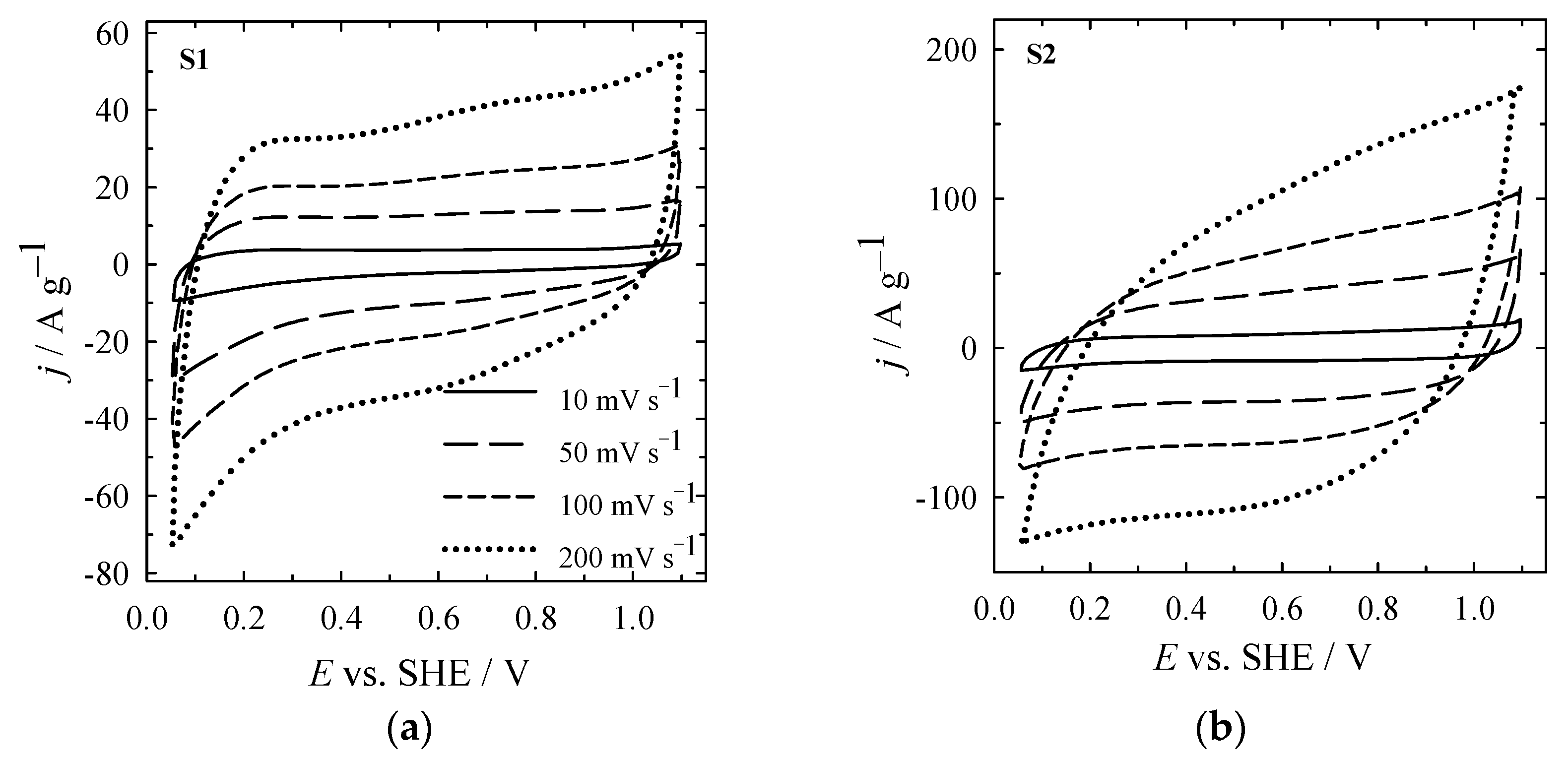

Both sample S1 and carbon show symmetrical rectangular shapes, which indicates the ideal capacitive behavior of those samples (Figure 5a,c). In the case of sample S2, deviations in the rectangularity of CV curves occur (Figure 5b). It can be seen that the current response of sample S2 is significantly higher as compared with that of sample S1 and carbon (Figure 5a–c). It is clearly seen that the sample S2 shows a significantly higher capacitive behavior as compared with that of sample S1 (Figure 5d).

The calculated C_s values for the sample S2 were 980.7, 743.2, 641.0, and 536.6 F g⁻¹ at scan rates of 10, 50, 100, and 200 mV s⁻¹, respectively (Figure 6). Meanwhile, for the sample S1, Cs values were 535.8, 349.6, 275.2, and 209.7 F g⁻¹ at scan rates of 10, 50, 100, and 200 mV s⁻¹. Those values were found to be ca. 1.8–2.6 times lower than those obtained for sample S2.

Comparisons of the supercapacitive behavior of various MnO₂-based electrode materials reported in the literature and the present work are listed in

Table 1. Comparisons of specific capacitance for various MnO₂-based electrode materials.

Materials	Scan Rate, mV s−1	Specific Capacitance, F g−1	Ref.
MnO2/C (S2)	10	980.7	This work
MnO2/C (S1)	10	535.8	This work
Self-branched α-MnO2/δ-MnO2 heterojunction nanowires	10	152.0	[22]
MnO2	5	380.0	[24]
MnO2	10	154.0	[29]
MnO2/3D-PC	1	416.0	[47]
MnO2	5	547.0	[68]
Ultra-long MnO2 nanowires	2	495.0	[69]
MnO2 NPs/Ni foam	5	549.0	[71]
MnO2/MWCNT	2	553.0	[72]

, exhibiting the high specific capacitance of our prepared electrode materials.

Galvanostatic charge/discharge curves for the sample S2 measured at different current densities of 1, 2, 5, 10, and 20 A g⁻¹ are shown in Figure 7a. The shapes of the curves show a typical triangular symmetrical distribution with a slight curvature. This result indicates a combination of electric double-layer and pseudocapacitive contributions. Specific capacitance values were calculated from the discharge test. It was found that the sample S2 can deliver high Cs values of 949.3, 719.3, 480.8, 406.7, and 371.5 F g⁻¹ at a current density of 1, 2, 5, 10, and 20 A g⁻¹ (Figure 7b). The long-term stability of the charge/discharge process was also performed on this sample S2 at a high current density of 20 A g⁻¹ up to 100 cycles (Figure 7c). As evident, this electrode showed excellent long-term stability with 93% retention of its initial capacitance value during 100 cycles.

4. Conclusions

We have successfully fabricated carbon-supported MnO₂ nanocomposites via a simple microwave-assisted heating method. Different architecture containing MnO₂ nanocomposites demonstrates improved conductivity, which is a key limitation in pseudocapacitors. The electrochemical measurements revealed that (due to this conductivity) MnO₂/C nanocomposites, especially those prepared via a two-step procedure, exhibit excellent electrochemical performance, including a high specific capacitance of 980.7 F g⁻¹. Moreover, the specific capacitance retention was 93% after 100 cycles at 20 A g⁻¹, indicating good electrochemical stability. The obtained results demonstrate that the prepared MnO₂/C nanocomposites should be a promising electrode material for supercapacitor applications and could be further extended to fabricate other materials for supercapacitors.
