Characterization and Performance Analysis of BST-Based Ferroelectric Varactors in the Millimeter-Wave Domain

,
,
,
,
,
,
and
1
XLIM, UMR CNRS 7252, University of Limoges, 123 Avenue Albert Thomas, 87060 Limoges, France
2
IETR, UMR CNRS 6164, University of Nantes, 2 rue de la Houssinière, 44322 Nantes CEDEX 3, France
*
Authors to whom correspondence should be addressed.

Abstract

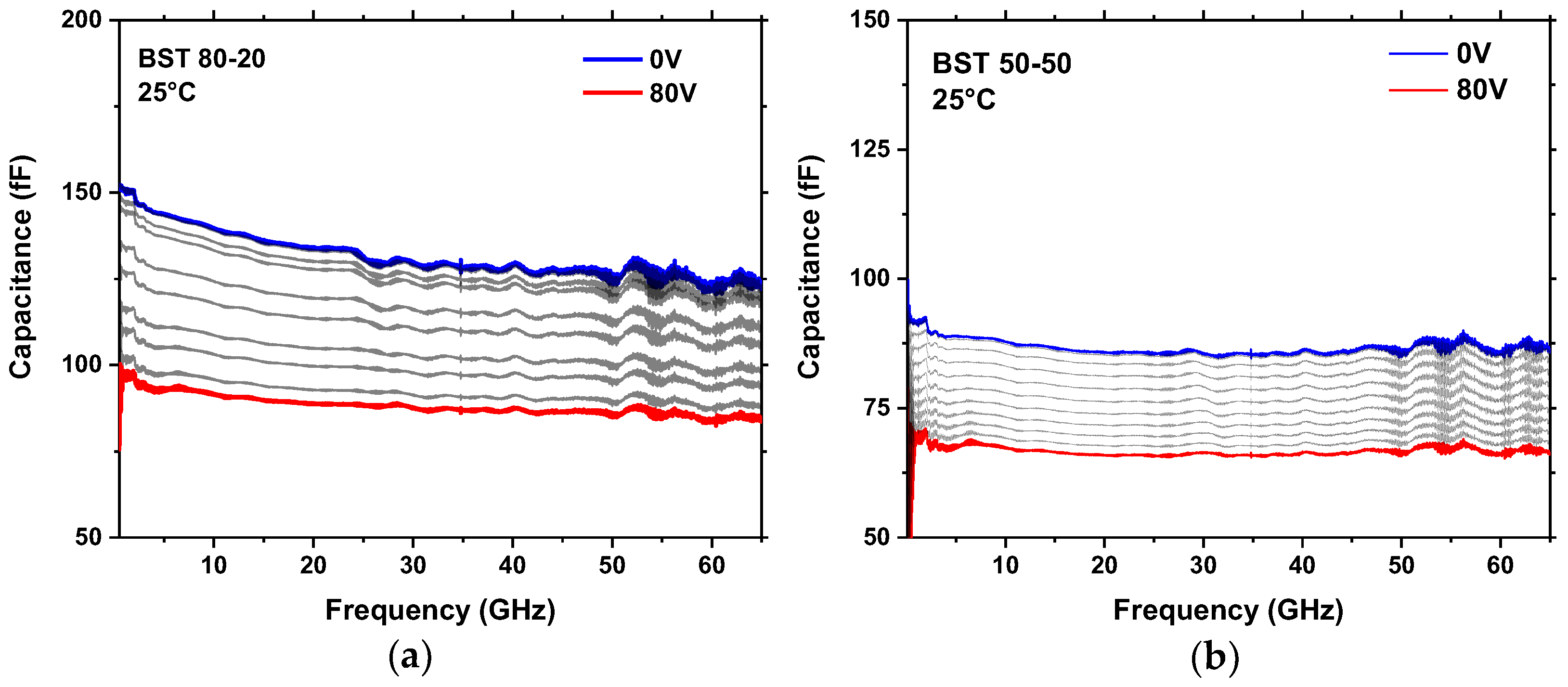

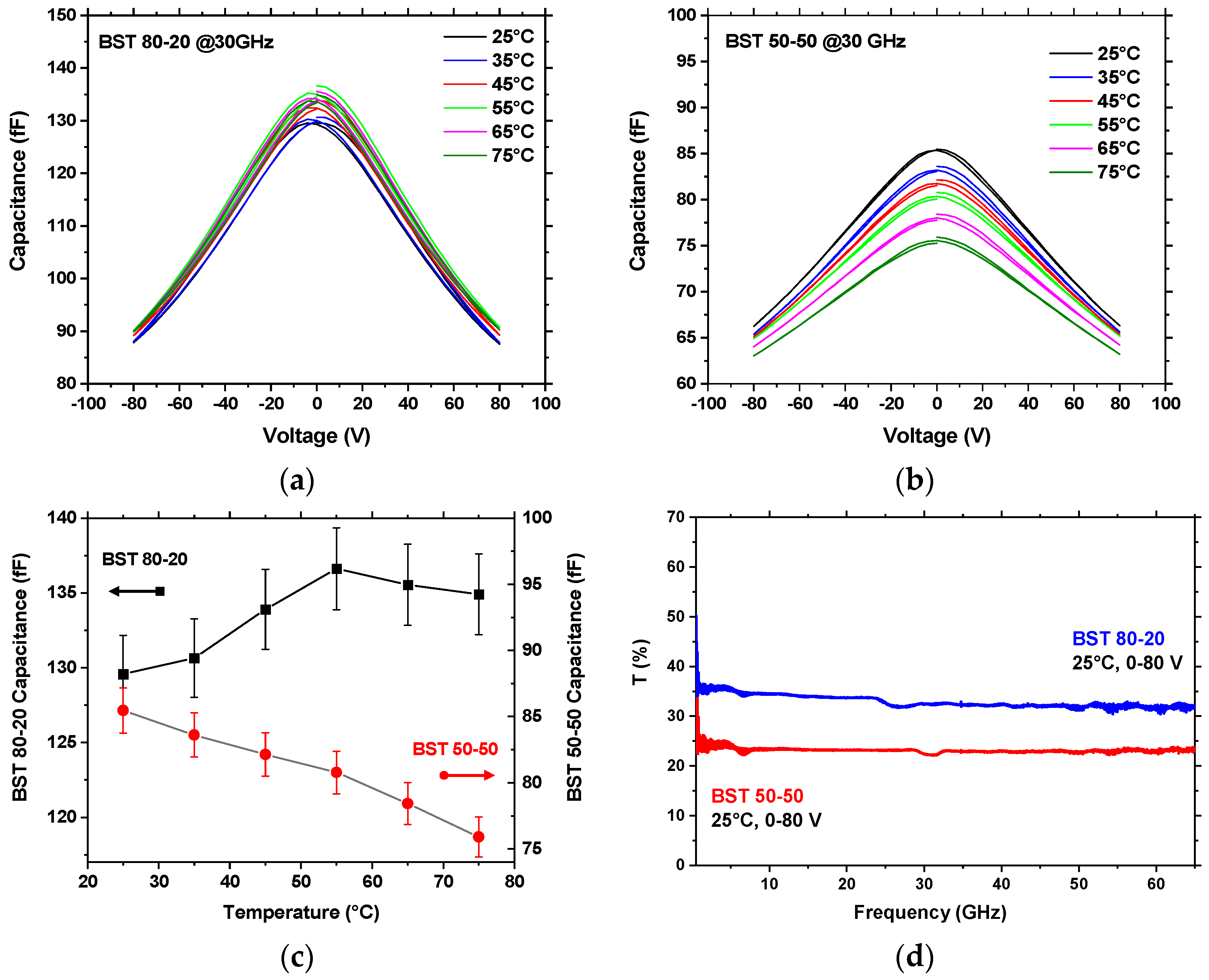

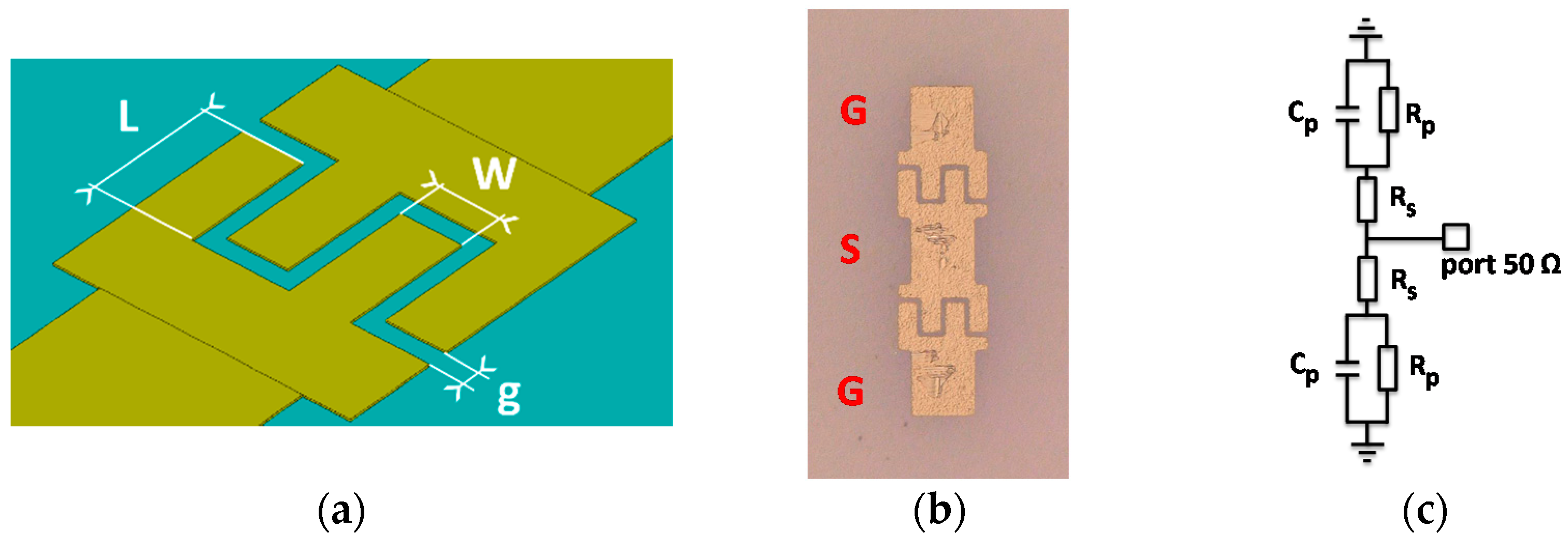

We present the realization and analysis of the microwave performances of interdigited varactors integrating thin ferroelectric layers of barium and strontium titanate (BaxSr1−xTiO3). Devices based on ferroelectric films of different compositions (x = 0.8 and x = 0.5) have been characterized in the millimeter-wave domain, from 200 MHz to 110 GHz. By applying different bias voltages, the tunability of the capacitance can reach up to 40% for the Ba0.8Sr0.2TiO3 composition, under relatively low applied electric fields of about 167 kV/cm. These promising characteristics allow the integration of the varactor devices in tunable antennas for a large frequency domain, from the microwaves to the millimeter waves range.
