Electrochemical Performance of 2D-Hierarchical Sheet-Like ZnCo2O4 Microstructures for Supercapacitor Applications

1
Department of Instrumentation, Sri Venkateswara University, Tirupati 517502, India
2
Department of Physics, Sri Venkateswara University, Tirupati 517502, India
3
Department of Biotechnology, Yeungnam University, Gyeongsan, Gyeongbuk 38541, Korea
4
Department of Biotechnology, Sri Padmavati Mahila Visvavidyalayam (Women’s University), Tirupati 517502, India
5
School of Electronics Engineering, Kyungpook National University, Daegu 41566, Korea
6
Department for Management of Science and Technology Development, Ton Duc Thang University, Ho Chi Minh City 758307, Vietnam
7
Faculty of Applied Sciences, Ton Duc Thang University, Ho Chi Minh City 758307, Vietnam
*
Authors to whom correspondence should be addressed.
Crystals 2020, 10(7), 566; https://doi.org/10.3390/cryst10070566
Received: 20 May 2020 / Revised: 21 June 2020 / Accepted: 26 June 2020 / Published: 1 July 2020

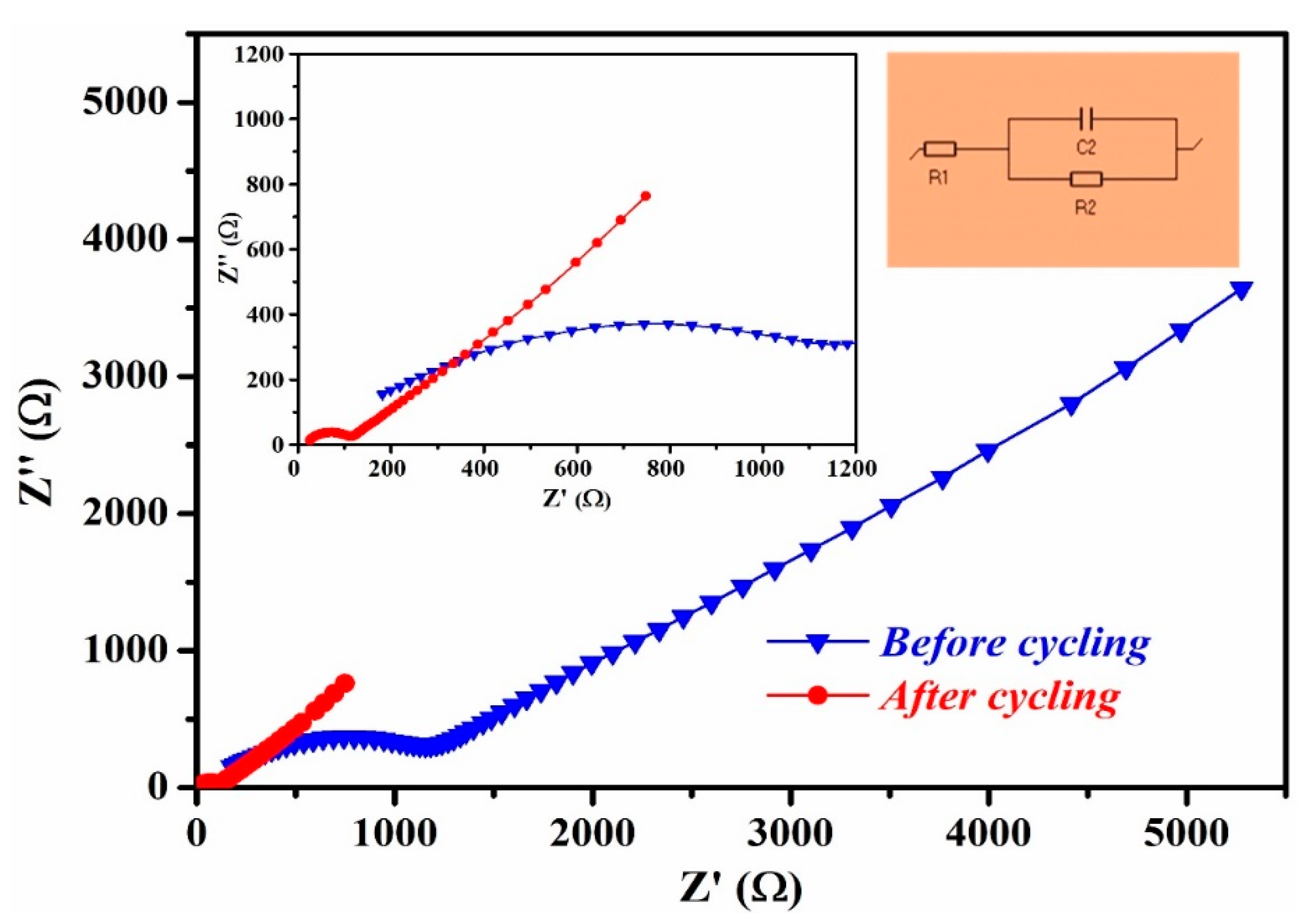

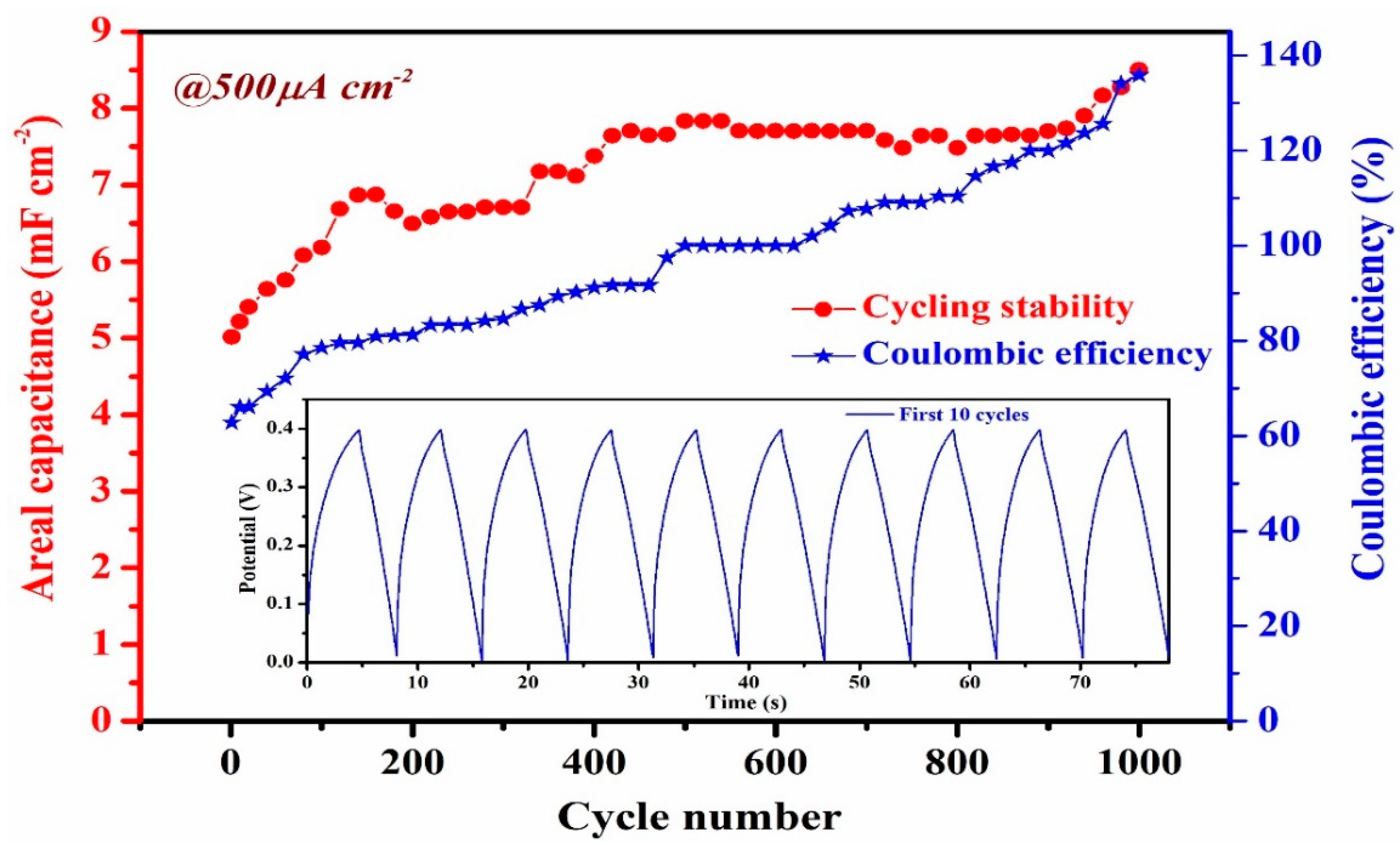

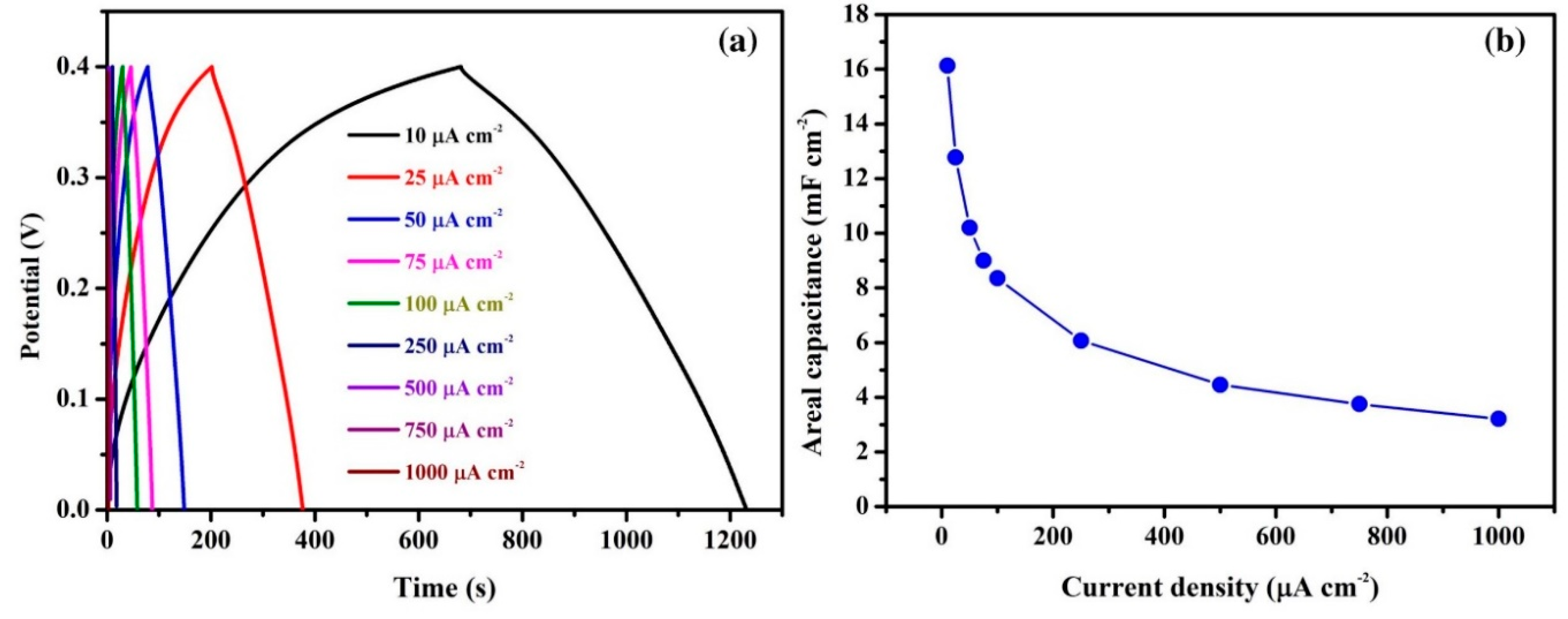

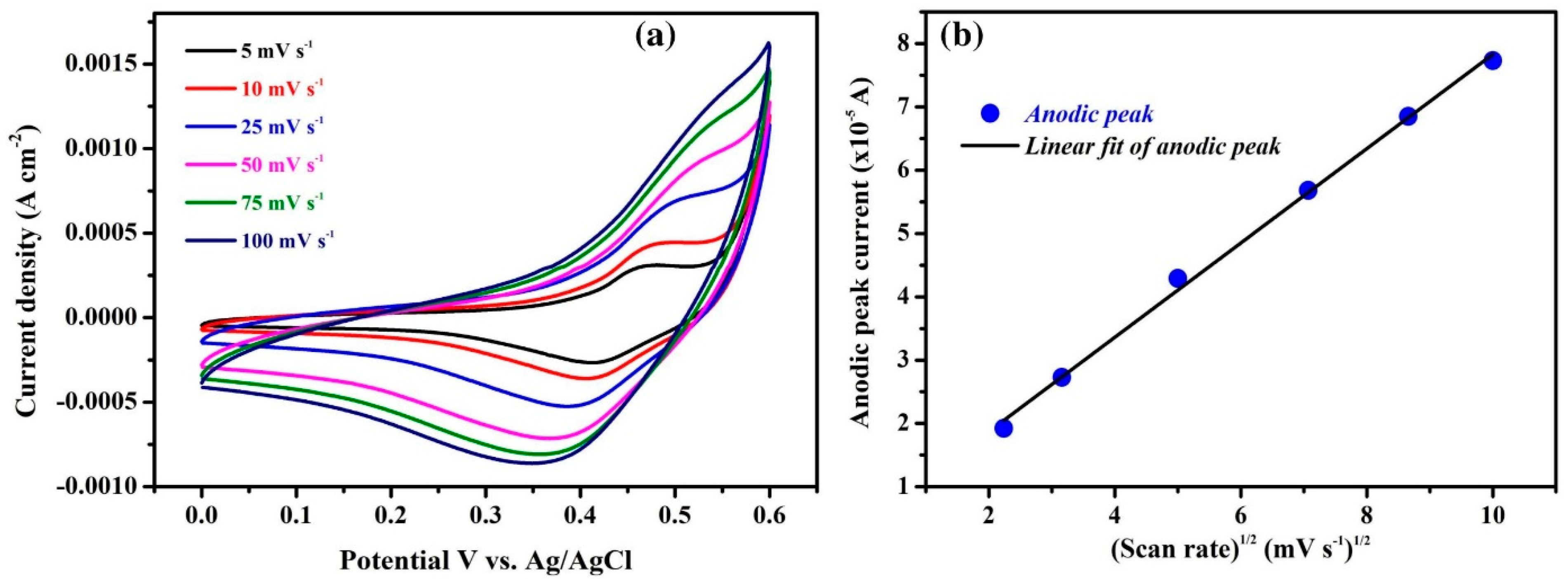

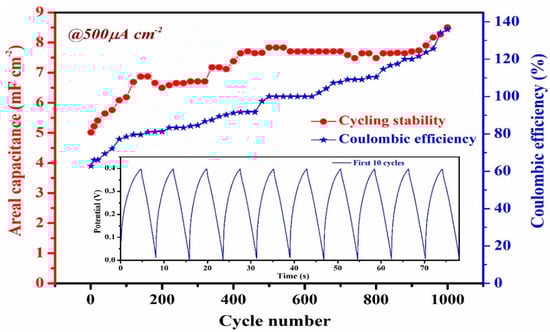

With the rapid improvement of the global economy, the role of energy has become even more vital in the 21st century. In this regard, energy storage/conversion devices have become a major, worldwide research focus. In response to this, we have prepared two-dimensional (2D)-hierarchical sheet-like ZnCo2O4 microstructures for supercapacitor applications using a simple hydrothermal method. The 2D-hierarchical sheet-like morphologies with large surface area and smaller thickness enhanced the contact area of active material with the electrolyte, which increased the utilization rate. We investigated the electrochemical performance of sheet-like ZnCo2O4 microstructures while using Cyclic voltammetry (CV), Galvanostatic charge-discharge (GCD), and Electrochemical impedance spectroscopy (EIS) analysis. The electrochemical results demonstrated that the ZnCo2O4 electrode possesses 16.13 mF cm−2 of areal capacitance at 10 µA cm−2 of current density and outstanding cycling performance (170% of capacitance is retained after 1000 cycles at 500 µA cm−2). The high areal capacitance and outstanding cycling performance due to the unique sheet-like morphology of the ZnCo2O4 electrode makes it an excellent candidate for supercapacitor applications. View Full-Text
Keywords: supercapacitors; hydrothermal method; areal capacitance; sheet-like ZnCo2O4 supercapacitors; hydrothermal method; areal capacitance; sheet-like ZnCo2O4
Show Figures

Figure 1

MDPI and ACS Style

Prasad, K.; Rajasekhara Reddy, G.; Rajesh, M.; Babu, P.R.; Shanmugam, G.; Sushma, N.J.; Pratap Reddy, M.S.; Deva Prasad Raju, B.; Mallikarjuna, K. Electrochemical Performance of 2D-Hierarchical Sheet-Like ZnCo2O4 Microstructures for Supercapacitor Applications. Crystals 2020, 10, 566.
