Soft and Hard Piezoelectric Ceramics for Vibration Energy Harvesting

Abstract

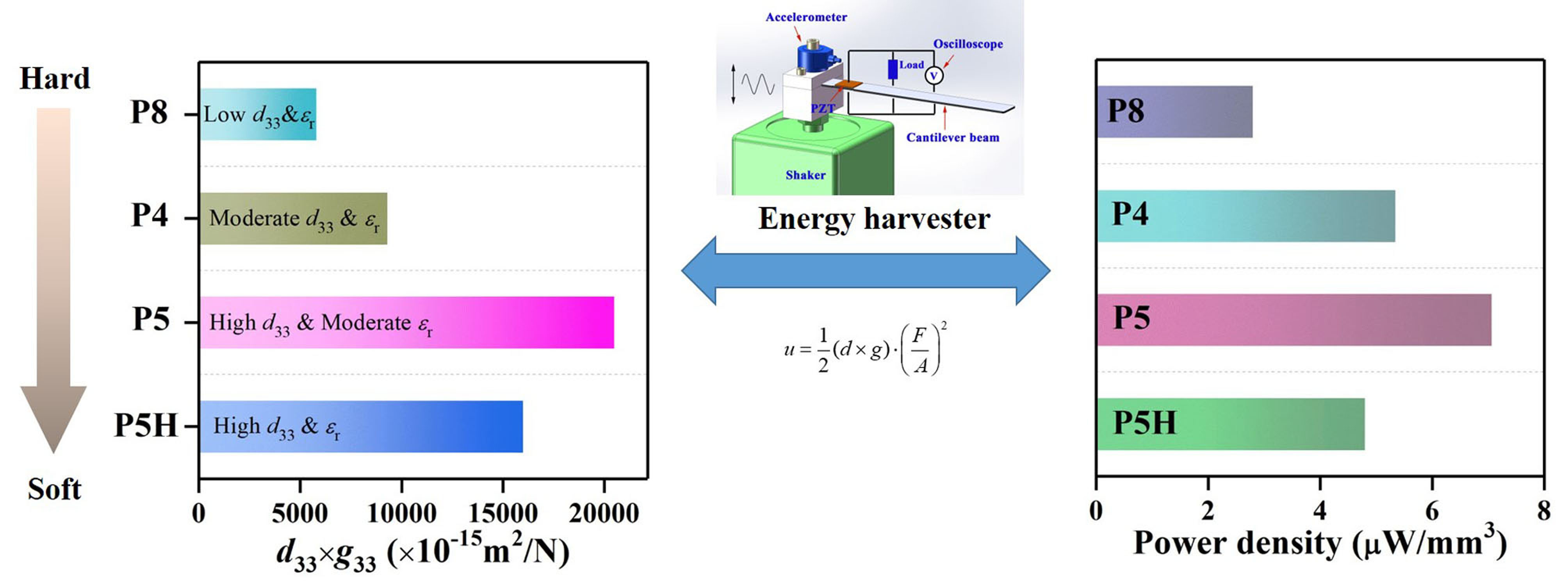

The question as to which piezoelectric composition is favorable for energy harvesting has been addressed in the past few years. However, discussion on this topic continues. In this work, an answer is provided through a feasible method which can be used in selecting piezoelectric material. The energy harvesting behavior of hard (P4 and P8) and soft (P5 and P5H) lead zirconate titanate (PZT) ceramics was investigated. The results show that the maximum piezoelectric voltage coefficient g₃₃ and transduction coefficient d₃₃ × g₃₃ were obtained in P5 ceramic. Meanwhile, the power generation characteristics at low frequencies were compared by the vibration energy harvester with a cantilever beam structure. The results indicate that the energy harvester fabricated by the P5 ceramic with the maximum d₃₃ × g₃₃ values also demonstrated the best power generation characteristics. The results unambiguously demonstrate that the power density and energy conversion efficiency of the energy harvesting devices are dominated by the d₃₃ × g₃₃ value of the piezoelectric materials.

1. Introduction

With the development of the Internet of Things and artificial intelligence technology, current power sources such as batteries have limitations in microelectronics due to their large volume, limited lifetime, etc. [1]. Thus, there has been extensive interest in the concept of piezoelectric energy harvesting, which is a process of recycling ambient waste vibration energy and converting it into useable electricity [2]. This technology aims to eliminate the need for replacing chemical batteries or complex wiring in microsystems, moving us closer toward batteryless autonomous sensors systems and networks [3].

In order to achieve high electromechanical energy conversion efficiency in application, as the core component of the energy harvester, piezoelectric materials have been subjected to considerable challenges. Priya et al. [4] proposed that the key factor for the selection of a piezoelectric material for energy harvesting applications is the high energy density u, which can be calculated by the following formula:

$$u=\frac{1}{2}\left(d\times g\right){\left(\frac{F}{A}\right)}^2$$

(1)

where d is the piezoelectric charge constant, g is the piezoelectric voltage constant, F is the applied alternating force, and A is the force area. According to Equation (1), for a given material with fixed A and the same applied force, the piezoelectric materials with large transduction coefficient (d × g) will generate high energy density. Recently, many studies have been attempted to search for such piezoelectric materials [5,6,7,8,9,10,11,12]. However, there is still no direct experimental evidence to clarify the relationship between the d × g value of materials and the power generation characteristic of energy harvesters.

Pb(Zr,Ti)O₃ (PZT), a classic ferroelectric system, possesses superior piezoelectric properties as well as temperature stability [13]. Further modifications using acceptor and donor dopants give us the wide range of piezoelectric compositions [14]. Acceptor dopants include lower valence additives, which play a hardening role in the ferroelectrics by pinning domain wall motion and thus reducing internal loss and enhancing coercive field, but at the expense of decreasing dielectric and piezoelectric properties, such compositions were defined as hard ferroelectrics [15]. In contrast, donor dopants, which include higher valence additives, generate lead vacancies and subsequent enhancement of domain wall mobility, resulting in the soft ferroelectrics with higher dielectric and piezoelectric properties.

The aim of this work is mainly to clarify whether a piezoelectric ceramic with high transduction coefficient (d × g) also has excellent power generation performances. Various piezoelectric composition (hard (P4, P8) and soft (P5, P5H) PZT) were considered for this purpose and it was found that the soft P5 ceramic not only possessed the highest d × g value, but also performed the best power generation performances.

2. Experimental Procedure

PZT samples (P4, P8, P5, and P5H) were obtained from BaoDing HongSheng Acoustics Electron Apparatus Co., Ltd. (Baoding, China) [16]. The specimens with dimensions 10 mm × 10 mm × 0.5 mm and an electrode on the main surfaces were adopted to assess the energy harvesting behavior. The dielectric properties (ε_r and tanδ) were measured by employing a multifrequency LCR analyzer (Agilent E4980A, Santa Clara, CA, USA). The ferroelectric properties of the samples were studied by employing a ferroelectric tester (Premier II, Radiant Technologies Inc., Albuquerque, NM, USA) at 1 Hz. The piezoelectric charge constant d₃₃ of these specimens was measured utilizing a piezoelectric d₃₃ meter (ZJ-6A, Institute of Acoustics, Academic Sinica, China) at 100 Hz. The piezoelectric voltage constant g₃₃ and figure of merit in the off-resonance condition (FOM_off) can be calculated by using Equations (2) and (3) [4]:

$$g_{33}=\frac{d_{33}}{{\epsilon }_0{\epsilon }_{\mathrm{r}}}$$

(2)

$${\mathrm{FOM}}_{off}=\frac{d_{33 \times }{g}_{33}}{\tan \delta }$$

(3)

For piezoelectric application, electromechanical coupling factors (k_p) can reflect the conversion ability between electrical and mechanical energy [17], which can be directly derived from resonance (f_r) and antiresonance frequencies (f_a), as shown below:

$$k_{\mathrm{p}}=\sqrt{2.51 \times \frac{f_{\mathrm{a}}-f_{\mathrm{r}}}{f_{\mathrm{r}}}}$$

(4)

In addition, the mechanical quality factor (Q_m) is also a major parameter for resonant applications and can reflect the degree of energy dissipation. The Q_m value can be calculated by

$$Q_{\mathrm{m}}=\frac{f_{\mathrm{a}}^2}{2\pi f_{\mathrm{r}}RC\left(f_{\mathrm{a}}^2-f_{\mathrm{r}}^2\right)}$$

(5)

where R is the impedance at f_r and C is the capacitance under 1 kHz. Here, k_p and Q_m were obtained by a precision impedance analyzer (Agilent 4294A, Santa Clara, CA, USA).

To produce the cantilever-type piezoelectric energy harvester, the ceramics were attached to stainless steel substrates (120 mm × 12 mm × 0.9 mm) using epoxy (353ND; Epoxy Technology, Billerica, MA, USA). The detailed experimental method and the related instruments can be found in our previous works [11,18].

3. Results and Discussion

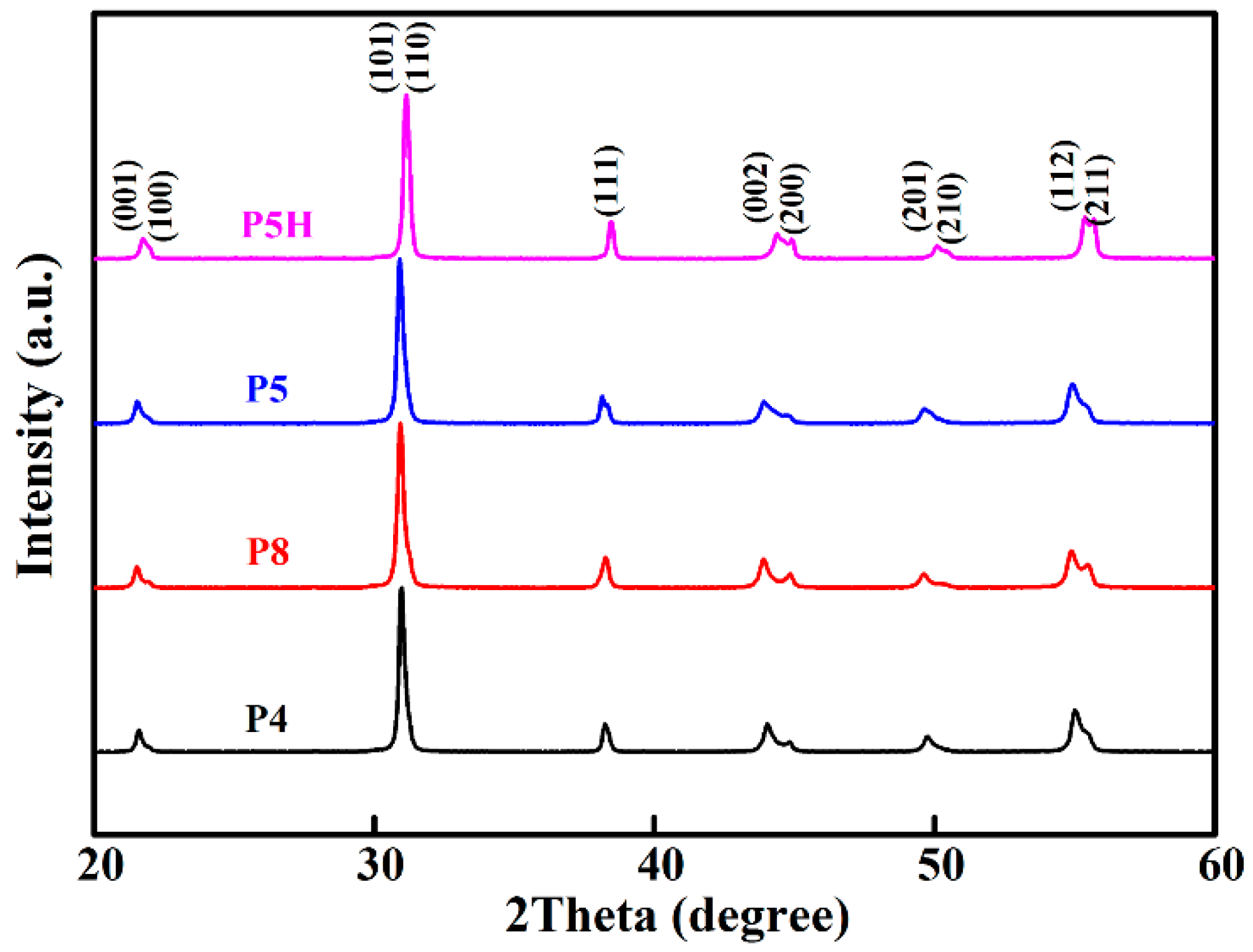

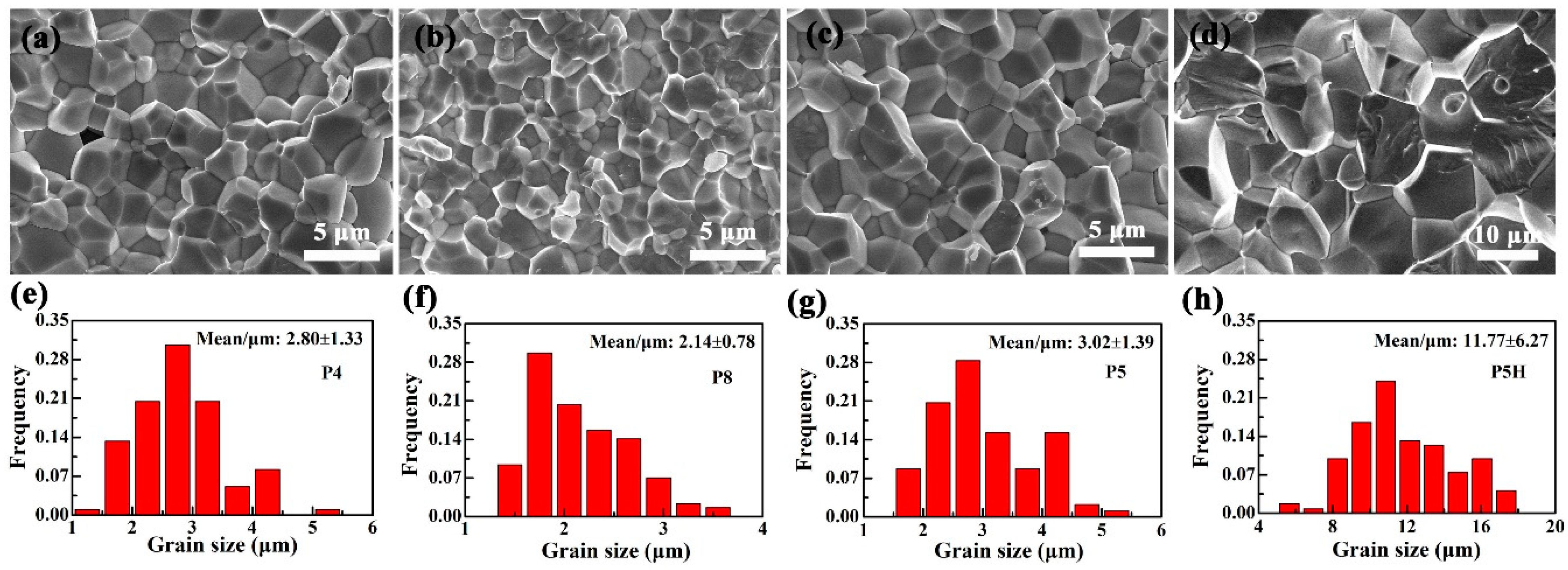

These commercial ceramics present a complete perovskite structure without any trace of impurities, as shown in Figure 1. To further study their crystal structure, (200)_pc reflections of the samples were enlarged and are presented in Figure S1 (in Supplementary Material). As we can see, four patterns show the identifiable but incomplete splitting, implying that these compositions are all located at around the morphotropic phase boundary (MPB) [19,20]. By using the Gaussian method, the (200)_pc patterns of the four ceramics were fitted based on a mixture of R and T phases [21]. The results indicate that the fraction of T phase for P4, P8, P5, and P5H was 79.6%, 86.7%, 66.6% and 75.0%, respectively. All of the PZT ceramics retained a high relative density of above 95% and a uniform microscopic appearance. The SEM micrographs and grain size distributions are displayed in Figure 2a–h, and average grain sizes of the P4, P8, P5, P5H ceramics are approximately 2.80, 2.14, 3.02, and 11.77 μm, respectively.

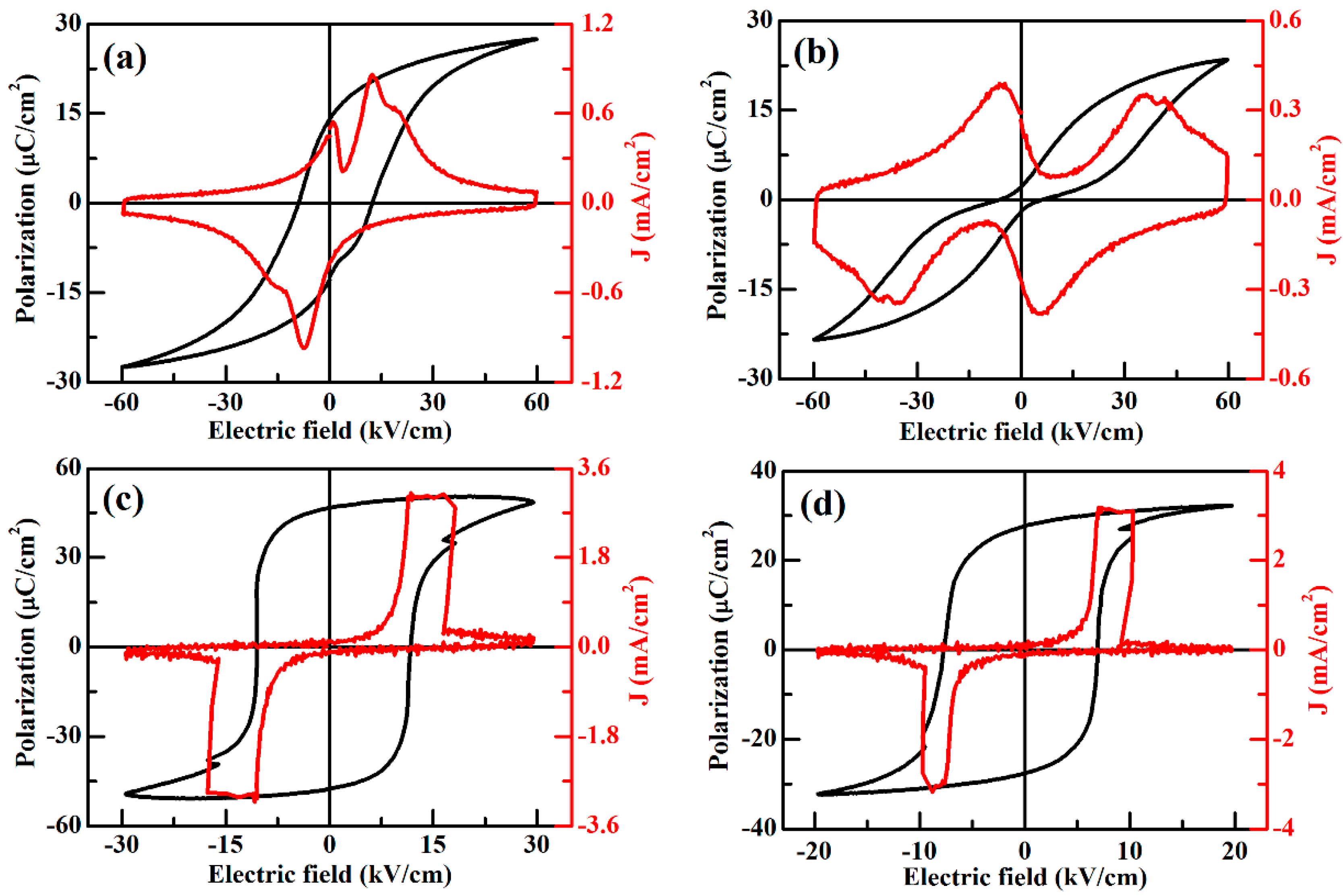

Figure 3a–d show the polarization (P)–electric field (E) hysteresis loops and corresponding current density (J)–E curves of the commercial hard and soft PZT ceramics, respectively. Figure 3a gives the representative P–E loop of P4 ceramic, as we can see, the off-set in coercive field arises, and reflects the level of internal bias [15]. It is well known that the development of internal bias can effectively increase the coercive field and decrease the remanent polarization of hard piezoelectrics. The strong loop pinching is observed in the much harder P8 ceramic [Figure 3b], which may be due to the resorting force for domain walls and constrain their motion caused by oxygen vacancy-acceptor defect dipoles [22]. Soft P5 and P5H ceramics result in the opposite effect of hard piezoelectrics, with the remanent polarization increasing, while the coercive field decreases, as shown in Figure 3c,d. It is noted that the flats in J–E curves were due to the generated current responses exceeding the detection limit of the ferroelectric tester. These “hardening” and “softening” effects would also change the dielectric and piezoelectric activity shown in Figure 4a, which gives the typical electrical properties of hard and soft piezoelectric polycrystals [15].

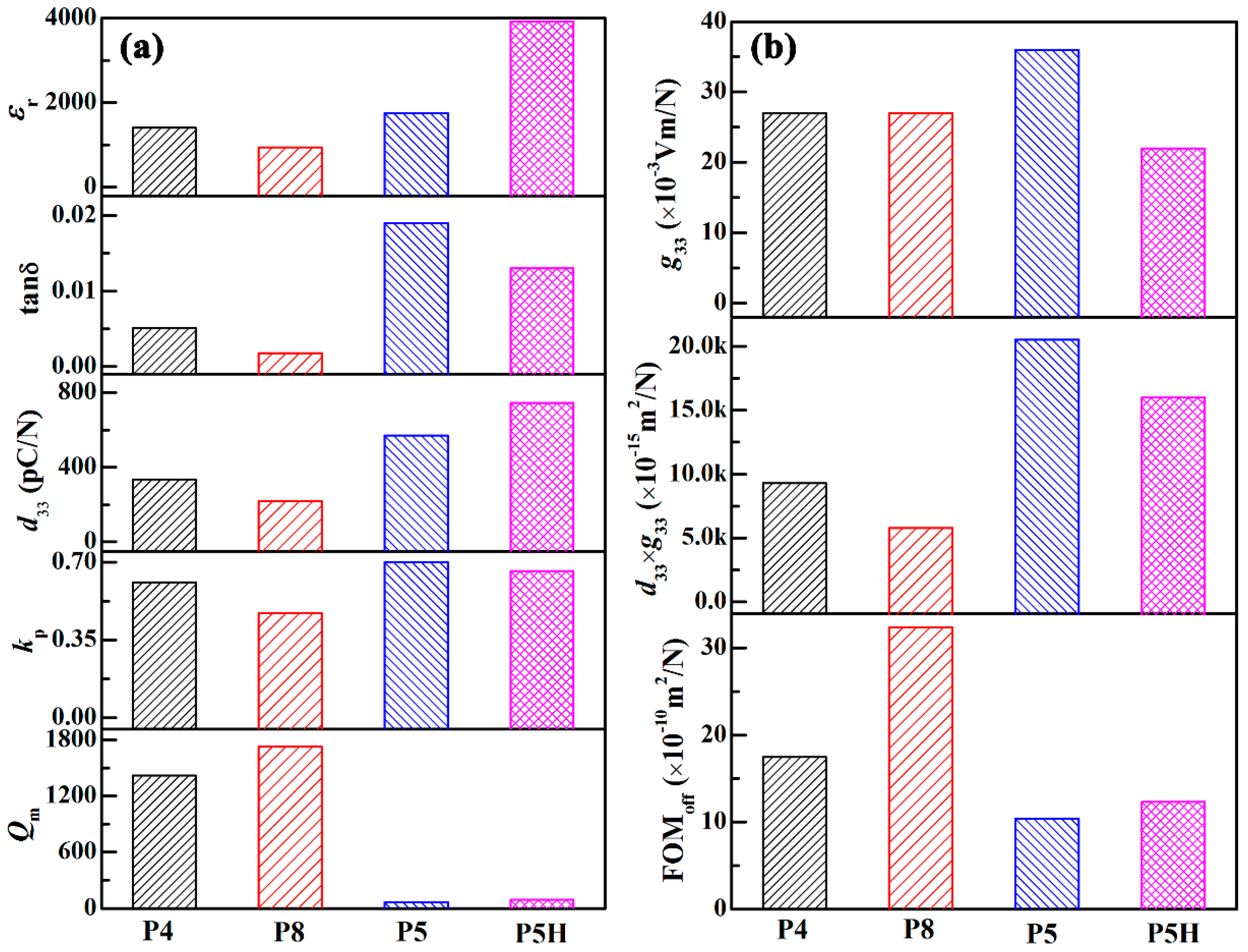

In the process of converting vibration energy into electrical energy, it is difficult to evaluate the piezoelectric energy harvesting material by considering only a single property index [4]. According to previous reports, the piezoelectric voltage constant (g₃₃), transduction coefficient (d₃₃ × g₃₃), and figure of merit in the off-resonance condition (FOM_off) may be important factors to determine the electromechanical conversion performance of commercial PZT ceramics at low frequencies, as shown in Figure 4b. It is found that the maximum g₃₃ and d₃₃ × g₃₃ value of 36 × 10⁻³ and 20,500 × 10⁻¹⁵ m²/N were obtained in P5 ceramic, respectively, while the maximum FOM_off value of 32.4 × 10⁻¹⁰ m²/N was obtained in P8 ceramic due to the low loss (tanδ) of 0.18% in harder piezoelectric ceramic. Generally, the loss plays a critical role in affecting the electrical damping [4], which further influences the performance of the transducer.

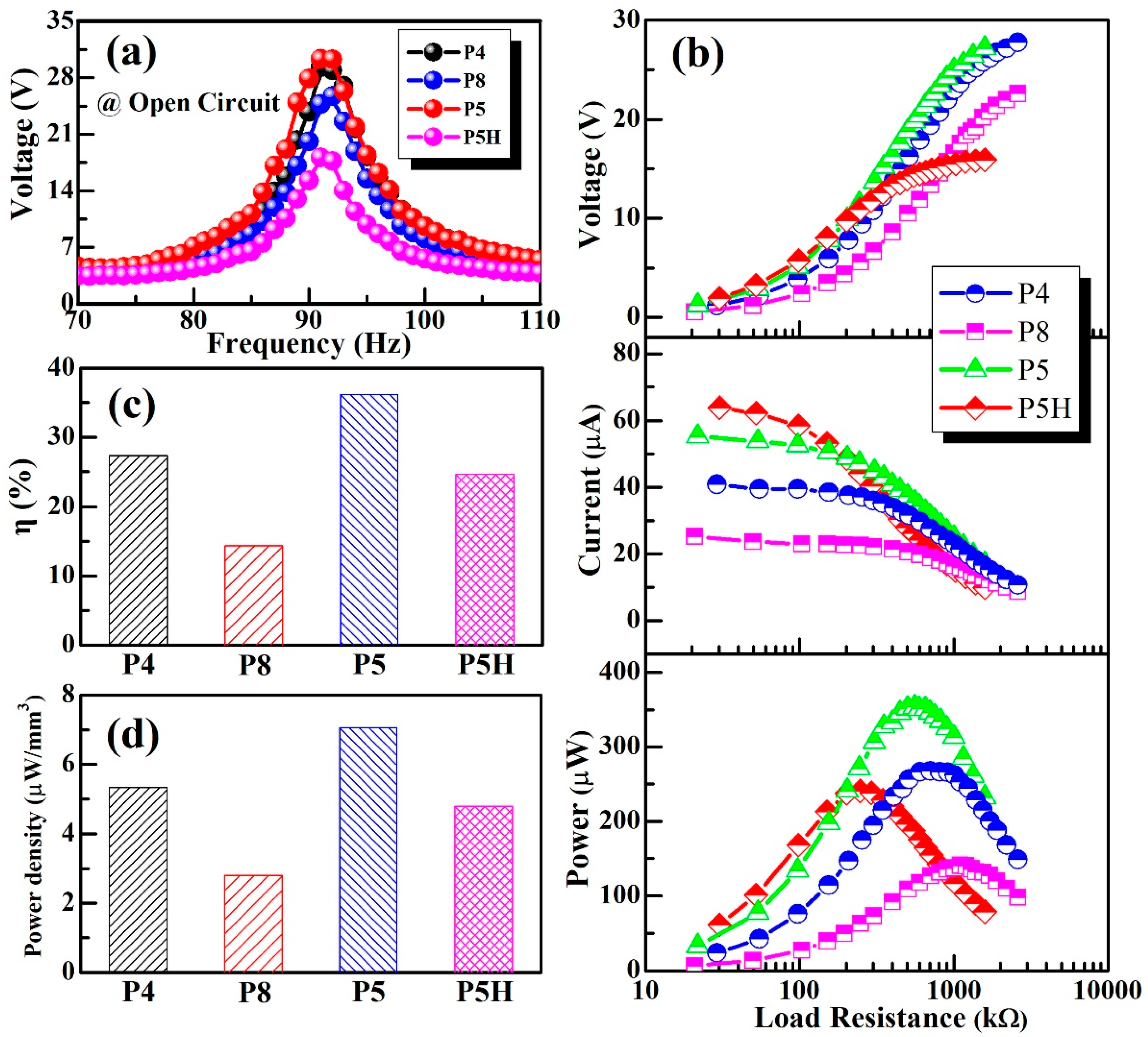

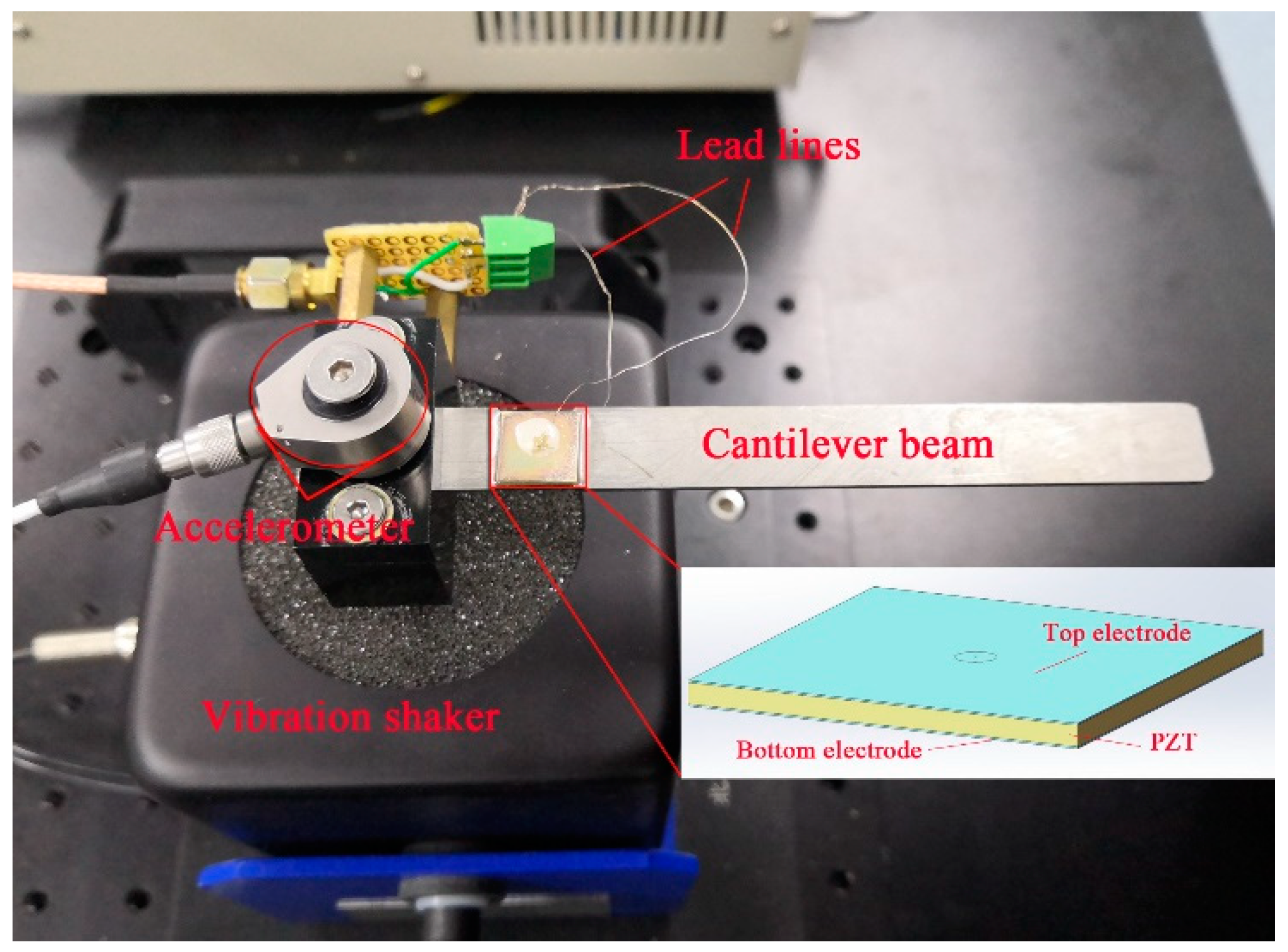

Furthermore, the vibration energy harvesters based on these PZT commercial ceramics were fabricated, as shown in Figure 5. The cantilever was mounted on a shaker, and the top and bottom electrodes were connected to load resistance by lead lines [11]. The continuous vibration with the sine wave modes was applied and the generated voltage could be observed by an oscilloscope. Figure 6a gives the frequency-dependent voltage (open circuit) of the PZT energy harvesters at an acceleration of 1.0 g. The resonance frequency for the energy harvester located at 92 Hz, where the highest output voltage (open circuit) of 30.3 V (amplitude value) was achieved in an energy harvester fabricated by P5 ceramic. Figure 6b depicts the output voltage (amplitude value), output current (amplitude value), and average output power as a function of external load. When increasing the load resistance, the output voltage across the load increased while the output current decreased gradually. The peak power values of all the PZT energy harvesters were obtained at a resistance of 200~1200 kΩ, which depend on the internal impedance of piezoelectric materials [23].

Energy conversion efficiency (η) is an essential performance metric for energy harvesters and usually refers to the ratio of output electrical energy (E_out) to input vibration energy (E_in) [24]. However, the expressions of E_out and E_in vary in different papers [25,26,27]. Here, the input and output energy were defined by the following formula (6) [28,29]:

$$\eta =\frac{E_{\mathrm{out}}}{E_{\mathrm{in}}}=\frac{P\cdot T}{\pi \cdot F_0\cdot z_0}$$

(6)

where E_in is the input mechanical energy to the entire cantilever beam, E_out is the output electric energy to the external load, z₀ is the vibration amplitude of the cantilever beam from the equilibrium position, T is a vibration cycle, F₀ is the amplitude of the harmonic excitation force, and P is the average output power. Figure 6c plots the η value of the PZT energy harvesters. It can be seen that the values of η in PZT energy harvesters are all above 10%. In particular, the η value of P5 energy harvesters can reach as high as 36.2%. Furthermore, Figure 6d gives power density for the energy harvesters fabricated with soft and hard PZT ceramics, which shows the similar trend with the change in η value [30]. The highest power density of 7.06 μW/mm³ was obtained in soft P5 piezoelectric ceramic.

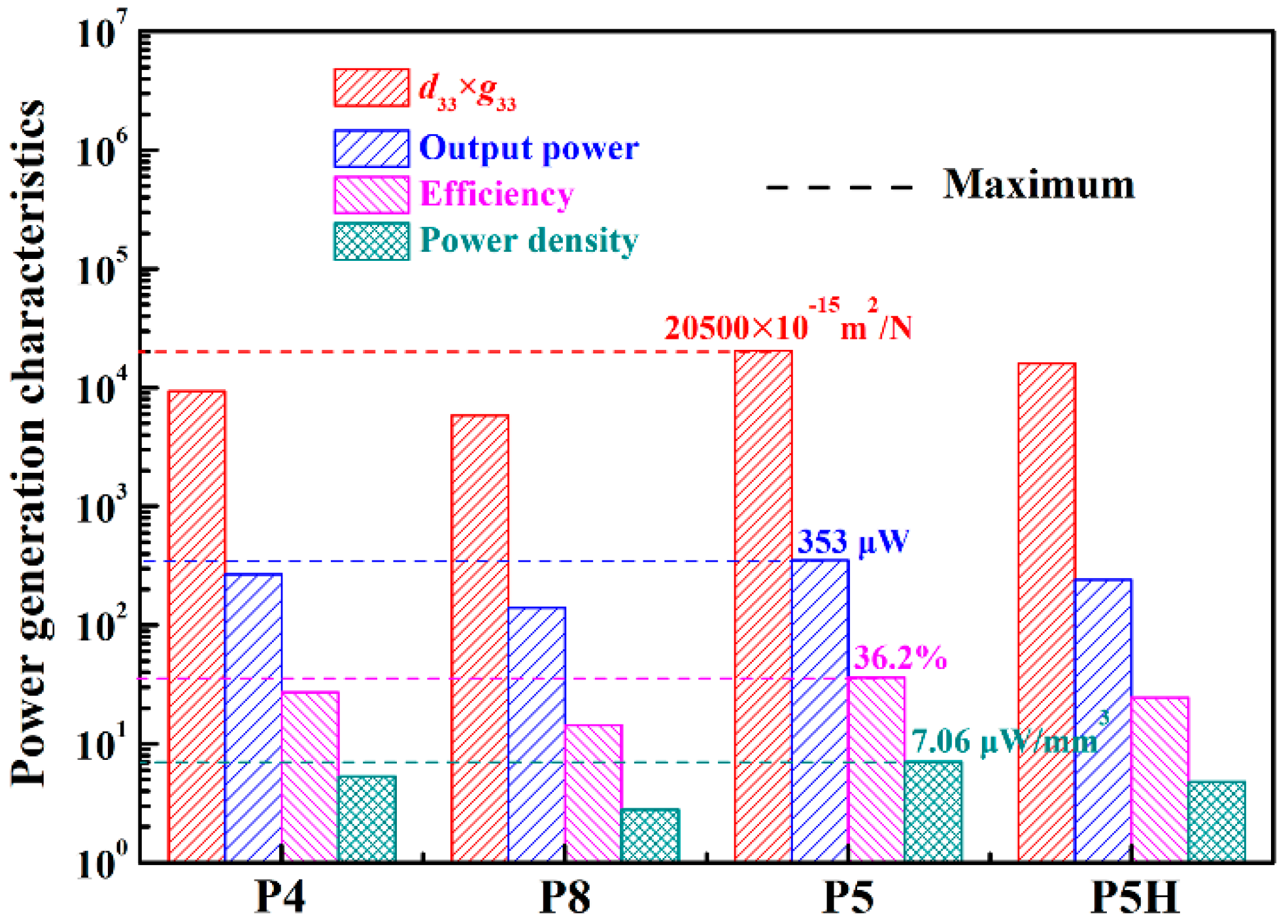

Furthermore, we compared the power generation characteristics of energy harvesters fabricated by the hard and soft PZT ceramics at 92 Hz, as depicted in Figure 7. It is found that the d₃₃ × g₃₃ values of these commercial ceramics showed a similar trend as the average output power, energy conversion efficiency, and power density change. The maximum values of output power, efficiency, and power density were all obtained in the energy harvester fabricated by the P5 sample, which has the largest d₃₃ × g₃₃ value.

4. Conclusions

This work provides a criterion for choosing piezoelectric materials that can be suitable for cantilever beam piezoelectric energy harvesters. The energy harvesting behavior of these commercial ceramics, including P4 (hard), P8 (harder), P5 (soft) and P5H (softer) have been investigated. The results unambiguously demonstrate important differences in the energy harvesting behavior and power generation performance among this family of materials and the energy harvesters fabricated by these commercial ceramics. The results further clearly show that at a low frequency region (e.g., 92 Hz), the power generation performances of the energy harvesters are dominated by the d₃₃ × g₃₃ value of the piezoelectric materials.
