Article

Salt-Templated Platinum-Copper Porous Macrobeams for Ethanol Oxidation

by
F. John Burpo
1,2,*,
Enoch A. Nagelli
1,2,
Anchor R. Losch
1,
Jack K. Bui
1,
Gregory T. Forcherio
3,
David R. Baker
3,
Joshua P. McClure
3,
Stephen F. Bartolucci
4 and
Deryn D. Chu
3
1
Department of Chemistry and Life Science, United States Military Academy, West Point, NY 10996, USA
2
Photonics Research Center, United States Military Academy, West Point, NY 10996, USA
3
United States Army Research Laboratory-Sensors and Electron Devices Directorate, Adelphi, MD 20783, USA
4
U.S. Army Combat Capabilities Development Command-Armaments Center, Watervliet, NY 12189, USA
*
Author to whom correspondence should be addressed.
Catalysts 2019, 9(8), 662; https://doi.org/10.3390/catal9080662
Submission received: 1 July 2019 / Revised: 29 July 2019 / Accepted: 30 July 2019 / Published: 2 August 2019
(This article belongs to the Special Issue Recent Advances in Pt-Based Catalysts: Theoretical and Experimental Results)
Browse Figures
Versions Notes

Abstract

:
Platinum nanomaterials provide an excellent catalytic activity for diverse applications and given its high cost, platinum alloys and bi-metallic nanomaterials with transition metals are appealing for low cost and catalytic specificity. Here the synthesis of hierarchically porous Pt–Cu macrobeams and macrotubes templated from Magnus’s salt derivative needles is demonstrated. The metal composition was controlled through the combination of [PtCl4]2− with [Pt(NH3)4]2+ and [Cu(NH3)4]2+ ions in different ratios to form salt needle templates. Polycrystalline Pt–Cu porous macrotubes and macrobeams 10’ s–100’ s μm long with square cross-sections were formed through chemical reduction with dimethylamine borane (DMAB) and NaBH4, respectively. Specific capacitance as high as 20.7 F/g was demonstrated with cyclic voltammetry. For macrotubes and macrobeams synthesized from Pt2−:Pt2+:Cu2+ salt ratios of 1:1:0, 2:1:1, 3:1:2, and 1:0:1, DMAB reduced 3:1:2 macrotubes demonstrated the highest ethanol oxidation peak currents of 12.0 A/g at 0.5 mV/s and is attributed to the combination of a highly porous structure and platinum enriched surface. Salt templates with electrochemical reduction are suggested as a rapid, scalable, and tunable platform to achieve a wide range of 3-dimensional porous metal, alloy, and multi-metallic nanomaterials for catalysis, sensor, and energy storage applications.

Graphical Abstract

1. Introduction

Platinum nanomaterials provide excellent catalytic activity for fuel cells, sensors, and automotive and petroleum applications [1,2]. Given the relative scarcity and high cost of platinum, platinum alloy nanostructures are appealing for materials scale-up and sustainability. Controlling platinum alloy composition and nanostructure shape allows the tuning of catalytic specificity [3,4,5,6]. High aspect ratio nanomaterials maximize catalytically active surface area while minimizing material volume, while alloy composition allows for control over chemical adsorbate binding and product release [7,8]. Furthermore, the relative solvent exposure of different platinum crystal faces also provides a means to control reaction kinetics [9]. While numerous platinum-palladium alloy nanostructures have been developed [10,11,12,13], platinum alloys and bi-metallic materials with abundant transition metals is appealing for low cost and tuning catalytic specificity [14,15,16].
Copper is an abundant, low-cost transition metal that has been used to synthesize platinum alloy and bimetallic nanomaterials. Pt–Cu nanomaterials synthesis techniques include dealloying [17], glucose-directed synthesis of alloy nanowire networks [18], electrodeposition [19], cyclic electrodeposition of PtCu alloy porous electrodes [20], electrochemically synthesized Cu/Pt core-shell catalysts [21], and seed mediated interdiffusion [22]. Resulting Pt–Cu nanostructures include nanocubes [23], nanoboxes [24] nanodendrites [25,26], microwires [27], nanowires [28], core-shell nanowires [29], alloy nanocrystals [30,31], concave nanoframes [32], aligned nanoporous Pt–Cu bimetallic microwires [3], platinum–copper alloy nanocrystals supported on reduced graphene oxide [30], and 3-dimensional structures [33]. Primary applications for Pt–Cu nanomaterials include electro-oxidation of methanol and ethanol [34], oxygen reduction reaction [17,35,36], and glucose detection [37]. While numerous Pt–Cu nanostructures have been demonstrated, discrete nanoparticles require post-synthesis binding into functional electrodes, and there has been limited demonstration of scalable aqueous-based synthesis of porous 3-dimensional structures.
Recently rapid noble metal aerogel synthesis was demonstrated via a high concentration direct reduction approach [38,39], and salt templating was used to synthesize 2-dimensional materials [40,41]. Combining the use of high salt concentrations and salt templates, our group synthesized Pt and Pt–Pd macrobeams and porous nanomaterials from Magnus’s and Vauquelin’s salts and derivatives [42,43], as well as salt-templated Au–Pd and Au–Cu–Pd multi-metallic porous materials [44]. Rapid precipitation of high-aspect ratio Magnus’s salts [45] and Vauquelin’s salts [46] results from the combination of oppositely charged square planar platinum and palladium metal ions, respectively. Vauquelin discovered pink salt needle formation with oppositely charged square planar palladium salts in 1813 [46]. Magnus later discovered analogous platinum green salt needle formation from the combination of oppositely charged square planar platinum ion complexes [45]. The previous studies demonstrating the use of Magnus’s salt derivative needles as nanostructure synthesis templates for 3-dimensional noble metal porous materials presents an opportunity for Pt–Cu bi-metallic and alloy materials synthesis that is aqueous based, rapid, scalable, and does not require additional materials for integration and device performance.
Here we demonstrate the synthesis of hierarchically porous Pt–Cu macrobeams and macrotubes through electrochemical reduction of Magnus’s salt derivatives, and their use for catalytic ethanol oxidation. Combining various ratios of [PtCl4]2−, [Pt(NH3)4]2+, and [Cu(NH3)4]2+ ions forms high aspect ratio bimetallic salt templates with lengths from 10’ s to 100’ s of micrometers. Porosity, nanoparticle structure, and metal composition is controlled through salt template ion ratio and selection of reducing agent. Chemical reduction of the Pt–Cu salt templates with dimethylamine borane results in macrotube structures, while reduction with sodium borohydride (NaBH4) results in macrobeams with a porous structure throughout the beam cross section. Pt–Cu macrotubes and macrobeams exhibit porous sidewalls with square cross-sections and generally conform to the length of the salt template. Material characterization was performed with polarized optical microscopy, scanning electron microscopy, X-ray diffractometry (XRD), and X-ray photoelectron spectroscopy (XPS). Electrochemical characterization was performed with electrochemical impedance spectroscopy and cyclic voltammetry in 0.5 M H2SO4 electrolyte to assess hydrogen adsorption-desorption and electrochemically accessible surface area, as well as 1 M KOH/1 M ethanol to examine ethanol oxidation catalysis. Electrochemically reduced bimetallic and multi-metallic salt templates are envisioned to provide a synthesis route for a broad range of 3-dimensional hierarchical, high surface area catalysts.

2. Results and Discussion

2.1. Platinum-Copper Macrobeam Synthesis Scheme

To prepare Magnus’s salt needle derivatives, 100 mM solutions of K2PtCl4, Pt(NH3)4Cl2•H2O, and Cu(NH3)4SO4•H2O were prepared to provide [PtCl4]2−, [Pt(NH3)4]2+, and [Cu(NH3)4]2+ square planar ions, respectively. Salt solutions were mixed in varying Pt2−:Pt2+:Cu2+ ratios such that the cation to anion ratio was 1:1. The Pt2−:Pt2+:Cu2+ salt ratios used in this study were 1:0:1, 3:1:2, 2:1:1, and 1:1:0 corresponding to Pt:Cu stoichiometric ratios of 1:1, 2:1, 3:1, and 1:0, respectively. As shown in the scheme in Figure 1 and observed experimentally, the solution mixtures form high aspect ratio salt needles rapidly within 1–2 s. The salt needles are then exposed to either 100 mM DMAB or NaBH4 reducing agent to form macrotubes or macrobeams, respectively. Using the same synthesis scheme, Pd(NH3)4Cl2 was used to precipitate salt needles with Pt2−:Pd2+:Cu2+ ratios of 2:1:1 and 3:1:2, and subsequently reduced with 100 mM DMAB with 1:50 (v/v) salt needle solution to reducing agent (Figure S1).
As seen in Figure 2a, the salt needles present a purple color. Polarized optical microscopy was used to determine the salt needle lengths corresponding to each salt ratio shown in Figure 2b–d. Salts formed with a 1:0:1 ratio resulted in the longest salt needles ranging approximately 500 μm to more than 1000 μm. Salts formed with a 3:1:2 ratio are on the order of 100’ s of μm with longer needles exceeding 500 μm. The 2:1:1 salt needles, are smaller ranging from 10’ s of μm up to approximately 100 μm. 1:1:0 all platinum salt needles prepared from [PtCl4]2− and [Pt(NH3)4]2+, 100 mM solutions were previously reported as 20–65 μm [42]. The salt needle formation trend is a decrease in length as the relative copper ion content decreases. As the salt formation results from electrostatic attraction and square planar ion stacking, the larger salt needle precipitates with higher copper ion content is potentially attributed to an ion size mismatch between [Cu(NH3)4]2+ with [PtCl4]2−.

2.2. Macrobeam Structure

2.2.1. Scanning Electron Microscopy (SEM)

Salt needles with Pt2−:Pt2+:Cu2+ ratios of 1:0:1, 3:1:2, 2:1:1, and 1:1:0 were used as templates to synthesize hierarchically porous macrobeam structures through electrochemical reduction with either DMAB or NaBH4. DMAB reduced synthesis products are shown in Figure 3. In general, the resulting structures conform to the salt templates (Figures S2–S4). A distinct square cross-section is seen in the scanning electron microscope images for 1:0:1 in Figure 3a–c, 3:1:2 in Figure 3d–f, and 2:1:1 in Figure 3g–i. Additionally, these structures present a hollow core yielding a macrotube structure. The 1:1:0 salt template, however, does not present a distinct square cross-section or hollow-core when reduced with DMAB, but rather interconnected particles approximately 50 nm in diameter formed from smaller aggregated nanoparticles as seen in Figure 3j–l.
The macrotubes formed from DMAB reduced 1:0:1 Pt2−:Pt2+:Cu2+ salt needles seen in Figure 3a–c have the largest and most distinct square cross-section with approximately 3 μm square sides. This larger square geometry, and corresponding linear dimension correlated with the polarized optical microscopy images in Figure 2b. The sidewalls appear to be aggregated nanoparticles forming a highly textured surface, but with a porosity that does not appear to extend laterally through the sidewalls. The macrotubes formed from 3:1:2 and 2:1:1 salts in Figure 3d–f and Figure 3g–i, respectively, indicate a cross-section approximately 200 nm square, hollow cores, and sidewalls formed from interconnected nanoparticles that are porous from the exterior of the macrotubes to the inner hollow core. Using the same synthesis scheme, Pd(NH3)4Cl2 was used to precipitate salt needles with Pt2−:Pt2+:Cu2+ ratios of 2:1:1 and 3:1:2, subsequently reduced with 100 mM DMAB with 1:50 (v/v) salt needle solution to reducing agent (Figure S4), and presented structures similar to those seen in Figure 3d–f and Figure 3g–i.
When salt needles with Pt2−:Pt2+:Cu2+ ratios of 1:0:1, 3:1:2, 2:1:1, and 1:1:0 were reduced with NaBH4, the resulting structures shown in Figure 4 are distinctly different than those reduced with DMAB shown in Figure 3. In general, the macrobeam structures exhibit porosity from the network of interconnected nanoparticles, however, a distinct hollow core for the 1:0:1, 3:1:2, and 2:1:1 salt templates is not apparent. Two other features appear on the NaBH4 reduced macrobeams that are not present on the DMAB reduced structures. The first feature, circled in yellow, is the appearance of linear striations that are orthogonal to the beam axis. The second feature, circled in red, is the appearance of spheres that are connected to but distinct from the macrobeam structure. Energy-dispersive X-ray mapping shown in Figure S5 indicates that the spheres are composed of predominantly platinum. Similar spheres were previously observed for Pd2+:Pt2− salts at a 1:1 ratio reduced with NaBH4 [43].

2.2.2. Proposed Reduction-Dissolution Mechanism

The formation of a hierarchically porous macrobeam or macrotube from a salt needle template has been previously suggested to result from a charge balance dissolution mechanism during the reduction process [42]. In this study, the reduction of [PtCl4]2− to Pt0 shown in Equation (1) releases four Cl− ions into solution near the salt template surface:
[PtCl4]2−(aq) + 2 e− → Pt(s) + 4 Cl− (aq)
To maintain a charge balance for each [PtCl4]2− ion reduced, it is thought that two [Pt(NH3)4]2+ and/or [Cu(NH3)4]2+ ions must dissolve into solution. The reduction of [Pt(NH3)4]2+ to Pt0 or [Cu(NH3)4]2+ to Cu0 shown in Equations (2) and (3) results in the release of four neutral ammonia molecules:
[Pt(NH3)4]2+(aq) + 2 e− → Pt(s) + 4 NH3(aq)
[Cu(NH3)4]2+(aq) + 2 e− → Cu(s) + 4 NH3(aq)
Ammonia’s interaction with water is charge neutral in the formation of NH4+ and OH− ions through its weakly basic nature. The proposed reduction-dissolution action and nanoparticle surface free energy minimization likely contributes to the porous structures observed in the SEM images in Figure 3 and Figure 4.

2.2.3. X-ray Diffractometry

X-ray diffraction spectra for salt needles with Pt2−:Pt2+:Cu2+ ratios of 1:0:1, 3:1:2, 2:1:1, and 1:1:0 reduced in 0.1 M DMAB and NaBH4 are shown in Figure 5a,b, respectively. Diffraction peaks were indexed to Joint Committee on Powder Diffraction Standards (JCPDS) reference number 01-087-0640 for platinum (red dashed lines), and 03-065-9026 for copper (blue dashed lines). For both DMAB and NaBH4 reduced 1:1:0 salt templates (all platinum), the peaks indexed well to 01-087-0640. As the copper content progressively increases from 2:1:1, 3:1:2, to 1:0:1, the DMAB reduced macrobeam diffraction peaks progressively shift to more intermediate positions between the indexed platinum and copper peaks suggesting possible alloy formation. The NaBH4 platinum peaks, on the other hand, do not shift to intermediate positions between indexed Pt and Cu, but rather distinct 111 and 220 Cu peaks appear for the 1:0:1 samples with peak convolution broadening observed for the 2:1:1 and 3:1:2 samples peaks suggesting bimetallic structures.

2.2.4. X-ray Photoelectron Spectroscopy (XPS)

The elemental composition and phase of the Pt–Cu macrobeams formed with DAMB and NaBH4 reducing agents were assessed by XPS. Figure 6 shows high-resolution XPS scans of the a,b Pt 4f and c,d Cu 2p regions at each Pt2−:Pt2+:Cu2+ ratio reduced by DMAB and NaBH4. The Pt 4f7/2 and 4f5/2 photoelectron lines were measured at approximately 71 eV and 74 eV, respectively, with typical 3.33 eV spin-orbit separation, which indicated the metallic phase Pt (i.e., Pt0) [47]. The Cu 2p1/2 and 2p3/2 photoelectron features exhibited metallic, mono-, and di-valent Cu species (i.e., Cu0, Cu2O, and CuO, respectively) [47] with relative concentrations dependent on the reduction agent. Satellite shake-up features observed at 942 eV, 944 eV, and 963 eV are predominantly associated with Cu+ (i.e., Cu2O) [47]. The relative strength of DMAB versus NaBH4 as a reductant for the Pt2−, Pt2+, and Cu2+ precursors resulted in varying distributions of presence in metallic and oxidized Pt/Cu phases with reductant-unique trends in measured binding energies.
Use of DMAB as a reductant resulted in samples with predominantly metallic Pt and Cu, with traces of Cu2O confined to the 1:0:1 sample. The measured Pt 4f binding energies ranged from 70.7–71.1 eV for the 4f7/2 line and 74.0–74.4 eV for the 4f5/2 line, but did not appear to follow a linear trend with stoichiometric ratio. The DMAB-reduced 1:0:1 sample exhibited Pt+ signatures, which was consistent with the concomitant presence of Cu2O (i.e., Cu+ 2p1/2 and 2p3/2 and shake-ups) in the Cu 2p spectrum. The DMAB-reduced 3:1:2, 2:1:1, and 1:1:0 samples did not exhibit oxidized phases and appeared fully metallic.
Compared to DMAB, the use of NaBH4 as a reductant resulted in samples with varying distributions of both metallic and oxidized Pt and Cu. Measured binding energies of the composite Pt 4f lines progressively decreased with Cu content, shifting the 4f7/2 line from 71.2 to 70.9 eV and the 4f5/2 line from 74.5 to 74.2 eV as the stoichiometric Cu percentage decreased from 50% to 0%. This was ostensibly attributable to the emergence of Pt+ species underlying the composite Pt 4f lines because oxidized Cu was evident in all samples (except for the 1:1:0 all platinum sample). The NaBH4-reduced 2:1:1 and 3:1:2 samples exhibited Cu content that was predominantly in metallic Cu0 form and Cu+ state (i.e., Cu2O). The NaBH4-reduced 1:0:1 sample exhibited Cu that was less metallic in favor of the Cu+ oxidation state, while some appeared in the Cu2+ oxidation state (i.e., CuO).
Peak areas of the background-subtracted Pt 4f lines and Cu 2p3/2 lines were used to determine relative Pt and Cu atomic percentages (at %) and calculated Pt:Cu atomic ratios for comparison with EDS and precursor stoichiometry, shown in Table 1. The surface Cu content increased in the series 1:0:1 > 3:1:2 > 2:1:1 with Cu at % of 31% (52%), 15% (24%), and 11% (20%), respectively, for the DMAB (NaBH4) reducing agent with ±1% uncertainty. The 1:1:0 samples contained no Cu. The balance was Pt and no contaminants were detected in the XPS survey scans, aside from C and O. Corresponding XPS Pt:Cu atomic ratios using DMAB (NaBH4) were 1:0 (1:0), 7.9:1 (4.0:1), 5.8:1 (3.1:1), and 2.2:1 (0.92:1) for the Pt2−:Pt2+:Cu2+ samples 1:1:0 > 2:1:1 > 3:1:2 > 1:0:1, respectively. This followed the same general trend measured in bulk EDS measurements, though suggests greater platinum enrichment of the surface for both DMAB and NaBH4 reduced samples. For both NaBH4 and DMAB reduced samples, the EDS Pt:Cu ratios indicated less metalized Pt than was present stoichiometrically in the salt-template suggesting that the [Cu(NH3)4]2+ ion reduces preferentially in the given reducing conditions. This effect appears more pronounced for the NABH4 reduced samples. The closer correspondence of the DMAB reduced EDS Pt:Cu ratios to the salt-stoichiometry also correlates with the lesser presence of oxide species seen with XPS. Further, the reduction-dissolution mechanism suggested in Section 2.2.2 would make Pt ions available for reduction on the macrobeam particle surface once the charge gradients dissipate providing a possible reason surface enrichment of platinum observed with XPS.

2.3. Pt–Cu Macrobeam Electrochemical Characterization

2.3.1. Electrochemical Impedance Spectroscopy (EIS) in 0.5 M H2SO4

After chemical reduction of the Pt2−:Pt2+:Cu2+ salt needles with DMAB, the resulting Pt–Cu macrotubes were pressed between glass slides with approximately 200 kPa into free-standing films for electrochemical characterization. Electrochemical impedance spectroscopy was performed in 0.5 M H2SO4 in a frequency range of 1 MHz to 1 mHz, with the resulting Nyquist plots shown in Figure 7a. The macrobeam films from Pt2−:Pt2+:Cu2+ salt ratios of 1:1:0, 2:1:1, 3:1:2, and 1:0:1 exhibit characteristic high surface area capacitive behavior throughout the whole frequency range. Figure 7b shows the high-frequency resistance through the macrotube films. The variation in the real axis intercept is due to minor differences in contact between the sample film and working electrode. In general, the samples present high-frequency impedance speactra consistent with porous samples [48,49]. A larger semi-circle from the charge transfer resistance for the 1:1:0 sample is possibly due to the less well connected macrobeam particles seen in Figure 3j–l. The DMAB samples charge transfer resistance is also attributed to the larger internal surface area within films for charge transport through the open network of macrotubes. Cyclic voltammetry (CV) of the Pt2−:Pt2+:Cu2+ salt ratios of 1:1:0, 2:1:1, 3:1:2, and 1:0:1 was conducted in 0.5 M H2SO4 (Figure S8). Figure 7c shows the CV of Pt–Cu microbeams film from a 1:0:1 Pt2−:Pt2+:Cu2+ salt ratio, in 0.5 M H2SO4 for scan rates of 1, 5, 10, 25, and 50 mV/s. The CV shows characteristic oxidation-reduction peaks and the hydrogen adsorption-desorption in the 1:0:1 macrotube film from the presence of catalytic platinum from the 2.2:1 atomic composition of Pt:Cu (as shown in the XPS results in Table 1). Moreover, Figure 7d shows the CV in 0.5 M H2SO4 at a 0.5 mV/s scan rate for the various DMAB reduced macrotube films with Pt2−:Pt2+:Cu2+ salt ratios of 1:1:0, 2:1:1, 3:1:2, and 1:0:1. The CVs in Figure 7c,d indicate characteristic hydrogen adsorption and desorption peaks from the presence of platinum between −0.2 V and 0 V (vs Ag/AgCl). The electrochemical active surface areas determined from the capacitive region between 0.15–0.25 V for the 0.5 mV/s CV curves are 3.8, 10.5, 20.7, and 12.9 F/g for the macrotube films with Pt2−:Pt2+:Cu2+ salt ratios of 1:1:0, 2:1:1, 3:1:2, and 1:0:1, respectively. In Figure 7d, the pronounced oxidation peak occurring around at +0.96 V (vs Ag/AgCl) and reduction peaks more positive than +0.58 V (vs Ag/Ag/Cl) are associated with the overall catalytic bimetallic crystal structure in the different Pt:Cu films. The oxidation of Pt-H to Pt-OH and Pt-OH to Pt-O is evident in the strong oxidation peaks at + 0.96 V (vs Ag/AgCl) and + 1.1 V (vs Ag/AgCl), respectively [43]. The overall larger current density normalized for the mass of platinum (A/gpt) in the 2:1:1 salt ratio is a result of the contribution of catalytic current from the high atomic composition of platinum within the microtube film (as shown in the EDS and XPS results in Table 1). The hydrogen adsorption and desorption more negative than 0 V (vs Ag/AgCl) were more distinct in the macrotubes with the higher elemental composition of platinum (as shown in the EDS and XPS results in Table 1) and surface accessible catalytic sites within the network. The oxidation peaks observed at +0.58 V (vs Ag/AgCl) in both Figure 7c,d is attributed to a hydrogen spill over, the migration of chemisorbed hydrogen from the metal electrode onto glass support surfaces, as in the case of the electrochemical cell used in this study [50].
Using the hydrogen adsorption of the CV curves at 0.5 mV/s scan rates, a nominal value of 210 μC/cm2 for hydrogen adsorption on platinum [51], and the EDS determined sample mass composition, the electrochemically active surface areas (ECSA) for DMAB reduced 1:0:1, 3:1:2, 2:1:1, and 1:1:0 salts were 31.8, 22.6, 20.9, and 10.6 m2/gPt, respectively. The corresponding ideal nanoparticle geometries based on the EDS mass averaged densities were 10.7, 13.8, 14.5, and 27.2 nm, respectively. These ideal nanoparticle geometries generally match the nanoparticle feature sizes observed in Figure 3 for each macrobeam Pt:Cu ratio.

2.3.2. Ethanol Oxidation in 1 M KOH/1 M Ethanol

The catalytic performance for ethanol oxidation of the macrotube films from chemical reduction with DMAB (Figure 8a) and NaBH4 (Figure 8b) from the various Pt2−:Pt2+:Cu2+ salt ratios of 1:1:0, 2:1:1, 3:1:2, and 1:0:1 was evaluated with CV in 1 M KOH and 1 CH3CH2OH. The electrooxidation of ethanol can result in the formation of acetylaldehyde and ultimately acetic acid [52]. Both of the CVs in Figure 8 have discrete oxidation peaks in the forward scan from the oxidation of the adsorbed ethanol and a reverse cathodic scan with another corresponding oxidation peak due to the oxidation of partially oxidized intermediate species such as CO, CH3COO−, and CH3CO− [34,53]. As seen in both Figure 8a and Figure 8b, the ethanol oxidation peaks in both the forward and reverse scans for the different Pt2−:Pt2+:Cu2+ salt ratio macrobeam-macrotube films varied due to the differences in the amount of accessible catalytic platinum atomic sites as confirmed by EDS and XPS. Figure 8a shows the CV for the Pt–Cu macrotube films produced by chemical reduction with DMAB, the electrooxidation of ethanol for the Pt2−:Pt2+:Cu2+ salt ratio macrotube films varied between −0.27 V to −0.13 V (Ag/AgCl) in the forward anodic scans. The same variation was observed in the NaBH4 reduced Pt2−:Pt2+:Cu2+ salt ratio macrobeam films where the ethanol oxidation peaks occurred in between −0.40 V (vs Ag/AgCl) to −0.26 V (Ag/AgCl) in the forward anodic scans. Meanwhile, on the reverse cathodic scan, the remaining surface oxides and intermediates are reduced until the potential is too negative to oxidize the remaining adsorbed species as represented by the sharp oxidation followed by reduction current peaks [52]. The sharp stripping peaks observed at approximately −0.2 V (vs Ag/AgCl) are attributed to the reduction of Pt(OH)2 shown in Equation (4),
Pt(OH)2 + 2 e− ↔ Pt(s) + 2 OH−  0.14 V (SHE)
and adsorbed OH and O species similar to those observed on palladium catalysts [54]. The reverse cathodic scans on both Figure 8a and Figure 8b for 1:0:1 have multiple oxidation and reduction current peaks likely due to having the highest atomic composition of copper.
Figure 8c shows a volcano plot with data from Figure 8a,b. Macrobeams-macrotubes prepared from the 3:1:2 salts show the highest ethanol oxidation currents relative to the other samples. There is a general increase in peak oxidation current from the 1:1:0 to 2:1:1 and then the 3:1:2 samples, with a significant drop-off with the 1:0:1 samples. This trend is attributed to the balance of high surface area, phase composition, and surface platinum enrichment see in SEM, XRD, and XPS data. DMAB reduced samples yielded higher ethanol oxidation currents than the NaBH4 reduced samples and is attributed to the greater presence of surface oxide species on the NaBH4 reduced samples seen with XPS.
While the ECSA values of the Pt–Cu samples in H2SO4 electrolyte corresponds to the particle feature sizes observed with SEM, and is comparable to other Pt–Cu studies, ethanol oxidation performance comparison to previous Pt–Cu studies is challenging as the free-standing films and electrode conditions in this work are unique. Unlike dispersed materials in direct contact with a glassy carbon electrode conventionally used, the hierarchical porosity of the entangled macrobeams-macrotubes of the free-standing films, and sample mass of approximately 1–5 mg, introduced hysteresis attributable to current distribution, charging current, and mass transfer effects so that the performance at a slower scan rate of 0.5 mV/s is reported in Figure 8. The DMAB reduced 3:1:2 macrotubes exhibited the highest peak ethanol oxidation current of 12.0 A/g at 0.5 mV/s. As an indirect comparison, Pt/C and PtCu1.8 screw thread-like platinum−copper nanowires had reported ethanol oxidation peak currents of 0.21 A/mgPt (210 A/gPt) and 0.25 A/mgPt (250 A/gPt) at 50 mV/s, respectively.
The assembly of practical electrodes for actual device integration and performance is a key step in realizing the benefits of nanoscale materials. Some of the attractive aspects of the salt-templated Pt–Cu macrotubes-macrobeams are the rapid precipitation of the salt needle templates, the one-step reduction synthesis, and the ability to press the Pt–Cu nanostructures into free-standing films for direct device integration. These considerations are envisioned to facilitate scale-up of salt-templated nanomaterials. One key challenge in the scale-up process using mechanical pressing to assemble entangled macrotubes is to ensure homogeneous active material and pore size distribution throughout the thickness and volume of the electrode.

3. Materials and Methods

3.1. Copper-Platinum Macrobeam Synthesis

Magnus’ Pt–Cu salt needle derivatives were prepared by mixing 100 mM square planar cation complexes to anion complexes at 1:1 (v/v). The 100 mM platinum and copper salts used were Pt(NH3)4Cl2•H2O, K2PtCl4, and Cu(NH3)4SO4•H2O (Sigma Aldrich, USA). Salt needle templates were formed by combining solutions in Pt2−:Pt2+:Cu2+ stoichiometric ratios of 1:1:0, 2:1:1, 3:1:2, and 1:0:1. A total of 1 mL salt solution was prepared, and then reduced with either DMAB or NaBH4 (Sigma Aldrich, USA) in a 1:50 (v/v) salt needle solution to reducing agent. Reduced platinum-copper macrotubes and macrobeams were rinsed in excess deionized water and dried at either ambient temperature or 100 °C. Using the same procedure Pd(NH3)4Cl2 was used to precipitate salt needles with Pt2−:Pd2+:Cu2+ ratios of 2:1:1 and 3:1:2, subsequently reduced with 100 mM DMAB with 1:50 (v/v) salt needle solution to reducing agent (Figure S2).

3.2. Polarized Optical Microscopy

Polarized optical microscopy with an AmScope PZ300JC polarized light microscope (AmScope, Irvine, CA, USA) was used to image salt templates. Salt needle lengths were measured using ImageJ [55].

3.3. Scanning Electron Microscopy

Pt–Cu macrotubes and macrobeams were imaged with a FEI Helios 600 scanning electron microscope (SEM) (Thermo Fisher Scientific, Hillsboro, OR, USA). Energy dispersive X-ray spectroscopy (EDS) was performed with a FEI Helios 600 and a JEOL IT500HRLA SEM (JEOL USA, Peabody, MA USA).

3.4. X-ray Diffractometry

A PANalytical Empyrean diffractometer (PANalytical, Almelo, Netherlands) was used to collect X-ray diffractometry (XRD) spectra. Diffraction angles (2θ) from 5° to 90°, with a 2θ step size of 0.0130°, and 20 s per step were used at 45 kV and 40 mA with Cu Kα radiation (1.54060 Å). High Score Plus software (PANalytical) was used for XRD spectra analysis.

3.5. X-ray Photoelectron Spectroscopy

X-ray photoelectron spectroscopy (XPS) was performed on a ULVAC PHI VersaProbe III (Physical Electronics, East Chanhassen, MN USA) with a monochromated Al Kα source with a 100 μm spot, 25 W X-ray beam and 45° take-off angle. The operating pressure was < 6 × 10−6 Pa. Surface charging was neutralized by a low-voltage Ar-ion beam and a barium oxide electron neutralizer. Analyzer pass energy was set to 55 eV for high-resolution scans. All analysis was conducted with PHI’s software MultiPak v.9.6.0.15. Spectra were corrected according to the adventitious C 1s peak at 284.8 eV binding energy. Relative Pt and Cu ratios were evaluated for each Pt–Cu macrobeam sample using Shirley background-corrected Pt 4f and Cu 2p3/2 peak areas.

3.6. Electrochemical Characterization

Macrobeams were pressed between glass slides with approximately 200 kPa into free-standing film electrochemical testing. A Bio-Logic VMP-3 potentiostat (Bio-Logic, Knoxville, TN, USA) was used to perform electrochemical impedance spectroscopy (EIS) and cyclic voltammetry (CV). An Ag/AgCl reference electrode, a 1 mm platinum wire counter-electrode, and a lacquer-coated 1 mm platinum wire with exposed tip in contact with samples were used in a three-electrode cell with 0.5 M H2SO4 electrolyte. EIS was performed at open-circuit voltage with a frequency range of 1 MHz to 1 mHz with a 10 mV sine wave. CV was performed in a voltage range of −0.2 to 1.2 V (vs. Ag/AgCl) with scan rates of 0.5, 1, 5, 10, 25, 50, 75, and 100 mV/s. Ethanol oxidation cyclic voltammetry was performed using 1 M KOH and 1 M ethanol with scan rates of 0.5, 1, 5, 10, 25, and 50 mV/s.

4. Conclusions

Here we demonstrated the synthesis of hierarchically porous Pt–Cu bimetallic macrobeams and macrotubes templated from Magnus’s salt derivative needles. The metal composition was controlled through the combination of [PtCl4]2− with [Pt(NH3)4]2+ and [Cu(NH3)4]2+ ions in different ratios to form the salt needle templates. Polycrystalline Pt–Cu porous macrotubes and macrobeams with square cross-sections were formed through chemical reduction with DMAB and NaBH4, respectively. Platinum enrichment on the nanoparticle surfaces was observed for DMAB reduced salts, whereas reduction with NaBH4 resulted in small amounts of copper oxide species on the macrobeam surface. Electrochemical impedance spectroscopy indicated highly capacitive materials with electrochemical active surface area as high as 20.7 F/g demonstrated with cyclic voltammetry. For the characterized macrotubes and macrobeams synthesized from Pt2−:Pt2+:Cu2+ salt ratios of 1:1:0, 2:1:1, 3:1:2, and 1:0:1, DMAB reduced 3:1:2 macrotubes demonstrated the highest ethanol oxidation peak currents of 12.0 A/g at 0.5 mV/s and is attributed to the combination of a highly porous structure for favorable mass transfer properties, and the platinum enriched surface. The use of salt templates with electrochemical reduction is suggested as an aqueous-based, rapid, scalable, and tunable platform to achieve a wide range of 3-dimensional porous metal, metal alloy, and multi-metallic nanomaterials for catalysis, sensor, and energy storage applications.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/9/8/662/s1: Figure S1: Macrobeam synthesis scheme, Figure S2: SEM images of Pt–Cu macrobeams from Pt2−:Pd2+:Cu2+ salts reduced with DMAB, Figure S3: SEM images of Pt–Cu macrobeams from Pt2−:Pt2+:Cu2+ salts reduced with DMAB, Figure S4: SEM images of Pt–Cu macrobeams from Pt2−:Pt2+:Cu2+ salts reduced with DMAB and NaBH4, Figure S5: EDS mapping of macrobeams, Figure S6: (XPS) valence-band spectra, Figure S7: Electrochemical characterization of Pt–Cu macrobeams from Pt2−:Pt2+:Cu2+ salts reduced with NaBH4, Figure S8: CV in H2SO4 of Pt–Cu macrobeams from DMAB reduced salts, Figure S9: CV in 1 M KOH and 1 M ethanol of Pt–Cu macrobeams from DMAB reduced salts, Figure S10: CV in H2SO4 of Pt–Cu macrobeams from NaBH4 reduced salts, Figure S11: CV in 1 M KOH and 1 M ethanol of Pt–Cu macrobeams from NaBH4 reduced salts.

Author Contributions

Conceptualization, F.J.B. and J.P.M.; data curation, F.J.B., E.A.N., A.R.L., J.K.B., G.T.F., and D.R.B.; formal analysis, F.J.B. and E.A.N.; funding acquisition, F.J.B.; investigation, F.J.B., E.A.N., A.R.L., J.K.B., G.T.F., D.R.B., and S.F.B.; methodology, F.J.B., E.A.N., A.R.L., and J.K.B.; project administration, F.J.B.; resources, F.J.B. and S.F.B.; supervision, F.J.B. and D.D.C.; validation, E.A.N.; writing—original draft, F.J.B., E.A.N., G.T.F., and D.R.B.; writing—review and editing, F.J.B., E.A.N., J.P.M., S.F.B., and D.D.C.

Funding

This research and development effort was sponsored by Joint Center Picatinny located at Picatinny Arsenal, NJ, MIPR 11217514.

Acknowledgments

The authors would like to thank Joshua Maurer for the use of the FIB-SEM at Benet Laboratories, and Lance Richardson for his assistance with polarized optical microscopy at the United States Military Academy.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, A.; Holt-Hindle, P. Platinum-Based Nanostructured Materials: Synthesis, Properties, and Applications. Chem. Rev. 2010, 110, 3767–3804. [Google Scholar] [CrossRef] [PubMed]
  2. Peng, Z.; Yang, H. Designer platinum nanoparticles: Control of shape, composition in alloy, nanostructure and electrocatalytic property. Nano Today 2009, 4, 143–164. [Google Scholar] [CrossRef]
  3. Qiu, X.; Dai, Y.; Zhu, X.; Zhang, H.; Wu, P.; Tang, Y.; Wei, S. Template-engaged synthesis of hollow porous platinum–palladium alloy nanospheres for efficient methanol electro-oxidation. J. Power Sources 2016, 302, 195–201. [Google Scholar] [CrossRef]
  4. Yamauchi, Y.; Tonegawa, A.; Komatsu, M.; Wang, H.; Wang, L.; Nemoto, Y.; Suzuki, N.; Kuroda, K. Electrochemical Synthesis of Mesoporous Pt–Au Binary Alloys with Tunable Compositions for Enhancement of Electrochemical Performance. J. Am. Chem. Soc. 2012, 134, 5100–5109. [Google Scholar] [CrossRef] [PubMed]
  5. Zhang, G.; Sun, S.; Cai, M.; Zhang, Y.; Li, R.; Sun, X. Porous dendritic platinum nanotubes with extremely high activity and stability for oxygen reduction reaction. Sci. Rep. 2013, 3, 1526. [Google Scholar] [CrossRef]
  6. Chen, J.; Lim, B.; Lee, E.P.; Xia, Y. Shape-controlled synthesis of platinum nanocrystals for catalytic and electrocatalytic applications. Nano Today 2009, 4, 81–95. [Google Scholar] [CrossRef]
  7. Liu, L.; Pippel, E.; Scholz, R.; Gösele, U. Nanoporous Pt−Co Alloy Nanowires: Fabrication, Characterization, and Electrocatalytic Properties. Nano Lett. 2009, 9, 4352–4358. [Google Scholar] [CrossRef]
  8. Stamenkovic, V.R.; Mun, B.S.; Arenz, M.; Mayrhofer, K.J.J.; Lucas, C.A.; Wang, G.; Ross, P.N.; Markovic, N.M. Trends in electrocatalysis on extended and nanoscale Pt-bimetallic alloy surfaces. Nat. Mater. 2007, 6, 241–247. [Google Scholar] [CrossRef]
  9. Stamenkovic, V.R.; Fowler, B.; Mun, B.S.; Wang, G.; Ross, P.N.; Lucas, C.A.; Marković, N.M. Improved Oxygen Reduction Activity on Pt3Ni(111) via Increased Surface Site Availability. Science 2007, 315, 493–497. [Google Scholar] [CrossRef]
  10. Wei, L.; Paramaconi, R.; Lars, B.; Annette, F.; Jipei, Y.; Anne-Kristin, H.; Dorin, G.; Zhikun, Z.; Stefan, K.; Nikolai, G.; et al. Bimetallic Aerogels: High-Performance Electrocatalysts for the Oxygen Reduction Reaction. Angew. Chem. Int. Ed. 2013, 52, 9849–9852. [Google Scholar]
  11. Lim, B.; Wang, J.; Camargo, P.H.C.; Cobley, C.M.; Kim, M.J.; Xia, Y. Twin-Induced Growth of Palladium–Platinum Alloy Nanocrystals. Angew. Chem. Int. Ed. 2009, 48, 6304–6308. [Google Scholar] [CrossRef] [PubMed]
  12. Lim, B.; Jiang, M.; Camargo, P.H.C.; Cho, E.C.; Tao, J.; Lu, X.; Zhu, Y.; Xia, Y. Pd-Pt Bimetallic Nanodendrites with High Activity for Oxygen Reduction. Science 2009, 324, 1302–1305. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Zheng, J.-N.; He, L.-L.; Chen, F.-Y.; Wang, A.-J.; Xue, M.-W.; Feng, J.-J. Simple one-pot synthesis of platinum-palladium nanoflowers with enhanced catalytic activity and methanol-tolerance for oxygen reduction in acid media. Electrochim. Acta 2014, 137, 431–438. [Google Scholar] [CrossRef]
  14. Anniyev, T.; Kaya, S.; Rajasekaran, S.; Ogasawara, H.; Nordlund, D.; Nilsson, A. Tuning the Metal–Adsorbate Chemical Bond through the Ligand Effect on Platinum Subsurface Alloys. Angew. Chem. Int. Ed. 2012, 51, 7724–7728. [Google Scholar] [CrossRef]
  15. Cui, C.; Gan, L.; Li, H.-H.; Yu, S.-H.; Heggen, M.; Strasser, P. Octahedral PtNi Nanoparticle Catalysts: Exceptional Oxygen Reduction Activity by Tuning the Alloy Particle Surface Composition. Nano Lett. 2012, 12, 5885–5889. [Google Scholar] [CrossRef]
  16. Zhou, W.-P.; Yang, X.; Vukmirovic, M.B.; Koel, B.E.; Jiao, J.; Peng, G.; Mavrikakis, M.; Adzic, R.R. Improving Electrocatalysts for O2 Reduction by Fine-Tuning the Pt−Support Interaction: Pt Monolayer on the Surfaces of a Pd3Fe(111) Single-Crystal Alloy. J. Am. Chem. Soc. 2009, 131, 12755–12762. [Google Scholar] [CrossRef] [PubMed]
  17. Koh, S.; Strasser, P. Electrocatalysis on Bimetallic Surfaces:  Modifying Catalytic Reactivity for Oxygen Reduction by Voltammetric Surface Dealloying. J. Am. Chem. Soc. 2007, 129, 12624–12625. [Google Scholar] [CrossRef] [PubMed]
  18. Zhang, W.; Dong, Q.; Lu, H.; Hu, B.; Xie, Y.; Yu, G. Glucose-directed synthesis of Pt-Cu alloy nanowires networks and their electro-catalytic performance for ethylene glycol oxidation. J. Alloys Compd. 2017, 727, 475–483. [Google Scholar] [CrossRef]
  19. Baumgärtner, M.E.; Raub, J. The Electrodeposition of Platinum and Platinum Alloys. Platinum Met. Rev. 1988, 32, 188–197. [Google Scholar]
  20. Kloke, A.; Köhler, C.; Gerwig, R.; Zengerle, R.; Kerzenmacher, S. Cyclic Electrodeposition of PtCu Alloy: Facile Fabrication of Highly Porous Platinum Electrodes. Adv. Mater. 2012, 24, 2916–2921. [Google Scholar] [CrossRef] [Green Version]
  21. Wei, Z.D.; Feng, Y.C.; Li, L.; Liao, M.J.; Fu, Y.; Sun, C.X.; Shao, Z.G.; Shen, P.K. Electrochemically synthesized Cu/Pt core-shell catalysts on a porous carbon electrode for polymer electrolyte membrane fuel cells. J. Power Sources 2008, 180, 84–91. [Google Scholar] [CrossRef]
  22. Han, L.; Cui, P.; He, H.; Liu, H.; Peng, Z.; Yang, J. A seed-mediated approach to the morphology-controlled synthesis of bimetallic copper–platinum alloy nanoparticles with enhanced electrocatalytic performance for the methanol oxidation reaction. J. Power Sources 2015, 286, 488–494. [Google Scholar] [CrossRef]
  23. Xu, D.; Liu, Z.; Yang, H.; Liu, Q.; Zhang, J.; Fang, J.; Zou, S.; Sun, K. Solution-Based Evolution and Enhanced Methanol Oxidation Activity of Monodisperse Platinum–Copper Nanocubes. Angew. Chem. Int. Ed. 2009, 48, 4217–4221. [Google Scholar] [CrossRef] [PubMed]
  24. Hu, C.; Cheng, H.; Zhao, Y.; Hu, Y.; Liu, Y.; Dai, L.; Qu, L. Newly-Designed Complex Ternary Pt/PdCu Nanoboxes Anchored on Three-Dimensional Graphene Framework for Highly Efficient Ethanol Oxidation. Adv. Mater. 2012, 24, 5493–5498. [Google Scholar] [CrossRef] [PubMed]
  25. Gong, M.; Fu, G.; Chen, Y.; Tang, Y.; Lu, T. Autocatalysis and Selective Oxidative Etching Induced Synthesis of Platinum–Copper Bimetallic Alloy Nanodendrites Electrocatalysts. ACS Appl. Mater. Interfaces 2014, 6, 7301–7308. [Google Scholar] [CrossRef] [PubMed]
  26. Fu, G.; Liu, H.; You, N.; Wu, J.; Sun, D.; Xu, L.; Tang, Y.; Chen, Y. Dendritic platinum–copper bimetallic nanoassemblies with tunable composition and structure: Arginine-driven self-assembly and enhanced electrocatalytic activity. Nano Res. 2016, 9, 755–765. [Google Scholar] [CrossRef]
  27. Qiu, H.J.; Shen, X.; Wang, J.Q.; Hirata, A.; Fujita, T.; Wang, Y.; Chen, M.W. Aligned Nanoporous Pt–Cu Bimetallic Microwires with High Catalytic Activity toward Methanol Electrooxidation. ACS Catal. 2015, 5, 3779–3785. [Google Scholar] [CrossRef]
  28. Zhang, N.; Bu, L.; Guo, S.; Guo, J.; Huang, X. Screw Thread-Like Platinum–Copper Nanowires Bounded with High-Index Facets for Efficient Electrocatalysis. Nano Lett. 2016, 16, 5037–5043. [Google Scholar] [CrossRef]
  29. Chen, Z.; Ye, S.; Wilson, A.R.; Ha, Y.-C.; Wiley, B.J. Optically transparent hydrogen evolution catalysts made from networks of copper–platinum core–shell nanowires. Energy Environ. Sci. 2014, 7, 1461–1467. [Google Scholar] [CrossRef]
  30. Gong, M.; Yao, Z.; Lai, F.; Chen, Y.; Tang, Y. Platinum–copper alloy nanocrystals supported on reduced graphene oxide: One-pot synthesis and electrocatalytic applications. Carbon 2015, 91, 338–345. [Google Scholar] [CrossRef]
  31. Zhang, Z.; Yang, Y.; Nosheen, F.; Wang, P.; Zhang, J.; Zhuang, J.; Wang, X. Fine Tuning of the Structure of Pt–Cu Alloy Nanocrystals by Glycine-Mediated Sequential Reduction Kinetics. Small 2013, 9, 3063–3069. [Google Scholar] [CrossRef] [PubMed]
  32. Luo, S.; Shen, P.K. Concave Platinum–Copper Octopod Nanoframes Bounded with Multiple High-Index Facets for Efficient Electrooxidation Catalysis. ACS Nano 2017, 11, 11946–11953. [Google Scholar] [CrossRef] [PubMed]
  33. Nosheen, F.; Zhang, Z.; Xiang, G.; Xu, B.; Yang, Y.; Saleem, F.; Xu, X.; Zhang, J.; Wang, X. Three-dimensional hierarchical Pt-Cu superstructures. Nano Res. 2015, 8, 832–838. [Google Scholar] [CrossRef]
  34. Li, F.; Guo, Y.; Chen, M.; Qiu, H.; Sun, X.; Wang, W.; Liu, Y.; Gao, J. Comparison study of electrocatalytic activity of reduced graphene oxide supported Pt–Cu bimetallic or Pt nanoparticles for the electrooxidation of methanol and ethanol. Int. J. Hydrogen Energy 2013, 38, 14242–14249. [Google Scholar] [CrossRef]
  35. Tseng, C.-J.; Lo, S.-T.; Lo, S.-C.; Chu, P.P. Characterization of Pt-Cu binary catalysts for oxygen reduction for fuel cell applications. Mater. Chem. Phys. 2006, 100, 385–390. [Google Scholar] [CrossRef]
  36. Eid, K.; Wang, H.; He, P.; Wang, K.; Ahamad, T.; Alshehri, S.M.; Yamauchi, Y.; Wang, L. One-step synthesis of porous bimetallic PtCu nanocrystals with high electrocatalytic activity for methanol oxidation reaction. Nanoscale 2015, 7, 16860–16866. [Google Scholar] [CrossRef] [PubMed]
  37. Cao, X.; Wang, N.; Jia, S.; Shao, Y. Detection of Glucose Based on Bimetallic PtCu Nanochains Modified Electrodes. Anal. Chem. 2013, 85, 5040–5046. [Google Scholar] [CrossRef] [PubMed]
  38. Burpo, F.J.; Nagelli, E.A.; Morris, L.A.; McClure, J.P.; Ryu, M.Y.; Palmer, J.L. Direct solution-based reduction synthesis of Au, Pd, and Pt aerogels. J. Mater. Res. 2017, 32, 4153–4165. [Google Scholar] [CrossRef]
  39. Burpo, F.J.; Nagelli, E.A.; Morris, L.A.; McClure, J.P.; Ryu, M.Y.; Palmer, J.L. A Rapid Synthesis Method for Au, Pd, and Pt Aerogels Via Direct Solution-Based Reduction. JoVE 2018, e57875. [Google Scholar] [CrossRef]
  40. Xiao, X.; Song, H.; Lin, S.; Zhou, Y.; Zhan, X.; Hu, Z.; Zhang, Q.; Sun, J.; Yang, B.; Li, T.; et al. Scalable salt-templated synthesis of two-dimensional transition metal oxides. Nat. Commun. 2016, 7, 11296. [Google Scholar] [CrossRef]
  41. Xiao, X.; Yu, H.; Jin, H.; Wu, M.; Fang, Y.; Sun, J.; Hu, Z.; Li, T.; Wu, J.; Huang, L.; et al. Salt-Templated Synthesis of 2D Metallic MoN and Other Nitrides. ACS Nano 2017, 11, 2180–2186. [Google Scholar] [CrossRef] [PubMed]
  42. Burpo, F.J.; Nagelli, E.A.; Winter, S.J.; McClure, J.P.; Bartolucci, S.F.; Burns, A.R.; O’Brien, S.F.; Chu, D.D. Salt-Templated Hierarchically Porous Platinum Macrotube Synthesis. ChemistrySelect 2018, 3, 4542–4546. [Google Scholar] [CrossRef]
  43. Burpo, F.J.; Nagelli, E.A.; Mitropoulos, A.N.; Bartolucci, S.F.; McClure, J.P.; Baker, D.R.; Losch, A.R.; Chu, D.D. Salt-templated platinum–palladium porous macrobeam synthesis. MRS Communications 2019, 9, 280–287. [Google Scholar] [CrossRef]
  44. Burpo, F.; Nagelli, E.; Morris, L.; Woronowicz, K.; Mitropoulos, A. Salt-Mediated Au-Cu Nanofoam and Au-Cu-Pd Porous Macrobeam Synthesis. Molecules 2018, 23, 1701. [Google Scholar] [CrossRef] [PubMed]
  45. Magnus, G. Ueber einige Verbindungen des Platinchlorürs. Ann. Phys. 1828, 90, 239–242. [Google Scholar] [CrossRef]
  46. Vauquelin, N.L. Memoire sur le Palladium et le Rhodium. Ann. Chim. 1813, 88, 167–198. [Google Scholar]
  47. Wagner, C.D. NIST X-ray Photoelectron Spectroscopy Database, NIST Standard Reference Database Number 20; National Institute of Standards and Technology: Gaithersburg, MD, USA, 2000. [Google Scholar]
  48. de Levie, R. On porous electrodes in electrolyte solutions—IV. Electrochim. Acta 1964, 9, 1231–1245. [Google Scholar] [CrossRef]
  49. Keiser, H.; Beccu, K.D.; Gutjahr, M.A. Abschätzung der porenstruktur poröser elektroden aus impedanzmessungen. Electrochim. Acta 1976, 21, 539–543. [Google Scholar] [CrossRef]
  50. Zhan, D.; Velmurugan, J.; Mirkin, M.V. Adsorption/desorption of hydrogen on Pt nanoelectrodes: evidence of surface diffusion and spillover. J. Am. Chem. Soc. 2009, 131, 14756–14760. [Google Scholar] [CrossRef]
  51. Biegler, T.; Rand, D.A.J.; Woods, R. Limiting oxygen coverage on platinized platinum; Relevance to determination of real platinum area by hydrogen adsorption. J. Electroanal. Chem. Interfacial Electrochem. 1971, 29, 269–277. [Google Scholar] [CrossRef]
  52. Lai, S.C.S.; Koper, M.T.M. Ethanol electro-oxidation on platinum in alkaline media. PCCP 2009, 11, 10446–10456. [Google Scholar] [CrossRef] [PubMed]
  53. Wang, Y.; Zou, S.; Cai, W.-B. Recent Advances on Electro-Oxidation of Ethanol on Pt- and Pd-Based Catalysts: From Reaction Mechanisms to Catalytic Materials. Catalysts 2015, 5, 1507–1534. [Google Scholar] [CrossRef]
  54. Rezaei, M.; Tabaian, S.H.; Haghshenas, D.F. The Role of Electrodeposited Pd Catalyst Loading on the Mechanisms of Formic Acid Electro-Oxidation. Electrocatalysis 2014, 5, 193–203. [Google Scholar] [CrossRef]
  55. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 years of image analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef] [PubMed]
Catalysts 09 00662 g001 550

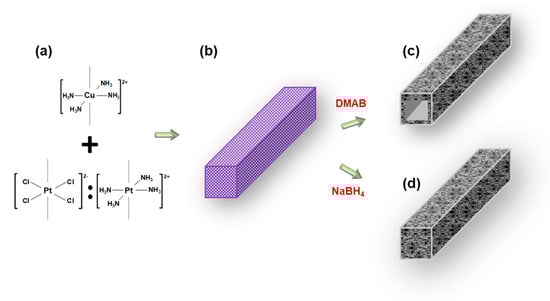

Figure 1. Platinum-copper porous macrotube–macrobeam synthesis scheme. (a) Addition of varying ratios of [Cu(NH3)4]2+ with [PtCl4]2− and [Pt(NH3)4]2+. (b) Linear stacking of platinum and copper square planar complex ions to form Magnus’s salt crystal derivatives. (c,d) Reduction of platinum-copper salt needle templates to (c) square cross-section macrotubes using dimethylamine borane (DMAB), or (d) porous macrobeams using NaBH4.
Figure 1. Platinum-copper porous macrotube–macrobeam synthesis scheme. (a) Addition of varying ratios of [Cu(NH3)4]2+ with [PtCl4]2− and [Pt(NH3)4]2+. (b) Linear stacking of platinum and copper square planar complex ions to form Magnus’s salt crystal derivatives. (c,d) Reduction of platinum-copper salt needle templates to (c) square cross-section macrotubes using dimethylamine borane (DMAB), or (d) porous macrobeams using NaBH4.
Catalysts 09 00662 g001
Catalysts 09 00662 g002 550
Figure 2. (a) Photograph of salt derivative templates. From left to right Pt2−: Pt2+: Cu2+ ratios are 1:0:1, 2:1:1, and 3:1:2 Magnus’s salt derivatives prepared from 100 mM salt solutions. Polarized optical microscope images of salt needle templates formed from Pt2−:Pt2+:Cu2+ ratios of (b) 1:0:1, (c) 3:1:2, and (d) 2:1:1, 100 mM Magnus’s salt derivatives.
Figure 2. (a) Photograph of salt derivative templates. From left to right Pt2−: Pt2+: Cu2+ ratios are 1:0:1, 2:1:1, and 3:1:2 Magnus’s salt derivatives prepared from 100 mM salt solutions. Polarized optical microscope images of salt needle templates formed from Pt2−:Pt2+:Cu2+ ratios of (b) 1:0:1, (c) 3:1:2, and (d) 2:1:1, 100 mM Magnus’s salt derivatives.
Catalysts 09 00662 g002
Catalysts 09 00662 g003 550
Figure 3. Scanning electron microscope images of platinum-copper macrotubes from 0.1 M DMAB reduced salts with Pt2−:Pt2+:Cu2+ ratios of (a–c) 1:0:1, (d–f) 3:1:2, (g–i) 2:1:1, and (j–l) 1:1:0.
Figure 3. Scanning electron microscope images of platinum-copper macrotubes from 0.1 M DMAB reduced salts with Pt2−:Pt2+:Cu2+ ratios of (a–c) 1:0:1, (d–f) 3:1:2, (g–i) 2:1:1, and (j–l) 1:1:0.
Catalysts 09 00662 g003
Catalysts 09 00662 g004 550
Figure 4. Scanning electron microscope images of platinum-copper macrobeam structures from 0.1 M NaBH4 reduced salts with Pt−:Pt2+:Cu2+ ratios of (a–c) 1:0:1, (d–f) 2:1:1, and (g–i) 3:1:2. Salts with a 1:1:0 ratio reduced with 0.1 M NaBH4 were demonstrated in reference [42]. Linear striations are circled in yellow, and platinum nanospheres are circles in red.
Figure 4. Scanning electron microscope images of platinum-copper macrobeam structures from 0.1 M NaBH4 reduced salts with Pt−:Pt2+:Cu2+ ratios of (a–c) 1:0:1, (d–f) 2:1:1, and (g–i) 3:1:2. Salts with a 1:1:0 ratio reduced with 0.1 M NaBH4 were demonstrated in reference [42]. Linear striations are circled in yellow, and platinum nanospheres are circles in red.
Catalysts 09 00662 g004
Catalysts 09 00662 g005 550

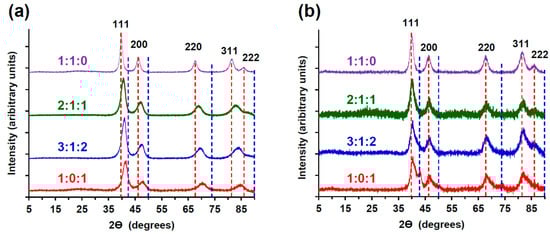

Figure 5. X-ray diffraction spectra of platinum-copper macrotubes-macrobeams reduced with (a) DMAB or (b) NaBH4 from Pt2−: Pt2+:Cu2+ salt ratios of 1:1:0, 2:1:1, 3:1:2, and 1:0:1. Peaks were indexed to JCPDS reference number 01-087-0640 for platinum (red dashed lines), and 03-065-9026 for copper (blue dashed lines).
Figure 5. X-ray diffraction spectra of platinum-copper macrotubes-macrobeams reduced with (a) DMAB or (b) NaBH4 from Pt2−: Pt2+:Cu2+ salt ratios of 1:1:0, 2:1:1, 3:1:2, and 1:0:1. Peaks were indexed to JCPDS reference number 01-087-0640 for platinum (red dashed lines), and 03-065-9026 for copper (blue dashed lines).
Catalysts 09 00662 g005
Catalysts 09 00662 g006 550

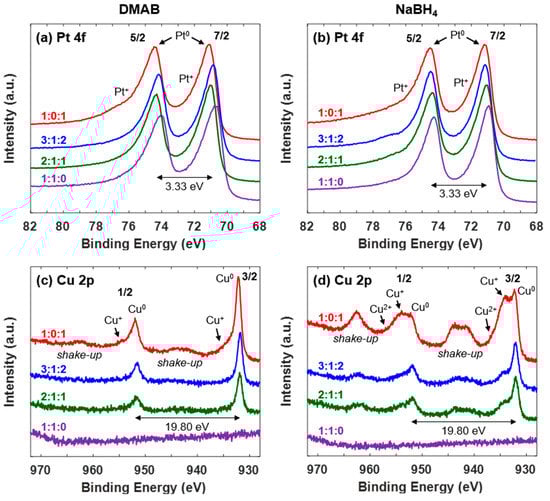

Figure 6. X-ray photoelectron spectra (XPS) for Pt–Cu macrotubes–macrobeams synthesized with Pt2+:Pd2−:Pt2− salt template ratios of 1:0:1, 3:1:2, 2:1:1, and 1:1:0. (a,b) Normalized Pt 4f5/2 and Pt 4f7/2 and (c,d) Cu 2p1/2 and Cu 2p3/2 peaks for DMAB and NaBH4 reduced salts, respectively.
Figure 6. X-ray photoelectron spectra (XPS) for Pt–Cu macrotubes–macrobeams synthesized with Pt2+:Pd2−:Pt2− salt template ratios of 1:0:1, 3:1:2, 2:1:1, and 1:1:0. (a,b) Normalized Pt 4f5/2 and Pt 4f7/2 and (c,d) Cu 2p1/2 and Cu 2p3/2 peaks for DMAB and NaBH4 reduced salts, respectively.
Catalysts 09 00662 g006
Catalysts 09 00662 g007 550

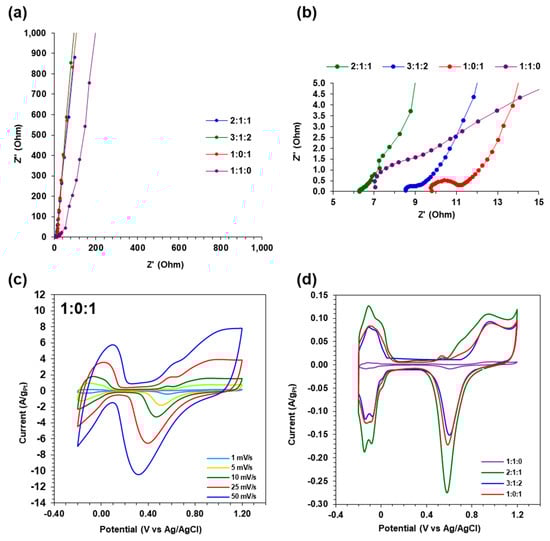

Figure 7. Electrochemical characterization of Pt–Cu macrotubes from Pt2−:Pt2+:Cu2+ salts reduced with DMAB. (a) Electrochemical impedance spectroscopy (EIS) in 0.5 M H2SO4 at frequency range of 1 MHz to 1 mHz. (b) High-frequency EIS from (a); (inset) EIS spectrum for 1:1:0. (c) Cyclic voltammetry (CV) in 0.5 M H2SO4 for Pt–Cu macrobeams from a 1:0:1 Pt2−:Pt2+:Cu2+ salt ratio, in 0.5 M H2SO4 for scan rates of 1, 5, 10, 25, and 50 mV/s. (d) CV in 0.5 M H2SO4 and 0.5 mV/s scan rate for macrotubes with Pt2−:Pt2+:Cu2+ salt ratios of 1:1:0, 2:1:1, 3:1:2, and 1:0:1.
Figure 7. Electrochemical characterization of Pt–Cu macrotubes from Pt2−:Pt2+:Cu2+ salts reduced with DMAB. (a) Electrochemical impedance spectroscopy (EIS) in 0.5 M H2SO4 at frequency range of 1 MHz to 1 mHz. (b) High-frequency EIS from (a); (inset) EIS spectrum for 1:1:0. (c) Cyclic voltammetry (CV) in 0.5 M H2SO4 for Pt–Cu macrobeams from a 1:0:1 Pt2−:Pt2+:Cu2+ salt ratio, in 0.5 M H2SO4 for scan rates of 1, 5, 10, 25, and 50 mV/s. (d) CV in 0.5 M H2SO4 and 0.5 mV/s scan rate for macrotubes with Pt2−:Pt2+:Cu2+ salt ratios of 1:1:0, 2:1:1, 3:1:2, and 1:0:1.
Catalysts 09 00662 g007
Catalysts 09 00662 g008 550

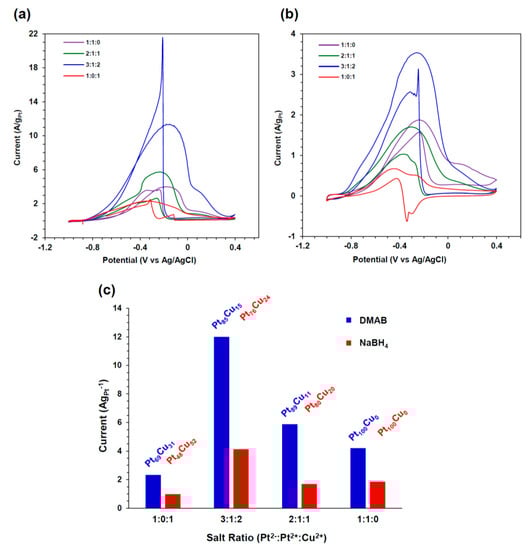

Figure 8. Ethanol oxidation peak currents (AgPt−1) in 1 M KOH and 1 M ethanol at 0.5 mV/s for Pt2−:Pt2+:Cu2+ salt ratios of 1:1:0, 2:1:1, 3:1:2, and 1:0:1 reduced in (a) DMAB and (b) NABH4. (c) Volcano plot from data in (a) and (b) with PtxCuy mass ratios; DMAB (blue) and NABH4 (red).
Figure 8. Ethanol oxidation peak currents (AgPt−1) in 1 M KOH and 1 M ethanol at 0.5 mV/s for Pt2−:Pt2+:Cu2+ salt ratios of 1:1:0, 2:1:1, 3:1:2, and 1:0:1 reduced in (a) DMAB and (b) NABH4. (c) Volcano plot from data in (a) and (b) with PtxCuy mass ratios; DMAB (blue) and NABH4 (red).
Catalysts 09 00662 g008
Table
Table 1. Atomic composition of Pt–Cu macrotubes and macrobeams reduced with NaBH4 and DMAB, respectively.
Table 1. Atomic composition of Pt–Cu macrotubes and macrobeams reduced with NaBH4 and DMAB, respectively.
Pt2−:Pt2+:Cu2+Stoic. Pt:CuEDS Pt:CuXPS Pt:Cu
NaBH41:0:11:10.5:10.92:1
3:1:22:11.3:13.1:1
2:1:13:12.5:14.0:1
1:1:01:01:01.0:0
DMAB1:0:11:10.7:12.2:1
3:1:22:11.5:15.8:1
2:1:13:12.1:17.9:1
1:1:01:01:01.0:0

Share and Cite

MDPI and ACS Style

Burpo, F.J.; Nagelli, E.A.; Losch, A.R.; Bui, J.K.; Forcherio, G.T.; Baker, D.R.; McClure, J.P.; Bartolucci, S.F.; Chu, D.D. Salt-Templated Platinum-Copper Porous Macrobeams for Ethanol Oxidation. Catalysts 2019, 9, 662. https://doi.org/10.3390/catal9080662

AMA Style

Burpo FJ, Nagelli EA, Losch AR, Bui JK, Forcherio GT, Baker DR, McClure JP, Bartolucci SF, Chu DD. Salt-Templated Platinum-Copper Porous Macrobeams for Ethanol Oxidation. Catalysts. 2019; 9(8):662. https://doi.org/10.3390/catal9080662

Chicago/Turabian Style

Burpo, F. John, Enoch A. Nagelli, Anchor R. Losch, Jack K. Bui, Gregory T. Forcherio, David R. Baker, Joshua P. McClure, Stephen F. Bartolucci, and Deryn D. Chu. 2019. "Salt-Templated Platinum-Copper Porous Macrobeams for Ethanol Oxidation" Catalysts 9, no. 8: 662. https://doi.org/10.3390/catal9080662

APA Style

Burpo, F. J., Nagelli, E. A., Losch, A. R., Bui, J. K., Forcherio, G. T., Baker, D. R., McClure, J. P., Bartolucci, S. F., & Chu, D. D. (2019). Salt-Templated Platinum-Copper Porous Macrobeams for Ethanol Oxidation. Catalysts, 9(8), 662. https://doi.org/10.3390/catal9080662

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
