Catalysts 2019, 9(8), 658; https://doi.org/10.3390/catal9080658

Review
Recent Advances in MOF-based Nanocatalysts for Photo-Promoted CO2 Reduction Applications
1
School of Materials Science and Engineering, Shandong University, Jinan 250061, China
2
School of Materials Science and Engineering, University of Jinan, Jinan 250022, China
3
State Key Laboratory of Crystal Materials, Shandong University, Jinan 250061, China
*
Authors to whom correspondence should be addressed.
Received: 3 July 2019 / Accepted: 30 July 2019 / Published: 31 July 2019

Abstract

:
The conversion of CO2 to valuable substances (methane, methanol, formic acid, etc.) by photocatalytic reduction has important significance for both the sustainable energy supply and clean environment technologies. This review systematically summarized recent progress in this field and pointed out the current challenges of photocatalytic CO2 reduction while using metal-organic frameworks (MOFs)-based materials. Firstly, we described the unique advantages of MOFs based materials for photocatalytic reduction of CO2 and its capacity to solve the existing problems. Subsequently, the latest research progress in photocatalytic CO2 reduction has been documented in detail. The catalytic reaction process, conversion efficiency, as well as the product selectivity of photocatalytic CO2 reduction while using MOFs based materials are thoroughly discussed. Specifically, in this review paper, we provide the catalytic mechanism of CO2 reduction with the aid of electronic structure investigations. Finally, the future development trend and prospect of photocatalytic CO2 reduction are anticipated.
Keywords:
Metal-organic frameworks (MOFs); photocatalysis; carbon dioxide reduction; renewable energy

1. Introduction

Energy shortages and environment issues are global problems and challenges that are faced by human beings today [1,2,3,4,5,6]. The development of renewable energy technologies to reduce the pollutants emission has become an important research topic to maintain the sustainable development of our planet [7,8,9,10,11,12]. Artificial photosynthesis is an ideal way to effectively solve the energy and environmental problems by decomposing water to produce hydrogen or reducing CO2 to high value-added chemicals or fuels [13,14,15,16]. Accordingly, searching for highly efficient materials that can convert solar energy and store it in chemicals is desired. Metal-organic frameworks (MOFs), which are known as coordination porous polymer, is a class of crystalline porous materials constructed by the coordination bond between metal ions or metal cluster nodes [17,18,19,20,21]. These materials have been widely used in gas separation/storage, catalysis, sensing, proton conductors, and drug delivery because of their structural diversity, design/modification, and ultra-high specific surface areas [22,23,24,25]. Based on the previous results, it is proven that the multifunctional organic ligands in the MOFs structure can play the role of “light capture antenna” [26,27]. It can effectively accept photons, generate band gap transition, and transfer electrons to metal center units. Thus, MOFs are usually used as efficient photocatalysts [28,29,30]. When comparing to other photocatalytic materials, MOFs exhibit big specific surface area, high porosity, and supervised capturing capability of CO2 molecules, which endows them with great application prospect in the field of photocatalysis for CO2 reduction. In recent years, MOFs and their composite materials are widely used in water decomposition, hydrogen production, CO2 reduction, and photocatalytic organic conversion [31].
Yaghi group first proposed the concept of the metal-organic frameworks in 1995, and MOFs materials were then intensively explored as new functional materials [32]. In 1997, Kitagawa group reported a three-dimensional MOF material and found its ability to adsorb gas at room temperature [33]. After that, two landmark cases of MOFs, MOF-5 and HKUST-1, were reported by Yaghi group and Williams group in 1999 [34,35,36]. Among them, MOF-5 is a three-dimensional skeleton that formed by coordination of Zn4O(CO2)6 clusters and terephthalic acid ligands. Through the gas adsorption experiments, the authors found that MOFs-5 showed high specific surface area, large pore size, and a certain adsorption capacity for hydrogen. HKUST-1, as reported, is a three-dimensional skeleton that is formed by the coordination of Cu2(CO2)4 clusters with benzotriformic acid ligands [37]. The authors found that HUKST-1 with unsaturated ligand sites can be obtained by heating water molecules that can be removed and coordinated on metal clusters [38]. Jinhee et al. report the the OCS-activation ability of chloromethanes to remove precoordinated solvent molecules from open coordination sites (OCSs) in MOFs [39]. A water molecule in HKUST-1 can easily access open metal site (OMS)with high coordination strength due to the specific coordination geometry around Cu2+ [40]. In particular, MOFs with OCSs have potential applications in chemical separation, molecular sorption, catalysis, ionic conduction, and sensing areas [39,41]. Since these two MOF structures were reported, the synthesis and potential applications of MOFs in gas separation, storage, catalysis, sensing, drug transportation, and so on have become hot research topics [42,43].
MOFs are extensively studied for the capture and conversion of CO2 due to their high porosity and strong interaction with CO2 molecules. At present, some MOFs have already been explored for their high catalytic performance in the field of photocatalysis for CO2 reduction [44]. As photocatalysts, MOFs exhibit the following advantages. Firstly, the high specific surface area of MOFs is helpful for the gas reactants adsorption around the active site. This is beneficial to the molecule activation and catalytic transformation in the subsequent process [45,46]. Secondly, the metal-oxygen units in MOFs exhibit semiconductor-like structure due to the existence of organic ligands. MOFs with larger energy than the band gap can be excited by photons to create electron and hole pairs [47,48]. Through selectively choosing different organic ligands and metal centers, one can improve the absorption and utilization efficiency of sunlight via MOFs as light absorbing agents [49]. Besides, the separation and transfer of electrons can be promoted by changing the crystal structure, thereby which thereby inhibits the recombination of photo-induced electrons and holes [50]. In addition, MOFs, as heterogeneous catalysts, can be easily separated and recycled from the reaction system, which is beneficial for prolonging the service life of the catalyst and avoiding any pollution to the environment [51,52,53].
In this paper, the advances of MOFs materials for photocatalytic CO2 reduction is systematically reviewed. This review paper starts from the research background why CO2 reduction is important, and the mechanism studies on the photocatalytic CO2 reduction process were then summarized. After that, the research progress of photocatalytic CO2 reduction using MOFs were reviewed, followed by the summary of the applications of MOFs-based composite materials for photocatalytic reduction of CO2. Finally, the current challenges and future development trend of MOFs-based materials for photocatalytic CO2 reduction are anticipated.

2. Necessity

A large amount of fossil fuels has been combusted since the eighteenth century, so that the atmospheric CO2 concentration increased gradually. According to the data of the National Oceanic and Atmospheric Administration (NOOA), the CO2 concentration has exceeded 400 ppm in May, 2013, and it reached 402 ppm in May 2014 [54]. It is believed that the atmospheric CO2 concentration will exceed 550 ppm at the end of this century [55,56]. The sudden increase of CO2 concentration in the atmosphere can be attributed to the over-use of the fossil fuels. Currently, more than 80% of the global energy supply origins from fossil fuels, which generates a large amount of CO2 in the atmosphere.
A hundred years ago, Arrhenius suggested that CO2 emissions from the burning of fossil raw materials would lead to an increase in global temperatures [57,58]. Today, CO2 has been widely accepted as the chief culprit causing global warming, climate upheaval, and many other environmental problems. Various environmental problems will become much sharper if there are no effective measures are taken to curb CO2 emissions [59]. When the atmospheric CO2 content rises to 450 ppm, the accompanying increase in global temperature will seriously aggravate the cessation of the hot salt circulation, and environmental problems, like melting of glaciers, will take place [60].
In the 21st century, in addition to serious environmental problems, the energy crisis is also a global issue affecting human society. In 2008, the total global energy consumption was 132,000 megawatts. According to the U.S. [61] Energy Information Administration, this number will continuously grow, and the total energy consumption in 2040 is expected to be twice of that in 2020. Although the over exploitation and use of fossil energy has caused global warming and energy crisis, we can still find some opportunities and challenges to debate these issues [62]. For example, while using a suitable method to convert CO2 into energy materials or valuable industrial raw materials is a promising solution to close the carbon loop, and can alleviate the dependence of human beings on fossil energy and solve environmental problems that are caused by CO2 emissions [63,64].

3. Mechanisms

Photocatalytic CO2 reduction involves three basic processes. Under light irradiation, the electron-hole pairs could be generated in semiconductor materials upon the absorption of photons with larger energy than the forbidden band gap [65]. Subsequently, the photoexcited electron-hole pairs separate and migrate to the active sites on the surface of the semiconductor. In this process, it is necessary to reduce the bulk phase and surface recombination of photogenerated electron-hole pairs. This is the major factor limiting the efficiency of photocatalytic reduction of CO2 [66,67]. After that, oxidation and reduction reactions occur on the surface of the semiconductor. At this time, electrons with strong enough reducing ability can reduce CO2 molecules into hydrocarbons, such as CO, CH4, and CH3OH, and holes with oxidizing ability oxidize H2O molecules to release O2, O2-, and other substances [68]. The conversion efficiency of photocatalytic CO2 reduction depends on the capacity of the light-trapping ability of the semiconductor material, the efficiency of photo-generated carrier generation and separation, and the thermodynamic equilibrium of the surface catalytic reactions. From the kinetic point of view, the effective absorption of light, the efficient separation and migration of photo-generated electron-hole pairs, and the sufficient reactive sites on the catalyst surface are an important prerequisite for the high-efficiency photocatalytic conversion of CO2 while using semiconductor materials [69].
The detailed mechanisms for photocatalytic CO2 reduction process have not been discovered so far. However, mechanism studies in recent years provide valuable information to unravel this process [70]. At present, it is commonly accepted that photocatalytic CO2 reduction is a multi-electron reduction process, as described in the Equations (2)–(8). It can be seen that the reaction process is accompanied by some unstable substances, namely intermediates. The corresponding products are different due to the specific reaction route and the number of electrons obtained during the reaction [71,72]. According to the number of electrons that were obtained by C atom, the products can be carbon monoxide, methane, formic acid, methanol, etc. [73]. In some special reaction system, some multi-carbon compounds such as ethane, acetic acid, and other compounds can also be obtained. From the perspective of Gibbs free energy, photocatalytic reduction of CO2 is an uphill reaction, that is ΔG > 0. If the reaction proceeds, a large amount of energy injection (such as incident photons) is required.
Reaction Eredox/ (V vs NHE,PH=7)
CO2 + e→CO    − 1.90
CO2 + H+ + 2e→HCO2    −0.49
CO2 + 2H+ + 2e→CO + H2O    −0.53
CO2 + 4H+ + 4e→HCHO + H2O    −0.48
CO2 + 6H+ + 6e→CH3OH + H2O    −0.38
CO2 + 8H+ + 8e→CH4 + 2H2O    −0.24
2H+ + 2e→H2    −0.41
H2O→0.5 O2 + 2H+ + 2e    0.82
Hendon et al. [74] elucidated the electronic structure of MIL-125 with aminated linkers through a combination of synthesis and computation. They also discussed the band gap modification of MIL-125, a TiO2/1,4-benzenedicarboxylate (bdc) MOF, and the possible mechanism for the photocatalytic CO2 reduction was proposed (Figure 1).
Photocatalytic CO2 reduction using MOFs-based materials as catalysts has drawn dramatic research interests in recent years. It is easy to design MOFs materials with accessible metal sites, specific hetero-atoms, and the ordered structure of functionalized organic ligands. This can effectively improve the efficiency of electron-hole separation and the photocatalytic performance. Porosity can make MOFs expose more active sites and channels for reactant adsorption. This can improve the charge transfer efficiency as well as improve its utilization efficiency of solar energy while inhibiting the recombination of the photo-induced electron-hole pairs in the bulk phase. Based on the above merits, people try to use different MOFs for photocatalytic CO2 reduction. In the following text, we will introduce three typical MOFs for photocatalytic CO2 reduction and their catalytic performances. New insights for the dominating factors on activity and selectivity of product will also be discussed. Table 1 summarizes the research progress of several typical MOF materials for photocatalytic CO2 reduction in recent years.

3.1. Zr MOFs

In 2011, Wang et al. [75] chelated metal ions (such as Ir, Re, and Ru) with 4,4-biphenyldicarboxylic acid derivatives as organic ligands to construct MOFs, and the Zr-based MOF (UiO-67) systems with different metal doping were obtained. A similar synthesis strategy has also been adopted by Wang et al. who used ligand H2L4 for photocatalytic reduction of CO2 to CO [76]. The total conversion number (TON) of CO2 reduction can reach 10.9. The photocatalytic activity can be improved by doping a variety of photoactive metal nanoparticles inside MOFs. Subsequently, the authors observed a significant decrease in photocatalytic activity through a series of comparison experiments, which proved that the metal nanoparticles themselves are the real active sites that are involved in the photocatalytic reaction.
In 2015, Xu et al. [77] chose Zr-MOF (PCN-222) containing porphyrin as catalysts and found that it could be used as a stable photocatalyst to reduce CO2 to formate ion under visible light. It was found that PCN-222 exhibited broad-spectrum absorption properties. There existed a series of extremely long lifetime electron trap states in the material, which could inhibit the recombination of photogenerated charge carriers and improve the photoreduction efficiency of CO2. In 2016, Chen et al. [78] synthesized a new microporous stable zirconium-based metal organic skeleton (NNU-28) from 4,4’-(anthracene-9,10-bis (2,1-ethynylphenyl) dicarboxylic acid, which was used to reduce CO2 to formate while using triethanolamine as the sacrifice agent. Under visible light irradiation, the rate of catalytic conversion of CO2 to formate ion was 183.3 μmol/h. It was found that, in the catalytic reaction, the ligands produced about 27.3% formate ions, while the metal clusters produced about 77.7% formate ions. Under light irradiation, anthracene derivative ligands not only acted as an effective light collector, but it also sensitized Zr6 oxygen clusters through the LMCT (linker-to-metal charge transfer) process. At the same time, the ligand itself can also be stimulated to form free radicals and produce photogenerated electrons. Figure 2 shows two catalytic pathways for the reduction of CO2 to formate. This strategy is helpful for the design and development of MOFs materials with efficient visible light response [78].
In 2018, Sun et al. [79] synthesized a porous zirconium based metal-organic framework [(Zr6O4(OH)4(L)·6DMF) while using dicarboxyl ligands (H2L=2,2’-diamino -4,4’-stilbene dicarboxylic acid, DMF) with conjugated imine function. The materials showed high chemical stability and remarkable visible light absorption properties. The average rate of HCOO- formation of MOFs is about 96.2 μmol/h.
Sun et al. [80] compared the activity of NH2-UiO-66(Zr) and NH2-MIL-125(Ti) for photocatalytic reduction of CO2 under visible light. The results showed that the catalytic performance of NH2-UiO-66(Zr) was higher than that of NH2-MIL-125(Ti) under the same reaction conditions. This is ascribed to the effective transfer of photogenerated electrons from ATA to Zr-O clusters, and made Zr-O clusters efficient photocatalytic active sites. Furthermore, some ATA ligands were replaced by 2,5-diamino terephthalic acid (DTA) and the mixed ligand NH2-UiO-66(Zr) was obtained. It was found that the CO2 conversion of mixed NH2-UiO-66(Zr) was 50% higher than that of pure NH2-UiO-66(Zr). This may be because the mixed NH2-UiO-66(Zr) showed strong photoabsorption capacity and large CO2 adsorption capacity, so its photocatalytic activity is obviously improved.
Choi et al. [81] reported the synthesis of composited catalysts by covalently binding ReI(CO)3(bpydc)Cl(as Re TC) to UiO-67 to Ren-MOFs (n is the density of Re TC in the pores of MOF). Subsequently, the MOF was further modified with cubic silver nanoparticles to obtain Ag-Ren-MOF, thus the photocatalytic activity of CO2 conversion was significantly improved (Figure 3A, [81]). The PXRD (powder X-ray diffraction) patterns showed that the single crystal Re3-MOF structure is preserved when different amount of Re TC is introduced into Ren-MOF (Figure 3B, [81]). By studying the process of photocatalytic conversion of CO2 by Ren-MOF (Figure 3C, [81]), it was found that the catalytic activity of Re3-MOF was the highest. In addition, under visible light irradiation, the activity of AgRe3-MOF was five times higher than that of Re3-MOF, and the conversion efficiency of CO2 to CO was increased by seven times. This is mainly because MOF has large porosity and CO2 adsorption capacity, which is conducive to the occurrence of catalytic reduction reaction. On the other hand, precious metals have a wide range of photo absorption and are easier to trap photogenerated electrons due to the lower Fermi levels. At the same time, their stability could be further improved due to the strong covalent bond between Re TC and MOF.
Lee et al. [82] used UiO-66 (Zirconium 1,4-Carboxybenzene) as a precursor to obtain UiO-66-CAT with Cr3+ or Ga3+ sites as catalysts for photocatalytic CO2 reduction. In the presence of TEOA and BNAH, the TON (turnover number) values of UiO-66-Cr CAT and UiO-66- Ga CAT are 11.22 ±0.37 and 6.14±0.22, and the amount of HCOOH that is produced by catalytic reduction of CO2 after visible light irradiation for 6h were (51.73±2.64) and (28.78 ±2.52) μmol, respectively. The activity of UiO-66-Cr CAT is about twice higher than that of UiO-66-Ga CAT, which is mainly attributed to the fact that Cr3+ is more efficient than Ga3+ for the rapid transfer of electrons. At the same time, Cr derivatives show higher reduction efficiency than Ga derivatives due to their open shell structure.
Zhang et al. [83] reported Zr- porphyrin MOF (MOF-525-Co) as efficient catalysts for CO2 conversion. Using TEOA as a sacrificial agent, MOF-525-Co could efficiently catalyze the reduction of CO2 to CO and CH4 under visible light irradiation. When compared with Zn-MOF-525 and MOF-525, MOF-525-Co showed the highest catalytic activity and CO2 adsorption capacity. The metallized MOFs is obviously improved, and exhibited strong charge separation ability and energy conversion efficiency. The highest catalytic performance of cobalt metallized MOFs is mainly due to the fact that the introduction of monoatomic Co into MOF-525 can significantly improve the electron-hole separation efficiency in porphyrin ligands. At the same time, the photogenerated electrons rapidly migrated from the porphyrin center to the surface of the catalyst, thus the electrons with long lifetime were obtained, which effectively activated the CO2 molecules that were adsorbed on the Co center.
Su et al. [84] prepared a series of Cd0.2Zn0.8[email protected]2 composites with different UiO-66-NH2 content by solvothermal method, which were used for photocatalytic reduction of CO2 to CH3OH. The results showed that the single UiO-66-NH2 showed no activity for photocatalytic CO2 reduction, but CdxZn1-xS with adjustable composition and band gap could be efficiently excited by visible light. All of the Cd0.2Zn0.8[email protected]2 samples showed excellent photocatalytic activity when compared with Cd0.2Zn0.8S. When the content of UiO-66-NH2 was 20% (mass fraction), the catalyst showed the best photocatalytic activity, and the formation rate of CH3OH is 3.4 times higher than that of single structure Cd0.2Zn0.8S. This is mainly due to the effective charge separation and transfer at the interface between Cd0.2Zn0.8S and UiO-66-NH2. Thus, the photogenerated electrons that were absorbed by Cd0.2Zn0.8S and UiO-66-NH2 can be quickly transferred to the surface for CO2 reduction. In addition, Cd0.2Zn0.8[email protected]2 photocatalyst showed excellent stability in the process of photocatalytic reduction of CO2.

3.2. Zn MOFs

In 2015, Wang et al. [85] reported the establishment of CO2 photoreduction system while using the CdS semiconductor and Co-ZIF-9 as catalyst and co-catalyst, respectively. Under mild reaction conditions, the reaction system of bipyridine and triethanolamine showed high catalytic activity when CO2 was deoxidized to CO under visible light irradiation. Under the irradiation of monochromatic light at a wavelength of 420 nm, the quantum efficiency could reach 1.93%.
In 2018, Wang et al. [86] synthesized a series of ZIF-67 nanocrystals with a different morphology by the solvent induction method. Taking the advantages of MOF, the capture of CO2 was controlled by controlling its morphology, and their photocatalytic performance was further improved. In the same year, Chen [87] and co-workers fabricated the Ag-Co-ZIF-9 nanocomposited materials with different Ag loading by the photo deposition method to study the effect of Ag NPs on the reaction performance of Co-ZIF-9 in CO2 photo reduction reaction. In this study, Co-ZIF-9, with a rod structure was obtained by the reflux method, and ultra-small Ag nanoparticles (< 5 nm) were doped into Co-ZIF-9 by photodeposition. With the help of photosensitizer, the [email protected] composite showed the catalytic performance of converting CO2 to CO under the irradiation of visible light. With the increase of Ag nanoparticles, the formation of CO obviously increased while the amount of H2 decreased. When compared with pure Co-ZIF-9, the photocatalytic activity of [email protected] can be improved by two times (about 28.4 μmol CO), and selectivity about 20% (22.9 μmol H2). The experimental results showed that Ag NPs in Co-ZIF-9 could act as an electron trap and active site for CO2 reduction, thus the efficiency and selectivity of MOF materials in CO2 photo reduction were improved.
Subsequently, Ye et al. [88] developed and used the ultra-thin two-dimensional Zn-MOF nanoliths to reduce CO2 to CO. They firstly tried to establish two novel non-precious metal mixed photocatalytic systems. The catalyst showed excellent photocatalytic activity and selectivity under mild reaction conditions. It was confirmed that the Zn-MOF nanoparticles show better charge transfer ability than the Zn-MOF bulk materials via electrochemical impedance and PL (photoluminescence) spectroscopy analysis, thus stronger photocatalytic efficiency and selectivity were obtained. This provides feasibility for the application of photocatalysis in the development of various two-dimensional (2D) MOF materials.
In 2018, Zhao et al. [89] prepared Zn2GeO4/Mg-MOF-74 composites by the hydrothermal method (Figure 4). When the water was used as agent, the photocatalytic activity of Zn2GeO4/Mg-MOF-74 for CO2 reduction reaction is higher than that of pure Zn2Ge4 nanorods or the physical mixture of Zn2GeO4 and Mg-MOF-74. This is mainly due to the stronger CO2 adsorption performance of Mg-MOF-74, the lower recombination probability of photogenerated electron-hole pair and more alkali metal sites on the surface of Mg-MOF-74. In addition, the effect of H2O on the reaction was also studied and the results show that H2O is the reducing agent and hydrogen source involved in the reaction. In the process of reduction, the photogenerated electrons from the conduction band reduce CO2 to CO and HCOOH, by the reaction of CO2+2e-+2H+→HCOOH and CO2+2e-+2H+→CO+H2O, in which the content of HCOOH is very small.
In 2018, Cardoso et al. [90] modified TiO2 nanotubes and formed a core-shell structure by layer growth of ZIF-8 nanoparticles on the surfaces. The FT-IR spectra show that the host-guest interaction depends on the pore structure and chemical properties of MOF connectors. Under UV irradiation at room temperature, CO2 can be photocatalyzed to methanol and ethanol fuel on the electrode of composited materials. Zinc-based MOF not only provided the adsorption/activation of CO2, but also acted as a light absorber to transfer excited electrons for photocatalytic reduction.
Sadeghi et al. [91] synthesized zinc-based porphyrin (Zn/PMOF), which could catalytically reduce CO2 to CH4 under light irradiation. The results showed that the yield of CH4 was 10.43 μmol when Zn/PMOF was used as photocatalyst. After 4h irradiation, Zn/PMOF was much higher than that of CH4 when ZnO was used as photocatalyst. At the same time, Zn/PMOF as photocatalyst showed high selectivity for CO2 reduction, and it has better stability and repeatability when comparing to ZnO.
Yan et al. [92] loaded different amounts of TiO2 on Co-ZIF-9 to construct Co-ZIF-9/TiO2 nanostructure composites (ZIFx/T, x is the mass ratio of Co-ZIF-9 in the composites, T is TiO2). The results showed that ZIF0.03/ T showed the best catalytic conversion efficiency of CO2, and the yield of Ti/T is 2.1 times higher than that of pure TiO2 catalyst after irradiation for 10h. Linear sweep voltammetry in CO2 saturated solution further reveals that Co-ZIF-9 can effectively activate CO2 and reduce the CO2 reduction initiation potential of ZIFx/T (x ≤ 0.10). In addition, the photoluminescence spectra show that the ZIFx/T composites that were prepared by in-situ synthesis showed higher charge separation efficiency. Therefore, better CO2 adsorption capacity and charge separation rate are beneficial to the high activity of ZIFx/T nanostructures in photocatalytic transformation.
Maina et al. [93] designed a catalytic system based on membrane reactor. The controllable encapsulation of TiO2 and Cu2+ doped TiO2 nanoparticles (Cu-TiO2) in ZIF-8 film was realized by the rapid thermal deposition (RTD) method (Figure 5A, [93]). Under ultraviolet irradiation, the Cu-TiO2/ ZIF-8 hybrid film showed high photocatalytic activity. The results show that, when compared with the amount produced by the original ZIF-8 film alone, the yields of CO and CH3OH increased by 188% and 50%, respectively (Figure 5B, [93]). Further studies showed that the yields of photocatalytic reduction of CO2 to CH3OH and CO depend on the content of Cu-TiO2 nanoparticles that are loaded on MOF films (Figure 5C, [93]). When the loading of Cu-TiO2 nanoparticles is 7 μg, Cu-TiO2/ZIF-8 exhibited the best catalytic efficiency. When compared with the original ZIF-8 film, the yields of CO and CH3OH increased by 23.3% and 70%, respectively. The sharp increase of product originated from the synergistic effect between the ability of semiconductor nanoparticles to produce photoexcited electrons under light irradiation and the high CO2 adsorption capacity of MOF.

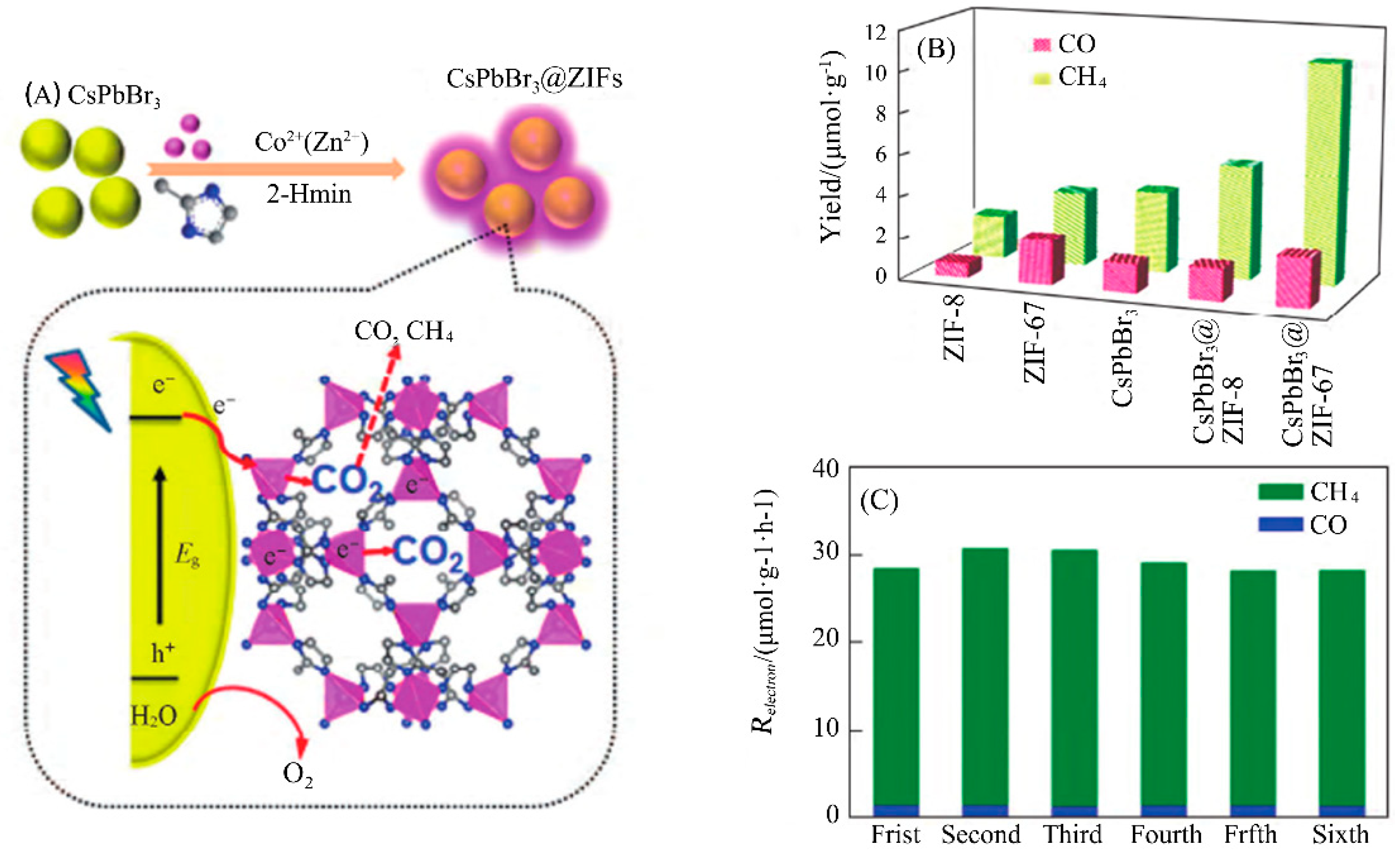

Kong et al. [94] prepared CsPbBr3@ ZIFs composites by in-situ synthesis used as CO2 reduction photocatalyst with reinforcing activity (Figure 6A, [94]). The electron consumption rates of CsPbBr3@ZIF-8 and CsPbBr3@ZIF-67 are 15.498 and 29.630 μmol·g-1·h-1, which is 1.39 and 2.66 times higher than that of pure CsPbBr3, respectively. The comparison of photocatalytic CO2 reduction performance using CsPbBr3 and CsPbBr3@ZIFs showed that the ZIF coating greatly improved the catalytic activity of CsPbBr3 (Figure 6B, [94]). In addition, six cycle experiments have been carried out on CsPbBr3@ZIF, and it was found that the electron consumption rate suffered from negligible decrease. This indicates that it possessed good stability (Figure 6C, [94]). The synergistic effect of CsPbBr3 and ZIF coating improved the stability of CsPbBr3 to water molecules and enhanced the CO2 capture ability and the charge separation efficiency. All of these lead to a higher conversion efficiency. Moreover, the catalytic active center Co in ZIF-67 could further accelerate the process of charge separation, activate CO2 molecules, and improve the catalytic activity of CO2 reduction.

3.3. Ti MOFs

In 2012, Fu et al. [95] reported a photosensitive MOF Ti8O8(OH)4(bdc)6(MIL-125(Ti)) for photocatalytic CO2 reduction. The photocatalytic activity evaluation indicated that Ti-MOF could efficiently reduce CO2 to HCOO- under 365 nm UV irradiation. When comparing to other MOFs, MIL-125(Ti) showed slightly higher activity. The photocatalytic results of NH2-MIL-125 showed that the concentration of HCOO- increased in the reaction system with the extension of irradiation time, and the formation of HCOO- reached 8.14 μmol within 10 hours. On one hand, the introduction of NH2 can promote the rapid transfer of electrons from O to Ti, in TiO5(OH) metal cluster. On the other hand, NH2 can significantly improve the adsorption capacity of NH2-MIL-125 (Ti) to CO2, which is beneficial for the adsorption and activation of CO2 in the process of photocatalytic reaction. In 2018, He [96] designed an MOF-based ternal-composite photocatalyst (TiO2/Cu2O/Cu3(BTC)2) to increase the density of charge carrier and promote the activation of CO2 molecules to improve the photoreduction capacity of CO2. The experimental results showed that the addition of Cu2O and Cu3(BTC)2 not only significantly improved the light conversion efficiency of CO2, but also facilitated the formation of CH4. The increase of charge carrier density improved the overall performance of the catalyst. The PL, XPS, and DRIFT analysis verified that the coordination of unsaturated metal sites were helpful in activating CO2. This study provides a new way to solve the problems of low charge density and efficiency CO2 activation, and it also provides a reasonable design for in-depth understanding of CO2 photoreduction and other applications of mixed nanomaterials based on MOF.

4. Prospect of Photocatalytic CO2 Reduction

The advantages of MOFs-based photocatalytic materials are obvious when comparing to conventional semiconductor materials. Thus, they have attracted more and more research attentions in photocatalysis. However, the low efficiency of this technology still hinders its wide applications in industry. The following problems should be addressed in the future. Firstly, researchers need to put forward effective strategies to improve the light absorption properties and charge separation performances. Secondly, most MOFs are not as metal oxide for semiconductor photocatalysts, especially in water or under ultraviolet light, which ultimately leads to the decreased catalyst life; hence, how to enhance their robustness is another important topic. Thirdly, there are few studies on the mechanism of photocatalytic CO2 reduction in MOFs, especially the current understanding of the catalytic reaction path is still blurred. In addition, most of the reported photocatalytic CO2 reduction reactions are carried out in organic solvents, requiring additional sacrificial agents. The future materials for catalytic reduction of CO2 should be economical and environmentally friendly. Therefore, it is urgent to solve the above problems of MOFs materials for photocatalytic CO2 reduction.

5. Conclusions

Artificial photosynthesis using catalysts to convert CO2 to high value-added chemicals or fuels is an ideal way to effectively solve energy and environmental problems. The MOFs materials exhibit great application prospects in the field of photocatalysis, due to its ultra-high specific surface area, porous properties, modified/regulated textures, and high capture capability for CO2 molecules. The advantages and significance of MOFs materials in CO2 catalytic reduction are described in detail. Meanwhile, the application of typical MOFs in CO2 photoreduction, for example, Zr-MOFs, Zn-MOFs, and Ti-MOFs, were introduced and summarized. Finally, the future development trend and prospect of photocatalytic CO2 reduction are anticipated in this review.

Funding

This work was supported by the National Natural Science Foundation of China (No. 51572157), the Natural Science Foundation of Shandong Province (No. ZR2016BM16), Qilu Young Scholar Program of Shandong University (No. 31370088963043), and the Fundamental Research Funds of Shandong University (No. 2018JC036, 2018JC046).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Goeppert, A.; Czaun, M.; Jones, J.P.; Surya Prakash, G.K.; Olah, G.A. Recycling of carbon dioxide to methanol and derived products-closing the loop. Chem. Soc. Rev. 2014, 43, 7995–8048. [Google Scholar] [CrossRef] [PubMed]
  2. Lanzafame, P.; Centi, G.; Perathoner, S. Catalysis for biomass and CO2 use through solar energy: Opening new scenarios for a sustainable and low-carbon chemical production. Chem. Soc. Rev. 2014, 43, 7562–7580. [Google Scholar] [CrossRef] [PubMed]
  3. Usubharatana, P.; McMartin, D.; Veawab, A.; Tontiwachwuthikul, P. Photocatalytic process for CO2 emission reduction from industrial flue gas streams. Ind. Eng. Chem. Res. 2006, 45, 2558–2568. [Google Scholar] [CrossRef]
  4. Habisreutinger, S.N.; Schmidt-Mende, L.; Stolarczyk, J.K. Photocatalytic reduction of CO2 on TiO2 and other semiconductors. Angew. Chem. Int. Ed. 2013, 52, 7372–7408. [Google Scholar] [CrossRef] [PubMed]
  5. Logan, M.W.; Ayad, S.; Adamson, J.D.; Dilbeck, T.; Hanson, K.; Uribe-Romo, F.J. Systematic variation of the optical bandgap in titanium based isoreticular metal-organic frameworks for photocatalytic reduction of CO2 under blue light. J. Mater. Chem. A 2017, 5, 11854–11863. [Google Scholar] [CrossRef]
  6. White, J.L.; Baruch, M.F.; Pander, J.E.; Hu, Y.; Fortmeyer, I.C.; Park, J.E.; Zhang, T.; Liao, K.; Gu, J.; Yan, Y.; et al. Light-driven heterogeneous reduction of carbon dioxide: Photocatalysts and photoelectrodes. Chem. Rev. 2015, 115, 12888–12935. [Google Scholar] [CrossRef] [PubMed]
  7. Joshi, V.V.; Meier, A.; Darsell, J.; Nachimuthu, P.; Bowden, M.; Weil, K.S. Short-term oxidation studies on nicrofer-6025HT in air at elevated temperatures for advanced coal based power plants. Oxid. Met. 2013, 79, 383–404. [Google Scholar] [CrossRef]
  8. Wang, S.; Wang, X. Imidazolium ionic liquids, imidazolylidene heterocyclic carbenes, and zeolitic imidazolate frameworks for CO2 capture and photochemical reduction. Angew. Chem. Int. Ed. 2015, 55, 2308–2320. [Google Scholar] [CrossRef] [PubMed]
  9. Liu, X.; Inagaki, S.; Gong, J. Heterogeneous molecular systems for photocatalytic CO2 reduction with water oxidation. Angew. Chem. Int. Ed. 2016, 55, 14924–14950. [Google Scholar] [CrossRef]
  10. Pan, J.; Wu, X.; Wang, L.Z.; Liu, G.; Lu, M.; Cheng, H.M. Synthesis of aanatase TiO2 rods with dominant reactive {010} facets for the photoreduction of CO2 to CH4 and use in dye-sensitized solar cells. Chem. Commun. 2011, 47, 8361–8363. [Google Scholar] [CrossRef]
  11. Roy, S.; Varghese, O.; Paulose, M.; Grimes, C.A. Toward solar fuels: Photocatalytic conversion of carbon dioxide to hydrocarbons. ACS Nano 2010, 4, 1259–1278. [Google Scholar] [CrossRef] [PubMed]
  12. Kondratenko, E.V.; Mul, G.; Baltrusaitis, J.; Larrazábal, G.O.; Ramírez, J.P. Status and perspectives of CO2 conversion into fuels and chemicals by catalytic, photocatalytic and electrocatalytic processes. Energ. Environ. Sci. 2013, 6, 3112–3135. [Google Scholar] [CrossRef]
  13. Mozia, S. Generation of useful hydrocarbons and hydrogen during photocatalytic decomposition of acetic acid on CuO/rutile photocatalysts. Int. J. Photoenergy 2009, 2009, 469069. [Google Scholar] [CrossRef]
  14. Seki, T.; Kokubo, Y.; Ichikawa, S.; Suzuki, T.; Kayaki, Y.; Ikariya, T. Mesoporous silica-catalysed continuous chemical fixation of CO2 with N, N’-dimethylethylenediamine in supercritical CO2: The efficient synthesis of 1, 3-dimethyl-2-imidazolidinone. Chem. Commun. 2009, 3, 349–351. [Google Scholar] [CrossRef] [PubMed]
  15. Anpo, M.; Yamashita, H.; Ichihashi, Y.; Ehara, S. Photocatalytic reduction of CO2 with H2O on various titanium oxide catalysts. Electroanal. Chem. 2012, 43, 3165–3172. [Google Scholar] [CrossRef]
  16. Kazuhiko, M.; Keita, S.; Osamu, I. A polymeric-semiconductor-metal-complex hybrid photocatalyst for visible-light CO2 reduction. Chem. Commun. 2013, 49, 10127–10129. [Google Scholar]
  17. Susumu, K.; Ryo, K.; Shin-Ichiro, N. Functional porous coordination polymers. Angew. Chem. 2004, 43, 2334–2375. [Google Scholar]
  18. Li, R.; Hu, J.H.; Deng, M.S.; Wang, H.L.; Wang, X.J.; Hu, Y.L.; Jiang, H.L.; Jiang, J.; Zhang, Q.; Xie, Y.; et al. Metal-organic frameworks: Integration of an inorganic semiconductor with a metal-organic framework: A platform for enhanced gaseous photocatalytic reactions. Adv. Mater. 2014, 26, 4783–4788. [Google Scholar] [CrossRef]
  19. Koen, B. Lanthanide-based luminescent hybrid materials. Chem. Rev. 2009, 109, 4283–4374. [Google Scholar]
  20. Yang, Q.Y.; Liu, D.H.; Zhong, C.L.; Li, J.R. Development of computational methodologies for metal-organic frameworks and their application in gas separations. Chem. Rev. 2013, 113, 8261–8323. [Google Scholar] [CrossRef]
  21. Yi, F.Y.; Li, J.P.; Wu, D.; Sun, Z.M. A series of multifunctional metal-organic frameworks showing excellent luminescent sensing, sensitization, and adsorbent abilities. Chemistry 2015, 21, 11475–11482. [Google Scholar] [CrossRef] [PubMed]
  22. Hu, Z.C.; Benjamin, J.D.; Li, J. Luminescent metal-organic frameworks for chemical sensing and explosive detection. Chem. Soc. Rev. 2014, 43, 5815–5840. [Google Scholar] [CrossRef] [PubMed]
  23. He, X.; Gan, Z.; Fisenko, S.; Wang, D.; El-Kaderi, H.M.; Wang, W.N. Rapid formation of metal-organic frameworks (Mofs) based nanocomposites in microdroplets and their applications for CO2 photoreduction. ACS Appl. Mater. Interfaces 2017, 9, 9688–9698. [Google Scholar] [CrossRef] [PubMed]
  24. Furukawa, H.; Cordova, K.E.; O’Keeffe, M.; Yaghi, O.M. The chemistry and applications of metal-organic frameworks. Science 2013, 341, 1230444. [Google Scholar] [CrossRef] [PubMed]
  25. Low, Z.X.; Yao, J.F.; Liu, Q.; He, M.; Wang, H.T. Crystal transformation in zeolitic-imidazolate framework. Cryst. Growth Des. 2014, 14, 6589–6598. [Google Scholar] [CrossRef]
  26. Stassen, I.; Burtch, N.C.; Talin, A.A.; Falcaro, P.; Allendorf, M.D.; Ameloot, R. Correction: An updated roadmap for the integration of metal-organic frameworks with electronic devices and chemical sensors. Chem. Soc. Rev. 2017, 46, 3853. [Google Scholar] [CrossRef]
  27. Lee, J.Y.; Farha, O.K.; Roberts, J.; Scheidt, K.A.; Nguyen, S.B.T.; Hupp, J.T. Metal-organic framework materials as catalysts. Chem. Soc. Rev. 2009, 38, 1450–1459. [Google Scholar] [CrossRef]
  28. Chen, X.B.; Wang, X.Y.; Zhu, D.D.; Yan, S.J.; Lin, J. Three-component domino reaction synthesis of highly functionalized bcyclic pyrrole derivatives. Tetrahedron 2014, 45, 1047–1054. [Google Scholar] [CrossRef]
  29. Liu, S.W.; Feng, C.; Li, S.T.; Peng, X.X.; Xiong, Y. Enhanced photocatalytic conversion of greenhouse gas CO2 into solar fuels over g-C3N4 nanotubes with decorated transparent ZIF-8 nanoclusters. Appl. Catal. B Environ. 2017, 211, 1–10. [Google Scholar] [CrossRef]
  30. Crake, A.; Christoforidis, K.C.; Kafizas, A.; Zafeiratos, S.; Petit, C. CO2 capture and photocatalytic reduction using bifunctional TiO2/Mofs nanocomposites under UV–Vis irradiation. Appl. Catal. B Environ. 2017, 210, 131–140. [Google Scholar] [CrossRef]
  31. Long, J.R.; Yaghi, O.M. The pervasive chemistry of metal-organic frameworks. Chem. Soc. Rev. 2009, 38, 1213–1214. [Google Scholar] [CrossRef] [PubMed]
  32. Li, B.Y.; Leng, K.Y.; Zhang, Y.M.; James, J.D.; Wang, J.; Hu, Y.F.; Ma, D.X.; Shi, Z.; Zhu, L.K.; Zhang, D.L. Metal-organic framework based upon the synergy of a brønsted acid framework and lewis acid centers as a highly efficient heterogeneous catalyst for fixed-bed reactions. J. Am. Chem. Soc. 2015, 137, 4243–4248. [Google Scholar] [CrossRef] [PubMed]
  33. Yong, Y.; Suyetin, M.; Bichoutskaia, E.; Blake, A.J.; Allan, D.R.; Barnett, S.A.; Schroder, M. Modulating the packing of [Cu24(isophthalate)24] cuboctahedra in a triazole-containing metal-organic polyhedral framework. Chem. Sci. 2013, 4, 1731–1736. [Google Scholar]
  34. Hirscher, M.; Panella, B. Hydrogen storage in metal-organic frameworks. Chem. Rev. 2007, 56, 809–835. [Google Scholar] [CrossRef]
  35. Ben, V.D.V.; Bart, B.; Joeri, D.; Dirk, D.V. Adsorptive separation on metal-organic frameworks in the liquid phase. Chem. Soc. Rev. 2014, 43, 5766–5788. [Google Scholar]
  36. Lee, J.Y.; Farha, O.K.; Roberts, J.; Scheidt, K.A.; Nguyen, S.B.T.; Hupp, J.T. Cheminform abstract: Metal-organic framework materials as catalysts. Cheminform 2010, 40, 1450–1459. [Google Scholar] [CrossRef]
  37. Gascon, J.; Corma, A.; Kapteijn, F.; Xamena, F.X.L.I. Metal organic framework catalysis: Quo vadis? ACS Catal. 2014, 4, 361–378. [Google Scholar] [CrossRef]
  38. Mercedes, A.; Esther, C.; Belén, F.; Xamena, F.X.; Llabrés, I.; Hermenegildo, G. Semiconductor behavior of a metal-organic framework (MOF). Chem. Eur. J. 2007, 13, 5106–5112. [Google Scholar]
  39. Bae, J.; Lee, E.J.; Jeong, N.C. Metal coordination and metal activation abilities of commonly unreactive chloromethanes toward metal-organic frameworks. Chem. Commun. 2018, 54, 6458–6471. [Google Scholar] [CrossRef]
  40. Song, D.; Bae, J.; Ji, H.; Kim, M.-B.; Bae, Y.-S.; Park, K.S.; Moon, D.; Jeong, N.C. Coordinative reduction of metal nodes enhances the hydrolytic stability of a paddlewheel metal-organic framework. Am. Chem. Soc. 2019, 141, 7853–7864. [Google Scholar] [CrossRef]
  41. Howarth, A.J.; Peters, A.W.; Vermeulen, N.A.; Wang, T.C.; Hupp, J.T.; Farha, O.K. Best practices for the synthesis, activation, and characterization of metal-organ frameworks. Chem. Mater. 2017, 29, 26–39. [Google Scholar] [CrossRef]
  42. Lin, R.B.; Li, F.; Liu, S.Y.; Qi, X.L.; Zhang, J.P.; Chen, X.M. A noble-metal-free porous coordination framework with exceptional sensing efficiency for oxygen. Angew. Chem. Int. Ed. 2013, 52, 13429–13433. [Google Scholar] [CrossRef]
  43. Kataoka, Y.; Sato, K.; Miyazaki, Y.; Masuda, K.; Tanaka, H.; Naito, S.; Mori, W. Photocatalytic hydrogen production from water using porous material [Ru2(ρ-BDC)2]n. Energy Environ. Sci. 2009, 2, 397–400. [Google Scholar] [CrossRef]
  44. Hu, X.; Sun, C.I.; Qin, C.; Wang, X.; Wang, H.K.; Zhou, E.; Li, W.; Su, Z.I. Iodine-emplated assembly of unprecedented 3d–4f metal-organic frameworks as photocatalysts for hydrogen generation. Chem. Commun. 2013, 49, 3564–3566. [Google Scholar] [CrossRef]
  45. Koroush, S.; Lin, Q.P.; Mao, C.Y.; Feng, P.Y. Incorporation of iron hydrogenase active sites into a highly stable metal-organic framework for photocatalytic hydrogen generation. Chem. Commun. 2014, 50, 10390–10393. [Google Scholar]
  46. Feng, D.W.; Gu, Z.Y.; Li, J.R.; Jiang, H.L.; Wei, Z.W.; Zhou, H.C. Zirconium-metalloporphyrin PCN-222: Mesoporous metal-organic frameworks with ultrahigh stability as biomimetic catalysts. Angew. Chem. Int. Ed. 2012, 51, 10307–10310. [Google Scholar] [CrossRef]
  47. Subhadeep, S.; Gobinda, D.; Jayshri, T.; Rahul, B. Photocatalytic metal-organic framework from Cds quantum dot incubated luminescent metallohydrogel. J. Am. Chem. Soc. 2014, 136, 14845–14851. [Google Scholar]
  48. Lee, Y.; Kim, S.; Ku, K.J.; Cohen, S.M. Photocatalytic CO2 reduction by a mixed metal (Zr/Ti), mixed ligand metal-organic framework under visible light iradiation. Chem. Commun. 2015, 51, 5735–5738. [Google Scholar] [CrossRef]
  49. Sonja, P.; Fei, H.; Andreas, O.; Cohen, S.M.; Sascha, O. Enhanced photochemical hydrogen production by a molecular diiron catalyst incorporated into a metal-organic framework. J. Am. Chem. Soc. 2013, 135, 16997–17003. [Google Scholar]
  50. Liu, Q.; Low, Z.X.; Li, L.; Razmjou, A.; Wang, K.; Yao, J.F.; Wang, H. ZIF-8/Zn2GeO4 nanorods with an enhanced CO2 adsorption property in an aqueous medium for photocatalytic synthesis of liquid fuel. J. Mater. Chem. A 2013, 1, 11563–11569. [Google Scholar] [CrossRef]
  51. Gastaldo, C.M.; Antypov, D.; Warren, J.E.; Briggs, M.E.; Chater, P.A.; Wiper, P.V.; Miller, G.J.; Khimyak, Y.Z.; Darling, G.R.; Berry, N.G. Side-Chain Control of Porosity Closure in Single and Multiple-Peptide-Based Porous Materials by Cooperative Folding. Nat. Chem. 2014, 6, 343–351. [Google Scholar] [CrossRef]
  52. Zhou, J.J.; Wang, R.; Liu, X.L.; Peng, F.M.; Li, C.H.; Teng, F.; Yuan, Y.P. In situ growth of CdS nanoparticles on UiO-66 metal-organic framework octahedrons for enhanced photocatalytic hydrogen production under visible light irradiation. Appl. Surf. Sci. 2015, 346, 278–283. [Google Scholar] [CrossRef]
  53. Wang, S.B.; Yao, W.S.; Lin, J.L.; Ding, Z.X.; Wang, X.C. Cobalt imidazolate metal-organic frameworks photosplit CO2 under mild reaction conditions. Angew. Chem. Int. Ed. 2014, 53, 1034–1038. [Google Scholar] [CrossRef]
  54. Kim, D.; Kelsey, K.S.; Hong, D.; Yang, P.D. Artificial photosynthesis for sustainable fuel and chemical production. Angew. Chem. Int. Ed. 2015, 54, 3259–3266. [Google Scholar] [CrossRef]
  55. Serena, B.; Samuel, D.; Laia, F.; Carolina, G.S.; Miguel, G.; Craig, R.; Thibaut, S.; Antoni, L. Molecular artificial photosynthesis. Chem. Soc. Rev. 2014, 43, 7501–7519. [Google Scholar]
  56. Kumar, B.; Llorente, M.; Froehlich, J.; Dang, T.; Sathrum, A.; Kubiak, C.P. Photochemical and photoelectrochemical reduction of CO2. Annu. Rev. Phys. Chem. 2012, 63, 541–569. [Google Scholar] [CrossRef]
  57. Tao, A.; Prasert, S.; Yang, P.D. Polyhedral silver nanocrystals with distinct scattering signatures. Angew. Chem. Int. Ed. 2006, 45, 4597–4601. [Google Scholar] [CrossRef]
  58. Chambers, M.B.; Wang, X.; Elgrishi, N.; Christopher, H.H.; Aron, W.; Jonathan, B.; Canivet, J.; Alessandra, Q.E.; David, F.; Caroline, M.D. Photocatalytic carbon dioxide reduction with rhodium-based catalysts in solution and heterogenized within metal-organic frameworks. ChemSusChem 2015, 8, 603–608. [Google Scholar] [CrossRef]
  59. Hou, W.; Wei, H.H.; Pavaskar, P.; Goeppert, A.; Aykol, M.; Cronin, S.B. Photocatalytic conversion of CO2 to hydrocarbon fuels via plasmon-enhanced absorption and metallic interband transitions. ACS Catal. 2011, 1, 929–936. [Google Scholar] [CrossRef]
  60. Meister, S.; Reithmeier, R.O.; Tschurl, M.; Heiz, U.; Rieger, B. Unraveling side reactions in the photocatalytic reduction of CO2: Evidence for light-induced deactivation processes in homogeneous photocatalysis. ChemSusChem 2015, 7, 690–697. [Google Scholar] [CrossRef]
  61. Suljo, L.; Phillip, C.; Ingram, D.B. Plasmonic-metal nanostructures for efficient conversion of solar to chemical energy. Nat. Mater. 2011, 10, 911–921. [Google Scholar]
  62. Hou, W.; Cronin, S.B. A review of surface plasmon resonance-enhanced photocatalysis. Adv. Funct. Mater. 2013, 23, 1612–1619. [Google Scholar] [CrossRef]
  63. Tu, W.; Zhou, Y.; Li, H.; Li, P.; Zou, Z. [email protected]2 yolk-shell hollow spheres for plasmonInduced photocatalytic reduction of CO2 into solar fuel via local electromagnetic field. Nanoscale 2015, 7, 14232–14236. [Google Scholar] [CrossRef]
  64. Gao, S.T.; Liu, W.H.; Shang, N.Z.; Feng, C.; Wu, Q.H.; Wang, Z.; Wang, C. Integration of a plasmonic semiconductor with a metal-organic framework: A case of Ag/[email protected] with enhanced visible light photocatalytic activity. RSC Adv. 2014, 4, 61736–61742. [Google Scholar] [CrossRef]
  65. Yuan, X.Z.; Hou, W.; Yan, W.; Zeng, G.M.; Chen, X.H.; Leng, L.J.; Wu, Z.B.; Hui, L. One-pot self-assembly and photoreduction synthesis of silver nanoparticle-decorated reduced graphene oxide/MIL-125(Ti) photocatalyst with improved visible light photocatalytic activity. Appl. Organomet. Chem. 2016, 30, 289–296. [Google Scholar] [CrossRef]
  66. Wheeler, D.A.; Zhang, Z.J. Exciton dynamics in semiconductor nanocrystals. Adv. Mater. 2013, 25, 2878–2896. [Google Scholar] [CrossRef]
  67. Easun, T.L.; Jia, J.H.; James, A.C.; Danielle, L.B.; Stapleton, C.S.; Vuong, K.Q.; Champness, N.R.; George, M.W. Photochemistry in a 3D metal-organic framework (MOF): Monitoring intermediates and reactivity of the fac-to-mer photoisomerization of Re(Diimine)(CO)3Cl incorporated in a MOF. Inorg. Chem. 2014, 53, 2606–2612. [Google Scholar] [CrossRef]
  68. Matsuoka, S.; Kohzuki, T.; Pac, C.; Ishida, A.; Takamuku, S.; Kusaba, M.; Nakashima, N.; Yanagida, S. Photocatalysis of oligo(P-phenylenes): Photochemical reduction of carbon dioxide with triethylamine. J. Phys. Chem. 1992, 96, 4437–4442. [Google Scholar] [CrossRef]
  69. Smieja, J.M.; Benson, E.E.; Bhupendra, K.; Grice, K.A.; Seu, C.S.; Miller, A.J.M.; Mayer, J.M.; Kubiak, C.P. Kinetic and structural studies, origins of selectivity, and interfacial charge transfer in the artificial photosynthesis of Co. Proc. Natl. Acad. Sci. USA 2012, 109, 15646–15650. [Google Scholar] [CrossRef]
  70. Yuan, Y.P.; Ruan, L.W.; Barber, J.; Loo, J.; Xue, C. Hetero-nanostructured suspended photocatalysts for solar-to-fuelconversion. Energy Environ. Sci. 2014, 7, 3934–3951. [Google Scholar] [CrossRef]
  71. Hod, I.; Sampson, M.D.; Deria, P.; Kubiak, C.P.; Farha, O.K.; Hupp, J.T. Fe-porphyrin-based metal-organic framework films as high-surface concentration, heterogeneous catalysts for electrochemical reduction of CO2. ACS Catal. 2015, 5, 6302–6309. [Google Scholar] [CrossRef]
  72. Benson, E.E.; Kubiak, C.P. Structural investigations into the deactivation pathway of the CO2 reduction electrocatalyst Re(Bpy)(CO)3Cl. Chem. Commun. 2012, 48, 7374–7376. [Google Scholar] [CrossRef]
  73. Cavka, J.H.; Jakobsen, S.; Olsbye, U.; Guillou, N.; Lamberti, C.; Bordiga, S.; Lillerud, K.P. A new zirconium inorganic building brick forming metal organic frameworks with exceptional stability. J. Am. Chem. Soc. 2008, 130, 13850–13851. [Google Scholar] [CrossRef]
  74. Hendon, C.H.; Tiana, D.; Fontecave, M.; Sanchez, C.; D’arras, L.; Sassoye, C.; Rozes, L.; Mollot-Draznieks, C.; Walsh, A. Engineering the optical response of the titanium-MIL-125 metal-organic framework through ligand functionalization. J. Am. Chem. Soc. 2013, 135, 10942–10945. [Google Scholar] [CrossRef]
  75. Wang, C. Doping metal-organic frameworks for water oxidation, carbon dioxide reduction, and organic photocatalysis. J. Am. Chem. Soc. 2011, 133, 13445–13454. [Google Scholar] [CrossRef]
  76. Wang, D.K.; Huang, R.K.; Liu, W.J.; Sun, D.R.; Li, Z.H. Fe-based Mofs for photocatalytic CO2 reduction: Role of coordination unsaturated sites and dual excitation pathways. ACS Catal. 2014, 4, 4254–4260. [Google Scholar] [CrossRef]
  77. Xu, H.Q.; Hu, J.; Wang, D.; Li, Z.; Zhang, Q.; Luo, Y.; Yu, S.H.; Jiang, H.L. Visible-light photoreduction of CO2 in a metal-organic framework: Boosting electron-hole separation via electron trap states. J. Am. Chem. Soc. 2015, 137, 13440–13443. [Google Scholar] [CrossRef]
  78. Chen, D.S.; Xing, H.Z.; Wang, C.G.; Su, Z.M. Highly efficient visible-light-driven CO2 reduction to formate by a new anthracene-based zirconium Mof via dual catalytic routes. J. Mater. Chem. A 2016, 4, 2657–2662. [Google Scholar] [CrossRef]
  79. Sun, M.; Yan, S.; Sun, Y.; Yang, X.; Guo, Z.; Du, J.; Chen, D.; Chen, P.; Xing, H. Enhancement of visible-light-driven CO2 reduction performance using an amine-functionalized zirconium metal-organic framework. Dalton Trans. 2018, 47, 909–915. [Google Scholar] [CrossRef]
  80. Sun, D.; Fu, Y.; Liu, W.; Ye, L.; Wang, D.; Yang, L.; Fu, X.; Li, Z.D. Studies on photocatalytic CO2 reduction over NH2-Uio-66 (Zr) and its derivatives: Towards a better understanding of photocatalysis on metal-organic frameworks. Chem. Eur. J. 2013, 42, 14279–14285. [Google Scholar] [CrossRef]
  81. Choi, K.M.; Kim, D.; Rungtaweevoranit, B.; Trickett, C.A.; Barmanbek, J.T.; Alshammari, A.S.; Yang, P.; Yaghi, O.M. Plasmon-enhanced photocatalytic CO2 conversion within metal-organic frameworks under visible light. J. Am. Chem. Soc. 2017, 139, 356–362. [Google Scholar] [CrossRef]
  82. Lee, Y.; Kim, S.; Fei, H.; Kang, J.K.; Cohen, S.M. Photocatalytic CO2 reduction using visible light by metal-monocatecholato species in a metal-organic framework. Chem. Commun. 2015, 92, 16549–16552. [Google Scholar] [CrossRef]
  83. Zhang, H.; Wei, J.; Dong, J.; Liu, G.; Shi, L.; An, P.; Zhao, G.; Kong, J.; Wang, X.; Meng, X.; et al. Efficient visible-light-driven carbon dioxide reduction by a single-atom implanted metal-organic framework. Angew. Chem. 2016, 128, 14310–14314. [Google Scholar] [CrossRef]
  84. Su, Y.; Zhang, Z.; Liu, H.; Wang, Y. Cd0.2Zn0.8[email protected]2 nanocomposites as efficient and stable visible-light-driven photocatalyst for H2 evolution and CO2 reduction. Appl. Catal. B Environ. 2017, 200, 448–457. [Google Scholar] [CrossRef]
  85. Wang, S.B.; Wang, X.C. Photocatalytic CO2 reduction by CdS promoted with a zeolitic imidazolate framework. Appl. Catal. B Environ. 2015, 162, 494–500. [Google Scholar] [CrossRef]
  86. Wang, M.; Liu, J.X.; Guo, C.M.; Gao, X.S.; Gong, C.H.; Wang, Y.; Liu, B.; Li, X.X.; Gurzadyan, G.G.; Sun, L.C. Metal-organic frameworks (ZIF-67) as efficient cocatalysts for photocatalytic reduction of CO2: The role of the morphology effect. J. Mater. Chem. A 2018, 6, 4768–4775. [Google Scholar] [CrossRef]
  87. Chen, M.; Han, L.; Zhou, J.; Sun, C.; Hu, C.; Wang, X.; Su, Z. Photoreduction of carbon dioxide under visible light by ultra-small Ag nanoparticles doped into Co-Zif-9. Nanotechnology 2018, 29, 284003. [Google Scholar] [CrossRef]
  88. Ye, L.; Gao, Y.; Cao, S.Y.; Chen, H.; Yao, Y.A.; Hou, J.G.; Sun, L.C. Assembly of highly efficient photocatalytic CO2 conversion systems with ultrathin two-dimensional metal-organic framework nanosheets. Appl. Catal. B Environ. 2018, 227, 54–60. [Google Scholar] [CrossRef]
  89. Zhao, H.; Wang, X.S.; Feng, J.F.; Chen, Y.N.; Yang, X.; Gao, S.Y.; Cao, R. Synthesis and characterization of Zn2GeO4/Mg-MOF-74 composites with enhanced photocatalytic activity for CO2 reduction. Catal. Sci. Technol. 2018, 8, 1288–1295. [Google Scholar] [CrossRef]
  90. Cardoso, J.C.; Stulp, S.; de Brito, J.F.; Flor, J.B.S.; Frem, R.C.G.; Zanoni, M.V.B. MOFs based on ZIF-8 deposited on TiO2 nanotubes increase the surface adsorption of CO2 and its photoelectrocatalytic reduction to alcohols in aqueous media. Appl. Catal. B Environ. 2018, 225, 563–573. [Google Scholar] [CrossRef]
  91. Sadeghi, N.; Sharifnia, S.; Sheikh Arabi, M. A porphyrin-based metal organic framework for high rate photoreduction of CO2 to CH4 in gas phase. J. CO2 Util. 2016, 16, 450–457. [Google Scholar] [CrossRef]
  92. Yan, S.C.; Ouyang, S.X.; Gao, J.; Yang, M.; Feng, J.Y.; Fan, X.X.; Wan, L.J.; Li, Z.S.; Ye, J.H.; Zhou, Y.; et al. A room-temperature reactive-template route to mesoporous ZnGa2O4 with improved photocatalytic activity in reduction of CO2. Angew. Chem. Int. Ed. 2010, 49, 6400–6404. [Google Scholar] [CrossRef]
  93. Maina, J.W.; Schütz, J.A.; Grundy, L.; Ligneris, E.D.; Yi, Z.F.; Kong, L.X.; Pozo-Gonzalo, C.; Ionescu, M.; Dumée, L.F. Inorganic nanoparticles/metal organic framework hybrid membrane reactors for efficient photocatalytic conversion of CO2. ACS Appl. Mater. Interfaces 2017, 9, 35010–35017. [Google Scholar] [CrossRef]
  94. Kong, Z.C.; Liao, J.F.; Dong, Y.J.; Xu, Y.F.; Chen, H.Y.; Kuang, D.B.; Su, C.Y. [email protected] CsPbBr3@Zeolitic imidazolate framework nanocomposite for efficient photocatalytic CO2 reduction. ACS Energy Lett. 2018, 3, 2656–2662. [Google Scholar] [CrossRef]
  95. Fu, Y.H.; Sun, D.R.; Chen, Y.J.; Huang, R.K.; Ding, Z.X.; Fu, X.Z.; Li, Z.H. An amine-functionalized titanium metal-organic framework photocatalyst with visible-light-induced activity for CO2 reduction. Angew. Chem. Int. Ed. 2012, 51, 3364–3367. [Google Scholar] [CrossRef]
  96. He, X.; Wang, W.N. MOF-based ternary nanocomposites for better CO2 photoreduction: Roles of heterojunctions and coordinatively unsaturated metal sites. J. Mater. Chem. A 2018, 6, 932–940. [Google Scholar] [CrossRef]
Figure 1. (a) the valence band is composed of the bdc C 2p orbitals (shown on the right), making these favorable for linker-based band gap modifications; (b) the conduction band is composed ofO 2p orbitals and Ti 3d orbitals (shown on the right). (c) PBEsol band structures for synthetic MIL-125 (black), 10%-MIL-125-NH2 (blue), 10%-MIL-125-(NH2)2/90%-MIL-125-NH2 (orange) and the theoretical 10%-MIL-125-(NH2)2 (green). (d) HSE06-calculated VB and CB energies of MIL-125-NH2 models containing increasing numbers of bdc-NH2 linkers [i.e. 0 (MIL-125) to 12 (100%-MIL-125-NH2)] per unit cell. MOFs materials for photocatalytic CO2 reduction. Reprinted from ref. 74 with permission by the American Chemical Society.
Figure 1. (a) the valence band is composed of the bdc C 2p orbitals (shown on the right), making these favorable for linker-based band gap modifications; (b) the conduction band is composed ofO 2p orbitals and Ti 3d orbitals (shown on the right). (c) PBEsol band structures for synthetic MIL-125 (black), 10%-MIL-125-NH2 (blue), 10%-MIL-125-(NH2)2/90%-MIL-125-NH2 (orange) and the theoretical 10%-MIL-125-(NH2)2 (green). (d) HSE06-calculated VB and CB energies of MIL-125-NH2 models containing increasing numbers of bdc-NH2 linkers [i.e. 0 (MIL-125) to 12 (100%-MIL-125-NH2)] per unit cell. MOFs materials for photocatalytic CO2 reduction. Reprinted from ref. 74 with permission by the American Chemical Society.
Catalysts 09 00658 g001

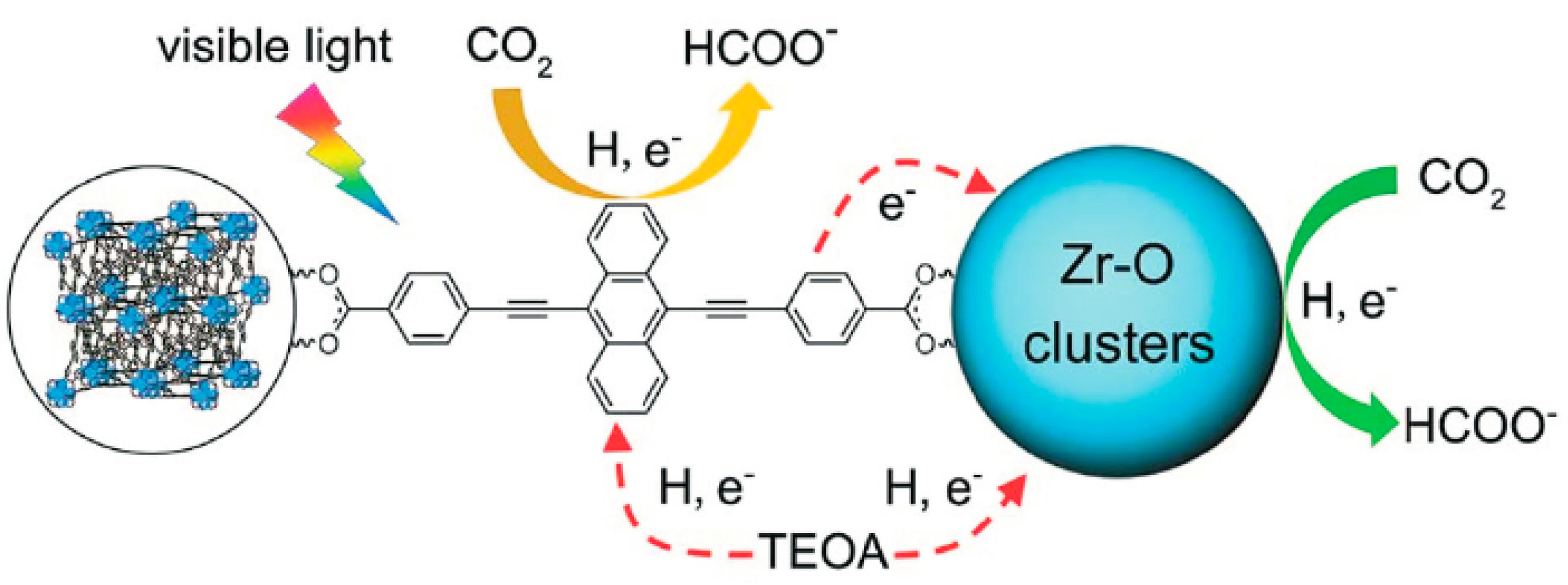

Figure 2. Two catalytic pathways for the reduction of CO2 to formate. Reprinted from ref. 78 with permission by the Royal Society of Chemistry.
Figure 2. Two catalytic pathways for the reduction of CO2 to formate. Reprinted from ref. 78 with permission by the Royal Society of Chemistry.
Catalysts 09 00658 g002

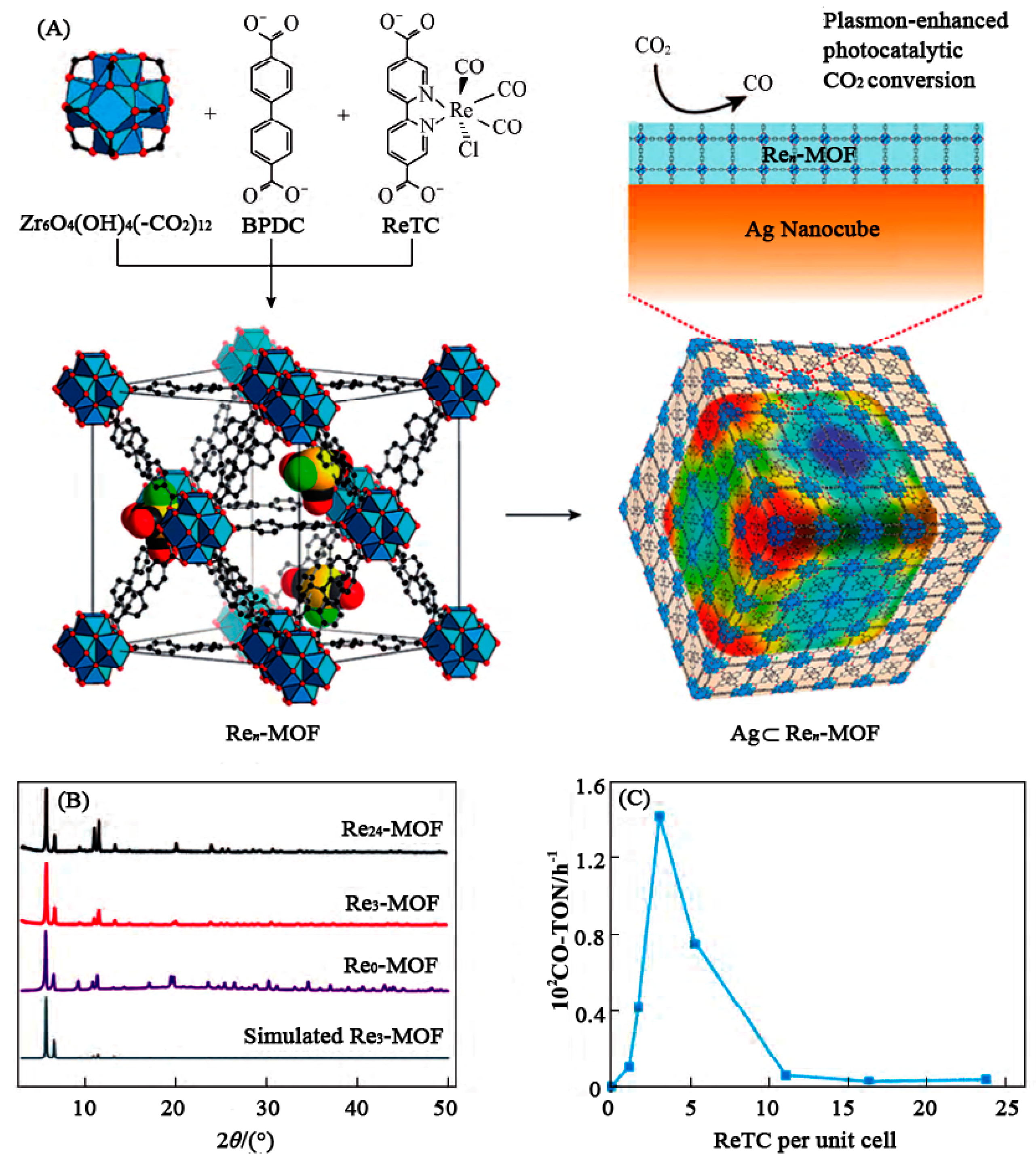

Figure 3. Structures of Ren-MOF and Ag Ren-MOF based catalysts (A), PXRD of Ren-MOFs (B), and the photocatalytic activity of Ren-MOF (C). Reprinted from ref. 81 with permission by the American Chemical Society.
Figure 3. Structures of Ren-MOF and Ag Ren-MOF based catalysts (A), PXRD of Ren-MOFs (B), and the photocatalytic activity of Ren-MOF (C). Reprinted from ref. 81 with permission by the American Chemical Society.
Catalysts 09 00658 g003

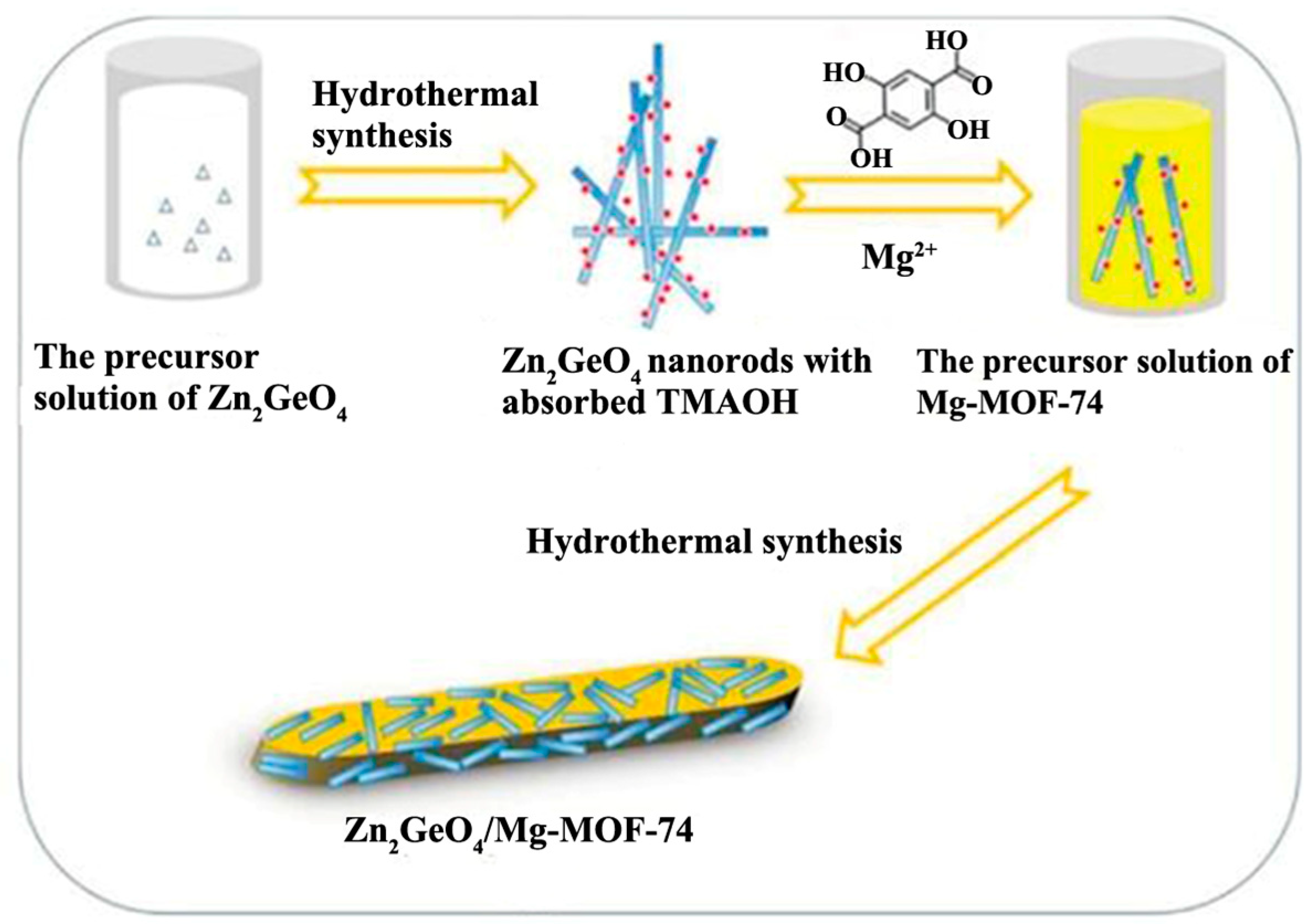

Figure 4. Schematic illustration of the synthesis of the Zn2GeO4/Mg-MOF-74 composites. Reprinted from ref. 89 with permission by the Royal Society of Chemistry.
Figure 4. Schematic illustration of the synthesis of the Zn2GeO4/Mg-MOF-74 composites. Reprinted from ref. 89 with permission by the Royal Society of Chemistry.
Catalysts 09 00658 g004

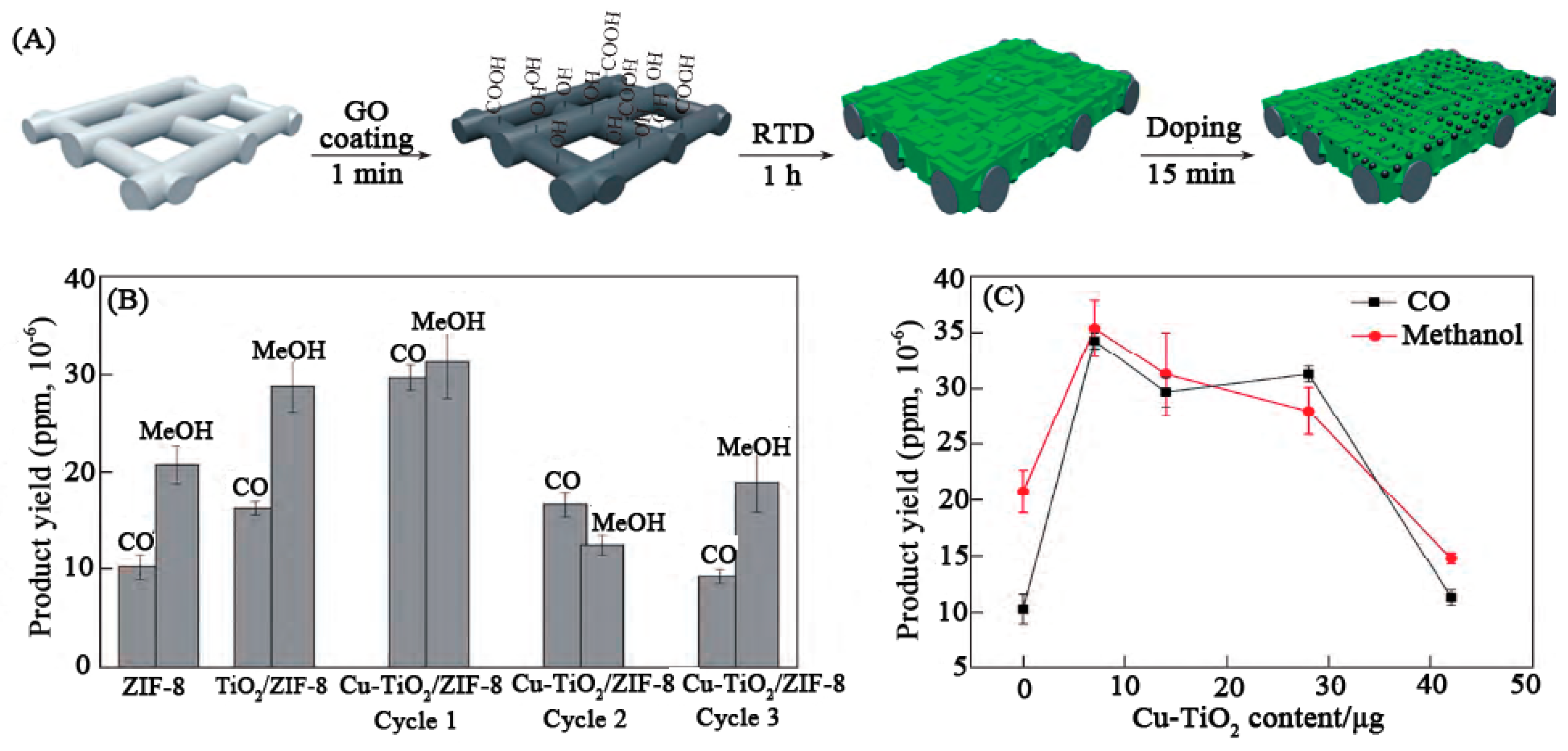

Figure 5. Fabrication of Cu-TiO2/ ZIF-8 membranes (A), effect of membrane composition (B) and Cu-TiO2nanoparticles loading on the product yields (C). Reprinted from ref. 93 with permission by the American Chemical Society.
Figure 5. Fabrication of Cu-TiO2/ ZIF-8 membranes (A), effect of membrane composition (B) and Cu-TiO2nanoparticles loading on the product yields (C). Reprinted from ref. 93 with permission by the American Chemical Society.
Catalysts 09 00658 g005
Figure 6. Schematic illustration of the fabrication process and CO2 photoreduction process of CsPbBr3/ ZIFs (A) and photocatalytic CO2 reduction performances of CsPbBr3 and CsPbBr3@ZIFs (B,C). Reprinted from ref. 94 with permission by the American Chemical Society.
Figure 6. Schematic illustration of the fabrication process and CO2 photoreduction process of CsPbBr3/ ZIFs (A) and photocatalytic CO2 reduction performances of CsPbBr3 and CsPbBr3@ZIFs (B,C). Reprinted from ref. 94 with permission by the American Chemical Society.
Catalysts 09 00658 g006
Table 1. the research progress of several typical metal-organic frameworks (MOF) materials for photocatalytic CO2 reduction.
Table 1. the research progress of several typical metal-organic frameworks (MOF) materials for photocatalytic CO2 reduction.
SampleLight Source ConditionsProductProductivityRef.
Zr6O4(OH)4(bpdc)6Visible lightCO-75
MIL-101(Fe)Visible lightHCOO7.375μmol/h76
PCN-222Visible lightHCOO3.12μmol/h77
NNU-28Visible lightdicarboxylic acid183.3μmol/h78
Zr6O4(OH)4(L)•6DMFVisible lightHCOO96.2μmol/ h79
NH2-Uio-66(Zr)Visible lightHCOO1.32μmol/h80
Ag-Ren-MOFVisible lightCO-81
UiO-66-CAT
MOF-525-Co
Cd0.2Zn0.8[email protected]2
Co-ZIF-9
ZIF-67
Visible light
Visible light
Visible light
Visible light
Visible light
HCOOH
CO
CH3OH
CO
CO
9μmo/h
36.67μmol/h
-
28.54μmol/h
3.89μmol/h
82
83
84
85
86
[email protected]Visible lightCO28.4μmol/h87
Zn-MOF nanoliths
Zn2GeO4/Mg-MOF-74
TiO2-ZIF-8
Zn/PMOF
Co-ZIF-9/TiO2
Cu-TiO2/ZIF-8
CsPbBr3@ZIFs
Ti8O8(OH)4(bdc)6(MIL-125(Ti))
Visible light
Visible light
Visible light
Visible light
Visible light
UV-light
Visible light
365nm UV-light
CO
CO
MeOH
CH4
CH4
CO
CO
HCOO
-
1.43μmol/h
1.21μmol/h
10.43μmol/h
-
-
29.630μmol/h
0.814μmol/ h
88
89
90
91
92
93
94
95

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
