Catalytic Behaviour of Ce-Doped Ni Systems Supported on Stabilized Zirconia under Dry Reforming Conditions

Abstract

Ni supported on bare and modified ZrO₂ samples were synthesized using the incipient wet impregnation method. The t-ZrO₂ phase was stabilized by incorporation of La₂O₃ into ZrO₂. Moreover, the influence of CeO₂-doping on the physico-chemical and catalytic properties under CO₂ reforming conditions was probed. The characterization data of the investigated catalysts were obtained by using XRD, CO₂/H₂-TPD, BET, TPR, TPO, TGA, XPS and TEM characterization techniques. In the pristine Ni/Zr catalyst, the t-ZrO₂ phase transformed into the monoclinic phase. However, upon support modification by La₂O₃, significant effects on the physicochemical properties were observed due to the monoclinic-to-tetragonal ZrO₂ phase transformation also affecting the catalytic activity. As a result, superior activity on the La₂O₃ modified Ni/Zr catalyst was achieved, while no relevant change in the surface properties and activity of the catalysts was detected after doping by CeO₂. The peculiar behavior of the Ni/La-ZrO₂ sample was related to higher dispersion of the active phase, with a more pronounced stabilization of the t-ZrO₂ phase.

1. Introduction

Modern civilization is confronted with two major challenges: dwindling energy resources [1,2] and global warming caused by greenhouse gases (mainly CH₄ and CO₂) [3,4]. The dry reforming of the methane (DRM) reaction for the conversion of greenhouse gases into a valuable synthesis gas (H₂ and CO) product is a potential contestant for confronting both these challenges simultaneously. Syngas is recognized as the building block for the production of H₂ and liquid fuels such as olefins, paraffins, methanol, oxygenates and aromatics in the petrochemical industry, employing the Fischer–Tropsch synthesis process [5,6].

It is an acknowledged fact that DRM is hampered by some side reactions, such as the Boudouard reaction (Equation (2)), water gas shift reaction (Equation (3)), and methane decomposition (Equation (4)), which are considered the major reactions leading to the deactivation of catalysts as a result of coke deposition [7].

$$\begin{array}{ll}\mathrm{C}{\mathrm{H}}_4+\mathrm{C}{\mathrm{O}}_2\leftrightarrow 2\mathrm{C}\mathrm{O}+2{\mathrm{H}}_2& \mathrm{\Delta }{\mathrm{H}}^0=+261\mathrm{k}\mathrm{J}\mathrm{m}\mathrm{o}{\mathrm{l}}^{-1}\end{array}$$

(1)

$$\begin{array}{ll}2\mathrm{C}\mathrm{O}\leftrightarrow \mathrm{C}+\mathrm{C}{\mathrm{O}}_2& \mathrm{\Delta }{\mathrm{H}}^0=-171\mathrm{k}\mathrm{J}\mathrm{m}\mathrm{o}{\mathrm{l}}^{-1}\end{array}$$

(2)

$$\begin{array}{ll}{\mathrm{H}}_2+\mathrm{C}{\mathrm{O}}_2\leftrightarrow {\mathrm{H}}_2\mathrm{O}+\mathrm{C}\mathrm{O}& \mathrm{\Delta }{\mathrm{H}}^0=+41\mathrm{k}\mathrm{J}\mathrm{m}\mathrm{o}{\mathrm{l}}^{-1}\end{array}$$

(3)

$$\begin{array}{ll}\mathrm{C}{\mathrm{H}}_4\leftrightarrow 2{\mathrm{H}}_2+\mathrm{C}& \mathrm{\Delta }{\mathrm{H}}^0=+75\mathrm{k}\mathrm{J}\mathrm{m}\mathrm{o}{\mathrm{l}}^{-1}\end{array}$$

(4)

Coke formation represents a serious problem in DRM. Therefore, noble metal catalysts like Ir, Pt, Rh, Ru and Pd, based on anti-coking properties, were used to constrain such phenomena [8]. In spite of their marvelous characteristics, noble metals are rare and expensive, and end up with a higher cost-benefit ratio. Therefore, the application of noble metals is no longer commercially feasible. On the other hand, Ni-based catalysts are cheap and abundant, and also demonstrate an interesting catalytic performance for the DRM reaction. Unfortunately, nickel particles undergo thermal sintering and tend to promote coke formation over the catalyst surface, leading to catalyst deactivation. Therefore, besides the relevance of active metal components, the role of support material is crucial in inhibiting (or at least limiting) the formation of coke. This can be accomplished by: modifying the electronic properties of the catalyst through a control of the metal-support interaction [9]; improving the oxygen storage capacity [10]; or controlling the size of active metal particles [11]. Consequently, several oxide supports, like Al₂O₃, SiO₂, ZrO₂, CeO₂ and La₂O₃ have been employed to enhance the catalytic activity and stability of Ni catalysts. Among different oxides, ZrO₂ is extensively employed as a functional support, possessing several unique properties like redox properties, acid-base bi-functional properties, thermal and mechanical stability, high ionic conductivity and oxygen transport properties, making it a favourable support for reforming reactions [12,13]. Moreover, the partial CO₂ activation, as well as the strong anchoring effects endowed by Zr⁴⁺, may effectively boost the DRM reaction. However, it was found that Ni/ZrO₂ catalysts undergo serious coke formation over their surface, leading to fast deactivation and, subsequently, reactor plugging [14,15].

The deactivation of the catalyst may occur for several reasons, for instance, commonly available ZrO₂ possesses a rather smaller surface area (viz. <50 m²/g) in comparison to its counterparts [16,17]. Moreover, ZrO₂ is characterized by three polymorph structures, named as the monoclinic phase (m-ZrO₂, room temperature–1175 °C), tetragonal phase (t-ZrO₂, 1175–2370 °C), and cubic phase (c-ZrO₂, 2370–2680 °C) [18]. The c-ZrO₂ is poorly stable at room temperature, which restricts its large scale application in catalysis as compared to m-ZrO₂ and t-ZrO₂. Furthermore, t-ZrO₂ is found to have a better performance than m-ZrO₂ [19]. In addition, t-ZrO₂ is widely utilized as a support for Ni catalysts in CH₄ reforming processes, even if its thermodynamic instability represents a problem to overcome. Rezaei et al. proposed that the surface energy difference between monoclinic and tetragonal phases may induce the t-ZrO₂ phase to be thermodynamically stable for tiny crystals [20]. Consequently, in order to exploit the excellent properties associated with ZrO₂ support, it is essential to find a way to prepare high surface area ZrO₂ and stabilizing t-ZrO₂, which will obviously contribute to enhancing the catalytic performance.

Recently, heteroatom oxide compounds (e.g., Y₂O₃, CeO₂, TiO₂ and K₂O) have been reported to stabilize t-ZrO₂ in catalytic processes [19,21]. When La₂O₃ is assigned to modify the support for the dry reforming reaction, the ability of support to activate CO₂ was enhanced by means of La₂O₂CO₃ formation. In this way, it discards the accumulated carbon through oxidation of coke at the Ni-La₂O₃ interface [22,23].

Furthermore, in order to promote the oxygen storage capacity of ZrO₂, as well as to enhance the thermal stability of Ni-based catalysts, CeO₂ was proposed as a promoter (in fact, ceria demonstrates outstanding redox properties as a result of a quick transition between Ce⁴⁺/Ce³⁺).

The purpose of this study was to exploit the aforementioned peculiar properties of ZrO₂ support, trying to circumvent the limitations associated with its instability and low surface area. To achieve this objective, high surface area ZrO₂ supported Ni catalysts were prepared using the incipient wet-impregnation method. Subsequently, ZrO₂ support was modified by heteroatom oxides, like La₂O₃, with an intention that it might stabilize the t-ZrO₂ phase. In addition, 1% CeO₂ promoter was also incorporated to enhance the oxygen storage capacity of catalysts. Consequently, the unique properties achieved as an outcome of the synergistic effect of the ceria promoter and high surface area ZrO₂ support modifiers (La₂O₃) were studied to stabilize t-ZrO₂ and their eventual influence on the catalytic performance.

2. Results and Discussion

2.1. Physicochemical Features of the Ceria Promoted Ni/x-Zr (x = 0, La₂O₃) Catalysts

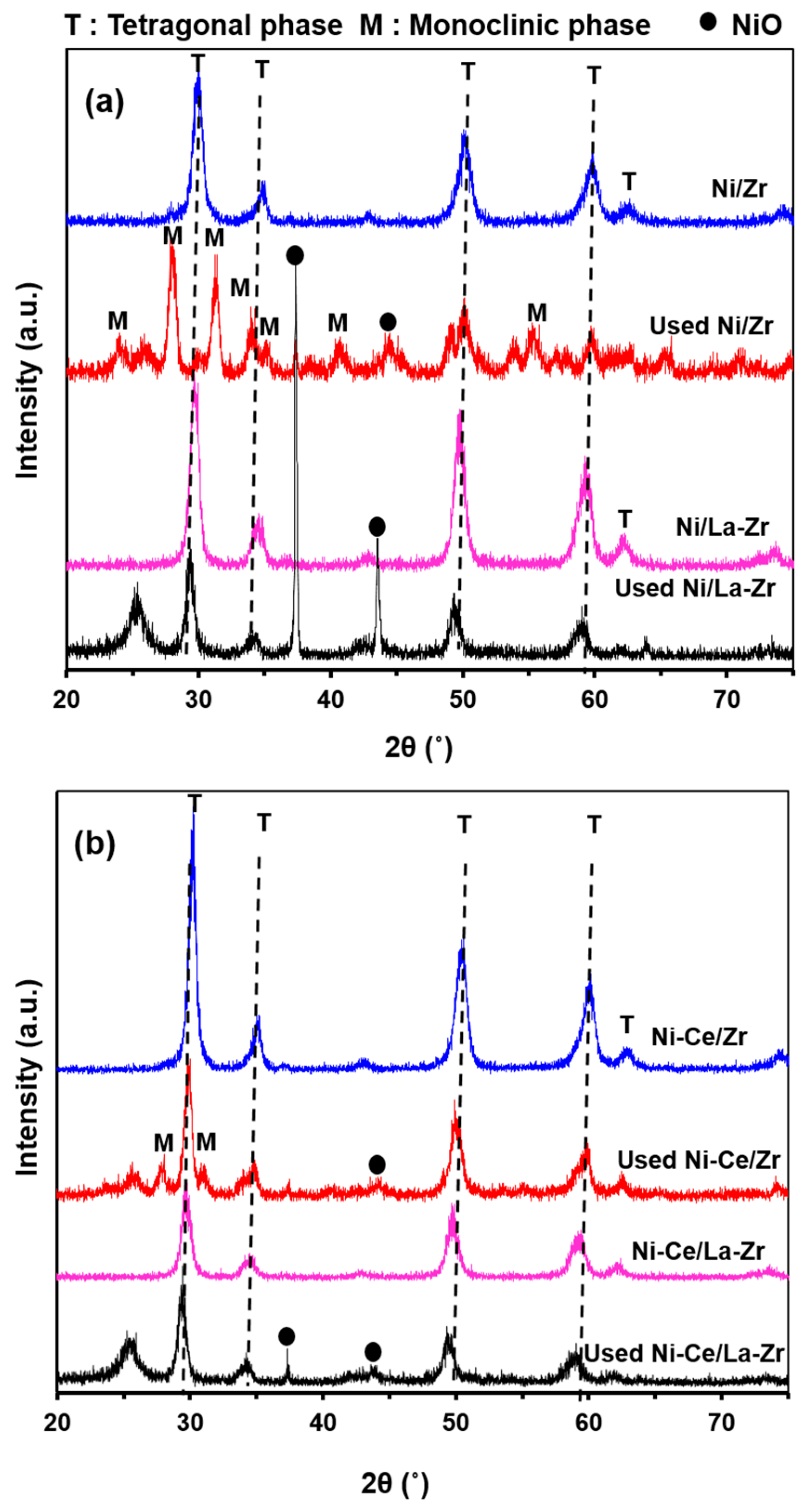

Figure 1a illustrates the X-ray diffraction patterns of fresh catalyst samples. The diffraction peaks of NiO can be featured on the diffractograms at 2θ = 37.3° and 43.3° corresponding to the [101] and [012] reflections, respectively.

According to the literature, monoclinic zirconia (m-ZrO₂) was found at 2θ≈24.0°, 28.2°, 31.5°, 34.2°, 34.4°, 35.3° and 40.7°, while tetragonal zirconia (t-ZrO₂) appeared at 2θ≈30.0°, 34.8°, 35.1°, 50.0° and 59.4° [24]. Based on this evidence, it can be observed that “pure” Ni/Zr catalyst predominantly consists of t-ZrO₂. After incorporation of La₂O₃, the peaks related to t-ZrO₂ became sharper and more pronounced. It implies that La₂O₃ contributed to enhance the stability of the t-ZrO₂ phase of the Ni/Zr catalyst. Moreover, it is clear that the crystalline La₂O₃ phase (2θ = 28° and 49°, JCPDS: 01-089-4016) was not individually identified on the diffractograms, indicating that La₂O₃ was highly dispersed and incorporated into the ZrO₂ lattice. Furthermore, when the Ni/Zr catalyst was promoted using 1% CeO₂ (see Figure 1b), more intense diffraction patterns attributing to t-ZrO₂ appeared for the Ni-Ce/Zr catalyst. However, when Ni/La-Zr was promoted by 1% CeO_2, the intensity of diffraction peaks corresponding to t-ZrO₂ was considerably reduced for the Ni-Ce/La-Zr catalyst.

The textural properties of Ni/x-Zr (x = 0, La₂O₃) and CeO₂ promoted fresh catalysts are shown in Figure 2 and

Table 1. Properties and H₂ consumption during reduction of NiO species of fresh Ni/x-Zr and Ni-Ce/x-Zr (x = 0, La₂O₃) catalysts (calcined at 600 °C).

SAMPLE	BET (m2/g)	P.V. (cm3/g)	P.D. (nm)	H2 Consumption (µmol/g)
La-Zr Ni/Zr	67 39	0.247 0.111	4.0 11.3	- 1049.3
Ni/La-Zr	62	0.246	15.8	814.2
Ni-Ce/Zr	41	0.139	13.3	945.5
Ni-Ce/La-Zr	65	0.242	15.0	782.2

. It is evident that the incorporation of lanthanum as a ZrO₂ modifier in the catalyst composition led to a significant enhancement of surface area and porosity with respect to the reference Ni/Zr sample.

In particular, the Ni/La-Zr sample presented the highest cumulative pore volume (P.V., 0.246 cm³/g), accounting for an average pore diameter (P.D.) just smaller than 16 nm. However, the undoped Ni/Zr sample exhibited the lowest extension of surface area (39 m²/g) along with the lowest porosity (0.111 cm³/g).

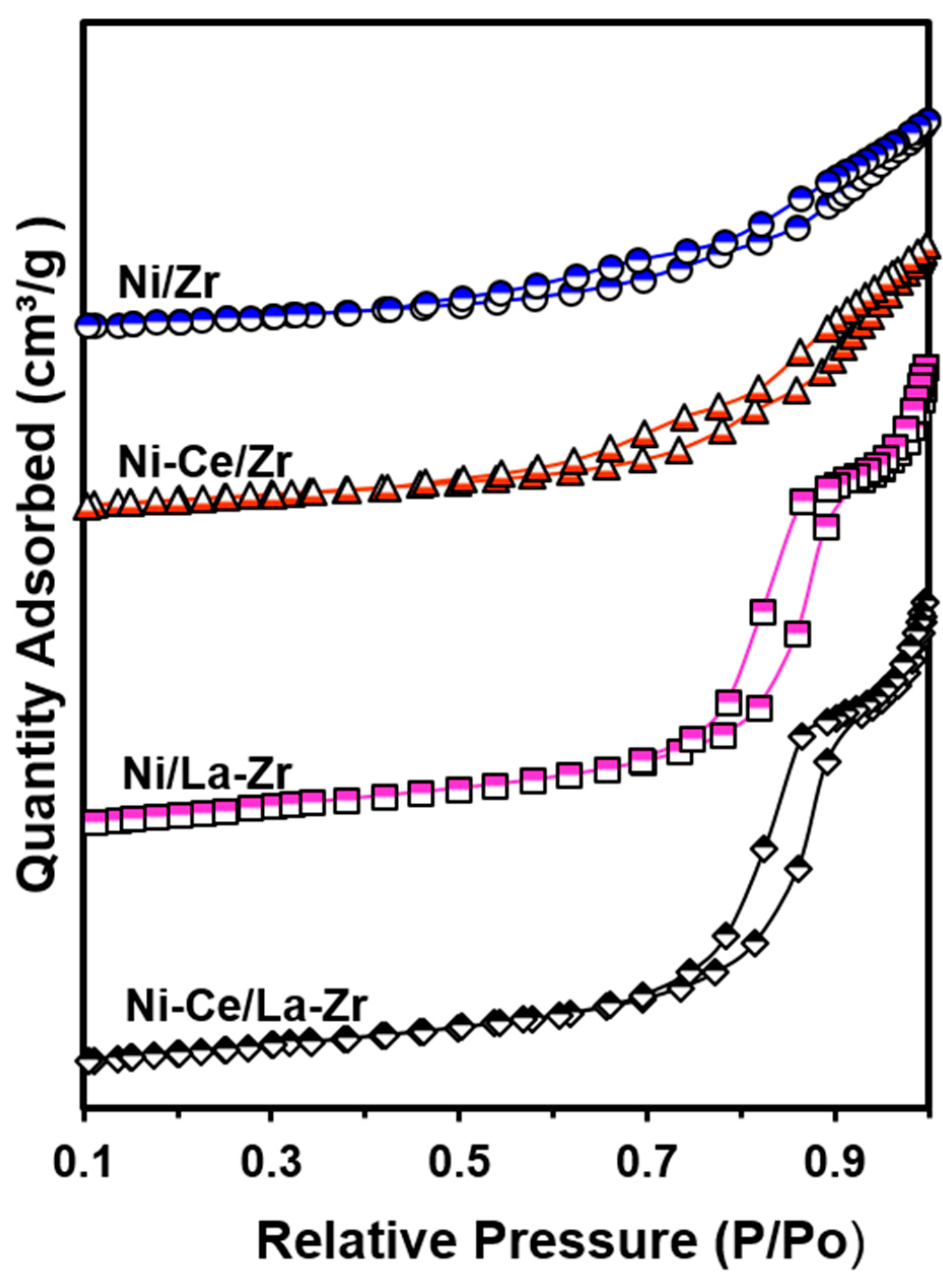

Moreover, the N₂ adsorption–desorption branch of the Ni/Zr sample exemplifies a typical type IV isotherm, characteristic for mesoporous solids with a H₄-type hysteresis loop. The doping of ZrO₂ with La₂O₃ dramatically affected the hysteresis loop, transforming it into a H₁-type hysteresis loop, associated with a cylindrical pore geometry as well as relatively high uniformity in pore size. Consequently, the La₂O₃ modified catalyst possessed a high surface area and a mesoporous structure. After promotion with 1% CeO₂, no significant change in the textural properties of the catalysts was observed either in quantitative (see Table 1) or qualitative (see Figure 2) terms.

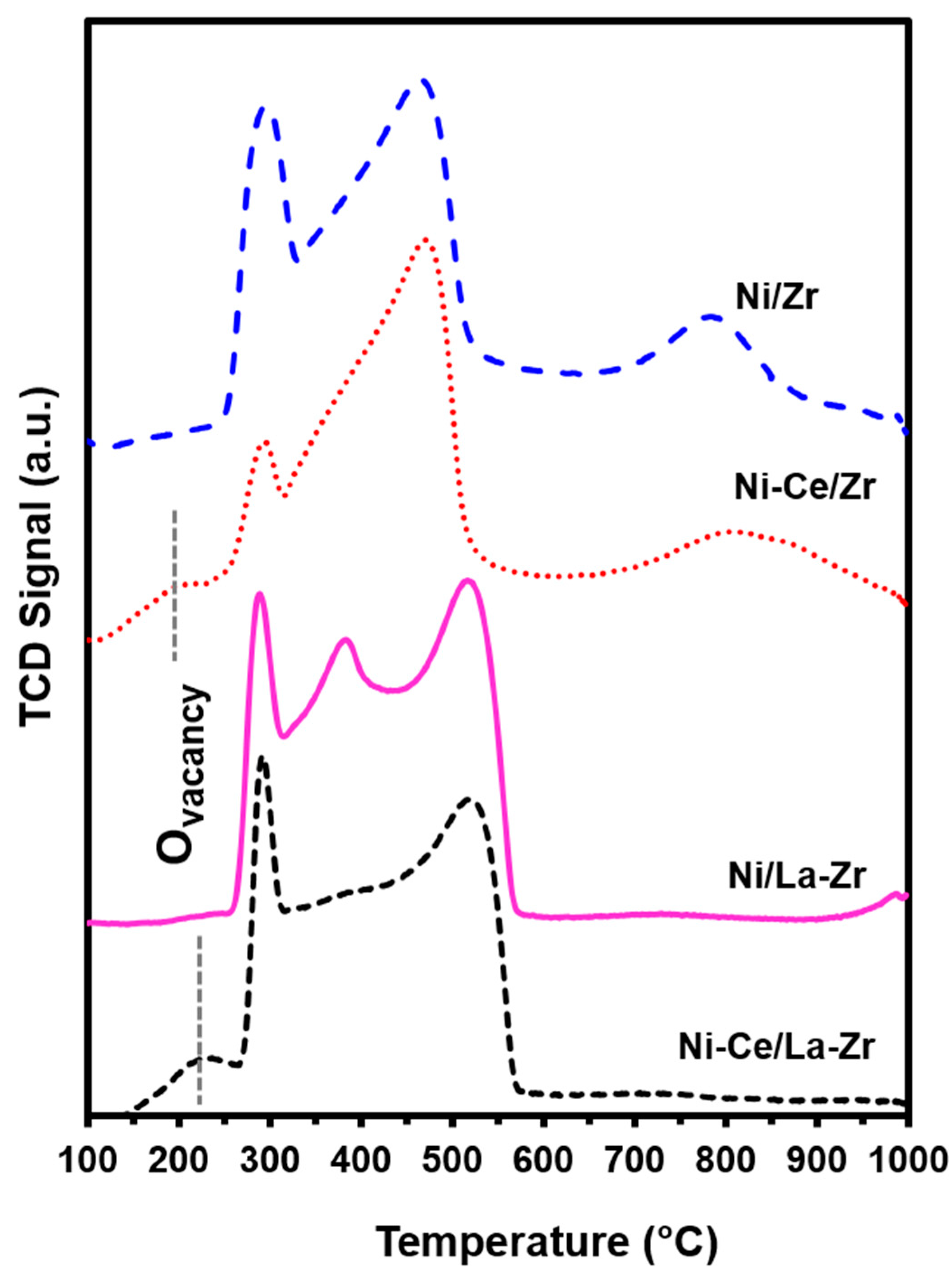

The reducibility and metal-support interaction of the Ni/Zr system after the support modification was evaluated by TPR analysis. Figure 3 illustrates the reduction profile of Ni/x-Zr (x = 0, La₂O₃) and Ni-Ce/x-Zr (x = 0, La₂O₃) samples.

It is evident from the TPR profile that the modification of ZrO₂ support by the addition of La₂O₃ has a considerable influence on the reduction profiles, being in all cases characterized by the occurrence of multiple reduction peaks, spanning the range 100–1000 °C, and ascribed to different nickel species with different degrees of interaction with the support. A first reduction peak observed in the range 260–290 °C with a shoulder at some lower temperature in the case of CeO₂ promoted catalysts, may be assigned to the reduction of surface oxygen species [25,26]. The second reduction peak can be referred to the reduction of NiO grafted onto the support by the weak interaction. The reduction peak at a higher temperature (>750 °C) may be attributed to the development of NiO–ZrO₂ solid solutions [27]. It is interesting to observe that the modification of ZrO₂ with La₂O₃ considerably improved the reduction kinetics, considering that NiO was completely reduced (NiO→Ni) below 550 °C owing to the inhibition of formation of NiO–ZrO₂ solid solutions. It implies that the incorporation of La₂O₃ to ZrO₂ had made it feasible to achieve the active metal at some lower temperature accompanied by the improved dispersion of metallic species. Furthermore, upon ZrO₂ modification using lanthana, the peaks corresponding to NiO–ZrO₂ solid solutions seemed to be completely suppressed. It implies that La₂O₃ modification also prevents the formation of NiO–ZrO₂ solid solutions. On the other hand, La₂O₃ modification also contributed to enhancing the metal–support interaction, which is evident from the drop in H₂ consumption from Ni/Zr to the Ni/La-Zr catalyst by 22% and from Ni-Ce/Zr to the Ni-Ce/La-Zr catalyst by 17% (Table 1). It is likely that the enhancement in the metal–support interaction is accompanied by the improvement in active phase dispersion. Likewise, Rotgerink et al. [28] also established that the incorporation of La₂O₃ to the Ni/Zr catalyst upgrades the reducibility and Ni dispersion. Some other studies have also found that the improvement in the reducibility of NiO is the outcome of the ability of La₂O₃ to disperse Ni metallic species on the ZrO₂ support [29,30]. After doping by CeO₂, the reduction patterns of catalysts had not significantly changed. Furthermore, in the case of the Ni-Ce/La-Zr catalyst, a peak centred at 225 °C, corresponding to surface oxygen species, became prominent, which may be the outcome of the synergistic effect of CeO₂ and La₂O₃. Actually, the La₂O₃ lattice is recognized for surface and bulk oxygen vacancies, and their density is associated with the La₂O₃ concentration [31].

The quantitative data of H₂-TPD measurements are listed in

Table 2. Data of H₂-TPD measurements.

SAMPLE	H2 uptake (µmol/gcat)	MSA a (m2/gcat)	DNib (%)	dNic (nm)
Ni/Zr	107.3	8.4	25.2	4.0
Ni/La-Zr	253.3	19.8	59.6	1.7
Ni-Ce/Zr	173.5	13.6	40.8	2.5
Ni-Ce/La-Zr	182.5	14.3	42.9	2.4

^a Metal surface area. ^b Nickel dispersion. ^c Average Ni particle diameter.

.

Given the same concentration of Ni in the catalysts, it was observed how the various modifiers of the ZrO₂ support, as well as the promotion of the active phase with ceria, affect the surface characteristics of the prepared samples. In fact, the “unpromoted” Ni/Zr sample exhibited the lowest H₂ uptake (107.3 mol/g_cat), accounting for a minor metal surface area (8.4 m²/g_cat) and dispersion (25.2%), as the result of particles not larger than 4 nm generated during preparation. Instead, promotion of carrier oxide by lanthanum oxide positively influenced the Ni/Zr system, favouring higher metal surface area and dispersion (16.3–19.8 m²/g and 49.2–59.6%, respectively), as the result of particles with a smaller diameter (1.7–2.1 nm). Regarding the effect of ceria, a promoting effect was markedly evident only on the Ni/Zr system, allowing an enhancement both in terms of metal surface area (13.6 m²/g) and nickel dispersion (40.8%). In contrast, it is clearly visible that the Ni-Ce/La-Zr sample showed that the surface properties dropped with respect to the sample without Ce (Ni/La-Zr). This suggests that ceria promotion has some inhibiting effect on the Ni/La-Zr catalyst.

The basic properties of Ni/x-Zr (x = 0, La₂O₃) catalysts were estimated by CO₂ desorption measurements. Figure 4 illustrates the TPD profiles of the catalysts. It is recognized that the strength of basic sites is determined by the adsorption and desorption peak of CO₂ in the corresponding temperature range: weak basic sites (50–200 °C), medium/Lewis basic sites (200–400 °C) and strong basic sites (400–650 °C).

The TPD profiles depicted the weak Lewis and moderate Lewis basicity of the reference Ni/Zr and La₂O₃-modified samples. It is clearly visible that the Ni/Zr catalyst experienced no significant variation in the basic character after CeO₂ promotion except a rise in basicity in La₂O₃ modified catalysts.

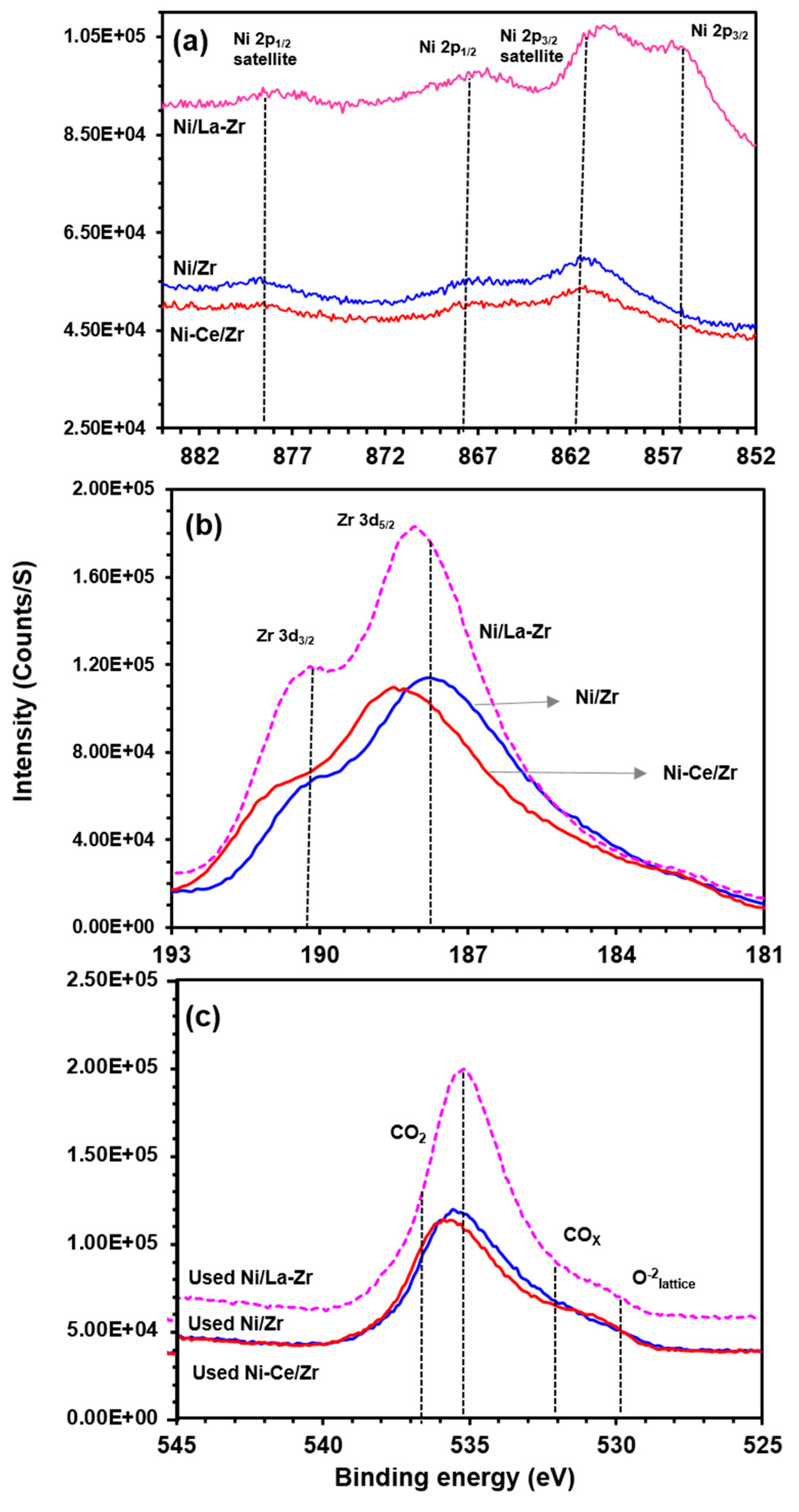

XPS analyses were conducted to determine and interpret the chemical state of elements present in the catalysts and the correspondent spectra are illustrated in Figure 5.

Ni 2p peaks of all the catalysts Ni/Zr, Ni-Ce/Zr and Ni/La-Zr are presented in Figure 5a. The binding energy of the main Ni 2p peak may be found at 855.6 eV, while the rest of the peaks and satellites are visible at other binding energies. It is apparent from the shape of the main peak (Ni 2p_3/2) that it is the combination of Ni⁰ and Ni²⁺/Ni³⁺ oxides [32,33]. The Ni 2p spectra of Ni/La-Zr and Ni-Ce/Zr catalysts becomes complicated due to the overlapping of La 3d, Ce 3d, and La MNN Auger peaks. As a result, it gives rise to uncertainty in the quantification of the XPS spectra. Generally, the largest uncertainty is confronted as an outcome of the overlapping of Ni 2p_3/2 and La 3d_3/2. However, in our case, the Ni/La-Zr catalyst was found to have the highest Ni concentration. The Zr 3d peaks of Ni/Zr, Ni/La-Zr and Ni-Ce/Zr catalysts are shown in Figure 5b. Zr 3d_3/2 and Zr 3d_5/2 can be found at 190.1 eV and 188.2 eV, respectively, for the Ni/Zr catalyst. Upon support modification using La₂O₃, the intensity of the Zr 3d peak significantly increased and it shifted to a higher binding energy. Likewise, CeO₂ promoted peaks also shifted toward a higher binding energy. The shifting of binding energy to higher values may be attributed to the enhancement of oxygen vacancy as a result of an oxygen deficient state. The phenomenon of shifting of Zr 3d binding energy is related to the large quantity of lattice defects (oxygen vacancies) [34]. The O 1s data for Ni/Zr, Ni-Ce/Zr, Ni/La-Zr, used Ni/Zr and Ni/La-Zr catalysts are illustrated in Figure 5c. The binding energy of O 1s located at 529.6 eV, corresponding to low energy primary oxygen, is consistent for all the catalysts. This peak may be attributed to lattice oxygen (O^2–_lattice). The O 1s XPS data also displayed a small amount of CO_x species, which implies that CO_x species are present as reaction intermediates on the catalyst surface. Consequently, significant variation in chemical states of the catalyst after La incorporation into Ni/Zr implies that support modification using La₂O₃ has substantial influence.

2.2. Catalytic Activity and Stability

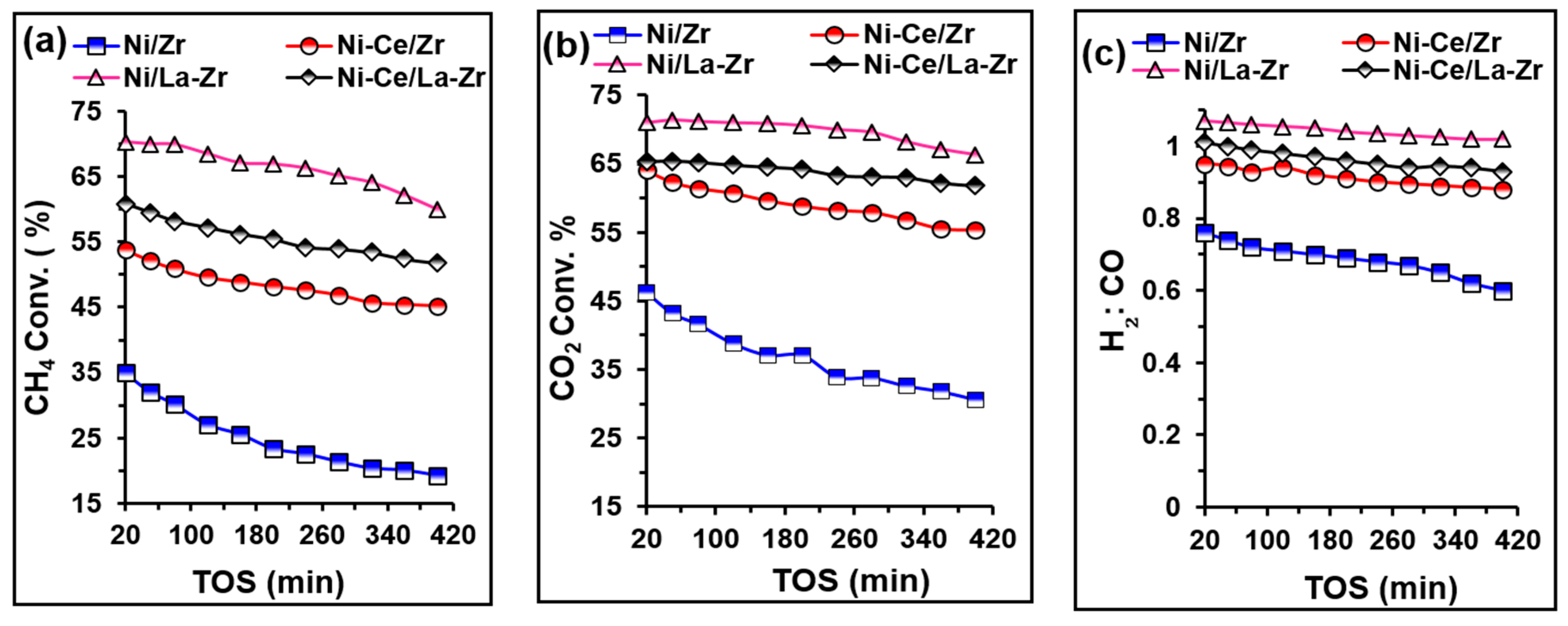

The catalytic behavior of the prepared samples was investigated under dry reforming conditions, in terms of carbon dioxide and methane conversion as a function of time on stream for Ni/x-Zr and Ni-Ce/x-Zr (x = 0, La₂O₃) catalysts (Figure 6). The effects of ZrO₂ modification, as well as Ni doping with cerium oxide on the Ni/Zr system, were analyzed. A maximum reaction temperature of 700 °C was chosen, considering that at higher temperature, the formation of encapsulated carbon leads to a rapid deactivation of the system [35,36].

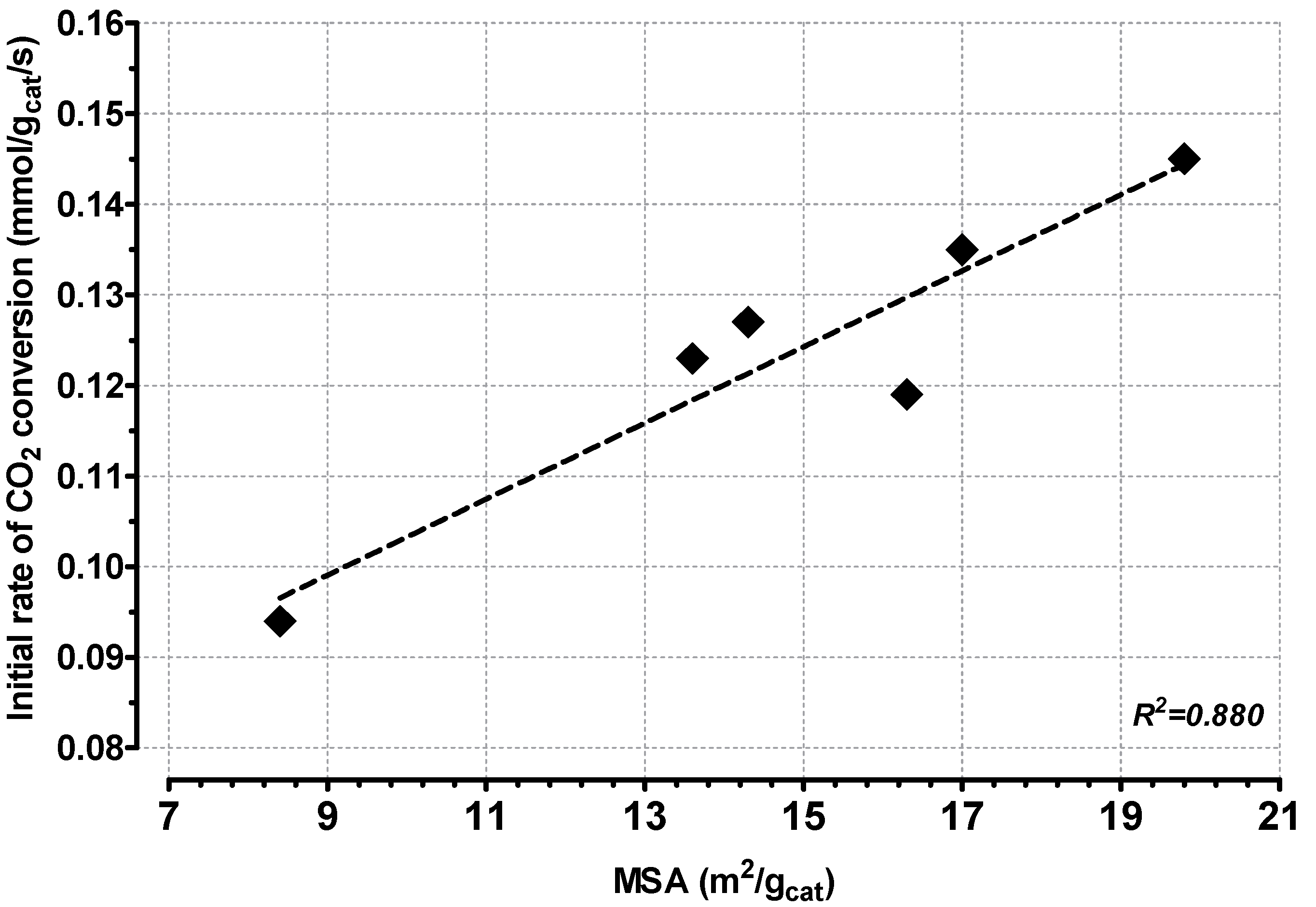

It can be seen that not only La modification affects Ni/Zr activity, but also ceria significantly influences the catalytic behavior of the investigated samples. The “reference” Ni/Zr sample exhibited the worst performance, with an initial CH₄ and CO₂ conversion of 35 and 46%, respectively, which decreased to 20–30% after only 400 min. After the incorporation of La, the conversion rate of the catalyst samples was significantly enhanced. Interestingly, the best catalytic performance was obtained by using the La-modified sample, with similar initial values of CH₄ and CO₂ conversion (ca. 70%) and final conversion of 61 (CH₄) and 67% (CO₂), accounting for a slightly higher stability in respect to the other samples. Regarding the influence of the CeO₂ promoter, from Figure 6 a net improvement in the activity of the Ni-Ce/Zr sample can be observed, not only in terms of initial conversion values of CH₄ and CO₂ (54 and 64% respectively), but also in terms of stability, considering that after 400 min the CH₄ conversion decreased from 54 to 45%, and CO₂ conversion decreased from 64 to 55%, which were lower with respect to the values recorded in the correspondent catalyst without ceria. Instead, 1% CeO₂ promoter on the Ni phase showed an inhibiting effect on the Ni/La-Zr catalyst, since the activity of the Ni-Ce/La-Zr sample dropped to lower conversion values with respect to the correspondent unpromoted catalyst, by exhibiting a more pronounced decay trend of CH₄ conversion from 61 to 52%. In terms of the H₂/CO ratio (Figure 6c), a decreasing trend over time on the stream is visible for Ni/Zr, progressively favouring a bit greater formation of CO (Equation (3)) with a final H₂/CO value of 0.6. However, upon La₂O₃ modification, an equimolar formation of hydrogen and carbon monoxide with a H₂ / CO ≥ 1 was achieved. On the whole, looking at the properties of the investigated samples, an almost straight-line relationship was found between the initial CO₂ conversion rate and the nickel surface area (see Figure 7). It seems evident that a controlled modification of the carrier structure determines a better surface exposure of the active phase (Ni), and therefore inducing higher CO₂ activation.

The catalyst activity must also be put in direct relation to the catalyst structure, considering that, depending on modification by oxides, ZrO₂ can become a prominently more stable phase. In general, a substantially higher activity is observed when ZrO₂ exists as a tetragonal phase, resulting in appreciably suppressed m-ZrO₂ phase even in the used catalysts, like the Ni/La-Zr and Ni-Ce/La-Zr samples (see Figure 1a,b). On the other hand, initially, Ni/Zr and Ni-Ce/Zr had a prominent t-ZrO₂ phase, however, upon thermal treatment, tetragonal-to-monoclinic phase transformation occurred.

To better analyze the obtained results, a deactivation factor (DF) was also deduced for all the samples as the ratio between the loss of activity calculated between the initial (20 min on stream) and final (400 min on stream) time and the initial conversion value of CH₄. From Figure 8, it is evident that the incorporation of La₂O₃ considerably improves the catalyst stability of the Ni/Zr system, as the deactivation factor decreased from 44% to 22%, with a lower net drop of the activity in respect of the initial time under the same experimental conditions. Moreover, the addition of ceria leads to a further improvement of the catalytic stability for both the undoped Ni/Zr and Ni/La-Zr samples, yielding the smallest loss of activity during time (< 12%) in the Ni-Ce/La-Zr sample.

To investigate the phase analysis following the catalytic treatment, post reaction XRD of the catalysts was performed (Figure 1). It was revealed that the thermal treatment had a profound influence on the phase transformation. For instance, used Ni/Zr catalyst found to have severe lattice distortion and t-ZrO₂ had significantly diminished and transformed into m-ZrO₂. Likewise, even CeO₂ promotion to Ni/Zr catalyst was not able to completely preserve the t-ZrO₂. However, upon support modification using La₂O₃, the t-ZrO₂ phase was perfectly retained with no appearance of m-ZrO₂. It implies that La₂O₃ incorporation has a significant contribution in stabilizing the t-ZrO₂ and achieving the 100% rise in catalytic activity. Similarly, used Ni-Ce/La-Zr also prevented the tetragonal-to-monoclinic transformation and pure t-ZrO₂ was preserved.

As a main possible reason for the decay of activity during time, it was obviously necessary to consider the coke formation over the different samples, as it is known that the amount and typology of coke is also influenced by the catalyst properties. On this account, temperature programmed oxidation (TPO) ceria promoted and unpromoted Ni/x-ZrO₂ (0, La₂O₃) catalysts were conducted to determine the type of the deposited carbon during the CO₂ reforming reactions. The TPO peaks are illustrated in Figure 9a.

The major peak in each profile is positioned around 585 °C, suggesting the presence of carbon nanotubes (CNTs). TGA analysis of spent catalysts was performed on reference and promoted Ni/Zr catalysts (Figure 9b) to quantify the amount of deposited carbon. It was found that no significant weight loss occurs in the case of a pure catalyst, indicating that a low amount of carbon was deposited during the reaction. On the contrary, La-modified catalysts presented a higher weight loss. After CeO₂ promotion, TGA profiles illustrate that the amount of accumulated carbon on the catalyst surface had considerably reduced. Moreover, the corresponding peaks negatively shifted, implying that the type of carbon material formed, is less stable, and burnt at a relatively lower temperature. It implies that carbon nanotubes (CNTs) mainly formed after CeO₂ promotion, and are easily burnt and affect catalyst deactivation less [7,37,38,39].

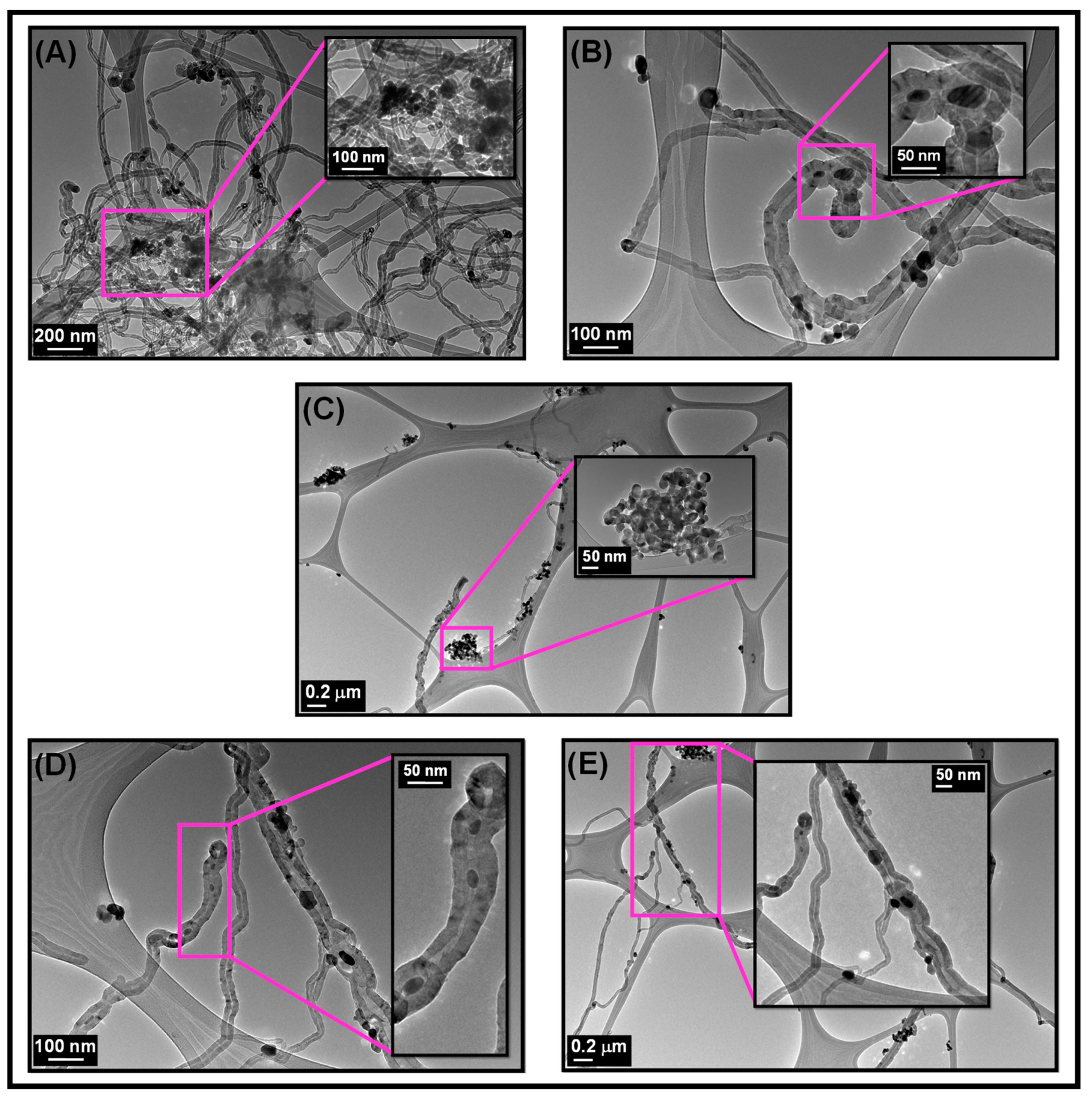

Figure 10 and Figure 11 show the TEM images of ceria promoted and unpromoted Ni/x-ZrO₂ (0, La₂O₃) catalysts.

It can be seen that the majority of the deposited carbon on the Ni/ZrO₂ surface, after the catalytic reaction, is of a filamentous nature, and a tangle of carbon nanotubes (CNTs) is clearly visible (Figure 10A), while the rest of the carbon is of the encapsulating type. It is clear that several particles were encapsulated due to the carbon formation on Ni surface (Figure 10B). Ni/ZrO₂ catalysts also undergo sintering, therefore accumulation of metallic species can be seen (Figure 10C). Conspicuously, metal particles varying in size in the range 2–9 nm were entrapped inside the CNTs (Figure 10D,E), which may be another reason for the lower activity of the pristine catalyst.

When the pristine catalyst Ni/Zr was modified with La₂O₃, morphological investigation revealed the formation of multiwall carbon nanotubes (MWCNTs). The average external diameter of MWCNTs was found to be 28 nm, whereas the metallic species were positioned together in the interior as well as on the exterior of MWCNTs (Figure 11A). It seems that the incorporation of La₂O₃ had no influence in controlling the sintering of metallic particles (Figure 11B). The Ni particles at the tip of the CNTs clearly demonstrated that Ni particles not strongly anchored to the catalyst support formed filaments with a mechanism that included the diffusion of elementary C through the Ni and precipitation on the back side of the particle with consequent formation of the filament. In this case, Ni continues to be active for dry reforming [40,41,42]. Furthermore, when the Ni/ZrO₂ catalyst was promoted using CeO₂, the situation escalated because the rate of sintering was significantly enhanced upon CeO₂ promotion (Figure 11C), which may justify the deteriorating activity of the Ni-Ce/La-Zr catalyst.

3. Materials and Methods

3.1. Catalyst Preparation

In this experimental work an incipient wet-impregnation technique was used to prepare the desired catalysts for the dry reforming of methane. The supports (zirconium oxide and modified zirconium oxide with La₂O₃) along with the active metal obtained from the precursor of Ni nitrate [Ni(NO₃)₂.6H₂O; 99.9% purity] were dissolved in distilled water. The amount of Ni used in the catalyst was 5 wt%. The solution was kept heated at 90 °C under stirring for 3 h. Later, impregnated catalysts were heated up to 120 °C overnight for drying and then subjected to calcination at 600 °C for 3 h. The Ce(NO₃)₃.6H₂O promoted catalysts with 1 wt% were prepared by co-impregnation of the nitrate salts of the promoter and active metal with support using the same procedure mentioned above. The solution was kept heated at 90 °C under stirring for 3 h. Later, impregnated catalysts were heated up to 120 °C overnight for drying and then subjected to calcination at 600 °C for 3 h. The commercial samples of the support were obtained from KIGAKU DAIICHI KOGYO CO.; LTD, Osaka, Japan. We are grateful to the company for providing us with free samples.

3.2. Catalytic Testing

Dry reforming of CH₄ experiments over Ni/ZrO₂ catalysts were performed at 700 °C and at atmospheric pressure in a vertical stainless steel fixed-bed tubular (i.d., 9.1 mm; length, 0.3 m) micro-reactor (PID Eng& Tech micro activity reference, Madrid, Spain). Activity tests were performed using 0.1 g of a catalyst placed in a quartz reactor between two quartz wool beds. A K-type stainless steel sheathed thermocouple, placed axially at the center of the catalyst bed, measured the temperature during the reaction. Prior to each test, the catalysts were activated under a continuous flow of H₂ (20 mL/min) for 1 h at 600 °C. Experiments were carried out using a feed gas mixture (CH₄, CO₂ and N₂) at the ratio 6/6/1 and overall gas flow rate of 65 mL/min (space velocity: 39,000 mL/)h.g_cat)). The outlet gas composition was analyzed by on-line gas chromatography (Shimadzu 2014, Kyoto, Japan) fitted out with a thermal conductivity detector (TCD). The CH₄ conversion and hydrogen yield were determined using the following formulae:

$$\mathrm{C}{\mathrm{H}}_4 \mathrm{c}\mathrm{o}\mathrm{n}\mathrm{v}\mathrm{e}\mathrm{r}\mathrm{s}\mathrm{i}\mathrm{o}\mathrm{n}\left(\mathrm{\%}\right)=\frac{\left(\mathrm{C}{\mathrm{H}}_{4,\mathrm{i}\mathrm{n}}-\mathrm{C}{\mathrm{H}}_{4,\mathrm{o}\mathrm{u}\mathrm{t}}\right)}{\mathrm{C}{\mathrm{H}}_{4,\mathrm{i}\mathrm{n}}}*100$$

(5)

$${\mathrm{H}}_2 \mathrm{y}\mathrm{i}\mathrm{e}\mathrm{l}\mathrm{d}\left(\mathrm{\%}\right)=\frac{\left({\mathrm{H}}_{2,\mathrm{o}\mathrm{u}\mathrm{t}}\right)}{2*\mathrm{C}{\mathrm{H}}_{4,\mathrm{i}\mathrm{n}}}*100$$

(6)

3.3. Catalyst Characterization

3.3.1. XRD Characterization

Rigaku (Miniflex) diffractometer (Rigaku Corporation, Dover, DE, USA), with a Cu Kα X-ray radiation working at 40 kV and 40 mA, was used to investigate the structure of the catalysts before and after the reaction. The scanning 2θ range and steps were 10–85° and 0.02° respectively. The raw data file of the instrument was evaluated by X’Pert high score plus software (version 2.1, Panalytical, Malvern, UK). Different phases with their scores were corresponded with the JCPDS data bank.

3.3.2. N₂ Physisorption

The specific surface area and distribution of pore size of the catalysts were obtained using Micromeritics Tristar II 3020 surface area and porosity analyzer. The pore size distribution was calculated by BJH method.

3.3.3. Temperature Programmed Reduction (TPR)

The TPR measurements were performed using Micromeritics Auto Chem II apparatus (Micromeritics, Atlanta, GA, USA). The sample (70 mg) was charged in the TPR cell and flushed with argon at 150 °C for 30 min. Then the sample temperature was reduced to 25 °C. Finally, the furnace temperature was heated to 1000 °C at 10 °C/min ramp at a 40 mL/min flow rate with a H₂/Ar mixture (10:90 vol.%). A thermal conductivity detector (TCD) was used to follow the signals of H₂ consumption.

3.3.4. H₂ Temperature-Programmed Desorption

To evaluate metal surface area (MSA), and surface average nickel particle size (d_Ni) of the investigated catalysts, H₂-TPD measurements in the range 20–900 °C (β = 10 °C/min) were carried out at atmospheric pressure by using a linear quartz micro-reactor (i.d., 4 mm) flowing Ar as carrier gas at 50 stp cm³/min. Before measurements, a catalyst sample (50–100 mg) was reduced for half-an hour in flowing H₂ (25 stp cm³/min) at 600 °C. Thereafter, the sample was cooled in flowing H₂ to room temperature and then hydrogen was shut off and the sample was purged by the carrier stream until baseline stabilization (≈20 min). Assuming a chemisorption stoichiometry H₂:Ni_surf = 1:2 and a spherical shape of the metal particle, the following equations were applied:

MSA (m²/g_cat) = 2·X_H2·N_Av/σ_Ni

(7)

d_Ni (nm) = 6000·(C_Ni/100)/(ρ_Ni·MSA)

(8)

where “X_H2” is the H₂ uptake (mol/g_cat), “N_Av” is Avogadro’s number, “σ_Ni” represents the concentration of surface atoms (1.54 × 10¹⁹ at/m² for Ni), “C_Ni” is the metal loading (wt%), while “ρ_Ni” is the metal density (8.9 g/cm³ for Ni).

3.3.5. CO₂ Temperature-Programmed Desorption (CO₂-TPD)

The CO₂ temperature-programmed desorption (TPD) was carried out using a Chemisorption Analyzer (Micromeritics Autochem II apparatus, Micromeritics, Atlanta, GA, USA). The catalyst (50 mg) was reduced at 600 °C for 1 h under He flow (30 mL/min) and then cooled to 50 °C. The CO₂ flow was kept for 60 min, and the sample was then flushed with He to take away any physisorbed CO₂. The desorption profile of the catalysts were recorded by ramping the temperature at a rate of 10 °C/min, while temperature was then linearly increased up to 800 °C. The CO₂ concentration in the output stream was measured with a thermal conductivity detector, and the areas under the peaks were used to determine the amount of desorbed CO₂ during TPD.

3.3.6. Thermo-Gravimetric Analysis (TGA)

The analysis of carbonaceous material deposition post reaction over the catalyst’s surface was quantitatively performed using the TGA-15 SHIMADZU analyzer (Shimadzu, Kyoto, Japan) under an air atmosphere. The spent catalyst (10–15 mg) was heated from room temperature to 1000 °C at a heating rate of 20 °C/min and the loss of weight was measured.

3.3.7. TEM Characterization

TEM measurements of the used samples were accomplished on a 120 kV JEOL JEM-2100F transmission electron microscope (JEOL, Peabody, MA, USA).

3.3.8. XPS Analysis

X-ray photoelectron spectroscopy (XPS) spectra were recorded on an Omicron Nanotechnology (ELS5000) spectrometer with a monochromatic Al source. X-ray was employed using a flood gun with a spot size of radius ~ 400 μm. Survey scanning was acquired from −10 to 1350 eV with energy steps of 1 eV, while employing a pass energy of 200 eV. The number of scans was four with a dwell time of 10 ms. Similarly, a slow scan was conducted for the element using a pass energy of a 50 eV and the number of scans was four with a dwell time of 10 ms. The charging effects were corrected by adjusting the binding energy of the C 1s peak from adventitious carbon to 285 eV. The characterization experiments were carried out for fresh (before reaction) and used (after reaction) samples.

4. Conclusions

A high surface area ZrO₂ supported Ni system was prepared using an incipient wet-impregnation method and then modified by heteroatom oxides, like La₂O₃, and the influence of ceria doping in dry reforming of CH₄ at 700 °C was also assessed. It is worthwhile highlighting that the reduction properties of the catalysts were significantly enhanced upon La₂O₃ modification. La₂O₃ modification suppressed the formation of NiO–ZrO₂ solid solutions, with a complete reduction of the active phase at temperatures below 750 °C. Furthermore, La₂O₃ modification also contributed to enhancing the metal-support interaction and active phase dispersion. However, the weak-medium basicity of all modified catalyst samples were substantially unchanged after Ce-promotion. Phase analysis revealed that the t-ZrO₂ phase of the Ni/Zr catalyst had almost completely transformed into the m-ZrO₂ phase after thermal treatment. However, when La₂O₃ incorporated into the ZrO₂ support, the t-ZrO₂ phase was protected and prominently stabilized, leading to a superior catalytic performance. Interestingly, CH₄ conversion increased to 2x, and CO₂ conversion to 1.5x, that of pristine Ni/ZrO₂. However, when the modified catalysts were promoted by CeO₂, a decline in catalytic activity was observed in the case of the Ni-Ce/La-Zr catalyst. Eventually, it was revealed that the high activity of La₂O₃ modified catalysts was achieved by protecting the stability of the t-ZrO₂ phase.
