Next Article in Journal
Towards New Catalytic Antioxidants: A Simple and Mild Synthesis of Selenenylsulfides
Next Article in Special Issue
Perovskite-type LaFeO3: Photoelectrochemical Properties and Photocatalytic Degradation of Organic Pollutants Under Visible Light Irradiation
Previous Article in Journal
Differences in the Catalytic Behavior of Au-Metalized TiO2 Systems During Phenol Photo-Degradation and CO Oxidation
Previous Article in Special Issue
On the Effects of Doping on the Catalytic Performance of (La,Sr)CoO3. A DFT Study of CO Oxidation
Article Menu

Export Article

Open AccessArticle
Catalysts 2019, 9(4), 332; https://doi.org/10.3390/catal9040332

Segregation of Nickel/Iron Bimetallic Particles from Lanthanum Doped Strontium Titanates to Improve Sulfur Stability of Solid Oxide Fuel Cell Anodes

1
Paul Scherrer Institut, Forschungsstrasse 111, CH-5232 Villigen, Switzerland
2
École Polytechnique Fédérale de Lausanne (EPFL), Institute of Chemical Sciences and Engineering, CH-1015 Lausanne, Switzerland
3
Zurich University of Applied Sciences, IMPE – Institute for Materials and Process Engineering, CH-8400 Winterthur, Switzerland
*
Author to whom correspondence should be addressed.
Received: 19 March 2019 / Revised: 28 March 2019 / Accepted: 1 April 2019 / Published: 3 April 2019
(This article belongs to the Special Issue Catalysis by Metals on Perovskite-Type Oxides)
  |
PDF [5515 KB, uploaded 3 April 2019]
  |

Abstract

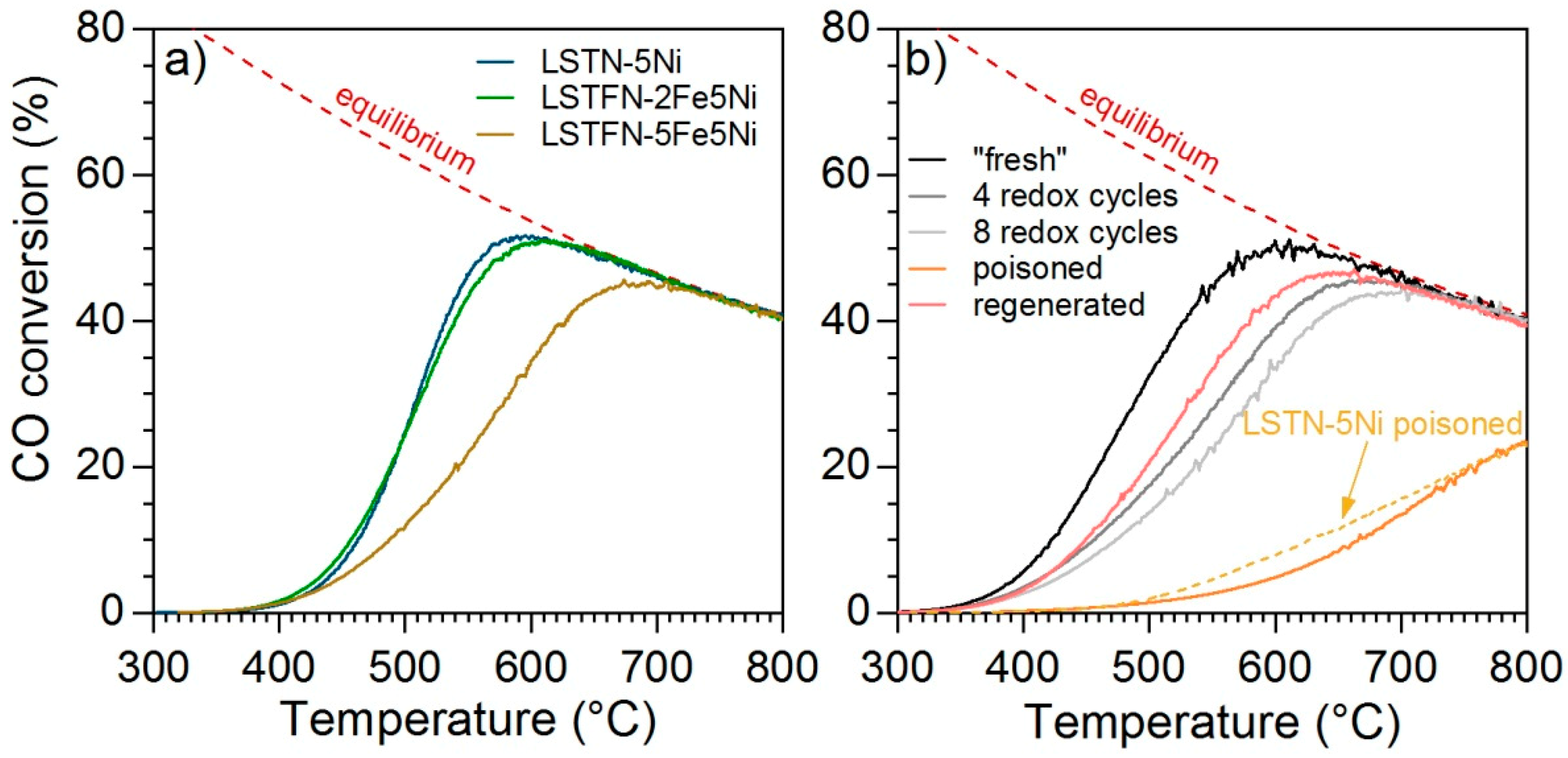

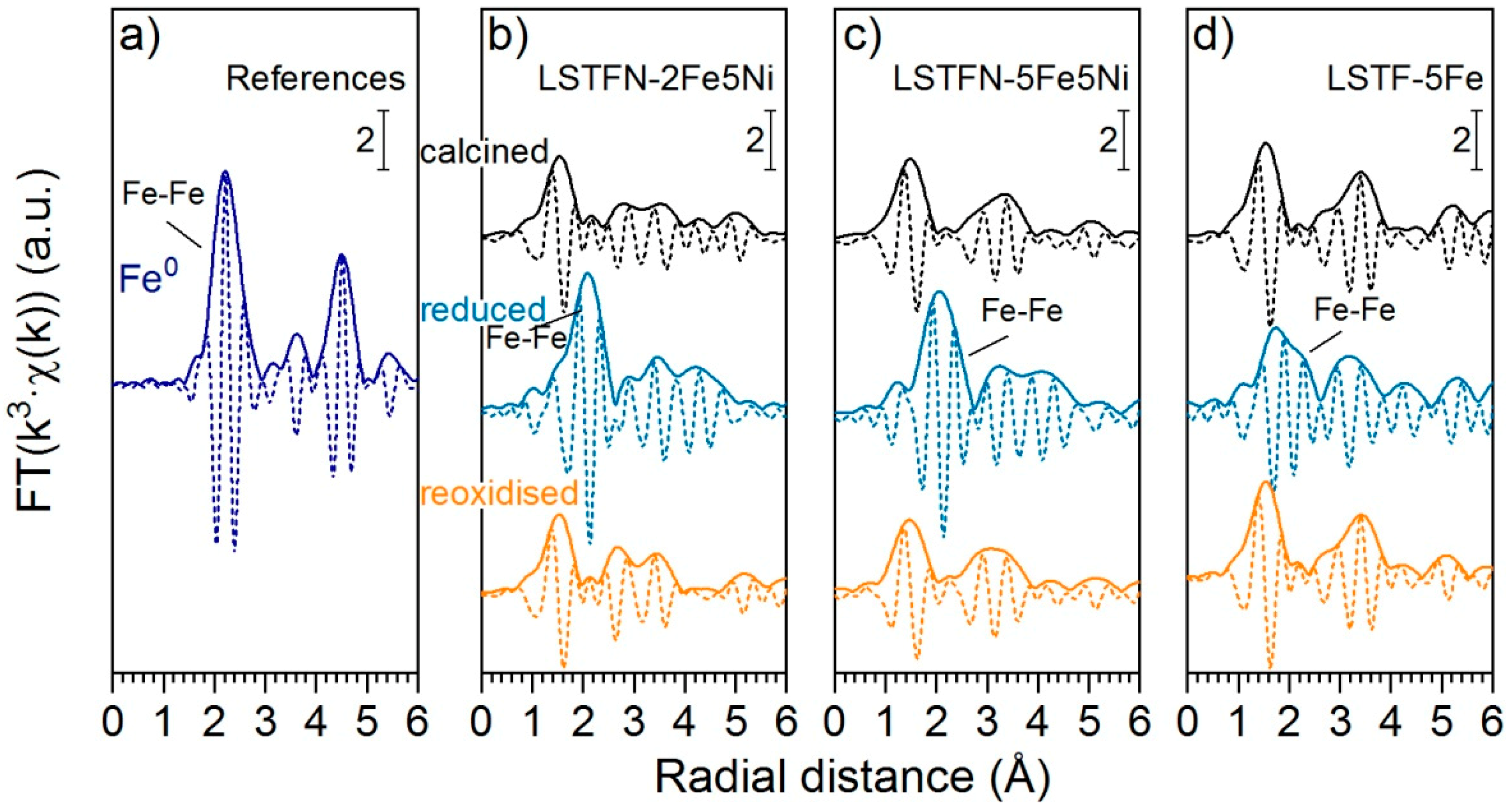

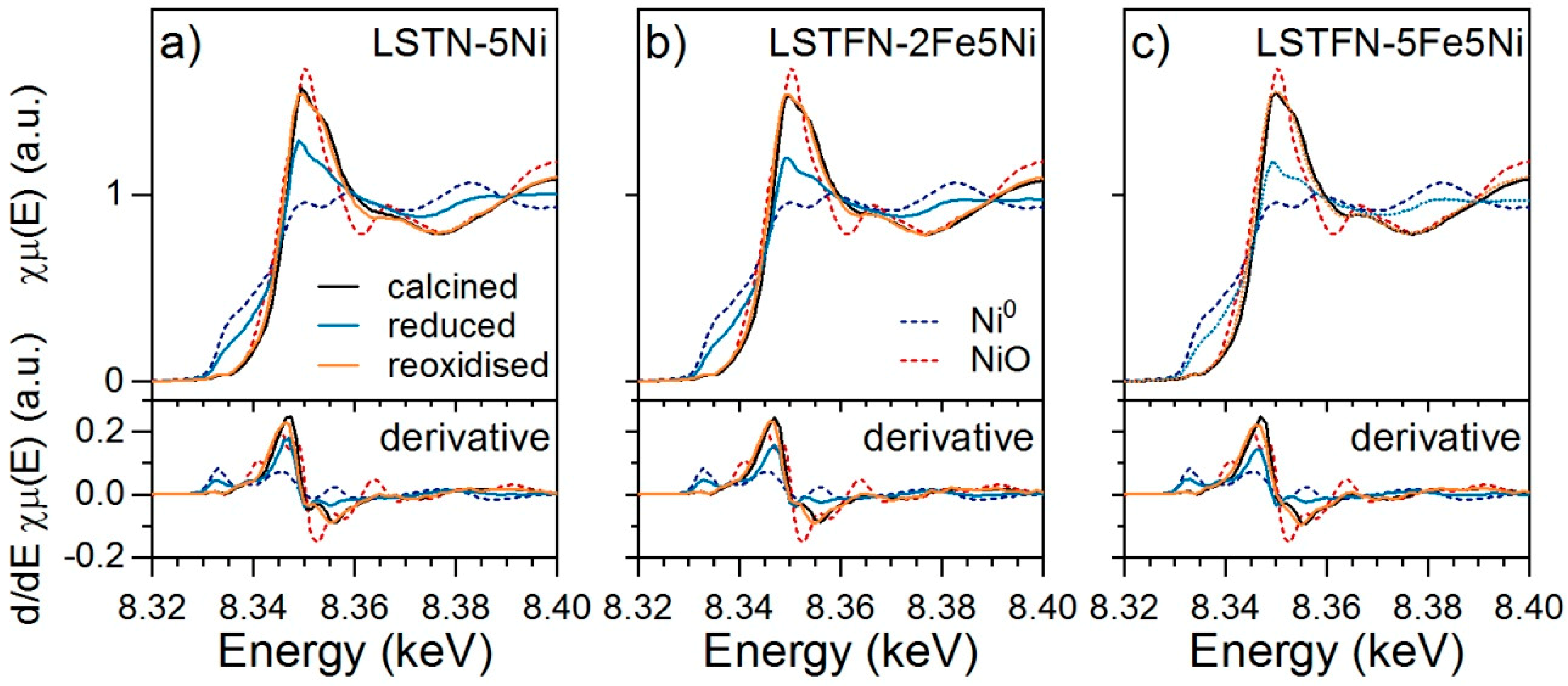

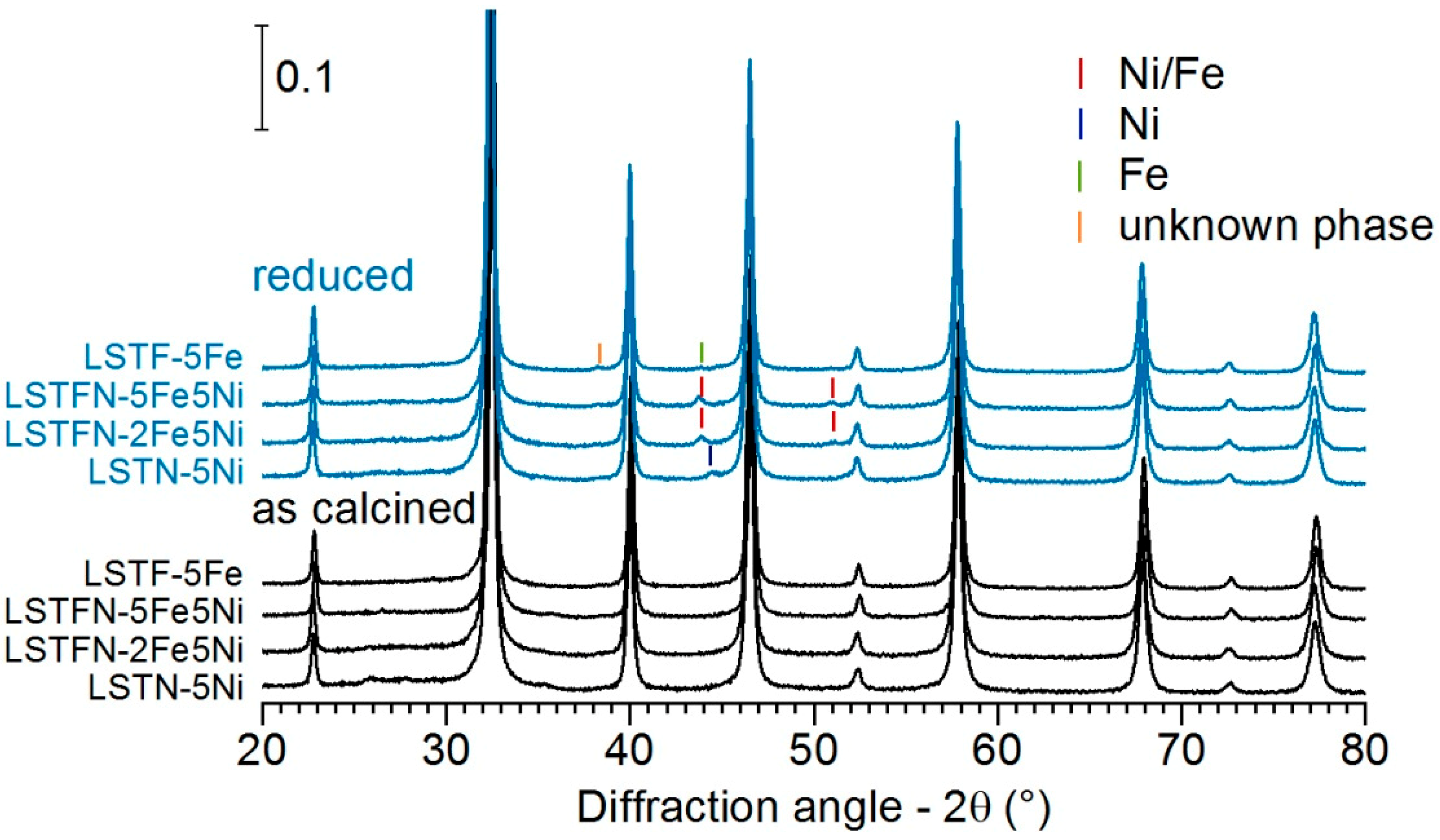

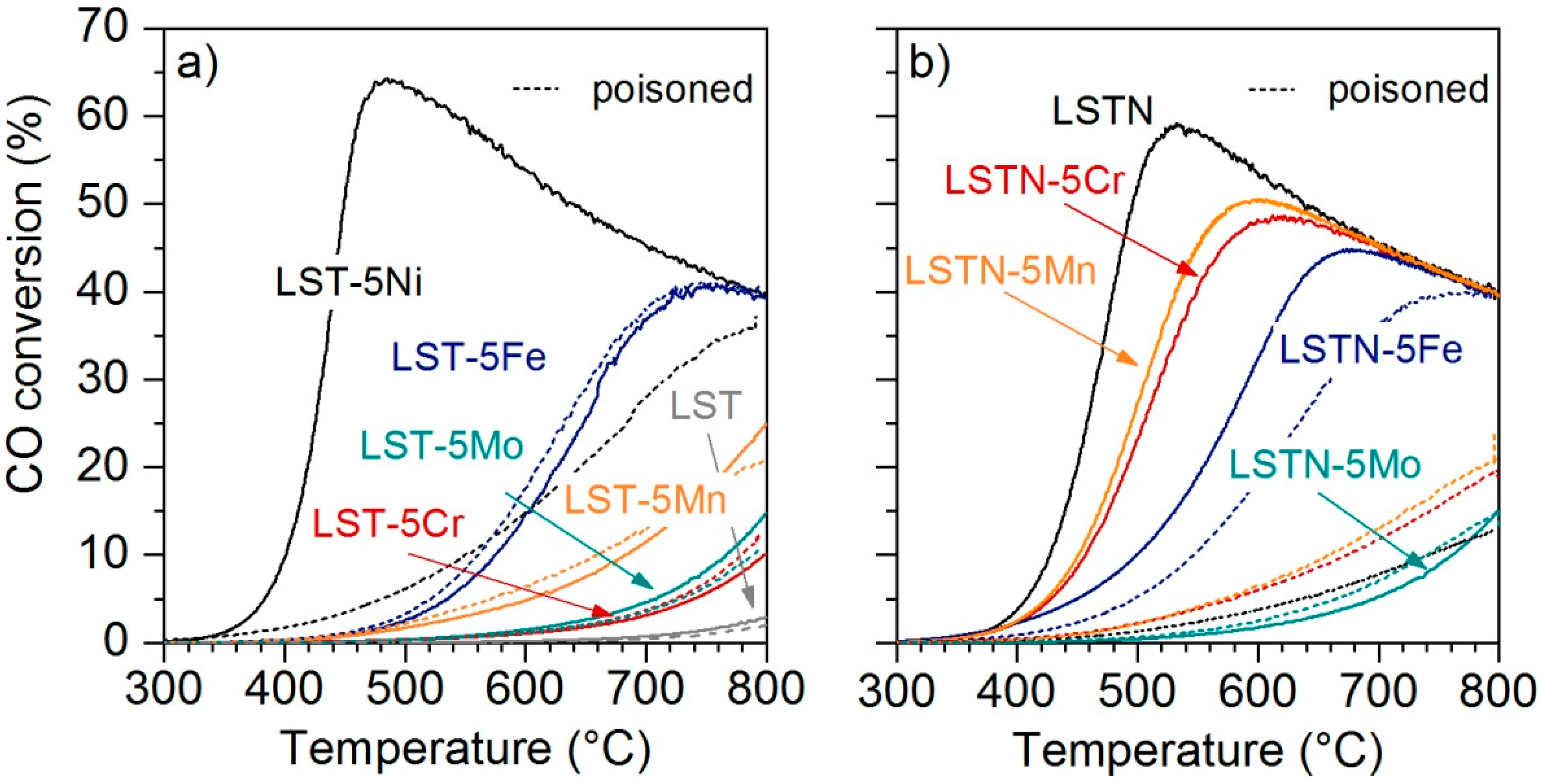

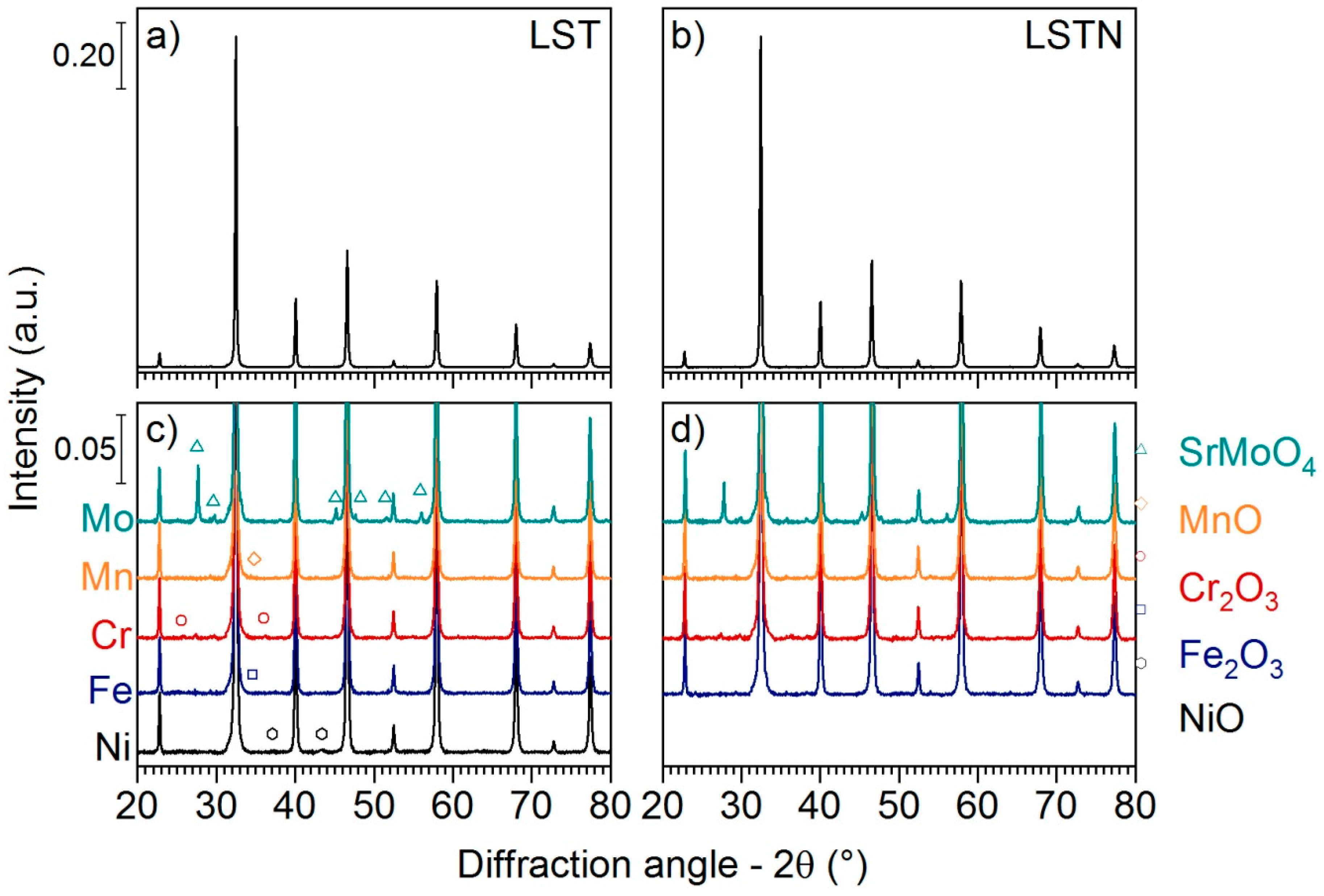

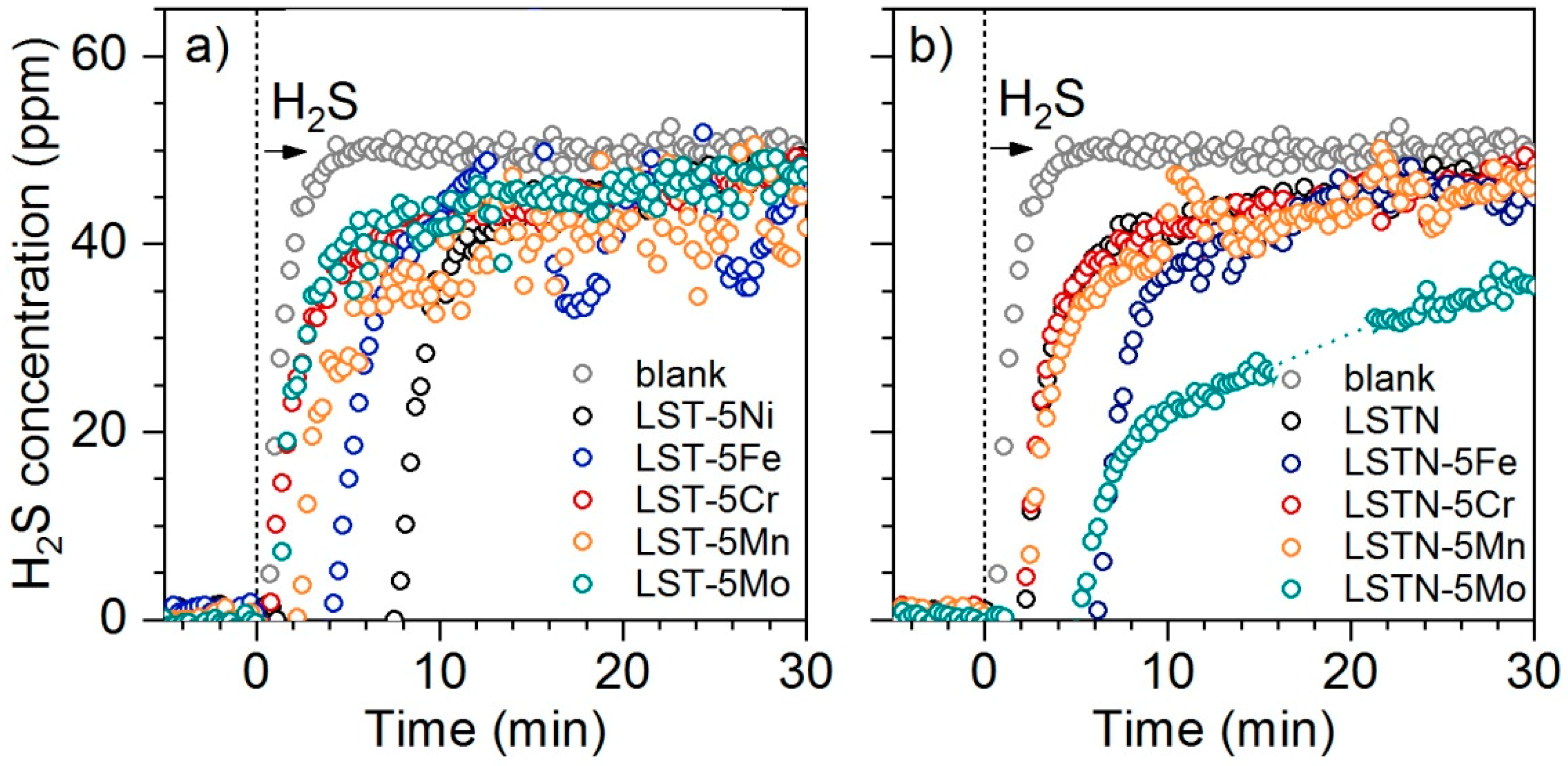

Perovskite derived Ni catalysts offer the remarkable benefit of regeneration after catalyst poisoning or Ni particle growth through the reversible segregation of Ni from the perovskite-type oxide host. Although this property allows for repeated catalyst regeneration, improving Ni catalyst stability towards sulfur poisoning by H2S is highly critical in solid oxide fuel cells. In this work Mn, Mo, Cr and Fe were combined with Ni at the B-site of La0.3Sr0.55TiO3±δ to explore possible benefits of segregation of two transition metals towards sulfur tolerance. Catalytic activity tests towards the water gas shift reaction were carried out to evaluate the effect of the additional metal on the catalytic activity and sulfur stability of the Ni catalyst. The addition of Fe to the Ni perovskite catalyst was found to increase sulfur tolerance. The simultaneous segregation of Fe and Ni from La0.3Sr0.55Ti0.95-xNi0.05FexO3±δ (x ≤ 0.05) was investigated by temperature programmed reduction, X-ray diffraction and X-ray absorption spectroscopy and catalytic tests after multiple redox cycles. It is shown that catalytic properties of the active phase were affected likely by the segregation of Ni/Fe alloy particles and that the reversible segregation of Ni persisted, while it was limited in the case of Fe under the same conditions. View Full-Text
Keywords: nickel; La0.3Sr0.55Ti0.95Ni0.05O3±δ; catalyst regeneration; structural reversibility; H2S; solid oxide fuel cell nickel; La0.3Sr0.55Ti0.95Ni0.05O3±δ; catalyst regeneration; structural reversibility; H2S; solid oxide fuel cell
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Steiger, P.; Burnat, D.; Kröcher, O.; Heel, A.; Ferri, D. Segregation of Nickel/Iron Bimetallic Particles from Lanthanum Doped Strontium Titanates to Improve Sulfur Stability of Solid Oxide Fuel Cell Anodes. Catalysts 2019, 9, 332.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Catalysts EISSN 2073-4344 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
