Catalysts 2019, 9(4), 327; https://doi.org/10.3390/catal9040327

Communication
Synthesis and Organocatalytic Asymmetric Nitro-aldol Initiated Cascade Reactions of 2-Acylbenzonitriles Leading to 3,3-Disubstituted Isoindolinones
1
Dipartimento di Chimica e Biologia, Università di Salerno, Via Giovanni Paolo II, 132, 84084 Fisciano, SA, Italy
2
Institute of Organic Chemistry, Johannes Kepler University Linz, Altenbergerstr. 69, 4040 Linz, Austria
*
Authors to whom correspondence should be addressed.
Received: 7 March 2019 / Accepted: 28 March 2019 / Published: 2 April 2019

Abstract

:
In this work, we investigated two strategies for the synthesis of the challenging ketones 2-acylbenzonitriles and we report their use as electrophiles in asymmetric organocatalytic cascade reactions with nitromethane. Promising results were obtained in the presence of chiral bifunctional ammonium salts under phase transfer conditions, which led to novel 3,3-disubstituted isoindolinones in quantitative yields and moderate enantioselectivity.
Keywords:
cascade reactions; Henry-reactions; asymmetric organocatalysis; isoindolinone; heterocycles; ketones as electrophiles

1. Introduction

In recent years, cascade reactions have been one of the main topics in organic chemistry because of the convenient construction of complex scaffolds in one-pot procedures without the isolation of the intermediates [1,2,3,4]. The electrophilic additions to ketones are particularly challenging because of the poor reactivity of this functional group when compared to the aldehydes despite the great potential in the construction of quaternary carbons [5,6,7]. Accordingly, the applications of ketones as electrophiles in nitro-aldol cascade type reactions are very limited [1,2,3,4]. Therefore, one of our research interests stems from the investigation of the reactivity of ketones bearing further reactive groups in a suitable position, which enhances the poor reactivity of the ketone group. In this context, we have developed efficient cascade reactions of 2-acetylbenzonitriles, which react with a range of nucleophiles to afford useful 3,3-disubstituted isoindolinones in the presence of K2CO3 [8]. The difficult accessibility to 2-acylbenzonitriles is also a limitation, from which results few synthetic applications [8,9,10]. Hence, the aim of the present work is to develop viable synthesis of these compounds and preliminary investigation of the reactivity of 2-acylbenzonitriles with nitromethane in the presence of chiral organocatalytic systems.

2. Results

2.1. Synthesis of 2-acylbenzonitriles by Suzuki-Miyaura Type Cross-Coupling Reactions

In order to develop a direct access to 2-acylbenzonitriles, the first efforts were focused on palladium catalyzed cross-coupling reactions of the commercially available 2-cyanophenylboronic acid 1 with hexanoyl chloride 2. [11,12,13,14,15,16,17]. The use of 2-cyanophenylboronic acid is reported to be an issue [14,15,16,17]. The modification of established protocols for the synthesis of ketones can be useful, even though the desired products were isolated in rather low yields (Table 1). Several catalysts and reaction conditions were tested. The best results were obtained with a combination of Pd(PPh3)4, Cs2CO3 (5 eq) in toluene (Entry 2) or PdCl2(PPh3)2, and K3PO4 (5 eq) in THF (Entry 5). However, the reaction proved to be rather problematic because of the necessity to use an excess of the heptanoyl chloride (5 eq) and because a high temperature and/or a prolonged reaction time led to decomposition of the ketone and of the starting materials (Entries 1–3). This gives complex mixtures of products that are rather difficult to purify. Similar results were obtained with other acyl chlorides (Entries 7 and 8).

2.2. Wittig/Oxidation Strategy in the Synthesis of 2-acylbenzonitriles

In order to develop more efficient and flexible synthesis of 2-acylbenzonitriles (Scheme 1), we investigated the possibility to obtain the target ketones by selective benzylic oxidation of 2-alkylbenzonitriles with catalytic amount of AIBN [8]. However, 2-alkylbenzonitriles 4 are not easily accessible and few inefficient protocols are reported in literature for their synthesis. Instead of the difficult homologation of 2-methylbenzonitrile in the presence of LDA [18,19,20], we propose a new approach via reduction of 2-alkylidenebenzonitriles 6. A feature of this sequence of reactions relies on the selectivity of the Wittig reaction of the readily available 2-cyanobenzaldehyde 5 (Scheme 1), in which the cyano group in the 2 position is left non-reacted, while 2-cyanobenzaldehyde is reported to give efficient cascade reactions involving both the aldehyde and the cyano group. This leads to valuable 3-monosubstituted isoindolinones in the presence of a number of carbon- and hetero-nucleophiles [21,22,23,24,25,26,27,28,29,30]. The cis/trans olefin mixture 6 was, then, hydrogenated under heterogeneous conditions and, taking advantage from our previous work [8], the obtained 2-alkylbenzonitriles 4 were selectively oxidized at the benzylic position with NBS/AIBN/H2O to afford the desired ketones 3 in good yields (Scheme 1).

2.3. Asymmetric Henry-Initiated Cascade Reactions

The use of ketones as electrophiles in asymmetric organocatalytic reactions is challenging mainly because of the attenuated reactivity in relation to aldehydes and very few examples have been reported [1,2,3,4]. We have recently demonstrated that the presence of the cyano group in the 2-position of aromatic ketones, like 2-acetylbenzonitriles, triggers an efficient cascade reaction with a variety of nucleophiles in the presence of K2CO3 [8]. In this way, a number of interesting 3,3-disubstituted isoindolinones were obtained as racemates via a carbonyl addition step followed by a Dimroth type rearrangement of the immediate intermediate (Scheme 2) [8].
It is worthy to note that the number of methodologies for the asymmetric synthesis of 3,3-disubstituted isoindolinones is limited [31,32,33] and the reported strategies are mainly based on racemate resolution [31,32,33] or on the use of chiral auxiliaries [31,32,33], while asymmetric catalytic procedures are relatively rare [34,35,36,37,38,39]. Therefore, we were interested to investigate the reactivity of 2-acylbenzonitriles with common nucleophiles employing chiral organocatalytic systems in order to achieve a direct construction of chiral 3,3-disubstituted isoindolinones. In particular, we have investigated asymmetric Henry-initiated cascade reactions in the presence of nitromethane because of the importance to introduce a nitromethyl moiety in natural compound analogs and active pharmaceutical ingredients [40], which is an aspect particularly challenging with 2-cyanobenzaldehyde in the synthesis of 3-substituted isoindolinones [22,23,24].
In a preliminary screening, performed on the model 2-acetylbenzonitrile 4b in DCM (Table 2 and Figure 1), it immediately emerged that the combination of the chiral ammonium salts A or C1 and an inorganic base under phase transfer conditions furnishes the final isoindolinone in a very efficient manner (Entries 1, 3). Furthermore, bifunctional chiral tertiary amines based organocatalysts B or D were not effective (Entries 2, 4). The best results in terms of enantioselectivity were obtained in the presence of the bifunctional ammonium salt C1 derived from trans-1,2-cyclohexyldiamine recently developed by our group [41,42], which gave a quantitative yield and moderate enantioselectivity (41% ee). On the other hand, (di)azepino based PTC E1 (Maruoka’s catalyst) [43] and E2 (Lygo’s catalyst) [43] were not effective (Entries 5, 6), which highlights the importance to use bifunctional ammonium salts with an effective hydrogen donor group to promote the reaction for having sufficient enantiofacial differentiation in the last step of the mechanism (Scheme 2).
However, the enantioselectivity was not improved by the modification of the substituents on catalyst C (Table 3). The best results were obtained with C1 bearing strong electron-withdrawing groups installed on both aromatic rings. This catalyst was then tested under different reaction conditions (See also s.i. for details), changing solvent (DCM, toluene, THF, CHCl3), base (Cs2CO3, K3PO4, LiOH, KOH), and equivalents of the base (5, 1, 0.2 eq), temperature (35 °C, r.t., 5 °C), concentration (0.18, 0.092, 0.061 M), and equivalents of the catalyst (0.2, 0.1). A slight improvement of the enantioselectivity was observed using K3PO4 as a base in a solid/liquid heterogeneous system (Entries 1 vs 2). CHCl3 gave similar results with respect to DCM (Entry 9), while other solvents were less effective (See Supplementary Materials). The reactions perform better at room temperature and in more diluted solutions (see Supplementary Materials). It was possible to decrease the amount of the K3PO4 at 0.2 eq only with a slight erosion of the ee (43%), but at the expense of the reaction time (Entry 10). Despite the moderate enantio-enrichment, the enantiopurity of 8a was improved by a single reverse crystallization (8a crystallizes as racemate) in a solvent/non-solvent mixture (Entry 2). The enantio-enriched product was easily isolated from the solution by filtration with 87% ee and an acceptable 42% yield.
Then, we analyzed the scope of the reaction under the best conditions, which varied the chain R and the type of the substituent X on the aromatic ring of the ketone (Table 4). In the presence of both electro-withdrawing or donating groups, we obtained the final products in quantitative yields in a shorter reaction time than the parent 2-acetylbenzonitrile, but the enantioselectivity was significantly lower with both strong electro-withdrawing and -donating groups (Entries 4, 5).
Increasing the length of the R group of the ketone, we obtained the same yields and enantioselectivities for the two ketones bearing an ethyl or hexyl group, but lower ee than 4b (Entries 6-7 vs entry 1).
These results should not be surprising because of the low stereo-differentiation usually observed in asymmetric Michael and aza-Michael reactions of α-nitroolefins, which bears a further substituent on β-carbon (see Scheme 2) [40,44]. However, it is noteworthy that both asymmetric nitro-aldol reactions of nitromethane with ketones and asymmetric conjugated additions of α-nitroolefins bearing a further substituent on β-carbon are very rare [40,44].

3. Materials and Methods

Experimental Details. Reactions were performed using commercially available compounds without further purification and analytical grade solvents. All the reactions were monitored by thin layer chromatography (TLC) on precoated silica gel plates (0.25 mm) and visualized by fluorescence quenching at 254 nm. Flash chromatography was carried out using silica gel 60 (70–230 mesh, Merck, Darmastdt, Germany). The NMR spectra were recorded on Bruker (Rheinstetten, Germany) DRX 600, 400, and 300 spectrometers (600 MHz, 1H, 125 MHz, 13C, 400 MHz, 1H, 100 MHz, 13C, 300 MHz, 1H, 75 MHz, 13C). Spectra were referenced to residual CHCl3 (7.26 ppm, 1H, 77.00 ppm, 13C). The following abbreviations are used to indicate the multiplicity in NMR spectra: s—singlet, d—doublet, t—triplet, q—quartet, dd—double doublet, ddd—doublet of doublet of doublet, m—multiplet, bs—broad signal. Coupling constants (J) are quoted in hertz. Yields are given for isolated products showing one spot on a TLC plate and no impurities detectable in the NMR spectrum. FTIR spectra were recorded as thin films on KBr plates using Bruker (Rheinstetten, Germany) VERTEX 70 spectrometer and absorption maxima are reported in wavenumber (cm−1). High resolution mass spectra (HRMS) were acquired using a Bruker solariX XR Fourier transform ion cyclotron resonance mass spectrometer (Bruker Daltonik GmbH, Bremen, Germany) equipped with a 7T refrigerated actively-shielded superconducting magnet. The samples were ionized in a positive ion mode using an electrospray (ESI) ionization source. Specific rotation [α]20D was recorded using the Polarimeter Jasco P-2000 (Tokio, Japan). Analytical HPLC was performed on HPLC Waters dual 1485 (Waters, Milford, MA, USA). Phosphonium salts were prepared by following a modified reported procedure [45]. 2-Acetylbenzonitriles and racemic isoindolinones obtained from 2-acylbenzonitriles were prepared as described in the literature [8].
General procedure for 2-acylbenzonitriles synthesis by cross coupling the palladium reaction between 2-cyanophenylboronic acid and acyl chlorides. To a solution of 2-cyano phenylboronic acid (0.34 mmol), catalyst (3 mol%), and base (1.5 mmol) in solvent (2 mL) under nitrogen added freshly prepared acyl chloride (1.5 mmol). The reaction mixture was heated for the required time. After evaporation of the solvent, the crude was taken up with ethyl acetate and washed with a saturated solution of sodium bicarbonate, water, and brine, dried over anhydrous magnesium sulfate, and concentrated in vacuo. The resulting material was purified by column chromatography on silica gel to give the ketones.
2-heptanoylbenzonitrile 3a. Purified by flash chromatography (Hexane/Ethyl acetate from 98:2 to 90:10). Waxy solid (30 mg). Yield: 42%. FT-IR (KBr): 2222, 1689 cm−1. HR-MS (ESI) m/z: calcd for C14H17NNaO [M+Na]+: 238.1202. Found: 238.1209. 1H NMR (400 MHz, CDCl3) δ 7.93 (d, J = 7.7 Hz, 1H), 7.83 (d, J = 7.5 Hz, 1H), 7.74–7.66 (m, 2H), 3.03 (t, J = 7.2 Hz, 2H), 1.79–1.74 (m, 2H), 1.41–1.27 (m, 6H), 0.91 (t, J = 6.2 Hz, 3H). 13C NMR (300 MHz, CDCl3) δ 198.9, 140.1, 135.1, 132.5, 132.1, 129.8, 118.1, 110.8, 39.8, 31.5, 28.7, 23.8, 22.4, 13.9.
2-acetylbenzonitrile 3b. Purified by flash chromatography (Hexane/ethyl acetate, 80:20). White solid (17 mg). Yield: 35 %. Mp. 47–48 °C. Data in accordance with literature [3,4]. HR-MS (ESI) m/z: calcd for C9H7NNaO [M +Na]+: 168.0420. Found: 168.0417.
2-propionylbenzonitrile 3c. Purified by flash chromatography (Hexane/Ethyl acetate from 95:5 to 85:15). White solid (19 mg). Mp. 42–43 °C (lit. 45-46 °C) [7c]. Yield: 36%. FT-IR (KBr): 2224, 1685 cm−1. HR-MS (ESI) m/z: calcd for C10H9NNaO [M+Na]+: 182.0576. Found: 182.0582. 1H NMR (300 MHz, CDCl3) δ 7.92 (d, J = 7.7 Hz, 1H), 7.83-7.80 (m, 1H), 7.74–7.54 (m, 2H), 3.04 (q, J = 7.1 Hz, 2H), 1.27–1.18 (t, J = 7.1 Hz, 3H). 13C NMR (300 MHz, CDCl3) δ 198.8, 140.1, 135.1, 132.5, 132.2, 129.1, 118.1, 110.9, 28.9, 13.9.
General procedure for the 2-alkylbenzonitriles synthesis. To a solution of phosphonium salt (1.2 eq.) in dry THF (28 mL), LiHMDS 1M in THF (7 mmol, 2.3 eq) was added and the orange solution was stirred for 10 minutes before adding 2-formylbenzonitrile (270 mg, 2.06 mmol, 1 eq). The mixture was stirred at room temperature until starting material disappeared by TLC (Hexane/Ethyl acetate 95:5). The solvent was removed under reduced pressure and the residue take up with diethyl ether was washed with water. The organic layers were dried on Na2SO4 and concentrated in vacuo to give a brown oil, which was purified by flash chromatography (Hexane/Diethyl ether 99.5:0.5). This afforded alkene compounds to appear as a cis/trans mixture. After solubilized (10 mL) in methanol under nitrogen atmosphere, the stirred mixture Pd/C 10% (25 mg) was added. The reaction was allowed to stir at room temperature for 4 h, was diluted with hexane, filtered on celite, and then concentrated.
2-heptylbenzonitrile 4a. Yellow liquid (250 mg). Yield: 85%. Data in accordance with literature [18]. HR-MS (ESI) m/z: calcd for C14H20N [M+H]+: 202.1590. Found: 202.1587. 1H NMR (300 MHz, CDCl3) δ 7.58 (d, J = 7.8 Hz, 1H), 7.48 (dt, J = 7.7 Hz, 1.3 Hz, 1H), 7.30–7.23 (m, 2H), 2.82 (t, J = 7.6 Hz, 3H), 1.67–1.54 (m, 2H), 1.33–1.27 (m, 7H), and 0.86 (t, J = 6.7 Hz, 3H).
2-propylbenzonitrile 4c. Yellow liquid (190 mg). Yield: 97%. Data in accordance with literature [19]. HR-MS (ESI) m/z: calcd. for C10H12N [M+H]+: 146.0964. Found: 146.0971. 1H NMR (400 MHz, CDCl3) δ 7.60 (d, J = 7.6 Hz, 1H), 7.49 (dt J = 7.7 Hz, 1.32 Hz, 1H), 7.32–7.27 (m, 2H), 2.81 (t, J = 7.5 Hz, 2H), 1.74–1.68 (m, 2H), and 0.98 (t, J = 7.4 Hz, 3H).
General procedure for the oxidation/hydrolysis of 2-alkylbenzonitriles [8] A mixture of 2-alkylbenzonitrile (0.76 mmol), N-Bromosuccinimide (3.5 eq.) and AIBN (0.1 eq.) in CH3CN/H2O 4/1 (3.5 mL) was heated at 80 °C under stirring until starting material disappeared. After cooling to room temperature, the solvent was removed under reduced pressure and the residue taken up with dichloromethane was washed with water. The organic phase was dried over Na2SO4 and concentrated in vacuo.
2-heptanoylbenzonitrile 3a. Reaction time 8 h. Purified by flash chromatography (Hexane/Ethyl acetate from 98:2 to 90:10). Waxy solid (114 mg). Yield: 70%.
2-propionylbenzonitrile 3b. Reaction time 9 h. Purified by flash chromatography (Hexane/Ethyl acetate from 95:5 to 85:15). White solid (82 mg). Yield: 68%.
General Procedure for the enantioselective Tandem Reaction of 2-Acylbenzonitriles. A mixture of 2-acylbenzonitrile (0.1 mmol) in CHCl3 or CH2Cl2 (1.8 mL), catalyst (10%), anhydrous K3PO4 (1 eq.) and nucleophile (3 eq.) was stirred at room temperature until the starting material disappeared (TLC, Hexane/Ethyl acetate, 3:7). The solution was filtered and purified on silica gel (Hexane/Ethyl acetate, 60:40).
3-methyl-3-(nitromethyl)isoindolin-1-one. Waxy white solid (21 mg). Yield: 99%. Data in accordance with literature [8]. Ee: 45%, Chiralpak IA3, Hex/IPA 80:20, 0.6 mL/min, 254 nm, t: 16.92 min and 23.69 min. HR-MS (ESI) m/z: calcd for C10H11N2O3 [M+H]+: 207.0764. Found: 207.0769.
Procedure for reverse crystallization: The sample (21 mg) was dissolved in a mixture of CHCl3 (400 µL) and hexane (600 µL) at room temperature and then left at −20 °C for 24 h. The enantio-enriched product was recovered by filtration and evaporation of the solution, which gave 8 mg of 8a with 87% ee [α]20D: +21.7 (c 0.20, CHCl3).
6-chloro-3-methyl-3-(nitromethyl)isoindolin-1-one. Waxy white solid (24 mg). Yield: 99%. Data in accordance with literature [8]. Ee: 30%, Chiralpak IA3, Hex/IPA 80:20, 0.6 mL/min, 254 nm, t: 16.78 min and 19.61 min. [α]20D: +34.1 (c 0.46, CHCl3). HR-MS (ESI) m/z: calcd for C10H10ClN2O3 [M+H]+: 241.0374. Found: 241.0377.
6-bromo-3-methyl-3-(nitromethyl)isoindolin-1-one. Waxy white solid (28 mg). Yield: 99%. FT-IR (KBr): 3392, 1717, 1552 cm−1. Ee: 26%, Chiralpak IA3, Hex/IPA 80:20, 0.6 mL/min, 254 nm, t: 17.43 min and 22.03 min. [α]20D: +24.74 (c 0.56, CHCl3). HR-MS (ESI) m/z: calcd for C10H10BrN2O3 [M+H]+: 284.9869. Found: 284.9874. 1H NMR (300 MHz, CDCl3) δ 8.01 (d, J = 1.5 Hz, 1H), 7.76 (dd, J = 8.1 Hz, 1.8Hz, 1H), 7.30 (d, J = 8.1 Hz, 1H), 7.04 (bs, 1H), 4.82 (d, J = 12.8 Hz, 1H), 4.40 (d, J = 12.8 Hz, 1H), 1.67 (s, 3H). 13C NMR (75 MHz, CDCl3) δ 167.1, 145.2, 135.7, 132.9, 127.9, 124.0, 122.9, 82.2, 59.4, 23.1.
N-methyl-N-(1-methyl-1-(nitromethyl)-3-oxoisoindolin-5-yl)acetamide. Purified by flash chromatography (Ethyl acetate). Waxy white solid (27 mg). Yield: 99%. FT-IR (KBr): 3260, 1712, 1608, 1552 cm−1. Ee: 4%, Chiralpak IE-3, Hex/IPA 70:30, 0.5 mL/min, 254 nm, t: 76.81 min, and 90.76 min. [α]20D: +11.93 (c 0.56, CHCl3). HR-MS (ESI) m/z: calcd for C13H16BrN3O4 [M+H]+: 278.1135. Found: 278.1131. 1H NMR (300 MHz, CDCl3) δ 7.70 (s, 1H), 7.50 (s, 2H), 7.3 (s, 1H), 4.84 (d, J = 12.8 Hz, 1H), 4.46 (d, J = 12.8 Hz, 1H), 3.30 (s, 3H), 1.90 (s, 3H), 1.71 (s, 3H). 13C NMR (75 MHz, CDCl3) δ 170.1, 167.6, 146.1, 145.5, 132.8, 131.6, 123.1, 122.7, 82.2, 59.5, 29.6, 23.2, 22.5.
3-methyl-6-nitro-3-(nitromethyl)isoindolin-1-one. Waxy white solid (24 mg). Yield: 95%. FT-IR (KBr): 3269, 1699, 1554 cm−1. Ee: 4%, Chiralpack IA-3, Hex/IPA 70:30, 0.6 mL/min, λ= 254 nm, t: 16.49 min and 22.53 min. HR-MS (ESI) m/z: calcd for C9H10N3O5 [M+H]+: 252.0615. Found: 252.0621. 1H NMR (400 MHz, CDCl3) δ 8.73 (s, 1H), 8.53 (d, J = 8.0 Hz, 1H), 7.64 (d, J = 8.0 Hz, 1H), 7.07 (s, 1H), 4.88 (d, J = 12.8 Hz, 1H), 4.49 (d, J = 12.8 Hz, 1H), 1.75 (s, 3H). 13C NMR (100 MHz, CDCl3) δ 166.2, 151.9, 149.4, 132.9, 127.8, 122.8, 120.4, 81.6, 59.9, 23.4.
3-ethyl-3-(nitromethyl)isoindolin-1-one. Waxy white solid (22 mg). Yield: 99%. FT-IR (KBr): 3280, 1722, 1554 cm−1. Ee: 36%, Chiralpack IA-3, Hex/IPA 80: 20, 0.6 mL/min, λ= 254 nm, t: 16.49 min and 22.53 min. [α]20D: +18.4 (c 0.4, CHCl3). HR-MS (ESI) m/z: calcd for C11H13N2O3 [M+H]+: 221.0921. Found: 221.0926. 1H NMR (400 MHz, CDCl3) δ 7.93 (d, J = 7.4 Hz, 1H), 7.68 (t, J = 7.5 Hz, 1 H), 7.63 (t, J = 7.5 Hz, 1H), 7.42 (d, J = 7.6 Hz, 1H), 7.40 (s, 1H), 4.92 (d, J = 12.8 Hz, 1H), 4.48 (d, J = 12.8 Hz, 1H), 2.08 (q, J = 7.3 Hz, 2H), 0.70 (t, J = 7.3 Hz, 3H). 13C NMR (100 MHz, CDCl3) δ 169.1, 144.7, 132.7, 132.0, 129.7, 124.7, 121.4, 82.23, 62.9, 28.1, 7.2.
3-hexyl-3-(nitromethyl)isoindolin-1-one. Waxy white solid (27 mg). Yield: 99%. FT-IR (KBr): 3261, 1729, 1550 cm−1. Ee: 36%, Chiralpack IA-3, Hex/IPA 80: 20, 0.6 mL/min, λ= 254 nm, t: 10.97 min and 14.75 min. [α]20D: +18.9 (c 0.4, CHCl3). HR-MS (ESI) m/z: calcd for C15H21N2O3 [M+H]+: 277.1547. Found: 277.1552. 1H NMR (400 MHz, CDCl3) δ 7.93 (d, J = 7.4 Hz, 1H), 7.66 (t, J = 7.4 Hz, 1H), 7.58 (t, J = 7.4 Hz, 1H), 7.41 (d, J = 7.5 Hz, 1H), 7.11 (s, 1H), 4.89 (d, J = 12.6 Hz, 1H), 4.50 (d, J = 12.6 Hz, 1H), 2.01 (t, J = 7.6 Hz, 2H), 1.28–1.17 (m, 8H), 0.83 (t, J = 7.6 Hz, 3H). 13C NMR (100 MHz, CDCl3) δ 169.3, 145.2, 132.6, 131.9, 129.6, 124.7, 121.4, 82.3, 62.7, 35.0, 31.3, 28.9, 22.8, 22.4, 13.8.

4. Conclusions

We report the synthesis of 2-acylbenzonitriles by selective oxidation of the respective 2-alkylbenzonitriles. The obtained ketones have been used in asymmetric nitro-aldol initiated cascade reaction leading to unprecedented 3,3-disubstituted isoindolinones bearing a nitro group in the side chain in quantitative yields by the use of a chiral bifunctional ammonium salt derived from trans-1,2-cyclohexyldiamine. Even though moderate enantioselectivity was obtained, it is possible to increase the enantiopurity of the final product by an efficient process of reverse crystallization.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/9/4/327/s1. 1. Screening with MeNO2; 2. 1HNMR and 13CNMR spectra of compounds; 3. HPLC traces of compounds.

Author Contributions

F.R. and A.D.M. contributed equally in performing asymmetric screening and synthesis of ketones respectively and in the editing of the supplementary materials; L.P. editing the manuscript and data analysis; M.T. synthesized the catalysts; M.W. designed the catalysts, data analysis and manuscript editing; A.M. designed the reaction, planned the experiments, wrote the manuscript.

Funding

This research received no external funding.

Acknowledgments

This work was supported by the Ministero dell’Università e della Ricerca (MIUR) and the Università degli Studi di Salerno. We thank Patrizia Oliva for her collaboration in performing NMR spectra.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chanda, T.; Zhao, J.C.-G. Recent Progress in Organocatalytic Asymmetric Domino Transformations. Adv. Synth. Catal. 2018, 360, 2–79. [Google Scholar] [CrossRef]
  2. Grossmann, A.; Enders, D. N-Heterocyclic Carbene Catalyzed Domino Reactions. Angew. Chem. Int. Ed. 2012, 51, 314–325. [Google Scholar] [CrossRef]
  3. Fogg, D.E.; dos Santos, E.N. Tandem catalysis: A taxonomy and illustrative review. Coord. Chem. Rev. 2004, 248, 2365–2379. [Google Scholar] [CrossRef]
  4. Tietze, L.F.; Beifuss, U. Sequential Transformations in Organic Chemistry: A Synthetic Strategy with a Future. Angew. Chem. Int. Ed. Engl. 1993, 32, 131–163. [Google Scholar] [CrossRef]
  5. Riant, O.; Hannedouche, J. Asymmetric catalysis for the construction of quaternary carbon centres: Nucleophilic addition on ketones and ketimines. Org. Biomol. Chem. 2007, 5, 873–888. [Google Scholar] [CrossRef]
  6. Bella, M.; Gasperi, T. Organocatalytic Formation of Quaternary Stereocenters. Synthesis 2009, 10, 1583–1614. [Google Scholar] [CrossRef]
  7. Li, Z.; Jangra, H.; Chen, Q.; Mayer, P.; Ofial, A.R.; Zipse, H.; Mayr, H. Kinetics and Mechanism of Oxirane Formation by Darzens Condensation of Ketones: Quantification of the Electrophilicities of Ketones. J. Am. Chem. Soc. 2018, 140, 5500–5515. [Google Scholar] [CrossRef]
  8. Di Mola, A.; Di Martino, M.; Capaccio, V.; Pierri, G.; Palombi, L.; Tedesco, C.; Massa, A. Synthesis of 2-Acetylbenzonitriles and Their Reactivity in Tandem Reactions with Carbon and Hetero Nucleophiles: Easy Access to 3,3-Disubstituted Isoindolinones. Eur. J. Org. Chem. 2018, 2018, 1699–1708. [Google Scholar] [CrossRef]
  9. Sanchez, J.M.; Busto, E.; Gotor-Fernandez, V.; Gotor, V. Highly Stereoselective Chemoenzymatic Synthesis of the 3H-Isobenzofuran Skeleton. Access to Enantiopure 3-Methylphthalides. Org. Lett. 2012, 14, 1444–1447. [Google Scholar] [CrossRef]
  10. Mochalov, S.S.; Fedotov, A.N.; Trofimova, E.V.; Zefirov, N.S. o-Acylbenzonitriles: Synthesis and Heterocyclization under Acid Hydrolysis of the Cyano Group. Russ. J. Org. Chem. 2018, 54, 403–413. [Google Scholar] [CrossRef]
  11. Ogawa, D.; Hyodo, K.; Suetsugu, M.; Li, J.; Inoue, Y.; Fujisawa, M.; Iwasaki, M.; Takagi, K.; Nishihara, Y. Palladium-catalyzed and copper-mediated cross-coupling reaction of aryl- or alkenylboronic acids with acid chlorides under neutral conditions: Efficient synthetic methods for diaryl ketones and chalcones at room temperature. Tetrahedron 2013, 69, 2565–2571. [Google Scholar] [CrossRef]
  12. Ishiyama, T.; Kizaki, K.; Hayashi, T.; Suzuki, A.; Miyaura, M. Palladium-Catalyzed Carbonylative Cross-Coupling Reaction of Arylboronic Acids with Aryl Electrophiles:  Synthesis of Biaryl Ketones. J. Org. Chem. 1998, 63, 4726–4731. [Google Scholar] [CrossRef]
  13. Guo, S.; Zhang, Q.; Li, H.; Guo, H.; He, W. Ag/C nanoparticles catalysed aerobic oxidation of diaryl and aryl(hetero) methylenes into ketones. Nano Res. 2017, 10, 3261–3267. [Google Scholar] [CrossRef]
  14. Haddach, M.; McCarthy, J.R. A new method for the synthesis of ketones: The palladium-catalyzed cross-coupling of acid chlorides with arylboronic acids. Tetrahedron Lett. 1999, 40, 3109–3112. [Google Scholar] [CrossRef]
  15. Urawa, Y.; Ogura, K. A convenient method for preparing aromatic ketones from acyl chlorides and arylboronic acids via Suzuki–Miyaura type coupling reaction. Tetrahedron Lett. 2003, 44, 271–273. [Google Scholar] [CrossRef]
  16. Blangetti, M.; Rosso, H.; Prandi, C.; Deagostino, A.; Venturello, P. Suzuki-Miyaura Cross-Coupling in Acylation Reactions, Scope and Recent Developments. Molecules 2013, 18, 1188–1213. [Google Scholar] [CrossRef]
  17. Urawa, Y.; Naka, H.; Miyazawa, M.; Souda, S.; Ogura, K. Investigations into the Suzuki–Miyaura coupling aiming at multikilogram synthesis of E2040 using (o-cyanophenyl)boronic esters. J. Organometal. Chem. 2002, 653, 269–278. [Google Scholar] [CrossRef]
  18. Bunce, R.A.; Johnson, L.B. Acylation and alkylation of 2-and 4-methylbenzonitrile. Org. Prep. Proced. Int. 1999, 31, 407–412. [Google Scholar] [CrossRef]
  19. Kobayashi, K.; Ezaki, K.; Nozawa, I. Synthesis of 2-Substituted 3-Alkylidene-2,3-dihydro-1H-isoindol-1-imines through Cyclization of [1-(2-Cyanophenyl)alkylidene]aminide Intermediates Generated from the Reaction of 2-(1-Azidoalkyl)benzonitriles with NaH. Helv. Chim. Acta 2014, 97, 1624–1629. [Google Scholar] [CrossRef]
  20. Kobayashi, K.; Hashimoto, K.; Shiokawa, T.; Morkawa, O.; Konishi, H. Synthesis of (Z)-2-(2H-Isoquinolin-1-ylidene)acetamides by Iodine-Mediated Cyclization of (Z)-3-Amino-3-(2-vinylphenyl)propenamides. Synthesis 2007, 2007, 824–828. [Google Scholar] [CrossRef]
  21. Se Song, Y.; Lee, C.H.; Lee, K.J. Application of baylis-hillman methodology in a new synthesis of 3-oxo-2,3-dihydro-1H-isoindoles. J. Heterocycl. Chem. 2003, 40, 939–941. [Google Scholar] [CrossRef]
  22. Angelin, M.; Rahm, M.; Fischer, A.; Brinck, T.; Ramström, O. Diastereoselective one-pot tandem synthesis of 3-substituted isoindolinones: A mechanistic investigation. J. Org. Chem. 2010, 75, 5882–5887. [Google Scholar] [CrossRef] [PubMed]
  23. Massa, A.; Roscigno, A.; De Caprariis, P.; Filosa, R.; Di Mola, A. Trimethylchlorosilane and Silicon Tetrachloride in Two Novel Methodologies for the Efficient and Mild Aldol Addition of β-Keto Esters and Malonates to Aldehydes. Adv. Synth. Catal. 2010, 352, 3348–3354. [Google Scholar] [CrossRef]
  24. Petronzi, C.; Collarile, S.; Croce, G.; Filosa, R.; De Caprariis, P.; Peduto, A.; Palombi, L.; Intintoli, V.; Di Mola, A.; Massa, A. Synthesis and Reactivity of the 3-Substituted Isoindolinone Framework to Assemble Highly Functionalized Related Structures. Eur. J. Org. Chem. 2012, 2012, 5357–5365. [Google Scholar] [CrossRef]
  25. Perillo, M.; Di Mola, A.; Filosa, R.; Palombi, L.; Massa, A. Cascade reactions of glycine Schiff bases and chiral phase transfer catalysts in the synthesis of α-amino acids 3-substituted phthalides or isoindolinones. RSC Adv. 2014, 9, 4239–4246. [Google Scholar] [CrossRef]
  26. Li, T.; Zhou, S.; Wang, J.; Luis Acena, J.; Soloshonok, V.A.; Liu, H. Asymmetric synthesis of α-(1-oxoisoindolin-3-yl)glycine: Synthetic and mechanistic challenges. Chem. Commun. 2015, 9, 1624–1626. [Google Scholar] [CrossRef] [PubMed]
  27. Di Mola, A.; Tiffner, M.; Scorzelli, F.; Palombi, L.; Filosa, R.; De Caprariis, P.; Waser, M.; Massa, A. Bifunctional phase-transfer catalysis in the asymmetric synthesis of biologically active isoindolinones. Beilstein J. Org. Chem. 2015, 11, 2591–2599. [Google Scholar] [CrossRef] [PubMed]
  28. Capaccio, V.; Capobianco, A.; Stanzione, A.; Pierri, G.; Tedesco, C.; Di Mola, A.; Massa, A.; Palombi, L. Organocatalytic Heterocyclization Driven by Dynamic Kinetic Resolution: Enantioselective Access to Multi-heteroatomic Cyclic Structures Mediated by Cinchona Alkaloid-based Catalysts. Adv. Synth. Catal. 2017, 359, 2874–2880. [Google Scholar] [CrossRef]
  29. Liu, L.; Qiang, J.; Bai, S.H.; Sung, H.L.; Miao, C.B.; Li, J. Direct Access to Isoindolin-1-one Scaffolds by Copper-Catalyzed Divergent Cyclizations of 2-Formylbenzonitrile and Diaryliodonium Salts. Adv. Synth. Catal. 2017, 359, 1283–1289. [Google Scholar] [CrossRef]
  30. Liu, L.; Bai, S.H.; Li, Y.; Wang, L.X.; Hu, Y.; Sung, H.L.; Li, J.J. Synthesis of 2,3-diarylisoindolin-1-one by copper-catalyzed cascade annulation of 2-formylbenzonitriles, arenes, and diaryliodonium Salts. J. Org. Chem. 2017, 82, 11084–11090. [Google Scholar] [CrossRef] [PubMed]
  31. Bjoere, A.; Bostroem, J.; Davidsson, O.; Emtenaes, H.; Gran, H.; Iliefski, T.; Kajanus, J.; Olsson, R.; Sandberg, L.; Strandlund, G.I. Isondoline Derivatives for the Treatment of Arrhythmias. International Patent WO2008008022, 17 January 2008. [Google Scholar]
  32. Conn, E.L.; Hepworth, D.; Qi, Y.; Rocke, B.N.; Ruggeri, R.B.; Zhang, Y. 2-Phenyl Benzoylamides. International Patent WO 2011/145022 A1, 24 November 2011. [Google Scholar]
  33. Baldwin, J.J.; Claremon, D.A.; Tice, C.M.; Cacatian, S.; Dillard, L.H.; Ishchenko, A.V.; Yuan, J.; Xu, Z.; Mcgeehan, G.; Zhao, W. Renin Inhibitors. International Patent WO2008156816, 27 March 2008. [Google Scholar]
  34. Yang, G.; Shen, C.; Zhang, W. An asymmetric aerobic aza-Wacker-type cyclization: Synthesis of isoindolinones bearing tetrasubstituted carbon stereocenters. Angew. Chem. Int. Ed. 2012, 51, 9141–9145. [Google Scholar] [CrossRef] [PubMed]
  35. Scorzelli, F.; Di Mola, A.; De Piano, F.; Tedesco, C.; Palombi, L.; Filosa, R.; Waser, M.; Massa, A. A systematic study on the use of different organocatalytic activation modes for asymmetric conjugated addition reactions of isoindolinones. Tetrahedron 2017, 73, 819. [Google Scholar] [CrossRef]
  36. Wu, X.; Wang, B.; Zhou, Y.; Li, H. Propargyl Alcohols as One-Carbon Synthons: Redox-Neutral Rhodium(III)-Catalyzed C–H Bond Activation for the Synthesis of Isoindolinones Bearing a Quaternary Carbon. Org. Lett. 2017, 19, 1294–1297. [Google Scholar] [CrossRef] [PubMed]
  37. Yu, H.; Xuan, P.; Lin, J.; Jiao, M. Copper(I)-catalyzed synthesis of 3,3-disubstituted isoindolin-1-ones from enamides via cascade radical addition and cyclization. Tetrahedron Lett. 2018, 59, 3636–3641. [Google Scholar] [CrossRef]
  38. Li, T.; Zhou, C.; Yan, X.; Wang, J. Solvent-Dependent Asymmetric Synthesis of Alkynyl and Monofluoroalkenyl Isoindolinones by CpRhIII -Catalyzed C-H Activation. Angew. Chem. Int. Ed. 2018, 57, 4048–4052. [Google Scholar] [CrossRef] [PubMed]
  39. Jin, S.; Guo, J.; Fang, D.; Huang, Y.; Wang, Q.; Bu, Z. A Brønsted Acid-Catalyzed Michael Addition/Cyclization Sequence for the Diastereoselective Assembly of Chroman-Bridged Polycyclic Isoindolinones. Adv. Synth. Catal. 2019, 361, 456–461. [Google Scholar] [CrossRef]
  40. Sukhorukov, A.Y.; Sukhanova, A.A.; Zlotin, S.G. Stereoselective reactions of nitro compounds in the synthesis of natural compound analogs and active pharmaceutical ingredients. Tetrahedron 2016, 72, 6191–6281. [Google Scholar] [CrossRef]
  41. Novacek, J.; Waser, M. Syntheses and Applications of (Thio)Urea-Containing Chiral Quaternary Ammonium Salt Catalysts. Eur. J. Org. Chem. 2014, 2014, 802–809. [Google Scholar] [CrossRef] [PubMed]
  42. Tiffner, M.; Novacek, J.; Busillo, A.; Gratzer, K.; Massa, A.; Waser, M. Design of chiral urea-quaternary ammonium salt hybrid catalysts for asymmetric reactions of glycine Schiff bases. RSC Adv. 2015, 5, 78941–78949. [Google Scholar] [CrossRef] [PubMed]
  43. Shirakawa, S.; Maruoka, K. Recent Developments in Asymmetric Phase-Transfer Reactions. Angew. Chem. Int. Ed. 2013, 52, 4312–4348. [Google Scholar] [CrossRef] [PubMed]
  44. Enders, D.; Wang, C.; Liebich, J.X. Organocatalytic asymmetric aza-Michael additions. Chem. Eur. J. 2009, 15, 11058–11076. [Google Scholar] [CrossRef] [PubMed]
  45. Engman, M.; Cheruku, P.; Kaukoranta, P.; Bergquist, J.; Völker, S.F.; Andersson, P.G. Highly Selective Iridium-Catalyzed Asymmetric Hydrogenation of Trifluoromethyl Olefins: A New Route to Trifluoromethyl-Bearing Stereocenters. Adv. Synth. Catal. 2009, 351, 375–378. [Google Scholar] [CrossRef]

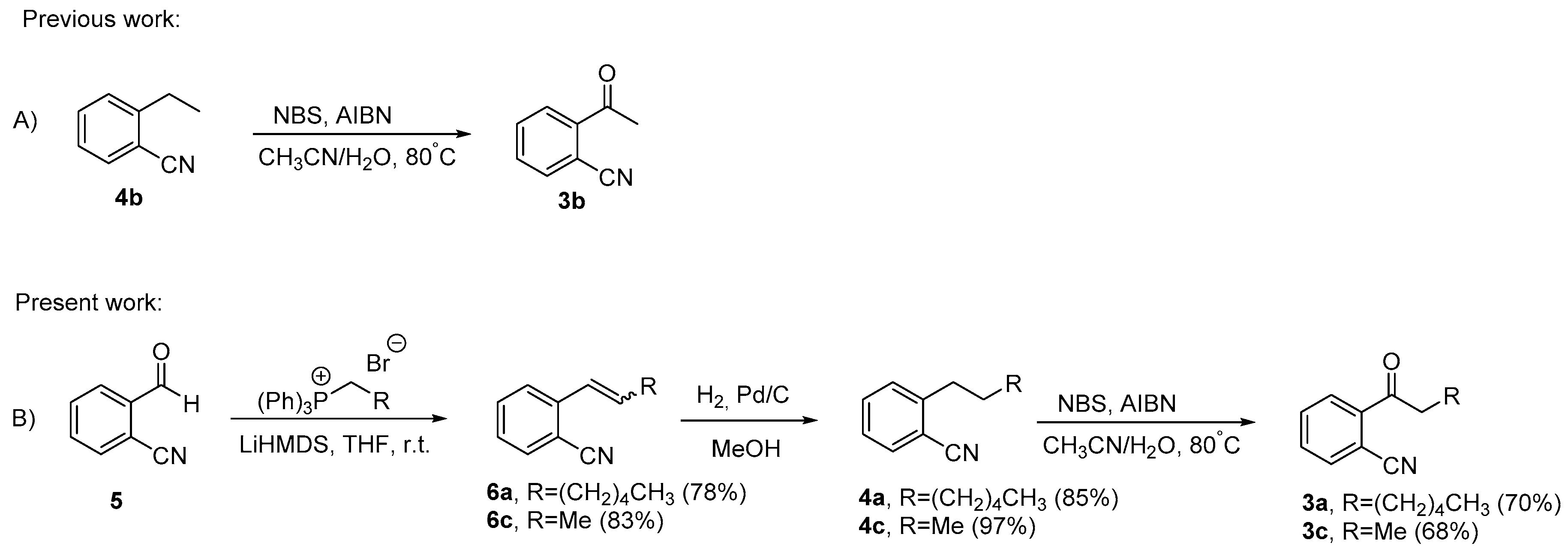

Scheme 1. Multi-step synthesis of 2-acylbenzonitriles.
Scheme 1. Multi-step synthesis of 2-acylbenzonitriles.
Catalysts 09 00327 sch001

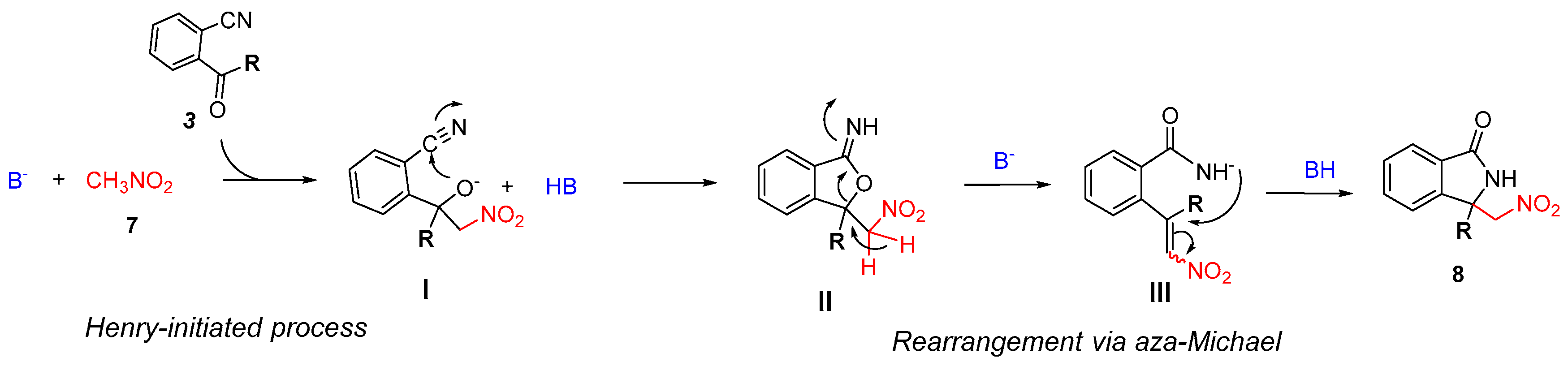

Scheme 2. Proposed mechanism of cascade reactions of 2-acylbenzonitriles with nitromethane.
Scheme 2. Proposed mechanism of cascade reactions of 2-acylbenzonitriles with nitromethane.
Catalysts 09 00327 sch002
Figure 1. Organocatalysts used in this screening.
Figure 1. Organocatalysts used in this screening.
Catalysts 09 00327 g001
Table 1. Suzuki–Miyaura type cross-coupling reactions.
Table 1. Suzuki–Miyaura type cross-coupling reactions.
Catalysts 09 00327 i001
EntryR (eq)SolventcatalystBase (eq)T (°C)Time(h)Yield 3 (%) a
1Hexyl, (3 eq)ToluenePd(PPh3)4Cs2CO3 (5 eq)1002.53a, 20%
2Hexyl, (5 eq)ToluenePd(PPh3)4Cs2CO3 (5 eq)1002.53a, 42%
3Hexyl, (5 eq)ToluenePd(PPh3)4Cs2CO3 (5 eq)100183a, 16%
4Hexyl, (5 eq)ToluenePd(PPh3)4Cs2CO3 (3 eq)1002.53a, 26%
5Hexyl, (5 eq)THFPdCl2(PPh3)2K3PO4 (5 eq)60243a, 42%
6Hexyl, (5 eq)THFPd(PPh3)4Cs2CO3 (5 eq)60243a, 16%
7Methyl, (5 eq)ToluenePd(PPh3)4Cs2CO3 (5 eq)100243b, 35%
8Ethyl, (5 eq)ToluenePd(PPh3)4Cs2CO3 (5 eq)100243c, 36%
a Yields refer to chromatographically pure compounds.

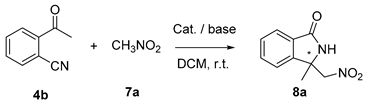

Table 2. Asymmetric organocatalytic cascade reaction of nitromethane.
Table 2. Asymmetric organocatalytic cascade reaction of nitromethane.
Catalysts 09 00327 i002
EntryCatalyst (mol%)Base (1 eq)Time (Days)Yield (%) aee (%) b
1A (20)K2CO33d996
2B (20)--7dTraces--
3C1 (20)K2CO33d9941
4D (20)--7dTraces--
5E1 (20)K2CO37dTraces--
6E2 (20)K2CO37dTraces--
a Yields refer to chromatographically pure compounds. b Enantiomeric excesses were determined by HPLC on a chiral stationary phase column.

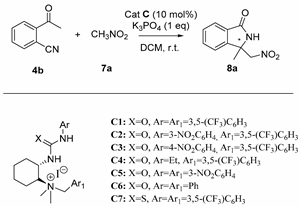

Table 3. Screening of different trans-1,2-cyclohexyldiamine based PTC.
Table 3. Screening of different trans-1,2-cyclohexyldiamine based PTC.
Catalysts 09 00327 i003
EntryCatalyst (10 mol%)Time (Days)Yield (%) aee (%) b
1 cC13d9941
2C13d99 (42) d45 (87) d
3C23d9539
4C33d9338
5C47d1520
6C53d9540
7C67d997
8C77d5039
9 eC13d9945
10 f,gC13d9943
a Yields refer to chromatographically pure compounds. b Enantiomeric excesses were determined by HPLC on the chiral stationary phase column. c 1.0 eq of K2CO3 were used. d Yield and ee after crystallization. e Reactions performed in CHCl3. f 0.2 eq of K3PO4 were used.
Table 4. Scope of asymmetric organocatalytic cascade reaction.
Table 4. Scope of asymmetric organocatalytic cascade reaction.
Catalysts 09 00327 i004
EntryXRTime (Days)Yield (8) (%) aee (%) b
1HMe3d99 (8a)45
2ClMe2d99 (8b)30
3BrMe2d99 (8c)26
4 Catalysts 09 00327 i005Me1d99 (8d)4
5NO2Me2d95 (8e)4
6HEt3d99 (8f)36
7HHexyl3d99 (8g)36
a Yields refer to chromatographically pure compounds. b Enantiomeric excesses were determined by HPLC on the chiral stationary phase column.
