Tailoring of Hydrotalcite-Derived Cu-Based Catalysts for CO₂ Hydrogenation to Methanol

Abstract

Ternary Cu_xZn_yAl_z catalysts were prepared using the hydrotalcite (HT) method. The influence of the atomic x:y:z ratio on the physico-chemical and catalytic properties under CO₂ hydrogenation conditions was probed. The characterization data of the investigated catalysts were obtained by XRF, XRD, BET, TPR, CO₂-TPD, N₂O chemisorption, SEM, and TEM techniques. In the “dried” catalyst, the typical structure of a hydrotalcite phase was observed. Although the calcination and subsequent reduction treatments determined a clear loss of the hydrotalcite structure, the pristine phase addressed the achievement of peculiar physico-chemical properties, also affecting the catalytic activity. Textural and surface effects induced by the zinc concentration conferred a very interesting catalyst performance, with a methanol space time yield (STY) higher than that of commercial systems operated under the same experimental conditions. The peculiar behavior of the hydrotalcite-like samples was related to a high dispersion of the active phase, with metallic copper sites homogeneously distributed among the oxide species, thereby ensuring a suitable activation of H₂ and CO₂ reactants for a superior methanol production.

1. Introduction

Methanol is usually produced from synthesis gas mixtures (CO_x/H₂) at typical reaction conditions of 230–280 °C and 50–100 bar over Cu–based catalysts. In this industrial process, a Cu-based catalyst is typically used, with the composition completed by Zn and Al components [1,2]. The development of ternary Cu/ZnO/Al₂O₃ catalysts for methanol synthesis was started in the 1960s and, since then, it was fine-tuned and optimized, without major changes in the formulation. There is a large consensus that copper represents the active phase for this reaction, and the primary role of ZnO is to create a definite metal–carrier interaction [3,4]. Incorporation of alumina into the catalyst formulation is instead essential for improving resistance to the thermal sintering of the Cu crystallites [5,6]. It is also demonstrated that alumina can act as a promoter, which specifically tailors the reduction properties of ZnO [7].

It is known that preparation of an industrial methanol catalyst involves the initial co-precipitation of a highly mixed CuZn(Al) hydroxycarbonate phase. This is usually realized by mixing of metal nitrate salts and sodium carbonate solutions under controlled pH and temperature. The subsequent aging step of the amorphous precipitate is fundamental for the formation of crystalline hydroxycarbonate precursors [8,9,10]. On this account, studies on binary Cu_xZn_y preparations enabled a deep understanding of the more complex ternary (Cu/Zn/Al) systems. Therefore, in binary preparations, typical crystalline phases range from Cu-rich to Zn-rich compositions, including malachite Cu₂(OH)₂CO₃, zincian malachite (Cu_xZn_y)₂(OH)₂CO₃, aurichalcite (Cu_xZn_y)₅-(OH)₆(CO₃)₂, and hydrozincite Zn₅(OH)₆(CO₃)₂. In particular, zincian malachite is currently considered to be the optimum precursor for the methanol synthesis catalyst, which facilitates formation of a highly porous meso-structure [11]. Considering that the maximum amount of Zn which can be substituted into the malachite lattice is 27 at.%, the optimum Cu:Zn molar ratio is close to 2:1 [12]. Higher Zn contents are desirable to facilitate further dilution of the Cu component, thereby enhancing metal dispersion, although this can result in a lower crystallinity of the zincian malachite phase. The final thermal decomposition of the hydroxycarbonates leads the formation of an intimate mixture of oxides, while an in situ reduction step is required to obtain the active catalyst.

Recent approaches to synthesize methanol via catalytic hydrogenation of CO₂, as the key for an anthropogenic chemical carbon cycle along with the need to reduce the economic impact of the conventional high-pressure synthesis of methanol via syngas, now address the research efforts toward novel preparation methods suitable for obtaining catalytic systems characterized by high copper dispersion and surface basicity to enhance CO₂ adsorption [13,14,15], as the competitive reaction pathway of reverse water gas shift (RWGS) leads to a loss of methanol production [16,17]. Therefore, appropriate adsorption amount and adsorption strength of CO₂ are beneficial for the production of methanol, which give a guideline for the design of highly effective and efficient catalysts. On this account, considerable attention was recently paid to hydrotalcite-like compounds (HT) as catalyst precursors, because the catalyst systems derived from hydrotalcite structures possess homogeneous dispersion of metal cations at an atomic level, high stability against sintering, high specific surface area, and strongly basic properties [18,19,20].

In the present work, we inspected the catalytic behavior of CuZnAl catalysts as obtained from hydrotalcite-like structures in a CO₂-to-MeOH hydrogenation reaction. Irrespective of the extent of crystallinity of the coprecipitated phase, the influence of the Cu:Zn:Al ratio on the formation of well-dispersed and active metal particles, generated after calcination and reduction, was addressed.

2. Results and Discussion

2.1. Physico-Chemical Properties

The list of the investigated catalysts with their main physico-chemical properties is presented in

Table 1. List of catalysts, analytical composition, and textural properties.

Catalyst Sample	Analytical Comp. (wt.%) (a)			Zn/(Cu + Zn + Al)	SABET(b)	PV(b)	APD(c)
	CuO	ZnO	Al2O3	(at/at)	(m2/g)	(cm3/g)	(Å)
HT-111	37.5	38.4	24.1	0.33	74.7 ± 0.2	0.586	314
HT-122	23.1	47.3	29.6	0.40	62.3 ± 0.3	0.503	323
HT-121	27.1	55.5	17.4	0.50	28.6 ± 0.3	0.275	383
HT-112	30.2	31.0	38.8	0.25	136.0 ± 0.6	0.350	103
CuZnAl *	35.0	34.3	30.7	0.29	105 ± 1.1	0.231	88

* Commercial benchmark catalyst; (a) from XRF analysis by considering an oxide composition; (b) From N₂ ads/des isotherms at −196 °C after H₂ reduction at 300 °C and further passivation; (c) average pore diameter (APD, 4PV/SA_BET).

.

Textural data show that the hydrotalcite synthesis route leads to systems characterized by different surface exposure, with values of total surface area decreasing with the ZnO content. In fact, the lowest SA_BET value (28.6 m²/g) was recorded at high (0.5) Zn/(Cu + Zn + Al) ratios, while the highest values (62.3–136.0 m²/g) were found for Zn/(Cu + Zn + Al) ratios ≤0.4.

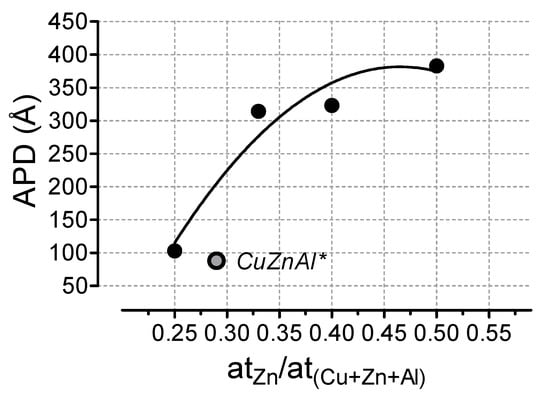

Within the range of composition considered, all hydrotalcite-like samples exhibit large values of cumulative pore volume (0.275–0.586 cm³/g), accounting for a trend of average pore diameter (APD) specular to that of surface area, thus being strongly dependent on the ZnO atomic fraction and increasing with it (Figure 1).

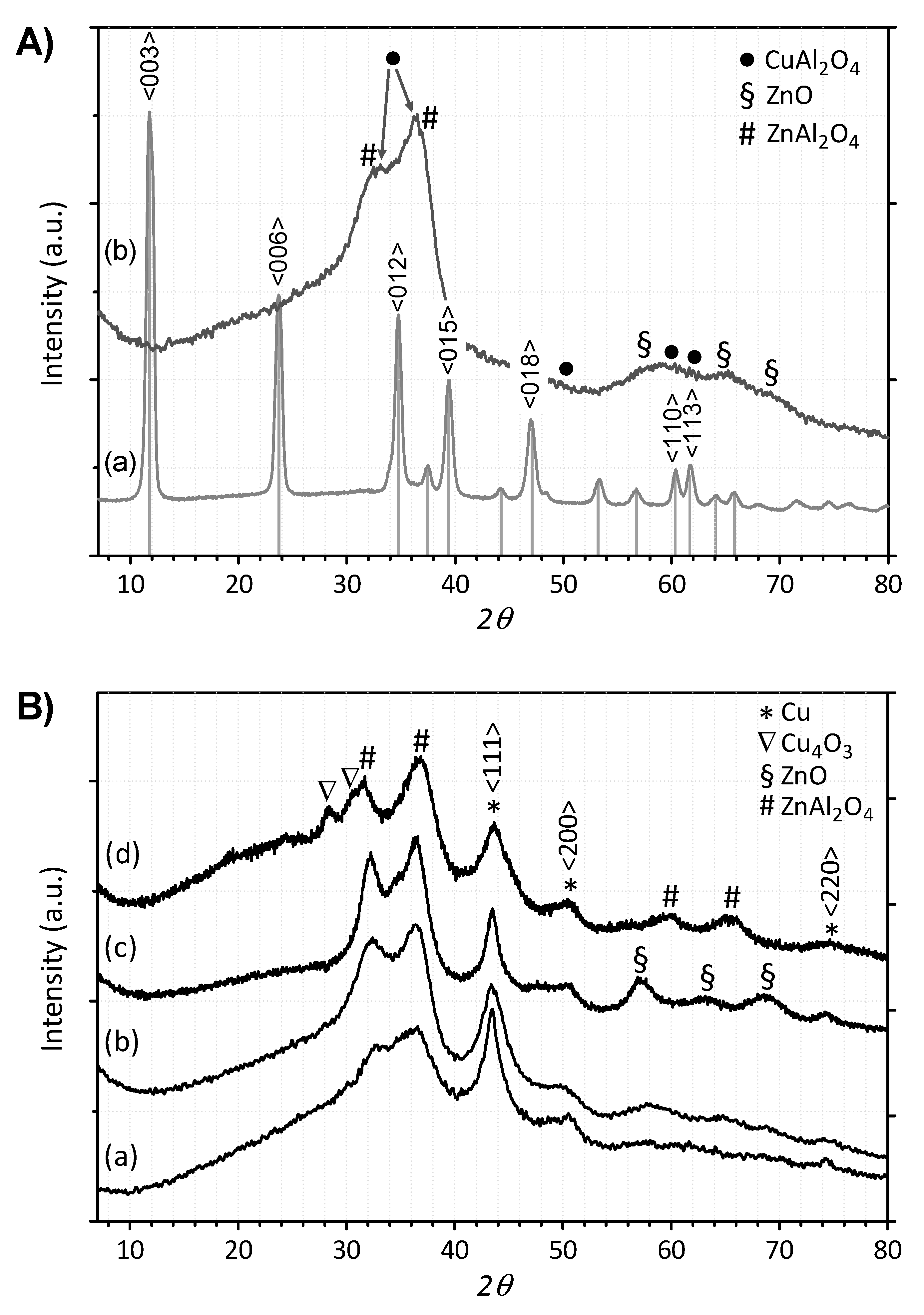

To determine the typical structure formed during the preparation and its modification upon the treatments of calcination and reduction, an XRD analysis was preliminarily carried out. As it is possible to observe in Figure 2A, the representative “dried” catalyst sample (a) showed the characteristic reflections of the hydrotalcite phase, with clear evidence for the presence of (hydroxy)carbonate precursors, matching the pattern reported for the Cu₃Zn₃Al₂-(OH)₁₆CO₃ 4H₂O phase (JCPDS 37–629). However, this phase was no longer retained after calcination, with a diffraction pattern (b) appearing without significant crystallinity, characterized by a prevalently amorphous architecture. Irrespective of the atomic ratio, no reflections of “isolated” CuO tenorite (JCPDS 41–0254) were detected in the calcined samples, while poorly crystallized mixed oxides phases of CuAl₂O₄ at 32.9° and 36.3° (JCPDS 33–0448) along with ZnAl₂O₄ at 32.1° and 36.8° (JCPDS 05–0669) were observed. Moreover, in the HT-122 sample, only few traces of low intensity in the 2θ range of 56°–70° revealed the presence of a hexagonal ZnO phase (JCPDS 36–1451). Upon reduction at 300 °C (see Figure 2B), the main peak at 43.4° was diagnostic of the formation of metallic copper (JCPDS 04–0836), with no evidence for residual presence of the spinel CuAl₂O₄ structure, while the ZnAl₂O₄ phase was still present. Yet, although Cu₂O was detected in none of the diffraction patterns, interestingly, in the HT-112 sample (d), a metastable mixed-valence oxide Cu₄O₃ (JCPDS 03–0879) could be also observed at 28.0° and 30.3°.

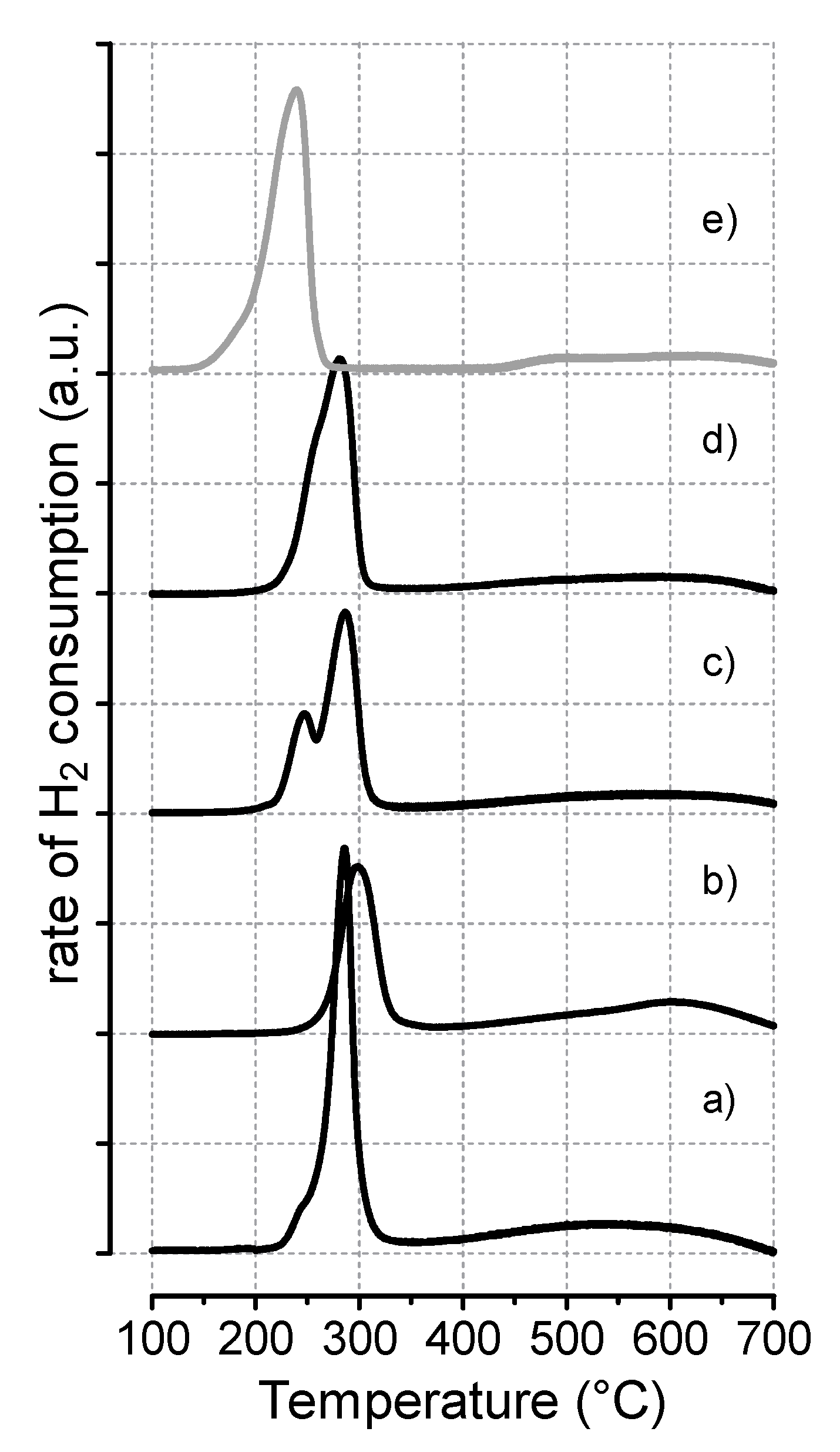

TPR measurements, carried out in order to shed light onto the effects of the preparation method and catalyst composition on the reduction kinetics of the investigated catalysts, are shown in Figure 3. All samples displayed a main H₂ consumption peak centered at 278–296 °C (see also

Table 2. TPR data. Extent of hydrogen consumption, onset temperature of reduction (To,red), and temperature of peak maxima (TMi).

Catalyst Sample	H2-TPR
	mmol H2/gcat	To,red (°C)	Tmax (°C)	H2/Cu (a)
HT-111	4.9	202	286	0.97
HT-122	3.9	170	278	0.86
HT-121	4.2	174	283	0.75
HT-112	4.3	206	296	1.09
CuZnAl *	5.2	137	237	0.94

* Commercial benchmark catalyst: (a) in the T range: 100–350 °C.

), diagnostic of a quantitative reduction of CuO to metallic Cu below 350 °C, whereas the slight differences in both the onset reduction (T_o,red) and the maxima temperature (T_max) can be explained on the basis of the extent of copper-oxide(s) interaction, affected by the different metal loading in the hydrotalcite samples. A shoulder on the left side of the maximum was particularly evident at high Zn content, becoming wider and splitting in the HT-121 sample (profile c), signaling a different kinetic reduction dependent on the size of crystalline CuO particles, as a measure of heterogeneity of the copper distribution.

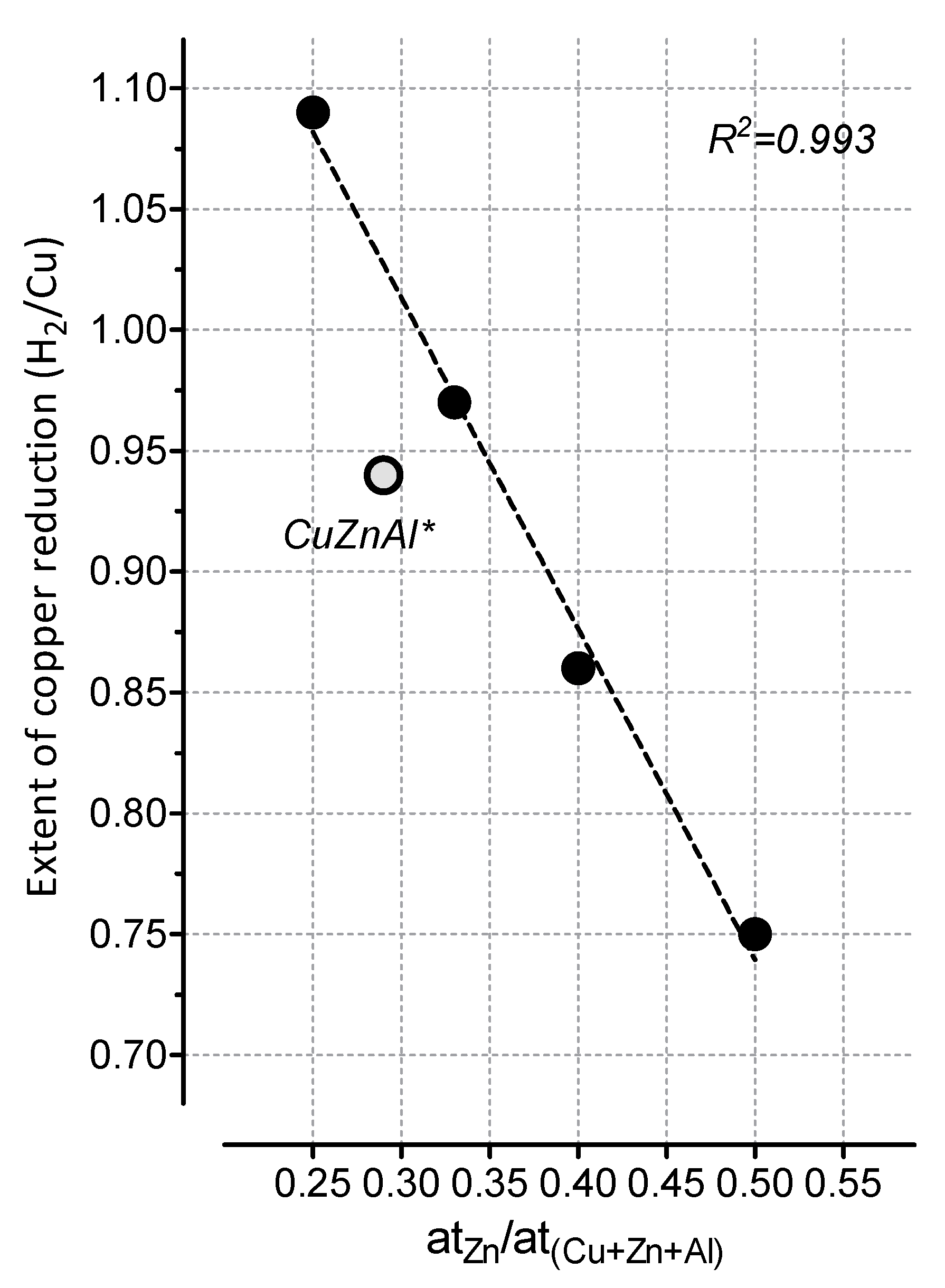

The amount of hydrogen consumption corresponded to the stoichiometric amount (0.97) for CuO reduction only for the HT-111 sample, while, for the HT-112 sample, an H₂/Cu ratio of 1.09 suggested a total reduction of copper oxide associated with a partial reduction of ZnO and/or Al₂O₃ in interaction with the copper crystallites, capable of storing large amounts of hydrogen both on the surface and in subsurface regions [21]. As a general behavior, within the range of composition investigated, the Zn atomic fraction was seen to linearly affect the extent of copper reduction (see Figure 4), such that a higher Zn content (like in HT-122 and HT-121) led to a greater reduction of CuO. Moreover, the baseline drift observed at T > 350 °C, with a poorly resolved temperature maximum, was associated with an ongoing reduction of the ZnO promoter [6].

The TPR profile of the reference catalyst (e) was similar to that of hydrotalcite-like catalysts, with a main peak centered at 237 °C and markedly skewed on the low-T side (T_o,red = 137 °C), accounting for an almost stoichiometric H₂/Cu ratio (0.94). Above 350 °C, the trend in H₂ consumption appeared comparable with that of the HT samples, with a poorly resolved maximum evident in the range 450–700 °C.

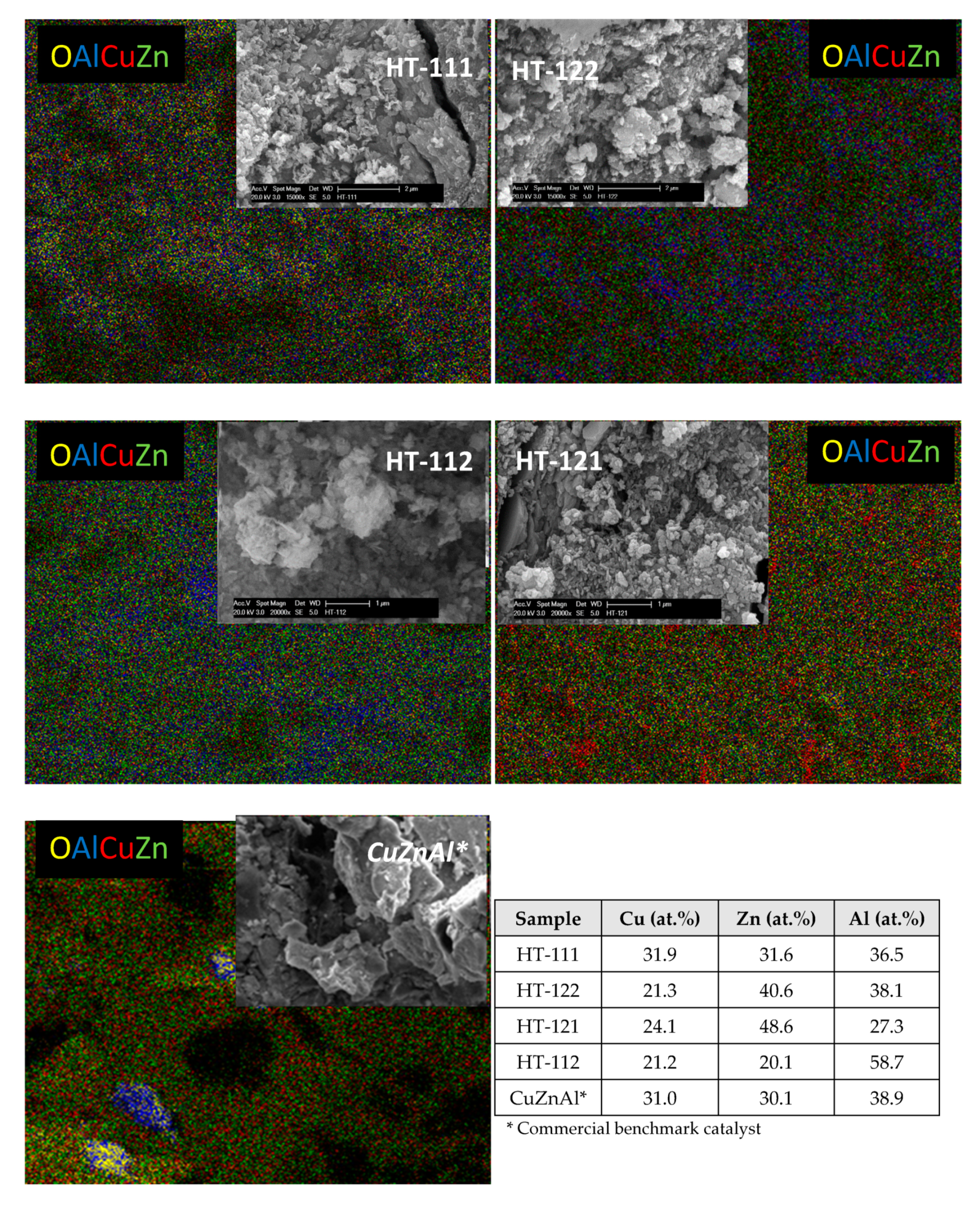

SEM analysis, reported in Figure 5, showed how the chemical composition of the investigated samples affected the final morphology of the system. In particular, the HT-111 and HT-122 samples exhibited a very porous sponge-like structure composed of predominantly elongated grains (>0.5 µm), whose uniform distribution per unit of surface revealed that some of the CuO species were embedded in the oxide carriers (i.e., ZnO and/or Al₂O₃). Moreover, on HT-112, an evident segregation of large oxide agglomerates of Al₂O₃ (light blue pots) was observable, contrarily to HT-121, where a denser granular structure favored the enrichment of copper species (red pots) among the carrier oxides. Regarding the reference commercial CuZnAl sample, a squamaceous plate-like structure evidenced an important lack of homogeneity in the distribution of the elements, characterized by a general lower porosity, as confirmed by BET analysis. In any case, the EDAX results on the investigated systems showed an elemental concentration in line with the design composition.

Considering that copper surface area, dispersion, and crystalline size represent key features critically influencing the adsorption behavior of the reactants and the subsequent conversion of reaction intermediates, in

Table 3. Surface properties of the investigated hydrotalcite-like structures from N₂O single pulse titration and CO₂-TPD measurements.

Catalyst Sample	N2O Titration Pulse			CO2 Uptake			N2O/CO2
	MSA (m2/g)	DCu (%)	dCu (nm)	mmol/gcat	n1 (a)	n2 (b)
HT-111	24.6	11.7	8.9	0.837	0.28	0.72	0.356
HT-122	20.9	16.7	6.2	0.648	0.10	0.90	0.390
HT-121	17.2	11.6	9.0	0.257	0.16	0.84	0.808
HT-112	22.7	13.6	7.6	0.925	0.18	0.82	0.297
CuZnAl *	32.4	17.8	5.8	0.695	0.29	0.71	0.565

* Commercial benchmark catalyst: (a) population fraction of weak–medium CO₂ sites in the T range <300 °C; (b) population fraction of strong CO₂ sites in the T range >300 °C.

, the quantitative data of N₂O chemisorption measurements are reported. The reference commercial CuZnAl sample exhibited the largest copper surface area (MSA), accounting for a metal dispersion of 17.8%, as the result of particles not being larger than 6 nm. As for the samples prepared using the hydrotalcite method, it can be observed that the catalyst composition affected their surface characteristics. Although the values of MSA resulted slightly lower (17.2–24.6 m²/g) than that on the commercial catalyst (32.4 m²/g), leading to a minor metal dispersion (11.6%–16.7%), the obtainment of just larger copper particles (6.2–9.0 nm) could result beneficial for catalytic activity, due not only to a better resistance to the metal sintering during reaction, but also to a more favorable interaction between the metal and the carrier oxide(s) [22,23].

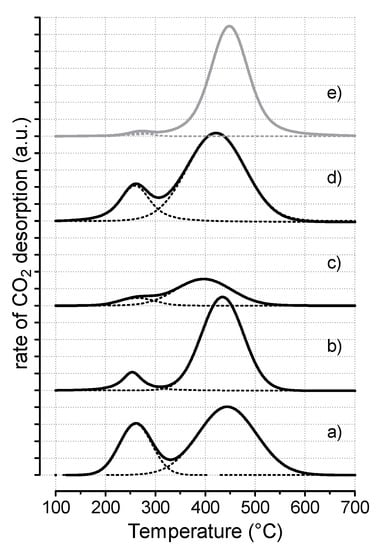

Moreover, considering that CO₂ affinity of the hydrotalcite-like catalysts is strongly dependent on the atomic composition and activation conditions [24], CO₂ desorption measurements were performed on the investigated catalysts, with profiles and quantitative data reported in Figure 6 and Table 3, respectively. It can be recognized that the strength of basic sites was determined by the adsorption and desorption peak of CO₂ in the corresponding temperature range: weak–medium basic sites (below 300 °C) and strong basic sites (above 300 °C).

Interestingly, all the catalysts provided similar CO₂-TPD profiles, consisting of a prominent peak (70–90%), with the maximum centered between 380 and 480 °C, attributed to mono- and bidentate carbonates releasing CO₂ from metal–oxygen pairs (Cu⁸⁺) or low-coordination anions (O²⁻), and a smaller peak (displayed below 300 °C) assigned to desorption of bicarbonate species from metallic Cu, very sensitive to the pretreatment phase (reduction temperature and time) and typically considered of scarce catalytic relevance [25,26,27]. From a quantitative point of view (see data in Table 3), it is evident that a too high content of ZnO depressed the CO₂ adsorption in the HT-121 sample (0.257 mmol_CO2/g_cat), while, by changing the ratios of M²⁺/M³⁺ metals, significantly higher CO₂ uptakes were recorded. The HT-112 sample exhibited basicity as large as 0.925 mmol_CO2/g_cat, evidently due to lower coordination and favorable location of the adsorption sites [28].

2.2. Catalytic Activity

The catalytic behavior of the prepared samples was investigated under CO₂ hydrogenation conditions and, in

Table 4. Conversion selectivity data (X_CO2–S_MeOH) and methanol yield (Y_MeOH) of hydrotalcite-based and reference catalysts in the CO₂ hydrogenation reaction at different temperatures (P_R, 30 bar; GHSV: 8800 NL/kg_cat/h).

Catalyst Sample	TR, 220 °C		TR, 240 °C		TR, 260 °C
	XCO2–SMeOH (%)	YMeOH (%)	XCO2–SMeOH (%)	YMeOH (%)	XCO2–SMeOH (%)	YMeOH (%)
HT-111	9.1–70.7	6.4	13.1–51.7	6.8	18.7–37.6	7.0
HT-122	6.5–62.8	4.1	13.2–41.6	5.5	19.8–30.7	6.1
HT-121	6.2–52.6	3.3	12.6–32.7	4.1	18.5–22.4	4.1
HT-112	6.6–66.6	4.4	12.9–47.3	6.1	19.2–34.6	6.7
CuZnAl *	10.1–57.9	5.9	16.9–43.4	7.3	20.8–34.3	7.1

* Commercial benchmark catalyst.

, the results obtained at 30 bar in the temperature range of 220–260 °C are reported, in terms of carbon dioxide conversion, methanol selectivity, and methanol yield.

Under the operating conditions, no methane, hydrocarbons, or coke were found in the reaction products. As it is possible to observe, all the hydrotalcite-derived systems featured a similar catalytic behavior characterized by X_CO2 values rising with temperature from 6.2% to 19.8%, counterbalanced by a drop in S_MeOH from 70.7% to 22.4%, definitely accounting for methanol yield (Y_MeOH) comprised between 4.1% and 7.0%. In particular, the HT-121 sample, at higher Zn/(Cu + Zn + Al) ratio, exhibited considerably low conversion and selectivity levels at each reaction temperature, which corresponded to a maximum Y_CH3OH of 4.1% at 260 °C. Under the adopted experimental conditions, the reference CuZnAl catalyst exhibited an activity–selectivity pattern characterized by an increase in CO₂ conversion from 10.1% to 20.8% and a “smoother” decrease in the S_MeOH from 57.9% to 34.3%, demonstrating a general performance comparable to that of the HT-111 sample at a similar composition.

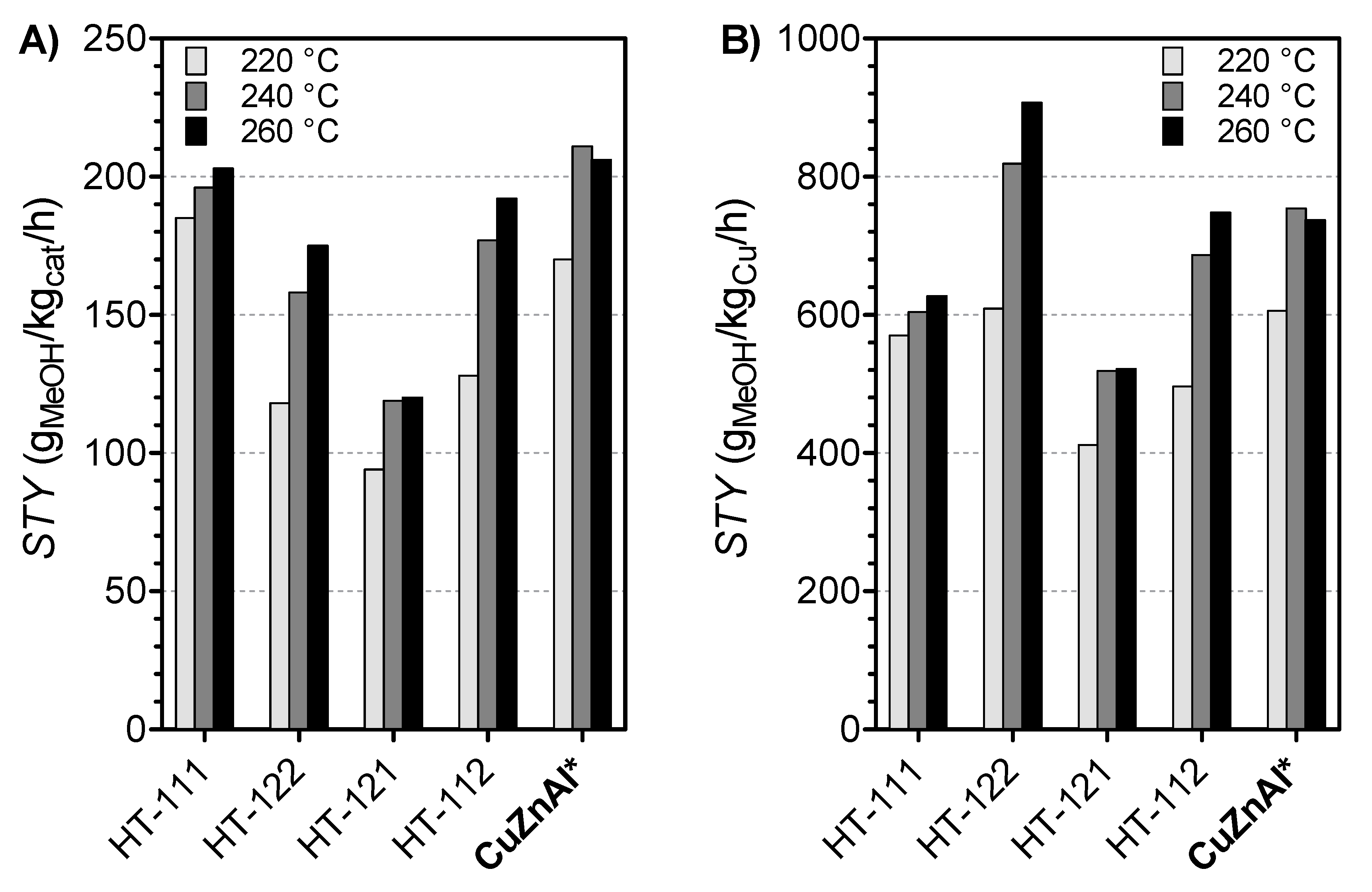

Accordingly, productivity methanol data (Figure 7A) displayed analogous STY values of ca. 200 g_MeOH/kg_cat/h for the HT-111 sample and the reference commercial CuZnAl catalyst in the range of temperature considered, while, under the same Cu loading (Figure 7B), an optimum metallic ratio of 0.4 ensured an STY as high as 900 g_MeOH/kg_Cu/h for the HT-122 sample. Indeed, despite having the lowest copper loading, the HT 122 catalyst showed the best catalytic performance, especially at higher temperatures (240–260 °C), wherein the commercial catalyst, unlike the hydrotalcite-like samples, exhibited a reduction of catalytic activity above 240 °C.

2.3. Structure–Activity Relationships

In an attempt to rationalize the catalytic behavior, the intrinsic activity of the catalysts was elaborated in terms of turnover frequency of CO₂, calculated as the rate of CO₂ conversion (at 220 °C) on a strong base site.

Although the “real” role and the intrinsic activity of each specific site under CO₂ hydrogenation conditions require more deep investigation and further experiments, Figure 8 shows that the nature of the adsorption sites controlled the CO₂ conversion rate. In particular, the HT-121 sample exhibited the highest turnover frequency of CO₂, revealing an apparent better activity of the system at higher ZnO content compared to all other samples. However, considering the lowest MeOH productivity obtained on the same HT-121 sample (see Figure 7), it is evident that, on such a sample, a higher CO₂ conversion rate was related to a higher activity of the strong CO₂ adsorption site in the parallel reaction of reverse water gas shift, rather than in the direct CO₂ hydrogenation to MeOH, thus favoring the formation of CO at the expense of methanol. In this respect, the surface composition of the sample certainly played a key role, as probed by the EDAX results in Figure 5, which suggests that the highest specific CO₂ activity of the HT-121 sample strongly depended on the specific adsorption capacity induced by the relative ratio among the metal precursors. Indeed, it is generally known that the stabilization of Cu^δ+ sites, as specific active centers for CO₂ adsorption/activation, can be attributed either to the incorporation of the copper phase into the metal–oxide lattice or to the formation of a definite metal–support interaction, suitable to promote and ensure the progressive hydrogenation rate of CO₂ via several intermediates and transition states until methanol. On the contrary, an evidently weak CO_x adsorption on the catalytic surface sites prevents the sequential hydrogenation via C–O bond dissociation, while enhancing the parallel path of RWGS [29,30]. Since the molar fraction of Zn also affects the metallic properties of the catalyst (see Figure 4), a further elaboration was carried out, considering the rate of methanol formation as a function of the N₂O/CO₂ ratio, taken as a parameter capable of justifying the relative redox contribution of metallic sites with respect to sites of oxide nature (see Figure 9). Indeed, monitoring the concentration of Cu⁰ and Cu⁸⁺ sites, the N₂O/CO₂ ratio actually represented a measure of the extent of the metal/oxide(s) Cu⁰/(CuZnAl)O_x interface.

As it is possible to observe, the specific rate of methanol formation was significantly sensitive both to the number and to the nature of surface sites, since the activation of hydrogen and carbon dioxide on the respective active centers could effectively bring toward the formation of methanol only in the presence of a balanced amount of metallic and oxidized sites. It is so demonstrated that, by tailoring hydrotalcite-derived CuZnAl catalysts with a specific ratio among the metal precursors, it is possible to realize systems characterized by physico-chemical and catalytic features superior to those of commercial catalysts.

3. Materials and Methods

3.1. Catalyst Preparation

Cu_xZn_yAl_z hydrotalcite-like catalysts with “x:y:z” ratios of 1:1:1, 1:1:2, 1:2:1, and 1:2:2 were synthesized by a co-precipitation method at 25 °C. Two aqueous solutions, one containing the metal precursors dissolved in deionized water and another one of NaOH and Na₂CO₃, were used. CuSO₄ 5H₂O, Zn(NO₃)₂·6H₂O, and Al(NO₃)₃·9H₂O (supplied by Carlo Erba, >98% purity, Cornaredo (MI), Italy) were employed as metal precursors. The precipitant solution was added dropwise in 50 mL of mixed metal precursor solution under vigorous stirring. The pH was kept at a constant value of 11. The precipitate obtained was aged at 65 °C for 18 h using a vapor condenser. The resulting paste was filtered and washed with deionized water and subsequently dried for 4 h at 110 °C. The hydrotalcites so obtained were calcined in air at 450 °C for 6 h with a heating rate of 5 °C/min.

3.2. Catalytic Testing

Catalytic testing was carried out in a CO₂ hydrogenation reaction at 30 bar (CO₂/H₂/N₂ = 23/69/8). During all the runs, a fixed tubular bed reactor (internal diameter, 4 mm; length, 200 mm), located within a stainless-steel rod to reduce gradients of temperature throughout, was used. The catalytic experiments were carried out at 30 bar, in the temperature range between 220 and 260 °C, by operating at a space velocity of 8800 NL/kg_cat/h. A catalyst grain size of 40–70 mesh was selected as a suitable compromise between mechanical resistance of the catalyst particle and pressure drop along the reactor. Before the run, the catalysts were reduced at 300 °C in situ under a “pure” hydrogen flow at atmospheric pressure. A GC equipped with a double-column system, connected to a flame ionized detector (for C-containing products) and thermal conductivity detector (for permanent gases), was used to analyze the reaction stream. The space–time yield of methanol (STY) was determined as the amount in grams of methanol produced per kilogram of catalyst per hour (g_MeOH/kg_cat/h).

3.3. Catalyst Characterization

3.3.1. X-Ray Fluorescence Analysis (XRF)

Catalyst composition was analytically determined by an XRF spectrometer (Bruker AXS-S4 Explorer, Milano, Italy), equipped with an Rh X-ray source (Rh anode, 75 µm Be-window). A LiF 220 crystal analyzer and a 0.12° divergence collimator were used to analyze the samples at the solid state, by considering the emission values of copper, zinc, and aluminum transitions (Cu–Kα1, Zn–Kα1, and Al–Kα1).

3.3.2. XRD Characterization

The structure of dried, calcined, and reduced samples was analyzed by a diffractometer (Philips X’Pert, Eindhoven, The Netherlands), operating at 40 kV, 30 mA, and a scan step of 0.05° s⁻¹, with an Ni β-filtered Cu Kα radiation (λ = 1.5406 Å).

3.3.3. N₂ Physisorption

The textural properties of the catalysts were determined from N₂ adsorption/desorption isotherms at −196 °C, using a Micromeritics ASAP 2020 gas adsorption device (Norcross, GA, USA). The isotherms were elaborated for surface area calculation (SA_BET), while the Barrett–Joyner–Halenda (BJH) method was used for porosity evaluation.

3.3.4. Temperature-Programmed Reduction (TPR)

Catalyst reducibility was probed under hydrogen atmosphere in a linear quartz micro-reactor (i.d., 4 mm) fed with 5 vol.% H₂/Ar flowing at a rate of 30 STP mL/min. The measurements were carried out in a customized home-made setup plant in the temperature range 20–800 °C at a heating rate of 10 °C/min, with 20–30 mg of sample, properly weighed in order to operate under the same amount of reducible species. Hydrogen consumption was monitored by a thermal conductivity detector, previously calibrated with a known amount of CuO. TPR profiles resulted very reproducible in terms of maximum position (±3 °C), as well as extent of H₂ consumption (±3%).

3.3.5. N₂O Chemisorption Measurements

“Single-pulse” N₂O titration measurements were performed in the same experimental setup plant of TPR at 90 °C for the determination of copper surface area (MSA) and dispersion (D_Cu). Before measurements the samples were reduced at 300 °C in situ for 1 h under H₂ atmosphere (100 STP mL/min), then “flushed” at 310 °C in nitrogen flow (15 min) and further cooled down at 90 °C. The values of MSA and D_Cu were calculated by assuming a Cu:N₂O = 2:1 titration stoichiometry and a surface atomic density of 1.46 × 10¹⁹ Cu_at/m², while the average size of copper particle (d_Cu) was obtained from the conventional formula, d_Cu (nm) = 104/D (%), by assuming a spherical particle shape.

3.3.6. CO₂ Temperature-Programmed Desorption (CO₂-TPD)

Measurements of temperature-programmed desorption of carbon dioxide (CO₂-TPD) were also performed in the experimental setup used for TPR and N₂O chemisorption to determine the surface concentrations of base sites. Before CO₂-TPD experiments, the catalyst samples (~100 mg) were reduced in a linear quartz micro-reactor (l, 200 mm; i.d., 4 mm), under atmospheric pressure, by flowing hydrogen (100 STP mL/min) from room temperature to 300 °C (heating rate of 10 °C/min). After an isothermal step of 60 min at 300 °C under hydrogen flow, followed by purging with helium, the samples were saturated in a gas mixture of 20 vol.% CO₂/He (flow rate of 50 mL/min) for 60 min. Then, the samples were cooled down to 100 °C in He flow until a constant baseline level was maintained. The desorption measurements were carried out in a range from 100 to 600 °C, at a heating rate of 10 °C/min, using helium as the carrier flow (50 STP mL/min). The evolved gases were monitored by a thermal conductivity detector, previously calibrated by known pulses of CO₂.

3.3.7. Scanning Electron Microscopy (SEM)

SEM analysis was carried out to study the morphology of the ternary CuZnAl catalysts (Philips XL-30-FEG, Eindhoven, The Netherlands). An EDAX analyzer (Oxford, model 6587, Eindhoven, The Netherlands) was used to determine the atomic composition, with specimens of catalyst samples prepared by gold sputtering and deposited as powders on pin flat stubs.

3.3.8. Transmission Electron Microscopy (TEM)

Powdered samples were dispersed in 2-propanol under ultrasound irradiation, and the resulting suspension was added dropwise to a holey carbon-coated support grid. TEM images of the Cu_xZn_yAl_z catalysts were acquired and elaborated by a Philips CM12 instrument (Eindhoven, The Netherlands) equipped with a high-resolution camera.

4. Conclusions

The activity–selectivity pattern of hydrotalcite-derived CuZnAl systems in the hydrogenation of CO₂ to methanol was explored, with evaluation of textural, structural, and surface factors affecting catalytic functionality. The HT method leads to systems characterized by a very homogeneous distribution of metals per unit area, along with a good dispersion of copper. The concentration of Zn controls the surface properties and, in particular, the reducibility of the systems, as well as the stabilization of Cu⁸⁺ sites at the metal/oxide interface, while a balanced “mix” of Cu⁰, Cu⁸⁺, and strong base sites positively affects the rate of methanol formation upon a favorable adsorption/activation of H₂ and CO₂. By tailoring the HT catalysts with a specific ratio among the metal precursors, an activity–selectivity profile superior to that of a commercial reference catalyst is achievable, demonstrating a methanol productivity as high as 0.9 g/g_Cu/h at ca. 10% CO₂ conversion per pass, at 30 bar in the range of temperature considered.
