Catalysts 2019, 9(10), 836; https://doi.org/10.3390/catal9100836

Article
Bifunctional Electrocatalyst of Low-Symmetry Mesoporous Titanium Dioxide Modified with Cobalt Oxide for Oxygen Evolution and Reduction Reactions
1
Electrochemical Science Research Chair (ESRC), Chemistry Department, College of Science, King Saud University, Riyadh 11451, Saudi Arabia
2
King Abdulaziz City for Science and Technology, Riyadh 11442, Saudi Arabia
*
Author to whom correspondence should be addressed.
Received: 10 September 2019 / Accepted: 2 October 2019 / Published: 8 October 2019

Abstract

:
Hybrids of low-symmetry (disordered) mesoporous titanium dioxide modified with different weight ratios of cobalt oxide nanoparticles (Co3O4(x)/lsm-TiO2) are prepared using a one-pot self-assembly surfactant template. The physicochemical characterization of Co3O4(x)/lsm-TiO2 hybrids by scanning and transmission electron microscopy, X-ray diffraction, N2 adsorption–desorption isotherms, and X-ray photoelectron spectroscopy confirm the successful incorporation of cobalt oxide nanoparticles (2–3 nm in diameter) with preservation of the highly mesoporous structure of titanium dioxide substrate. Among these mesoporous hybrids, the ~3.0 wt.% Co3O4/lsm-TiO2 exhibits the best performance toward both the oxygen evolution (OER) and reduction (ORR) reactions in alkaline solution. For the OER, the hybrid shows oxidation overpotential of 348 mV at 10 mA cm−2, a turnover frequency (TOF) of 0.034 s−1, a Tafel slope of 54 mV dec−1, and mass activity of 42.0 A g−1 at 370 mV. While for ORR, an onset potential of 0.84 V vs. RHE and OER/ORR overpotential gap (ΔE) of 0.92 V are achieved which is significantly lower than that of commercial Pt/C, hexagonal mesoporous, and bulk titanium dioxide analogous. The Co3O4/lsm-TiO2 hybrid demonstrates significantly higher long-term durability than IrO2. Apparently, such catalytic activity performance originates from the synergetic effect between Co3O4 and TiO2 substrate, in addition to higher charge carrier density and the presence of disordered mesopores which provide short ions diffusion path during the electrocatalytic process.
Keywords:
low-symmetry; mesoporous; titanium dioxide; cobalt oxide; oxygen evolution and reduction reactions

1. Introduction

The fabrication of effective, highly stable and multi-functional electrocatalysts for oxygen evolution (OER) and reduction (ORR) reactions is in high demand for the commercialization of rechargeable metal–air and Li-ion batteries [1,2,3], fuel cells [4], and water splitting [5] applications. In particular, the development of highly efficient, stable and dual-functional electrocatalysts for the oxygen evolution (4OH→O2 + 2H2O + 4e) and reduction reactions (O2 + 2H2O + 4e → 4OH) has attracted the interest of scientific researchers, as well as industrial R&D centers. The OER and ORR processes involve two-electron or four-electron transfer reactions that are hampered by significant overpotential, sluggish kinetics, and instability [6,7,8]. Thus, the development of highly effective, inexpensive, and bifunctional (active for both the ORR and the OER) electrocatalysts is important for the development of renewable energy technologies. It is well documented that the state-of-the-art catalysts for the OER are Ir- and Ru-based materials, while the Pt-group materials are the most active electrocatalysts for the ORR [9,10]. However, their high cost, scarcity, weak bifunctionality, and poor stability hinder the applicability of these precious metals in large-scale applications [11]. Consequently, recent research activities have been focused on developing effective bifunctional catalysts with greater performance and cost-effectiveness, and superior durability, for both the ORR and the OER, for widespread applications. Oxides and hydroxides based on transition metals, such as nickel, cobalt, iron, molybdenum, titanium, and tungsten, have emerged as a promising class of noble metal-free material catalysts [12,13,14]. These earth-abundant materials on various supports have been identified as high activity and stability electrocatalysts for the OER and the ORR under neutral or strongly alkaline conditions [15,16,17,18,19,20,21]. For example, nitrogen-doped graphene [22] and carbon nanotubes [23] modified with cobalt oxide nanoparticles hybrids have shown enhanced activity for oxygen reduction and water oxidation reactions. It is believed that the formation of interfacial Co–O–C and Co–N–C bonds and the accompanied synergistic effect are probably responsible for the ORR and OER improved activity [22,23]. Nevertheless, the ORR/OER behavior of the transition metal oxides still requires further improvement to make them highly economical and stable, in comparison to noble metal catalysts, and suitable for commercial applications.
Increasingly more mesoporous materials are being reported as OER/ORR bifunctional catalysts due to their exceptional structural characteristics of narrow pore size distribution, high specific surface area, and well-organized arrangement of mesoporous architectures, which meet the requirements of energy-related conversion, catalysis, adsorption, and sensing applications [24,25,26,27,28,29,30]. Furthermore, mesoporous electrocatalysts possess a high population of active surface sites, and the mesoporous network assists the mass transport of reactants and products, in addition to improving the catalytic performance [31,32]. Among these materials, mesoporous TiO2 catalysts have great promise for numerous applications in electrocatalysis and energy-related processes due to good chemical and physical properties, non-toxicity, good biocompatibility, and excellent photoelectric performance [33,34,35,36]. Within this context, a considerable number of studies have focused on improving the active sites of the TiO2 structure for the OER. Several researchers have also reported the modification of TiO2-based materials with various cations (such as Fe, Co, Ni, Mn, Bi, etc.) to improve their electronic, chemical, optical, and magnetic properties for a better photo- and electrocatalytic performance in water splitting and energy storage applications [37,38,39,40,41,42,43]. In recent relevant work by Hoffmann et al., they reported the cobalt-doped black TiO2 nanotube hybrid that revealed long-term durability for water decontamination and OER applications [44]. However, many of these hybrids still have a shortfall of high overpotential values in comparison with the benchmark catalysts, such as IrO2 and Pt/C-based catalysts [36,38,40]. To this end, our group investigated the preparation of low-symmetry (disorder) mesoporous titanium dioxide (lsm-TiO2) with high surface area and a semi-crystalline anatase wall by using a self-assembly surfactant template followed by a two-step annealing process. It was shown that the degree of porosity, order, and surface area of lsm-TiO2 catalyst can be controlled by tuning the titanium precursor/surfactant ratio. Moreover, the addition of acetylacetone chelating agent during the self-assembly process controlled the hydrolysis and condensation of TiO2 precursor and produced the desired phase of low-symmetry and hexagonal TiO2 (hm-TiO2) substrate [45,46,47]. In comparison to the highly hexagonal mesoporous structure, the lsm-TiO2 thin films have shown a significant enhancement of the OER activity in alkaline water because of the presence of short-range order, bimodal hierarchical pores, and transverse worm-like channels, which provided fast ions diffusion and interfacial electrons transport during the electrocatalytic process [36]. Furthermore, research on TiO2-based nanomaterials as bifunctional OER/ORR electrocatalysts has rarely been reported, and the synthesis of low-cost TiO2 hybrid bifunctional electrocatalysts is desired. This work reports a one-pot surfactant template approach to fabricate low-symmetry (disordered) mesoporous TiO2 substrates that modified with cobalt oxide nanoparticles to form Co3O4(x)/lsm-TiO2 hybrids. The physicochemical properties of surface morphology, crystal structure mesoporosity, and specific surface area of the produced catalysts and their corresponding electrocatalytic activities for the oxygen evolution and reduction reactions were examined. The Co3O4(x)/lsmTiO2 mesoporous catalyst exhibits enhanced performance as a bifunctional electrocatalyst toward the OER and the ORR in alkaline solution in comparison to the cobalt-doped hexagonal mesoporous TiO2 (Co3O4/hm-TiO2), Co3O4/bulk-TiO2, and also the commercially available Pt/C and IrO2.

2. Results and Discussion

2.1. Morphological and Physicochemical Characterization of the Cobalt Oxide-Modified Mesoporous TiO2

Figure 1 shows the field emission scanning and transmission electron microscope (FESEM and TEM) images of the low-symmetry mesoporous TiO2 modified with cobalt oxide (Co3O4(3)/lsm-TiO2 and Co3O4(3)/hm-TiO2). As shown in Figure 1a, the Co3O4(3)/lsm-TiO2 catalyst exhibits a low-symmetry mesoporous structure with worm-like channels running throughout, and the pores tend to be well packed at short range. The FESEM image in Figure 1b shows the typical surface morphology of mesoporous Co3O4(3)/hm-TiO2 with uniform and highly ordered two-dimensional (2D) hexagonal channels extended over a large domain. Figure 1c,d shows the representative TEM image of Co3O4(3)/lsm-TiO2 and Co3O4(3)/hm-TiO2 catalysts, respectively. The TEM image in Figure 1c clearly demonstrates that the low-symmetry mesoporous structure of Co3O4(3)/lsm-TiO2 contains large (primary) mesopores, connected by smaller pores (hierarchical porous structure) with a disordered pore arrangement. However, it is difficult to distinguish the cobalt nanoparticles from the TiO2 substrate. On the other hand, the TEM image in Figure 1d clearly shows the highly ordered cylindrical mesoporous channels of TiO2, with a pore size and a wall thickness of about 2.6 and 2.1 nm, respectively. The cobalt oxide nanoparticles can be distinguished as dark spots that are uniformly distributed throughout the mesoporous hexagonal TiO2 substrate, as shown by the red circle in Figure 1d. Figure 1f shows the high-resolution TEM image of Co3O4(3)/hm-TiO2 catalyst, which demonstrates that Co3O4(3)/hm-TiO2 has a crystalline nature with a lattice fringe spacing estimated at 0.345 nm index for TiO2 (101) diffraction plane. Moreover, the crystal lattice spacing of the cobalt oxide nanoparticles is estimated at 0.243 and 0.288 nm, corresponding to the Co3O4 diffraction planes of (311) and (220), respectively. Upon increasing the cobalt content to 7.0 wt.%, the nanoparticles aggregated to form larger assemblies, and a disordered TiO2 substrate was obtained, as shown in the TEM images of Co3O4(7)/lsm-TiO2 catalyst in Figure S1 (Supplementary Materials).
The crystalline phases of lsm-TiO2 and Co3O4(x)/lsm-TiO2 catalysts were examined using X-ray diffraction (XRD), as shown in Figure 2. Furthermore, the XRD curve of Co3O4(3)/lsm-TiO2 catalyst was compared with those of Co3O4(3)/bulk-TiO2 and Co3O4(3)/hm-TiO2 catalysts, as shown in Figure S2. As presented in Figure 2, the XRD patterns clearly show a series of diffraction peaks of a typical pure TiO2 anatase phase (JCPDS card No. 01-070-6826). Clearly, no characteristic diffraction peaks of CoO or Co3O4 are detected when the cobalt content is lower than 7.0 wt.%. From the XRD patterns, it can be concluded that the incorporation of cobalt oxide seems not affected the anatase phase of TiO2 substrate, which is consistent with the TEM results. However, the existence of cobalt oxide diffraction peaks are observed for Co3O4(7)/lsm-TiO2 and Co3O4(3)/bulk-TiO2, as shown in Figure 2 and Figure S2 (Supplementary Materials). The cobalt oxide diffraction peaks are centered at 2θ ~36.90 and 38.8, which can be assigned to the (311) and (222) diffraction planes, respectively, of the cubic Co3O4 phase (JCPDS Card 00-042-1467).
Figure S3 shows the effect of varying cobalt content on the average crystallite size of the lsm-TiO2 catalysts, as assessed from the half-height width of the main diffraction peak (2θ = 25.5°) using Scherrer’s equation. The curve in Figure S3 shows that the TiO2 crystal size increases significantly when the cobalt content exceeds 1.0 wt.% and, in general, the crystallite size of the TiO2 substrate is in the range between 5.93 and 6.8 nm for Co3O4(x)/lsm-TiO2, and 13.6 nm for Co3O4(3)/bulk-TiO2. Our results demonstrate the key role of P123 surfactant, which acts as a capping agent around the nanoparticles, thereby stabilizing the porosity of the anatase phase of TiO2 during the sol–gel process in solution and the annealing process at higher temperature [35].
The X-Ray Photoelectron Spectroscopy (XPS) analysis was carried out to define the surface bonding of mesoporous TiO2 induced by cobalt dopant. Figure 3 displays the XPS survey spectra of pristine lsm-TiO2 and Co3O4(3)/lsm-TiO2 catalysts. Both spectra are very similar, except for the presence of the Co 2p3/2 peak at 780.4 eV. In addition to the Ti, O, and Co 2p3/2 peaks for TiO2 and Co3O4(3)/lsm-TiO2, carbon C 1s signals are also observed in both samples. These could originate from the burnt surfactant or from carbon contamination during sample preparation and successive handling. Figure 3b shows the high-resolution XPS spectra of Ti 2p of the pristine lsm-TiO2 and Co3O4(3)/lsm-TiO2 catalysts. The Ti 2p3/2 and Ti 2p1/2 spectrum peaks of pristine lsm-TiO2 are identical to their binding energy (BE) at 459.55 and 465.29 eV, respectively, implying the Ti4+ state [48]. The spin-orbit splitting energy of those two peaks is 5.74 eV, which is identical to that reported in the literature [49].
In the presence of cobalt dopant, the Ti 2P3/2 peaks of lsm-TiO2 and Co3O4(3)/lsm-TiO2 catalysts are almost identical to that of the pure one, except for a slight red-shift in the BE of 0.15 eV, which is consistent with previous reports [50,51,52]. Figure 3c displays the XPS spectra of the O 1s of Co3O4(3)/lsm-TiO2, and three Gaussian peaks assigned as (1), (2), and (3) were used to fit the experimental data. The peak positioned at 529.83 eV belongs to the Ti–O bond in TiO2. The peak located at 531.6 eV can be ascribed to the Ti–OH bond, which was reported to be positioned at a BE ∼1.5–1.8 eV higher than the O 1s of TiO2 [53,54]. These results prove that the introduction of Co dopants in Co3O4(3)/lsm-TiO2 creates an enriched quantity of surface O vacancies in the form of metal–OH bonds. The chemical structure and oxidation states of Co dopants in lsm-TiO2 hybrids were well demonstrated in the XPS analysis (Figure 3d). The Co 2p spectra exhibit two main peaks with binding energies of 781.3 eV (Co 2p3/2) and 796.9 eV (Co 2p1/2), accompanied by two strong shakeup satellite peaks toward higher binding energies posited at nearly 6 eV from the main peaks, which suggests Co3O4 phase with two valence states (octahedral Co3+ and tetrahedral Co2+) coexist in Co/lsm-TiO2 [55]. After deconvolution of Co 2p spectra, the energy difference between the Co 2p3/2 and the Co 2p1/2 peak had a separation of ∼15.1 eV, which further indicates that the oxidation state of cobalt in the lsm-TiO2 lattice is mixed-valence Co3O4. The elemental composition analysis of XPS spectra in Figure 3a indicates a 2.92 wt.% cobalt content for the Co3O4(3)/lsm-TiO2 catalyst, as shown in Table S1. In addition, Figures S4 and S5 show the Scanning electron microscope- Energy dispersive X-ray SEM–EDX elements mapping of Co3O4(3)/lsm-TiO2 and Co3O4(3)/hm-TiO2 catalysts, respectively. Clearly, the images of EDX elements mapping demonstrate the uniform distribution of Co3O4 within both the low-symmetry and hexagonal TiO2 substrate. The EDX analysis reveals that the cobalt content is very close for both low-symmetry and hexagonal TiO2 substrate and reaches 3.7% and 3.83%, respectively.
The mesoporosity of the obtained lsm-TiO2, Co3O4(x)/lsm-TiO2, and Co3O4(3)/hm-TiO2 samples are characterized by the N2-physisorption technique, and the results are shown in Figure 4. The N2 sorption isotherms of the produced catalysts in Figure 4a exhibit characteristic type IV curves and H1 hysteresis loops with capillary condensation steps, which are distinctive of mesoporous materials according to the IUPAC classification [56,57]. Figure 4a demonstrates distinct capillary condensation at P/P0 = 0.4–0.7, indicating the uniform and narrow mesopore size distribution, which is consistent with the TEM results. The pore size distribution of the lsm-TiO2 and Co3O4(x)/lsm-TiO2 samples were assessed from the adsorption data via the BJH method, and is shown in Figure 4b.
The pore size analysis shows that as the cobalt content increases, the pore size distribution becomes wider in the case of Co3O4(7)/lsm-TiO2. This is probably due to the structural damage from the growth of cobalt oxide nanoparticles. The specific texture parameters of the samples are presented in Table 1. We can observe that the specific surface area (SSA) and the pore volumes of low symmetry mesoporous TiO2 substrate tend to decline as the cobalt content increases due to the deteriorating mesoporous structure, which is consistent with the above TEM and XRD results.

2.2. Electrochemical Performance of the Mesoporous TiO2 Modified with Cobalt Oxide Nanoparticles for OER

Figure 5a shows the linear sweep voltammetry (LSV) curve of Co3O4(x)/lsm-TiO2 catalyst at 10 mV s−1 in 1.0 M of KOH solution in a conventional 3-electrode cell. For comparison purposes, Figure 5b shows the LSV curve of lsm-TiO2, Co3O4(3)/hm-TiO2, Co3O4(3)/bulk-TiO2, and commercial IrO2 catalysts recorded under similar conditions. Based on the LSV results, the TiO2-base catalysts exhibit a certain degree of OER electrochemical activity in alkaline solution. The bare CP does not show any catalytic activity for the OER, while the pure lsm-TiO2 catalyst exhibits an OER overpotential of 490 mV at a current density of 10 mA cm−2. With the incorporation of cobalt oxide nanoparticles, the OER activity is significantly improved, as evidenced by the onset potential of 1.48 V vs. RHE and the overpotential (η) of 348 mV at 10 mA cm−2 in the case of Co3O4(3)/lsm-TiO2. This overpotential is 142 mV lower than that of the corresponding pure lsm-TiO2. The mesoporous Co3O4(3)/lsm-TiO2 catalyst shows superior performance in comparison to Co3O4(3)/hm-TiO2 (452 mV) and Co3O4(3)/bulk-TiO2 (470 mV) that are prepared by the same procedure, and even with respect to commercial IrO2 catalyst (354 mV) at the same current density of 10 mA cm−2, as shown in Table 2 and Figure 5b. The OER kinetics was further investigated using a Tafel plot by fitting the LSV data to the equation: η = b log j + a, where j and b are the current density and Tafel slope, respectively [51]. As shown in Figure 5c and Table 2, the Co3O4(3)/lsm-TiO2 catalyst has the smallest Tafel slope (54 mV dec−1), making it the most efficient one among the investigated and reference catalysts. For further evaluation of the electrocatalytic behavior of the cobalt oxide-modified mesoporous TiO2 hybrids for the OER, the mass activity and turnover frequency (TOF) were calculated at an overpotential of η = 0.370 V (1.6 V vs. RHE), and are reported in Table 2. The TOF and mass activity of our electrocatalysts were calculated according to the method reported by Gao et al. [58], shown in the Supplementary Materials. The mass activity of Co3O4(3)/lsm-TiO2 at a potential 1.6 V vs. RHE reaches 42 A g−1, and the TOF value equals 0.035 s−1 at η = 370 mV. Clearly, the mass activity and TOF values of Co3O4(3)/lsm-TiO2 are superior to those of the other investigated electrocatalysts and comparable to those recently reported for the state-of-the-art catalysts [59,60,61,62]. From the data in Table 2, the TOF value of Co3O4(3)/lsm-TiO2 catalyst is about ~12.5, ~17.5, and ~1.85 orders of magnitude higher than that of the Co3O4(3)/hm-TiO2 (0.0028), Co3O4(3)/bulk-TiO2 (0.002), and IrO2 (0.019) catalysts, respectively. The superior OER activity of Co3O4(3)/lsm-TiO2 could be attributed to the synergistic effect of Co3O4(3)/TiO2, as well as that the low-symmetry TiO2 substrate provide a short diffusion path for ions mass transport, which is better than the hexagonal ordered continuous channels.
Figure 5d shows the LSV curve of the Co3O4(3)/lsm-TiO2 electrode tested under various KOH concentrations (0.1, 1.0 M) and extremely alkaline conditions (such as concentrated 5.0 M of KOH solution), which are often encountered in commercial alkaline water electrolysis [63]. As shown in Figure 5d and Table 3, the OER performances of the Co3O4(3)/lsm-TiO2 catalyst in 0.1, 1.0, and 5.0 M KOH display an onset potential of 317 , 227, and 160 mV vs. SCE, respectively, and a current density of 20 mA cm−2 was obtained in 5.0 M KOH at an overpotential of 272 mV, which is 240 and 65 mV lower than that acquired in 0.1 and 1 M KOH, respectively.
The long-term stability of Co3O4(3)/lsm-TiO2 catalyst and the ability to continuously catalyze the OER were examined using continuous cycling and chronoamperometry (CA) in 1.0 M KOH. Figure 6a displays the LSV curves of a Co3O4(3)/lsm-TiO2 electrode before and after 2500 cycles in 1.0 M KOH at 10 mV s−1. The catalyst clearly exhibits a similar LSV after extended cycling with negligible loss of the OER anodic current, confirming satisfactory durability in alkaline electrolytes. To further assess the superior durability of the Co3O4(3)/lsm-TiO2 catalyst, Figure 6b shows the CA response of Co3O4(3)/lsm-TiO2 and the benchmark IrO2 catalysts measured for 9 h at 1.65 V vs. RHE in 1.0 M KOH. Figure 6b demonstrates that the benchmark IrO2 electrocatalyst shows an anode current loss of 90% after continuous operation for 9 h in 1.0 M KOH solution. In contrast, the Co3O4(3)/lsm-TiO2 catalyst exhibits an oxygen evolution current over 13 times higher than that of IrO2, and offers a stable current with the negligible loss (8%) after 9 h of electrolysis at the same potential, in agreement with the results of the incessant potential CV sweeps. These results suggest that Co3O4(3)/lsm-TiO2 is functioned as an effective electrocatalyst to drive water oxidation with great durability. The performance of Co3O4(3)/lsm-TiO2 is not only higher than those of IrO2, Co3O4(3)/hm-TiO2, and Co3O4(3)/bulk-TiO2, but also higher than those of other reported state-of-the-art cobalt-based electrocatalysts [58,59,60]. A comprehensive assessment of alkaline OER performance and catalyst parameters is delivered in Table S2.
Further the electrochemical impedance spectroscopy EIS analysis measurements were also performed to get further insight into the kinetics of electrode reactions before and after doping with cobalt oxide nanoparticles. Figure 7a presents typical Nyquist plots of the impedance data obtained for the pure lsm-TiO2, Co3O4(3)/lsm-TiO2, Co3O4(3)/hm-TiO2, and Co3O4(3)/bulk-TiO2 electrodes at 1.6 V vs. RHE. The low-frequency area of the Nyquist plot (Z’ vs. −Z”) and the equivalent circuit, presented in the inset, matches the charge transfer resistance (R2) of the catalytic materials. It is clearly observed that the radii of the arc on the EIS Nyquist plots of Co3O4(3)/lsm-TiO2 are lower than those of pure lsm-TiO2, suggesting that the cobalt-doped samples possess smaller Rct and better electrochemical OER performance. Furthermore, the result indicates that Co3O4(3)/lsm-TiO2 can accelerate charge transfer kinetics and acts as a highly effective water oxidation electrocatalyst. The R2 values for Co3O4(3)/lsm-TiO2, Co3O4(3)/hm-TiO2, Co3O4(3)/bulk-TiO2, and lsm-TiO2 were found to be 7.10, 184,723, and 304 Ω, respectively, as shown in Table 4. The Co3O4(3)/lsm-TiO2 catalyst has the lowest R2 value, implying lower electron and charge transfer resistances and, thus, faster electrode kinetics, in agreement with its highest intrinsic activity toward the OER. Figure 7b shows the Nyquist plots of the Co3O4(3)/lsm-TiO2 catalyst at different overpotentials, with the corresponding impedance parameters reported in Table 5. It is clear from Figure 7b that the semicircle diameter and the R2 values are considerably decreased as the overpotential shifts from 220 to 350 mV vs. RHE, indicating that the OER process is considerably improved at higher potentials, which corresponds to earlier polarization curves.
Although the Mott−Schottky (M–S) theory applies to the flat (non-porous) electrode, the M–S plot can be used to compare the apparent charge carrier density of the mesoporous catalysts [64]. Mott−Schottky (M–S) analysis was conducted on the pure lsm-TiO2, Co3O4(3)/lsm-TiO2, and Co3O4(5)/lsm-TiO2 catalysts. M–S plots were obtained in 1.0 M KOH at 500 Hz and are shown in Figure 7c. The pure lsm-TiO2, Co3O4(3)/lsm-TiO2, and Co3O4(5)/lsm-TiO2 catalysts clearly exhibit a positive slope in the M–S curves, confirming n-type semiconductor character. Importantly, the Co3O4(3)/lsm-TiO2 and Co3O4(5)/lsm-TiO2 samples show substantially smaller slopes compared to pure lsm-TiO2, suggesting a significant increase in charge carrier density.
The catalysts carrier densities were estimated using the Mott−Schottky equation shown below:
N d = ( 2 e 0 ε ε 0   )   [   d   ( 1 C 2 d V ) ] 1
where ε0 is the permittivity of vacuum, e0 is the electron charge, ε is the dielectric constant of TiO2 (31 for anatase) [61], V is the applied electrode potential, and Nd is the donor density. The Mott−Schottky plot with the corresponding charge carrier density value for all Co3O4 modified lsm-TiO2 electrodes is shown in Figure S6 (Supplementary Materials). The charge carrier densities of the pure lsm-TiO2, Co3O4(3)/lsm-TiO2, Co3O4(5)/lsm-TiO2, and Co3O4(7)/lsm-TiO2 were estimated to be 4.9 × 1021 cm−3, 3.9 × 1022 cm−3, 3.45 × 1023 cm−3, and 2.24 × 1022 cm−3, respectively. The increment in the carrier densities of Co3O4(3)/lsm-TiO2 and Co3O4(5)/lsm-TiO2 could be attributed to the increased oxygen vacancy states, which acted as extra electron donors for TiO2 substrate [65,66].

2.3. Electrochemical Performance of the Mesoporous TiO2 Modified with Cobalt Oxide Nanoparticles for ORR

The electrocatalytic ORR activity of lsm-TiO2 and Co3O4(3)/lsm-TiO2 was studied in an N2- and O2-saturated 1.0 M KOH solution using glassy carbon electrode. As displayed in Figure 8a, the curves show a distinctive ORR peak for lsm-TiO2 and Co3O4(3)/lsm-TiO2 electrodes in the O2-saturated electrolyte solution, which completely disappears in the N2-saturated KOH solution. Moreover, the oxygen reduction onset potential is at 0.84 and 0.73 V vs. RHE, and a peak current of ~0.6 and ~0.2 mA cm−2 was obtained for Co3O4(3)/lsm-and lsm-TiO2, respectively. This proves that Co3O4(3)/lsm-TiO2 significantly enhances the ORR in alkaline solution. Figure 8b displays the LSV plots obtained using a glassy carbon rotating disk electrode (RDE) loaded with lsm-TiO2, Co3O4(3)/bulk-TiO2, Co3O4(3)/hm-TiO2, and Co3O4(3)/lsm-TiO2 catalysts at a scan rate of 10 mV s-1 and a rotation speed of 2000 rpm in 1.0 M KOH solution. The Co3O4(3)/lsm-TiO2-based electrode achieved the best performance among the other investigated catalysts for the ORR in alkaline solution. As shown by the LSV curves of all investigated electrocatalysts (Figure 8b), the Co3O4(3)/lsm-TiO2-based electrode exhibits a high current density and a characteristic ORR onset potential of about 0.84 V vs. RHE, which is respectively 182, 150, and 140 mV more positive than the overpotential of the lsm-TiO2, Co3O4(3)/bulk-TiO2, and Co3O4(3)/hm-TiO2 electrodes, respectively, signifying a more facile ORR process on Co3O4(3)/lsm-TiO2 hybrid.
Rotating disk electrode (RDE) analysis was also carried out to examine the ORR activity and kinetics of the Co3O4(3)/lsm-TiO2 electrode in an O2-saturated 1.0 M KOH solution. Figure S7 (Supplementary Materials) displays the LSV curves for Co3O4(3)/lsm-TiO2 at rotation speeds ranging from 500 to 3000 rpm. Evidently, as the rotational speed rate increases, the current density gradually increases, due to the enhanced mass transport to the electrode surface. The number of electrons transferred (n) and participating in the ORR was assessed through the Koutecky–Levich (K–L) equation at different potentials and within the oxygen-limiting reduction current range, as shown in Figure 8c. From the line slope in Figure 8c, the average n value is about 3.6 at potentials varying from 0.25 to 0.5 V for the Co3O4(3)/lsm-TiO2 catalyst. The calculated n value of Co3O4(3)/lsm-TiO2 indicates a four-electron (4e) transfer reaction, suggesting a direct pathway for electrocatalytic reduction of oxygen forming water, rather than from hydrogen peroxide. The results of the OER and ORR studies confirm that the Co3O4(3)/lsm-TiO2 catalyst can be employed as a bifunctional oxygen electrocatalyst, and the electrocatalytic activity for both reactions can be assessed by the value of ΔE, which refers to the difference between the potential required to achieve 10 mA cm−2 (E[email protected]) for the OER and the half-wave potential (E1/2) for the ORR [67,68,69,70,71]. Figure 8d shows the LSV of lsm-TiO2, Co3O4(3)/lsm-TiO2, Co3O4(3)/bulk-TiO2, and for comparison, the commercial Pt/C catalysts loaded on carbon paper electrode in O2-saturated 1.0 M KOH solution at a scan rate of 10 mVs−1. Compared with Co3O4(3)/lsm-TiO2 that uses P123 as surfactant template, the Co3O4(3)/bulk-TiO2 catalyst prepared in the absence of P123 surfactant exhibits lower ORR and OER activity due to particle aggregation, which inhibits the diffusion of O2 and induces the O2 reduction and evolution efficiencies. The Co3O4(3)/lsm-TiO2 exhibits the smallest ΔE value of 0.92 V (with E[email protected] = 1.55 V, E1/2 = 0.65 V), and this value is noticeably lower than the ΔE obtained using commercial Pt/C catalyst (1.19 V with E[email protected] = 1.94 V, E1/2 = 0.75 V), Co3O4(3)/hm-TiO2 (0.99 with EJ @10 = 1.69 V, E1/2 = 0.70 V, not shown), Co3O4(3)/bulk-TiO2 (1.14 with EJ @10 = 1.69 V, E1/2 = 0.55 V), and lsm-TiO2 (1.18 V with EJ @10 = 1.71 V, E1/2 = 0.53 V), and comparable with that of the state-of-the-art cobalt-based catalysts [67,68,69,70,71]. Interestingly, the ORR current density obtained at Co3O4(3)/lsm-TiO2 catalyst is higher than that at Pt/C catalyst. These results illustrate the importance of the low-symmetry mesoporous TiO2 substrate and the role of cobalt oxide electrocatalyst dopants in boosting the ORR and OER activities for energy production and storage applications.

3. Materials and Methods

3.1. Materials

The triblock copolymer non-ionic surfactant of Pluronic® P123 (Mw = 5800, EO20PO70EO20) and titanium(IV) butoxide (TBO, Ti(OBu)4, 97%) were purchased from Sigma-Aldrich (Saint Louis, MO, USA). Cobalt acetate (Co(OAc)2.4H2O) was purchased from Alfa Aesar (Ward Hill, MA, USA). Hydrochloric acid (HCl, 37 wt.%), absolute ethanol (C2H6O, Analar), and acetylacetone (99%) were all purchased from Sigma-Aldrich. Carbon paper (CP, SIGRACET, GDL-24BC, SGL Technologies, Wiesbaden, Germany) was employed as the working electrode substrate. Potassium hydroxide pellets (pure) was purchased from BDH group. Deionized water with a resistivity of 18.2 MOhm cm was obtained from Ultrapure Water purification system of Milli-Q (Millipore, Inc., Darmstadt, Germany).

3.2. Synthesis of Cobalt Oxide/Mesoporous TiO2 Materials

The crystalline mesoporous Co3O4(x)/lsm-TiO2 and Co3O4/hm-TiO2 catalysts (x = 0.5, 1.0, 3.0, 5.0 and 7.0 wt.% of the cobalt precursor) were prepared according to our previous reports [36] by using a chelation-assisted evaporation-induced self-assembly (EISA) approach in an ethanolic/Pluronic® P123/HCl/acetylacetone (AcAc)/titanium tetrabutoxide (TBO) mixed solution combined with a simple template-carbonization strategy. The low-symmetry mesoporous TiO2 modified with cobalt oxide nanoparticles was prepared by dissolving 0.50 g (0.086 mmol) of P123 surfactant in 10.0 g (217 mmol) of absolute ethanol. Then 7.5, 15.2, 46.5 79.0, and 113 mg of Co(OAc)2 equivalent to 0.5, 1.0, 3.0, 5.0, and 7.0 wt.% was added to the above solution with continuous vigorous stirring to attain a clear homogenous solution, which is denoted as solution-A. Next, 1.5 g of TBO was added to in AcAc solution with a TBO:AcAc ratio equal to 2:3 wt.% and mixed for 20 min using magnetic stirring. Subsequently, the TBO/AcAc mixture was slowly added to P123 solution while constantly stirring for 30 min at 25 °C to obtain a homogeneous bright-yellow solution. In the meantime, concentrated HCl (1.5 g, 36 wt.%) was introduced dropwise, with continuous stirring, for a further 1.0 h. Then the obtained homogeneous solution was decanted into Petri dishes to evaporate the solvents, and then subjected to heating in an oven at 40 °C for 48 h for solidification and solvent evaporation. Later, the green transparent membrane was removed from the petri dish and subjected to pyrolysis at 350 °C for 3.0 h under N2 atmosphere and a heating rate of 1 °C min−1. Finally, the green mesoporous Co3O4(x)/lsm-TiO2 product was obtained by further calcination of the grey powder in the open air at 400 °C for 4.0 h. The obtained cobalt oxide-modified low-symmetry mesoporous TiO2 material was labeled as Co3O4(x)/Lsm-TiO2, in which x represents the weight percentage of the cobalt precursor used in the synthesis process (0.5, 1.0, 3.0, 5.0, and 7.0 wt.%). In the absence of cobalt acetate addition, the sample was labeled as lsm-TiO2. The hexagonal mesoporous TiO2 modified by cobalt oxide (Co3O4(x)/hm-TiO2) catalyst was prepared by following the same procedure of self-assembly and heat treatment, but using 2.0 g of Pluronic® P123 (0.159 mmol) surfactant with the addition of 2.4 g of concentrated HCl (36%). The non-porous catalyst (Co3O4/bulk-TiO2) was synthesized through a similar route, but without adding the Pluronic® P123 surfactant, and used as a control catalyst.

3.3. Material Characterization

The crystal structure of the catalysts was executed using X-ray diffraction (XRD, Rigaku Mini Flex 600, Tokyo, Japan) with Cu Kα radiation (40 kV, 15 mA). The crystallite size of the materials was calculated by the Scherrer equation as DXRD = 0.94λ/dcosθ, where λ is the X-ray wavelength, d is the diffraction peak width at half maximum, and θ is the diffraction angle. The catalysts surface morphology was acquired using scanning electron microscopy (Hitachi S4800, Japan) at 1.0 kV and 10 mA. JEOL 2100F microscope (Tokyo, Japan) operated at 200 kV was used to perform the catalysts’ fine structures. The samples were dispersed in ethanol solution and supported onto a carbon film on a Cu grid to obtain for TEM measurement. X-ray photoelectron spectroscopy (XPS) analysis was performed using an Escalab 250 spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) with an X-ray source of monochromatic MgKα. The N2 adsorption–sorption isotherms at 77 K were measured using a NOVA 2200e surface area analyzer (Quantachrome Instruments, Florida, USA) Japan). Before the N2 sorption analysis, the catalyst materials were degassed under vacuum at 180 °C for 6 h and the surface area was assessed by the Brunauer–Emmett–Teller (BET) method and the pore size distribution and pore volume curves were estimated by the Barrett–Joyner–Halenda (BJH) method.

3.4. Electrochemical Measurements

The catalysts’ electrochemical characterization was performed using a potentiostat (BioLogic SAS, model) in a 3-electrode assembly, with a Pt mesh (1 × 1 cm2) and saturated calomel electrode (SCE) as the counter and reference electrodes, respectively. The mesoporous catalysts were deposited on a commercial carbon paper substrate (CP, SIGRACET®, grade GDL-24BC, geometric area 1 × 1 cm2) as the working electrode, while the potential was normalized to the reference hydrogen electrode (RHE) using the equation ERHE = ESCE + 0.244 V + 0.059 pH at 25 °C, where pH = 14 for 1.0 M KOH solution. The overpotential (η) was estimated as E (vs. RHE)−1.229 V. The mesoporous catalyst was deposited on the CP electrode using the electrophoretic deposition (EPD) method. In a typical procedure, 1.0 mL of iodine (40 mg in 15 mL acetone) was mixed with 15 mg of mesoporous catalyst powder and dispersed using an ultrasonic probe for 20 min to get a uniformly dispersed mixture of catalyst powder. The CP substrate (1 × 1 cm2) was placed in a small glass cell as the cathode and in parallel with the CP anode at a distance of ca. 1 cm. Then, a bias of +10 V was applied between them for 4 min using BioLogic SAS potentiostat to deposit the catalyst particles. Subsequently, the working electrode was rinsed with deionized water, dried in air, and calcined in a tube furnace under N2 flow at 350 °C for 30 min. The average weight of the catalyst deposited on CP was 0.4 mg. The polarization curves and the OER and the ORR activity were reported without IR correction. Impedance spectroscopy analysis was executed in the frequency range of 10−2 to 200 kHz with an AC voltage amplitude of 20 mV at a bias of 0.5 V vs. SCE in a 1.0 M KOH electrolyte. Mott–Schottky (M–S) plots were acquired in direct current potential polarization with a potential step of 10 mV at 500 Hz. The commercial Pt/C (10 wt.%) and IrO2 catalysts were prepared and tested, under similar conditions for the sake of comparison. For ORR, linear sweep voltammetry (LSV) and cyclic voltammetry polarization measurements were performed in an O2-saturated (if applicable) 1.0 M of KOH solution at 10 mV s−1. The catalyst ink was made by dispersing the electrocatalyst (10 mg) in a mixture of water (0.5 mL), isopropanol (0.5 mL), and Nafion (10 μL of 5 wt.%) followed by sonication for 20 min. Afterwards, the catalyst ink (5 μL, equivalent to 50 μg) was casted on a glassy carbon (GC) electrode (diameter = 3 mm, area = 0.07 cm2). Rotating disk electrode (RDE) experiments were recorded using glassy carbon (3.0 mm diameter, METROHM, 628-10) at a rotation speed range of 500 to 3000 rpm at 10 mV s−1. Furthermore, the total number of electrons taking part in the ORR was assessed via the Koutecky–Levich (K–L) equation shown below:
1 J =   1 J L + 1 J K = 1 B ω 1 / 2 + 1 J K
B = 0.62 n F   C 0   ( D 0 ) 2 / 3   ν 1 / 6
where JK and JL are the kinetic and limiting current densities, respectively; ω is the electrode rotating rate; B is determined from the slope of K-L curves according to the Levich formula (1); F is the Faraday constant, 96485 C mole−1; n is the number of electrons transferred; C0 is the bulk concentration of O2, 1.2 × 10−6 mole cm−3; ν is the kinetic viscosity, 1.01 × 10−2 cm2 s−1; and D0 is the diffusion coefficient of O2, 1.97 × 10−5 cm2 s−1.

4. Conclusions

In conclusion, we have demonstrated the synthesis of highly active bifunctional OER/ORR hybrids of cobalt oxide-doped low-symmetry mesoporous titanium oxide (Co3O4(x)/lsm-TiO2) catalysts via the self-assembly surfactant template method. The effects of cobalt doping level on the morphology and electrocatalytic properties of the obtained mesoporous hybrids were investigated. The hybrids’ characterizations confirmed the formation of mesoporous titanium dioxide substrate modified with cobalt oxide nanoparticles with a diameter of 2–3 nm. The Co3O4(3)/lsm-TiO2 hybrid with ~3 wt.% Co doping was found to be a highly active electrocatalyst for both the OER and the ORR in alkaline media. This catalyst exhibited excellent bifunctional OER/ORR catalytic performance, low onset potentials (1.480 V OER and 0.84 V ORR), a small OER/ORR overpotential gap (ΔE) of 0.92 V, which is significantly lower than that of reference analogue of (lsm-TiO2 (1.18 V), Co3O4(3)/bulk-TiO2 (1.14 V) hybrids, the noble-metal catalyst of Pt/C (1.19 V), and better durability in comparison with IrO2. The enhanced activity of Co3O4(3)/lsm-TiO2 catalyst is believed to originate from the synergetic effect between Co3O4 and TiO2, higher charge carrier density, as well as the presence of short-range order mesopores and channels which provide short ions diffusion path during the electrocatalytic process. Our results support the new approach to fabricating novel TiO2-based bifunctional OER and ORR catalysts modified with non-precious metal oxides for energy production, storage, and conversion technologies.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/9/10/836/s1: Figure S1: SEM image for Co3O4(7)/lsm-TiO2 with cobalt oxide highlighted with yellow circles; Figure S2: XRD spectra of Co3O4(3)/lsm-TiO2, Co3O4(3)/hm-TiO2, and Co3O4(3)/bulk-TiO2; Figure S3: Plot for the effect of varying cobalt content on the average crystallite size of the Co3O4(x)/lsm-TiO2 catalysts; Figure S4: SEM–EDX elements mapping of Co(3)/hm-TiO2; Figure S5: SEM–EDX elements mapping of Co(3)/lsm-TiO2 catalyst; Figure S6: Mott−Schottky plot of pure lsm-TiO2 and Co3O4-modified lsm-TiO2 electrodes measured at 500 Hz; Figure S7: LSV curves of Co3O4(3)/lsm-TiO2 at a scan rate of 10 mV s−1 and a rotation speed of 500, 1000, 1500, 2000, 2500, and 3000 rpm in O2-saturated 1.0 M KOH; Table S1: The atomic contents of Co, Ti, and O in lsm-TiO2 and Co(3)/lsm-TiO2 according to the XPS reports; Table S2: Comparison of OER performance for Co3O4(3)/lsm-TiO2 with other reported OER electrocatalysts in alkaline media. Turnover frequency (TOF) calculation method.

Author Contributions

M.S.A. executed the experimental part and prepared the original draft; M.A.G. drew the conceptualization plan, preformed analysis and validated the results, and wrote and edited the manuscript in the final form; P.A. performed and analyses in the ISE part; S.M.H. executed and wrote the XPS analysis part; and A.M.A.-M. provided the funds, resources, and supervision for the overall research project.

Funding

This research was funded by King Saud University, the Vice Deanship of Scientific Research Chairs.

Acknowledgments

The authors are grateful to the Deanship of Scientific Research, King Saud University for funding through the Vice Deanship of Scientific Research Chairs, and they thank the Researchers Support & Services Unit (RSSU) for the manuscript proofreading.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Hong, W.T.; Risch, M.; Stoerzinger, K.A.; Grimaud, A.; Suntivich, J.; Shao-Horn, Y. Toward the rational design of non-precious transition metal oxides for oxygen electrocatalysis. Energy Environ. Sci. 2015, 8, 1404–1427. [Google Scholar] [CrossRef]
  2. Qian, Y.; Hu, Z.; Ge, X.; Yang, S.; Peng, Y.; Kang, Z.; Liu, Z.; Lee, J.Y.; Zhao, N.Y. A metal-free ORR/OER bifunctional electrocatalyst derived from metal-organic frameworks for rechargeable Zn-Air batteries. Carbon 2017, 111, 641–650. [Google Scholar] [CrossRef]
  3. Girishkumar, G.; McCloskey, B.; Luntz, A.C.; Swanson, S.; Wilcke, W. Lithium−air battery: Promise and challenges. J. Phys. Chem. Lett. 2010, 1, 2193–2203. [Google Scholar] [CrossRef]
  4. Stambouli, A.B.; Traversa, E. Solid oxide fuel cells (SOFCs): A review of an environmentally clean and efficient source of energy, Renewable Sustainable. Energy Rev. 2002, 6, 433–455. [Google Scholar] [CrossRef]
  5. Sivanantham, A.; Ganesan, P.; Shanmugam, S. Hierarchical NiCo2S4 Nanowire Arrays Supported on Ni Foam: An Efficient and Durable Bifunctional Electrocatalyst for Oxygen and Hydrogen Evolution Reactions. Adv. Funct. Mater. 2016, 26, 4661–4672. [Google Scholar] [CrossRef]
  6. Liu, Q.; Xie, L.; Liu, Z.; Du, G.; Asiri, A.M.; Sun, X. Zn-doped Ni3S2 nanosheets array as a high-performance electrochemical water oxidation catalyst in alkaline solution. Chem. Commun. 2017, 53, 12446–12449. [Google Scholar] [CrossRef]
  7. Grimaud, A.; Diaz-Morales, O.; Han, B.; Hong, W.T.; Lee, Y.L.; Giordano, L.; Stoerzinger, K.A.; Koper, M.T.M.; Shao-Horn, Y. Activating lattice oxygen redox reactions in metal oxides to catalyse oxygen evolution. Nat. Chem. 2017, 9, 457–465. [Google Scholar] [CrossRef]
  8. Yin, Q.; Tan, J.M.; Besson, C.; Geletii, Y.V.; Musaev, D.G.; Kuznetsov, A.E.; Luo, Z.; Hardcastle, K.I.; Hill, C.L. A fast soluble carbon-free molecular water oxidation catalyst based on abundant metals. Science 2010, 328, 342–345. [Google Scholar] [CrossRef]
  9. Liu, Y.; Wang, H.; Lin, D.; Liu, C.; Hsu, P.C.; Liu, W.; Chen, W.; Cui, Y. Electrochemical tuning of olivine-type lithium transition-metal phosphates as efficient water oxidation catalysts. Energy Environ. Sci. 2015, 8, 1719–1724. [Google Scholar] [CrossRef]
  10. McCrory, C.C.L.; Jung, S.; Ferrer, I.M.; Chatman, S.M.; Peters, J.C.; Jaramillo, T.F. Benchmarking hydrogen evolving reaction and oxygen evolving reaction electrocatalysts for solar water splitting devices. J. Am. Chem. Soc. 2015, 137, 4347–4357. [Google Scholar] [CrossRef]
  11. Caro, C.; Thirunavukkarasu, K.; Anilkumar, M.; Shiju, N.R.; Rothenberg, G. Selective Autooxidation of Ethanol over Titania-Supported Molybdenum Oxide Catalysts: Structure and Reactivity. Adv. Synth. Catal. 2012, 354, 1327–1336. [Google Scholar] [CrossRef] [PubMed]
  12. Caro, C.; Gámez, F.; Sayagues, M.J.; Polvillo, R.; Royo, J.L. AgACTiO2 nanoparticles with microbiocide properties under visible light. Mater. Res. Express 2015, 2, 055002. [Google Scholar] [CrossRef]
  13. Zhang, W.; Innocenti, G.; Ferbinteanu, M.; Ramos-Fernandez, E.V.; Sepulveda-Escribano, A.; Wu, H.; Cavani, F.; Rothenberg, G.; Shiju, N.R. Understanding the oxidative dehydrogenation of ethyl lactate to ethyl pyruvate over vanadia/titania. Catal. Sci. Technol. 2018, 8, 3737–3747. [Google Scholar] [CrossRef]
  14. Lee, Y.; Suntivich, J.; May, K.J.; Perry, E.E.; Shao-Horn, Y. Synthesis and activities of rutile IrO2 and RuO2 nanoparticles for oxygen evolution in acid and alkaline solutions. J. Phys. Chem. Lett. 2012, 3, 399–404. [Google Scholar] [CrossRef] [PubMed]
  15. Ghanem, M.A.; Arunachalam, P.; Almayouf, A.; Weller, M.T. Efficient Bi-Functional Electrocatalysts of Strontium Iron Oxy-Halides for Oxygen Evolution and Reduction Reactions in Alkaline Media. J. Electrochem. Soc. 2016, 163, H450–H458. [Google Scholar] [CrossRef]
  16. Deng, X.; Tüysüz, H. Cobalt-Oxide-Based Materials as Water Oxidation Catalyst: Recent Progress and Challenges. ACS Catal. 2014, 4, 3701–3714. [Google Scholar] [CrossRef]
  17. Zhang, G.; Xia, B.Y.; Wang, X.; Lou, X.W. Strongly coupled NiCo2O4-rGO hybrid nanosheets as a methanol-tolerant electrocatalyst for the oxygen reduction reaction. Adv. Mater. 2014, 26, 2408–2412. [Google Scholar] [CrossRef]
  18. Wang, Y.; Zhang, Y.; Liu, Z.; Xie, C.; Feng, S.; Liu, D.; Shao, M.; Wang, S. Layered double hydroxide nanosheets with multiple vacancies obtained by dry exfoliation as highly efficient oxygen evolution electrocatalysts. Angew. Chem. Int. Ed. 2017, 56, 5867–5871. [Google Scholar] [CrossRef]
  19. Duarte, M.F.P.; Rocha, I.M.; Figueiredo, J.L.; Freire, C.; Pereira, M.F.R. [email protected] nanotube composites: Bifunctional electrocatalysts for oxygen reactions. Catal. Today 2018, 301, 17–24. [Google Scholar] [CrossRef]
  20. Wang, Y.; Hu, T.; Liu, Q.; Zhang, L. CoMn2O4 embedded in MnOOH nanorods as a bifunctional catalyst for oxygen reduction and oxygen evolution reactions. Chem. Commun. 2018, 54, 4005–4008. [Google Scholar] [CrossRef]
  21. Liang, Y.; Li, Y.; Wang, H.; Zhou, J.; Wang, J.; Regier, T.; Dai, H. Co3O4 nanocrystals on graphene as a synergistic catalyst for oxygen reduction reaction. Nat. Mater. 2011, 10, 780–786. [Google Scholar] [CrossRef] [PubMed]
  22. Oh, T.; Kim, K.; Kim, J. Controllable active sites and facile synthesis of cobalt nanoparticle embedded in nitrogen and sulfur co-doped carbon nanotubes as efficient bifunctional electrocatalysts for oxygen reduction and evolution reactions. J. Energy Chem. 2019, 38, 60–67. [Google Scholar] [CrossRef]
  23. Kuang, M.; Zheng, G. Nanostructured bifunctional redox electrocatalysts. Small 2016, 12, 5656–5675. [Google Scholar] [CrossRef] [PubMed]
  24. Huang, Z.F.; Wang, J.; Peng, Y.; Jung, C.Y.; Fisher, A.; Wang, X. Design of efficient bifunctional oxygen reduction/evolution electrocatalyst: Recent advances and perspectives. Adv. Energy Mater. 2017, 7, 1700544. [Google Scholar] [CrossRef]
  25. Shang, L.; Yu, H.; Huang, X.; Bian, T.; Shi, R.; Zhao, Y.; Waterhouse, G.I.N.; Wu, L.Z.; Tung, C.H.; Zhang, T. Well-dispersed ZIF-derived Co, N-Co-doped carbon nanoframes through mesoporous-silica-protected calcination as efficient oxygen reduction electrocatalysts. Adv. Mater. 2016, 28, 1668–1674. [Google Scholar] [CrossRef] [PubMed]
  26. Hu, Y.; Liu, Y.; Sun, Y. Mesoporous Colloidal Superparticles of Platinum-Group Nanocrystals with Surfactant-Free Surfaces and Enhanced Heterogeneous Catalysis. Adv. Funct. Mater. 2015, 25, 1638–1647. [Google Scholar] [CrossRef]
  27. Wu, Z.; Zhao, D. Ordered mesoporous materials as adsorbents. Chem. Commun. 2011, 47, 3332–3338. [Google Scholar] [CrossRef]
  28. Knossalla, J.; Mezzavilla, S.; Schüth, F. Continuous synthesis of nanostructured silica-based materials in a gas-liquid segmented flow tubular reactor. New J. Chem. 2016, 40, 4361–4366. [Google Scholar] [CrossRef]
  29. Song, W.; Ren, Z.; Chen, S.Y.; Meng, Y.; Biswas, S.; Nandi, P.; Elsen, H.A.; Gao, P.X.; Suib, S.L. Ni- and Mn-promoted mesoporous Co3O4: A stable bifunctional catalyst with surface-structure-dependent activity for oxygen reduction reaction and oxygen evolution reaction. ACS Appl. Mater. Interfaces 2016, 8, 20802–20813. [Google Scholar] [CrossRef]
  30. Sa, Y.J.; Kwon, K.; Cheon, J.Y.; Kleitz, F.; Joo, S.H. Ordered mesoporous Co3O4 spinels as stable, bifunctional, noble metal-free oxygen electrocatalysts. J. Mater. Chem. A 2013, 1, 9992–10001. [Google Scholar] [CrossRef]
  31. Amer, M.S.; Ghanem, M.A.; Al-Mayouf, A.M.; Arunachalam, P.; Khdary, N. Low-loading of oxidized platinum nanoparticles into mesoporous titanium dioxide for effective and durable hydrogen evolution in acidic media. Arab. J. Chem. 2018. [Google Scholar] [CrossRef]
  32. Mosa, I.M.; Biswas, S.; El-Sawy, A.M.; Botu, V.; Guild, C.; Song, W.; Ramprasad, R.; Rusling, J.F.; Suib, S.L. Tunable mesoporous manganese oxide for high-performance oxygen reduction and evolution reactions. J. Mater. Chem. A 2015, 4, 620–631. [Google Scholar] [CrossRef]
  33. Zhou, W.; Li, W.; Wang, J.Q.; Qu, Y.; Yang, Y.; Xie, Y.; Zhang, K.; Wang, L.; Fu, H.; Zhao, D. Ordered mesoporous black TiO2 as highly efficient hydrogen evolution photocatalyst. J. Am. Chem. Soc. 2014, 136, 9280–9283. [Google Scholar] [CrossRef] [PubMed]
  34. Hartmann, P.; Lee, D.K.; Smarsly, B.M.; Janek, J. Mesoporous TiO2: Comparison of classical sol−gel and nanoparticle-based photoelectrodes for the water splitting reaction. ACS Nano 2010, 4, 3147–3154. [Google Scholar] [CrossRef] [PubMed]
  35. Amer, M.S.; Ghanem, M.A.; Al-Mayouf, A.M.; Arunachalam, P. Low-symmetry mesoporous titanium dioxide (lsm-TiO2) electrocatalyst for efficient and durable oxygen evolution in aqueous alkali. J. Electrochem. Soc. 2018, 165, H300–H309. [Google Scholar] [CrossRef]
  36. Ghanem, M.A.; Arunachalam, P.; Amer, M.S.; Al-Mayouf, A.M. Mesoporous titanium dioxide photoanodes decorated with gold nanoparticles for boosting the photoelectrochemical alkali water oxidation. Mater. Chem. Phys. 2018, 213, 56–66. [Google Scholar] [CrossRef]
  37. Liu, B.; Chen, H.M.; Liu, C.; Andrews, S.C.; Hahn, C.; Yang, P. Large-scale synthesis of transition-metal-doped TiO2 nanowires with controllable overpotential. J. Am. Chem. Soc. 2013, 135, 9995–9998. [Google Scholar] [CrossRef] [PubMed]
  38. Jang, D.M.; Kwak, I.H.; Kwon, E.L.; Jung, C.S.; Im, H.S.; Park, K.; Park, J. Transition-metal doping of oxide nanocrystals for enhanced catalytic oxygen evolution. J. Phys. Chem. C 2015, 119, 1921–1927. [Google Scholar] [CrossRef]
  39. Cai, L.; Cho, I.S.; Logar, M.; Mehta, A.; He, J.; Lee, C.H.; Rao, P.M.; Feng, Y.; Wilcox, J.; Prinz, F.B.; et al. Sol-flame synthesis of cobalt-doped TiO2 nanowires with enhanced electrocatalytic activity for oxygen evolution reaction. Phys. Chem. Chem. Phys. 2014, 16, 12299–12306. [Google Scholar] [CrossRef]
  40. Roy, N.; Sohn, Y.; Leung, K.T.; Pradhan, D. Engineered electronic states of transition metal doped TiO2 nanocrystals for low overpotential oxygen evolution reaction. J. Phys. Chem. C 2014, 118, 29499–29506. [Google Scholar] [CrossRef]
  41. García-Mota, M.; Vojvodic, A.; Metiu, H.; Man, I.C.; Su, H.Y.; Rossmeisl, J.; Nørskov, J.K. Tailoring the activity for oxygen evolution electrocatalysis on rutile TiO2(110) by transition-metal substitution. ChemCatChem 2011, 3, 1607–1611. [Google Scholar] [CrossRef]
  42. Han, L.N.; Lv, L.B.; Zhu, Q.C.; Wei, X.; Li, X.H.; Chen, J.S. Ultra-durable two-electrode Zn-air secondary batteries based on bifunctional titania nanocatalysts: Co2+ dopant boosts the electrochemical activity. J. Mater. Chem. A 2016, 4, 7841–7847. [Google Scholar] [CrossRef]
  43. Yang, Y.; Kao, L.C.; Liu, Y.; Sun, K.; Yu, H.; Guo, J.; Liou, S.Y.H.; Hoffmann, M.R. Modification of mesoporous titanium dioxide with cobalt oxide electrocatalyst for enhanced oxygen evolution reaction. ACS Catal. 2018, 8, 4278–4287. [Google Scholar] [CrossRef] [PubMed]
  44. Wu, Q.L.; Rankin, S.E. Tuning the mesopore size of titania thin films using a polymeric swelling agent. J. Phys. Chem. C 2011, 115, 11925–11933. [Google Scholar] [CrossRef]
  45. Crepaldi, E.L.; Soler-Illia, G.J.D.A.; Grosso, D.; Cagnol, F.; Ribot, F.; Sanchez, C. Controlled formation of highly organized mesoporous titania thin films: From mesostructured hybrids to mesoporous nanoanatase TiO2. J. Am. Chem. Soc. 2003, 125, 9770–9786. [Google Scholar] [CrossRef] [PubMed]
  46. Alberius, P.C.; Frindell, K.L.; Hayward, R.C.; Kramer, E.J.; Stucky, G.D.; Chmelka, B.F. General predictive syntheses of cubic, hexagonal, and lamellar silica and titania mesostructured thin films. Chem. Mater. 2002, 14, 3284–3294. [Google Scholar] [CrossRef]
  47. Wang, T.; Meng, X.; Liu, G.; Chang, K.; Li, P.; Kang, Q.; Liu, L.; Li, M.; Ouyang, S.; Ye, J. In situ synthesis of ordered mesoporous Co-doped TiO2 and its enhanced photocatalytic activity and selectivity for the reduction of CO2. J. Mater. Chem. A 2015, 3, 9491–9501. [Google Scholar] [CrossRef]
  48. Papageorgiou, A.C.; Cabailh, G.; Chen, Q.; Resta, A.; Lundgren, E.; Andersen, J.N.; Thornton, G. Growth and reactivity of titanium oxide ultrathin films on Ni(110). J. Phys. Chem. C 2007, 111, 7704–7710. [Google Scholar] [CrossRef]
  49. Wang, G.M.; Wang, H.; Ling, Y.; Tang, Y.; Yang, X.; Fitzmorris, R.C.; Wang, C.; Zhang, J.Z.; Li, Y. Hydrogen-Treated TiO2 Nanowire Arrays for Photoelectrochemical Water Splitting. Nano Lett. 2011, 11, 3026–3033. [Google Scholar] [CrossRef]
  50. Liu, D.; Zhang, Y.; Xiao, P.; Garcia, B.B.; Zhang, Q.; Zhou, X.; Cao, G. TiO2 nanotube arrays annealed in CO exhibiting high performance for lithium ion intercalation. Tech. Proc. 2009, 3, 50–57. [Google Scholar] [CrossRef]
  51. Chen, C.J.; Wen, Y.W.; Hu, X.L.; Ji, X.L.; Yan, M.Y.; Mai, L.Q.; Hu, P.; Shan, B.; Huang, Y.H. Na+ intercalation pseudocapacitance in graphene-coupled titanium oxide enabling ultra-fast sodium storage and long-term cycling. Nat. Commun. 2015, 6, 69297. [Google Scholar] [CrossRef] [PubMed]
  52. Lazarus, M.S.; Sham, T.K. X-ray photoelectron spectroscopy (XPS) studies of hydrogen reduced rutile (TiO2-x) surfaces. Chem. Phys. Lett. 1982, 92, 670–674. [Google Scholar] [CrossRef]
  53. McCafferty, E.; Wightman, J.P. Determination of the concentration of surface hydroxyl groups on metal oxide films by a quantitative XPS method. Surf. Interface Anal. 1998, 26, 549–564. [Google Scholar] [CrossRef]
  54. Feng, D.; Gao, T.N.; Fan, M.; Li, A.; Li, K.; Wang, T.; Huo, Q.; Qiao, Z.A. A general ligand-assisted self-assembly approach to crystalline mesoporous metal oxides. NPG Asia Mater. 2018, 10, 800–809. [Google Scholar] [CrossRef]
  55. Kruk, M.; Jaroniec, M.; Guan, S.; Inagaki, S. Gas Adsorption Characterization of Ordered Organic−Inorganic Nanocomposite Materials. Chem. Mater. 2001, 13, 3169–3183. [Google Scholar] [CrossRef]
  56. Sing, K.S.W.; Everet, D.H.; Haul, R.A.W. Reporting physisorption data for gas-solid systems with special reference to the determination of surface-area and porosity. Pure Appl. Chem. 1985, 57, 603–619. [Google Scholar] [CrossRef]
  57. Lu, W.; Liu, T.; Xie, L.; Tang, C.; Liu, D.; Hao, S.; Qu, F.; Du, G.; Ma, Y.; Asiri, A.M.; et al. In situ derived Co-B nanoarray: A high-efficiency and durable 3d bifunctional electrocatalyst for overall alkaline water splitting. Small 2017, 13, 1700805. [Google Scholar] [CrossRef]
  58. Gao, M.; Sheng, W.; Zhuang, Z.; Fang, Q.; Gu, S.; Jiang, J.; Yan, Y. Efficient water oxidation using nanostructured α-nickel-hydroxide as an electrocatalyst. J. Am. Chem. Soc. 2014, 136, 7077–7084. [Google Scholar] [CrossRef]
  59. Thenuwara, A.C.; Shumlas, S.L.; Attanayake, N.H.; Aulin, Y.V.; McKendry, I.G.; Qiao, Q.; Zhu, Y.; Borguet, E.; Zdilla, M.J.; Strongin, D.R. Intercalation of cobalt into the interlayer of birnessite improves oxygen evolution catalysis. ACS Catal. 2016, 6, 7739–7743. [Google Scholar] [CrossRef]
  60. Zhou, T.; Cao, Z.; Zhang, P.; Ma, H.; Gao, Z.; Wang, H.; Lu, Y.; He, J.; Zhao, Y. Transition metal ions regulated oxygen evolution reaction performance of Ni-based hydroxides hierarchical nanoarrays. Sci. Rep. 2017, 7, 46154. [Google Scholar] [CrossRef]
  61. Wang, X.; Zhuang, L.; He, T.; Jia, Y.; Zhang, L.; Yan, X.; Gao, M.; Du, A.; Zhu, Z.; Yao, X.; et al. Grafting cobalt diselenide on defective graphene for enhanced oxygen evolution reaction. iScience 2018, 7, 145–153. [Google Scholar] [CrossRef] [PubMed]
  62. Hall, D.E. Alkaline Water Electrolysis Anode Materials. J. Electrochem. Soc. 1985, 132, 41C–48C. [Google Scholar] [CrossRef]
  63. Wang, Y.; Zhou, T.; Jiang, K.; Da, P.; Peng, Z.; Tang, J.; Kong, B.; Cai, W.B.; Yang, Z.; Zheng, G. Reduced mesoporous Co3O4 nanowires as efficient water oxidation electrocatalysts and supercapacitor electrodes. Adv. Energy Mater. 2014, 4, 1400696. [Google Scholar] [CrossRef]
  64. Schlesinger, M.; Lasia, A. Modeling of Impedance of Porous Electrodes, Modeling and Numerical Simulations; Springer: New York, NY, USA, 2009; pp. 67–137. [Google Scholar]
  65. Bao, J.; Zhang, X.; Fan, B.; Zhang, J.; Zhou, M.; Yang, W.; Hu, X.; Wang, H.; Pan, B.; Xie, Y. Ultrathin spinel-structured nanosheets rich in oxygen deficiencies for enhanced electrocatalytic water oxidation. Angew. Chem. 2015, 127, 7507–7512. [Google Scholar] [CrossRef]
  66. Aijaz, A.; Masa, J.; Rösler, C.; Xia, W.; Weide, P.; Botz, A.J.R.; Fischer, R.A.; Schuhmann, W.; Muhler, M. [email protected]3O4 encapsulated in carbon nanotube-grafted nitrogen-doped carbon polyhedra as an advanced bifunctional oxygen electrode. Angew. Chem. Int. Ed. 2016, 55, 4087–4091. [Google Scholar] [CrossRef] [PubMed]
  67. Tang, H.; Prasad, K.; Sanjinès, R.; Schmid, P.E.; Lévy, F. Electrical and optical properties of TiO2 anatase thin films. J. Appl. Phys. 1994, 75, 2042–2047. [Google Scholar] [CrossRef]
  68. Wang, Q.; Hu, W.; Huang, Y. Nitrogen-doped graphene anchored cobalt oxides efficiently bi-functionally catalyze both oxygen reduction reaction and oxygen revolution reaction. Int. J. Hydrog. Energy 2017, 42, 5899–5907. [Google Scholar] [CrossRef]
  69. Huang, Y.B.; Zhang, M.; Liu, P.; Cheng, F.L.; Wang, L.S. Co3O4 supported on N, P-doped carbon as a bifunctional electrocatalyst for oxygen reduction and evolution reactions. Chin. J. Catal. 2016, 37, 1249–1256. [Google Scholar] [CrossRef]
  70. Jung, J.I.; Risch, M.; Park, S.; Kim, M.G.; Nam, G.; Jeong, H.Y.; Shao-Horn, Y.; Cho, J. Optimizing nanoparticle perovskite for bifunctional oxygen electrocatalysis. Energy Environ. Sci. 2016, 9, 176–183. [Google Scholar] [CrossRef]
  71. Masa, J.; Xia, W.; Sinev, I.; Zhao, A.; Sun, Z.; Grützke, S.; Weide, P.; Muhler, M.; Schuhmann, W. MnxOy/NC and CoxOy/NC nanoparticles embedded in a nitrogen-doped carbon matrix for high-performance bifunctional oxygen electrodes. Angew. Chem. Int. Ed. 2014, 53, 8508–8512. [Google Scholar] [CrossRef]
Figure 1. SEM images of (a) Co3O4(3)/lsm-TiO2 and (b) Co3O4(3)/hm-TiO2; typical TEM images of (c) Co3O4(3)/lsm-TiO2, (d) Co3O4(3)/hm-TiO2, and (e) high resolution TEM of Co3O4(3)/hm-TiO2 hybrid.
Figure 1. SEM images of (a) Co3O4(3)/lsm-TiO2 and (b) Co3O4(3)/hm-TiO2; typical TEM images of (c) Co3O4(3)/lsm-TiO2, (d) Co3O4(3)/hm-TiO2, and (e) high resolution TEM of Co3O4(3)/hm-TiO2 hybrid.
Catalysts 09 00836 g001

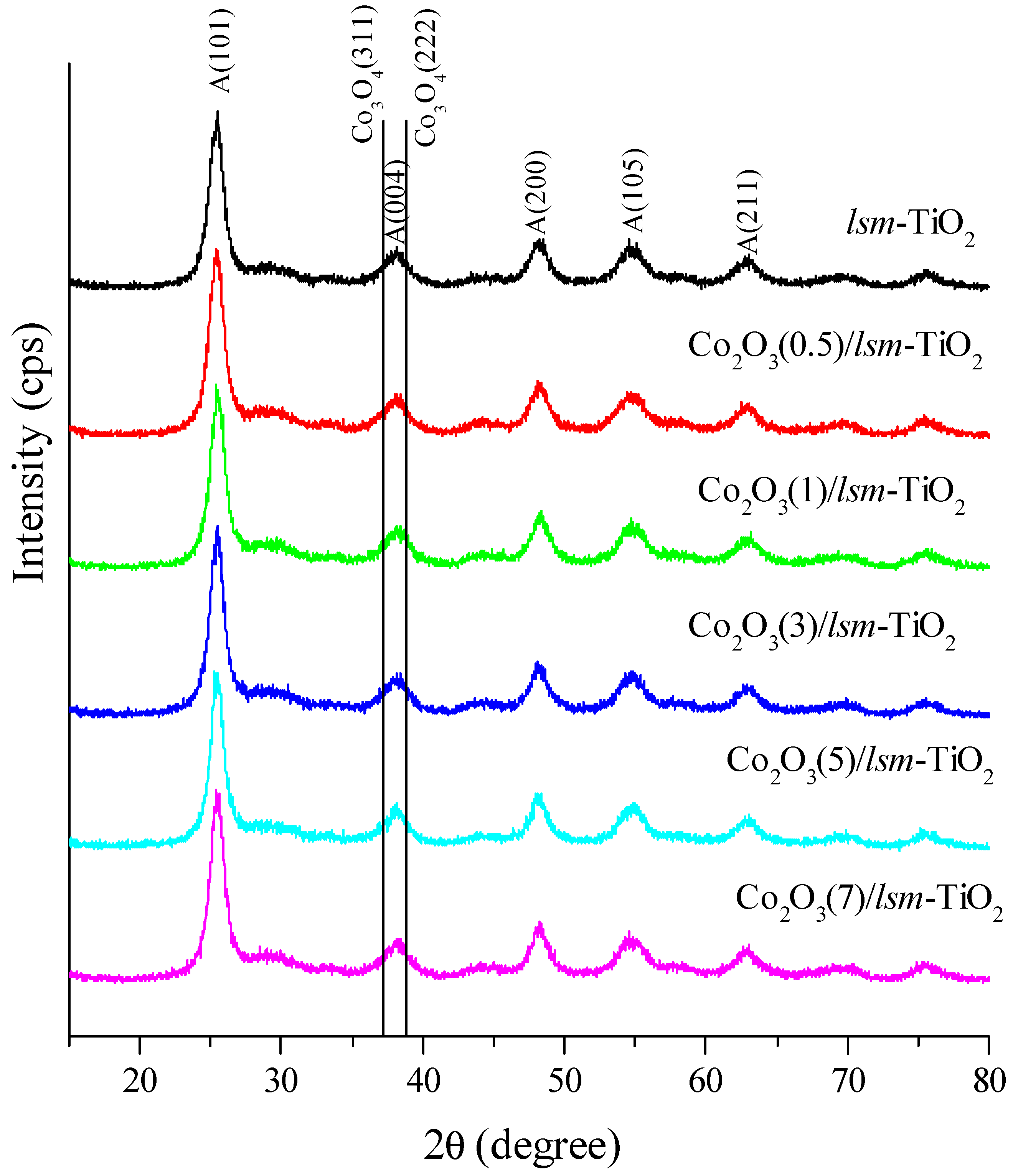

Figure 2. XRD patterns of lsm-TiO2 hybrids modified with different amount of cobalt oxide nanoparticles.
Figure 2. XRD patterns of lsm-TiO2 hybrids modified with different amount of cobalt oxide nanoparticles.
Catalysts 09 00836 g002

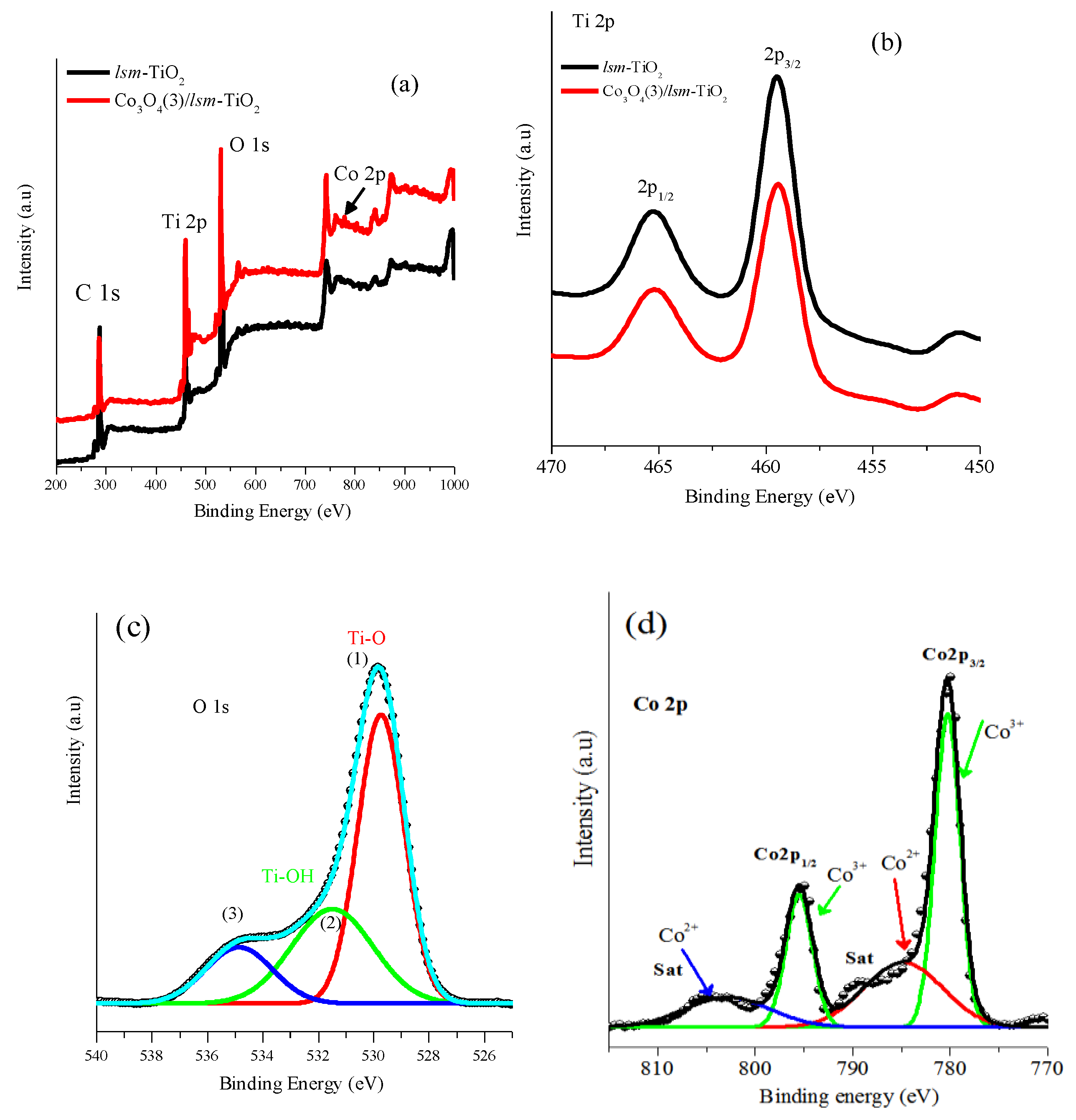

Figure 3. (a) The XPS survey spectra of pristine lsm-TiO2 and Co3O4(3)/lsm-TiO2 hybrids, (b) core spectra of Ti 2p for lsm-TiO2 and Co3O4(3)/lsm-TiO2 catalysts, (c) O 1s of Co3O4(3)/lsm-TiO2 catalyst, and (d) Co 2p core-levels.
Figure 3. (a) The XPS survey spectra of pristine lsm-TiO2 and Co3O4(3)/lsm-TiO2 hybrids, (b) core spectra of Ti 2p for lsm-TiO2 and Co3O4(3)/lsm-TiO2 catalysts, (c) O 1s of Co3O4(3)/lsm-TiO2 catalyst, and (d) Co 2p core-levels.
Catalysts 09 00836 g003

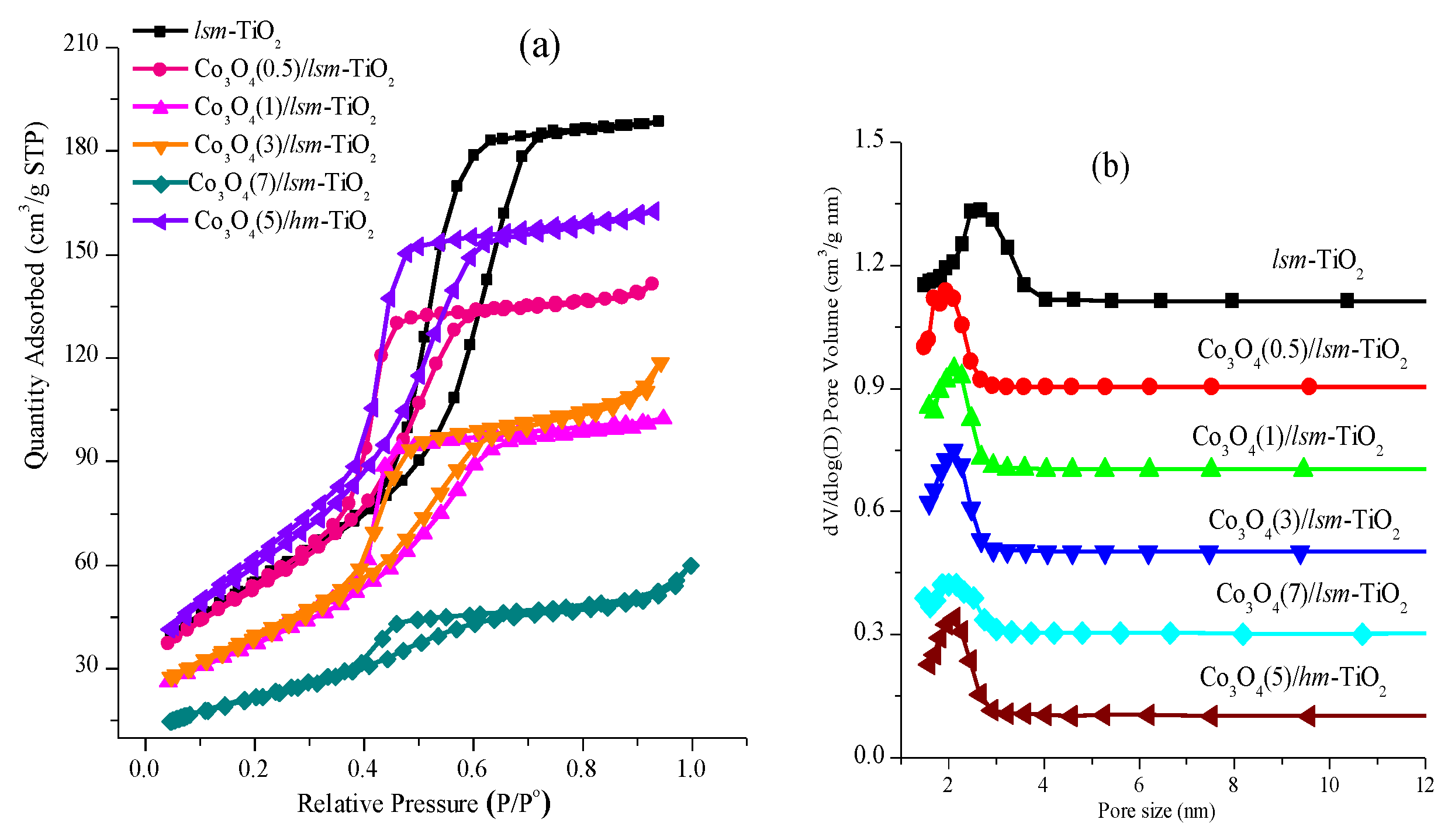

Figure 4. (a) The N2 sorption isotherms and (b) corresponding pore size distribution of the lsm-TiO2 modified with different loadings of cobalt oxide nanoparticles.
Figure 4. (a) The N2 sorption isotherms and (b) corresponding pore size distribution of the lsm-TiO2 modified with different loadings of cobalt oxide nanoparticles.
Catalysts 09 00836 g004

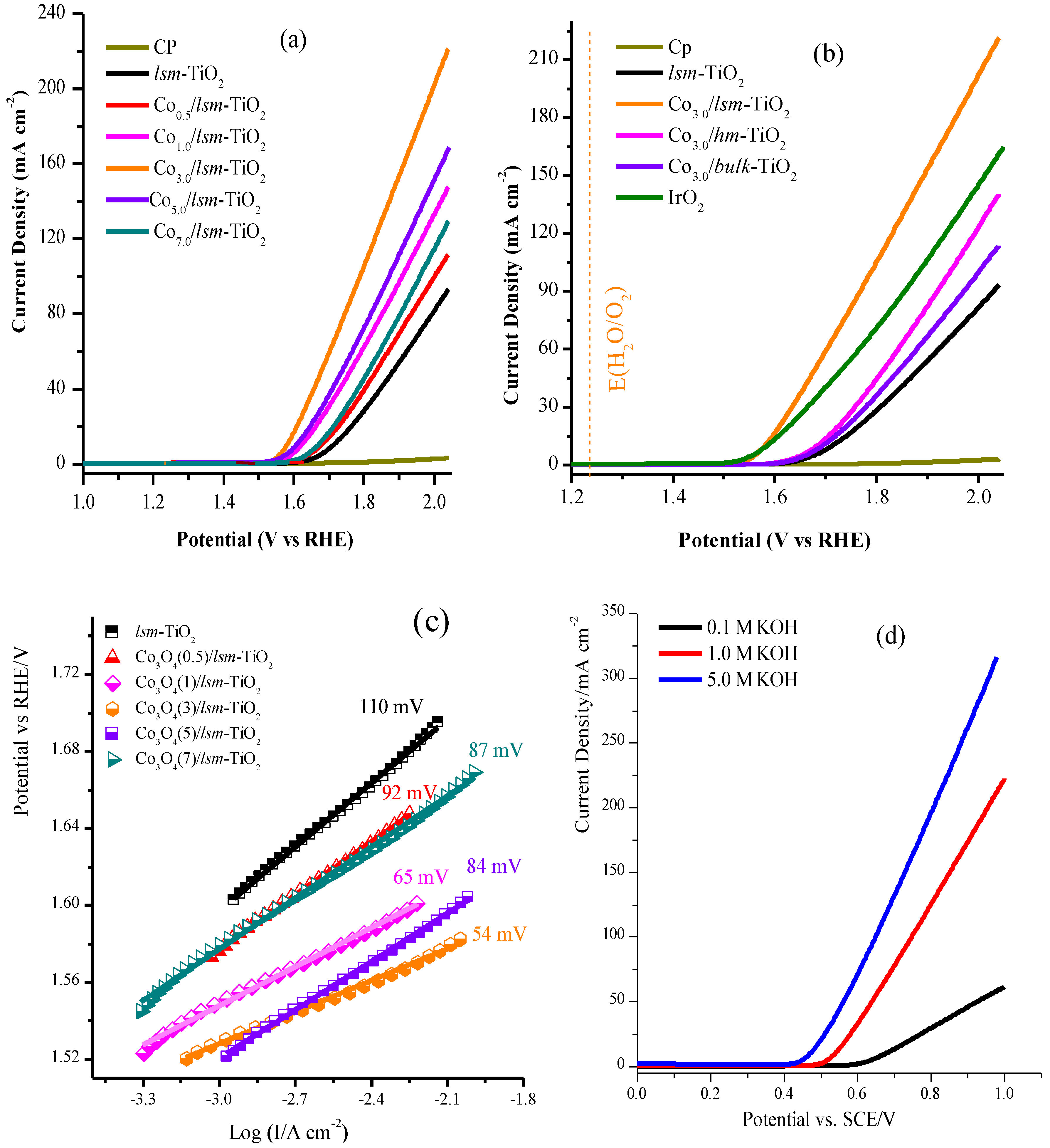

Figure 5. (a) The anodic-going sweep of LSV at 10 mV s−1 for a bare CP, and the Co3O4(x)/lsm-TiO2 hybrids in 1.0 M of KOH solution (catalyst loading ∼0.8 mg/cm2 for all the electrodes); (b) LSV curves of lsm-TiO2, Co3O4(3)/lsm-TiO2Co3O4(3)/hm-TiO2, Co3O4(3)/bulk-TiO2, and commercial IrO2 recorded in 1.0 M of KOH at 10 mV s−1; (c) Tafel curves of Co3O4(x)/lsm-TiO2 as extracted from LSV in (a); and (d) LSV of Co3O4(3)/lsm-TiO2 electrode performed in various KOH concentrations of 0.1, 1.0, and 5.0 M.
Figure 5. (a) The anodic-going sweep of LSV at 10 mV s−1 for a bare CP, and the Co3O4(x)/lsm-TiO2 hybrids in 1.0 M of KOH solution (catalyst loading ∼0.8 mg/cm2 for all the electrodes); (b) LSV curves of lsm-TiO2, Co3O4(3)/lsm-TiO2Co3O4(3)/hm-TiO2, Co3O4(3)/bulk-TiO2, and commercial IrO2 recorded in 1.0 M of KOH at 10 mV s−1; (c) Tafel curves of Co3O4(x)/lsm-TiO2 as extracted from LSV in (a); and (d) LSV of Co3O4(3)/lsm-TiO2 electrode performed in various KOH concentrations of 0.1, 1.0, and 5.0 M.
Catalysts 09 00836 g005

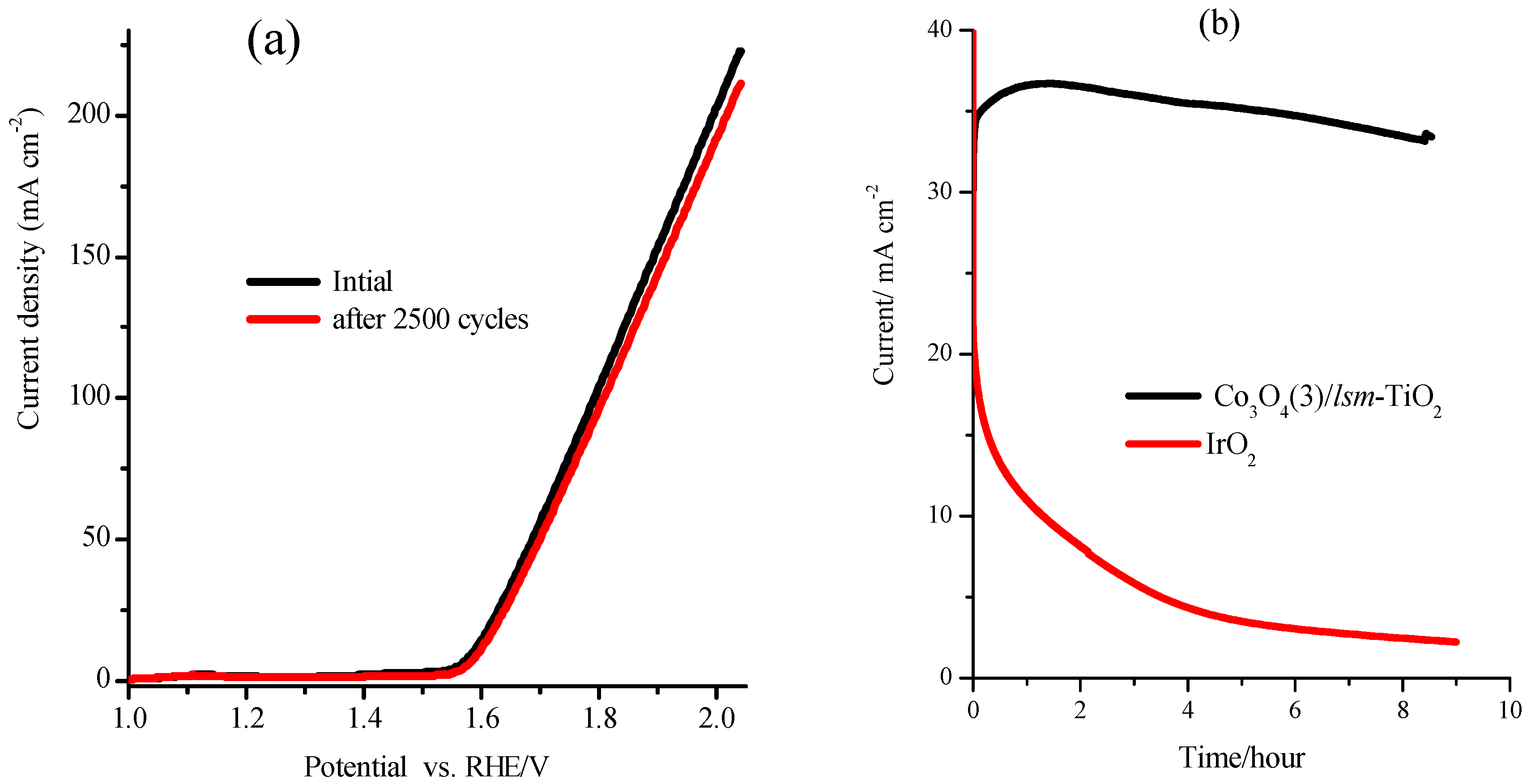

Figure 6. (a) LSV curves at 10 mV s−1 for the first and after 2500 cycles of Co3O4(3)/lsm-TiO2 electrode in 1.0 M of KOH solution; (b) the chronoamperometry of Co3O4(3)/lsm-TiO2 electrode and the benchmark IrO2 catalysts measured for 9 h at 1.65 V vs. RHE in 1.0 M KOH.
Figure 6. (a) LSV curves at 10 mV s−1 for the first and after 2500 cycles of Co3O4(3)/lsm-TiO2 electrode in 1.0 M of KOH solution; (b) the chronoamperometry of Co3O4(3)/lsm-TiO2 electrode and the benchmark IrO2 catalysts measured for 9 h at 1.65 V vs. RHE in 1.0 M KOH.
Catalysts 09 00836 g006

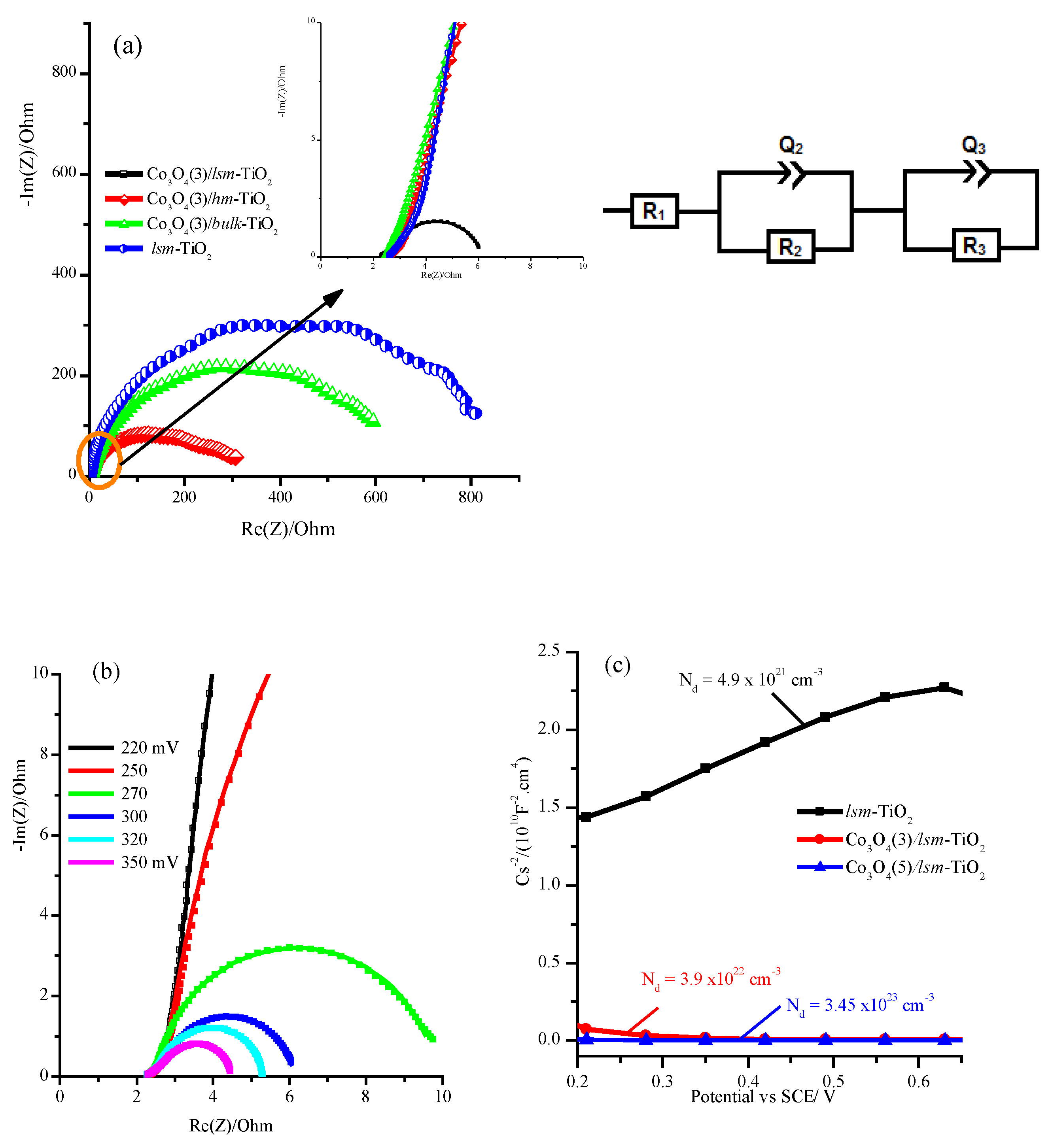

Figure 7. (a) Nyquist plots of lsm-TiO2, Co3O4(3)/lsm-TiO2, Co3O4(3)/hm-TiO2, and Co3O4(3)/bulk-TiO2 electrodes in 1.0 M KOH solution, the inset is the equivalent circuit; (b) Nyquist plots of Co3O4(3)/lsm-TiO2 at different overpotential (η); and (c) Mott−Schottky plot of pure lsm-TiO2, Co3O4(3)/lsm-TiO2 and Co3O4(5)/lsm-TiO2 electrodes measured at 500 Hz.
Figure 7. (a) Nyquist plots of lsm-TiO2, Co3O4(3)/lsm-TiO2, Co3O4(3)/hm-TiO2, and Co3O4(3)/bulk-TiO2 electrodes in 1.0 M KOH solution, the inset is the equivalent circuit; (b) Nyquist plots of Co3O4(3)/lsm-TiO2 at different overpotential (η); and (c) Mott−Schottky plot of pure lsm-TiO2, Co3O4(3)/lsm-TiO2 and Co3O4(5)/lsm-TiO2 electrodes measured at 500 Hz.
Catalysts 09 00836 g007
Figure 8. (a) Cathodic-going LSV curves at 10 mV s-1 of lsm-TiO2 and Co3O4(3)/lsm-TiO2 catalysts loaded on GC electrode in N2- and O2-saturated 1.0  M of KOH solution; (b) the LSV plots of lsm-TiO2, Co3O4(3)/bulk-TiO2, Co3O4(3)/hm-TiO2, and Co3O4(3)/lsm-TiO2, loaded on GC electrode at a scan rate of 10 mV s−1 and a rotation speed of 2000 rpm in 1.0 M KOH solution; (c) the corresponding Koutecky–Levich (K–L) plots (at potentials of 0.25–0.5 V vs. RHE) for Co3O4(3)/lsm-TiO2 catalyst; (d) the LSV of both OER and ORR at scan rate of 10 mV s−1 of lsm-TiO2, Co3O4(3)/lsm-TiO2, Co3O4(3)/bulk-TiO2, and Pt/C catalysts supported on CP electrode in O2-saturated 1.0 M KOH solution (the catalyst loading on the CP electrode was 0.8 mg cm−2 for all catalysts).
Figure 8. (a) Cathodic-going LSV curves at 10 mV s-1 of lsm-TiO2 and Co3O4(3)/lsm-TiO2 catalysts loaded on GC electrode in N2- and O2-saturated 1.0  M of KOH solution; (b) the LSV plots of lsm-TiO2, Co3O4(3)/bulk-TiO2, Co3O4(3)/hm-TiO2, and Co3O4(3)/lsm-TiO2, loaded on GC electrode at a scan rate of 10 mV s−1 and a rotation speed of 2000 rpm in 1.0 M KOH solution; (c) the corresponding Koutecky–Levich (K–L) plots (at potentials of 0.25–0.5 V vs. RHE) for Co3O4(3)/lsm-TiO2 catalyst; (d) the LSV of both OER and ORR at scan rate of 10 mV s−1 of lsm-TiO2, Co3O4(3)/lsm-TiO2, Co3O4(3)/bulk-TiO2, and Pt/C catalysts supported on CP electrode in O2-saturated 1.0 M KOH solution (the catalyst loading on the CP electrode was 0.8 mg cm−2 for all catalysts).
Catalysts 09 00836 g008
Table 1. Textural properties of the lsm-TiO2 and Co3O4(x)/lsm-TiO2 catalyst derived from nitrogen adsorption and desorption data.
Table 1. Textural properties of the lsm-TiO2 and Co3O4(x)/lsm-TiO2 catalyst derived from nitrogen adsorption and desorption data.
CatalystBET Surface Area (m2 g−1) aPore Size (nm) bPore Volume (cm3 g−1) c
lsm-TiO22002.70.290
Co3O4(0.5)/lsm-TiO21752.010.25
Co3O4(1)/lsm-TiO21582.030.17
Co3O4(3)/lsm-TiO21462.110.11
Co3O4(5)/lsm-TiO21191.950.10
Co3O4(7)/lsm-TiO2811.830.071
Co3O4(3)/hm-TiO22292.110.22
Co3O4(3)/bulk-TiO2421.500.025
a BET is evaluated by the BET equation; b Pore size is determined by the BJH method; c Total pore volume is calculated at p/p0 = 0.950–0.995.
Table 2. The electrochemical parameters of the mesoporous TiO2 modified with cobalt oxide nanoparticles, as obtained from the LSV in Figure 5.
Table 2. The electrochemical parameters of the mesoporous TiO2 modified with cobalt oxide nanoparticles, as obtained from the LSV in Figure 5.
CatalystsOnset Potential vs. RHE/V aη (mV)
at (10 mA/cm2) b
η (mV)
at (20 mA/cm2) c
Current mA/cm2 at 2.0 V vs. RHETafel Slope (mV/dec) dmass Activity at 1.6 V (A g−1 ) eTOF at η = 0.370 V (s−1 ) f
lsm-TiO21.620490530949820.00033
Co3O4(0.5)/lsm-TiO21.5104494921139250.0038
Co3O4(1)/lsm-TiO21.49039043214965150.012
Co3O4(3)/lsm-TiO21.48534837022254420.035
Co3O4(5)/lsm-TiO21.49037041017084230.020
Co3O4(7)/lsm-TiO21.5304374811318750.0037
Co3O4(3)/hm-TiO21.5845249014112130.0028
Co3O4(3)/bulk-TiO21.5904705101149130.0020
IrO21.47535439816481340.019
a Onset overpotential; b Overpotential at j = 10, 20 mA/cm2; d Tafel slope estimated from the Tafel equation: η = b log (j/j0); e The values of mass activity; d Turnover frequency (TOF), see Supporting Material for the calculation method.
Table 3. Overpotential values calculated at 10 and 20 mA/cm2, and current density at 1.0 V vs. SCE, of Co3O4(3)/lsm-TiO2 obtained in various KOH concentrations.
Table 3. Overpotential values calculated at 10 and 20 mA/cm2, and current density at 1.0 V vs. SCE, of Co3O4(3)/lsm-TiO2 obtained in various KOH concentrations.
Electrolyte
(KOH)
η (mV)
at 10 mA/cm2
η (mV)
at 20 mA/cm2
I (mA/cm2) at 1.0 VTafel Slope mV/dec
0.1 M4455126187
1.0 M30933722254
5.0 M24327231871
Table 4. The EIS parameters of pure lsm-TiO2, Co3O4(3)/lsm-TiO2, Co2O3(3)/hm-TiO2, and Co2O3(3)/bulk-TiO2 catalysts obtained through fitting EIS spectra measured at η = 500 mV to an equivalent circuit.
Table 4. The EIS parameters of pure lsm-TiO2, Co3O4(3)/lsm-TiO2, Co2O3(3)/hm-TiO2, and Co2O3(3)/bulk-TiO2 catalysts obtained through fitting EIS spectra measured at η = 500 mV to an equivalent circuit.
CatalystR1 (Ω) Q2 (µF. sn−1)R2 (Ω) Q3 (µF. sn−1)R3 (Ω)
lsm-TiO22.152100304 109448
Co3O4(3)/lsm-TiO22.26010,1407.1097600.480
Co3O4(3)/hm-TiO22.7207170184323085
Co3O4(3)/bulk-TiO22.2533870723190110.4
Table 5. The EIS extracted parameters from fitting EIS plots measured at different overpotential (η) of Co3O4(3)/lsm-TiO2 catalyst.
Table 5. The EIS extracted parameters from fitting EIS plots measured at different overpotential (η) of Co3O4(3)/lsm-TiO2 catalyst.
Overpotential (η)/mVR1 (Ω) Q2 (µF. sn−1)R2 (Ω) Q3 (µF. sn−1)R3 (Ω)
2202.269370299104,0000.95
2502.3888905342601.40
2802.2610,1407.197600.48
3002.4112,6503.90--3.4
3202.2575,7502.5298062.52
3502.2733,1200.5998401.69

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
